◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50813 - NKR(EUROPE)-RHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-40A - STEERING UNIT ▶
4-40A — STEERING UNIT (#20502) — 55 parça

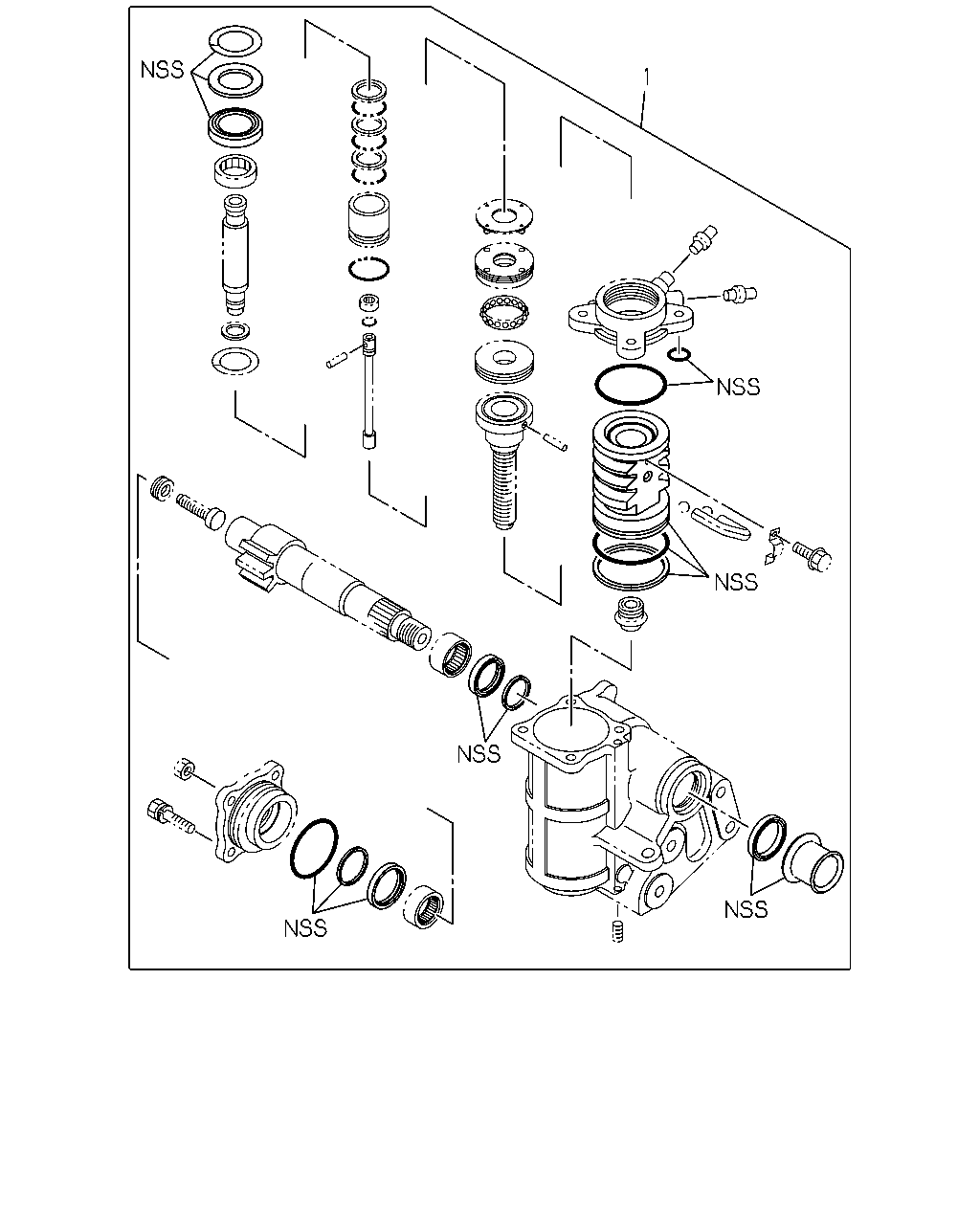

çizim 10640
1
BalonParca AdiParca NoAdetTipApplied Date
1 06.507 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: A = 8-97172-155-0, 97172155 		8-97207-473-0 01 1 -
1 06.507 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: B = 8-97251-842-1, 97251842 		8-97264-465-0 01 1 -

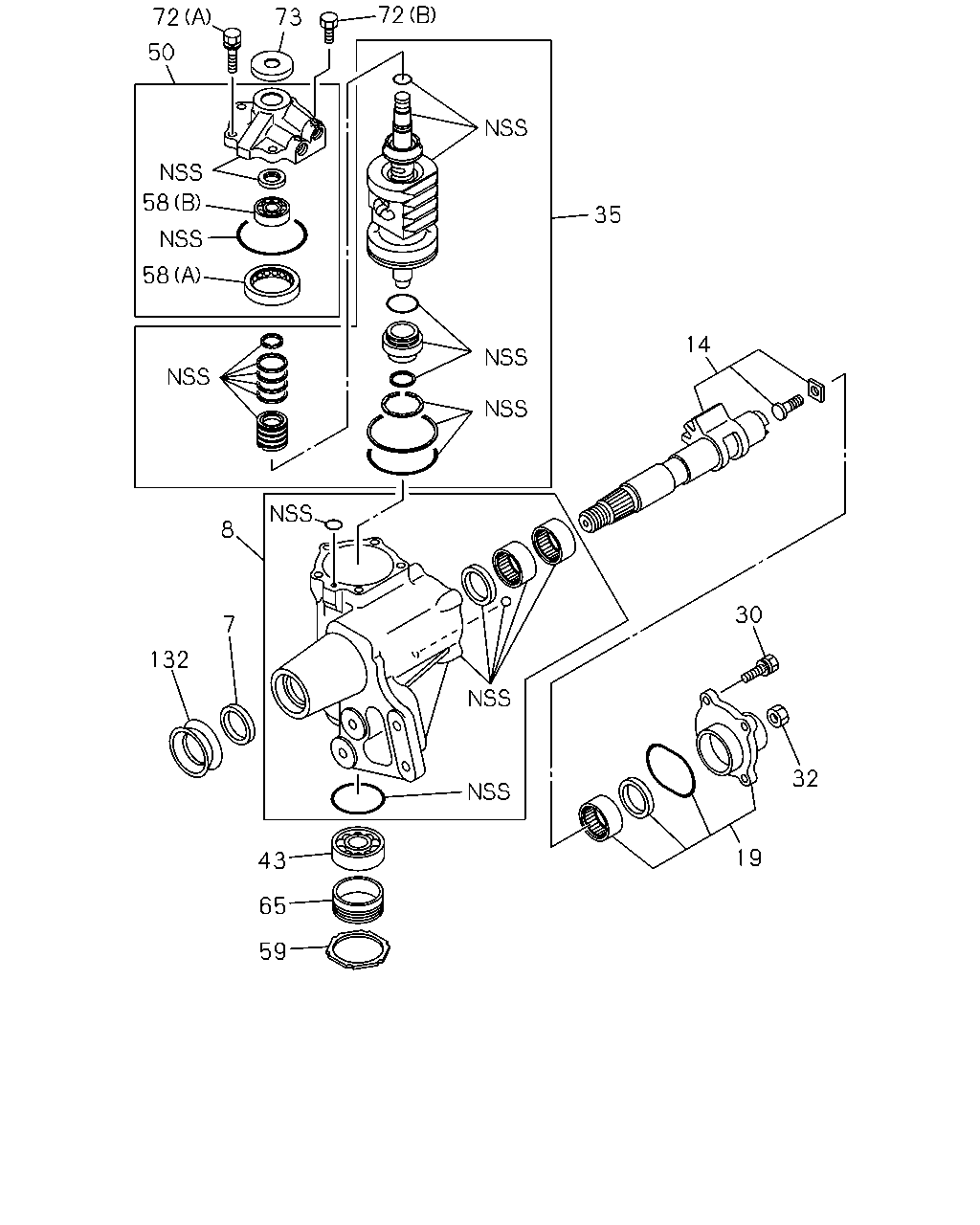

çizim 48683
72 72 73 50 58 35 58 14 8 30 7 132 32 19 43 65 59
BalonParca AdiParca NoAdetTipApplied Date
7 06.855 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 8-97172-155-0, 97172155 		8-97207-476-0 01 1 -
8 06.803 BOX ASM; STRG UNIT
ASM PART: B = 8-97251-842-1, 97251842 		8-97202-842-1 01 1 -
8 06.803 BOX ASM; STRG UNIT
ASM PART: A = 8-97172-155-0, 97172155 		8-97207-477-0 01 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: B = 8-97251-842-1, 97251842 		8-97202-843-0 01 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 8-97172-155-0, 97172155 		8-97207-478-0 01 1 -
19 06.807 COVER; SIDE STRG UNIT
ASM PART: B = 8-97251-842-1, 97251842 		8-97014-933-1 01 1 -
19 06.807 COVER; SIDE STRG UNIT
ASM PART: A = 8-97172-155-0, 97172155 		8-97207-479-0 01 1 -
30 06.809 BOLT; COVER STRG UNIT
ASM PART: B = 8-97251-842-1, 97251842 		8-97014-836-0 04 1 -
30 06.809 BOLT; COVER STRG UNIT
ASM PART: A = 8-97172-155-0, 97172155 		8-97207-475-0 04 1 -
32 06.822 NUT; ADJ SCREW,STRG UNIT
ASM PART: A = 8-97172-155-0, 97172155 		8-94116-504-0 01 1 -
32 06.822 NUT; ADJ SCREW,STRG UNIT
ASM PART: B = 8-97251-842-1, 97251842 		8-97014-834-0 01 1 -
35 06.586 HOUSING & SCREW ASM; STRG UNIT
ASM PART: A = 8-97172-155-0, 97172155 		8-97207-472-0 01 1 -
35 06.586 HOUSING & SCREW ASM; STRG UNIT
ASM PART: B = 8-97251-842-1, 97251842 		8-97264-469-0 01 1 -0212
35 06.586 HOUSING & SCREW ASM; STRG UNIT
ASM PART: B = 8-97251-842-1, 97251842 		8-97287-221-0 01 1 0301-
43 06.525 BEARING; WORM SHAFT,STRG UNIT
ASM PART: A = 8-97172-155-0, 97172155 		8-94116-500-0 01 1 -
50 06.586 HOUSING ASM; VALVE STRG UNIT
ASM PART: A = 8-97172-155-0, 97172155 		8-97207-480-0 01 1 -
58 06.835 BEARING; HSG STRG UNIT
(A) ASM PART: A = 8-97172-155-0, 97172155 		8-94116-509-0 01 1 -
58 06.835 BEARING; HSG STRG UNIT
(B) ASM PART: A = 8-97172-155-0, 97172155 		8-97076-865-0 01 1 -
59 06.521 NUT; COVER STRG UNIT
ASM PART: A = 8-97172-155-0, 97172155 		8-94116-505-0 01 1 -
65 06.518 COVER; FRT,STRG UNIT
ASM PART: A = 8-97172-155-0, 97172155 		8-94116-506-0 01 1 -
72 06.550 BOLT; HSG FIX STRG UNIT
(B) ASM PART: B = 8-97251-842-1, 97251842 		1-44519-110-0 03 1 -
72 06.550 BOLT; HSG FIX STRG UNIT
(A), W/WASHER ASM PART: A = 8-97172-155-0, 97172155 		8-94116-501-0 04 1 -
72 06.550 BOLT; HSG FIX STRG UNIT
(B) ASM PART: A = 8-97172-155-0, 97172155 		8-97018-930-0 01 1 -
72 06.550 BOLT; HSG FIX STRG UNIT
06.809, (A) ASM PART: B = 8-97251-842-1, 97251842 		8-97078-178-0 01 1 -
73 06.840 COVER; DUST,STRG UNIT
ASM PART: A = 8-97172-155-0, 97172155 		8-94116-495-0 01 1 -
132 06.822 COVER; DUST,STRG UNIT
ASM PART: A = 8-97172-155-0, 97172155 		8-97015-019-0 01 1 -

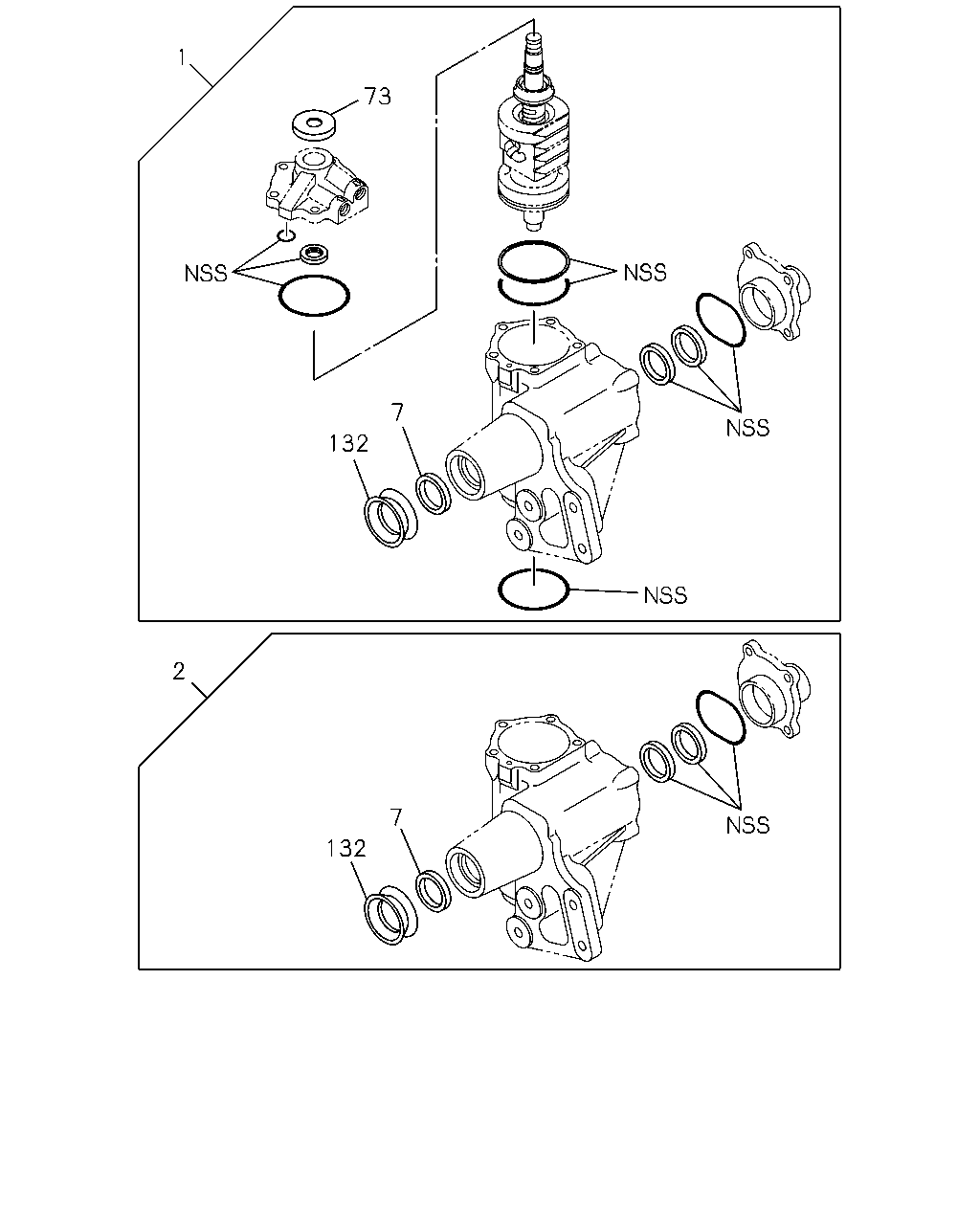

çizim 49165
1 73 7 132 2 7 132
BalonParca AdiParca NoAdetTipApplied Date
1 06.507 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: A = 8-97172-155-0, 97172155 		8-97207-473-0 01 1 -
1 06.507 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: B = 8-97251-842-1, 97251842 		8-97264-465-0 01 1 -
2 06.507 REPAIR KIT; STRG UNIT,2 YEAR
ASM PART: A = 8-97172-155-0, 97172155 		8-97207-474-0 01 1 -
7 06.855 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 8-97172-155-0, 97172155 		8-97207-476-0 01 1 -
73 06.840 COVER; DUST,STRG UNIT
ASM PART: A = 8-97172-155-0, 97172155 		8-94116-495-0 01 1 -
132 06.822 COVER; DUST,STRG UNIT
ASM PART: A = 8-97172-155-0, 97172155 		8-97015-019-0 01 1 -

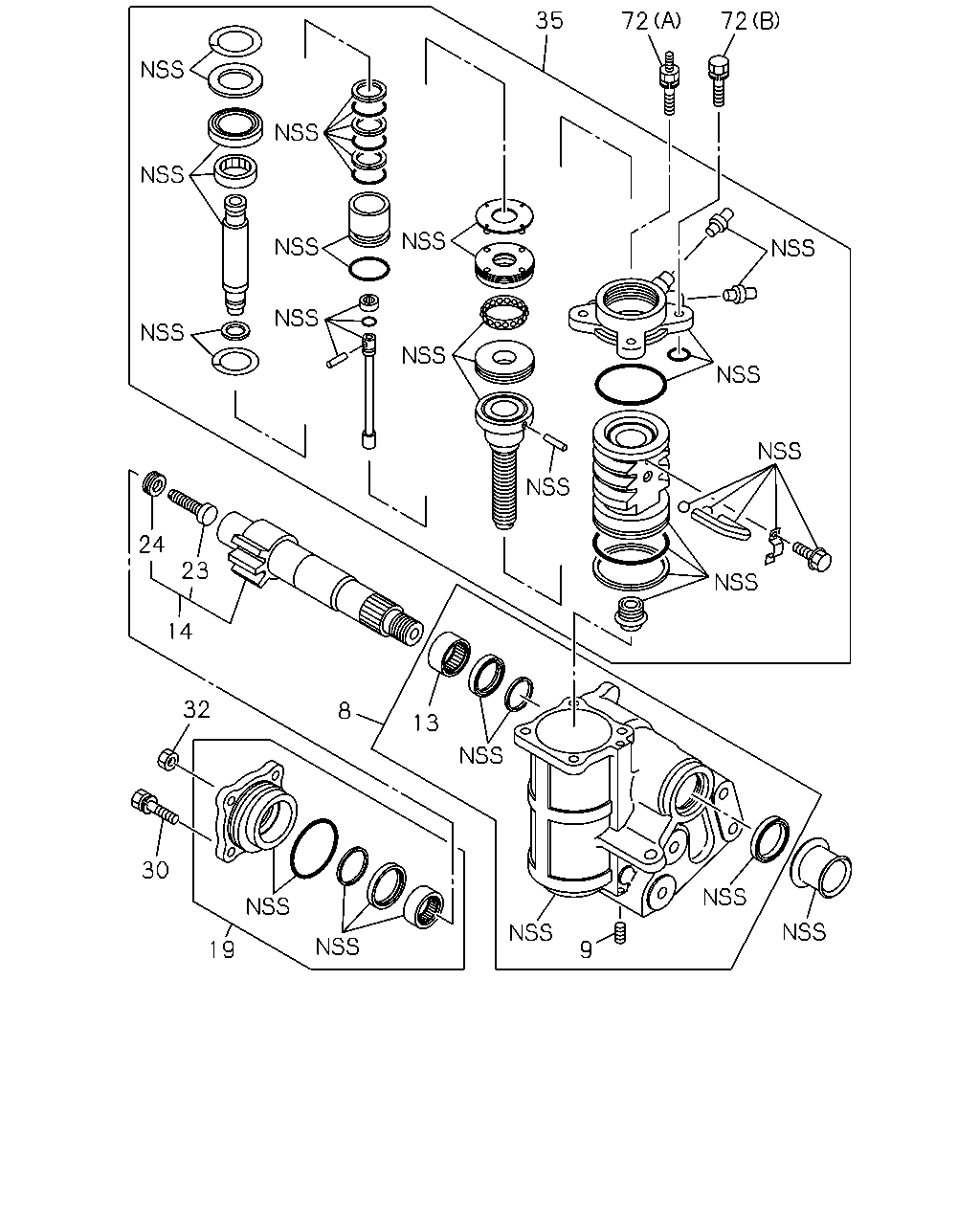

çizim 51197
35 72 72 24 23 14 32 8 13 30 19 9
BalonParca AdiParca NoAdetTipApplied Date
8 06.803 BOX ASM; STRG UNIT
ASM PART: B = 8-97251-842-1, 97251842 		8-97202-842-1 01 1 -
8 06.803 BOX ASM; STRG UNIT
ASM PART: A = 8-97172-155-0, 97172155 		8-97207-477-0 01 1 -
9 06.806 PLUG; FILLER,STRG UNIT
ASM PART: B = 8-97251-842-1, 97251842 		8-97014-820-0 02 1 -
13 06.786 BEARING; SHAFT,BOX SIDE,STRG UNI
ASM PART: B = 8-97251-842-1, 97251842 		8-97014-828-0 01 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: B = 8-97251-842-1, 97251842 		8-97202-843-0 01 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 8-97172-155-0, 97172155 		8-97207-478-0 01 1 -
19 06.807 COVER; SIDE STRG UNIT
ASM PART: B = 8-97251-842-1, 97251842 		8-97014-933-1 01 1 -
19 06.807 COVER; SIDE STRG UNIT
ASM PART: A = 8-97172-155-0, 97172155 		8-97207-479-0 01 1 -
23 06.822 SCREW; ADJ,SECTOR SHAFT,STRG UNI
ASM PART: B = 8-97251-842-1, 97251842 		8-97014-842-0 01 1 -
24 06.822 RETAINER; STRG UNIT
ASM PART: B = 8-97251-842-1, 97251842 		8-97014-841-0 01 1 -
30 06.809 BOLT; COVER STRG UNIT
ASM PART: B = 8-97251-842-1, 97251842 		8-97014-836-0 04 1 -
30 06.809 BOLT; COVER STRG UNIT
ASM PART: A = 8-97172-155-0, 97172155 		8-97207-475-0 04 1 -
32 06.822 NUT; ADJ SCREW,STRG UNIT
ASM PART: A = 8-97172-155-0, 97172155 		8-94116-504-0 01 1 -
32 06.822 NUT; ADJ SCREW,STRG UNIT
ASM PART: B = 8-97251-842-1, 97251842 		8-97014-834-0 01 1 -
35 06.586 HOUSING & SCREW ASM; STRG UNIT
ASM PART: A = 8-97172-155-0, 97172155 		8-97207-472-0 01 1 -
35 06.586 HOUSING & SCREW ASM; STRG UNIT
ASM PART: B = 8-97251-842-1, 97251842 		8-97264-469-0 01 1 -0212
35 06.586 HOUSING & SCREW ASM; STRG UNIT
ASM PART: B = 8-97251-842-1, 97251842 		8-97287-221-0 01 1 0301-
72 06.550 BOLT; HSG FIX STRG UNIT
(B) ASM PART: B = 8-97251-842-1, 97251842 		1-44519-110-0 03 1 -
72 06.550 BOLT; HSG FIX STRG UNIT
(A), W/WASHER ASM PART: A = 8-97172-155-0, 97172155 		8-94116-501-0 04 1 -
72 06.550 BOLT; HSG FIX STRG UNIT
(B) ASM PART: A = 8-97172-155-0, 97172155 		8-97018-930-0 01 1 -
72 06.550 BOLT; HSG FIX STRG UNIT
06.809, (A) ASM PART: B = 8-97251-842-1, 97251842 		8-97078-178-0 01 1 -
