0-60B — ENGINE ELECTRICAL CONTROL PARTS (#20499) — 148 parça

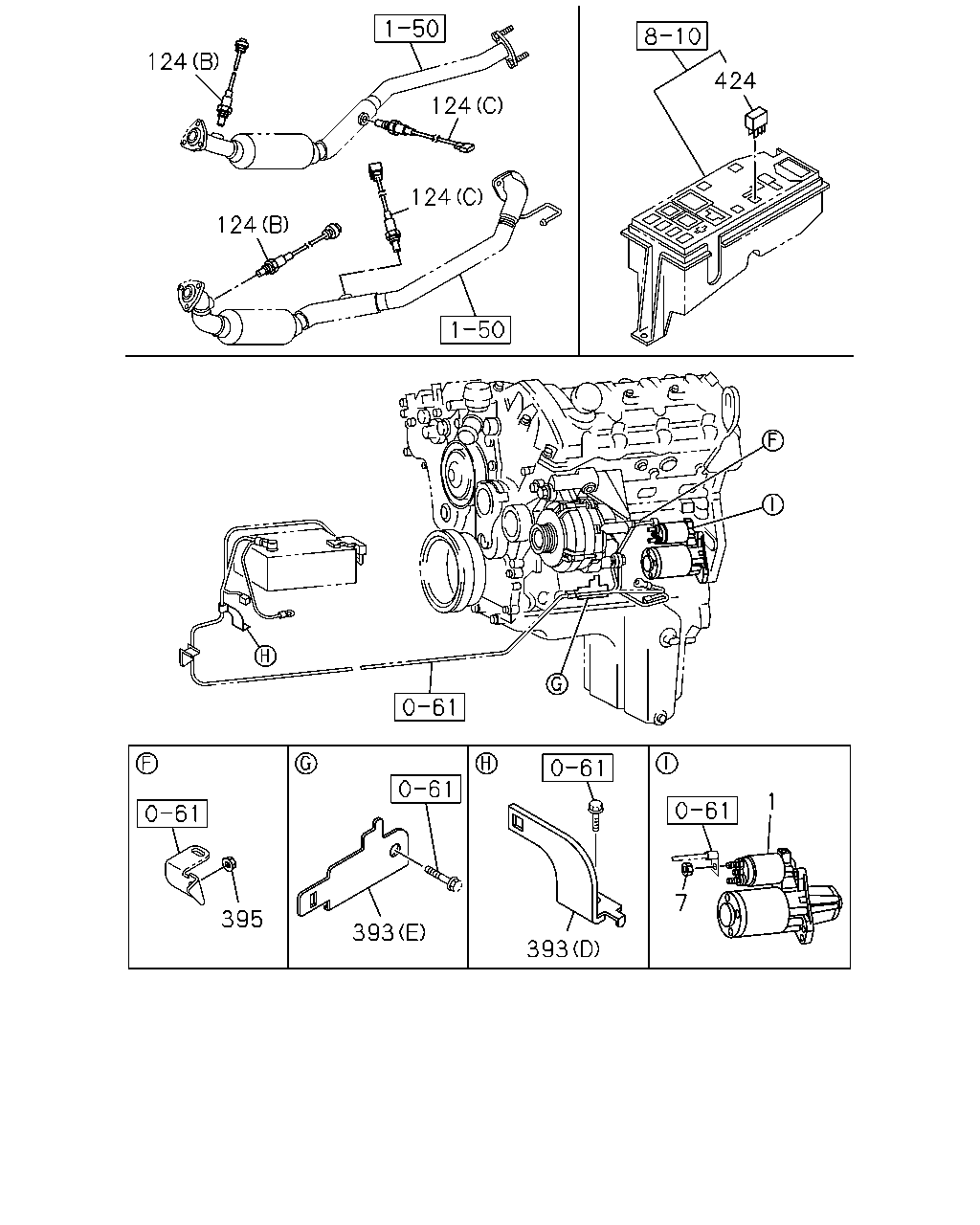

çizim 12006
124 424 124 124 124 1 7 395 393 393
BalonParca AdiParca NoAdetTipApplied Date A B
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 1.4KW 		8-94384-314-1 01 1 0307-0609 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 1.4KW 		8-92180-353-0 01 1 0509- ●
7 02.042 NUT; STARTER
04.309 M8 W/LK WASHER 		8-94413-537-0 01 1 0307-0508 ●
7 02.042 NUT; STARTER
04.309 M8 W/LK WASHER 		8-94413-537-0 01 1 0509-0609 ● ●
7 02.042 NUT; STARTER
04.309 M8 W/LK WASHER 		8-94413-537-0 01 1 0610- ●
124 01.150 SENSOR; OXYGEN
(A) 		8-97287-352-0 02 1 0307-0609 ●
124 01.150 SENSOR; OXYGEN
(C) 		8-12575-904-0 02 1 0509- ●
124 01.150 SENSOR; OXYGEN
(B) 		8-92210-450-0 02 1 0509- ●
393 02.343 BRACKET; HARNESS TO BODY
(C) 		8-97236-162-0 01 1 0307-0609 ●
393 02.343 BRACKET; HARNESS TO BODY
(A) 		8-97249-301-0 01 1 0307-0609 ●
393 02.343 BRACKET; HARNESS TO BODY
(B) 		8-97311-081-0 01 1 0307-0609 ●
393 02.343 BRACKET; HARNESS TO BODY
(D) 		8-98004-142-0 01 1 0509- ●
393 02.343 BRACKET; HARNESS TO BODY
(E) 		8-98004-144-0 01 1 0509- ●
395 02.343 NUT; BRKT FIX
07.633 M8 FLANGE 		0-91150-108-0 01 1 0509-0603 ●
395 02.343 NUT; BRKT FIX
01.062 M8 FLANGE 		0-91180-108-0 01 1 0604- ●
424 02.510 RELAY; SAFETY,STARTER
02.485 12V YAZAKI 		8-97309-292-0 01 1 0406-0508 ●
424 02.510 RELAY; SAFETY,STARTER
02.485 12V YAZAKI 		8-97309-292-0 01 1 0509-0609 ● ●
424 02.510 RELAY; SAFETY,STARTER
12V OMRON 		8-97125-441-1 01 1 0508-0508 ●
424 02.510 RELAY; SAFETY,STARTER
4X4 CREW CAB LONG(TFS*WF) M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) EXC. IMMOBILIZER SYSTEM<7KC> 12V OMRON 		8-97125-441-1 01 1 0509-0512 ●
424 02.510 RELAY; SAFETY,STARTER
4X4(TFS***) M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) EXC. IMMOBILIZER SYSTEM<7KC> 12V OMRON 		8-97125-441-1 01 1 0601-0609 ●
424 02.510 RELAY; SAFETY,STARTER
02.485 12V YAZAKI 		8-97309-294-0 01 1 0508-0512 ●
424 02.510 RELAY; SAFETY,STARTER
4X4(TFS***) M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) EXC. IMMOBILIZER SYSTEM<7KC> 02.485 12V YAZAKI 		8-97309-294-0 01 1 0601-0609 ●

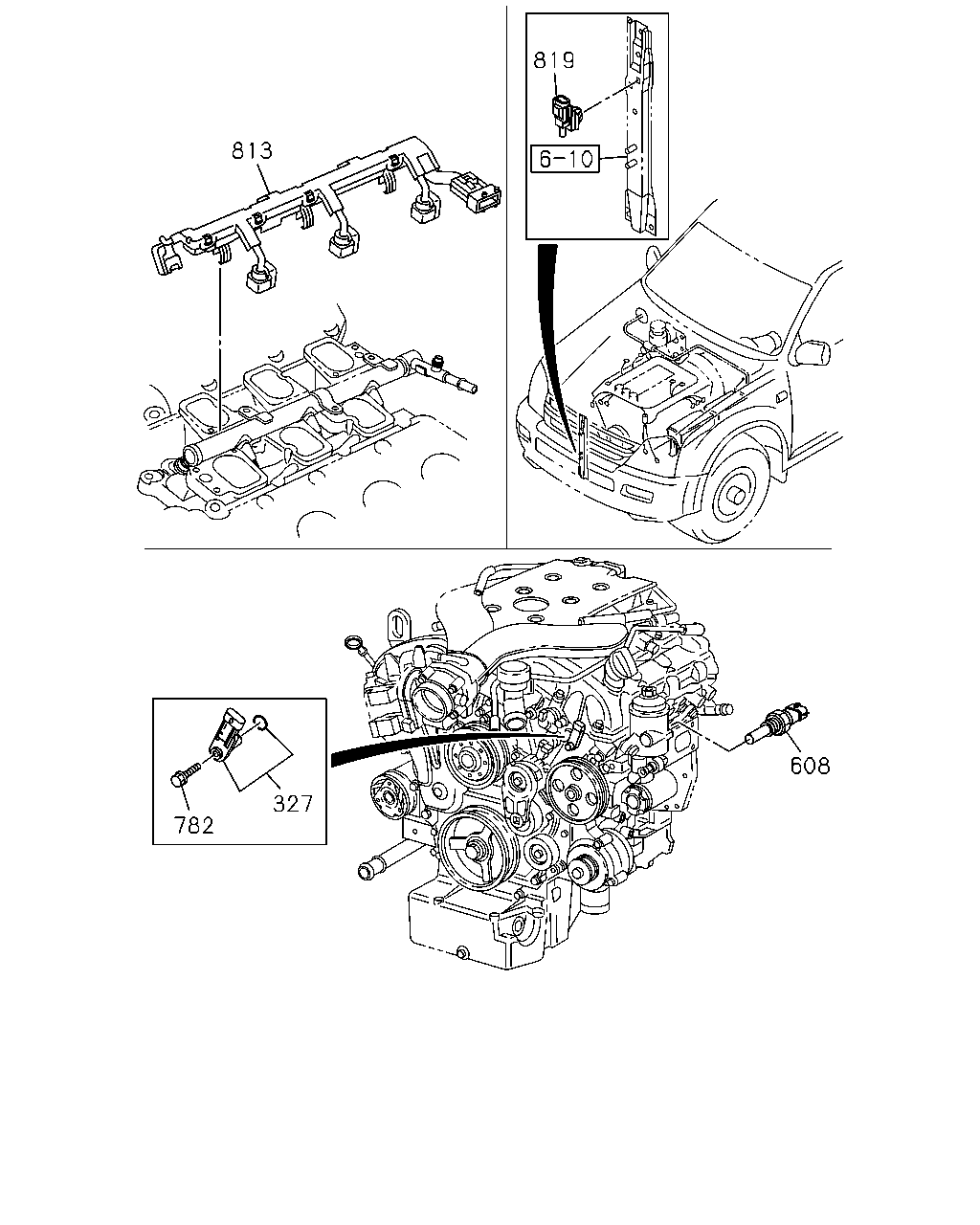

çizim 12097
819 813 608 327 782
BalonParca AdiParca NoAdetTipApplied Date A B
327 02.361 SENSOR; CAMSHAFT POSITION 8-10456-541-0 01 1 0307-0609 ●
327 02.361 SENSOR; CAMSHAFT POSITION
M/T AISIN 5 SPEED(MA5) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12608-424-0 01 1 0702-0702 ●
327 02.361 SENSOR; CAMSHAFT POSITION
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12608-424-0 01 1 0702- ●
327 02.361 SENSOR; CAMSHAFT POSITION 8-12566-847-0 01 1 0509-0609 ●
327 02.361 SENSOR; CAMSHAFT POSITION
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12566-847-0 01 1 0610-0701 ●
327 02.361 SENSOR; CAMSHAFT POSITION
A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12566-847-0 01 1 0702-0702 ●
608 01.150 SENSOR; AIR TEMP 8-12566-778-0 01 1 0509-0609 ●
608 01.150 SENSOR; AIR TEMP
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12566-778-0 01 1 0610- ●
782 02.510 BOLT; SENSOR
01.428 M6X12 FLANGE 		0-28080-612-0 01 1 0307-0512 ●
782 02.510 BOLT; SENSOR
03.162 M6X12 FLANGE 		0-28050-612-0 01 1 0601-0609 ●
782 02.510 BOLT; SENSOR 8-11519-967-0 02 1 0509-0609 ●
782 02.510 BOLT; SENSOR
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-11519-967-0 02 1 0610- ●
813 02.480 HARNESS; INJECTOR 8-92066-998-0 01 1 0509-0609 ●
813 02.480 HARNESS; INJECTOR
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-92066-998-0 01 1 0610- ●
819 01.150 SENSOR; MASS AIR FLOW (MAF)
OUTSIDE TEMPERATURE GAGE<UJH> 		8-98008-687-0 01 1 0610- ●

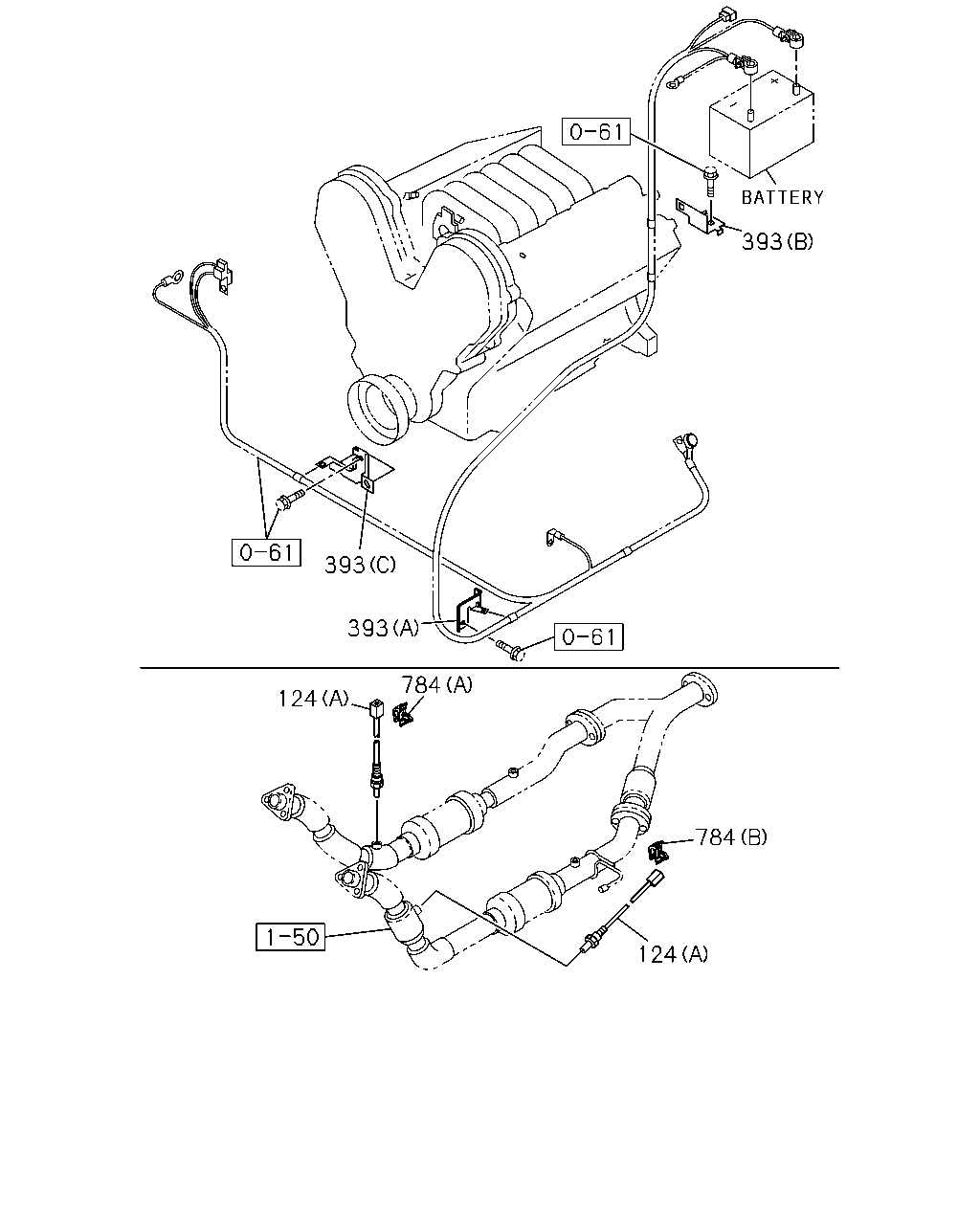

çizim 12207
393 393 393 784 124 784 124
BalonParca AdiParca NoAdetTipApplied Date A B
124 01.150 SENSOR; OXYGEN
(A) 		8-97287-352-0 02 1 0307-0609 ●
124 01.150 SENSOR; OXYGEN
(C) 		8-12575-904-0 02 1 0509- ●
124 01.150 SENSOR; OXYGEN
(B) 		8-92210-450-0 02 1 0509- ●
393 02.343 BRACKET; HARNESS TO BODY
(C) 		8-97236-162-0 01 1 0307-0609 ●
393 02.343 BRACKET; HARNESS TO BODY
(A) 		8-97249-301-0 01 1 0307-0609 ●
393 02.343 BRACKET; HARNESS TO BODY
(B) 		8-97311-081-0 01 1 0307-0609 ●
393 02.343 BRACKET; HARNESS TO BODY
(D) 		8-98004-142-0 01 1 0509- ●
393 02.343 BRACKET; HARNESS TO BODY
(E) 		8-98004-144-0 01 1 0509- ●
784 02.363 RETAINER
04.342 (A) ID=7 		5-09707-053-0 01 1 0307-0609 ●
784 02.363 RETAINER
A/T AISIN(RMD) 02.559 (B) ID=6.5 		8-94257-639-0 01 1 0307-0609 ●
784 02.363 RETAINER
(C) 		8-98019-048-0 02 1 0509- ●

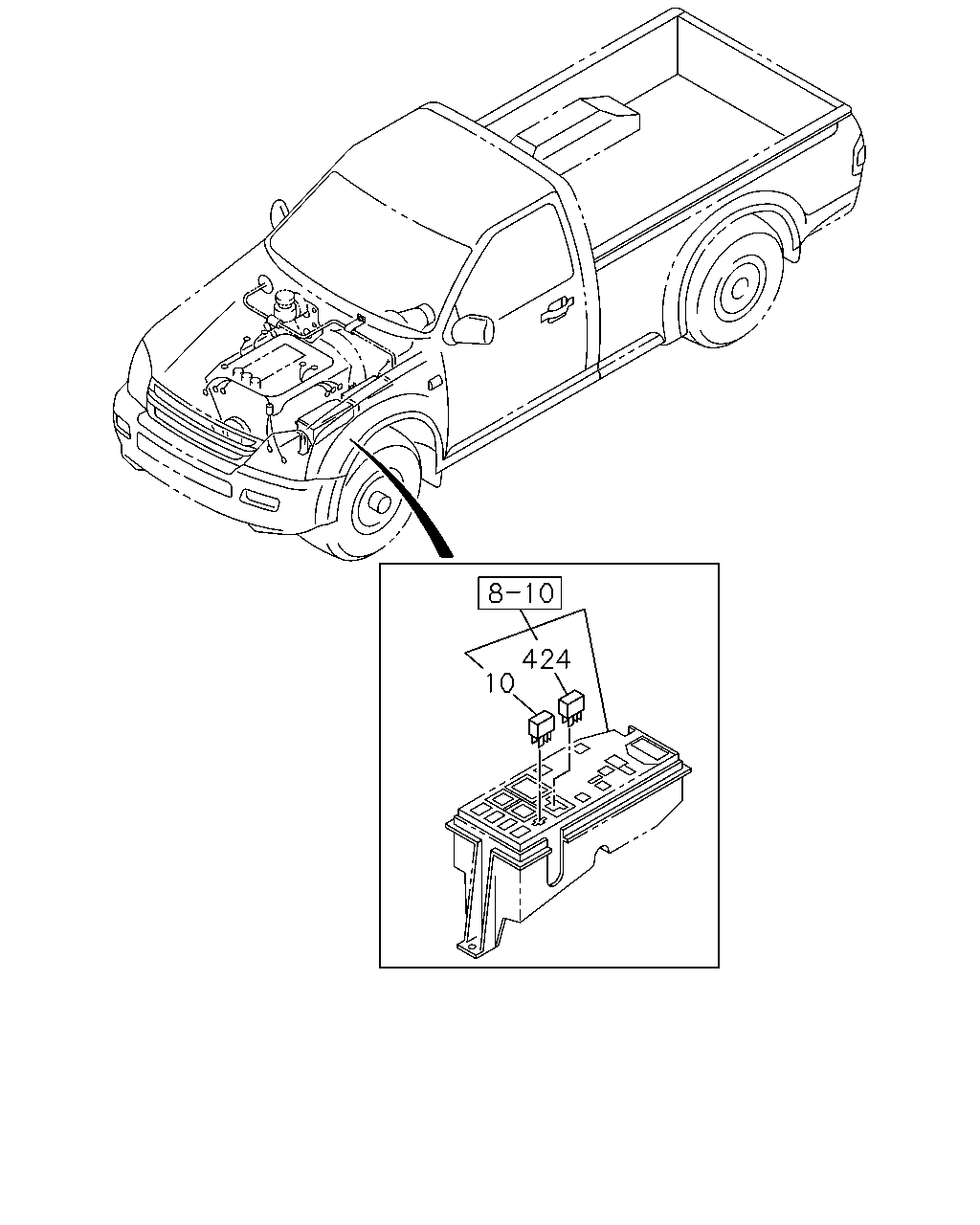

çizim 13162
424 10
BalonParca AdiParca NoAdetTipApplied Date A B
10 02.100 RELAY; STARTER
02.485 12V YAZAKI 		8-97309-292-0 01 1 0307-0609 ●
10 02.100 RELAY; STARTER
02.575 12V OMRON 		8-98005-407-0 01 1 0508-0609 ●
10 02.100 RELAY; STARTER
02.575 12V OMRON 		8-98005-407-0 01 1 0610- ●
10 02.100 RELAY; STARTER
09.778 12V YAZAKI 		8-97309-293-0 01 1 0710- ●
424 02.510 RELAY; SAFETY,STARTER
02.485 12V YAZAKI 		8-97309-292-0 01 1 0406-0508 ●
424 02.510 RELAY; SAFETY,STARTER
02.485 12V YAZAKI 		8-97309-292-0 01 1 0509-0609 ● ●
424 02.510 RELAY; SAFETY,STARTER
12V OMRON 		8-97125-441-1 01 1 0508-0508 ●
424 02.510 RELAY; SAFETY,STARTER
4X4 CREW CAB LONG(TFS*WF) M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) EXC. IMMOBILIZER SYSTEM<7KC> 12V OMRON 		8-97125-441-1 01 1 0509-0512 ●
424 02.510 RELAY; SAFETY,STARTER
4X4(TFS***) M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) EXC. IMMOBILIZER SYSTEM<7KC> 12V OMRON 		8-97125-441-1 01 1 0601-0609 ●
424 02.510 RELAY; SAFETY,STARTER
02.485 12V YAZAKI 		8-97309-294-0 01 1 0508-0512 ●
424 02.510 RELAY; SAFETY,STARTER
4X4(TFS***) M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) EXC. IMMOBILIZER SYSTEM<7KC> 02.485 12V YAZAKI 		8-97309-294-0 01 1 0601-0609 ●

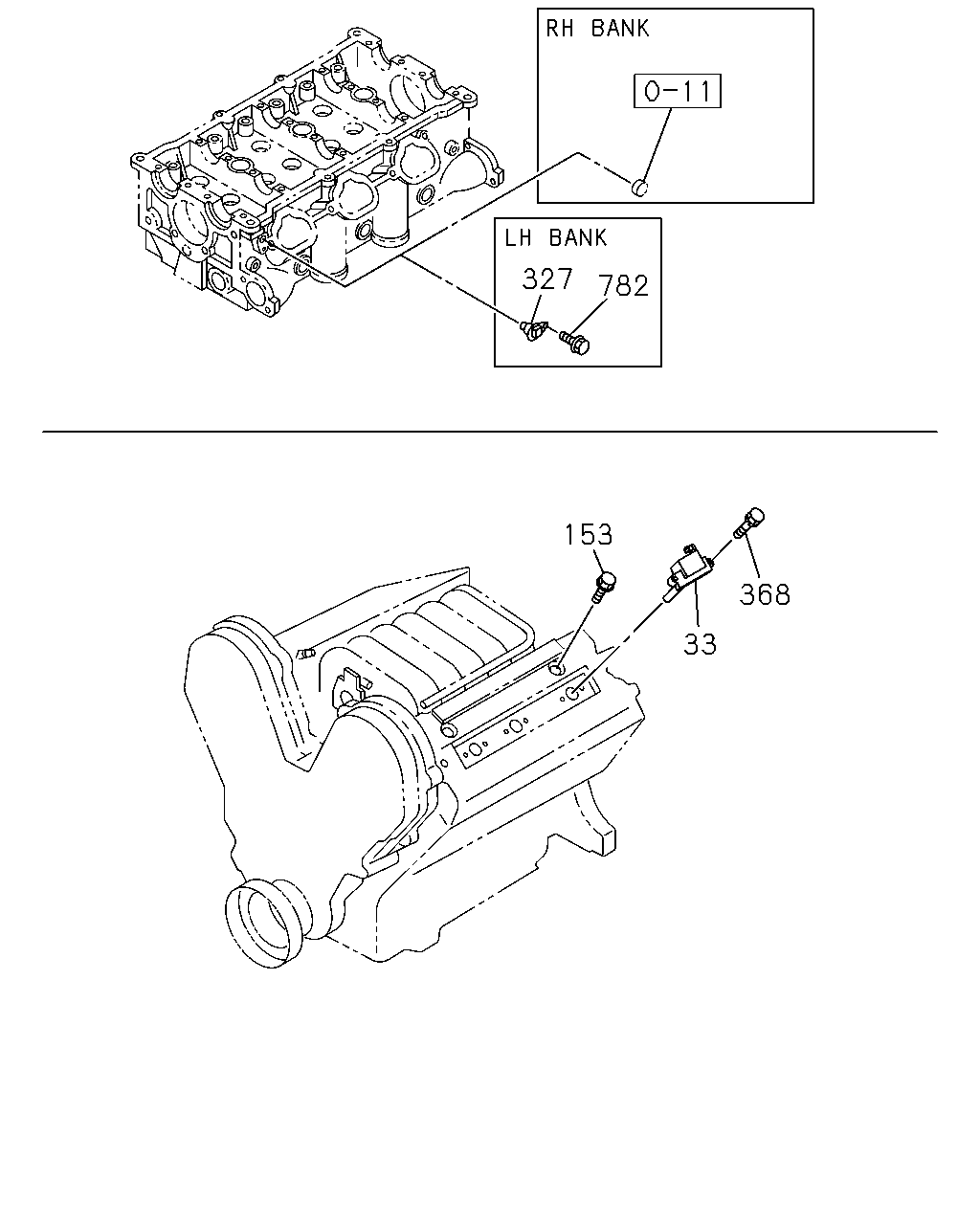

çizim 56232
327 782 153 368 33
BalonParca AdiParca NoAdetTipApplied Date A B
33 02.170 COIL ASM; IGN 8-97136-325-0 06 1 0307-0609 ●
33 02.170 COIL ASM; IGN 8-12583-514-0 06 1 0509-0609 ●
33 02.170 COIL ASM; IGN
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12583-514-0 06 1 0610- ●
153 02.510 BOLT; BRKT FIX
02.500 M6X10 FLANGE 		0-28080-610-0 05 1 0307-0512 ●
153 02.510 BOLT; BRKT FIX
03.671 M6X10 FLANGE 		0-28050-610-0 05 1 0601-0609 ●
327 02.361 SENSOR; CAMSHAFT POSITION 8-10456-541-0 01 1 0307-0609 ●
327 02.361 SENSOR; CAMSHAFT POSITION
M/T AISIN 5 SPEED(MA5) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12608-424-0 01 1 0702-0702 ●
327 02.361 SENSOR; CAMSHAFT POSITION
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12608-424-0 01 1 0702- ●
327 02.361 SENSOR; CAMSHAFT POSITION 8-12566-847-0 01 1 0509-0609 ●
327 02.361 SENSOR; CAMSHAFT POSITION
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12566-847-0 01 1 0610-0701 ●
327 02.361 SENSOR; CAMSHAFT POSITION
A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12566-847-0 01 1 0702-0702 ●
368 02.240 BOLT; COIL HARNESS CLIP
03.162 M5X20 W/LK WASHER 		8-94428-007-0 12 1 0307-0609 ●
782 02.510 BOLT; SENSOR
01.428 M6X12 FLANGE 		0-28080-612-0 01 1 0307-0512 ●
782 02.510 BOLT; SENSOR
03.162 M6X12 FLANGE 		0-28050-612-0 01 1 0601-0609 ●
782 02.510 BOLT; SENSOR 8-11519-967-0 02 1 0509-0609 ●
782 02.510 BOLT; SENSOR
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-11519-967-0 02 1 0610- ●

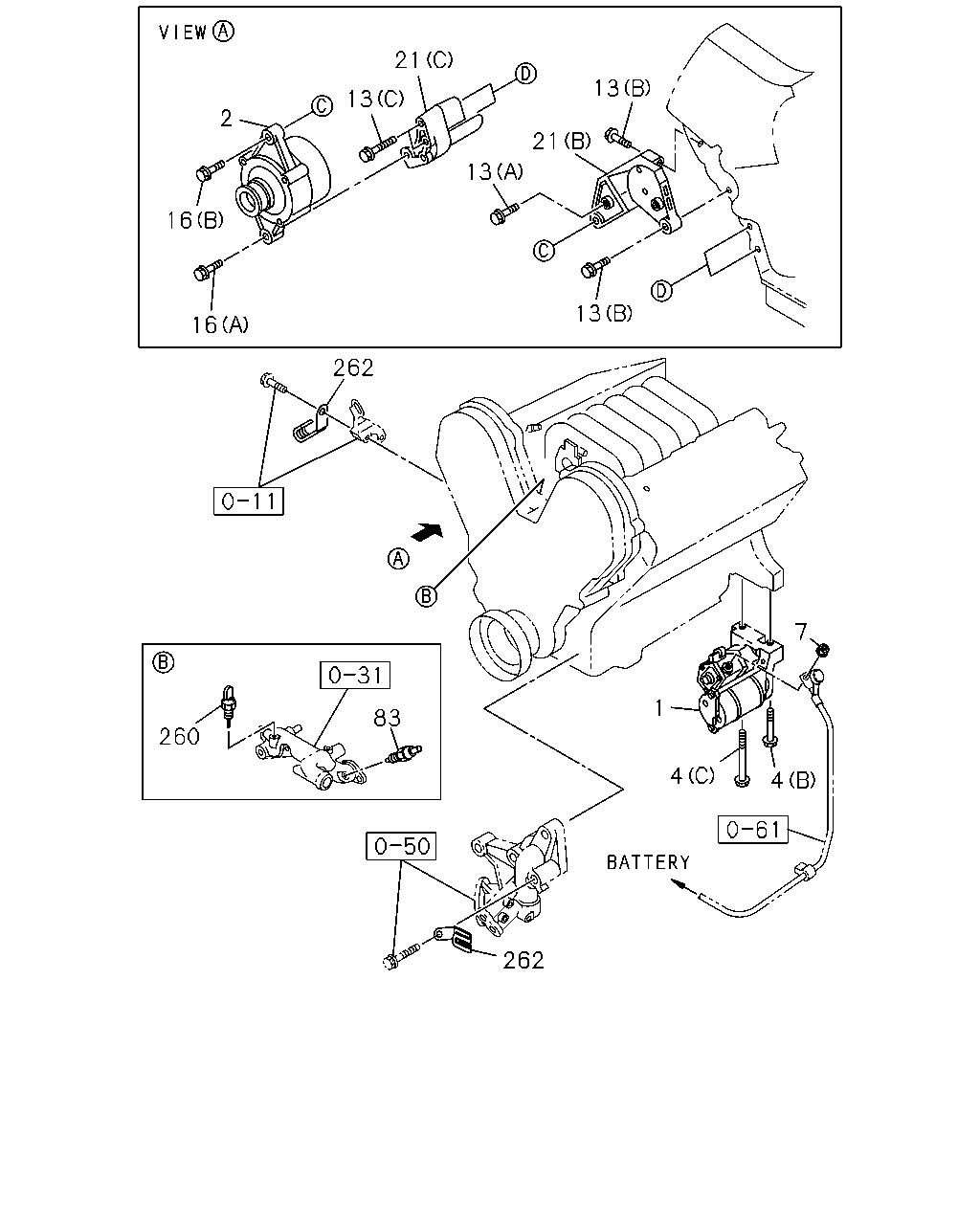

çizim 56233
21 13 13 2 21 13 16 13 16 262 7 1 83 260 4 4 262
BalonParca AdiParca NoAdetTipApplied Date A B
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 1.4KW 		8-94384-314-1 01 1 0307-0609 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 1.4KW 		8-92180-353-0 01 1 0509- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-97210-373-0 01 1 0307-0609 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 120A 		8-92211-486-0 01 1 0509- ●
4 02.042 BOLT; STARTER
(B) M10X50 FLANGE 		0-28151-050-0 01 1 0307-0609 ●
4 02.042 BOLT; STARTER
(C) M10X80 FLANGE 		0-28151-080-0 01 1 0307-0609 ●
4 02.042 BOLT; STARTER
(A) 		8-11588-900-0 02 1 0509- ●
7 02.042 NUT; STARTER
04.309 M8 W/LK WASHER 		8-94413-537-0 01 1 0307-0508 ●
7 02.042 NUT; STARTER
04.309 M8 W/LK WASHER 		8-94413-537-0 01 1 0509-0609 ● ●
7 02.042 NUT; STARTER
04.309 M8 W/LK WASHER 		8-94413-537-0 01 1 0610- ●
13 02.100 BOLT; BRKT
(C) M8X90 FLANGE 		0-28050-890-0 02 1 0307-0609 ●
13 02.100 BOLT; BRKT
04.686 (A) M8X30 FLANGE 		0-28680-830-0 01 1 0307-0512 ●
13 02.100 BOLT; BRKT
03.403 (A) M8X30 FLANGE 		0-28650-830-0 01 1 0601-0609 ●
13 02.100 BOLT; BRKT
16.545 (B) M8X40 FLANGE 		0-28690-840-0 02 1 0307-0512 ●
13 02.100 BOLT; BRKT
01.251 (B) M8X40 FLANGE 		0-28660-840-0 02 1 0601-0609 ●
13 02.100 BOLT; BRKT
(D) 		8-11515-783-0 02 1 0509-0509 ●
13 02.100 BOLT; BRKT
(D) 		8-11515-783-0 01 1 0509- ●
13 02.100 BOLT; BRKT
(E) 		8-11588-901-0 01 1 0509- ●
13 02.100 BOLT; BRKT
(F) 		8-11588-903-0 01 1 0509- ●
13 02.100 BOLT; BRKT
(G) 		8-11589-340-0 02 1 0509- ●
16 02.277 BOLT; GEN
(B) M10X90 FLANGE 		0-28051-090-0 01 1 0307-0609 ●
16 02.277 BOLT; GEN
01.060 (A) M8X35 FLANGE 		0-28650-835-0 01 1 0307-0609 ●
16 02.277 BOLT; GEN
(C) 		8-11093-131-0 02 1 0509- ●
16 02.277 BOLT; GEN
(D) 		8-11588-739-0 01 1 0509- ●
21 02.277 BRACKET; GEN
(C) 		8-97245-424-0 01 1 0307-0609 ●
21 02.277 BRACKET; GEN
(B) 		8-97328-364-0 01 1 0307-0609 ●
21 02.277 BRACKET; GEN
(A) 		8-98000-465-1 01 1 0509-0704 ●
21 02.277 BRACKET; GEN
(A) 		8-98055-855-0 01 1 0705- ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94247-437-1 01 1 0307-0609 ●
260 01.150 SENSOR; WATER TEMP 8-15326-386-0 01 1 0307-0609 ●
262 02.559 CLIP; HARNESS
ID=12 		5-09700-331-0 02 1 0307-0609 ●

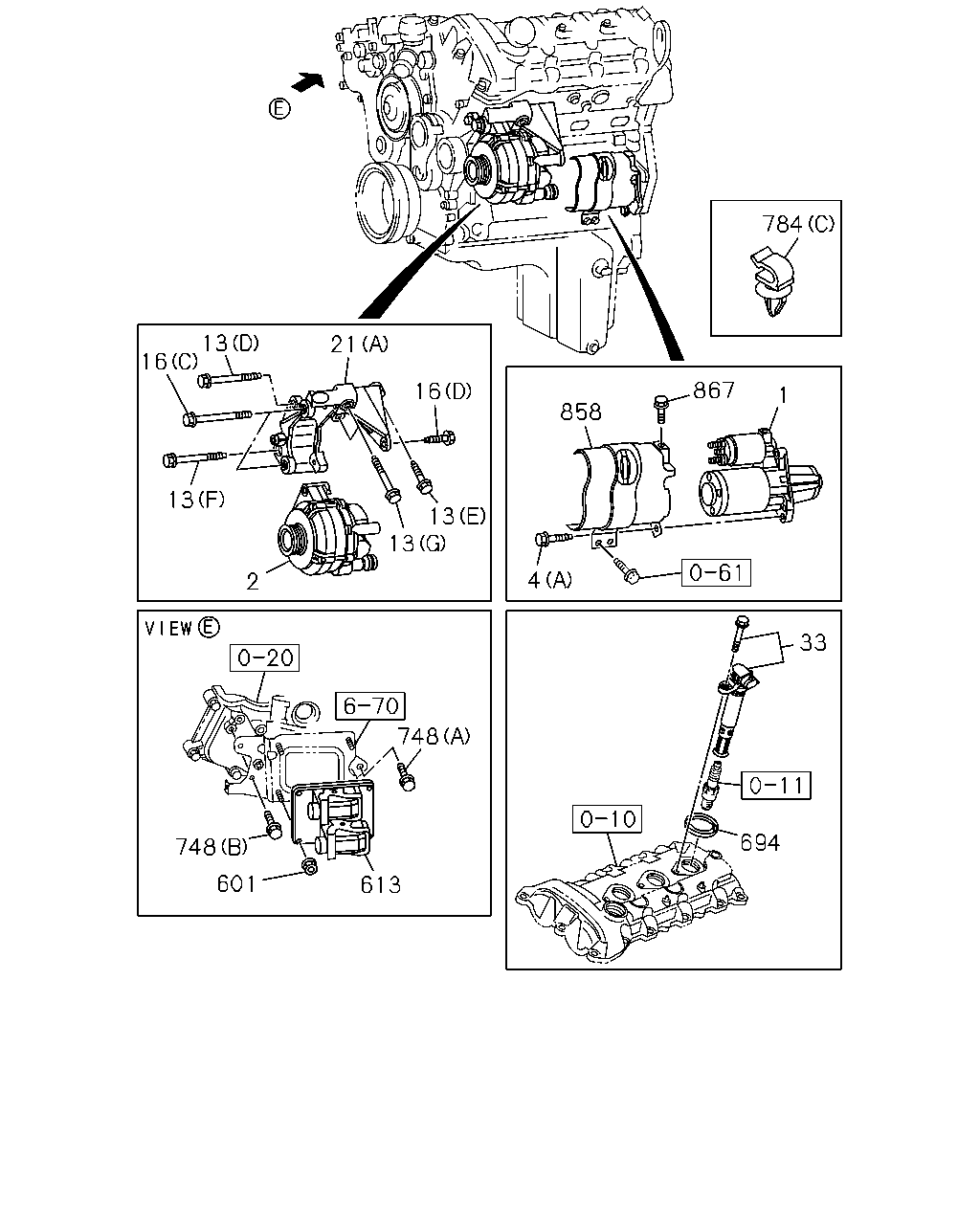

çizim 57895
784 13 16 21 867 16 1 858 13 13 13 4 2 33 748 694 748 601 613
BalonParca AdiParca NoAdetTipApplied Date A B
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 1.4KW 		8-94384-314-1 01 1 0307-0609 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 1.4KW 		8-92180-353-0 01 1 0509- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-97210-373-0 01 1 0307-0609 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 120A 		8-92211-486-0 01 1 0509- ●
4 02.042 BOLT; STARTER
(B) M10X50 FLANGE 		0-28151-050-0 01 1 0307-0609 ●
4 02.042 BOLT; STARTER
(C) M10X80 FLANGE 		0-28151-080-0 01 1 0307-0609 ●
4 02.042 BOLT; STARTER
(A) 		8-11588-900-0 02 1 0509- ●
13 02.100 BOLT; BRKT
(C) M8X90 FLANGE 		0-28050-890-0 02 1 0307-0609 ●
13 02.100 BOLT; BRKT
04.686 (A) M8X30 FLANGE 		0-28680-830-0 01 1 0307-0512 ●
13 02.100 BOLT; BRKT
03.403 (A) M8X30 FLANGE 		0-28650-830-0 01 1 0601-0609 ●
13 02.100 BOLT; BRKT
16.545 (B) M8X40 FLANGE 		0-28690-840-0 02 1 0307-0512 ●
13 02.100 BOLT; BRKT
01.251 (B) M8X40 FLANGE 		0-28660-840-0 02 1 0601-0609 ●
13 02.100 BOLT; BRKT
(D) 		8-11515-783-0 02 1 0509-0509 ●
13 02.100 BOLT; BRKT
(D) 		8-11515-783-0 01 1 0509- ●
13 02.100 BOLT; BRKT
(E) 		8-11588-901-0 01 1 0509- ●
13 02.100 BOLT; BRKT
(F) 		8-11588-903-0 01 1 0509- ●
13 02.100 BOLT; BRKT
(G) 		8-11589-340-0 02 1 0509- ●
16 02.277 BOLT; GEN
(B) M10X90 FLANGE 		0-28051-090-0 01 1 0307-0609 ●
16 02.277 BOLT; GEN
01.060 (A) M8X35 FLANGE 		0-28650-835-0 01 1 0307-0609 ●
16 02.277 BOLT; GEN
(C) 		8-11093-131-0 02 1 0509- ●
16 02.277 BOLT; GEN
(D) 		8-11588-739-0 01 1 0509- ●
21 02.277 BRACKET; GEN
(C) 		8-97245-424-0 01 1 0307-0609 ●
21 02.277 BRACKET; GEN
(B) 		8-97328-364-0 01 1 0307-0609 ●
21 02.277 BRACKET; GEN
(A) 		8-98000-465-1 01 1 0509-0704 ●
21 02.277 BRACKET; GEN
(A) 		8-98055-855-0 01 1 0705- ●
33 02.170 COIL ASM; IGN 8-97136-325-0 06 1 0307-0609 ●
33 02.170 COIL ASM; IGN 8-12583-514-0 06 1 0509-0609 ●
33 02.170 COIL ASM; IGN
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12583-514-0 06 1 0610- ●
601 03.670 NUT; UNIT
01.062 M6 FLANGE 		0-91180-106-0 04 1 0509- ●
613 03.670 CONTROL UNIT; ENG 8-92211-506-0 01 1 0509-0607 ●
613 03.670 CONTROL UNIT; ENG 8-92187-308-0 01 1 0608-0701 ●
613 03.670 CONTROL UNIT; ENG 8-92193-809-0 01 1 0702- ●
694 02.183 SEAL; COVER 8-12607-600-0 06 1 0509-0609 ●
694 02.183 SEAL; COVER
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12607-600-0 06 1 0610- ●
748 02.500 BOLT; CONT UNIT
(A) 		8-11519-979-0 01 1 0509- ●
748 02.500 BOLT; CONT UNIT
(B) 		8-11589-302-0 02 1 0509- ●
784 02.363 RETAINER
04.342 (A) ID=7 		5-09707-053-0 01 1 0307-0609 ●
784 02.363 RETAINER
A/T AISIN(RMD) 02.559 (B) ID=6.5 		8-94257-639-0 01 1 0307-0609 ●
784 02.363 RETAINER
(C) 		8-98019-048-0 02 1 0509- ●
858 02.042 SHIELD; HEAT,STARTER 8-92180-354-0 01 1 0509- ●
867 02.559 BOLT
02.343 M10X12 FLANGE 		0-28151-012-0 01 1 0509- ●
867 02.559 BOLT
03.483 M5X14 W/LK WASHER 		1-09980-023-0 01 1 0509- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
