0-57B — EMISSION PIPING (#20497) — 18 parça

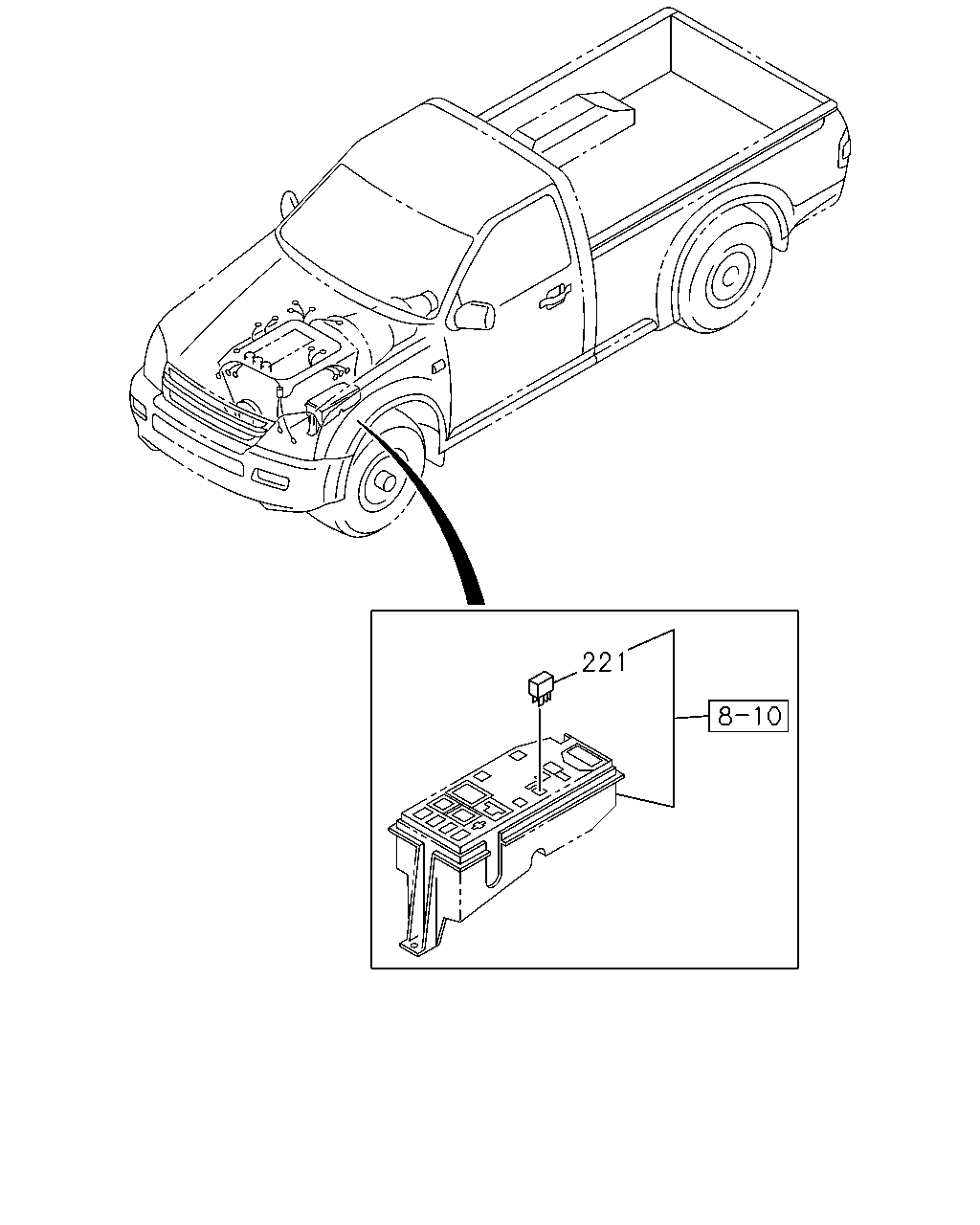

çizim 12206
221
BalonParca AdiParca NoAdetTipApplied Date A B
221 03.670 RELAY; MAIN
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) AUSTRALIA EQUIPMENT(B13) 12V YAZAKI 		8-98146-834-0 01 1 0710- ●
221 03.670 RELAY; MAIN
02.485 12V YAZAKI 		8-97309-292-0 01 1 0307-0609 ●
221 03.670 RELAY; MAIN
02.575 12V OMRON 		8-98005-407-0 01 1 0508-0609 ●
221 03.670 RELAY; MAIN
02.510 12V OMRON 		8-97125-441-1 01 1 0509-0609 ●
221 03.670 RELAY; MAIN
02.510 12V OMRON 		8-97125-441-1 01 1 0610-0709 ●

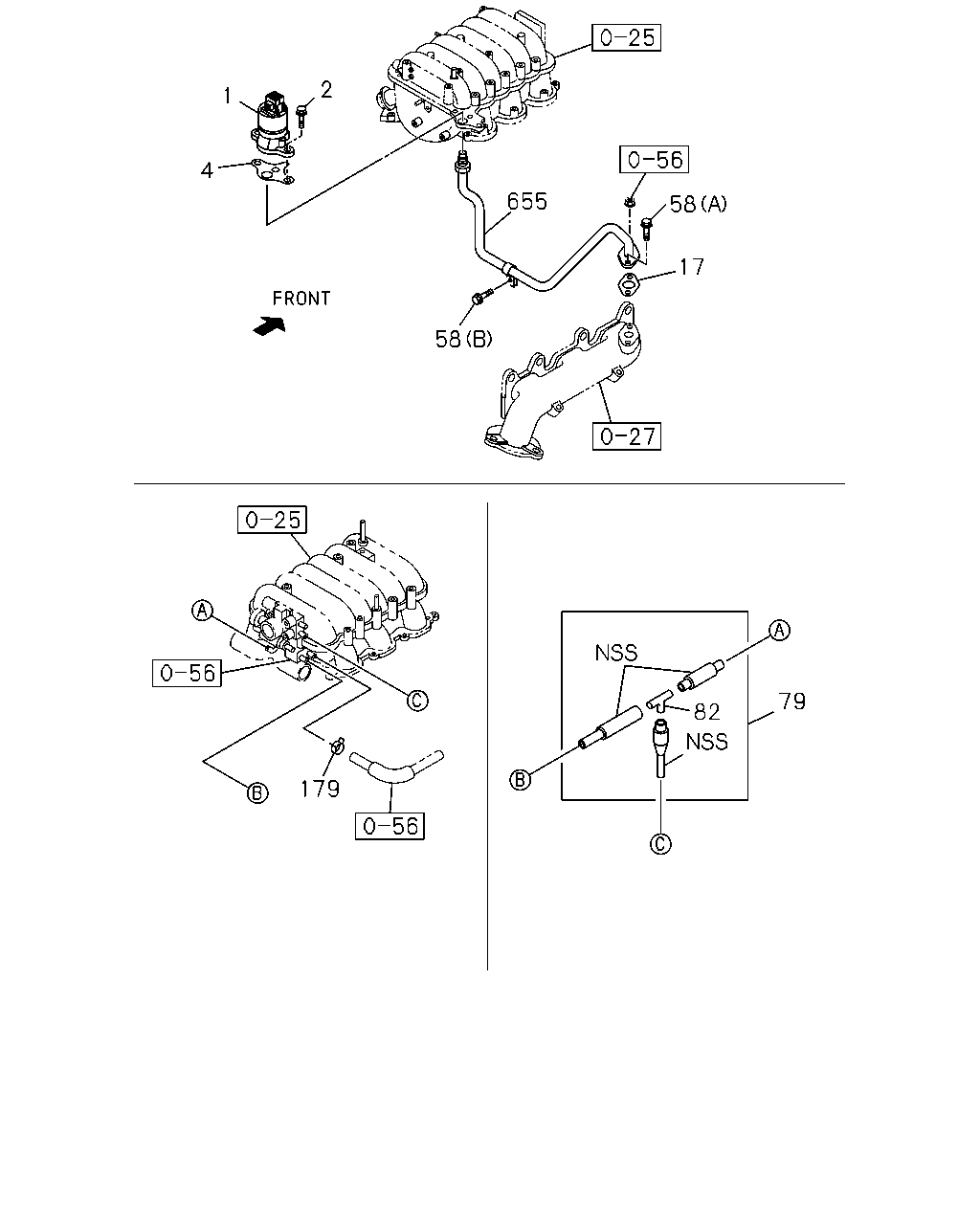

çizim 55928
2 1 4 655 58 17 58 79 82 179
BalonParca AdiParca NoAdetTipApplied Date A B
1 03.670 VALVE; EGR 8-17096-178-3 01 1 0307-0609 ●
2 03.670 BOLT; EGR VLV
02.559 (D) M8X25 FLANGE 		0-28680-825-0 02 1 0307-0512 ●
2 03.670 BOLT; EGR VLV
06.216 (D) M8X25 FLANGE 		0-28650-825-0 02 1 0601-0609 ●
4 03.671 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97104-317-2 01 1 0307-0609 ●
17 03.665 GASKET; EGR PIPE 8-97060-414-0 01 1 0307-0609 ●
58 03.417 BOLT; PIPE
08.900 (A) M8X12 FLANGE 		0-28080-812-0 01 1 0307-0512 ●
58 03.417 BOLT; PIPE
02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 0601-0609 ●
58 03.417 BOLT; PIPE
03.680 (B) M8X18 FLANGE 		8-94368-563-1 01 1 0307-0408 ●
58 03.417 BOLT; PIPE
03.670 (B) M8X18 FLANGE 		8-97378-076-0 01 1 0409-0609 ●
79 03.675 HOSE; RUBBER,THROTTLE BODY TO PI 8-97136-220-0 01 1 0307-0609 ●
82 03.680 JOINT; 3 WAY
03.163 		8-97061-674-0 01 1 0307-0609 ●
179 03.675 CLIP; PIPE CLAMP
03.163 ID=11 		8-94238-570-0 01 1 0307-0609 ●
655 03.675 PIPE; EGR VLV 8-97131-897-1 01 1 0307-0609 ●
