◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50965 - TFR/TFS-RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-57A - EMISSION PIPING ▶
0-57A — EMISSION PIPING (#20496) — 896 parça

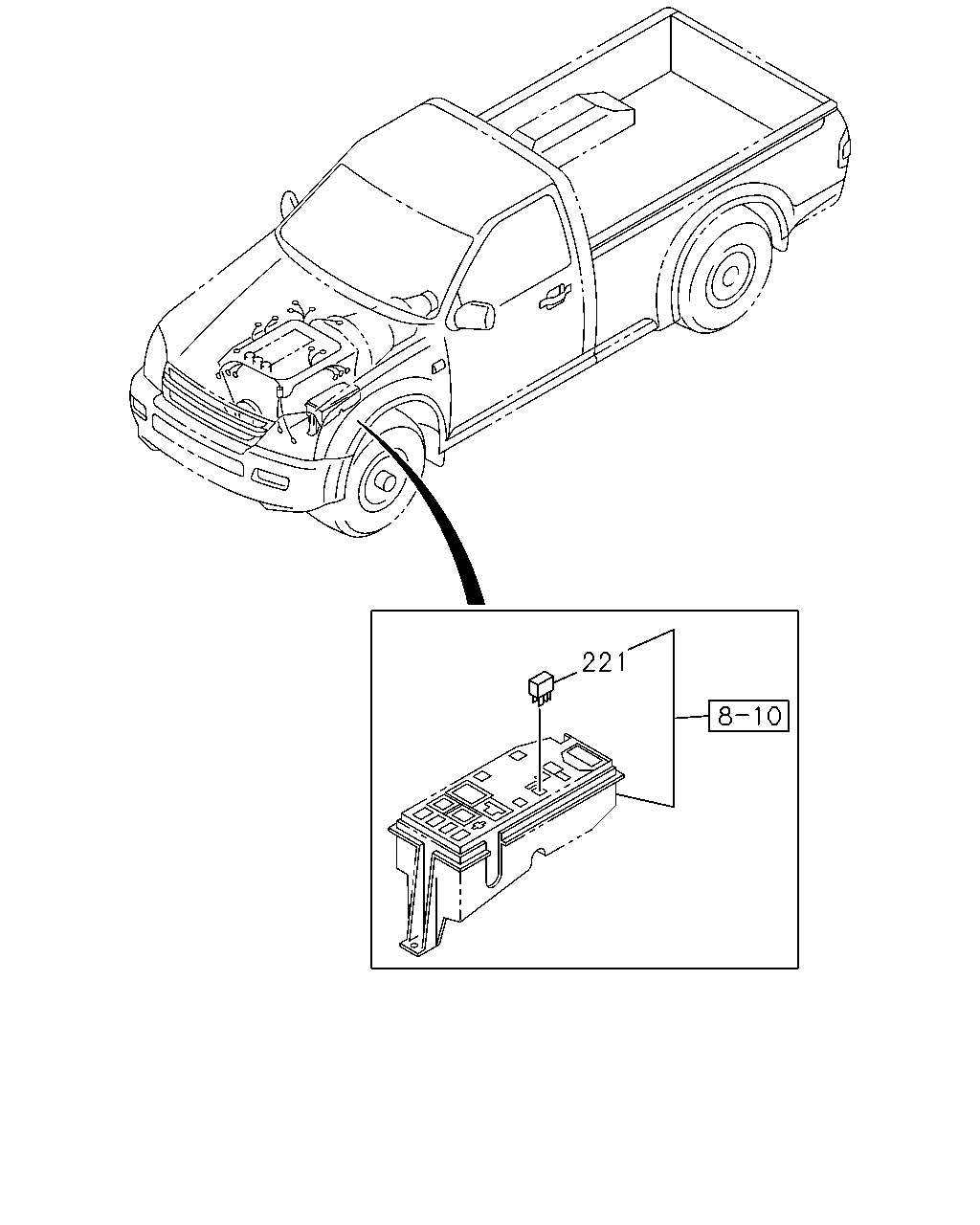

çizim 12204
221
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
221 03.670 RELAY; MAIN
02.485 12V YAZAKI 		8-97309-292-0 01 1 0307-0609 ● ●
221 03.670 RELAY; MAIN
02.575 12V OMRON 		8-98005-407-0 01 1 0508-0609 ● ●
221 03.670 RELAY; MAIN
02.485 12V YAZAKI 		8-97309-294-0 01 1 0710- ● ● ● ●
221 03.670 RELAY; MAIN
02.510 12V OMRON 		8-97125-441-1 01 1 0610-0709 ● ● ●
221 03.670 RELAY; MAIN
02.510 12V OMRON 		8-97125-441-1 01 1 0710- ● ● ● ●

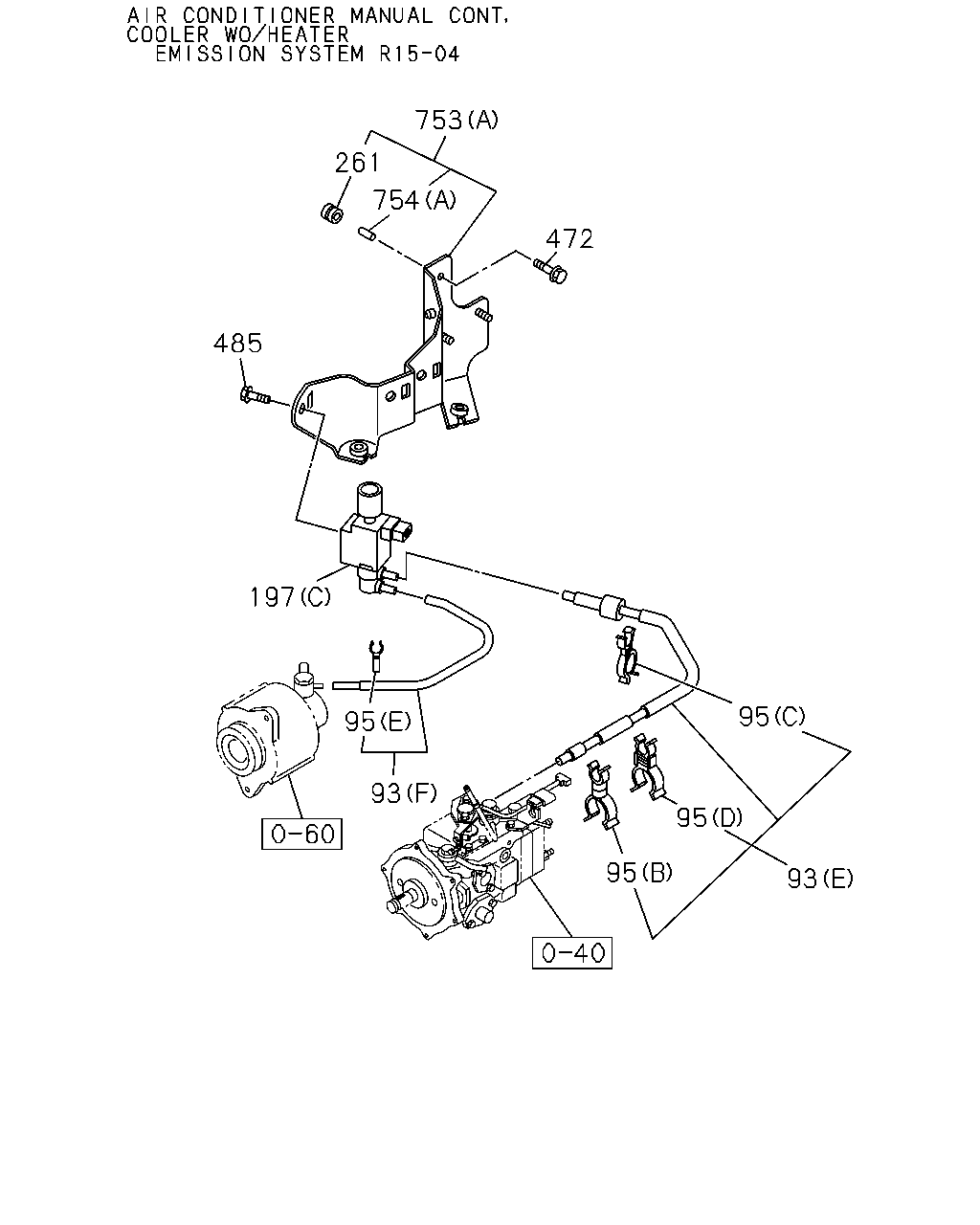

çizim 12231
753 261 754 472 485 197 95 95 93 95 95 93
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
93 03.675 HOSE ASM
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EMISSION SYSTEM R15-04<K75> 03.163 (E) 		8-97332-387-1 01 1 0307- ●
93 03.675 HOSE ASM
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EMISSION SYSTEM R15-04<K75> 03.163 (F) 		8-97943-451-0 01 1 0307- ●
93 03.675 HOSE ASM
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EURO2 SPECIFICATION<NT2> 03.163 (C) 		8-97260-312-4 01 1 0307- ●
93 03.675 HOSE ASM
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EURO2 SPECIFICATION<NT2> 03.163 (D) 		8-97943-449-0 01 1 0307- ●
93 03.675 HOSE ASM
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C42) EURO2 SPECIFICATION<NT2> 03.163 (A) 		8-97260-313-4 01 1 0307-0609 ●
93 03.675 HOSE ASM
HEATER & DEFROSTER(C42) EURO2 SPECIFICATION<NT2> 03.163 (A) 		8-97260-313-4 01 1 0610- ●
93 03.675 HOSE ASM
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C42) EURO2 SPECIFICATION<NT2> 03.163 (B) 		8-97943-450-0 01 1 0307-0609 ●
93 03.675 HOSE ASM
HEATER & DEFROSTER(C42) EURO2 SPECIFICATION<NT2> 03.163 (B) 		8-97943-450-0 01 1 0610- ●
95 03.680 CLIP; HOSE
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EMISSION SYSTEM R15-04<K75> 03.430 (B) ID=6 & 16.5 		8-94165-402-0 01 1 0307- ●
95 03.680 CLIP; HOSE
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EMISSION SYSTEM R15-04<K75> 02.589 (E) ID=13 & 16.5 		8-94169-028-0 01 1 0307- ●
95 03.680 CLIP; HOSE
EURO2 SPECIFICATION<NT2> 02.589 (E) ID=13 & 16.5 		8-94169-028-0 01 1 0307- ●
95 03.680 CLIP; HOSE
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EMISSION SYSTEM R15-04<K75> 04.128 (C) ID=14.5 & 7.5 		8-94315-424-0 01 1 0307- ●
95 03.680 CLIP; HOSE
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EMISSION SYSTEM R15-04<K75> 03.483 (D) ID=21 & 7.5 		8-97309-946-0 01 1 0307- ●
95 03.680 CLIP; HOSE
EURO2 SPECIFICATION<NT2> (A) ID=14.5 & 7X4 		8-94368-499-0 01 1 0307- ●
197 03.670 VALVE; VAC SWITCHING
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 03.130 (C) 		8-94384-336-0 01 1 0307- ●
197 03.670 VALVE; VAC SWITCHING
EURO2 SPECIFICATION<NT2> (A) 		8-97043-750-0 01 1 0307- ●
197 03.670 VALVE; VAC SWITCHING
EURO2 SPECIFICATION<NT2> 03.675 (B) 		8-97171-030-0 01 1 0307- ●
261 03.671 GROMMET
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EMISSION SYSTEM R15-04<K75> 00.206 		5-19389-002-0 03 1 0307- ●
261 03.671 GROMMET
EURO2 SPECIFICATION<NT2> 00.206 		5-19389-002-0 03 1 0307- ●
472 03.671 BOLT; BRKT
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EMISSION SYSTEM R15-04<K75> 02.343 M6X16 FLANGE 		0-28650-616-0 03 1 0307- ●
472 03.671 BOLT; BRKT
EURO2 SPECIFICATION<NT2> 02.343 M6X16 FLANGE 		0-28650-616-0 03 1 0307- ●
472 03.671 BOLT; BRKT
03.680 M6X30 FLANGE 		0-28650-630-0 02 1 0307-0609 ●
472 03.671 BOLT; BRKT
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 03.680 M6X30 FLANGE 		0-28650-630-0 02 1 0307-0609 ●
485 03.671 BOLT; VSV
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 04.054 M5X10 W/LK+PL WASHER 		9-03920-510-0 01 1 0307-0605 ●
485 03.671 BOLT; VSV
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 03.680 M5X10 W/LK+PL WASHER 		0-36230-510-0 01 1 0606- ●
485 03.671 BOLT; VSV
EURO2 SPECIFICATION<NT2> 04.054 M5X10 W/LK+PL WASHER 		9-03920-510-0 02 1 0307-0605 ●
485 03.671 BOLT; VSV
EURO2 SPECIFICATION<NT2> 03.680 M5X10 W/LK+PL WASHER 		0-36230-510-0 02 1 0606- ●
753 03.670 BRACKET; VALVE
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EMISSION SYSTEM R15-04<K75> (A) 		8-97307-069-2 01 1 0307-0402 ●
753 03.670 BRACKET; VALVE
EURO2 SPECIFICATION<NT2> (A) 		8-97307-069-2 01 1 0307-0402 ●
753 03.670 BRACKET; VALVE
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EMISSION SYSTEM R15-04<K75> (A) 		8-97943-948-0 01 1 0403- ●
753 03.670 BRACKET; VALVE
EURO2 SPECIFICATION<NT2> (A) 		8-97943-948-0 01 1 0403- ●
753 03.670 BRACKET; VALVE
(B) 		8-97943-321-0 01 1 0307-0609 ●
753 03.670 BRACKET; VALVE
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) 		8-97943-321-0 01 1 0307-0609 ●
754 03.647 BUSHING; RUBBER
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EMISSION SYSTEM R15-04<K75> 00.206 (A) 		5-19389-009-0 03 1 0307- ●
754 03.647 BUSHING; RUBBER
EURO2 SPECIFICATION<NT2> 00.206 (A) 		5-19389-009-0 03 1 0307- ●
754 03.647 BUSHING; RUBBER
(B) 		8-97944-146-0 04 1 0307-0609 ●
754 03.647 BUSHING; RUBBER
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) 		8-97944-146-0 04 1 0307-0609 ●

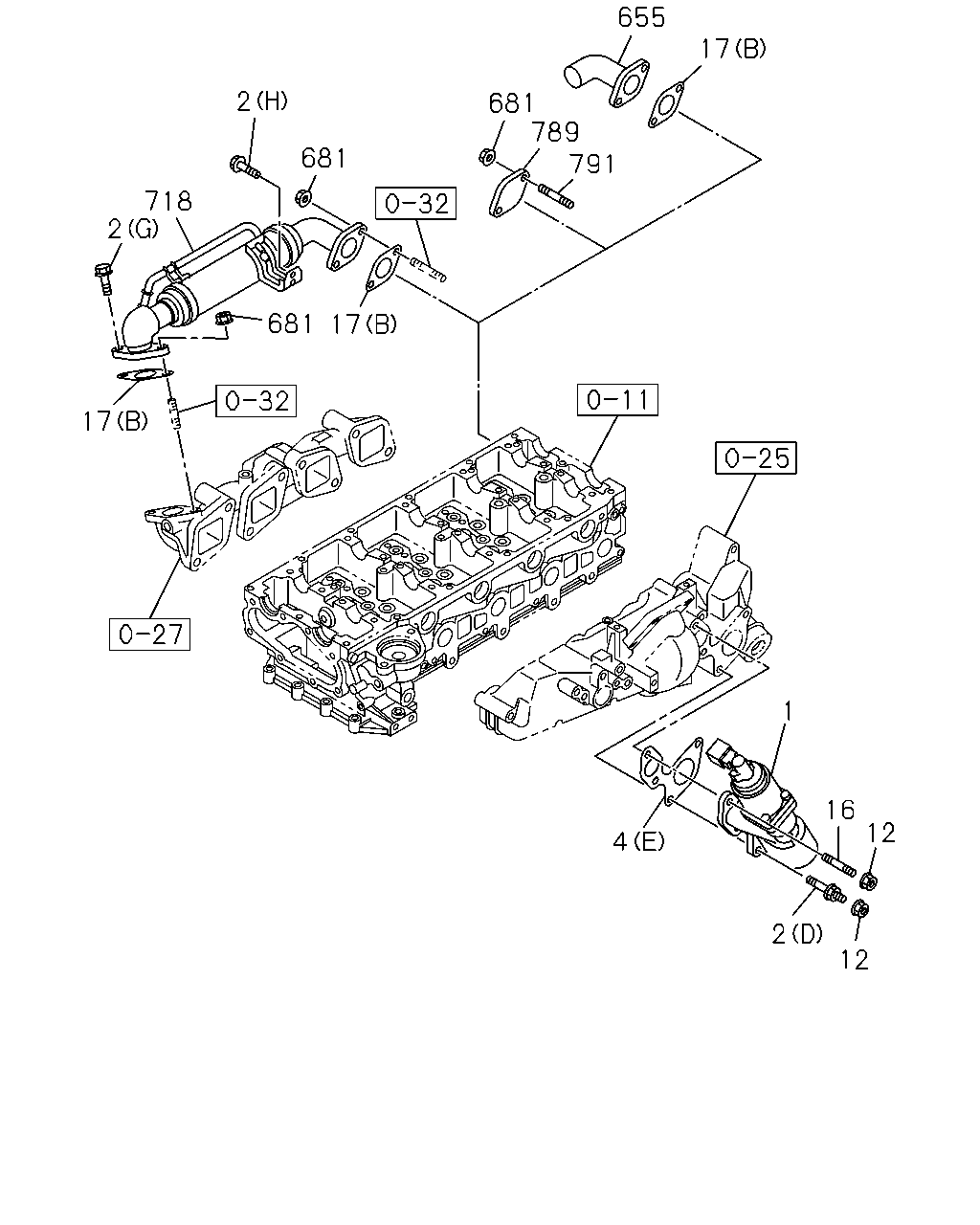

çizim 52992
655 17 2 681 789 791 681 718 2 681 17 17 1 16 12 4 2 12
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 03.670 VALVE; EGR
EURO2 SPECIFICATION<NT2> 		8-97132-802-5 02 1 0307-1103 ●
1 03.670 VALVE; EGR 8-97312-533-1 01 1 0307-0609 ●
1 03.670 VALVE; EGR 8-98013-911-0 01 1 0610-0612 ● ● ● ●
1 03.670 VALVE; EGR 8-98013-911-0 01 1 0701-0912 ● ● ●
1 03.670 VALVE; EGR 8-98013-911-0 01 1 1001- ● ● ● ●
1 03.670 VALVE; EGR
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-97349-435-0 01 1 0307-0609 ●
2 03.670 BOLT; EGR VLV
EURO2 SPECIFICATION<NT2> 01.271 (C) M8X40 FLANGE 		0-28080-840-0 04 1 0307-0512 ●
2 03.670 BOLT; EGR VLV
EURO2 SPECIFICATION<NT2> 02.277 (C) M8X40 FLANGE 		0-28050-840-0 04 1 0601-1103 ●
2 03.670 BOLT; EGR VLV
(A) M8X23 FLANGE 		8-94103-629-2 02 1 0307-0408 ●
2 03.670 BOLT; EGR VLV
EURO3 SPECIFICATION<NT3> (A) M8X23 FLANGE 		8-94103-629-2 02 1 0307-0408 ●
2 03.670 BOLT; EGR VLV
03.417 (A) M8X23 FLANGE 		8-97378-077-0 02 1 0409-0609 ●
2 03.670 BOLT; EGR VLV
EURO3 SPECIFICATION<NT3> 03.417 (A) M8X23 FLANGE 		8-97378-077-0 02 1 0409-0609 ●
2 03.670 BOLT; EGR VLV
03.417 (G) M8X23 FLANGE 		8-97378-077-0 01 1 0610-0612 ● ●
2 03.670 BOLT; EGR VLV
03.417 (G) M8X23 FLANGE 		8-97378-077-0 01 1 0701-0806 ●
2 03.670 BOLT; EGR VLV
EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL) 03.417 (G) M8X23 FLANGE 		8-97378-077-0 01 1 0807-0912 ●
2 03.670 BOLT; EGR VLV
EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL) 03.417 (G) M8X23 FLANGE 		8-97378-077-0 01 1 1001- ●
2 03.670 BOLT; EGR VLV
03.417 (G) M8X23 FLANGE 		8-97378-077-0 01 1 1001- ●
2 03.670 BOLT; EGR VLV
03.680 (B) M8X18 FLANGE 		8-94368-563-1 02 1 0307-0408 ●
2 03.670 BOLT; EGR VLV
EURO3 SPECIFICATION<NT3> 03.680 (B) M8X18 FLANGE 		8-94368-563-1 02 1 0307-0408 ●
2 03.670 BOLT; EGR VLV
(B) M8X18 FLANGE 		8-97378-076-0 02 1 0409-0609 ●
2 03.670 BOLT; EGR VLV
EURO3 SPECIFICATION<NT3> (B) M8X18 FLANGE 		8-97378-076-0 02 1 0409-0609 ●
2 03.670 BOLT; EGR VLV
02.343 (H) M8X12 FLANGE 		0-28050-812-0 01 1 0610-0612 ● ●
2 03.670 BOLT; EGR VLV
02.343 (H) M8X12 FLANGE 		0-28050-812-0 01 1 0701-0709 ●
2 03.670 BOLT; EGR VLV
EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL),KENYA EQUIPMENT(CL1) 02.343 (H) M8X12 FLANGE 		0-28050-812-0 01 1 0710-0806 ●
2 03.670 BOLT; EGR VLV
EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL) 02.343 (H) M8X12 FLANGE 		0-28050-812-0 01 1 0807-0912 ●
2 03.670 BOLT; EGR VLV
EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL) 02.343 (H) M8X12 FLANGE 		0-28050-812-0 01 1 1001- ●
2 03.670 BOLT; EGR VLV
02.343 (H) M8X12 FLANGE 		0-28050-812-0 01 1 1001- ●
2 03.670 BOLT; EGR VLV
09.181 (E) M10X45 FLANGE 		0-28151-045-0 01 1 0610- ● ●
2 03.670 BOLT; EGR VLV
03.417 (F) M8X23 FLANGE 		8-97378-077-0 03 1 0610- ● ●
2 03.670 BOLT; EGR VLV
06.216 (D) M8X25 FLANGE 		0-28650-825-0 02 1 0610-0612 ● ● ● ●
2 03.670 BOLT; EGR VLV
06.216 (D) M8X25 FLANGE 		0-28650-825-0 02 1 0701-0912 ● ● ●
2 03.670 BOLT; EGR VLV
06.216 (D) M8X25 FLANGE 		0-28650-825-0 02 1 1001- ● ● ● ●
4 03.671 GASKET; EGR VLV
EXC. AUSTRALIA EQUIPMENT(B13) (F) ALSO INCLUDED IN GASKET SET(ENGINE) . 		8-92061-674-0 01 1 1010- ●
4 03.671 GASKET; EGR VLV
EURO2 SPECIFICATION<NT2> (A) 		8-94334-338-1 02 1 0307-1103 ●
4 03.671 GASKET; EGR VLV
EURO2 SPECIFICATION<NT2> (B) 		8-94379-754-0 01 1 0307-1103 ●
4 03.671 GASKET; EGR VLV
03.665 (C) 		8-97192-765-0 02 1 0307-0609 ●
4 03.671 GASKET; EGR VLV
(E) 		8-97356-711-2 01 1 0610-0612 ● ● ● ●
4 03.671 GASKET; EGR VLV
(E) 		8-97356-711-3 01 1 0701-0912 ● ● ●
4 03.671 GASKET; EGR VLV
(E) ALSO INCLUDED IN GASKET SET(ENGINE) . 		8-97356-711-3 01 1 1001- ● ● ● ●
4 03.671 GASKET; EGR VLV
03.665 (D) 		8-97324-052-0 01 1 0307-0609 ●
4 03.671 GASKET; EGR VLV
EURO3 SPECIFICATION<NT3> 03.665 (D) 		8-97324-052-0 01 1 0307-0609 ●
4 03.671 GASKET; EGR VLV
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 03.665 (C) 		8-97324-052-0 02 1 0307-0609 ●
4 03.671 GASKET; EGR VLV
(F) ALSO INCLUDED IN GASKET SET(ENGINE) . 		8-92064-809-0 01 1 0307-1009 ●
4 03.671 GASKET; EGR VLV
AUSTRALIA EQUIPMENT(B13) (F) ALSO INCLUDED IN GASKET SET(ENGINE) . 		8-92064-809-0 01 1 1010- ●
12 03.671 NUT; EGR VLV
EURO2 SPECIFICATION<NT2> 01.540 M8 FLANGE 		0-91150-208-0 04 1 0307-0602 ●
12 03.671 NUT; EGR VLV
EURO2 SPECIFICATION<NT2> 01.540 M8 FLANGE 		0-91180-208-0 04 1 0603-1103 ●
12 03.671 NUT; EGR VLV
01.540 M8 FLANGE 		0-91150-208-0 02 1 0307-0602 ●
12 03.671 NUT; EGR VLV
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 01.540 M8 FLANGE 		0-91150-208-0 02 1 0307-0602 ●
12 03.671 NUT; EGR VLV
01.540 M8 FLANGE 		0-91180-208-0 02 1 0603-0609 ●
12 03.671 NUT; EGR VLV
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 01.540 M8 FLANGE 		0-91180-208-0 02 1 0603-0609 ●
12 03.671 NUT; EGR VLV
01.540 M8 FLANGE 		0-91180-208-0 02 1 0610-0612 ● ● ● ●
12 03.671 NUT; EGR VLV
01.540 M8 FLANGE 		0-91180-208-0 02 1 0701-0912 ● ● ●
12 03.671 NUT; EGR VLV
01.540 M8 FLANGE 		0-91180-208-0 02 1 1001- ● ● ● ●
16 03.275 STUD; EGR VLV
EURO2 SPECIFICATION<NT2> 03.613 M8X45 L=57 		8-94105-162-1 04 1 0307-0408 ●
16 03.275 STUD; EGR VLV
EURO2 SPECIFICATION<NT2> 03.342 M8X49 L=63 		8-97019-478-0 04 1 0409-1103 ●
16 03.275 STUD; EGR VLV
03.342 M8X55 L=67 		8-94343-897-0 02 1 0307-0609 ●
16 03.275 STUD; EGR VLV
01.073 M8X22 L=40 		0-49140-822-0 02 1 0610-0611 ● ● ● ●
16 03.275 STUD; EGR VLV
EXC. KENYA EQUIPMENT(CL1) 01.073 M8X22 L=40 		0-49140-822-0 02 1 0612-0612 ●
16 03.275 STUD; EGR VLV
01.073 M8X22 L=40 		0-49140-822-0 02 1 0612-0612 ● ● ●
16 03.275 STUD; EGR VLV
EXC. KENYA EQUIPMENT(CL1) 01.073 M8X22 L=40 		0-49140-822-0 02 1 0701-0912 ●
16 03.275 STUD; EGR VLV
01.073 M8X22 L=40 		0-49140-822-0 02 1 0701-0912 ● ●
16 03.275 STUD; EGR VLV
EXC. KENYA EQUIPMENT(CL1) 01.073 M8X22 L=40 		0-49140-822-0 02 1 1001- ●
16 03.275 STUD; EGR VLV
01.073 M8X22 L=40 		0-49140-822-0 02 1 1001- ● ● ●
16 03.275 STUD; EGR VLV
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 03.342 M8X20 L=31 		8-97104-508-1 02 1 0307-0408 ●
16 03.275 STUD; EGR VLV
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 03.342 M8X20 L=31 		8-97378-060-0 02 1 0409-0609 ●
16 03.275 STUD; EGR VLV
KENYA EQUIPMENT(CL1) M8X25 L=41 		0-40210-825-0 02 1 0612- ●
17 03.665 GASKET; EGR PIPE
IDENTIFICATION BREAKING POINT 2008. 5 M.Y.(BRL) KENYA EQUIPMENT(CL1) (B) 		8-97324-052-0 02 1 0907- ●
17 03.665 GASKET; EGR PIPE
IDENTIFICATION BREAKING POINT 2008. 5 M.Y.(BRL) (B) 		8-97375-980-1 01 1 0807- ●
17 03.665 GASKET; EGR PIPE
IDENTIFICATION BREAKING POINT 2008. 5 M.Y.(BRL) (B) 		8-97942-749-0 02 1 0807-0906 ●
17 03.665 GASKET; EGR PIPE
IDENTIFICATION BREAKING POINT 2008. 5 M.Y.(BRL) EXC. KENYA EQUIPMENT(CL1) (B) 		8-97942-749-0 02 1 0907- ●
17 03.665 GASKET; EGR PIPE
EURO2 SPECIFICATION<NT2> (A) 		8-94340-670-0 02 1 0307-0310 ●
17 03.665 GASKET; EGR PIPE
(A) 		8-94340-670-0 02 1 0307-0310 ●
17 03.665 GASKET; EGR PIPE
EURO3 SPECIFICATION<NT3> (A) 		8-94340-670-0 02 1 0307-0310 ●
17 03.665 GASKET; EGR PIPE
(A) 		8-94340-670-0 02 1 0311-0503 ●
17 03.665 GASKET; EGR PIPE
EURO3 SPECIFICATION<NT3> (A) 		8-94340-670-0 02 1 0311-0503 ●
17 03.665 GASKET; EGR PIPE
(A) 		8-97324-052-0 02 1 0504-0609 ●
17 03.665 GASKET; EGR PIPE
EURO3 SPECIFICATION<NT3> (A) 		8-97324-052-0 02 1 0504-0609 ●
17 03.665 GASKET; EGR PIPE
EURO2 SPECIFICATION<NT2> (A) 		8-97324-052-0 01 1 0307-0609 ●
17 03.665 GASKET; EGR PIPE
(B) 		8-97357-684-2 01 1 0610-0611 ● ● ● ●
17 03.665 GASKET; EGR PIPE
(B) 		8-97357-684-2 01 1 0610-0611 ● ●
17 03.665 GASKET; EGR PIPE
KENYA EQUIPMENT(CL1) (B) 		8-97357-684-3 02 1 0612-0806 ●
17 03.665 GASKET; EGR PIPE
KENYA EQUIPMENT(CL1) EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL) (B) 		8-97357-684-3 02 1 0807- ●
17 03.665 GASKET; EGR PIPE
EXC. KENYA EQUIPMENT(CL1) (B) 		8-97357-684-2 01 1 0612-0612 ●
17 03.665 GASKET; EGR PIPE
EXC. KENYA EQUIPMENT(CL1) (B) 		8-97357-684-2 01 1 0612-0612 ●
17 03.665 GASKET; EGR PIPE
(B) 		8-97357-684-2 01 1 0612-0612 ● ● ●
17 03.665 GASKET; EGR PIPE
(B) 		8-97357-684-2 01 1 0612-0612 ●
17 03.665 GASKET; EGR PIPE
EXC. KENYA EQUIPMENT(CL1) (B) 		8-97357-684-2 01 1 0701-0912 ●
17 03.665 GASKET; EGR PIPE
EXC. KENYA EQUIPMENT(CL1) (B) 		8-97357-684-2 01 1 0701-0912 ●
17 03.665 GASKET; EGR PIPE
(B) 		8-97357-684-2 01 1 0701-0912 ● ●
17 03.665 GASKET; EGR PIPE
EXC. KENYA EQUIPMENT(CL1) . 		8-97357-684-2 01 1 1001- ●
17 03.665 GASKET; EGR PIPE
EXC. KENYA EQUIPMENT(CL1) . 		8-97357-684-2 01 1 1001- ●
17 03.665 GASKET; EGR PIPE
. 		8-97357-684-2 01 1 1001- ● ● ●
17 03.665 GASKET; EGR PIPE
(B) ALSO INCLUDED IN GASKET SET(ENGINE) . 		8-97357-684-2 01 1 1001- ●
17 03.665 GASKET; EGR PIPE
(C) 		8-98017-551-0 01 1 0610- ● ●
655 03.675 PIPE; EGR VLV
IDENTIFICATION BREAKING POINT 2008. 5 M.Y.(BRL) 		8-98096-267-1 01 1 0807- ●
681 03.671 NUT; EGR PIPE
AUSTRALIA EQUIPMENT(B13) EURO2 SPECIFICATION<NT2> 01.540 M8 FLANGE 		0-91150-208-0 02 1 0307-0602 ●
681 03.671 NUT; EGR PIPE
AUSTRALIA EQUIPMENT(B13) EURO2 SPECIFICATION<NT2> 01.540 M8 FLANGE 		0-91180-208-0 02 1 0603-0609 ●
681 03.671 NUT; EGR PIPE
01.540 M8 FLANGE 		0-91180-208-0 03 1 0610-0612 ● ●
681 03.671 NUT; EGR PIPE
01.540 M8 FLANGE 		0-91180-208-0 03 1 0701-0806 ●
681 03.671 NUT; EGR PIPE
EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL) 01.540 M8 FLANGE 		0-91180-208-0 03 1 0807-0912 ●
681 03.671 NUT; EGR PIPE
EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL) 01.540 M8 FLANGE 		0-91180-208-0 03 1 1001- ●
681 03.671 NUT; EGR PIPE
01.540 M8 FLANGE 		0-91180-208-0 03 1 1001- ●
681 03.671 NUT; EGR PIPE
EURO2 SPECIFICATION<NT2> EXC. AUSTRALIA EQUIPMENT(B13) 01.540 M8 FLANGE 		0-91150-208-0 01 1 0307-0602 ●
681 03.671 NUT; EGR PIPE
EURO2 SPECIFICATION<NT2> EXC. AUSTRALIA EQUIPMENT(B13) 01.540 M8 FLANGE 		0-91180-208-0 01 1 0603-0609 ●
681 03.671 NUT; EGR PIPE
01.540 M8 FLANGE 		0-91180-208-0 02 1 0610-0806 ● ●
681 03.671 NUT; EGR PIPE
IDENTIFICATION BREAKING POINT 2008. 5 M.Y.(BRL) 01.540 M8 FLANGE 		0-91180-208-0 02 1 0807- ●
681 03.671 NUT; EGR PIPE
01.540 M8 FLANGE 		0-91180-208-0 02 1 0807- ● ●
718 03.337 COOLER; EGR
EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL),KENYA EQUIPMENT(CL1) 09.003 		8-98150-750-0 01 1 0908-0912 ●
718 03.337 COOLER; EGR
EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL),KENYA EQUIPMENT(CL1) 09.003 		8-98150-750-0 01 1 1001- ●
718 03.337 COOLER; EGR
09.003 		8-98150-750-0 01 1 1001- ●
718 03.337 COOLER; EGR 8-98031-836-0 01 1 0610-0612 ● ●
718 03.337 COOLER; EGR 8-98031-836-0 01 1 0701-0709 ●
718 03.337 COOLER; EGR
EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL),KENYA EQUIPMENT(CL1) 		8-98031-836-0 01 1 0710-0907 ●
718 03.337 COOLER; EGR
KENYA EQUIPMENT(CL1) EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL) 		8-98031-836-0 01 1 0908- ●
718 03.337 COOLER; EGR 8-98011-524-3 01 1 0610-0907 ● ●
718 03.337 COOLER; EGR 8-98150-749-1 01 1 0908- ● ●
789 03.670 COVER; COOLER,EGR
IDENTIFICATION BREAKING POINT 2008. 5 M.Y.(BRL) 		8-98105-261-0 01 1 0807- ●
791 03.670 STUD; COVER
IDENTIFICATION BREAKING POINT 2008. 5 M.Y.(BRL) 03.342 M8X22 L=33 		8-94257-319-0 02 1 0807- ●

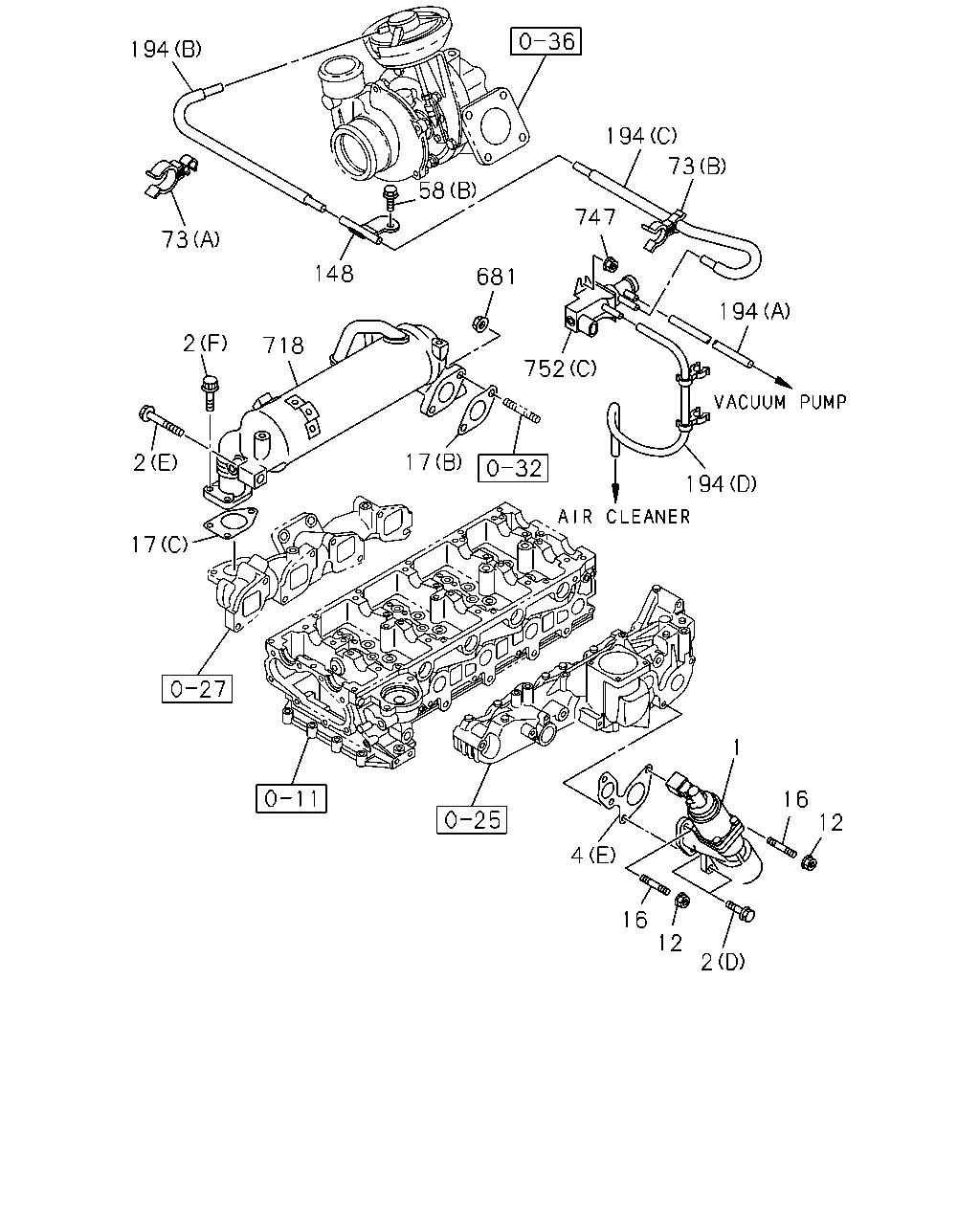

çizim 53819
194 194 73 58 747 73 148 681 194 2 718 752 17 2 194 17 1 16 12 4 16 12 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 03.670 VALVE; EGR
EURO2 SPECIFICATION<NT2> 		8-97132-802-5 02 1 0307-1103 ●
1 03.670 VALVE; EGR 8-97312-533-1 01 1 0307-0609 ●
1 03.670 VALVE; EGR 8-98013-911-0 01 1 0610-0612 ● ● ● ●
1 03.670 VALVE; EGR 8-98013-911-0 01 1 0701-0912 ● ● ●
1 03.670 VALVE; EGR 8-98013-911-0 01 1 1001- ● ● ● ●
1 03.670 VALVE; EGR
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-97349-435-0 01 1 0307-0609 ●
2 03.670 BOLT; EGR VLV
EURO2 SPECIFICATION<NT2> 01.271 (C) M8X40 FLANGE 		0-28080-840-0 04 1 0307-0512 ●
2 03.670 BOLT; EGR VLV
EURO2 SPECIFICATION<NT2> 02.277 (C) M8X40 FLANGE 		0-28050-840-0 04 1 0601-1103 ●
2 03.670 BOLT; EGR VLV
(A) M8X23 FLANGE 		8-94103-629-2 02 1 0307-0408 ●
2 03.670 BOLT; EGR VLV
EURO3 SPECIFICATION<NT3> (A) M8X23 FLANGE 		8-94103-629-2 02 1 0307-0408 ●
2 03.670 BOLT; EGR VLV
03.417 (A) M8X23 FLANGE 		8-97378-077-0 02 1 0409-0609 ●
2 03.670 BOLT; EGR VLV
EURO3 SPECIFICATION<NT3> 03.417 (A) M8X23 FLANGE 		8-97378-077-0 02 1 0409-0609 ●
2 03.670 BOLT; EGR VLV
03.417 (G) M8X23 FLANGE 		8-97378-077-0 01 1 0610-0612 ● ●
2 03.670 BOLT; EGR VLV
03.417 (G) M8X23 FLANGE 		8-97378-077-0 01 1 0701-0806 ●
2 03.670 BOLT; EGR VLV
EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL) 03.417 (G) M8X23 FLANGE 		8-97378-077-0 01 1 0807-0912 ●
2 03.670 BOLT; EGR VLV
EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL) 03.417 (G) M8X23 FLANGE 		8-97378-077-0 01 1 1001- ●
2 03.670 BOLT; EGR VLV
03.417 (G) M8X23 FLANGE 		8-97378-077-0 01 1 1001- ●
2 03.670 BOLT; EGR VLV
03.680 (B) M8X18 FLANGE 		8-94368-563-1 02 1 0307-0408 ●
2 03.670 BOLT; EGR VLV
EURO3 SPECIFICATION<NT3> 03.680 (B) M8X18 FLANGE 		8-94368-563-1 02 1 0307-0408 ●
2 03.670 BOLT; EGR VLV
(B) M8X18 FLANGE 		8-97378-076-0 02 1 0409-0609 ●
2 03.670 BOLT; EGR VLV
EURO3 SPECIFICATION<NT3> (B) M8X18 FLANGE 		8-97378-076-0 02 1 0409-0609 ●
2 03.670 BOLT; EGR VLV
02.343 (H) M8X12 FLANGE 		0-28050-812-0 01 1 0610-0612 ● ●
2 03.670 BOLT; EGR VLV
02.343 (H) M8X12 FLANGE 		0-28050-812-0 01 1 0701-0709 ●
2 03.670 BOLT; EGR VLV
EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL),KENYA EQUIPMENT(CL1) 02.343 (H) M8X12 FLANGE 		0-28050-812-0 01 1 0710-0806 ●
2 03.670 BOLT; EGR VLV
EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL) 02.343 (H) M8X12 FLANGE 		0-28050-812-0 01 1 0807-0912 ●
2 03.670 BOLT; EGR VLV
EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL) 02.343 (H) M8X12 FLANGE 		0-28050-812-0 01 1 1001- ●
2 03.670 BOLT; EGR VLV
02.343 (H) M8X12 FLANGE 		0-28050-812-0 01 1 1001- ●
2 03.670 BOLT; EGR VLV
09.181 (E) M10X45 FLANGE 		0-28151-045-0 01 1 0610- ● ●
2 03.670 BOLT; EGR VLV
03.417 (F) M8X23 FLANGE 		8-97378-077-0 03 1 0610- ● ●
2 03.670 BOLT; EGR VLV
06.216 (D) M8X25 FLANGE 		0-28650-825-0 02 1 0610-0612 ● ● ● ●
2 03.670 BOLT; EGR VLV
06.216 (D) M8X25 FLANGE 		0-28650-825-0 02 1 0701-0912 ● ● ●
2 03.670 BOLT; EGR VLV
06.216 (D) M8X25 FLANGE 		0-28650-825-0 02 1 1001- ● ● ● ●
4 03.671 GASKET; EGR VLV
EXC. AUSTRALIA EQUIPMENT(B13) (F) ALSO INCLUDED IN GASKET SET(ENGINE) . 		8-92061-674-0 01 1 1010- ●
4 03.671 GASKET; EGR VLV
EURO2 SPECIFICATION<NT2> (A) 		8-94334-338-1 02 1 0307-1103 ●
4 03.671 GASKET; EGR VLV
EURO2 SPECIFICATION<NT2> (B) 		8-94379-754-0 01 1 0307-1103 ●
4 03.671 GASKET; EGR VLV
03.665 (C) 		8-97192-765-0 02 1 0307-0609 ●
4 03.671 GASKET; EGR VLV
(E) 		8-97356-711-2 01 1 0610-0612 ● ● ● ●
4 03.671 GASKET; EGR VLV
(E) 		8-97356-711-3 01 1 0701-0912 ● ● ●
4 03.671 GASKET; EGR VLV
(E) ALSO INCLUDED IN GASKET SET(ENGINE) . 		8-97356-711-3 01 1 1001- ● ● ● ●
4 03.671 GASKET; EGR VLV
03.665 (D) 		8-97324-052-0 01 1 0307-0609 ●
4 03.671 GASKET; EGR VLV
EURO3 SPECIFICATION<NT3> 03.665 (D) 		8-97324-052-0 01 1 0307-0609 ●
4 03.671 GASKET; EGR VLV
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 03.665 (C) 		8-97324-052-0 02 1 0307-0609 ●
4 03.671 GASKET; EGR VLV
(F) ALSO INCLUDED IN GASKET SET(ENGINE) . 		8-92064-809-0 01 1 0307-1009 ●
4 03.671 GASKET; EGR VLV
AUSTRALIA EQUIPMENT(B13) (F) ALSO INCLUDED IN GASKET SET(ENGINE) . 		8-92064-809-0 01 1 1010- ●
12 03.671 NUT; EGR VLV
EURO2 SPECIFICATION<NT2> 01.540 M8 FLANGE 		0-91150-208-0 04 1 0307-0602 ●
12 03.671 NUT; EGR VLV
EURO2 SPECIFICATION<NT2> 01.540 M8 FLANGE 		0-91180-208-0 04 1 0603-1103 ●
12 03.671 NUT; EGR VLV
01.540 M8 FLANGE 		0-91150-208-0 02 1 0307-0602 ●
12 03.671 NUT; EGR VLV
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 01.540 M8 FLANGE 		0-91150-208-0 02 1 0307-0602 ●
12 03.671 NUT; EGR VLV
01.540 M8 FLANGE 		0-91180-208-0 02 1 0603-0609 ●
12 03.671 NUT; EGR VLV
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 01.540 M8 FLANGE 		0-91180-208-0 02 1 0603-0609 ●
12 03.671 NUT; EGR VLV
01.540 M8 FLANGE 		0-91180-208-0 02 1 0610-0612 ● ● ● ●
12 03.671 NUT; EGR VLV
01.540 M8 FLANGE 		0-91180-208-0 02 1 0701-0912 ● ● ●
12 03.671 NUT; EGR VLV
01.540 M8 FLANGE 		0-91180-208-0 02 1 1001- ● ● ● ●
16 03.275 STUD; EGR VLV
EURO2 SPECIFICATION<NT2> 03.613 M8X45 L=57 		8-94105-162-1 04 1 0307-0408 ●
16 03.275 STUD; EGR VLV
EURO2 SPECIFICATION<NT2> 03.342 M8X49 L=63 		8-97019-478-0 04 1 0409-1103 ●
16 03.275 STUD; EGR VLV
03.342 M8X55 L=67 		8-94343-897-0 02 1 0307-0609 ●
16 03.275 STUD; EGR VLV
01.073 M8X22 L=40 		0-49140-822-0 02 1 0610-0611 ● ● ● ●
16 03.275 STUD; EGR VLV
EXC. KENYA EQUIPMENT(CL1) 01.073 M8X22 L=40 		0-49140-822-0 02 1 0612-0612 ●
16 03.275 STUD; EGR VLV
01.073 M8X22 L=40 		0-49140-822-0 02 1 0612-0612 ● ● ●
16 03.275 STUD; EGR VLV
EXC. KENYA EQUIPMENT(CL1) 01.073 M8X22 L=40 		0-49140-822-0 02 1 0701-0912 ●
16 03.275 STUD; EGR VLV
01.073 M8X22 L=40 		0-49140-822-0 02 1 0701-0912 ● ●
16 03.275 STUD; EGR VLV
EXC. KENYA EQUIPMENT(CL1) 01.073 M8X22 L=40 		0-49140-822-0 02 1 1001- ●
16 03.275 STUD; EGR VLV
01.073 M8X22 L=40 		0-49140-822-0 02 1 1001- ● ● ●
16 03.275 STUD; EGR VLV
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 03.342 M8X20 L=31 		8-97104-508-1 02 1 0307-0408 ●
16 03.275 STUD; EGR VLV
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 03.342 M8X20 L=31 		8-97378-060-0 02 1 0409-0609 ●
16 03.275 STUD; EGR VLV
KENYA EQUIPMENT(CL1) M8X25 L=41 		0-40210-825-0 02 1 0612- ●
17 03.665 GASKET; EGR PIPE
IDENTIFICATION BREAKING POINT 2008. 5 M.Y.(BRL) KENYA EQUIPMENT(CL1) (B) 		8-97324-052-0 02 1 0907- ●
17 03.665 GASKET; EGR PIPE
IDENTIFICATION BREAKING POINT 2008. 5 M.Y.(BRL) (B) 		8-97375-980-1 01 1 0807- ●
17 03.665 GASKET; EGR PIPE
IDENTIFICATION BREAKING POINT 2008. 5 M.Y.(BRL) (B) 		8-97942-749-0 02 1 0807-0906 ●
17 03.665 GASKET; EGR PIPE
IDENTIFICATION BREAKING POINT 2008. 5 M.Y.(BRL) EXC. KENYA EQUIPMENT(CL1) (B) 		8-97942-749-0 02 1 0907- ●
17 03.665 GASKET; EGR PIPE
EURO2 SPECIFICATION<NT2> (A) 		8-94340-670-0 02 1 0307-0310 ●
17 03.665 GASKET; EGR PIPE
(A) 		8-94340-670-0 02 1 0307-0310 ●
17 03.665 GASKET; EGR PIPE
EURO3 SPECIFICATION<NT3> (A) 		8-94340-670-0 02 1 0307-0310 ●
17 03.665 GASKET; EGR PIPE
(A) 		8-94340-670-0 02 1 0311-0503 ●
17 03.665 GASKET; EGR PIPE
EURO3 SPECIFICATION<NT3> (A) 		8-94340-670-0 02 1 0311-0503 ●
17 03.665 GASKET; EGR PIPE
(A) 		8-97324-052-0 02 1 0504-0609 ●
17 03.665 GASKET; EGR PIPE
EURO3 SPECIFICATION<NT3> (A) 		8-97324-052-0 02 1 0504-0609 ●
17 03.665 GASKET; EGR PIPE
EURO2 SPECIFICATION<NT2> (A) 		8-97324-052-0 01 1 0307-0609 ●
17 03.665 GASKET; EGR PIPE
(B) 		8-97357-684-2 01 1 0610-0611 ● ● ● ●
17 03.665 GASKET; EGR PIPE
(B) 		8-97357-684-2 01 1 0610-0611 ● ●
17 03.665 GASKET; EGR PIPE
KENYA EQUIPMENT(CL1) (B) 		8-97357-684-3 02 1 0612-0806 ●
17 03.665 GASKET; EGR PIPE
KENYA EQUIPMENT(CL1) EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL) (B) 		8-97357-684-3 02 1 0807- ●
17 03.665 GASKET; EGR PIPE
EXC. KENYA EQUIPMENT(CL1) (B) 		8-97357-684-2 01 1 0612-0612 ●
17 03.665 GASKET; EGR PIPE
EXC. KENYA EQUIPMENT(CL1) (B) 		8-97357-684-2 01 1 0612-0612 ●
17 03.665 GASKET; EGR PIPE
(B) 		8-97357-684-2 01 1 0612-0612 ● ● ●
17 03.665 GASKET; EGR PIPE
(B) 		8-97357-684-2 01 1 0612-0612 ●
17 03.665 GASKET; EGR PIPE
EXC. KENYA EQUIPMENT(CL1) (B) 		8-97357-684-2 01 1 0701-0912 ●
17 03.665 GASKET; EGR PIPE
EXC. KENYA EQUIPMENT(CL1) (B) 		8-97357-684-2 01 1 0701-0912 ●
17 03.665 GASKET; EGR PIPE
(B) 		8-97357-684-2 01 1 0701-0912 ● ●
17 03.665 GASKET; EGR PIPE
EXC. KENYA EQUIPMENT(CL1) . 		8-97357-684-2 01 1 1001- ●
17 03.665 GASKET; EGR PIPE
EXC. KENYA EQUIPMENT(CL1) . 		8-97357-684-2 01 1 1001- ●
17 03.665 GASKET; EGR PIPE
. 		8-97357-684-2 01 1 1001- ● ● ●
17 03.665 GASKET; EGR PIPE
(B) ALSO INCLUDED IN GASKET SET(ENGINE) . 		8-97357-684-2 01 1 1001- ●
17 03.665 GASKET; EGR PIPE
(C) 		8-98017-551-0 01 1 0610- ● ●
58 03.417 BOLT; PIPE
03.670 (A) M8X23 FLANGE 		8-94103-629-2 04 1 0307-0408 ●
58 03.417 BOLT; PIPE
EURO3 SPECIFICATION<NT3> 03.670 (A) M8X23 FLANGE 		8-94103-629-2 04 1 0307-0408 ●
58 03.417 BOLT; PIPE
(A) M8X23 FLANGE 		8-97378-077-0 04 1 0409-0609 ●
58 03.417 BOLT; PIPE
EURO3 SPECIFICATION<NT3> (A) M8X23 FLANGE 		8-97378-077-0 04 1 0409-0609 ●
58 03.417 BOLT; PIPE
EURO2 SPECIFICATION<NT2> 03.670 (A) M8X23 FLANGE 		8-94103-629-2 02 1 0307-0408 ●
58 03.417 BOLT; PIPE
EURO2 SPECIFICATION<NT2> (A) M8X23 FLANGE 		8-97378-077-0 02 1 0409-0609 ●
58 03.417 BOLT; PIPE
02.343 (B) M8X16 FLANGE 		0-28050-816-0 01 1 0610- ● ●
73 03.680 CLIP; VAC HOSE
(A) ID=16.5 & 7 		8-97226-171-0 01 1 0610- ● ●
73 03.680 CLIP; VAC HOSE
03.483 (B) ID=21 & 7.5 		8-97309-946-0 01 1 0610- ● ●
148 03.675 PIPE; VAC 8-98011-533-0 01 1 0610- ● ●
194 03.675 HOSE; VAC
(A) 		0-04420-430-0 01 1 0610- ● ●
194 03.675 HOSE; VAC
(B) 		8-98011-635-1 01 1 0610- ● ●
194 03.675 HOSE; VAC
(C) 		8-98011-637-1 01 1 0610- ● ●
194 03.675 HOSE; VAC
(D) 		8-98037-352-1 01 1 0610- ● ●
681 03.671 NUT; EGR PIPE
AUSTRALIA EQUIPMENT(B13) EURO2 SPECIFICATION<NT2> 01.540 M8 FLANGE 		0-91150-208-0 02 1 0307-0602 ●
681 03.671 NUT; EGR PIPE
AUSTRALIA EQUIPMENT(B13) EURO2 SPECIFICATION<NT2> 01.540 M8 FLANGE 		0-91180-208-0 02 1 0603-0609 ●
681 03.671 NUT; EGR PIPE
01.540 M8 FLANGE 		0-91180-208-0 03 1 0610-0612 ● ●
681 03.671 NUT; EGR PIPE
01.540 M8 FLANGE 		0-91180-208-0 03 1 0701-0806 ●
681 03.671 NUT; EGR PIPE
EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL) 01.540 M8 FLANGE 		0-91180-208-0 03 1 0807-0912 ●
681 03.671 NUT; EGR PIPE
EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL) 01.540 M8 FLANGE 		0-91180-208-0 03 1 1001- ●
681 03.671 NUT; EGR PIPE
01.540 M8 FLANGE 		0-91180-208-0 03 1 1001- ●
681 03.671 NUT; EGR PIPE
EURO2 SPECIFICATION<NT2> EXC. AUSTRALIA EQUIPMENT(B13) 01.540 M8 FLANGE 		0-91150-208-0 01 1 0307-0602 ●
681 03.671 NUT; EGR PIPE
EURO2 SPECIFICATION<NT2> EXC. AUSTRALIA EQUIPMENT(B13) 01.540 M8 FLANGE 		0-91180-208-0 01 1 0603-0609 ●
681 03.671 NUT; EGR PIPE
01.540 M8 FLANGE 		0-91180-208-0 02 1 0610-0806 ● ●
681 03.671 NUT; EGR PIPE
IDENTIFICATION BREAKING POINT 2008. 5 M.Y.(BRL) 01.540 M8 FLANGE 		0-91180-208-0 02 1 0807- ●
681 03.671 NUT; EGR PIPE
01.540 M8 FLANGE 		0-91180-208-0 02 1 0807- ● ●
718 03.337 COOLER; EGR
EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL),KENYA EQUIPMENT(CL1) 09.003 		8-98150-750-0 01 1 0908-0912 ●
718 03.337 COOLER; EGR
EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL),KENYA EQUIPMENT(CL1) 09.003 		8-98150-750-0 01 1 1001- ●
718 03.337 COOLER; EGR
09.003 		8-98150-750-0 01 1 1001- ●
718 03.337 COOLER; EGR 8-98031-836-0 01 1 0610-0612 ● ●
718 03.337 COOLER; EGR 8-98031-836-0 01 1 0701-0709 ●
718 03.337 COOLER; EGR
EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL),KENYA EQUIPMENT(CL1) 		8-98031-836-0 01 1 0710-0907 ●
718 03.337 COOLER; EGR
KENYA EQUIPMENT(CL1) EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL) 		8-98031-836-0 01 1 0908- ●
718 03.337 COOLER; EGR 8-98011-524-3 01 1 0610-0907 ● ●
718 03.337 COOLER; EGR 8-98150-749-1 01 1 0908- ● ●
747 03.671 NUT; VAC REG VALVE
01.062 M6 FLANGE 		0-91180-106-0 02 1 0307-0609 ●
747 03.671 NUT; VAC REG VALVE
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 01.062 M6 FLANGE 		0-91180-106-0 02 1 0307-0609 ●
747 03.671 NUT; VAC REG VALVE
01.062 M8 FLANGE 		0-91180-108-0 02 1 0610- ● ●
752 03.670 VALVE; EVRV
(A) 		8-97240-699-0 01 1 0307-0505 ●
752 03.670 VALVE; EVRV
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) 		8-97240-699-0 01 1 0307-0505 ●
752 03.670 VALVE; EVRV
(A) 		8-97240-699-0 01 1 0506-0609 ●
752 03.670 VALVE; EVRV
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. AUSTRALIA EQUIPMENT(B13) (A) 		8-97240-699-0 01 1 0506-0609 ●
752 03.670 VALVE; EVRV
AUSTRALIA EQUIPMENT(B13) (B) 		8-97374-971-0 01 1 0506-0609 ●
752 03.670 VALVE; EVRV
(C) 		8-98033-927-0 01 1 0610-0803 ● ●
752 03.670 VALVE; EVRV
(C) 		8-98116-260-0 01 1 0804- ● ●

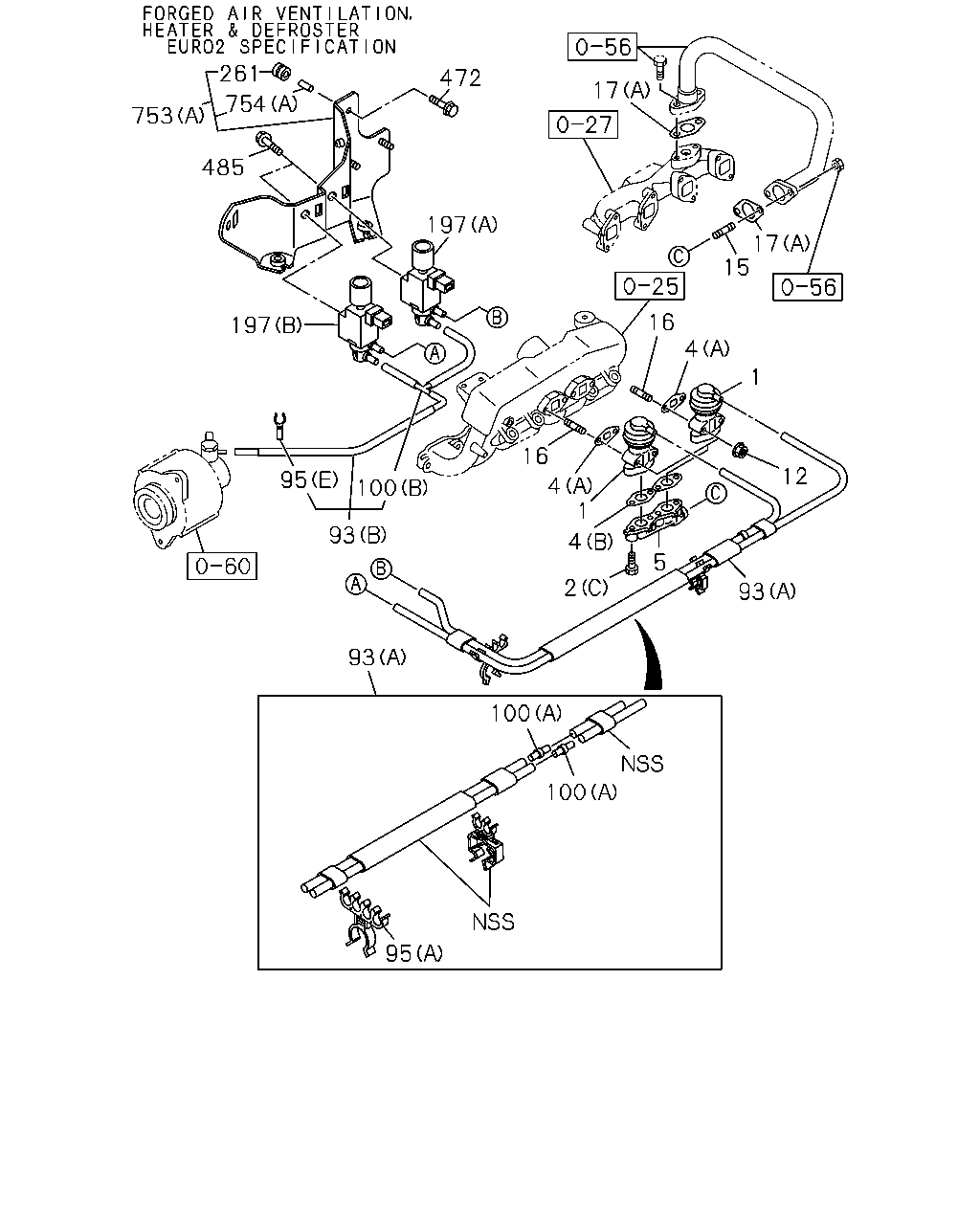

çizim 53864
261 472 17 754 753 485 197 17 15 16 197 4 16 1 100 12 95 4 1 93 4 5 2 93 93 100 100 95
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 03.670 VALVE; EGR
EURO2 SPECIFICATION<NT2> 		8-97132-802-5 02 1 0307-1103 ●
1 03.670 VALVE; EGR 8-97312-533-1 01 1 0307-0609 ●
1 03.670 VALVE; EGR 8-98013-911-0 01 1 0610-0612 ● ● ● ●
1 03.670 VALVE; EGR 8-98013-911-0 01 1 0701-0912 ● ● ●
1 03.670 VALVE; EGR 8-98013-911-0 01 1 1001- ● ● ● ●
1 03.670 VALVE; EGR
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-97349-435-0 01 1 0307-0609 ●
2 03.670 BOLT; EGR VLV
EURO2 SPECIFICATION<NT2> 01.271 (C) M8X40 FLANGE 		0-28080-840-0 04 1 0307-0512 ●
2 03.670 BOLT; EGR VLV
EURO2 SPECIFICATION<NT2> 02.277 (C) M8X40 FLANGE 		0-28050-840-0 04 1 0601-1103 ●
2 03.670 BOLT; EGR VLV
(A) M8X23 FLANGE 		8-94103-629-2 02 1 0307-0408 ●
2 03.670 BOLT; EGR VLV
EURO3 SPECIFICATION<NT3> (A) M8X23 FLANGE 		8-94103-629-2 02 1 0307-0408 ●
2 03.670 BOLT; EGR VLV
03.417 (A) M8X23 FLANGE 		8-97378-077-0 02 1 0409-0609 ●
2 03.670 BOLT; EGR VLV
EURO3 SPECIFICATION<NT3> 03.417 (A) M8X23 FLANGE 		8-97378-077-0 02 1 0409-0609 ●
2 03.670 BOLT; EGR VLV
03.417 (G) M8X23 FLANGE 		8-97378-077-0 01 1 0610-0612 ● ●
2 03.670 BOLT; EGR VLV
03.417 (G) M8X23 FLANGE 		8-97378-077-0 01 1 0701-0806 ●
2 03.670 BOLT; EGR VLV
EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL) 03.417 (G) M8X23 FLANGE 		8-97378-077-0 01 1 0807-0912 ●
2 03.670 BOLT; EGR VLV
EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL) 03.417 (G) M8X23 FLANGE 		8-97378-077-0 01 1 1001- ●
2 03.670 BOLT; EGR VLV
03.417 (G) M8X23 FLANGE 		8-97378-077-0 01 1 1001- ●
2 03.670 BOLT; EGR VLV
03.680 (B) M8X18 FLANGE 		8-94368-563-1 02 1 0307-0408 ●
2 03.670 BOLT; EGR VLV
EURO3 SPECIFICATION<NT3> 03.680 (B) M8X18 FLANGE 		8-94368-563-1 02 1 0307-0408 ●
2 03.670 BOLT; EGR VLV
(B) M8X18 FLANGE 		8-97378-076-0 02 1 0409-0609 ●
2 03.670 BOLT; EGR VLV
EURO3 SPECIFICATION<NT3> (B) M8X18 FLANGE 		8-97378-076-0 02 1 0409-0609 ●
2 03.670 BOLT; EGR VLV
02.343 (H) M8X12 FLANGE 		0-28050-812-0 01 1 0610-0612 ● ●
2 03.670 BOLT; EGR VLV
02.343 (H) M8X12 FLANGE 		0-28050-812-0 01 1 0701-0709 ●
2 03.670 BOLT; EGR VLV
EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL),KENYA EQUIPMENT(CL1) 02.343 (H) M8X12 FLANGE 		0-28050-812-0 01 1 0710-0806 ●
2 03.670 BOLT; EGR VLV
EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL) 02.343 (H) M8X12 FLANGE 		0-28050-812-0 01 1 0807-0912 ●
2 03.670 BOLT; EGR VLV
EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL) 02.343 (H) M8X12 FLANGE 		0-28050-812-0 01 1 1001- ●
2 03.670 BOLT; EGR VLV
02.343 (H) M8X12 FLANGE 		0-28050-812-0 01 1 1001- ●
2 03.670 BOLT; EGR VLV
09.181 (E) M10X45 FLANGE 		0-28151-045-0 01 1 0610- ● ●
2 03.670 BOLT; EGR VLV
03.417 (F) M8X23 FLANGE 		8-97378-077-0 03 1 0610- ● ●
2 03.670 BOLT; EGR VLV
06.216 (D) M8X25 FLANGE 		0-28650-825-0 02 1 0610-0612 ● ● ● ●
2 03.670 BOLT; EGR VLV
06.216 (D) M8X25 FLANGE 		0-28650-825-0 02 1 0701-0912 ● ● ●
2 03.670 BOLT; EGR VLV
06.216 (D) M8X25 FLANGE 		0-28650-825-0 02 1 1001- ● ● ● ●
4 03.671 GASKET; EGR VLV
EXC. AUSTRALIA EQUIPMENT(B13) (F) ALSO INCLUDED IN GASKET SET(ENGINE) . 		8-92061-674-0 01 1 1010- ●
4 03.671 GASKET; EGR VLV
EURO2 SPECIFICATION<NT2> (A) 		8-94334-338-1 02 1 0307-1103 ●
4 03.671 GASKET; EGR VLV
EURO2 SPECIFICATION<NT2> (B) 		8-94379-754-0 01 1 0307-1103 ●
4 03.671 GASKET; EGR VLV
03.665 (C) 		8-97192-765-0 02 1 0307-0609 ●
4 03.671 GASKET; EGR VLV
(E) 		8-97356-711-2 01 1 0610-0612 ● ● ● ●
4 03.671 GASKET; EGR VLV
(E) 		8-97356-711-3 01 1 0701-0912 ● ● ●
4 03.671 GASKET; EGR VLV
(E) ALSO INCLUDED IN GASKET SET(ENGINE) . 		8-97356-711-3 01 1 1001- ● ● ● ●
4 03.671 GASKET; EGR VLV
03.665 (D) 		8-97324-052-0 01 1 0307-0609 ●
4 03.671 GASKET; EGR VLV
EURO3 SPECIFICATION<NT3> 03.665 (D) 		8-97324-052-0 01 1 0307-0609 ●
4 03.671 GASKET; EGR VLV
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 03.665 (C) 		8-97324-052-0 02 1 0307-0609 ●
4 03.671 GASKET; EGR VLV
(F) ALSO INCLUDED IN GASKET SET(ENGINE) . 		8-92064-809-0 01 1 0307-1009 ●
4 03.671 GASKET; EGR VLV
AUSTRALIA EQUIPMENT(B13) (F) ALSO INCLUDED IN GASKET SET(ENGINE) . 		8-92064-809-0 01 1 1010- ●
5 03.670 ADAPTER ASM
EURO2 SPECIFICATION<NT2> 		8-97306-490-0 01 1 0307-1103 ●
5 03.670 ADAPTER ASM 8-97329-584-2 01 1 0307-0609 ●
5 03.670 ADAPTER ASM
EURO3 SPECIFICATION<NT3> 		8-97329-584-2 01 1 0307-0609 ●
12 03.671 NUT; EGR VLV
EURO2 SPECIFICATION<NT2> 01.540 M8 FLANGE 		0-91150-208-0 04 1 0307-0602 ●
12 03.671 NUT; EGR VLV
EURO2 SPECIFICATION<NT2> 01.540 M8 FLANGE 		0-91180-208-0 04 1 0603-1103 ●
12 03.671 NUT; EGR VLV
01.540 M8 FLANGE 		0-91150-208-0 02 1 0307-0602 ●
12 03.671 NUT; EGR VLV
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 01.540 M8 FLANGE 		0-91150-208-0 02 1 0307-0602 ●
12 03.671 NUT; EGR VLV
01.540 M8 FLANGE 		0-91180-208-0 02 1 0603-0609 ●
12 03.671 NUT; EGR VLV
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 01.540 M8 FLANGE 		0-91180-208-0 02 1 0603-0609 ●
12 03.671 NUT; EGR VLV
01.540 M8 FLANGE 		0-91180-208-0 02 1 0610-0612 ● ● ● ●
12 03.671 NUT; EGR VLV
01.540 M8 FLANGE 		0-91180-208-0 02 1 0701-0912 ● ● ●
12 03.671 NUT; EGR VLV
01.540 M8 FLANGE 		0-91180-208-0 02 1 1001- ● ● ● ●
15 03.670 STUD; EGR PIPE
03.601 M8X25 L=36 		8-97378-062-0 02 1 0610- ● ●
15 03.670 STUD; EGR PIPE
EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL),KENYA EQUIPMENT(CL1) 03.342 M8X22 L=33 		8-94257-319-0 03 1 0710-0806 ●
15 03.670 STUD; EGR PIPE
EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL) 03.342 M8X22 L=33 		8-94257-319-0 03 1 0807-0912 ●
15 03.670 STUD; EGR PIPE
EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL) 03.342 M8X22 L=33 		8-94257-319-0 03 1 1001- ●
15 03.670 STUD; EGR PIPE
03.342 M8X22 L=33 		8-94257-319-0 03 1 1001- ●
15 03.670 STUD; EGR PIPE
IDENTIFICATION BREAKING POINT 2008. 5 M.Y.(BRL) 01.540 M8X40 L=52 		0-41010-840-0 02 1 0807- ●
15 03.670 STUD; EGR PIPE
EURO2 SPECIFICATION<NT2> 03.901 M8X25 L=37 		9-04110-825-0 02 1 0307-0604 ●
15 03.670 STUD; EGR PIPE
EURO2 SPECIFICATION<NT2> 03.275 M8X25 L=37 		0-41010-825-0 02 1 0605-1103 ●
15 03.670 STUD; EGR PIPE
EURO2 SPECIFICATION<NT2> 03.342 M8X20 L=31 		8-97104-508-1 02 1 0307-0408 ●
15 03.670 STUD; EGR PIPE
EURO2 SPECIFICATION<NT2> 03.342 M8X20 L=31 		8-97378-060-0 02 1 0409-0609 ●
15 03.670 STUD; EGR PIPE
03.342 M8X22 L=33 		8-94257-319-0 03 1 0701-0709 ●
15 03.670 STUD; EGR PIPE
03.342 M8X22 L=33 		8-94257-319-0 03 1 0612-0612 ● ●
16 03.275 STUD; EGR VLV
EURO2 SPECIFICATION<NT2> 03.613 M8X45 L=57 		8-94105-162-1 04 1 0307-0408 ●
16 03.275 STUD; EGR VLV
EURO2 SPECIFICATION<NT2> 03.342 M8X49 L=63 		8-97019-478-0 04 1 0409-1103 ●
16 03.275 STUD; EGR VLV
03.342 M8X55 L=67 		8-94343-897-0 02 1 0307-0609 ●
16 03.275 STUD; EGR VLV
01.073 M8X22 L=40 		0-49140-822-0 02 1 0610-0611 ● ● ● ●
16 03.275 STUD; EGR VLV
EXC. KENYA EQUIPMENT(CL1) 01.073 M8X22 L=40 		0-49140-822-0 02 1 0612-0612 ●
16 03.275 STUD; EGR VLV
01.073 M8X22 L=40 		0-49140-822-0 02 1 0612-0612 ● ● ●
16 03.275 STUD; EGR VLV
EXC. KENYA EQUIPMENT(CL1) 01.073 M8X22 L=40 		0-49140-822-0 02 1 0701-0912 ●
16 03.275 STUD; EGR VLV
01.073 M8X22 L=40 		0-49140-822-0 02 1 0701-0912 ● ●
16 03.275 STUD; EGR VLV
EXC. KENYA EQUIPMENT(CL1) 01.073 M8X22 L=40 		0-49140-822-0 02 1 1001- ●
16 03.275 STUD; EGR VLV
01.073 M8X22 L=40 		0-49140-822-0 02 1 1001- ● ● ●
16 03.275 STUD; EGR VLV
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 03.342 M8X20 L=31 		8-97104-508-1 02 1 0307-0408 ●
16 03.275 STUD; EGR VLV
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 03.342 M8X20 L=31 		8-97378-060-0 02 1 0409-0609 ●
16 03.275 STUD; EGR VLV
KENYA EQUIPMENT(CL1) M8X25 L=41 		0-40210-825-0 02 1 0612- ●
17 03.665 GASKET; EGR PIPE
IDENTIFICATION BREAKING POINT 2008. 5 M.Y.(BRL) KENYA EQUIPMENT(CL1) (B) 		8-97324-052-0 02 1 0907- ●
17 03.665 GASKET; EGR PIPE
IDENTIFICATION BREAKING POINT 2008. 5 M.Y.(BRL) (B) 		8-97375-980-1 01 1 0807- ●
17 03.665 GASKET; EGR PIPE
IDENTIFICATION BREAKING POINT 2008. 5 M.Y.(BRL) (B) 		8-97942-749-0 02 1 0807-0906 ●
17 03.665 GASKET; EGR PIPE
IDENTIFICATION BREAKING POINT 2008. 5 M.Y.(BRL) EXC. KENYA EQUIPMENT(CL1) (B) 		8-97942-749-0 02 1 0907- ●
17 03.665 GASKET; EGR PIPE
EURO2 SPECIFICATION<NT2> (A) 		8-94340-670-0 02 1 0307-0310 ●
17 03.665 GASKET; EGR PIPE
(A) 		8-94340-670-0 02 1 0307-0310 ●
17 03.665 GASKET; EGR PIPE
EURO3 SPECIFICATION<NT3> (A) 		8-94340-670-0 02 1 0307-0310 ●
17 03.665 GASKET; EGR PIPE
(A) 		8-94340-670-0 02 1 0311-0503 ●
17 03.665 GASKET; EGR PIPE
EURO3 SPECIFICATION<NT3> (A) 		8-94340-670-0 02 1 0311-0503 ●
17 03.665 GASKET; EGR PIPE
(A) 		8-97324-052-0 02 1 0504-0609 ●
17 03.665 GASKET; EGR PIPE
EURO3 SPECIFICATION<NT3> (A) 		8-97324-052-0 02 1 0504-0609 ●
17 03.665 GASKET; EGR PIPE
EURO2 SPECIFICATION<NT2> (A) 		8-97324-052-0 01 1 0307-0609 ●
17 03.665 GASKET; EGR PIPE
(B) 		8-97357-684-2 01 1 0610-0611 ● ● ● ●
17 03.665 GASKET; EGR PIPE
(B) 		8-97357-684-2 01 1 0610-0611 ● ●
17 03.665 GASKET; EGR PIPE
KENYA EQUIPMENT(CL1) (B) 		8-97357-684-3 02 1 0612-0806 ●
17 03.665 GASKET; EGR PIPE
KENYA EQUIPMENT(CL1) EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL) (B) 		8-97357-684-3 02 1 0807- ●
17 03.665 GASKET; EGR PIPE
EXC. KENYA EQUIPMENT(CL1) (B) 		8-97357-684-2 01 1 0612-0612 ●
17 03.665 GASKET; EGR PIPE
EXC. KENYA EQUIPMENT(CL1) (B) 		8-97357-684-2 01 1 0612-0612 ●
17 03.665 GASKET; EGR PIPE
(B) 		8-97357-684-2 01 1 0612-0612 ● ● ●
17 03.665 GASKET; EGR PIPE
(B) 		8-97357-684-2 01 1 0612-0612 ●
17 03.665 GASKET; EGR PIPE
EXC. KENYA EQUIPMENT(CL1) (B) 		8-97357-684-2 01 1 0701-0912 ●
17 03.665 GASKET; EGR PIPE
EXC. KENYA EQUIPMENT(CL1) (B) 		8-97357-684-2 01 1 0701-0912 ●
17 03.665 GASKET; EGR PIPE
(B) 		8-97357-684-2 01 1 0701-0912 ● ●
17 03.665 GASKET; EGR PIPE
EXC. KENYA EQUIPMENT(CL1) . 		8-97357-684-2 01 1 1001- ●
17 03.665 GASKET; EGR PIPE
EXC. KENYA EQUIPMENT(CL1) . 		8-97357-684-2 01 1 1001- ●
17 03.665 GASKET; EGR PIPE
. 		8-97357-684-2 01 1 1001- ● ● ●
17 03.665 GASKET; EGR PIPE
(B) ALSO INCLUDED IN GASKET SET(ENGINE) . 		8-97357-684-2 01 1 1001- ●
17 03.665 GASKET; EGR PIPE
(C) 		8-98017-551-0 01 1 0610- ● ●
93 03.675 HOSE ASM
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EMISSION SYSTEM R15-04<K75> 03.163 (E) 		8-97332-387-1 01 1 0307- ●
93 03.675 HOSE ASM
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EMISSION SYSTEM R15-04<K75> 03.163 (F) 		8-97943-451-0 01 1 0307- ●
93 03.675 HOSE ASM
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EURO2 SPECIFICATION<NT2> 03.163 (C) 		8-97260-312-4 01 1 0307- ●
93 03.675 HOSE ASM
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EURO2 SPECIFICATION<NT2> 03.163 (D) 		8-97943-449-0 01 1 0307- ●
93 03.675 HOSE ASM
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C42) EURO2 SPECIFICATION<NT2> 03.163 (A) 		8-97260-313-4 01 1 0307-0609 ●
93 03.675 HOSE ASM
HEATER & DEFROSTER(C42) EURO2 SPECIFICATION<NT2> 03.163 (A) 		8-97260-313-4 01 1 0610- ●
93 03.675 HOSE ASM
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C42) EURO2 SPECIFICATION<NT2> 03.163 (B) 		8-97943-450-0 01 1 0307-0609 ●
93 03.675 HOSE ASM
HEATER & DEFROSTER(C42) EURO2 SPECIFICATION<NT2> 03.163 (B) 		8-97943-450-0 01 1 0610- ●
95 03.680 CLIP; HOSE
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EMISSION SYSTEM R15-04<K75> 03.430 (B) ID=6 & 16.5 		8-94165-402-0 01 1 0307- ●
95 03.680 CLIP; HOSE
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EMISSION SYSTEM R15-04<K75> 02.589 (E) ID=13 & 16.5 		8-94169-028-0 01 1 0307- ●
95 03.680 CLIP; HOSE
EURO2 SPECIFICATION<NT2> 02.589 (E) ID=13 & 16.5 		8-94169-028-0 01 1 0307- ●
95 03.680 CLIP; HOSE
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EMISSION SYSTEM R15-04<K75> 04.128 (C) ID=14.5 & 7.5 		8-94315-424-0 01 1 0307- ●
95 03.680 CLIP; HOSE
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EMISSION SYSTEM R15-04<K75> 03.483 (D) ID=21 & 7.5 		8-97309-946-0 01 1 0307- ●
95 03.680 CLIP; HOSE
EURO2 SPECIFICATION<NT2> (A) ID=14.5 & 7X4 		8-94368-499-0 01 1 0307- ●
100 03.680 JOINT; HOSE
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EURO2 SPECIFICATION<NT2> (B) 3WAY 		8-94210-631-0 02 1 0307- ●
100 03.680 JOINT; HOSE
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EURO2 SPECIFICATION<NT2> (A) 2WAY 		8-97165-694-0 03 1 0307- ●
100 03.680 JOINT; HOSE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C42) EURO2 SPECIFICATION<NT2> (B) 3WAY 		8-94210-631-0 01 1 0307-0609 ●
100 03.680 JOINT; HOSE
HEATER & DEFROSTER(C42) EURO2 SPECIFICATION<NT2> (B) 3WAY 		8-94210-631-0 01 1 0610- ●
100 03.680 JOINT; HOSE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C42) EURO2 SPECIFICATION<NT2> (A) 2WAY 		8-97165-694-0 02 1 0307-0609 ●
100 03.680 JOINT; HOSE
HEATER & DEFROSTER(C42) EURO2 SPECIFICATION<NT2> (A) 2WAY 		8-97165-694-0 02 1 0610- ●
197 03.670 VALVE; VAC SWITCHING
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 03.130 (C) 		8-94384-336-0 01 1 0307- ●
197 03.670 VALVE; VAC SWITCHING
EURO2 SPECIFICATION<NT2> (A) 		8-97043-750-0 01 1 0307- ●
197 03.670 VALVE; VAC SWITCHING
EURO2 SPECIFICATION<NT2> 03.675 (B) 		8-97171-030-0 01 1 0307- ●
261 03.671 GROMMET
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EMISSION SYSTEM R15-04<K75> 00.206 		5-19389-002-0 03 1 0307- ●
261 03.671 GROMMET
EURO2 SPECIFICATION<NT2> 00.206 		5-19389-002-0 03 1 0307- ●
472 03.671 BOLT; BRKT
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EMISSION SYSTEM R15-04<K75> 02.343 M6X16 FLANGE 		0-28650-616-0 03 1 0307- ●
472 03.671 BOLT; BRKT
EURO2 SPECIFICATION<NT2> 02.343 M6X16 FLANGE 		0-28650-616-0 03 1 0307- ●
472 03.671 BOLT; BRKT
03.680 M6X30 FLANGE 		0-28650-630-0 02 1 0307-0609 ●
472 03.671 BOLT; BRKT
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 03.680 M6X30 FLANGE 		0-28650-630-0 02 1 0307-0609 ●
485 03.671 BOLT; VSV
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 04.054 M5X10 W/LK+PL WASHER 		9-03920-510-0 01 1 0307-0605 ●
485 03.671 BOLT; VSV
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 03.680 M5X10 W/LK+PL WASHER 		0-36230-510-0 01 1 0606- ●
485 03.671 BOLT; VSV
EURO2 SPECIFICATION<NT2> 04.054 M5X10 W/LK+PL WASHER 		9-03920-510-0 02 1 0307-0605 ●
485 03.671 BOLT; VSV
EURO2 SPECIFICATION<NT2> 03.680 M5X10 W/LK+PL WASHER 		0-36230-510-0 02 1 0606- ●
753 03.670 BRACKET; VALVE
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EMISSION SYSTEM R15-04<K75> (A) 		8-97307-069-2 01 1 0307-0402 ●
753 03.670 BRACKET; VALVE
EURO2 SPECIFICATION<NT2> (A) 		8-97307-069-2 01 1 0307-0402 ●
753 03.670 BRACKET; VALVE
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EMISSION SYSTEM R15-04<K75> (A) 		8-97943-948-0 01 1 0403- ●
753 03.670 BRACKET; VALVE
EURO2 SPECIFICATION<NT2> (A) 		8-97943-948-0 01 1 0403- ●
753 03.670 BRACKET; VALVE
(B) 		8-97943-321-0 01 1 0307-0609 ●
753 03.670 BRACKET; VALVE
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) 		8-97943-321-0 01 1 0307-0609 ●
754 03.647 BUSHING; RUBBER
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EMISSION SYSTEM R15-04<K75> 00.206 (A) 		5-19389-009-0 03 1 0307- ●
754 03.647 BUSHING; RUBBER
EURO2 SPECIFICATION<NT2> 00.206 (A) 		5-19389-009-0 03 1 0307- ●
754 03.647 BUSHING; RUBBER
(B) 		8-97944-146-0 04 1 0307-0609 ●
754 03.647 BUSHING; RUBBER
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) 		8-97944-146-0 04 1 0307-0609 ●

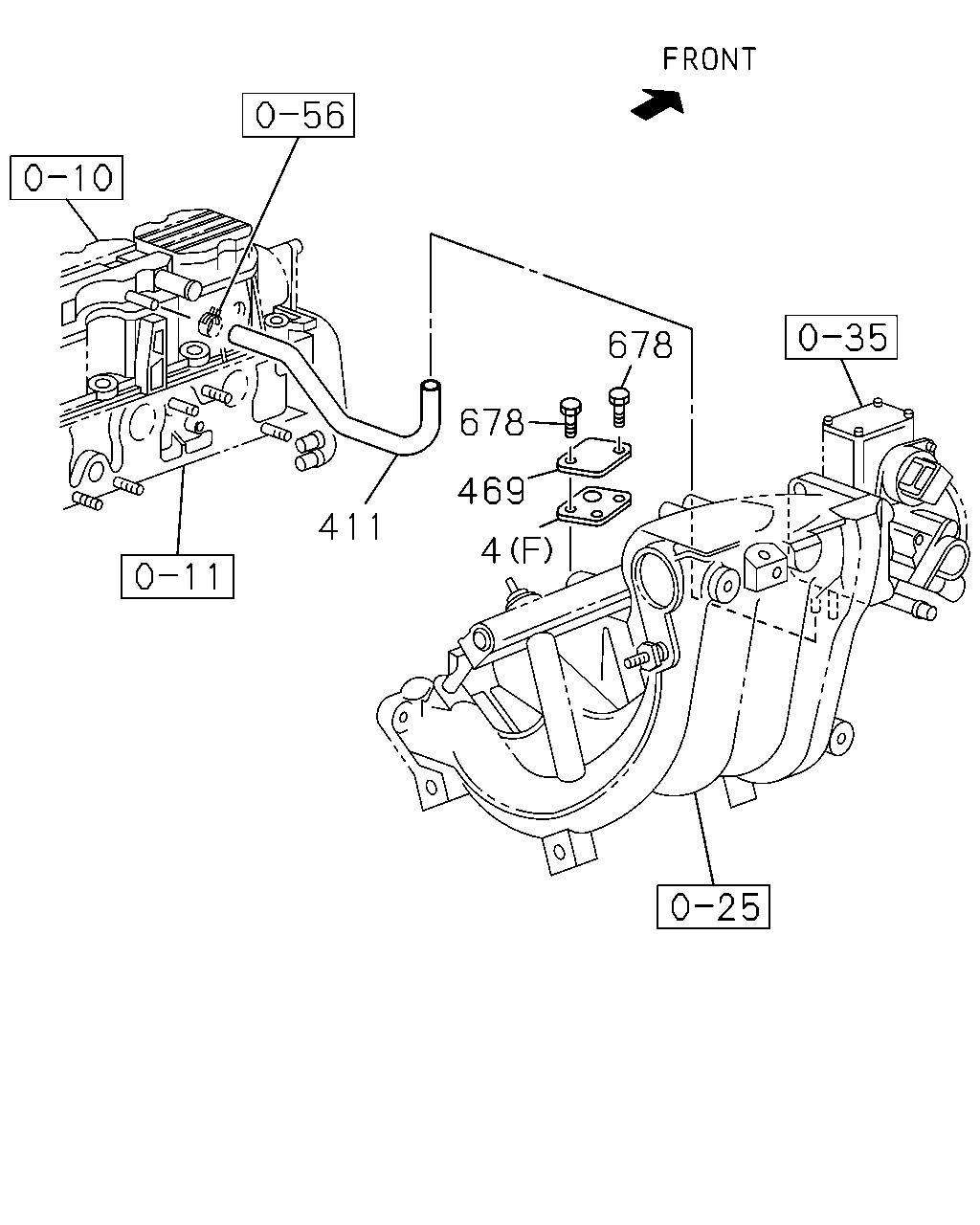

çizim 54240
678 678 469 411 4
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
4 03.671 GASKET; EGR VLV
EXC. AUSTRALIA EQUIPMENT(B13) (F) ALSO INCLUDED IN GASKET SET(ENGINE) . 		8-92061-674-0 01 1 1010- ●
4 03.671 GASKET; EGR VLV
EURO2 SPECIFICATION<NT2> (A) 		8-94334-338-1 02 1 0307-1103 ●
4 03.671 GASKET; EGR VLV
EURO2 SPECIFICATION<NT2> (B) 		8-94379-754-0 01 1 0307-1103 ●
4 03.671 GASKET; EGR VLV
03.665 (C) 		8-97192-765-0 02 1 0307-0609 ●
4 03.671 GASKET; EGR VLV
(E) 		8-97356-711-2 01 1 0610-0612 ● ● ● ●
4 03.671 GASKET; EGR VLV
(E) 		8-97356-711-3 01 1 0701-0912 ● ● ●
4 03.671 GASKET; EGR VLV
(E) ALSO INCLUDED IN GASKET SET(ENGINE) . 		8-97356-711-3 01 1 1001- ● ● ● ●
4 03.671 GASKET; EGR VLV
03.665 (D) 		8-97324-052-0 01 1 0307-0609 ●
4 03.671 GASKET; EGR VLV
EURO3 SPECIFICATION<NT3> 03.665 (D) 		8-97324-052-0 01 1 0307-0609 ●
4 03.671 GASKET; EGR VLV
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 03.665 (C) 		8-97324-052-0 02 1 0307-0609 ●
4 03.671 GASKET; EGR VLV
(F) ALSO INCLUDED IN GASKET SET(ENGINE) . 		8-92064-809-0 01 1 0307-1009 ●
4 03.671 GASKET; EGR VLV
AUSTRALIA EQUIPMENT(B13) (F) ALSO INCLUDED IN GASKET SET(ENGINE) . 		8-92064-809-0 01 1 1010- ●
411 03.417 HOSE; RUBBER,CYL HD COVER 8-92063-676-0 01 1 0307- ●
469 03.680 PLATE; EGR VLV
EXC. AUSTRALIA EQUIPMENT(B13) 		8-92068-002-0 01 1 1010- ●
469 03.680 PLATE; EGR VLV 8-92065-430-0 01 1 0307-1009 ●
469 03.680 PLATE; EGR VLV
AUSTRALIA EQUIPMENT(B13) 		8-92065-430-0 01 1 1010- ●
678 03.670 BOLT; PLATE
EXC. AUSTRALIA EQUIPMENT(B13) 		8-92138-684-0 02 1 1010- ●
678 03.670 BOLT; PLATE 8-11041-103-0 02 1 0307-1009 ●
678 03.670 BOLT; PLATE
AUSTRALIA EQUIPMENT(B13) 		8-11041-103-0 02 1 1010- ●

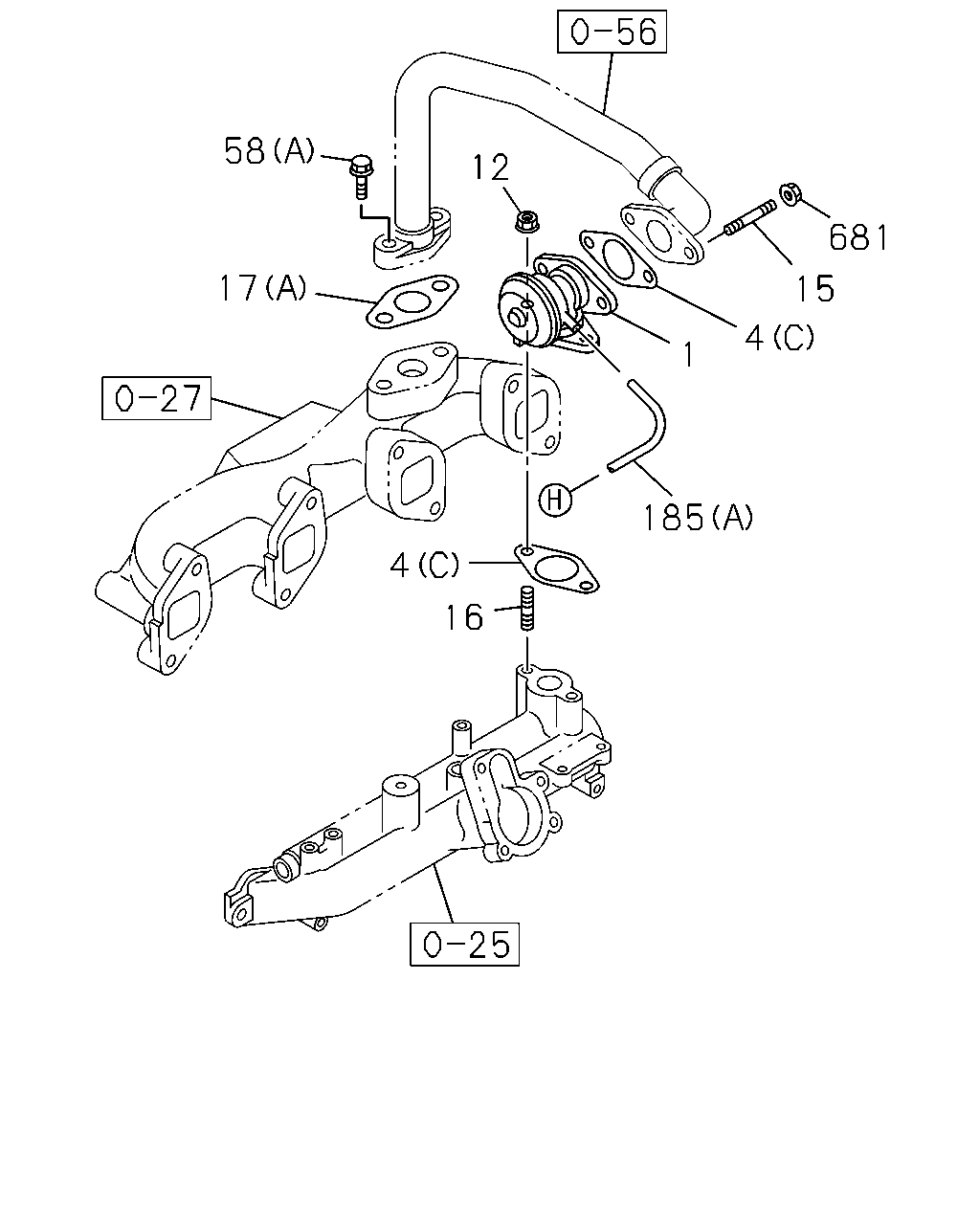

çizim 54509
58 12 681 17 15 4 1 185 4 16
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 03.670 VALVE; EGR
EURO2 SPECIFICATION<NT2> 		8-97132-802-5 02 1 0307-1103 ●
1 03.670 VALVE; EGR 8-97312-533-1 01 1 0307-0609 ●
1 03.670 VALVE; EGR 8-98013-911-0 01 1 0610-0612 ● ● ● ●
1 03.670 VALVE; EGR 8-98013-911-0 01 1 0701-0912 ● ● ●
1 03.670 VALVE; EGR 8-98013-911-0 01 1 1001- ● ● ● ●
1 03.670 VALVE; EGR
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-97349-435-0 01 1 0307-0609 ●
4 03.671 GASKET; EGR VLV
EXC. AUSTRALIA EQUIPMENT(B13) (F) ALSO INCLUDED IN GASKET SET(ENGINE) . 		8-92061-674-0 01 1 1010- ●
4 03.671 GASKET; EGR VLV
EURO2 SPECIFICATION<NT2> (A) 		8-94334-338-1 02 1 0307-1103 ●
4 03.671 GASKET; EGR VLV
EURO2 SPECIFICATION<NT2> (B) 		8-94379-754-0 01 1 0307-1103 ●
4 03.671 GASKET; EGR VLV
03.665 (C) 		8-97192-765-0 02 1 0307-0609 ●
4 03.671 GASKET; EGR VLV
(E) 		8-97356-711-2 01 1 0610-0612 ● ● ● ●
4 03.671 GASKET; EGR VLV
(E) 		8-97356-711-3 01 1 0701-0912 ● ● ●
4 03.671 GASKET; EGR VLV
(E) ALSO INCLUDED IN GASKET SET(ENGINE) . 		8-97356-711-3 01 1 1001- ● ● ● ●
4 03.671 GASKET; EGR VLV
03.665 (D) 		8-97324-052-0 01 1 0307-0609 ●
4 03.671 GASKET; EGR VLV
EURO3 SPECIFICATION<NT3> 03.665 (D) 		8-97324-052-0 01 1 0307-0609 ●
4 03.671 GASKET; EGR VLV
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 03.665 (C) 		8-97324-052-0 02 1 0307-0609 ●
4 03.671 GASKET; EGR VLV
(F) ALSO INCLUDED IN GASKET SET(ENGINE) . 		8-92064-809-0 01 1 0307-1009 ●
4 03.671 GASKET; EGR VLV
AUSTRALIA EQUIPMENT(B13) (F) ALSO INCLUDED IN GASKET SET(ENGINE) . 		8-92064-809-0 01 1 1010- ●
12 03.671 NUT; EGR VLV
EURO2 SPECIFICATION<NT2> 01.540 M8 FLANGE 		0-91150-208-0 04 1 0307-0602 ●
12 03.671 NUT; EGR VLV
EURO2 SPECIFICATION<NT2> 01.540 M8 FLANGE 		0-91180-208-0 04 1 0603-1103 ●
12 03.671 NUT; EGR VLV
01.540 M8 FLANGE 		0-91150-208-0 02 1 0307-0602 ●
12 03.671 NUT; EGR VLV
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 01.540 M8 FLANGE 		0-91150-208-0 02 1 0307-0602 ●
12 03.671 NUT; EGR VLV
01.540 M8 FLANGE 		0-91180-208-0 02 1 0603-0609 ●
12 03.671 NUT; EGR VLV
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 01.540 M8 FLANGE 		0-91180-208-0 02 1 0603-0609 ●
12 03.671 NUT; EGR VLV
01.540 M8 FLANGE 		0-91180-208-0 02 1 0610-0612 ● ● ● ●
12 03.671 NUT; EGR VLV
01.540 M8 FLANGE 		0-91180-208-0 02 1 0701-0912 ● ● ●
12 03.671 NUT; EGR VLV
01.540 M8 FLANGE 		0-91180-208-0 02 1 1001- ● ● ● ●
15 03.670 STUD; EGR PIPE
03.601 M8X25 L=36 		8-97378-062-0 02 1 0610- ● ●
15 03.670 STUD; EGR PIPE
EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL),KENYA EQUIPMENT(CL1) 03.342 M8X22 L=33 		8-94257-319-0 03 1 0710-0806 ●
15 03.670 STUD; EGR PIPE
EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL) 03.342 M8X22 L=33 		8-94257-319-0 03 1 0807-0912 ●
15 03.670 STUD; EGR PIPE
EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL) 03.342 M8X22 L=33 		8-94257-319-0 03 1 1001- ●
15 03.670 STUD; EGR PIPE
03.342 M8X22 L=33 		8-94257-319-0 03 1 1001- ●
15 03.670 STUD; EGR PIPE
IDENTIFICATION BREAKING POINT 2008. 5 M.Y.(BRL) 01.540 M8X40 L=52 		0-41010-840-0 02 1 0807- ●
15 03.670 STUD; EGR PIPE
EURO2 SPECIFICATION<NT2> 03.901 M8X25 L=37 		9-04110-825-0 02 1 0307-0604 ●
15 03.670 STUD; EGR PIPE
EURO2 SPECIFICATION<NT2> 03.275 M8X25 L=37 		0-41010-825-0 02 1 0605-1103 ●
15 03.670 STUD; EGR PIPE
EURO2 SPECIFICATION<NT2> 03.342 M8X20 L=31 		8-97104-508-1 02 1 0307-0408 ●
15 03.670 STUD; EGR PIPE
EURO2 SPECIFICATION<NT2> 03.342 M8X20 L=31 		8-97378-060-0 02 1 0409-0609 ●
15 03.670 STUD; EGR PIPE
03.342 M8X22 L=33 		8-94257-319-0 03 1 0701-0709 ●
15 03.670 STUD; EGR PIPE
03.342 M8X22 L=33 		8-94257-319-0 03 1 0612-0612 ● ●
16 03.275 STUD; EGR VLV
EURO2 SPECIFICATION<NT2> 03.613 M8X45 L=57 		8-94105-162-1 04 1 0307-0408 ●
16 03.275 STUD; EGR VLV
EURO2 SPECIFICATION<NT2> 03.342 M8X49 L=63 		8-97019-478-0 04 1 0409-1103 ●
16 03.275 STUD; EGR VLV
03.342 M8X55 L=67 		8-94343-897-0 02 1 0307-0609 ●
16 03.275 STUD; EGR VLV
01.073 M8X22 L=40 		0-49140-822-0 02 1 0610-0611 ● ● ● ●
16 03.275 STUD; EGR VLV
EXC. KENYA EQUIPMENT(CL1) 01.073 M8X22 L=40 		0-49140-822-0 02 1 0612-0612 ●
16 03.275 STUD; EGR VLV
01.073 M8X22 L=40 		0-49140-822-0 02 1 0612-0612 ● ● ●
16 03.275 STUD; EGR VLV
EXC. KENYA EQUIPMENT(CL1) 01.073 M8X22 L=40 		0-49140-822-0 02 1 0701-0912 ●
16 03.275 STUD; EGR VLV
01.073 M8X22 L=40 		0-49140-822-0 02 1 0701-0912 ● ●
16 03.275 STUD; EGR VLV
EXC. KENYA EQUIPMENT(CL1) 01.073 M8X22 L=40 		0-49140-822-0 02 1 1001- ●
16 03.275 STUD; EGR VLV
01.073 M8X22 L=40 		0-49140-822-0 02 1 1001- ● ● ●
16 03.275 STUD; EGR VLV
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 03.342 M8X20 L=31 		8-97104-508-1 02 1 0307-0408 ●
16 03.275 STUD; EGR VLV
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 03.342 M8X20 L=31 		8-97378-060-0 02 1 0409-0609 ●
16 03.275 STUD; EGR VLV
KENYA EQUIPMENT(CL1) M8X25 L=41 		0-40210-825-0 02 1 0612- ●
17 03.665 GASKET; EGR PIPE
IDENTIFICATION BREAKING POINT 2008. 5 M.Y.(BRL) KENYA EQUIPMENT(CL1) (B) 		8-97324-052-0 02 1 0907- ●
17 03.665 GASKET; EGR PIPE
IDENTIFICATION BREAKING POINT 2008. 5 M.Y.(BRL) (B) 		8-97375-980-1 01 1 0807- ●
17 03.665 GASKET; EGR PIPE
IDENTIFICATION BREAKING POINT 2008. 5 M.Y.(BRL) (B) 		8-97942-749-0 02 1 0807-0906 ●
17 03.665 GASKET; EGR PIPE
IDENTIFICATION BREAKING POINT 2008. 5 M.Y.(BRL) EXC. KENYA EQUIPMENT(CL1) (B) 		8-97942-749-0 02 1 0907- ●
17 03.665 GASKET; EGR PIPE
EURO2 SPECIFICATION<NT2> (A) 		8-94340-670-0 02 1 0307-0310 ●
17 03.665 GASKET; EGR PIPE
(A) 		8-94340-670-0 02 1 0307-0310 ●
17 03.665 GASKET; EGR PIPE
EURO3 SPECIFICATION<NT3> (A) 		8-94340-670-0 02 1 0307-0310 ●
17 03.665 GASKET; EGR PIPE
(A) 		8-94340-670-0 02 1 0311-0503 ●
17 03.665 GASKET; EGR PIPE
EURO3 SPECIFICATION<NT3> (A) 		8-94340-670-0 02 1 0311-0503 ●
17 03.665 GASKET; EGR PIPE
(A) 		8-97324-052-0 02 1 0504-0609 ●
17 03.665 GASKET; EGR PIPE
EURO3 SPECIFICATION<NT3> (A) 		8-97324-052-0 02 1 0504-0609 ●
17 03.665 GASKET; EGR PIPE
EURO2 SPECIFICATION<NT2> (A) 		8-97324-052-0 01 1 0307-0609 ●
17 03.665 GASKET; EGR PIPE
(B) 		8-97357-684-2 01 1 0610-0611 ● ● ● ●
17 03.665 GASKET; EGR PIPE
(B) 		8-97357-684-2 01 1 0610-0611 ● ●
17 03.665 GASKET; EGR PIPE
KENYA EQUIPMENT(CL1) (B) 		8-97357-684-3 02 1 0612-0806 ●
17 03.665 GASKET; EGR PIPE
KENYA EQUIPMENT(CL1) EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL) (B) 		8-97357-684-3 02 1 0807- ●
17 03.665 GASKET; EGR PIPE
EXC. KENYA EQUIPMENT(CL1) (B) 		8-97357-684-2 01 1 0612-0612 ●
17 03.665 GASKET; EGR PIPE
EXC. KENYA EQUIPMENT(CL1) (B) 		8-97357-684-2 01 1 0612-0612 ●
17 03.665 GASKET; EGR PIPE
(B) 		8-97357-684-2 01 1 0612-0612 ● ● ●
17 03.665 GASKET; EGR PIPE
(B) 		8-97357-684-2 01 1 0612-0612 ●
17 03.665 GASKET; EGR PIPE
EXC. KENYA EQUIPMENT(CL1) (B) 		8-97357-684-2 01 1 0701-0912 ●
17 03.665 GASKET; EGR PIPE
EXC. KENYA EQUIPMENT(CL1) (B) 		8-97357-684-2 01 1 0701-0912 ●
17 03.665 GASKET; EGR PIPE
(B) 		8-97357-684-2 01 1 0701-0912 ● ●
17 03.665 GASKET; EGR PIPE
EXC. KENYA EQUIPMENT(CL1) . 		8-97357-684-2 01 1 1001- ●
17 03.665 GASKET; EGR PIPE
EXC. KENYA EQUIPMENT(CL1) . 		8-97357-684-2 01 1 1001- ●
17 03.665 GASKET; EGR PIPE
. 		8-97357-684-2 01 1 1001- ● ● ●
17 03.665 GASKET; EGR PIPE
(B) ALSO INCLUDED IN GASKET SET(ENGINE) . 		8-97357-684-2 01 1 1001- ●
17 03.665 GASKET; EGR PIPE
(C) 		8-98017-551-0 01 1 0610- ● ●
58 03.417 BOLT; PIPE
03.670 (A) M8X23 FLANGE 		8-94103-629-2 04 1 0307-0408 ●
58 03.417 BOLT; PIPE
EURO3 SPECIFICATION<NT3> 03.670 (A) M8X23 FLANGE 		8-94103-629-2 04 1 0307-0408 ●
58 03.417 BOLT; PIPE
(A) M8X23 FLANGE 		8-97378-077-0 04 1 0409-0609 ●
58 03.417 BOLT; PIPE
EURO3 SPECIFICATION<NT3> (A) M8X23 FLANGE 		8-97378-077-0 04 1 0409-0609 ●
58 03.417 BOLT; PIPE
EURO2 SPECIFICATION<NT2> 03.670 (A) M8X23 FLANGE 		8-94103-629-2 02 1 0307-0408 ●
58 03.417 BOLT; PIPE
EURO2 SPECIFICATION<NT2> (A) M8X23 FLANGE 		8-97378-077-0 02 1 0409-0609 ●
58 03.417 BOLT; PIPE
02.343 (B) M8X16 FLANGE 		0-28050-816-0 01 1 0610- ● ●
185 03.163 HOSE; RUBBER,VSV
(B) 		8-97320-372-3 01 1 0307-0609 ●
185 03.163 HOSE; RUBBER,VSV
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) 		8-97320-372-3 01 1 0307-0609 ●
185 03.163 HOSE; RUBBER,VSV
(A) 		8-97943-807-0 01 1 0307-0311 ●
185 03.163 HOSE; RUBBER,VSV
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) 		8-97943-807-0 01 1 0307-0311 ●
185 03.163 HOSE; RUBBER,VSV
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) 		8-97943-807-0 01 1 0312-0505 ●
185 03.163 HOSE; RUBBER,VSV
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. AUSTRALIA EQUIPMENT(B13) (A) 		8-97943-807-0 01 1 0506-0609 ●
185 03.163 HOSE; RUBBER,VSV
(A) 		8-97943-922-0 01 1 0312-0609 ●
185 03.163 HOSE; RUBBER,VSV
AUSTRALIA EQUIPMENT(B13) (C) 		8-98009-671-0 01 1 0506-0609 ●
185 03.163 HOSE; RUBBER,VSV
AUSTRALIA EQUIPMENT(B13) (A) 		8-98012-770-0 01 1 0506-0609 ●
681 03.671 NUT; EGR PIPE
AUSTRALIA EQUIPMENT(B13) EURO2 SPECIFICATION<NT2> 01.540 M8 FLANGE 		0-91150-208-0 02 1 0307-0602 ●
681 03.671 NUT; EGR PIPE
AUSTRALIA EQUIPMENT(B13) EURO2 SPECIFICATION<NT2> 01.540 M8 FLANGE 		0-91180-208-0 02 1 0603-0609 ●
681 03.671 NUT; EGR PIPE
01.540 M8 FLANGE 		0-91180-208-0 03 1 0610-0612 ● ●
681 03.671 NUT; EGR PIPE
01.540 M8 FLANGE 		0-91180-208-0 03 1 0701-0806 ●
681 03.671 NUT; EGR PIPE
EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL) 01.540 M8 FLANGE 		0-91180-208-0 03 1 0807-0912 ●
681 03.671 NUT; EGR PIPE
EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL) 01.540 M8 FLANGE 		0-91180-208-0 03 1 1001- ●
681 03.671 NUT; EGR PIPE
01.540 M8 FLANGE 		0-91180-208-0 03 1 1001- ●
681 03.671 NUT; EGR PIPE
EURO2 SPECIFICATION<NT2> EXC. AUSTRALIA EQUIPMENT(B13) 01.540 M8 FLANGE 		0-91150-208-0 01 1 0307-0602 ●
681 03.671 NUT; EGR PIPE
EURO2 SPECIFICATION<NT2> EXC. AUSTRALIA EQUIPMENT(B13) 01.540 M8 FLANGE 		0-91180-208-0 01 1 0603-0609 ●
681 03.671 NUT; EGR PIPE
01.540 M8 FLANGE 		0-91180-208-0 02 1 0610-0806 ● ●
681 03.671 NUT; EGR PIPE
IDENTIFICATION BREAKING POINT 2008. 5 M.Y.(BRL) 01.540 M8 FLANGE 		0-91180-208-0 02 1 0807- ●
681 03.671 NUT; EGR PIPE
01.540 M8 FLANGE 		0-91180-208-0 02 1 0807- ● ●
çizim 54720
58 17 709 704 58 709 135 5 2 4 17 12 2 4 1 4 16 185
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 03.670 VALVE; EGR
EURO2 SPECIFICATION<NT2> 		8-97132-802-5 02 1 0307-1103 ●
1 03.670 VALVE; EGR 8-97312-533-1 01 1 0307-0609 ●
1 03.670 VALVE; EGR 8-98013-911-0 01 1 0610-0612 ● ● ● ●
1 03.670 VALVE; EGR 8-98013-911-0 01 1 0701-0912 ● ● ●
1 03.670 VALVE; EGR 8-98013-911-0 01 1 1001- ● ● ● ●
1 03.670 VALVE; EGR
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-97349-435-0 01 1 0307-0609 ●
2 03.670 BOLT; EGR VLV
EURO2 SPECIFICATION<NT2> 01.271 (C) M8X40 FLANGE 		0-28080-840-0 04 1 0307-0512 ●
2 03.670 BOLT; EGR VLV
EURO2 SPECIFICATION<NT2> 02.277 (C) M8X40 FLANGE 		0-28050-840-0 04 1 0601-1103 ●
2 03.670 BOLT; EGR VLV
(A) M8X23 FLANGE 		8-94103-629-2 02 1 0307-0408 ●
2 03.670 BOLT; EGR VLV
EURO3 SPECIFICATION<NT3> (A) M8X23 FLANGE 		8-94103-629-2 02 1 0307-0408 ●
2 03.670 BOLT; EGR VLV
03.417 (A) M8X23 FLANGE 		8-97378-077-0 02 1 0409-0609 ●
2 03.670 BOLT; EGR VLV
EURO3 SPECIFICATION<NT3> 03.417 (A) M8X23 FLANGE 		8-97378-077-0 02 1 0409-0609 ●
2 03.670 BOLT; EGR VLV
03.417 (G) M8X23 FLANGE 		8-97378-077-0 01 1 0610-0612 ● ●
2 03.670 BOLT; EGR VLV
03.417 (G) M8X23 FLANGE 		8-97378-077-0 01 1 0701-0806 ●
2 03.670 BOLT; EGR VLV
EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL) 03.417 (G) M8X23 FLANGE 		8-97378-077-0 01 1 0807-0912 ●
2 03.670 BOLT; EGR VLV
EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL) 03.417 (G) M8X23 FLANGE 		8-97378-077-0 01 1 1001- ●
2 03.670 BOLT; EGR VLV
03.417 (G) M8X23 FLANGE 		8-97378-077-0 01 1 1001- ●
2 03.670 BOLT; EGR VLV
03.680 (B) M8X18 FLANGE 		8-94368-563-1 02 1 0307-0408 ●
2 03.670 BOLT; EGR VLV
EURO3 SPECIFICATION<NT3> 03.680 (B) M8X18 FLANGE 		8-94368-563-1 02 1 0307-0408 ●
2 03.670 BOLT; EGR VLV
(B) M8X18 FLANGE 		8-97378-076-0 02 1 0409-0609 ●
2 03.670 BOLT; EGR VLV
EURO3 SPECIFICATION<NT3> (B) M8X18 FLANGE 		8-97378-076-0 02 1 0409-0609 ●
2 03.670 BOLT; EGR VLV
02.343 (H) M8X12 FLANGE 		0-28050-812-0 01 1 0610-0612 ● ●
2 03.670 BOLT; EGR VLV
02.343 (H) M8X12 FLANGE 		0-28050-812-0 01 1 0701-0709 ●
2 03.670 BOLT; EGR VLV
EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL),KENYA EQUIPMENT(CL1) 02.343 (H) M8X12 FLANGE 		0-28050-812-0 01 1 0710-0806 ●
2 03.670 BOLT; EGR VLV
EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL) 02.343 (H) M8X12 FLANGE 		0-28050-812-0 01 1 0807-0912 ●
2 03.670 BOLT; EGR VLV
EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL) 02.343 (H) M8X12 FLANGE 		0-28050-812-0 01 1 1001- ●
2 03.670 BOLT; EGR VLV
02.343 (H) M8X12 FLANGE 		0-28050-812-0 01 1 1001- ●
2 03.670 BOLT; EGR VLV
09.181 (E) M10X45 FLANGE 		0-28151-045-0 01 1 0610- ● ●
2 03.670 BOLT; EGR VLV
03.417 (F) M8X23 FLANGE 		8-97378-077-0 03 1 0610- ● ●
2 03.670 BOLT; EGR VLV
06.216 (D) M8X25 FLANGE 		0-28650-825-0 02 1 0610-0612 ● ● ● ●
2 03.670 BOLT; EGR VLV
06.216 (D) M8X25 FLANGE 		0-28650-825-0 02 1 0701-0912 ● ● ●
2 03.670 BOLT; EGR VLV
06.216 (D) M8X25 FLANGE 		0-28650-825-0 02 1 1001- ● ● ● ●
4 03.671 GASKET; EGR VLV
EXC. AUSTRALIA EQUIPMENT(B13) (F) ALSO INCLUDED IN GASKET SET(ENGINE) . 		8-92061-674-0 01 1 1010- ●
4 03.671 GASKET; EGR VLV
EURO2 SPECIFICATION<NT2> (A) 		8-94334-338-1 02 1 0307-1103 ●
4 03.671 GASKET; EGR VLV
EURO2 SPECIFICATION<NT2> (B) 		8-94379-754-0 01 1 0307-1103 ●
4 03.671 GASKET; EGR VLV
03.665 (C) 		8-97192-765-0 02 1 0307-0609 ●
4 03.671 GASKET; EGR VLV
(E) 		8-97356-711-2 01 1 0610-0612 ● ● ● ●
4 03.671 GASKET; EGR VLV
(E) 		8-97356-711-3 01 1 0701-0912 ● ● ●
4 03.671 GASKET; EGR VLV
(E) ALSO INCLUDED IN GASKET SET(ENGINE) . 		8-97356-711-3 01 1 1001- ● ● ● ●
4 03.671 GASKET; EGR VLV
03.665 (D) 		8-97324-052-0 01 1 0307-0609 ●
4 03.671 GASKET; EGR VLV
EURO3 SPECIFICATION<NT3> 03.665 (D) 		8-97324-052-0 01 1 0307-0609 ●
4 03.671 GASKET; EGR VLV
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 03.665 (C) 		8-97324-052-0 02 1 0307-0609 ●
4 03.671 GASKET; EGR VLV
(F) ALSO INCLUDED IN GASKET SET(ENGINE) . 		8-92064-809-0 01 1 0307-1009 ●
4 03.671 GASKET; EGR VLV
AUSTRALIA EQUIPMENT(B13) (F) ALSO INCLUDED IN GASKET SET(ENGINE) . 		8-92064-809-0 01 1 1010- ●
5 03.670 ADAPTER ASM
EURO2 SPECIFICATION<NT2> 		8-97306-490-0 01 1 0307-1103 ●
5 03.670 ADAPTER ASM 8-97329-584-2 01 1 0307-0609 ●
5 03.670 ADAPTER ASM
EURO3 SPECIFICATION<NT3> 		8-97329-584-2 01 1 0307-0609 ●
12 03.671 NUT; EGR VLV
EURO2 SPECIFICATION<NT2> 01.540 M8 FLANGE 		0-91150-208-0 04 1 0307-0602 ●
12 03.671 NUT; EGR VLV
EURO2 SPECIFICATION<NT2> 01.540 M8 FLANGE 		0-91180-208-0 04 1 0603-1103 ●
12 03.671 NUT; EGR VLV
01.540 M8 FLANGE 		0-91150-208-0 02 1 0307-0602 ●
12 03.671 NUT; EGR VLV
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 01.540 M8 FLANGE 		0-91150-208-0 02 1 0307-0602 ●
12 03.671 NUT; EGR VLV
01.540 M8 FLANGE 		0-91180-208-0 02 1 0603-0609 ●
12 03.671 NUT; EGR VLV
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 01.540 M8 FLANGE 		0-91180-208-0 02 1 0603-0609 ●
12 03.671 NUT; EGR VLV
01.540 M8 FLANGE 		0-91180-208-0 02 1 0610-0612 ● ● ● ●
12 03.671 NUT; EGR VLV
01.540 M8 FLANGE 		0-91180-208-0 02 1 0701-0912 ● ● ●
12 03.671 NUT; EGR VLV
01.540 M8 FLANGE 		0-91180-208-0 02 1 1001- ● ● ● ●
16 03.275 STUD; EGR VLV
EURO2 SPECIFICATION<NT2> 03.613 M8X45 L=57 		8-94105-162-1 04 1 0307-0408 ●
16 03.275 STUD; EGR VLV
EURO2 SPECIFICATION<NT2> 03.342 M8X49 L=63 		8-97019-478-0 04 1 0409-1103 ●
16 03.275 STUD; EGR VLV
03.342 M8X55 L=67 		8-94343-897-0 02 1 0307-0609 ●
16 03.275 STUD; EGR VLV
01.073 M8X22 L=40 		0-49140-822-0 02 1 0610-0611 ● ● ● ●
16 03.275 STUD; EGR VLV
EXC. KENYA EQUIPMENT(CL1) 01.073 M8X22 L=40 		0-49140-822-0 02 1 0612-0612 ●
16 03.275 STUD; EGR VLV
01.073 M8X22 L=40 		0-49140-822-0 02 1 0612-0612 ● ● ●
16 03.275 STUD; EGR VLV
EXC. KENYA EQUIPMENT(CL1) 01.073 M8X22 L=40 		0-49140-822-0 02 1 0701-0912 ●
16 03.275 STUD; EGR VLV
01.073 M8X22 L=40 		0-49140-822-0 02 1 0701-0912 ● ●
16 03.275 STUD; EGR VLV
EXC. KENYA EQUIPMENT(CL1) 01.073 M8X22 L=40 		0-49140-822-0 02 1 1001- ●
16 03.275 STUD; EGR VLV
01.073 M8X22 L=40 		0-49140-822-0 02 1 1001- ● ● ●
16 03.275 STUD; EGR VLV
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 03.342 M8X20 L=31 		8-97104-508-1 02 1 0307-0408 ●
16 03.275 STUD; EGR VLV
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 03.342 M8X20 L=31 		8-97378-060-0 02 1 0409-0609 ●
16 03.275 STUD; EGR VLV
KENYA EQUIPMENT(CL1) M8X25 L=41 		0-40210-825-0 02 1 0612- ●
17 03.665 GASKET; EGR PIPE
IDENTIFICATION BREAKING POINT 2008. 5 M.Y.(BRL) KENYA EQUIPMENT(CL1) (B) 		8-97324-052-0 02 1 0907- ●
17 03.665 GASKET; EGR PIPE
IDENTIFICATION BREAKING POINT 2008. 5 M.Y.(BRL) (B) 		8-97375-980-1 01 1 0807- ●
17 03.665 GASKET; EGR PIPE
IDENTIFICATION BREAKING POINT 2008. 5 M.Y.(BRL) (B) 		8-97942-749-0 02 1 0807-0906 ●
17 03.665 GASKET; EGR PIPE
IDENTIFICATION BREAKING POINT 2008. 5 M.Y.(BRL) EXC. KENYA EQUIPMENT(CL1) (B) 		8-97942-749-0 02 1 0907- ●
17 03.665 GASKET; EGR PIPE
EURO2 SPECIFICATION<NT2> (A) 		8-94340-670-0 02 1 0307-0310 ●
17 03.665 GASKET; EGR PIPE
(A) 		8-94340-670-0 02 1 0307-0310 ●
17 03.665 GASKET; EGR PIPE
EURO3 SPECIFICATION<NT3> (A) 		8-94340-670-0 02 1 0307-0310 ●
17 03.665 GASKET; EGR PIPE
(A) 		8-94340-670-0 02 1 0311-0503 ●
17 03.665 GASKET; EGR PIPE
EURO3 SPECIFICATION<NT3> (A) 		8-94340-670-0 02 1 0311-0503 ●
17 03.665 GASKET; EGR PIPE
(A) 		8-97324-052-0 02 1 0504-0609 ●
17 03.665 GASKET; EGR PIPE
EURO3 SPECIFICATION<NT3> (A) 		8-97324-052-0 02 1 0504-0609 ●
17 03.665 GASKET; EGR PIPE
EURO2 SPECIFICATION<NT2> (A) 		8-97324-052-0 01 1 0307-0609 ●
17 03.665 GASKET; EGR PIPE
(B) 		8-97357-684-2 01 1 0610-0611 ● ● ● ●
17 03.665 GASKET; EGR PIPE
(B) 		8-97357-684-2 01 1 0610-0611 ● ●
17 03.665 GASKET; EGR PIPE
KENYA EQUIPMENT(CL1) (B) 		8-97357-684-3 02 1 0612-0806 ●
17 03.665 GASKET; EGR PIPE
KENYA EQUIPMENT(CL1) EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL) (B) 		8-97357-684-3 02 1 0807- ●
17 03.665 GASKET; EGR PIPE
EXC. KENYA EQUIPMENT(CL1) (B) 		8-97357-684-2 01 1 0612-0612 ●
17 03.665 GASKET; EGR PIPE
EXC. KENYA EQUIPMENT(CL1) (B) 		8-97357-684-2 01 1 0612-0612 ●
17 03.665 GASKET; EGR PIPE
(B) 		8-97357-684-2 01 1 0612-0612 ● ● ●
17 03.665 GASKET; EGR PIPE
(B) 		8-97357-684-2 01 1 0612-0612 ●
17 03.665 GASKET; EGR PIPE
EXC. KENYA EQUIPMENT(CL1) (B) 		8-97357-684-2 01 1 0701-0912 ●
17 03.665 GASKET; EGR PIPE
EXC. KENYA EQUIPMENT(CL1) (B) 		8-97357-684-2 01 1 0701-0912 ●
17 03.665 GASKET; EGR PIPE
(B) 		8-97357-684-2 01 1 0701-0912 ● ●
17 03.665 GASKET; EGR PIPE
EXC. KENYA EQUIPMENT(CL1) . 		8-97357-684-2 01 1 1001- ●
17 03.665 GASKET; EGR PIPE
EXC. KENYA EQUIPMENT(CL1) . 		8-97357-684-2 01 1 1001- ●
17 03.665 GASKET; EGR PIPE
. 		8-97357-684-2 01 1 1001- ● ● ●
17 03.665 GASKET; EGR PIPE
(B) ALSO INCLUDED IN GASKET SET(ENGINE) . 		8-97357-684-2 01 1 1001- ●
17 03.665 GASKET; EGR PIPE
(C) 		8-98017-551-0 01 1 0610- ● ●
58 03.417 BOLT; PIPE
03.670 (A) M8X23 FLANGE 		8-94103-629-2 04 1 0307-0408 ●
58 03.417 BOLT; PIPE
EURO3 SPECIFICATION<NT3> 03.670 (A) M8X23 FLANGE 		8-94103-629-2 04 1 0307-0408 ●
58 03.417 BOLT; PIPE
(A) M8X23 FLANGE 		8-97378-077-0 04 1 0409-0609 ●
58 03.417 BOLT; PIPE
EURO3 SPECIFICATION<NT3> (A) M8X23 FLANGE 		8-97378-077-0 04 1 0409-0609 ●
58 03.417 BOLT; PIPE
EURO2 SPECIFICATION<NT2> 03.670 (A) M8X23 FLANGE 		8-94103-629-2 02 1 0307-0408 ●
58 03.417 BOLT; PIPE
EURO2 SPECIFICATION<NT2> (A) M8X23 FLANGE 		8-97378-077-0 02 1 0409-0609 ●
58 03.417 BOLT; PIPE
02.343 (B) M8X16 FLANGE 		0-28050-816-0 01 1 0610- ● ●
135 03.680 BRACKET; EGR 8-97329-585-0 01 1 0307-0609 ●
135 03.680 BRACKET; EGR
EURO3 SPECIFICATION<NT3> 		8-97329-585-0 01 1 0307-0609 ●
185 03.163 HOSE; RUBBER,VSV
(B) 		8-97320-372-3 01 1 0307-0609 ●
185 03.163 HOSE; RUBBER,VSV
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) 		8-97320-372-3 01 1 0307-0609 ●
185 03.163 HOSE; RUBBER,VSV
(A) 		8-97943-807-0 01 1 0307-0311 ●
185 03.163 HOSE; RUBBER,VSV
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) 		8-97943-807-0 01 1 0307-0311 ●
185 03.163 HOSE; RUBBER,VSV
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) 		8-97943-807-0 01 1 0312-0505 ●
185 03.163 HOSE; RUBBER,VSV
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. AUSTRALIA EQUIPMENT(B13) (A) 		8-97943-807-0 01 1 0506-0609 ●
185 03.163 HOSE; RUBBER,VSV
(A) 		8-97943-922-0 01 1 0312-0609 ●
185 03.163 HOSE; RUBBER,VSV
AUSTRALIA EQUIPMENT(B13) (C) 		8-98009-671-0 01 1 0506-0609 ●
185 03.163 HOSE; RUBBER,VSV
AUSTRALIA EQUIPMENT(B13) (A) 		8-98012-770-0 01 1 0506-0609 ●
704 03.337 COOLER ASM; EGR 8-97329-581-0 01 1 0307-0609 ●
704 03.337 COOLER ASM; EGR
EURO3 SPECIFICATION<NT3> 		8-97329-581-0 01 1 0307-0609 ●
709 03.670 BOLT; EGR COOLER
01.271 (A) M8X40 FLANGE 		0-28080-840-0 02 1 0307-0512 ●
709 03.670 BOLT; EGR COOLER
EURO3 SPECIFICATION<NT3> 01.271 (A) M8X40 FLANGE 		0-28080-840-0 02 1 0307-0512 ●
709 03.670 BOLT; EGR COOLER
02.277 (A) M8X40 FLANGE 		0-28050-840-0 02 1 0601-0609 ●
709 03.670 BOLT; EGR COOLER
EURO3 SPECIFICATION<NT3> 02.277 (A) M8X40 FLANGE 		0-28050-840-0 02 1 0601-0609 ●
709 03.670 BOLT; EGR COOLER
02.664 (B) M8X20 FLANGE 		0-28680-820-0 01 1 0307-0512 ●
709 03.670 BOLT; EGR COOLER
EURO3 SPECIFICATION<NT3> 02.664 (B) M8X20 FLANGE 		0-28680-820-0 01 1 0307-0512 ●
709 03.670 BOLT; EGR COOLER
01.531 (B) M8X20 FLANGE 		0-28650-820-0 01 1 0601-0609 ●
709 03.670 BOLT; EGR COOLER
EURO3 SPECIFICATION<NT3> 01.531 (B) M8X20 FLANGE 		0-28650-820-0 01 1 0601-0609 ●
çizim 55982
261 754 472 17 753 485 485 197 197 17 15 16 4 16 1 197 12 100 95 100 4 1 4 93 5 2 93 93 100 100 100 95
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 03.670 VALVE; EGR
EURO2 SPECIFICATION<NT2> 		8-97132-802-5 02 1 0307-1103 ●
1 03.670 VALVE; EGR 8-97312-533-1 01 1 0307-0609 ●
1 03.670 VALVE; EGR 8-98013-911-0 01 1 0610-0612 ● ● ● ●
1 03.670 VALVE; EGR 8-98013-911-0 01 1 0701-0912 ● ● ●
1 03.670 VALVE; EGR 8-98013-911-0 01 1 1001- ● ● ● ●
1 03.670 VALVE; EGR
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-97349-435-0 01 1 0307-0609 ●
2 03.670 BOLT; EGR VLV
EURO2 SPECIFICATION<NT2> 01.271 (C) M8X40 FLANGE 		0-28080-840-0 04 1 0307-0512 ●
2 03.670 BOLT; EGR VLV
EURO2 SPECIFICATION<NT2> 02.277 (C) M8X40 FLANGE 		0-28050-840-0 04 1 0601-1103 ●
2 03.670 BOLT; EGR VLV
(A) M8X23 FLANGE 		8-94103-629-2 02 1 0307-0408 ●
2 03.670 BOLT; EGR VLV
EURO3 SPECIFICATION<NT3> (A) M8X23 FLANGE 		8-94103-629-2 02 1 0307-0408 ●
2 03.670 BOLT; EGR VLV
03.417 (A) M8X23 FLANGE 		8-97378-077-0 02 1 0409-0609 ●
2 03.670 BOLT; EGR VLV
EURO3 SPECIFICATION<NT3> 03.417 (A) M8X23 FLANGE 		8-97378-077-0 02 1 0409-0609 ●
2 03.670 BOLT; EGR VLV
03.417 (G) M8X23 FLANGE 		8-97378-077-0 01 1 0610-0612 ● ●
2 03.670 BOLT; EGR VLV
03.417 (G) M8X23 FLANGE 		8-97378-077-0 01 1 0701-0806 ●
2 03.670 BOLT; EGR VLV
EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL) 03.417 (G) M8X23 FLANGE 		8-97378-077-0 01 1 0807-0912 ●
2 03.670 BOLT; EGR VLV
EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL) 03.417 (G) M8X23 FLANGE 		8-97378-077-0 01 1 1001- ●
2 03.670 BOLT; EGR VLV
03.417 (G) M8X23 FLANGE 		8-97378-077-0 01 1 1001- ●
2 03.670 BOLT; EGR VLV
03.680 (B) M8X18 FLANGE 		8-94368-563-1 02 1 0307-0408 ●
2 03.670 BOLT; EGR VLV
EURO3 SPECIFICATION<NT3> 03.680 (B) M8X18 FLANGE 		8-94368-563-1 02 1 0307-0408 ●
2 03.670 BOLT; EGR VLV
(B) M8X18 FLANGE 		8-97378-076-0 02 1 0409-0609 ●
2 03.670 BOLT; EGR VLV
EURO3 SPECIFICATION<NT3> (B) M8X18 FLANGE 		8-97378-076-0 02 1 0409-0609 ●
2 03.670 BOLT; EGR VLV
02.343 (H) M8X12 FLANGE 		0-28050-812-0 01 1 0610-0612 ● ●
2 03.670 BOLT; EGR VLV
02.343 (H) M8X12 FLANGE 		0-28050-812-0 01 1 0701-0709 ●
2 03.670 BOLT; EGR VLV
EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL),KENYA EQUIPMENT(CL1) 02.343 (H) M8X12 FLANGE 		0-28050-812-0 01 1 0710-0806 ●
2 03.670 BOLT; EGR VLV
EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL) 02.343 (H) M8X12 FLANGE 		0-28050-812-0 01 1 0807-0912 ●
2 03.670 BOLT; EGR VLV
EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL) 02.343 (H) M8X12 FLANGE 		0-28050-812-0 01 1 1001- ●
2 03.670 BOLT; EGR VLV
02.343 (H) M8X12 FLANGE 		0-28050-812-0 01 1 1001- ●
2 03.670 BOLT; EGR VLV
09.181 (E) M10X45 FLANGE 		0-28151-045-0 01 1 0610- ● ●
2 03.670 BOLT; EGR VLV
03.417 (F) M8X23 FLANGE 		8-97378-077-0 03 1 0610- ● ●
2 03.670 BOLT; EGR VLV
06.216 (D) M8X25 FLANGE 		0-28650-825-0 02 1 0610-0612 ● ● ● ●
2 03.670 BOLT; EGR VLV
06.216 (D) M8X25 FLANGE 		0-28650-825-0 02 1 0701-0912 ● ● ●
2 03.670 BOLT; EGR VLV
06.216 (D) M8X25 FLANGE 		0-28650-825-0 02 1 1001- ● ● ● ●
4 03.671 GASKET; EGR VLV
EXC. AUSTRALIA EQUIPMENT(B13) (F) ALSO INCLUDED IN GASKET SET(ENGINE) . 		8-92061-674-0 01 1 1010- ●
4 03.671 GASKET; EGR VLV
EURO2 SPECIFICATION<NT2> (A) 		8-94334-338-1 02 1 0307-1103 ●
4 03.671 GASKET; EGR VLV
EURO2 SPECIFICATION<NT2> (B) 		8-94379-754-0 01 1 0307-1103 ●
4 03.671 GASKET; EGR VLV
03.665 (C) 		8-97192-765-0 02 1 0307-0609 ●
4 03.671 GASKET; EGR VLV
(E) 		8-97356-711-2 01 1 0610-0612 ● ● ● ●
4 03.671 GASKET; EGR VLV
(E) 		8-97356-711-3 01 1 0701-0912 ● ● ●
4 03.671 GASKET; EGR VLV
(E) ALSO INCLUDED IN GASKET SET(ENGINE) . 		8-97356-711-3 01 1 1001- ● ● ● ●
4 03.671 GASKET; EGR VLV
03.665 (D) 		8-97324-052-0 01 1 0307-0609 ●
4 03.671 GASKET; EGR VLV
EURO3 SPECIFICATION<NT3> 03.665 (D) 		8-97324-052-0 01 1 0307-0609 ●
4 03.671 GASKET; EGR VLV
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 03.665 (C) 		8-97324-052-0 02 1 0307-0609 ●
4 03.671 GASKET; EGR VLV
(F) ALSO INCLUDED IN GASKET SET(ENGINE) . 		8-92064-809-0 01 1 0307-1009 ●
4 03.671 GASKET; EGR VLV
AUSTRALIA EQUIPMENT(B13) (F) ALSO INCLUDED IN GASKET SET(ENGINE) . 		8-92064-809-0 01 1 1010- ●
5 03.670 ADAPTER ASM
EURO2 SPECIFICATION<NT2> 		8-97306-490-0 01 1 0307-1103 ●
5 03.670 ADAPTER ASM 8-97329-584-2 01 1 0307-0609 ●
5 03.670 ADAPTER ASM
EURO3 SPECIFICATION<NT3> 		8-97329-584-2 01 1 0307-0609 ●
12 03.671 NUT; EGR VLV
EURO2 SPECIFICATION<NT2> 01.540 M8 FLANGE 		0-91150-208-0 04 1 0307-0602 ●
12 03.671 NUT; EGR VLV
EURO2 SPECIFICATION<NT2> 01.540 M8 FLANGE 		0-91180-208-0 04 1 0603-1103 ●
12 03.671 NUT; EGR VLV
01.540 M8 FLANGE 		0-91150-208-0 02 1 0307-0602 ●
12 03.671 NUT; EGR VLV
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 01.540 M8 FLANGE 		0-91150-208-0 02 1 0307-0602 ●
12 03.671 NUT; EGR VLV
01.540 M8 FLANGE 		0-91180-208-0 02 1 0603-0609 ●
12 03.671 NUT; EGR VLV
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 01.540 M8 FLANGE 		0-91180-208-0 02 1 0603-0609 ●
12 03.671 NUT; EGR VLV
01.540 M8 FLANGE 		0-91180-208-0 02 1 0610-0612 ● ● ● ●
12 03.671 NUT; EGR VLV
01.540 M8 FLANGE 		0-91180-208-0 02 1 0701-0912 ● ● ●
12 03.671 NUT; EGR VLV
01.540 M8 FLANGE 		0-91180-208-0 02 1 1001- ● ● ● ●
15 03.670 STUD; EGR PIPE
03.601 M8X25 L=36 		8-97378-062-0 02 1 0610- ● ●
15 03.670 STUD; EGR PIPE
EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL),KENYA EQUIPMENT(CL1) 03.342 M8X22 L=33 		8-94257-319-0 03 1 0710-0806 ●
15 03.670 STUD; EGR PIPE
EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL) 03.342 M8X22 L=33 		8-94257-319-0 03 1 0807-0912 ●
15 03.670 STUD; EGR PIPE
EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL) 03.342 M8X22 L=33 		8-94257-319-0 03 1 1001- ●
15 03.670 STUD; EGR PIPE
03.342 M8X22 L=33 		8-94257-319-0 03 1 1001- ●
15 03.670 STUD; EGR PIPE
IDENTIFICATION BREAKING POINT 2008. 5 M.Y.(BRL) 01.540 M8X40 L=52 		0-41010-840-0 02 1 0807- ●
15 03.670 STUD; EGR PIPE
EURO2 SPECIFICATION<NT2> 03.901 M8X25 L=37 		9-04110-825-0 02 1 0307-0604 ●
15 03.670 STUD; EGR PIPE
EURO2 SPECIFICATION<NT2> 03.275 M8X25 L=37 		0-41010-825-0 02 1 0605-1103 ●
15 03.670 STUD; EGR PIPE
EURO2 SPECIFICATION<NT2> 03.342 M8X20 L=31 		8-97104-508-1 02 1 0307-0408 ●
15 03.670 STUD; EGR PIPE
EURO2 SPECIFICATION<NT2> 03.342 M8X20 L=31 		8-97378-060-0 02 1 0409-0609 ●
15 03.670 STUD; EGR PIPE
03.342 M8X22 L=33 		8-94257-319-0 03 1 0701-0709 ●
15 03.670 STUD; EGR PIPE
03.342 M8X22 L=33 		8-94257-319-0 03 1 0612-0612 ● ●
16 03.275 STUD; EGR VLV
EURO2 SPECIFICATION<NT2> 03.613 M8X45 L=57 		8-94105-162-1 04 1 0307-0408 ●
16 03.275 STUD; EGR VLV
EURO2 SPECIFICATION<NT2> 03.342 M8X49 L=63 		8-97019-478-0 04 1 0409-1103 ●
16 03.275 STUD; EGR VLV
03.342 M8X55 L=67 		8-94343-897-0 02 1 0307-0609 ●
16 03.275 STUD; EGR VLV
01.073 M8X22 L=40 		0-49140-822-0 02 1 0610-0611 ● ● ● ●
16 03.275 STUD; EGR VLV
EXC. KENYA EQUIPMENT(CL1) 01.073 M8X22 L=40 		0-49140-822-0 02 1 0612-0612 ●
16 03.275 STUD; EGR VLV
01.073 M8X22 L=40 		0-49140-822-0 02 1 0612-0612 ● ● ●
16 03.275 STUD; EGR VLV
EXC. KENYA EQUIPMENT(CL1) 01.073 M8X22 L=40 		0-49140-822-0 02 1 0701-0912 ●
16 03.275 STUD; EGR VLV
01.073 M8X22 L=40 		0-49140-822-0 02 1 0701-0912 ● ●
16 03.275 STUD; EGR VLV
EXC. KENYA EQUIPMENT(CL1) 01.073 M8X22 L=40 		0-49140-822-0 02 1 1001- ●
16 03.275 STUD; EGR VLV
01.073 M8X22 L=40 		0-49140-822-0 02 1 1001- ● ● ●
16 03.275 STUD; EGR VLV
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 03.342 M8X20 L=31 		8-97104-508-1 02 1 0307-0408 ●
16 03.275 STUD; EGR VLV
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 03.342 M8X20 L=31 		8-97378-060-0 02 1 0409-0609 ●
16 03.275 STUD; EGR VLV
KENYA EQUIPMENT(CL1) M8X25 L=41 		0-40210-825-0 02 1 0612- ●
17 03.665 GASKET; EGR PIPE
IDENTIFICATION BREAKING POINT 2008. 5 M.Y.(BRL) KENYA EQUIPMENT(CL1) (B) 		8-97324-052-0 02 1 0907- ●
17 03.665 GASKET; EGR PIPE
IDENTIFICATION BREAKING POINT 2008. 5 M.Y.(BRL) (B) 		8-97375-980-1 01 1 0807- ●
17 03.665 GASKET; EGR PIPE
IDENTIFICATION BREAKING POINT 2008. 5 M.Y.(BRL) (B) 		8-97942-749-0 02 1 0807-0906 ●
17 03.665 GASKET; EGR PIPE
IDENTIFICATION BREAKING POINT 2008. 5 M.Y.(BRL) EXC. KENYA EQUIPMENT(CL1) (B) 		8-97942-749-0 02 1 0907- ●
17 03.665 GASKET; EGR PIPE
EURO2 SPECIFICATION<NT2> (A) 		8-94340-670-0 02 1 0307-0310 ●
17 03.665 GASKET; EGR PIPE
(A) 		8-94340-670-0 02 1 0307-0310 ●
17 03.665 GASKET; EGR PIPE
EURO3 SPECIFICATION<NT3> (A) 		8-94340-670-0 02 1 0307-0310 ●
17 03.665 GASKET; EGR PIPE
(A) 		8-94340-670-0 02 1 0311-0503 ●
17 03.665 GASKET; EGR PIPE
EURO3 SPECIFICATION<NT3> (A) 		8-94340-670-0 02 1 0311-0503 ●
17 03.665 GASKET; EGR PIPE
(A) 		8-97324-052-0 02 1 0504-0609 ●
17 03.665 GASKET; EGR PIPE
EURO3 SPECIFICATION<NT3> (A) 		8-97324-052-0 02 1 0504-0609 ●
17 03.665 GASKET; EGR PIPE
EURO2 SPECIFICATION<NT2> (A) 		8-97324-052-0 01 1 0307-0609 ●
17 03.665 GASKET; EGR PIPE
(B) 		8-97357-684-2 01 1 0610-0611 ● ● ● ●
17 03.665 GASKET; EGR PIPE
(B) 		8-97357-684-2 01 1 0610-0611 ● ●
17 03.665 GASKET; EGR PIPE
KENYA EQUIPMENT(CL1) (B) 		8-97357-684-3 02 1 0612-0806 ●
17 03.665 GASKET; EGR PIPE
KENYA EQUIPMENT(CL1) EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL) (B) 		8-97357-684-3 02 1 0807- ●
17 03.665 GASKET; EGR PIPE
EXC. KENYA EQUIPMENT(CL1) (B) 		8-97357-684-2 01 1 0612-0612 ●
17 03.665 GASKET; EGR PIPE
EXC. KENYA EQUIPMENT(CL1) (B) 		8-97357-684-2 01 1 0612-0612 ●
17 03.665 GASKET; EGR PIPE
(B) 		8-97357-684-2 01 1 0612-0612 ● ● ●
17 03.665 GASKET; EGR PIPE
(B) 		8-97357-684-2 01 1 0612-0612 ●
17 03.665 GASKET; EGR PIPE
EXC. KENYA EQUIPMENT(CL1) (B) 		8-97357-684-2 01 1 0701-0912 ●
17 03.665 GASKET; EGR PIPE
EXC. KENYA EQUIPMENT(CL1) (B) 		8-97357-684-2 01 1 0701-0912 ●
17 03.665 GASKET; EGR PIPE
(B) 		8-97357-684-2 01 1 0701-0912 ● ●
17 03.665 GASKET; EGR PIPE
EXC. KENYA EQUIPMENT(CL1) . 		8-97357-684-2 01 1 1001- ●
17 03.665 GASKET; EGR PIPE
EXC. KENYA EQUIPMENT(CL1) . 		8-97357-684-2 01 1 1001- ●
17 03.665 GASKET; EGR PIPE
. 		8-97357-684-2 01 1 1001- ● ● ●
17 03.665 GASKET; EGR PIPE
(B) ALSO INCLUDED IN GASKET SET(ENGINE) . 		8-97357-684-2 01 1 1001- ●
17 03.665 GASKET; EGR PIPE
(C) 		8-98017-551-0 01 1 0610- ● ●
93 03.675 HOSE ASM
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EMISSION SYSTEM R15-04<K75> 03.163 (E) 		8-97332-387-1 01 1 0307- ●
93 03.675 HOSE ASM
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EMISSION SYSTEM R15-04<K75> 03.163 (F) 		8-97943-451-0 01 1 0307- ●
93 03.675 HOSE ASM
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EURO2 SPECIFICATION<NT2> 03.163 (C) 		8-97260-312-4 01 1 0307- ●
93 03.675 HOSE ASM
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EURO2 SPECIFICATION<NT2> 03.163 (D) 		8-97943-449-0 01 1 0307- ●
93 03.675 HOSE ASM
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C42) EURO2 SPECIFICATION<NT2> 03.163 (A) 		8-97260-313-4 01 1 0307-0609 ●
93 03.675 HOSE ASM
HEATER & DEFROSTER(C42) EURO2 SPECIFICATION<NT2> 03.163 (A) 		8-97260-313-4 01 1 0610- ●
93 03.675 HOSE ASM
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C42) EURO2 SPECIFICATION<NT2> 03.163 (B) 		8-97943-450-0 01 1 0307-0609 ●
93 03.675 HOSE ASM
HEATER & DEFROSTER(C42) EURO2 SPECIFICATION<NT2> 03.163 (B) 		8-97943-450-0 01 1 0610- ●
95 03.680 CLIP; HOSE
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EMISSION SYSTEM R15-04<K75> 03.430 (B) ID=6 & 16.5 		8-94165-402-0 01 1 0307- ●
95 03.680 CLIP; HOSE
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EMISSION SYSTEM R15-04<K75> 02.589 (E) ID=13 & 16.5 		8-94169-028-0 01 1 0307- ●
95 03.680 CLIP; HOSE
EURO2 SPECIFICATION<NT2> 02.589 (E) ID=13 & 16.5 		8-94169-028-0 01 1 0307- ●
95 03.680 CLIP; HOSE
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EMISSION SYSTEM R15-04<K75> 04.128 (C) ID=14.5 & 7.5 		8-94315-424-0 01 1 0307- ●
95 03.680 CLIP; HOSE
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EMISSION SYSTEM R15-04<K75> 03.483 (D) ID=21 & 7.5 		8-97309-946-0 01 1 0307- ●
95 03.680 CLIP; HOSE
EURO2 SPECIFICATION<NT2> (A) ID=14.5 & 7X4 		8-94368-499-0 01 1 0307- ●
100 03.680 JOINT; HOSE
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EURO2 SPECIFICATION<NT2> (B) 3WAY 		8-94210-631-0 02 1 0307- ●
100 03.680 JOINT; HOSE
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EURO2 SPECIFICATION<NT2> (A) 2WAY 		8-97165-694-0 03 1 0307- ●
100 03.680 JOINT; HOSE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C42) EURO2 SPECIFICATION<NT2> (B) 3WAY 		8-94210-631-0 01 1 0307-0609 ●
100 03.680 JOINT; HOSE
HEATER & DEFROSTER(C42) EURO2 SPECIFICATION<NT2> (B) 3WAY 		8-94210-631-0 01 1 0610- ●
100 03.680 JOINT; HOSE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C42) EURO2 SPECIFICATION<NT2> (A) 2WAY 		8-97165-694-0 02 1 0307-0609 ●
100 03.680 JOINT; HOSE
HEATER & DEFROSTER(C42) EURO2 SPECIFICATION<NT2> (A) 2WAY 		8-97165-694-0 02 1 0610- ●
197 03.670 VALVE; VAC SWITCHING
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 03.130 (C) 		8-94384-336-0 01 1 0307- ●
197 03.670 VALVE; VAC SWITCHING
EURO2 SPECIFICATION<NT2> (A) 		8-97043-750-0 01 1 0307- ●
197 03.670 VALVE; VAC SWITCHING
EURO2 SPECIFICATION<NT2> 03.675 (B) 		8-97171-030-0 01 1 0307- ●
261 03.671 GROMMET
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EMISSION SYSTEM R15-04<K75> 00.206 		5-19389-002-0 03 1 0307- ●
261 03.671 GROMMET
EURO2 SPECIFICATION<NT2> 00.206 		5-19389-002-0 03 1 0307- ●
472 03.671 BOLT; BRKT
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EMISSION SYSTEM R15-04<K75> 02.343 M6X16 FLANGE 		0-28650-616-0 03 1 0307- ●
472 03.671 BOLT; BRKT
EURO2 SPECIFICATION<NT2> 02.343 M6X16 FLANGE 		0-28650-616-0 03 1 0307- ●
472 03.671 BOLT; BRKT
03.680 M6X30 FLANGE 		0-28650-630-0 02 1 0307-0609 ●
472 03.671 BOLT; BRKT
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 03.680 M6X30 FLANGE 		0-28650-630-0 02 1 0307-0609 ●
485 03.671 BOLT; VSV
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 04.054 M5X10 W/LK+PL WASHER 		9-03920-510-0 01 1 0307-0605 ●
485 03.671 BOLT; VSV
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 03.680 M5X10 W/LK+PL WASHER 		0-36230-510-0 01 1 0606- ●
485 03.671 BOLT; VSV
EURO2 SPECIFICATION<NT2> 04.054 M5X10 W/LK+PL WASHER 		9-03920-510-0 02 1 0307-0605 ●
485 03.671 BOLT; VSV
EURO2 SPECIFICATION<NT2> 03.680 M5X10 W/LK+PL WASHER 		0-36230-510-0 02 1 0606- ●
753 03.670 BRACKET; VALVE
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EMISSION SYSTEM R15-04<K75> (A) 		8-97307-069-2 01 1 0307-0402 ●
753 03.670 BRACKET; VALVE
EURO2 SPECIFICATION<NT2> (A) 		8-97307-069-2 01 1 0307-0402 ●
753 03.670 BRACKET; VALVE
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EMISSION SYSTEM R15-04<K75> (A) 		8-97943-948-0 01 1 0403- ●
753 03.670 BRACKET; VALVE
EURO2 SPECIFICATION<NT2> (A) 		8-97943-948-0 01 1 0403- ●
753 03.670 BRACKET; VALVE
(B) 		8-97943-321-0 01 1 0307-0609 ●
753 03.670 BRACKET; VALVE
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) 		8-97943-321-0 01 1 0307-0609 ●
754 03.647 BUSHING; RUBBER
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EMISSION SYSTEM R15-04<K75> 00.206 (A) 		5-19389-009-0 03 1 0307- ●
754 03.647 BUSHING; RUBBER
EURO2 SPECIFICATION<NT2> 00.206 (A) 		5-19389-009-0 03 1 0307- ●
754 03.647 BUSHING; RUBBER
(B) 		8-97944-146-0 04 1 0307-0609 ●
754 03.647 BUSHING; RUBBER
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) 		8-97944-146-0 04 1 0307-0609 ●
çizim 56419
752 185 472 185 747 740 631 754 155 753 752 472 740 747 185 185 631 754 155 753 185
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
155 03.680 RUBBER; MTG,BRKT
03.671 		8-97943-313-0 04 1 0307-0609 ●
155 03.680 RUBBER; MTG,BRKT
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 03.671 		8-97943-313-0 04 1 0307-0609 ●
185 03.163 HOSE; RUBBER,VSV
(B) 		8-97320-372-3 01 1 0307-0609 ●
185 03.163 HOSE; RUBBER,VSV
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) 		8-97320-372-3 01 1 0307-0609 ●
185 03.163 HOSE; RUBBER,VSV
(A) 		8-97943-807-0 01 1 0307-0311 ●
185 03.163 HOSE; RUBBER,VSV
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) 		8-97943-807-0 01 1 0307-0311 ●
185 03.163 HOSE; RUBBER,VSV
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) 		8-97943-807-0 01 1 0312-0505 ●
185 03.163 HOSE; RUBBER,VSV
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. AUSTRALIA EQUIPMENT(B13) (A) 		8-97943-807-0 01 1 0506-0609 ●
185 03.163 HOSE; RUBBER,VSV
(A) 		8-97943-922-0 01 1 0312-0609 ●
185 03.163 HOSE; RUBBER,VSV
AUSTRALIA EQUIPMENT(B13) (C) 		8-98009-671-0 01 1 0506-0609 ●
185 03.163 HOSE; RUBBER,VSV
AUSTRALIA EQUIPMENT(B13) (A) 		8-98012-770-0 01 1 0506-0609 ●
472 03.671 BOLT; BRKT
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EMISSION SYSTEM R15-04<K75> 02.343 M6X16 FLANGE 		0-28650-616-0 03 1 0307- ●
472 03.671 BOLT; BRKT
EURO2 SPECIFICATION<NT2> 02.343 M6X16 FLANGE 		0-28650-616-0 03 1 0307- ●
472 03.671 BOLT; BRKT
03.680 M6X30 FLANGE 		0-28650-630-0 02 1 0307-0609 ●
472 03.671 BOLT; BRKT
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 03.680 M6X30 FLANGE 		0-28650-630-0 02 1 0307-0609 ●
631 03.417 WASHER; PL,BRKT
02.587 ID=6.4 OD=18 		9-09160-706-0 04 1 0307-0606 ●
631 03.417 WASHER; PL,BRKT
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 02.587 ID=6.4 OD=18 		9-09160-706-0 04 1 0307-0606 ●
631 03.417 WASHER; PL,BRKT
00.413 ID=6.4 OD=18 		0-91610-706-0 04 1 0607-0609 ●
631 03.417 WASHER; PL,BRKT
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 00.413 ID=6.4 OD=18 		0-91610-706-0 04 1 0607-0609 ●
740 03.680 BOLT; VAC REG VALVE
M6X30 FLANGE 		0-28650-630-0 02 1 0307-0609 ●
740 03.680 BOLT; VAC REG VALVE
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> M6X30 FLANGE 		0-28650-630-0 02 1 0307-0609 ●
747 03.671 NUT; VAC REG VALVE
01.062 M6 FLANGE 		0-91180-106-0 02 1 0307-0609 ●
747 03.671 NUT; VAC REG VALVE
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 01.062 M6 FLANGE 		0-91180-106-0 02 1 0307-0609 ●
747 03.671 NUT; VAC REG VALVE
01.062 M8 FLANGE 		0-91180-108-0 02 1 0610- ● ●
752 03.670 VALVE; EVRV
(A) 		8-97240-699-0 01 1 0307-0505 ●
752 03.670 VALVE; EVRV
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) 		8-97240-699-0 01 1 0307-0505 ●
752 03.670 VALVE; EVRV
(A) 		8-97240-699-0 01 1 0506-0609 ●
752 03.670 VALVE; EVRV
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. AUSTRALIA EQUIPMENT(B13) (A) 		8-97240-699-0 01 1 0506-0609 ●
752 03.670 VALVE; EVRV
AUSTRALIA EQUIPMENT(B13) (B) 		8-97374-971-0 01 1 0506-0609 ●
752 03.670 VALVE; EVRV
(C) 		8-98033-927-0 01 1 0610-0803 ● ●
752 03.670 VALVE; EVRV
(C) 		8-98116-260-0 01 1 0804- ● ●
753 03.670 BRACKET; VALVE
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EMISSION SYSTEM R15-04<K75> (A) 		8-97307-069-2 01 1 0307-0402 ●
753 03.670 BRACKET; VALVE
EURO2 SPECIFICATION<NT2> (A) 		8-97307-069-2 01 1 0307-0402 ●
753 03.670 BRACKET; VALVE
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EMISSION SYSTEM R15-04<K75> (A) 		8-97943-948-0 01 1 0403- ●
753 03.670 BRACKET; VALVE
EURO2 SPECIFICATION<NT2> (A) 		8-97943-948-0 01 1 0403- ●
753 03.670 BRACKET; VALVE
(B) 		8-97943-321-0 01 1 0307-0609 ●
753 03.670 BRACKET; VALVE
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) 		8-97943-321-0 01 1 0307-0609 ●
754 03.647 BUSHING; RUBBER
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EMISSION SYSTEM R15-04<K75> 00.206 (A) 		5-19389-009-0 03 1 0307- ●
754 03.647 BUSHING; RUBBER
EURO2 SPECIFICATION<NT2> 00.206 (A) 		5-19389-009-0 03 1 0307- ●
754 03.647 BUSHING; RUBBER
(B) 		8-97944-146-0 04 1 0307-0609 ●
754 03.647 BUSHING; RUBBER
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) 		8-97944-146-0 04 1 0307-0609 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
