0-55B — ECGI SYSTEM OR COMMON RAIL (#20493) — 45 parça

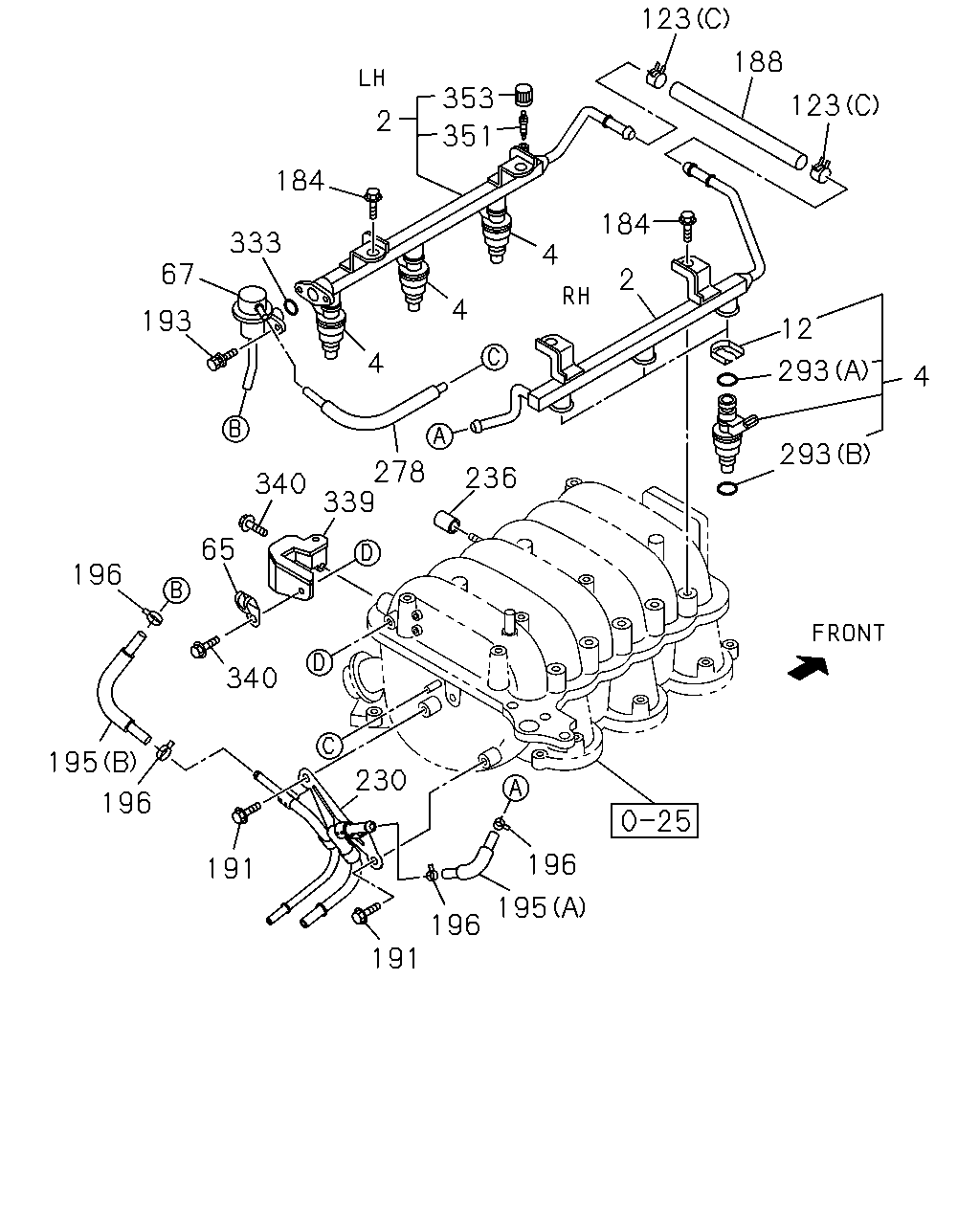

123 188 353 123 2 351 184 184 333 4 67 2 4 193 12 4 293 4 293 278 339 236 340 65 196 340 195 230 196 196 191 195 196 191

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	03.330 RAIL ASM; FUEL,INJECTOR	8-97318-622-1	01	1	0307-0609	●
2	03.330 RAIL ASM; FUEL,INJECTOR	8-97318-621-1	01	1	0307-0609	●
4	03.332 INJECTOR ASM	8-97318-620-0	06	1	0307-0609	●
12	03.332 CLIP; INJECTOR	8-97324-652-0	06	1	0307-0609	●
12	03.332 CLIP; INJECTOR	8-12571-751-0	06	1	0509-0609		●
12	03.332 CLIP; INJECTOR M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>	8-12571-751-0	06	1	0610-		●
65	03.330 CLIP; HOSE 02.559 ID=12	5-09700-331-0	01	1	0307-0609	●
67	03.330 REGULATOR; PRESSURE	8-97254-845-0	01	1	0307-0609	●
123	03.901 CLIP; FUEL HOSE 00.034 (C) ID=12 WO/PVC COATING	8-94123-526-1	02	1	0307-0609	●
184	03.330 BOLT; FUEL RAIL 01.062 M8X16 FLANGE	0-28080-816-0	04	1	0307-0512	●
184	03.330 BOLT; FUEL RAIL 02.343 M8X16 FLANGE	0-28050-816-0	04	1	0601-0609	●
184	03.330 BOLT; FUEL RAIL	8-11519-968-0	03	1	0509-0609		●
184	03.330 BOLT; FUEL RAIL M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>	8-11519-968-0	03	1	0610-		●
188	03.901 HOSE; FUEL 03.163 L=170 SERVICED BY L=3000	0-01558-300-0	01	1	0307-0609	●
191	03.330 BOLT; FUEL PIPE 01.428 M6X12 FLANGE	0-28080-612-0	02	1	0307-0512	●
191	03.330 BOLT; FUEL PIPE 03.162 M6X12 FLANGE	0-28050-612-0	02	1	0601-0609	●
193	03.330 BOLT; PRESSURE REG 14.865 M5X12	8-94386-089-0	02	1	0307-0609	●
195	03.145 HOSE; RUBBER,FUEL (A) L=100 W/PROTECTOR	8-97349-414-0	01	1	0307-0609	●
195	03.145 HOSE; RUBBER,FUEL (B) L=140 W/PROTECTOR	8-97349-415-0	01	1	0307-0609	●
196	03.145 CLIP; RUBBER HOSE,FUEL 00.034 ID=12 WO/PVC COATING	8-94123-526-1	04	1	0307-0609	●
230	03.330 PIPE; FUEL	8-97245-278-1	01	1	0307-0609	●
236	03.145 CAP; RUBBER 01.780 ID=4	8-94217-809-0	01	1	0307-0609	●
278	03.330 HOSE; PRESSURE REG L=200	8-97166-646-2	01	1	0307-0609	●
293	03.304 GASKET; FUEL INJECTOR (A)	8-97325-474-0	06	1	0307-0609	●
293	03.304 GASKET; FUEL INJECTOR (B)	8-97325-475-0	06	1	0307-0609	●
333	03.304 GASKET; FUEL RETURN	8-97179-766-0	01	1	0307-0609	●
339	03.330 PROTECTOR; PRESSURE REG	8-97321-312-0	01	1	0307-0609	●
340	03.330 BOLT; PROTECTOR M8X16 HEX SOCKET	0-58310-816-0	02	1	0307-0609	●
351	03.335 VALVE; PRESSURE RELIEF	8-97119-714-0	01	1	0307-0609	●
353	03.145 CAP; PRESSURE VLV 03.330	8-97119-713-0	01	1	0307-0609	●

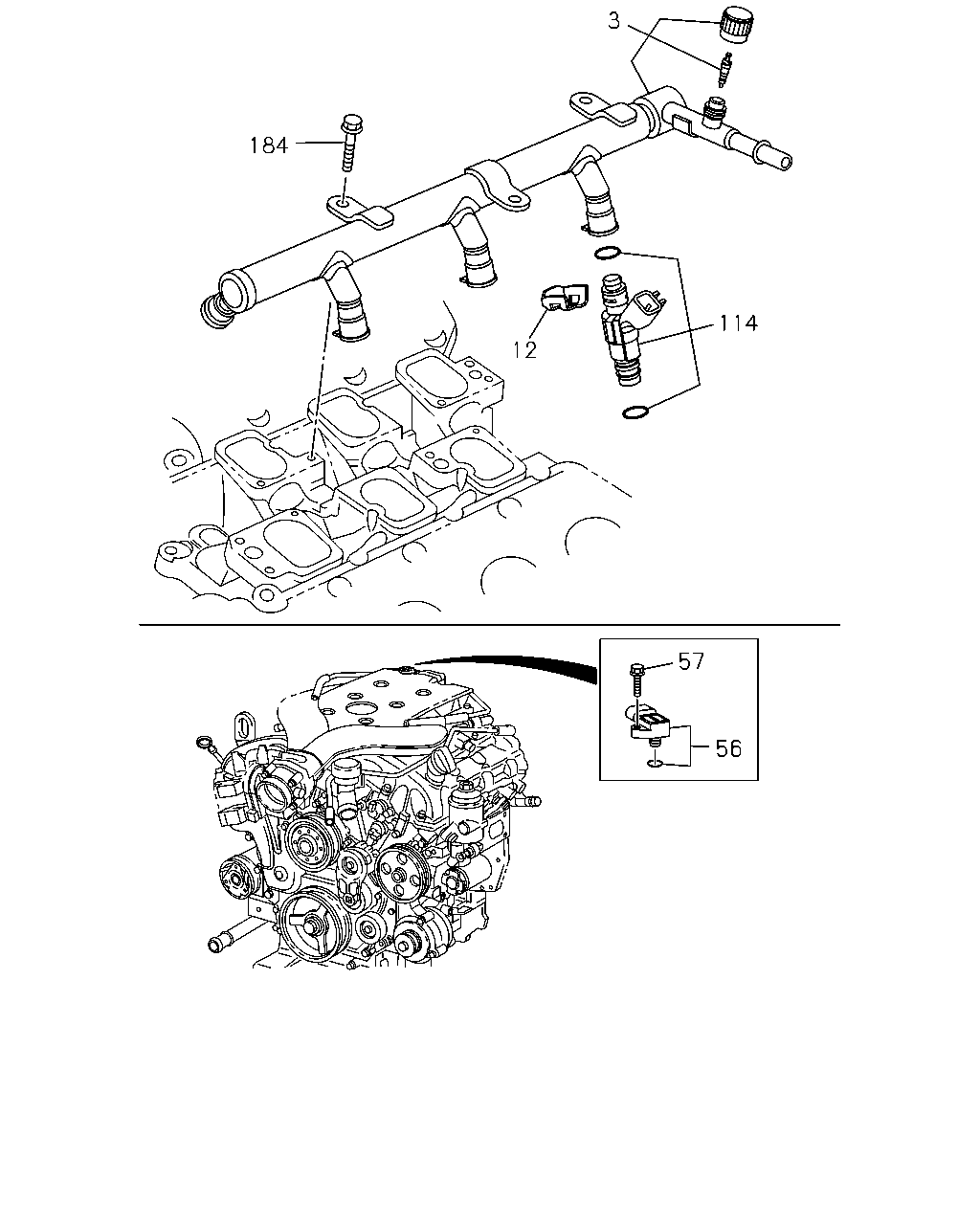

3 184 114 12 57 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	03.330 RAIL; FUEL INJECTOR	8-92066-732-0	01	1	0509-0609		●
3	03.330 RAIL; FUEL INJECTOR M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>	8-92066-732-0	01	1	0610-		●
12	03.332 CLIP; INJECTOR	8-97324-652-0	06	1	0307-0609	●
12	03.332 CLIP; INJECTOR	8-12571-751-0	06	1	0509-0609		●
12	03.332 CLIP; INJECTOR M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>	8-12571-751-0	06	1	0610-		●
56	03.320 SENSOR; MAP	8-12575-467-0	01	1	0509-0609		●
56	03.320 SENSOR; MAP M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>	8-12575-467-0	01	1	0610-		●
57	03.330 SCREW; MAP SENSOR	8-11519-968-0	01	1	0509-0609		●
57	03.330 SCREW; MAP SENSOR M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>	8-11519-968-0	01	1	0610-		●
114	03.300 INJECTOR; FUEL	8-12571-159-0	06	1	0509-0609		●
114	03.300 INJECTOR; FUEL M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>	8-12571-159-0	06	1	0610-		●
184	03.330 BOLT; FUEL RAIL 01.062 M8X16 FLANGE	0-28080-816-0	04	1	0307-0512	●
184	03.330 BOLT; FUEL RAIL 02.343 M8X16 FLANGE	0-28050-816-0	04	1	0601-0609	●
184	03.330 BOLT; FUEL RAIL	8-11519-968-0	03	1	0509-0609		●
184	03.330 BOLT; FUEL RAIL M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>	8-11519-968-0	03	1	0610-		●
