0-52A — OIL AND VACUUM PIPING; ENGINE (#20490) — 496 parça

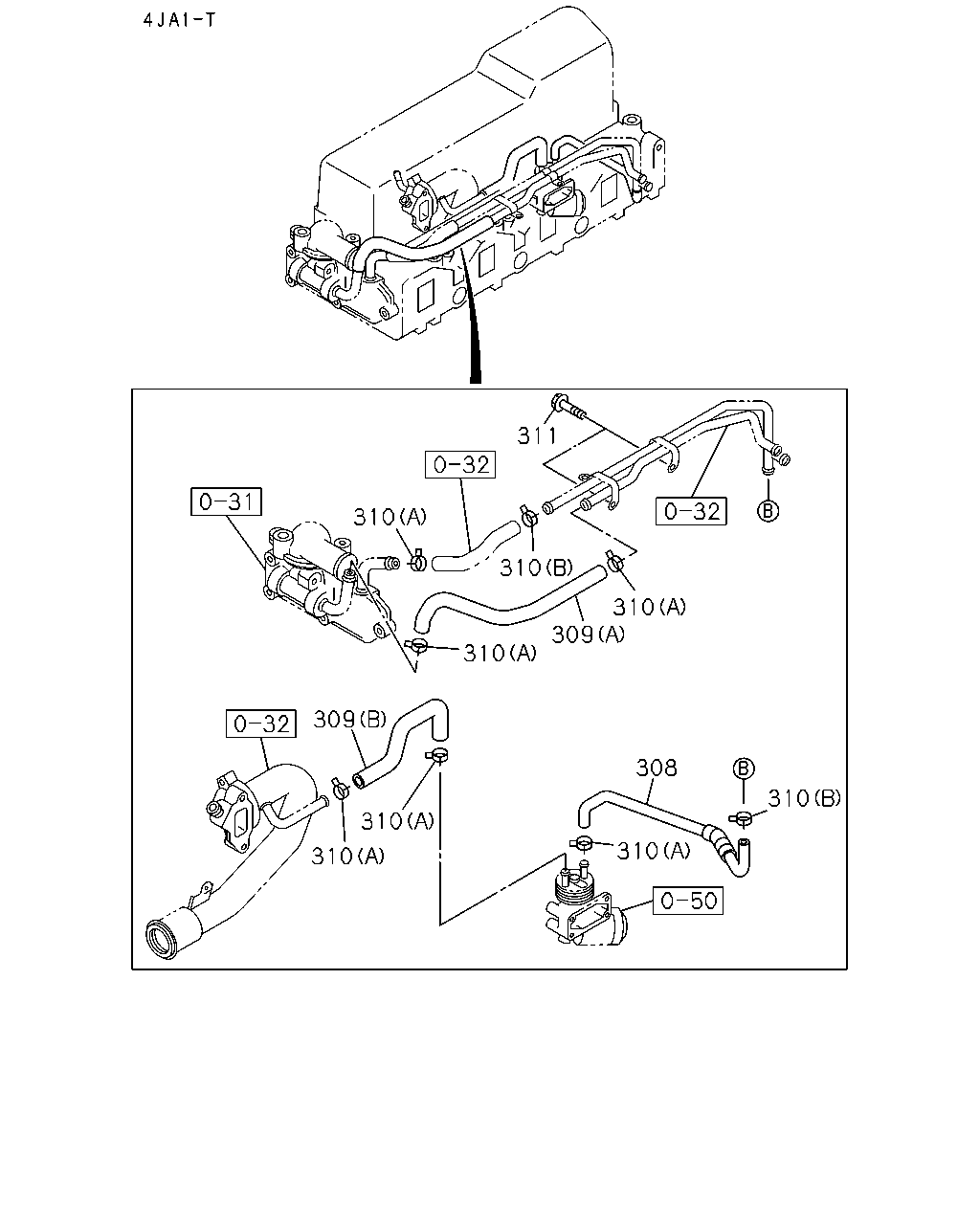

çizim 11175
311 310 310 310 309 310 309 308 310 310 310 310
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
308 01.540 HOSE; OIL COOLER FEED 8-97362-329-1 01 1 0307-0609 ●
308 01.540 HOSE; OIL COOLER FEED
EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> 		8-97362-329-1 01 1 0307-0609 ●
308 01.540 HOSE; OIL COOLER FEED 8-97362-329-2 01 1 0610- ●
308 01.540 HOSE; OIL COOLER FEED 8-97249-288-0 01 1 0307-0308 ●
308 01.540 HOSE; OIL COOLER FEED
EURO3 SPECIFICATION<NT3> 		8-97331-175-0 01 1 0307-0308 ●
308 01.540 HOSE; OIL COOLER FEED 8-97331-175-0 01 1 0309-0609 ●
308 01.540 HOSE; OIL COOLER FEED
EURO3 SPECIFICATION<NT3> 		8-97331-175-0 01 1 0309-0609 ●
309 01.540 HOSE; OIL COOLER RETURN
(B) 		8-97213-919-2 01 1 0307-0609 ● ●
309 01.540 HOSE; OIL COOLER RETURN
(B) 		8-97213-919-2 01 1 0610- ●
309 01.540 HOSE; OIL COOLER RETURN
(A) 		8-97256-047-1 01 1 0307-0609 ● ● ●
309 01.540 HOSE; OIL COOLER RETURN
(A) 		8-97256-047-1 01 1 0610- ●
309 01.540 HOSE; OIL COOLER RETURN
(B) 		8-97329-648-1 01 1 0307-0609 ●
310 01.540 CLIP; WATER HOSE FIX
01.166 (A) ID=20.8 		8-94125-862-1 06 1 0307-0609 ●
310 01.540 CLIP; WATER HOSE FIX
EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> 01.166 (A) ID=20.8 		8-94125-862-1 06 1 0307-0609 ●
310 01.540 CLIP; WATER HOSE FIX
01.166 (A) ID=20.8 		8-94125-862-1 06 1 0610- ●
310 01.540 CLIP; WATER HOSE FIX
01.150 (B) ID=24 		8-97010-605-0 02 1 0307-0609 ● ● ●
310 01.540 CLIP; WATER HOSE FIX
01.150 (B) ID=24 		8-97010-605-0 02 1 0610- ●
310 01.540 CLIP; WATER HOSE FIX
01.166 (A) ID=20.8 		8-94125-862-1 08 1 0307-0609 ●
310 01.540 CLIP; WATER HOSE FIX
EURO3 SPECIFICATION<NT3> 01.166 (A) ID=20.8 		8-94125-862-1 08 1 0307-0609 ●
310 01.540 CLIP; WATER HOSE FIX
08.846 (C) ID=22 		8-94382-401-0 02 1 0307-0402 ●
310 01.540 CLIP; WATER HOSE FIX
EMISSION SYSTEM R15-04<K75>,EURO3 SPECIFICATION<NT3> 08.846 (C) ID=22 		8-94382-401-0 02 1 0307-0402 ●
310 01.540 CLIP; WATER HOSE FIX
EURO2 SPECIFICATION<NT2> EXC. AUSTRALIA EQUIPMENT(B13) 08.846 (C) ID=22 		8-94382-401-0 02 1 0307-0402 ●
310 01.540 CLIP; WATER HOSE FIX
08.846 (C) ID=22 		8-94382-401-0 02 1 0403-0609 ● ●
311 01.531 BOLT; PIPE FIX
08.900 M8X12 FLANGE 		0-28080-812-0 02 1 0307-0512 ● ● ●
311 01.531 BOLT; PIPE FIX
02.343 M8X12 FLANGE 		0-28050-812-0 02 1 0601-0609 ● ● ●
311 01.531 BOLT; PIPE FIX
02.343 M8X12 FLANGE 		0-28050-812-0 02 1 0610- ●
311 01.531 BOLT; PIPE FIX
03.162 M6X12 FLANGE 		0-28050-612-0 01 1 0610-0612 ● ● ● ●
311 01.531 BOLT; PIPE FIX
03.162 M6X12 FLANGE 		0-28050-612-0 01 1 0701-0912 ● ● ●
311 01.531 BOLT; PIPE FIX
03.162 M6X12 FLANGE 		0-28050-612-0 01 1 1001- ● ● ● ●

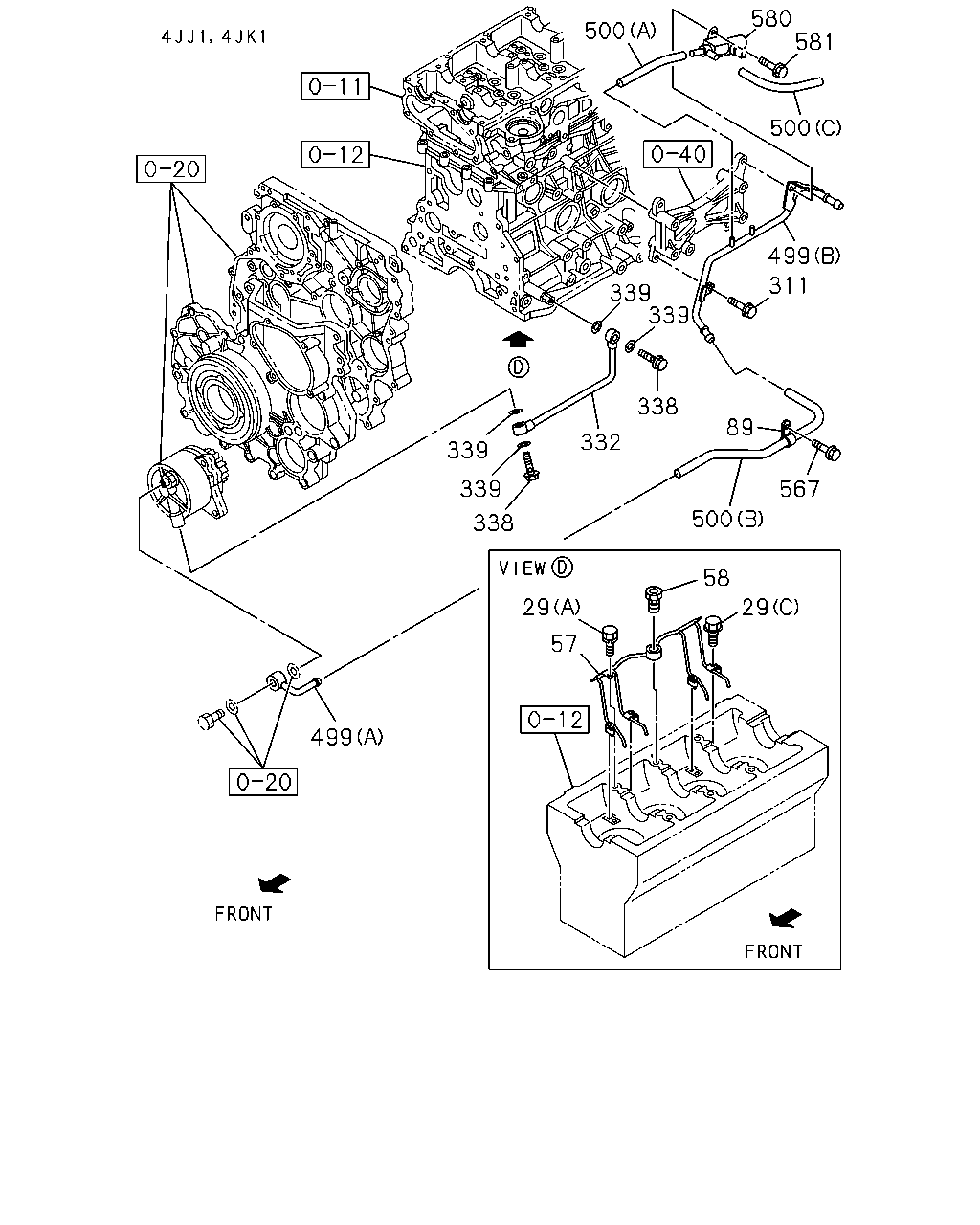

çizim 53603
580 581 500 500 499 311 339 339 338 89 339 332 339 567 500 338 58 29 29 57 499
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
29 01.531 BOLT; OIL PIPE,OIL JET
01.540 (B) M6X25 W/LK&PL WASHER 		0-50140-625-0 04 1 0307-0512 ●
29 01.531 BOLT; OIL PIPE,OIL JET
(B) M6X25 W/LK&PL WASHER 		0-50640-625-0 04 1 0601- ●
29 01.531 BOLT; OIL PIPE,OIL JET
00.206 (A) M8X10 FLANGE 		0-28080-810-0 01 1 0307-0512 ● ● ●
29 01.531 BOLT; OIL PIPE,OIL JET
03.407 (A) M8X10 FLANGE 		0-28050-810-0 01 1 0601-0609 ● ● ●
29 01.531 BOLT; OIL PIPE,OIL JET
03.407 (A) M8X10 FLANGE 		0-28050-810-0 01 1 0610-0612 ● ● ● ● ●
29 01.531 BOLT; OIL PIPE,OIL JET
03.407 (A) M8X10 FLANGE 		0-28050-810-0 01 1 0701-0912 ● ● ● ●
29 01.531 BOLT; OIL PIPE,OIL JET
03.407 (A) M8X10 FLANGE 		0-28050-810-0 01 1 1001- ● ● ● ● ●
29 01.531 BOLT; OIL PIPE,OIL JET
(B) M6X20 		8-97117-298-1 04 1 0307-0609 ● ●
29 01.531 BOLT; OIL PIPE,OIL JET
(C) M6X20 FLANGE 		8-97380-673-0 04 1 0610-0611 ● ● ● ●
29 01.531 BOLT; OIL PIPE,OIL JET
EXC. KENYA EQUIPMENT(CL1) (C) M6X20 FLANGE 		8-97380-673-0 04 1 0612-0612 ●
29 01.531 BOLT; OIL PIPE,OIL JET
(C) M6X20 FLANGE 		8-97380-673-0 04 1 0612-0612 ● ● ●
29 01.531 BOLT; OIL PIPE,OIL JET
EXC. KENYA EQUIPMENT(CL1) (C) M6X20 FLANGE 		8-97380-673-1 04 1 0701-0912 ●
29 01.531 BOLT; OIL PIPE,OIL JET
(C) M6X20 FLANGE 		8-97380-673-1 04 1 0701-0912 ● ●
29 01.531 BOLT; OIL PIPE,OIL JET
EXC. KENYA EQUIPMENT(CL1) (C) M6X20 FLANGE 		8-97380-673-1 04 1 1001- ●
29 01.531 BOLT; OIL PIPE,OIL JET
(C) M6X20 FLANGE 		8-97380-673-1 04 1 1001- ● ● ●
29 01.531 BOLT; OIL PIPE,OIL JET
(C) M6X20 		8-97117-298-1 04 1 0611-0611 ● ●
29 01.531 BOLT; OIL PIPE,OIL JET
KENYA EQUIPMENT(CL1) (C) M6X20 		8-97117-298-1 04 1 0612- ●
57 01.519 PIPE; OIL,OIL JET 8-94469-992-2 01 1 0307-0308 ●
57 01.519 PIPE; OIL,OIL JET 8-97912-536-2 01 1 0309-0309 ●
57 01.519 PIPE; OIL,OIL JET 8-94469-992-2 01 1 0310- ●
57 01.519 PIPE; OIL,OIL JET 8-97249-279-0 01 1 0307-0609 ●
57 01.519 PIPE; OIL,OIL JET 8-97312-132-2 01 1 0610-0612 ● ● ● ●
57 01.519 PIPE; OIL,OIL JET 8-97312-132-2 01 1 0701-0912 ● ● ●
57 01.519 PIPE; OIL,OIL JET 8-97312-132-3 01 1 1001- ● ● ● ●
57 01.519 PIPE; OIL,OIL JET 8-97116-971-1 01 1 0307-0609 ●
58 01.531 VALVE; RELIEF,OIL JET,PISTON COO 8-97239-048-1 01 1 0307-0609 ● ● ●
58 01.531 VALVE; RELIEF,OIL JET,PISTON COO
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 		8-97239-048-1 01 1 0610-0611 ●
58 01.531 VALVE; RELIEF,OIL JET,PISTON COO
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO3 SPECIFICATION<NT3> 		8-97239-048-1 01 1 0610-0611 ● ●
58 01.531 VALVE; RELIEF,OIL JET,PISTON COO 8-97239-048-1 01 1 0612-0709 ●
58 01.531 VALVE; RELIEF,OIL JET,PISTON COO
KENYA EQUIPMENT(CL1) 		8-97239-048-1 01 1 0612-0709 ●
58 01.531 VALVE; RELIEF,OIL JET,PISTON COO 8-97239-048-1 01 1 0710- ●
58 01.531 VALVE; RELIEF,OIL JET,PISTON COO
KENYA EQUIPMENT(CL1) 		8-97239-048-1 01 1 0710- ●
58 01.531 VALVE; RELIEF,OIL JET,PISTON COO 8-97379-464-0 01 1 0610-0611 ● ● ● ●
58 01.531 VALVE; RELIEF,OIL JET,PISTON COO
EXC. KENYA EQUIPMENT(CL1) 		8-97379-464-0 01 1 0612-0612 ●
58 01.531 VALVE; RELIEF,OIL JET,PISTON COO 8-97379-464-0 01 1 0612-0612 ● ● ●
58 01.531 VALVE; RELIEF,OIL JET,PISTON COO
EXC. KENYA EQUIPMENT(CL1) 		8-97379-464-0 01 1 0701-0912 ●
58 01.531 VALVE; RELIEF,OIL JET,PISTON COO 8-97379-464-0 01 1 0701-0912 ● ●
58 01.531 VALVE; RELIEF,OIL JET,PISTON COO
EXC. KENYA EQUIPMENT(CL1) 		8-97379-464-0 01 1 1001- ●
58 01.531 VALVE; RELIEF,OIL JET,PISTON COO 8-97379-464-0 01 1 1001- ● ● ●
89 04.681 CLIP; VAC HOSE
ID=16 L=20 		0-95235-536-0 01 1 0610-0612 ● ● ● ●
89 04.681 CLIP; VAC HOSE
ID=16 L=20 		0-95235-536-0 01 1 0701-0912 ● ● ●
89 04.681 CLIP; VAC HOSE
ID=16 L=20 		0-95235-536-0 01 1 1001- ● ● ● ●
311 01.531 BOLT; PIPE FIX
08.900 M8X12 FLANGE 		0-28080-812-0 02 1 0307-0512 ● ● ●
311 01.531 BOLT; PIPE FIX
02.343 M8X12 FLANGE 		0-28050-812-0 02 1 0601-0609 ● ● ●
311 01.531 BOLT; PIPE FIX
02.343 M8X12 FLANGE 		0-28050-812-0 02 1 0610- ●
311 01.531 BOLT; PIPE FIX
03.162 M6X12 FLANGE 		0-28050-612-0 01 1 0610-0612 ● ● ● ●
311 01.531 BOLT; PIPE FIX
03.162 M6X12 FLANGE 		0-28050-612-0 01 1 0701-0912 ● ● ●
311 01.531 BOLT; PIPE FIX
03.162 M6X12 FLANGE 		0-28050-612-0 01 1 1001- ● ● ● ●
332 01.519 PIPE; OIL,C/BL TO VAC PUMP 8-97942-810-0 01 1 0307-0609 ● ●
332 01.519 PIPE; OIL,C/BL TO VAC PUMP 8-97942-810-0 01 1 0610- ●
332 01.519 PIPE; OIL,C/BL TO VAC PUMP 8-97324-653-1 01 1 0307-0609 ●
332 01.519 PIPE; OIL,C/BL TO VAC PUMP 8-98038-929-0 01 1 0610-0612 ● ● ● ●
332 01.519 PIPE; OIL,C/BL TO VAC PUMP 8-98038-929-0 01 1 0701-0912 ● ● ●
332 01.519 PIPE; OIL,C/BL TO VAC PUMP 8-98038-929-0 01 1 1001- ● ● ● ●
338 01.531 BOLT; JOINT,OIL PIPE
EXC. KENYA EQUIPMENT(CL1) M8X20 EYE-BOLT 		8-97910-296-1 04 1 0710-0912 ●
338 01.531 BOLT; JOINT,OIL PIPE
M8X20 EYE-BOLT 		8-97910-296-1 04 1 0710-0912 ● ●
338 01.531 BOLT; JOINT,OIL PIPE
EXC. KENYA EQUIPMENT(CL1) M8X20 EYE-BOLT 		8-97910-296-1 04 1 1001- ●
338 01.531 BOLT; JOINT,OIL PIPE
M8X20 EYE-BOLT 		8-97910-296-1 04 1 1001- ● ● ●
338 01.531 BOLT; JOINT,OIL PIPE
M8X20 EYE-BOLT 		8-97910-296-0 02 1 0610-0611 ● ● ● ●
338 01.531 BOLT; JOINT,OIL PIPE
EXC. KENYA EQUIPMENT(CL1) M8X20 EYE-BOLT 		8-97910-296-0 02 1 0612-0612 ●
338 01.531 BOLT; JOINT,OIL PIPE
M8X20 EYE-BOLT 		8-97910-296-0 02 1 0612-0612 ● ● ●
338 01.531 BOLT; JOINT,OIL PIPE
EXC. KENYA EQUIPMENT(CL1) M8X20 EYE-BOLT 		8-97910-296-1 02 1 0701-0709 ●
338 01.531 BOLT; JOINT,OIL PIPE
M8X20 EYE-BOLT 		8-97910-296-1 02 1 0701-0709 ● ●
338 01.531 BOLT; JOINT,OIL PIPE
M8X20 EYE-BOLT 		5-09675-018-1 02 1 0610-0611 ● ●
338 01.531 BOLT; JOINT,OIL PIPE
KENYA EQUIPMENT(CL1) M8X20 EYE-BOLT 		5-09675-018-1 02 1 0612- ●
339 01.531 GASKET; OIL PIPE
05.398 ID=8.2 OD=14.0 T=1.0 		9-09571-408-0 04 1 0610-0612 ● ● ● ●
339 01.531 GASKET; OIL PIPE
05.398 ID=8.2 OD=14.0 T=1.0 		9-09571-408-0 04 1 0701-0912 ● ● ●
339 01.531 GASKET; OIL PIPE
05.398 ID=8.2 OD=14.0 T=1.0 ALSO INCLUDED IN GASKET SET(ENGINE) . 		9-09571-408-0 04 1 1001- ● ● ● ●
499 04.681 PIPE; VACUUM
(B) 		8-98013-802-1 01 1 0610-0612 ● ●
499 04.681 PIPE; VACUUM
(B) 		8-98013-802-1 01 1 0701-0912 ●
499 04.681 PIPE; VACUUM
(B) 		8-98013-802-1 01 1 1001- ● ●
499 04.681 PIPE; VACUUM
(A) 		8-98011-527-1 01 1 0610-0612 ● ● ● ●
499 04.681 PIPE; VACUUM
(A) 		8-98011-527-1 01 1 0701-0912 ● ● ●
499 04.681 PIPE; VACUUM
(A) 		8-98011-527-1 01 1 1001- ● ● ● ●
499 04.681 PIPE; VACUUM
(B) 		8-98011-526-1 01 1 0610- ● ●
500 04.681 HOSE; VACUUM
(A) 		0-04420-110-0 01 1 0610-0612 ● ● ● ●
500 04.681 HOSE; VACUUM
(A) 		0-04420-110-0 01 1 0701-0912 ● ● ●
500 04.681 HOSE; VACUUM
(A) 		0-04420-110-0 01 1 1001- ● ● ● ●
500 04.681 HOSE; VACUUM
(B) 		0-08508-230-0 01 1 0610-0612 ● ● ● ●
500 04.681 HOSE; VACUUM
(B) 		0-08508-230-0 01 1 0701-0912 ● ● ●
500 04.681 HOSE; VACUUM
(B) 		0-08508-230-0 01 1 1001- ● ● ● ●
500 04.681 HOSE; VACUUM
03.675 (C) 		8-97369-589-0 01 1 0610-0612 ● ● ● ●
500 04.681 HOSE; VACUUM
03.675 (C) 		8-97369-589-0 01 1 0701-0912 ● ● ●
500 04.681 HOSE; VACUUM
03.675 (C) 		8-97369-589-0 01 1 1001- ● ● ● ●
567 01.531 CLIP; PIPE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C42) EMISSION SYSTEM R15-04<K75> 03.145 ID=8 		8-94107-762-0 01 1 0307-0609 ●
567 01.531 CLIP; PIPE
EMISSION SYSTEM R15-04<K75> 03.145 ID=8 		8-94107-762-0 01 1 0307-0609 ●
567 01.531 CLIP; PIPE
HEATER & DEFROSTER(C42) EMISSION SYSTEM R15-04<K75> 03.145 ID=8 		8-94107-762-0 01 1 0610- ●
567 01.531 CLIP; PIPE
02.343 M8X16 FLANGE 		0-28050-816-0 01 1 0610-0612 ● ● ● ●
567 01.531 CLIP; PIPE
02.343 M8X16 FLANGE 		0-28050-816-0 01 1 0701-0912 ● ● ●
567 01.531 CLIP; PIPE
02.343 M8X16 FLANGE 		0-28050-816-0 01 1 1001- ● ● ● ●
580 01.531 VALVE; VAC SW
03.670 		8-97352-145-0 01 1 0610-0612 ● ● ● ●
580 01.531 VALVE; VAC SW
03.670 		8-97352-145-0 01 1 0701-0912 ● ● ●
580 01.531 VALVE; VAC SW
03.670 		8-97352-145-0 01 1 1001- ● ● ● ●
581 01.531 BOLT; VSV
02.343 M8X16 FLANGE 		0-28050-816-0 01 1 0610-0612 ● ● ● ●
581 01.531 BOLT; VSV
02.343 M8X16 FLANGE 		0-28050-816-0 01 1 0701-0912 ● ● ●
581 01.531 BOLT; VSV
02.343 M8X16 FLANGE 		0-28050-816-0 01 1 1001- ● ● ● ●

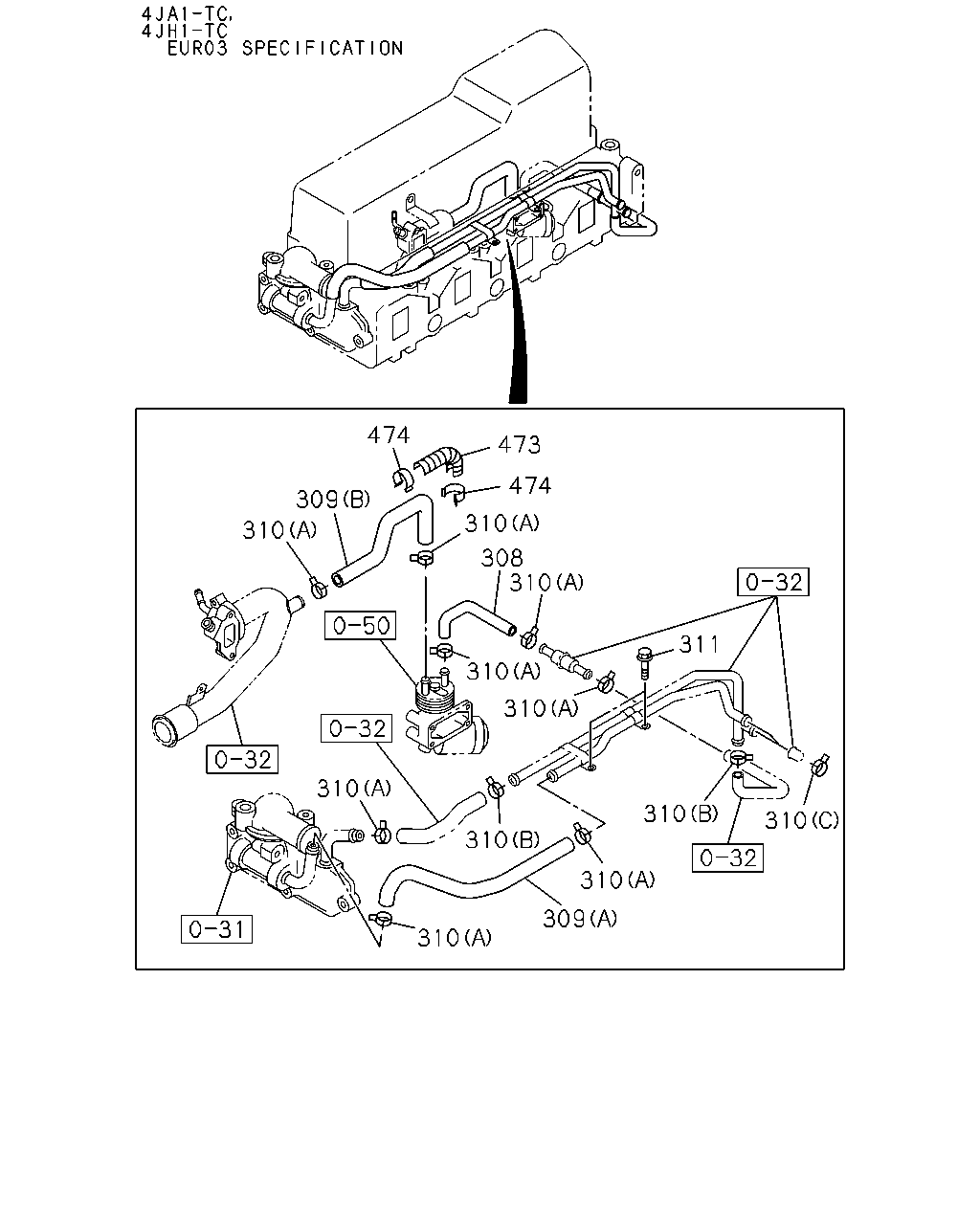

çizim 54508
474 473 474 309 310 310 308 310 311 310 310 310 310 310 310 310 309 310
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
308 01.540 HOSE; OIL COOLER FEED 8-97362-329-1 01 1 0307-0609 ●
308 01.540 HOSE; OIL COOLER FEED
EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> 		8-97362-329-1 01 1 0307-0609 ●
308 01.540 HOSE; OIL COOLER FEED 8-97362-329-2 01 1 0610- ●
308 01.540 HOSE; OIL COOLER FEED 8-97249-288-0 01 1 0307-0308 ●
308 01.540 HOSE; OIL COOLER FEED
EURO3 SPECIFICATION<NT3> 		8-97331-175-0 01 1 0307-0308 ●
308 01.540 HOSE; OIL COOLER FEED 8-97331-175-0 01 1 0309-0609 ●
308 01.540 HOSE; OIL COOLER FEED
EURO3 SPECIFICATION<NT3> 		8-97331-175-0 01 1 0309-0609 ●
309 01.540 HOSE; OIL COOLER RETURN
(B) 		8-97213-919-2 01 1 0307-0609 ● ●
309 01.540 HOSE; OIL COOLER RETURN
(B) 		8-97213-919-2 01 1 0610- ●
309 01.540 HOSE; OIL COOLER RETURN
(A) 		8-97256-047-1 01 1 0307-0609 ● ● ●
309 01.540 HOSE; OIL COOLER RETURN
(A) 		8-97256-047-1 01 1 0610- ●
309 01.540 HOSE; OIL COOLER RETURN
(B) 		8-97329-648-1 01 1 0307-0609 ●
310 01.540 CLIP; WATER HOSE FIX
01.166 (A) ID=20.8 		8-94125-862-1 06 1 0307-0609 ●
310 01.540 CLIP; WATER HOSE FIX
EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> 01.166 (A) ID=20.8 		8-94125-862-1 06 1 0307-0609 ●
310 01.540 CLIP; WATER HOSE FIX
01.166 (A) ID=20.8 		8-94125-862-1 06 1 0610- ●
310 01.540 CLIP; WATER HOSE FIX
01.150 (B) ID=24 		8-97010-605-0 02 1 0307-0609 ● ● ●
310 01.540 CLIP; WATER HOSE FIX
01.150 (B) ID=24 		8-97010-605-0 02 1 0610- ●
310 01.540 CLIP; WATER HOSE FIX
01.166 (A) ID=20.8 		8-94125-862-1 08 1 0307-0609 ●
310 01.540 CLIP; WATER HOSE FIX
EURO3 SPECIFICATION<NT3> 01.166 (A) ID=20.8 		8-94125-862-1 08 1 0307-0609 ●
310 01.540 CLIP; WATER HOSE FIX
08.846 (C) ID=22 		8-94382-401-0 02 1 0307-0402 ●
310 01.540 CLIP; WATER HOSE FIX
EMISSION SYSTEM R15-04<K75>,EURO3 SPECIFICATION<NT3> 08.846 (C) ID=22 		8-94382-401-0 02 1 0307-0402 ●
310 01.540 CLIP; WATER HOSE FIX
EURO2 SPECIFICATION<NT2> EXC. AUSTRALIA EQUIPMENT(B13) 08.846 (C) ID=22 		8-94382-401-0 02 1 0307-0402 ●
310 01.540 CLIP; WATER HOSE FIX
08.846 (C) ID=22 		8-94382-401-0 02 1 0403-0609 ● ●
311 01.531 BOLT; PIPE FIX
08.900 M8X12 FLANGE 		0-28080-812-0 02 1 0307-0512 ● ● ●
311 01.531 BOLT; PIPE FIX
02.343 M8X12 FLANGE 		0-28050-812-0 02 1 0601-0609 ● ● ●
311 01.531 BOLT; PIPE FIX
02.343 M8X12 FLANGE 		0-28050-812-0 02 1 0610- ●
311 01.531 BOLT; PIPE FIX
03.162 M6X12 FLANGE 		0-28050-612-0 01 1 0610-0612 ● ● ● ●
311 01.531 BOLT; PIPE FIX
03.162 M6X12 FLANGE 		0-28050-612-0 01 1 0701-0912 ● ● ●
311 01.531 BOLT; PIPE FIX
03.162 M6X12 FLANGE 		0-28050-612-0 01 1 1001- ● ● ● ●
473 01.540 INSULATOR; HOSE
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-97101-333-1 02 1 0307-0609 ●
474 01.540 CLIP; INSULATOR
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-97101-337-0 04 1 0307-0609 ●

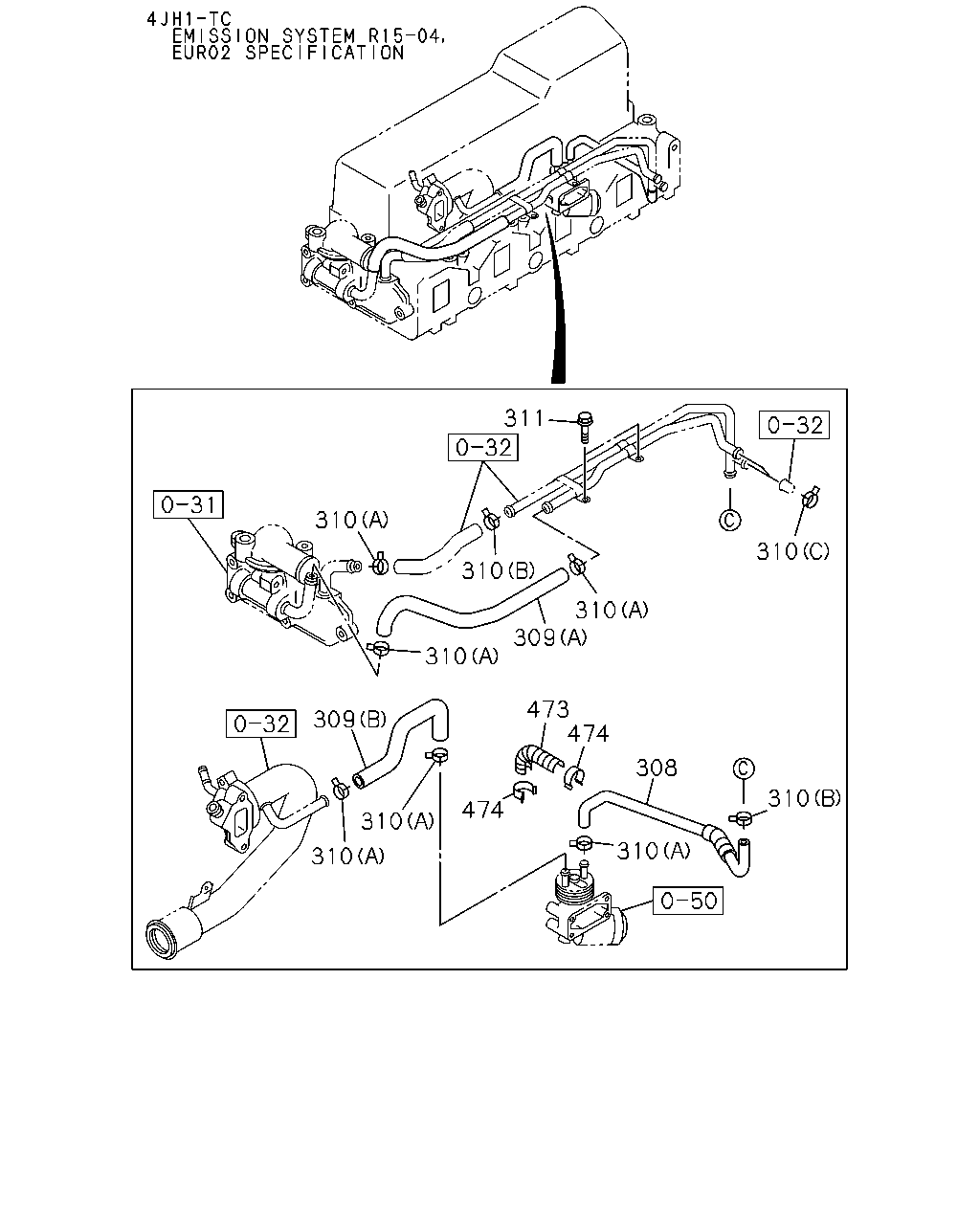

çizim 54572
311 310 310 310 310 309 310 473 474 309 308 310 474 310 310 310
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
308 01.540 HOSE; OIL COOLER FEED 8-97362-329-1 01 1 0307-0609 ●
308 01.540 HOSE; OIL COOLER FEED
EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> 		8-97362-329-1 01 1 0307-0609 ●
308 01.540 HOSE; OIL COOLER FEED 8-97362-329-2 01 1 0610- ●
308 01.540 HOSE; OIL COOLER FEED 8-97249-288-0 01 1 0307-0308 ●
308 01.540 HOSE; OIL COOLER FEED
EURO3 SPECIFICATION<NT3> 		8-97331-175-0 01 1 0307-0308 ●
308 01.540 HOSE; OIL COOLER FEED 8-97331-175-0 01 1 0309-0609 ●
308 01.540 HOSE; OIL COOLER FEED
EURO3 SPECIFICATION<NT3> 		8-97331-175-0 01 1 0309-0609 ●
309 01.540 HOSE; OIL COOLER RETURN
(B) 		8-97213-919-2 01 1 0307-0609 ● ●
309 01.540 HOSE; OIL COOLER RETURN
(B) 		8-97213-919-2 01 1 0610- ●
309 01.540 HOSE; OIL COOLER RETURN
(A) 		8-97256-047-1 01 1 0307-0609 ● ● ●
309 01.540 HOSE; OIL COOLER RETURN
(A) 		8-97256-047-1 01 1 0610- ●
309 01.540 HOSE; OIL COOLER RETURN
(B) 		8-97329-648-1 01 1 0307-0609 ●
310 01.540 CLIP; WATER HOSE FIX
01.166 (A) ID=20.8 		8-94125-862-1 06 1 0307-0609 ●
310 01.540 CLIP; WATER HOSE FIX
EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> 01.166 (A) ID=20.8 		8-94125-862-1 06 1 0307-0609 ●
310 01.540 CLIP; WATER HOSE FIX
01.166 (A) ID=20.8 		8-94125-862-1 06 1 0610- ●
310 01.540 CLIP; WATER HOSE FIX
01.150 (B) ID=24 		8-97010-605-0 02 1 0307-0609 ● ● ●
310 01.540 CLIP; WATER HOSE FIX
01.150 (B) ID=24 		8-97010-605-0 02 1 0610- ●
310 01.540 CLIP; WATER HOSE FIX
01.166 (A) ID=20.8 		8-94125-862-1 08 1 0307-0609 ●
310 01.540 CLIP; WATER HOSE FIX
EURO3 SPECIFICATION<NT3> 01.166 (A) ID=20.8 		8-94125-862-1 08 1 0307-0609 ●
310 01.540 CLIP; WATER HOSE FIX
08.846 (C) ID=22 		8-94382-401-0 02 1 0307-0402 ●
310 01.540 CLIP; WATER HOSE FIX
EMISSION SYSTEM R15-04<K75>,EURO3 SPECIFICATION<NT3> 08.846 (C) ID=22 		8-94382-401-0 02 1 0307-0402 ●
310 01.540 CLIP; WATER HOSE FIX
EURO2 SPECIFICATION<NT2> EXC. AUSTRALIA EQUIPMENT(B13) 08.846 (C) ID=22 		8-94382-401-0 02 1 0307-0402 ●
310 01.540 CLIP; WATER HOSE FIX
08.846 (C) ID=22 		8-94382-401-0 02 1 0403-0609 ● ●
311 01.531 BOLT; PIPE FIX
08.900 M8X12 FLANGE 		0-28080-812-0 02 1 0307-0512 ● ● ●
311 01.531 BOLT; PIPE FIX
02.343 M8X12 FLANGE 		0-28050-812-0 02 1 0601-0609 ● ● ●
311 01.531 BOLT; PIPE FIX
02.343 M8X12 FLANGE 		0-28050-812-0 02 1 0610- ●
311 01.531 BOLT; PIPE FIX
03.162 M6X12 FLANGE 		0-28050-612-0 01 1 0610-0612 ● ● ● ●
311 01.531 BOLT; PIPE FIX
03.162 M6X12 FLANGE 		0-28050-612-0 01 1 0701-0912 ● ● ●
311 01.531 BOLT; PIPE FIX
03.162 M6X12 FLANGE 		0-28050-612-0 01 1 1001- ● ● ● ●
473 01.540 INSULATOR; HOSE
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-97101-333-1 02 1 0307-0609 ●
474 01.540 CLIP; INSULATOR
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-97101-337-0 04 1 0307-0609 ●

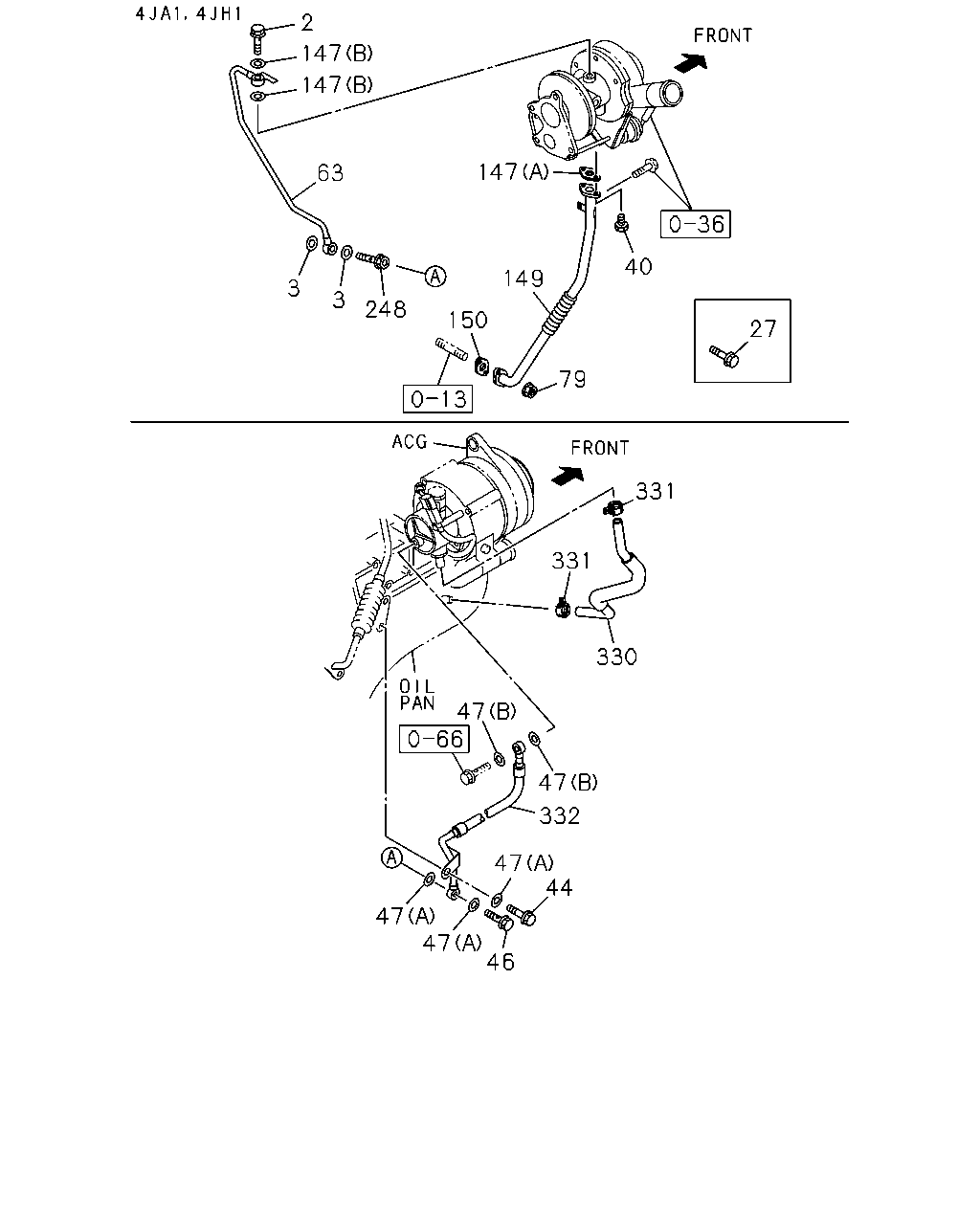

çizim 54667
2 147 147 147 63 40 149 3 3 248 150 27 79 331 331 330 47 47 332 47 44 47 47 46
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
2 01.531 BOLT; EYE,OIL PIPE
M10X27 FLANGE 		8-94443-535-0 01 1 0307-0609 ● ● ●
2 01.531 BOLT; EYE,OIL PIPE
M10X27 FLANGE 		8-94443-535-0 01 1 0610-0612 ● ● ●
2 01.531 BOLT; EYE,OIL PIPE
M10X27 FLANGE 		8-94443-535-0 01 1 0701-0912 ● ●
2 01.531 BOLT; EYE,OIL PIPE
M10X27 FLANGE 		8-94443-535-0 01 1 1001- ● ● ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
08.955 ID=14.2 OD=20.0 ALSO INCLUDED IN GASKET SET(ENGINE) . 		9-09571-414-0 02 1 0307-0609 ● ● ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
08.955 ID=14.2 OD=20.0 ALSO INCLUDED IN GASKET SET(ENGINE) . 		9-09571-414-0 02 1 0610- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
08.955 ID=10.2 OD=16.0 		9-09571-410-0 02 1 0610-0612 ● ● ● ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
08.955 ID=10.2 OD=16.0 		9-09571-410-0 02 1 0701-0912 ● ● ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
08.955 ID=10.2 OD=16.0 ALSO INCLUDED IN GASKET SET(ENGINE) . 		9-09571-410-0 02 1 1001- ● ● ● ●
27 01.531 BOLT; OIL PIPE FIX
00.206 M8X10 FLANGE 		0-28080-810-0 01 1 0307-0512 ● ● ●
27 01.531 BOLT; OIL PIPE FIX
03.407 M8X10 FLANGE 		0-28050-810-0 01 1 0601-0609 ● ● ●
27 01.531 BOLT; OIL PIPE FIX
03.407 M8X10 FLANGE 		0-28050-810-0 01 1 0610- ●
40 01.531 BOLT; OIL PIPE
02.559 M6X20 W/LK&PL WASHER 		0-50140-620-0 02 1 0307-0310 ● ● ●
40 01.531 BOLT; OIL PIPE
00.738 M6X16 FLANGE 		0-28080-616-0 02 1 0311-0512 ● ● ●
40 01.531 BOLT; OIL PIPE
09.242 M6X16 FLANGE 		0-28050-616-0 02 1 0601-0609 ● ● ●
40 01.531 BOLT; OIL PIPE
09.242 M6X16 FLANGE 		0-28050-616-0 02 1 0610- ●
44 01.531 BOLT; CLIP,OIL PIPE
M8X20 FLANGE 		0-28650-820-0 01 1 0307-0609 ● ● ●
44 01.531 BOLT; CLIP,OIL PIPE
M8X20 FLANGE 		0-28650-820-0 01 1 0610- ●
44 01.531 BOLT; CLIP,OIL PIPE
03.680 M6X30 FLANGE 		0-28650-630-0 01 1 0610-0612 ● ● ● ●
44 01.531 BOLT; CLIP,OIL PIPE
03.680 M6X30 FLANGE 		0-28650-630-0 01 1 0701-0912 ● ● ●
44 01.531 BOLT; CLIP,OIL PIPE
03.680 M6X30 FLANGE 		0-28650-630-0 01 1 1001- ● ● ● ●
46 01.531 BOLT; JOINT,OIL FEED PIPE,VAC PU
M8X20 EYE-BOLT 		5-09675-018-1 01 1 0307-0609 ● ● ●
46 01.531 BOLT; JOINT,OIL FEED PIPE,VAC PU
M8X20 EYE-BOLT 		5-09675-018-1 01 1 0610-0906 ●
46 01.531 BOLT; JOINT,OIL FEED PIPE,VAC PU
M8X20 FLANGE 		8-98137-710-0 01 1 0907- ●
47 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 05.398 (A) ID=8.2 OD=14.0 T=1.0 		9-09571-408-0 01 1 0307-0609 ● ● ●
47 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 05.398 (A) ID=8.2 OD=14.0 T=1.0 		9-09571-408-0 01 1 0610- ●
47 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 05.398 (A) ID=8.2 OD=14.0 T=1.0 		9-09571-408-0 02 1 0307-0609 ● ● ●
47 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 05.398 (A) ID=8.2 OD=14.0 T=1.0 		9-09571-408-0 02 1 0610- ●
47 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 08.955 (B) ID=10.2 OD=16.0 		9-09571-410-0 02 1 0307-0609 ● ● ●
47 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 08.955 (B) ID=10.2 OD=16.0 		9-09571-410-0 02 1 0610- ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED 8-97350-308-0 01 1 0307-0609 ● ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED 8-97350-308-0 01 1 0610- ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED 8-97330-876-0 01 1 0307-0609 ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED 8-98011-899-0 01 1 0610-0612 ● ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED 8-98011-899-0 01 1 0701-0912 ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED 8-98011-899-0 01 1 1001- ● ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED 8-98011-504-1 01 1 0610- ● ●
79 01.531 NUT; OIL DRAIN PIPE
00.854 M8 FLANGE 		5-09440-005-0 02 1 0307-0609 ● ● ●
79 01.531 NUT; OIL DRAIN PIPE
00.854 M8 FLANGE 		5-09440-005-0 02 1 0610-0805 ●
79 01.531 NUT; OIL DRAIN PIPE
04.634 M8 FLANGE 		8-97581-233-0 02 1 0806- ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
03.358 (A) ALSO INCLUDED IN GASKET SET(ENGINE) . 		8-94362-672-1 01 1 0307-0609 ● ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
03.358 (A) ALSO INCLUDED IN GASKET SET(ENGINE) . 		8-94362-672-1 01 1 0610- ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
08.955 (B) ID=10.2 OD=16.0 ALSO INCLUDED IN GASKET SET(ENGINE) . 		9-09571-410-0 02 1 0307-0609 ● ● ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
08.955 (B) ID=10.2 OD=16.0 ALSO INCLUDED IN GASKET SET(ENGINE) . 		9-09571-410-0 02 1 0610-0612 ● ● ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
08.955 (B) ID=10.2 OD=16.0 ALSO INCLUDED IN GASKET SET(ENGINE) . 		9-09571-410-0 02 1 0701-0912 ● ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
08.955 (B) ID=10.2 OD=16.0 ALSO INCLUDED IN GASKET SET(ENGINE) . 		9-09571-410-0 02 1 1001- ● ● ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
(A) ID=14 		8-97041-638-0 01 1 0307-0609 ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
(D) 		8-97354-056-0 01 1 0610-0612 ● ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
(D) 		8-97354-056-0 01 1 0701-0912 ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
(D) ALSO INCLUDED IN GASKET SET(ENGINE) . 		8-97354-056-0 01 1 1001- ● ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
(C) 		8-98011-505-1 01 1 0610- ● ●
149 01.519 PIPE; OIL RETURN,TURBOCHARGER
KENYA EQUIPMENT(CL1) 		8-98126-827-0 01 1 0812- ●
149 01.519 PIPE; OIL RETURN,TURBOCHARGER 8-97333-749-1 01 1 0307- ●
149 01.519 PIPE; OIL RETURN,TURBOCHARGER 8-97354-087-0 01 1 0307-0609 ●
149 01.519 PIPE; OIL RETURN,TURBOCHARGER 8-98011-900-0 01 1 0610-0612 ● ●
149 01.519 PIPE; OIL RETURN,TURBOCHARGER 8-98011-900-0 01 1 0701-0912 ●
149 01.519 PIPE; OIL RETURN,TURBOCHARGER
EXC. KENYA EQUIPMENT(CL1) 		8-98011-900-0 01 1 1001- ●
149 01.519 PIPE; OIL RETURN,TURBOCHARGER 8-98011-900-0 01 1 1001- ●
149 01.519 PIPE; OIL RETURN,TURBOCHARGER 8-97245-772-2 01 1 0307-0609 ●
150 01.531 GASKET; OIL PIPE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE) . 		8-97045-326-1 01 1 0307-0609 ● ● ●
150 01.531 GASKET; OIL PIPE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE) . 		8-97045-326-1 01 1 0610- ●
150 01.531 GASKET; OIL PIPE TO C/BL 8-97920-587-0 01 1 0610-0612 ● ● ● ●
150 01.531 GASKET; OIL PIPE TO C/BL 8-97920-587-0 01 1 0701-0912 ● ● ●
150 01.531 GASKET; OIL PIPE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE) . 		8-97920-587-0 01 1 1001- ● ● ● ●
248 01.519 CONNECTOR; TURBOCHARGER OIL FEED
M14X25 		8-94315-336-1 01 1 0307-0609 ● ●
248 01.519 CONNECTOR; TURBOCHARGER OIL FEED
M14X25 		8-94315-336-1 01 1 0610- ●
248 01.519 CONNECTOR; TURBOCHARGER OIL FEED 8-97305-198-1 01 1 0307-0609 ●
248 01.519 CONNECTOR; TURBOCHARGER OIL FEED
03.280 M10X24 		9-09906-205-1 01 1 0610-0611 ●
248 01.519 CONNECTOR; TURBOCHARGER OIL FEED
KENYA EQUIPMENT(CL1) 03.280 M10X24 		9-09906-205-1 01 1 0612- ●
248 01.519 CONNECTOR; TURBOCHARGER OIL FEED
EXC. KENYA EQUIPMENT(CL1) 01.531 M10X24 		8-97944-505-0 01 1 0610-0612 ●
248 01.519 CONNECTOR; TURBOCHARGER OIL FEED
01.531 M10X24 		8-97944-505-0 01 1 0610-0612 ●
248 01.519 CONNECTOR; TURBOCHARGER OIL FEED
EXC. KENYA EQUIPMENT(CL1) 01.531 M10X24 		8-97944-505-1 01 1 0701-0912 ●
248 01.519 CONNECTOR; TURBOCHARGER OIL FEED
EXC. KENYA EQUIPMENT(CL1) 01.531 M10X24 		8-97944-505-1 01 1 1001- ●
248 01.519 CONNECTOR; TURBOCHARGER OIL FEED
01.531 M10X24 		8-97944-505-1 01 1 1001- ●
248 01.519 CONNECTOR; TURBOCHARGER OIL FEED
01.531 M10X22 		1-09675-028-0 01 1 0610- ● ●
330 03.278 HOSE; VAC PUMP,RETURN 8-97353-830-0 01 1 0307-0609 ● ● ●
330 03.278 HOSE; VAC PUMP,RETURN 8-97353-830-0 01 1 0610- ●
331 03.278 CLAMP; VAC HOSE,PUMP RETURN 8-97108-102-0 01 1 0307-0609 ● ● ●
331 03.278 CLAMP; VAC HOSE,PUMP RETURN 8-97108-102-0 01 1 0307-0609 ● ● ●
331 03.278 CLAMP; VAC HOSE,PUMP RETURN 8-97108-102-0 01 1 0610-1103 ●
331 03.278 CLAMP; VAC HOSE,PUMP RETURN 8-97108-102-0 01 1 0610-1103 ●
331 03.278 CLAMP; VAC HOSE,PUMP RETURN 8-97108-102-0 01 1 1104- ● ●
331 03.278 CLAMP; VAC HOSE,PUMP RETURN 8-97108-102-0 01 1 1104- ●
332 01.519 PIPE; OIL,C/BL TO VAC PUMP 8-97942-810-0 01 1 0307-0609 ● ●
332 01.519 PIPE; OIL,C/BL TO VAC PUMP 8-97942-810-0 01 1 0610- ●
332 01.519 PIPE; OIL,C/BL TO VAC PUMP 8-97324-653-1 01 1 0307-0609 ●
332 01.519 PIPE; OIL,C/BL TO VAC PUMP 8-98038-929-0 01 1 0610-0612 ● ● ● ●
332 01.519 PIPE; OIL,C/BL TO VAC PUMP 8-98038-929-0 01 1 0701-0912 ● ● ●
332 01.519 PIPE; OIL,C/BL TO VAC PUMP 8-98038-929-0 01 1 1001- ● ● ● ●

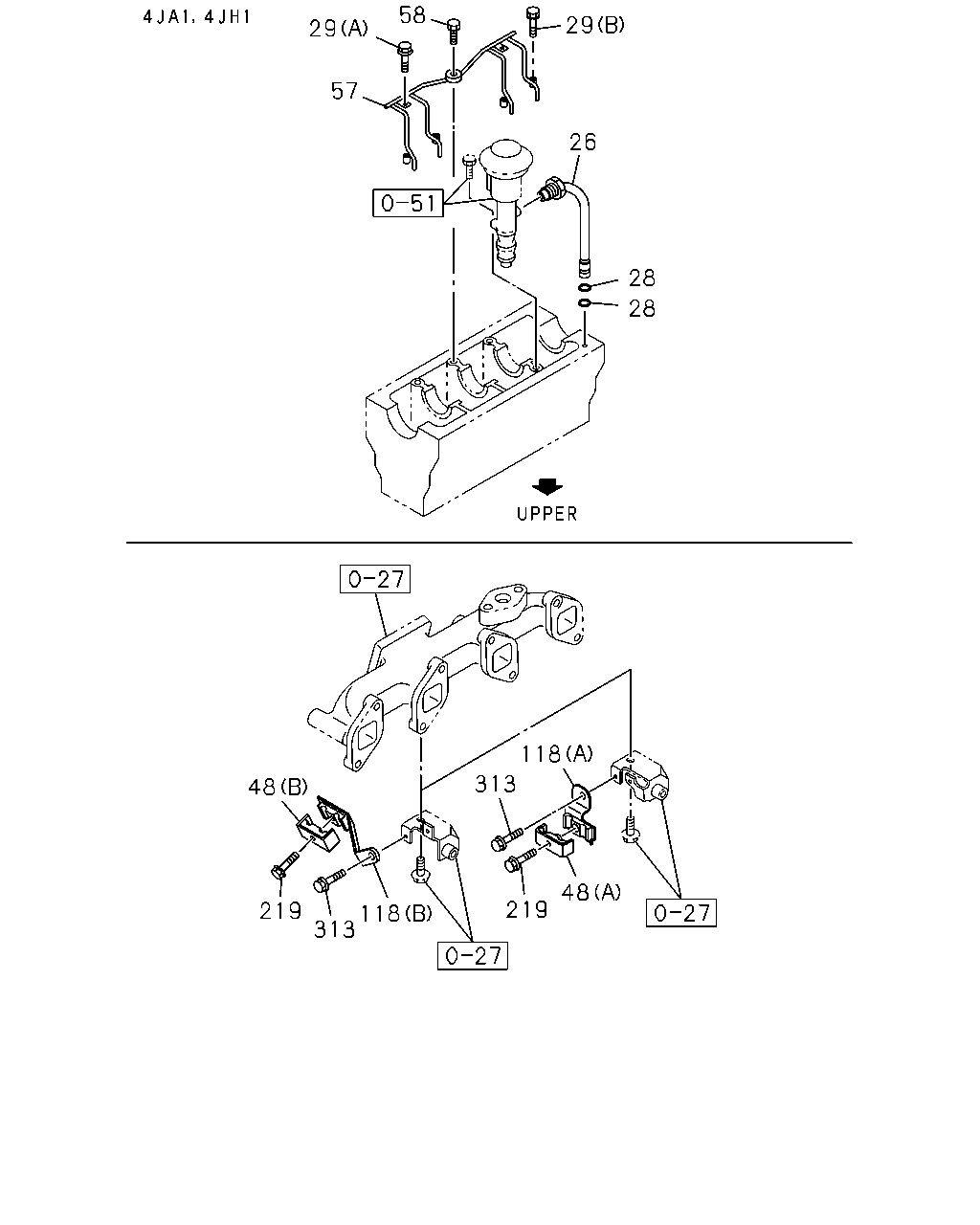

çizim 55945
58 29 29 57 26 28 28 118 313 48 48 219 219 118 313
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
26 01.519 PIPE; OIL,PUMP TO C/BL 8-97080-301-2 01 1 0307-0308 ● ● ●
26 01.519 PIPE; OIL,PUMP TO C/BL 8-97920-470-0 01 1 0309-0609 ● ● ●
26 01.519 PIPE; OIL,PUMP TO C/BL 8-97920-470-0 01 1 0610-0801 ●
26 01.519 PIPE; OIL,PUMP TO C/BL 8-97923-928-0 01 1 0802- ●
28 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE) . 01.516 ID=11 		5-09623-002-0 02 1 0307-0609 ● ● ●
28 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE) . 01.516 ID=11 		5-09623-002-0 02 1 0610- ●
29 01.531 BOLT; OIL PIPE,OIL JET
01.540 (B) M6X25 W/LK&PL WASHER 		0-50140-625-0 04 1 0307-0512 ●
29 01.531 BOLT; OIL PIPE,OIL JET
(B) M6X25 W/LK&PL WASHER 		0-50640-625-0 04 1 0601- ●
29 01.531 BOLT; OIL PIPE,OIL JET
00.206 (A) M8X10 FLANGE 		0-28080-810-0 01 1 0307-0512 ● ● ●
29 01.531 BOLT; OIL PIPE,OIL JET
03.407 (A) M8X10 FLANGE 		0-28050-810-0 01 1 0601-0609 ● ● ●
29 01.531 BOLT; OIL PIPE,OIL JET
03.407 (A) M8X10 FLANGE 		0-28050-810-0 01 1 0610-0612 ● ● ● ● ●
29 01.531 BOLT; OIL PIPE,OIL JET
03.407 (A) M8X10 FLANGE 		0-28050-810-0 01 1 0701-0912 ● ● ● ●
29 01.531 BOLT; OIL PIPE,OIL JET
03.407 (A) M8X10 FLANGE 		0-28050-810-0 01 1 1001- ● ● ● ● ●
29 01.531 BOLT; OIL PIPE,OIL JET
(B) M6X20 		8-97117-298-1 04 1 0307-0609 ● ●
29 01.531 BOLT; OIL PIPE,OIL JET
(C) M6X20 FLANGE 		8-97380-673-0 04 1 0610-0611 ● ● ● ●
29 01.531 BOLT; OIL PIPE,OIL JET
EXC. KENYA EQUIPMENT(CL1) (C) M6X20 FLANGE 		8-97380-673-0 04 1 0612-0612 ●
29 01.531 BOLT; OIL PIPE,OIL JET
(C) M6X20 FLANGE 		8-97380-673-0 04 1 0612-0612 ● ● ●
29 01.531 BOLT; OIL PIPE,OIL JET
EXC. KENYA EQUIPMENT(CL1) (C) M6X20 FLANGE 		8-97380-673-1 04 1 0701-0912 ●
29 01.531 BOLT; OIL PIPE,OIL JET
(C) M6X20 FLANGE 		8-97380-673-1 04 1 0701-0912 ● ●
29 01.531 BOLT; OIL PIPE,OIL JET
EXC. KENYA EQUIPMENT(CL1) (C) M6X20 FLANGE 		8-97380-673-1 04 1 1001- ●
29 01.531 BOLT; OIL PIPE,OIL JET
(C) M6X20 FLANGE 		8-97380-673-1 04 1 1001- ● ● ●
29 01.531 BOLT; OIL PIPE,OIL JET
(C) M6X20 		8-97117-298-1 04 1 0611-0611 ● ●
29 01.531 BOLT; OIL PIPE,OIL JET
KENYA EQUIPMENT(CL1) (C) M6X20 		8-97117-298-1 04 1 0612- ●
48 01.531 CLIP; OIL PIPE
(A) ID=7 & 9 L=25 		1-09701-228-2 01 1 0307-0609 ● ●
48 01.531 CLIP; OIL PIPE
(A) ID=7 & 9 L=25 		1-09701-228-2 01 1 0610- ●
48 01.531 CLIP; OIL PIPE
(B) ID=9 & 9 L=25 		1-09701-212-2 01 1 0307-0609 ●
48 01.531 CLIP; OIL PIPE
(F) 		8-97389-843-0 01 1 0610-0612 ● ●
48 01.531 CLIP; OIL PIPE
(F) 		8-97389-843-1 01 1 0701-0912 ●
48 01.531 CLIP; OIL PIPE
(F) 		8-97389-843-1 01 1 1001- ● ●
48 01.531 CLIP; OIL PIPE
(E) 		8-97389-844-0 01 1 0610-0612 ● ●
48 01.531 CLIP; OIL PIPE
(E) 		8-97389-844-0 01 1 0701-0912 ●
48 01.531 CLIP; OIL PIPE
(E) 		8-97389-844-0 01 1 1001- ● ●
48 01.531 CLIP; OIL PIPE
(C) ID=8 & 9 L=25 		8-97603-522-0 01 1 0610-0707 ● ●
48 01.531 CLIP; OIL PIPE
(C) 		8-97946-175-0 01 1 0708- ● ●
48 01.531 CLIP; OIL PIPE
(D) ID=8 & 9 L=25 		8-97603-523-0 01 1 0610-0707 ● ●
48 01.531 CLIP; OIL PIPE
(D) 		8-97946-176-0 01 1 0708- ● ●
57 01.519 PIPE; OIL,OIL JET 8-94469-992-2 01 1 0307-0308 ●
57 01.519 PIPE; OIL,OIL JET 8-97912-536-2 01 1 0309-0309 ●
57 01.519 PIPE; OIL,OIL JET 8-94469-992-2 01 1 0310- ●
57 01.519 PIPE; OIL,OIL JET 8-97249-279-0 01 1 0307-0609 ●
57 01.519 PIPE; OIL,OIL JET 8-97312-132-2 01 1 0610-0612 ● ● ● ●
57 01.519 PIPE; OIL,OIL JET 8-97312-132-2 01 1 0701-0912 ● ● ●
57 01.519 PIPE; OIL,OIL JET 8-97312-132-3 01 1 1001- ● ● ● ●
57 01.519 PIPE; OIL,OIL JET 8-97116-971-1 01 1 0307-0609 ●
58 01.531 VALVE; RELIEF,OIL JET,PISTON COO 8-97239-048-1 01 1 0307-0609 ● ● ●
58 01.531 VALVE; RELIEF,OIL JET,PISTON COO
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 		8-97239-048-1 01 1 0610-0611 ●
58 01.531 VALVE; RELIEF,OIL JET,PISTON COO
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO3 SPECIFICATION<NT3> 		8-97239-048-1 01 1 0610-0611 ● ●
58 01.531 VALVE; RELIEF,OIL JET,PISTON COO 8-97239-048-1 01 1 0612-0709 ●
58 01.531 VALVE; RELIEF,OIL JET,PISTON COO
KENYA EQUIPMENT(CL1) 		8-97239-048-1 01 1 0612-0709 ●
58 01.531 VALVE; RELIEF,OIL JET,PISTON COO 8-97239-048-1 01 1 0710- ●
58 01.531 VALVE; RELIEF,OIL JET,PISTON COO
KENYA EQUIPMENT(CL1) 		8-97239-048-1 01 1 0710- ●
58 01.531 VALVE; RELIEF,OIL JET,PISTON COO 8-97379-464-0 01 1 0610-0611 ● ● ● ●
58 01.531 VALVE; RELIEF,OIL JET,PISTON COO
EXC. KENYA EQUIPMENT(CL1) 		8-97379-464-0 01 1 0612-0612 ●
58 01.531 VALVE; RELIEF,OIL JET,PISTON COO 8-97379-464-0 01 1 0612-0612 ● ● ●
58 01.531 VALVE; RELIEF,OIL JET,PISTON COO
EXC. KENYA EQUIPMENT(CL1) 		8-97379-464-0 01 1 0701-0912 ●
58 01.531 VALVE; RELIEF,OIL JET,PISTON COO 8-97379-464-0 01 1 0701-0912 ● ●
58 01.531 VALVE; RELIEF,OIL JET,PISTON COO
EXC. KENYA EQUIPMENT(CL1) 		8-97379-464-0 01 1 1001- ●
58 01.531 VALVE; RELIEF,OIL JET,PISTON COO 8-97379-464-0 01 1 1001- ● ● ●
118 01.531 BRACKET; CLIP,OIL PIPE
(A) 		8-97350-307-2 01 1 0307-0609 ● ●
118 01.531 BRACKET; CLIP,OIL PIPE
(A) 		8-97350-307-2 01 1 0610- ●
118 01.531 BRACKET; CLIP,OIL PIPE
(B) 		8-97328-187-0 01 1 0307-0609 ●
219 01.531 BOLT; CLIP FIX,OIL PIPE
M6X35 FLANGE 		0-28680-635-0 01 1 0307-0512 ● ● ●
219 01.531 BOLT; CLIP FIX,OIL PIPE
03.162 M6X35 FLANGE 		0-28650-635-0 01 1 0601-0609 ● ● ●
219 01.531 BOLT; CLIP FIX,OIL PIPE
03.162 M6X35 FLANGE 		0-28650-635-0 01 1 0610- ●
313 01.540 BOLT; PIPE BRKT
08.900 M8X12 FLANGE 		0-28080-812-0 01 1 0307-0512 ● ● ●
313 01.540 BOLT; PIPE BRKT
02.343 M8X12 FLANGE 		0-28050-812-0 01 1 0601-0609 ● ● ●
313 01.540 BOLT; PIPE BRKT
02.343 M8X12 FLANGE 		0-28050-812-0 01 1 0610- ●

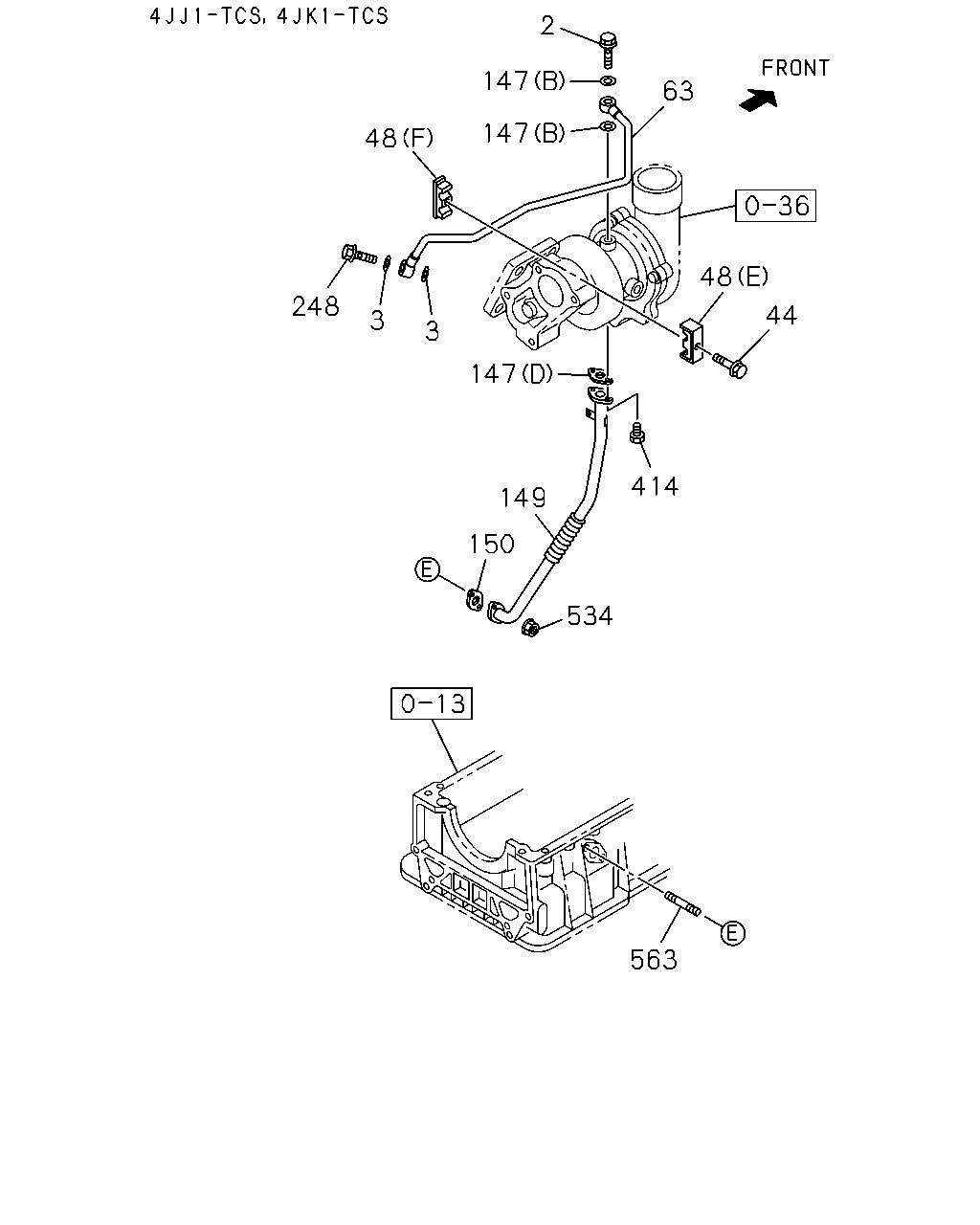

çizim 55971
2 147 63 147 48 48 248 44 3 3 147 414 149 150 534 563
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
2 01.531 BOLT; EYE,OIL PIPE
M10X27 FLANGE 		8-94443-535-0 01 1 0307-0609 ● ● ●
2 01.531 BOLT; EYE,OIL PIPE
M10X27 FLANGE 		8-94443-535-0 01 1 0610-0612 ● ● ●
2 01.531 BOLT; EYE,OIL PIPE
M10X27 FLANGE 		8-94443-535-0 01 1 0701-0912 ● ●
2 01.531 BOLT; EYE,OIL PIPE
M10X27 FLANGE 		8-94443-535-0 01 1 1001- ● ● ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
08.955 ID=14.2 OD=20.0 ALSO INCLUDED IN GASKET SET(ENGINE) . 		9-09571-414-0 02 1 0307-0609 ● ● ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
08.955 ID=14.2 OD=20.0 ALSO INCLUDED IN GASKET SET(ENGINE) . 		9-09571-414-0 02 1 0610- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
08.955 ID=10.2 OD=16.0 		9-09571-410-0 02 1 0610-0612 ● ● ● ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
08.955 ID=10.2 OD=16.0 		9-09571-410-0 02 1 0701-0912 ● ● ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
08.955 ID=10.2 OD=16.0 ALSO INCLUDED IN GASKET SET(ENGINE) . 		9-09571-410-0 02 1 1001- ● ● ● ●
44 01.531 BOLT; CLIP,OIL PIPE
M8X20 FLANGE 		0-28650-820-0 01 1 0307-0609 ● ● ●
44 01.531 BOLT; CLIP,OIL PIPE
M8X20 FLANGE 		0-28650-820-0 01 1 0610- ●
44 01.531 BOLT; CLIP,OIL PIPE
03.680 M6X30 FLANGE 		0-28650-630-0 01 1 0610-0612 ● ● ● ●
44 01.531 BOLT; CLIP,OIL PIPE
03.680 M6X30 FLANGE 		0-28650-630-0 01 1 0701-0912 ● ● ●
44 01.531 BOLT; CLIP,OIL PIPE
03.680 M6X30 FLANGE 		0-28650-630-0 01 1 1001- ● ● ● ●
48 01.531 CLIP; OIL PIPE
(A) ID=7 & 9 L=25 		1-09701-228-2 01 1 0307-0609 ● ●
48 01.531 CLIP; OIL PIPE
(A) ID=7 & 9 L=25 		1-09701-228-2 01 1 0610- ●
48 01.531 CLIP; OIL PIPE
(B) ID=9 & 9 L=25 		1-09701-212-2 01 1 0307-0609 ●
48 01.531 CLIP; OIL PIPE
(F) 		8-97389-843-0 01 1 0610-0612 ● ●
48 01.531 CLIP; OIL PIPE
(F) 		8-97389-843-1 01 1 0701-0912 ●
48 01.531 CLIP; OIL PIPE
(F) 		8-97389-843-1 01 1 1001- ● ●
48 01.531 CLIP; OIL PIPE
(E) 		8-97389-844-0 01 1 0610-0612 ● ●
48 01.531 CLIP; OIL PIPE
(E) 		8-97389-844-0 01 1 0701-0912 ●
48 01.531 CLIP; OIL PIPE
(E) 		8-97389-844-0 01 1 1001- ● ●
48 01.531 CLIP; OIL PIPE
(C) ID=8 & 9 L=25 		8-97603-522-0 01 1 0610-0707 ● ●
48 01.531 CLIP; OIL PIPE
(C) 		8-97946-175-0 01 1 0708- ● ●
48 01.531 CLIP; OIL PIPE
(D) ID=8 & 9 L=25 		8-97603-523-0 01 1 0610-0707 ● ●
48 01.531 CLIP; OIL PIPE
(D) 		8-97946-176-0 01 1 0708- ● ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED 8-97350-308-0 01 1 0307-0609 ● ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED 8-97350-308-0 01 1 0610- ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED 8-97330-876-0 01 1 0307-0609 ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED 8-98011-899-0 01 1 0610-0612 ● ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED 8-98011-899-0 01 1 0701-0912 ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED 8-98011-899-0 01 1 1001- ● ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED 8-98011-504-1 01 1 0610- ● ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
03.358 (A) ALSO INCLUDED IN GASKET SET(ENGINE) . 		8-94362-672-1 01 1 0307-0609 ● ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
03.358 (A) ALSO INCLUDED IN GASKET SET(ENGINE) . 		8-94362-672-1 01 1 0610- ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
08.955 (B) ID=10.2 OD=16.0 ALSO INCLUDED IN GASKET SET(ENGINE) . 		9-09571-410-0 02 1 0307-0609 ● ● ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
08.955 (B) ID=10.2 OD=16.0 ALSO INCLUDED IN GASKET SET(ENGINE) . 		9-09571-410-0 02 1 0610-0612 ● ● ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
08.955 (B) ID=10.2 OD=16.0 ALSO INCLUDED IN GASKET SET(ENGINE) . 		9-09571-410-0 02 1 0701-0912 ● ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
08.955 (B) ID=10.2 OD=16.0 ALSO INCLUDED IN GASKET SET(ENGINE) . 		9-09571-410-0 02 1 1001- ● ● ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
(A) ID=14 		8-97041-638-0 01 1 0307-0609 ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
(D) 		8-97354-056-0 01 1 0610-0612 ● ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
(D) 		8-97354-056-0 01 1 0701-0912 ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
(D) ALSO INCLUDED IN GASKET SET(ENGINE) . 		8-97354-056-0 01 1 1001- ● ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
(C) 		8-98011-505-1 01 1 0610- ● ●
149 01.519 PIPE; OIL RETURN,TURBOCHARGER
KENYA EQUIPMENT(CL1) 		8-98126-827-0 01 1 0812- ●
149 01.519 PIPE; OIL RETURN,TURBOCHARGER 8-97333-749-1 01 1 0307- ●
149 01.519 PIPE; OIL RETURN,TURBOCHARGER 8-97354-087-0 01 1 0307-0609 ●
149 01.519 PIPE; OIL RETURN,TURBOCHARGER 8-98011-900-0 01 1 0610-0612 ● ●
149 01.519 PIPE; OIL RETURN,TURBOCHARGER 8-98011-900-0 01 1 0701-0912 ●
149 01.519 PIPE; OIL RETURN,TURBOCHARGER
EXC. KENYA EQUIPMENT(CL1) 		8-98011-900-0 01 1 1001- ●
149 01.519 PIPE; OIL RETURN,TURBOCHARGER 8-98011-900-0 01 1 1001- ●
149 01.519 PIPE; OIL RETURN,TURBOCHARGER 8-97245-772-2 01 1 0307-0609 ●
150 01.531 GASKET; OIL PIPE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE) . 		8-97045-326-1 01 1 0307-0609 ● ● ●
150 01.531 GASKET; OIL PIPE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE) . 		8-97045-326-1 01 1 0610- ●
150 01.531 GASKET; OIL PIPE TO C/BL 8-97920-587-0 01 1 0610-0612 ● ● ● ●
150 01.531 GASKET; OIL PIPE TO C/BL 8-97920-587-0 01 1 0701-0912 ● ● ●
150 01.531 GASKET; OIL PIPE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE) . 		8-97920-587-0 01 1 1001- ● ● ● ●
248 01.519 CONNECTOR; TURBOCHARGER OIL FEED
M14X25 		8-94315-336-1 01 1 0307-0609 ● ●
248 01.519 CONNECTOR; TURBOCHARGER OIL FEED
M14X25 		8-94315-336-1 01 1 0610- ●
248 01.519 CONNECTOR; TURBOCHARGER OIL FEED 8-97305-198-1 01 1 0307-0609 ●
248 01.519 CONNECTOR; TURBOCHARGER OIL FEED
03.280 M10X24 		9-09906-205-1 01 1 0610-0611 ●
248 01.519 CONNECTOR; TURBOCHARGER OIL FEED
KENYA EQUIPMENT(CL1) 03.280 M10X24 		9-09906-205-1 01 1 0612- ●
248 01.519 CONNECTOR; TURBOCHARGER OIL FEED
EXC. KENYA EQUIPMENT(CL1) 01.531 M10X24 		8-97944-505-0 01 1 0610-0612 ●
248 01.519 CONNECTOR; TURBOCHARGER OIL FEED
01.531 M10X24 		8-97944-505-0 01 1 0610-0612 ●
248 01.519 CONNECTOR; TURBOCHARGER OIL FEED
EXC. KENYA EQUIPMENT(CL1) 01.531 M10X24 		8-97944-505-1 01 1 0701-0912 ●
248 01.519 CONNECTOR; TURBOCHARGER OIL FEED
EXC. KENYA EQUIPMENT(CL1) 01.531 M10X24 		8-97944-505-1 01 1 1001- ●
248 01.519 CONNECTOR; TURBOCHARGER OIL FEED
01.531 M10X24 		8-97944-505-1 01 1 1001- ●
248 01.519 CONNECTOR; TURBOCHARGER OIL FEED
01.531 M10X22 		1-09675-028-0 01 1 0610- ● ●
414 01.531 BOLT; OIL PIPE
03.162 M6X20 FLANGE 		0-28650-620-0 02 1 0610-0612 ● ● ● ●
414 01.531 BOLT; OIL PIPE
03.162 M6X20 FLANGE 		0-28650-620-0 02 1 0701-0912 ● ● ●
414 01.531 BOLT; OIL PIPE
03.162 M6X20 FLANGE 		0-28650-620-0 02 1 1001- ● ● ● ●
534 01.531 NUT; OIL PIPE
01.540 M8 FLANGE 		0-91180-208-0 02 1 0610-0612 ● ● ● ●
534 01.531 NUT; OIL PIPE
01.540 M8 FLANGE 		0-91180-208-0 02 1 0701-0912 ● ● ●
534 01.531 NUT; OIL PIPE
01.540 M8 FLANGE 		0-91180-208-0 02 1 1001- ● ● ● ●
563 01.531 STUD; OIL PIPE
02.510 M8X20 L=32 		0-41010-820-0 02 1 0610-0612 ● ● ● ●
563 01.531 STUD; OIL PIPE
02.510 M8X20 L=32 		0-41010-820-0 02 1 0701-0912 ● ● ●
563 01.531 STUD; OIL PIPE
02.510 M8X20 L=32 		0-41010-820-0 02 1 1001- ● ● ● ●

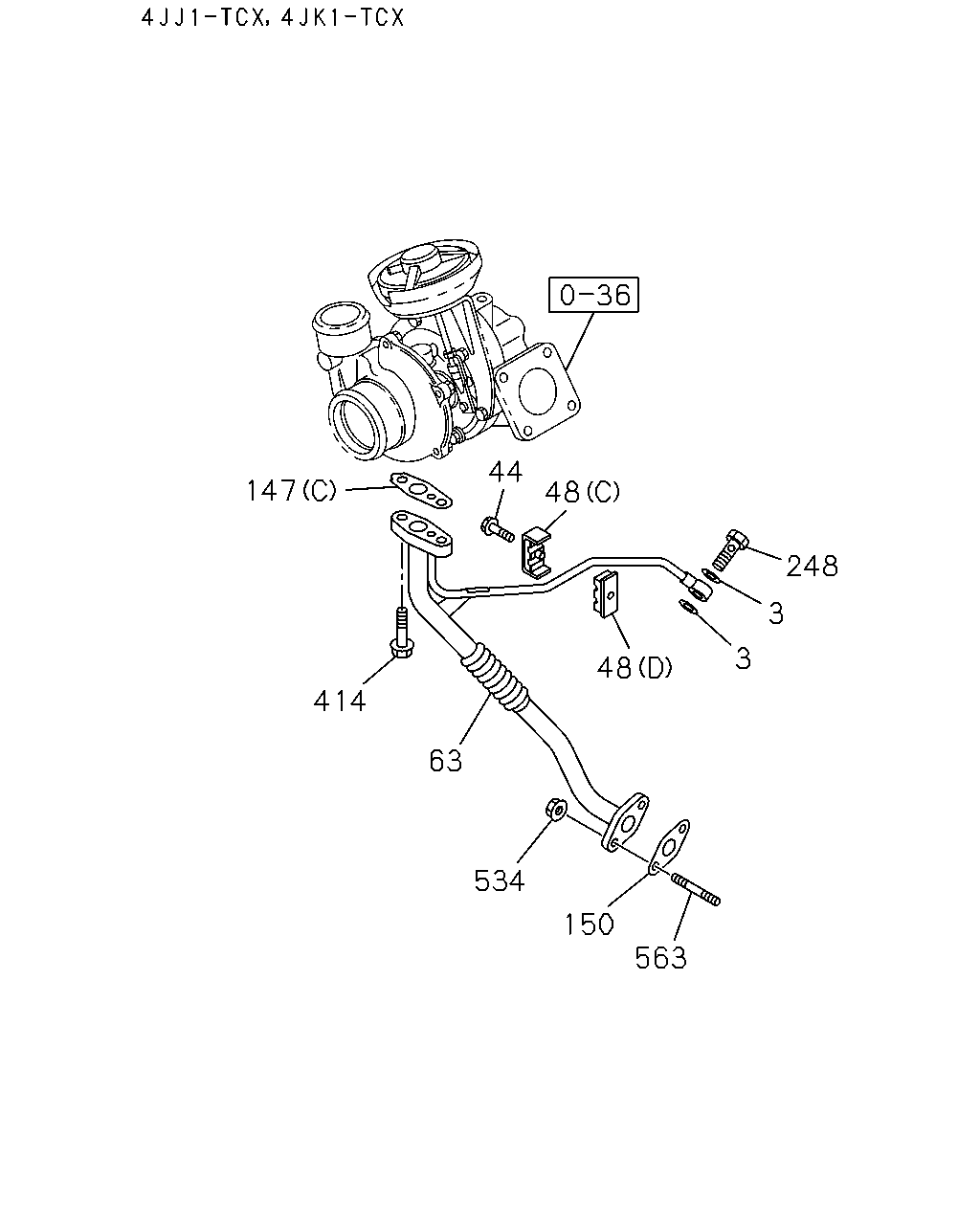

çizim 56000
44 147 48 248 3 3 48 414 63 534 150 563
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
3 01.531 GASKET; EYE BOLT,OIL PIPE
08.955 ID=14.2 OD=20.0 ALSO INCLUDED IN GASKET SET(ENGINE) . 		9-09571-414-0 02 1 0307-0609 ● ● ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
08.955 ID=14.2 OD=20.0 ALSO INCLUDED IN GASKET SET(ENGINE) . 		9-09571-414-0 02 1 0610- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
08.955 ID=10.2 OD=16.0 		9-09571-410-0 02 1 0610-0612 ● ● ● ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
08.955 ID=10.2 OD=16.0 		9-09571-410-0 02 1 0701-0912 ● ● ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
08.955 ID=10.2 OD=16.0 ALSO INCLUDED IN GASKET SET(ENGINE) . 		9-09571-410-0 02 1 1001- ● ● ● ●
44 01.531 BOLT; CLIP,OIL PIPE
M8X20 FLANGE 		0-28650-820-0 01 1 0307-0609 ● ● ●
44 01.531 BOLT; CLIP,OIL PIPE
M8X20 FLANGE 		0-28650-820-0 01 1 0610- ●
44 01.531 BOLT; CLIP,OIL PIPE
03.680 M6X30 FLANGE 		0-28650-630-0 01 1 0610-0612 ● ● ● ●
44 01.531 BOLT; CLIP,OIL PIPE
03.680 M6X30 FLANGE 		0-28650-630-0 01 1 0701-0912 ● ● ●
44 01.531 BOLT; CLIP,OIL PIPE
03.680 M6X30 FLANGE 		0-28650-630-0 01 1 1001- ● ● ● ●
48 01.531 CLIP; OIL PIPE
(A) ID=7 & 9 L=25 		1-09701-228-2 01 1 0307-0609 ● ●
48 01.531 CLIP; OIL PIPE
(A) ID=7 & 9 L=25 		1-09701-228-2 01 1 0610- ●
48 01.531 CLIP; OIL PIPE
(B) ID=9 & 9 L=25 		1-09701-212-2 01 1 0307-0609 ●
48 01.531 CLIP; OIL PIPE
(F) 		8-97389-843-0 01 1 0610-0612 ● ●
48 01.531 CLIP; OIL PIPE
(F) 		8-97389-843-1 01 1 0701-0912 ●
48 01.531 CLIP; OIL PIPE
(F) 		8-97389-843-1 01 1 1001- ● ●
48 01.531 CLIP; OIL PIPE
(E) 		8-97389-844-0 01 1 0610-0612 ● ●
48 01.531 CLIP; OIL PIPE
(E) 		8-97389-844-0 01 1 0701-0912 ●
48 01.531 CLIP; OIL PIPE
(E) 		8-97389-844-0 01 1 1001- ● ●
48 01.531 CLIP; OIL PIPE
(C) ID=8 & 9 L=25 		8-97603-522-0 01 1 0610-0707 ● ●
48 01.531 CLIP; OIL PIPE
(C) 		8-97946-175-0 01 1 0708- ● ●
48 01.531 CLIP; OIL PIPE
(D) ID=8 & 9 L=25 		8-97603-523-0 01 1 0610-0707 ● ●
48 01.531 CLIP; OIL PIPE
(D) 		8-97946-176-0 01 1 0708- ● ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED 8-97350-308-0 01 1 0307-0609 ● ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED 8-97350-308-0 01 1 0610- ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED 8-97330-876-0 01 1 0307-0609 ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED 8-98011-899-0 01 1 0610-0612 ● ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED 8-98011-899-0 01 1 0701-0912 ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED 8-98011-899-0 01 1 1001- ● ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED 8-98011-504-1 01 1 0610- ● ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
03.358 (A) ALSO INCLUDED IN GASKET SET(ENGINE) . 		8-94362-672-1 01 1 0307-0609 ● ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
03.358 (A) ALSO INCLUDED IN GASKET SET(ENGINE) . 		8-94362-672-1 01 1 0610- ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
08.955 (B) ID=10.2 OD=16.0 ALSO INCLUDED IN GASKET SET(ENGINE) . 		9-09571-410-0 02 1 0307-0609 ● ● ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
08.955 (B) ID=10.2 OD=16.0 ALSO INCLUDED IN GASKET SET(ENGINE) . 		9-09571-410-0 02 1 0610-0612 ● ● ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
08.955 (B) ID=10.2 OD=16.0 ALSO INCLUDED IN GASKET SET(ENGINE) . 		9-09571-410-0 02 1 0701-0912 ● ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
08.955 (B) ID=10.2 OD=16.0 ALSO INCLUDED IN GASKET SET(ENGINE) . 		9-09571-410-0 02 1 1001- ● ● ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
(A) ID=14 		8-97041-638-0 01 1 0307-0609 ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
(D) 		8-97354-056-0 01 1 0610-0612 ● ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
(D) 		8-97354-056-0 01 1 0701-0912 ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
(D) ALSO INCLUDED IN GASKET SET(ENGINE) . 		8-97354-056-0 01 1 1001- ● ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
(C) 		8-98011-505-1 01 1 0610- ● ●
150 01.531 GASKET; OIL PIPE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE) . 		8-97045-326-1 01 1 0307-0609 ● ● ●
150 01.531 GASKET; OIL PIPE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE) . 		8-97045-326-1 01 1 0610- ●
150 01.531 GASKET; OIL PIPE TO C/BL 8-97920-587-0 01 1 0610-0612 ● ● ● ●
150 01.531 GASKET; OIL PIPE TO C/BL 8-97920-587-0 01 1 0701-0912 ● ● ●
150 01.531 GASKET; OIL PIPE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE) . 		8-97920-587-0 01 1 1001- ● ● ● ●
248 01.519 CONNECTOR; TURBOCHARGER OIL FEED
M14X25 		8-94315-336-1 01 1 0307-0609 ● ●
248 01.519 CONNECTOR; TURBOCHARGER OIL FEED
M14X25 		8-94315-336-1 01 1 0610- ●
248 01.519 CONNECTOR; TURBOCHARGER OIL FEED 8-97305-198-1 01 1 0307-0609 ●
248 01.519 CONNECTOR; TURBOCHARGER OIL FEED
03.280 M10X24 		9-09906-205-1 01 1 0610-0611 ●
248 01.519 CONNECTOR; TURBOCHARGER OIL FEED
KENYA EQUIPMENT(CL1) 03.280 M10X24 		9-09906-205-1 01 1 0612- ●
248 01.519 CONNECTOR; TURBOCHARGER OIL FEED
EXC. KENYA EQUIPMENT(CL1) 01.531 M10X24 		8-97944-505-0 01 1 0610-0612 ●
248 01.519 CONNECTOR; TURBOCHARGER OIL FEED
01.531 M10X24 		8-97944-505-0 01 1 0610-0612 ●
248 01.519 CONNECTOR; TURBOCHARGER OIL FEED
EXC. KENYA EQUIPMENT(CL1) 01.531 M10X24 		8-97944-505-1 01 1 0701-0912 ●
248 01.519 CONNECTOR; TURBOCHARGER OIL FEED
EXC. KENYA EQUIPMENT(CL1) 01.531 M10X24 		8-97944-505-1 01 1 1001- ●
248 01.519 CONNECTOR; TURBOCHARGER OIL FEED
01.531 M10X24 		8-97944-505-1 01 1 1001- ●
248 01.519 CONNECTOR; TURBOCHARGER OIL FEED
01.531 M10X22 		1-09675-028-0 01 1 0610- ● ●
414 01.531 BOLT; OIL PIPE
03.162 M6X20 FLANGE 		0-28650-620-0 02 1 0610-0612 ● ● ● ●
414 01.531 BOLT; OIL PIPE
03.162 M6X20 FLANGE 		0-28650-620-0 02 1 0701-0912 ● ● ●
414 01.531 BOLT; OIL PIPE
03.162 M6X20 FLANGE 		0-28650-620-0 02 1 1001- ● ● ● ●
534 01.531 NUT; OIL PIPE
01.540 M8 FLANGE 		0-91180-208-0 02 1 0610-0612 ● ● ● ●
534 01.531 NUT; OIL PIPE
01.540 M8 FLANGE 		0-91180-208-0 02 1 0701-0912 ● ● ●
534 01.531 NUT; OIL PIPE
01.540 M8 FLANGE 		0-91180-208-0 02 1 1001- ● ● ● ●
563 01.531 STUD; OIL PIPE
02.510 M8X20 L=32 		0-41010-820-0 02 1 0610-0612 ● ● ● ●
563 01.531 STUD; OIL PIPE
02.510 M8X20 L=32 		0-41010-820-0 02 1 0701-0912 ● ● ●
563 01.531 STUD; OIL PIPE
02.510 M8X20 L=32 		0-41010-820-0 02 1 1001- ● ● ● ●
çizim 56511
567 458
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
458 01.426 CAP; RUBBER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C42) EMISSION SYSTEM R15-04<K75> 01.780 ID=4 		8-94217-809-0 01 1 0307-0609 ●
458 01.426 CAP; RUBBER
EMISSION SYSTEM R15-04<K75> 01.780 ID=4 		8-94217-809-0 01 1 0307-0609 ●
458 01.426 CAP; RUBBER
HEATER & DEFROSTER(C42) EMISSION SYSTEM R15-04<K75> 01.780 ID=4 		8-94217-809-0 01 1 0610- ●
567 01.531 CLIP; PIPE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C42) EMISSION SYSTEM R15-04<K75> 03.145 ID=8 		8-94107-762-0 01 1 0307-0609 ●
567 01.531 CLIP; PIPE
EMISSION SYSTEM R15-04<K75> 03.145 ID=8 		8-94107-762-0 01 1 0307-0609 ●
567 01.531 CLIP; PIPE
HEATER & DEFROSTER(C42) EMISSION SYSTEM R15-04<K75> 03.145 ID=8 		8-94107-762-0 01 1 0610- ●
567 01.531 CLIP; PIPE
02.343 M8X16 FLANGE 		0-28050-816-0 01 1 0610-0612 ● ● ● ●
567 01.531 CLIP; PIPE
02.343 M8X16 FLANGE 		0-28050-816-0 01 1 0701-0912 ● ● ●
567 01.531 CLIP; PIPE
02.343 M8X16 FLANGE 		0-28050-816-0 01 1 1001- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
