1-50 — EXHAUST PIPE AND SILENCER (#2049) — 98 parça

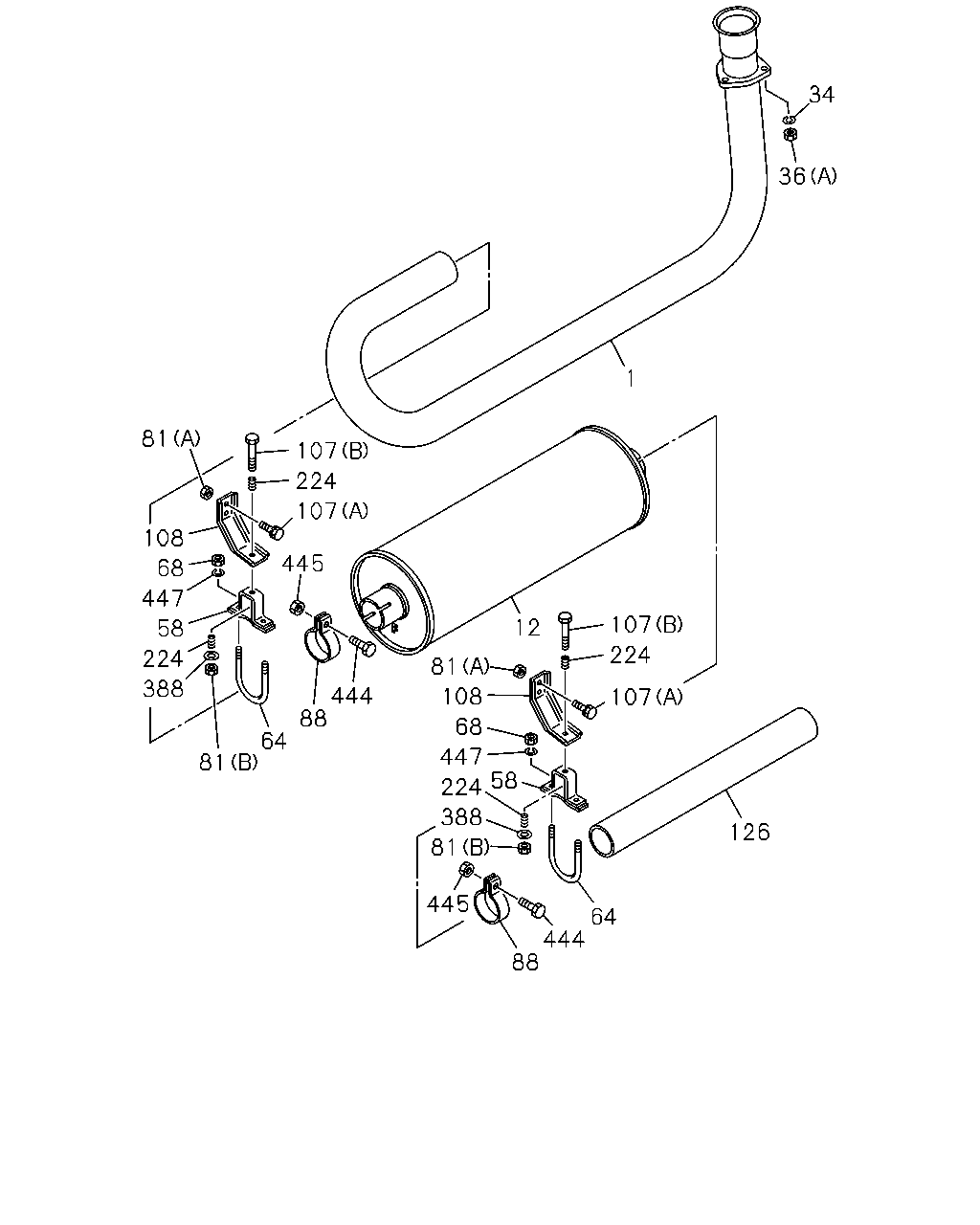

çizim 29059
34 36 1 81 107 224 107 108 445 68 447 107 12 58 224 224 81 388 444 88 108 107 68 64 81 447 58 224 388 126 81 445 64 444 88
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 PIPE; EXH 1-22121-012-0 01 1 9001-9811 ● ● ●
1 PIPE; EXH 1-22123-225-0 01 1 9812- ● ● ●
1 PIPE; EXH 1-22122-242-1 01 1 9101- ●
12 SILENCER ASM; EXH 1-22140-041-0 01 1 9001- ● ● ●
12 SILENCER ASM; EXH 1-22140-591-1 01 1 9101-9101 ●
12 SILENCER ASM; EXH 1-22140-710-2 01 1 9102-0003 ●
12 SILENCER ASM; EXH 1-22140-930-0 01 1 0004-0110 ●
12 SILENCER ASM; EXH 1-22140-935-0 01 1 0111- ●
34 WASHER; EXH PIPE
ID=13 OD=26 DISH 		1-09556-002-0 03 1 9001- ● ● ● ●
36 NUT; EXH PIPE
(A) M12 		1-09400-010-0 03 1 9001- ● ● ● ●
36 NUT; EXH PIPE
(B) M12 		9-99110-512-0 04 1 9001-9606 ●
36 NUT; EXH PIPE
(B) M12 FLANGE 		0-91150-212-0 04 1 9607-9709 ●
36 NUT; EXH PIPE
(B) M12 		9-99110-512-0 04 1 9710- ●
58 BRACKET; EXH PIPE,RR 1-22131-184-0 03 1 9001- ● ● ●
64 U-BOLT; EXH PIPE,RR 9-22123-201-0 03 1 9001- ● ● ●
68 NUT; U BOLT
M8 		9-09110-408-0 06 1 9001-9606 ● ● ●
68 NUT; U BOLT
M8 FLANGE 		0-91150-108-0 06 1 9607- ● ● ●
81 NUT; BRKT
(A) M8 		9-09110-508-0 06 1 9001-9606 ● ● ●
81 NUT; BRKT
(A) M8 FLANGE 		0-91150-108-0 06 1 9607- ● ● ● ●
81 NUT; BRKT
(B) 		9-09847-111-0 03 1 9001-9201 ● ● ●
81 NUT; BRKT
(B) M10 		8-94208-777-0 03 1 9202- ● ● ●
81 NUT; BRKT
(A) M8 		9-09110-408-0 06 1 9101-9606 ●
88 CLAMP; EXH PIPE 1-22133-016-0 02 1 9001- ● ● ●
107 BOLT; BRKT
(B) M10X80 		9-01056-080-0 03 1 9001-9004 ● ● ●
107 BOLT; BRKT
(B) M10X80 		0-10806-080-0 03 1 9005-9606 ● ● ●
107 BOLT; BRKT
(B) M10X80 FLANGE 		0-28081-080-0 03 1 9607- ● ● ●
107 BOLT; BRKT
(A) M8X30 W/LK WASHER 		9-01910-830-0 06 1 9001-9005 ● ● ●
107 BOLT; BRKT
(A) M8X30 W/LK WASHER 		0-50040-830-0 06 1 9006-9606 ● ● ●
107 BOLT; BRKT
(A) M8X30 FLANGE 		0-28680-830-0 06 1 9607- ● ● ●
107 BOLT; BRKT
(C) M8X35 W/LK WASHER 		0-50040-835-0 06 1 9101-9606 ●
107 BOLT; BRKT
(C) M8X35 FLANGE 		0-28680-835-0 06 1 9607- ●
108 BRACKET; BRKT TO FRAME,EXH SILENCER,FR 9-22151-214-0 03 1 9001- ● ● ●
108 BRACKET; BRKT TO FRAME,EXH SILENCER,FR 1-22151-325-0 03 1 9101- ●
126 PIPE; EXH,RR 1-22111-519-1 01 1 9001- ● ● ●
126 PIPE; EXH,RR 1-22126-013-0 01 1 9101- ●
224 SPRING 9-09940-060-0 06 1 9001- ● ● ●
388 WASHER; LK,BRKT
ID=10.5 OD=18 		9-09160-510-0 03 1 9001- ● ● ●
388 WASHER; LK,BRKT
ID=8.2 		9-09150-508-0 06 1 9101-9606 ●
444 BOLT; PIPE CLAMP
M10X35 W/LK WASHER 		9-01911-035-0 02 1 9001-9002 ● ● ●
444 BOLT; PIPE CLAMP
M10X35 W/LK WASHER 		0-50041-035-0 02 1 9003-9606 ● ● ●
444 BOLT; PIPE CLAMP
M10X35 FLANGE 		0-28681-035-0 02 1 9607- ● ● ●
445 NUT; PIPE CLAMP
M10 		9-09110-510-0 02 1 9308-9606 ● ● ●
445 NUT; PIPE CLAMP
M10 FLANGE 		0-91150-210-0 02 1 9607- ● ● ●
447 WASHER; LK,BRKT
ID=8.2 		9-09150-508-0 06 1 9001-9606 ● ● ●

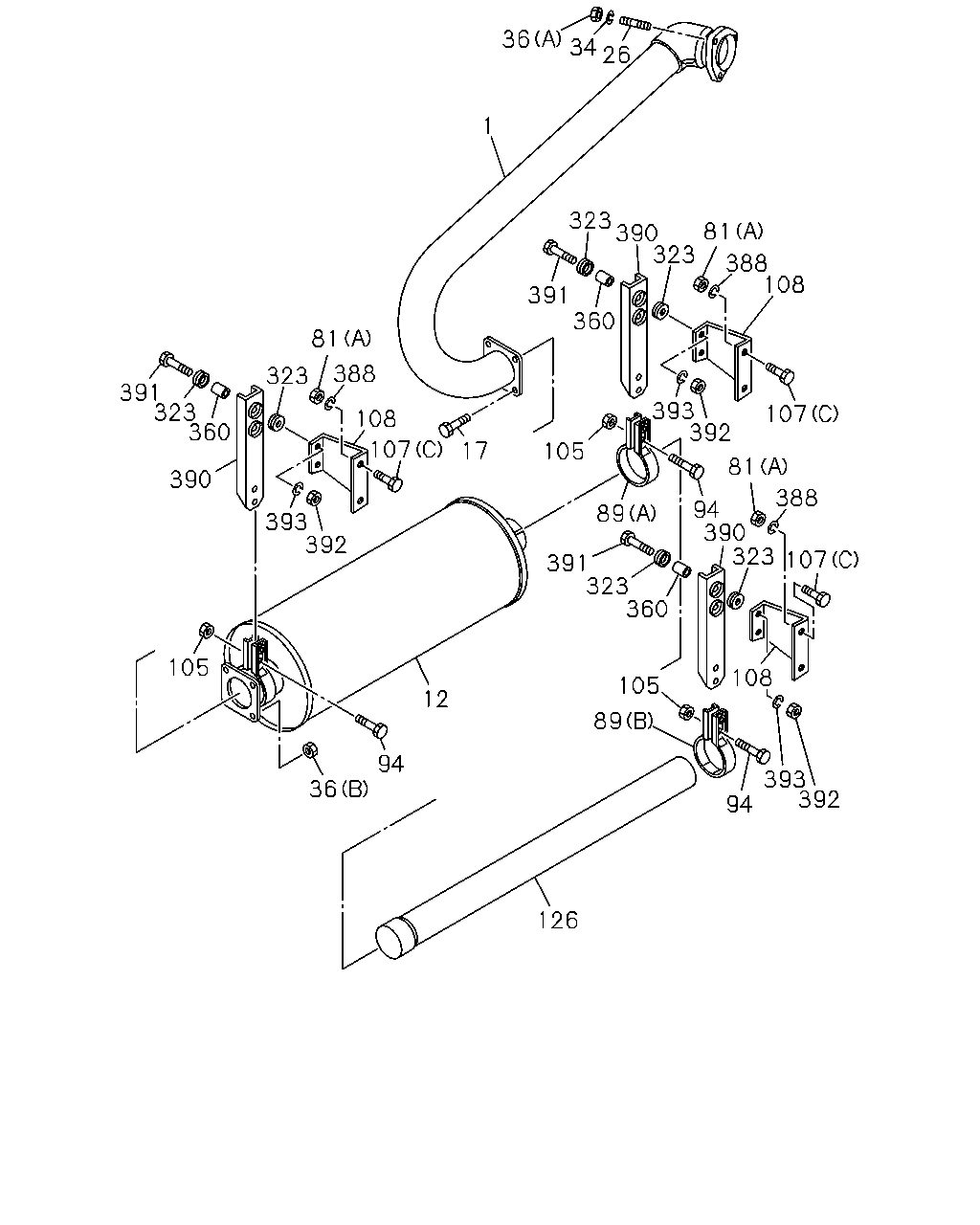

çizim 29798
36 34 26 1 323 390 81 323 388 108 391 360 81 323 388 393 392 391 323 360 107 108 107 17 105 81 390 393 392 388 94 390 323 89 107 391 323 360 105 108 105 12 89 94 36 393 392 94 126
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 PIPE; EXH 1-22121-012-0 01 1 9001-9811 ● ● ●
1 PIPE; EXH 1-22123-225-0 01 1 9812- ● ● ●
1 PIPE; EXH 1-22122-242-1 01 1 9101- ●
12 SILENCER ASM; EXH 1-22140-041-0 01 1 9001- ● ● ●
12 SILENCER ASM; EXH 1-22140-591-1 01 1 9101-9101 ●
12 SILENCER ASM; EXH 1-22140-710-2 01 1 9102-0003 ●
12 SILENCER ASM; EXH 1-22140-930-0 01 1 0004-0110 ●
12 SILENCER ASM; EXH 1-22140-935-0 01 1 0111- ●
17 BOLT; EXH PIPE
M12X35 W/LK WASHER 		0-50041-235-0 04 1 9101-9606 ●
17 BOLT; EXH PIPE
M12X35 FLANGE 		0-28681-235-0 04 1 9607- ●
26 STUD; EXH MANIF 1-09302-090-0 03 1 9101- ●
34 WASHER; EXH PIPE
ID=13 OD=26 DISH 		1-09556-002-0 03 1 9001- ● ● ● ●
36 NUT; EXH PIPE
(A) M12 		1-09400-010-0 03 1 9001- ● ● ● ●
36 NUT; EXH PIPE
(B) M12 		9-99110-512-0 04 1 9001-9606 ●
36 NUT; EXH PIPE
(B) M12 FLANGE 		0-91150-212-0 04 1 9607-9709 ●
36 NUT; EXH PIPE
(B) M12 		9-99110-512-0 04 1 9710- ●
81 NUT; BRKT
(A) M8 		9-09110-508-0 06 1 9001-9606 ● ● ●
81 NUT; BRKT
(A) M8 FLANGE 		0-91150-108-0 06 1 9607- ● ● ● ●
81 NUT; BRKT
(B) 		9-09847-111-0 03 1 9001-9201 ● ● ●
81 NUT; BRKT
(B) M10 		8-94208-777-0 03 1 9202- ● ● ●
81 NUT; BRKT
(A) M8 		9-09110-408-0 06 1 9101-9606 ●
89 CLAMP; EXH SILENCER,RR
(A) 		1-22133-161-0 01 1 9101-9101 ●
89 CLAMP; EXH SILENCER,RR
(A) 		1-22133-218-0 01 1 9102-9605 ●
89 CLAMP; EXH SILENCER,RR
(A) 		1-22133-256-0 01 1 9606- ●
89 CLAMP; EXH SILENCER,RR
(B) 		1-22133-162-0 01 1 9101-9111 ●
89 CLAMP; EXH SILENCER,RR
(B) 		1-22133-191-0 01 1 9112- ●
94 BOLT; CLAMP
M8X30 W/LK WASHER 		9-01900-830-0 06 1 9101-9204 ●
94 BOLT; CLAMP
M8X30 W/LK WASHER 		0-50040-830-0 06 1 9205-9606 ●
94 BOLT; CLAMP
M8X30 FLANGE 		0-28680-830-0 06 1 9607- ●
105 NUT; CLAMP
M8 		9-09110-408-0 06 1 9101-9606 ●
105 NUT; CLAMP
M8 FLANGE 		0-91150-108-0 06 1 9607- ●
107 BOLT; BRKT
(B) M10X80 		9-01056-080-0 03 1 9001-9004 ● ● ●
107 BOLT; BRKT
(B) M10X80 		0-10806-080-0 03 1 9005-9606 ● ● ●
107 BOLT; BRKT
(B) M10X80 FLANGE 		0-28081-080-0 03 1 9607- ● ● ●
107 BOLT; BRKT
(A) M8X30 W/LK WASHER 		9-01910-830-0 06 1 9001-9005 ● ● ●
107 BOLT; BRKT
(A) M8X30 W/LK WASHER 		0-50040-830-0 06 1 9006-9606 ● ● ●
107 BOLT; BRKT
(A) M8X30 FLANGE 		0-28680-830-0 06 1 9607- ● ● ●
107 BOLT; BRKT
(C) M8X35 W/LK WASHER 		0-50040-835-0 06 1 9101-9606 ●
107 BOLT; BRKT
(C) M8X35 FLANGE 		0-28680-835-0 06 1 9607- ●
108 BRACKET; BRKT TO FRAME,EXH SILENCER,FR 9-22151-214-0 03 1 9001- ● ● ●
108 BRACKET; BRKT TO FRAME,EXH SILENCER,FR 1-22151-325-0 03 1 9101- ●
126 PIPE; EXH,RR 1-22111-519-1 01 1 9001- ● ● ●
126 PIPE; EXH,RR 1-22126-013-0 01 1 9101- ●
323 RUBBER; CUSHION,BRKT 1-22159-065-0 12 1 9101-9308 ●
323 RUBBER; CUSHION,BRKT
OD=40 		1-22159-094-0 12 1 9309- ●
360 PIECE; DIST,EXH PIPE
L=22 		9-22159-024-0 06 1 9101- ●
388 WASHER; LK,BRKT
ID=10.5 OD=18 		9-09160-510-0 03 1 9001- ● ● ●
388 WASHER; LK,BRKT
ID=8.2 		9-09150-508-0 06 1 9101-9606 ●
390 BRACKET; PIPE CLAMP TO BRKT 1-22151-337-1 03 1 9101- ●
391 BOLT; CLAMP BRKT
M10X50 		0-10806-050-0 06 1 9101-9606 ●
391 BOLT; CLAMP BRKT
M10X50 FLANGE 		0-28081-050-0 06 1 9607- ●
392 NUT; CLAMP BRKT
M10 		9-09110-510-0 06 1 9308-9606 ●
392 NUT; CLAMP BRKT
M10 FLANGE 		0-91150-210-0 06 1 9607- ●
393 WASHER; LK,CLAMP BRKT
ID=10.2 		9-09150-510-0 06 1 9101-9606 ●
