0-51B — OIL PUMP AND OIL STRAINER (#20489) — 26 parça

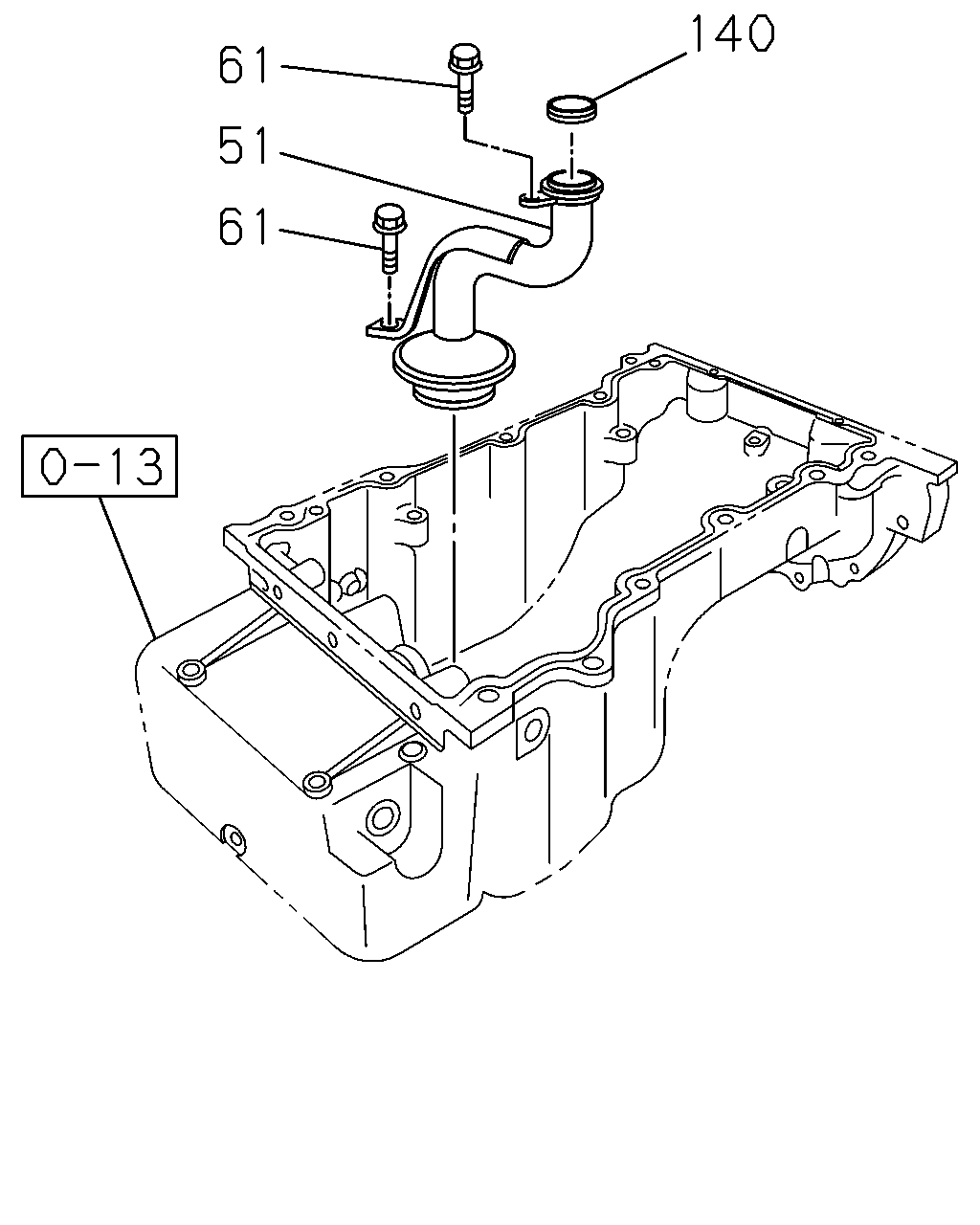

çizim 12597
140 61 51 61
BalonParca AdiParca NoAdetTipApplied Date A B
51 01.519 STRAINER & PIPE ASM; OIL 8-97149-340-0 01 1 0307-0609 ●
51 01.519 STRAINER & PIPE ASM; OIL 8-92067-144-0 01 1 0509-0609 ●
51 01.519 STRAINER & PIPE ASM; OIL
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-92067-144-0 01 1 0610- ●
61 01.531 BOLT; OIL STRAINER
01.430 		8-11588-713-0 08 1 0509-0609 ●
61 01.531 BOLT; OIL STRAINER
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 01.430 		8-11588-713-0 08 1 0610- ●
140 01.639 GASKET; OIL STRAINER 8-12566-837-0 01 1 0509-0609 ●
140 01.639 GASKET; OIL STRAINER
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12566-837-0 01 1 0610- ●

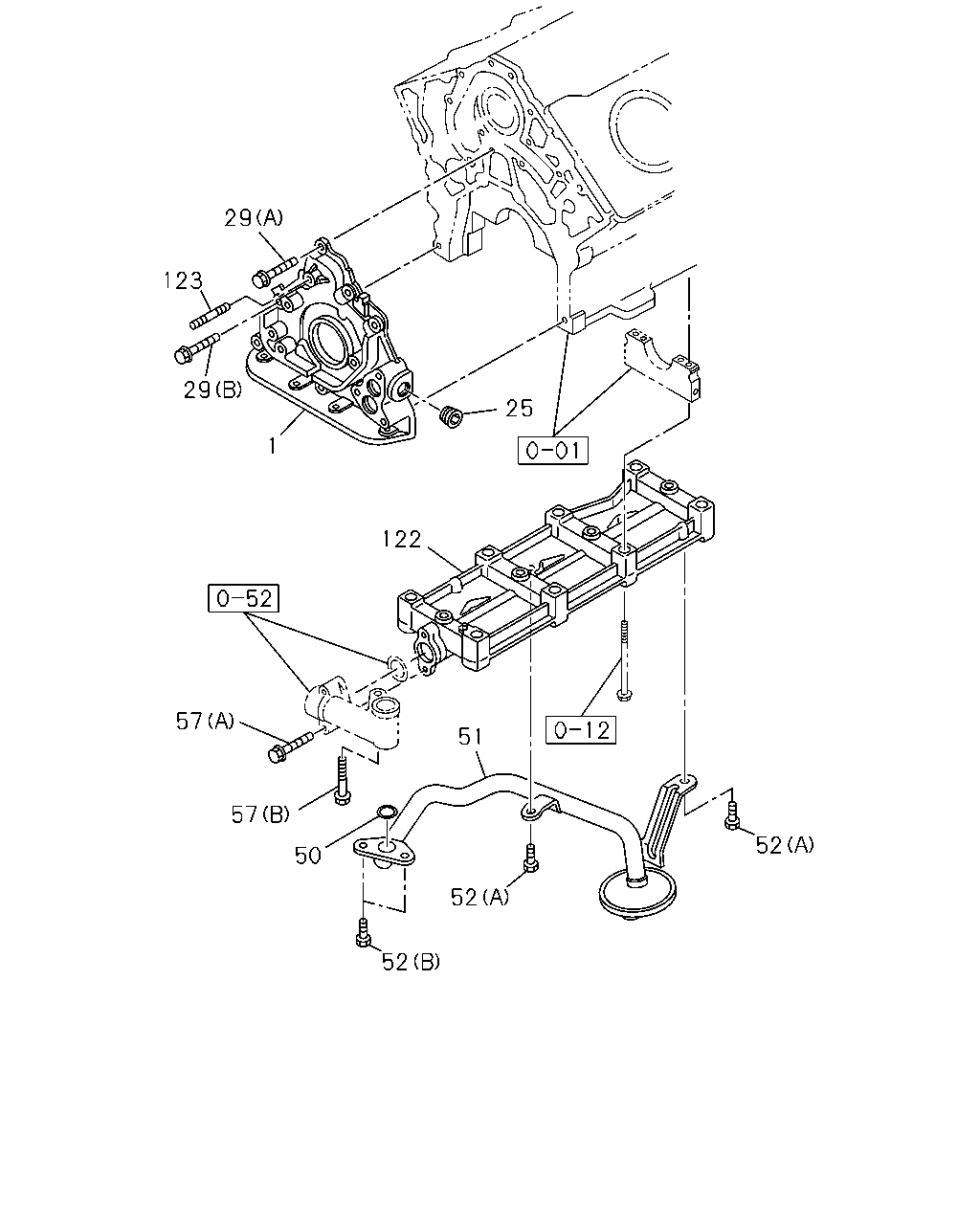

çizim 55970
29 123 29 25 1 122 57 51 57 52 50 52 52
BalonParca AdiParca NoAdetTipApplied Date A B
1 01.652 PUMP ASM; OIL 8-97136-463-0 01 1 0307-0609 ●
25 01.609 PLUG; OIL PUMP 8-97063-612-0 01 1 0307-0609 ●
29 01.652 BOLT; OIL PUMP
02.559 (A) M8X25 FLANGE 		0-28680-825-0 05 1 0307-0512 ●
29 01.652 BOLT; OIL PUMP
06.216 (A) M8X25 FLANGE 		0-28650-825-0 05 1 0601-0609 ●
29 01.652 BOLT; OIL PUMP
04.686 (B) M8X30 FLANGE 		0-28680-830-0 01 1 0307-0512 ●
29 01.652 BOLT; OIL PUMP
03.403 (B) M8X30 FLANGE 		0-28650-830-0 01 1 0601-0609 ●
50 01.531 GASKET; OIL PIPE,STRAINER TO PUM
ALSO INCLUDED IN GASKET SET(ENGINE). W/PLATE ID=18.2 		8-94329-964-0 01 1 0307-0609 ●
51 01.519 STRAINER & PIPE ASM; OIL 8-97149-340-0 01 1 0307-0609 ●
51 01.519 STRAINER & PIPE ASM; OIL 8-92067-144-0 01 1 0509-0609 ●
51 01.519 STRAINER & PIPE ASM; OIL
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-92067-144-0 01 1 0610- ●
52 01.656 BOLT; OIL PIPE
01.062 (A) M8X16 FLANGE 		0-28080-816-0 02 1 0307-0512 ●
52 01.656 BOLT; OIL PIPE
02.343 (A) M8X16 FLANGE 		0-28050-816-0 02 1 0601-0609 ●
52 01.656 BOLT; OIL PIPE
07.010 (B) M8X20 FLANGE 		0-28080-820-0 02 1 0307-0512 ●
52 01.656 BOLT; OIL PIPE
04.338 (B) M8X20 FLANGE 		0-28050-820-0 02 1 0601-0609 ●
57 01.531 BOLT; OIL PIPE
(A) M6X35 FLANGE 		0-28680-635-0 02 1 0307-0512 ●
57 01.531 BOLT; OIL PIPE
03.162 (A) M6X35 FLANGE 		0-28650-635-0 02 1 0601-0609 ●
57 01.531 BOLT; OIL PIPE
(B) M6X55 FLANGE 		8-97027-257-0 01 1 0307-0609 ●
122 01.519 GALLERY; OIL 8-97226-641-0 01 1 0307-0609 ●
123 01.060 STUD; FAN BRKT
00.349 M8X65 L=81 		9-04020-865-0 01 1 0307-0609 ●
