0-50B — OIL COOLER AND OIL FILTER (#20487) — 44 parça

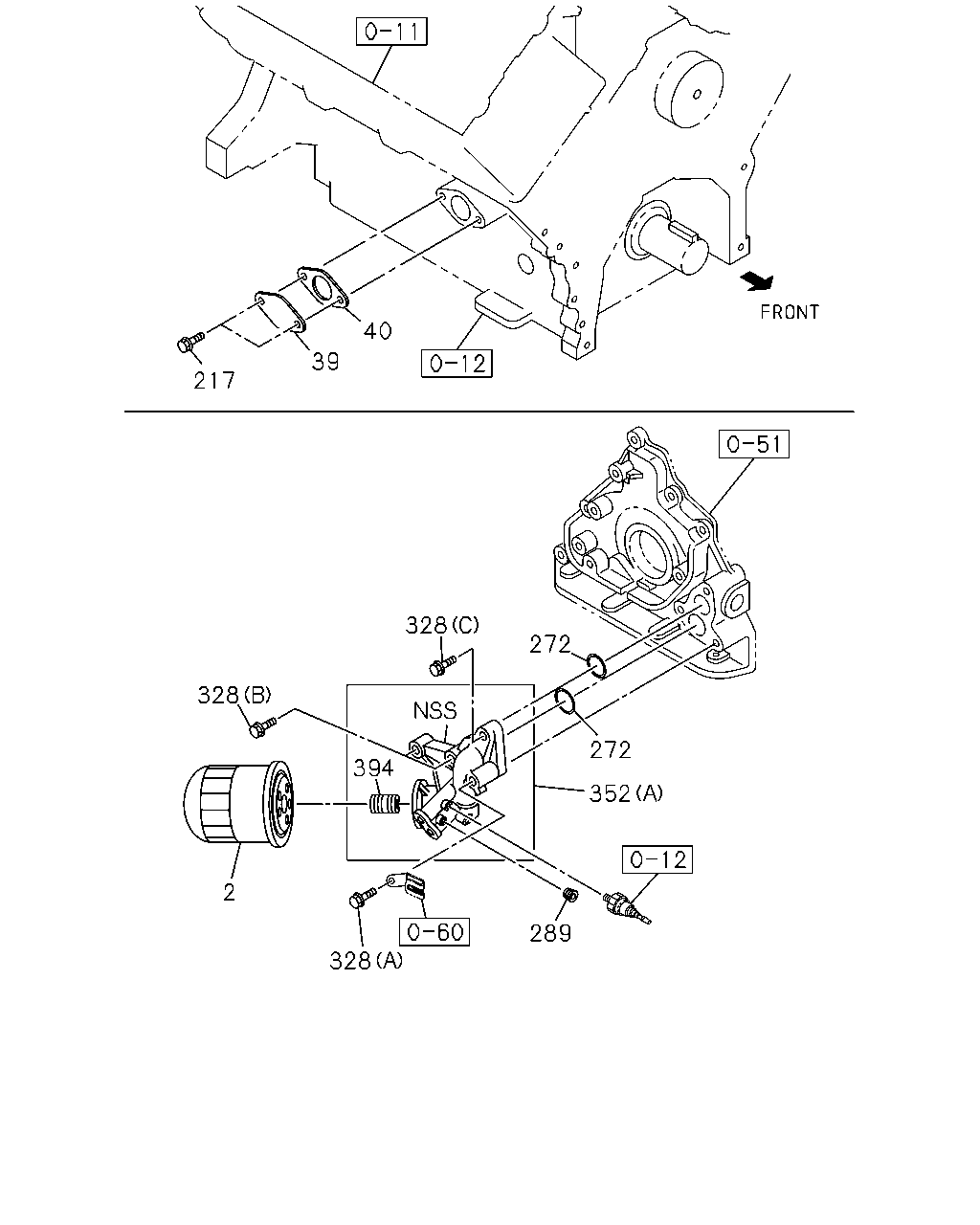

çizim 54642
40 39 217 328 272 328 272 394 352 2 289 328
BalonParca AdiParca NoAdetTipApplied Date A B
2 01.836 ELEMENT; OIL FILTER 8-94456-741-2 01 1 0307-0609 ●
39 01.540 COVER; OIL COOLER 8-97031-507-1 01 1 0307-0609 ●
40 01.550 GASKET; COVER TO OIL COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97031-084-0 01 1 0307-0609 ●
217 01.540 BOLT; CONNECTOR
00.738 M6X16 FLANGE 		0-28080-616-0 02 1 0307-0512 ●
217 01.540 BOLT; CONNECTOR
09.242 M6X16 FLANGE 		0-28050-616-0 02 1 0601-0609 ●
272 01.844 GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 W/PLATE ID=18.2 		8-94329-964-0 02 1 0307-0609 ●
289 01.840 PLUG; ADAPTER
01.531 PT1/8 		1-09605-050-0 01 1 0307-0609 ●
328 01.840 BOLT; OIL FILTER
03.278 (A) M8X100 FLANGE 		0-28080-800-0 01 1 0307-0512 ●
328 01.840 BOLT; OIL FILTER
00.386 (A) M8X100 FLANGE 		0-28050-800-0 01 1 0601-0609 ●
328 01.840 BOLT; OIL FILTER
01.540 (B) M8X45 FLANGE 		0-28080-845-0 02 1 0307-0512 ●
328 01.840 BOLT; OIL FILTER
09.173 (B) M8X45 FLANGE 		0-28050-845-0 02 1 0601-0609 ●
328 01.840 BOLT; OIL FILTER
(C) M8X70 FLANGE 		0-28080-870-0 01 1 0307-0512 ●
328 01.840 BOLT; OIL FILTER
00.206 (C) M8X70 FLANGE 		0-28050-870-0 01 1 0601-0609 ●
328 01.840 BOLT; OIL FILTER
(D) 		8-11519-174-0 01 1 0509-0609 ●
328 01.840 BOLT; OIL FILTER
(E) 		8-11588-726-0 03 1 0509-0609 ●
328 01.840 BOLT; OIL FILTER
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (D) 		8-11519-174-0 01 1 0610- ●
328 01.840 BOLT; OIL FILTER
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (E) 		8-11588-726-0 03 1 0610- ●
352 01.840 ADAPTER; OIL FILTER
(A) 		8-97149-343-2 01 1 0307-0609 ●
352 01.840 ADAPTER; OIL FILTER
(B) 		8-92067-267-0 01 1 0509-0609 ●
352 01.840 ADAPTER; OIL FILTER
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) 		8-92067-267-0 01 1 0610- ●
394 01.837 STUD; OIL FILTER 8-97022-473-0 01 1 0307-0609 ●

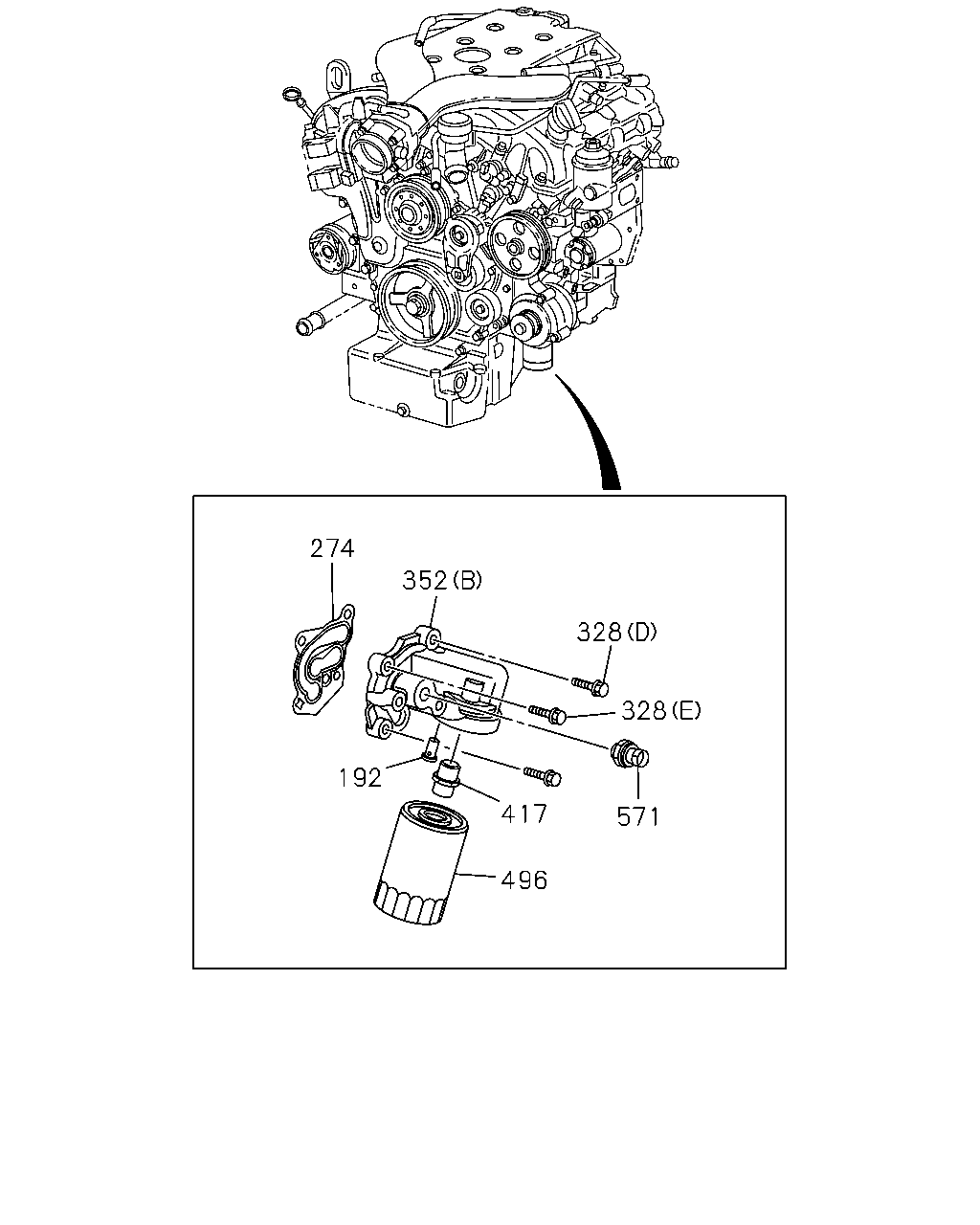

çizim 54675
274 352 328 328 192 417 571 496
BalonParca AdiParca NoAdetTipApplied Date A B
192 01.540 VALVE; BYPASS 8-25014-612-0 01 1 0509-0609 ●
192 01.540 VALVE; BYPASS
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-25014-612-0 01 1 0610- ●
274 01.844 GASKET; OIL FILTER 8-12591-604-0 01 1 0509-0609 ●
274 01.844 GASKET; OIL FILTER
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12591-604-0 01 1 0610- ●
328 01.840 BOLT; OIL FILTER
03.278 (A) M8X100 FLANGE 		0-28080-800-0 01 1 0307-0512 ●
328 01.840 BOLT; OIL FILTER
00.386 (A) M8X100 FLANGE 		0-28050-800-0 01 1 0601-0609 ●
328 01.840 BOLT; OIL FILTER
01.540 (B) M8X45 FLANGE 		0-28080-845-0 02 1 0307-0512 ●
328 01.840 BOLT; OIL FILTER
09.173 (B) M8X45 FLANGE 		0-28050-845-0 02 1 0601-0609 ●
328 01.840 BOLT; OIL FILTER
(C) M8X70 FLANGE 		0-28080-870-0 01 1 0307-0512 ●
328 01.840 BOLT; OIL FILTER
00.206 (C) M8X70 FLANGE 		0-28050-870-0 01 1 0601-0609 ●
328 01.840 BOLT; OIL FILTER
(D) 		8-11519-174-0 01 1 0509-0609 ●
328 01.840 BOLT; OIL FILTER
(E) 		8-11588-726-0 03 1 0509-0609 ●
328 01.840 BOLT; OIL FILTER
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (D) 		8-11519-174-0 01 1 0610- ●
328 01.840 BOLT; OIL FILTER
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (E) 		8-11588-726-0 03 1 0610- ●
352 01.840 ADAPTER; OIL FILTER
(A) 		8-97149-343-2 01 1 0307-0609 ●
352 01.840 ADAPTER; OIL FILTER
(B) 		8-92067-267-0 01 1 0509-0609 ●
352 01.840 ADAPTER; OIL FILTER
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) 		8-92067-267-0 01 1 0610- ●
417 01.840 CONNECTOR; OIL FILTER 8-24575-062-0 01 1 0509-0609 ●
417 01.840 CONNECTOR; OIL FILTER
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-24575-062-0 01 1 0610- ●
496 01.835 FILTER ASM; OIL 8-12587-552-0 01 1 0509-0609 ●
496 01.835 FILTER ASM; OIL
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12587-552-0 01 1 0610- ●
571 01.800 SENSOR; OIL PRESSURE 8-12570-798-0 01 1 0509-0609 ●
571 01.800 SENSOR; OIL PRESSURE
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-12570-798-0 01 1 0610- ●
