0-50A — OIL COOLER AND OIL FILTER (#20486) — 104 parça

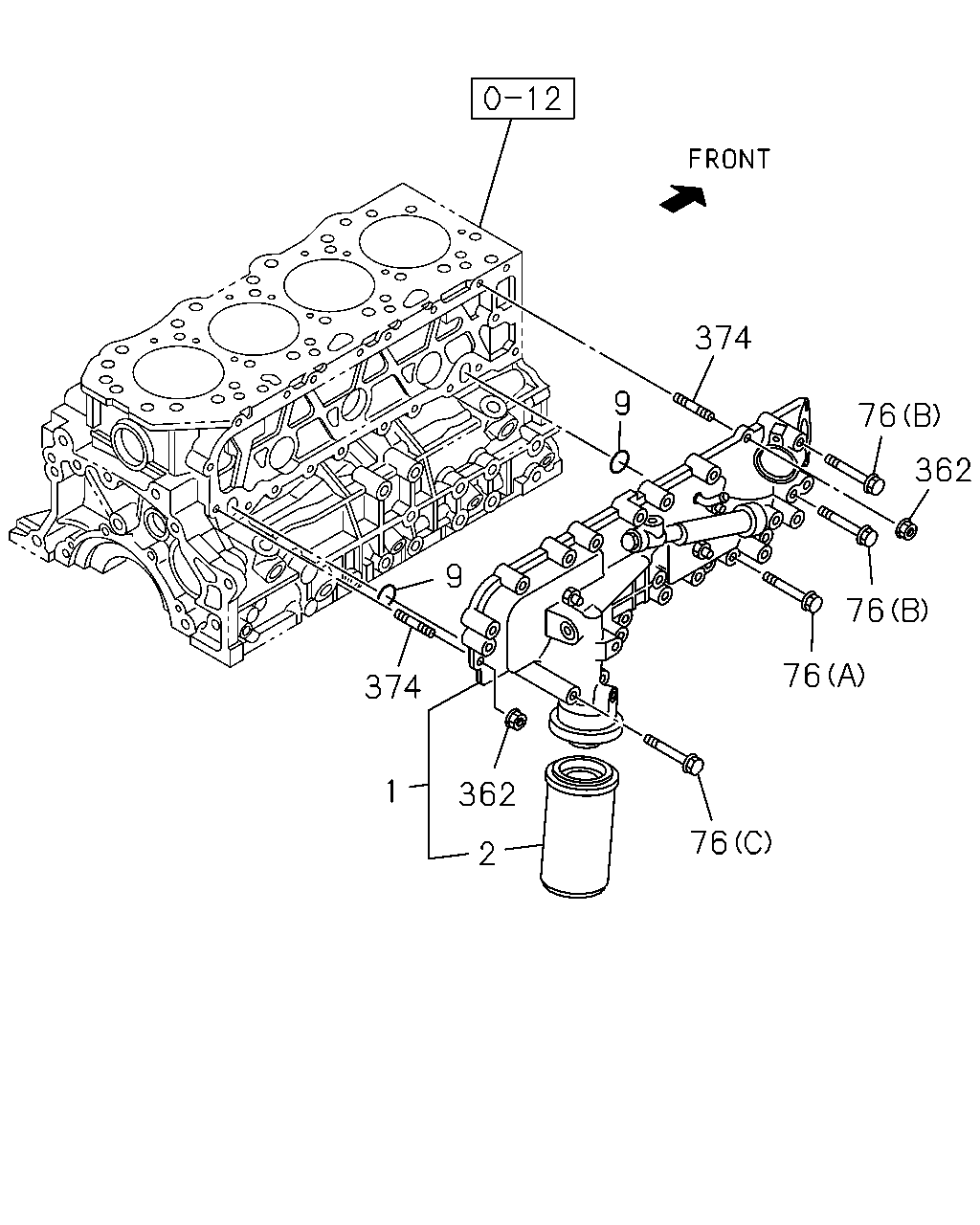

374 9 76 362 1 9 76 76 374 1 362 76 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	01.540 FILTER & COOLER ASM; OIL	8-97287-474-1	01	1	0307-0310	●	●
1	01.540 FILTER & COOLER ASM; OIL	8-97373-137-0	01	1	0311-0609	●	●
1	01.540 FILTER & COOLER ASM; OIL	8-97373-137-1	01	1	0610-		●
1	01.540 FILTER & COOLER ASM; OIL	8-97334-438-1	01	1	0307-			●
1	01.540 FILTER & COOLER ASM; OIL	8-98025-403-3	01	1	0610-0612				●	●
1	01.540 FILTER & COOLER ASM; OIL	8-98025-403-4	01	1	0701-0912				●
1	01.540 FILTER & COOLER ASM; OIL	8-98025-403-4	01	1	1001-				●	●
1	01.540 FILTER & COOLER ASM; OIL	8-98011-506-4	01	1	0610-						●	●
2	01.836 ELEMENT; OIL FILTER EXC. AUSTRALIA EQUIPMENT(B13)	8-94632-619-0	01	1	1010-								●
2	01.836 ELEMENT; OIL FILTER	8-97309-927-0	01	1	0307-0609	●	●	●
2	01.836 ELEMENT; OIL FILTER	8-97309-927-0	01	1	0610-		●
2	01.836 ELEMENT; OIL FILTER	8-92142-009-0	01	1	0307-1009								●
2	01.836 ELEMENT; OIL FILTER AUSTRALIA EQUIPMENT(B13)	8-92142-009-0	01	1	1010-								●
2	01.836 ELEMENT; OIL FILTER	8-97358-720-0	01	1	0610-0612				●	●	●	●
2	01.836 ELEMENT; OIL FILTER	8-97358-720-0	01	1	0701-0912				●		●	●
2	01.836 ELEMENT; OIL FILTER	8-97358-720-0	01	1	1001-				●	●	●	●
9	01.840 GASKET; CENTER BOLT ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97288-938-0	01	1	0307-0609	●	●	●
9	01.840 GASKET; CENTER BOLT ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97288-938-0	01	1	0610-		●
9	01.840 GASKET; CENTER BOLT 01.550 ID=26.2	9-09566-226-0	02	1	0610-0612				●	●	●	●
9	01.840 GASKET; CENTER BOLT 01.550 ID=26.2	9-09566-226-0	02	1	0701-0912				●		●	●
9	01.840 GASKET; CENTER BOLT 01.550 ID=26.2 ALSO INCLUDED IN GASKET SET(ENGINE) .	9-09566-226-0	02	1	1001-				●	●	●	●
76	01.840 BOLT; OIL FILTER 09.173 (A) M8X45 FLANGE	0-28050-845-0	14	1	0610-0612				●	●	●	●
76	01.840 BOLT; OIL FILTER 09.173 (A) M8X45 FLANGE	0-28050-845-0	14	1	0701-0912				●		●	●
76	01.840 BOLT; OIL FILTER 09.173 (A) M8X45 FLANGE	0-28050-845-0	14	1	1001-				●	●	●	●
76	01.840 BOLT; OIL FILTER 00.206 (B) M8X70 FLANGE	0-28050-870-0	02	1	0610-0612				●	●	●	●
76	01.840 BOLT; OIL FILTER 00.206 (B) M8X70 FLANGE	0-28050-870-0	02	1	0701-0912				●		●	●
76	01.840 BOLT; OIL FILTER 00.206 (B) M8X70 FLANGE	0-28050-870-0	02	1	1001-				●	●	●	●
76	01.840 BOLT; OIL FILTER 03.275 (C) M8X110 FLANGE	0-28055-811-0	02	1	0610-0612				●	●	●	●
76	01.840 BOLT; OIL FILTER 03.275 (C) M8X110 FLANGE	0-28055-811-0	02	1	0701-0912				●		●	●
76	01.840 BOLT; OIL FILTER 03.275 (C) M8X110 FLANGE	0-28055-811-0	02	1	1001-				●	●	●	●
362	01.837 NUT; OIL FILTER 07.633 M8 FLANGE	0-91150-108-0	02	1	0307-0602	●	●	●
362	01.837 NUT; OIL FILTER 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-0609	●	●	●
362	01.837 NUT; OIL FILTER 01.062 M8 FLANGE	0-91180-108-0	02	1	0610-		●
362	01.837 NUT; OIL FILTER 01.540 M8 FLANGE	0-91180-208-0	02	1	0610-0612				●	●	●	●
362	01.837 NUT; OIL FILTER 01.540 M8 FLANGE	0-91180-208-0	02	1	0701-0912				●		●	●
362	01.837 NUT; OIL FILTER 01.540 M8 FLANGE	0-91180-208-0	02	1	1001-				●	●	●	●
374	01.840 STUD; OIL FILTER 03.901 M8X25 L=37	9-04110-825-0	02	1	0307-0604	●	●	●
374	01.840 STUD; OIL FILTER 03.275 M8X25 L=37	0-41010-825-0	02	1	0605-0609	●	●	●
374	01.840 STUD; OIL FILTER 03.275 M8X25 L=37	0-41010-825-0	02	1	0610-		●
374	01.840 STUD; OIL FILTER 02.510 M8X20 L=32	0-41010-820-0	02	1	0610-0612				●	●	●	●
374	01.840 STUD; OIL FILTER 02.510 M8X20 L=32	0-41010-820-0	02	1	0701-0912				●		●	●
374	01.840 STUD; OIL FILTER 02.510 M8X20 L=32	0-41010-820-0	02	1	1001-				●	●	●	●

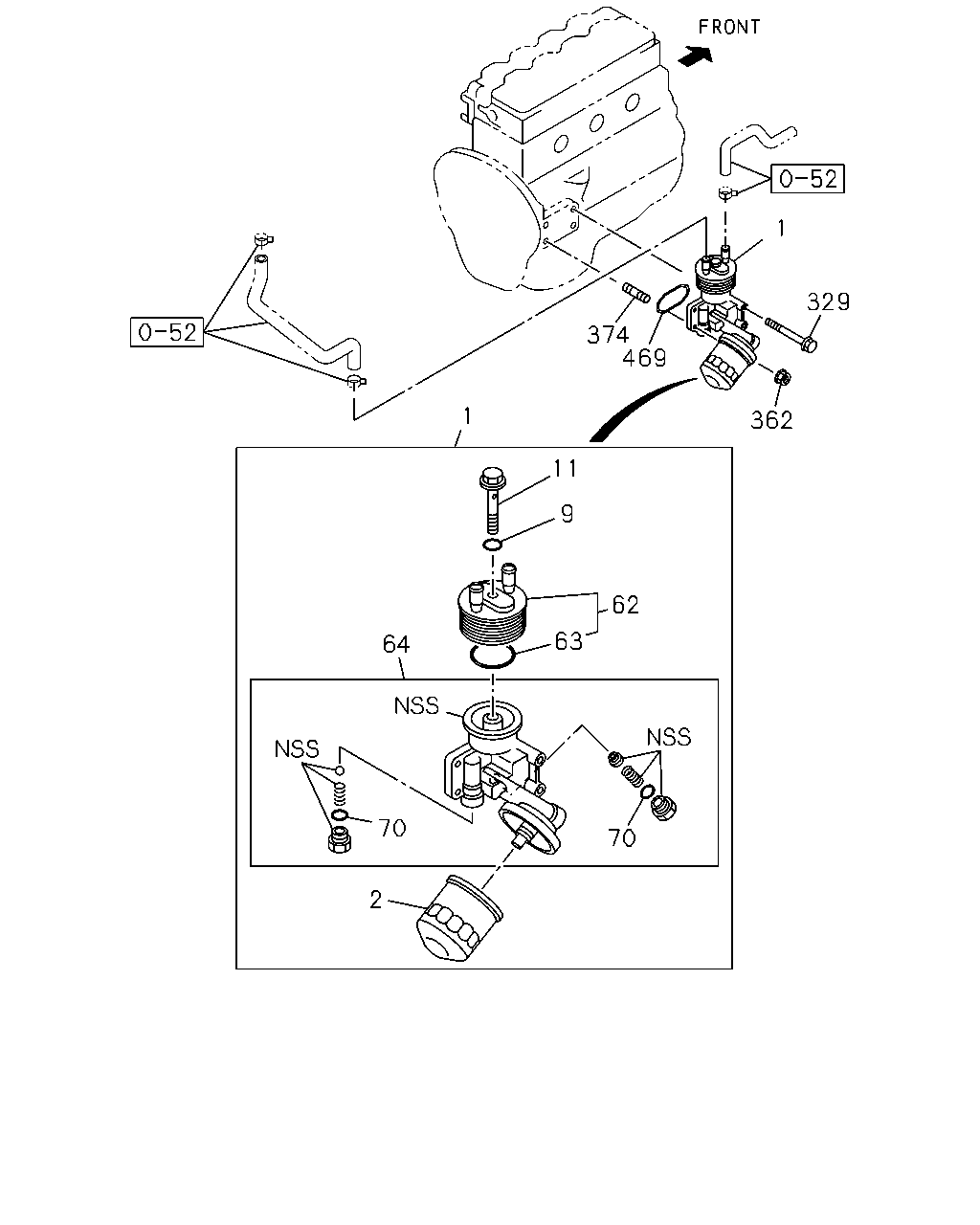

1 329 374 469 1 362 11 9 62 63 64 70 70 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	01.540 FILTER & COOLER ASM; OIL	8-97287-474-1	01	1	0307-0310	●	●
1	01.540 FILTER & COOLER ASM; OIL	8-97373-137-0	01	1	0311-0609	●	●
1	01.540 FILTER & COOLER ASM; OIL	8-97373-137-1	01	1	0610-		●
1	01.540 FILTER & COOLER ASM; OIL	8-97334-438-1	01	1	0307-			●
1	01.540 FILTER & COOLER ASM; OIL	8-98025-403-3	01	1	0610-0612				●	●
1	01.540 FILTER & COOLER ASM; OIL	8-98025-403-4	01	1	0701-0912				●
1	01.540 FILTER & COOLER ASM; OIL	8-98025-403-4	01	1	1001-				●	●
1	01.540 FILTER & COOLER ASM; OIL	8-98011-506-4	01	1	0610-						●	●
2	01.836 ELEMENT; OIL FILTER EXC. AUSTRALIA EQUIPMENT(B13)	8-94632-619-0	01	1	1010-								●
2	01.836 ELEMENT; OIL FILTER	8-97309-927-0	01	1	0307-0609	●	●	●
2	01.836 ELEMENT; OIL FILTER	8-97309-927-0	01	1	0610-		●
2	01.836 ELEMENT; OIL FILTER	8-92142-009-0	01	1	0307-1009								●
2	01.836 ELEMENT; OIL FILTER AUSTRALIA EQUIPMENT(B13)	8-92142-009-0	01	1	1010-								●
2	01.836 ELEMENT; OIL FILTER	8-97358-720-0	01	1	0610-0612				●	●	●	●
2	01.836 ELEMENT; OIL FILTER	8-97358-720-0	01	1	0701-0912				●		●	●
2	01.836 ELEMENT; OIL FILTER	8-97358-720-0	01	1	1001-				●	●	●	●
9	01.840 GASKET; CENTER BOLT ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97288-938-0	01	1	0307-0609	●	●	●
9	01.840 GASKET; CENTER BOLT ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97288-938-0	01	1	0610-		●
9	01.840 GASKET; CENTER BOLT 01.550 ID=26.2	9-09566-226-0	02	1	0610-0612				●	●	●	●
9	01.840 GASKET; CENTER BOLT 01.550 ID=26.2	9-09566-226-0	02	1	0701-0912				●		●	●
9	01.840 GASKET; CENTER BOLT 01.550 ID=26.2 ALSO INCLUDED IN GASKET SET(ENGINE) .	9-09566-226-0	02	1	1001-				●	●	●	●
11	01.840 BOLT; CENTER	8-97288-935-0	01	1	0307-0609	●	●
11	01.840 BOLT; CENTER	8-97288-935-0	01	1	0610-		●
11	01.840 BOLT; CENTER	8-97352-702-0	01	1	0307-0609			●
62	01.540 COOLER ASM; OIL	8-97943-622-0	01	1	0307-0609	●	●
62	01.540 COOLER ASM; OIL	8-97943-622-0	01	1	0610-0907		●
62	01.540 COOLER ASM; OIL	8-97319-556-1	01	1	0908-		●
62	01.540 COOLER ASM; OIL	8-97352-701-0	01	1	0307-			●
63	01.550 GASKET; COOLER TO BRKT	8-94450-917-0	01	1	0307-0609	●	●	●
63	01.550 GASKET; COOLER TO BRKT	8-94450-917-0	01	1	0610-		●
64	01.540 BODY; OIL FILTER & OIL COOLER	8-97942-933-0	01	1	0307-0308	●	●	●
64	01.540 BODY; OIL FILTER & OIL COOLER	8-97942-933-0	01	1	0309-0310	●	●
64	01.540 BODY; OIL FILTER & OIL COOLER	8-97373-138-0	01	1	0309-0310			●
64	01.540 BODY; OIL FILTER & OIL COOLER	8-97373-138-0	01	1	0311-0609	●	●	●
64	01.540 BODY; OIL FILTER & OIL COOLER	8-97373-138-0	01	1	0610-		●
70	01.844 GASKET; PLUG,OIL FILTER	8-97914-706-0	02	1	0307-0609	●	●	●
70	01.844 GASKET; PLUG,OIL FILTER	8-97914-706-0	02	1	0610-		●
329	01.840 BOLT; OIL FILTER 01.062 M8X95 FLANGE	1-09044-075-1	02	1	0307-0609	●	●	●
329	01.840 BOLT; OIL FILTER 01.062 M8X95 FLANGE	1-09044-075-1	02	1	0610-		●
362	01.837 NUT; OIL FILTER 07.633 M8 FLANGE	0-91150-108-0	02	1	0307-0602	●	●	●
362	01.837 NUT; OIL FILTER 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-0609	●	●	●
362	01.837 NUT; OIL FILTER 01.062 M8 FLANGE	0-91180-108-0	02	1	0610-		●
362	01.837 NUT; OIL FILTER 01.540 M8 FLANGE	0-91180-208-0	02	1	0610-0612				●	●	●	●
362	01.837 NUT; OIL FILTER 01.540 M8 FLANGE	0-91180-208-0	02	1	0701-0912				●		●	●
362	01.837 NUT; OIL FILTER 01.540 M8 FLANGE	0-91180-208-0	02	1	1001-				●	●	●	●
374	01.840 STUD; OIL FILTER 03.901 M8X25 L=37	9-04110-825-0	02	1	0307-0604	●	●	●
374	01.840 STUD; OIL FILTER 03.275 M8X25 L=37	0-41010-825-0	02	1	0605-0609	●	●	●
374	01.840 STUD; OIL FILTER 03.275 M8X25 L=37	0-41010-825-0	02	1	0610-		●
374	01.840 STUD; OIL FILTER 02.510 M8X20 L=32	0-41010-820-0	02	1	0610-0612				●	●	●	●
374	01.840 STUD; OIL FILTER 02.510 M8X20 L=32	0-41010-820-0	02	1	0701-0912				●		●	●
374	01.840 STUD; OIL FILTER 02.510 M8X20 L=32	0-41010-820-0	02	1	1001-				●	●	●	●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) . 01.844	8-97065-983-1	01	1	0307-0609	●	●	●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) . 01.844	8-97065-983-1	01	1	0610-0706		●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) .	8-98087-965-0	01	1	0707-		●

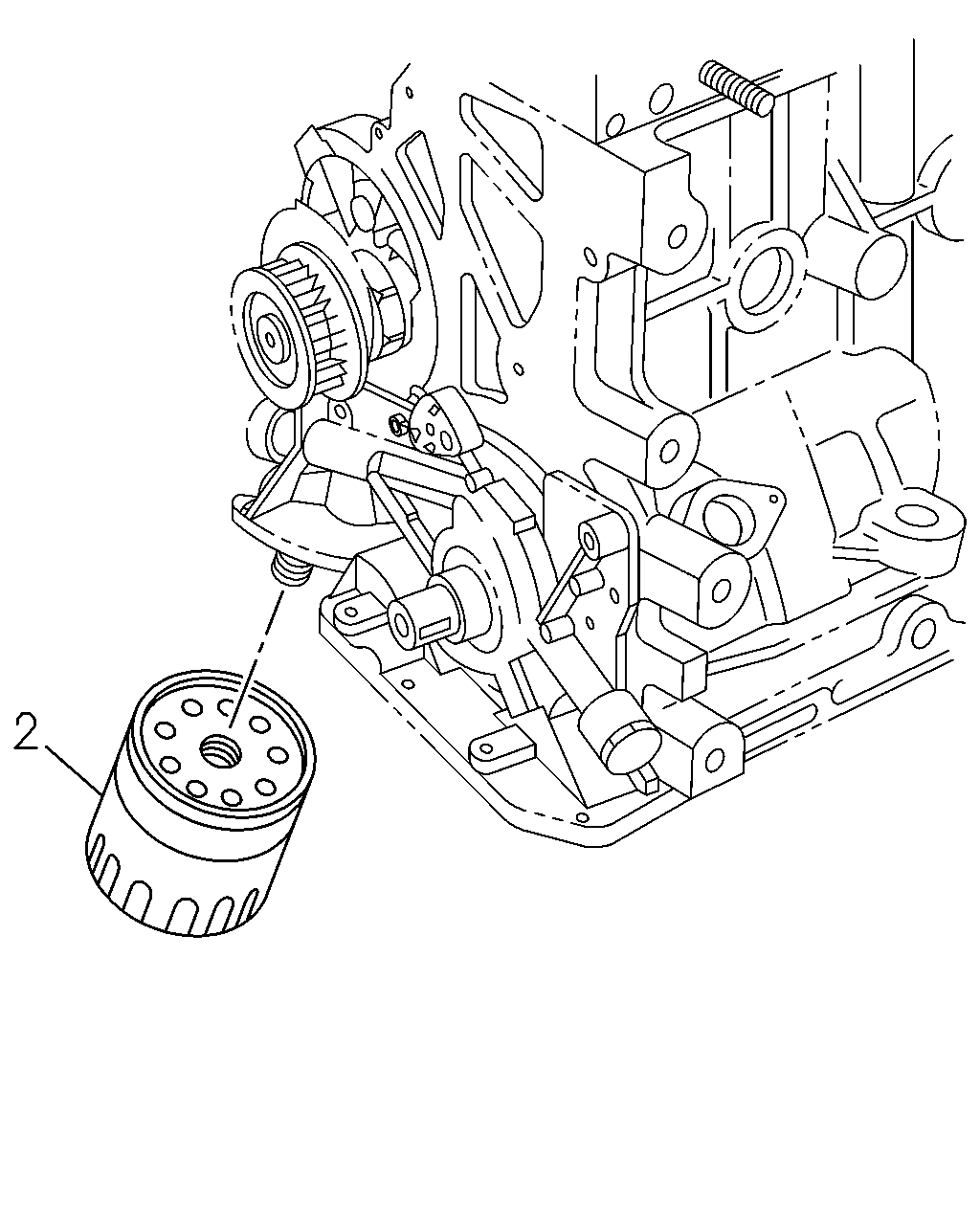

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
2	01.836 ELEMENT; OIL FILTER EXC. AUSTRALIA EQUIPMENT(B13)	8-94632-619-0	01	1	1010-								●
2	01.836 ELEMENT; OIL FILTER	8-97309-927-0	01	1	0307-0609	●	●	●
2	01.836 ELEMENT; OIL FILTER	8-97309-927-0	01	1	0610-		●
2	01.836 ELEMENT; OIL FILTER	8-92142-009-0	01	1	0307-1009								●
2	01.836 ELEMENT; OIL FILTER AUSTRALIA EQUIPMENT(B13)	8-92142-009-0	01	1	1010-								●
2	01.836 ELEMENT; OIL FILTER	8-97358-720-0	01	1	0610-0612				●	●	●	●
2	01.836 ELEMENT; OIL FILTER	8-97358-720-0	01	1	0701-0912				●		●	●
2	01.836 ELEMENT; OIL FILTER	8-97358-720-0	01	1	1001-				●	●	●	●
