◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50965 - TFR/TFS-RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-40A - FUEL INJECTION SYSTEM ▶
0-40A — FUEL INJECTION SYSTEM (#20482) — 1044 parça

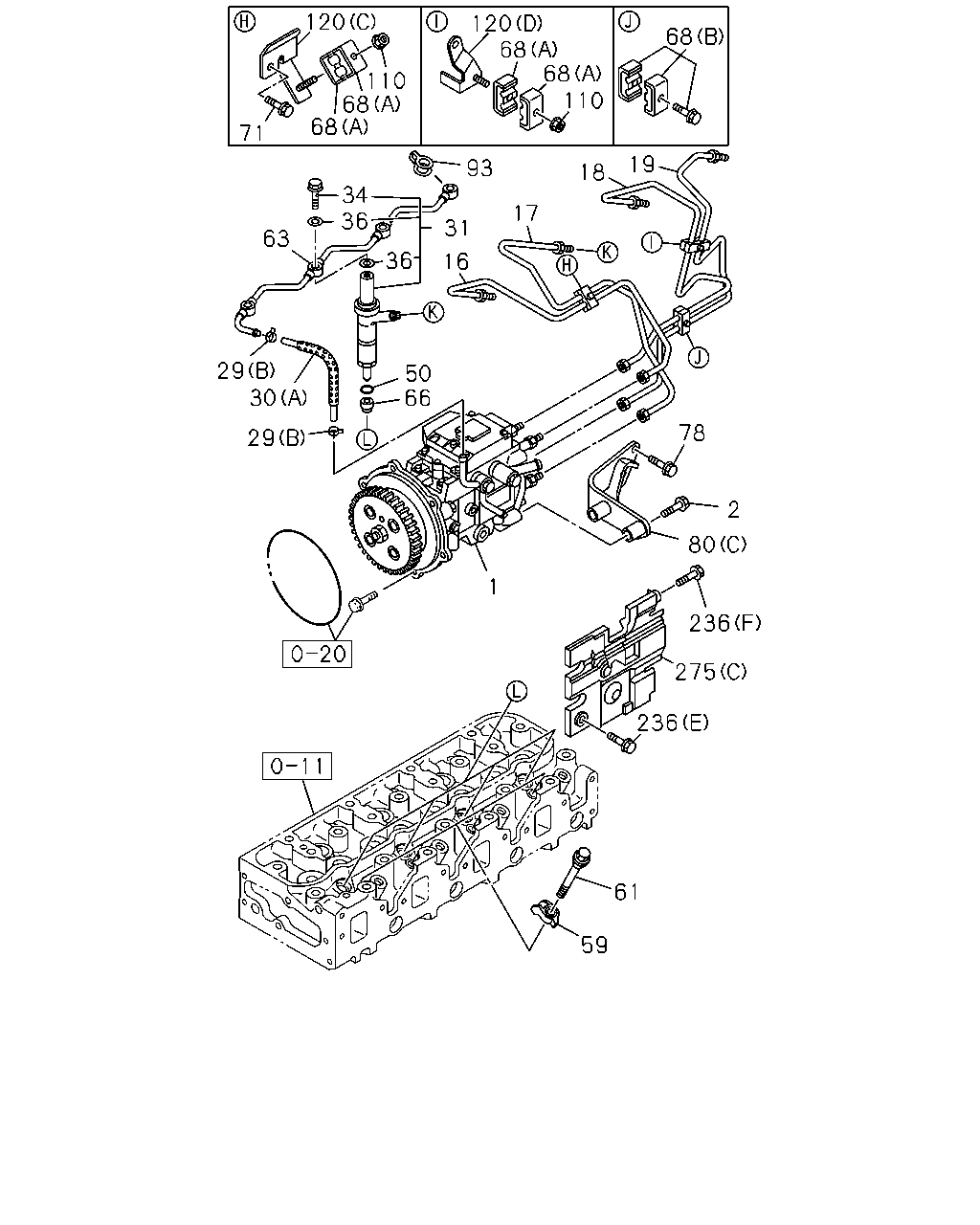

çizim 12620
120 120 68 68 110 68 110 68 68 71 19 93 18 34 36 17 31 63 36 16 29 30 50 66 78 29 2 80 1 236 275 236 61 59
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EMISSION SYSTEM R15-04<K75> 		8-97350-393-4 01 1 0307-1103 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EMISSION SYSTEM R15-04<K75> TACHOMETER<U16> 		8-97350-393-4 01 1 1104- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EURO2 SPECIFICATION<NT2> 		8-97350-396-3 01 1 0307-0609 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EURO2 SPECIFICATION<NT2> EXC. IMMOBILIZER SYSTEM<7KC> 		8-97350-396-4 01 1 0610-1103 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EMISSION SYSTEM R15-04<K75> EXC. TACHOMETER<U16> 		8-98180-717-0 01 1 1104- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C42) EMISSION SYSTEM R15-04<K75> 		8-97350-394-3 01 1 0307-0609 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. HEATER & DEFROSTER(C42) EMISSION SYSTEM R15-04<K75> EXC. IMMOBILIZER SYSTEM<7KC> 		8-97350-394-3 01 1 0610-1103 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. HEATER & DEFROSTER(C42) EMISSION SYSTEM R15-04<K75> TACHOMETER<U16> 		8-97350-394-3 01 1 1104- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C42) EURO2 SPECIFICATION<NT2> 		8-97350-398-3 01 1 0307-0609 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. HEATER & DEFROSTER(C42) EURO2 SPECIFICATION<NT2> EXC. IMMOBILIZER SYSTEM<7KC> 		8-97350-398-3 01 1 0610-1103 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. HEATER & DEFROSTER(C42) EMISSION SYSTEM R15-04<K75> EXC. TACHOMETER<U16> 		8-98180-718-0 01 1 1104- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. 		8-97249-238-4 01 1 0307-0609 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. 		8-97326-739-3 01 1 0307-0609 ●
2 03.330 BOLT; INJ PUMP
01.540 M8X45 FLANGE 		0-28080-845-0 02 1 0307-0512 ●
2 03.330 BOLT; INJ PUMP
09.173 M8X45 FLANGE 		0-28050-845-0 02 1 0601-0609 ●
16 03.330 PIPE; INJ NO.1 8-97287-521-0 01 1 0307-0311 ●
16 03.330 PIPE; INJ NO.1 8-97373-733-0 01 1 0312- ●
16 03.330 PIPE; INJ NO.1 8-97300-013-4 01 1 0307-0609 ●
16 03.330 PIPE; INJ NO.1 8-98011-606-0 01 1 0610-0612 ● ● ● ●
16 03.330 PIPE; INJ NO.1 8-98011-606-0 01 1 0701-0912 ● ● ●
16 03.330 PIPE; INJ NO.1 8-98011-606-0 01 1 1001- ● ● ● ●
16 03.330 PIPE; INJ NO.1 8-97255-017-2 01 1 0307-0609 ●
17 03.330 PIPE; INJ NO.2 8-97287-522-0 01 1 0307-0307 ●
17 03.330 PIPE; INJ NO.2 8-97365-210-0 01 1 0307- ●
17 03.330 PIPE; INJ NO.2 8-97300-014-4 01 1 0307-0609 ●
17 03.330 PIPE; INJ NO.2 8-98043-684-0 01 1 0610-0612 ● ● ● ●
17 03.330 PIPE; INJ NO.2 8-98043-684-0 01 1 0701-0912 ● ● ●
17 03.330 PIPE; INJ NO.2 8-98043-684-0 01 1 1001- ● ● ● ●
17 03.330 PIPE; INJ NO.2 8-97255-018-2 01 1 0307-0609 ●
18 03.330 PIPE; INJ NO.3 8-97287-523-0 01 1 0307-0311 ●
18 03.330 PIPE; INJ NO.3 8-97373-734-0 01 1 0312- ●
18 03.330 PIPE; INJ NO.3 8-97300-015-4 01 1 0307-0609 ●
18 03.330 PIPE; INJ NO.3 8-98011-608-0 01 1 0610-0612 ● ● ● ●
18 03.330 PIPE; INJ NO.3 8-98011-608-0 01 1 0701-0912 ● ● ●
18 03.330 PIPE; INJ NO.3 8-98011-608-0 01 1 1001- ● ● ● ●
18 03.330 PIPE; INJ NO.3 8-97255-019-2 01 1 0307-0609 ●
19 03.330 PIPE; INJ NO.4 8-97287-524-0 01 1 0307-0311 ●
19 03.330 PIPE; INJ NO.4 8-97373-735-0 01 1 0312- ●
19 03.330 PIPE; INJ NO.4 8-97300-016-4 01 1 0307-0609 ●
19 03.330 PIPE; INJ NO.4 8-98011-609-0 01 1 0610-0612 ● ● ● ●
19 03.330 PIPE; INJ NO.4 8-98011-609-0 01 1 0701-0912 ● ● ●
19 03.330 PIPE; INJ NO.4 8-98011-609-0 01 1 1001- ● ● ● ●
19 03.330 PIPE; INJ NO.4 8-97255-020-2 01 1 0307-0609 ●
29 03.162 CLIP; HOSE
03.280 (C) ID=17.1 		8-94122-679-0 02 1 0307-0609 ●
29 03.162 CLIP; HOSE
EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> 03.280 (C) ID=17.1 		8-94122-679-0 02 1 0307-0609 ●
29 03.162 CLIP; HOSE
03.280 (C) ID=17.1 		8-94122-679-0 02 1 0610- ●
29 03.162 CLIP; HOSE
01.219 (A) ID=12 		8-94238-610-0 02 1 0307- ●
29 03.162 CLIP; HOSE
03.163 (B) ID=11 		8-97173-219-0 02 1 0307-0609 ● ● ●
29 03.162 CLIP; HOSE
03.163 (B) ID=11 		8-97173-219-0 02 1 0610- ●
29 03.162 CLIP; HOSE
(D) ID=10.5 		8-97944-126-0 10 1 0610-0611 ● ● ● ●
29 03.162 CLIP; HOSE
EXC. KENYA EQUIPMENT(CL1) (D) ID=10.5 		8-97944-126-0 10 1 0612-0612 ●
29 03.162 CLIP; HOSE
(D) ID=10.5 		8-97944-126-0 10 1 0612-0612 ● ● ●
29 03.162 CLIP; HOSE
EXC. KENYA EQUIPMENT(CL1) (D) ID=10.5 		8-97944-126-0 10 1 0701-0912 ●
29 03.162 CLIP; HOSE
(D) ID=10.5 		8-97944-126-0 10 1 0701-0912 ● ●
29 03.162 CLIP; HOSE
EXC. KENYA EQUIPMENT(CL1) (D) ID=10.5 		8-97944-126-0 10 1 1001- ●
29 03.162 CLIP; HOSE
(D) ID=10.5 		8-97944-126-0 10 1 1001- ● ● ●
29 03.162 CLIP; HOSE
03.374 (D) ID=10.5 		8-97019-473-0 10 1 0610-0611 ● ●
29 03.162 CLIP; HOSE
KENYA EQUIPMENT(CL1) 03.374 (D) ID=10.5 		8-97019-473-0 10 1 0612- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EXC. KENYA EQUIPMENT(CL1) (G) 		8-98112-034-0 01 1 0811-0912 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(G) 		8-98112-034-0 01 1 0811-0912 ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EXC. KENYA EQUIPMENT(CL1) (G) 		8-98112-034-0 01 1 1001- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(G) 		8-98112-034-0 01 1 1001- ● ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(B) L=110 SERVICED BY L=3000 		0-01256-300-0 01 1 0307- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(C) L=210 SERVICED BY L=3000 		0-01262-300-0 01 1 0307- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(A) L=320 		8-97364-773-0 01 1 0307-0609 ● ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(A) L=320 		8-97364-773-0 01 1 0610- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> (D) 		8-97352-907-0 01 1 0307-0609 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(E) L=130 		0-01804-130-0 01 1 0610-0611 ● ● ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
KENYA EQUIPMENT(CL1) (E) L=130 		0-01804-130-0 01 1 0612- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EXC. KENYA EQUIPMENT(CL1) (E) L=130 		8-98053-692-0 01 1 0612-0612 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(E) L=130 		8-98053-692-0 01 1 0612-0612 ● ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EXC. KENYA EQUIPMENT(CL1) (E) L=130 		8-98053-692-0 01 1 0701-0912 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(E) L=130 		8-98053-692-0 01 1 0701-0912 ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EXC. KENYA EQUIPMENT(CL1) (E) L=130 		8-98053-692-0 01 1 1001- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(E) L=130 		8-98053-692-0 01 1 1001- ● ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EXC. KENYA EQUIPMENT(CL1) (F) L=96 		8-98053-693-0 03 1 0612-0612 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(F) L=96 		8-98053-693-0 03 1 0612-0612 ● ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EXC. KENYA EQUIPMENT(CL1) (F) L=96 		8-98053-693-0 03 1 0701-0912 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(F) L=96 		8-98053-693-0 03 1 0701-0912 ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EXC. KENYA EQUIPMENT(CL1) (F) L=96 		8-98053-693-0 03 1 1001- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(F) L=96 		8-98053-693-0 03 1 1001- ● ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(F) L=98 		8-97354-652-0 03 1 0610-0611 ● ● ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
KENYA EQUIPMENT(CL1) (F) L=98 		8-97354-652-0 03 1 0612- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(G) L=150 		8-97362-306-2 01 1 0610-0612 ● ● ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(G) L=150 		8-97362-306-2 01 1 0701-0810 ● ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
KENYA EQUIPMENT(CL1) (G) L=150 		8-97362-306-2 01 1 0811- ●
31 03.332 NOZZLE ASM; INJ
COOLER WO/HEATER(C65) 		8-98055-862-0 04 1 0705- ● ●
31 03.332 NOZZLE ASM; INJ
COOLER WO/HEATER(C65) 		8-98055-863-0 04 1 1001- ●
31 03.332 NOZZLE ASM; INJ 8-97217-642-0 04 1 0307-0501 ●
31 03.332 NOZZLE ASM; INJ 8-97382-946-0 04 1 0502- ●
31 03.332 NOZZLE ASM; INJ 8-97300-942-1 04 1 0307-0501 ●
31 03.332 NOZZLE ASM; INJ 8-97382-947-0 04 1 0502-0609 ●
31 03.332 NOZZLE ASM; INJ 8-98011-605-0 04 1 0610-0612 ● ●
31 03.332 NOZZLE ASM; INJ 8-98011-605-1 04 1 0701-0709 ●
31 03.332 NOZZLE ASM; INJ
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98011-605-1 04 1 0710- ●
31 03.332 NOZZLE ASM; INJ 8-97306-020-1 04 1 0307-0501 ●
31 03.332 NOZZLE ASM; INJ 8-97382-948-0 04 1 0502-0609 ●
31 03.332 NOZZLE ASM; INJ 8-98011-604-0 04 1 0610-0704 ● ●
31 03.332 NOZZLE ASM; INJ
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98011-604-1 04 1 0705-0709 ● ● ●
31 03.332 NOZZLE ASM; INJ
KENYA EQUIPMENT(CL1) 		8-98011-604-4 04 1 0710- ●
31 03.332 NOZZLE ASM; INJ
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98011-604-1 04 1 0710- ● ●
34 03.330 BOLT; EYE,NOZZLE HOLDER
03.306 		8-94320-307-0 04 1 0307-0609 ● ● ●
34 03.330 BOLT; EYE,NOZZLE HOLDER
03.306 		8-94320-307-0 04 1 0610- ●
36 03.332 GASKET; RETURN PIPE,NOZZLE HOLDE 8-97357-685-0 08 1 0307-0402 ●
36 03.332 GASKET; RETURN PIPE,NOZZLE HOLDE 8-97084-347-0 08 1 0307-0402 ● ●
36 03.332 GASKET; RETURN PIPE,NOZZLE HOLDE 8-97084-347-0 08 1 0403-0501 ● ● ●
50 03.332 GASKET; NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97287-402-2 04 1 0307-0609 ● ● ●
50 03.332 GASKET; NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97287-402-2 04 1 0610- ●
59 03.332 CLAMP; NOZZLE HOLDER
EXC. KENYA EQUIPMENT(CL1) 		8-98092-539-0 04 1 0711-0801 ●
59 03.332 CLAMP; NOZZLE HOLDER 8-98092-539-0 04 1 0711-0801 ● ●
59 03.332 CLAMP; NOZZLE HOLDER 8-98092-539-0 04 1 0802-0912 ● ● ●
59 03.332 CLAMP; NOZZLE HOLDER 8-98092-539-0 04 1 1001- ● ● ● ●
59 03.332 CLAMP; NOZZLE HOLDER 8-97259-884-0 04 1 0307-0609 ● ● ●
59 03.332 CLAMP; NOZZLE HOLDER 8-97259-884-0 04 1 0610- ●
59 03.332 CLAMP; NOZZLE HOLDER 8-98011-528-2 04 1 0610-0612 ● ● ● ●
59 03.332 CLAMP; NOZZLE HOLDER 8-98011-528-2 04 1 0701-0710 ● ● ●
59 03.332 CLAMP; NOZZLE HOLDER
KENYA EQUIPMENT(CL1) 		8-98011-528-2 04 1 0711-0801 ●
61 03.332 BOLT; CLAMP NOZZLE HOLDER 8-94468-020-2 04 1 0307-0609 ● ● ●
61 03.332 BOLT; CLAMP NOZZLE HOLDER 8-94468-020-2 04 1 0610- ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF 8-94467-727-3 01 1 0307-0402 ● ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF 8-94467-727-3 01 1 0403-0609 ● ● ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF 8-94467-727-3 01 1 0610- ●
66 03.332 GASKET; INJ NOZZLE
EXC. KENYA EQUIPMENT(CL1) ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-98181-540-0 04 1 1101-1103 ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-98181-540-0 04 1 1101-1103 ● ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-98181-540-0 04 1 1104- ● ● ● ●
66 03.332 GASKET; INJ NOZZLE
ID=7.2 OD=15.0 T=6.6 ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-97171-331-0 04 1 0307-0609 ● ● ●
66 03.332 GASKET; INJ NOZZLE
ID=7.2 OD=15.0 T=6.6 ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-97171-331-0 04 1 0610- ●
66 03.332 GASKET; INJ NOZZLE
EXC. KENYA EQUIPMENT(CL1) 		8-98077-165-0 04 1 0702-0702 ●
66 03.332 GASKET; INJ NOZZLE 8-98077-165-0 04 1 0702-0702 ● ●
66 03.332 GASKET; INJ NOZZLE 8-98077-165-0 04 1 0703-0912 ● ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-98077-165-0 04 1 1001-1012 ● ● ● ●
66 03.332 GASKET; INJ NOZZLE
KENYA EQUIPMENT(CL1) ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-98077-165-0 04 1 1101-1103 ●
66 03.332 GASKET; INJ NOZZLE 8-98057-731-0 04 1 0610-0612 ● ● ● ●
66 03.332 GASKET; INJ NOZZLE 8-98057-731-0 04 1 0701-0701 ● ● ●
66 03.332 GASKET; INJ NOZZLE
KENYA EQUIPMENT(CL1) 		8-98057-731-0 04 1 0702-0702 ●
68 03.162 CLIP; INJ PIPE
(A) 		1-09701-132-1 04 1 0307-0609 ● ● ●
68 03.162 CLIP; INJ PIPE
(A) 		1-09701-132-1 04 1 0610- ●
68 03.162 CLIP; INJ PIPE
(B) 		8-97224-041-1 01 1 0307-0609 ● ● ●
68 03.162 CLIP; INJ PIPE
(B) 		8-97224-041-1 01 1 0610- ●
68 03.162 CLIP; INJ PIPE
(C) 		8-97213-481-0 04 1 0610-0612 ● ● ● ●
68 03.162 CLIP; INJ PIPE
(C) 		8-97213-481-0 04 1 0701-0912 ● ● ●
68 03.162 CLIP; INJ PIPE
(C) 		8-97213-481-0 04 1 1001- ● ● ● ●
71 03.162 BOLT; BRKT
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 0307-0512 ● ●
71 03.162 BOLT; BRKT
02.343 M8X16 FLANGE 		0-28050-816-0 01 1 0601-0609 ● ●
78 03.330 BOLT; BRKT TO C/BL
02.664 M8X20 FLANGE 		0-28680-820-0 02 1 0307-0512 ● ●
78 03.330 BOLT; BRKT TO C/BL
01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0601-0609 ● ●
78 03.330 BOLT; BRKT TO C/BL
01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0610- ●
78 03.330 BOLT; BRKT TO C/BL
02.664 M8X20 FLANGE 		0-28680-820-0 03 1 0307-0512 ●
78 03.330 BOLT; BRKT TO C/BL
01.531 M8X20 FLANGE 		0-28650-820-0 03 1 0601-0609 ●
78 03.330 BOLT; BRKT TO C/BL
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0307-0311 ●
78 03.330 BOLT; BRKT TO C/BL
EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0312-0512 ●
78 03.330 BOLT; BRKT TO C/BL
EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0601-0609 ●
78 03.330 BOLT; BRKT TO C/BL
EURO3 SPECIFICATION<NT3> 02.664 M8X20 FLANGE 		0-28680-820-0 01 1 0312-0512 ●
78 03.330 BOLT; BRKT TO C/BL
EURO3 SPECIFICATION<NT3> 01.531 M8X20 FLANGE 		0-28650-820-0 01 1 0601-0609 ●
80 03.306 BRACKET; PUMP
(B) 		8-97942-899-0 01 1 0307-0406 ●
80 03.306 BRACKET; PUMP
(B) 		8-97368-671-0 01 1 0407- ●
80 03.306 BRACKET; PUMP
(A) 		8-97942-900-0 01 1 0307-0410 ●
80 03.306 BRACKET; PUMP
(A) 		8-97368-670-0 01 1 0411- ●
80 03.306 BRACKET; PUMP
(C) 		8-97328-484-0 01 1 0307-0609 ●
80 03.306 BRACKET; PUMP
(D) 		8-97287-698-3 01 1 0307-0609 ●
93 03.162 GASKET; LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENGINE) . 		8-97375-236-0 04 1 0403-0609 ● ● ●
93 03.162 GASKET; LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENGINE) . 		8-97375-236-0 04 1 0610- ●
110 03.330 NUT; CLIP
04.594 M6 FLANGE 		0-91150-106-0 02 1 0307-0602 ● ● ●
110 03.330 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 02 1 0603-0609 ● ● ●
110 03.330 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 02 1 0610-0612 ● ● ● ● ●
110 03.330 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 02 1 0701-0912 ● ● ● ●
110 03.330 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 02 1 1001- ● ● ● ● ●
120 03.330 BRACKET; INJ PIPE
(C) 		8-97255-534-0 01 1 0307-0609 ●
120 03.330 BRACKET; INJ PIPE
(D) 		8-97310-508-0 01 1 0307-0609 ●
120 03.330 BRACKET; INJ PIPE
(A) 		8-97313-942-1 01 1 0307-0609 ●
120 03.330 BRACKET; INJ PIPE
(B) 		8-97313-943-1 01 1 0307-0609 ●
236 03.335 BOLT; COVER
01.540 (E) M10X20 FLANGE 		0-28181-020-0 01 1 0307-0512 ●
236 03.335 BOLT; COVER
03.417 (E) M10X20 FLANGE 		0-28151-020-0 01 1 0601-0609 ●
236 03.335 BOLT; COVER
16.716 (F) M8X25 		8-94493-360-1 01 1 0307-0609 ●
236 03.335 BOLT; COVER
00.206 (C) M8X10 FLANGE 		0-28080-810-0 02 1 0307-0512 ●
236 03.335 BOLT; COVER
03.407 (C) M8X10 FLANGE 		0-28050-810-0 02 1 0601-0609 ●
236 03.335 BOLT; COVER
09.171 (A) M10X45 FLANGE 		0-28181-045-0 01 1 0307-0512 ●
236 03.335 BOLT; COVER
09.181 (A) M10X45 FLANGE 		0-28151-045-0 01 1 0601-0609 ●
236 03.335 BOLT; COVER
08.900 (B) M10X50 FLANGE 		0-28181-050-0 02 1 0307-0512 ●
236 03.335 BOLT; COVER
02.042 (B) M10X50 FLANGE 		0-28151-050-0 02 1 0601-0609 ●
236 03.335 BOLT; COVER
02.664 (D) M8X20 FLANGE 		0-28680-820-0 01 1 0307-0512 ●
236 03.335 BOLT; COVER
01.531 (D) M8X20 FLANGE 		0-28650-820-0 01 1 0601-0609 ●
275 03.335 COVER; INJ PUMP
(C) 		8-97329-015-1 01 1 0307-0609 ●
275 03.335 COVER; INJ PUMP
(A) 		8-97329-014-0 01 1 0307-0609 ●
275 03.335 COVER; INJ PUMP
(B) 		8-97329-016-0 01 1 0307-0609 ●

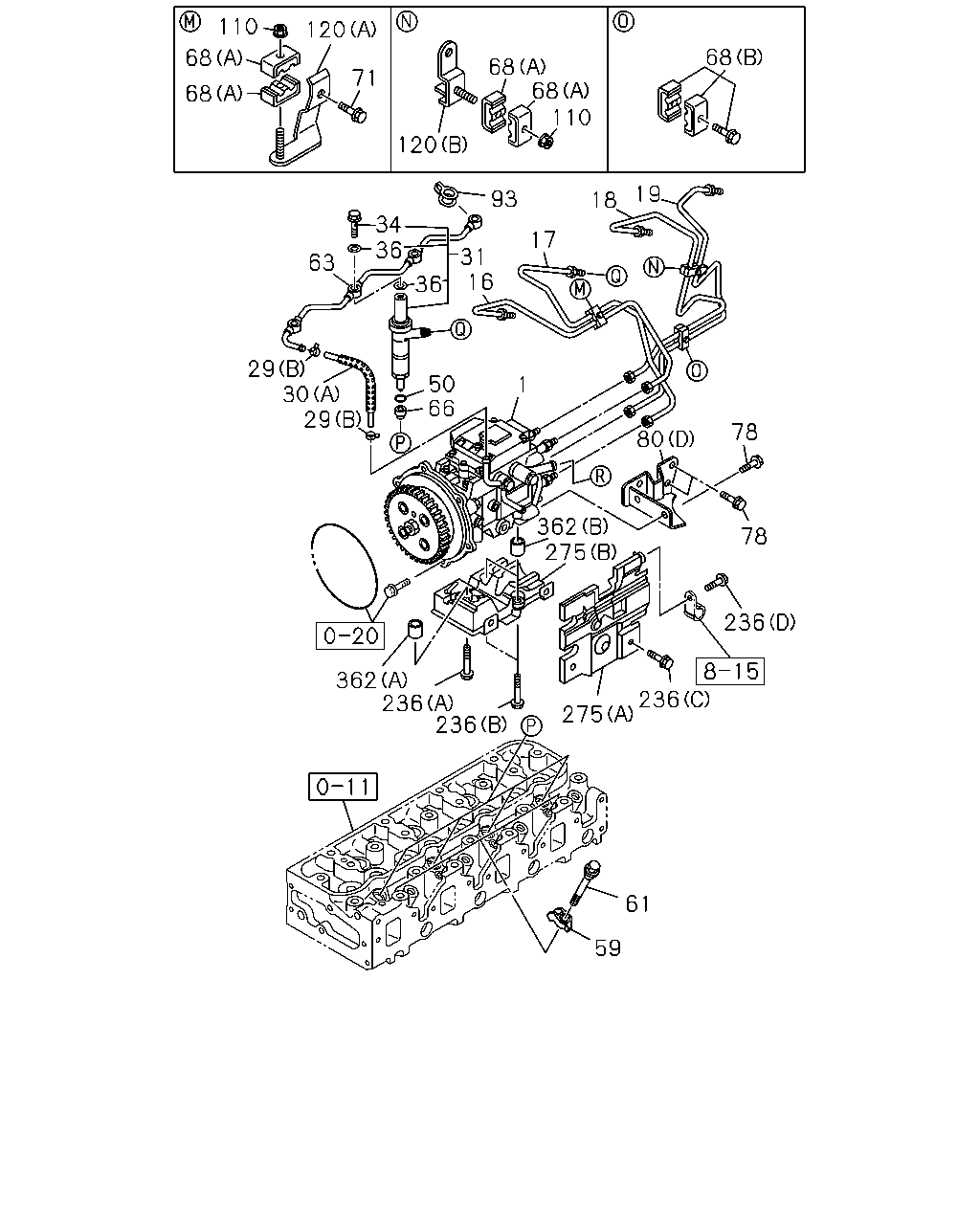

çizim 12621
110 120 68 68 68 68 110 71 68 120 19 93 18 34 36 63 17 31 16 36 29 30 29 50 66 1 80 78 362 275 78 236 236 362 236 236 275 61 59
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EMISSION SYSTEM R15-04<K75> 		8-97350-393-4 01 1 0307-1103 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EMISSION SYSTEM R15-04<K75> TACHOMETER<U16> 		8-97350-393-4 01 1 1104- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EURO2 SPECIFICATION<NT2> 		8-97350-396-3 01 1 0307-0609 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EURO2 SPECIFICATION<NT2> EXC. IMMOBILIZER SYSTEM<7KC> 		8-97350-396-4 01 1 0610-1103 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EMISSION SYSTEM R15-04<K75> EXC. TACHOMETER<U16> 		8-98180-717-0 01 1 1104- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C42) EMISSION SYSTEM R15-04<K75> 		8-97350-394-3 01 1 0307-0609 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. HEATER & DEFROSTER(C42) EMISSION SYSTEM R15-04<K75> EXC. IMMOBILIZER SYSTEM<7KC> 		8-97350-394-3 01 1 0610-1103 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. HEATER & DEFROSTER(C42) EMISSION SYSTEM R15-04<K75> TACHOMETER<U16> 		8-97350-394-3 01 1 1104- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C42) EURO2 SPECIFICATION<NT2> 		8-97350-398-3 01 1 0307-0609 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. HEATER & DEFROSTER(C42) EURO2 SPECIFICATION<NT2> EXC. IMMOBILIZER SYSTEM<7KC> 		8-97350-398-3 01 1 0610-1103 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. HEATER & DEFROSTER(C42) EMISSION SYSTEM R15-04<K75> EXC. TACHOMETER<U16> 		8-98180-718-0 01 1 1104- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. 		8-97249-238-4 01 1 0307-0609 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. 		8-97326-739-3 01 1 0307-0609 ●
16 03.330 PIPE; INJ NO.1 8-97287-521-0 01 1 0307-0311 ●
16 03.330 PIPE; INJ NO.1 8-97373-733-0 01 1 0312- ●
16 03.330 PIPE; INJ NO.1 8-97300-013-4 01 1 0307-0609 ●
16 03.330 PIPE; INJ NO.1 8-98011-606-0 01 1 0610-0612 ● ● ● ●
16 03.330 PIPE; INJ NO.1 8-98011-606-0 01 1 0701-0912 ● ● ●
16 03.330 PIPE; INJ NO.1 8-98011-606-0 01 1 1001- ● ● ● ●
16 03.330 PIPE; INJ NO.1 8-97255-017-2 01 1 0307-0609 ●
17 03.330 PIPE; INJ NO.2 8-97287-522-0 01 1 0307-0307 ●
17 03.330 PIPE; INJ NO.2 8-97365-210-0 01 1 0307- ●
17 03.330 PIPE; INJ NO.2 8-97300-014-4 01 1 0307-0609 ●
17 03.330 PIPE; INJ NO.2 8-98043-684-0 01 1 0610-0612 ● ● ● ●
17 03.330 PIPE; INJ NO.2 8-98043-684-0 01 1 0701-0912 ● ● ●
17 03.330 PIPE; INJ NO.2 8-98043-684-0 01 1 1001- ● ● ● ●
17 03.330 PIPE; INJ NO.2 8-97255-018-2 01 1 0307-0609 ●
18 03.330 PIPE; INJ NO.3 8-97287-523-0 01 1 0307-0311 ●
18 03.330 PIPE; INJ NO.3 8-97373-734-0 01 1 0312- ●
18 03.330 PIPE; INJ NO.3 8-97300-015-4 01 1 0307-0609 ●
18 03.330 PIPE; INJ NO.3 8-98011-608-0 01 1 0610-0612 ● ● ● ●
18 03.330 PIPE; INJ NO.3 8-98011-608-0 01 1 0701-0912 ● ● ●
18 03.330 PIPE; INJ NO.3 8-98011-608-0 01 1 1001- ● ● ● ●
18 03.330 PIPE; INJ NO.3 8-97255-019-2 01 1 0307-0609 ●
19 03.330 PIPE; INJ NO.4 8-97287-524-0 01 1 0307-0311 ●
19 03.330 PIPE; INJ NO.4 8-97373-735-0 01 1 0312- ●
19 03.330 PIPE; INJ NO.4 8-97300-016-4 01 1 0307-0609 ●
19 03.330 PIPE; INJ NO.4 8-98011-609-0 01 1 0610-0612 ● ● ● ●
19 03.330 PIPE; INJ NO.4 8-98011-609-0 01 1 0701-0912 ● ● ●
19 03.330 PIPE; INJ NO.4 8-98011-609-0 01 1 1001- ● ● ● ●
19 03.330 PIPE; INJ NO.4 8-97255-020-2 01 1 0307-0609 ●
29 03.162 CLIP; HOSE
03.280 (C) ID=17.1 		8-94122-679-0 02 1 0307-0609 ●
29 03.162 CLIP; HOSE
EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> 03.280 (C) ID=17.1 		8-94122-679-0 02 1 0307-0609 ●
29 03.162 CLIP; HOSE
03.280 (C) ID=17.1 		8-94122-679-0 02 1 0610- ●
29 03.162 CLIP; HOSE
01.219 (A) ID=12 		8-94238-610-0 02 1 0307- ●
29 03.162 CLIP; HOSE
03.163 (B) ID=11 		8-97173-219-0 02 1 0307-0609 ● ● ●
29 03.162 CLIP; HOSE
03.163 (B) ID=11 		8-97173-219-0 02 1 0610- ●
29 03.162 CLIP; HOSE
(D) ID=10.5 		8-97944-126-0 10 1 0610-0611 ● ● ● ●
29 03.162 CLIP; HOSE
EXC. KENYA EQUIPMENT(CL1) (D) ID=10.5 		8-97944-126-0 10 1 0612-0612 ●
29 03.162 CLIP; HOSE
(D) ID=10.5 		8-97944-126-0 10 1 0612-0612 ● ● ●
29 03.162 CLIP; HOSE
EXC. KENYA EQUIPMENT(CL1) (D) ID=10.5 		8-97944-126-0 10 1 0701-0912 ●
29 03.162 CLIP; HOSE
(D) ID=10.5 		8-97944-126-0 10 1 0701-0912 ● ●
29 03.162 CLIP; HOSE
EXC. KENYA EQUIPMENT(CL1) (D) ID=10.5 		8-97944-126-0 10 1 1001- ●
29 03.162 CLIP; HOSE
(D) ID=10.5 		8-97944-126-0 10 1 1001- ● ● ●
29 03.162 CLIP; HOSE
03.374 (D) ID=10.5 		8-97019-473-0 10 1 0610-0611 ● ●
29 03.162 CLIP; HOSE
KENYA EQUIPMENT(CL1) 03.374 (D) ID=10.5 		8-97019-473-0 10 1 0612- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EXC. KENYA EQUIPMENT(CL1) (G) 		8-98112-034-0 01 1 0811-0912 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(G) 		8-98112-034-0 01 1 0811-0912 ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EXC. KENYA EQUIPMENT(CL1) (G) 		8-98112-034-0 01 1 1001- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(G) 		8-98112-034-0 01 1 1001- ● ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(B) L=110 SERVICED BY L=3000 		0-01256-300-0 01 1 0307- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(C) L=210 SERVICED BY L=3000 		0-01262-300-0 01 1 0307- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(A) L=320 		8-97364-773-0 01 1 0307-0609 ● ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(A) L=320 		8-97364-773-0 01 1 0610- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> (D) 		8-97352-907-0 01 1 0307-0609 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(E) L=130 		0-01804-130-0 01 1 0610-0611 ● ● ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
KENYA EQUIPMENT(CL1) (E) L=130 		0-01804-130-0 01 1 0612- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EXC. KENYA EQUIPMENT(CL1) (E) L=130 		8-98053-692-0 01 1 0612-0612 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(E) L=130 		8-98053-692-0 01 1 0612-0612 ● ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EXC. KENYA EQUIPMENT(CL1) (E) L=130 		8-98053-692-0 01 1 0701-0912 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(E) L=130 		8-98053-692-0 01 1 0701-0912 ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EXC. KENYA EQUIPMENT(CL1) (E) L=130 		8-98053-692-0 01 1 1001- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(E) L=130 		8-98053-692-0 01 1 1001- ● ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EXC. KENYA EQUIPMENT(CL1) (F) L=96 		8-98053-693-0 03 1 0612-0612 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(F) L=96 		8-98053-693-0 03 1 0612-0612 ● ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EXC. KENYA EQUIPMENT(CL1) (F) L=96 		8-98053-693-0 03 1 0701-0912 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(F) L=96 		8-98053-693-0 03 1 0701-0912 ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EXC. KENYA EQUIPMENT(CL1) (F) L=96 		8-98053-693-0 03 1 1001- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(F) L=96 		8-98053-693-0 03 1 1001- ● ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(F) L=98 		8-97354-652-0 03 1 0610-0611 ● ● ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
KENYA EQUIPMENT(CL1) (F) L=98 		8-97354-652-0 03 1 0612- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(G) L=150 		8-97362-306-2 01 1 0610-0612 ● ● ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(G) L=150 		8-97362-306-2 01 1 0701-0810 ● ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
KENYA EQUIPMENT(CL1) (G) L=150 		8-97362-306-2 01 1 0811- ●
31 03.332 NOZZLE ASM; INJ
COOLER WO/HEATER(C65) 		8-98055-862-0 04 1 0705- ● ●
31 03.332 NOZZLE ASM; INJ
COOLER WO/HEATER(C65) 		8-98055-863-0 04 1 1001- ●
31 03.332 NOZZLE ASM; INJ 8-97217-642-0 04 1 0307-0501 ●
31 03.332 NOZZLE ASM; INJ 8-97382-946-0 04 1 0502- ●
31 03.332 NOZZLE ASM; INJ 8-97300-942-1 04 1 0307-0501 ●
31 03.332 NOZZLE ASM; INJ 8-97382-947-0 04 1 0502-0609 ●
31 03.332 NOZZLE ASM; INJ 8-98011-605-0 04 1 0610-0612 ● ●
31 03.332 NOZZLE ASM; INJ 8-98011-605-1 04 1 0701-0709 ●
31 03.332 NOZZLE ASM; INJ
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98011-605-1 04 1 0710- ●
31 03.332 NOZZLE ASM; INJ 8-97306-020-1 04 1 0307-0501 ●
31 03.332 NOZZLE ASM; INJ 8-97382-948-0 04 1 0502-0609 ●
31 03.332 NOZZLE ASM; INJ 8-98011-604-0 04 1 0610-0704 ● ●
31 03.332 NOZZLE ASM; INJ
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98011-604-1 04 1 0705-0709 ● ● ●
31 03.332 NOZZLE ASM; INJ
KENYA EQUIPMENT(CL1) 		8-98011-604-4 04 1 0710- ●
31 03.332 NOZZLE ASM; INJ
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98011-604-1 04 1 0710- ● ●
34 03.330 BOLT; EYE,NOZZLE HOLDER
03.306 		8-94320-307-0 04 1 0307-0609 ● ● ●
34 03.330 BOLT; EYE,NOZZLE HOLDER
03.306 		8-94320-307-0 04 1 0610- ●
36 03.332 GASKET; RETURN PIPE,NOZZLE HOLDE 8-97357-685-0 08 1 0307-0402 ●
36 03.332 GASKET; RETURN PIPE,NOZZLE HOLDE 8-97084-347-0 08 1 0307-0402 ● ●
36 03.332 GASKET; RETURN PIPE,NOZZLE HOLDE 8-97084-347-0 08 1 0403-0501 ● ● ●
50 03.332 GASKET; NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97287-402-2 04 1 0307-0609 ● ● ●
50 03.332 GASKET; NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97287-402-2 04 1 0610- ●
59 03.332 CLAMP; NOZZLE HOLDER
EXC. KENYA EQUIPMENT(CL1) 		8-98092-539-0 04 1 0711-0801 ●
59 03.332 CLAMP; NOZZLE HOLDER 8-98092-539-0 04 1 0711-0801 ● ●
59 03.332 CLAMP; NOZZLE HOLDER 8-98092-539-0 04 1 0802-0912 ● ● ●
59 03.332 CLAMP; NOZZLE HOLDER 8-98092-539-0 04 1 1001- ● ● ● ●
59 03.332 CLAMP; NOZZLE HOLDER 8-97259-884-0 04 1 0307-0609 ● ● ●
59 03.332 CLAMP; NOZZLE HOLDER 8-97259-884-0 04 1 0610- ●
59 03.332 CLAMP; NOZZLE HOLDER 8-98011-528-2 04 1 0610-0612 ● ● ● ●
59 03.332 CLAMP; NOZZLE HOLDER 8-98011-528-2 04 1 0701-0710 ● ● ●
59 03.332 CLAMP; NOZZLE HOLDER
KENYA EQUIPMENT(CL1) 		8-98011-528-2 04 1 0711-0801 ●
61 03.332 BOLT; CLAMP NOZZLE HOLDER 8-94468-020-2 04 1 0307-0609 ● ● ●
61 03.332 BOLT; CLAMP NOZZLE HOLDER 8-94468-020-2 04 1 0610- ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF 8-94467-727-3 01 1 0307-0402 ● ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF 8-94467-727-3 01 1 0403-0609 ● ● ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF 8-94467-727-3 01 1 0610- ●
66 03.332 GASKET; INJ NOZZLE
EXC. KENYA EQUIPMENT(CL1) ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-98181-540-0 04 1 1101-1103 ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-98181-540-0 04 1 1101-1103 ● ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-98181-540-0 04 1 1104- ● ● ● ●
66 03.332 GASKET; INJ NOZZLE
ID=7.2 OD=15.0 T=6.6 ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-97171-331-0 04 1 0307-0609 ● ● ●
66 03.332 GASKET; INJ NOZZLE
ID=7.2 OD=15.0 T=6.6 ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-97171-331-0 04 1 0610- ●
66 03.332 GASKET; INJ NOZZLE
EXC. KENYA EQUIPMENT(CL1) 		8-98077-165-0 04 1 0702-0702 ●
66 03.332 GASKET; INJ NOZZLE 8-98077-165-0 04 1 0702-0702 ● ●
66 03.332 GASKET; INJ NOZZLE 8-98077-165-0 04 1 0703-0912 ● ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-98077-165-0 04 1 1001-1012 ● ● ● ●
66 03.332 GASKET; INJ NOZZLE
KENYA EQUIPMENT(CL1) ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-98077-165-0 04 1 1101-1103 ●
66 03.332 GASKET; INJ NOZZLE 8-98057-731-0 04 1 0610-0612 ● ● ● ●
66 03.332 GASKET; INJ NOZZLE 8-98057-731-0 04 1 0701-0701 ● ● ●
66 03.332 GASKET; INJ NOZZLE
KENYA EQUIPMENT(CL1) 		8-98057-731-0 04 1 0702-0702 ●
68 03.162 CLIP; INJ PIPE
(A) 		1-09701-132-1 04 1 0307-0609 ● ● ●
68 03.162 CLIP; INJ PIPE
(A) 		1-09701-132-1 04 1 0610- ●
68 03.162 CLIP; INJ PIPE
(B) 		8-97224-041-1 01 1 0307-0609 ● ● ●
68 03.162 CLIP; INJ PIPE
(B) 		8-97224-041-1 01 1 0610- ●
68 03.162 CLIP; INJ PIPE
(C) 		8-97213-481-0 04 1 0610-0612 ● ● ● ●
68 03.162 CLIP; INJ PIPE
(C) 		8-97213-481-0 04 1 0701-0912 ● ● ●
68 03.162 CLIP; INJ PIPE
(C) 		8-97213-481-0 04 1 1001- ● ● ● ●
71 03.162 BOLT; BRKT
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 0307-0512 ● ●
71 03.162 BOLT; BRKT
02.343 M8X16 FLANGE 		0-28050-816-0 01 1 0601-0609 ● ●
78 03.330 BOLT; BRKT TO C/BL
02.664 M8X20 FLANGE 		0-28680-820-0 02 1 0307-0512 ● ●
78 03.330 BOLT; BRKT TO C/BL
01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0601-0609 ● ●
78 03.330 BOLT; BRKT TO C/BL
01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0610- ●
78 03.330 BOLT; BRKT TO C/BL
02.664 M8X20 FLANGE 		0-28680-820-0 03 1 0307-0512 ●
78 03.330 BOLT; BRKT TO C/BL
01.531 M8X20 FLANGE 		0-28650-820-0 03 1 0601-0609 ●
78 03.330 BOLT; BRKT TO C/BL
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0307-0311 ●
78 03.330 BOLT; BRKT TO C/BL
EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0312-0512 ●
78 03.330 BOLT; BRKT TO C/BL
EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0601-0609 ●
78 03.330 BOLT; BRKT TO C/BL
EURO3 SPECIFICATION<NT3> 02.664 M8X20 FLANGE 		0-28680-820-0 01 1 0312-0512 ●
78 03.330 BOLT; BRKT TO C/BL
EURO3 SPECIFICATION<NT3> 01.531 M8X20 FLANGE 		0-28650-820-0 01 1 0601-0609 ●
80 03.306 BRACKET; PUMP
(B) 		8-97942-899-0 01 1 0307-0406 ●
80 03.306 BRACKET; PUMP
(B) 		8-97368-671-0 01 1 0407- ●
80 03.306 BRACKET; PUMP
(A) 		8-97942-900-0 01 1 0307-0410 ●
80 03.306 BRACKET; PUMP
(A) 		8-97368-670-0 01 1 0411- ●
80 03.306 BRACKET; PUMP
(C) 		8-97328-484-0 01 1 0307-0609 ●
80 03.306 BRACKET; PUMP
(D) 		8-97287-698-3 01 1 0307-0609 ●
93 03.162 GASKET; LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENGINE) . 		8-97375-236-0 04 1 0403-0609 ● ● ●
93 03.162 GASKET; LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENGINE) . 		8-97375-236-0 04 1 0610- ●
110 03.330 NUT; CLIP
04.594 M6 FLANGE 		0-91150-106-0 02 1 0307-0602 ● ● ●
110 03.330 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 02 1 0603-0609 ● ● ●
110 03.330 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 02 1 0610-0612 ● ● ● ● ●
110 03.330 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 02 1 0701-0912 ● ● ● ●
110 03.330 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 02 1 1001- ● ● ● ● ●
120 03.330 BRACKET; INJ PIPE
(C) 		8-97255-534-0 01 1 0307-0609 ●
120 03.330 BRACKET; INJ PIPE
(D) 		8-97310-508-0 01 1 0307-0609 ●
120 03.330 BRACKET; INJ PIPE
(A) 		8-97313-942-1 01 1 0307-0609 ●
120 03.330 BRACKET; INJ PIPE
(B) 		8-97313-943-1 01 1 0307-0609 ●
236 03.335 BOLT; COVER
01.540 (E) M10X20 FLANGE 		0-28181-020-0 01 1 0307-0512 ●
236 03.335 BOLT; COVER
03.417 (E) M10X20 FLANGE 		0-28151-020-0 01 1 0601-0609 ●
236 03.335 BOLT; COVER
16.716 (F) M8X25 		8-94493-360-1 01 1 0307-0609 ●
236 03.335 BOLT; COVER
00.206 (C) M8X10 FLANGE 		0-28080-810-0 02 1 0307-0512 ●
236 03.335 BOLT; COVER
03.407 (C) M8X10 FLANGE 		0-28050-810-0 02 1 0601-0609 ●
236 03.335 BOLT; COVER
09.171 (A) M10X45 FLANGE 		0-28181-045-0 01 1 0307-0512 ●
236 03.335 BOLT; COVER
09.181 (A) M10X45 FLANGE 		0-28151-045-0 01 1 0601-0609 ●
236 03.335 BOLT; COVER
08.900 (B) M10X50 FLANGE 		0-28181-050-0 02 1 0307-0512 ●
236 03.335 BOLT; COVER
02.042 (B) M10X50 FLANGE 		0-28151-050-0 02 1 0601-0609 ●
236 03.335 BOLT; COVER
02.664 (D) M8X20 FLANGE 		0-28680-820-0 01 1 0307-0512 ●
236 03.335 BOLT; COVER
01.531 (D) M8X20 FLANGE 		0-28650-820-0 01 1 0601-0609 ●
275 03.335 COVER; INJ PUMP
(C) 		8-97329-015-1 01 1 0307-0609 ●
275 03.335 COVER; INJ PUMP
(A) 		8-97329-014-0 01 1 0307-0609 ●
275 03.335 COVER; INJ PUMP
(B) 		8-97329-016-0 01 1 0307-0609 ●
362 03.330 PIPE; GUIDE
(A) 		8-97287-007-0 01 1 0307-0609 ●
362 03.330 PIPE; GUIDE
(B) 		8-97287-008-0 02 1 0307-0609 ●

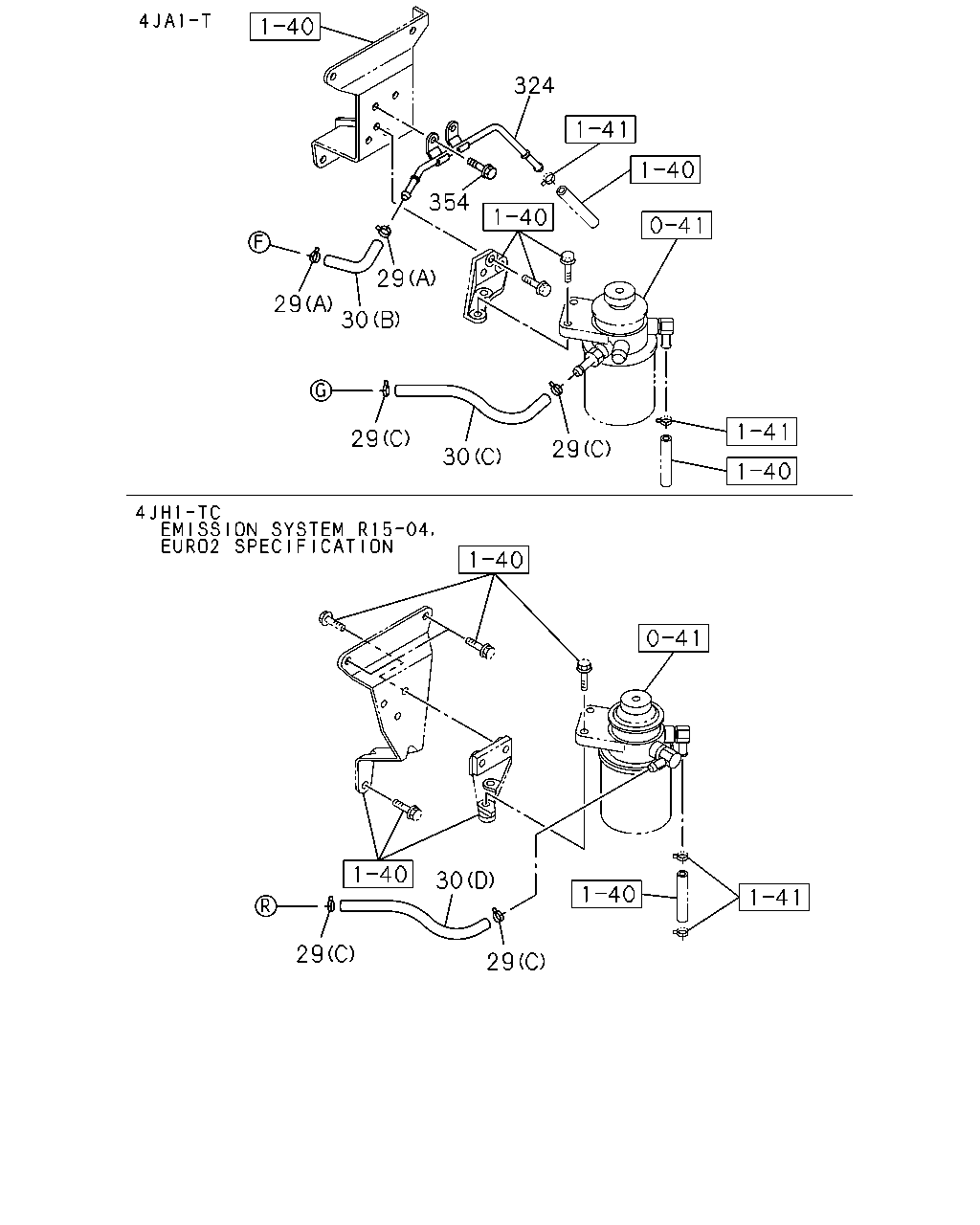

çizim 13487
324 354 29 29 30 29 29 30 30 29 29
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
29 03.162 CLIP; HOSE
03.280 (C) ID=17.1 		8-94122-679-0 02 1 0307-0609 ●
29 03.162 CLIP; HOSE
EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> 03.280 (C) ID=17.1 		8-94122-679-0 02 1 0307-0609 ●
29 03.162 CLIP; HOSE
03.280 (C) ID=17.1 		8-94122-679-0 02 1 0610- ●
29 03.162 CLIP; HOSE
01.219 (A) ID=12 		8-94238-610-0 02 1 0307- ●
29 03.162 CLIP; HOSE
03.163 (B) ID=11 		8-97173-219-0 02 1 0307-0609 ● ● ●
29 03.162 CLIP; HOSE
03.163 (B) ID=11 		8-97173-219-0 02 1 0610- ●
29 03.162 CLIP; HOSE
(D) ID=10.5 		8-97944-126-0 10 1 0610-0611 ● ● ● ●
29 03.162 CLIP; HOSE
EXC. KENYA EQUIPMENT(CL1) (D) ID=10.5 		8-97944-126-0 10 1 0612-0612 ●
29 03.162 CLIP; HOSE
(D) ID=10.5 		8-97944-126-0 10 1 0612-0612 ● ● ●
29 03.162 CLIP; HOSE
EXC. KENYA EQUIPMENT(CL1) (D) ID=10.5 		8-97944-126-0 10 1 0701-0912 ●
29 03.162 CLIP; HOSE
(D) ID=10.5 		8-97944-126-0 10 1 0701-0912 ● ●
29 03.162 CLIP; HOSE
EXC. KENYA EQUIPMENT(CL1) (D) ID=10.5 		8-97944-126-0 10 1 1001- ●
29 03.162 CLIP; HOSE
(D) ID=10.5 		8-97944-126-0 10 1 1001- ● ● ●
29 03.162 CLIP; HOSE
03.374 (D) ID=10.5 		8-97019-473-0 10 1 0610-0611 ● ●
29 03.162 CLIP; HOSE
KENYA EQUIPMENT(CL1) 03.374 (D) ID=10.5 		8-97019-473-0 10 1 0612- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EXC. KENYA EQUIPMENT(CL1) (G) 		8-98112-034-0 01 1 0811-0912 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(G) 		8-98112-034-0 01 1 0811-0912 ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EXC. KENYA EQUIPMENT(CL1) (G) 		8-98112-034-0 01 1 1001- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(G) 		8-98112-034-0 01 1 1001- ● ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(B) L=110 SERVICED BY L=3000 		0-01256-300-0 01 1 0307- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(C) L=210 SERVICED BY L=3000 		0-01262-300-0 01 1 0307- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(A) L=320 		8-97364-773-0 01 1 0307-0609 ● ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(A) L=320 		8-97364-773-0 01 1 0610- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> (D) 		8-97352-907-0 01 1 0307-0609 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(E) L=130 		0-01804-130-0 01 1 0610-0611 ● ● ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
KENYA EQUIPMENT(CL1) (E) L=130 		0-01804-130-0 01 1 0612- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EXC. KENYA EQUIPMENT(CL1) (E) L=130 		8-98053-692-0 01 1 0612-0612 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(E) L=130 		8-98053-692-0 01 1 0612-0612 ● ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EXC. KENYA EQUIPMENT(CL1) (E) L=130 		8-98053-692-0 01 1 0701-0912 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(E) L=130 		8-98053-692-0 01 1 0701-0912 ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EXC. KENYA EQUIPMENT(CL1) (E) L=130 		8-98053-692-0 01 1 1001- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(E) L=130 		8-98053-692-0 01 1 1001- ● ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EXC. KENYA EQUIPMENT(CL1) (F) L=96 		8-98053-693-0 03 1 0612-0612 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(F) L=96 		8-98053-693-0 03 1 0612-0612 ● ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EXC. KENYA EQUIPMENT(CL1) (F) L=96 		8-98053-693-0 03 1 0701-0912 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(F) L=96 		8-98053-693-0 03 1 0701-0912 ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EXC. KENYA EQUIPMENT(CL1) (F) L=96 		8-98053-693-0 03 1 1001- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(F) L=96 		8-98053-693-0 03 1 1001- ● ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(F) L=98 		8-97354-652-0 03 1 0610-0611 ● ● ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
KENYA EQUIPMENT(CL1) (F) L=98 		8-97354-652-0 03 1 0612- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(G) L=150 		8-97362-306-2 01 1 0610-0612 ● ● ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(G) L=150 		8-97362-306-2 01 1 0701-0810 ● ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
KENYA EQUIPMENT(CL1) (G) L=150 		8-97362-306-2 01 1 0811- ●
324 03.330 PIPE; FUEL RETURN 8-97287-516-4 01 1 0307- ●
354 03.163 BOLT; FUEL PIPE
04.439 M6X16 FLANGE 		0-28680-616-0 02 1 0307-0512 ●
354 03.163 BOLT; FUEL PIPE
02.343 M6X16 FLANGE 		0-28650-616-0 02 1 0601- ●

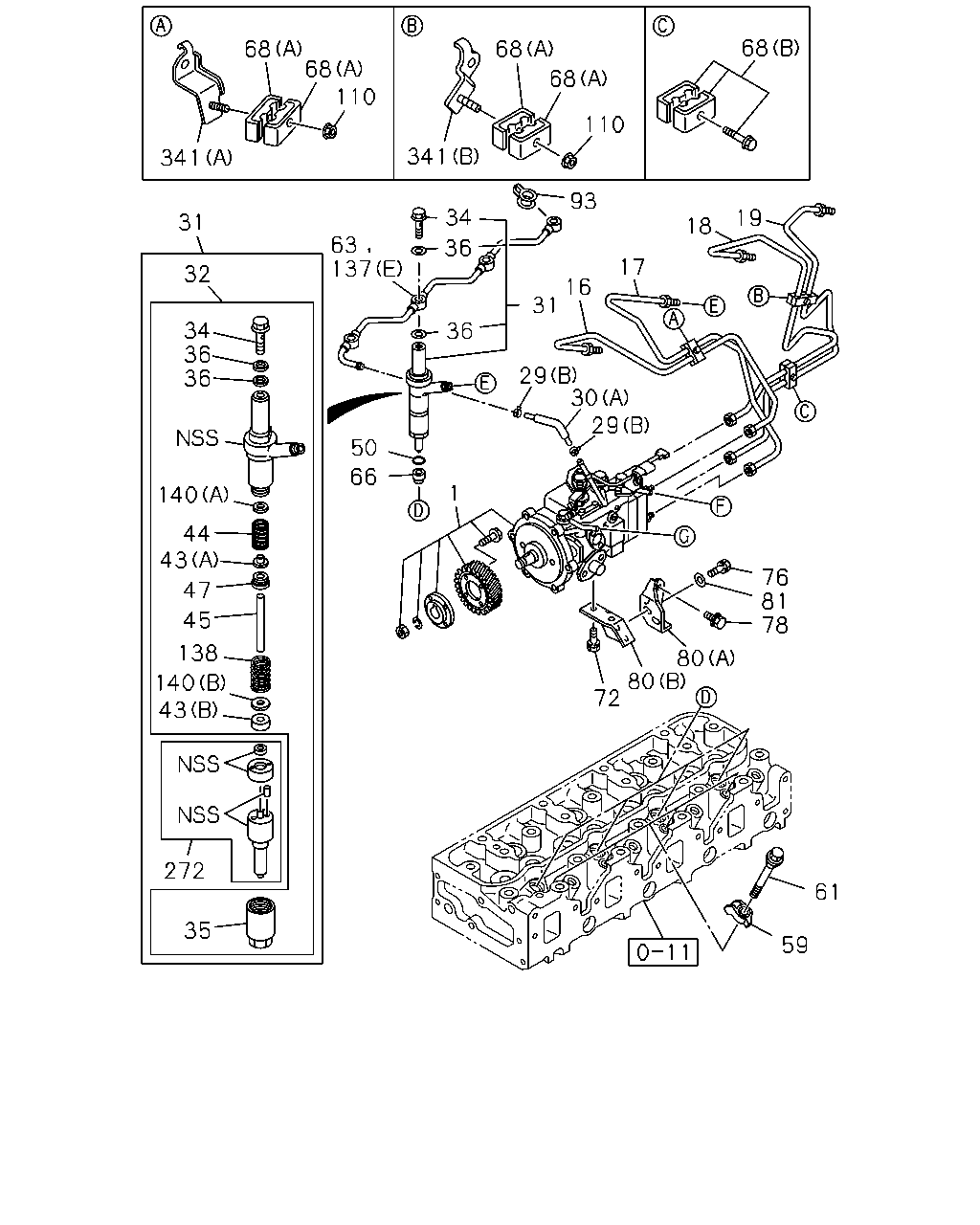

çizim 13488
68 68 68 68 110 68 110 341 341 93 34 19 31 18 63 137 36 17 32 16 31 34 36 36 36 29 30 29 50 66 1 140 44 43 76 81 78 47 45 138 80 80 72 140 43 272 61 35 59
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EMISSION SYSTEM R15-04<K75> 		8-97350-393-4 01 1 0307-1103 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EMISSION SYSTEM R15-04<K75> TACHOMETER<U16> 		8-97350-393-4 01 1 1104- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EURO2 SPECIFICATION<NT2> 		8-97350-396-3 01 1 0307-0609 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EURO2 SPECIFICATION<NT2> EXC. IMMOBILIZER SYSTEM<7KC> 		8-97350-396-4 01 1 0610-1103 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EMISSION SYSTEM R15-04<K75> EXC. TACHOMETER<U16> 		8-98180-717-0 01 1 1104- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C42) EMISSION SYSTEM R15-04<K75> 		8-97350-394-3 01 1 0307-0609 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. HEATER & DEFROSTER(C42) EMISSION SYSTEM R15-04<K75> EXC. IMMOBILIZER SYSTEM<7KC> 		8-97350-394-3 01 1 0610-1103 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. HEATER & DEFROSTER(C42) EMISSION SYSTEM R15-04<K75> TACHOMETER<U16> 		8-97350-394-3 01 1 1104- ●

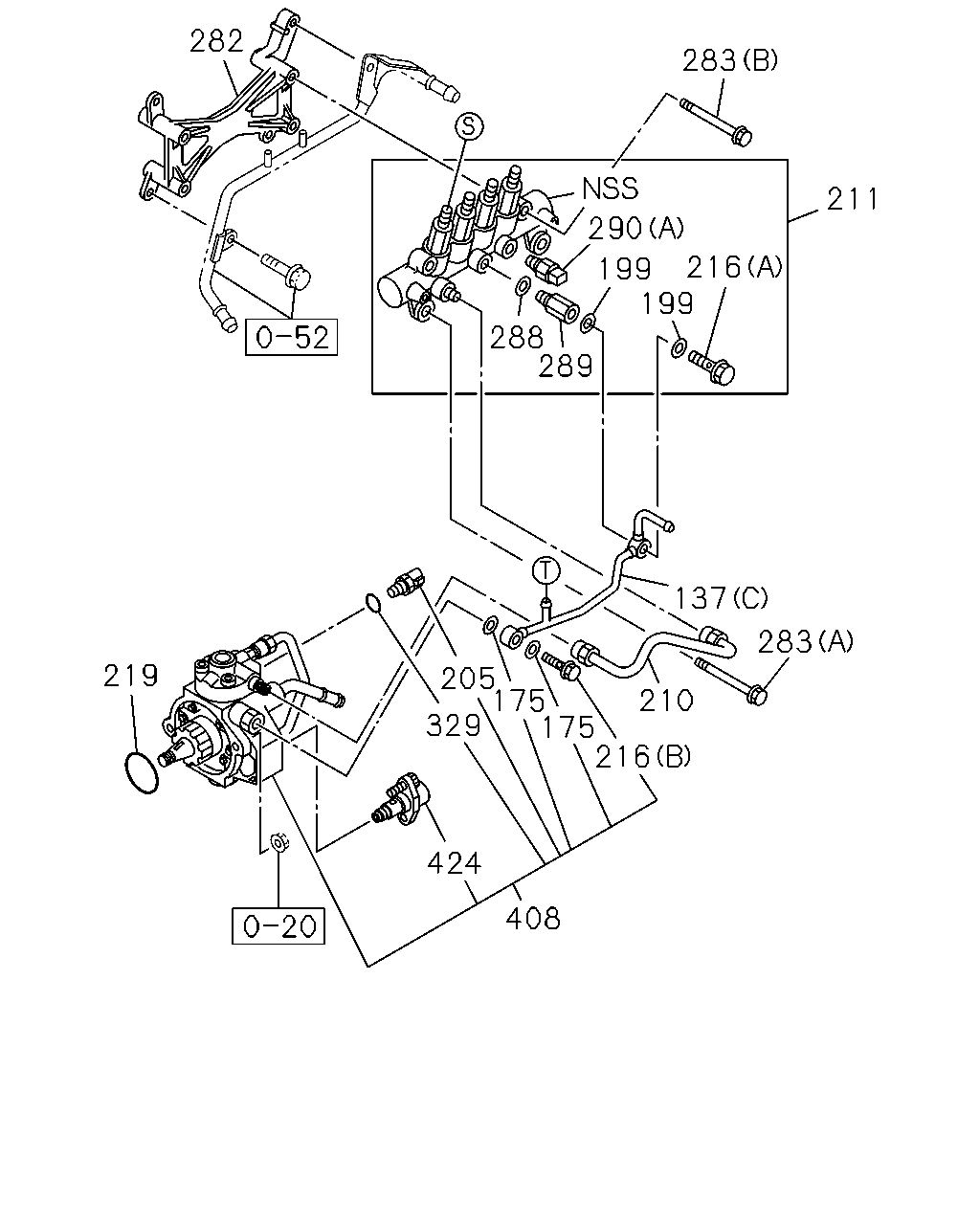

1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C42) EURO2 SPECIFICATION<NT2> 		8-97350-398-3 01 1 0307-0609 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. HEATER & DEFROSTER(C42) EURO2 SPECIFICATION<NT2> EXC. IMMOBILIZER SYSTEM<7KC> 		8-97350-398-3 01 1 0610-1103 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. HEATER & DEFROSTER(C42) EMISSION SYSTEM R15-04<K75> EXC. TACHOMETER<U16> 		8-98180-718-0 01 1 1104- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. 		8-97249-238-4 01 1 0307-0609 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. 		8-97326-739-3 01 1 0307-0609 ●

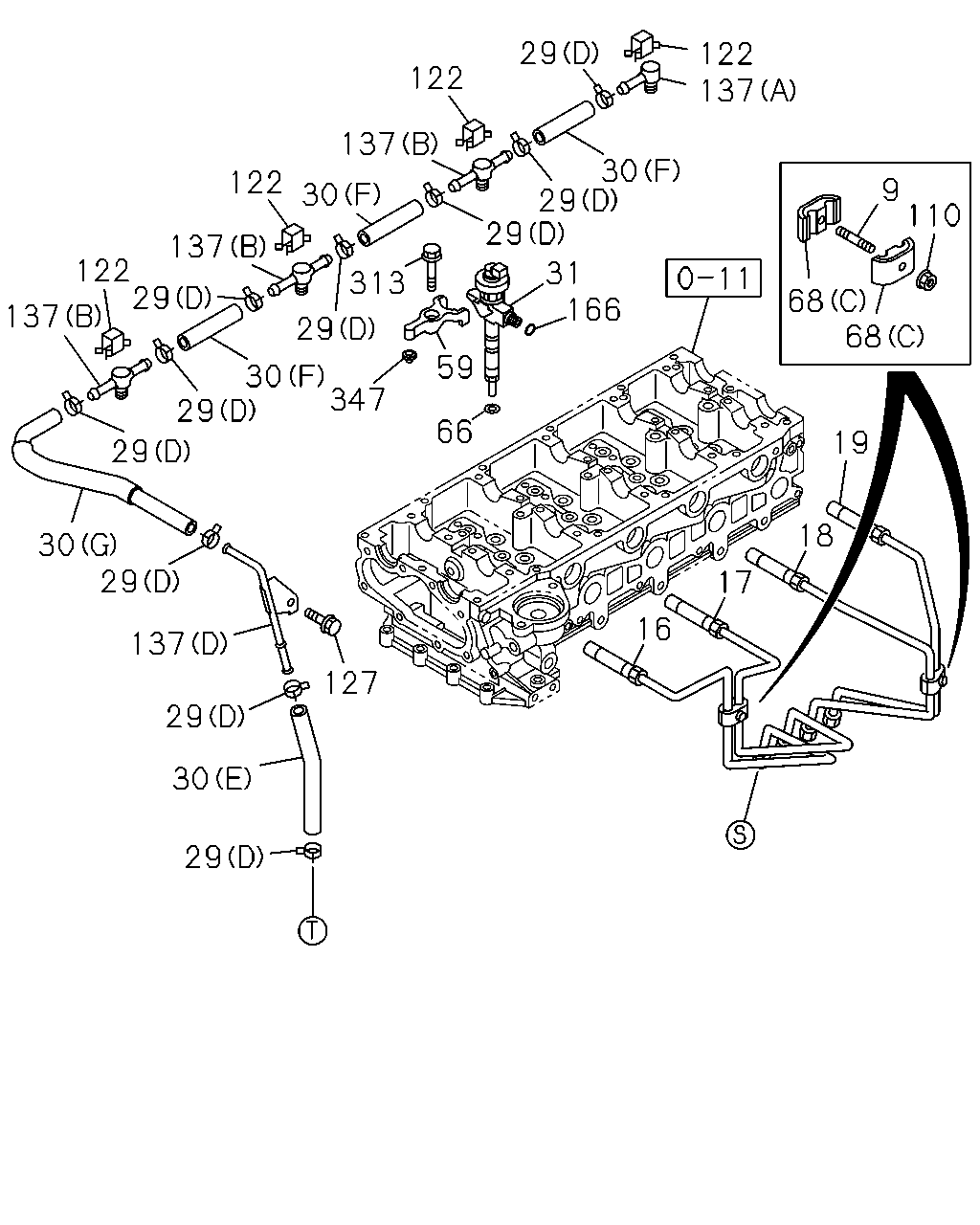

16 03.330 PIPE; INJ NO.1 8-97287-521-0 01 1 0307-0311 ●
16 03.330 PIPE; INJ NO.1 8-97373-733-0 01 1 0312- ●
16 03.330 PIPE; INJ NO.1 8-97300-013-4 01 1 0307-0609 ●
16 03.330 PIPE; INJ NO.1 8-98011-606-0 01 1 0610-0612 ● ● ● ●
16 03.330 PIPE; INJ NO.1 8-98011-606-0 01 1 0701-0912 ● ● ●
16 03.330 PIPE; INJ NO.1 8-98011-606-0 01 1 1001- ● ● ● ●
16 03.330 PIPE; INJ NO.1 8-97255-017-2 01 1 0307-0609 ●
17 03.330 PIPE; INJ NO.2 8-97287-522-0 01 1 0307-0307 ●
17 03.330 PIPE; INJ NO.2 8-97365-210-0 01 1 0307- ●
17 03.330 PIPE; INJ NO.2 8-97300-014-4 01 1 0307-0609 ●
17 03.330 PIPE; INJ NO.2 8-98043-684-0 01 1 0610-0612 ● ● ● ●
17 03.330 PIPE; INJ NO.2 8-98043-684-0 01 1 0701-0912 ● ● ●
17 03.330 PIPE; INJ NO.2 8-98043-684-0 01 1 1001- ● ● ● ●
17 03.330 PIPE; INJ NO.2 8-97255-018-2 01 1 0307-0609 ●
18 03.330 PIPE; INJ NO.3 8-97287-523-0 01 1 0307-0311 ●
18 03.330 PIPE; INJ NO.3 8-97373-734-0 01 1 0312- ●
18 03.330 PIPE; INJ NO.3 8-97300-015-4 01 1 0307-0609 ●
18 03.330 PIPE; INJ NO.3 8-98011-608-0 01 1 0610-0612 ● ● ● ●
18 03.330 PIPE; INJ NO.3 8-98011-608-0 01 1 0701-0912 ● ● ●
18 03.330 PIPE; INJ NO.3 8-98011-608-0 01 1 1001- ● ● ● ●
18 03.330 PIPE; INJ NO.3 8-97255-019-2 01 1 0307-0609 ●
19 03.330 PIPE; INJ NO.4 8-97287-524-0 01 1 0307-0311 ●
19 03.330 PIPE; INJ NO.4 8-97373-735-0 01 1 0312- ●
19 03.330 PIPE; INJ NO.4 8-97300-016-4 01 1 0307-0609 ●
19 03.330 PIPE; INJ NO.4 8-98011-609-0 01 1 0610-0612 ● ● ● ●
19 03.330 PIPE; INJ NO.4 8-98011-609-0 01 1 0701-0912 ● ● ●
19 03.330 PIPE; INJ NO.4 8-98011-609-0 01 1 1001- ● ● ● ●
19 03.330 PIPE; INJ NO.4 8-97255-020-2 01 1 0307-0609 ●
29 03.162 CLIP; HOSE
03.280 (C) ID=17.1 		8-94122-679-0 02 1 0307-0609 ●
29 03.162 CLIP; HOSE
EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> 03.280 (C) ID=17.1 		8-94122-679-0 02 1 0307-0609 ●
29 03.162 CLIP; HOSE
03.280 (C) ID=17.1 		8-94122-679-0 02 1 0610- ●
29 03.162 CLIP; HOSE
01.219 (A) ID=12 		8-94238-610-0 02 1 0307- ●
29 03.162 CLIP; HOSE
03.163 (B) ID=11 		8-97173-219-0 02 1 0307-0609 ● ● ●
29 03.162 CLIP; HOSE
03.163 (B) ID=11 		8-97173-219-0 02 1 0610- ●
29 03.162 CLIP; HOSE
(D) ID=10.5 		8-97944-126-0 10 1 0610-0611 ● ● ● ●
29 03.162 CLIP; HOSE
EXC. KENYA EQUIPMENT(CL1) (D) ID=10.5 		8-97944-126-0 10 1 0612-0612 ●
29 03.162 CLIP; HOSE
(D) ID=10.5 		8-97944-126-0 10 1 0612-0612 ● ● ●
29 03.162 CLIP; HOSE
EXC. KENYA EQUIPMENT(CL1) (D) ID=10.5 		8-97944-126-0 10 1 0701-0912 ●
29 03.162 CLIP; HOSE
(D) ID=10.5 		8-97944-126-0 10 1 0701-0912 ● ●
29 03.162 CLIP; HOSE
EXC. KENYA EQUIPMENT(CL1) (D) ID=10.5 		8-97944-126-0 10 1 1001- ●
29 03.162 CLIP; HOSE
(D) ID=10.5 		8-97944-126-0 10 1 1001- ● ● ●
29 03.162 CLIP; HOSE
03.374 (D) ID=10.5 		8-97019-473-0 10 1 0610-0611 ● ●
29 03.162 CLIP; HOSE
KENYA EQUIPMENT(CL1) 03.374 (D) ID=10.5 		8-97019-473-0 10 1 0612- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EXC. KENYA EQUIPMENT(CL1) (G) 		8-98112-034-0 01 1 0811-0912 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(G) 		8-98112-034-0 01 1 0811-0912 ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EXC. KENYA EQUIPMENT(CL1) (G) 		8-98112-034-0 01 1 1001- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(G) 		8-98112-034-0 01 1 1001- ● ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(B) L=110 SERVICED BY L=3000 		0-01256-300-0 01 1 0307- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(C) L=210 SERVICED BY L=3000 		0-01262-300-0 01 1 0307- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(A) L=320 		8-97364-773-0 01 1 0307-0609 ● ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(A) L=320 		8-97364-773-0 01 1 0610- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> (D) 		8-97352-907-0 01 1 0307-0609 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(E) L=130 		0-01804-130-0 01 1 0610-0611 ● ● ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
KENYA EQUIPMENT(CL1) (E) L=130 		0-01804-130-0 01 1 0612- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EXC. KENYA EQUIPMENT(CL1) (E) L=130 		8-98053-692-0 01 1 0612-0612 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(E) L=130 		8-98053-692-0 01 1 0612-0612 ● ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EXC. KENYA EQUIPMENT(CL1) (E) L=130 		8-98053-692-0 01 1 0701-0912 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(E) L=130 		8-98053-692-0 01 1 0701-0912 ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EXC. KENYA EQUIPMENT(CL1) (E) L=130 		8-98053-692-0 01 1 1001- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(E) L=130 		8-98053-692-0 01 1 1001- ● ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EXC. KENYA EQUIPMENT(CL1) (F) L=96 		8-98053-693-0 03 1 0612-0612 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(F) L=96 		8-98053-693-0 03 1 0612-0612 ● ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EXC. KENYA EQUIPMENT(CL1) (F) L=96 		8-98053-693-0 03 1 0701-0912 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(F) L=96 		8-98053-693-0 03 1 0701-0912 ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EXC. KENYA EQUIPMENT(CL1) (F) L=96 		8-98053-693-0 03 1 1001- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(F) L=96 		8-98053-693-0 03 1 1001- ● ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(F) L=98 		8-97354-652-0 03 1 0610-0611 ● ● ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
KENYA EQUIPMENT(CL1) (F) L=98 		8-97354-652-0 03 1 0612- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(G) L=150 		8-97362-306-2 01 1 0610-0612 ● ● ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(G) L=150 		8-97362-306-2 01 1 0701-0810 ● ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
KENYA EQUIPMENT(CL1) (G) L=150 		8-97362-306-2 01 1 0811- ●
31 03.332 NOZZLE ASM; INJ
COOLER WO/HEATER(C65) 		8-98055-862-0 04 1 0705- ● ●
31 03.332 NOZZLE ASM; INJ
COOLER WO/HEATER(C65) 		8-98055-863-0 04 1 1001- ●
31 03.332 NOZZLE ASM; INJ 8-97217-642-0 04 1 0307-0501 ●
31 03.332 NOZZLE ASM; INJ 8-97382-946-0 04 1 0502- ●
31 03.332 NOZZLE ASM; INJ 8-97300-942-1 04 1 0307-0501 ●
31 03.332 NOZZLE ASM; INJ 8-97382-947-0 04 1 0502-0609 ●
31 03.332 NOZZLE ASM; INJ 8-98011-605-0 04 1 0610-0612 ● ●
31 03.332 NOZZLE ASM; INJ 8-98011-605-1 04 1 0701-0709 ●
31 03.332 NOZZLE ASM; INJ
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98011-605-1 04 1 0710- ●
31 03.332 NOZZLE ASM; INJ 8-97306-020-1 04 1 0307-0501 ●
31 03.332 NOZZLE ASM; INJ 8-97382-948-0 04 1 0502-0609 ●
31 03.332 NOZZLE ASM; INJ 8-98011-604-0 04 1 0610-0704 ● ●
31 03.332 NOZZLE ASM; INJ
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98011-604-1 04 1 0705-0709 ● ● ●
31 03.332 NOZZLE ASM; INJ
KENYA EQUIPMENT(CL1) 		8-98011-604-4 04 1 0710- ●
31 03.332 NOZZLE ASM; INJ
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98011-604-1 04 1 0710- ● ●
32 03.332 HOLDER ASM; NOZZLE 8-97217-835-0 04 1 0307- ●
34 03.330 BOLT; EYE,NOZZLE HOLDER
03.306 		8-94320-307-0 04 1 0307-0609 ● ● ●
34 03.330 BOLT; EYE,NOZZLE HOLDER
03.306 		8-94320-307-0 04 1 0610- ●
35 03.330 NUT; NOZZLE RET,NOZZLE HOLDER 1-15349-041-0 04 1 0307- ●
36 03.332 GASKET; RETURN PIPE,NOZZLE HOLDE 8-97357-685-0 08 1 0307-0402 ●
36 03.332 GASKET; RETURN PIPE,NOZZLE HOLDE 8-97084-347-0 08 1 0307-0402 ● ●
36 03.332 GASKET; RETURN PIPE,NOZZLE HOLDE 8-97084-347-0 08 1 0403-0501 ● ● ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.00 		8-97223-343-0 04 1 0307- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.02 		8-97223-344-0 04 1 0307- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.04 		8-97223-345-0 04 1 0307- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.06 		8-97223-346-0 04 1 0307- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.08 		8-97223-347-0 04 1 0307- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.10 		8-97223-348-0 04 1 0307- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.12 		8-97223-349-0 04 1 0307- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.14 		8-97223-350-0 04 1 0307- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.16 		8-97223-351-0 04 1 0307- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.18 		8-97223-352-0 04 1 0307- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.20 		8-97223-353-0 04 1 0307- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.22 		8-97223-354-0 04 1 0307- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.24 		8-97223-355-0 04 1 0307- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.26 		8-97223-356-0 04 1 0307- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.28 		8-97223-357-0 04 1 0307- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.30 		8-97223-358-0 04 1 0307- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.32 		8-97223-359-0 04 1 0307- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.34 		8-97223-360-0 04 1 0307- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.36 		8-97223-361-0 04 1 0307- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.38 		8-97223-362-0 04 1 0307- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.40 		8-97223-363-0 04 1 0307- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.42 		8-97223-364-0 04 1 0307- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.44 		8-97223-365-0 04 1 0307- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.46 		8-97223-366-0 04 1 0307- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.48 		8-97223-367-0 04 1 0307- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.50 		8-97223-368-0 04 1 0307- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.52 		8-97223-369-0 04 1 0307- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.54 		8-97223-370-0 04 1 0307- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.56 		8-97223-371-0 04 1 0307- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.58 		8-97223-372-0 04 1 0307- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.60 		8-97223-373-0 04 1 0307- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.62 		8-97223-374-0 04 1 0307- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.64 		8-97223-375-0 04 1 0307- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.66 		8-97223-376-0 04 1 0307- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.68 		8-97223-377-0 04 1 0307- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.70 		8-97223-378-0 04 1 0307- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.72 		8-97223-379-0 04 1 0307- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.74 		8-97223-380-0 04 1 0307- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.76 		8-97223-381-0 04 1 0307- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.78 		8-97223-382-0 04 1 0307- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.80 		8-97223-383-0 04 1 0307- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.82 		8-97223-384-0 04 1 0307- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.84 		8-97223-385-0 04 1 0307- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.86 		8-97223-386-0 04 1 0307- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.88 		8-97223-387-0 04 1 0307- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.90 		8-97223-388-0 04 1 0307- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.92 		8-97223-389-0 04 1 0307- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.94 		8-97223-390-0 04 1 0307- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.96 		8-97223-391-0 04 1 0307- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.98 		8-97223-392-0 04 1 0307- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=3.00 		8-97223-393-0 04 1 0307- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(A) 		8-97361-697-0 04 1 0307- ●
44 03.330 SPRING; NOZZLE,NOZZLE HOLDER 1-15343-003-0 04 1 0307- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.25 		8-97355-112-0 04 1 0307- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.26 		8-97355-113-0 04 1 0307- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.27 		8-97355-114-0 04 1 0307- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.28 		8-97355-115-0 04 1 0307- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.29 		8-97355-116-0 04 1 0307- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.30 		8-97355-117-0 04 1 0307- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.31 		8-97355-118-0 04 1 0307- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.32 		8-97355-119-0 04 1 0307- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.33 		8-97355-120-0 04 1 0307- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.34 		8-97355-121-0 04 1 0307- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.35 		8-97355-122-0 04 1 0307- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.36 		8-97355-123-0 04 1 0307- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.37 		8-97355-124-0 04 1 0307- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.38 		8-97355-125-0 04 1 0307- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.39 		8-97355-126-0 04 1 0307- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.40 		8-97355-127-0 04 1 0307- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.41 		8-97355-128-0 04 1 0307- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.42 		8-97355-129-0 04 1 0307- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.43 		8-97355-130-0 04 1 0307- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.44 		8-97355-131-0 04 1 0307- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.45 		8-97355-132-0 04 1 0307- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.46 		8-97355-133-0 04 1 0307- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.47 		8-97355-134-0 04 1 0307- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.48 		8-97355-135-0 04 1 0307- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.49 		8-97355-136-0 04 1 0307- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.50 		8-97355-137-0 04 1 0307- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.51 		8-97355-138-0 04 1 0307- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.52 		8-97355-139-0 04 1 0307- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.53 		8-97355-140-0 04 1 0307- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.54 		8-97355-141-0 04 1 0307- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.55 		8-97355-142-0 04 1 0307- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.56 		8-97355-143-0 04 1 0307- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.57 		8-97355-144-0 04 1 0307- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.58 		8-97355-145-0 04 1 0307- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.59 		8-97355-146-0 04 1 0307- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.60 		8-97355-147-0 04 1 0307- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.61 		8-97355-148-0 04 1 0307- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.62 		8-97355-149-0 04 1 0307- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.63 		8-97355-150-0 04 1 0307- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.64 		8-97355-151-0 04 1 0307- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.65 		8-97355-152-0 04 1 0307- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.66 		8-97355-153-0 04 1 0307- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.67 		8-97355-154-0 04 1 0307- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.68 		8-97355-155-0 04 1 0307- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.69 		8-97355-156-0 04 1 0307- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.70 		8-97355-157-0 04 1 0307- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.71 		8-97355-158-0 04 1 0307- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.72 		8-97355-159-0 04 1 0307- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.73 		8-97355-160-0 04 1 0307- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.74 		8-97355-161-0 04 1 0307- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.75 		8-97355-162-0 04 1 0307- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.76 		8-97355-163-0 04 1 0307- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.77 		8-97355-164-0 04 1 0307- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.78 		8-97355-165-0 04 1 0307- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.79 		8-97355-166-0 04 1 0307- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.80 		8-97355-167-0 04 1 0307- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.81 		8-97355-168-0 04 1 0307- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.82 		8-97355-169-0 04 1 0307- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.83 		8-97355-170-0 04 1 0307- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.84 		8-97355-171-0 04 1 0307- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.85 		8-97355-172-0 04 1 0307- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.86 		8-97355-173-0 04 1 0307- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.87 		8-97355-174-0 04 1 0307- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.88 		8-97355-175-0 04 1 0307- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.89 		8-97355-176-0 04 1 0307- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.90 		8-97355-177-0 04 1 0307- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.91 		8-97355-178-0 04 1 0307- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.92 		8-97355-179-0 04 1 0307- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.93 		8-97355-180-0 04 1 0307- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.94 		8-97355-182-0 04 1 0307- ●
47 03.332 SPACER; NOZZLE SPRING,NOZZLE HOL 8-97223-340-0 04 1 0307- ●
50 03.332 GASKET; NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97287-402-2 04 1 0307-0609 ● ● ●
50 03.332 GASKET; NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97287-402-2 04 1 0610- ●
59 03.332 CLAMP; NOZZLE HOLDER
EXC. KENYA EQUIPMENT(CL1) 		8-98092-539-0 04 1 0711-0801 ●
59 03.332 CLAMP; NOZZLE HOLDER 8-98092-539-0 04 1 0711-0801 ● ●
59 03.332 CLAMP; NOZZLE HOLDER 8-98092-539-0 04 1 0802-0912 ● ● ●
59 03.332 CLAMP; NOZZLE HOLDER 8-98092-539-0 04 1 1001- ● ● ● ●
59 03.332 CLAMP; NOZZLE HOLDER 8-97259-884-0 04 1 0307-0609 ● ● ●
59 03.332 CLAMP; NOZZLE HOLDER 8-97259-884-0 04 1 0610- ●
59 03.332 CLAMP; NOZZLE HOLDER 8-98011-528-2 04 1 0610-0612 ● ● ● ●
59 03.332 CLAMP; NOZZLE HOLDER 8-98011-528-2 04 1 0701-0710 ● ● ●
59 03.332 CLAMP; NOZZLE HOLDER
KENYA EQUIPMENT(CL1) 		8-98011-528-2 04 1 0711-0801 ●
61 03.332 BOLT; CLAMP NOZZLE HOLDER 8-94468-020-2 04 1 0307-0609 ● ● ●
61 03.332 BOLT; CLAMP NOZZLE HOLDER 8-94468-020-2 04 1 0610- ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF 8-94467-727-3 01 1 0307-0402 ● ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF 8-94467-727-3 01 1 0403-0609 ● ● ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF 8-94467-727-3 01 1 0610- ●
66 03.332 GASKET; INJ NOZZLE
EXC. KENYA EQUIPMENT(CL1) ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-98181-540-0 04 1 1101-1103 ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-98181-540-0 04 1 1101-1103 ● ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-98181-540-0 04 1 1104- ● ● ● ●
66 03.332 GASKET; INJ NOZZLE
ID=7.2 OD=15.0 T=6.6 ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-97171-331-0 04 1 0307-0609 ● ● ●
66 03.332 GASKET; INJ NOZZLE
ID=7.2 OD=15.0 T=6.6 ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-97171-331-0 04 1 0610- ●
66 03.332 GASKET; INJ NOZZLE
EXC. KENYA EQUIPMENT(CL1) 		8-98077-165-0 04 1 0702-0702 ●
66 03.332 GASKET; INJ NOZZLE 8-98077-165-0 04 1 0702-0702 ● ●
66 03.332 GASKET; INJ NOZZLE 8-98077-165-0 04 1 0703-0912 ● ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-98077-165-0 04 1 1001-1012 ● ● ● ●
66 03.332 GASKET; INJ NOZZLE
KENYA EQUIPMENT(CL1) ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-98077-165-0 04 1 1101-1103 ●
66 03.332 GASKET; INJ NOZZLE 8-98057-731-0 04 1 0610-0612 ● ● ● ●
66 03.332 GASKET; INJ NOZZLE 8-98057-731-0 04 1 0701-0701 ● ● ●
66 03.332 GASKET; INJ NOZZLE
KENYA EQUIPMENT(CL1) 		8-98057-731-0 04 1 0702-0702 ●
68 03.162 CLIP; INJ PIPE
(A) 		1-09701-132-1 04 1 0307-0609 ● ● ●
68 03.162 CLIP; INJ PIPE
(A) 		1-09701-132-1 04 1 0610- ●
68 03.162 CLIP; INJ PIPE
(B) 		8-97224-041-1 01 1 0307-0609 ● ● ●
68 03.162 CLIP; INJ PIPE
(B) 		8-97224-041-1 01 1 0610- ●
68 03.162 CLIP; INJ PIPE
(C) 		8-97213-481-0 04 1 0610-0612 ● ● ● ●
68 03.162 CLIP; INJ PIPE
(C) 		8-97213-481-0 04 1 0701-0912 ● ● ●
68 03.162 CLIP; INJ PIPE
(C) 		8-97213-481-0 04 1 1001- ● ● ● ●
72 03.330 BOLT; BRKT TO INJ PUMP
01.516 M10X20 W/LK WASHER 		0-50051-020-0 02 1 0307-0512 ●
72 03.330 BOLT; BRKT TO INJ PUMP
M10X20 W/LK WASHER 		0-50551-020-0 02 1 0601- ●
76 03.330 BOLT; BRKT TO BRKT
01.073 M8X25 W/LK WASHER 		0-50040-825-0 02 1 0307-0512 ●
76 03.330 BOLT; BRKT TO BRKT
09.008 M8X25 W/LK WASHER 		0-50540-825-0 02 1 0601- ●
78 03.330 BOLT; BRKT TO C/BL
02.664 M8X20 FLANGE 		0-28680-820-0 02 1 0307-0512 ● ●
78 03.330 BOLT; BRKT TO C/BL
01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0601-0609 ● ●
78 03.330 BOLT; BRKT TO C/BL
01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0610- ●
78 03.330 BOLT; BRKT TO C/BL
02.664 M8X20 FLANGE 		0-28680-820-0 03 1 0307-0512 ●
78 03.330 BOLT; BRKT TO C/BL
01.531 M8X20 FLANGE 		0-28650-820-0 03 1 0601-0609 ●
78 03.330 BOLT; BRKT TO C/BL
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0307-0311 ●
78 03.330 BOLT; BRKT TO C/BL
EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0312-0512 ●
78 03.330 BOLT; BRKT TO C/BL
EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0601-0609 ●
78 03.330 BOLT; BRKT TO C/BL
EURO3 SPECIFICATION<NT3> 02.664 M8X20 FLANGE 		0-28680-820-0 01 1 0312-0512 ●
78 03.330 BOLT; BRKT TO C/BL
EURO3 SPECIFICATION<NT3> 01.531 M8X20 FLANGE 		0-28650-820-0 01 1 0601-0609 ●
80 03.306 BRACKET; PUMP
(B) 		8-97942-899-0 01 1 0307-0406 ●
80 03.306 BRACKET; PUMP
(B) 		8-97368-671-0 01 1 0407- ●
80 03.306 BRACKET; PUMP
(A) 		8-97942-900-0 01 1 0307-0410 ●
80 03.306 BRACKET; PUMP
(A) 		8-97368-670-0 01 1 0411- ●
80 03.306 BRACKET; PUMP
(C) 		8-97328-484-0 01 1 0307-0609 ●
80 03.306 BRACKET; PUMP
(D) 		8-97287-698-3 01 1 0307-0609 ●
81 03.330 WASHER; PL,BRKT TO PUMP
07.633 ID=8.4 OD=22 		9-09164-708-0 02 1 0307-0605 ●
81 03.330 WASHER; PL,BRKT TO PUMP
02.277 ID=8.4 OD=22 		0-91614-708-0 02 1 0606- ●
93 03.162 GASKET; LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENGINE) . 		8-97375-236-0 04 1 0403-0609 ● ● ●
93 03.162 GASKET; LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENGINE) . 		8-97375-236-0 04 1 0610- ●
110 03.330 NUT; CLIP
04.594 M6 FLANGE 		0-91150-106-0 02 1 0307-0602 ● ● ●
110 03.330 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 02 1 0603-0609 ● ● ●
110 03.330 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 02 1 0610-0612 ● ● ● ● ●
110 03.330 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 02 1 0701-0912 ● ● ● ●
110 03.330 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 02 1 1001- ● ● ● ● ●
137 03.163 PIPE ASM; LEAK OFF
KENYA EQUIPMENT(CL1) (B) 		8-98161-061-0 03 1 1102- ●
137 03.163 PIPE ASM; LEAK OFF
KENYA EQUIPMENT(CL1) (A) 		8-98161-062-0 01 1 1102- ●
137 03.163 PIPE ASM; LEAK OFF
(E) 		8-94467-727-3 01 1 0307-0402 ●
137 03.163 PIPE ASM; LEAK OFF
KENYA EQUIPMENT(CL1) (D) 		8-98036-510-0 01 1 0612- ●
137 03.163 PIPE ASM; LEAK OFF
(A) 		8-97315-230-1 01 1 0610-0612 ● ● ● ●
137 03.163 PIPE ASM; LEAK OFF
(A) 		8-97315-230-2 01 1 0701-0912 ● ● ●
137 03.163 PIPE ASM; LEAK OFF
(A) 		8-97315-230-2 01 1 1001-1101 ● ● ● ●
137 03.163 PIPE ASM; LEAK OFF
EXC. KENYA EQUIPMENT(CL1) (A) 		8-97315-230-2 01 1 1102- ●
137 03.163 PIPE ASM; LEAK OFF
(A) 		8-97315-230-2 01 1 1102- ● ● ●
137 03.163 PIPE ASM; LEAK OFF
(B) 		8-97315-231-1 03 1 0610-0612 ● ● ● ●
137 03.163 PIPE ASM; LEAK OFF
(B) 		8-97315-231-2 03 1 0701-0912 ● ● ●
137 03.163 PIPE ASM; LEAK OFF
(B) 		8-97315-231-2 03 1 1001-1101 ● ● ● ●
137 03.163 PIPE ASM; LEAK OFF
EXC. KENYA EQUIPMENT(CL1) (B) 		8-97315-231-2 03 1 1102- ●
137 03.163 PIPE ASM; LEAK OFF
(B) 		8-97315-231-2 03 1 1102- ● ● ●
137 03.163 PIPE ASM; LEAK OFF
(C) 		8-97357-916-3 01 1 0610-0612 ● ● ● ●
137 03.163 PIPE ASM; LEAK OFF
(C) 		8-97357-916-4 01 1 0701-0912 ● ● ●
137 03.163 PIPE ASM; LEAK OFF
(C) 		8-97357-916-4 01 1 1001- ● ● ● ●
137 03.163 PIPE ASM; LEAK OFF
(D) 		8-97372-938-2 01 1 0610-0611 ● ● ● ●
137 03.163 PIPE ASM; LEAK OFF
EXC. KENYA EQUIPMENT(CL1) (D) 		8-97372-938-2 01 1 0612-0612 ●
137 03.163 PIPE ASM; LEAK OFF
(D) 		8-97372-938-2 01 1 0612-0612 ● ● ●
137 03.163 PIPE ASM; LEAK OFF
EXC. KENYA EQUIPMENT(CL1) (D) 		8-97372-938-3 01 1 0701-0912 ●
137 03.163 PIPE ASM; LEAK OFF
(D) 		8-97372-938-3 01 1 0701-0912 ● ●
137 03.163 PIPE ASM; LEAK OFF
EXC. KENYA EQUIPMENT(CL1) (D) 		8-97372-938-3 01 1 1001- ●
137 03.163 PIPE ASM; LEAK OFF
(D) 		8-97372-938-3 01 1 1001- ● ● ●
138 03.330 SPRING; NOZZLE LWR,NOZZLE HOLDER 8-94174-141-0 04 1 0307- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(A) T=1.20 		1-15349-004-0 AR 1 0307- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(A) T=0.52 		1-15349-044-0 AR 1 0307- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(A) T=0.54 		1-15349-045-0 AR 1 0307- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(A) T=0.56 		1-15349-046-0 AR 1 0307- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(A) T=0.58 		1-15349-047-0 AR 1 0307- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(A) T=0.60 		1-15349-048-0 AR 1 0307- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(A) T=0.70 		1-15349-049-0 AR 1 0307- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(B) T=0.10 		8-97116-029-0 AR 1 0307- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(B) T=0.20 		8-97116-032-0 AR 1 0307- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(B) T=0.30 		8-97116-033-0 AR 1 0307- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(B) T=0.40 		8-97116-034-0 AR 1 0307- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(B) T=0.50 		8-97116-035-0 AR 1 0307- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(B) T=0.51 		8-97116-036-0 AR 1 0307- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(B) T=0.52 		8-97116-037-0 AR 1 0307- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(B) T=0.53 		8-97116-038-0 AR 1 0307- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(B) T=0.54 		8-97116-039-0 AR 1 0307- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(B) T=0.55 		8-97116-040-0 AR 1 0307- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(B) T=0.56 		8-97116-041-0 AR 1 0307- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(B) T=0.57 		8-97116-042-0 AR 1 0307- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(B) T=0.58 		8-97116-043-0 AR 1 0307- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(B) T=0.59 		8-97116-044-0 AR 1 0307- ●
272 03.332 NOZZLE KIT; INJ 8-97362-572-0 04 1 0307- ●
341 03.330 BRACKET; CLIP,INJ PIPE
(A) 		8-97287-511-2 01 1 0307-0307 ●
341 03.330 BRACKET; CLIP,INJ PIPE
(A) 		8-97365-211-1 01 1 0307- ●
341 03.330 BRACKET; CLIP,INJ PIPE
(B) 		8-97333-806-1 01 1 0307- ●
çizim 13535
29 122 137 122 137 30 29 29 122 9 110 30 137 122 29 31 166 313 68 68 137 29 59 30 347 29 66 19 29 18 30 29 17 16 137 127 29 30 29
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
9 03.340 STUD; CLIP
03.162 M6X25 L=36 		8-97214-234-0 02 1 0610-0612 ● ● ● ●
9 03.340 STUD; CLIP
03.162 M6X25 L=36 		8-97214-234-1 02 1 0701-0912 ● ● ●
9 03.340 STUD; CLIP
03.162 M6X25 L=36 		8-97214-234-1 02 1 1001- ● ● ● ●
16 03.330 PIPE; INJ NO.1 8-97287-521-0 01 1 0307-0311 ●
16 03.330 PIPE; INJ NO.1 8-97373-733-0 01 1 0312- ●
16 03.330 PIPE; INJ NO.1 8-97300-013-4 01 1 0307-0609 ●
16 03.330 PIPE; INJ NO.1 8-98011-606-0 01 1 0610-0612 ● ● ● ●
16 03.330 PIPE; INJ NO.1 8-98011-606-0 01 1 0701-0912 ● ● ●
16 03.330 PIPE; INJ NO.1 8-98011-606-0 01 1 1001- ● ● ● ●
16 03.330 PIPE; INJ NO.1 8-97255-017-2 01 1 0307-0609 ●
17 03.330 PIPE; INJ NO.2 8-97287-522-0 01 1 0307-0307 ●
17 03.330 PIPE; INJ NO.2 8-97365-210-0 01 1 0307- ●
17 03.330 PIPE; INJ NO.2 8-97300-014-4 01 1 0307-0609 ●
17 03.330 PIPE; INJ NO.2 8-98043-684-0 01 1 0610-0612 ● ● ● ●
17 03.330 PIPE; INJ NO.2 8-98043-684-0 01 1 0701-0912 ● ● ●
17 03.330 PIPE; INJ NO.2 8-98043-684-0 01 1 1001- ● ● ● ●
17 03.330 PIPE; INJ NO.2 8-97255-018-2 01 1 0307-0609 ●
18 03.330 PIPE; INJ NO.3 8-97287-523-0 01 1 0307-0311 ●
18 03.330 PIPE; INJ NO.3 8-97373-734-0 01 1 0312- ●
18 03.330 PIPE; INJ NO.3 8-97300-015-4 01 1 0307-0609 ●
18 03.330 PIPE; INJ NO.3 8-98011-608-0 01 1 0610-0612 ● ● ● ●
18 03.330 PIPE; INJ NO.3 8-98011-608-0 01 1 0701-0912 ● ● ●
18 03.330 PIPE; INJ NO.3 8-98011-608-0 01 1 1001- ● ● ● ●
18 03.330 PIPE; INJ NO.3 8-97255-019-2 01 1 0307-0609 ●
19 03.330 PIPE; INJ NO.4 8-97287-524-0 01 1 0307-0311 ●
19 03.330 PIPE; INJ NO.4 8-97373-735-0 01 1 0312- ●
19 03.330 PIPE; INJ NO.4 8-97300-016-4 01 1 0307-0609 ●
19 03.330 PIPE; INJ NO.4 8-98011-609-0 01 1 0610-0612 ● ● ● ●
19 03.330 PIPE; INJ NO.4 8-98011-609-0 01 1 0701-0912 ● ● ●
19 03.330 PIPE; INJ NO.4 8-98011-609-0 01 1 1001- ● ● ● ●
19 03.330 PIPE; INJ NO.4 8-97255-020-2 01 1 0307-0609 ●
29 03.162 CLIP; HOSE
03.280 (C) ID=17.1 		8-94122-679-0 02 1 0307-0609 ●
29 03.162 CLIP; HOSE
EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> 03.280 (C) ID=17.1 		8-94122-679-0 02 1 0307-0609 ●
29 03.162 CLIP; HOSE
03.280 (C) ID=17.1 		8-94122-679-0 02 1 0610- ●
29 03.162 CLIP; HOSE
01.219 (A) ID=12 		8-94238-610-0 02 1 0307- ●
29 03.162 CLIP; HOSE
03.163 (B) ID=11 		8-97173-219-0 02 1 0307-0609 ● ● ●
29 03.162 CLIP; HOSE
03.163 (B) ID=11 		8-97173-219-0 02 1 0610- ●
29 03.162 CLIP; HOSE
(D) ID=10.5 		8-97944-126-0 10 1 0610-0611 ● ● ● ●
29 03.162 CLIP; HOSE
EXC. KENYA EQUIPMENT(CL1) (D) ID=10.5 		8-97944-126-0 10 1 0612-0612 ●
29 03.162 CLIP; HOSE
(D) ID=10.5 		8-97944-126-0 10 1 0612-0612 ● ● ●
29 03.162 CLIP; HOSE
EXC. KENYA EQUIPMENT(CL1) (D) ID=10.5 		8-97944-126-0 10 1 0701-0912 ●
29 03.162 CLIP; HOSE
(D) ID=10.5 		8-97944-126-0 10 1 0701-0912 ● ●
29 03.162 CLIP; HOSE
EXC. KENYA EQUIPMENT(CL1) (D) ID=10.5 		8-97944-126-0 10 1 1001- ●
29 03.162 CLIP; HOSE
(D) ID=10.5 		8-97944-126-0 10 1 1001- ● ● ●
29 03.162 CLIP; HOSE
03.374 (D) ID=10.5 		8-97019-473-0 10 1 0610-0611 ● ●
29 03.162 CLIP; HOSE
KENYA EQUIPMENT(CL1) 03.374 (D) ID=10.5 		8-97019-473-0 10 1 0612- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EXC. KENYA EQUIPMENT(CL1) (G) 		8-98112-034-0 01 1 0811-0912 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(G) 		8-98112-034-0 01 1 0811-0912 ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EXC. KENYA EQUIPMENT(CL1) (G) 		8-98112-034-0 01 1 1001- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(G) 		8-98112-034-0 01 1 1001- ● ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(B) L=110 SERVICED BY L=3000 		0-01256-300-0 01 1 0307- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(C) L=210 SERVICED BY L=3000 		0-01262-300-0 01 1 0307- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(A) L=320 		8-97364-773-0 01 1 0307-0609 ● ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(A) L=320 		8-97364-773-0 01 1 0610- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> (D) 		8-97352-907-0 01 1 0307-0609 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(E) L=130 		0-01804-130-0 01 1 0610-0611 ● ● ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
KENYA EQUIPMENT(CL1) (E) L=130 		0-01804-130-0 01 1 0612- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EXC. KENYA EQUIPMENT(CL1) (E) L=130 		8-98053-692-0 01 1 0612-0612 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(E) L=130 		8-98053-692-0 01 1 0612-0612 ● ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EXC. KENYA EQUIPMENT(CL1) (E) L=130 		8-98053-692-0 01 1 0701-0912 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(E) L=130 		8-98053-692-0 01 1 0701-0912 ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EXC. KENYA EQUIPMENT(CL1) (E) L=130 		8-98053-692-0 01 1 1001- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(E) L=130 		8-98053-692-0 01 1 1001- ● ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EXC. KENYA EQUIPMENT(CL1) (F) L=96 		8-98053-693-0 03 1 0612-0612 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(F) L=96 		8-98053-693-0 03 1 0612-0612 ● ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EXC. KENYA EQUIPMENT(CL1) (F) L=96 		8-98053-693-0 03 1 0701-0912 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(F) L=96 		8-98053-693-0 03 1 0701-0912 ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EXC. KENYA EQUIPMENT(CL1) (F) L=96 		8-98053-693-0 03 1 1001- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(F) L=96 		8-98053-693-0 03 1 1001- ● ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(F) L=98 		8-97354-652-0 03 1 0610-0611 ● ● ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
KENYA EQUIPMENT(CL1) (F) L=98 		8-97354-652-0 03 1 0612- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(G) L=150 		8-97362-306-2 01 1 0610-0612 ● ● ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(G) L=150 		8-97362-306-2 01 1 0701-0810 ● ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
KENYA EQUIPMENT(CL1) (G) L=150 		8-97362-306-2 01 1 0811- ●
31 03.332 NOZZLE ASM; INJ
COOLER WO/HEATER(C65) 		8-98055-862-0 04 1 0705- ● ●
31 03.332 NOZZLE ASM; INJ
COOLER WO/HEATER(C65) 		8-98055-863-0 04 1 1001- ●
31 03.332 NOZZLE ASM; INJ 8-97217-642-0 04 1 0307-0501 ●
31 03.332 NOZZLE ASM; INJ 8-97382-946-0 04 1 0502- ●
31 03.332 NOZZLE ASM; INJ 8-97300-942-1 04 1 0307-0501 ●
31 03.332 NOZZLE ASM; INJ 8-97382-947-0 04 1 0502-0609 ●
31 03.332 NOZZLE ASM; INJ 8-98011-605-0 04 1 0610-0612 ● ●
31 03.332 NOZZLE ASM; INJ 8-98011-605-1 04 1 0701-0709 ●
31 03.332 NOZZLE ASM; INJ
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98011-605-1 04 1 0710- ●
31 03.332 NOZZLE ASM; INJ 8-97306-020-1 04 1 0307-0501 ●
31 03.332 NOZZLE ASM; INJ 8-97382-948-0 04 1 0502-0609 ●
31 03.332 NOZZLE ASM; INJ 8-98011-604-0 04 1 0610-0704 ● ●
31 03.332 NOZZLE ASM; INJ
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98011-604-1 04 1 0705-0709 ● ● ●
31 03.332 NOZZLE ASM; INJ
KENYA EQUIPMENT(CL1) 		8-98011-604-4 04 1 0710- ●
31 03.332 NOZZLE ASM; INJ
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98011-604-1 04 1 0710- ● ●
59 03.332 CLAMP; NOZZLE HOLDER
EXC. KENYA EQUIPMENT(CL1) 		8-98092-539-0 04 1 0711-0801 ●
59 03.332 CLAMP; NOZZLE HOLDER 8-98092-539-0 04 1 0711-0801 ● ●
59 03.332 CLAMP; NOZZLE HOLDER 8-98092-539-0 04 1 0802-0912 ● ● ●
59 03.332 CLAMP; NOZZLE HOLDER 8-98092-539-0 04 1 1001- ● ● ● ●
59 03.332 CLAMP; NOZZLE HOLDER 8-97259-884-0 04 1 0307-0609 ● ● ●
59 03.332 CLAMP; NOZZLE HOLDER 8-97259-884-0 04 1 0610- ●
59 03.332 CLAMP; NOZZLE HOLDER 8-98011-528-2 04 1 0610-0612 ● ● ● ●
59 03.332 CLAMP; NOZZLE HOLDER 8-98011-528-2 04 1 0701-0710 ● ● ●
59 03.332 CLAMP; NOZZLE HOLDER
KENYA EQUIPMENT(CL1) 		8-98011-528-2 04 1 0711-0801 ●
66 03.332 GASKET; INJ NOZZLE
EXC. KENYA EQUIPMENT(CL1) ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-98181-540-0 04 1 1101-1103 ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-98181-540-0 04 1 1101-1103 ● ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-98181-540-0 04 1 1104- ● ● ● ●
66 03.332 GASKET; INJ NOZZLE
ID=7.2 OD=15.0 T=6.6 ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-97171-331-0 04 1 0307-0609 ● ● ●
66 03.332 GASKET; INJ NOZZLE
ID=7.2 OD=15.0 T=6.6 ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-97171-331-0 04 1 0610- ●
66 03.332 GASKET; INJ NOZZLE
EXC. KENYA EQUIPMENT(CL1) 		8-98077-165-0 04 1 0702-0702 ●
66 03.332 GASKET; INJ NOZZLE 8-98077-165-0 04 1 0702-0702 ● ●
66 03.332 GASKET; INJ NOZZLE 8-98077-165-0 04 1 0703-0912 ● ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-98077-165-0 04 1 1001-1012 ● ● ● ●
66 03.332 GASKET; INJ NOZZLE
KENYA EQUIPMENT(CL1) ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		8-98077-165-0 04 1 1101-1103 ●
66 03.332 GASKET; INJ NOZZLE 8-98057-731-0 04 1 0610-0612 ● ● ● ●
66 03.332 GASKET; INJ NOZZLE 8-98057-731-0 04 1 0701-0701 ● ● ●
66 03.332 GASKET; INJ NOZZLE
KENYA EQUIPMENT(CL1) 		8-98057-731-0 04 1 0702-0702 ●
68 03.162 CLIP; INJ PIPE
(A) 		1-09701-132-1 04 1 0307-0609 ● ● ●
68 03.162 CLIP; INJ PIPE
(A) 		1-09701-132-1 04 1 0610- ●
68 03.162 CLIP; INJ PIPE
(B) 		8-97224-041-1 01 1 0307-0609 ● ● ●
68 03.162 CLIP; INJ PIPE
(B) 		8-97224-041-1 01 1 0610- ●
68 03.162 CLIP; INJ PIPE
(C) 		8-97213-481-0 04 1 0610-0612 ● ● ● ●
68 03.162 CLIP; INJ PIPE
(C) 		8-97213-481-0 04 1 0701-0912 ● ● ●
68 03.162 CLIP; INJ PIPE
(C) 		8-97213-481-0 04 1 1001- ● ● ● ●
110 03.330 NUT; CLIP
04.594 M6 FLANGE 		0-91150-106-0 02 1 0307-0602 ● ● ●
110 03.330 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 02 1 0603-0609 ● ● ●
110 03.330 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 02 1 0610-0612 ● ● ● ● ●
110 03.330 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 02 1 0701-0912 ● ● ● ●
110 03.330 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 02 1 1001- ● ● ● ● ●
122 03.162 CLIP; LEAK OFF PIPE 8-97315-286-0 04 1 0610-0612 ● ● ● ●
122 03.162 CLIP; LEAK OFF PIPE 8-97315-286-0 04 1 0701-0912 ● ● ●
122 03.162 CLIP; LEAK OFF PIPE 8-97315-286-0 04 1 1001- ● ● ● ●
127 03.162 BOLT; CLIP LEAK OFF PIPE
02.343 M8X12 FLANGE 		0-28050-812-0 01 1 0610-0612 ● ● ● ●
127 03.162 BOLT; CLIP LEAK OFF PIPE
02.343 M8X12 FLANGE 		0-28050-812-0 01 1 0701-0912 ● ● ●
127 03.162 BOLT; CLIP LEAK OFF PIPE
02.343 M8X12 FLANGE 		0-28050-812-0 01 1 1001- ● ● ● ●
137 03.163 PIPE ASM; LEAK OFF
KENYA EQUIPMENT(CL1) (B) 		8-98161-061-0 03 1 1102- ●
137 03.163 PIPE ASM; LEAK OFF
KENYA EQUIPMENT(CL1) (A) 		8-98161-062-0 01 1 1102- ●
137 03.163 PIPE ASM; LEAK OFF
(E) 		8-94467-727-3 01 1 0307-0402 ●
137 03.163 PIPE ASM; LEAK OFF
KENYA EQUIPMENT(CL1) (D) 		8-98036-510-0 01 1 0612- ●
137 03.163 PIPE ASM; LEAK OFF
(A) 		8-97315-230-1 01 1 0610-0612 ● ● ● ●
137 03.163 PIPE ASM; LEAK OFF
(A) 		8-97315-230-2 01 1 0701-0912 ● ● ●
137 03.163 PIPE ASM; LEAK OFF
(A) 		8-97315-230-2 01 1 1001-1101 ● ● ● ●
137 03.163 PIPE ASM; LEAK OFF
EXC. KENYA EQUIPMENT(CL1) (A) 		8-97315-230-2 01 1 1102- ●
137 03.163 PIPE ASM; LEAK OFF
(A) 		8-97315-230-2 01 1 1102- ● ● ●
137 03.163 PIPE ASM; LEAK OFF
(B) 		8-97315-231-1 03 1 0610-0612 ● ● ● ●
137 03.163 PIPE ASM; LEAK OFF
(B) 		8-97315-231-2 03 1 0701-0912 ● ● ●
137 03.163 PIPE ASM; LEAK OFF
(B) 		8-97315-231-2 03 1 1001-1101 ● ● ● ●
137 03.163 PIPE ASM; LEAK OFF
EXC. KENYA EQUIPMENT(CL1) (B) 		8-97315-231-2 03 1 1102- ●
137 03.163 PIPE ASM; LEAK OFF
(B) 		8-97315-231-2 03 1 1102- ● ● ●
137 03.163 PIPE ASM; LEAK OFF
(C) 		8-97357-916-3 01 1 0610-0612 ● ● ● ●
137 03.163 PIPE ASM; LEAK OFF
(C) 		8-97357-916-4 01 1 0701-0912 ● ● ●
137 03.163 PIPE ASM; LEAK OFF
(C) 		8-97357-916-4 01 1 1001- ● ● ● ●
137 03.163 PIPE ASM; LEAK OFF
(D) 		8-97372-938-2 01 1 0610-0611 ● ● ● ●
137 03.163 PIPE ASM; LEAK OFF
EXC. KENYA EQUIPMENT(CL1) (D) 		8-97372-938-2 01 1 0612-0612 ●
137 03.163 PIPE ASM; LEAK OFF
(D) 		8-97372-938-2 01 1 0612-0612 ● ● ●
137 03.163 PIPE ASM; LEAK OFF
EXC. KENYA EQUIPMENT(CL1) (D) 		8-97372-938-3 01 1 0701-0912 ●
137 03.163 PIPE ASM; LEAK OFF
(D) 		8-97372-938-3 01 1 0701-0912 ● ●
137 03.163 PIPE ASM; LEAK OFF
EXC. KENYA EQUIPMENT(CL1) (D) 		8-97372-938-3 01 1 1001- ●
137 03.163 PIPE ASM; LEAK OFF
(D) 		8-97372-938-3 01 1 1001- ● ● ●
166 03.304 GASKET; FUEL INJECTOR
03.332 ID=11 OD=14.8 		9-09566-111-0 04 1 0610-0612 ● ● ● ●
166 03.304 GASKET; FUEL INJECTOR
03.332 ID=11 OD=14.8 		9-09566-111-0 04 1 0701-0912 ● ● ●
166 03.304 GASKET; FUEL INJECTOR
03.332 ID=11 OD=14.8 ALSO INCLUDED IN GASKET SET(ENG. &HEAD) 		9-09566-111-0 04 1 1001- ● ● ● ●
313 03.330 BOLT; BRKT,INJ NOZZLE
EXC. KENYA EQUIPMENT(CL1) M8X50 W/WASHER 		8-98095-575-0 04 1 0708-0912 ●
313 03.330 BOLT; BRKT,INJ NOZZLE
M8X50 W/WASHER 		8-98095-575-0 04 1 0708-0912 ● ●
313 03.330 BOLT; BRKT,INJ NOZZLE
EXC. KENYA EQUIPMENT(CL1) M8X50 W/WASHER 		8-98095-575-0 04 1 1001- ●
313 03.330 BOLT; BRKT,INJ NOZZLE
M8X50 W/WASHER 		8-98095-575-0 04 1 1001- ● ● ●
313 03.330 BOLT; BRKT,INJ NOZZLE
M8X50 W/WASHER 		8-97372-144-0 04 1 0610-0612 ● ● ● ●
313 03.330 BOLT; BRKT,INJ NOZZLE
M8X50 W/WASHER 		8-97372-144-0 04 1 0701-0707 ● ● ●
313 03.330 BOLT; BRKT,INJ NOZZLE
KENYA EQUIPMENT(CL1) M8X50 W/WASHER 		8-97372-144-0 04 1 0708- ●
347 03.332 PIN
KENYA EQUIPMENT(CL1) 		8-98165-035-0 04 1 1012-1012 ●
347 03.332 PIN 8-98165-035-0 04 1 1101- ● ● ● ●
347 03.332 PIN 8-97383-286-0 04 1 0610-0612 ● ● ● ●
347 03.332 PIN 8-97383-286-0 04 1 0701-0912 ● ● ●
347 03.332 PIN 8-97383-286-0 04 1 1001-1011 ● ● ● ●
347 03.332 PIN
EXC. KENYA EQUIPMENT(CL1) 		8-97383-286-0 04 1 1012-1012 ●
347 03.332 PIN 8-97383-286-0 04 1 1012-1012 ● ● ●
çizim 53850
283 211 290 199 199 216 288 289 137 210 283 216 175 175 205 329 424 408 219 282
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
137 03.163 PIPE ASM; LEAK OFF
KENYA EQUIPMENT(CL1) (B) 		8-98161-061-0 03 1 1102- ●
137 03.163 PIPE ASM; LEAK OFF
KENYA EQUIPMENT(CL1) (A) 		8-98161-062-0 01 1 1102- ●
137 03.163 PIPE ASM; LEAK OFF
(E) 		8-94467-727-3 01 1 0307-0402 ●
137 03.163 PIPE ASM; LEAK OFF
KENYA EQUIPMENT(CL1) (D) 		8-98036-510-0 01 1 0612- ●
137 03.163 PIPE ASM; LEAK OFF
(A) 		8-97315-230-1 01 1 0610-0612 ● ● ● ●
137 03.163 PIPE ASM; LEAK OFF
(A) 		8-97315-230-2 01 1 0701-0912 ● ● ●
137 03.163 PIPE ASM; LEAK OFF
(A) 		8-97315-230-2 01 1 1001-1101 ● ● ● ●
137 03.163 PIPE ASM; LEAK OFF
EXC. KENYA EQUIPMENT(CL1) (A) 		8-97315-230-2 01 1 1102- ●
137 03.163 PIPE ASM; LEAK OFF
(A) 		8-97315-230-2 01 1 1102- ● ● ●
137 03.163 PIPE ASM; LEAK OFF
(B) 		8-97315-231-1 03 1 0610-0612 ● ● ● ●
137 03.163 PIPE ASM; LEAK OFF
(B) 		8-97315-231-2 03 1 0701-0912 ● ● ●
137 03.163 PIPE ASM; LEAK OFF
(B) 		8-97315-231-2 03 1 1001-1101 ● ● ● ●
137 03.163 PIPE ASM; LEAK OFF
EXC. KENYA EQUIPMENT(CL1) (B) 		8-97315-231-2 03 1 1102- ●
137 03.163 PIPE ASM; LEAK OFF
(B) 		8-97315-231-2 03 1 1102- ● ● ●
137 03.163 PIPE ASM; LEAK OFF
(C) 		8-97357-916-3 01 1 0610-0612 ● ● ● ●
137 03.163 PIPE ASM; LEAK OFF
(C) 		8-97357-916-4 01 1 0701-0912 ● ● ●
137 03.163 PIPE ASM; LEAK OFF
(C) 		8-97357-916-4 01 1 1001- ● ● ● ●
137 03.163 PIPE ASM; LEAK OFF
(D) 		8-97372-938-2 01 1 0610-0611 ● ● ● ●
137 03.163 PIPE ASM; LEAK OFF
EXC. KENYA EQUIPMENT(CL1) (D) 		8-97372-938-2 01 1 0612-0612 ●
137 03.163 PIPE ASM; LEAK OFF
(D) 		8-97372-938-2 01 1 0612-0612 ● ● ●
137 03.163 PIPE ASM; LEAK OFF
EXC. KENYA EQUIPMENT(CL1) (D) 		8-97372-938-3 01 1 0701-0912 ●
137 03.163 PIPE ASM; LEAK OFF
(D) 		8-97372-938-3 01 1 0701-0912 ● ●
137 03.163 PIPE ASM; LEAK OFF
EXC. KENYA EQUIPMENT(CL1) (D) 		8-97372-938-3 01 1 1001- ●
137 03.163 PIPE ASM; LEAK OFF
(D) 		8-97372-938-3 01 1 1001- ● ● ●
175 03.162 GASKET; EYE BOLT,OUTLET,FUEL FEE
01.531 ID=10.2 OD=15.2 		1-09630-083-0 02 1 0610-0612 ● ● ● ●
175 03.162 GASKET; EYE BOLT,OUTLET,FUEL FEE
01.531 ID=10.2 OD=15.2 		1-09630-083-0 02 1 0701-0912 ● ● ●
175 03.162 GASKET; EYE BOLT,OUTLET,FUEL FEE
01.531 ID=10.2 OD=15.2 		1-09630-083-0 02 1 1001- ● ● ● ●
199 03.332 GASKET; EYE BOLT 8-97602-218-0 02 1 0610-0612 ● ● ● ●
199 03.332 GASKET; EYE BOLT 8-97602-218-0 02 1 0701-0912 ● ● ●
199 03.332 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE) . 		8-97602-218-0 02 1 1001- ● ● ● ●
205 03.320 SENSOR; FUEL TEMP
EXC. KENYA EQUIPMENT(CL1) 		8-98023-581-0 01 1 0612-0612 ●
205 03.320 SENSOR; FUEL TEMP 8-98023-581-0 01 1 0612-0612 ● ● ●
205 03.320 SENSOR; FUEL TEMP
EXC. KENYA EQUIPMENT(CL1) 		8-98023-581-0 01 1 0701-0702 ●
205 03.320 SENSOR; FUEL TEMP 8-98023-581-0 01 1 0701-0702 ● ●
205 03.320 SENSOR; FUEL TEMP 8-98023-581-0 01 1 0703-0912 ● ● ●
205 03.320 SENSOR; FUEL TEMP 8-98023-581-0 01 1 1001- ● ● ● ●
205 03.320 SENSOR; FUEL TEMP
03.162 		8-97216-283-0 01 1 0610-0611 ● ● ● ●
205 03.320 SENSOR; FUEL TEMP
KENYA EQUIPMENT(CL1) 03.162 		8-97216-283-0 01 1 0612-0702 ●
210 03.330 PIPE; INJ,C/R 8-97388-902-0 01 1 0610-0612 ● ● ● ●
210 03.330 PIPE; INJ,C/R 8-97388-902-0 01 1 0701-0912 ● ● ●
210 03.330 PIPE; INJ,C/R 8-97388-902-0 01 1 1001- ● ● ● ●
211 03.331 RAIL ASM; COMMON
EXC. KENYA EQUIPMENT(CL1) 		8-98052-238-0 01 1 0709-0912 ●
211 03.331 RAIL ASM; COMMON 8-98052-238-0 01 1 0709-0912 ● ●
211 03.331 RAIL ASM; COMMON
EXC. KENYA EQUIPMENT(CL1) 		8-98052-238-0 01 1 1001- ●
211 03.331 RAIL ASM; COMMON 8-98052-238-0 01 1 1001- ● ● ●
211 03.331 RAIL ASM; COMMON 8-98011-888-0 01 1 0610-0612 ● ● ● ●
211 03.331 RAIL ASM; COMMON 8-98011-888-0 01 1 0701-0708 ● ● ●
211 03.331 RAIL ASM; COMMON
KENYA EQUIPMENT(CL1) 		8-98011-888-2 01 1 0709- ●
216 03.162 BOLT; EYE
03.280 (B) 		9-88130-088-0 01 1 0710-0912 ● ● ●
216 03.162 BOLT; EYE
03.280 (B) 		9-88130-088-0 01 1 1001- ● ● ● ●
216 03.162 BOLT; EYE
(B) 		8-98056-937-0 01 1 0610-0612 ● ● ● ●
216 03.162 BOLT; EYE
(B) 		8-98056-937-0 01 1 0701-0709 ● ● ●
216 03.162 BOLT; EYE
(A) 		8-98043-033-0 01 1 0610-0612 ● ● ● ●
216 03.162 BOLT; EYE
(A) 		8-98043-033-0 01 1 0701-0912 ● ● ●
216 03.162 BOLT; EYE
(A) 		8-98043-033-0 01 1 1001- ● ● ● ●
219 03.162 GASKET
ID=49.7 		1-09623-541-0 01 1 0610-0612 ● ● ● ●
219 03.162 GASKET
ID=49.7 		1-09623-541-0 01 1 0701-0912 ● ● ●
219 03.162 GASKET
ID=49.7 ALSO INCLUDED IN GASKET SET(ENGINE) . 		1-09623-541-0 01 1 1001- ● ● ● ●
282 03.163 BRACKET; COMMON RAIL 8-98011-890-1 01 1 0610-0612 ● ● ● ●
282 03.163 BRACKET; COMMON RAIL 8-98011-890-1 01 1 0701-0912 ● ● ●
282 03.163 BRACKET; COMMON RAIL 8-98011-890-1 01 1 1001- ● ● ● ●
283 03.330 BOLT; COMMON RAIL
00.206 (A) M8X70 FLANGE 		0-28050-870-0 02 1 0610-0612 ● ● ● ●
283 03.330 BOLT; COMMON RAIL
00.206 (A) M8X70 FLANGE 		0-28050-870-0 02 1 0701-0912 ● ● ●
283 03.330 BOLT; COMMON RAIL
00.206 (A) M8X70 FLANGE 		0-28050-870-0 02 1 1001- ● ● ● ●
283 03.330 BOLT; COMMON RAIL
(B) M8X81 FLANGE 		8-97354-584-0 02 1 0610-0612 ● ● ● ●
283 03.330 BOLT; COMMON RAIL
(B) M8X81 FLANGE 		8-97354-584-0 02 1 0701-0912 ● ● ●
283 03.330 BOLT; COMMON RAIL
(B) M8X81 FLANGE 		8-97354-584-0 02 1 1001- ● ● ● ●
288 03.331 GASKET
ID=11 OD=16.3 		1-15641-046-0 01 1 0610-0612 ● ● ● ●
288 03.331 GASKET
ID=11 OD=16.3 		1-15641-046-0 01 1 0701-0912 ● ● ●
288 03.331 GASKET
ID=11 OD=16.3 		1-15641-046-0 01 1 1001- ● ● ● ●
289 03.331 LIMITER; FUEL PRESS 8-98032-549-0 01 1 0610-0612 ● ● ● ●
289 03.331 LIMITER; FUEL PRESS 8-98032-549-0 01 1 0701-0912 ● ● ●
289 03.331 LIMITER; FUEL PRESS 8-98032-549-0 01 1 1001- ● ● ● ●
290 03.331 SENSOR; PRESS
EXC. KENYA EQUIPMENT(CL1) (A) 		8-98014-320-0 01 1 0709-0912 ●
290 03.331 SENSOR; PRESS
(A) 		8-98014-320-0 01 1 0709-0912 ● ●
290 03.331 SENSOR; PRESS
EXC. KENYA EQUIPMENT(CL1) (A) 		8-98014-320-0 01 1 1001- ●
290 03.331 SENSOR; PRESS
(A) 		8-98014-320-0 01 1 1001- ● ● ●
290 03.331 SENSOR; PRESS
(A) 		8-97318-684-0 01 1 0610-0612 ● ● ● ●
290 03.331 SENSOR; PRESS
(A) 		8-97318-684-0 01 1 0701-0708 ● ● ●
290 03.331 SENSOR; PRESS
KENYA EQUIPMENT(CL1) (A) 		8-97318-684-0 01 1 0709-0809 ●
290 03.331 SENSOR; PRESS
KENYA EQUIPMENT(CL1) (A) 		8-98119-790-0 01 1 0810- ●
290 03.331 SENSOR; PRESS
(B) 		8-98020-514-0 01 1 0610-0612 ● ● ● ●
290 03.331 SENSOR; PRESS
(B) 		8-98020-514-0 01 1 0701-0912 ● ● ●
290 03.331 SENSOR; PRESS
(B) 		8-98020-514-0 01 1 1001- ● ● ● ●
329 03.335 GASKET; SENSOR,FUEL TEMP
03.304 ID=9.8 OD=11.7 		9-09566-110-0 01 1 0710-0912 ● ● ●
329 03.335 GASKET; SENSOR,FUEL TEMP
03.304 ID=9.8 OD=11.7 		9-09566-110-0 01 1 1001- ● ● ● ●
408 03.306 PUMP ASM; FUEL,SUPPLY 8-97311-373-6 01 1 0610-0612 ● ● ● ●
408 03.306 PUMP ASM; FUEL,SUPPLY 8-97311-373-9 01 1 0701-0912 ● ● ●
408 03.306 PUMP ASM; FUEL,SUPPLY 8-97311-373-9 01 1 1001- ● ● ● ●
424 03.332 OVERHAUL KIT; SUPPLY PUMP
W/ADAPTER 		8-98145-453-0 01 1 0610-0612 ● ● ● ●
424 03.332 OVERHAUL KIT; SUPPLY PUMP
W/ADAPTER 		8-98145-453-0 01 1 0701-0711 ● ● ●
424 03.332 OVERHAUL KIT; SUPPLY PUMP 8-98145-455-0 01 1 0712- ● ● ●
424 03.332 OVERHAUL KIT; SUPPLY PUMP 8-98145-455-0 01 1 1001- ● ● ● ●
çizim 55724
411 290 410 411 290 411
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
290 03.331 SENSOR; PRESS
EXC. KENYA EQUIPMENT(CL1) (A) 		8-98014-320-0 01 1 0709-0912 ●
290 03.331 SENSOR; PRESS
(A) 		8-98014-320-0 01 1 0709-0912 ● ●
290 03.331 SENSOR; PRESS
EXC. KENYA EQUIPMENT(CL1) (A) 		8-98014-320-0 01 1 1001- ●
290 03.331 SENSOR; PRESS
(A) 		8-98014-320-0 01 1 1001- ● ● ●
290 03.331 SENSOR; PRESS
(A) 		8-97318-684-0 01 1 0610-0612 ● ● ● ●
290 03.331 SENSOR; PRESS
(A) 		8-97318-684-0 01 1 0701-0708 ● ● ●
290 03.331 SENSOR; PRESS
KENYA EQUIPMENT(CL1) (A) 		8-97318-684-0 01 1 0709-0809 ●
290 03.331 SENSOR; PRESS
KENYA EQUIPMENT(CL1) (A) 		8-98119-790-0 01 1 0810- ●
290 03.331 SENSOR; PRESS
(B) 		8-98020-514-0 01 1 0610-0612 ● ● ● ●
290 03.331 SENSOR; PRESS
(B) 		8-98020-514-0 01 1 0701-0912 ● ● ●
290 03.331 SENSOR; PRESS
(B) 		8-98020-514-0 01 1 1001- ● ● ● ●
410 03.331 BRACKET; SENSOR 8-98013-801-1 01 1 0610-0612 ● ●
410 03.331 BRACKET; SENSOR 8-98013-801-1 01 1 0701-0912 ●
410 03.331 BRACKET; SENSOR 8-98013-801-1 01 1 1001- ● ●
411 03.331 BOLT; SENSOR
03.162 M6X12 FLANGE 		0-28050-612-0 01 1 0610-0612 ● ●
411 03.331 BOLT; SENSOR
03.162 M6X12 FLANGE 		0-28050-612-0 01 1 0701-0912 ●
411 03.331 BOLT; SENSOR
03.162 M6X12 FLANGE 		0-28050-612-0 01 1 1001- ● ●
411 03.331 BOLT; SENSOR
03.162 M6X20 FLANGE 		0-28650-620-0 02 1 0610-0612 ● ● ● ●
411 03.331 BOLT; SENSOR
03.162 M6X20 FLANGE 		0-28650-620-0 02 1 0701-0912 ● ● ●
411 03.331 BOLT; SENSOR
03.162 M6X20 FLANGE 		0-28650-620-0 02 1 1001- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
