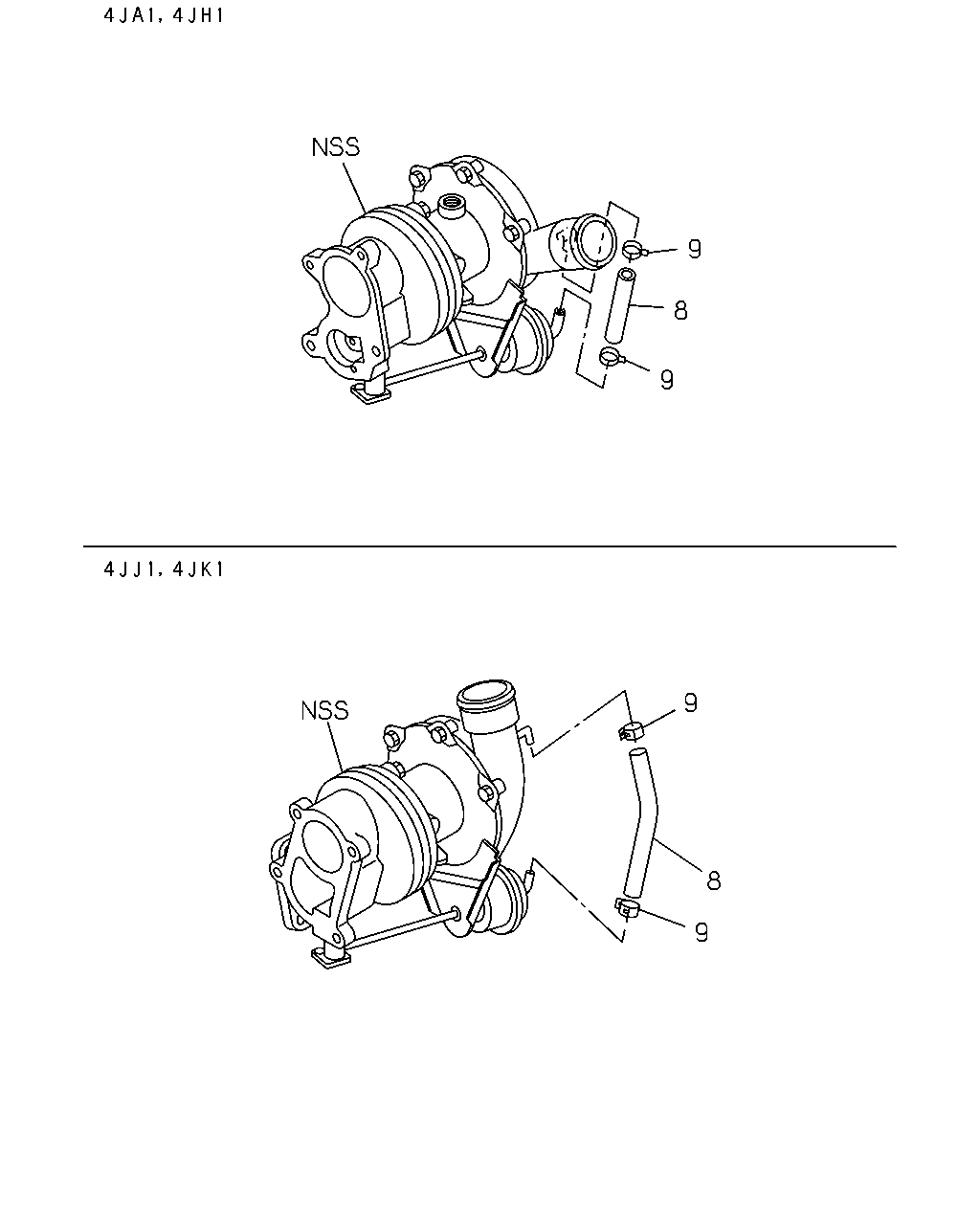

0-37 — TURBOCHARGER (#20481) — 5 parça

9 8 9 9 8 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	03.342 HOSE; ACTUATOR TO BLOWER HSG,TC ASM PART: B = 8-97329-588-1, 97329588	8-94403-662-0	01	1	-
8	03.342 HOSE; ACTUATOR TO BLOWER HSG,TC ASM PART: A = 8-97310-948-3, 97310948, C = 8-97354-423-4, 97354423	8-97357-107-0	01	1	-
8	03.342 HOSE; ACTUATOR TO BLOWER HSG,TC ASM PART: D = 8-98011-892-3, 98011892, E = 8-98011-893-4, 98011893	8-98038-102-0	01	1	-
9	03.342 CLIP; ACTUATOR HOSE,TURBOCHARGER ASM PART: A = 8-97310-948-3, 97310948, B = 8-97329-588-1, 97329588, C = 8-97354-423-4, 97354423	8-94167-469-0	02	1	-
9	03.342 CLIP; ACTUATOR HOSE,TURBOCHARGER ASM PART: D = 8-98011-892-3, 98011892, E = 8-98011-893-4, 98011893	8-98038-103-0	02	1	-
