Isuzu WW
▶
PICKUP
▶
TFR
▶
50965 - TFR/TFS-RHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-35B - ENGINE CONTROL VALVE AND LEVER
▶
0-35B — ENGINE CONTROL VALVE AND LEVER
(#20479) — 18 parça
Tümü

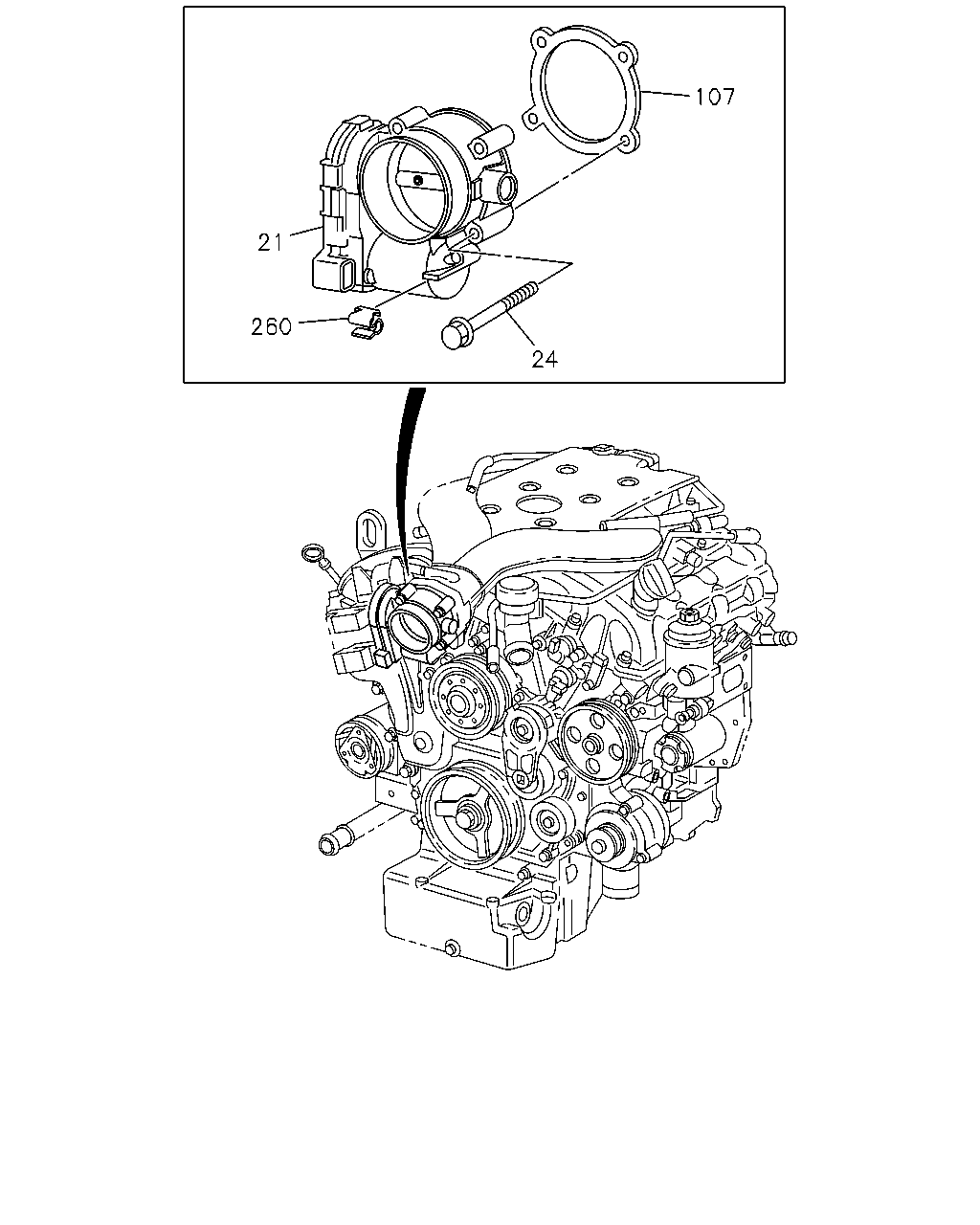

A - 6VE1 ENG

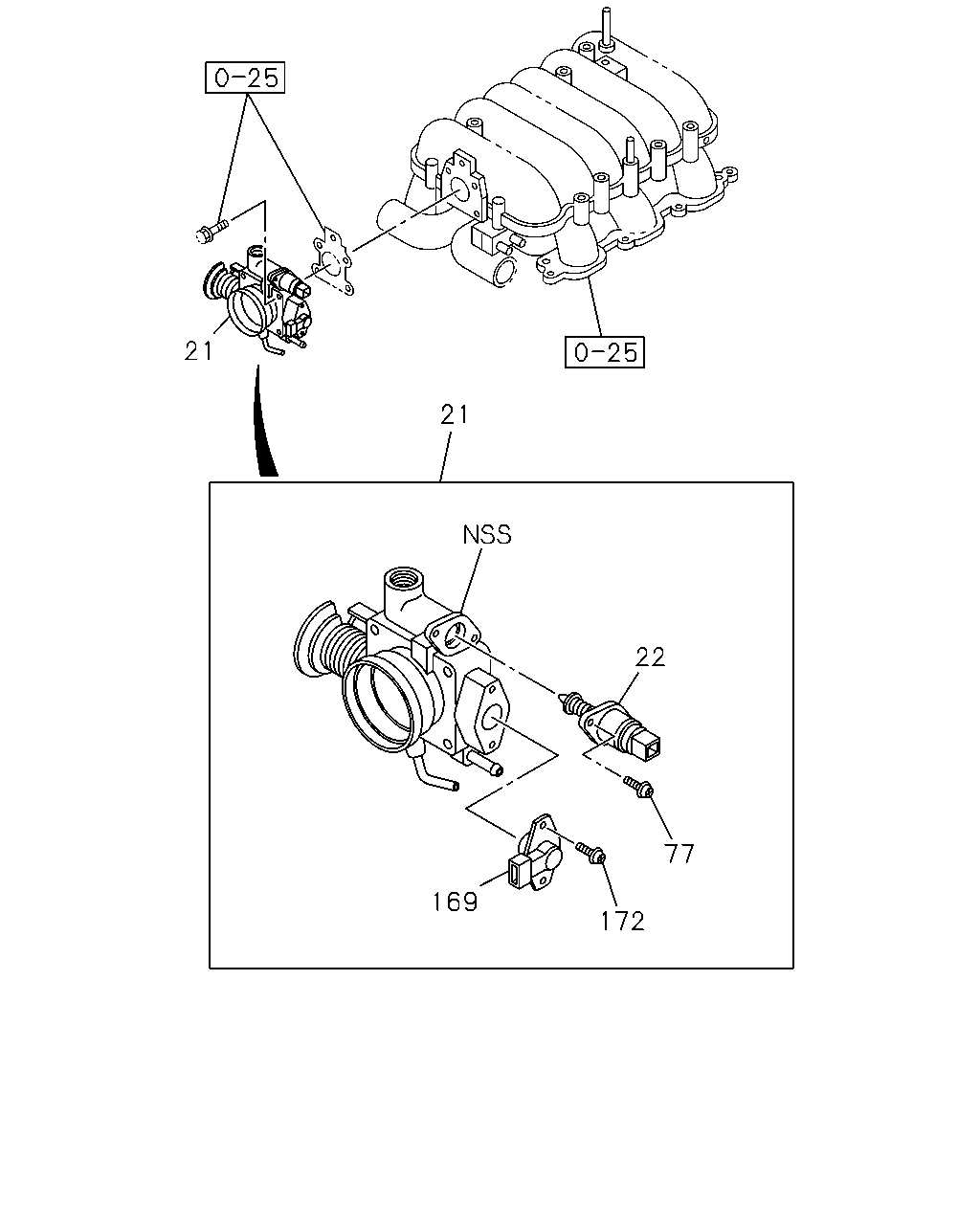

B - HF V6 ENG
◀
[035B] HF V6 (10 parça)
[035B] 6VE1 (8 parça)
▶
107
21
260
24
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
21
03.440 VALVE ASM; THROTTLE
A/T AISIN(RMD)
8-97232-747-0
01
1
0307-0609
●
21
03.440 VALVE ASM; THROTTLE
M/T MUA 5 SPEED 5G(RSP)
8-97232-746-0
01
1
0307-0609
●
21
03.440 VALVE ASM; THROTTLE
8-12589-056-0
01
1
0509-0609
●
21
03.440 VALVE ASM; THROTTLE
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>
8-12589-056-0
01
1
0610-
●
24
03.440 SCREW SET; TB
01.252
8-11519-972-0
04
1
0509-0609
●
24
03.440 SCREW SET; TB
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 01.252
8-11519-972-0
04
1
0610-
●
107
03.440 GASKET; COVER TO THROTTLE BODY
8-12581-073-0
01
1
0509-0609
●
107
03.440 GASKET; COVER TO THROTTLE BODY
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>
8-12581-073-0
01
1
0610-
●
260
03.483 CLIP; HARNESS
8-12577-831-0
01
1
0509-0609
●
260
03.483 CLIP; HARNESS
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>
8-12577-831-0
01
1
0610-
●
21
21
22
77
169
172
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
21
03.440 VALVE ASM; THROTTLE
A/T AISIN(RMD)
8-97232-747-0
01
1
0307-0609
●
21
03.440 VALVE ASM; THROTTLE
M/T MUA 5 SPEED 5G(RSP)
8-97232-746-0
01
1
0307-0609
●
21
03.440 VALVE ASM; THROTTLE
8-12589-056-0
01
1
0509-0609
●
21
03.440 VALVE ASM; THROTTLE
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD, ELEC,PTU(MK2),A/T 4 SPEED-HMD,ELEC(M30) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>
8-12589-056-0
01
1
0610-
●
22
03.440 VALVE ASM; CONT,TB
8-97181-718-0
01
1
0307-0609
●
77
03.440 SCREW; TB
8-97181-716-0
02
1
0307-0609
●
169
03.440 SENSOR
8-97181-717-0
01
1
0307-0609
●
172
03.440 SCREW; SENSOR
8-97181-715-0
02
1
0307-0609
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
