◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50965 - TFR/TFS-RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-35A - ENGINE CONTROL VALVE AND LEVER ▶
0-35A — ENGINE CONTROL VALVE AND LEVER (#20478) — 10 parça

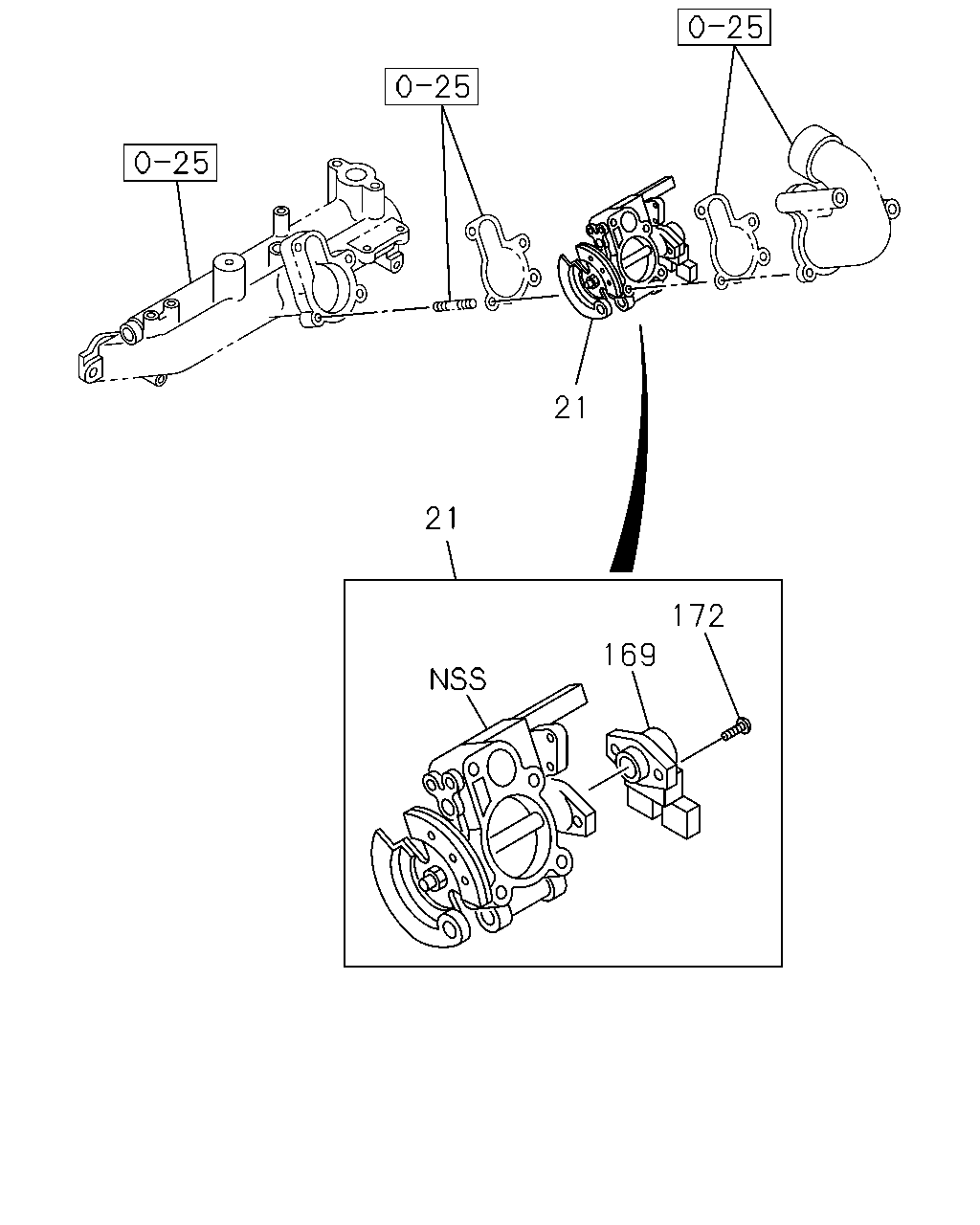

çizim 13505
21 21 172 169
BalonParca AdiParca NoAdetTipApplied Date A B C
21 03.440 VALVE ASM; THROTTLE
EXC. AUSTRALIA EQUIPMENT(B13) 		8-92066-489-0 01 1 1010- ●
21 03.440 VALVE ASM; THROTTLE 8-97315-138-0 01 1 0307-0609 ● ●
21 03.440 VALVE ASM; THROTTLE 8-92064-772-0 01 1 0307-1009 ●
21 03.440 VALVE ASM; THROTTLE
AUSTRALIA EQUIPMENT(B13) 		8-92064-772-0 01 1 1010- ●
169 03.440 SENSOR
03.425 		8-97163-164-0 01 1 0307-0609 ● ●
172 03.440 SCREW; SENSOR 8-97288-945-0 02 1 0307-0609 ● ●
çizim 56321
21
BalonParca AdiParca NoAdetTipApplied Date A B C
21 03.440 VALVE ASM; THROTTLE
EXC. AUSTRALIA EQUIPMENT(B13) 		8-92066-489-0 01 1 1010- ●
21 03.440 VALVE ASM; THROTTLE 8-97315-138-0 01 1 0307-0609 ● ●
21 03.440 VALVE ASM; THROTTLE 8-92064-772-0 01 1 0307-1009 ●
21 03.440 VALVE ASM; THROTTLE
AUSTRALIA EQUIPMENT(B13) 		8-92064-772-0 01 1 1010- ●
