◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50965 - TFR/TFS-RHD ▶ 5 - Frame, Cab Mounting ▶ 5-40 - ENGINE ROOM INSULATOR ▶
5-40 — ENGINE ROOM INSULATOR (#20476) — 52 parça

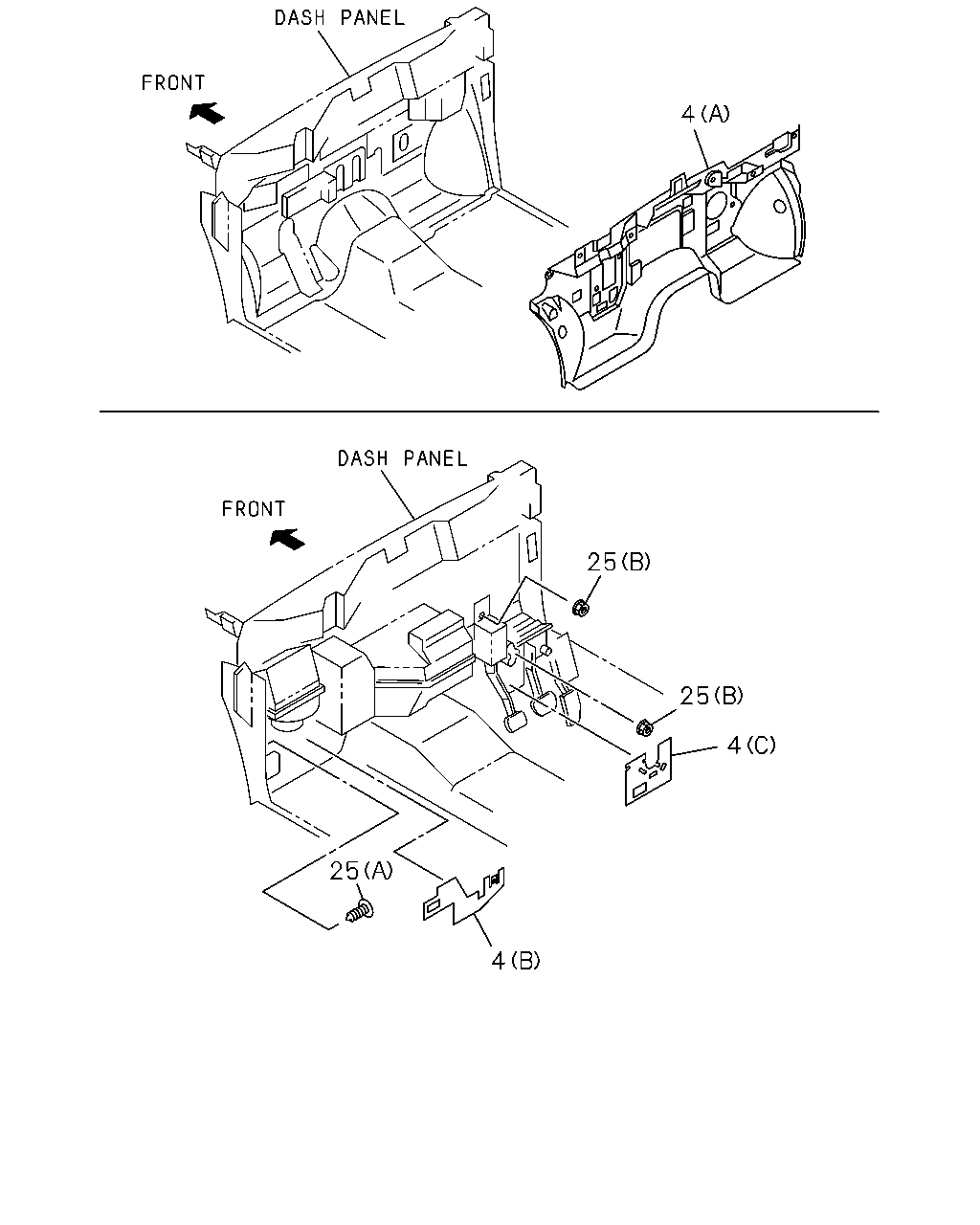

çizim 53285
4 25 25 4 25 4
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
4 08.021 INSULATION; DASH PNL,INNER
C24SE ENG(LG1),4JA1-T ENG(LP0), 6VE1ENG(LX5) (A) 		8-97369-012-0 01 1 0307-0411 ● ● ● ● ● ● ● ●
4 08.021 INSULATION; DASH PNL,INNER
C24SE ENG(LG1),4JA1-T ENG(LP0), 6VE1ENG(LX5) (A) 		8-98003-294-0 01 1 0412-0504 ● ● ● ● ● ● ● ●
4 08.021 INSULATION; DASH PNL,INNER
C24SE ENG(LG1),4JA1-T ENG(LP0), 6VE1ENG(LX5) (A) 		8-98012-634-0 01 1 0505-0508 ● ● ● ● ● ● ● ●
4 08.021 INSULATION; DASH PNL,INNER
HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5) (A) 		8-98012-634-0 01 1 0509-0609 ● ● ● ● ● ● ● ●
4 08.021 INSULATION; DASH PNL,INNER
C24SE ENG(LG1),4JA1-T ENG(LP0), 6VE1ENG(LX5) (A) 		8-98012-634-0 01 1 0509-0609 ● ● ● ● ● ● ●
4 08.021 INSULATION; DASH PNL,INNER
HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5) (A) 		8-98012-634-0 01 1 0610-0612 ● ● ● ● ● ● ● ●
4 08.021 INSULATION; DASH PNL,INNER
C24SE ENG(LG1),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0) (A) 		8-98012-634-0 01 1 0610-0612 ● ● ● ● ● ● ●
4 08.021 INSULATION; DASH PNL,INNER
HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5) (A) 		8-98012-634-0 01 1 0701-0912 ● ● ● ● ● ● ● ●
4 08.021 INSULATION; DASH PNL,INNER
C24SE ENG(LG1),4JA1-T ENG(LP0) (A) 		8-98012-634-0 01 1 0701-0912 ● ● ● ● ● ● ●
4 08.021 INSULATION; DASH PNL,INNER
HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5) (A) 		8-98012-634-0 01 1 1001- ● ● ● ● ● ● ● ●
4 08.021 INSULATION; DASH PNL,INNER
C24SE ENG(LG1),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0) (A) 		8-98012-634-0 01 1 1001- ● ● ● ● ● ● ●
4 08.021 INSULATION; DASH PNL,INNER
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) (A) 		8-97367-932-0 01 1 0307-0504 ● ● ● ● ● ● ● ●
4 08.021 INSULATION; DASH PNL,INNER
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) (A) 		8-98013-149-0 01 1 0505-0609 ● ● ● ● ● ● ● ●
4 08.021 INSULATION; DASH PNL,INNER
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (A) 		8-98013-149-0 01 1 0610- ● ● ● ● ● ●
4 08.021 INSULATION; DASH PNL,INNER
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. HONG KONG EQUIPMENT(B14), SINGAPORE EQUIPMENT(2G0) (A) 		8-98013-149-0 01 1 0610- ● ●
4 08.021 INSULATION; DASH PNL,INNER
4JJ1-TCS ENG(LFB) (A) 		8-98002-801-0 01 1 0610- ● ● ● ● ● ●
4 08.021 INSULATION; DASH PNL,INNER
HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC(M30) (A) 		8-98007-901-0 01 1 0509-0609 ● ● ●
4 08.021 INSULATION; DASH PNL,INNER
4X4 CREW CAB LONG(TFS*WF) HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC,PTU(MK2) (A) 		8-98007-901-0 01 1 0509-0609 ●
4 08.021 INSULATION; DASH PNL,INNER
HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC(M30) (A) 		8-98007-901-0 01 1 0610- ● ● ● ●
4 08.021 INSULATION; DASH PNL,INNER
4X4 CREW CAB LONG(TFS*WF) HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC,PTU(MK2) (A) 		8-98007-901-0 01 1 0610- ●
4 08.021 INSULATION; DASH PNL,INNER
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) ISUZU BRAND<7WL> (C) 		8-98013-156-0 01 1 0610- ●
4 08.021 INSULATION; DASH PNL,INNER
4X4 CREW CAB LONG(TFS*WF) 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) ISUZU BRAND<7WL> (C) 		8-98013-156-0 01 1 0610- ●
4 08.021 INSULATION; DASH PNL,INNER
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) ISUZU BRAND<7WL> (A) 		8-98059-830-0 01 1 0610- ●
4 08.021 INSULATION; DASH PNL,INNER
4X4 CREW CAB LONG(TFS*WF) 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) ISUZU BRAND<7WL> (A) 		8-98059-830-0 01 1 0610- ●
4 08.021 INSULATION; DASH PNL,INNER
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) ISUZU BRAND<7WL> (B) 		8-98065-222-0 01 1 0610- ●
4 08.021 INSULATION; DASH PNL,INNER
4X4 CREW CAB LONG(TFS*WF) 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) ISUZU BRAND<7WL> (B) 		8-98065-222-0 01 1 0610- ●
25 16.802 CLIP; DASH INSULATION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) ISUZU BRAND<7WL> 08.820 (A) OD=25 		8-94279-810-0 01 1 0610- ●
25 16.802 CLIP; DASH INSULATION
4X4 CREW CAB LONG(TFS*WF) 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) ISUZU BRAND<7WL> 08.820 (A) OD=25 		8-94279-810-0 01 1 0610- ●
25 16.802 CLIP; DASH INSULATION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) ISUZU BRAND<7WL> (B) 		8-97379-175-0 03 1 0610- ●
25 16.802 CLIP; DASH INSULATION
4X4 CREW CAB LONG(TFS*WF) 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) ISUZU BRAND<7WL> (B) 		8-97379-175-0 03 1 0610- ●

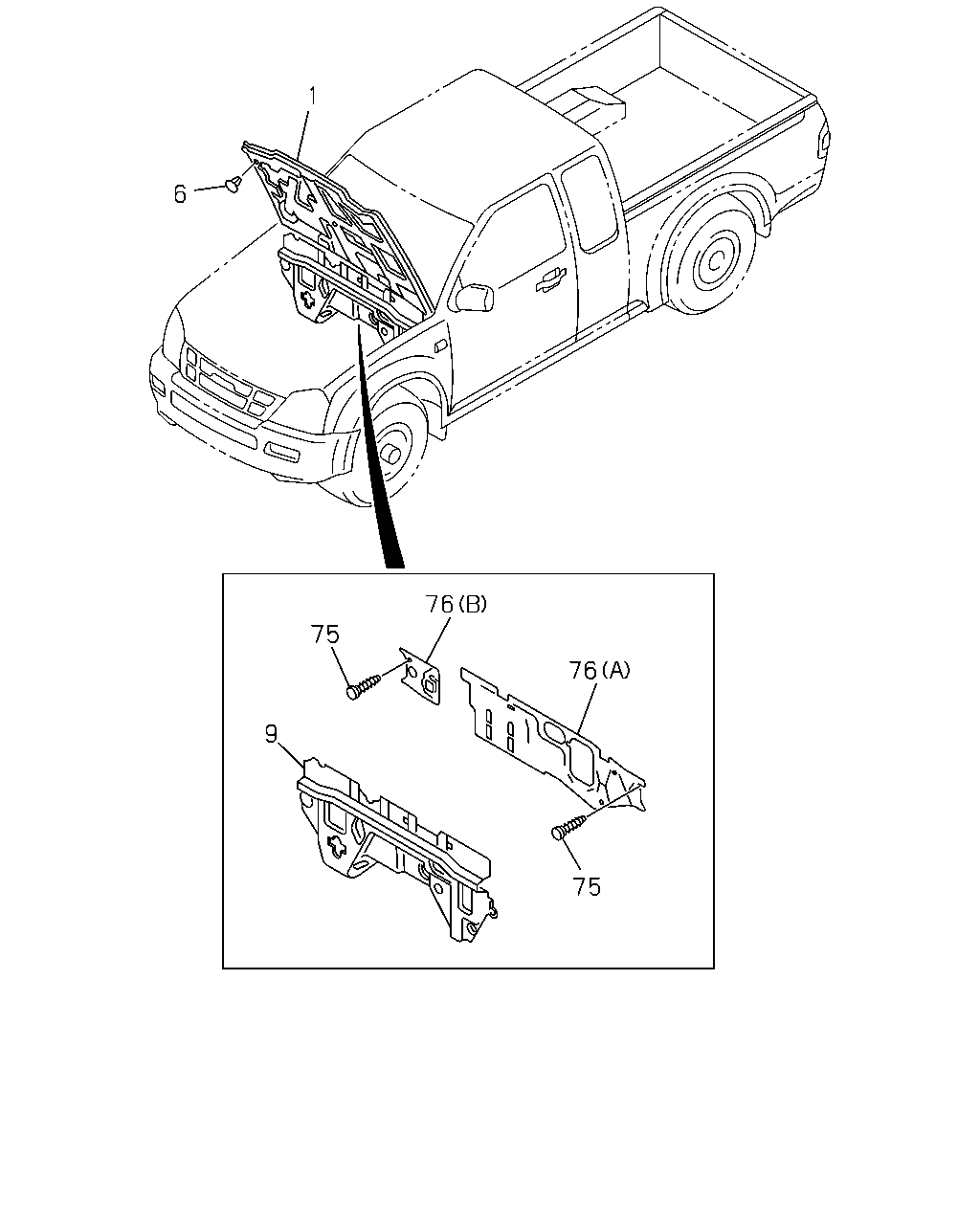

çizim 56608
76 76 75 9 75 6 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 08.021 INSULATION; ENG HOOD
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) 		8-97361-321-0 01 1 0307-0609 ● ● ● ● ● ● ● ●
1 08.021 INSULATION; ENG HOOD
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JA1-T ENG(LP0) 		8-98007-122-3 01 1 0610-0612 ● ● ● ● ● ● ● ●
1 08.021 INSULATION; ENG HOOD
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0) 		8-98007-122-3 01 1 0701-0912 ● ● ● ● ● ●
1 08.021 INSULATION; ENG HOOD
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JA1-T ENG(LP0) 		8-98007-122-3 01 1 1001- ● ● ● ● ● ●
1 08.021 INSULATION; ENG HOOD
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 		8-98007-123-3 01 1 0610- ● ● ● ● ● ● ● ●
6 08.021 CLIP; ENG HOOD INSULATION
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) ID=6.2 L=11.4 		8-97808-623-0 12 1 0307-0609 ● ● ● ● ● ● ● ●
6 08.021 CLIP; ENG HOOD INSULATION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JA1-T ENG(LP0) ID=6.2 L=11.4 		8-97808-623-0 13 1 0610-0612 ● ● ● ● ● ● ● ●
6 08.021 CLIP; ENG HOOD INSULATION
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0) ID=6.2 L=11.4 		8-97808-623-0 13 1 0701-0912 ● ● ● ● ● ●
6 08.021 CLIP; ENG HOOD INSULATION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JA1-T ENG(LP0) ID=6.2 L=11.4 		8-97808-623-0 13 1 1001- ● ● ● ● ● ●
6 08.021 CLIP; ENG HOOD INSULATION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) ID=6.2 L=11.4 		8-97808-623-0 14 1 0610- ● ● ● ● ● ● ● ●
9 08.021 INSULATION; DASH ENG ROOM
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) 		8-97368-041-0 01 1 0307-0509 ● ● ● ● ● ● ● ●
9 08.021 INSULATION; DASH ENG ROOM
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) 		8-98021-496-0 01 1 0510-0609 ● ● ● ● ● ● ● ●
9 08.021 INSULATION; DASH ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 		8-98021-496-0 01 1 0610-0612 ● ● ● ● ● ● ● ●
9 08.021 INSULATION; DASH ENG ROOM
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 		8-98021-496-0 01 1 0701-0912 ● ● ● ● ● ● ● ●
9 08.021 INSULATION; DASH ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 		8-98021-496-0 01 1 1001- ● ● ● ● ● ● ● ●
75 15.280 STUD; INSULATION
HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4SPEED-HMD,ELEC(M30) DRIVER SIDE FOOT REST<7NU> 02.559 		8-94441-806-0 11 1 0509-0609 ● ● ● ●
75 15.280 STUD; INSULATION
HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4SPEED-HMD,ELEC(M30) DRIVER SIDE FOOT REST<7NU> EXC. SHIPPING EQUIPMENT SPECIAL VAR 1<VK5> 02.559 		8-94441-806-0 11 1 0610-0611 ● ● ● ● ●
75 15.280 STUD; INSULATION
HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4SPEED-HMD,ELEC(M30) DRIVER SIDE FOOT REST<7NU> EXC. SHIPPING EQUIPMENT SPECIAL VAR 1<VK5> 		8-98056-307-0 11 1 0612- ● ● ● ● ●
76 15.280 DEADENER; DASH ENG ROOM
HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4SPEED-HMD,ELEC(M30) DRIVER SIDE FOOT REST<7NU> (A) 		8-97301-153-1 01 1 0509-0609 ● ● ● ●
76 15.280 DEADENER; DASH ENG ROOM
HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4SPEED-HMD,ELEC(M30) DRIVER SIDE FOOT REST<7NU> EXC. SHIPPING EQUIPMENT SPECIAL VAR 1<VK5> (A) 		8-97301-153-1 01 1 0610- ● ● ● ● ●
76 15.280 DEADENER; DASH ENG ROOM
HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4SPEED-HMD,ELEC(M30) DRIVER SIDE FOOT REST<7NU> (B) 		8-97328-715-0 01 1 0509-0609 ● ● ● ●
76 15.280 DEADENER; DASH ENG ROOM
HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4SPEED-HMD,ELEC(M30) DRIVER SIDE FOOT REST<7NU> EXC. SHIPPING EQUIPMENT SPECIAL VAR 1<VK5> (B) 		8-97328-715-0 01 1 0610- ● ● ● ● ●
