◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50965 - TFR/TFS-RHD ▶ 5 - Frame, Cab Mounting ▶ 5-20 - BATTERY CARRIER ▶
5-20 — BATTERY CARRIER (#20474) — 19 parça

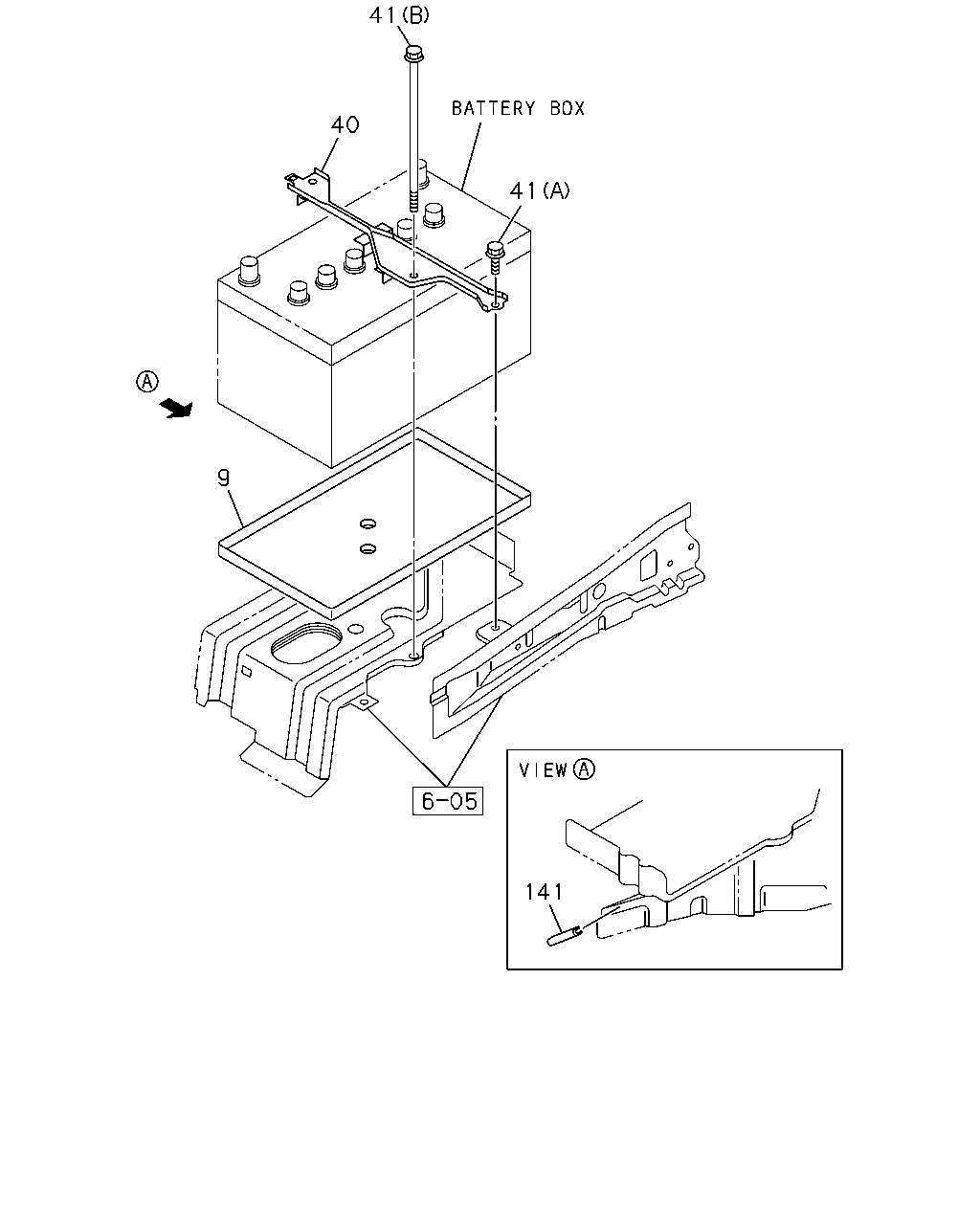

çizim 13895
41 40 41 9 141
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
9 02.333 SEAT; BATTERY
BATTERY 46B24L(TQ6) 		8-97328-059-0 01 1 0307-0508 ● ● ● ● ● ● ● ●
9 02.333 SEAT; BATTERY
BATTERY 95D31L(TQ8) 		8-97328-059-0 01 1 0509- ● ● ● ● ● ● ● ●
9 02.333 SEAT; BATTERY
BATTERY 80D26L(TM1),BATTERY 55D23L(TQ7) 		8-97328-060-0 01 1 0307-0609 ● ● ● ● ● ● ● ●
9 02.333 SEAT; BATTERY
BATTERY 80D26L(TM1) 		8-97328-060-0 01 1 0610- ● ● ● ● ● ● ● ●
9 02.333 SEAT; BATTERY
BATTERY 95D31L(TQ8) 		8-97318-865-1 01 1 0307-0609 ● ● ● ● ● ● ●
9 02.333 SEAT; BATTERY
4X4 EXTEND CAB LONG(TFS*CF) BATTERY 95D31L(TQ8) 		8-97318-865-1 01 1 0307-0609 ●
9 02.333 SEAT; BATTERY
4X4 EXTEND CAB EXTRA LONG(TFS*CK) 		8-97318-865-1 01 1 0307-0609 ●
9 02.333 SEAT; BATTERY
BATTERY 95D31L(TQ8) 		8-97318-865-1 01 1 0610- ● ● ● ● ● ● ● ●
40 02.335 CLAMP; BATTERY
BATTERY 46B24L(TQ6) 		8-97352-945-0 01 1 0307-0508 ● ● ● ● ● ● ● ●
40 02.335 CLAMP; BATTERY
BATTERY 95D31L(TQ8) 		8-97352-945-0 01 1 0509- ● ● ● ● ● ● ● ●
40 02.335 CLAMP; BATTERY
BATTERY 80D26L(TM1),BATTERY 55D23L(TQ7),BATTERY 95D31L(TQ8) 		8-97357-407-0 01 1 0307-0609 ● ● ● ● ● ● ● ●
40 02.335 CLAMP; BATTERY
BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) 		8-97357-407-0 01 1 0610- ● ● ● ● ● ● ● ●
41 02.334 BOLT; CLAMP,BATTERY
01.531 (A) M8X20 FLANGE 		0-28650-820-0 01 1 0307- ● ● ● ● ● ● ● ●
41 02.334 BOLT; CLAMP,BATTERY
(B) M8X222 FLANGE 		8-97308-979-0 02 1 0307-0411 ● ● ● ● ● ● ● ●
41 02.334 BOLT; CLAMP,BATTERY
(B) M8X222 FLANGE 		8-97378-041-0 02 1 0412- ● ● ● ● ● ● ● ●
141 02.334 INSULATOR; BAT TRAY
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> POWER STEERING<N40> 02.530 		8-94235-856-0 01 1 0307-0609 ● ● ● ● ● ● ● ●
141 02.334 INSULATOR; BAT TRAY
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> POWER STEERING<N40> 02.530 		8-94235-856-0 01 1 0610-0612 ● ● ● ● ● ● ● ●
141 02.334 INSULATOR; BAT TRAY
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> POWER STEERING<N40> 02.530 		8-94235-856-0 01 1 0701-0912 ● ● ● ● ● ● ● ●
141 02.334 INSULATOR; BAT TRAY
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> POWER STEERING<N40> 02.530 L=30 L=65 		8-94235-856-0 01 1 1001- ● ● ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
