1-41 — FUEL PIPING; CHASSIS (#2047) — 58 parça

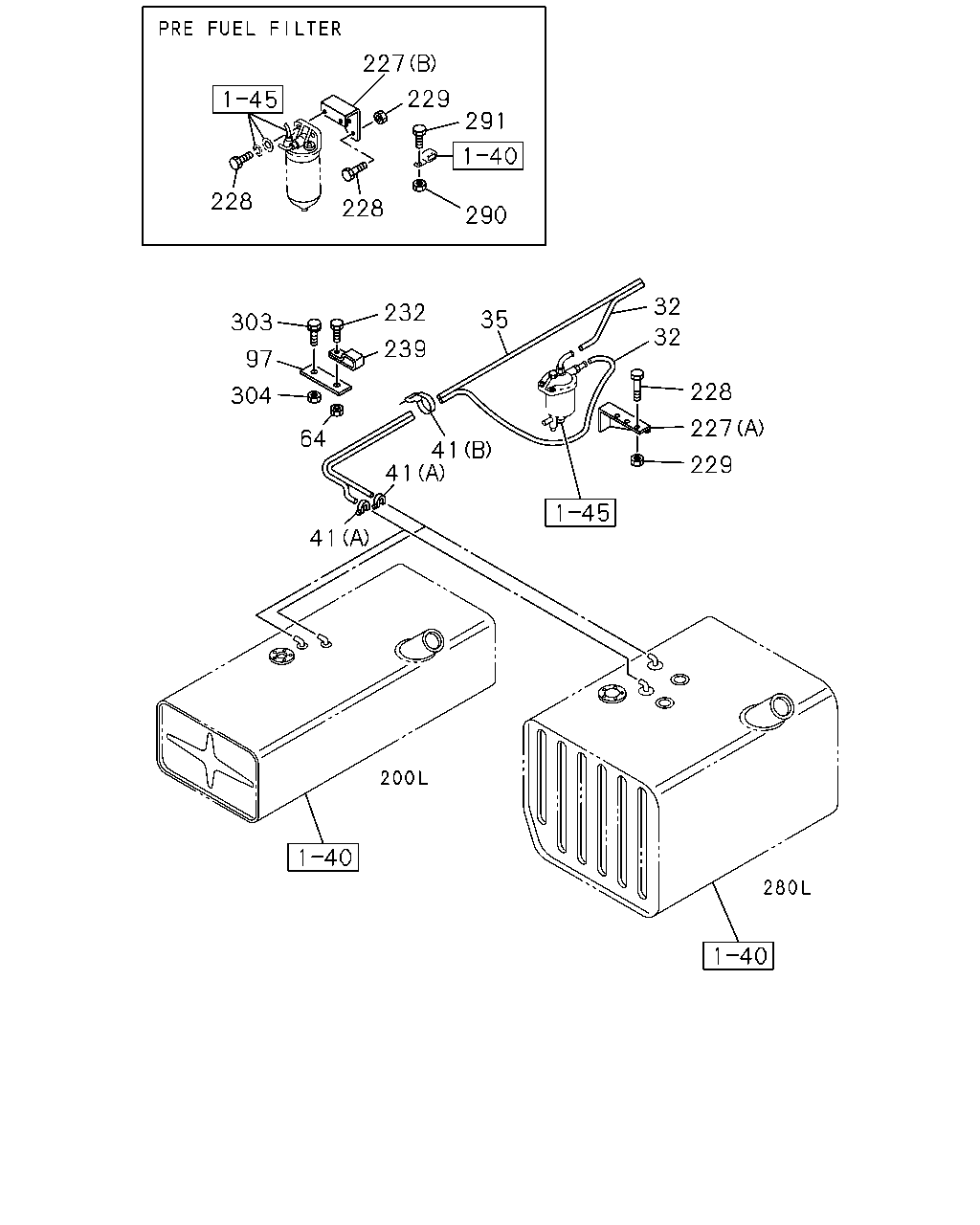

çizim 96492
227 229 291 228 228 290 32 232 35 303 32 239 97 228 304 227 64 41 41 229 41
BalonParca AdiParca NoAdetTipApplied Date A B C D
32 PIPE; DELIVERY,FUEL TANK
L=10000 		9-09914-701-0 AR 1 9001- ● ● ● ●
35 PIPE; FUEL TANK,RETURN
L=9000 SERVICED BY L=10000 		9-09914-701-0 01 1 9211- ● ● ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(B) L=140 		5-09707-031-0 13 1 9001-9305 ● ● ● ●
41 CLIP; FUEL PIPE,FUEL TANK
WHEEL BASE 5800MM(58W) FUEL TANK 280L<RF4> (B) L=250 		5-09707-030-1 19 1 9306- ● ● ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=15 		9-09715-098-0 06 1 9001- ● ● ● ●
41 CLIP; FUEL PIPE,FUEL TANK
WHEEL BASE 5800MM(58W) EXC. FUEL TANK 280L<RF4> (B) L=250 		5-09707-030-1 25 1 9306- ● ● ● ●
41 CLIP; FUEL PIPE,FUEL TANK
WHEEL BASE 6600MM(66W),WHEEL BASE 6800MM(68W) FUEL TANK 280L<RF4> (B) L=250 		5-09707-030-1 21 1 9306- ● ● ● ●
41 CLIP; FUEL PIPE,FUEL TANK
WHEEL BASE 6600MM(66W),WHEEL BASE 6800MM(68W) EXC. FUEL TANK 280L<RF4> (B) L=250 		5-09707-030-1 27 1 9306- ● ● ● ●
64 NUT; CLIP
RIGHT HAND DRIVE(LVR5FB) M6 		9-09110-406-0 01 1 9001-9606 ● ●
64 NUT; CLIP
RIGHT HAND DRIVE(LVR5FB) M6 FLANGE 		0-91150-106-0 01 1 9607- ● ●
64 NUT; CLIP
LEFT HAND DRIVE(LVR6FB) M6 		9-09110-406-0 06 1 9001-9606 ● ●
64 NUT; CLIP
M6 		9-09110-406-0 06 1 9001-9606 ● ●
64 NUT; CLIP
LEFT HAND DRIVE(LVR6FB) M6 FLANGE 		0-91150-106-0 06 1 9607- ● ●
64 NUT; CLIP
M6 FLANGE 		0-91150-106-0 06 1 9607- ● ●
97 BRACKET; CLIP 1-47465-052-0 01 1 9001- ● ● ● ●
227 BRACKET; FUEL SEDIMENTER
PRE FUEL FILTER(W21) (B) 		1-13219-054-2 01 1 9001- ● ● ● ●
227 BRACKET; FUEL SEDIMENTER
EXC. PRE FUEL FILTER(W21) (A) 		1-22518-052-2 01 1 9001- ● ● ● ●
228 BOLT; BRKT,SEDIMENTER
PRE FUEL FILTER(W21) M10X25 		9-01911-025-0 02 1 9001-9002 ● ● ●
228 BOLT; BRKT,SEDIMENTER
PRE FUEL FILTER(W21) M10X25 W/LK WASHER 		0-50041-025-0 02 1 9003-9606 ● ● ● ●
228 BOLT; BRKT,SEDIMENTER
PRE FUEL FILTER(W21) M14X50 FLANGE 		0-28881-450-0 02 1 9607-9902 ● ● ● ●
228 BOLT; BRKT,SEDIMENTER
PRE FUEL FILTER(W21) M14X45 		0-20801-445-0 02 1 9903- ● ● ● ●
228 BOLT; BRKT,SEDIMENTER
PRE FUEL FILTER(W21) M14X45 		9-91056-445-0 02 1 9001-9001 ● ● ●
228 BOLT; BRKT,SEDIMENTER
PRE FUEL FILTER(W21) M14X45 		9-92051-445-0 02 1 9002-9005 ● ● ●
228 BOLT; BRKT,SEDIMENTER
PRE FUEL FILTER(W21) M14X45 		0-20801-445-0 02 1 9006-9606 ● ● ● ●
228 BOLT; BRKT,SEDIMENTER
PRE FUEL FILTER(W21) M10X25 FLANGE 		0-28681-025-0 02 1 9607- ● ● ● ●
228 BOLT; BRKT,SEDIMENTER
EXC. PRE FUEL FILTER(W21) M10X25 		9-01911-025-0 04 1 9001-9002 ● ● ●
228 BOLT; BRKT,SEDIMENTER
EXC. PRE FUEL FILTER(W21) M10X25 W/LK WASHER 		0-50041-025-0 04 1 9003-9606 ● ● ● ●
228 BOLT; BRKT,SEDIMENTER
EXC. PRE FUEL FILTER(W21) M10X25 FLANGE 		0-28681-025-0 04 1 9607- ● ● ● ●
229 NUT; BRKT,FUEL FILTER
PRE FUEL FILTER(W21) M14 		9-99110-414-0 02 1 9001- ● ● ● ●
229 NUT; BRKT,FUEL FILTER
PRE FUEL FILTER(W21) M10 		9-09110-510-0 02 1 9308-9606 ● ● ● ●
229 NUT; BRKT,FUEL FILTER
PRE FUEL FILTER(W21) M10 FLANGE 		0-91150-210-0 02 1 9607- ● ● ● ●
229 NUT; BRKT,FUEL FILTER
EXC. PRE FUEL FILTER(W21) M10 		9-09110-510-0 04 1 9308-9606 ● ● ● ●
229 NUT; BRKT,FUEL FILTER
EXC. PRE FUEL FILTER(W21) M10 FLANGE 		0-91150-210-0 04 1 9607- ● ● ● ●
232 BOLT; CLIP,PIPE
RIGHT HAND DRIVE(LVR5FB) M6X14 W/LK WASHER 		9-01900-614-0 03 1 9001-9204 ● ●
232 BOLT; CLIP,PIPE
RIGHT HAND DRIVE(LVR5FB) M6X14 W/LK WASHER 		0-50040-614-0 03 1 9205-9606 ● ●
232 BOLT; CLIP,PIPE
RIGHT HAND DRIVE(LVR5FB) M6X12 FLANGE 		0-28080-612-0 03 1 9607- ● ●
232 BOLT; CLIP,PIPE
LEFT HAND DRIVE(LVR6FB) M6X20 W/LK WASHER 		9-01900-620-0 06 1 9001-9204 ● ●
232 BOLT; CLIP,PIPE
M6X20 W/LK WASHER 		9-01900-620-0 06 1 9001-9204 ● ●
232 BOLT; CLIP,PIPE
LEFT HAND DRIVE(LVR6FB) M6X20 W/LK WASHER 		0-50040-620-0 06 1 9205-9606 ● ●
232 BOLT; CLIP,PIPE
M6X20 W/LK WASHER 		0-50040-620-0 06 1 9205-9606 ● ●
232 BOLT; CLIP,PIPE
LEFT HAND DRIVE(LVR6FB) M6X20 FLANGE 		0-28680-620-0 06 1 9607-9704 ● ●
232 BOLT; CLIP,PIPE
M6X20 FLANGE 		0-28680-620-0 06 1 9607-9704 ● ●
232 BOLT; CLIP,PIPE
LEFT HAND DRIVE(LVR6FB) M6X25 FLANGE 		0-28680-625-0 06 1 9705- ● ●
232 BOLT; CLIP,PIPE
M6X25 FLANGE 		0-28680-625-0 06 1 9705- ● ●
239 CLIP; FUEL PIPE
RIGHT HAND DRIVE(LVR5FB) ID=16X2 L=20 		9-09535-533-0 03 1 9001- ● ●
239 CLIP; FUEL PIPE
LEFT HAND DRIVE(LVR6FB) ID=16X2 L=20 		9-09535-533-0 06 1 9001- ● ●
239 CLIP; FUEL PIPE
ID=16X2 L=20 		9-09535-533-0 06 1 9001- ● ●
290 NUT; FILTER TO BRKT
PRE FUEL FILTER(W21) M6 		9-09110-406-0 01 1 9001-9606 ● ● ● ●
290 NUT; FILTER TO BRKT
PRE FUEL FILTER(W21) M6 FLANGE 		0-91150-106-0 01 1 9607- ● ● ● ●
291 BOLT; FILER TO BRKT
PRE FUEL FILTER(W21) M6X20 W/LK WASHER 		9-01900-620-0 01 1 9001-9204 ● ● ● ●
291 BOLT; FILER TO BRKT
PRE FUEL FILTER(W21) M6X20 W/LK WASHER 		0-50040-620-0 01 1 9205-9606 ● ● ● ●
291 BOLT; FILER TO BRKT
PRE FUEL FILTER(W21) M6X20 FLANGE 		0-28680-620-0 01 1 9607-9704 ● ● ● ●
291 BOLT; FILER TO BRKT
PRE FUEL FILTER(W21) M6X25 FLANGE 		0-28680-625-0 01 1 9705- ● ● ● ●
303 BOLT; BRKT
M8X28 W/LK WASHER 		9-01900-828-0 01 1 9001-9204 ● ● ● ●
303 BOLT; BRKT
M8X28 W/LK WASHER 		0-50040-828-0 01 1 9205-9606 ● ● ● ●
303 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 01 1 9607- ● ● ● ●
304 NUT; BRKT
M8 		9-09110-408-0 01 1 9001-9606 ● ● ● ●
304 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 9607- ● ● ● ●
