Sayfa 4-30 - Isuzu EPC

4-30 — STEERING WHEEL AND COWL (#20459) — 185 parça

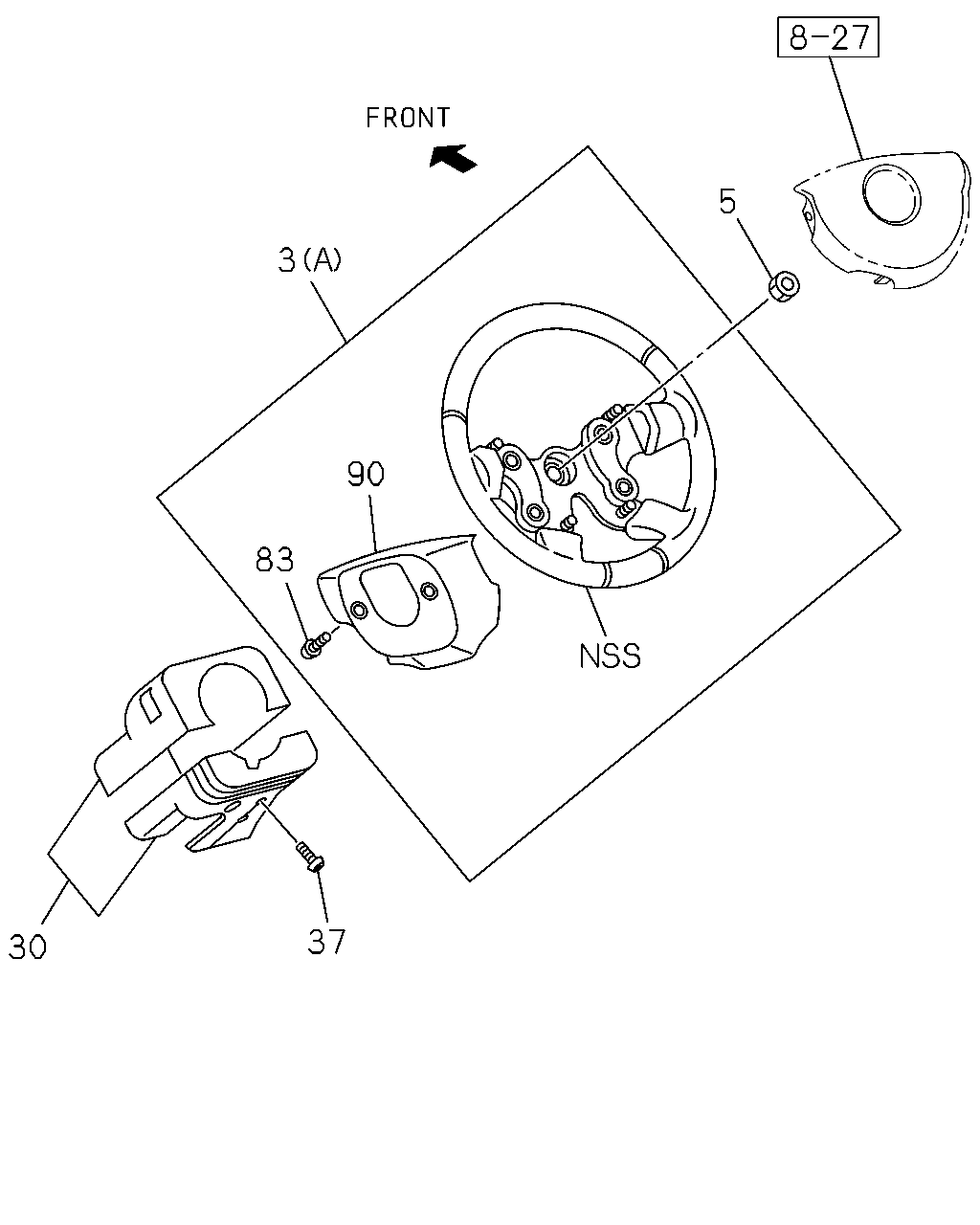

5 3 90 83 37 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
3	06.513 WHEEL; STRG AIR BAG DRIVER & PASSENGER DELETE(AK6) DELUXE STEERING WHEEL URETHANE<N30> (B) DARK GRAY	8-97294-059-1	01	1	0307-0504	●	●	●	●	●	●	●	●
3	06.513 WHEEL; STRG AIR BAG DRIVER & PASSENGER DELETE(AK6) DELUXE STEERING WHEEL URETHANE<N30> (B) DARK GRAY	8-97402-858-0	01	1	0505-0609	●	●	●	●	●	●	●	●
3	06.513 WHEEL; STRG AIR BAG DRIVER & PASSENGER DELETE(AK6) DELUXE STEERING WHEEL URETHANE<N30> (B) DARK GRAY	8-97403-871-1	01	1	0610-	●	●	●	●	●	●	●	●
3	06.513 WHEEL; STRG AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) DELUXE STEERING WHEEL URETHANE<N30> (A) DARK GRAY	8-97294-057-1	01	1	0307-0508	●	●	●	●	●	●	●	●
3	06.513 WHEEL; STRG AIR BAG DRIVER & PASSENGER(AK5) DELUXE STEERING WHEEL URETHANE<N30> (A) DARK GRAY	8-97396-454-0	01	1	0509-0609	●	●	●	●	●	●	●	●
3	06.513 WHEEL; STRG AIR BAG DRIVER & PASSENGER(AK5) DELUXE STEERING WHEEL URETHANE<N30> (A) DARK GRAY	8-97403-688-2	01	1	0610-	●	●	●	●	●	●	●	●
3	06.513 WHEEL; STRG AIR BAG DRIVER & PASSENGER DELETE(AK6) STEERING WHEEL LEATHER<NP5> (B) DARK GRAY	8-97390-773-1	01	1	0307-0504	●		●		●	●	●	●
3	06.513 WHEEL; STRG AIR BAG DRIVER & PASSENGER DELETE(AK6) STEERING WHEEL LEATHER<NP5> (B) DARK GRAY	8-97402-856-0	01	1	0505-0602	●		●		●	●	●	●
3	06.513 WHEEL; STRG AIR BAG DRIVER & PASSENGER DELETE(AK6) STEERING WHEEL LEATHER<NP5> (B) DARK GRAY	8-97406-141-0	01	1	0603-0609	●		●		●	●	●	●
3	06.513 WHEEL; STRG AIR BAG DRIVER & PASSENGER DELETE(AK6) STEERING WHEEL LEATHER<NP5> (B) DARK GRAY	8-97403-870-1	01	1	0610-	●		●		●	●	●	●
3	06.513 WHEEL; STRG AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. STEERING WHEEL LEATHER<NP5>, DELUXE STEERING WHEEL URETHANE<N30> (C) DARK GRAY	8-97397-328-0	01	1	0307-0307	●		●		●	●	●	●
3	06.513 WHEEL; STRG AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. STEERING WHEEL LEATHER<NP5>, DELUXE STEERING WHEEL URETHANE<N30> (C) DARK GRAY	8-97397-850-0	01	1	0307-0609	●		●		●	●	●	●
3	06.513 WHEEL; STRG AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. STEERING WHEEL LEATHER<NP5>, DELUXE STEERING WHEEL URETHANE<N30> (C) DARK GRAY	8-97403-689-0	01	1	0610-	●		●		●	●	●	●
3	06.513 WHEEL; STRG AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) STEERING WHEEL LEATHER<NP5> (A) DARK GRAY	8-97390-772-2	01	1	0307-0508	●		●		●	●	●	●
3	06.513 WHEEL; STRG AIR BAG DRIVER & PASSENGER(AK5) STEERING WHEEL LEATHER<NP5> (A) DARK GRAY	8-97396-453-0	01	1	0509-0602	●		●		●	●	●	●
3	06.513 WHEEL; STRG AIR BAG DRIVER & PASSENGER(AK5) STEERING WHEEL LEATHER<NP5> (A) DARK GRAY	8-97406-139-0	01	1	0603-0609	●		●		●	●	●	●
3	06.513 WHEEL; STRG AIR BAG DRIVER & PASSENGER(AK5) STEERING WHEEL LEATHER<NP5> (A) DARK GRAY	8-97403-900-2	01	1	0610-	●		●		●	●	●	●
5	06.515 NUT; STRG WHEEL TO SHAFT M12 W/TOOTH WASHER	8-94455-487-1	01	1	0307-	●	●	●	●	●	●	●	●
30	06.518 COWL; STEERING IMMOBILIZER SYSTEM<7KC> DARK GRAY	8-97294-054-1	01	1	0307-0402	●		●		●	●	●	●
30	06.518 COWL; STEERING DARK GRAY	8-97294-054-1	01	1	0307-0402		●		●
30	06.518 COWL; STEERING IMMOBILIZER SYSTEM<7KC> EXC. HONG KONG EQUIPMENT(B14) DARK GRAY	8-97294-054-1	01	1	0403-0609	●		●		●	●	●	●
30	06.518 COWL; STEERING DARK GRAY	8-97294-054-1	01	1	0403-0609		●		●
30	06.518 COWL; STEERING IMMOBILIZER SYSTEM<7KC> EXC. HONG KONG EQUIPMENT(B14) DARK GRAY	8-97403-685-1	01	1	0610-1103	●		●		●	●	●	●
30	06.518 COWL; STEERING DARK GRAY	8-97403-685-1	01	1	0610-1103		●		●
30	06.518 COWL; STEERING IMMOBILIZER SYSTEM<7KC> EXC. HONG KONG EQUIPMENT(B14) DARK GRAY	8-97422-708-0	01	1	1104-	●		●		●	●	●	●
30	06.518 COWL; STEERING DARK GRAY	8-97422-708-0	01	1	1104-		●		●
30	06.518 COWL; STEERING EXC. IMMOBILIZER SYSTEM<7KC> DARK GRAY	8-97294-053-2	01	1	0307-0402	●		●		●	●	●	●
30	06.518 COWL; STEERING EXC. SINGAPORE EQUIPMENT(2G0), IMMOBILIZER SYSTEM<7KC> DARK GRAY	8-97294-053-2	01	1	0403-0609	●		●		●	●	●	●
30	06.518 COWL; STEERING EXC. SINGAPORE EQUIPMENT(2G0), IMMOBILIZER SYSTEM<7KC> DARK GRAY	8-97396-696-2	01	1	0610-1103	●		●		●	●	●	●
30	06.518 COWL; STEERING EXC. SINGAPORE EQUIPMENT(2G0), IMMOBILIZER SYSTEM<7KC> DARK GRAY	8-97422-707-0	01	1	1104-	●		●		●	●	●	●
30	06.518 COWL; STEERING SINGAPORE EQUIPMENT(2G0) EXC. IMMOBILIZER SYSTEM<7KC> DARK GRAY	8-97392-791-1	01	1	0403-0609			●		●		●	●
30	06.518 COWL; STEERING SINGAPORE EQUIPMENT(2G0) EXC. IMMOBILIZER SYSTEM<7KC> DARK GRAY	8-97403-686-1	01	1	0610-1103			●		●		●	●
30	06.518 COWL; STEERING SINGAPORE EQUIPMENT(2G0) EXC. IMMOBILIZER SYSTEM<7KC> DARK GRAY	8-97422-709-0	01	1	1104-			●		●		●	●
30	06.518 COWL; STEERING HONG KONG EQUIPMENT(B14) IMMOBILIZER SYSTEM<7KC> DARK GRAY	8-97392-792-1	01	1	0403-0609			●		●			●
30	06.518 COWL; STEERING HONG KONG EQUIPMENT(B14) IMMOBILIZER SYSTEM<7KC> DARK GRAY	8-97403-687-1	01	1	0610-1103			●		●			●
30	06.518 COWL; STEERING HONG KONG EQUIPMENT(B14) IMMOBILIZER SYSTEM<7KC> DARK GRAY	8-97422-710-0	01	1	1104-			●		●			●
37	06.518 SCREW; STRG COWL UPR M4X12 W/PL WASHER	9-03900-412-0	03	1	0307-0606	●	●	●	●	●	●	●	●
37	06.518 SCREW; STRG COWL UPR M4X12 W/PL WASHER	0-36210-412-0	03	1	0607-	●	●	●	●	●	●	●	●
83	06.514 SCREW; LWR COVER TO WHEEL AIR BAG DRIVER & PASSENGER DELETE(AK6)	8-97350-037-0	04	1	0307-	●	●	●	●	●	●	●	●
83	06.514 SCREW; LWR COVER TO WHEEL AIR BAG DRIVER & PASSENGER(AK5) DELUXE STEERING WHEEL URETHANE<N30>	8-97350-038-0	04	1	0603-0609	●	●	●	●	●	●	●	●
83	06.514 SCREW; LWR COVER TO WHEEL AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5)	8-97350-038-0	02	1	0307-0508	●	●	●	●	●	●	●	●
83	06.514 SCREW; LWR COVER TO WHEEL AIR BAG DRIVER & PASSENGER(AK5)	8-97350-038-0	04	1	0509-0602	●	●	●	●	●	●	●	●
83	06.514 SCREW; LWR COVER TO WHEEL AIR BAG DRIVER & PASSENGER(AK5) STEERING WHEEL LEATHER<NP5>	8-97350-038-0	02	1	0603-0609	●		●		●	●	●	●
83	06.514 SCREW; LWR COVER TO WHEEL AIR BAG DRIVER & PASSENGER(AK5)	8-97350-038-0	02	1	0610-	●	●	●	●	●	●	●	●
90	06.578 COVER ASM; STRG WHEEL,LWR AIR BAG DRIVER & PASSENGER DELETE(AK6) STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> DARK GRAY	8-97394-464-0	01	1	0307-0609	●	●	●	●	●	●	●	●
90	06.578 COVER ASM; STRG WHEEL,LWR AIR BAG DRIVER & PASSENGER DELETE(AK6) STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> DARK GRAY	8-97403-939-1	01	1	0610-	●	●	●	●	●	●	●	●
90	06.578 COVER ASM; STRG WHEEL,LWR AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) DARK GRAY	8-97394-463-0	01	1	0307-0508	●	●	●	●	●	●	●	●
90	06.578 COVER ASM; STRG WHEEL,LWR AIR BAG DRIVER & PASSENGER(AK5) DARK GRAY	8-97394-463-0	01	1	0509-0609	●	●	●	●	●	●	●	●
90	06.578 COVER ASM; STRG WHEEL,LWR AIR BAG DRIVER & PASSENGER(AK5) DARK GRAY	8-97403-937-1	01	1	0610-	●	●	●	●	●	●	●	●
90	06.578 COVER ASM; STRG WHEEL,LWR AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. STEERING WHEEL LEATHER<NP5>, DELUXE STEERING WHEEL URETHANE<N30> DARK GRAY	8-97396-504-0	01	1	0307-0609	●		●		●	●	●	●
90	06.578 COVER ASM; STRG WHEEL,LWR AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. STEERING WHEEL LEATHER<NP5>, DELUXE STEERING WHEEL URETHANE<N30> DARK GRAY	8-97403-938-0	01	1	0610-	●		●		●	●	●	●

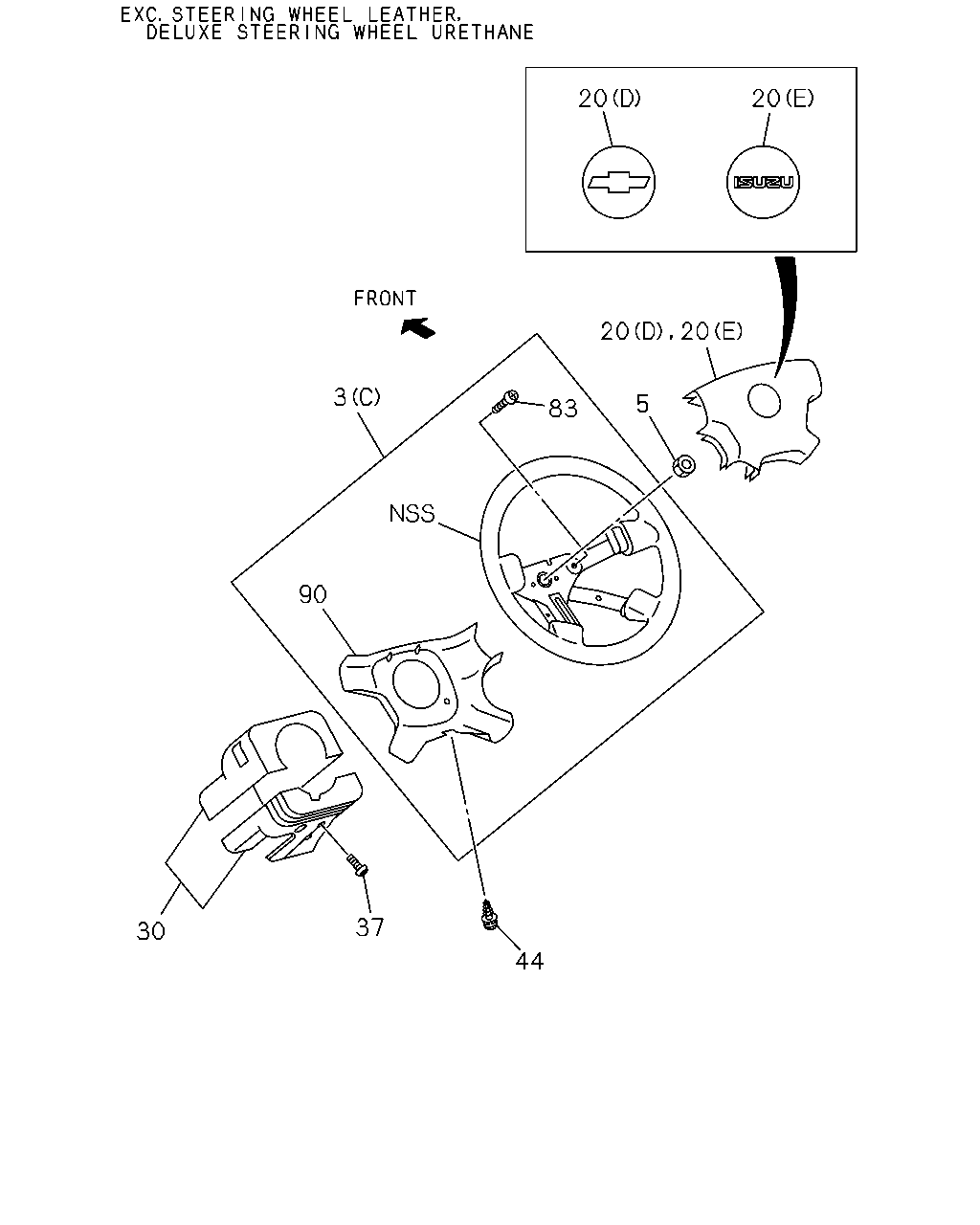

20 20 20 20 5 83 3 90 30 37 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
3	06.513 WHEEL; STRG AIR BAG DRIVER & PASSENGER DELETE(AK6) DELUXE STEERING WHEEL URETHANE<N30> (B) DARK GRAY	8-97294-059-1	01	1	0307-0504	●	●	●	●	●	●	●	●
3	06.513 WHEEL; STRG AIR BAG DRIVER & PASSENGER DELETE(AK6) DELUXE STEERING WHEEL URETHANE<N30> (B) DARK GRAY	8-97402-858-0	01	1	0505-0609	●	●	●	●	●	●	●	●
3	06.513 WHEEL; STRG AIR BAG DRIVER & PASSENGER DELETE(AK6) DELUXE STEERING WHEEL URETHANE<N30> (B) DARK GRAY	8-97403-871-1	01	1	0610-	●	●	●	●	●	●	●	●
3	06.513 WHEEL; STRG AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) DELUXE STEERING WHEEL URETHANE<N30> (A) DARK GRAY	8-97294-057-1	01	1	0307-0508	●	●	●	●	●	●	●	●
3	06.513 WHEEL; STRG AIR BAG DRIVER & PASSENGER(AK5) DELUXE STEERING WHEEL URETHANE<N30> (A) DARK GRAY	8-97396-454-0	01	1	0509-0609	●	●	●	●	●	●	●	●
3	06.513 WHEEL; STRG AIR BAG DRIVER & PASSENGER(AK5) DELUXE STEERING WHEEL URETHANE<N30> (A) DARK GRAY	8-97403-688-2	01	1	0610-	●	●	●	●	●	●	●	●
3	06.513 WHEEL; STRG AIR BAG DRIVER & PASSENGER DELETE(AK6) STEERING WHEEL LEATHER<NP5> (B) DARK GRAY	8-97390-773-1	01	1	0307-0504	●		●		●	●	●	●
3	06.513 WHEEL; STRG AIR BAG DRIVER & PASSENGER DELETE(AK6) STEERING WHEEL LEATHER<NP5> (B) DARK GRAY	8-97402-856-0	01	1	0505-0602	●		●		●	●	●	●
3	06.513 WHEEL; STRG AIR BAG DRIVER & PASSENGER DELETE(AK6) STEERING WHEEL LEATHER<NP5> (B) DARK GRAY	8-97406-141-0	01	1	0603-0609	●		●		●	●	●	●
3	06.513 WHEEL; STRG AIR BAG DRIVER & PASSENGER DELETE(AK6) STEERING WHEEL LEATHER<NP5> (B) DARK GRAY	8-97403-870-1	01	1	0610-	●		●		●	●	●	●
3	06.513 WHEEL; STRG AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. STEERING WHEEL LEATHER<NP5>, DELUXE STEERING WHEEL URETHANE<N30> (C) DARK GRAY	8-97397-328-0	01	1	0307-0307	●		●		●	●	●	●
3	06.513 WHEEL; STRG AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. STEERING WHEEL LEATHER<NP5>, DELUXE STEERING WHEEL URETHANE<N30> (C) DARK GRAY	8-97397-850-0	01	1	0307-0609	●		●		●	●	●	●
3	06.513 WHEEL; STRG AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. STEERING WHEEL LEATHER<NP5>, DELUXE STEERING WHEEL URETHANE<N30> (C) DARK GRAY	8-97403-689-0	01	1	0610-	●		●		●	●	●	●
3	06.513 WHEEL; STRG AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) STEERING WHEEL LEATHER<NP5> (A) DARK GRAY	8-97390-772-2	01	1	0307-0508	●		●		●	●	●	●
3	06.513 WHEEL; STRG AIR BAG DRIVER & PASSENGER(AK5) STEERING WHEEL LEATHER<NP5> (A) DARK GRAY	8-97396-453-0	01	1	0509-0602	●		●		●	●	●	●
3	06.513 WHEEL; STRG AIR BAG DRIVER & PASSENGER(AK5) STEERING WHEEL LEATHER<NP5> (A) DARK GRAY	8-97406-139-0	01	1	0603-0609	●		●		●	●	●	●
3	06.513 WHEEL; STRG AIR BAG DRIVER & PASSENGER(AK5) STEERING WHEEL LEATHER<NP5> (A) DARK GRAY	8-97403-900-2	01	1	0610-	●		●		●	●	●	●
5	06.515 NUT; STRG WHEEL TO SHAFT M12 W/TOOTH WASHER	8-94455-487-1	01	1	0307-	●	●	●	●	●	●	●	●
20	06.512 SHROUD; PAD,STRG WHEEL AIR BAG DRIVER & PASSENGER DELETE(AK6) HOLDEN BRAND<8DU> (C) DARK GRAY	8-97392-407-0	01	1	0307-0609	●	●	●	●	●	●	●	●
20	06.512 SHROUD; PAD,STRG WHEEL AIR BAG DRIVER & PASSENGER DELETE(AK6) STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> HOLDEN BRAND<8DU> INTERIOR STEERING CENTER PAD BADGE<8MB> (H) DARK GRAY	8-97408-846-0	01	1	0610-	●		●		●	●		●
20	06.512 SHROUD; PAD,STRG WHEEL AIR BAG DRIVER & PASSENGER DELETE(AK6) INTERIOR STEERING CENTER PAD BADGE<8MB> (H) DARK GRAY	8-97408-846-0	01	1	0610-		●		●		●	●	●
20	06.512 SHROUD; PAD,STRG WHEEL AIR BAG DRIVER & PASSENGER DELETE(AK6) STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> HOLDEN BRAND<8DU> EXC. INTERIOR STEERING CENTER PAD B ADGE<8MB> (H) DARK GRAY	8-97408-849-0	01	1	0610-	●	●	●	●	●	●	●	●
20	06.512 SHROUD; PAD,STRG WHEEL AIR BAG DRIVER & PASSENGER DELETE(AK6) CHEVROLET BRAND<RWE> EXC. STEERING WHEEL LEATHER<NP5>, DELUXE STEERING WHEEL URETHANE<N30> (D) DARK GRAY	8-97397-330-0	01	1	0307-0609	●		●		●	●	●	●
20	06.512 SHROUD; PAD,STRG WHEEL AIR BAG DRIVER & PASSENGER DELETE(AK6) CHEVROLET BRAND<RWE> EXC. STEERING WHEEL LEATHER<NP5>, DELUXE STEERING WHEEL URETHANE<N30>,I NTERIOR STEERING CENTER PAD BADGE<8MB> (D) DARK GRAY	8-97403-876-0	01	1	0610-	●		●		●	●	●	●
20	06.512 SHROUD; PAD,STRG WHEEL AIR BAG DRIVER & PASSENGER DELETE(AK6) ISUZU BRAND<7WL> EXC. STEERING WHEEL LEATHER<NP5>, DELUXE STEERING WHEEL URETHANE<N30> (E) DARK GRAY	8-97397-329-0	01	1	0307-0609	●		●		●	●	●	●
20	06.512 SHROUD; PAD,STRG WHEEL AIR BAG DRIVER & PASSENGER DELETE(AK6) ISUZU BRAND<7WL> EXC. STEERING WHEEL LEATHER<NP5>, DELUXE STEERING WHEEL URETHANE<N30>,I NTERIOR STEERING CENTER PAD BADGE<8MB> (E) DARK GRAY	8-97403-875-0	01	1	0610-	●		●		●	●	●	●
20	06.512 SHROUD; PAD,STRG WHEEL AIR BAG DRIVER & PASSENGER DELETE(AK6) STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> ISUZU BRAND<7WL> (B) DARK GRAY	8-97298-469-1	01	1	0307-0609	●		●		●	●	●	●
20	06.512 SHROUD; PAD,STRG WHEEL AIR BAG DRIVER & PASSENGER DELETE(AK6) STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> ISUZU BRAND<7WL> INTERIOR STEERING CENTER PAD BADGE<8MB> (G) DARK GRAY	8-97408-845-0	01	1	0610-	●		●		●	●	●	●
20	06.512 SHROUD; PAD,STRG WHEEL AIR BAG DRIVER & PASSENGER DELETE(AK6) STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> CHEVROLET BRAND<RWE> (A) DARK GRAY	8-97391-009-0	01	1	0307-0609	●		●		●	●	●	●
20	06.512 SHROUD; PAD,STRG WHEEL AIR BAG DRIVER & PASSENGER DELETE(AK6) STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> CHEVROLET BRAND<RWE> INTERIOR STEERING CENTER PAD BADGE<8MB> (F) DARK GRAY	8-97408-847-0	01	1	0610-	●		●		●	●	●	●
20	06.512 SHROUD; PAD,STRG WHEEL AIR BAG DRIVER & PASSENGER DELETE(AK6) STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> ISUZU BRAND<7WL> EXC. INTERIOR STEERING CENTER PAD B ADGE<8MB> (G) DARK GRAY	8-97408-848-0	01	1	0610-	●		●		●	●	●	●
20	06.512 SHROUD; PAD,STRG WHEEL AIR BAG DRIVER & PASSENGER DELETE(AK6) STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> CHEVROLET BRAND<RWE> EXC. INTERIOR STEERING CENTER PAD B ADGE<8MB> (F) DARK GRAY	8-97408-850-0	01	1	0610-	●		●		●	●	●	●
30	06.518 COWL; STEERING IMMOBILIZER SYSTEM<7KC> DARK GRAY	8-97294-054-1	01	1	0307-0402	●		●		●	●	●	●
30	06.518 COWL; STEERING DARK GRAY	8-97294-054-1	01	1	0307-0402		●		●
30	06.518 COWL; STEERING IMMOBILIZER SYSTEM<7KC> EXC. HONG KONG EQUIPMENT(B14) DARK GRAY	8-97294-054-1	01	1	0403-0609	●		●		●	●	●	●
30	06.518 COWL; STEERING DARK GRAY	8-97294-054-1	01	1	0403-0609		●		●
30	06.518 COWL; STEERING IMMOBILIZER SYSTEM<7KC> EXC. HONG KONG EQUIPMENT(B14) DARK GRAY	8-97403-685-1	01	1	0610-1103	●		●		●	●	●	●
30	06.518 COWL; STEERING DARK GRAY	8-97403-685-1	01	1	0610-1103		●		●
30	06.518 COWL; STEERING IMMOBILIZER SYSTEM<7KC> EXC. HONG KONG EQUIPMENT(B14) DARK GRAY	8-97422-708-0	01	1	1104-	●		●		●	●	●	●
30	06.518 COWL; STEERING DARK GRAY	8-97422-708-0	01	1	1104-		●		●
30	06.518 COWL; STEERING EXC. IMMOBILIZER SYSTEM<7KC> DARK GRAY	8-97294-053-2	01	1	0307-0402	●		●		●	●	●	●
30	06.518 COWL; STEERING EXC. SINGAPORE EQUIPMENT(2G0), IMMOBILIZER SYSTEM<7KC> DARK GRAY	8-97294-053-2	01	1	0403-0609	●		●		●	●	●	●
30	06.518 COWL; STEERING EXC. SINGAPORE EQUIPMENT(2G0), IMMOBILIZER SYSTEM<7KC> DARK GRAY	8-97396-696-2	01	1	0610-1103	●		●		●	●	●	●
30	06.518 COWL; STEERING EXC. SINGAPORE EQUIPMENT(2G0), IMMOBILIZER SYSTEM<7KC> DARK GRAY	8-97422-707-0	01	1	1104-	●		●		●	●	●	●
30	06.518 COWL; STEERING SINGAPORE EQUIPMENT(2G0) EXC. IMMOBILIZER SYSTEM<7KC> DARK GRAY	8-97392-791-1	01	1	0403-0609			●		●		●	●
30	06.518 COWL; STEERING SINGAPORE EQUIPMENT(2G0) EXC. IMMOBILIZER SYSTEM<7KC> DARK GRAY	8-97403-686-1	01	1	0610-1103			●		●		●	●
30	06.518 COWL; STEERING SINGAPORE EQUIPMENT(2G0) EXC. IMMOBILIZER SYSTEM<7KC> DARK GRAY	8-97422-709-0	01	1	1104-			●		●		●	●
30	06.518 COWL; STEERING HONG KONG EQUIPMENT(B14) IMMOBILIZER SYSTEM<7KC> DARK GRAY	8-97392-792-1	01	1	0403-0609			●		●			●
30	06.518 COWL; STEERING HONG KONG EQUIPMENT(B14) IMMOBILIZER SYSTEM<7KC> DARK GRAY	8-97403-687-1	01	1	0610-1103			●		●			●
30	06.518 COWL; STEERING HONG KONG EQUIPMENT(B14) IMMOBILIZER SYSTEM<7KC> DARK GRAY	8-97422-710-0	01	1	1104-			●		●			●
37	06.518 SCREW; STRG COWL UPR M4X12 W/PL WASHER	9-03900-412-0	03	1	0307-0606	●	●	●	●	●	●	●	●
37	06.518 SCREW; STRG COWL UPR M4X12 W/PL WASHER	0-36210-412-0	03	1	0607-	●	●	●	●	●	●	●	●
44	06.514 SCREW; STRG COWL AIR BAG DRIVER & PASSENGER DELETE(AK6) 06.512 M5X19 W/LK&PL WASHER	8-94104-815-1	01	1	0307-0609	●	●	●	●	●	●	●	●
44	06.514 SCREW; STRG COWL AIR BAG DRIVER & PASSENGER DELETE(AK6) M5X19 W/LK&PL WASHER	8-98023-674-0	01	1	0610-	●	●	●	●	●	●	●	●
83	06.514 SCREW; LWR COVER TO WHEEL AIR BAG DRIVER & PASSENGER DELETE(AK6)	8-97350-037-0	04	1	0307-	●	●	●	●	●	●	●	●
83	06.514 SCREW; LWR COVER TO WHEEL AIR BAG DRIVER & PASSENGER(AK5) DELUXE STEERING WHEEL URETHANE<N30>	8-97350-038-0	04	1	0603-0609	●	●	●	●	●	●	●	●
83	06.514 SCREW; LWR COVER TO WHEEL AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5)	8-97350-038-0	02	1	0307-0508	●	●	●	●	●	●	●	●
83	06.514 SCREW; LWR COVER TO WHEEL AIR BAG DRIVER & PASSENGER(AK5)	8-97350-038-0	04	1	0509-0602	●	●	●	●	●	●	●	●
83	06.514 SCREW; LWR COVER TO WHEEL AIR BAG DRIVER & PASSENGER(AK5) STEERING WHEEL LEATHER<NP5>	8-97350-038-0	02	1	0603-0609	●		●		●	●	●	●
83	06.514 SCREW; LWR COVER TO WHEEL AIR BAG DRIVER & PASSENGER(AK5)	8-97350-038-0	02	1	0610-	●	●	●	●	●	●	●	●
90	06.578 COVER ASM; STRG WHEEL,LWR AIR BAG DRIVER & PASSENGER DELETE(AK6) STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> DARK GRAY	8-97394-464-0	01	1	0307-0609	●	●	●	●	●	●	●	●
90	06.578 COVER ASM; STRG WHEEL,LWR AIR BAG DRIVER & PASSENGER DELETE(AK6) STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> DARK GRAY	8-97403-939-1	01	1	0610-	●	●	●	●	●	●	●	●
90	06.578 COVER ASM; STRG WHEEL,LWR AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) DARK GRAY	8-97394-463-0	01	1	0307-0508	●	●	●	●	●	●	●	●
90	06.578 COVER ASM; STRG WHEEL,LWR AIR BAG DRIVER & PASSENGER(AK5) DARK GRAY	8-97394-463-0	01	1	0509-0609	●	●	●	●	●	●	●	●
90	06.578 COVER ASM; STRG WHEEL,LWR AIR BAG DRIVER & PASSENGER(AK5) DARK GRAY	8-97403-937-1	01	1	0610-	●	●	●	●	●	●	●	●
90	06.578 COVER ASM; STRG WHEEL,LWR AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. STEERING WHEEL LEATHER<NP5>, DELUXE STEERING WHEEL URETHANE<N30> DARK GRAY	8-97396-504-0	01	1	0307-0609	●		●		●	●	●	●
90	06.578 COVER ASM; STRG WHEEL,LWR AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. STEERING WHEEL LEATHER<NP5>, DELUXE STEERING WHEEL URETHANE<N30> DARK GRAY	8-97403-938-0	01	1	0610-	●		●		●	●	●	●

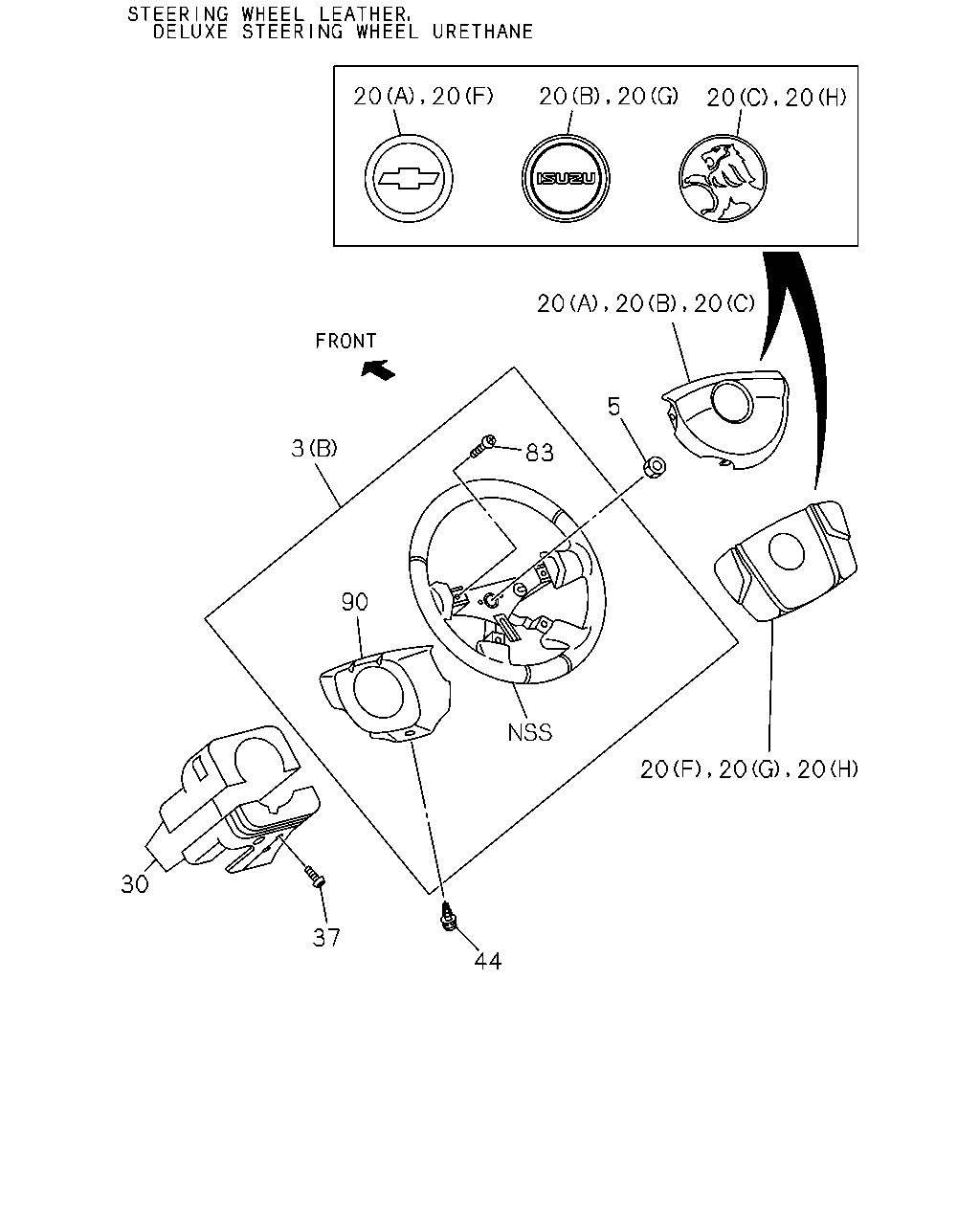

20 20 20 20 20 20 20 20 20 5 83 3 90 20 20 20 44 37 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
3	06.513 WHEEL; STRG AIR BAG DRIVER & PASSENGER DELETE(AK6) DELUXE STEERING WHEEL URETHANE<N30> (B) DARK GRAY	8-97294-059-1	01	1	0307-0504	●	●	●	●	●	●	●	●
3	06.513 WHEEL; STRG AIR BAG DRIVER & PASSENGER DELETE(AK6) DELUXE STEERING WHEEL URETHANE<N30> (B) DARK GRAY	8-97402-858-0	01	1	0505-0609	●	●	●	●	●	●	●	●
3	06.513 WHEEL; STRG AIR BAG DRIVER & PASSENGER DELETE(AK6) DELUXE STEERING WHEEL URETHANE<N30> (B) DARK GRAY	8-97403-871-1	01	1	0610-	●	●	●	●	●	●	●	●
3	06.513 WHEEL; STRG AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) DELUXE STEERING WHEEL URETHANE<N30> (A) DARK GRAY	8-97294-057-1	01	1	0307-0508	●	●	●	●	●	●	●	●
3	06.513 WHEEL; STRG AIR BAG DRIVER & PASSENGER(AK5) DELUXE STEERING WHEEL URETHANE<N30> (A) DARK GRAY	8-97396-454-0	01	1	0509-0609	●	●	●	●	●	●	●	●
3	06.513 WHEEL; STRG AIR BAG DRIVER & PASSENGER(AK5) DELUXE STEERING WHEEL URETHANE<N30> (A) DARK GRAY	8-97403-688-2	01	1	0610-	●	●	●	●	●	●	●	●
3	06.513 WHEEL; STRG AIR BAG DRIVER & PASSENGER DELETE(AK6) STEERING WHEEL LEATHER<NP5> (B) DARK GRAY	8-97390-773-1	01	1	0307-0504	●		●		●	●	●	●
3	06.513 WHEEL; STRG AIR BAG DRIVER & PASSENGER DELETE(AK6) STEERING WHEEL LEATHER<NP5> (B) DARK GRAY	8-97402-856-0	01	1	0505-0602	●		●		●	●	●	●
3	06.513 WHEEL; STRG AIR BAG DRIVER & PASSENGER DELETE(AK6) STEERING WHEEL LEATHER<NP5> (B) DARK GRAY	8-97406-141-0	01	1	0603-0609	●		●		●	●	●	●
3	06.513 WHEEL; STRG AIR BAG DRIVER & PASSENGER DELETE(AK6) STEERING WHEEL LEATHER<NP5> (B) DARK GRAY	8-97403-870-1	01	1	0610-	●		●		●	●	●	●
3	06.513 WHEEL; STRG AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. STEERING WHEEL LEATHER<NP5>, DELUXE STEERING WHEEL URETHANE<N30> (C) DARK GRAY	8-97397-328-0	01	1	0307-0307	●		●		●	●	●	●
3	06.513 WHEEL; STRG AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. STEERING WHEEL LEATHER<NP5>, DELUXE STEERING WHEEL URETHANE<N30> (C) DARK GRAY	8-97397-850-0	01	1	0307-0609	●		●		●	●	●	●
3	06.513 WHEEL; STRG AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. STEERING WHEEL LEATHER<NP5>, DELUXE STEERING WHEEL URETHANE<N30> (C) DARK GRAY	8-97403-689-0	01	1	0610-	●		●		●	●	●	●
3	06.513 WHEEL; STRG AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) STEERING WHEEL LEATHER<NP5> (A) DARK GRAY	8-97390-772-2	01	1	0307-0508	●		●		●	●	●	●
3	06.513 WHEEL; STRG AIR BAG DRIVER & PASSENGER(AK5) STEERING WHEEL LEATHER<NP5> (A) DARK GRAY	8-97396-453-0	01	1	0509-0602	●		●		●	●	●	●
3	06.513 WHEEL; STRG AIR BAG DRIVER & PASSENGER(AK5) STEERING WHEEL LEATHER<NP5> (A) DARK GRAY	8-97406-139-0	01	1	0603-0609	●		●		●	●	●	●
3	06.513 WHEEL; STRG AIR BAG DRIVER & PASSENGER(AK5) STEERING WHEEL LEATHER<NP5> (A) DARK GRAY	8-97403-900-2	01	1	0610-	●		●		●	●	●	●
5	06.515 NUT; STRG WHEEL TO SHAFT M12 W/TOOTH WASHER	8-94455-487-1	01	1	0307-	●	●	●	●	●	●	●	●
20	06.512 SHROUD; PAD,STRG WHEEL AIR BAG DRIVER & PASSENGER DELETE(AK6) HOLDEN BRAND<8DU> (C) DARK GRAY	8-97392-407-0	01	1	0307-0609	●	●	●	●	●	●	●	●
20	06.512 SHROUD; PAD,STRG WHEEL AIR BAG DRIVER & PASSENGER DELETE(AK6) STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> HOLDEN BRAND<8DU> INTERIOR STEERING CENTER PAD BADGE<8MB> (H) DARK GRAY	8-97408-846-0	01	1	0610-	●		●		●	●		●
20	06.512 SHROUD; PAD,STRG WHEEL AIR BAG DRIVER & PASSENGER DELETE(AK6) INTERIOR STEERING CENTER PAD BADGE<8MB> (H) DARK GRAY	8-97408-846-0	01	1	0610-		●		●		●	●	●
20	06.512 SHROUD; PAD,STRG WHEEL AIR BAG DRIVER & PASSENGER DELETE(AK6) STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> HOLDEN BRAND<8DU> EXC. INTERIOR STEERING CENTER PAD B ADGE<8MB> (H) DARK GRAY	8-97408-849-0	01	1	0610-	●	●	●	●	●	●	●	●
20	06.512 SHROUD; PAD,STRG WHEEL AIR BAG DRIVER & PASSENGER DELETE(AK6) CHEVROLET BRAND<RWE> EXC. STEERING WHEEL LEATHER<NP5>, DELUXE STEERING WHEEL URETHANE<N30> (D) DARK GRAY	8-97397-330-0	01	1	0307-0609	●		●		●	●	●	●
20	06.512 SHROUD; PAD,STRG WHEEL AIR BAG DRIVER & PASSENGER DELETE(AK6) CHEVROLET BRAND<RWE> EXC. STEERING WHEEL LEATHER<NP5>, DELUXE STEERING WHEEL URETHANE<N30>,I NTERIOR STEERING CENTER PAD BADGE<8MB> (D) DARK GRAY	8-97403-876-0	01	1	0610-	●		●		●	●	●	●
20	06.512 SHROUD; PAD,STRG WHEEL AIR BAG DRIVER & PASSENGER DELETE(AK6) ISUZU BRAND<7WL> EXC. STEERING WHEEL LEATHER<NP5>, DELUXE STEERING WHEEL URETHANE<N30> (E) DARK GRAY	8-97397-329-0	01	1	0307-0609	●		●		●	●	●	●
20	06.512 SHROUD; PAD,STRG WHEEL AIR BAG DRIVER & PASSENGER DELETE(AK6) ISUZU BRAND<7WL> EXC. STEERING WHEEL LEATHER<NP5>, DELUXE STEERING WHEEL URETHANE<N30>,I NTERIOR STEERING CENTER PAD BADGE<8MB> (E) DARK GRAY	8-97403-875-0	01	1	0610-	●		●		●	●	●	●
20	06.512 SHROUD; PAD,STRG WHEEL AIR BAG DRIVER & PASSENGER DELETE(AK6) STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> ISUZU BRAND<7WL> (B) DARK GRAY	8-97298-469-1	01	1	0307-0609	●		●		●	●	●	●
20	06.512 SHROUD; PAD,STRG WHEEL AIR BAG DRIVER & PASSENGER DELETE(AK6) STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> ISUZU BRAND<7WL> INTERIOR STEERING CENTER PAD BADGE<8MB> (G) DARK GRAY	8-97408-845-0	01	1	0610-	●		●		●	●	●	●
20	06.512 SHROUD; PAD,STRG WHEEL AIR BAG DRIVER & PASSENGER DELETE(AK6) STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> CHEVROLET BRAND<RWE> (A) DARK GRAY	8-97391-009-0	01	1	0307-0609	●		●		●	●	●	●
20	06.512 SHROUD; PAD,STRG WHEEL AIR BAG DRIVER & PASSENGER DELETE(AK6) STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> CHEVROLET BRAND<RWE> INTERIOR STEERING CENTER PAD BADGE<8MB> (F) DARK GRAY	8-97408-847-0	01	1	0610-	●		●		●	●	●	●
20	06.512 SHROUD; PAD,STRG WHEEL AIR BAG DRIVER & PASSENGER DELETE(AK6) STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> ISUZU BRAND<7WL> EXC. INTERIOR STEERING CENTER PAD B ADGE<8MB> (G) DARK GRAY	8-97408-848-0	01	1	0610-	●		●		●	●	●	●
20	06.512 SHROUD; PAD,STRG WHEEL AIR BAG DRIVER & PASSENGER DELETE(AK6) STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> CHEVROLET BRAND<RWE> EXC. INTERIOR STEERING CENTER PAD B ADGE<8MB> (F) DARK GRAY	8-97408-850-0	01	1	0610-	●		●		●	●	●	●
30	06.518 COWL; STEERING IMMOBILIZER SYSTEM<7KC> DARK GRAY	8-97294-054-1	01	1	0307-0402	●		●		●	●	●	●
30	06.518 COWL; STEERING DARK GRAY	8-97294-054-1	01	1	0307-0402		●		●
30	06.518 COWL; STEERING IMMOBILIZER SYSTEM<7KC> EXC. HONG KONG EQUIPMENT(B14) DARK GRAY	8-97294-054-1	01	1	0403-0609	●		●		●	●	●	●
30	06.518 COWL; STEERING DARK GRAY	8-97294-054-1	01	1	0403-0609		●		●
30	06.518 COWL; STEERING IMMOBILIZER SYSTEM<7KC> EXC. HONG KONG EQUIPMENT(B14) DARK GRAY	8-97403-685-1	01	1	0610-1103	●		●		●	●	●	●
30	06.518 COWL; STEERING DARK GRAY	8-97403-685-1	01	1	0610-1103		●		●
30	06.518 COWL; STEERING IMMOBILIZER SYSTEM<7KC> EXC. HONG KONG EQUIPMENT(B14) DARK GRAY	8-97422-708-0	01	1	1104-	●		●		●	●	●	●
30	06.518 COWL; STEERING DARK GRAY	8-97422-708-0	01	1	1104-		●		●
30	06.518 COWL; STEERING EXC. IMMOBILIZER SYSTEM<7KC> DARK GRAY	8-97294-053-2	01	1	0307-0402	●		●		●	●	●	●
30	06.518 COWL; STEERING EXC. SINGAPORE EQUIPMENT(2G0), IMMOBILIZER SYSTEM<7KC> DARK GRAY	8-97294-053-2	01	1	0403-0609	●		●		●	●	●	●
30	06.518 COWL; STEERING EXC. SINGAPORE EQUIPMENT(2G0), IMMOBILIZER SYSTEM<7KC> DARK GRAY	8-97396-696-2	01	1	0610-1103	●		●		●	●	●	●
30	06.518 COWL; STEERING EXC. SINGAPORE EQUIPMENT(2G0), IMMOBILIZER SYSTEM<7KC> DARK GRAY	8-97422-707-0	01	1	1104-	●		●		●	●	●	●
30	06.518 COWL; STEERING SINGAPORE EQUIPMENT(2G0) EXC. IMMOBILIZER SYSTEM<7KC> DARK GRAY	8-97392-791-1	01	1	0403-0609			●		●		●	●
30	06.518 COWL; STEERING SINGAPORE EQUIPMENT(2G0) EXC. IMMOBILIZER SYSTEM<7KC> DARK GRAY	8-97403-686-1	01	1	0610-1103			●		●		●	●
30	06.518 COWL; STEERING SINGAPORE EQUIPMENT(2G0) EXC. IMMOBILIZER SYSTEM<7KC> DARK GRAY	8-97422-709-0	01	1	1104-			●		●		●	●
30	06.518 COWL; STEERING HONG KONG EQUIPMENT(B14) IMMOBILIZER SYSTEM<7KC> DARK GRAY	8-97392-792-1	01	1	0403-0609			●		●			●
30	06.518 COWL; STEERING HONG KONG EQUIPMENT(B14) IMMOBILIZER SYSTEM<7KC> DARK GRAY	8-97403-687-1	01	1	0610-1103			●		●			●
30	06.518 COWL; STEERING HONG KONG EQUIPMENT(B14) IMMOBILIZER SYSTEM<7KC> DARK GRAY	8-97422-710-0	01	1	1104-			●		●			●
37	06.518 SCREW; STRG COWL UPR M4X12 W/PL WASHER	9-03900-412-0	03	1	0307-0606	●	●	●	●	●	●	●	●
37	06.518 SCREW; STRG COWL UPR M4X12 W/PL WASHER	0-36210-412-0	03	1	0607-	●	●	●	●	●	●	●	●
44	06.514 SCREW; STRG COWL AIR BAG DRIVER & PASSENGER DELETE(AK6) 06.512 M5X19 W/LK&PL WASHER	8-94104-815-1	01	1	0307-0609	●	●	●	●	●	●	●	●
44	06.514 SCREW; STRG COWL AIR BAG DRIVER & PASSENGER DELETE(AK6) M5X19 W/LK&PL WASHER	8-98023-674-0	01	1	0610-	●	●	●	●	●	●	●	●
83	06.514 SCREW; LWR COVER TO WHEEL AIR BAG DRIVER & PASSENGER DELETE(AK6)	8-97350-037-0	04	1	0307-	●	●	●	●	●	●	●	●
83	06.514 SCREW; LWR COVER TO WHEEL AIR BAG DRIVER & PASSENGER(AK5) DELUXE STEERING WHEEL URETHANE<N30>	8-97350-038-0	04	1	0603-0609	●	●	●	●	●	●	●	●
83	06.514 SCREW; LWR COVER TO WHEEL AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5)	8-97350-038-0	02	1	0307-0508	●	●	●	●	●	●	●	●
83	06.514 SCREW; LWR COVER TO WHEEL AIR BAG DRIVER & PASSENGER(AK5)	8-97350-038-0	04	1	0509-0602	●	●	●	●	●	●	●	●
83	06.514 SCREW; LWR COVER TO WHEEL AIR BAG DRIVER & PASSENGER(AK5) STEERING WHEEL LEATHER<NP5>	8-97350-038-0	02	1	0603-0609	●		●		●	●	●	●
83	06.514 SCREW; LWR COVER TO WHEEL AIR BAG DRIVER & PASSENGER(AK5)	8-97350-038-0	02	1	0610-	●	●	●	●	●	●	●	●
90	06.578 COVER ASM; STRG WHEEL,LWR AIR BAG DRIVER & PASSENGER DELETE(AK6) STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> DARK GRAY	8-97394-464-0	01	1	0307-0609	●	●	●	●	●	●	●	●
90	06.578 COVER ASM; STRG WHEEL,LWR AIR BAG DRIVER & PASSENGER DELETE(AK6) STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> DARK GRAY	8-97403-939-1	01	1	0610-	●	●	●	●	●	●	●	●
90	06.578 COVER ASM; STRG WHEEL,LWR AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) DARK GRAY	8-97394-463-0	01	1	0307-0508	●	●	●	●	●	●	●	●
90	06.578 COVER ASM; STRG WHEEL,LWR AIR BAG DRIVER & PASSENGER(AK5) DARK GRAY	8-97394-463-0	01	1	0509-0609	●	●	●	●	●	●	●	●
90	06.578 COVER ASM; STRG WHEEL,LWR AIR BAG DRIVER & PASSENGER(AK5) DARK GRAY	8-97403-937-1	01	1	0610-	●	●	●	●	●	●	●	●
90	06.578 COVER ASM; STRG WHEEL,LWR AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. STEERING WHEEL LEATHER<NP5>, DELUXE STEERING WHEEL URETHANE<N30> DARK GRAY	8-97396-504-0	01	1	0307-0609	●		●		●	●	●	●
90	06.578 COVER ASM; STRG WHEEL,LWR AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. STEERING WHEEL LEATHER<NP5>, DELUXE STEERING WHEEL URETHANE<N30> DARK GRAY	8-97403-938-0	01	1	0610-	●		●		●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
