Sayfa 4-11 - Isuzu EPC

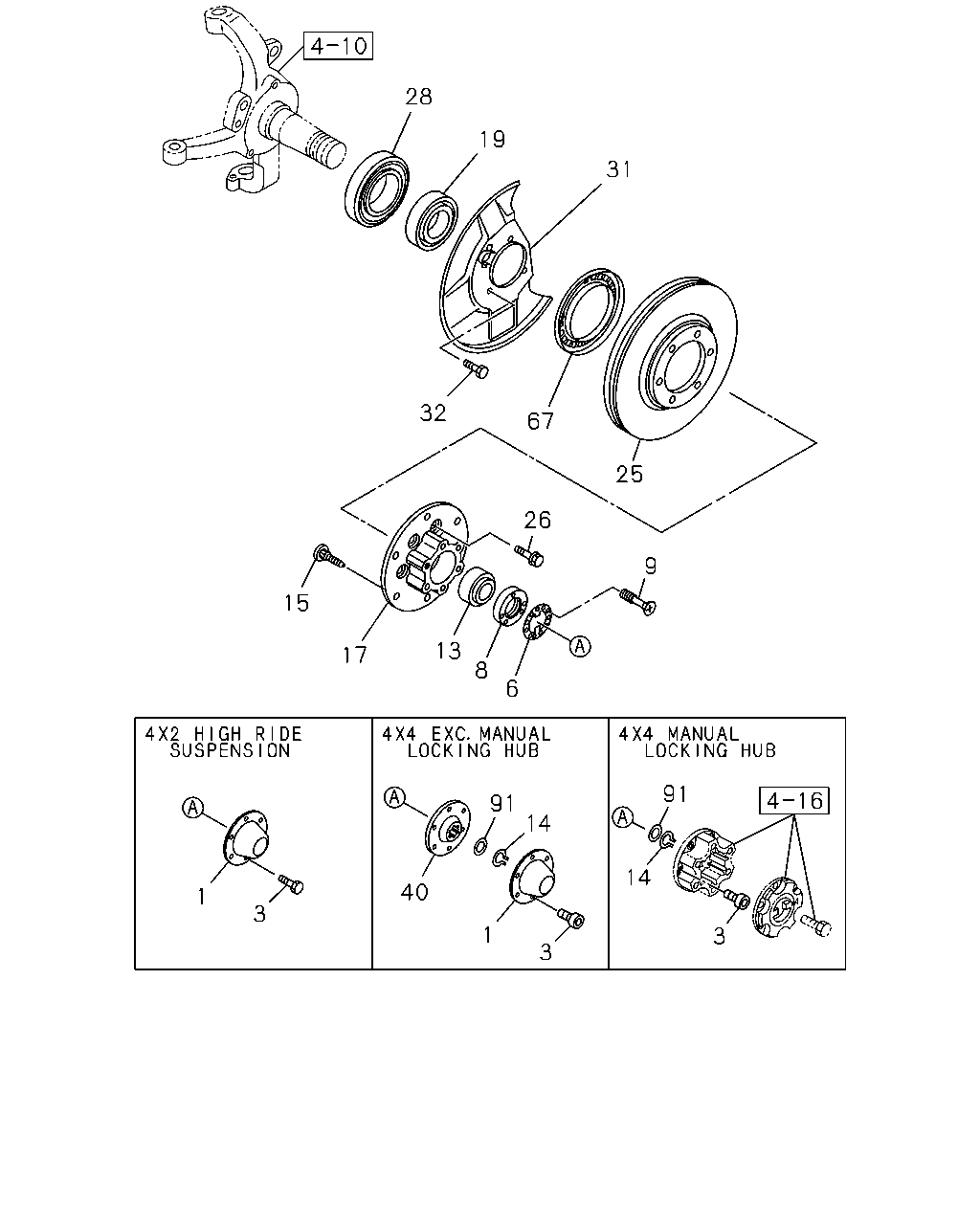

4-11 — FRONT HUB AND DRUM OR ROTOR (#20453) — 293 parça

28 19 31 32 67 25 9 26 15 17 13 8 6 91 14 3 14 91 1 3 40 3 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	06.330 CAP; HUB,FRT AXLE HIGH RIDE SUSPENSION(7YC)	8-94173-314-2	02	1	0307-0609	●	●	●	●	●
1	06.330 CAP; HUB,FRT AXLE EXC. MANUAL LOCKING HUB(ED2)	8-94173-314-2	02	1	0307-0609						●	●	●
1	06.330 CAP; HUB,FRT AXLE HIGH RIDE SUSPENSION(7YC)	8-97944-565-0	02	1	0610-	●	●	●	●	●
1	06.330 CAP; HUB,FRT AXLE EXC. MANUAL LOCKING HUB(ED2)	8-97944-565-0	02	1	0610-						●	●	●
1	06.330 CAP; HUB,FRT AXLE EXC. HIGH RIDE SUSPENSION(7YC)	9-42313-080-1	02	1	0307-0609	●	●	●	●	●
1	06.330 CAP; HUB,FRT AXLE EXC. HIGH RIDE SUSPENSION(7YC)	8-98006-055-0	02	1	0610-	●	●	●	●	●
3	06.330 BOLT; HUB CAP,FRT WHEEL HIGH RIDE SUSPENSION(7YC) 00.002 M10X20	9-02061-020-0	12	1	0307-0601	●	●	●	●	●
3	06.330 BOLT; HUB CAP,FRT WHEEL HIGH RIDE SUSPENSION(7YC) 06.174 M10X20	0-20951-020-0	12	1	0602-0609	●	●	●	●	●
3	06.330 BOLT; HUB CAP,FRT WHEEL HIGH RIDE SUSPENSION(7YC) 06.174 M10X20	0-20951-020-0	12	1	0610-	●	●	●	●	●
3	06.330 BOLT; HUB CAP,FRT WHEEL 06.308 M10X33	8-94176-987-1	12	1	0307-0802						●	●	●
3	06.330 BOLT; HUB CAP,FRT WHEEL M10X33	8-98117-920-0	12	1	0803-						●	●	●
6	05.812 WASHER; LK,FRT HUB HIGH RIDE SUSPENSION(7YC) T=1.8 OD=65	8-94442-398-0	02	1	0307-	●	●	●	●	●
6	05.812 WASHER; LK,FRT HUB T=1.8 OD=65	8-94442-398-0	02	1	0307-						●	●	●
6	05.812 WASHER; LK,FRT HUB EXC. HIGH RIDE SUSPENSION(7YC) T=3.2 OD=35	8-94256-973-0	02	1	0307-0406	●	●	●	●	●
6	05.812 WASHER; LK,FRT HUB EXC. HIGH RIDE SUSPENSION(7YC) T=3.2 OD=35	8-97382-661-0	02	1	0407-	●	●	●	●	●
8	05.812 NUT; ADJ,FRT HUB HIGH RIDE SUSPENSION(7YC) ID=40 OD=65 T=8	8-94442-399-1	02	1	0307-	●	●	●	●	●
8	05.812 NUT; ADJ,FRT HUB ID=40 OD=65 T=8	8-94442-399-1	02	1	0307-						●	●	●
9	05.812 SCREW; ADJ,NUT HIGH RIDE SUSPENSION(7YC) 08.913 M4X8 CK-HEAD	9-93090-408-0	06	1	0307-0609	●	●	●	●	●
9	05.812 SCREW; ADJ,NUT 08.913 M4X8 CK-HEAD	9-93090-408-0	06	1	0307-0609						●	●	●
9	05.812 SCREW; ADJ,NUT HIGH RIDE SUSPENSION(7YC) M4X8 CK-HEAD	8-98008-301-0	06	1	0610-	●	●	●	●	●
9	05.812 SCREW; ADJ,NUT M4X8 CK-HEAD	8-98008-301-0	06	1	0610-						●	●	●
13	06.313 BEARING; HUB OUTER,FRT AXLE HIGH RIDE SUSPENSION(7YC) 06.311 NSK	8-94227-041-0	02	1	0307-	●	●	●	●	●
13	06.313 BEARING; HUB OUTER,FRT AXLE 06.311 NSK	8-94227-041-0	02	1	0307-						●	●	●
13	06.313 BEARING; HUB OUTER,FRT AXLE EXC. HIGH RIDE SUSPENSION(7YC) NSK	8-94242-913-0	02	1	0307-	●	●	●	●	●
14	05.813 RING; SPR,FRT WHEEL 08.934 ID=25.9	9-09180-028-0	02	1	0307-						●	●	●
15	05.812 PIN; WHEEL,FRT AXLE M12X37.5	8-97213-871-0	12	1	0307-0609	●	●	●	●	●	●	●	●
15	05.812 PIN; WHEEL,FRT AXLE M12X37.5	8-97944-564-0	12	1	0610-	●	●	●	●	●	●	●	●
17	06.307 HUB; FRT AXLE HIGH RIDE SUSPENSION(7YC)	8-97238-419-0	02	1	0307-0609	●	●	●	●	●
17	06.307 HUB; FRT AXLE	8-97238-419-0	02	1	0307-0609						●	●	●
17	06.307 HUB; FRT AXLE HIGH RIDE SUSPENSION(7YC)	8-98054-665-0	02	1	0610-	●	●	●	●	●
17	06.307 HUB; FRT AXLE	8-98054-665-0	02	1	0610-						●	●	●
17	06.307 HUB; FRT AXLE EXC. HIGH RIDE SUSPENSION(7YC)	8-97238-417-1	02	1	0307-0609	●	●	●	●	●
17	06.307 HUB; FRT AXLE EXC. HIGH RIDE SUSPENSION(7YC)	8-98054-664-0	02	1	0610-	●	●	●	●	●
19	06.311 BEARING; HUB INNER,FRT AXLE HIGH RIDE SUSPENSION(7YC) 06.314 NSK	8-94258-819-0	02	1	0307-	●	●	●	●	●
19	06.311 BEARING; HUB INNER,FRT AXLE 06.314 NSK	8-94258-819-0	02	1	0307-						●	●	●
19	06.311 BEARING; HUB INNER,FRT AXLE EXC. HIGH RIDE SUSPENSION(7YC) NSK	8-94242-683-0	02	1	0307-	●	●	●	●	●
25	05.809 ROTOR; DISC BRK,FRT HIGH RIDE SUSPENSION(7YC)	8-97360-678-0	02	1	0307-0605	●	●	●	●	●
25	05.809 ROTOR; DISC BRK,FRT	8-97360-678-0	02	1	0307-0605						●	●	●
25	05.809 ROTOR; DISC BRK,FRT HIGH RIDE SUSPENSION(7YC)	8-97360-678-0	02	1	0606-0609	●	●		●
25	05.809 ROTOR; DISC BRK,FRT HIGH RIDE SUSPENSION(7YC) EXC. MALAYSIA EQUIPMENT(B10)	8-97360-678-0	02	1	0606-0609			●		●
25	05.809 ROTOR; DISC BRK,FRT 4X4 EXTEND CAB LONG(TFS*CF) EXC. MALAYSIA EQUIPMENT(B10)	8-97360-678-0	02	1	0606-0609						●
25	05.809 ROTOR; DISC BRK,FRT 4X4 EXTEND CAB EXTRA LONG(TFS*CK)	8-97360-678-0	02	1	0606-0609						●
25	05.809 ROTOR; DISC BRK,FRT	8-97360-678-0	02	1	0606-0609							●
25	05.809 ROTOR; DISC BRK,FRT 4X4 CREW CAB LONG(TFS*WF) EXC. MALAYSIA EQUIPMENT(B10)	8-97360-678-0	02	1	0606-0609								●
25	05.809 ROTOR; DISC BRK,FRT CREW CAB EXTRA LONG(TF**WK)	8-97360-678-0	02	1	0606-0609								●
25	05.809 ROTOR; DISC BRK,FRT HIGH RIDE SUSPENSION(7YC)	8-98006-259-0	02	1	0610-0806	●	●	●	●
25	05.809 ROTOR; DISC BRK,FRT 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. HIGH RIDE SUSPENSION(7YC)	8-98006-259-0	02	1	0610-0806	●	●	●	●
25	05.809 ROTOR; DISC BRK,FRT 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. MALAYSIA EQUIPMENT(B10),HIGH RIDE SUSPENSION(7YC)	8-98006-259-0	02	1	0610-0806					●
25	05.809 ROTOR; DISC BRK,FRT HIGH RIDE SUSPENSION(7YC) EXC. MALAYSIA EQUIPMENT(B10)	8-98006-259-0	02	1	0610-0806					●
25	05.809 ROTOR; DISC BRK,FRT	8-98006-259-0	02	1	0610-0806						●	●
25	05.809 ROTOR; DISC BRK,FRT 4X4 CREW CAB LONG(TFS*WF) EXC. MALAYSIA EQUIPMENT(B10)	8-98006-259-0	02	1	0610-0806								●
25	05.809 ROTOR; DISC BRK,FRT CREW CAB EXTRA LONG(TF**WK)	8-98006-259-0	02	1	0610-0806								●
25	05.809 ROTOR; DISC BRK,FRT 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL),MALAYSIA EQUIPMENT(B10),HIGH RIDE SUSPENSION(7YC)	8-98006-259-0	02	1	0807-	●	●	●	●	●
25	05.809 ROTOR; DISC BRK,FRT FRT&RR 225/75R15C(BZC),FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) ,FRT&RR 215/70R15C GOODYEAR TIRE(QFT) IDENTIFICATION BREAKING POINT 2008. 5 M.Y.(BRL) EXC. MALAYSIA EQUIPMENT(B10),HIGH RIDE SUSPENSION(7YC)	8-98006-259-0	02	1	0807-	●	●	●	●	●
25	05.809 ROTOR; DISC BRK,FRT HIGH RIDE SUSPENSION(7YC) EXC. MALAYSIA EQUIPMENT(B10)	8-98006-259-0	02	1	0807-	●	●	●	●	●
25	05.809 ROTOR; DISC BRK,FRT EXC. MALAYSIA EQUIPMENT(B10)	8-98006-259-0	02	1	0807-						●	●	●
25	05.809 ROTOR; DISC BRK,FRT EXC. HIGH RIDE SUSPENSION(7YC)	8-97308-868-0	02	1	0307-0605	●	●	●	●	●
25	05.809 ROTOR; DISC BRK,FRT EXC. HIGH RIDE SUSPENSION(7YC)	8-97308-868-0	02	1	0606-0609	●	●		●
25	05.809 ROTOR; DISC BRK,FRT EXC. MALAYSIA EQUIPMENT(B10),HIGH RIDE SUSPENSION(7YC)	8-97308-868-0	02	1	0606-0609			●		●
25	05.809 ROTOR; DISC BRK,FRT 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0) EXC. HIGH RIDE SUSPENSION(7YC)	8-98006-258-0	02	1	0610-0709	●		●	●
25	05.809 ROTOR; DISC BRK,FRT 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0) EXC. MALAYSIA EQUIPMENT(B10),HIGH RIDE SUSPENSION(7YC)	8-98006-258-0	02	1	0610-0709					●
25	05.809 ROTOR; DISC BRK,FRT 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0) EXC. MALAYSIA EQUIPMENT(B10),HIGH RIDE SUSPENSION(7YC)	8-98006-258-0	02	1	0710-0806	●		●	●	●
25	05.809 ROTOR; DISC BRK,FRT FRT&RR 195R14C(CNU) IDENTIFICATION BREAKING POINT 2008. 5 M.Y.(BRL) EXC. MALAYSIA EQUIPMENT(B10),HIGH RIDE SUSPENSION(7YC)	8-98006-258-0	02	1	0807-	●	●	●	●	●
25	05.809 ROTOR; DISC BRK,FRT 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0) EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL),MALAYSIA EQUIPMENT(B10),HIGH RIDE SUSPENSION(7YC)	8-98006-258-0	02	1	0807-	●		●	●	●
25	05.809 ROTOR; DISC BRK,FRT MALAYSIA EQUIPMENT(B10) HIGH RIDE SUSPENSION(7YC)	8-97360-677-0	02	1	0606-0609			●		●
25	05.809 ROTOR; DISC BRK,FRT 4X4 EXTEND CAB LONG(TFS*CF) MALAYSIA EQUIPMENT(B10)	8-97360-677-0	02	1	0606-0609						●
25	05.809 ROTOR; DISC BRK,FRT 4X4 CREW CAB LONG(TFS*WF) MALAYSIA EQUIPMENT(B10)	8-97360-677-0	02	1	0606-0609								●
25	05.809 ROTOR; DISC BRK,FRT MALAYSIA EQUIPMENT(B10) HIGH RIDE SUSPENSION(7YC)	8-97360-677-0	02	1	0610-					●
25	05.809 ROTOR; DISC BRK,FRT 4X4 CREW CAB LONG(TFS*WF) MALAYSIA EQUIPMENT(B10)	8-97360-677-0	02	1	0610-								●
25	05.809 ROTOR; DISC BRK,FRT MALAYSIA EQUIPMENT(B10) EXC. HIGH RIDE SUSPENSION(7YC)	8-97370-515-0	02	1	0606-0609			●		●
25	05.809 ROTOR; DISC BRK,FRT MALAYSIA EQUIPMENT(B10) EXC. HIGH RIDE SUSPENSION(7YC)	8-97370-515-0	02	1	0610-0709					●
26	05.812 BOLT; BRK,DISC TO HUB	8-97318-614-0	12	1	0307-0405	●	●	●	●	●	●	●	●
26	05.812 BOLT; BRK,DISC TO HUB M12X31.5 FLANGE	8-97943-952-0	12	1	0406-0609	●	●	●	●	●	●	●	●
26	05.812 BOLT; BRK,DISC TO HUB M12X31.5 FLANGE	8-98006-065-0	12	1	0610-	●	●	●	●	●	●	●	●
28	06.326 SEAL; OIL,FRT HUB HIGH RIDE SUSPENSION(7YC) 06.308	8-94407-711-0	02	1	0307-0604	●	●	●	●	●
28	06.326 SEAL; OIL,FRT HUB 06.308	8-94407-711-0	02	1	0307-0604						●	●	●
28	06.326 SEAL; OIL,FRT HUB HIGH RIDE SUSPENSION(7YC)	8-98036-594-0	02	1	0605-	●	●	●	●	●
28	06.326 SEAL; OIL,FRT HUB	8-98036-594-0	02	1	0605-						●	●	●
28	06.326 SEAL; OIL,FRT HUB EXC. HIGH RIDE SUSPENSION(7YC)	8-94433-718-0	02	1	0307-0604	●	●	●	●	●
28	06.326 SEAL; OIL,FRT HUB EXC. HIGH RIDE SUSPENSION(7YC)	8-98036-593-0	02	1	0605-	●	●	●	●	●
31	04.665 COVER; DUST,FRT BRAKE HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97327-614-0	01	1	0307-0609	●	●	●	●	●
31	04.665 COVER; DUST,FRT BRAKE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97327-614-0	01	1	0307-0609						●	●	●
31	04.665 COVER; DUST,FRT BRAKE HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97327-614-0	01	1	0610-	●	●	●	●	●
31	04.665 COVER; DUST,FRT BRAKE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97327-614-0	01	1	0610-						●	●	●
31	04.665 COVER; DUST,FRT BRAKE HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97327-613-0	01	1	0307-0609	●	●	●	●	●
31	04.665 COVER; DUST,FRT BRAKE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97327-613-0	01	1	0307-0609						●	●	●
31	04.665 COVER; DUST,FRT BRAKE HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97327-613-0	01	1	0610-	●	●	●	●	●
31	04.665 COVER; DUST,FRT BRAKE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97327-613-0	01	1	0610-						●	●	●
31	04.665 COVER; DUST,FRT BRAKE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HIGH RIDE SUSPENSION(7YC)	8-97238-288-0	01	1	0307-0609	●	●	●	●	●
31	04.665 COVER; DUST,FRT BRAKE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0) EXC. MALAYSIA EQUIPMENT(B10),4 WHEEL ANTI LOCK BRAKE<JE5>,HIGH RIDE SU SPENSION(7YC)	8-97238-288-0	01	1	0610-0709	●		●	●	●
31	04.665 COVER; DUST,FRT BRAKE MALAYSIA EQUIPMENT(B10) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HIGH RIDE SUSPENSION(7YC)	8-97238-288-0	01	1	0610-0709					●
31	04.665 COVER; DUST,FRT BRAKE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HIGH RIDE SUSPENSION(7YC)	8-97238-288-0	01	1	0710-0806	●		●	●	●
31	04.665 COVER; DUST,FRT BRAKE FRT&RR 195R14C(CNU) IDENTIFICATION BREAKING POINT 2008. 5 M.Y.(BRL) EXC. MALAYSIA EQUIPMENT(B10),4 WHEEL ANTI LOCK BRAKE<JE5>,HIGH RIDE SU SPENSION(7YC)	8-97238-288-0	01	1	0807-	●	●	●	●	●
31	04.665 COVER; DUST,FRT BRAKE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0) EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL),MALAYSIA EQUIPMENT(B10),4 WHEEL ANTI LOCK BRAKE<JE5>, HIGH RIDE SUSPENSION(7YC)	8-97238-288-0	01	1	0807-	●		●	●	●
31	04.665 COVER; DUST,FRT BRAKE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HIGH RIDE SUSPENSION(7YC)	8-97238-287-0	01	1	0307-0609	●	●	●	●	●
31	04.665 COVER; DUST,FRT BRAKE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0) EXC. MALAYSIA EQUIPMENT(B10),4 WHEEL ANTI LOCK BRAKE<JE5>,HIGH RIDE SU SPENSION(7YC)	8-97238-287-0	01	1	0610-0709	●		●	●	●
31	04.665 COVER; DUST,FRT BRAKE MALAYSIA EQUIPMENT(B10) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HIGH RIDE SUSPENSION(7YC)	8-97238-287-0	01	1	0610-0709					●
31	04.665 COVER; DUST,FRT BRAKE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HIGH RIDE SUSPENSION(7YC)	8-97238-287-0	01	1	0710-0806	●		●	●	●
31	04.665 COVER; DUST,FRT BRAKE FRT&RR 195R14C(CNU) IDENTIFICATION BREAKING POINT 2008. 5 M.Y.(BRL) EXC. MALAYSIA EQUIPMENT(B10),4 WHEEL ANTI LOCK BRAKE<JE5>,HIGH RIDE SU SPENSION(7YC)	8-97238-287-0	01	1	0807-	●	●	●	●	●
31	04.665 COVER; DUST,FRT BRAKE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0) EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL),MALAYSIA EQUIPMENT(B10),4 WHEEL ANTI LOCK BRAKE<JE5>, HIGH RIDE SUSPENSION(7YC)	8-97238-287-0	01	1	0807-	●		●	●	●
31	04.665 COVER; DUST,FRT BRAKE 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. MALAYSIA EQUIPMENT(B10),4 WHEEL ANTI LOCK BRAKE<JE5>,HIGH RIDE SU SPENSION(7YC)	8-98008-151-0	01	1	0610-0806	●	●	●	●	●
31	04.665 COVER; DUST,FRT BRAKE 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL),MALAYSIA EQUIPMENT(B10),4 WHEEL ANTI LOCK BRAKE<JE5>, HIGH RIDE SUSPENSION(7YC)	8-98008-151-0	01	1	0807-	●	●	●	●	●
31	04.665 COVER; DUST,FRT BRAKE FRT&RR 225/75R15C(BZC),FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) ,FRT&RR 215/70R15C GOODYEAR TIRE(QFT) IDENTIFICATION BREAKING POINT 2008. 5 M.Y.(BRL) EXC. MALAYSIA EQUIPMENT(B10),4 WHEEL ANTI LOCK BRAKE<JE5>,HIGH RIDE SU SPENSION(7YC)	8-98008-151-0	01	1	0807-	●	●	●	●	●
31	04.665 COVER; DUST,FRT BRAKE 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. MALAYSIA EQUIPMENT(B10),4 WHEEL ANTI LOCK BRAKE<JE5>,HIGH RIDE SU SPENSION(7YC)	8-98008-150-0	01	1	0610-0806	●	●	●	●	●
31	04.665 COVER; DUST,FRT BRAKE 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL),MALAYSIA EQUIPMENT(B10),4 WHEEL ANTI LOCK BRAKE<JE5>, HIGH RIDE SUSPENSION(7YC)	8-98008-150-0	01	1	0807-	●	●	●	●	●
31	04.665 COVER; DUST,FRT BRAKE FRT&RR 225/75R15C(BZC),FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) ,FRT&RR 215/70R15C GOODYEAR TIRE(QFT) IDENTIFICATION BREAKING POINT 2008. 5 M.Y.(BRL) EXC. MALAYSIA EQUIPMENT(B10),4 WHEEL ANTI LOCK BRAKE<JE5>,HIGH RIDE SU SPENSION(7YC)	8-98008-150-0	01	1	0807-	●	●	●	●	●
31	04.665 COVER; DUST,FRT BRAKE 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. MALAYSIA EQUIPMENT(B10),HIGH RIDE SUSPENSION(7YC)	8-98008-149-0	01	1	0610-0806	●	●	●	●	●
31	04.665 COVER; DUST,FRT BRAKE 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL),MALAYSIA EQUIPMENT(B10),HIGH RIDE SUSPENSION(7YC)	8-98008-149-0	01	1	0807-	●	●	●	●	●
31	04.665 COVER; DUST,FRT BRAKE 4 WHEEL ANTI LOCK BRAKE<JE5> FRT&RR 225/75R15C(BZC),FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) ,FRT&RR 215/70R15C GOODYEAR TIRE(QFT) IDENTIFICATION BREAKING POINT 2008. 5 M.Y.(BRL) EXC. MALAYSIA EQUIPMENT(B10),HIGH RIDE SUSPENSION(7YC)	8-98008-149-0	01	1	0807-	●	●	●	●	●
31	04.665 COVER; DUST,FRT BRAKE 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. MALAYSIA EQUIPMENT(B10),HIGH RIDE SUSPENSION(7YC)	8-98008-148-0	01	1	0610-0806	●	●	●	●	●
31	04.665 COVER; DUST,FRT BRAKE 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL),MALAYSIA EQUIPMENT(B10),HIGH RIDE SUSPENSION(7YC)	8-98008-148-0	01	1	0807-	●	●	●	●	●
31	04.665 COVER; DUST,FRT BRAKE 4 WHEEL ANTI LOCK BRAKE<JE5> FRT&RR 225/75R15C(BZC),FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) ,FRT&RR 215/70R15C GOODYEAR TIRE(QFT) IDENTIFICATION BREAKING POINT 2008. 5 M.Y.(BRL) EXC. MALAYSIA EQUIPMENT(B10),HIGH RIDE SUSPENSION(7YC)	8-98008-148-0	01	1	0807-	●	●	●	●	●
31	04.665 COVER; DUST,FRT BRAKE 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC)	8-97327-612-0	01	1	0307-0407	●		●		●
31	04.665 COVER; DUST,FRT BRAKE 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97327-612-0	01	1	0307-0407						●	●	●
31	04.665 COVER; DUST,FRT BRAKE 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC)	8-97327-612-0	01	1	0408-0609	●	●	●	●	●
31	04.665 COVER; DUST,FRT BRAKE 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97327-612-0	01	1	0408-0609						●	●	●
31	04.665 COVER; DUST,FRT BRAKE 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC)	8-97327-612-0	01	1	0610-	●	●	●	●	●
31	04.665 COVER; DUST,FRT BRAKE 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97327-612-0	01	1	0610-						●	●	●
31	04.665 COVER; DUST,FRT BRAKE 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC)	8-97327-611-0	01	1	0307-0407	●		●		●
31	04.665 COVER; DUST,FRT BRAKE 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97327-611-0	01	1	0307-0407						●	●	●
31	04.665 COVER; DUST,FRT BRAKE 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC)	8-97327-611-0	01	1	0408-0609	●	●	●	●	●
31	04.665 COVER; DUST,FRT BRAKE 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97327-611-0	01	1	0408-0609						●	●	●
31	04.665 COVER; DUST,FRT BRAKE 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC)	8-97327-611-0	01	1	0610-	●	●	●	●	●
31	04.665 COVER; DUST,FRT BRAKE 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97327-611-0	01	1	0610-						●	●	●
31	04.665 COVER; DUST,FRT BRAKE 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC)	8-97238-286-0	01	1	0307-0407	●		●		●
31	04.665 COVER; DUST,FRT BRAKE 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC)	8-97238-286-0	01	1	0408-0609	●	●	●	●	●
31	04.665 COVER; DUST,FRT BRAKE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. MALAYSIA EQUIPMENT(B10),HIGH RIDE SUSPENSION(7YC)	8-97238-286-0	01	1	0610-0709	●		●	●	●
31	04.665 COVER; DUST,FRT BRAKE 4 WHEEL ANTI LOCK BRAKE<JE5> MALAYSIA EQUIPMENT(B10) EXC. HIGH RIDE SUSPENSION(7YC)	8-97238-286-0	01	1	0610-0709					●
31	04.665 COVER; DUST,FRT BRAKE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC)	8-97238-286-0	01	1	0710-0806	●		●	●	●
31	04.665 COVER; DUST,FRT BRAKE 4 WHEEL ANTI LOCK BRAKE<JE5> FRT&RR 195R14C(CNU) IDENTIFICATION BREAKING POINT 2008. 5 M.Y.(BRL) EXC. MALAYSIA EQUIPMENT(B10),HIGH RIDE SUSPENSION(7YC)	8-97238-286-0	01	1	0807-	●	●	●	●	●
31	04.665 COVER; DUST,FRT BRAKE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL),MALAYSIA EQUIPMENT(B10),HIGH RIDE SUSPENSION(7YC)	8-97238-286-0	01	1	0807-	●		●	●	●
31	04.665 COVER; DUST,FRT BRAKE 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC)	8-97238-285-0	01	1	0307-0407	●		●		●
31	04.665 COVER; DUST,FRT BRAKE 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC)	8-97238-285-0	01	1	0408-0609	●	●	●	●	●
31	04.665 COVER; DUST,FRT BRAKE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. MALAYSIA EQUIPMENT(B10),HIGH RIDE SUSPENSION(7YC)	8-97238-285-0	01	1	0610-0709	●		●	●	●
31	04.665 COVER; DUST,FRT BRAKE 4 WHEEL ANTI LOCK BRAKE<JE5> MALAYSIA EQUIPMENT(B10) EXC. HIGH RIDE SUSPENSION(7YC)	8-97238-285-0	01	1	0610-0709					●
31	04.665 COVER; DUST,FRT BRAKE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC)	8-97238-285-0	01	1	0710-0806	●		●	●	●
31	04.665 COVER; DUST,FRT BRAKE 4 WHEEL ANTI LOCK BRAKE<JE5> FRT&RR 195R14C(CNU) IDENTIFICATION BREAKING POINT 2008. 5 M.Y.(BRL) EXC. MALAYSIA EQUIPMENT(B10),HIGH RIDE SUSPENSION(7YC)	8-97238-285-0	01	1	0807-	●	●	●	●	●
31	04.665 COVER; DUST,FRT BRAKE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL),MALAYSIA EQUIPMENT(B10),HIGH RIDE SUSPENSION(7YC)	8-97238-285-0	01	1	0807-	●		●	●	●
32	04.665 BOLT; DUST COVER TO KNUCKLE M8X10 W/LK WASHER	8-97943-023-0	06	1	0307-0609	●	●	●	●	●	●	●	●
32	04.665 BOLT; DUST COVER TO KNUCKLE M8X10 W/LK WASHER	8-98006-352-0	06	1	0610-	●	●	●	●	●	●	●	●
40	06.308 FLANGE; FRT WHEEL HUB EXC. MANUAL LOCKING HUB(ED2)	8-94173-313-0	02	1	0307-						●	●	●
67	05.811 ROTOR; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC)	8-97238-280-0	02	1	0307-0407	●		●		●
67	05.811 ROTOR; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97238-280-0	02	1	0307-0407						●	●	●
67	05.811 ROTOR; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC)	8-97238-280-0	02	1	0408-0609	●	●	●	●	●
67	05.811 ROTOR; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97238-280-0	02	1	0408-0609						●	●	●
67	05.811 ROTOR; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC)	8-97238-280-0	02	1	0610-	●	●	●	●	●
67	05.811 ROTOR; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97238-280-0	02	1	0610-						●	●	●
67	05.811 ROTOR; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC)	8-97238-278-0	02	1	0307-0407	●		●		●
67	05.811 ROTOR; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC)	8-97238-278-0	02	1	0408-	●	●	●	●	●
91	06.056 SPACER; HUB BRG 06.323 T=0.20	8-94178-929-0	AR	1	0307-						●	●	●
91	06.056 SPACER; HUB BRG 06.323 T=0.30	8-94178-930-0	AR	1	0307-						●	●	●
91	06.056 SPACER; HUB BRG 06.323 T=0.50	8-94178-931-0	AR	1	0307-						●	●	●
91	06.056 SPACER; HUB BRG 06.323 T=1.00	8-94178-932-0	AR	1	0307-						●	●	●

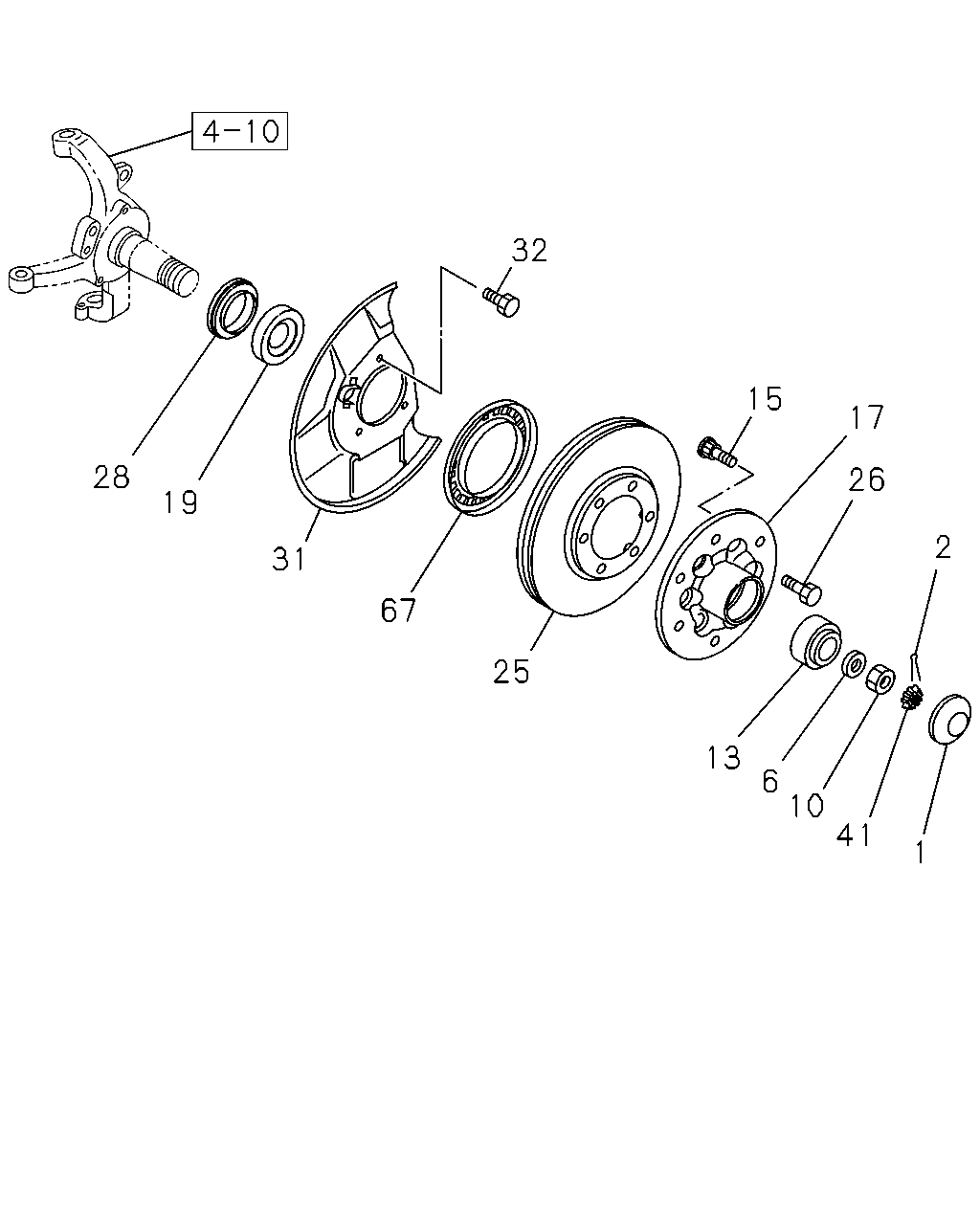

28 19 31 67 25 13 6 10 41 1 2 26 17 15 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	06.330 CAP; HUB,FRT AXLE HIGH RIDE SUSPENSION(7YC)	8-94173-314-2	02	1	0307-0609	●	●	●	●	●
1	06.330 CAP; HUB,FRT AXLE EXC. MANUAL LOCKING HUB(ED2)	8-94173-314-2	02	1	0307-0609						●	●	●
1	06.330 CAP; HUB,FRT AXLE HIGH RIDE SUSPENSION(7YC)	8-97944-565-0	02	1	0610-	●	●	●	●	●
1	06.330 CAP; HUB,FRT AXLE EXC. MANUAL LOCKING HUB(ED2)	8-97944-565-0	02	1	0610-						●	●	●
1	06.330 CAP; HUB,FRT AXLE EXC. HIGH RIDE SUSPENSION(7YC)	9-42313-080-1	02	1	0307-0609	●	●	●	●	●
1	06.330 CAP; HUB,FRT AXLE EXC. HIGH RIDE SUSPENSION(7YC)	8-98006-055-0	02	1	0610-	●	●	●	●	●
2	05.812 PIN; SPLIT,HUB TO AXLE SHAFT EXC. HIGH RIDE SUSPENSION(7YC) 09.023 OD=3.7 L=30	9-08114-030-0	02	1	0307-0607	●	●	●	●	●
2	05.812 PIN; SPLIT,HUB TO AXLE SHAFT EXC. HIGH RIDE SUSPENSION(7YC) OD=3.7 L=30	0-81124-030-0	02	1	0608-	●	●	●	●	●
6	05.812 WASHER; LK,FRT HUB HIGH RIDE SUSPENSION(7YC) T=1.8 OD=65	8-94442-398-0	02	1	0307-	●	●	●	●	●
6	05.812 WASHER; LK,FRT HUB T=1.8 OD=65	8-94442-398-0	02	1	0307-						●	●	●
6	05.812 WASHER; LK,FRT HUB EXC. HIGH RIDE SUSPENSION(7YC) T=3.2 OD=35	8-94256-973-0	02	1	0307-0406	●	●	●	●	●
6	05.812 WASHER; LK,FRT HUB EXC. HIGH RIDE SUSPENSION(7YC) T=3.2 OD=35	8-97382-661-0	02	1	0407-	●	●	●	●	●
10	05.812 NUT; FRT HUB BRG EXC. HIGH RIDE SUSPENSION(7YC) M18	8-94243-927-1	02	1	0307-	●	●	●	●	●
13	06.313 BEARING; HUB OUTER,FRT AXLE HIGH RIDE SUSPENSION(7YC) 06.311 NSK	8-94227-041-0	02	1	0307-	●	●	●	●	●
13	06.313 BEARING; HUB OUTER,FRT AXLE 06.311 NSK	8-94227-041-0	02	1	0307-						●	●	●
13	06.313 BEARING; HUB OUTER,FRT AXLE EXC. HIGH RIDE SUSPENSION(7YC) NSK	8-94242-913-0	02	1	0307-	●	●	●	●	●
15	05.812 PIN; WHEEL,FRT AXLE M12X37.5	8-97213-871-0	12	1	0307-0609	●	●	●	●	●	●	●	●
15	05.812 PIN; WHEEL,FRT AXLE M12X37.5	8-97944-564-0	12	1	0610-	●	●	●	●	●	●	●	●
17	06.307 HUB; FRT AXLE HIGH RIDE SUSPENSION(7YC)	8-97238-419-0	02	1	0307-0609	●	●	●	●	●
17	06.307 HUB; FRT AXLE	8-97238-419-0	02	1	0307-0609						●	●	●
17	06.307 HUB; FRT AXLE HIGH RIDE SUSPENSION(7YC)	8-98054-665-0	02	1	0610-	●	●	●	●	●
17	06.307 HUB; FRT AXLE	8-98054-665-0	02	1	0610-						●	●	●
17	06.307 HUB; FRT AXLE EXC. HIGH RIDE SUSPENSION(7YC)	8-97238-417-1	02	1	0307-0609	●	●	●	●	●
17	06.307 HUB; FRT AXLE EXC. HIGH RIDE SUSPENSION(7YC)	8-98054-664-0	02	1	0610-	●	●	●	●	●
19	06.311 BEARING; HUB INNER,FRT AXLE HIGH RIDE SUSPENSION(7YC) 06.314 NSK	8-94258-819-0	02	1	0307-	●	●	●	●	●
19	06.311 BEARING; HUB INNER,FRT AXLE 06.314 NSK	8-94258-819-0	02	1	0307-						●	●	●
19	06.311 BEARING; HUB INNER,FRT AXLE EXC. HIGH RIDE SUSPENSION(7YC) NSK	8-94242-683-0	02	1	0307-	●	●	●	●	●
25	05.809 ROTOR; DISC BRK,FRT HIGH RIDE SUSPENSION(7YC)	8-97360-678-0	02	1	0307-0605	●	●	●	●	●
25	05.809 ROTOR; DISC BRK,FRT	8-97360-678-0	02	1	0307-0605						●	●	●
25	05.809 ROTOR; DISC BRK,FRT HIGH RIDE SUSPENSION(7YC)	8-97360-678-0	02	1	0606-0609	●	●		●
25	05.809 ROTOR; DISC BRK,FRT HIGH RIDE SUSPENSION(7YC) EXC. MALAYSIA EQUIPMENT(B10)	8-97360-678-0	02	1	0606-0609			●		●
25	05.809 ROTOR; DISC BRK,FRT 4X4 EXTEND CAB LONG(TFS*CF) EXC. MALAYSIA EQUIPMENT(B10)	8-97360-678-0	02	1	0606-0609						●
25	05.809 ROTOR; DISC BRK,FRT 4X4 EXTEND CAB EXTRA LONG(TFS*CK)	8-97360-678-0	02	1	0606-0609						●
25	05.809 ROTOR; DISC BRK,FRT	8-97360-678-0	02	1	0606-0609							●
25	05.809 ROTOR; DISC BRK,FRT 4X4 CREW CAB LONG(TFS*WF) EXC. MALAYSIA EQUIPMENT(B10)	8-97360-678-0	02	1	0606-0609								●
25	05.809 ROTOR; DISC BRK,FRT CREW CAB EXTRA LONG(TF**WK)	8-97360-678-0	02	1	0606-0609								●
25	05.809 ROTOR; DISC BRK,FRT HIGH RIDE SUSPENSION(7YC)	8-98006-259-0	02	1	0610-0806	●	●	●	●
25	05.809 ROTOR; DISC BRK,FRT 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. HIGH RIDE SUSPENSION(7YC)	8-98006-259-0	02	1	0610-0806	●	●	●	●
25	05.809 ROTOR; DISC BRK,FRT 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. MALAYSIA EQUIPMENT(B10),HIGH RIDE SUSPENSION(7YC)	8-98006-259-0	02	1	0610-0806					●
25	05.809 ROTOR; DISC BRK,FRT HIGH RIDE SUSPENSION(7YC) EXC. MALAYSIA EQUIPMENT(B10)	8-98006-259-0	02	1	0610-0806					●
25	05.809 ROTOR; DISC BRK,FRT	8-98006-259-0	02	1	0610-0806						●	●
25	05.809 ROTOR; DISC BRK,FRT 4X4 CREW CAB LONG(TFS*WF) EXC. MALAYSIA EQUIPMENT(B10)	8-98006-259-0	02	1	0610-0806								●
25	05.809 ROTOR; DISC BRK,FRT CREW CAB EXTRA LONG(TF**WK)	8-98006-259-0	02	1	0610-0806								●
25	05.809 ROTOR; DISC BRK,FRT 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL),MALAYSIA EQUIPMENT(B10),HIGH RIDE SUSPENSION(7YC)	8-98006-259-0	02	1	0807-	●	●	●	●	●
25	05.809 ROTOR; DISC BRK,FRT FRT&RR 225/75R15C(BZC),FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) ,FRT&RR 215/70R15C GOODYEAR TIRE(QFT) IDENTIFICATION BREAKING POINT 2008. 5 M.Y.(BRL) EXC. MALAYSIA EQUIPMENT(B10),HIGH RIDE SUSPENSION(7YC)	8-98006-259-0	02	1	0807-	●	●	●	●	●
25	05.809 ROTOR; DISC BRK,FRT HIGH RIDE SUSPENSION(7YC) EXC. MALAYSIA EQUIPMENT(B10)	8-98006-259-0	02	1	0807-	●	●	●	●	●
25	05.809 ROTOR; DISC BRK,FRT EXC. MALAYSIA EQUIPMENT(B10)	8-98006-259-0	02	1	0807-						●	●	●
25	05.809 ROTOR; DISC BRK,FRT EXC. HIGH RIDE SUSPENSION(7YC)	8-97308-868-0	02	1	0307-0605	●	●	●	●	●
25	05.809 ROTOR; DISC BRK,FRT EXC. HIGH RIDE SUSPENSION(7YC)	8-97308-868-0	02	1	0606-0609	●	●		●
25	05.809 ROTOR; DISC BRK,FRT EXC. MALAYSIA EQUIPMENT(B10),HIGH RIDE SUSPENSION(7YC)	8-97308-868-0	02	1	0606-0609			●		●
25	05.809 ROTOR; DISC BRK,FRT 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0) EXC. HIGH RIDE SUSPENSION(7YC)	8-98006-258-0	02	1	0610-0709	●		●	●
25	05.809 ROTOR; DISC BRK,FRT 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0) EXC. MALAYSIA EQUIPMENT(B10),HIGH RIDE SUSPENSION(7YC)	8-98006-258-0	02	1	0610-0709					●
25	05.809 ROTOR; DISC BRK,FRT 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0) EXC. MALAYSIA EQUIPMENT(B10),HIGH RIDE SUSPENSION(7YC)	8-98006-258-0	02	1	0710-0806	●		●	●	●
25	05.809 ROTOR; DISC BRK,FRT FRT&RR 195R14C(CNU) IDENTIFICATION BREAKING POINT 2008. 5 M.Y.(BRL) EXC. MALAYSIA EQUIPMENT(B10),HIGH RIDE SUSPENSION(7YC)	8-98006-258-0	02	1	0807-	●	●	●	●	●
25	05.809 ROTOR; DISC BRK,FRT 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0) EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL),MALAYSIA EQUIPMENT(B10),HIGH RIDE SUSPENSION(7YC)	8-98006-258-0	02	1	0807-	●		●	●	●
25	05.809 ROTOR; DISC BRK,FRT MALAYSIA EQUIPMENT(B10) HIGH RIDE SUSPENSION(7YC)	8-97360-677-0	02	1	0606-0609			●		●
25	05.809 ROTOR; DISC BRK,FRT 4X4 EXTEND CAB LONG(TFS*CF) MALAYSIA EQUIPMENT(B10)	8-97360-677-0	02	1	0606-0609						●
25	05.809 ROTOR; DISC BRK,FRT 4X4 CREW CAB LONG(TFS*WF) MALAYSIA EQUIPMENT(B10)	8-97360-677-0	02	1	0606-0609								●
25	05.809 ROTOR; DISC BRK,FRT MALAYSIA EQUIPMENT(B10) HIGH RIDE SUSPENSION(7YC)	8-97360-677-0	02	1	0610-					●
25	05.809 ROTOR; DISC BRK,FRT 4X4 CREW CAB LONG(TFS*WF) MALAYSIA EQUIPMENT(B10)	8-97360-677-0	02	1	0610-								●
25	05.809 ROTOR; DISC BRK,FRT MALAYSIA EQUIPMENT(B10) EXC. HIGH RIDE SUSPENSION(7YC)	8-97370-515-0	02	1	0606-0609			●		●
25	05.809 ROTOR; DISC BRK,FRT MALAYSIA EQUIPMENT(B10) EXC. HIGH RIDE SUSPENSION(7YC)	8-97370-515-0	02	1	0610-0709					●
26	05.812 BOLT; BRK,DISC TO HUB	8-97318-614-0	12	1	0307-0405	●	●	●	●	●	●	●	●
26	05.812 BOLT; BRK,DISC TO HUB M12X31.5 FLANGE	8-97943-952-0	12	1	0406-0609	●	●	●	●	●	●	●	●
26	05.812 BOLT; BRK,DISC TO HUB M12X31.5 FLANGE	8-98006-065-0	12	1	0610-	●	●	●	●	●	●	●	●
28	06.326 SEAL; OIL,FRT HUB HIGH RIDE SUSPENSION(7YC) 06.308	8-94407-711-0	02	1	0307-0604	●	●	●	●	●
28	06.326 SEAL; OIL,FRT HUB 06.308	8-94407-711-0	02	1	0307-0604						●	●	●
28	06.326 SEAL; OIL,FRT HUB HIGH RIDE SUSPENSION(7YC)	8-98036-594-0	02	1	0605-	●	●	●	●	●
28	06.326 SEAL; OIL,FRT HUB	8-98036-594-0	02	1	0605-						●	●	●
28	06.326 SEAL; OIL,FRT HUB EXC. HIGH RIDE SUSPENSION(7YC)	8-94433-718-0	02	1	0307-0604	●	●	●	●	●
28	06.326 SEAL; OIL,FRT HUB EXC. HIGH RIDE SUSPENSION(7YC)	8-98036-593-0	02	1	0605-	●	●	●	●	●
31	04.665 COVER; DUST,FRT BRAKE HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97327-614-0	01	1	0307-0609	●	●	●	●	●
31	04.665 COVER; DUST,FRT BRAKE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97327-614-0	01	1	0307-0609						●	●	●
31	04.665 COVER; DUST,FRT BRAKE HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97327-614-0	01	1	0610-	●	●	●	●	●
31	04.665 COVER; DUST,FRT BRAKE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97327-614-0	01	1	0610-						●	●	●
31	04.665 COVER; DUST,FRT BRAKE HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97327-613-0	01	1	0307-0609	●	●	●	●	●
31	04.665 COVER; DUST,FRT BRAKE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97327-613-0	01	1	0307-0609						●	●	●
31	04.665 COVER; DUST,FRT BRAKE HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97327-613-0	01	1	0610-	●	●	●	●	●
31	04.665 COVER; DUST,FRT BRAKE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97327-613-0	01	1	0610-						●	●	●
31	04.665 COVER; DUST,FRT BRAKE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HIGH RIDE SUSPENSION(7YC)	8-97238-288-0	01	1	0307-0609	●	●	●	●	●
31	04.665 COVER; DUST,FRT BRAKE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0) EXC. MALAYSIA EQUIPMENT(B10),4 WHEEL ANTI LOCK BRAKE<JE5>,HIGH RIDE SU SPENSION(7YC)	8-97238-288-0	01	1	0610-0709	●		●	●	●
31	04.665 COVER; DUST,FRT BRAKE MALAYSIA EQUIPMENT(B10) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HIGH RIDE SUSPENSION(7YC)	8-97238-288-0	01	1	0610-0709					●
31	04.665 COVER; DUST,FRT BRAKE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HIGH RIDE SUSPENSION(7YC)	8-97238-288-0	01	1	0710-0806	●		●	●	●
31	04.665 COVER; DUST,FRT BRAKE FRT&RR 195R14C(CNU) IDENTIFICATION BREAKING POINT 2008. 5 M.Y.(BRL) EXC. MALAYSIA EQUIPMENT(B10),4 WHEEL ANTI LOCK BRAKE<JE5>,HIGH RIDE SU SPENSION(7YC)	8-97238-288-0	01	1	0807-	●	●	●	●	●
31	04.665 COVER; DUST,FRT BRAKE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0) EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL),MALAYSIA EQUIPMENT(B10),4 WHEEL ANTI LOCK BRAKE<JE5>, HIGH RIDE SUSPENSION(7YC)	8-97238-288-0	01	1	0807-	●		●	●	●
31	04.665 COVER; DUST,FRT BRAKE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HIGH RIDE SUSPENSION(7YC)	8-97238-287-0	01	1	0307-0609	●	●	●	●	●
31	04.665 COVER; DUST,FRT BRAKE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0) EXC. MALAYSIA EQUIPMENT(B10),4 WHEEL ANTI LOCK BRAKE<JE5>,HIGH RIDE SU SPENSION(7YC)	8-97238-287-0	01	1	0610-0709	●		●	●	●
31	04.665 COVER; DUST,FRT BRAKE MALAYSIA EQUIPMENT(B10) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HIGH RIDE SUSPENSION(7YC)	8-97238-287-0	01	1	0610-0709					●
31	04.665 COVER; DUST,FRT BRAKE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HIGH RIDE SUSPENSION(7YC)	8-97238-287-0	01	1	0710-0806	●		●	●	●
31	04.665 COVER; DUST,FRT BRAKE FRT&RR 195R14C(CNU) IDENTIFICATION BREAKING POINT 2008. 5 M.Y.(BRL) EXC. MALAYSIA EQUIPMENT(B10),4 WHEEL ANTI LOCK BRAKE<JE5>,HIGH RIDE SU SPENSION(7YC)	8-97238-287-0	01	1	0807-	●	●	●	●	●
31	04.665 COVER; DUST,FRT BRAKE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0) EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL),MALAYSIA EQUIPMENT(B10),4 WHEEL ANTI LOCK BRAKE<JE5>, HIGH RIDE SUSPENSION(7YC)	8-97238-287-0	01	1	0807-	●		●	●	●
31	04.665 COVER; DUST,FRT BRAKE 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. MALAYSIA EQUIPMENT(B10),4 WHEEL ANTI LOCK BRAKE<JE5>,HIGH RIDE SU SPENSION(7YC)	8-98008-151-0	01	1	0610-0806	●	●	●	●	●
31	04.665 COVER; DUST,FRT BRAKE 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL),MALAYSIA EQUIPMENT(B10),4 WHEEL ANTI LOCK BRAKE<JE5>, HIGH RIDE SUSPENSION(7YC)	8-98008-151-0	01	1	0807-	●	●	●	●	●
31	04.665 COVER; DUST,FRT BRAKE FRT&RR 225/75R15C(BZC),FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) ,FRT&RR 215/70R15C GOODYEAR TIRE(QFT) IDENTIFICATION BREAKING POINT 2008. 5 M.Y.(BRL) EXC. MALAYSIA EQUIPMENT(B10),4 WHEEL ANTI LOCK BRAKE<JE5>,HIGH RIDE SU SPENSION(7YC)	8-98008-151-0	01	1	0807-	●	●	●	●	●
31	04.665 COVER; DUST,FRT BRAKE 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. MALAYSIA EQUIPMENT(B10),4 WHEEL ANTI LOCK BRAKE<JE5>,HIGH RIDE SU SPENSION(7YC)	8-98008-150-0	01	1	0610-0806	●	●	●	●	●
31	04.665 COVER; DUST,FRT BRAKE 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL),MALAYSIA EQUIPMENT(B10),4 WHEEL ANTI LOCK BRAKE<JE5>, HIGH RIDE SUSPENSION(7YC)	8-98008-150-0	01	1	0807-	●	●	●	●	●
31	04.665 COVER; DUST,FRT BRAKE FRT&RR 225/75R15C(BZC),FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) ,FRT&RR 215/70R15C GOODYEAR TIRE(QFT) IDENTIFICATION BREAKING POINT 2008. 5 M.Y.(BRL) EXC. MALAYSIA EQUIPMENT(B10),4 WHEEL ANTI LOCK BRAKE<JE5>,HIGH RIDE SU SPENSION(7YC)	8-98008-150-0	01	1	0807-	●	●	●	●	●
31	04.665 COVER; DUST,FRT BRAKE 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. MALAYSIA EQUIPMENT(B10),HIGH RIDE SUSPENSION(7YC)	8-98008-149-0	01	1	0610-0806	●	●	●	●	●
31	04.665 COVER; DUST,FRT BRAKE 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL),MALAYSIA EQUIPMENT(B10),HIGH RIDE SUSPENSION(7YC)	8-98008-149-0	01	1	0807-	●	●	●	●	●
31	04.665 COVER; DUST,FRT BRAKE 4 WHEEL ANTI LOCK BRAKE<JE5> FRT&RR 225/75R15C(BZC),FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) ,FRT&RR 215/70R15C GOODYEAR TIRE(QFT) IDENTIFICATION BREAKING POINT 2008. 5 M.Y.(BRL) EXC. MALAYSIA EQUIPMENT(B10),HIGH RIDE SUSPENSION(7YC)	8-98008-149-0	01	1	0807-	●	●	●	●	●
31	04.665 COVER; DUST,FRT BRAKE 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. MALAYSIA EQUIPMENT(B10),HIGH RIDE SUSPENSION(7YC)	8-98008-148-0	01	1	0610-0806	●	●	●	●	●
31	04.665 COVER; DUST,FRT BRAKE 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL),MALAYSIA EQUIPMENT(B10),HIGH RIDE SUSPENSION(7YC)	8-98008-148-0	01	1	0807-	●	●	●	●	●
31	04.665 COVER; DUST,FRT BRAKE 4 WHEEL ANTI LOCK BRAKE<JE5> FRT&RR 225/75R15C(BZC),FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) ,FRT&RR 215/70R15C GOODYEAR TIRE(QFT) IDENTIFICATION BREAKING POINT 2008. 5 M.Y.(BRL) EXC. MALAYSIA EQUIPMENT(B10),HIGH RIDE SUSPENSION(7YC)	8-98008-148-0	01	1	0807-	●	●	●	●	●
31	04.665 COVER; DUST,FRT BRAKE 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC)	8-97327-612-0	01	1	0307-0407	●		●		●
31	04.665 COVER; DUST,FRT BRAKE 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97327-612-0	01	1	0307-0407						●	●	●
31	04.665 COVER; DUST,FRT BRAKE 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC)	8-97327-612-0	01	1	0408-0609	●	●	●	●	●
31	04.665 COVER; DUST,FRT BRAKE 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97327-612-0	01	1	0408-0609						●	●	●
31	04.665 COVER; DUST,FRT BRAKE 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC)	8-97327-612-0	01	1	0610-	●	●	●	●	●
31	04.665 COVER; DUST,FRT BRAKE 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97327-612-0	01	1	0610-						●	●	●
31	04.665 COVER; DUST,FRT BRAKE 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC)	8-97327-611-0	01	1	0307-0407	●		●		●
31	04.665 COVER; DUST,FRT BRAKE 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97327-611-0	01	1	0307-0407						●	●	●
31	04.665 COVER; DUST,FRT BRAKE 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC)	8-97327-611-0	01	1	0408-0609	●	●	●	●	●
31	04.665 COVER; DUST,FRT BRAKE 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97327-611-0	01	1	0408-0609						●	●	●
31	04.665 COVER; DUST,FRT BRAKE 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC)	8-97327-611-0	01	1	0610-	●	●	●	●	●
31	04.665 COVER; DUST,FRT BRAKE 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97327-611-0	01	1	0610-						●	●	●
31	04.665 COVER; DUST,FRT BRAKE 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC)	8-97238-286-0	01	1	0307-0407	●		●		●
31	04.665 COVER; DUST,FRT BRAKE 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC)	8-97238-286-0	01	1	0408-0609	●	●	●	●	●
31	04.665 COVER; DUST,FRT BRAKE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. MALAYSIA EQUIPMENT(B10),HIGH RIDE SUSPENSION(7YC)	8-97238-286-0	01	1	0610-0709	●		●	●	●
31	04.665 COVER; DUST,FRT BRAKE 4 WHEEL ANTI LOCK BRAKE<JE5> MALAYSIA EQUIPMENT(B10) EXC. HIGH RIDE SUSPENSION(7YC)	8-97238-286-0	01	1	0610-0709					●
31	04.665 COVER; DUST,FRT BRAKE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC)	8-97238-286-0	01	1	0710-0806	●		●	●	●
31	04.665 COVER; DUST,FRT BRAKE 4 WHEEL ANTI LOCK BRAKE<JE5> FRT&RR 195R14C(CNU) IDENTIFICATION BREAKING POINT 2008. 5 M.Y.(BRL) EXC. MALAYSIA EQUIPMENT(B10),HIGH RIDE SUSPENSION(7YC)	8-97238-286-0	01	1	0807-	●	●	●	●	●
31	04.665 COVER; DUST,FRT BRAKE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL),MALAYSIA EQUIPMENT(B10),HIGH RIDE SUSPENSION(7YC)	8-97238-286-0	01	1	0807-	●		●	●	●
31	04.665 COVER; DUST,FRT BRAKE 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC)	8-97238-285-0	01	1	0307-0407	●		●		●
31	04.665 COVER; DUST,FRT BRAKE 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC)	8-97238-285-0	01	1	0408-0609	●	●	●	●	●
31	04.665 COVER; DUST,FRT BRAKE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. MALAYSIA EQUIPMENT(B10),HIGH RIDE SUSPENSION(7YC)	8-97238-285-0	01	1	0610-0709	●		●	●	●
31	04.665 COVER; DUST,FRT BRAKE 4 WHEEL ANTI LOCK BRAKE<JE5> MALAYSIA EQUIPMENT(B10) EXC. HIGH RIDE SUSPENSION(7YC)	8-97238-285-0	01	1	0610-0709					●
31	04.665 COVER; DUST,FRT BRAKE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC)	8-97238-285-0	01	1	0710-0806	●		●	●	●
31	04.665 COVER; DUST,FRT BRAKE 4 WHEEL ANTI LOCK BRAKE<JE5> FRT&RR 195R14C(CNU) IDENTIFICATION BREAKING POINT 2008. 5 M.Y.(BRL) EXC. MALAYSIA EQUIPMENT(B10),HIGH RIDE SUSPENSION(7YC)	8-97238-285-0	01	1	0807-	●	●	●	●	●
31	04.665 COVER; DUST,FRT BRAKE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL),MALAYSIA EQUIPMENT(B10),HIGH RIDE SUSPENSION(7YC)	8-97238-285-0	01	1	0807-	●		●	●	●
32	04.665 BOLT; DUST COVER TO KNUCKLE M8X10 W/LK WASHER	8-97943-023-0	06	1	0307-0609	●	●	●	●	●	●	●	●
32	04.665 BOLT; DUST COVER TO KNUCKLE M8X10 W/LK WASHER	8-98006-352-0	06	1	0610-	●	●	●	●	●	●	●	●
41	05.812 RETAINER; NUT,FRT HUB EXC. HIGH RIDE SUSPENSION(7YC)	8-94243-928-1	02	1	0307-	●	●	●	●	●
67	05.811 ROTOR; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC)	8-97238-280-0	02	1	0307-0407	●		●		●
67	05.811 ROTOR; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97238-280-0	02	1	0307-0407						●	●	●
67	05.811 ROTOR; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC)	8-97238-280-0	02	1	0408-0609	●	●	●	●	●
67	05.811 ROTOR; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97238-280-0	02	1	0408-0609						●	●	●
67	05.811 ROTOR; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC)	8-97238-280-0	02	1	0610-	●	●	●	●	●
67	05.811 ROTOR; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97238-280-0	02	1	0610-						●	●	●
67	05.811 ROTOR; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC)	8-97238-278-0	02	1	0307-0407	●		●		●
67	05.811 ROTOR; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC)	8-97238-278-0	02	1	0408-	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
