◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50965 - TFR/TFS-RHD ▶ 3 - Brakes, Brake System ▶ 3-60 - BRAKE PIPING; VACUUM ▶
3-60 — BRAKE PIPING; VACUUM (#20450) — 197 parça

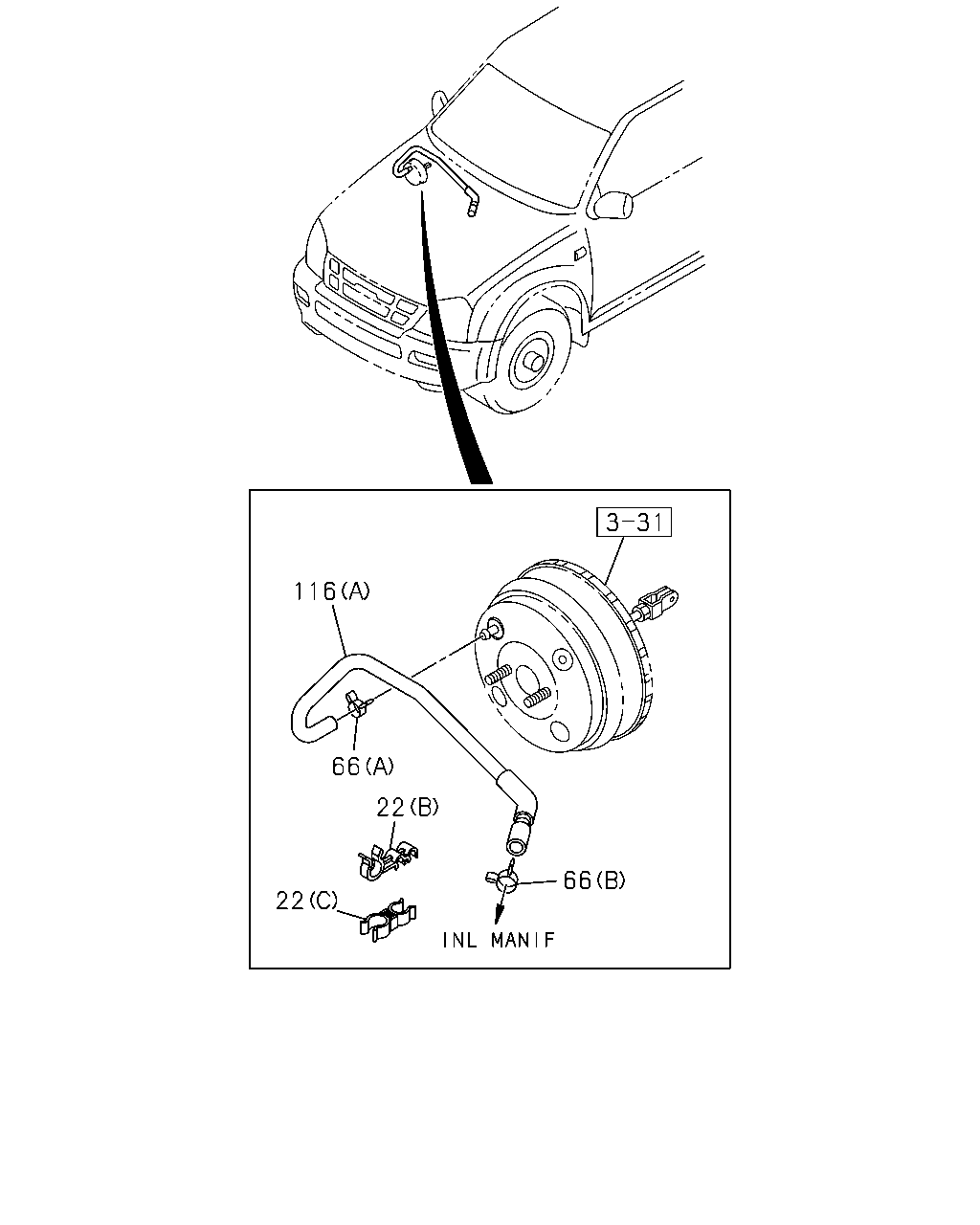

çizim 12612
116 66 22 22 66
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
22 04.681 CLIP; HOSE,VAC TANK
C24SE ENG(LG1),6VE1 ENG(LX5) (B) 		8-97249-910-0 01 1 0307-0508 ● ● ● ● ● ● ● ●
22 04.681 CLIP; HOSE,VAC TANK
HF V6 ENG(LCA),C24SE ENG(LG1),6VE1 ENG(LX5) (B) 		8-97249-910-0 01 1 0509-0609 ● ● ● ● ● ● ● ●
22 04.681 CLIP; HOSE,VAC TANK
HF V6 ENG(LCA),C24SE ENG(LG1) (B) 		8-97249-910-0 01 1 0610- ● ● ● ● ● ● ● ●
22 04.681 CLIP; HOSE,VAC TANK
HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5) 04.104 (C) ID=11.8 & ID=18.6 		8-97333-094-0 01 1 0510- ● ● ● ● ● ● ● ●
22 04.681 CLIP; HOSE,VAC TANK
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) 03.162 (A) 		8-97089-536-0 01 1 0307-0609 ● ● ● ● ● ● ● ●
22 04.681 CLIP; HOSE,VAC TANK
4JA1-T ENG(LP0) 03.162 (A) 		8-97089-536-0 01 1 0610- ● ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
04.681 (A) ID=15.5 		8-94367-944-0 02 1 0307-0402 ● ● ● ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) 04.681 (A) ID=15.5 		8-94367-944-0 02 1 0307-0402 ● ● ● ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
C24SE ENG(LG1),4JA1-T ENG(LP0), 6VE1ENG(LX5),4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 04.681 (A) ID=15.5 		8-94367-944-0 02 1 0403-0604 ● ● ● ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) 04.681 (A) ID=15.5 		8-94367-944-0 02 1 0403-0604 ● ● ● ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
C24SE ENG(LG1),4JA1-T ENG(LP0), 6VE1ENG(LX5),4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) (A) ID=15.5 		8-98035-872-0 02 1 0605-0609 ● ● ● ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) (A) ID=15.5 		8-98035-872-0 02 1 0605-0609 ● ● ● ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JA1-T ENG(LP0) (A) ID=15.5 		8-98035-872-0 04 1 0610- ● ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
HF V6 ENG(LCA) 04.681 (A) ID=15.5 		8-94367-944-0 01 1 0509-0604 ● ● ● ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
HF V6 ENG(LCA) (A) ID=15.5 		8-98035-872-0 01 1 0605- ● ● ● ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
HF V6 ENG(LCA) 01.540 (B) ID=18.9 		8-94478-875-0 01 1 0509- ● ● ● ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (A) ID=15.5 		8-98035-872-0 03 1 0610-0612 ● ● ● ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) (A) ID=15.5 		8-98035-872-0 03 1 0701-0912 ● ● ● ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (A) ID=15.5 		8-98035-872-0 03 1 1001- ● ● ● ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (C) ID=16 		8-98036-539-0 01 1 0610-0612 ● ● ● ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) (C) ID=16 		8-98036-539-0 01 1 0701-0912 ● ● ● ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (C) ID=16 		8-98036-539-0 01 1 1001- ● ● ● ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
C24SE ENG(LG1) (A) ID=15.5 		8-98035-872-0 02 1 0610- ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
HF V6 ENG(LCA) (A) 		8-92211-543-0 01 1 0509-0609 ● ● ● ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
HF V6 ENG(LCA) (A) 		8-97944-843-1 01 1 0610- ● ● ● ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) (A) 		8-97236-453-2 01 1 0307-0609 ● ● ● ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
4JA1-T ENG(LP0) (A) 		8-97944-834-0 01 1 0610- ● ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (B) 		8-97944-841-0 01 1 0610-0612 ● ● ● ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) (B) 		8-97944-841-0 01 1 0701-0912 ● ● ● ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (B) 		8-97944-841-0 01 1 1001- ● ● ● ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
6VE1 ENG(LX5) (A) 		8-97236-451-1 01 1 0307-0508 ● ● ● ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
6VE1 ENG(LX5) (A) 		8-97236-451-1 01 1 0509-0609 ●
116 04.931 HOSE; VAC,M/VAC
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (C) 		8-97944-840-1 01 1 0610-0612 ● ● ● ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) (C) 		8-97944-840-1 01 1 0701-0912 ● ● ● ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (C) 		8-97944-840-1 01 1 1001- ● ● ● ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
C24SE ENG(LG1) (A) 		8-97236-452-2 01 1 0307-0609 ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
C24SE ENG(LG1) (A) 		8-97944-833-0 01 1 0610- ● ● ● ● ●

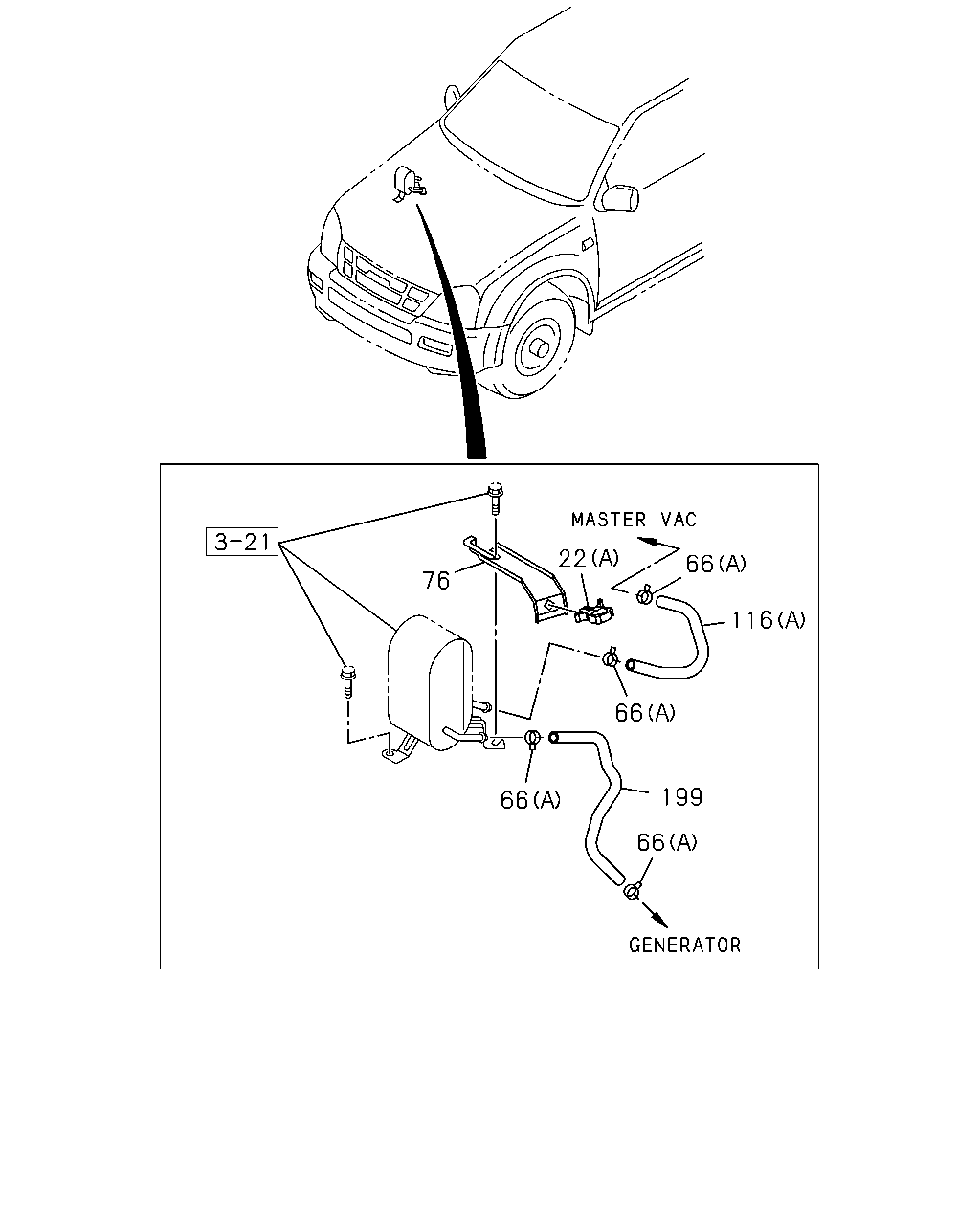

çizim 12827
76 22 66 116 66 199 66 66
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
22 04.681 CLIP; HOSE,VAC TANK
C24SE ENG(LG1),6VE1 ENG(LX5) (B) 		8-97249-910-0 01 1 0307-0508 ● ● ● ● ● ● ● ●
22 04.681 CLIP; HOSE,VAC TANK
HF V6 ENG(LCA),C24SE ENG(LG1),6VE1 ENG(LX5) (B) 		8-97249-910-0 01 1 0509-0609 ● ● ● ● ● ● ● ●
22 04.681 CLIP; HOSE,VAC TANK
HF V6 ENG(LCA),C24SE ENG(LG1) (B) 		8-97249-910-0 01 1 0610- ● ● ● ● ● ● ● ●
22 04.681 CLIP; HOSE,VAC TANK
HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5) 04.104 (C) ID=11.8 & ID=18.6 		8-97333-094-0 01 1 0510- ● ● ● ● ● ● ● ●
22 04.681 CLIP; HOSE,VAC TANK
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) 03.162 (A) 		8-97089-536-0 01 1 0307-0609 ● ● ● ● ● ● ● ●
22 04.681 CLIP; HOSE,VAC TANK
4JA1-T ENG(LP0) 03.162 (A) 		8-97089-536-0 01 1 0610- ● ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
04.681 (A) ID=15.5 		8-94367-944-0 02 1 0307-0402 ● ● ● ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) 04.681 (A) ID=15.5 		8-94367-944-0 02 1 0307-0402 ● ● ● ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
C24SE ENG(LG1),4JA1-T ENG(LP0), 6VE1ENG(LX5),4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 04.681 (A) ID=15.5 		8-94367-944-0 02 1 0403-0604 ● ● ● ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) 04.681 (A) ID=15.5 		8-94367-944-0 02 1 0403-0604 ● ● ● ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
C24SE ENG(LG1),4JA1-T ENG(LP0), 6VE1ENG(LX5),4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) (A) ID=15.5 		8-98035-872-0 02 1 0605-0609 ● ● ● ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) (A) ID=15.5 		8-98035-872-0 02 1 0605-0609 ● ● ● ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JA1-T ENG(LP0) (A) ID=15.5 		8-98035-872-0 04 1 0610- ● ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
HF V6 ENG(LCA) 04.681 (A) ID=15.5 		8-94367-944-0 01 1 0509-0604 ● ● ● ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
HF V6 ENG(LCA) (A) ID=15.5 		8-98035-872-0 01 1 0605- ● ● ● ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
HF V6 ENG(LCA) 01.540 (B) ID=18.9 		8-94478-875-0 01 1 0509- ● ● ● ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (A) ID=15.5 		8-98035-872-0 03 1 0610-0612 ● ● ● ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) (A) ID=15.5 		8-98035-872-0 03 1 0701-0912 ● ● ● ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (A) ID=15.5 		8-98035-872-0 03 1 1001- ● ● ● ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (C) ID=16 		8-98036-539-0 01 1 0610-0612 ● ● ● ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) (C) ID=16 		8-98036-539-0 01 1 0701-0912 ● ● ● ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (C) ID=16 		8-98036-539-0 01 1 1001- ● ● ● ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
C24SE ENG(LG1) (A) ID=15.5 		8-98035-872-0 02 1 0610- ● ● ● ● ●
76 04.930 BRACKET; VAC HOSE CLIP
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) 		8-97301-841-2 01 1 0307-0609 ● ● ● ● ● ● ● ●
76 04.930 BRACKET; VAC HOSE CLIP
4JA1-T ENG(LP0) 		8-98050-712-0 01 1 0610- ● ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
HF V6 ENG(LCA) (A) 		8-92211-543-0 01 1 0509-0609 ● ● ● ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
HF V6 ENG(LCA) (A) 		8-97944-843-1 01 1 0610- ● ● ● ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) (A) 		8-97236-453-2 01 1 0307-0609 ● ● ● ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
4JA1-T ENG(LP0) (A) 		8-97944-834-0 01 1 0610- ● ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (B) 		8-97944-841-0 01 1 0610-0612 ● ● ● ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) (B) 		8-97944-841-0 01 1 0701-0912 ● ● ● ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (B) 		8-97944-841-0 01 1 1001- ● ● ● ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
6VE1 ENG(LX5) (A) 		8-97236-451-1 01 1 0307-0508 ● ● ● ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
6VE1 ENG(LX5) (A) 		8-97236-451-1 01 1 0509-0609 ●
116 04.931 HOSE; VAC,M/VAC
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (C) 		8-97944-840-1 01 1 0610-0612 ● ● ● ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) (C) 		8-97944-840-1 01 1 0701-0912 ● ● ● ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (C) 		8-97944-840-1 01 1 1001- ● ● ● ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
C24SE ENG(LG1) (A) 		8-97236-452-2 01 1 0307-0609 ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
C24SE ENG(LG1) (A) 		8-97944-833-0 01 1 0610- ● ● ● ● ●
199 04.681 HOSE; VAC,VAC TANK TO VAC PUMP
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) 		8-97365-118-0 01 1 0307-0409 ● ● ● ● ● ● ● ●
199 04.681 HOSE; VAC,VAC TANK TO VAC PUMP
4JH1-TC ENG(RDM) 		8-97365-118-0 01 1 0410-0609 ● ● ● ● ● ● ● ●
199 04.681 HOSE; VAC,VAC TANK TO VAC PUMP
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z) 		8-97385-746-0 01 1 0410-0609 ● ● ● ● ● ●
199 04.681 HOSE; VAC,VAC TANK TO VAC PUMP
4JA1-T ENG(LP0) 		8-97385-746-0 01 1 0610- ● ● ● ● ● ●
çizim 13732
116 66 22 66
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
22 04.681 CLIP; HOSE,VAC TANK
C24SE ENG(LG1),6VE1 ENG(LX5) (B) 		8-97249-910-0 01 1 0307-0508 ● ● ● ● ● ● ● ●
22 04.681 CLIP; HOSE,VAC TANK
HF V6 ENG(LCA),C24SE ENG(LG1),6VE1 ENG(LX5) (B) 		8-97249-910-0 01 1 0509-0609 ● ● ● ● ● ● ● ●
22 04.681 CLIP; HOSE,VAC TANK
HF V6 ENG(LCA),C24SE ENG(LG1) (B) 		8-97249-910-0 01 1 0610- ● ● ● ● ● ● ● ●
22 04.681 CLIP; HOSE,VAC TANK
HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5) 04.104 (C) ID=11.8 & ID=18.6 		8-97333-094-0 01 1 0510- ● ● ● ● ● ● ● ●
22 04.681 CLIP; HOSE,VAC TANK
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) 03.162 (A) 		8-97089-536-0 01 1 0307-0609 ● ● ● ● ● ● ● ●
22 04.681 CLIP; HOSE,VAC TANK
4JA1-T ENG(LP0) 03.162 (A) 		8-97089-536-0 01 1 0610- ● ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
04.681 (A) ID=15.5 		8-94367-944-0 02 1 0307-0402 ● ● ● ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) 04.681 (A) ID=15.5 		8-94367-944-0 02 1 0307-0402 ● ● ● ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
C24SE ENG(LG1),4JA1-T ENG(LP0), 6VE1ENG(LX5),4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 04.681 (A) ID=15.5 		8-94367-944-0 02 1 0403-0604 ● ● ● ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) 04.681 (A) ID=15.5 		8-94367-944-0 02 1 0403-0604 ● ● ● ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
C24SE ENG(LG1),4JA1-T ENG(LP0), 6VE1ENG(LX5),4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) (A) ID=15.5 		8-98035-872-0 02 1 0605-0609 ● ● ● ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) (A) ID=15.5 		8-98035-872-0 02 1 0605-0609 ● ● ● ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JA1-T ENG(LP0) (A) ID=15.5 		8-98035-872-0 04 1 0610- ● ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
HF V6 ENG(LCA) 04.681 (A) ID=15.5 		8-94367-944-0 01 1 0509-0604 ● ● ● ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
HF V6 ENG(LCA) (A) ID=15.5 		8-98035-872-0 01 1 0605- ● ● ● ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
HF V6 ENG(LCA) 01.540 (B) ID=18.9 		8-94478-875-0 01 1 0509- ● ● ● ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (A) ID=15.5 		8-98035-872-0 03 1 0610-0612 ● ● ● ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) (A) ID=15.5 		8-98035-872-0 03 1 0701-0912 ● ● ● ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (A) ID=15.5 		8-98035-872-0 03 1 1001- ● ● ● ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (C) ID=16 		8-98036-539-0 01 1 0610-0612 ● ● ● ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) (C) ID=16 		8-98036-539-0 01 1 0701-0912 ● ● ● ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (C) ID=16 		8-98036-539-0 01 1 1001- ● ● ● ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
C24SE ENG(LG1) (A) ID=15.5 		8-98035-872-0 02 1 0610- ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
HF V6 ENG(LCA) (A) 		8-92211-543-0 01 1 0509-0609 ● ● ● ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
HF V6 ENG(LCA) (A) 		8-97944-843-1 01 1 0610- ● ● ● ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) (A) 		8-97236-453-2 01 1 0307-0609 ● ● ● ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
4JA1-T ENG(LP0) (A) 		8-97944-834-0 01 1 0610- ● ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (B) 		8-97944-841-0 01 1 0610-0612 ● ● ● ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) (B) 		8-97944-841-0 01 1 0701-0912 ● ● ● ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (B) 		8-97944-841-0 01 1 1001- ● ● ● ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
6VE1 ENG(LX5) (A) 		8-97236-451-1 01 1 0307-0508 ● ● ● ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
6VE1 ENG(LX5) (A) 		8-97236-451-1 01 1 0509-0609 ●
116 04.931 HOSE; VAC,M/VAC
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (C) 		8-97944-840-1 01 1 0610-0612 ● ● ● ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) (C) 		8-97944-840-1 01 1 0701-0912 ● ● ● ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (C) 		8-97944-840-1 01 1 1001- ● ● ● ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
C24SE ENG(LG1) (A) 		8-97236-452-2 01 1 0307-0609 ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
C24SE ENG(LG1) (A) 		8-97944-833-0 01 1 0610- ● ● ● ● ●

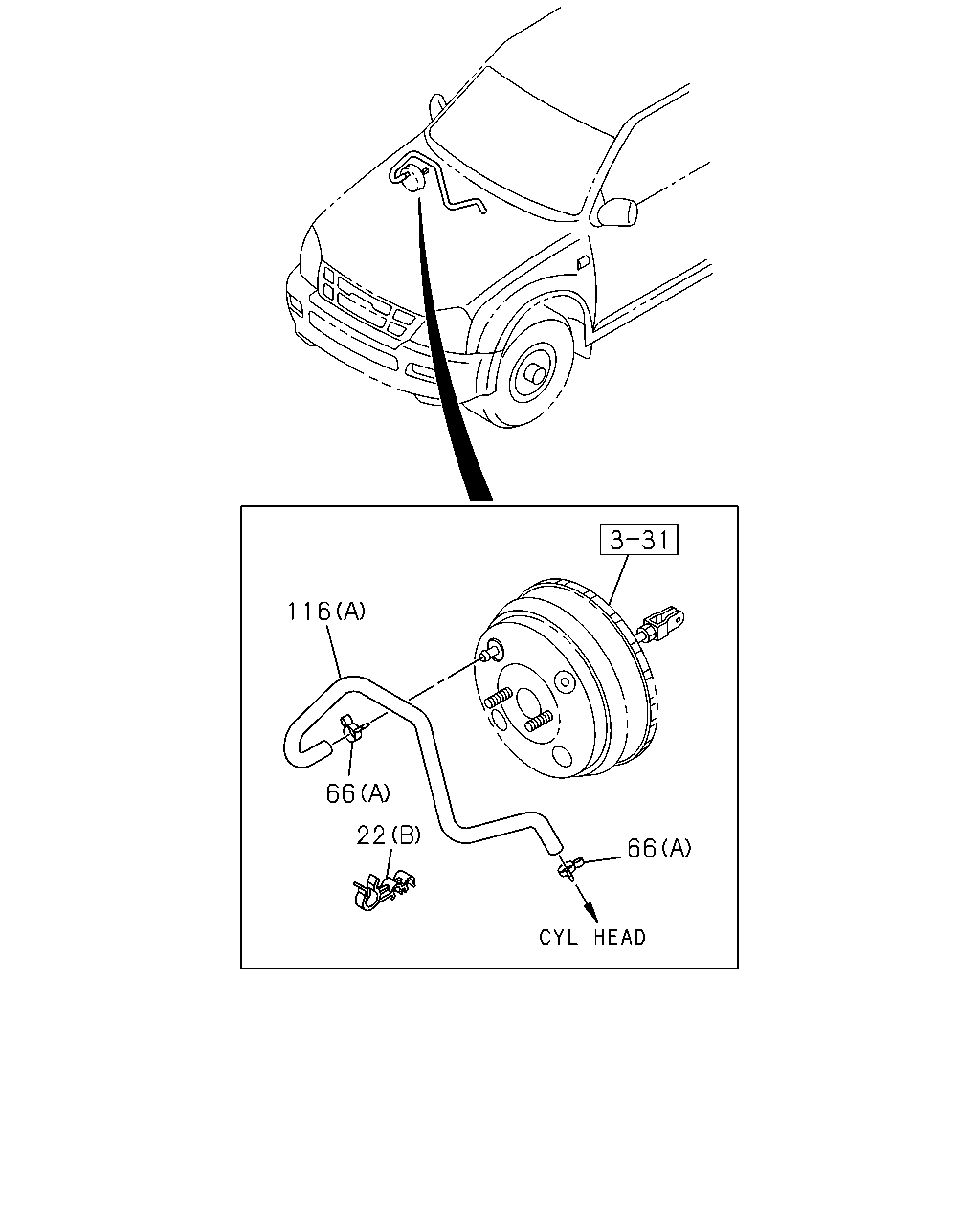

çizim 56478
116 66 22 66
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
22 04.681 CLIP; HOSE,VAC TANK
C24SE ENG(LG1),6VE1 ENG(LX5) (B) 		8-97249-910-0 01 1 0307-0508 ● ● ● ● ● ● ● ●
22 04.681 CLIP; HOSE,VAC TANK
HF V6 ENG(LCA),C24SE ENG(LG1),6VE1 ENG(LX5) (B) 		8-97249-910-0 01 1 0509-0609 ● ● ● ● ● ● ● ●
22 04.681 CLIP; HOSE,VAC TANK
HF V6 ENG(LCA),C24SE ENG(LG1) (B) 		8-97249-910-0 01 1 0610- ● ● ● ● ● ● ● ●
22 04.681 CLIP; HOSE,VAC TANK
HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5) 04.104 (C) ID=11.8 & ID=18.6 		8-97333-094-0 01 1 0510- ● ● ● ● ● ● ● ●
22 04.681 CLIP; HOSE,VAC TANK
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) 03.162 (A) 		8-97089-536-0 01 1 0307-0609 ● ● ● ● ● ● ● ●
22 04.681 CLIP; HOSE,VAC TANK
4JA1-T ENG(LP0) 03.162 (A) 		8-97089-536-0 01 1 0610- ● ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
04.681 (A) ID=15.5 		8-94367-944-0 02 1 0307-0402 ● ● ● ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) 04.681 (A) ID=15.5 		8-94367-944-0 02 1 0307-0402 ● ● ● ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
C24SE ENG(LG1),4JA1-T ENG(LP0), 6VE1ENG(LX5),4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 04.681 (A) ID=15.5 		8-94367-944-0 02 1 0403-0604 ● ● ● ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) 04.681 (A) ID=15.5 		8-94367-944-0 02 1 0403-0604 ● ● ● ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
C24SE ENG(LG1),4JA1-T ENG(LP0), 6VE1ENG(LX5),4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) (A) ID=15.5 		8-98035-872-0 02 1 0605-0609 ● ● ● ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) (A) ID=15.5 		8-98035-872-0 02 1 0605-0609 ● ● ● ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JA1-T ENG(LP0) (A) ID=15.5 		8-98035-872-0 04 1 0610- ● ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
HF V6 ENG(LCA) 04.681 (A) ID=15.5 		8-94367-944-0 01 1 0509-0604 ● ● ● ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
HF V6 ENG(LCA) (A) ID=15.5 		8-98035-872-0 01 1 0605- ● ● ● ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
HF V6 ENG(LCA) 01.540 (B) ID=18.9 		8-94478-875-0 01 1 0509- ● ● ● ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (A) ID=15.5 		8-98035-872-0 03 1 0610-0612 ● ● ● ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) (A) ID=15.5 		8-98035-872-0 03 1 0701-0912 ● ● ● ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (A) ID=15.5 		8-98035-872-0 03 1 1001- ● ● ● ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (C) ID=16 		8-98036-539-0 01 1 0610-0612 ● ● ● ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) (C) ID=16 		8-98036-539-0 01 1 0701-0912 ● ● ● ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (C) ID=16 		8-98036-539-0 01 1 1001- ● ● ● ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
C24SE ENG(LG1) (A) ID=15.5 		8-98035-872-0 02 1 0610- ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
HF V6 ENG(LCA) (A) 		8-92211-543-0 01 1 0509-0609 ● ● ● ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
HF V6 ENG(LCA) (A) 		8-97944-843-1 01 1 0610- ● ● ● ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) (A) 		8-97236-453-2 01 1 0307-0609 ● ● ● ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
4JA1-T ENG(LP0) (A) 		8-97944-834-0 01 1 0610- ● ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (B) 		8-97944-841-0 01 1 0610-0612 ● ● ● ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) (B) 		8-97944-841-0 01 1 0701-0912 ● ● ● ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (B) 		8-97944-841-0 01 1 1001- ● ● ● ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
6VE1 ENG(LX5) (A) 		8-97236-451-1 01 1 0307-0508 ● ● ● ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
6VE1 ENG(LX5) (A) 		8-97236-451-1 01 1 0509-0609 ●
116 04.931 HOSE; VAC,M/VAC
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (C) 		8-97944-840-1 01 1 0610-0612 ● ● ● ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) (C) 		8-97944-840-1 01 1 0701-0912 ● ● ● ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (C) 		8-97944-840-1 01 1 1001- ● ● ● ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
C24SE ENG(LG1) (A) 		8-97236-452-2 01 1 0307-0609 ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
C24SE ENG(LG1) (A) 		8-97944-833-0 01 1 0610- ● ● ● ● ●

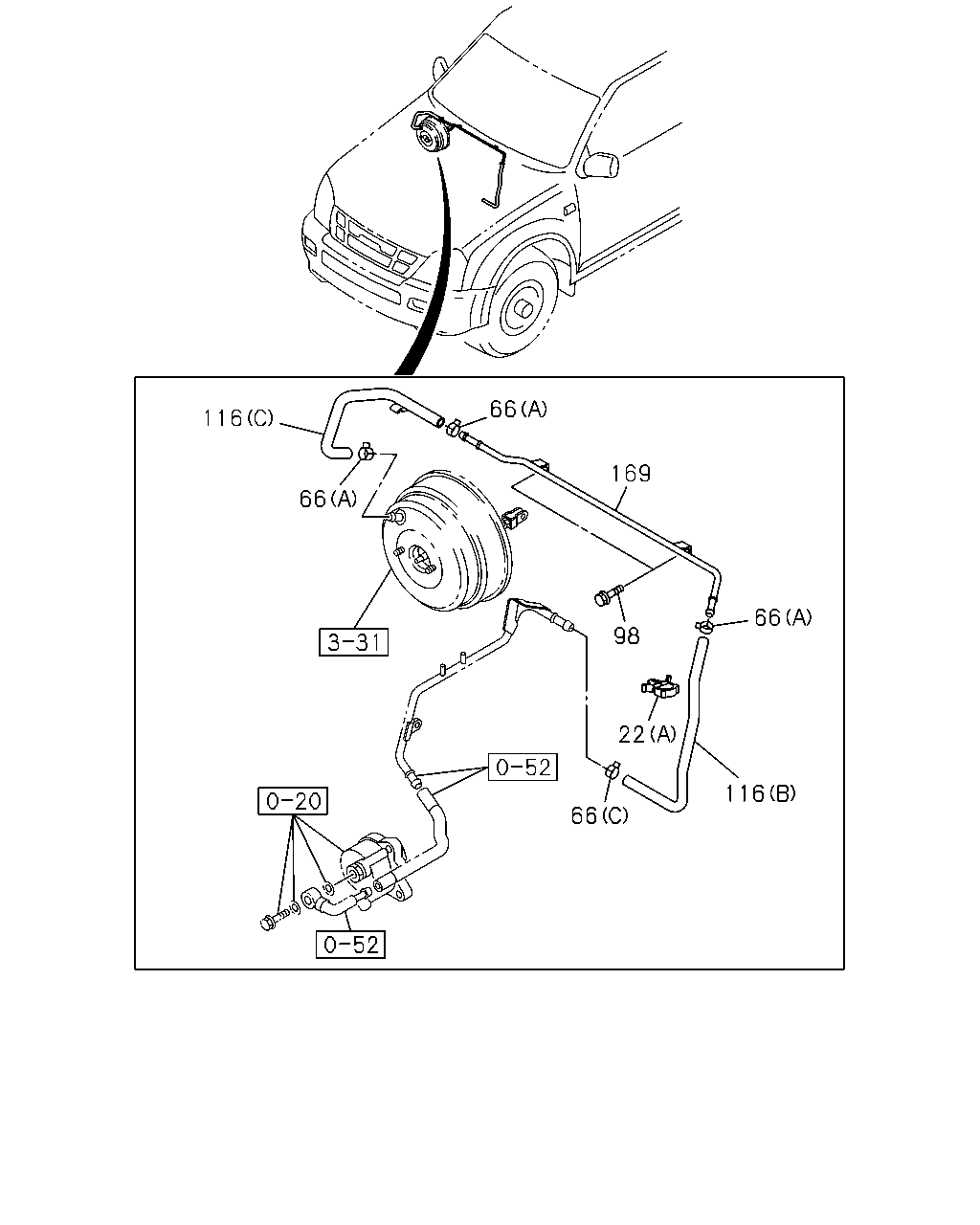

çizim 56926
116 66 66 22 116 66 98 169 66
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
22 04.681 CLIP; HOSE,VAC TANK
C24SE ENG(LG1),6VE1 ENG(LX5) (B) 		8-97249-910-0 01 1 0307-0508 ● ● ● ● ● ● ● ●
22 04.681 CLIP; HOSE,VAC TANK
HF V6 ENG(LCA),C24SE ENG(LG1),6VE1 ENG(LX5) (B) 		8-97249-910-0 01 1 0509-0609 ● ● ● ● ● ● ● ●
22 04.681 CLIP; HOSE,VAC TANK
HF V6 ENG(LCA),C24SE ENG(LG1) (B) 		8-97249-910-0 01 1 0610- ● ● ● ● ● ● ● ●
22 04.681 CLIP; HOSE,VAC TANK
HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5) 04.104 (C) ID=11.8 & ID=18.6 		8-97333-094-0 01 1 0510- ● ● ● ● ● ● ● ●
22 04.681 CLIP; HOSE,VAC TANK
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) 03.162 (A) 		8-97089-536-0 01 1 0307-0609 ● ● ● ● ● ● ● ●
22 04.681 CLIP; HOSE,VAC TANK
4JA1-T ENG(LP0) 03.162 (A) 		8-97089-536-0 01 1 0610- ● ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
04.681 (A) ID=15.5 		8-94367-944-0 02 1 0307-0402 ● ● ● ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) 04.681 (A) ID=15.5 		8-94367-944-0 02 1 0307-0402 ● ● ● ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
C24SE ENG(LG1),4JA1-T ENG(LP0), 6VE1ENG(LX5),4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 04.681 (A) ID=15.5 		8-94367-944-0 02 1 0403-0604 ● ● ● ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) 04.681 (A) ID=15.5 		8-94367-944-0 02 1 0403-0604 ● ● ● ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
C24SE ENG(LG1),4JA1-T ENG(LP0), 6VE1ENG(LX5),4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) (A) ID=15.5 		8-98035-872-0 02 1 0605-0609 ● ● ● ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) (A) ID=15.5 		8-98035-872-0 02 1 0605-0609 ● ● ● ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JA1-T ENG(LP0) (A) ID=15.5 		8-98035-872-0 04 1 0610- ● ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
HF V6 ENG(LCA) 04.681 (A) ID=15.5 		8-94367-944-0 01 1 0509-0604 ● ● ● ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
HF V6 ENG(LCA) (A) ID=15.5 		8-98035-872-0 01 1 0605- ● ● ● ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
HF V6 ENG(LCA) 01.540 (B) ID=18.9 		8-94478-875-0 01 1 0509- ● ● ● ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (A) ID=15.5 		8-98035-872-0 03 1 0610-0612 ● ● ● ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) (A) ID=15.5 		8-98035-872-0 03 1 0701-0912 ● ● ● ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (A) ID=15.5 		8-98035-872-0 03 1 1001- ● ● ● ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (C) ID=16 		8-98036-539-0 01 1 0610-0612 ● ● ● ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) (C) ID=16 		8-98036-539-0 01 1 0701-0912 ● ● ● ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (C) ID=16 		8-98036-539-0 01 1 1001- ● ● ● ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
C24SE ENG(LG1) (A) ID=15.5 		8-98035-872-0 02 1 0610- ● ● ● ● ●
98 04.931 BOLT; VAC PIPE FIX
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 02.343 M6X16 FLANGE 		0-28650-616-0 02 1 0610-0612 ● ● ● ● ● ● ● ●
98 04.931 BOLT; VAC PIPE FIX
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) 02.343 M6X16 FLANGE 		0-28650-616-0 02 1 0701-0912 ● ● ● ● ● ● ● ●
98 04.931 BOLT; VAC PIPE FIX
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 02.343 M6X16 FLANGE 		0-28650-616-0 02 1 1001- ● ● ● ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
HF V6 ENG(LCA) (A) 		8-92211-543-0 01 1 0509-0609 ● ● ● ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
HF V6 ENG(LCA) (A) 		8-97944-843-1 01 1 0610- ● ● ● ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) (A) 		8-97236-453-2 01 1 0307-0609 ● ● ● ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
4JA1-T ENG(LP0) (A) 		8-97944-834-0 01 1 0610- ● ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (B) 		8-97944-841-0 01 1 0610-0612 ● ● ● ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) (B) 		8-97944-841-0 01 1 0701-0912 ● ● ● ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (B) 		8-97944-841-0 01 1 1001- ● ● ● ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
6VE1 ENG(LX5) (A) 		8-97236-451-1 01 1 0307-0508 ● ● ● ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
6VE1 ENG(LX5) (A) 		8-97236-451-1 01 1 0509-0609 ●
116 04.931 HOSE; VAC,M/VAC
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (C) 		8-97944-840-1 01 1 0610-0612 ● ● ● ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) (C) 		8-97944-840-1 01 1 0701-0912 ● ● ● ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (C) 		8-97944-840-1 01 1 1001- ● ● ● ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
C24SE ENG(LG1) (A) 		8-97236-452-2 01 1 0307-0609 ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
C24SE ENG(LG1) (A) 		8-97944-833-0 01 1 0610- ● ● ● ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 		8-97944-847-1 01 1 0610-0612 ● ● ● ● ● ● ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) 		8-97944-847-1 01 1 0701-0912 ● ● ● ● ● ● ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 		8-97944-847-1 01 1 1001- ● ● ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
