◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50965 - TFR/TFS-RHD ▶ 3 - Brakes, Brake System ▶ 3-55 - BRAKE PIPING; OIL,REAR ▶
3-55 — BRAKE PIPING; OIL,REAR (#20448) — 206 parça

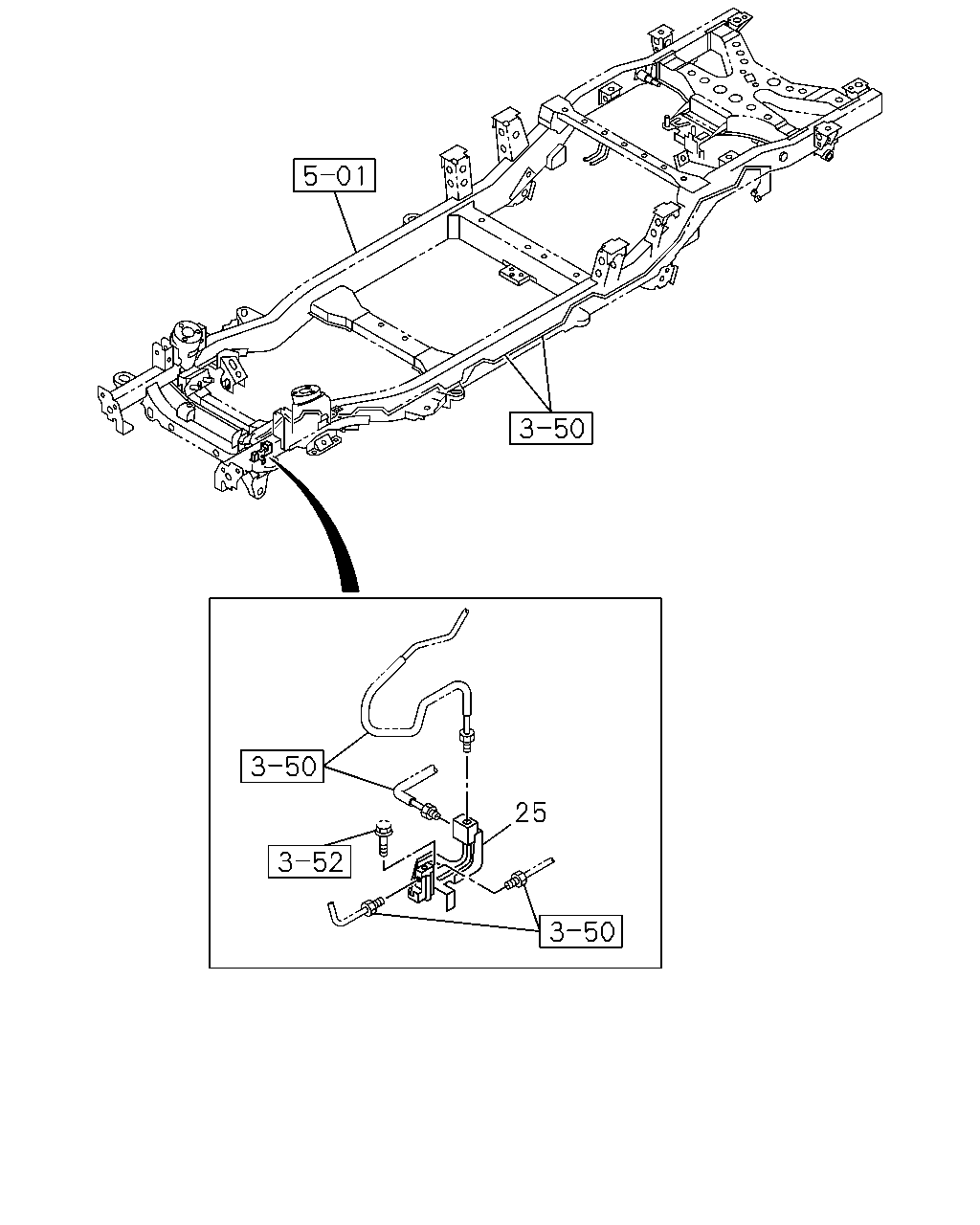

çizim 11908
25
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
25 04.686 CONNECTOR
BRK WHL LK CONT LSPV<JR9> 		8-97258-537-0 01 1 0307-0609 ● ● ● ● ● ● ● ●
25 04.686 CONNECTOR
BRK WHL LK CONT LSPV<JR9> 		8-98046-621-0 01 1 0610- ● ● ● ● ● ● ● ●
25 04.686 CONNECTOR
HF V6 ENG(LCA) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98045-667-0 01 1 0610- ● ● ● ● ● ● ● ●
25 04.686 CONNECTOR
HF V6 ENG(LCA) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> 		8-98045-667-0 01 1 0610- ● ● ● ● ● ● ● ●
25 04.686 CONNECTOR
EXC. BRK WHL LK CONT LSPV<JR9> 		8-97258-536-1 01 1 0307-0407 ● ● ● ● ● ●
25 04.686 CONNECTOR
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97258-536-1 01 1 0408-0609 ● ● ● ● ● ● ● ●
25 04.686 CONNECTOR
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> 		8-97258-536-1 01 1 0408-0609 ● ● ● ● ● ● ● ●
25 04.686 CONNECTOR
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98046-620-0 01 1 0610-0610 ● ● ● ● ● ● ● ●
25 04.686 CONNECTOR
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> 		8-98046-620-0 01 1 0610-0610 ● ● ● ● ● ● ● ●
25 04.686 CONNECTOR
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98046-620-0 01 1 0610-0612 ● ● ● ● ● ● ● ●
25 04.686 CONNECTOR
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> 		8-98046-620-0 01 1 0610-0612 ● ● ● ● ● ● ● ●
25 04.686 CONNECTOR
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98046-620-0 01 1 0701-0912 ● ● ● ● ● ● ● ●
25 04.686 CONNECTOR
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> 		8-98046-620-0 01 1 0701-0912 ● ● ● ● ● ● ● ●
25 04.686 CONNECTOR
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98046-620-0 01 1 1001- ● ● ● ● ● ● ● ●
25 04.686 CONNECTOR
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> 		8-98046-620-0 01 1 1001- ● ● ● ● ● ● ● ●

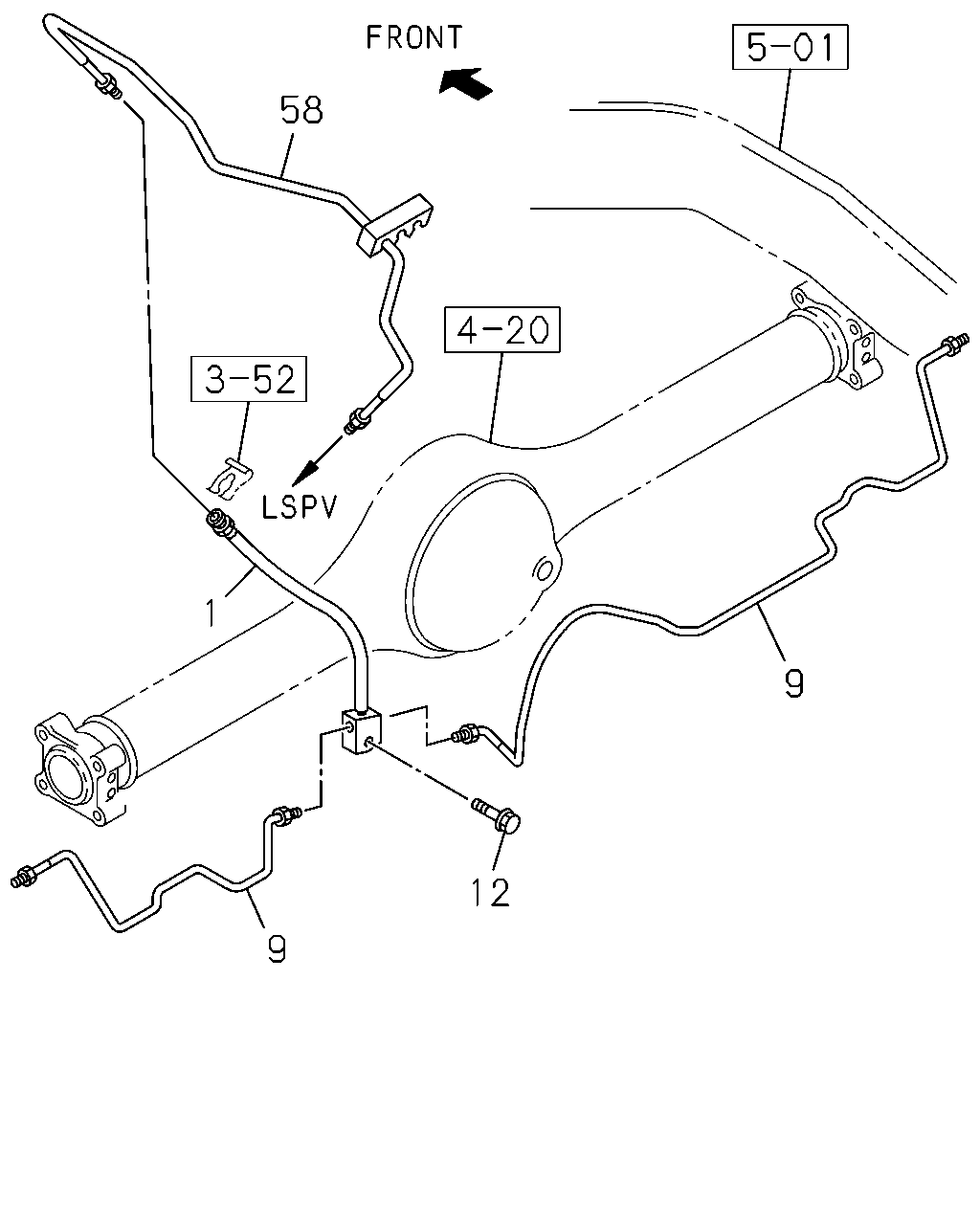

çizim 12203
58 1 9 12 9
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 04.680 HOSE; FLEX,RR BRK 8-97235-558-1 01 1 0307-0609 ● ● ● ● ● ● ● ●
1 04.680 HOSE; FLEX,RR BRK 8-98006-785-0 01 1 0610-0808 ● ● ● ● ● ● ● ●
1 04.680 HOSE; FLEX,RR BRK 8-98122-044-0 01 1 0809- ● ● ● ● ● ● ● ●
9 04.685 PIPE; BRK,RR AXLE
HIGH RIDE SUSPENSION(7YC) 		8-97217-850-3 01 1 0307-0609 ● ● ● ● ●
9 04.685 PIPE; BRK,RR AXLE 8-97217-850-3 01 1 0307-0609 ● ● ●
9 04.685 PIPE; BRK,RR AXLE
HIGH RIDE SUSPENSION(7YC) 		8-97944-704-0 01 1 0610- ● ● ● ● ●
9 04.685 PIPE; BRK,RR AXLE 8-97944-704-0 01 1 0610- ● ● ●
9 04.685 PIPE; BRK,RR AXLE
HIGH RIDE SUSPENSION(7YC) 		8-97236-447-4 01 1 0307-0609 ● ● ● ● ●
9 04.685 PIPE; BRK,RR AXLE 8-97236-447-4 01 1 0307-0609 ● ● ●
9 04.685 PIPE; BRK,RR AXLE
HIGH RIDE SUSPENSION(7YC) 		8-97944-706-0 01 1 0610- ● ● ● ● ●
9 04.685 PIPE; BRK,RR AXLE 8-97944-706-0 01 1 0610- ● ● ●
9 04.685 PIPE; BRK,RR AXLE
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97215-340-2 01 1 0307-0609 ● ● ● ● ●
9 04.685 PIPE; BRK,RR AXLE
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. HIGH RIDE SUSPENSION(7YC) 		8-97944-703-0 01 1 0610-0612 ● ● ● ● ●
9 04.685 PIPE; BRK,RR AXLE
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) EXC. HIGH RIDE SUSPENSION(7YC) 		8-97944-703-0 01 1 0701-0912 ● ● ● ● ●
9 04.685 PIPE; BRK,RR AXLE
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. HIGH RIDE SUSPENSION(7YC) 		8-97944-703-0 01 1 1001- ● ● ● ● ●
9 04.685 PIPE; BRK,RR AXLE
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97217-853-4 01 1 0307-0609 ● ● ● ● ●
9 04.685 PIPE; BRK,RR AXLE
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. HIGH RIDE SUSPENSION(7YC) 		8-97944-705-0 01 1 0610-0612 ● ● ● ● ●
9 04.685 PIPE; BRK,RR AXLE
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) EXC. HIGH RIDE SUSPENSION(7YC) 		8-97944-705-0 01 1 0701-0912 ● ● ● ● ●
9 04.685 PIPE; BRK,RR AXLE
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. HIGH RIDE SUSPENSION(7YC) 		8-97944-705-0 01 1 1001- ● ● ● ● ●
12 04.685 BOLT; FLEX HOSE TO RR AXLE
03.403 M8X30 FLANGE 		0-28650-830-0 01 1 0307- ● ● ● ● ● ● ● ●
58 04.686 PIPE; BRK,LSV TO RR AXLE
BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) 		8-97261-908-0 01 1 0307-0609 ● ● ● ● ●
58 04.686 PIPE; BRK,LSV TO RR AXLE
BRK WHL LK CONT LSPV<JR9> 		8-97261-908-0 01 1 0307-0609 ● ● ●
58 04.686 PIPE; BRK,LSV TO RR AXLE
BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) 		8-97944-749-0 01 1 0610- ● ● ● ● ●
58 04.686 PIPE; BRK,LSV TO RR AXLE
BRK WHL LK CONT LSPV<JR9> 		8-97944-749-0 01 1 0610- ● ● ●
58 04.686 PIPE; BRK,LSV TO RR AXLE
BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) 		8-97215-370-0 01 1 0307-0609 ● ● ● ● ●
58 04.686 PIPE; BRK,LSV TO RR AXLE
BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) 		8-97944-748-0 01 1 0610- ● ● ● ● ●

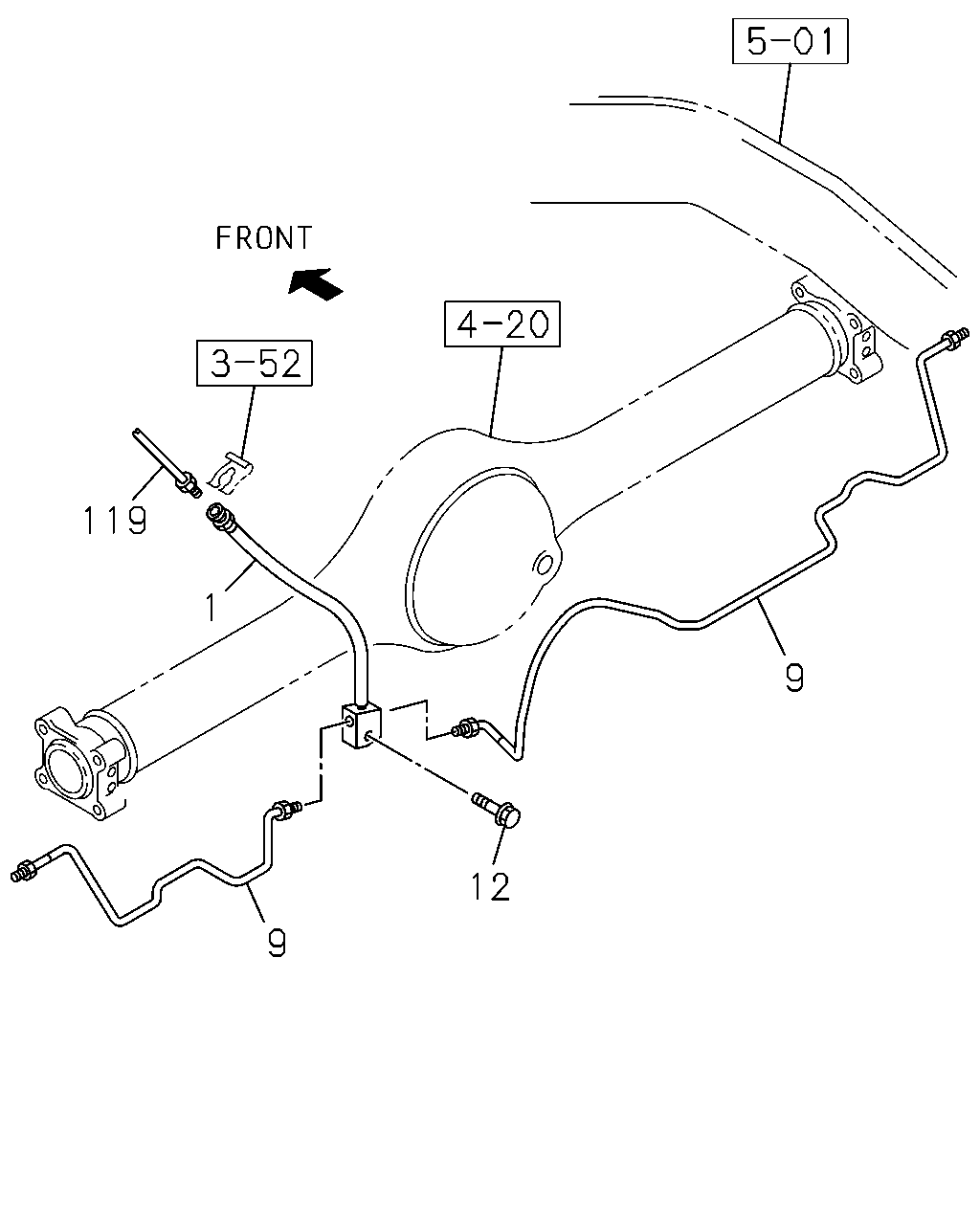

çizim 12312
119 1 9 12 9
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 04.680 HOSE; FLEX,RR BRK 8-97235-558-1 01 1 0307-0609 ● ● ● ● ● ● ● ●
1 04.680 HOSE; FLEX,RR BRK 8-98006-785-0 01 1 0610-0808 ● ● ● ● ● ● ● ●
1 04.680 HOSE; FLEX,RR BRK 8-98122-044-0 01 1 0809- ● ● ● ● ● ● ● ●
9 04.685 PIPE; BRK,RR AXLE
HIGH RIDE SUSPENSION(7YC) 		8-97217-850-3 01 1 0307-0609 ● ● ● ● ●
9 04.685 PIPE; BRK,RR AXLE 8-97217-850-3 01 1 0307-0609 ● ● ●
9 04.685 PIPE; BRK,RR AXLE
HIGH RIDE SUSPENSION(7YC) 		8-97944-704-0 01 1 0610- ● ● ● ● ●
9 04.685 PIPE; BRK,RR AXLE 8-97944-704-0 01 1 0610- ● ● ●
9 04.685 PIPE; BRK,RR AXLE
HIGH RIDE SUSPENSION(7YC) 		8-97236-447-4 01 1 0307-0609 ● ● ● ● ●
9 04.685 PIPE; BRK,RR AXLE 8-97236-447-4 01 1 0307-0609 ● ● ●
9 04.685 PIPE; BRK,RR AXLE
HIGH RIDE SUSPENSION(7YC) 		8-97944-706-0 01 1 0610- ● ● ● ● ●
9 04.685 PIPE; BRK,RR AXLE 8-97944-706-0 01 1 0610- ● ● ●
9 04.685 PIPE; BRK,RR AXLE
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97215-340-2 01 1 0307-0609 ● ● ● ● ●
9 04.685 PIPE; BRK,RR AXLE
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. HIGH RIDE SUSPENSION(7YC) 		8-97944-703-0 01 1 0610-0612 ● ● ● ● ●
9 04.685 PIPE; BRK,RR AXLE
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) EXC. HIGH RIDE SUSPENSION(7YC) 		8-97944-703-0 01 1 0701-0912 ● ● ● ● ●
9 04.685 PIPE; BRK,RR AXLE
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. HIGH RIDE SUSPENSION(7YC) 		8-97944-703-0 01 1 1001- ● ● ● ● ●
9 04.685 PIPE; BRK,RR AXLE
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97217-853-4 01 1 0307-0609 ● ● ● ● ●
9 04.685 PIPE; BRK,RR AXLE
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. HIGH RIDE SUSPENSION(7YC) 		8-97944-705-0 01 1 0610-0612 ● ● ● ● ●
9 04.685 PIPE; BRK,RR AXLE
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) EXC. HIGH RIDE SUSPENSION(7YC) 		8-97944-705-0 01 1 0701-0912 ● ● ● ● ●
9 04.685 PIPE; BRK,RR AXLE
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. HIGH RIDE SUSPENSION(7YC) 		8-97944-705-0 01 1 1001- ● ● ● ● ●
12 04.685 BOLT; FLEX HOSE TO RR AXLE
03.403 M8X30 FLANGE 		0-28650-830-0 01 1 0307- ● ● ● ● ● ● ● ●
119 04.685 PIPE; BRK,2WAY TO RR
4JA1-T ENG(LP0) EXC. BRK WHL LK CONT LSPV<JR9>, HIGHRIDE SUSPENSION(7YC) 		8-97944-637-0 01 1 0610- ●
119 04.685 PIPE; BRK,2WAY TO RR
C24SE ENG(LG1),4JA1-T ENG(LP0) EXC. BRK WHL LK CONT LSPV<JR9>, HIGHRIDE SUSPENSION(7YC) 		8-97944-637-0 01 1 0610- ● ●
119 04.685 PIPE; BRK,2WAY TO RR
EXC. BRK WHL LK CONT LSPV<JR9>, HIGHRIDE SUSPENSION(7YC) 		8-97250-049-3 01 1 0307-0609 ● ● ●
119 04.685 PIPE; BRK,2WAY TO RR
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. BRK WHL LK CONT LSPV<JR9>, HIGHRIDE SUSPENSION(7YC) 		8-98043-599-0 01 1 0610-0612 ● ● ●
119 04.685 PIPE; BRK,2WAY TO RR
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) EXC. BRK WHL LK CONT LSPV<JR9>, HIGHRIDE SUSPENSION(7YC) 		8-98043-599-0 01 1 0701-0912 ● ● ●
119 04.685 PIPE; BRK,2WAY TO RR
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. BRK WHL LK CONT LSPV<JR9>, HIGHRIDE SUSPENSION(7YC) 		8-98043-599-0 01 1 1001- ● ● ●
119 04.685 PIPE; BRK,2WAY TO RR
HF V6 ENG(LCA) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) 		8-98000-202-0 01 1 0509-0509 ● ● ●
119 04.685 PIPE; BRK,2WAY TO RR
4X4 EXTEND CAB LONG(TFS*CF) HF V6 ENG(LCA) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98000-202-0 01 1 0509-0509 ●
119 04.685 PIPE; BRK,2WAY TO RR
4X4 CREW CAB LONG(TFS*WF) HF V6 ENG(LCA) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98000-202-0 01 1 0509-0509 ●
119 04.685 PIPE; BRK,2WAY TO RR
HF V6 ENG(LCA) HIGH RIDE SUSPENSION(7YC) EXC. BRK WHL LK CONT LSPV<JR9> 		8-98000-202-0 01 1 0510-0609 ● ● ●
119 04.685 PIPE; BRK,2WAY TO RR
4X4 EXTEND CAB LONG(TFS*CF) HF V6 ENG(LCA) EXC. BRK WHL LK CONT LSPV<JR9> 		8-98000-202-0 01 1 0510-0609 ●
119 04.685 PIPE; BRK,2WAY TO RR
4X4 CREW CAB LONG(TFS*WF) HF V6 ENG(LCA) EXC. BRK WHL LK CONT LSPV<JR9> 		8-98000-202-0 01 1 0510-0609 ●
119 04.685 PIPE; BRK,2WAY TO RR
HF V6 ENG(LCA) HIGH RIDE SUSPENSION(7YC) EXC. BRK WHL LK CONT LSPV<JR9> 		8-97944-645-1 01 1 0610- ● ● ●
119 04.685 PIPE; BRK,2WAY TO RR
4X4 EXTEND CAB LONG(TFS*CF) HF V6 ENG(LCA) EXC. BRK WHL LK CONT LSPV<JR9> 		8-97944-645-1 01 1 0610- ●
119 04.685 PIPE; BRK,2WAY TO RR
4X4 CREW CAB LONG(TFS*WF) HF V6 ENG(LCA) EXC. BRK WHL LK CONT LSPV<JR9> 		8-97944-645-1 01 1 0610- ●
119 04.685 PIPE; BRK,2WAY TO RR
HIGH RIDE SUSPENSION(7YC) EXC. BRK WHL LK CONT LSPV<JR9> 		8-97250-051-5 01 1 0307-0508 ● ● ●
119 04.685 PIPE; BRK,2WAY TO RR
4X4 EXTEND CAB LONG(TFS*CF) EXC. BRK WHL LK CONT LSPV<JR9> 		8-97250-051-5 01 1 0307-0508 ●
119 04.685 PIPE; BRK,2WAY TO RR
4X4 REGULAR CAB LONG(TFS*SF) EXC. BRK WHL LK CONT LSPV<JR9> 		8-97250-051-5 01 1 0307-0508 ●
119 04.685 PIPE; BRK,2WAY TO RR
4X4 CREW CAB LONG(TFS*WF) EXC. BRK WHL LK CONT LSPV<JR9> 		8-97250-051-5 01 1 0307-0508 ●
119 04.685 PIPE; BRK,2WAY TO RR
C24SE ENG(LG1),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),6VE1 ENG(LX5), 4JA1-TCENG(L4Z),4JH1-TC ENG(RDM) HIGH RIDE SUSPENSION(7YC) EXC. BRK WHL LK CONT LSPV<JR9> 		8-97250-051-5 01 1 0509-0609 ● ● ●
119 04.685 PIPE; BRK,2WAY TO RR
4X4 EXTEND CAB LONG(TFS*CF) C24SE ENG(LG1),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),6VE1 ENG(LX5),4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) EXC. BRK WHL LK CONT LSPV<JR9> 		8-97250-051-5 01 1 0509-0609 ●
119 04.685 PIPE; BRK,2WAY TO RR
4X4 REGULAR CAB LONG(TFS*SF) C24SE ENG(LG1),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),6VE1 ENG(LX5),4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) EXC. BRK WHL LK CONT LSPV<JR9> 		8-97250-051-5 01 1 0509-0609 ●
119 04.685 PIPE; BRK,2WAY TO RR
4X4 CREW CAB LONG(TFS*WF) C24SE ENG(LG1),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),6VE1 ENG(LX5),4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) EXC. BRK WHL LK CONT LSPV<JR9> 		8-97250-051-5 01 1 0509-0609 ●
119 04.685 PIPE; BRK,2WAY TO RR
C24SE ENG(LG1),4JA1-T ENG(LP0) HIGH RIDE SUSPENSION(7YC) EXC. BRK WHL LK CONT LSPV<JR9> 		8-97944-641-0 01 1 0610- ● ● ●
119 04.685 PIPE; BRK,2WAY TO RR
4X4 EXTEND CAB LONG(TFS*CF) C24SE ENG(LG1),4JA1-T ENG(LP0) EXC. BRK WHL LK CONT LSPV<JR9> 		8-97944-641-0 01 1 0610- ●
119 04.685 PIPE; BRK,2WAY TO RR
4X4 REGULAR CAB LONG(TFS*SF) C24SE ENG(LG1),4JA1-T ENG(LP0) EXC. BRK WHL LK CONT LSPV<JR9> 		8-97944-641-0 01 1 0610- ●
119 04.685 PIPE; BRK,2WAY TO RR
4X4 CREW CAB LONG(TFS*WF) C24SE ENG(LG1),4JA1-T ENG(LP0) EXC. BRK WHL LK CONT LSPV<JR9> 		8-97944-641-0 01 1 0610- ●
119 04.685 PIPE; BRK,2WAY TO RR
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HIGH RIDE SUSPENSION(7YC) EXC. BRK WHL LK CONT LSPV<JR9> 		8-98043-601-0 01 1 0610-0612 ● ● ●
119 04.685 PIPE; BRK,2WAY TO RR
4X4 EXTEND CAB LONG(TFS*CF) 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. BRK WHL LK CONT LSPV<JR9> 		8-98043-601-0 01 1 0610-0612 ●
119 04.685 PIPE; BRK,2WAY TO RR
4X4 REGULAR CAB LONG(TFS*SF) 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. BRK WHL LK CONT LSPV<JR9> 		8-98043-601-0 01 1 0610-0612 ●
119 04.685 PIPE; BRK,2WAY TO RR
4X4 CREW CAB LONG(TFS*WF) 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. BRK WHL LK CONT LSPV<JR9> 		8-98043-601-0 01 1 0610-0612 ●
119 04.685 PIPE; BRK,2WAY TO RR
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) HIGH RIDE SUSPENSION(7YC) EXC. BRK WHL LK CONT LSPV<JR9> 		8-98043-601-0 01 1 0701-0912 ● ● ●
119 04.685 PIPE; BRK,2WAY TO RR
4X4 EXTEND CAB LONG(TFS*CF) 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) EXC. BRK WHL LK CONT LSPV<JR9> 		8-98043-601-0 01 1 0701-0912 ●
119 04.685 PIPE; BRK,2WAY TO RR
4X4 REGULAR CAB LONG(TFS*SF) 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) EXC. BRK WHL LK CONT LSPV<JR9> 		8-98043-601-0 01 1 0701-0912 ●
119 04.685 PIPE; BRK,2WAY TO RR
4X4 CREW CAB LONG(TFS*WF) 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) EXC. BRK WHL LK CONT LSPV<JR9> 		8-98043-601-0 01 1 0701-0912 ●
119 04.685 PIPE; BRK,2WAY TO RR
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HIGH RIDE SUSPENSION(7YC) EXC. BRK WHL LK CONT LSPV<JR9> 		8-98043-601-0 01 1 1001- ● ● ●
119 04.685 PIPE; BRK,2WAY TO RR
4X4 EXTEND CAB LONG(TFS*CF) 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. BRK WHL LK CONT LSPV<JR9> 		8-98043-601-0 01 1 1001- ●
119 04.685 PIPE; BRK,2WAY TO RR
4X4 REGULAR CAB LONG(TFS*SF) 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. BRK WHL LK CONT LSPV<JR9> 		8-98043-601-0 01 1 1001- ●
119 04.685 PIPE; BRK,2WAY TO RR
4X4 CREW CAB LONG(TFS*WF) 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. BRK WHL LK CONT LSPV<JR9> 		8-98043-601-0 01 1 1001- ●
119 04.685 PIPE; BRK,2WAY TO RR
EXC. BRK WHL LK CONT LSPV<JR9>, HIGHRIDE SUSPENSION(7YC) 		8-97250-050-1 01 1 0408-0609 ● ●
119 04.685 PIPE; BRK,2WAY TO RR
4JJ1-TCX ENG(LS0) EXC. BRK WHL LK CONT LSPV<JR9>, HIGHRIDE SUSPENSION(7YC) 		8-98043-600-0 01 1 0610- ● ●
119 04.685 PIPE; BRK,2WAY TO RR
HF V6 ENG(LCA) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) 		8-98027-858-0 01 1 0509-0509 ● ●
119 04.685 PIPE; BRK,2WAY TO RR
4X4 REGULAR CAB EXTRA LONG(TFS*SK) HF V6 ENG(LCA) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98027-858-0 01 1 0509-0509 ●
119 04.685 PIPE; BRK,2WAY TO RR
CREW CAB EXTRA LONG(TF**WK) HF V6 ENG(LCA) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98027-858-0 01 1 0509-0509 ●
119 04.685 PIPE; BRK,2WAY TO RR
HF V6 ENG(LCA) HIGH RIDE SUSPENSION(7YC) EXC. BRK WHL LK CONT LSPV<JR9> 		8-98027-858-0 01 1 0510-0609 ● ●
119 04.685 PIPE; BRK,2WAY TO RR
4X4 REGULAR CAB EXTRA LONG(TFS*SK) HF V6 ENG(LCA) EXC. BRK WHL LK CONT LSPV<JR9> 		8-98027-858-0 01 1 0510-0609 ●
119 04.685 PIPE; BRK,2WAY TO RR
CREW CAB EXTRA LONG(TF**WK) HF V6 ENG(LCA) EXC. BRK WHL LK CONT LSPV<JR9> 		8-98027-858-0 01 1 0510-0609 ●
119 04.685 PIPE; BRK,2WAY TO RR
HF V6 ENG(LCA) HIGH RIDE SUSPENSION(7YC) EXC. BRK WHL LK CONT LSPV<JR9> 		8-98028-028-1 01 1 0610- ● ●
119 04.685 PIPE; BRK,2WAY TO RR
4X4 REGULAR CAB EXTRA LONG(TFS*SK) HF V6 ENG(LCA) EXC. BRK WHL LK CONT LSPV<JR9> 		8-98028-028-1 01 1 0610- ●
119 04.685 PIPE; BRK,2WAY TO RR
CREW CAB EXTRA LONG(TF**WK) HF V6 ENG(LCA) EXC. BRK WHL LK CONT LSPV<JR9> 		8-98028-028-1 01 1 0610- ●
119 04.685 PIPE; BRK,2WAY TO RR
HIGH RIDE SUSPENSION(7YC) EXC. BRK WHL LK CONT LSPV<JR9> 		8-97250-052-2 01 1 0408-0504 ● ●
119 04.685 PIPE; BRK,2WAY TO RR
4X4 REGULAR CAB EXTRA LONG(TFS*SK) EXC. BRK WHL LK CONT LSPV<JR9> 		8-97250-052-2 01 1 0408-0504 ●
119 04.685 PIPE; BRK,2WAY TO RR
CREW CAB EXTRA LONG(TF**WK) EXC. BRK WHL LK CONT LSPV<JR9> 		8-97250-052-2 01 1 0408-0504 ●
119 04.685 PIPE; BRK,2WAY TO RR
HIGH RIDE SUSPENSION(7YC) EXC. BRK WHL LK CONT LSPV<JR9> 		8-97250-052-2 01 1 0505-0509 ● ●
119 04.685 PIPE; BRK,2WAY TO RR
4X4 EXTEND CAB EXTRA LONG(TFS*CK) EXC. BRK WHL LK CONT LSPV<JR9> 		8-97250-052-2 01 1 0505-0509 ●
119 04.685 PIPE; BRK,2WAY TO RR
4X4 REGULAR CAB EXTRA LONG(TFS*SK) EXC. BRK WHL LK CONT LSPV<JR9> 		8-97250-052-2 01 1 0505-0509 ●
119 04.685 PIPE; BRK,2WAY TO RR
CREW CAB EXTRA LONG(TF**WK) EXC. BRK WHL LK CONT LSPV<JR9> 		8-97250-052-2 01 1 0505-0509 ●
119 04.685 PIPE; BRK,2WAY TO RR
4X4 EXTEND CAB EXTRA LONG(TFS*CK) EXC. BRK WHL LK CONT LSPV<JR9> 		8-97250-052-2 01 1 0510-0609 ●
119 04.685 PIPE; BRK,2WAY TO RR
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JH1-TC ENG(RDM) EXC. BRK WHL LK CONT LSPV<JR9> 		8-97250-052-2 01 1 0510-0609 ●
119 04.685 PIPE; BRK,2WAY TO RR
CREW CAB EXTRA LONG(TF**WK) 4JH1-TC ENG(RDM) EXC. BRK WHL LK CONT LSPV<JR9> 		8-97250-052-2 01 1 0510-0609 ●
119 04.685 PIPE; BRK,2WAY TO RR
4X4 EXTEND CAB EXTRA LONG(TFS*CK) EXC. BRK WHL LK CONT LSPV<JR9> 		8-98043-603-0 01 1 0610- ●
119 04.685 PIPE; BRK,2WAY TO RR
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) EXC. BRK WHL LK CONT LSPV<JR9> 		8-98043-603-0 01 1 0610- ●
119 04.685 PIPE; BRK,2WAY TO RR
CREW CAB EXTRA LONG(TF**WK) 4JJ1-TCX ENG(LS0) EXC. BRK WHL LK CONT LSPV<JR9> 		8-98043-603-0 01 1 0610- ●
119 04.685 PIPE; BRK,2WAY TO RR
C24SE ENG(LG1) EXC. BRK WHL LK CONT LSPV<JR9>, HIGHRIDE SUSPENSION(7YC) 		8-97944-639-0 01 1 0610- ●
119 04.685 PIPE; BRK,2WAY TO RR
C24SE ENG(LG1) HIGH RIDE SUSPENSION(7YC) EXC. BRK WHL LK CONT LSPV<JR9> 		8-97944-643-0 01 1 0610-0703 ●

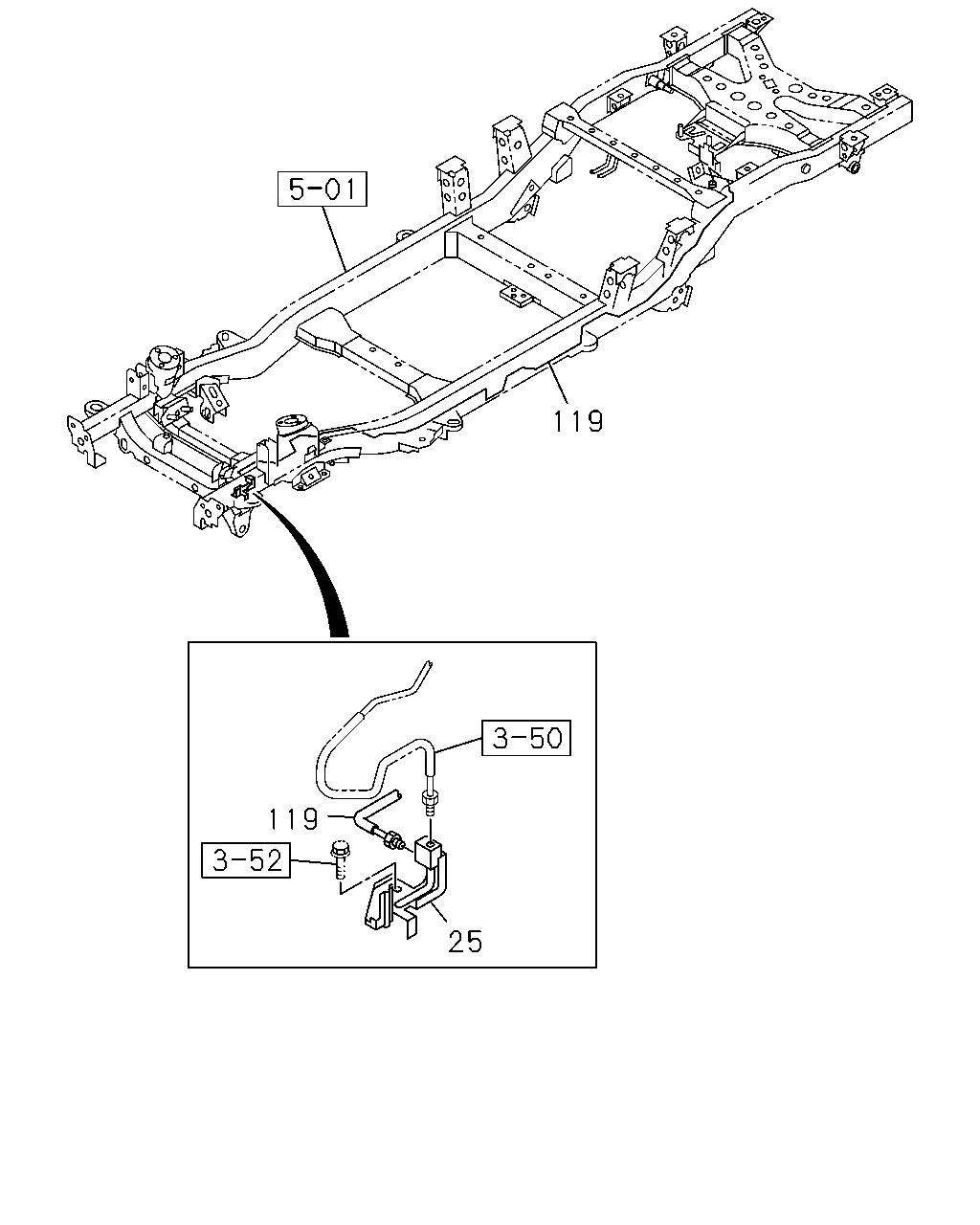

çizim 53874
119 119 25
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
25 04.686 CONNECTOR
BRK WHL LK CONT LSPV<JR9> 		8-97258-537-0 01 1 0307-0609 ● ● ● ● ● ● ● ●
25 04.686 CONNECTOR
BRK WHL LK CONT LSPV<JR9> 		8-98046-621-0 01 1 0610- ● ● ● ● ● ● ● ●
25 04.686 CONNECTOR
HF V6 ENG(LCA) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98045-667-0 01 1 0610- ● ● ● ● ● ● ● ●
25 04.686 CONNECTOR
HF V6 ENG(LCA) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> 		8-98045-667-0 01 1 0610- ● ● ● ● ● ● ● ●
25 04.686 CONNECTOR
EXC. BRK WHL LK CONT LSPV<JR9> 		8-97258-536-1 01 1 0307-0407 ● ● ● ● ● ●
25 04.686 CONNECTOR
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97258-536-1 01 1 0408-0609 ● ● ● ● ● ● ● ●
25 04.686 CONNECTOR
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> 		8-97258-536-1 01 1 0408-0609 ● ● ● ● ● ● ● ●
25 04.686 CONNECTOR
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98046-620-0 01 1 0610-0610 ● ● ● ● ● ● ● ●
25 04.686 CONNECTOR
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> 		8-98046-620-0 01 1 0610-0610 ● ● ● ● ● ● ● ●
25 04.686 CONNECTOR
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98046-620-0 01 1 0610-0612 ● ● ● ● ● ● ● ●
25 04.686 CONNECTOR
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> 		8-98046-620-0 01 1 0610-0612 ● ● ● ● ● ● ● ●
25 04.686 CONNECTOR
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98046-620-0 01 1 0701-0912 ● ● ● ● ● ● ● ●
25 04.686 CONNECTOR
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> 		8-98046-620-0 01 1 0701-0912 ● ● ● ● ● ● ● ●
25 04.686 CONNECTOR
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98046-620-0 01 1 1001- ● ● ● ● ● ● ● ●
25 04.686 CONNECTOR
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> 		8-98046-620-0 01 1 1001- ● ● ● ● ● ● ● ●
119 04.685 PIPE; BRK,2WAY TO RR
4JA1-T ENG(LP0) EXC. BRK WHL LK CONT LSPV<JR9>, HIGHRIDE SUSPENSION(7YC) 		8-97944-637-0 01 1 0610- ●
119 04.685 PIPE; BRK,2WAY TO RR
C24SE ENG(LG1),4JA1-T ENG(LP0) EXC. BRK WHL LK CONT LSPV<JR9>, HIGHRIDE SUSPENSION(7YC) 		8-97944-637-0 01 1 0610- ● ●
119 04.685 PIPE; BRK,2WAY TO RR
EXC. BRK WHL LK CONT LSPV<JR9>, HIGHRIDE SUSPENSION(7YC) 		8-97250-049-3 01 1 0307-0609 ● ● ●
119 04.685 PIPE; BRK,2WAY TO RR
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. BRK WHL LK CONT LSPV<JR9>, HIGHRIDE SUSPENSION(7YC) 		8-98043-599-0 01 1 0610-0612 ● ● ●
119 04.685 PIPE; BRK,2WAY TO RR
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) EXC. BRK WHL LK CONT LSPV<JR9>, HIGHRIDE SUSPENSION(7YC) 		8-98043-599-0 01 1 0701-0912 ● ● ●
119 04.685 PIPE; BRK,2WAY TO RR
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. BRK WHL LK CONT LSPV<JR9>, HIGHRIDE SUSPENSION(7YC) 		8-98043-599-0 01 1 1001- ● ● ●
119 04.685 PIPE; BRK,2WAY TO RR
HF V6 ENG(LCA) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) 		8-98000-202-0 01 1 0509-0509 ● ● ●
119 04.685 PIPE; BRK,2WAY TO RR
4X4 EXTEND CAB LONG(TFS*CF) HF V6 ENG(LCA) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98000-202-0 01 1 0509-0509 ●
119 04.685 PIPE; BRK,2WAY TO RR
4X4 CREW CAB LONG(TFS*WF) HF V6 ENG(LCA) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98000-202-0 01 1 0509-0509 ●
119 04.685 PIPE; BRK,2WAY TO RR
HF V6 ENG(LCA) HIGH RIDE SUSPENSION(7YC) EXC. BRK WHL LK CONT LSPV<JR9> 		8-98000-202-0 01 1 0510-0609 ● ● ●
119 04.685 PIPE; BRK,2WAY TO RR
4X4 EXTEND CAB LONG(TFS*CF) HF V6 ENG(LCA) EXC. BRK WHL LK CONT LSPV<JR9> 		8-98000-202-0 01 1 0510-0609 ●
119 04.685 PIPE; BRK,2WAY TO RR
4X4 CREW CAB LONG(TFS*WF) HF V6 ENG(LCA) EXC. BRK WHL LK CONT LSPV<JR9> 		8-98000-202-0 01 1 0510-0609 ●
119 04.685 PIPE; BRK,2WAY TO RR
HF V6 ENG(LCA) HIGH RIDE SUSPENSION(7YC) EXC. BRK WHL LK CONT LSPV<JR9> 		8-97944-645-1 01 1 0610- ● ● ●
119 04.685 PIPE; BRK,2WAY TO RR
4X4 EXTEND CAB LONG(TFS*CF) HF V6 ENG(LCA) EXC. BRK WHL LK CONT LSPV<JR9> 		8-97944-645-1 01 1 0610- ●
119 04.685 PIPE; BRK,2WAY TO RR
4X4 CREW CAB LONG(TFS*WF) HF V6 ENG(LCA) EXC. BRK WHL LK CONT LSPV<JR9> 		8-97944-645-1 01 1 0610- ●
119 04.685 PIPE; BRK,2WAY TO RR
HIGH RIDE SUSPENSION(7YC) EXC. BRK WHL LK CONT LSPV<JR9> 		8-97250-051-5 01 1 0307-0508 ● ● ●
119 04.685 PIPE; BRK,2WAY TO RR
4X4 EXTEND CAB LONG(TFS*CF) EXC. BRK WHL LK CONT LSPV<JR9> 		8-97250-051-5 01 1 0307-0508 ●
119 04.685 PIPE; BRK,2WAY TO RR
4X4 REGULAR CAB LONG(TFS*SF) EXC. BRK WHL LK CONT LSPV<JR9> 		8-97250-051-5 01 1 0307-0508 ●
119 04.685 PIPE; BRK,2WAY TO RR
4X4 CREW CAB LONG(TFS*WF) EXC. BRK WHL LK CONT LSPV<JR9> 		8-97250-051-5 01 1 0307-0508 ●
119 04.685 PIPE; BRK,2WAY TO RR
C24SE ENG(LG1),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),6VE1 ENG(LX5), 4JA1-TCENG(L4Z),4JH1-TC ENG(RDM) HIGH RIDE SUSPENSION(7YC) EXC. BRK WHL LK CONT LSPV<JR9> 		8-97250-051-5 01 1 0509-0609 ● ● ●
119 04.685 PIPE; BRK,2WAY TO RR
4X4 EXTEND CAB LONG(TFS*CF) C24SE ENG(LG1),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),6VE1 ENG(LX5),4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) EXC. BRK WHL LK CONT LSPV<JR9> 		8-97250-051-5 01 1 0509-0609 ●
119 04.685 PIPE; BRK,2WAY TO RR
4X4 REGULAR CAB LONG(TFS*SF) C24SE ENG(LG1),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),6VE1 ENG(LX5),4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) EXC. BRK WHL LK CONT LSPV<JR9> 		8-97250-051-5 01 1 0509-0609 ●
119 04.685 PIPE; BRK,2WAY TO RR
4X4 CREW CAB LONG(TFS*WF) C24SE ENG(LG1),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),6VE1 ENG(LX5),4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) EXC. BRK WHL LK CONT LSPV<JR9> 		8-97250-051-5 01 1 0509-0609 ●
119 04.685 PIPE; BRK,2WAY TO RR
C24SE ENG(LG1),4JA1-T ENG(LP0) HIGH RIDE SUSPENSION(7YC) EXC. BRK WHL LK CONT LSPV<JR9> 		8-97944-641-0 01 1 0610- ● ● ●
119 04.685 PIPE; BRK,2WAY TO RR
4X4 EXTEND CAB LONG(TFS*CF) C24SE ENG(LG1),4JA1-T ENG(LP0) EXC. BRK WHL LK CONT LSPV<JR9> 		8-97944-641-0 01 1 0610- ●
119 04.685 PIPE; BRK,2WAY TO RR
4X4 REGULAR CAB LONG(TFS*SF) C24SE ENG(LG1),4JA1-T ENG(LP0) EXC. BRK WHL LK CONT LSPV<JR9> 		8-97944-641-0 01 1 0610- ●
119 04.685 PIPE; BRK,2WAY TO RR
4X4 CREW CAB LONG(TFS*WF) C24SE ENG(LG1),4JA1-T ENG(LP0) EXC. BRK WHL LK CONT LSPV<JR9> 		8-97944-641-0 01 1 0610- ●
119 04.685 PIPE; BRK,2WAY TO RR
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HIGH RIDE SUSPENSION(7YC) EXC. BRK WHL LK CONT LSPV<JR9> 		8-98043-601-0 01 1 0610-0612 ● ● ●
119 04.685 PIPE; BRK,2WAY TO RR
4X4 EXTEND CAB LONG(TFS*CF) 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. BRK WHL LK CONT LSPV<JR9> 		8-98043-601-0 01 1 0610-0612 ●
119 04.685 PIPE; BRK,2WAY TO RR
4X4 REGULAR CAB LONG(TFS*SF) 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. BRK WHL LK CONT LSPV<JR9> 		8-98043-601-0 01 1 0610-0612 ●
119 04.685 PIPE; BRK,2WAY TO RR
4X4 CREW CAB LONG(TFS*WF) 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. BRK WHL LK CONT LSPV<JR9> 		8-98043-601-0 01 1 0610-0612 ●
119 04.685 PIPE; BRK,2WAY TO RR
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) HIGH RIDE SUSPENSION(7YC) EXC. BRK WHL LK CONT LSPV<JR9> 		8-98043-601-0 01 1 0701-0912 ● ● ●
119 04.685 PIPE; BRK,2WAY TO RR
4X4 EXTEND CAB LONG(TFS*CF) 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) EXC. BRK WHL LK CONT LSPV<JR9> 		8-98043-601-0 01 1 0701-0912 ●
119 04.685 PIPE; BRK,2WAY TO RR
4X4 REGULAR CAB LONG(TFS*SF) 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) EXC. BRK WHL LK CONT LSPV<JR9> 		8-98043-601-0 01 1 0701-0912 ●
119 04.685 PIPE; BRK,2WAY TO RR
4X4 CREW CAB LONG(TFS*WF) 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) EXC. BRK WHL LK CONT LSPV<JR9> 		8-98043-601-0 01 1 0701-0912 ●
119 04.685 PIPE; BRK,2WAY TO RR
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HIGH RIDE SUSPENSION(7YC) EXC. BRK WHL LK CONT LSPV<JR9> 		8-98043-601-0 01 1 1001- ● ● ●
119 04.685 PIPE; BRK,2WAY TO RR
4X4 EXTEND CAB LONG(TFS*CF) 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. BRK WHL LK CONT LSPV<JR9> 		8-98043-601-0 01 1 1001- ●
119 04.685 PIPE; BRK,2WAY TO RR
4X4 REGULAR CAB LONG(TFS*SF) 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. BRK WHL LK CONT LSPV<JR9> 		8-98043-601-0 01 1 1001- ●
119 04.685 PIPE; BRK,2WAY TO RR
4X4 CREW CAB LONG(TFS*WF) 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. BRK WHL LK CONT LSPV<JR9> 		8-98043-601-0 01 1 1001- ●
119 04.685 PIPE; BRK,2WAY TO RR
EXC. BRK WHL LK CONT LSPV<JR9>, HIGHRIDE SUSPENSION(7YC) 		8-97250-050-1 01 1 0408-0609 ● ●
119 04.685 PIPE; BRK,2WAY TO RR
4JJ1-TCX ENG(LS0) EXC. BRK WHL LK CONT LSPV<JR9>, HIGHRIDE SUSPENSION(7YC) 		8-98043-600-0 01 1 0610- ● ●
119 04.685 PIPE; BRK,2WAY TO RR
HF V6 ENG(LCA) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) 		8-98027-858-0 01 1 0509-0509 ● ●
119 04.685 PIPE; BRK,2WAY TO RR
4X4 REGULAR CAB EXTRA LONG(TFS*SK) HF V6 ENG(LCA) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98027-858-0 01 1 0509-0509 ●
119 04.685 PIPE; BRK,2WAY TO RR
CREW CAB EXTRA LONG(TF**WK) HF V6 ENG(LCA) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98027-858-0 01 1 0509-0509 ●
119 04.685 PIPE; BRK,2WAY TO RR
HF V6 ENG(LCA) HIGH RIDE SUSPENSION(7YC) EXC. BRK WHL LK CONT LSPV<JR9> 		8-98027-858-0 01 1 0510-0609 ● ●
119 04.685 PIPE; BRK,2WAY TO RR
4X4 REGULAR CAB EXTRA LONG(TFS*SK) HF V6 ENG(LCA) EXC. BRK WHL LK CONT LSPV<JR9> 		8-98027-858-0 01 1 0510-0609 ●
119 04.685 PIPE; BRK,2WAY TO RR
CREW CAB EXTRA LONG(TF**WK) HF V6 ENG(LCA) EXC. BRK WHL LK CONT LSPV<JR9> 		8-98027-858-0 01 1 0510-0609 ●
119 04.685 PIPE; BRK,2WAY TO RR
HF V6 ENG(LCA) HIGH RIDE SUSPENSION(7YC) EXC. BRK WHL LK CONT LSPV<JR9> 		8-98028-028-1 01 1 0610- ● ●
119 04.685 PIPE; BRK,2WAY TO RR
4X4 REGULAR CAB EXTRA LONG(TFS*SK) HF V6 ENG(LCA) EXC. BRK WHL LK CONT LSPV<JR9> 		8-98028-028-1 01 1 0610- ●
119 04.685 PIPE; BRK,2WAY TO RR
CREW CAB EXTRA LONG(TF**WK) HF V6 ENG(LCA) EXC. BRK WHL LK CONT LSPV<JR9> 		8-98028-028-1 01 1 0610- ●
119 04.685 PIPE; BRK,2WAY TO RR
HIGH RIDE SUSPENSION(7YC) EXC. BRK WHL LK CONT LSPV<JR9> 		8-97250-052-2 01 1 0408-0504 ● ●
119 04.685 PIPE; BRK,2WAY TO RR
4X4 REGULAR CAB EXTRA LONG(TFS*SK) EXC. BRK WHL LK CONT LSPV<JR9> 		8-97250-052-2 01 1 0408-0504 ●
119 04.685 PIPE; BRK,2WAY TO RR
CREW CAB EXTRA LONG(TF**WK) EXC. BRK WHL LK CONT LSPV<JR9> 		8-97250-052-2 01 1 0408-0504 ●
119 04.685 PIPE; BRK,2WAY TO RR
HIGH RIDE SUSPENSION(7YC) EXC. BRK WHL LK CONT LSPV<JR9> 		8-97250-052-2 01 1 0505-0509 ● ●
119 04.685 PIPE; BRK,2WAY TO RR
4X4 EXTEND CAB EXTRA LONG(TFS*CK) EXC. BRK WHL LK CONT LSPV<JR9> 		8-97250-052-2 01 1 0505-0509 ●
119 04.685 PIPE; BRK,2WAY TO RR
4X4 REGULAR CAB EXTRA LONG(TFS*SK) EXC. BRK WHL LK CONT LSPV<JR9> 		8-97250-052-2 01 1 0505-0509 ●
119 04.685 PIPE; BRK,2WAY TO RR
CREW CAB EXTRA LONG(TF**WK) EXC. BRK WHL LK CONT LSPV<JR9> 		8-97250-052-2 01 1 0505-0509 ●
119 04.685 PIPE; BRK,2WAY TO RR
4X4 EXTEND CAB EXTRA LONG(TFS*CK) EXC. BRK WHL LK CONT LSPV<JR9> 		8-97250-052-2 01 1 0510-0609 ●
119 04.685 PIPE; BRK,2WAY TO RR
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JH1-TC ENG(RDM) EXC. BRK WHL LK CONT LSPV<JR9> 		8-97250-052-2 01 1 0510-0609 ●
119 04.685 PIPE; BRK,2WAY TO RR
CREW CAB EXTRA LONG(TF**WK) 4JH1-TC ENG(RDM) EXC. BRK WHL LK CONT LSPV<JR9> 		8-97250-052-2 01 1 0510-0609 ●
119 04.685 PIPE; BRK,2WAY TO RR
4X4 EXTEND CAB EXTRA LONG(TFS*CK) EXC. BRK WHL LK CONT LSPV<JR9> 		8-98043-603-0 01 1 0610- ●
119 04.685 PIPE; BRK,2WAY TO RR
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) EXC. BRK WHL LK CONT LSPV<JR9> 		8-98043-603-0 01 1 0610- ●
119 04.685 PIPE; BRK,2WAY TO RR
CREW CAB EXTRA LONG(TF**WK) 4JJ1-TCX ENG(LS0) EXC. BRK WHL LK CONT LSPV<JR9> 		8-98043-603-0 01 1 0610- ●
119 04.685 PIPE; BRK,2WAY TO RR
C24SE ENG(LG1) EXC. BRK WHL LK CONT LSPV<JR9>, HIGHRIDE SUSPENSION(7YC) 		8-97944-639-0 01 1 0610- ●
119 04.685 PIPE; BRK,2WAY TO RR
C24SE ENG(LG1) HIGH RIDE SUSPENSION(7YC) EXC. BRK WHL LK CONT LSPV<JR9> 		8-97944-643-0 01 1 0610-0703 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
