3-31 — BRAKE MASTER VAC AND BRAKE BOOSTER (#20444) — 17 parça

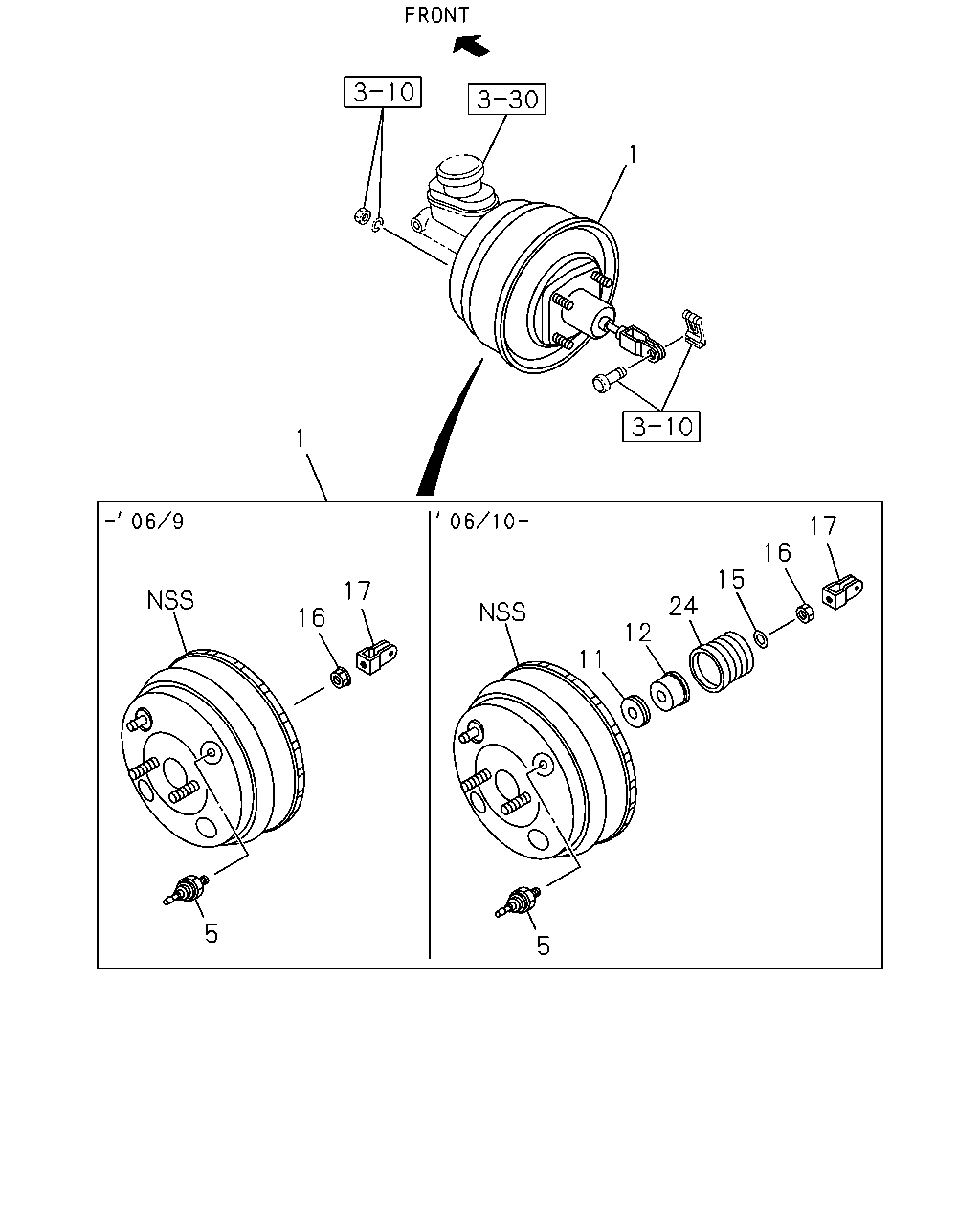

çizim 12298
1 1 17 16 5 5 11 12 24 15 16 17
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 04.901 MASTER VAC ASM; BRK
C24SE ENG(LG1),6VE1 ENG(LX5) 		8-97365-517-0 01 1 0307-0508 ● ● ● ● ● ● ● ●
1 04.901 MASTER VAC ASM; BRK
HF V6 ENG(LCA),C24SE ENG(LG1),6VE1 ENG(LX5) 		8-97365-517-0 01 1 0509-0609 ● ● ● ● ● ● ● ●
1 04.901 MASTER VAC ASM; BRK
HF V6 ENG(LCA),4JJ1-TCS ENG(LFB), C24SE ENG(LG1),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 		8-98006-788-0 01 1 0610-0612 ● ● ● ● ● ● ● ●
1 04.901 MASTER VAC ASM; BRK
HF V6 ENG(LCA),4JJ1-TCS ENG(LFB), C24SE ENG(LG1),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 		8-98006-788-0 01 1 0701-0912 ● ● ● ● ● ● ● ●
1 04.901 MASTER VAC ASM; BRK
HF V6 ENG(LCA),4JJ1-TCS ENG(LFB), C24SE ENG(LG1),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 		8-98006-788-0 01 1 1001- ● ● ● ● ● ● ● ●
1 04.901 MASTER VAC ASM; BRK
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) 		8-97365-516-0 01 1 0307-0609 ● ● ● ● ● ● ● ●
1 04.901 MASTER VAC ASM; BRK
4JA1-T ENG(LP0) 		8-98006-786-0 01 1 0610- ● ● ● ● ● ●
5 04.906 SWITCH; VAC,M/VAC
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) 		8-97301-656-0 01 1 0307-0609 ● ● ● ● ● ● ● ●
5 04.906 SWITCH; VAC,M/VAC 8-98081-668-0 01 1 0610- ● ● ● ● ● ● ● ●
11 04.906 FILTER; M/VAC 8-98048-044-0 01 1 0610- ● ● ● ● ● ● ● ●
12 04.906 SILENCER; M/VAC 8-97205-577-0 01 1 0610- ● ● ● ● ● ● ● ●
15 04.906 RETAINER; GUARD,M/VAC 8-98048-040-0 01 1 0610- ● ● ● ● ● ● ● ●
16 04.662 NUT; VLV ROD,M/VAC 8-97301-598-0 01 1 0307-0609 ● ● ● ● ● ● ● ●
16 04.662 NUT; VLV ROD,M/VAC 8-98048-038-0 01 1 0610- ● ● ● ● ● ● ● ●
17 04.662 CLEVIS; YOKE,M/VAC 8-97365-745-0 01 1 0307-0609 ● ● ● ● ● ● ● ●
17 04.662 CLEVIS; YOKE,M/VAC 8-98048-039-0 01 1 0610- ● ● ● ● ● ● ● ●
24 04.906 GUARD; VLV BODY,M/VAC 8-98048-043-0 01 1 0610- ● ● ● ● ● ● ● ●
