3-30 — BRAKE MASTER CYLINDER (#20443) — 27 parça

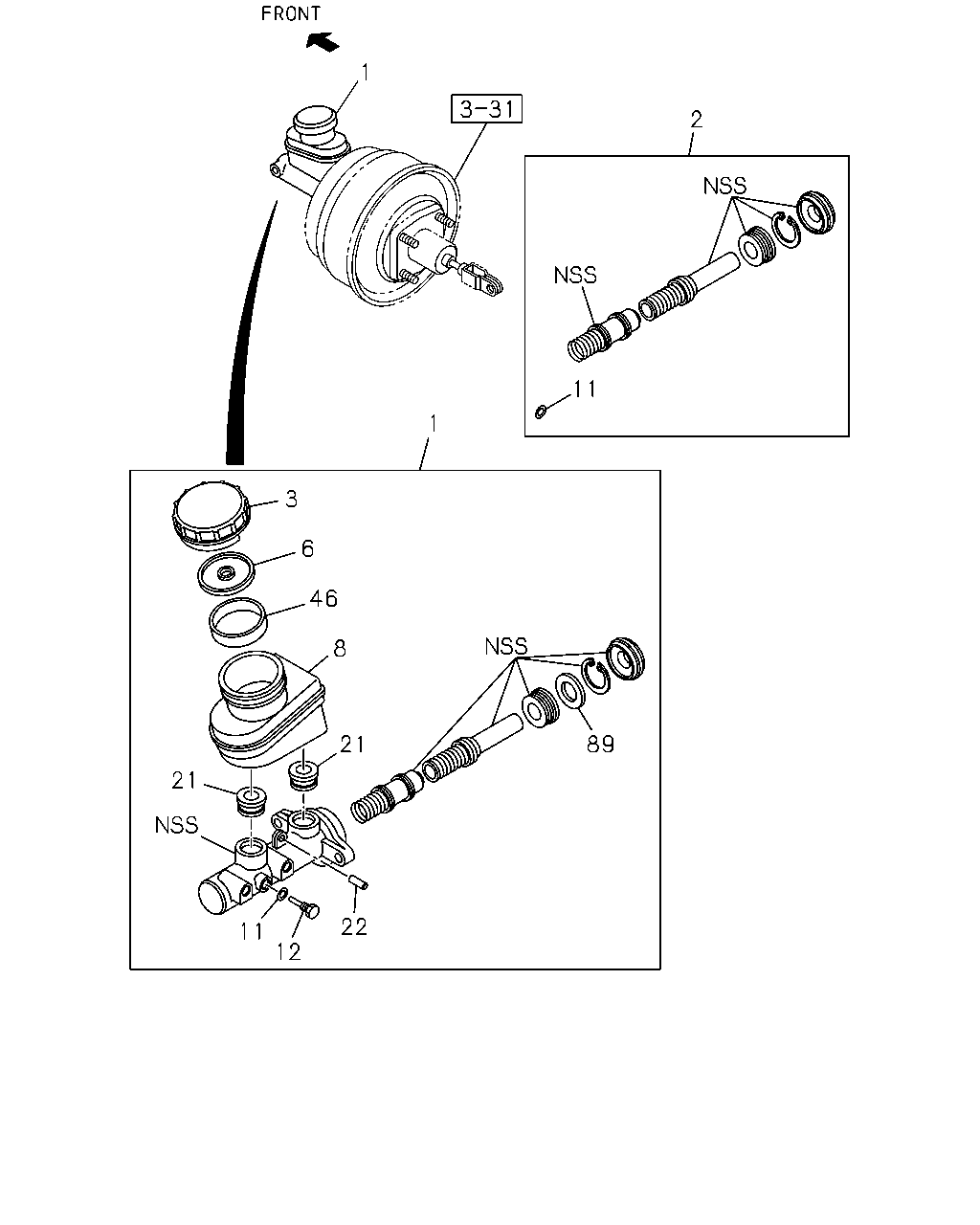

çizim 54244
1 2 11 1 3 6 46 8 21 89 22 12 11 21
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 04.650 CYLINDER ASM; BRK MASTER 8-97355-870-0 01 1 0307-0609 ● ● ● ● ● ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER 8-98006-941-0 01 1 0610- ● ● ● ● ● ● ● ●
2 04.649 REPAIR KIT; BRK,M/CYL 8-97357-713-0 01 1 0307-0609 ● ● ● ● ● ● ● ●
2 04.649 REPAIR KIT; BRK,M/CYL 8-98047-691-0 01 1 0610- ● ● ● ● ● ● ● ●
3 04.651 CAP; OIL TANK 8-97349-827-0 01 1 0307-0609 ● ● ● ● ● ● ● ●
3 04.651 CAP; OIL TANK 8-98047-705-0 01 1 0610- ● ● ● ● ● ● ● ●
6 04.651 DIAPHRAGM; BRK M/CYL 8-98047-706-0 01 1 0610- ● ● ● ● ● ● ● ●
8 04.651 TANK; OIL,M/CYL 8-97350-923-0 01 1 0307-0609 ● ● ● ● ● ● ● ●
8 04.651 TANK; OIL,M/CYL 8-98047-700-0 01 1 0610- ● ● ● ● ● ● ● ●
11 04.653 GASKET; STOPPER BOLT TO BRK M/CY 8-98047-696-0 01 1 0610- ● ● ● ● ● ● ● ●
12 04.653 BOLT; STOPPER,BRK M/CYL 8-98047-695-0 01 1 0610- ● ● ● ● ● ● ● ●
21 04.651 GROMMET; BRK M/CYL 8-97940-643-0 02 1 0610- ● ● ● ● ● ● ● ●
22 04.651 SCREW; OIL TANK 8-97301-579-0 01 1 0307-0609 ● ● ● ● ● ● ● ●
22 04.651 SCREW; OIL TANK 8-98047-707-0 01 1 0610- ● ● ● ● ● ● ● ●
46 04.651 FILTER; OIL TANK,M/CYL 8-98047-702-0 01 1 0610- ● ● ● ● ● ● ● ●
89 04.648 PLATE; BRK M/CYL 8-98047-698-0 01 1 0610- ● ● ● ● ● ● ● ●

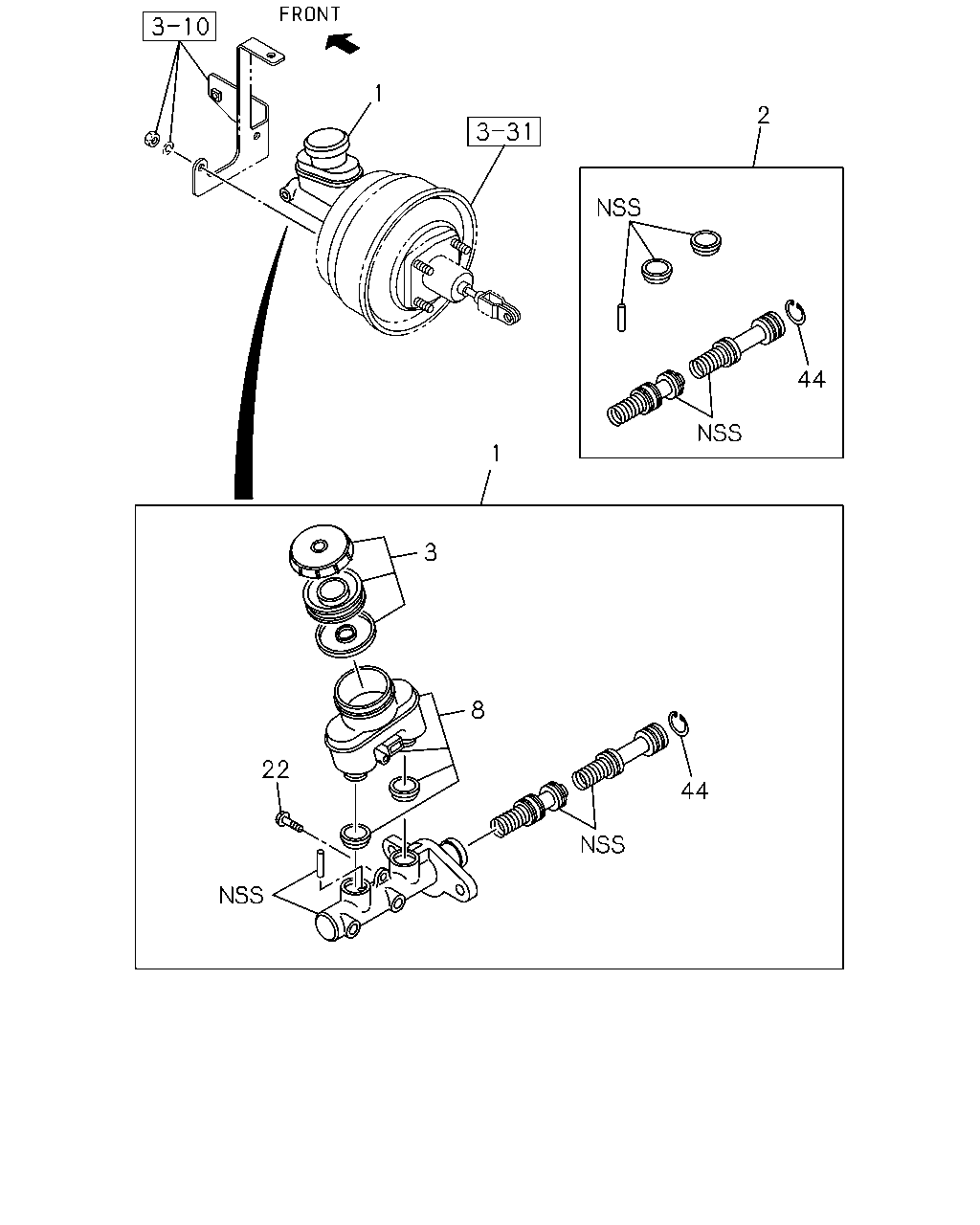

çizim 56009
1 2 44 1 3 8 44 22
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 04.650 CYLINDER ASM; BRK MASTER 8-97355-870-0 01 1 0307-0609 ● ● ● ● ● ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER 8-98006-941-0 01 1 0610- ● ● ● ● ● ● ● ●
2 04.649 REPAIR KIT; BRK,M/CYL 8-97357-713-0 01 1 0307-0609 ● ● ● ● ● ● ● ●
2 04.649 REPAIR KIT; BRK,M/CYL 8-98047-691-0 01 1 0610- ● ● ● ● ● ● ● ●
3 04.651 CAP; OIL TANK 8-97349-827-0 01 1 0307-0609 ● ● ● ● ● ● ● ●
3 04.651 CAP; OIL TANK 8-98047-705-0 01 1 0610- ● ● ● ● ● ● ● ●
8 04.651 TANK; OIL,M/CYL 8-97350-923-0 01 1 0307-0609 ● ● ● ● ● ● ● ●
8 04.651 TANK; OIL,M/CYL 8-98047-700-0 01 1 0610- ● ● ● ● ● ● ● ●
22 04.651 SCREW; OIL TANK 8-97301-579-0 01 1 0307-0609 ● ● ● ● ● ● ● ●
22 04.651 SCREW; OIL TANK 8-98047-707-0 01 1 0610- ● ● ● ● ● ● ● ●
44 04.656 RING; SNAP,M/CYL 8-97301-563-0 01 1 0307-0609 ● ● ● ● ● ● ● ●
