3-10 — BRAKE PEDAL AND CONTROL (#20440) — 71 parça

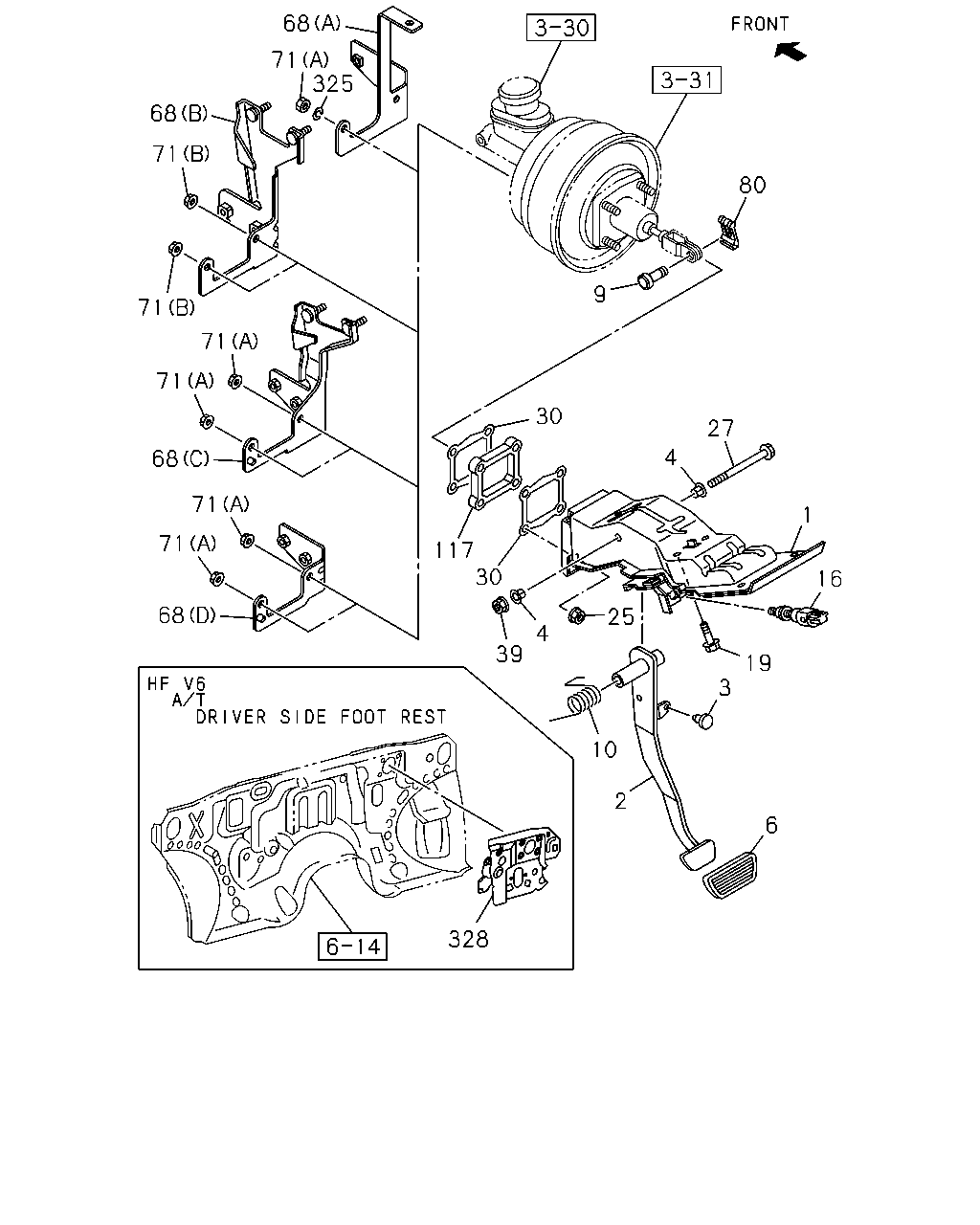

çizim 56847
80 9 30 4 27 1 16 19 3 6 2 10 25 4 39 30 117 328 68 71 71 68 71 71 71 71 68 325 71 68
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 04.634 BRACKET ASM; PEDAL 8-97327-157-1 01 1 0307-0309 ● ● ● ● ● ● ● ●
1 04.634 BRACKET ASM; PEDAL 8-97368-146-0 01 1 0310-0609 ● ● ● ● ● ● ● ●
1 04.634 BRACKET ASM; PEDAL 8-98013-694-0 01 1 0610- ● ● ● ● ● ● ● ●
2 04.625 PEDAL; BRK
A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) 		8-97327-159-1 01 1 0307-0508 ● ● ● ● ●
2 04.625 PEDAL; BRK
A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4SPEED-HMD,ELEC(M30),A/T AISIN(RMD) ,A/T 4 SPEED-JATCO(RMK) 		8-97327-159-1 01 1 0509-0510 ● ● ● ●
2 04.625 PEDAL; BRK
A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4SPEED-HMD,ELEC(M30),A/T 4 SPEED-JA TCO(RMK) 		8-97327-159-1 01 1 0511-0609 ● ● ● ●
2 04.625 PEDAL; BRK
A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4SPEED-HMD,ELEC(M30),A/T AISIN(RMD) ,A/T 4 SPEED-JATCO(RMK) 		8-97327-159-1 01 1 0610- ● ● ● ● ● ● ●
2 04.625 PEDAL; BRK
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 		8-97327-158-1 01 1 0307-0508 ● ● ● ● ●
2 04.625 PEDAL; BRK 8-97327-158-1 01 1 0307-0508 ● ● ●
2 04.625 PEDAL; BRK
M/T AISIN 5 SPEED(MA5),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP), M/T MUA 5 SPEED 5S(RSQ) 		8-97327-158-1 01 1 0509-0609 ● ● ● ● ● ● ● ●
2 04.625 PEDAL; BRK
M/T AISIN 5 SPEED(MA5),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) ,M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 		8-97327-158-1 01 1 0610- ● ● ● ● ● ● ● ●
3 04.634 STOPPER; BRK PEDAL 8-97302-035-0 01 1 0307- ● ● ● ● ● ● ● ●
4 04.634 BUSHING; BRK PEDAL 8-97301-688-0 02 1 0307- ● ● ● ● ● ● ● ●
6 04.630 COVER; BRK PEDAL
A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) 		8-97263-035-0 01 1 0307-0508 ● ● ● ● ●
6 04.630 COVER; BRK PEDAL
A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4SPEED-HMD,ELEC(M30),A/T AISIN(RMD) ,A/T 4 SPEED-JATCO(RMK) 		8-97263-035-0 01 1 0509-0510 ● ● ● ●
6 04.630 COVER; BRK PEDAL
A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4SPEED-HMD,ELEC(M30),A/T 4 SPEED-JA TCO(RMK) 		8-97263-035-0 01 1 0511-0609 ● ● ● ●
6 04.630 COVER; BRK PEDAL
A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4SPEED-HMD,ELEC(M30),A/T AISIN(RMD) ,A/T 4 SPEED-JATCO(RMK) 		8-97263-035-0 01 1 0610- ● ● ● ● ● ● ●
6 04.630 COVER; BRK PEDAL
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 		8-97318-799-0 01 1 0307-0508 ● ● ● ● ●
6 04.630 COVER; BRK PEDAL 8-97318-799-0 01 1 0307-0508 ● ● ●
6 04.630 COVER; BRK PEDAL
M/T AISIN 5 SPEED(MA5),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP), M/T MUA 5 SPEED 5S(RSQ) 		8-97318-799-0 01 1 0509-0609 ● ● ● ● ● ● ● ●
6 04.630 COVER; BRK PEDAL
M/T AISIN 5 SPEED(MA5),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) ,M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 		8-97318-799-0 01 1 0610- ● ● ● ● ● ● ● ●
9 04.634 PIN; JAW JOINT 8-97311-602-0 01 1 0307- ● ● ● ● ● ● ● ●
10 04.639 SPRING; RETURN,BRK PEDAL 8-97301-689-1 01 1 0307-0609 ● ● ● ● ● ● ● ●
10 04.639 SPRING; RETURN,BRK PEDAL 8-97387-812-0 01 1 0610- ● ● ● ● ● ● ● ●
16 02.447 SWITCH; STOP LAMP
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 		8-97327-156-0 01 1 0307-0508 ● ● ● ● ● ● ● ●
16 02.447 SWITCH; STOP LAMP
6VE1 ENG(LX5) AUTO CRUISE CONT<K30> 		8-97327-156-0 01 1 0307-0508 ● ● ● ● ●
16 02.447 SWITCH; STOP LAMP
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 		8-97327-156-0 01 1 0509-0510 ● ● ● ● ● ● ● ●
16 02.447 SWITCH; STOP LAMP
HF V6 ENG(LCA),C24SE ENG(LG1), 4JA1-T ENG(LP0),6VE1 ENG(LX5) AUTO CRUISE CONT<K30> 		8-97327-156-0 01 1 0509-0510 ● ● ● ● ●
16 02.447 SWITCH; STOP LAMP
HF V6 ENG(LCA),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) 		8-97327-156-0 01 1 0511-0609 ● ● ● ● ● ● ● ●
16 02.447 SWITCH; STOP LAMP
6VE1 ENG(LX5) M/T MUA 5 SPEED 5G(RSP) AUTO CRUISE CONT<K30> 		8-97327-156-0 01 1 0511-0609 ●
16 02.447 SWITCH; STOP LAMP
M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4 SPEED-HMD, ELEC(M30) 		8-97327-156-0 01 1 0610-0703 ● ● ● ● ● ● ● ●
16 02.447 SWITCH; STOP LAMP
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) AUTO CRUISE CONT<K30> 		8-97327-156-0 01 1 0610-0703 ● ● ● ● ● ●
16 02.447 SWITCH; STOP LAMP
HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4 SPEED-HMD,E LEC(M30) 		8-97327-156-0 01 1 0704- ● ● ● ● ● ● ● ●
16 02.447 SWITCH; STOP LAMP
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) AUTO CRUISE CONT<K30> 		8-97327-156-0 01 1 0704- ● ● ● ● ●
16 02.447 SWITCH; STOP LAMP
6VE1 ENG(LX5) EXC. AUTO CRUISE CONT<K30> 		8-97301-684-0 01 1 0307-0508 ● ● ● ● ● ● ● ●
16 02.447 SWITCH; STOP LAMP
C24SE ENG(LG1),4JA1-T ENG(LP0) 		8-97301-684-0 01 1 0307-0508 ● ● ● ● ● ● ●
16 02.447 SWITCH; STOP LAMP
HF V6 ENG(LCA),C24SE ENG(LG1), 4JA1-T ENG(LP0),6VE1 ENG(LX5) EXC. AUTO CRUISE CONT<K30> 		8-97301-684-0 01 1 0509-0510 ● ● ● ● ● ● ● ●
16 02.447 SWITCH; STOP LAMP
C24SE ENG(LG1),4JA1-T ENG(LP0), 6VE1ENG(LX5) EXC. AUTO CRUISE CONT<K30> 		8-97301-684-0 01 1 0511-0609 ● ● ● ● ● ● ● ●
16 02.447 SWITCH; STOP LAMP
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T MSG 5 SPEED(M75), A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5SPEED 5S(RSQ) EXC. AUTO CRUISE CONT<K30> 		8-97301-684-0 01 1 0610- ● ● ● ● ● ● ● ●
19 04.634 BOLT; BRKT
01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0307- ● ● ● ● ● ● ● ●
25 04.634 NUT; FLANGE,MTG BRKT TO BODY
M8 FLANGE 		8-97943-102-0 04 1 0307-0609 ● ● ● ● ● ● ● ●
25 04.634 NUT; FLANGE,MTG BRKT TO BODY
M8 FLANGE 		8-97581-233-0 04 1 0610- ● ● ● ● ● ● ● ●
27 04.634 SHAFT; BRK PEDAL 8-97304-171-0 01 1 0307- ● ● ● ● ● ● ● ●
30 04.910 GASKET; M/VAC TO BODY 8-97301-539-0 02 1 0307-0609 ● ● ● ● ● ● ● ●
30 04.910 GASKET; M/VAC TO BODY 8-97943-457-0 02 1 0610- ● ● ● ● ● ● ● ●
39 04.634 NUT; STOPPER LK
00.833 M10 LOCK NUT FLANGE 		0-91303-610-0 01 1 0307-0609 ● ● ● ● ● ● ● ●
39 04.634 NUT; STOPPER LK
M10 LOCK NUT FLANGE 		0-91380-010-0 01 1 0610- ● ● ● ● ● ● ● ●
68 04.634 BRACKET; SERVO TO DASH PANEL
(A) 		8-97301-541-1 01 1 0307-0508 ● ● ● ● ● ● ● ●
68 04.634 BRACKET; SERVO TO DASH PANEL
C24SE ENG(LG1),4JA1-T ENG(LP0), 6VE1ENG(LX5),4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) (A) 		8-97301-541-1 01 1 0509-0609 ● ● ● ● ● ● ● ●
68 04.634 BRACKET; SERVO TO DASH PANEL
C24SE ENG(LG1),4JA1-T ENG(LP0) (A) 		8-98007-771-0 01 1 0610- ● ● ● ● ● ● ●
68 04.634 BRACKET; SERVO TO DASH PANEL
HF V6 ENG(LCA) (B) 		8-98000-227-0 01 1 0509-0609 ● ● ● ● ● ● ● ●
68 04.634 BRACKET; SERVO TO DASH PANEL
HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5) (C) 		8-98048-076-0 01 1 0610- ● ● ● ● ● ● ● ●
68 04.634 BRACKET; SERVO TO DASH PANEL
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) (D) 		8-98007-772-0 01 1 0610-0612 ● ● ● ● ● ● ● ●
68 04.634 BRACKET; SERVO TO DASH PANEL
HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4SPEED-HMD,ELEC(M30) (D) 		8-98007-772-0 01 1 0610-0612 ● ● ● ●
68 04.634 BRACKET; SERVO TO DASH PANEL
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (D) 		8-98007-772-0 01 1 0701-0912 ● ● ● ● ● ● ● ●
68 04.634 BRACKET; SERVO TO DASH PANEL
HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4SPEED-HMD,ELEC(M30) (D) 		8-98007-772-0 01 1 0701-0912 ● ● ● ●
68 04.634 BRACKET; SERVO TO DASH PANEL
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) (D) 		8-98007-772-0 01 1 1001- ● ● ● ● ● ● ● ●
68 04.634 BRACKET; SERVO TO DASH PANEL
HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4SPEED-HMD,ELEC(M30) (D) 		8-98007-772-0 01 1 1001- ● ● ● ●
71 04.650 NUT; BRK M/CYL
(A) 		8-97301-537-0 02 1 0307-0501 ● ● ● ● ● ● ● ●
71 04.650 NUT; BRK M/CYL
04.662 (A) 		8-97301-598-0 02 1 0502-0508 ● ● ● ● ● ● ● ●
71 04.650 NUT; BRK M/CYL
C24SE ENG(LG1),4JA1-T ENG(LP0), 6VE1ENG(LX5),4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 04.662 (A) 		8-97301-598-0 02 1 0509-0609 ● ● ● ● ● ● ● ●
71 04.650 NUT; BRK M/CYL
(A) 		8-98031-675-0 02 1 0610- ● ● ● ● ● ● ● ●
71 04.650 NUT; BRK M/CYL
HF V6 ENG(LCA) (B) 1 SET=2 PIECE 		8-92148-961-0 01 1 0509-0609 ● ● ● ● ● ● ● ●
80 04.634 PIN; SNAP,BRK PEDAL 8-97311-594-0 01 1 0307-0609 ● ● ● ● ● ● ● ●
80 04.634 PIN; SNAP,BRK PEDAL
00.833 		8-98007-161-0 01 1 0610- ● ● ● ● ● ● ● ●
117 04.910 SPACER; M/VAC TO BODY 8-97301-540-0 01 1 0307-0609 ● ● ● ● ● ● ● ●
117 04.910 SPACER; M/VAC TO BODY 8-98008-278-0 01 1 0610- ● ● ● ● ● ● ● ●
325 04.634 WASHER; BRK M/CYL 8-97301-538-0 02 1 0307-0501 ● ● ● ● ● ● ● ●
328 04.630 REINFORCEMENT; BRK PEDAL
HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4SPEED-HMD,ELEC(M30) DRIVER SIDE FOOT REST<7NU> 		8-98009-010-0 01 1 0509-0609 ● ● ● ●
328 04.630 REINFORCEMENT; BRK PEDAL
HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4SPEED-HMD,ELEC(M30) DRIVER SIDE FOOT REST<7NU> EXC. SHIPPING EQUIPMENT SPECIAL VAR 1<VK5> 		8-98009-010-0 01 1 0610-0611 ● ● ● ● ●
328 04.630 REINFORCEMENT; BRK PEDAL
HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4SPEED-HMD,ELEC(M30) DRIVER SIDE FOOT REST<7NU> EXC. SHIPPING EQUIPMENT SPECIAL VAR 1<VK5> 		8-98061-151-0 01 1 0612- ● ● ● ● ●
