1 |

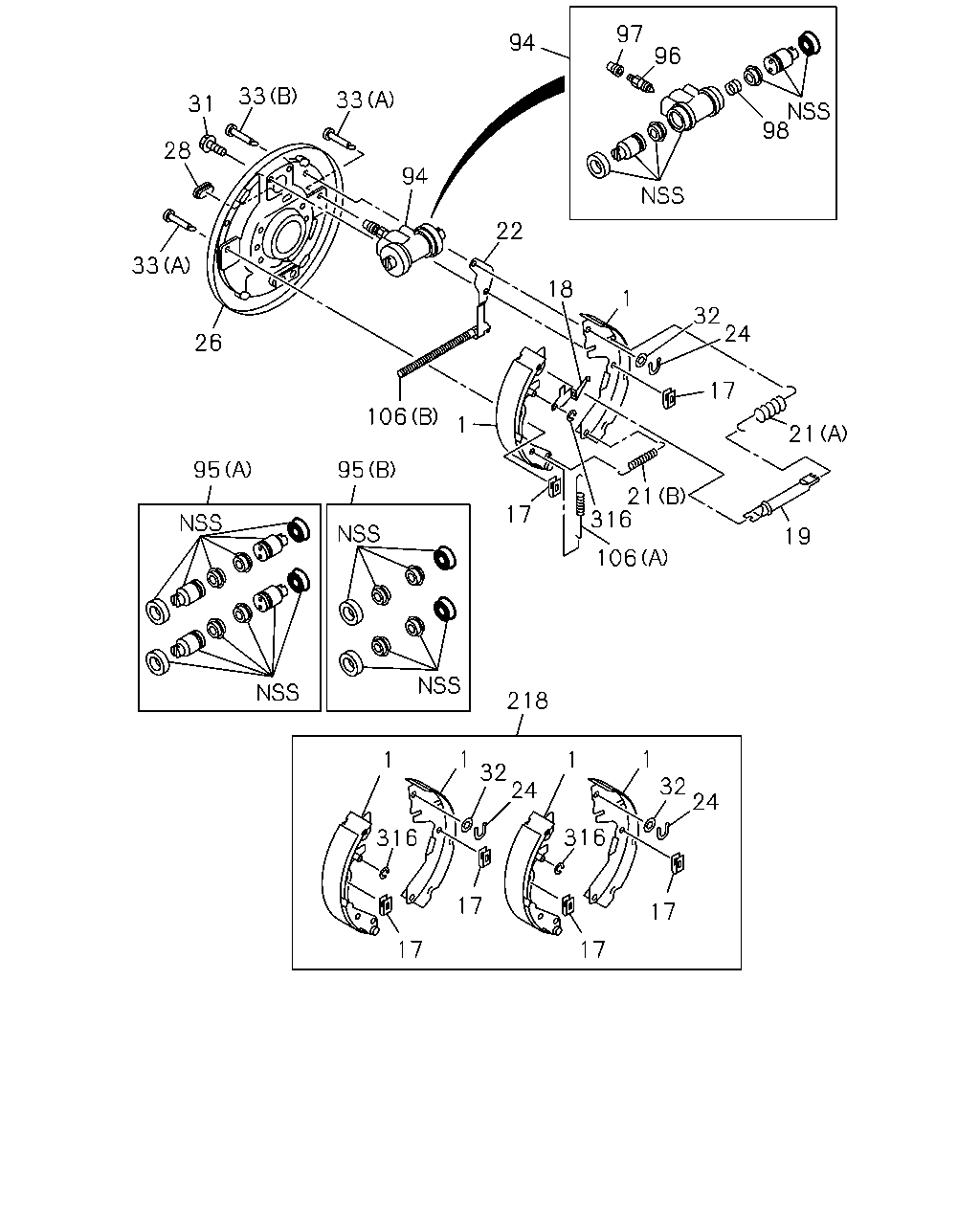

05.017 SHOE; BRK,RR
HIGH RIDE SUSPENSION(7YC)
TRAILING
|
8-97351-921-1 |
02 |
1 |
0307-0609 |
● |
● |
● |
● |
● |
|
|
|
| |
1 |
05.017 SHOE; BRK,RR
TRAILING
|
8-97351-921-1 |
02 |
1 |
0307-0609 |
|
|
|
|
|
● |
● |
● |
| |
1 |
05.017 SHOE; BRK,RR
FINAL GEAR RATIO 43/12(GM0),FINAL
GEAR RATIO 43/9(GT2),FINAL GEAR
RATIO 41/11(GT4),FINAL GEAR RATIO 41/12
(GU6),FINAL GEAR RATIO 43/11(GW1),
FINAL GEAR RATIO 43/10(GY2),FINAL GE
AR RATIO 41/8(HC3)
TRAILING
|
8-97351-921-1 |
02 |
1 |
0610-0610 |
● |
● |
● |
● |
● |
● |
● |
● |
| |
1 |
05.017 SHOE; BRK,RR
HF V6 ENG(LCA),4JA1-T ENG(LP0)
FINAL GEAR RATIO 41/10(GT5)
TRAILING
|
8-97351-921-1 |
02 |
1 |
0610-0610 |
● |
● |
● |
● |
● |
● |
● |
● |
| |
1 |
05.017 SHOE; BRK,RR
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0)
,4JJ1-TCX ENG(LS0)
FINAL GEAR RATIO 41/10(GT5)
HIGH RIDE SUSPENSION(7YC)
EXC. BRK WHL LK CONT LSPV<JR9>
TRAILING
|
8-97351-921-1 |
02 |
1 |
0610-0610 |
● |
● |
● |
● |
● |
|
|
|
| |
1 |
05.017 SHOE; BRK,RR
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0)
,4JJ1-TCX ENG(LS0)
FINAL GEAR RATIO 41/10(GT5)
LIMITED SLIP DIFF<G80>
BRK WHL LK CONT LSPV<JR9>
HIGH RIDE SUSPENSION(7YC)
TRAILING
|
8-97351-921-1 |
02 |
1 |
0610-0610 |
● |
● |
● |
● |
● |
|
|
|
| |
1 |
05.017 SHOE; BRK,RR
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0)
,4JJ1-TCX ENG(LS0)
4 WHEEL ANTI LOCK BRAKE<JE5>
FINAL GEAR RATIO 41/10(GT5)
HIGH RIDE SUSPENSION(7YC)
TRAILING
|
8-97351-921-1 |
02 |
1 |
0610-0610 |
● |
● |
● |
● |
● |
|
|
|
| |
1 |
05.017 SHOE; BRK,RR
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0)
,4JJ1-TCX ENG(LS0)
FINAL GEAR RATIO 41/10(GT5)
LIMITED SLIP DIFF<G80>
BRK WHL LK CONT LSPV<JR9>
TRAILING
|
8-97351-921-1 |
02 |
1 |
0610-0610 |
|
|
|
|
|
● |
● |
● |
| |
1 |
05.017 SHOE; BRK,RR
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0)
,4JJ1-TCX ENG(LS0)
4 WHEEL ANTI LOCK BRAKE<JE5>
FINAL GEAR RATIO 41/10(GT5)
TRAILING
|
8-97351-921-1 |
02 |
1 |
0610-0610 |
|
|
|
|
|
● |
● |
● |
| |
1 |
05.017 SHOE; BRK,RR
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0)
,4JJ1-TCX ENG(LS0)
FINAL GEAR RATIO 41/10(GT5)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
BRK WHL LK CONT LSPV<JR9>
TRAILING
|
8-97351-921-1 |
02 |
1 |
0610-0610 |
|
|
|
|
|
● |
● |
● |
| |
1 |
05.017 SHOE; BRK,RR
HIGH RIDE SUSPENSION(7YC)
TRAILING
|
8-97351-921-1 |
02 |
1 |
0611-0703 |
● |
● |
● |
● |
● |
|
|
|
| |
1 |
05.017 SHOE; BRK,RR
FINAL GEAR RATIO 41/12(GU6)
EXC. HIGH RIDE SUSPENSION(7YC)
TRAILING
|
8-97351-921-1 |
02 |
1 |
0611-0703 |
● |
● |
● |
● |
● |
|
|
|
| |
1 |
05.017 SHOE; BRK,RR
4JK1-TCX ENG(LR0)
FINAL GEAR RATIO 41/11(GT4)
4 WHEEL ANTI LOCK BRAKE<JE5>
EXC. HIGH RIDE SUSPENSION(7YC)
TRAILING
|
8-97351-921-1 |
02 |
1 |
0611-0703 |
|
|
● |
|
● |
|
|
|
| |
1 |
05.017 SHOE; BRK,RR
4JK1-TCX ENG(LR0)
FINAL GEAR RATIO 41/11(GT4)
BRK WHL LK CONT LSPV<JR9>
EXC. HIGH RIDE SUSPENSION(7YC)
TRAILING
|
8-97351-921-1 |
02 |
1 |
0611-0703 |
|
|
● |
|
● |
|
|
|
| |
1 |
05.017 SHOE; BRK,RR
TRAILING
|
8-97351-921-1 |
02 |
1 |
0611-0703 |
|
|
|
|
|
● |
● |
● |
| |
1 |
05.017 SHOE; BRK,RR
HIGH RIDE SUSPENSION(7YC)
TRAILING
|
8-97351-921-1 |
02 |
1 |
0704- |
● |
● |
● |
● |
● |
|
|
|
| |
1 |
05.017 SHOE; BRK,RR
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)
FINAL GEAR RATIO 41/11(GT4),FINAL
GEAR RATIO 41/12(GU6)
EXC. HIGH RIDE SUSPENSION(7YC)
TRAILING
|
8-97351-921-1 |
02 |
1 |
0704- |
● |
● |
● |
● |
● |
|
|
|
| |
1 |
05.017 SHOE; BRK,RR
TRAILING
|
8-97351-921-1 |
02 |
1 |
0704- |
|
|
|
|
|
● |
● |
● |
| |
1 |
05.017 SHOE; BRK,RR
HIGH RIDE SUSPENSION(7YC)
LEADING
|
8-97351-920-1 |
01 |
1 |
0307-0609 |
● |
● |
● |
● |
● |
|
|
|
| |
1 |
05.017 SHOE; BRK,RR
LEADING
|
8-97351-920-1 |
01 |
1 |
0307-0609 |
|
|
|
|
|
● |
● |
● |
| |
1 |
05.017 SHOE; BRK,RR
FINAL GEAR RATIO 43/12(GM0),FINAL
GEAR RATIO 43/9(GT2),FINAL GEAR
RATIO 41/11(GT4),FINAL GEAR RATIO 41/12
(GU6),FINAL GEAR RATIO 43/11(GW1),
FINAL GEAR RATIO 43/10(GY2),FINAL GE
AR RATIO 41/8(HC3)
LEADING
|
8-98007-963-0 |
01 |
1 |
0610-0610 |
● |
● |
● |
● |
● |
● |
● |
● |
| |
1 |
05.017 SHOE; BRK,RR
HF V6 ENG(LCA),4JA1-T ENG(LP0)
FINAL GEAR RATIO 41/10(GT5)
LEADING
|
8-98007-963-0 |
01 |
1 |
0610-0610 |
● |
● |
● |
● |
● |
● |
● |
● |
| |
1 |
05.017 SHOE; BRK,RR
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0)
,4JJ1-TCX ENG(LS0)
FINAL GEAR RATIO 41/10(GT5)
HIGH RIDE SUSPENSION(7YC)
EXC. BRK WHL LK CONT LSPV<JR9>
LEADING
|
8-98007-963-0 |
01 |
1 |
0610-0610 |
● |
● |
● |
● |
● |
|
|
|
| |
1 |
05.017 SHOE; BRK,RR
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0)
,4JJ1-TCX ENG(LS0)
FINAL GEAR RATIO 41/10(GT5)
LIMITED SLIP DIFF<G80>
BRK WHL LK CONT LSPV<JR9>
HIGH RIDE SUSPENSION(7YC)
LEADING
|
8-98007-963-0 |
01 |
1 |
0610-0610 |
● |
● |
● |
● |
● |
|
|
|
| |
1 |
05.017 SHOE; BRK,RR
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0)
,4JJ1-TCX ENG(LS0)
4 WHEEL ANTI LOCK BRAKE<JE5>
FINAL GEAR RATIO 41/10(GT5)
HIGH RIDE SUSPENSION(7YC)
LEADING
|
8-98007-963-0 |
01 |
1 |
0610-0610 |
● |
● |
● |
● |
● |
|
|
|
| |
1 |
05.017 SHOE; BRK,RR
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0)
,4JJ1-TCX ENG(LS0)
FINAL GEAR RATIO 41/10(GT5)
LIMITED SLIP DIFF<G80>
BRK WHL LK CONT LSPV<JR9>
LEADING
|
8-98007-963-0 |
01 |
1 |
0610-0610 |
|
|
|
|
|
● |
● |
● |
| |
1 |
05.017 SHOE; BRK,RR
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0)
,4JJ1-TCX ENG(LS0)
4 WHEEL ANTI LOCK BRAKE<JE5>
FINAL GEAR RATIO 41/10(GT5)
LEADING
|
8-98007-963-0 |
01 |
1 |
0610-0610 |
|
|
|
|
|
● |
● |
● |
| |
1 |
05.017 SHOE; BRK,RR
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0)
,4JJ1-TCX ENG(LS0)
FINAL GEAR RATIO 41/10(GT5)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
BRK WHL LK CONT LSPV<JR9>
LEADING
|
8-98007-963-0 |
01 |
1 |
0610-0610 |
|
|
|
|
|
● |
● |
● |
| |
1 |
05.017 SHOE; BRK,RR
HIGH RIDE SUSPENSION(7YC)
LEADING
|
8-98007-963-0 |
01 |
1 |
0611-0703 |
● |
● |
● |
● |
● |
|
|
|
| |
1 |
05.017 SHOE; BRK,RR
FINAL GEAR RATIO 41/12(GU6)
EXC. HIGH RIDE SUSPENSION(7YC)
LEADING
|
8-98007-963-0 |
01 |
1 |
0611-0703 |
● |
● |
● |
● |
● |
|
|
|
| |
1 |
05.017 SHOE; BRK,RR
4JK1-TCX ENG(LR0)
FINAL GEAR RATIO 41/11(GT4)
4 WHEEL ANTI LOCK BRAKE<JE5>
EXC. HIGH RIDE SUSPENSION(7YC)
LEADING
|
8-98007-963-0 |
01 |
1 |
0611-0703 |
|
|
● |
|
● |
|
|
|
| |
1 |
05.017 SHOE; BRK,RR
4JK1-TCX ENG(LR0)
FINAL GEAR RATIO 41/11(GT4)
BRK WHL LK CONT LSPV<JR9>
EXC. HIGH RIDE SUSPENSION(7YC)
LEADING
|
8-98007-963-0 |
01 |
1 |
0611-0703 |
|
|
● |
|
● |
|
|
|
| |
1 |
05.017 SHOE; BRK,RR
LEADING
|
8-98007-963-0 |
01 |
1 |
0611-0703 |
|
|
|
|
|
● |
● |
● |
| |
1 |
05.017 SHOE; BRK,RR
HIGH RIDE SUSPENSION(7YC)
LEADING
|
8-98007-963-0 |
01 |
1 |
0704-1005 |
● |
● |
● |
● |
● |
|
|
|
| |
1 |
05.017 SHOE; BRK,RR
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)
FINAL GEAR RATIO 41/11(GT4),FINAL
GEAR RATIO 41/12(GU6)
EXC. HIGH RIDE SUSPENSION(7YC)
LEADING
|
8-98007-963-0 |
01 |
1 |
0704-1005 |
● |
● |
● |
● |
● |
|
|
|
| |
1 |
05.017 SHOE; BRK,RR
LEADING
|
8-98007-963-0 |
01 |
1 |
0704-1005 |
|
|
|
|
|
● |
● |
● |
| |
1 |
05.017 SHOE; BRK,RR
HIGH RIDE SUSPENSION(7YC)
LEADING
|
8-98007-963-0 |
01 |
1 |
1006- |
● |
● |
● |
● |
● |
|
|
|
| |
1 |
05.017 SHOE; BRK,RR
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)
FINAL GEAR RATIO 41/11(GT4),FINAL
GEAR RATIO 41/12(GU6)
EXC. HIGH RIDE SUSPENSION(7YC)
LEADING
|
8-98007-963-0 |
01 |
1 |
1006- |
● |
● |
● |
● |
● |
|
|
|
| |
1 |
05.017 SHOE; BRK,RR
LEADING
|
8-98007-963-0 |
01 |
1 |
1006- |
|
|
|
|
|
● |
● |
● |
| |
1 |
05.017 SHOE; BRK,RR
HIGH RIDE SUSPENSION(7YC)
LEADING
|
8-97351-919-1 |
01 |
1 |
0307-0609 |
● |
● |
● |
● |
● |
|
|
|
| |
1 |
05.017 SHOE; BRK,RR
LEADING
|
8-97351-919-1 |
01 |
1 |
0307-0609 |
|
|
|
|
|
● |
● |
● |
| |
1 |
05.017 SHOE; BRK,RR
FINAL GEAR RATIO 43/12(GM0),FINAL
GEAR RATIO 43/9(GT2),FINAL GEAR
RATIO 41/11(GT4),FINAL GEAR RATIO 41/12
(GU6),FINAL GEAR RATIO 43/11(GW1),
FINAL GEAR RATIO 43/10(GY2),FINAL GE
AR RATIO 41/8(HC3)
LEADING
|
8-98007-962-0 |
01 |
1 |
0610-0610 |
● |
● |
● |
● |
● |
● |
● |
● |
| |
1 |
05.017 SHOE; BRK,RR
HF V6 ENG(LCA),4JA1-T ENG(LP0)
FINAL GEAR RATIO 41/10(GT5)
LEADING
|
8-98007-962-0 |
01 |
1 |
0610-0610 |
● |
● |
● |
● |
● |
● |
● |
● |
| |
1 |
05.017 SHOE; BRK,RR
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0)
,4JJ1-TCX ENG(LS0)
FINAL GEAR RATIO 41/10(GT5)
HIGH RIDE SUSPENSION(7YC)
EXC. BRK WHL LK CONT LSPV<JR9>
LEADING
|
8-98007-962-0 |
01 |
1 |
0610-0610 |
● |
● |
● |
● |
● |
|
|
|
| |
1 |
05.017 SHOE; BRK,RR
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0)
,4JJ1-TCX ENG(LS0)
FINAL GEAR RATIO 41/10(GT5)
LIMITED SLIP DIFF<G80>
BRK WHL LK CONT LSPV<JR9>
HIGH RIDE SUSPENSION(7YC)
LEADING
|
8-98007-962-0 |
01 |
1 |
0610-0610 |
● |
● |
● |
● |
● |
|
|
|
| |
1 |
05.017 SHOE; BRK,RR
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0)
,4JJ1-TCX ENG(LS0)
4 WHEEL ANTI LOCK BRAKE<JE5>
FINAL GEAR RATIO 41/10(GT5)
HIGH RIDE SUSPENSION(7YC)
LEADING
|
8-98007-962-0 |
01 |
1 |
0610-0610 |
● |
● |
● |
● |
● |
|
|
|
| |
1 |
05.017 SHOE; BRK,RR
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0)
,4JJ1-TCX ENG(LS0)
FINAL GEAR RATIO 41/10(GT5)
LIMITED SLIP DIFF<G80>
BRK WHL LK CONT LSPV<JR9>
LEADING
|
8-98007-962-0 |
01 |
1 |
0610-0610 |
|
|
|
|
|
● |
● |
● |
| |
1 |
05.017 SHOE; BRK,RR
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0)
,4JJ1-TCX ENG(LS0)
4 WHEEL ANTI LOCK BRAKE<JE5>
FINAL GEAR RATIO 41/10(GT5)
LEADING
|
8-98007-962-0 |
01 |
1 |
0610-0610 |
|
|
|
|
|
● |
● |
● |
| |
1 |
05.017 SHOE; BRK,RR
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0)
,4JJ1-TCX ENG(LS0)
FINAL GEAR RATIO 41/10(GT5)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
BRK WHL LK CONT LSPV<JR9>
LEADING
|
8-98007-962-0 |
01 |
1 |
0610-0610 |
|
|
|
|
|
● |
● |
● |
| |
1 |
05.017 SHOE; BRK,RR
HIGH RIDE SUSPENSION(7YC)
LEADING
|
8-98007-962-0 |
01 |
1 |
0611-0703 |
● |
● |
● |
● |
● |
|
|
|
| |
1 |
05.017 SHOE; BRK,RR
FINAL GEAR RATIO 41/12(GU6)
EXC. HIGH RIDE SUSPENSION(7YC)
LEADING
|
8-98007-962-0 |
01 |
1 |
0611-0703 |
● |
● |
● |
● |
● |
|
|
|
| |
1 |
05.017 SHOE; BRK,RR
4JK1-TCX ENG(LR0)
FINAL GEAR RATIO 41/11(GT4)
4 WHEEL ANTI LOCK BRAKE<JE5>
EXC. HIGH RIDE SUSPENSION(7YC)
LEADING
|
8-98007-962-0 |
01 |
1 |
0611-0703 |
|
|
● |
|
● |
|
|
|
| |
1 |
05.017 SHOE; BRK,RR
4JK1-TCX ENG(LR0)
FINAL GEAR RATIO 41/11(GT4)
BRK WHL LK CONT LSPV<JR9>
EXC. HIGH RIDE SUSPENSION(7YC)
LEADING
|
8-98007-962-0 |
01 |
1 |
0611-0703 |
|
|
● |
|
● |
|
|
|
| |
1 |
05.017 SHOE; BRK,RR
LEADING
|
8-98007-962-0 |
01 |
1 |
0611-0703 |
|
|
|
|
|
● |
● |
● |
| |
1 |
05.017 SHOE; BRK,RR
HIGH RIDE SUSPENSION(7YC)
LEADING
|
8-98007-962-0 |
01 |
1 |
0704-1005 |
● |
● |
● |
● |
● |
|
|
|
| |
1 |
05.017 SHOE; BRK,RR
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)
FINAL GEAR RATIO 41/11(GT4),FINAL
GEAR RATIO 41/12(GU6)
EXC. HIGH RIDE SUSPENSION(7YC)
LEADING
|
8-98007-962-0 |
01 |
1 |
0704-1005 |
● |
● |
● |
● |
● |
|
|
|
| |
1 |
05.017 SHOE; BRK,RR
LEADING
|
8-98007-962-0 |
01 |
1 |
0704-1005 |
|
|
|
|
|
● |
● |
● |
| |
1 |
05.017 SHOE; BRK,RR
HIGH RIDE SUSPENSION(7YC)
LEADING
|
8-98007-962-0 |
01 |
1 |
1006- |
● |
● |
● |
● |
● |
|
|
|
| |
1 |
05.017 SHOE; BRK,RR
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)
FINAL GEAR RATIO 41/11(GT4),FINAL
GEAR RATIO 41/12(GU6)
EXC. HIGH RIDE SUSPENSION(7YC)
LEADING
|
8-98007-962-0 |
01 |
1 |
1006- |
● |
● |
● |
● |
● |
|
|
|
| |
1 |
05.017 SHOE; BRK,RR
LEADING
|
8-98007-962-0 |
01 |
1 |
1006- |
|
|
|
|
|
● |
● |
● |
| |
1 |
05.017 SHOE; BRK,RR
EXC. HIGH RIDE SUSPENSION(7YC)
TRAILING
|
8-97302-635-1 |
02 |
1 |
0307-0609 |
● |
● |
● |
● |
● |
|
|
|
| |
1 |
05.017 SHOE; BRK,RR
FINAL GEAR RATIO 43/9(GT2),FINAL
GEAR RATIO 41/9(GT3),FINAL GEAR
RATIO41/10(GT5),FINAL GEAR RATIO
43/11(GW1),FINAL GEAR RATIO 43/10(GY2)
EXC. HIGH RIDE SUSPENSION(7YC)
TRAILING
|
8-97302-635-1 |
02 |
1 |
0610-0703 |
● |
● |
● |
● |
● |
|
|
|
| |
1 |
05.017 SHOE; BRK,RR
FINAL GEAR RATIO 41/11(GT4)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
BRK WHL LK CONT LSPV<JR9>,HIGH
RIDESUSPENSION(7YC)
TRAILING
|
8-97302-635-1 |
02 |
1 |
0610-0703 |
● |
● |
● |
● |
● |
|
|
|
| |
1 |
05.017 SHOE; BRK,RR
4JJ1-TCS ENG(LFB)
FINAL GEAR RATIO 41/11(GT4)
4 WHEEL ANTI LOCK BRAKE<JE5>
EXC. HIGH RIDE SUSPENSION(7YC)
TRAILING
|
8-97302-635-1 |
02 |
1 |
0610-0703 |
● |
|
● |
|
● |
|
|
|
| |
1 |
05.017 SHOE; BRK,RR
4JJ1-TCS ENG(LFB)
FINAL GEAR RATIO 41/11(GT4)
BRK WHL LK CONT LSPV<JR9>
EXC. HIGH RIDE SUSPENSION(7YC)
TRAILING
|
8-97302-635-1 |
02 |
1 |
0610-0703 |
● |
|
● |
|
● |
|
|
|
| |
1 |
05.017 SHOE; BRK,RR
FINAL GEAR RATIO 43/9(GT2),FINAL
GEAR RATIO 41/9(GT3),FINAL GEAR
RATIO41/10(GT5),FINAL GEAR RATIO
43/11(GW1),FINAL GEAR RATIO 43/10(GY2)
EXC. HIGH RIDE SUSPENSION(7YC)
TRAILING
|
8-97302-635-1 |
02 |
1 |
0704-0709 |
● |
● |
● |
● |
● |
|
|
|
| |
1 |
05.017 SHOE; BRK,RR
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ)
FINAL GEAR RATIO 41/11(GT4)
EXC. HIGH RIDE SUSPENSION(7YC)
TRAILING
|
8-97302-635-1 |
02 |
1 |
0704-0709 |
● |
● |
● |
● |
● |
|
|
|
| |
1 |
05.017 SHOE; BRK,RR
FINAL GEAR RATIO 43/9(GT2),FINAL
GEAR RATIO 41/9(GT3),FINAL GEAR
RATIO41/10(GT5),FINAL GEAR RATIO
43/11(GW1),FINAL GEAR RATIO 43/10(GY2)
EXC. HIGH RIDE SUSPENSION(7YC)
TRAILING
|
8-97302-635-1 |
02 |
1 |
0710-0912 |
● |
● |
● |
● |
● |
|
|
|
| |
1 |
05.017 SHOE; BRK,RR
4JJ1-TCS ENG(LFB)
FINAL GEAR RATIO 41/11(GT4)
EXC. HIGH RIDE SUSPENSION(7YC)
TRAILING
|
8-97302-635-1 |
02 |
1 |
0710-0912 |
● |
● |
● |
● |
● |
|
|
|
| |
1 |
05.017 SHOE; BRK,RR
FINAL GEAR RATIO 43/9(GT2),FINAL
GEAR RATIO 41/9(GT3),FINAL GEAR
RATIO41/10(GT5),FINAL GEAR RATIO
43/11(GW1),FINAL GEAR RATIO 43/10(GY2)
EXC. HIGH RIDE SUSPENSION(7YC)
TRAILING
|
8-97302-635-1 |
02 |
1 |
1001- |
● |
● |
● |
● |
● |
|
|
|
| |
1 |
05.017 SHOE; BRK,RR
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ)
FINAL GEAR RATIO 41/11(GT4)
EXC. HIGH RIDE SUSPENSION(7YC)
TRAILING
|
8-97302-635-1 |
02 |
1 |
1001- |
● |
● |
● |
● |
● |
|
|
|
| |
1 |
05.017 SHOE; BRK,RR
EXC. HIGH RIDE SUSPENSION(7YC)
LEADING
|
8-97302-637-1 |
01 |
1 |
0307-0609 |
● |
● |
● |
● |
● |
|
|
|
| |
1 |
05.017 SHOE; BRK,RR
FINAL GEAR RATIO 43/9(GT2),FINAL
GEAR RATIO 41/9(GT3),FINAL GEAR
RATIO41/10(GT5),FINAL GEAR RATIO
43/11(GW1),FINAL GEAR RATIO 43/10(GY2)
EXC. HIGH RIDE SUSPENSION(7YC)
LEADING
|
8-98007-959-0 |
01 |
1 |
0610-0703 |
● |
● |
● |
● |
● |
|
|
|
| |
1 |
05.017 SHOE; BRK,RR
FINAL GEAR RATIO 41/11(GT4)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
BRK WHL LK CONT LSPV<JR9>,HIGH
RIDESUSPENSION(7YC)
LEADING
|
8-98007-959-0 |
01 |
1 |
0610-0703 |
● |
● |
● |
● |
● |
|
|
|
| |
1 |
05.017 SHOE; BRK,RR
4JJ1-TCS ENG(LFB)
FINAL GEAR RATIO 41/11(GT4)
4 WHEEL ANTI LOCK BRAKE<JE5>
EXC. HIGH RIDE SUSPENSION(7YC)
LEADING
|
8-98007-959-0 |
01 |
1 |
0610-0703 |
● |
|
● |
|
● |
|
|
|
| |
1 |
05.017 SHOE; BRK,RR
4JJ1-TCS ENG(LFB)
FINAL GEAR RATIO 41/11(GT4)
BRK WHL LK CONT LSPV<JR9>
EXC. HIGH RIDE SUSPENSION(7YC)
LEADING
|
8-98007-959-0 |
01 |
1 |
0610-0703 |
● |
|
● |
|
● |
|
|
|
| |
1 |
05.017 SHOE; BRK,RR
FINAL GEAR RATIO 43/9(GT2),FINAL
GEAR RATIO 41/9(GT3),FINAL GEAR
RATIO41/10(GT5),FINAL GEAR RATIO
43/11(GW1),FINAL GEAR RATIO 43/10(GY2)
EXC. HIGH RIDE SUSPENSION(7YC)
LEADING
|
8-98007-959-0 |
01 |
1 |
0704-0709 |
● |
● |
● |
● |
● |
|
|
|
| |
1 |
05.017 SHOE; BRK,RR
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ)
FINAL GEAR RATIO 41/11(GT4)
EXC. HIGH RIDE SUSPENSION(7YC)
LEADING
|
8-98007-959-0 |
01 |
1 |
0704-0709 |
● |
● |
● |
● |
● |
|
|
|
| |
1 |
05.017 SHOE; BRK,RR
FINAL GEAR RATIO 43/9(GT2),FINAL
GEAR RATIO 41/9(GT3),FINAL GEAR
RATIO41/10(GT5),FINAL GEAR RATIO
43/11(GW1),FINAL GEAR RATIO 43/10(GY2)
EXC. HIGH RIDE SUSPENSION(7YC)
LEADING
|
8-98007-959-0 |
01 |
1 |
0710-0912 |
● |
● |
● |
● |
● |
|
|
|
| |
1 |
05.017 SHOE; BRK,RR
4JJ1-TCS ENG(LFB)
FINAL GEAR RATIO 41/11(GT4)
EXC. HIGH RIDE SUSPENSION(7YC)
LEADING
|
8-98007-959-0 |
01 |
1 |
0710-0912 |
● |
● |
● |
● |
● |
|
|
|
| |
1 |
05.017 SHOE; BRK,RR
FINAL GEAR RATIO 43/9(GT2),FINAL
GEAR RATIO 41/9(GT3),FINAL GEAR
RATIO41/10(GT5),FINAL GEAR RATIO
43/11(GW1),FINAL GEAR RATIO 43/10(GY2)
EXC. HIGH RIDE SUSPENSION(7YC)
LEADING
|
8-98007-959-0 |
01 |
1 |
1001- |
● |
● |
● |
● |
● |
|
|
|
| |
1 |
05.017 SHOE; BRK,RR
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ)
FINAL GEAR RATIO 41/11(GT4)
EXC. HIGH RIDE SUSPENSION(7YC)
LEADING
|
8-98007-959-0 |
01 |
1 |
1001- |
● |
● |
● |
● |
● |
|
|
|
| |
1 |
05.017 SHOE; BRK,RR
EXC. HIGH RIDE SUSPENSION(7YC)
LEADING
|
8-97302-636-1 |
01 |
1 |
0307-0609 |
● |
● |
● |
● |
● |
|
|
|
| |
1 |
05.017 SHOE; BRK,RR
FINAL GEAR RATIO 43/9(GT2),FINAL
GEAR RATIO 41/9(GT3),FINAL GEAR
RATIO41/10(GT5),FINAL GEAR RATIO
43/11(GW1),FINAL GEAR RATIO 43/10(GY2)
EXC. HIGH RIDE SUSPENSION(7YC)
LEADING
|
8-98007-958-0 |
01 |
1 |
0610-0703 |
● |
● |
● |
● |
● |
|
|
|
| |
1 |
05.017 SHOE; BRK,RR
FINAL GEAR RATIO 41/11(GT4)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
BRK WHL LK CONT LSPV<JR9>,HIGH
RIDESUSPENSION(7YC)
LEADING
|
8-98007-958-0 |
01 |
1 |
0610-0703 |
● |
● |
● |
● |
● |
|
|
|
| |
1 |
05.017 SHOE; BRK,RR
4JJ1-TCS ENG(LFB)
FINAL GEAR RATIO 41/11(GT4)
4 WHEEL ANTI LOCK BRAKE<JE5>
EXC. HIGH RIDE SUSPENSION(7YC)
LEADING
|
8-98007-958-0 |
01 |
1 |
0610-0703 |
● |
|
● |
|
● |
|
|
|
| |
1 |
05.017 SHOE; BRK,RR
4JJ1-TCS ENG(LFB)
FINAL GEAR RATIO 41/11(GT4)
BRK WHL LK CONT LSPV<JR9>
EXC. HIGH RIDE SUSPENSION(7YC)
LEADING
|
8-98007-958-0 |
01 |
1 |
0610-0703 |
● |
|
● |
|
● |
|
|
|
| |
1 |
05.017 SHOE; BRK,RR
FINAL GEAR RATIO 43/9(GT2),FINAL
GEAR RATIO 41/9(GT3),FINAL GEAR
RATIO41/10(GT5),FINAL GEAR RATIO
43/11(GW1),FINAL GEAR RATIO 43/10(GY2)
EXC. HIGH RIDE SUSPENSION(7YC)
LEADING
|
8-98007-958-0 |
01 |
1 |
0704-0709 |
● |
● |
● |
● |
● |
|
|
|
| |
1 |
05.017 SHOE; BRK,RR
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ)
FINAL GEAR RATIO 41/11(GT4)
EXC. HIGH RIDE SUSPENSION(7YC)
LEADING
|
8-98007-958-0 |
01 |
1 |
0704-0709 |
● |
● |
● |
● |
● |
|
|
|
| |
1 |
05.017 SHOE; BRK,RR
FINAL GEAR RATIO 43/9(GT2),FINAL
GEAR RATIO 41/9(GT3),FINAL GEAR
RATIO41/10(GT5),FINAL GEAR RATIO
43/11(GW1),FINAL GEAR RATIO 43/10(GY2)
EXC. HIGH RIDE SUSPENSION(7YC)
LEADING
|
8-98007-958-0 |
01 |
1 |
0710-0912 |
● |
● |
● |
● |
● |
|
|
|
| |
1 |
05.017 SHOE; BRK,RR
4JJ1-TCS ENG(LFB)
FINAL GEAR RATIO 41/11(GT4)
EXC. HIGH RIDE SUSPENSION(7YC)
LEADING
|
8-98007-958-0 |
01 |
1 |
0710-0912 |
● |
● |
● |
● |
● |
|
|
|
| |
1 |
05.017 SHOE; BRK,RR
FINAL GEAR RATIO 43/9(GT2),FINAL
GEAR RATIO 41/9(GT3),FINAL GEAR
RATIO41/10(GT5),FINAL GEAR RATIO
43/11(GW1),FINAL GEAR RATIO 43/10(GY2)
EXC. HIGH RIDE SUSPENSION(7YC)
LEADING
|
8-98007-958-0 |
01 |
1 |
1001- |
● |
● |
● |
● |
● |
|
|
|
| |
1 |
05.017 SHOE; BRK,RR
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ)
FINAL GEAR RATIO 41/11(GT4)
EXC. HIGH RIDE SUSPENSION(7YC)
LEADING
|
8-98007-958-0 |
01 |
1 |
1001- |
● |
● |
● |
● |
● |
|
|
|
| |
17 |
04.043 SPRING; SHOE HOLD DOWN
|
8-97301-510-0 |
04 |
1 |
0307- |
● |
● |
● |
● |
● |
● |
● |
● |
| |
18 |
05.103 LEVER; AUTO ADJ
|
8-97301-504-0 |
01 |
1 |
0307-0609 |
● |
● |
● |
● |
● |
● |
● |
● |
| |
18 |
05.103 LEVER; AUTO ADJ
|
8-98007-997-0 |
01 |
1 |
0610- |
● |
● |
● |
● |
● |
● |
● |
● |
| |
18 |
05.103 LEVER; AUTO ADJ
|
8-97301-503-0 |
01 |
1 |
0307-0609 |
● |
● |
● |
● |
● |
● |
● |
● |
| |
18 |
05.103 LEVER; AUTO ADJ
|
8-98007-996-0 |
01 |
1 |
0610- |
● |
● |
● |
● |
● |
● |
● |
● |
| |
19 |
05.110 ADJUSTER; RR BRK
HIGH RIDE SUSPENSION(7YC)
|
8-97301-528-0 |
01 |
1 |
0307-0609 |
● |
● |
● |
● |
● |
|
|
|
| |
19 |
05.110 ADJUSTER; RR BRK
|
8-97301-528-0 |
01 |
1 |
0307-0609 |
|
|
|
|
|
● |
● |
● |
| |
19 |
05.110 ADJUSTER; RR BRK
FINAL GEAR RATIO 43/12(GM0),FINAL
GEAR RATIO 43/9(GT2),FINAL GEAR
RATIO 41/11(GT4),FINAL GEAR RATIO 41/12
(GU6),FINAL GEAR RATIO 43/11(GW1),
FINAL GEAR RATIO 43/10(GY2),FINAL GE
AR RATIO 41/8(HC3)
|
8-98007-980-0 |
01 |
1 |
0610-0610 |
● |
● |
● |
● |
● |
● |
● |
● |
| |
19 |
05.110 ADJUSTER; RR BRK
HF V6 ENG(LCA),4JA1-T ENG(LP0)
FINAL GEAR RATIO 41/10(GT5)
|
8-98007-980-0 |
01 |
1 |
0610-0610 |
● |
● |
● |
● |
● |
● |
● |
● |
| |
19 |
05.110 ADJUSTER; RR BRK
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0)
,4JJ1-TCX ENG(LS0)
FINAL GEAR RATIO 41/10(GT5)
HIGH RIDE SUSPENSION(7YC)
EXC. BRK WHL LK CONT LSPV<JR9>
|
8-98007-980-0 |
01 |
1 |
0610-0610 |
● |
● |
● |
● |
● |
|
|
|
| |
19 |
05.110 ADJUSTER; RR BRK
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0)
,4JJ1-TCX ENG(LS0)
FINAL GEAR RATIO 41/10(GT5)
LIMITED SLIP DIFF<G80>
BRK WHL LK CONT LSPV<JR9>
HIGH RIDE SUSPENSION(7YC)
|
8-98007-980-0 |
01 |
1 |
0610-0610 |
● |
● |
● |
● |
● |
|
|
|
| |
19 |
05.110 ADJUSTER; RR BRK
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0)
,4JJ1-TCX ENG(LS0)
4 WHEEL ANTI LOCK BRAKE<JE5>
FINAL GEAR RATIO 41/10(GT5)
HIGH RIDE SUSPENSION(7YC)
|
8-98007-980-0 |
01 |
1 |
0610-0610 |
● |
● |
● |
● |
● |
|
|
|
| |
19 |
05.110 ADJUSTER; RR BRK
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0)
,4JJ1-TCX ENG(LS0)
FINAL GEAR RATIO 41/10(GT5)
LIMITED SLIP DIFF<G80>
BRK WHL LK CONT LSPV<JR9>
|
8-98007-980-0 |
01 |
1 |
0610-0610 |
|
|
|
|
|
● |
● |
● |
| |
19 |
05.110 ADJUSTER; RR BRK
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0)
,4JJ1-TCX ENG(LS0)
4 WHEEL ANTI LOCK BRAKE<JE5>
FINAL GEAR RATIO 41/10(GT5)
|
8-98007-980-0 |
01 |
1 |
0610-0610 |
|
|
|
|
|
● |
● |
● |
| |
19 |
05.110 ADJUSTER; RR BRK
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0)
,4JJ1-TCX ENG(LS0)
FINAL GEAR RATIO 41/10(GT5)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
BRK WHL LK CONT LSPV<JR9>
|
8-98007-980-0 |
01 |
1 |
0610-0610 |
|
|
|
|
|
● |
● |
● |
| |
19 |
05.110 ADJUSTER; RR BRK
HIGH RIDE SUSPENSION(7YC)
|
8-98007-980-0 |
01 |
1 |
0611-0703 |
● |
● |
● |
● |
● |
|
|
|
| |
19 |
05.110 ADJUSTER; RR BRK
FINAL GEAR RATIO 41/12(GU6)
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-98007-980-0 |
01 |
1 |
0611-0703 |
● |
● |
● |
● |
● |
|
|
|
| |
19 |
05.110 ADJUSTER; RR BRK
4JK1-TCX ENG(LR0)
FINAL GEAR RATIO 41/11(GT4)
4 WHEEL ANTI LOCK BRAKE<JE5>
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-98007-980-0 |
01 |
1 |
0611-0703 |
|
|
● |
|
● |
|
|
|
| |
19 |
05.110 ADJUSTER; RR BRK
4JK1-TCX ENG(LR0)
FINAL GEAR RATIO 41/11(GT4)
BRK WHL LK CONT LSPV<JR9>
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-98007-980-0 |
01 |
1 |
0611-0703 |
|
|
● |
|
● |
|
|
|
| |
19 |
05.110 ADJUSTER; RR BRK
|
8-98007-980-0 |
01 |
1 |
0611-0703 |
|
|
|
|
|
● |
● |
● |
| |
19 |
05.110 ADJUSTER; RR BRK
HIGH RIDE SUSPENSION(7YC)
|
8-98007-980-0 |
01 |
1 |
0704- |
● |
● |
● |
● |
● |
|
|
|
| |
19 |
05.110 ADJUSTER; RR BRK
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)
FINAL GEAR RATIO 41/11(GT4),FINAL
GEAR RATIO 41/12(GU6)
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-98007-980-0 |
01 |
1 |
0704- |
● |
● |
● |
● |
● |
|
|
|
| |
19 |
05.110 ADJUSTER; RR BRK
|
8-98007-980-0 |
01 |
1 |
0704- |
|
|
|
|
|
● |
● |
● |
| |
19 |
05.110 ADJUSTER; RR BRK
HIGH RIDE SUSPENSION(7YC)
|
8-97301-527-0 |
01 |
1 |
0307-0609 |
● |
● |
● |
● |
● |
|
|
|
| |
19 |
05.110 ADJUSTER; RR BRK
|
8-97301-527-0 |
01 |
1 |
0307-0609 |
|
|
|
|
|
● |
● |
● |
| |
19 |
05.110 ADJUSTER; RR BRK
FINAL GEAR RATIO 43/12(GM0),FINAL
GEAR RATIO 43/9(GT2),FINAL GEAR
RATIO 41/11(GT4),FINAL GEAR RATIO 41/12
(GU6),FINAL GEAR RATIO 43/11(GW1),
FINAL GEAR RATIO 43/10(GY2),FINAL GE
AR RATIO 41/8(HC3)
|
8-98007-979-0 |
01 |
1 |
0610-0610 |
● |
● |
● |
● |
● |
● |
● |
● |
| |
19 |
05.110 ADJUSTER; RR BRK
HF V6 ENG(LCA),4JA1-T ENG(LP0)
FINAL GEAR RATIO 41/10(GT5)
|
8-98007-979-0 |
01 |
1 |
0610-0610 |
● |
● |
● |
● |
● |
● |
● |
● |
| |
19 |
05.110 ADJUSTER; RR BRK
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0)
,4JJ1-TCX ENG(LS0)
FINAL GEAR RATIO 41/10(GT5)
HIGH RIDE SUSPENSION(7YC)
EXC. BRK WHL LK CONT LSPV<JR9>
|
8-98007-979-0 |
01 |
1 |
0610-0610 |
● |
● |
● |
● |
● |
|
|
|
| |
19 |
05.110 ADJUSTER; RR BRK
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0)
,4JJ1-TCX ENG(LS0)
FINAL GEAR RATIO 41/10(GT5)
LIMITED SLIP DIFF<G80>
BRK WHL LK CONT LSPV<JR9>
HIGH RIDE SUSPENSION(7YC)
|
8-98007-979-0 |
01 |
1 |
0610-0610 |
● |
● |
● |
● |
● |
|
|
|
| |
19 |
05.110 ADJUSTER; RR BRK
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0)
,4JJ1-TCX ENG(LS0)
4 WHEEL ANTI LOCK BRAKE<JE5>
FINAL GEAR RATIO 41/10(GT5)
HIGH RIDE SUSPENSION(7YC)
|
8-98007-979-0 |
01 |
1 |
0610-0610 |
● |
● |
● |
● |
● |
|
|
|
| |
19 |
05.110 ADJUSTER; RR BRK
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0)
,4JJ1-TCX ENG(LS0)
FINAL GEAR RATIO 41/10(GT5)
LIMITED SLIP DIFF<G80>
BRK WHL LK CONT LSPV<JR9>
|
8-98007-979-0 |
01 |
1 |
0610-0610 |
|
|
|
|
|
● |
● |
● |
| |
19 |
05.110 ADJUSTER; RR BRK
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0)
,4JJ1-TCX ENG(LS0)
4 WHEEL ANTI LOCK BRAKE<JE5>
FINAL GEAR RATIO 41/10(GT5)
|
8-98007-979-0 |
01 |
1 |
0610-0610 |
|
|
|
|
|
● |
● |
● |
| |
19 |
05.110 ADJUSTER; RR BRK
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0)
,4JJ1-TCX ENG(LS0)
FINAL GEAR RATIO 41/10(GT5)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
BRK WHL LK CONT LSPV<JR9>
|
8-98007-979-0 |
01 |
1 |
0610-0610 |
|
|
|
|
|
● |
● |
● |
| |
19 |
05.110 ADJUSTER; RR BRK
HIGH RIDE SUSPENSION(7YC)
|
8-98007-979-0 |
01 |
1 |
0611-0703 |
● |
● |
● |
● |
● |
|
|
|
| |
19 |
05.110 ADJUSTER; RR BRK
FINAL GEAR RATIO 41/12(GU6)
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-98007-979-0 |
01 |
1 |
0611-0703 |
● |
● |
● |
● |
● |
|
|
|
| |
19 |
05.110 ADJUSTER; RR BRK
4JK1-TCX ENG(LR0)
FINAL GEAR RATIO 41/11(GT4)
4 WHEEL ANTI LOCK BRAKE<JE5>
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-98007-979-0 |
01 |
1 |
0611-0703 |
|
|
● |
|
● |
|
|
|
| |
19 |
05.110 ADJUSTER; RR BRK
4JK1-TCX ENG(LR0)
FINAL GEAR RATIO 41/11(GT4)
BRK WHL LK CONT LSPV<JR9>
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-98007-979-0 |
01 |
1 |
0611-0703 |
|
|
● |
|
● |
|
|
|
| |
19 |
05.110 ADJUSTER; RR BRK
|
8-98007-979-0 |
01 |
1 |
0611-0703 |
|
|
|
|
|
● |
● |
● |
| |
19 |
05.110 ADJUSTER; RR BRK
HIGH RIDE SUSPENSION(7YC)
|
8-98007-979-0 |
01 |
1 |
0704- |
● |
● |
● |
● |
● |
|
|
|
| |
19 |
05.110 ADJUSTER; RR BRK
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)
FINAL GEAR RATIO 41/11(GT4),FINAL
GEAR RATIO 41/12(GU6)
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-98007-979-0 |
01 |
1 |
0704- |
● |
● |
● |
● |
● |
|
|
|
| |
19 |
05.110 ADJUSTER; RR BRK
|
8-98007-979-0 |
01 |
1 |
0704- |
|
|
|
|
|
● |
● |
● |
| |
19 |
05.110 ADJUSTER; RR BRK
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-97301-495-0 |
01 |
1 |
0307-0609 |
● |
● |
● |
● |
● |
|
|
|
| |
19 |
05.110 ADJUSTER; RR BRK
FINAL GEAR RATIO 43/9(GT2),FINAL
GEAR RATIO 41/9(GT3),FINAL GEAR
RATIO41/10(GT5),FINAL GEAR RATIO
43/11(GW1),FINAL GEAR RATIO 43/10(GY2)
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-98007-978-0 |
01 |
1 |
0610-0703 |
● |
● |
● |
● |
● |
|
|
|
| |
19 |
05.110 ADJUSTER; RR BRK
FINAL GEAR RATIO 41/11(GT4)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
BRK WHL LK CONT LSPV<JR9>,HIGH
RIDESUSPENSION(7YC)
|
8-98007-978-0 |
01 |
1 |
0610-0703 |
● |
● |
● |
● |
● |
|
|
|
| |
19 |
05.110 ADJUSTER; RR BRK
4JJ1-TCS ENG(LFB)
FINAL GEAR RATIO 41/11(GT4)
4 WHEEL ANTI LOCK BRAKE<JE5>
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-98007-978-0 |
01 |
1 |
0610-0703 |
● |
|
● |
|
● |
|
|
|
| |
19 |
05.110 ADJUSTER; RR BRK
4JJ1-TCS ENG(LFB)
FINAL GEAR RATIO 41/11(GT4)
BRK WHL LK CONT LSPV<JR9>
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-98007-978-0 |
01 |
1 |
0610-0703 |
● |
|
● |
|
● |
|
|
|
| |
19 |
05.110 ADJUSTER; RR BRK
FINAL GEAR RATIO 43/9(GT2),FINAL
GEAR RATIO 41/9(GT3),FINAL GEAR
RATIO41/10(GT5),FINAL GEAR RATIO
43/11(GW1),FINAL GEAR RATIO 43/10(GY2)
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-98007-978-0 |
01 |
1 |
0704-0709 |
● |
● |
● |
● |
● |
|
|
|
| |
19 |
05.110 ADJUSTER; RR BRK
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ)
FINAL GEAR RATIO 41/11(GT4)
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-98007-978-0 |
01 |
1 |
0704-0709 |
● |
● |
● |
● |
● |
|
|
|
| |
19 |
05.110 ADJUSTER; RR BRK
FINAL GEAR RATIO 43/9(GT2),FINAL
GEAR RATIO 41/9(GT3),FINAL GEAR
RATIO41/10(GT5),FINAL GEAR RATIO
43/11(GW1),FINAL GEAR RATIO 43/10(GY2)
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-98007-978-0 |
01 |
1 |
0710-0912 |
● |
● |
● |
● |
● |
|
|
|
| |
19 |
05.110 ADJUSTER; RR BRK
4JJ1-TCS ENG(LFB)
FINAL GEAR RATIO 41/11(GT4)
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-98007-978-0 |
01 |
1 |
0710-0912 |
● |
● |
● |
● |
● |
|
|
|
| |
19 |
05.110 ADJUSTER; RR BRK
FINAL GEAR RATIO 43/9(GT2),FINAL
GEAR RATIO 41/9(GT3),FINAL GEAR
RATIO41/10(GT5),FINAL GEAR RATIO
43/11(GW1),FINAL GEAR RATIO 43/10(GY2)
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-98007-978-0 |
01 |
1 |
1001- |
● |
● |
● |
● |
● |
|
|
|
| |
19 |
05.110 ADJUSTER; RR BRK
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ)
FINAL GEAR RATIO 41/11(GT4)
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-98007-978-0 |
01 |
1 |
1001- |
● |
● |
● |
● |
● |
|
|
|
| |
19 |
05.110 ADJUSTER; RR BRK
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-97301-494-0 |
01 |
1 |
0307-0609 |
● |
● |
● |
● |
● |
|
|
|
| |
19 |
05.110 ADJUSTER; RR BRK
FINAL GEAR RATIO 43/9(GT2),FINAL
GEAR RATIO 41/9(GT3),FINAL GEAR
RATIO41/10(GT5),FINAL GEAR RATIO
43/11(GW1),FINAL GEAR RATIO 43/10(GY2)
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-98007-977-0 |
01 |
1 |
0610-0703 |
● |
● |
● |
● |
● |
|
|
|
| |
19 |
05.110 ADJUSTER; RR BRK
FINAL GEAR RATIO 41/11(GT4)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
BRK WHL LK CONT LSPV<JR9>,HIGH
RIDESUSPENSION(7YC)
|
8-98007-977-0 |
01 |
1 |
0610-0703 |
● |
● |
● |
● |
● |
|
|
|
| |
19 |
05.110 ADJUSTER; RR BRK
4JJ1-TCS ENG(LFB)
FINAL GEAR RATIO 41/11(GT4)
4 WHEEL ANTI LOCK BRAKE<JE5>
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-98007-977-0 |
01 |
1 |
0610-0703 |
● |
|
● |
|
● |
|
|
|
| |
19 |
05.110 ADJUSTER; RR BRK
4JJ1-TCS ENG(LFB)
FINAL GEAR RATIO 41/11(GT4)
BRK WHL LK CONT LSPV<JR9>
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-98007-977-0 |
01 |
1 |
0610-0703 |
● |
|
● |
|
● |
|
|
|
| |
19 |
05.110 ADJUSTER; RR BRK
FINAL GEAR RATIO 43/9(GT2),FINAL
GEAR RATIO 41/9(GT3),FINAL GEAR
RATIO41/10(GT5),FINAL GEAR RATIO
43/11(GW1),FINAL GEAR RATIO 43/10(GY2)
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-98007-977-0 |
01 |
1 |
0704-0709 |
● |
● |
● |
● |
● |
|
|
|
| |
19 |
05.110 ADJUSTER; RR BRK
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ)
FINAL GEAR RATIO 41/11(GT4)
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-98007-977-0 |
01 |
1 |
0704-0709 |
● |
● |
● |
● |
● |
|
|
|
| |
19 |
05.110 ADJUSTER; RR BRK
FINAL GEAR RATIO 43/9(GT2),FINAL
GEAR RATIO 41/9(GT3),FINAL GEAR
RATIO41/10(GT5),FINAL GEAR RATIO
43/11(GW1),FINAL GEAR RATIO 43/10(GY2)
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-98007-977-0 |
01 |
1 |
0710-0912 |
● |
● |
● |
● |
● |
|
|
|
| |
19 |
05.110 ADJUSTER; RR BRK
4JJ1-TCS ENG(LFB)
FINAL GEAR RATIO 41/11(GT4)
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-98007-977-0 |
01 |
1 |
0710-0912 |
● |
● |
● |
● |
● |
|
|
|
| |
19 |
05.110 ADJUSTER; RR BRK
FINAL GEAR RATIO 43/9(GT2),FINAL
GEAR RATIO 41/9(GT3),FINAL GEAR
RATIO41/10(GT5),FINAL GEAR RATIO
43/11(GW1),FINAL GEAR RATIO 43/10(GY2)
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-98007-977-0 |
01 |
1 |
1001- |
● |
● |
● |
● |
● |
|
|
|
| |
19 |
05.110 ADJUSTER; RR BRK
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ)
FINAL GEAR RATIO 41/11(GT4)
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-98007-977-0 |
01 |
1 |
1001- |
● |
● |
● |
● |
● |
|
|
|
| |
21 |
05.026 SPRING; SHOE,RET
HIGH RIDE SUSPENSION(7YC)
(A)
|
8-97301-523-0 |
02 |
1 |
0307-0609 |
● |
● |
● |
● |
● |
|
|
|
| |
21 |
05.026 SPRING; SHOE,RET
(A)
|
8-97301-523-0 |
02 |
1 |
0307-0609 |
|
|
|
|
|
● |
● |
● |
| |
21 |
05.026 SPRING; SHOE,RET
FINAL GEAR RATIO 43/12(GM0),FINAL
GEAR RATIO 43/9(GT2),FINAL GEAR
RATIO 41/11(GT4),FINAL GEAR RATIO 41/12
(GU6),FINAL GEAR RATIO 43/11(GW1),
FINAL GEAR RATIO 43/10(GY2),FINAL GE
AR RATIO 41/8(HC3)
(A)
|
8-98008-005-0 |
02 |
1 |
0610-0610 |
● |
● |
● |
● |
● |
● |
● |
● |
| |
21 |
05.026 SPRING; SHOE,RET
HF V6 ENG(LCA),4JA1-T ENG(LP0)
FINAL GEAR RATIO 41/10(GT5)
(A)
|
8-98008-005-0 |
02 |
1 |
0610-0610 |
● |
● |
● |
● |
● |
● |
● |
● |
| |
21 |
05.026 SPRING; SHOE,RET
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0)
,4JJ1-TCX ENG(LS0)
FINAL GEAR RATIO 41/10(GT5)
HIGH RIDE SUSPENSION(7YC)
EXC. BRK WHL LK CONT LSPV<JR9>
(A)
|
8-98008-005-0 |
02 |
1 |
0610-0610 |
● |
● |
● |
● |
● |
|
|
|
| |
21 |
05.026 SPRING; SHOE,RET
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0)
,4JJ1-TCX ENG(LS0)
FINAL GEAR RATIO 41/10(GT5)
LIMITED SLIP DIFF<G80>
BRK WHL LK CONT LSPV<JR9>
HIGH RIDE SUSPENSION(7YC)
(A)
|
8-98008-005-0 |
02 |
1 |
0610-0610 |
● |
● |
● |
● |
● |
|
|
|
| |
21 |
05.026 SPRING; SHOE,RET
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0)
,4JJ1-TCX ENG(LS0)
4 WHEEL ANTI LOCK BRAKE<JE5>
FINAL GEAR RATIO 41/10(GT5)
HIGH RIDE SUSPENSION(7YC)
(A)
|
8-98008-005-0 |
02 |
1 |
0610-0610 |
● |
● |
● |
● |
● |
|
|
|
| |
21 |
05.026 SPRING; SHOE,RET
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0)
,4JJ1-TCX ENG(LS0)
FINAL GEAR RATIO 41/10(GT5)
LIMITED SLIP DIFF<G80>
BRK WHL LK CONT LSPV<JR9>
(A)
|
8-98008-005-0 |
02 |
1 |
0610-0610 |
|
|
|
|
|
● |
● |
● |
| |
21 |
05.026 SPRING; SHOE,RET
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0)
,4JJ1-TCX ENG(LS0)
4 WHEEL ANTI LOCK BRAKE<JE5>
FINAL GEAR RATIO 41/10(GT5)
(A)
|
8-98008-005-0 |
02 |
1 |
0610-0610 |
|
|
|
|
|
● |
● |
● |
| |
21 |
05.026 SPRING; SHOE,RET
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0)
,4JJ1-TCX ENG(LS0)
FINAL GEAR RATIO 41/10(GT5)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
BRK WHL LK CONT LSPV<JR9>
(A)
|
8-98008-005-0 |
02 |
1 |
0610-0610 |
|
|
|
|
|
● |
● |
● |
| |
21 |
05.026 SPRING; SHOE,RET
HIGH RIDE SUSPENSION(7YC)
(A)
|
8-98008-005-0 |
02 |
1 |
0611-0703 |
● |
● |
● |
● |
● |
|
|
|
| |
21 |
05.026 SPRING; SHOE,RET
FINAL GEAR RATIO 41/12(GU6)
EXC. HIGH RIDE SUSPENSION(7YC)
(A)
|
8-98008-005-0 |
02 |
1 |
0611-0703 |
● |
● |
● |
● |
● |
|
|
|
| |
21 |
05.026 SPRING; SHOE,RET
4JK1-TCX ENG(LR0)
FINAL GEAR RATIO 41/11(GT4)
4 WHEEL ANTI LOCK BRAKE<JE5>
EXC. HIGH RIDE SUSPENSION(7YC)
(A)
|
8-98008-005-0 |
02 |
1 |
0611-0703 |
|
|
● |
|
● |
|
|
|
| |
21 |
05.026 SPRING; SHOE,RET
4JK1-TCX ENG(LR0)
FINAL GEAR RATIO 41/11(GT4)
BRK WHL LK CONT LSPV<JR9>
EXC. HIGH RIDE SUSPENSION(7YC)
(A)
|
8-98008-005-0 |
02 |
1 |
0611-0703 |
|
|
● |
|
● |
|
|
|
| |
21 |
05.026 SPRING; SHOE,RET
(A)
|
8-98008-005-0 |
02 |
1 |
0611-0703 |
|
|
|
|
|
● |
● |
● |
| |
21 |
05.026 SPRING; SHOE,RET
HIGH RIDE SUSPENSION(7YC)
(A)
|
8-98008-005-0 |
02 |
1 |
0704- |
● |
● |
● |
● |
● |
|
|
|
| |
21 |
05.026 SPRING; SHOE,RET
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)
FINAL GEAR RATIO 41/11(GT4),FINAL
GEAR RATIO 41/12(GU6)
EXC. HIGH RIDE SUSPENSION(7YC)
(A)
|
8-98008-005-0 |
02 |
1 |
0704- |
● |
● |
● |
● |
● |
|
|
|
| |
21 |
05.026 SPRING; SHOE,RET
(A)
|
8-98008-005-0 |
02 |
1 |
0704- |
|
|
|
|
|
● |
● |
● |
| |
21 |
05.026 SPRING; SHOE,RET
EXC. HIGH RIDE SUSPENSION(7YC)
(A)
|
8-97301-501-0 |
02 |
1 |
0307-0609 |
● |
● |
● |
● |
● |
|
|
|
| |
21 |
05.026 SPRING; SHOE,RET
FINAL GEAR RATIO 43/9(GT2),FINAL
GEAR RATIO 41/9(GT3),FINAL GEAR
RATIO41/10(GT5),FINAL GEAR RATIO
43/11(GW1),FINAL GEAR RATIO 43/10(GY2)
EXC. HIGH RIDE SUSPENSION(7YC)
(A)
|
8-98008-001-0 |
02 |
1 |
0610-0703 |
● |
● |
● |
● |
● |
|
|
|
| |
21 |
05.026 SPRING; SHOE,RET
FINAL GEAR RATIO 41/11(GT4)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
BRK WHL LK CONT LSPV<JR9>,HIGH
RIDESUSPENSION(7YC)
(A)
|
8-98008-001-0 |
02 |
1 |
0610-0703 |
● |
● |
● |
● |
● |
|
|
|
| |
21 |
05.026 SPRING; SHOE,RET
4JJ1-TCS ENG(LFB)
FINAL GEAR RATIO 41/11(GT4)
4 WHEEL ANTI LOCK BRAKE<JE5>
EXC. HIGH RIDE SUSPENSION(7YC)
(A)
|
8-98008-001-0 |
02 |
1 |
0610-0703 |
● |
|
● |
|
● |
|
|
|
| |
21 |
05.026 SPRING; SHOE,RET
4JJ1-TCS ENG(LFB)
FINAL GEAR RATIO 41/11(GT4)
BRK WHL LK CONT LSPV<JR9>
EXC. HIGH RIDE SUSPENSION(7YC)
(A)
|
8-98008-001-0 |
02 |
1 |
0610-0703 |
● |
|
● |
|
● |
|
|
|
| |
21 |
05.026 SPRING; SHOE,RET
FINAL GEAR RATIO 43/9(GT2),FINAL
GEAR RATIO 41/9(GT3),FINAL GEAR
RATIO41/10(GT5),FINAL GEAR RATIO
43/11(GW1),FINAL GEAR RATIO 43/10(GY2)
EXC. HIGH RIDE SUSPENSION(7YC)
(A)
|
8-98008-001-0 |
02 |
1 |
0704-0709 |
● |
● |
● |
● |
● |
|
|
|
| |
21 |
05.026 SPRING; SHOE,RET
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ)
FINAL GEAR RATIO 41/11(GT4)
EXC. HIGH RIDE SUSPENSION(7YC)
(A)
|
8-98008-001-0 |
02 |
1 |
0704-0709 |
● |
● |
● |
● |
● |
|
|
|
| |
21 |
05.026 SPRING; SHOE,RET
FINAL GEAR RATIO 43/9(GT2),FINAL
GEAR RATIO 41/9(GT3),FINAL GEAR
RATIO41/10(GT5),FINAL GEAR RATIO
43/11(GW1),FINAL GEAR RATIO 43/10(GY2)
EXC. HIGH RIDE SUSPENSION(7YC)
(A)
|
8-98008-001-0 |
02 |
1 |
0710-0912 |
● |
● |
● |
● |
● |
|
|
|
| |
21 |
05.026 SPRING; SHOE,RET
4JJ1-TCS ENG(LFB)
FINAL GEAR RATIO 41/11(GT4)
EXC. HIGH RIDE SUSPENSION(7YC)
(A)
|
8-98008-001-0 |
02 |
1 |
0710-0912 |
● |
● |
● |
● |
● |
|
|
|
| |
21 |
05.026 SPRING; SHOE,RET
FINAL GEAR RATIO 43/9(GT2),FINAL
GEAR RATIO 41/9(GT3),FINAL GEAR
RATIO41/10(GT5),FINAL GEAR RATIO
43/11(GW1),FINAL GEAR RATIO 43/10(GY2)
EXC. HIGH RIDE SUSPENSION(7YC)
(A)
|
8-98008-001-0 |
02 |
1 |
1001- |
● |
● |
● |
● |
● |
|
|
|
| |
21 |
05.026 SPRING; SHOE,RET
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ)
FINAL GEAR RATIO 41/11(GT4)
EXC. HIGH RIDE SUSPENSION(7YC)
(A)
|
8-98008-001-0 |
02 |
1 |
1001- |
● |
● |
● |
● |
● |
|
|
|
| |
21 |
05.026 SPRING; SHOE,RET
(B)
|
8-97301-502-0 |
02 |
1 |
0307-0609 |
● |
● |
● |
● |
● |
● |
● |
● |
| |
21 |
05.026 SPRING; SHOE,RET
(B)
|
8-98008-002-0 |
02 |
1 |
0610- |
● |
● |
● |
● |
● |
● |
● |
● |
| |
22 |
05.149 LEVER; PARKING BRK,WHEEL BRK
HIGH RIDE SUSPENSION(7YC)
|
8-97301-520-0 |
01 |
1 |
0307-0609 |
● |
● |
● |
● |
● |
|
|
|
| |
22 |
05.149 LEVER; PARKING BRK,WHEEL BRK
|
8-97301-520-0 |
01 |
1 |
0307-0609 |
|
|
|
|
|
● |
● |
● |
| |
22 |
05.149 LEVER; PARKING BRK,WHEEL BRK
FINAL GEAR RATIO 43/12(GM0),FINAL
GEAR RATIO 43/9(GT2),FINAL GEAR
RATIO 41/11(GT4),FINAL GEAR RATIO 41/12
(GU6),FINAL GEAR RATIO 43/11(GW1),
FINAL GEAR RATIO 43/10(GY2),FINAL GE
AR RATIO 41/8(HC3)
|
8-98007-967-0 |
01 |
1 |
0610-0610 |
● |
● |
● |
● |
● |
● |
● |
● |
| |
22 |
05.149 LEVER; PARKING BRK,WHEEL BRK
HF V6 ENG(LCA),4JA1-T ENG(LP0)
FINAL GEAR RATIO 41/10(GT5)
|
8-98007-967-0 |
01 |
1 |
0610-0610 |
● |
● |
● |
● |
● |
● |
● |
● |
| |
22 |
05.149 LEVER; PARKING BRK,WHEEL BRK
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0)
,4JJ1-TCX ENG(LS0)
FINAL GEAR RATIO 41/10(GT5)
HIGH RIDE SUSPENSION(7YC)
EXC. BRK WHL LK CONT LSPV<JR9>
|
8-98007-967-0 |
01 |
1 |
0610-0610 |
● |
● |
● |
● |
● |
|
|
|
| |
22 |
05.149 LEVER; PARKING BRK,WHEEL BRK
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0)
,4JJ1-TCX ENG(LS0)
FINAL GEAR RATIO 41/10(GT5)
LIMITED SLIP DIFF<G80>
BRK WHL LK CONT LSPV<JR9>
HIGH RIDE SUSPENSION(7YC)
|
8-98007-967-0 |
01 |
1 |
0610-0610 |
● |
● |
● |
● |
● |
|
|
|
| |
22 |
05.149 LEVER; PARKING BRK,WHEEL BRK
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0)
,4JJ1-TCX ENG(LS0)
4 WHEEL ANTI LOCK BRAKE<JE5>
FINAL GEAR RATIO 41/10(GT5)
HIGH RIDE SUSPENSION(7YC)
|
8-98007-967-0 |
01 |
1 |
0610-0610 |
● |
● |
● |
● |
● |
|
|
|
| |
22 |
05.149 LEVER; PARKING BRK,WHEEL BRK
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0)
,4JJ1-TCX ENG(LS0)
FINAL GEAR RATIO 41/10(GT5)
LIMITED SLIP DIFF<G80>
BRK WHL LK CONT LSPV<JR9>
|
8-98007-967-0 |
01 |
1 |
0610-0610 |
|
|
|
|
|
● |
● |
● |
| |
22 |
05.149 LEVER; PARKING BRK,WHEEL BRK
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0)
,4JJ1-TCX ENG(LS0)
4 WHEEL ANTI LOCK BRAKE<JE5>
FINAL GEAR RATIO 41/10(GT5)
|
8-98007-967-0 |
01 |
1 |
0610-0610 |
|
|
|
|
|
● |
● |
● |
| |
22 |
05.149 LEVER; PARKING BRK,WHEEL BRK
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0)
,4JJ1-TCX ENG(LS0)
FINAL GEAR RATIO 41/10(GT5)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
BRK WHL LK CONT LSPV<JR9>
|
8-98007-967-0 |
01 |
1 |
0610-0610 |
|
|
|
|
|
● |
● |
● |
| |
22 |
05.149 LEVER; PARKING BRK,WHEEL BRK
HIGH RIDE SUSPENSION(7YC)
|
8-98007-967-0 |
01 |
1 |
0611-0703 |
● |
● |
● |
● |
● |
|
|
|
| |
22 |
05.149 LEVER; PARKING BRK,WHEEL BRK
FINAL GEAR RATIO 41/12(GU6)
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-98007-967-0 |
01 |
1 |
0611-0703 |
● |
● |
● |
● |
● |
|
|
|
| |
22 |
05.149 LEVER; PARKING BRK,WHEEL BRK
4JK1-TCX ENG(LR0)
FINAL GEAR RATIO 41/11(GT4)
4 WHEEL ANTI LOCK BRAKE<JE5>
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-98007-967-0 |
01 |
1 |
0611-0703 |
|
|
● |
|
● |
|
|
|
| |
22 |
05.149 LEVER; PARKING BRK,WHEEL BRK
4JK1-TCX ENG(LR0)
FINAL GEAR RATIO 41/11(GT4)
BRK WHL LK CONT LSPV<JR9>
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-98007-967-0 |
01 |
1 |
0611-0703 |
|
|
● |
|
● |
|
|
|
| |
22 |
05.149 LEVER; PARKING BRK,WHEEL BRK
|
8-98007-967-0 |
01 |
1 |
0611-0703 |
|
|
|
|
|
● |
● |
● |
| |
22 |
05.149 LEVER; PARKING BRK,WHEEL BRK
HIGH RIDE SUSPENSION(7YC)
|
8-98007-967-0 |
01 |
1 |
0704- |
● |
● |
● |
● |
● |
|
|
|
| |
22 |
05.149 LEVER; PARKING BRK,WHEEL BRK
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)
FINAL GEAR RATIO 41/11(GT4),FINAL
GEAR RATIO 41/12(GU6)
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-98007-967-0 |
01 |
1 |
0704- |
● |
● |
● |
● |
● |
|
|
|
| |
22 |
05.149 LEVER; PARKING BRK,WHEEL BRK
|
8-98007-967-0 |
01 |
1 |
0704- |
|
|
|
|
|
● |
● |
● |
| |
22 |
05.149 LEVER; PARKING BRK,WHEEL BRK
HIGH RIDE SUSPENSION(7YC)
|
8-97301-519-0 |
01 |
1 |
0307-0609 |
● |
● |
● |
● |
● |
|
|
|
| |
22 |
05.149 LEVER; PARKING BRK,WHEEL BRK
|
8-97301-519-0 |
01 |
1 |
0307-0609 |
|
|
|
|
|
● |
● |
● |
| |
22 |
05.149 LEVER; PARKING BRK,WHEEL BRK
FINAL GEAR RATIO 43/12(GM0),FINAL
GEAR RATIO 43/9(GT2),FINAL GEAR
RATIO 41/11(GT4),FINAL GEAR RATIO 41/12
(GU6),FINAL GEAR RATIO 43/11(GW1),
FINAL GEAR RATIO 43/10(GY2),FINAL GE
AR RATIO 41/8(HC3)
|
8-98007-966-0 |
01 |
1 |
0610-0610 |
● |
● |
● |
● |
● |
● |
● |
● |
| |
22 |
05.149 LEVER; PARKING BRK,WHEEL BRK
HF V6 ENG(LCA),4JA1-T ENG(LP0)
FINAL GEAR RATIO 41/10(GT5)
|
8-98007-966-0 |
01 |
1 |
0610-0610 |
● |
● |
● |
● |
● |
● |
● |
● |
| |
22 |
05.149 LEVER; PARKING BRK,WHEEL BRK
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0)
,4JJ1-TCX ENG(LS0)
FINAL GEAR RATIO 41/10(GT5)
HIGH RIDE SUSPENSION(7YC)
EXC. BRK WHL LK CONT LSPV<JR9>
|
8-98007-966-0 |
01 |
1 |
0610-0610 |
● |
● |
● |
● |
● |
|
|
|
| |
22 |
05.149 LEVER; PARKING BRK,WHEEL BRK
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0)
,4JJ1-TCX ENG(LS0)
FINAL GEAR RATIO 41/10(GT5)
LIMITED SLIP DIFF<G80>
BRK WHL LK CONT LSPV<JR9>
HIGH RIDE SUSPENSION(7YC)
|
8-98007-966-0 |
01 |
1 |
0610-0610 |
● |
● |
● |
● |
● |
|
|
|
| |
22 |
05.149 LEVER; PARKING BRK,WHEEL BRK
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0)
,4JJ1-TCX ENG(LS0)
4 WHEEL ANTI LOCK BRAKE<JE5>
FINAL GEAR RATIO 41/10(GT5)
HIGH RIDE SUSPENSION(7YC)
|
8-98007-966-0 |
01 |
1 |
0610-0610 |
● |
● |
● |
● |
● |
|
|
|
| |
22 |
05.149 LEVER; PARKING BRK,WHEEL BRK
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0)
,4JJ1-TCX ENG(LS0)
FINAL GEAR RATIO 41/10(GT5)
LIMITED SLIP DIFF<G80>
BRK WHL LK CONT LSPV<JR9>
|
8-98007-966-0 |
01 |
1 |
0610-0610 |
|
|
|
|
|
● |
● |
● |
| |
22 |
05.149 LEVER; PARKING BRK,WHEEL BRK
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0)
,4JJ1-TCX ENG(LS0)
4 WHEEL ANTI LOCK BRAKE<JE5>
FINAL GEAR RATIO 41/10(GT5)
|
8-98007-966-0 |
01 |
1 |
0610-0610 |
|
|
|
|
|
● |
● |
● |
| |
22 |
05.149 LEVER; PARKING BRK,WHEEL BRK
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0)
,4JJ1-TCX ENG(LS0)
FINAL GEAR RATIO 41/10(GT5)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
BRK WHL LK CONT LSPV<JR9>
|
8-98007-966-0 |
01 |
1 |
0610-0610 |
|
|
|
|
|
● |
● |
● |
| |
22 |
05.149 LEVER; PARKING BRK,WHEEL BRK
HIGH RIDE SUSPENSION(7YC)
|
8-98007-966-0 |
01 |
1 |
0611-0703 |
● |
● |
● |
● |
● |
|
|
|
| |
22 |
05.149 LEVER; PARKING BRK,WHEEL BRK
FINAL GEAR RATIO 41/12(GU6)
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-98007-966-0 |
01 |
1 |
0611-0703 |
● |
● |
● |
● |
● |
|
|
|
| |
22 |
05.149 LEVER; PARKING BRK,WHEEL BRK
4JK1-TCX ENG(LR0)
FINAL GEAR RATIO 41/11(GT4)
4 WHEEL ANTI LOCK BRAKE<JE5>
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-98007-966-0 |
01 |
1 |
0611-0703 |
|
|
● |
|
● |
|
|
|
| |
22 |
05.149 LEVER; PARKING BRK,WHEEL BRK
4JK1-TCX ENG(LR0)
FINAL GEAR RATIO 41/11(GT4)
BRK WHL LK CONT LSPV<JR9>
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-98007-966-0 |
01 |
1 |
0611-0703 |
|
|
● |
|
● |
|
|
|
| |
22 |
05.149 LEVER; PARKING BRK,WHEEL BRK
|
8-98007-966-0 |
01 |
1 |
0611-0703 |
|
|
|
|
|
● |
● |
● |
| |
22 |
05.149 LEVER; PARKING BRK,WHEEL BRK
HIGH RIDE SUSPENSION(7YC)
|
8-98007-966-0 |
01 |
1 |
0704- |
● |
● |
● |
● |
● |
|
|
|
| |
22 |
05.149 LEVER; PARKING BRK,WHEEL BRK
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)
FINAL GEAR RATIO 41/11(GT4),FINAL
GEAR RATIO 41/12(GU6)
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-98007-966-0 |
01 |
1 |
0704- |
● |
● |
● |
● |
● |
|
|
|
| |
22 |
05.149 LEVER; PARKING BRK,WHEEL BRK
|
8-98007-966-0 |
01 |
1 |
0704- |
|
|
|
|
|
● |
● |
● |
| |
22 |
05.149 LEVER; PARKING BRK,WHEEL BRK
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-97301-491-0 |
01 |
1 |
0307-0609 |
● |
● |
● |
● |
● |
|
|
|
| |
22 |
05.149 LEVER; PARKING BRK,WHEEL BRK
FINAL GEAR RATIO 43/9(GT2),FINAL
GEAR RATIO 41/9(GT3),FINAL GEAR
RATIO41/10(GT5),FINAL GEAR RATIO
43/11(GW1),FINAL GEAR RATIO 43/10(GY2)
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-98007-965-0 |
01 |
1 |
0610-0703 |
● |
● |
● |
● |
● |
|
|
|
| |
22 |
05.149 LEVER; PARKING BRK,WHEEL BRK
FINAL GEAR RATIO 41/11(GT4)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
BRK WHL LK CONT LSPV<JR9>,HIGH
RIDESUSPENSION(7YC)
|
8-98007-965-0 |
01 |
1 |
0610-0703 |
● |
● |
● |
● |
● |
|
|
|
| |
22 |
05.149 LEVER; PARKING BRK,WHEEL BRK
4JJ1-TCS ENG(LFB)
FINAL GEAR RATIO 41/11(GT4)
4 WHEEL ANTI LOCK BRAKE<JE5>
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-98007-965-0 |
01 |
1 |
0610-0703 |
● |
|
● |
|
● |
|
|
|
| |
22 |
05.149 LEVER; PARKING BRK,WHEEL BRK
4JJ1-TCS ENG(LFB)
FINAL GEAR RATIO 41/11(GT4)
BRK WHL LK CONT LSPV<JR9>
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-98007-965-0 |
01 |
1 |
0610-0703 |
● |
|
● |
|
● |
|
|
|
| |
22 |
05.149 LEVER; PARKING BRK,WHEEL BRK
FINAL GEAR RATIO 43/9(GT2),FINAL
GEAR RATIO 41/9(GT3),FINAL GEAR
RATIO41/10(GT5),FINAL GEAR RATIO
43/11(GW1),FINAL GEAR RATIO 43/10(GY2)
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-98007-965-0 |
01 |
1 |
0704-0709 |
● |
● |
● |
● |
● |
|
|
|
| |
22 |
05.149 LEVER; PARKING BRK,WHEEL BRK
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ)
FINAL GEAR RATIO 41/11(GT4)
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-98007-965-0 |
01 |
1 |
0704-0709 |
● |
● |
● |
● |
● |
|
|
|
| |
22 |
05.149 LEVER; PARKING BRK,WHEEL BRK
FINAL GEAR RATIO 43/9(GT2),FINAL
GEAR RATIO 41/9(GT3),FINAL GEAR
RATIO41/10(GT5),FINAL GEAR RATIO
43/11(GW1),FINAL GEAR RATIO 43/10(GY2)
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-98007-965-0 |
01 |
1 |
0710-0912 |
● |
● |
● |
● |
● |
|
|
|
| |
22 |
05.149 LEVER; PARKING BRK,WHEEL BRK
4JJ1-TCS ENG(LFB)
FINAL GEAR RATIO 41/11(GT4)
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-98007-965-0 |
01 |
1 |
0710-0912 |
● |
● |
● |
● |
● |
|
|
|
| |
22 |
05.149 LEVER; PARKING BRK,WHEEL BRK
FINAL GEAR RATIO 43/9(GT2),FINAL
GEAR RATIO 41/9(GT3),FINAL GEAR
RATIO41/10(GT5),FINAL GEAR RATIO
43/11(GW1),FINAL GEAR RATIO 43/10(GY2)
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-98007-965-0 |
01 |
1 |
1001- |
● |
● |
● |
● |
● |
|
|
|
| |
22 |
05.149 LEVER; PARKING BRK,WHEEL BRK
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ)
FINAL GEAR RATIO 41/11(GT4)
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-98007-965-0 |
01 |
1 |
1001- |
● |
● |
● |
● |
● |
|
|
|
| |
22 |
05.149 LEVER; PARKING BRK,WHEEL BRK
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-97301-490-0 |
01 |
1 |
0307-0609 |
● |
● |
● |
● |
● |
|
|
|
| |
22 |
05.149 LEVER; PARKING BRK,WHEEL BRK
FINAL GEAR RATIO 43/9(GT2),FINAL
GEAR RATIO 41/9(GT3),FINAL GEAR
RATIO41/10(GT5),FINAL GEAR RATIO
43/11(GW1),FINAL GEAR RATIO 43/10(GY2)
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-98007-964-0 |
01 |
1 |
0610-0703 |
● |
● |
● |
● |
● |
|
|
|
| |
22 |
05.149 LEVER; PARKING BRK,WHEEL BRK
FINAL GEAR RATIO 41/11(GT4)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
BRK WHL LK CONT LSPV<JR9>,HIGH
RIDESUSPENSION(7YC)
|
8-98007-964-0 |
01 |
1 |
0610-0703 |
● |
● |
● |
● |
● |
|
|
|
| |
22 |
05.149 LEVER; PARKING BRK,WHEEL BRK
4JJ1-TCS ENG(LFB)
FINAL GEAR RATIO 41/11(GT4)
4 WHEEL ANTI LOCK BRAKE<JE5>
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-98007-964-0 |
01 |
1 |
0610-0703 |
● |
|
● |
|
● |
|
|
|
| |
22 |
05.149 LEVER; PARKING BRK,WHEEL BRK
4JJ1-TCS ENG(LFB)
FINAL GEAR RATIO 41/11(GT4)
BRK WHL LK CONT LSPV<JR9>
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-98007-964-0 |
01 |
1 |
0610-0703 |
● |
|
● |
|
● |
|
|
|
| |
22 |
05.149 LEVER; PARKING BRK,WHEEL BRK
FINAL GEAR RATIO 43/9(GT2),FINAL
GEAR RATIO 41/9(GT3),FINAL GEAR
RATIO41/10(GT5),FINAL GEAR RATIO
43/11(GW1),FINAL GEAR RATIO 43/10(GY2)
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-98007-964-0 |
01 |
1 |
0704-0709 |
● |
● |
● |
● |
● |
|
|
|
| |
22 |
05.149 LEVER; PARKING BRK,WHEEL BRK
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ)
FINAL GEAR RATIO 41/11(GT4)
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-98007-964-0 |
01 |
1 |
0704-0709 |
● |
● |
● |
● |
● |
|
|
|
| |
22 |
05.149 LEVER; PARKING BRK,WHEEL BRK
FINAL GEAR RATIO 43/9(GT2),FINAL
GEAR RATIO 41/9(GT3),FINAL GEAR
RATIO41/10(GT5),FINAL GEAR RATIO
43/11(GW1),FINAL GEAR RATIO 43/10(GY2)
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-98007-964-0 |
01 |
1 |
0710-0912 |
● |
● |
● |
● |
● |
|
|
|
| |
22 |
05.149 LEVER; PARKING BRK,WHEEL BRK
4JJ1-TCS ENG(LFB)
FINAL GEAR RATIO 41/11(GT4)
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-98007-964-0 |
01 |
1 |
0710-0912 |
● |
● |
● |
● |
● |
|
|
|
| |
22 |
05.149 LEVER; PARKING BRK,WHEEL BRK
FINAL GEAR RATIO 43/9(GT2),FINAL
GEAR RATIO 41/9(GT3),FINAL GEAR
RATIO41/10(GT5),FINAL GEAR RATIO
43/11(GW1),FINAL GEAR RATIO 43/10(GY2)
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-98007-964-0 |
01 |
1 |
1001- |
● |
● |
● |
● |
● |
|
|
|
| |
22 |
05.149 LEVER; PARKING BRK,WHEEL BRK
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ)
FINAL GEAR RATIO 41/11(GT4)
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-98007-964-0 |
01 |
1 |
1001- |
● |
● |
● |
● |
● |
|
|
|
| |
24 |
05.158 RETAINER; PARKING BRK
|
8-97301-493-0 |
02 |
1 |
0307- |
● |
● |
● |
● |
● |
● |
● |
● |
| |
26 |
05.001 PLATE; BACK,RR BRK
HIGH RIDE SUSPENSION(7YC)
|
8-97301-515-1 |
01 |
1 |
0307-0609 |
● |
● |
● |
● |
● |
|
|
|
| |
26 |
05.001 PLATE; BACK,RR BRK
|
8-97301-515-1 |
01 |
1 |
0307-0609 |
|
|
|
|
|
● |
● |
● |
| |
26 |
05.001 PLATE; BACK,RR BRK
FINAL GEAR RATIO 43/12(GM0),FINAL
GEAR RATIO 43/9(GT2),FINAL GEAR
RATIO 41/11(GT4),FINAL GEAR RATIO 41/12
(GU6),FINAL GEAR RATIO 43/11(GW1),
FINAL GEAR RATIO 43/10(GY2),FINAL GE
AR RATIO 41/8(HC3)
|
8-97301-515-1 |
01 |
1 |
0610-0610 |
● |
● |
● |
● |
● |
● |
● |
● |
| |
26 |
05.001 PLATE; BACK,RR BRK
HF V6 ENG(LCA),4JA1-T ENG(LP0)
FINAL GEAR RATIO 41/10(GT5)
|
8-97301-515-1 |
01 |
1 |
0610-0610 |
● |
● |
● |
● |
● |
● |
● |
● |
| |
26 |
05.001 PLATE; BACK,RR BRK
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0)
,4JJ1-TCX ENG(LS0)
FINAL GEAR RATIO 41/10(GT5)
HIGH RIDE SUSPENSION(7YC)
EXC. BRK WHL LK CONT LSPV<JR9>
|
8-97301-515-1 |
01 |
1 |
0610-0610 |
● |
● |
● |
● |
● |
|
|
|
| |
26 |
05.001 PLATE; BACK,RR BRK
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0)
,4JJ1-TCX ENG(LS0)
FINAL GEAR RATIO 41/10(GT5)
LIMITED SLIP DIFF<G80>
BRK WHL LK CONT LSPV<JR9>
HIGH RIDE SUSPENSION(7YC)
|
8-97301-515-1 |
01 |
1 |
0610-0610 |
● |
● |
● |
● |
● |
|
|
|
| |
26 |
05.001 PLATE; BACK,RR BRK
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0)
,4JJ1-TCX ENG(LS0)
4 WHEEL ANTI LOCK BRAKE<JE5>
FINAL GEAR RATIO 41/10(GT5)
HIGH RIDE SUSPENSION(7YC)
|
8-97301-515-1 |
01 |
1 |
0610-0610 |
● |
● |
● |
● |
● |
|
|
|
| |
26 |
05.001 PLATE; BACK,RR BRK
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0)
,4JJ1-TCX ENG(LS0)
FINAL GEAR RATIO 41/10(GT5)
LIMITED SLIP DIFF<G80>
BRK WHL LK CONT LSPV<JR9>
|
8-97301-515-1 |
01 |
1 |
0610-0610 |
|
|
|
|
|
● |
● |
● |
| |
26 |
05.001 PLATE; BACK,RR BRK
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0)
,4JJ1-TCX ENG(LS0)
4 WHEEL ANTI LOCK BRAKE<JE5>
FINAL GEAR RATIO 41/10(GT5)
|
8-97301-515-1 |
01 |
1 |
0610-0610 |
|
|
|
|
|
● |
● |
● |
| |
26 |
05.001 PLATE; BACK,RR BRK
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0)
,4JJ1-TCX ENG(LS0)
FINAL GEAR RATIO 41/10(GT5)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
BRK WHL LK CONT LSPV<JR9>
|
8-97301-515-1 |
01 |
1 |
0610-0610 |
|
|
|
|
|
● |
● |
● |
| |
26 |
05.001 PLATE; BACK,RR BRK
HIGH RIDE SUSPENSION(7YC)
|
8-97301-515-1 |
01 |
1 |
0611-0703 |
● |
● |
● |
● |
● |
|
|
|
| |
26 |
05.001 PLATE; BACK,RR BRK
FINAL GEAR RATIO 41/12(GU6)
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-97301-515-1 |
01 |
1 |
0611-0703 |
● |
● |
● |
● |
● |
|
|
|
| |
26 |
05.001 PLATE; BACK,RR BRK
4JK1-TCX ENG(LR0)
FINAL GEAR RATIO 41/11(GT4)
4 WHEEL ANTI LOCK BRAKE<JE5>
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-97301-515-1 |
01 |
1 |
0611-0703 |
|
|
● |
|
● |
|
|
|
| |
26 |
05.001 PLATE; BACK,RR BRK
4JK1-TCX ENG(LR0)
FINAL GEAR RATIO 41/11(GT4)
BRK WHL LK CONT LSPV<JR9>
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-97301-515-1 |
01 |
1 |
0611-0703 |
|
|
● |
|
● |
|
|
|
| |
26 |
05.001 PLATE; BACK,RR BRK
|
8-97301-515-1 |
01 |
1 |
0611-0703 |
|
|
|
|
|
● |
● |
● |
| |
26 |
05.001 PLATE; BACK,RR BRK
HIGH RIDE SUSPENSION(7YC)
|
8-97301-515-1 |
01 |
1 |
0704- |
● |
● |
● |
● |
● |
|
|
|
| |
26 |
05.001 PLATE; BACK,RR BRK
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)
FINAL GEAR RATIO 41/11(GT4),FINAL
GEAR RATIO 41/12(GU6)
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-97301-515-1 |
01 |
1 |
0704- |
● |
● |
● |
● |
● |
|
|
|
| |
26 |
05.001 PLATE; BACK,RR BRK
|
8-97301-515-1 |
01 |
1 |
0704- |
|
|
|
|
|
● |
● |
● |
| |
26 |
05.001 PLATE; BACK,RR BRK
HIGH RIDE SUSPENSION(7YC)
|
8-97301-514-1 |
01 |
1 |
0307-0609 |
● |
● |
● |
● |
● |
|
|
|
| |
26 |
05.001 PLATE; BACK,RR BRK
|
8-97301-514-1 |
01 |
1 |
0307-0609 |
|
|
|
|
|
● |
● |
● |
| |
26 |
05.001 PLATE; BACK,RR BRK
FINAL GEAR RATIO 43/12(GM0),FINAL
GEAR RATIO 43/9(GT2),FINAL GEAR
RATIO 41/11(GT4),FINAL GEAR RATIO 41/12
(GU6),FINAL GEAR RATIO 43/11(GW1),
FINAL GEAR RATIO 43/10(GY2),FINAL GE
AR RATIO 41/8(HC3)
|
8-97301-514-1 |
01 |
1 |
0610-0610 |
● |
● |
● |
● |
● |
● |
● |
● |
| |
26 |
05.001 PLATE; BACK,RR BRK
HF V6 ENG(LCA),4JA1-T ENG(LP0)
FINAL GEAR RATIO 41/10(GT5)
|
8-97301-514-1 |
01 |
1 |
0610-0610 |
● |
● |
● |
● |
● |
● |
● |
● |
| |
26 |
05.001 PLATE; BACK,RR BRK
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0)
,4JJ1-TCX ENG(LS0)
FINAL GEAR RATIO 41/10(GT5)
HIGH RIDE SUSPENSION(7YC)
EXC. BRK WHL LK CONT LSPV<JR9>
|
8-97301-514-1 |
01 |
1 |
0610-0610 |
● |
● |
● |
● |
● |
|
|
|
| |
26 |
05.001 PLATE; BACK,RR BRK
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0)
,4JJ1-TCX ENG(LS0)
FINAL GEAR RATIO 41/10(GT5)
LIMITED SLIP DIFF<G80>
BRK WHL LK CONT LSPV<JR9>
HIGH RIDE SUSPENSION(7YC)
|
8-97301-514-1 |
01 |
1 |
0610-0610 |
● |
● |
● |
● |
● |
|
|
|
| |
26 |
05.001 PLATE; BACK,RR BRK
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0)
,4JJ1-TCX ENG(LS0)
4 WHEEL ANTI LOCK BRAKE<JE5>
FINAL GEAR RATIO 41/10(GT5)
HIGH RIDE SUSPENSION(7YC)
|
8-97301-514-1 |
01 |
1 |
0610-0610 |
● |
● |
● |
● |
● |
|
|
|
| |
26 |
05.001 PLATE; BACK,RR BRK
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0)
,4JJ1-TCX ENG(LS0)
FINAL GEAR RATIO 41/10(GT5)
LIMITED SLIP DIFF<G80>
BRK WHL LK CONT LSPV<JR9>
|
8-97301-514-1 |
01 |
1 |
0610-0610 |
|
|
|
|
|
● |
● |
● |
| |
26 |
05.001 PLATE; BACK,RR BRK
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0)
,4JJ1-TCX ENG(LS0)
4 WHEEL ANTI LOCK BRAKE<JE5>
FINAL GEAR RATIO 41/10(GT5)
|
8-97301-514-1 |
01 |
1 |
0610-0610 |
|
|
|
|
|
● |
● |
● |
| |
26 |
05.001 PLATE; BACK,RR BRK
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0)
,4JJ1-TCX ENG(LS0)
FINAL GEAR RATIO 41/10(GT5)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
BRK WHL LK CONT LSPV<JR9>
|
8-97301-514-1 |
01 |
1 |
0610-0610 |
|
|
|
|
|
● |
● |
● |
| |
26 |
05.001 PLATE; BACK,RR BRK
HIGH RIDE SUSPENSION(7YC)
|
8-97301-514-1 |
01 |
1 |
0611-0703 |
● |
● |
● |
● |
● |
|
|
|
| |
26 |
05.001 PLATE; BACK,RR BRK
FINAL GEAR RATIO 41/12(GU6)
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-97301-514-1 |
01 |
1 |
0611-0703 |
● |
● |
● |
● |
● |
|
|
|
| |
26 |
05.001 PLATE; BACK,RR BRK
4JK1-TCX ENG(LR0)
FINAL GEAR RATIO 41/11(GT4)
4 WHEEL ANTI LOCK BRAKE<JE5>
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-97301-514-1 |
01 |
1 |
0611-0703 |
|
|
● |
|
● |
|
|
|
| |
26 |
05.001 PLATE; BACK,RR BRK
4JK1-TCX ENG(LR0)
FINAL GEAR RATIO 41/11(GT4)
BRK WHL LK CONT LSPV<JR9>
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-97301-514-1 |
01 |
1 |
0611-0703 |
|
|
● |
|
● |
|
|
|
| |
26 |
05.001 PLATE; BACK,RR BRK
|
8-97301-514-1 |
01 |
1 |
0611-0703 |
|
|
|
|
|
● |
● |
● |
| |
26 |
05.001 PLATE; BACK,RR BRK
HIGH RIDE SUSPENSION(7YC)
|
8-97301-514-1 |
01 |
1 |
0704- |
● |
● |
● |
● |
● |
|
|
|
| |
26 |
05.001 PLATE; BACK,RR BRK
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)
FINAL GEAR RATIO 41/11(GT4),FINAL
GEAR RATIO 41/12(GU6)
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-97301-514-1 |
01 |
1 |
0704- |
● |
● |
● |
● |
● |
|
|
|
| |
26 |
05.001 PLATE; BACK,RR BRK
|
8-97301-514-1 |
01 |
1 |
0704- |
|
|
|
|
|
● |
● |
● |
| |
26 |
05.001 PLATE; BACK,RR BRK
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-97301-476-1 |
01 |
1 |
0307-0609 |
● |
● |
● |
● |
● |
|
|
|
| |
26 |
05.001 PLATE; BACK,RR BRK
FINAL GEAR RATIO 43/9(GT2),FINAL
GEAR RATIO 41/9(GT3),FINAL GEAR
RATIO41/10(GT5),FINAL GEAR RATIO
43/11(GW1),FINAL GEAR RATIO 43/10(GY2)
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-97301-476-1 |
01 |
1 |
0610-0703 |
● |
● |
● |
● |
● |
|
|
|
| |
26 |
05.001 PLATE; BACK,RR BRK
FINAL GEAR RATIO 41/11(GT4)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
BRK WHL LK CONT LSPV<JR9>,HIGH
RIDESUSPENSION(7YC)
|
8-97301-476-1 |
01 |
1 |
0610-0703 |
● |
● |
● |
● |
● |
|
|
|
| |
26 |
05.001 PLATE; BACK,RR BRK
4JJ1-TCS ENG(LFB)
FINAL GEAR RATIO 41/11(GT4)
4 WHEEL ANTI LOCK BRAKE<JE5>
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-97301-476-1 |
01 |
1 |
0610-0703 |
● |
|
● |
|
● |
|
|
|
| |
26 |
05.001 PLATE; BACK,RR BRK
4JJ1-TCS ENG(LFB)
FINAL GEAR RATIO 41/11(GT4)
BRK WHL LK CONT LSPV<JR9>
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-97301-476-1 |
01 |
1 |
0610-0703 |
● |
|
● |
|
● |
|
|
|
| |
26 |
05.001 PLATE; BACK,RR BRK
FINAL GEAR RATIO 43/9(GT2),FINAL
GEAR RATIO 41/9(GT3),FINAL GEAR
RATIO41/10(GT5),FINAL GEAR RATIO
43/11(GW1),FINAL GEAR RATIO 43/10(GY2)
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-97301-476-1 |
01 |
1 |
0704-0709 |
● |
● |
● |
● |
● |
|
|
|
| |
26 |
05.001 PLATE; BACK,RR BRK
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ)
FINAL GEAR RATIO 41/11(GT4)
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-97301-476-1 |
01 |
1 |
0704-0709 |
● |
● |
● |
● |
● |
|
|
|
| |
26 |
05.001 PLATE; BACK,RR BRK
FINAL GEAR RATIO 43/9(GT2),FINAL
GEAR RATIO 41/9(GT3),FINAL GEAR
RATIO41/10(GT5),FINAL GEAR RATIO
43/11(GW1),FINAL GEAR RATIO 43/10(GY2)
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-97301-476-1 |
01 |
1 |
0710-0912 |
● |
● |
● |
● |
● |
|
|
|
| |
26 |
05.001 PLATE; BACK,RR BRK
4JJ1-TCS ENG(LFB)
FINAL GEAR RATIO 41/11(GT4)
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-97301-476-1 |
01 |
1 |
0710-0912 |
● |
● |
● |
● |
● |
|
|
|
| |
26 |
05.001 PLATE; BACK,RR BRK
FINAL GEAR RATIO 43/9(GT2),FINAL
GEAR RATIO 41/9(GT3),FINAL GEAR
RATIO41/10(GT5),FINAL GEAR RATIO
43/11(GW1),FINAL GEAR RATIO 43/10(GY2)
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-97301-476-1 |
01 |
1 |
1001- |
● |
● |
● |
● |
● |
|
|
|
| |
26 |
05.001 PLATE; BACK,RR BRK
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ)
FINAL GEAR RATIO 41/11(GT4)
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-97301-476-1 |
01 |
1 |
1001- |
● |
● |
● |
● |
● |
|
|
|
| |
26 |
05.001 PLATE; BACK,RR BRK
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-97301-474-1 |
01 |
1 |
0307-0609 |
● |
● |
● |
● |
● |
|
|
|
| |
26 |
05.001 PLATE; BACK,RR BRK
FINAL GEAR RATIO 43/9(GT2),FINAL
GEAR RATIO 41/9(GT3),FINAL GEAR
RATIO41/10(GT5),FINAL GEAR RATIO
43/11(GW1),FINAL GEAR RATIO 43/10(GY2)
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-97301-474-1 |
01 |
1 |
0610-0703 |
● |
● |
● |
● |
● |
|
|
|
| |
26 |
05.001 PLATE; BACK,RR BRK
FINAL GEAR RATIO 41/11(GT4)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
BRK WHL LK CONT LSPV<JR9>,HIGH
RIDESUSPENSION(7YC)
|
8-97301-474-1 |
01 |
1 |
0610-0703 |
● |
● |
● |
● |
● |
|
|
|
| |
26 |
05.001 PLATE; BACK,RR BRK
4JJ1-TCS ENG(LFB)
FINAL GEAR RATIO 41/11(GT4)
4 WHEEL ANTI LOCK BRAKE<JE5>
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-97301-474-1 |
01 |
1 |
0610-0703 |
● |
|
● |
|
● |
|
|
|
| |
26 |
05.001 PLATE; BACK,RR BRK
4JJ1-TCS ENG(LFB)
FINAL GEAR RATIO 41/11(GT4)
BRK WHL LK CONT LSPV<JR9>
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-97301-474-1 |
01 |
1 |
0610-0703 |
● |
|
● |
|
● |
|
|
|
| |
26 |
05.001 PLATE; BACK,RR BRK
FINAL GEAR RATIO 43/9(GT2),FINAL
GEAR RATIO 41/9(GT3),FINAL GEAR
RATIO41/10(GT5),FINAL GEAR RATIO
43/11(GW1),FINAL GEAR RATIO 43/10(GY2)
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-97301-474-1 |
01 |
1 |
0704-0709 |
● |
● |
● |
● |
● |
|
|
|
| |
26 |
05.001 PLATE; BACK,RR BRK
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ)
FINAL GEAR RATIO 41/11(GT4)
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-97301-474-1 |
01 |
1 |
0704-0709 |
● |
● |
● |
● |
● |
|
|
|
| |
26 |
05.001 PLATE; BACK,RR BRK
FINAL GEAR RATIO 43/9(GT2),FINAL
GEAR RATIO 41/9(GT3),FINAL GEAR
RATIO41/10(GT5),FINAL GEAR RATIO
43/11(GW1),FINAL GEAR RATIO 43/10(GY2)
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-97301-474-1 |
01 |
1 |
0710-0912 |
● |
● |
● |
● |
● |
|
|
|
| |
26 |
05.001 PLATE; BACK,RR BRK
4JJ1-TCS ENG(LFB)
FINAL GEAR RATIO 41/11(GT4)
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-97301-474-1 |
01 |
1 |
0710-0912 |
● |
● |
● |
● |
● |
|
|
|
| |
26 |
05.001 PLATE; BACK,RR BRK
FINAL GEAR RATIO 43/9(GT2),FINAL
GEAR RATIO 41/9(GT3),FINAL GEAR
RATIO41/10(GT5),FINAL GEAR RATIO
43/11(GW1),FINAL GEAR RATIO 43/10(GY2)
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-97301-474-1 |
01 |
1 |
1001- |
● |
● |
● |
● |
● |
|
|
|
| |
26 |
05.001 PLATE; BACK,RR BRK
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ)
FINAL GEAR RATIO 41/11(GT4)
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-97301-474-1 |
01 |
1 |
1001- |
● |
● |
● |
● |
● |
|
|
|
| |
28 |
05.117 COVER; ADJ HOLE
FINAL GEAR RATIO 43/9(GT2),FINAL
GEAR RATIO 41/9(GT3),FINAL GEAR
RATIO41/10(GT5),FINAL GEAR RATIO
43/10(GY2),FINAL GEAR RATIO 41/8(HC3)
|
8-97301-477-0 |
04 |
1 |
0307-0609 |
● |
● |
● |
● |
● |
● |
● |
● |
| |
28 |
05.117 COVER; ADJ HOLE
FINAL GEAR RATIO 43/11(GW1)
EXC. LIMITED SLIP DIFF<G80>,HIGH
RIDE SUSPENSION(7YC)
|
8-97301-477-0 |
04 |
1 |
0307-0609 |
● |
|
● |
|
● |
|
|
|
| |
28 |
05.117 COVER; ADJ HOLE
FINAL GEAR RATIO 43/11(GW1)
LIMITED SLIP DIFF<G80>
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-97301-477-0 |
05 |
1 |
0307-0609 |
● |
|
● |
|
● |
|
|
|
| |
28 |
05.117 COVER; ADJ HOLE
|
8-97301-477-0 |
04 |
1 |
0610- |
● |
● |
● |
● |
● |
● |
● |
● |
| |
31 |
04.665 BOLT; RR WHEEL CYL
|
8-97333-973-0 |
04 |
1 |
0307-0609 |
● |
● |
● |
● |
● |
● |
● |
● |
| |
31 |
04.665 BOLT; RR WHEEL CYL
|
8-98008-015-0 |
04 |
1 |
0610- |
● |
● |
● |
● |
● |
● |
● |
● |
| |
32 |
05.056 WASHER; LK
|
8-97301-492-0 |
02 |
1 |
0307- |
● |
● |
● |
● |
● |
● |
● |
● |
| |
33 |
05.043 PIN; SHOE HOLD DOWN
(A)
|
8-97301-509-0 |
04 |
1 |
0307- |
● |
● |
● |
● |
● |
● |
● |
● |
| |
33 |
05.043 PIN; SHOE HOLD DOWN
(B)
|
8-97301-511-0 |
02 |
1 |
0307-0609 |
● |
● |
● |
● |
● |
● |
● |
● |
| |
33 |
05.043 PIN; SHOE HOLD DOWN
(B)
|
8-98008-034-0 |
02 |
1 |
0610- |
● |
● |
● |
● |
● |
● |
● |
● |
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
HIGH RIDE SUSPENSION(7YC)
|
8-97319-300-0 |
02 |
1 |
0307-0609 |
● |
● |
● |
● |
● |
|
|
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
|
8-97319-300-0 |
02 |
1 |
0307-0609 |
|
|
|
|
|
● |
● |
● |
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
FINAL GEAR RATIO 43/12(GM0),FINAL
GEAR RATIO 43/9(GT2),FINAL GEAR
RATIO 41/11(GT4),FINAL GEAR RATIO 41/12
(GU6),FINAL GEAR RATIO 43/11(GW1),
FINAL GEAR RATIO 43/10(GY2),FINAL GE
AR RATIO 41/8(HC3)
|
8-97319-300-0 |
02 |
1 |
0610-0610 |
● |
● |
● |
● |
● |
● |
● |
● |
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
HF V6 ENG(LCA),4JA1-T ENG(LP0)
FINAL GEAR RATIO 41/10(GT5)
|
8-97319-300-0 |
02 |
1 |
0610-0610 |
● |
● |
● |
● |
● |
● |
● |
● |
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0)
,4JJ1-TCX ENG(LS0)
FINAL GEAR RATIO 41/10(GT5)
HIGH RIDE SUSPENSION(7YC)
EXC. BRK WHL LK CONT LSPV<JR9>
|
8-97319-300-0 |
02 |
1 |
0610-0610 |
● |
● |
● |
● |
● |
|
|
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0)
,4JJ1-TCX ENG(LS0)
FINAL GEAR RATIO 41/10(GT5)
LIMITED SLIP DIFF<G80>
BRK WHL LK CONT LSPV<JR9>
HIGH RIDE SUSPENSION(7YC)
|
8-97319-300-0 |
02 |
1 |
0610-0610 |
● |
● |
● |
● |
● |
|
|
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0)
,4JJ1-TCX ENG(LS0)
4 WHEEL ANTI LOCK BRAKE<JE5>
FINAL GEAR RATIO 41/10(GT5)
HIGH RIDE SUSPENSION(7YC)
|
8-97319-300-0 |
02 |
1 |
0610-0610 |
● |
● |
● |
● |
● |
|
|
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0)
,4JJ1-TCX ENG(LS0)
FINAL GEAR RATIO 41/10(GT5)
LIMITED SLIP DIFF<G80>
BRK WHL LK CONT LSPV<JR9>
|
8-97319-300-0 |
02 |
1 |
0610-0610 |
|
|
|
|
|
● |
● |
● |
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0)
,4JJ1-TCX ENG(LS0)
4 WHEEL ANTI LOCK BRAKE<JE5>
FINAL GEAR RATIO 41/10(GT5)
|
8-97319-300-0 |
02 |
1 |
0610-0610 |
|
|
|
|
|
● |
● |
● |
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0)
,4JJ1-TCX ENG(LS0)
FINAL GEAR RATIO 41/10(GT5)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
BRK WHL LK CONT LSPV<JR9>
|
8-97319-300-0 |
02 |
1 |
0610-0610 |
|
|
|
|
|
● |
● |
● |
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
HIGH RIDE SUSPENSION(7YC)
|
8-97319-300-0 |
02 |
1 |
0611-0703 |
● |
● |
● |
● |
● |
|
|
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
FINAL GEAR RATIO 41/12(GU6)
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-97319-300-0 |
02 |
1 |
0611-0703 |
● |
● |
● |
● |
● |
|
|
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
4JK1-TCX ENG(LR0)
FINAL GEAR RATIO 41/11(GT4)
4 WHEEL ANTI LOCK BRAKE<JE5>
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-97319-300-0 |
02 |
1 |
0611-0703 |
|
|
● |
|
● |
|
|
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
4JK1-TCX ENG(LR0)
FINAL GEAR RATIO 41/11(GT4)
BRK WHL LK CONT LSPV<JR9>
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-97319-300-0 |
02 |
1 |
0611-0703 |
|
|
● |
|
● |
|
|
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
|
8-97319-300-0 |
02 |
1 |
0611-0703 |
|
|
|
|
|
● |
● |
● |
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
HIGH RIDE SUSPENSION(7YC)
|
8-97319-300-0 |
02 |
1 |
0704- |
● |
● |
● |
● |
● |
|
|
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)
FINAL GEAR RATIO 41/11(GT4),FINAL
GEAR RATIO 41/12(GU6)
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-97319-300-0 |
02 |
1 |
0704- |
● |
● |
● |
● |
● |
|
|
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
|
8-97319-300-0 |
02 |
1 |
0704- |
|
|
|
|
|
● |
● |
● |
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-97301-478-0 |
02 |
1 |
0307-0609 |
● |
● |
● |
● |
● |
|
|
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
FINAL GEAR RATIO 43/9(GT2),FINAL
GEAR RATIO 41/9(GT3),FINAL GEAR
RATIO41/10(GT5),FINAL GEAR RATIO
43/11(GW1),FINAL GEAR RATIO 43/10(GY2)
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-97301-478-0 |
02 |
1 |
0610-0703 |
● |
● |
● |
● |
● |
|
|
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
FINAL GEAR RATIO 41/11(GT4)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
BRK WHL LK CONT LSPV<JR9>,HIGH
RIDESUSPENSION(7YC)
|
8-97301-478-0 |
02 |
1 |
0610-0703 |
● |
● |
● |
● |
● |
|
|
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
4JJ1-TCS ENG(LFB)
FINAL GEAR RATIO 41/11(GT4)
4 WHEEL ANTI LOCK BRAKE<JE5>
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-97301-478-0 |
02 |
1 |
0610-0703 |
● |
|
● |
|
● |
|
|
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
4JJ1-TCS ENG(LFB)
FINAL GEAR RATIO 41/11(GT4)
BRK WHL LK CONT LSPV<JR9>
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-97301-478-0 |
02 |
1 |
0610-0703 |
● |
|
● |
|
● |
|
|
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
FINAL GEAR RATIO 43/9(GT2),FINAL
GEAR RATIO 41/9(GT3),FINAL GEAR
RATIO41/10(GT5),FINAL GEAR RATIO
43/11(GW1),FINAL GEAR RATIO 43/10(GY2)
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-97301-478-0 |
02 |
1 |
0704-0709 |
● |
● |
● |
● |
● |
|
|
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ)
FINAL GEAR RATIO 41/11(GT4)
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-97301-478-0 |
02 |
1 |
0704-0709 |
● |
● |
● |
● |
● |
|
|
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
FINAL GEAR RATIO 43/9(GT2),FINAL
GEAR RATIO 41/9(GT3),FINAL GEAR
RATIO41/10(GT5),FINAL GEAR RATIO
43/11(GW1),FINAL GEAR RATIO 43/10(GY2)
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-97301-478-0 |
02 |
1 |
0710-0912 |
● |
● |
● |
● |
● |
|
|
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
4JJ1-TCS ENG(LFB)
FINAL GEAR RATIO 41/11(GT4)
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-97301-478-0 |
02 |
1 |
0710-0912 |
● |
● |
● |
● |
● |
|
|
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
FINAL GEAR RATIO 43/9(GT2),FINAL
GEAR RATIO 41/9(GT3),FINAL GEAR
RATIO41/10(GT5),FINAL GEAR RATIO
43/11(GW1),FINAL GEAR RATIO 43/10(GY2)
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-97301-478-0 |
02 |
1 |
1001- |
● |
● |
● |
● |
● |
|
|
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ)
FINAL GEAR RATIO 41/11(GT4)
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-97301-478-0 |
02 |
1 |
1001- |
● |
● |
● |
● |
● |
|
|
|
| |
95 |
04.665 CUP SET; RR WHEEL CYL
FINAL GEAR RATIO 43/9(GT2),FINAL
GEAR RATIO 41/9(GT3),FINAL GEAR
RATIO41/10(GT5),FINAL GEAR RATIO
43/11(GW1),FINAL GEAR RATIO 43/10(GY2)
EXC. HIGH RIDE SUSPENSION(7YC)
(B)
WO/PISTON
|
5-87832-246-0 |
01 |
1 |
0710-0912 |
● |
● |
● |
● |
● |
|
|
|
| |
95 |
04.665 CUP SET; RR WHEEL CYL
4JJ1-TCS ENG(LFB)
FINAL GEAR RATIO 41/11(GT4)
EXC. HIGH RIDE SUSPENSION(7YC)
(B)
WO/PISTON
|
5-87832-246-0 |
01 |
1 |
0710-0912 |
● |
● |
● |
● |
● |
|
|
|
| |
95 |
04.665 CUP SET; RR WHEEL CYL
FINAL GEAR RATIO 43/9(GT2),FINAL
GEAR RATIO 41/9(GT3),FINAL GEAR
RATIO41/10(GT5),FINAL GEAR RATIO
43/11(GW1),FINAL GEAR RATIO 43/10(GY2)
EXC. HIGH RIDE SUSPENSION(7YC)
(B)
WO/PISTON
|
5-87832-246-0 |
01 |
1 |
1001- |
● |
● |
● |
● |
● |
|
|
|
| |
95 |
04.665 CUP SET; RR WHEEL CYL
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ)
FINAL GEAR RATIO 41/11(GT4)
EXC. HIGH RIDE SUSPENSION(7YC)
(B)
WO/PISTON
|
5-87832-246-0 |
01 |
1 |
1001- |
● |
● |
● |
● |
● |
|
|
|
| |
95 |
04.665 CUP SET; RR WHEEL CYL
HIGH RIDE SUSPENSION(7YC)
(B)
WO/PISTON
|
5-87832-247-0 |
01 |
1 |
0710- |
● |
● |
● |
● |
● |
|
|
|
| |
95 |
04.665 CUP SET; RR WHEEL CYL
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)
FINAL GEAR RATIO 41/11(GT4),FINAL
GEAR RATIO 41/12(GU6)
EXC. HIGH RIDE SUSPENSION(7YC)
(B)
WO/PISTON
|
5-87832-247-0 |
01 |
1 |
0710- |
● |
● |
● |
● |
● |
|
|
|
| |
95 |
04.665 CUP SET; RR WHEEL CYL
(B)
WO/PISTON
|
5-87832-247-0 |
01 |
1 |
0710- |
|
|
|
|
|
● |
● |
● |
| |
95 |
04.665 CUP SET; RR WHEEL CYL
HIGH RIDE SUSPENSION(7YC)
(A)
W/PISTON
|
5-87832-068-0 |
01 |
1 |
0307-0609 |
● |
● |
● |
● |
● |
|
|
|
| |
95 |
04.665 CUP SET; RR WHEEL CYL
(A)
W/PISTON
|
5-87832-068-0 |
01 |
1 |
0307-0609 |
|
|
|
|
|
● |
● |
● |
| |
95 |
04.665 CUP SET; RR WHEEL CYL
HIGH RIDE SUSPENSION(7YC)
(A)
W/PISTON
|
5-87832-068-0 |
01 |
1 |
0610-0703 |
● |
● |
● |
● |
● |
|
|
|
| |
95 |
04.665 CUP SET; RR WHEEL CYL
FINAL GEAR RATIO 41/12(GU6)
EXC. HIGH RIDE SUSPENSION(7YC)
(A)
W/PISTON
|
5-87832-068-0 |
01 |
1 |
0610-0703 |
● |
● |
● |
● |
● |
|
|
|
| |
95 |
04.665 CUP SET; RR WHEEL CYL
4JK1-TCX ENG(LR0)
FINAL GEAR RATIO 41/11(GT4)
4 WHEEL ANTI LOCK BRAKE<JE5>
EXC. HIGH RIDE SUSPENSION(7YC)
(A)
W/PISTON
|
5-87832-068-0 |
01 |
1 |
0610-0703 |
|
|
● |
|
● |
|
|
|
| |
95 |
04.665 CUP SET; RR WHEEL CYL
4JK1-TCX ENG(LR0)
FINAL GEAR RATIO 41/11(GT4)
BRK WHL LK CONT LSPV<JR9>
EXC. HIGH RIDE SUSPENSION(7YC)
(A)
W/PISTON
|
5-87832-068-0 |
01 |
1 |
0610-0703 |
|
|
● |
|
● |
|
|
|
| |
95 |
04.665 CUP SET; RR WHEEL CYL
(A)
W/PISTON
|
5-87832-068-0 |
01 |
1 |
0610-0703 |
|
|
|
|
|
● |
● |
● |
| |
95 |
04.665 CUP SET; RR WHEEL CYL
HIGH RIDE SUSPENSION(7YC)
(A)
W/PISTON
|
5-87832-068-0 |
01 |
1 |
0704- |
● |
● |
● |
● |
● |
|
|
|
| |
95 |
04.665 CUP SET; RR WHEEL CYL
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)
FINAL GEAR RATIO 41/11(GT4),FINAL
GEAR RATIO 41/12(GU6)
EXC. HIGH RIDE SUSPENSION(7YC)
(A)
W/PISTON
|
5-87832-068-0 |
01 |
1 |
0704- |
● |
● |
● |
● |
● |
|
|
|
| |
95 |
04.665 CUP SET; RR WHEEL CYL
(A)
W/PISTON
|
5-87832-068-0 |
01 |
1 |
0704- |
|
|
|
|
|
● |
● |
● |
| |
95 |
04.665 CUP SET; RR WHEEL CYL
EXC. HIGH RIDE SUSPENSION(7YC)
(A)
W/PISTON
|
5-87832-026-0 |
01 |
1 |
0307-0609 |
● |
● |
● |
● |
● |
|
|
|
| |
95 |
04.665 CUP SET; RR WHEEL CYL
FINAL GEAR RATIO 43/9(GT2),FINAL
GEAR RATIO 41/9(GT3),FINAL GEAR
RATIO41/10(GT5),FINAL GEAR RATIO
43/11(GW1),FINAL GEAR RATIO 43/10(GY2)
EXC. HIGH RIDE SUSPENSION(7YC)
(A)
W/PISTON
|
5-87832-026-0 |
01 |
1 |
0610-0703 |
● |
● |
● |
● |
● |
|
|
|
| |
95 |
04.665 CUP SET; RR WHEEL CYL
FINAL GEAR RATIO 41/11(GT4)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
BRK WHL LK CONT LSPV<JR9>,HIGH
RIDESUSPENSION(7YC)
(A)
W/PISTON
|
5-87832-026-0 |
01 |
1 |
0610-0703 |
● |
● |
● |
● |
● |
|
|
|
| |
95 |
04.665 CUP SET; RR WHEEL CYL
4JJ1-TCS ENG(LFB)
FINAL GEAR RATIO 41/11(GT4)
4 WHEEL ANTI LOCK BRAKE<JE5>
EXC. HIGH RIDE SUSPENSION(7YC)
(A)
W/PISTON
|
5-87832-026-0 |
01 |
1 |
0610-0703 |
● |
|
● |
|
● |
|
|
|
| |
95 |
04.665 CUP SET; RR WHEEL CYL
4JJ1-TCS ENG(LFB)
FINAL GEAR RATIO 41/11(GT4)
BRK WHL LK CONT LSPV<JR9>
EXC. HIGH RIDE SUSPENSION(7YC)
(A)
W/PISTON
|
5-87832-026-0 |
01 |
1 |
0610-0703 |
● |
|
● |
|
● |
|
|
|
| |
95 |
04.665 CUP SET; RR WHEEL CYL
FINAL GEAR RATIO 43/9(GT2),FINAL
GEAR RATIO 41/9(GT3),FINAL GEAR
RATIO41/10(GT5),FINAL GEAR RATIO
43/11(GW1),FINAL GEAR RATIO 43/10(GY2)
EXC. HIGH RIDE SUSPENSION(7YC)
(A)
W/PISTON
|
5-87832-026-0 |
01 |
1 |
0704-0709 |
● |
● |
● |
● |
● |
|
|
|
| |
95 |
04.665 CUP SET; RR WHEEL CYL
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ)
FINAL GEAR RATIO 41/11(GT4)
EXC. HIGH RIDE SUSPENSION(7YC)
(A)
W/PISTON
|
5-87832-026-0 |
01 |
1 |
0704-0709 |
● |
● |
● |
● |
● |
|
|
|
| |
95 |
04.665 CUP SET; RR WHEEL CYL
FINAL GEAR RATIO 43/9(GT2),FINAL
GEAR RATIO 41/9(GT3),FINAL GEAR
RATIO41/10(GT5),FINAL GEAR RATIO
43/11(GW1),FINAL GEAR RATIO 43/10(GY2)
EXC. HIGH RIDE SUSPENSION(7YC)
(A)
W/PISTON
|
5-87832-026-0 |
01 |
1 |
0710-0912 |
● |
● |
● |
● |
● |
|
|
|
| |
95 |
04.665 CUP SET; RR WHEEL CYL
4JJ1-TCS ENG(LFB)
FINAL GEAR RATIO 41/11(GT4)
EXC. HIGH RIDE SUSPENSION(7YC)
(A)
W/PISTON
|
5-87832-026-0 |
01 |
1 |
0710-0912 |
● |
● |
● |
● |
● |
|
|
|
| |
95 |
04.665 CUP SET; RR WHEEL CYL
FINAL GEAR RATIO 43/9(GT2),FINAL
GEAR RATIO 41/9(GT3),FINAL GEAR
RATIO41/10(GT5),FINAL GEAR RATIO
43/11(GW1),FINAL GEAR RATIO 43/10(GY2)
EXC. HIGH RIDE SUSPENSION(7YC)
(A)
W/PISTON
|
5-87832-026-0 |
01 |
1 |
1001- |
● |
● |
● |
● |
● |
|
|
|
| |
95 |
04.665 CUP SET; RR WHEEL CYL
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ)
FINAL GEAR RATIO 41/11(GT4)
EXC. HIGH RIDE SUSPENSION(7YC)
(A)
W/PISTON
|
5-87832-026-0 |
01 |
1 |
1001- |
● |
● |
● |
● |
● |
|
|
|
| |
96 |
04.666 SCREW; BLEEDER,RR BRK
|
8-97301-484-0 |
02 |
1 |
0307- |
● |
● |
● |
● |
● |
● |
● |
● |
| |
97 |
04.666 CAP; BLEEDER,RR WHEEL CYL
|
8-97301-485-0 |
02 |
1 |
0307- |
● |
● |
● |
● |
● |
● |
● |
● |
| |
98 |
04.669 SPRING; RR WHEEL CYL
|
8-97301-483-0 |
02 |
1 |
0307- |
● |
● |
● |
● |
● |
● |
● |
● |
| |
106 |
05.107 SPRING; ADJ LEVER
HIGH RIDE SUSPENSION(7YC)
(B)
|
8-97301-526-0 |
02 |
1 |
0307-0609 |
● |
● |
● |
● |
● |
|
|
|
| |
106 |
05.107 SPRING; ADJ LEVER
(B)
|
8-97301-526-0 |
02 |
1 |
0307-0609 |
|
|
|
|
|
● |
● |
● |
| |
106 |
05.107 SPRING; ADJ LEVER
FINAL GEAR RATIO 43/12(GM0),FINAL
GEAR RATIO 43/9(GT2),FINAL GEAR
RATIO 41/11(GT4),FINAL GEAR RATIO 41/12
(GU6),FINAL GEAR RATIO 43/11(GW1),
FINAL GEAR RATIO 43/10(GY2),FINAL GE
AR RATIO 41/8(HC3)
(B)
|
8-98009-797-0 |
02 |
1 |
0610-0610 |
● |
● |
● |
● |
● |
● |
● |
● |
| |
106 |
05.107 SPRING; ADJ LEVER
HF V6 ENG(LCA),4JA1-T ENG(LP0)
FINAL GEAR RATIO 41/10(GT5)
(B)
|
8-98009-797-0 |
02 |
1 |
0610-0610 |
● |
● |
● |
● |
● |
● |
● |
● |
| |
106 |
05.107 SPRING; ADJ LEVER
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0)
,4JJ1-TCX ENG(LS0)
FINAL GEAR RATIO 41/10(GT5)
HIGH RIDE SUSPENSION(7YC)
EXC. BRK WHL LK CONT LSPV<JR9>
(B)
|
8-98009-797-0 |
02 |
1 |
0610-0610 |
● |
● |
● |
● |
● |
|
|
|
| |
106 |
05.107 SPRING; ADJ LEVER
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0)
,4JJ1-TCX ENG(LS0)
FINAL GEAR RATIO 41/10(GT5)
LIMITED SLIP DIFF<G80>
BRK WHL LK CONT LSPV<JR9>
HIGH RIDE SUSPENSION(7YC)
(B)
|
8-98009-797-0 |
02 |
1 |
0610-0610 |
● |
● |
● |
● |
● |
|
|
|
| |
106 |
05.107 SPRING; ADJ LEVER
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0)
,4JJ1-TCX ENG(LS0)
4 WHEEL ANTI LOCK BRAKE<JE5>
FINAL GEAR RATIO 41/10(GT5)
HIGH RIDE SUSPENSION(7YC)
(B)
|
8-98009-797-0 |
02 |
1 |
0610-0610 |
● |
● |
● |
● |
● |
|
|
|
| |
106 |
05.107 SPRING; ADJ LEVER
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0)
,4JJ1-TCX ENG(LS0)
FINAL GEAR RATIO 41/10(GT5)
LIMITED SLIP DIFF<G80>
BRK WHL LK CONT LSPV<JR9>
(B)
|
8-98009-797-0 |
02 |
1 |
0610-0610 |
|
|
|
|
|
● |
● |
● |
| |
106 |
05.107 SPRING; ADJ LEVER
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0)
,4JJ1-TCX ENG(LS0)
4 WHEEL ANTI LOCK BRAKE<JE5>
FINAL GEAR RATIO 41/10(GT5)
(B)
|
8-98009-797-0 |
02 |
1 |
0610-0610 |
|
|
|
|
|
● |
● |
● |
| |
106 |
05.107 SPRING; ADJ LEVER
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0)
,4JJ1-TCX ENG(LS0)
FINAL GEAR RATIO 41/10(GT5)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
BRK WHL LK CONT LSPV<JR9>
(B)
|
8-98009-797-0 |
02 |
1 |
0610-0610 |
|
|
|
|
|
● |
● |
● |
| |
106 |
05.107 SPRING; ADJ LEVER
HIGH RIDE SUSPENSION(7YC)
(B)
|
8-98009-797-0 |
02 |
1 |
0611-0703 |
● |
● |
● |
● |
● |
|
|
|
| |
106 |
05.107 SPRING; ADJ LEVER
FINAL GEAR RATIO 41/12(GU6)
EXC. HIGH RIDE SUSPENSION(7YC)
(B)
|
8-98009-797-0 |
02 |
1 |
0611-0703 |
● |
● |
● |
● |
● |
|
|
|
| |
106 |
05.107 SPRING; ADJ LEVER
4JK1-TCX ENG(LR0)
FINAL GEAR RATIO 41/11(GT4)
4 WHEEL ANTI LOCK BRAKE<JE5>
EXC. HIGH RIDE SUSPENSION(7YC)
(B)
|
8-98009-797-0 |
02 |
1 |
0611-0703 |
|
|
● |
|
● |
|
|
|
| |
106 |
05.107 SPRING; ADJ LEVER
4JK1-TCX ENG(LR0)
FINAL GEAR RATIO 41/11(GT4)
BRK WHL LK CONT LSPV<JR9>
EXC. HIGH RIDE SUSPENSION(7YC)
(B)
|
8-98009-797-0 |
02 |
1 |
0611-0703 |
|
|
● |
|
● |
|
|
|
| |
106 |
05.107 SPRING; ADJ LEVER
(B)
|
8-98009-797-0 |
02 |
1 |
0611-0703 |
|
|
|
|
|
● |
● |
● |
| |
106 |
05.107 SPRING; ADJ LEVER
HIGH RIDE SUSPENSION(7YC)
(B)
|
8-98009-797-0 |
02 |
1 |
0704- |
● |
● |
● |
● |
● |
|
|
|
| |
106 |
05.107 SPRING; ADJ LEVER
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)
FINAL GEAR RATIO 41/11(GT4),FINAL
GEAR RATIO 41/12(GU6)
EXC. HIGH RIDE SUSPENSION(7YC)
(B)
|
8-98009-797-0 |
02 |
1 |
0704- |
● |
● |
● |
● |
● |
|
|
|
| |
106 |
05.107 SPRING; ADJ LEVER
(B)
|
8-98009-797-0 |
02 |
1 |
0704- |
|
|
|
|
|
● |
● |
● |
| |
106 |
05.107 SPRING; ADJ LEVER
HIGH RIDE SUSPENSION(7YC)
(A)
|
8-97301-525-0 |
01 |
1 |
0307-0609 |
● |
● |
● |
● |
● |
|
|
|
| |
106 |
05.107 SPRING; ADJ LEVER
(A)
|
8-97301-525-0 |
01 |
1 |
0307-0609 |
|
|
|
|
|
● |
● |
● |
| |
106 |
05.107 SPRING; ADJ LEVER
FINAL GEAR RATIO 43/12(GM0),FINAL
GEAR RATIO 43/9(GT2),FINAL GEAR
RATIO 41/11(GT4),FINAL GEAR RATIO 41/12
(GU6),FINAL GEAR RATIO 43/11(GW1),
FINAL GEAR RATIO 43/10(GY2),FINAL GE
AR RATIO 41/8(HC3)
(A)
|
8-98008-007-0 |
01 |
1 |
0610-0610 |
● |
● |
● |
● |
● |
● |
● |
● |
| |
106 |
05.107 SPRING; ADJ LEVER
HF V6 ENG(LCA),4JA1-T ENG(LP0)
FINAL GEAR RATIO 41/10(GT5)
(A)
|
8-98008-007-0 |
01 |
1 |
0610-0610 |
● |
● |
● |
● |
● |
● |
● |
● |
| |
106 |
05.107 SPRING; ADJ LEVER
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0)
,4JJ1-TCX ENG(LS0)
FINAL GEAR RATIO 41/10(GT5)
HIGH RIDE SUSPENSION(7YC)
EXC. BRK WHL LK CONT LSPV<JR9>
(A)
|
8-98008-007-0 |
01 |
1 |
0610-0610 |
● |
● |
● |
● |
● |
|
|
|
| |
106 |
05.107 SPRING; ADJ LEVER
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0)
,4JJ1-TCX ENG(LS0)
FINAL GEAR RATIO 41/10(GT5)
LIMITED SLIP DIFF<G80>
BRK WHL LK CONT LSPV<JR9>
HIGH RIDE SUSPENSION(7YC)
(A)
|
8-98008-007-0 |
01 |
1 |
0610-0610 |
● |
● |
● |
● |
● |
|
|
|
| |
106 |
05.107 SPRING; ADJ LEVER
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0)
,4JJ1-TCX ENG(LS0)
4 WHEEL ANTI LOCK BRAKE<JE5>
FINAL GEAR RATIO 41/10(GT5)
HIGH RIDE SUSPENSION(7YC)
(A)
|
8-98008-007-0 |
01 |
1 |
0610-0610 |
● |
● |
● |
● |
● |
|
|
|
| |
106 |
05.107 SPRING; ADJ LEVER
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0)
,4JJ1-TCX ENG(LS0)
FINAL GEAR RATIO 41/10(GT5)
LIMITED SLIP DIFF<G80>
BRK WHL LK CONT LSPV<JR9>
(A)
|
8-98008-007-0 |
01 |
1 |
0610-0610 |
|
|
|
|
|
● |
● |
● |
| |
106 |
05.107 SPRING; ADJ LEVER
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0)
,4JJ1-TCX ENG(LS0)
4 WHEEL ANTI LOCK BRAKE<JE5>
FINAL GEAR RATIO 41/10(GT5)
(A)
|
8-98008-007-0 |
01 |
1 |
0610-0610 |
|
|
|
|
|
● |
● |
● |
| |
106 |
05.107 SPRING; ADJ LEVER
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0)
,4JJ1-TCX ENG(LS0)
FINAL GEAR RATIO 41/10(GT5)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
BRK WHL LK CONT LSPV<JR9>
(A)
|
8-98008-007-0 |
01 |
1 |
0610-0610 |
|
|
|
|
|
● |
● |
● |
| |
106 |
05.107 SPRING; ADJ LEVER
HIGH RIDE SUSPENSION(7YC)
(A)
|
8-98008-007-0 |
01 |
1 |
0611-0703 |
● |
● |
● |
● |
● |
|
|
|
| |
106 |
05.107 SPRING; ADJ LEVER
FINAL GEAR RATIO 41/12(GU6)
EXC. HIGH RIDE SUSPENSION(7YC)
(A)
|
8-98008-007-0 |
01 |
1 |
0611-0703 |
● |
● |
● |
● |
● |
|
|
|
| |
106 |
05.107 SPRING; ADJ LEVER
4JK1-TCX ENG(LR0)
FINAL GEAR RATIO 41/11(GT4)
4 WHEEL ANTI LOCK BRAKE<JE5>
EXC. HIGH RIDE SUSPENSION(7YC)
(A)
|
8-98008-007-0 |
01 |
1 |
0611-0703 |
|
|
● |
|
● |
|
|
|
| |
106 |
05.107 SPRING; ADJ LEVER
4JK1-TCX ENG(LR0)
FINAL GEAR RATIO 41/11(GT4)
BRK WHL LK CONT LSPV<JR9>
EXC. HIGH RIDE SUSPENSION(7YC)
(A)
|
8-98008-007-0 |
01 |
1 |
0611-0703 |
|
|
● |
|
● |
|
|
|
| |
106 |
05.107 SPRING; ADJ LEVER
(A)
|
8-98008-007-0 |
01 |
1 |
0611-0703 |
|
|
|
|
|
● |
● |
● |
| |
106 |
05.107 SPRING; ADJ LEVER
HIGH RIDE SUSPENSION(7YC)
(A)
|
8-98008-007-0 |
01 |
1 |
0704- |
● |
● |
● |
● |
● |
|
|
|
| |
106 |
05.107 SPRING; ADJ LEVER
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)
FINAL GEAR RATIO 41/11(GT4),FINAL
GEAR RATIO 41/12(GU6)
EXC. HIGH RIDE SUSPENSION(7YC)
(A)
|
8-98008-007-0 |
01 |
1 |
0704- |
● |
● |
● |
● |
● |
|
|
|
| |
106 |
05.107 SPRING; ADJ LEVER
(A)
|
8-98008-007-0 |
01 |
1 |
0704- |
|
|
|
|
|
● |
● |
● |
| |
106 |
05.107 SPRING; ADJ LEVER
HIGH RIDE SUSPENSION(7YC)
(A)
|
8-97301-524-0 |
01 |
1 |
0307-0609 |
● |
● |
● |
● |
● |
|
|
|
| |
106 |
05.107 SPRING; ADJ LEVER
(A)
|
8-97301-524-0 |
01 |
1 |
0307-0609 |
|
|
|
|
|
● |
● |
● |
| |
106 |
05.107 SPRING; ADJ LEVER
FINAL GEAR RATIO 43/12(GM0),FINAL
GEAR RATIO 43/9(GT2),FINAL GEAR
RATIO 41/11(GT4),FINAL GEAR RATIO 41/12
(GU6),FINAL GEAR RATIO 43/11(GW1),
FINAL GEAR RATIO 43/10(GY2),FINAL GE
AR RATIO 41/8(HC3)
(A)
|
8-98008-006-0 |
01 |
1 |
0610-0610 |
● |
● |
● |
● |
● |
● |
● |
● |
| |
106 |
05.107 SPRING; ADJ LEVER
HF V6 ENG(LCA),4JA1-T ENG(LP0)
FINAL GEAR RATIO 41/10(GT5)
(A)
|
8-98008-006-0 |
01 |
1 |
0610-0610 |
● |
● |
● |
● |
● |
● |
● |
● |
| |
106 |
05.107 SPRING; ADJ LEVER
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0)
,4JJ1-TCX ENG(LS0)
FINAL GEAR RATIO 41/10(GT5)
HIGH RIDE SUSPENSION(7YC)
EXC. BRK WHL LK CONT LSPV<JR9>
(A)
|
8-98008-006-0 |
01 |
1 |
0610-0610 |
● |
● |
● |
● |
● |
|
|
|
| |
106 |
05.107 SPRING; ADJ LEVER
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0)
,4JJ1-TCX ENG(LS0)
FINAL GEAR RATIO 41/10(GT5)
LIMITED SLIP DIFF<G80>
BRK WHL LK CONT LSPV<JR9>
HIGH RIDE SUSPENSION(7YC)
(A)
|
8-98008-006-0 |
01 |
1 |
0610-0610 |
● |
● |
● |
● |
● |
|
|
|
| |
106 |
05.107 SPRING; ADJ LEVER
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0)
,4JJ1-TCX ENG(LS0)
4 WHEEL ANTI LOCK BRAKE<JE5>
FINAL GEAR RATIO 41/10(GT5)
HIGH RIDE SUSPENSION(7YC)
(A)
|
8-98008-006-0 |
01 |
1 |
0610-0610 |
● |
● |
● |
● |
● |
|
|
|
| |
106 |
05.107 SPRING; ADJ LEVER
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0)
,4JJ1-TCX ENG(LS0)
FINAL GEAR RATIO 41/10(GT5)
LIMITED SLIP DIFF<G80>
BRK WHL LK CONT LSPV<JR9>
(A)
|
8-98008-006-0 |
01 |
1 |
0610-0610 |
|
|
|
|
|
● |
● |
● |
| |
106 |
05.107 SPRING; ADJ LEVER
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0)
,4JJ1-TCX ENG(LS0)
4 WHEEL ANTI LOCK BRAKE<JE5>
FINAL GEAR RATIO 41/10(GT5)
(A)
|
8-98008-006-0 |
01 |
1 |
0610-0610 |
|
|
|
|
|
● |
● |
● |
| |
106 |
05.107 SPRING; ADJ LEVER
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0)
,4JJ1-TCX ENG(LS0)
FINAL GEAR RATIO 41/10(GT5)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
BRK WHL LK CONT LSPV<JR9>
(A)
|
8-98008-006-0 |
01 |
1 |
0610-0610 |
|
|
|
|
|
● |
● |
● |
| |
106 |
05.107 SPRING; ADJ LEVER
HIGH RIDE SUSPENSION(7YC)
(A)
|
8-98008-006-0 |
01 |
1 |
0611-0703 |
● |
● |
● |
● |
● |
|
|
|
| |
106 |
05.107 SPRING; ADJ LEVER
FINAL GEAR RATIO 41/12(GU6)
EXC. HIGH RIDE SUSPENSION(7YC)
(A)
|
8-98008-006-0 |
01 |
1 |
0611-0703 |
● |
● |
● |
● |
● |
|
|
|
| |
106 |
05.107 SPRING; ADJ LEVER
4JK1-TCX ENG(LR0)
FINAL GEAR RATIO 41/11(GT4)
4 WHEEL ANTI LOCK BRAKE<JE5>
EXC. HIGH RIDE SUSPENSION(7YC)
(A)
|
8-98008-006-0 |
01 |
1 |
0611-0703 |
|
|
● |
|
● |
|
|
|
| |
106 |
05.107 SPRING; ADJ LEVER
4JK1-TCX ENG(LR0)
FINAL GEAR RATIO 41/11(GT4)
BRK WHL LK CONT LSPV<JR9>
EXC. HIGH RIDE SUSPENSION(7YC)
(A)
|
8-98008-006-0 |
01 |
1 |
0611-0703 |
|
|
● |
|
● |
|
|
|
| |
106 |
05.107 SPRING; ADJ LEVER
(A)
|
8-98008-006-0 |
01 |
1 |
0611-0703 |
|
|
|
|
|
● |
● |
● |
| |
106 |
05.107 SPRING; ADJ LEVER
HIGH RIDE SUSPENSION(7YC)
(A)
|
8-98008-006-0 |
01 |
1 |
0704- |
● |
● |
● |
● |
● |
|
|
|
| |
106 |
05.107 SPRING; ADJ LEVER
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)
FINAL GEAR RATIO 41/11(GT4),FINAL
GEAR RATIO 41/12(GU6)
EXC. HIGH RIDE SUSPENSION(7YC)
(A)
|
8-98008-006-0 |
01 |
1 |
0704- |
● |
● |
● |
● |
● |
|
|
|
| |
106 |
05.107 SPRING; ADJ LEVER
(A)
|
8-98008-006-0 |
01 |
1 |
0704- |
|
|
|
|
|
● |
● |
● |
| |
106 |
05.107 SPRING; ADJ LEVER
EXC. HIGH RIDE SUSPENSION(7YC)
(B)
|
8-97301-512-0 |
02 |
1 |
0307-0609 |
● |
● |
● |
● |
● |
|
|
|
| |
106 |
05.107 SPRING; ADJ LEVER
FINAL GEAR RATIO 43/9(GT2),FINAL
GEAR RATIO 41/9(GT3),FINAL GEAR
RATIO41/10(GT5),FINAL GEAR RATIO
43/11(GW1),FINAL GEAR RATIO 43/10(GY2)
EXC. HIGH RIDE SUSPENSION(7YC)
(B)
|
8-98009-796-0 |
02 |
1 |
0610-0703 |
● |
● |
● |
● |
● |
|
|
|
| |
106 |
05.107 SPRING; ADJ LEVER
FINAL GEAR RATIO 41/11(GT4)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
BRK WHL LK CONT LSPV<JR9>,HIGH
RIDESUSPENSION(7YC)
(B)
|
8-98009-796-0 |
02 |
1 |
0610-0703 |
● |
● |
● |
● |
● |
|
|
|
| |
106 |
05.107 SPRING; ADJ LEVER
4JJ1-TCS ENG(LFB)
FINAL GEAR RATIO 41/11(GT4)
4 WHEEL ANTI LOCK BRAKE<JE5>
EXC. HIGH RIDE SUSPENSION(7YC)
(B)
|
8-98009-796-0 |
02 |
1 |
0610-0703 |
● |
|
● |
|
● |
|
|
|
| |
106 |
05.107 SPRING; ADJ LEVER
4JJ1-TCS ENG(LFB)
FINAL GEAR RATIO 41/11(GT4)
BRK WHL LK CONT LSPV<JR9>
EXC. HIGH RIDE SUSPENSION(7YC)
(B)
|
8-98009-796-0 |
02 |
1 |
0610-0703 |
● |
|
● |
|
● |
|
|
|
| |
106 |
05.107 SPRING; ADJ LEVER
FINAL GEAR RATIO 43/9(GT2),FINAL
GEAR RATIO 41/9(GT3),FINAL GEAR
RATIO41/10(GT5),FINAL GEAR RATIO
43/11(GW1),FINAL GEAR RATIO 43/10(GY2)
EXC. HIGH RIDE SUSPENSION(7YC)
(B)
|
8-98009-796-0 |
02 |
1 |
0704-0709 |
● |
● |
● |
● |
● |
|
|
|
| |
106 |
05.107 SPRING; ADJ LEVER
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ)
FINAL GEAR RATIO 41/11(GT4)
EXC. HIGH RIDE SUSPENSION(7YC)
(B)
|
8-98009-796-0 |
02 |
1 |
0704-0709 |
● |
● |
● |
● |
● |
|
|
|
| |
106 |
05.107 SPRING; ADJ LEVER
FINAL GEAR RATIO 43/9(GT2),FINAL
GEAR RATIO 41/9(GT3),FINAL GEAR
RATIO41/10(GT5),FINAL GEAR RATIO
43/11(GW1),FINAL GEAR RATIO 43/10(GY2)
EXC. HIGH RIDE SUSPENSION(7YC)
(B)
|
8-98009-796-0 |
02 |
1 |
0710-0912 |
● |
● |
● |
● |
● |
|
|
|
| |
106 |
05.107 SPRING; ADJ LEVER
4JJ1-TCS ENG(LFB)
FINAL GEAR RATIO 41/11(GT4)
EXC. HIGH RIDE SUSPENSION(7YC)
(B)
|
8-98009-796-0 |
02 |
1 |
0710-0912 |
● |
● |
● |
● |
● |
|
|
|
| |
106 |
05.107 SPRING; ADJ LEVER
FINAL GEAR RATIO 43/9(GT2),FINAL
GEAR RATIO 41/9(GT3),FINAL GEAR
RATIO41/10(GT5),FINAL GEAR RATIO
43/11(GW1),FINAL GEAR RATIO 43/10(GY2)
EXC. HIGH RIDE SUSPENSION(7YC)
(B)
|
8-98009-796-0 |
02 |
1 |
1001- |
● |
● |
● |
● |
● |
|
|
|
| |
106 |
05.107 SPRING; ADJ LEVER
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ)
FINAL GEAR RATIO 41/11(GT4)
EXC. HIGH RIDE SUSPENSION(7YC)
(B)
|
8-98009-796-0 |
02 |
1 |
1001- |
● |
● |
● |
● |
● |
|
|
|
| |
106 |
05.107 SPRING; ADJ LEVER
EXC. HIGH RIDE SUSPENSION(7YC)
(A)
|
8-97301-508-0 |
01 |
1 |
0307-0609 |
● |
● |
● |
● |
● |
|
|
|
| |
106 |
05.107 SPRING; ADJ LEVER
FINAL GEAR RATIO 43/9(GT2),FINAL
GEAR RATIO 41/9(GT3),FINAL GEAR
RATIO41/10(GT5),FINAL GEAR RATIO
43/11(GW1),FINAL GEAR RATIO 43/10(GY2)
EXC. HIGH RIDE SUSPENSION(7YC)
(A)
|
8-98008-004-0 |
01 |
1 |
0610-0703 |
● |
● |
● |
● |
● |
|
|
|
| |
106 |
05.107 SPRING; ADJ LEVER
FINAL GEAR RATIO 41/11(GT4)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
BRK WHL LK CONT LSPV<JR9>,HIGH
RIDESUSPENSION(7YC)
(A)
|
8-98008-004-0 |
01 |
1 |
0610-0703 |
● |
● |
● |
● |
● |
|
|
|
| |
106 |
05.107 SPRING; ADJ LEVER
4JJ1-TCS ENG(LFB)
FINAL GEAR RATIO 41/11(GT4)
4 WHEEL ANTI LOCK BRAKE<JE5>
EXC. HIGH RIDE SUSPENSION(7YC)
(A)
|
8-98008-004-0 |
01 |
1 |
0610-0703 |
● |
|
● |
|
● |
|
|
|
| |
106 |
05.107 SPRING; ADJ LEVER
4JJ1-TCS ENG(LFB)
FINAL GEAR RATIO 41/11(GT4)
BRK WHL LK CONT LSPV<JR9>
EXC. HIGH RIDE SUSPENSION(7YC)
(A)
|
8-98008-004-0 |
01 |
1 |
0610-0703 |
● |
|
● |
|
● |
|
|
|
| |
106 |
05.107 SPRING; ADJ LEVER
FINAL GEAR RATIO 43/9(GT2),FINAL
GEAR RATIO 41/9(GT3),FINAL GEAR
RATIO41/10(GT5),FINAL GEAR RATIO
43/11(GW1),FINAL GEAR RATIO 43/10(GY2)
EXC. HIGH RIDE SUSPENSION(7YC)
(A)
|
8-98008-004-0 |
01 |
1 |
0704-0709 |
● |
● |
● |
● |
● |
|
|
|
| |
106 |
05.107 SPRING; ADJ LEVER
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ)
FINAL GEAR RATIO 41/11(GT4)
EXC. HIGH RIDE SUSPENSION(7YC)
(A)
|
8-98008-004-0 |
01 |
1 |
0704-0709 |
● |
● |
● |
● |
● |
|
|
|
| |
106 |
05.107 SPRING; ADJ LEVER
FINAL GEAR RATIO 43/9(GT2),FINAL
GEAR RATIO 41/9(GT3),FINAL GEAR
RATIO41/10(GT5),FINAL GEAR RATIO
43/11(GW1),FINAL GEAR RATIO 43/10(GY2)
EXC. HIGH RIDE SUSPENSION(7YC)
(A)
|
8-98008-004-0 |
01 |
1 |
0710-0912 |
● |
● |
● |
● |
● |
|
|
|
| |
106 |
05.107 SPRING; ADJ LEVER
4JJ1-TCS ENG(LFB)
FINAL GEAR RATIO 41/11(GT4)
EXC. HIGH RIDE SUSPENSION(7YC)
(A)
|
8-98008-004-0 |
01 |
1 |
0710-0912 |
● |
● |
● |
● |
● |
|
|
|
| |
106 |
05.107 SPRING; ADJ LEVER
FINAL GEAR RATIO 43/9(GT2),FINAL
GEAR RATIO 41/9(GT3),FINAL GEAR
RATIO41/10(GT5),FINAL GEAR RATIO
43/11(GW1),FINAL GEAR RATIO 43/10(GY2)
EXC. HIGH RIDE SUSPENSION(7YC)
(A)
|
8-98008-004-0 |
01 |
1 |
1001- |
● |
● |
● |
● |
● |
|
|
|
| |
106 |
05.107 SPRING; ADJ LEVER
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ)
FINAL GEAR RATIO 41/11(GT4)
EXC. HIGH RIDE SUSPENSION(7YC)
(A)
|
8-98008-004-0 |
01 |
1 |
1001- |
● |
● |
● |
● |
● |
|
|
|
| |
106 |
05.107 SPRING; ADJ LEVER
EXC. HIGH RIDE SUSPENSION(7YC)
(A)
|
8-97301-507-0 |
01 |
1 |
0307-0609 |
● |
● |
● |
● |
● |
|
|
|
| |
106 |
05.107 SPRING; ADJ LEVER
FINAL GEAR RATIO 43/9(GT2),FINAL
GEAR RATIO 41/9(GT3),FINAL GEAR
RATIO41/10(GT5),FINAL GEAR RATIO
43/11(GW1),FINAL GEAR RATIO 43/10(GY2)
EXC. HIGH RIDE SUSPENSION(7YC)
(A)
|
8-98008-003-0 |
01 |
1 |
0610-0703 |
● |
● |
● |
● |
● |
|
|
|
| |
106 |
05.107 SPRING; ADJ LEVER
FINAL GEAR RATIO 41/11(GT4)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
BRK WHL LK CONT LSPV<JR9>,HIGH
RIDESUSPENSION(7YC)
(A)
|
8-98008-003-0 |
01 |
1 |
0610-0703 |
● |
● |
● |
● |
● |
|
|
|
| |
106 |
05.107 SPRING; ADJ LEVER
4JJ1-TCS ENG(LFB)
FINAL GEAR RATIO 41/11(GT4)
4 WHEEL ANTI LOCK BRAKE<JE5>
EXC. HIGH RIDE SUSPENSION(7YC)
(A)
|
8-98008-003-0 |
01 |
1 |
0610-0703 |
● |
|
● |
|
● |
|
|
|
| |
106 |
05.107 SPRING; ADJ LEVER
4JJ1-TCS ENG(LFB)
FINAL GEAR RATIO 41/11(GT4)
BRK WHL LK CONT LSPV<JR9>
EXC. HIGH RIDE SUSPENSION(7YC)
(A)
|
8-98008-003-0 |
01 |
1 |
0610-0703 |
● |
|
● |
|
● |
|
|
|
| |
106 |
05.107 SPRING; ADJ LEVER
FINAL GEAR RATIO 43/9(GT2),FINAL
GEAR RATIO 41/9(GT3),FINAL GEAR
RATIO41/10(GT5),FINAL GEAR RATIO
43/11(GW1),FINAL GEAR RATIO 43/10(GY2)
EXC. HIGH RIDE SUSPENSION(7YC)
(A)
|
8-98008-003-0 |
01 |
1 |
0704-0709 |
● |
● |
● |
● |
● |
|
|
|
| |
106 |
05.107 SPRING; ADJ LEVER
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ)
FINAL GEAR RATIO 41/11(GT4)
EXC. HIGH RIDE SUSPENSION(7YC)
(A)
|
8-98008-003-0 |
01 |
1 |
0704-0709 |
● |
● |
● |
● |
● |
|
|
|
| |
106 |
05.107 SPRING; ADJ LEVER
FINAL GEAR RATIO 43/9(GT2),FINAL
GEAR RATIO 41/9(GT3),FINAL GEAR
RATIO41/10(GT5),FINAL GEAR RATIO
43/11(GW1),FINAL GEAR RATIO 43/10(GY2)
EXC. HIGH RIDE SUSPENSION(7YC)
(A)
|
8-98008-003-0 |
01 |
1 |
0710-0912 |
● |
● |
● |
● |
● |
|
|
|
| |
106 |
05.107 SPRING; ADJ LEVER
4JJ1-TCS ENG(LFB)
FINAL GEAR RATIO 41/11(GT4)
EXC. HIGH RIDE SUSPENSION(7YC)
(A)
|
8-98008-003-0 |
01 |
1 |
0710-0912 |
● |
● |
● |
● |
● |
|
|
|
| |
106 |
05.107 SPRING; ADJ LEVER
FINAL GEAR RATIO 43/9(GT2),FINAL
GEAR RATIO 41/9(GT3),FINAL GEAR
RATIO41/10(GT5),FINAL GEAR RATIO
43/11(GW1),FINAL GEAR RATIO 43/10(GY2)
EXC. HIGH RIDE SUSPENSION(7YC)
(A)
|
8-98008-003-0 |
01 |
1 |
1001- |
● |
● |
● |
● |
● |
|
|
|
| |
106 |
05.107 SPRING; ADJ LEVER
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ)
FINAL GEAR RATIO 41/11(GT4)
EXC. HIGH RIDE SUSPENSION(7YC)
(A)
|
8-98008-003-0 |
01 |
1 |
1001- |
● |
● |
● |
● |
● |
|
|
|
| |
218 |
05.017 SHOE KIT; BRK,RR
HIGH RIDE SUSPENSION(7YC)
|
8-97368-254-0 |
01 |
1 |
0307-0609 |
● |
● |
● |
● |
● |
|
|
|
| |
218 |
05.017 SHOE KIT; BRK,RR
|
8-97368-254-0 |
01 |
1 |
0307-0609 |
|
|
|
|
|
● |
● |
● |
| |
218 |
05.017 SHOE KIT; BRK,RR
FINAL GEAR RATIO 43/9(GT2),FINAL
GEAR RATIO 41/9(GT3),FINAL GEAR
RATIO41/10(GT5),FINAL GEAR RATIO
43/11(GW1),FINAL GEAR RATIO 43/10(GY2)
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-98018-035-0 |
01 |
1 |
0610-0703 |
● |
● |
● |
● |
● |
|
|
|
| |
218 |
05.017 SHOE KIT; BRK,RR
FINAL GEAR RATIO 41/11(GT4)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
BRK WHL LK CONT LSPV<JR9>,HIGH
RIDESUSPENSION(7YC)
|
8-98018-035-0 |
01 |
1 |
0610-0703 |
● |
● |
● |
● |
● |
|
|
|
| |
218 |
05.017 SHOE KIT; BRK,RR
4JJ1-TCS ENG(LFB)
FINAL GEAR RATIO 41/11(GT4)
4 WHEEL ANTI LOCK BRAKE<JE5>
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-98018-035-0 |
01 |
1 |
0610-0703 |
● |
|
● |
|
● |
|
|
|
| |
218 |
05.017 SHOE KIT; BRK,RR
4JJ1-TCS ENG(LFB)
FINAL GEAR RATIO 41/11(GT4)
BRK WHL LK CONT LSPV<JR9>
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-98018-035-0 |
01 |
1 |
0610-0703 |
● |
|
● |
|
● |
|
|
|
| |
218 |
05.017 SHOE KIT; BRK,RR
FINAL GEAR RATIO 43/9(GT2),FINAL
GEAR RATIO 41/9(GT3),FINAL GEAR
RATIO41/10(GT5),FINAL GEAR RATIO
43/11(GW1),FINAL GEAR RATIO 43/10(GY2)
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-98018-035-0 |
01 |
1 |
0704-0709 |
● |
● |
● |
● |
● |
|
|
|
| |
218 |
05.017 SHOE KIT; BRK,RR
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ)
FINAL GEAR RATIO 41/11(GT4)
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-98018-035-0 |
01 |
1 |
0704-0709 |
● |
● |
● |
● |
● |
|
|
|
| |
218 |
05.017 SHOE KIT; BRK,RR
FINAL GEAR RATIO 43/9(GT2),FINAL
GEAR RATIO 41/9(GT3),FINAL GEAR
RATIO41/10(GT5),FINAL GEAR RATIO
43/11(GW1),FINAL GEAR RATIO 43/10(GY2)
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-98018-035-0 |
01 |
1 |
0710-0912 |
● |
● |
● |
● |
● |
|
|
|
| |
218 |
05.017 SHOE KIT; BRK,RR
4JJ1-TCS ENG(LFB)
FINAL GEAR RATIO 41/11(GT4)
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-98018-035-0 |
01 |
1 |
0710-0912 |
● |
● |
● |
● |
● |
|
|
|
| |
218 |
05.017 SHOE KIT; BRK,RR
FINAL GEAR RATIO 43/9(GT2),FINAL
GEAR RATIO 41/9(GT3),FINAL GEAR
RATIO41/10(GT5),FINAL GEAR RATIO
43/11(GW1),FINAL GEAR RATIO 43/10(GY2)
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-98018-035-0 |
01 |
1 |
1001- |
● |
● |
● |
● |
● |
|
|
|
| |
218 |
05.017 SHOE KIT; BRK,RR
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ)
FINAL GEAR RATIO 41/11(GT4)
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-98018-035-0 |
01 |
1 |
1001- |
● |
● |
● |
● |
● |
|
|
|
| |
218 |
05.017 SHOE KIT; BRK,RR
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-97368-253-0 |
01 |
1 |
0307-0609 |
● |
● |
● |
● |
● |
|
|
|
| |
218 |
05.017 SHOE KIT; BRK,RR
HIGH RIDE SUSPENSION(7YC)
|
8-98018-036-0 |
01 |
1 |
0610-0703 |
● |
● |
● |
● |
● |
|
|
|
| |
218 |
05.017 SHOE KIT; BRK,RR
FINAL GEAR RATIO 41/12(GU6)
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-98018-036-0 |
01 |
1 |
0610-0703 |
● |
● |
● |
● |
● |
|
|
|
| |
218 |
05.017 SHOE KIT; BRK,RR
4JK1-TCX ENG(LR0)
FINAL GEAR RATIO 41/11(GT4)
4 WHEEL ANTI LOCK BRAKE<JE5>
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-98018-036-0 |
01 |
1 |
0610-0703 |
|
|
● |
|
● |
|
|
|
| |
218 |
05.017 SHOE KIT; BRK,RR
4JK1-TCX ENG(LR0)
FINAL GEAR RATIO 41/11(GT4)
BRK WHL LK CONT LSPV<JR9>
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-98018-036-0 |
01 |
1 |
0610-0703 |
|
|
● |
|
● |
|
|
|
| |
218 |
05.017 SHOE KIT; BRK,RR
|
8-98018-036-0 |
01 |
1 |
0610-0703 |
|
|
|
|
|
● |
● |
● |
| |
218 |
05.017 SHOE KIT; BRK,RR
HIGH RIDE SUSPENSION(7YC)
|
8-98018-036-0 |
01 |
1 |
0704- |
● |
● |
● |
● |
● |
|
|
|
| |
218 |
05.017 SHOE KIT; BRK,RR
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)
FINAL GEAR RATIO 41/11(GT4),FINAL
GEAR RATIO 41/12(GU6)
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-98018-036-0 |
01 |
1 |
0704- |
● |
● |
● |
● |
● |
|
|
|
| |
218 |
05.017 SHOE KIT; BRK,RR
|
8-98018-036-0 |
01 |
1 |
0704- |
|
|
|
|
|
● |
● |
● |
| |
316 |
05.125 RING; SNAP
|
8-97330-511-0 |
02 |
1 |
0307- |
● |
● |
● |
● |
● |
● |
● |
● |
