◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50965 - TFR/TFS-RHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-62 - TRANSFER SIDE CASE AND SHIFT LEVER ▶
2-62 — TRANSFER SIDE CASE AND SHIFT LEVER (#20435) — 53 parça

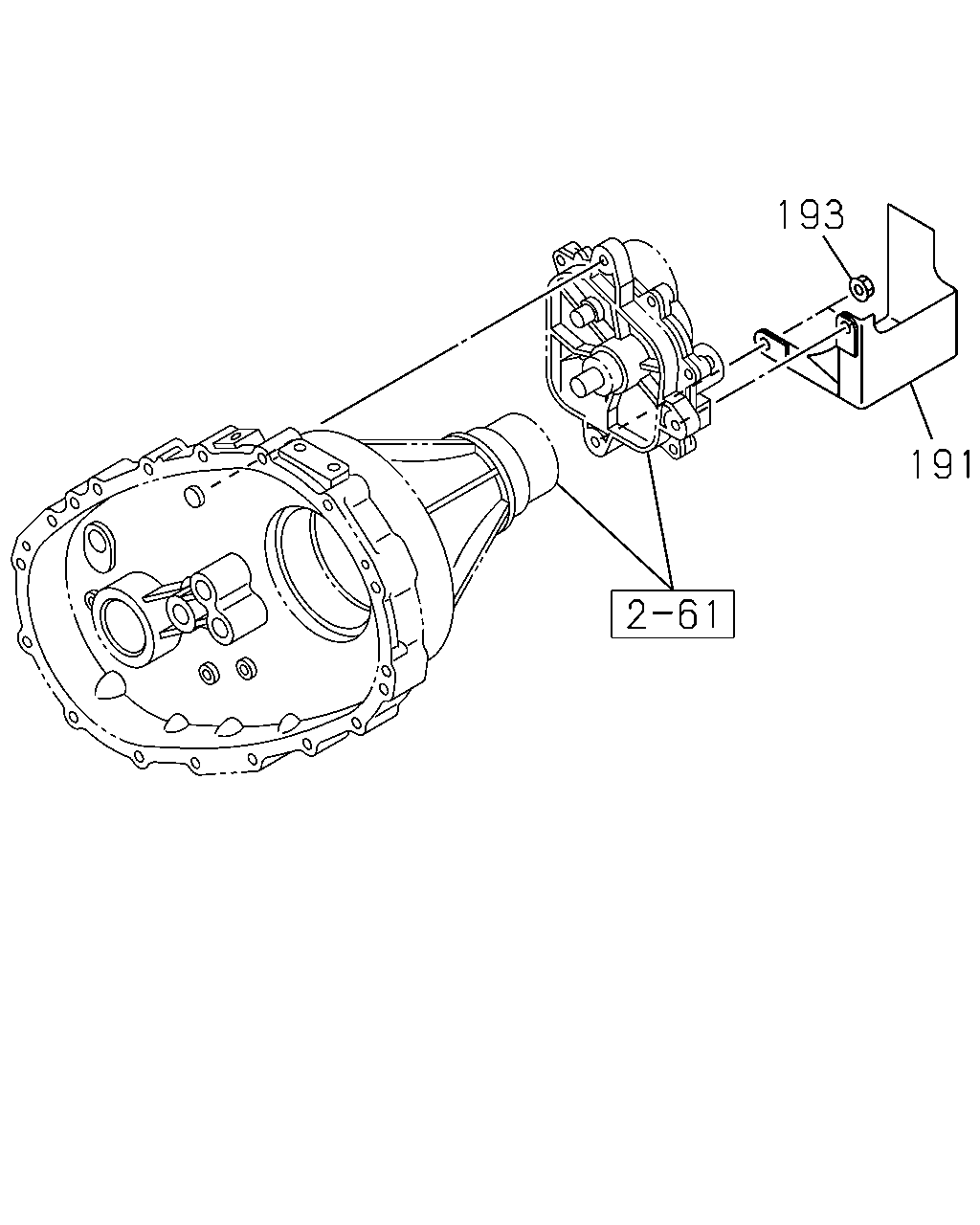

çizim 11111
193 191
BalonParca AdiParca NoAdetTipApplied Date A B C
191 04.510 PROTECTOR; HEAT
C24SE ENG(LG1),6VE1 ENG(LX5) 		8-97324-296-1 01 1 0307-0508 ● ● ●
191 04.510 PROTECTOR; HEAT
HF V6 ENG(LCA),C24SE ENG(LG1),6VE1 ENG(LX5) 		8-97324-296-1 01 1 0509-0509 ● ● ●
191 04.510 PROTECTOR; HEAT
HF V6 ENG(LCA),C24SE ENG(LG1),6VE1 ENG(LX5) 		8-98019-886-0 01 1 0509-0609 ● ● ●
191 04.510 PROTECTOR; HEAT
HF V6 ENG(LCA),C24SE ENG(LG1) 		8-98019-886-0 01 1 0610- ● ● ●
193 04.510 NUT; PROTECTOR
C24SE ENG(LG1),6VE1 ENG(LX5) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0307-0508 ● ● ●
193 04.510 NUT; PROTECTOR
HF V6 ENG(LCA),C24SE ENG(LG1),6VE1 ENG(LX5) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0509-0609 ● ● ●
193 04.510 NUT; PROTECTOR
HF V6 ENG(LCA),C24SE ENG(LG1) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0610- ● ● ●

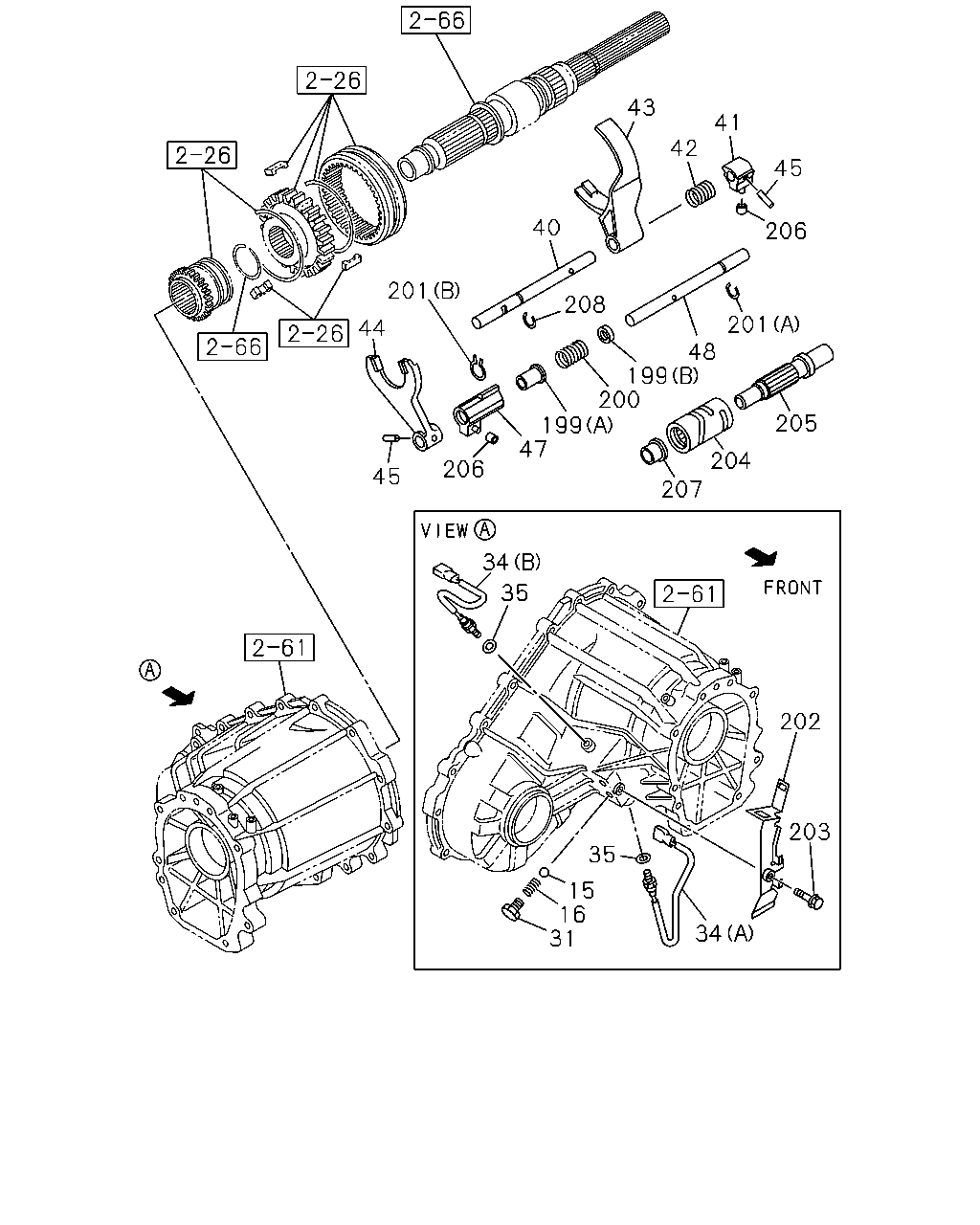

çizim 57199
34 35 31 16 15 35 34 203 202 207 204 205 201 48 199 200 199 47 206 45 44 201 208 40 43 42 41 45 206
BalonParca AdiParca NoAdetTipApplied Date A B C
15 04.311 BALL; DETENT,SHIFT ROD,TRANSFER 8-94435-335-0 02 1 0307- ● ● ●
16 04.515 SPRING; DETENT,SHIFT ROD,TRANSFE
L=23.4 		8-97145-374-0 02 1 0307- ● ● ●
31 04.520 PLUG; DETENT BALL,TRANSFER
M12X9 		9-99202-312-0 02 1 0307-0603 ● ● ●
31 04.520 PLUG; DETENT BALL,TRANSFER
M12X9 		0-92002-412-0 02 1 0604- ● ● ●
34 04.075 SWITCH; TRANSFER INDICATOR
(A) 		8-97314-204-0 01 1 0307-0603 ● ● ●
34 04.075 SWITCH; TRANSFER INDICATOR
(A) 		8-97358-605-0 01 1 0604- ● ● ●
34 04.075 SWITCH; TRANSFER INDICATOR
(B) 		8-97314-205-0 01 1 0307-0603 ● ● ●
34 04.075 SWITCH; TRANSFER INDICATOR
(B) 		8-97358-606-0 01 1 0604- ● ● ●
35 04.075 GASKET; INDICATOR SWITCH,TRANSFE
08.955 ID=14.2 OD=20.0 		9-09571-414-0 02 1 0307- ● ● ●
40 04.309 ROD; SHIFT,4X2-4X4,TRANSFER 8-97234-229-0 01 1 0307- ● ● ●
41 04.555 BLOCK; SHIFT,4X2-4X4,TRANSFER 8-97234-233-1 01 1 0307- ● ● ●
42 04.515 SPRING; GEAR LOCK RELEASE,TRANSF 8-97239-010-1 01 1 0307- ● ● ●
43 04.555 ARM; SHIFT,4X2-4X4,TRANSFER 8-97234-231-0 01 1 0307- ● ● ●
44 04.555 ARM; SHIFT,HIGH-LOW,TRANSFER 8-97300-106-1 01 1 0307- ● ● ●
45 04.303 PIN; SPR,SHIFT ARM TO ROD
D=4.2 L=25 		8-94171-541-0 02 1 0307- ● ● ●
47 04.555 BLOCK; SHIFT,LOW-HIGH,TRANSFER
HF V6 ENG(LCA),C24SE ENG(LG1) 		8-98161-034-0 01 1 1002-1002 ● ● ●
47 04.555 BLOCK; SHIFT,LOW-HIGH,TRANSFER
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) M/T MUA 5 SPEED 5H(MWQ),A/T AISIN(RMD) 		8-98161-034-0 01 1 1002-1002 ● ● ●
47 04.555 BLOCK; SHIFT,LOW-HIGH,TRANSFER
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) FINAL GEAR RATIO 41/9(GT3) 		8-98161-034-0 01 1 1002-1002 ● ● ●
47 04.555 BLOCK; SHIFT,LOW-HIGH,TRANSFER
4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) FINAL GEAR RATIO 43/9(GT2) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) 		8-98161-034-0 01 1 1002-1002 ● ● ●
47 04.555 BLOCK; SHIFT,LOW-HIGH,TRANSFER 8-98161-034-0 01 1 1002- ● ● ●
47 04.555 BLOCK; SHIFT,LOW-HIGH,TRANSFER 8-97234-234-1 01 1 0307-1001 ● ● ●
47 04.555 BLOCK; SHIFT,LOW-HIGH,TRANSFER
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) 		8-97234-234-1 01 1 1002-1002 ● ● ●
47 04.555 BLOCK; SHIFT,LOW-HIGH,TRANSFER
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(GY2) 		8-97234-234-1 01 1 1002-1002 ● ● ●
48 04.309 ROD; SHIFT,HIGH-LOW,TRANSFER 8-97234-230-0 01 1 0307- ● ● ●
199 04.419 COLLAR; TRANSFER CONTROL
(A) 		8-97234-662-1 01 1 0307- ● ● ●
199 04.419 COLLAR; TRANSFER CONTROL
(B) 		8-97234-663-1 01 1 0307- ● ● ●
200 04.198 SPRING; SHIFT HIGH-LOW 8-97239-011-0 01 1 0307- ● ● ●
201 04.525 RING; SNAP,SHIFT
04.307 (A) ID=12 		8-94460-357-0 01 1 0307- ● ● ●
201 04.525 RING; SNAP,SHIFT
(B) ID=23 		8-97305-011-1 01 1 0307- ● ● ●
202 04.525 BRACKET; SWITCH 8-97305-519-2 01 1 0307-0603 ● ● ●
202 04.525 BRACKET; SWITCH 8-97358-324-0 01 1 0604- ● ● ●
203 04.570 BOLT; BRACKET,SWITCH
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0307-0601 ● ● ●
203 04.570 BOLT; BRACKET,SWITCH
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0602- ● ● ●
204 05.555 DRUM; SHIFT
HF V6 ENG(LCA),C24SE ENG(LG1) 		8-98158-123-0 01 1 1002-1002 ● ● ●
204 05.555 DRUM; SHIFT
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) M/T MUA 5 SPEED 5H(MWQ),A/T AISIN(RMD) 		8-98158-123-0 01 1 1002-1002 ● ● ●
204 05.555 DRUM; SHIFT
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) FINAL GEAR RATIO 41/9(GT3) 		8-98158-123-0 01 1 1002-1002 ● ● ●
204 05.555 DRUM; SHIFT
4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) FINAL GEAR RATIO 43/9(GT2) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) 		8-98158-123-0 01 1 1002-1002 ● ● ●
204 05.555 DRUM; SHIFT 8-98158-123-0 01 1 1003- ● ● ●
204 05.555 DRUM; SHIFT 8-97358-246-0 01 1 0307-1001 ● ● ●
204 05.555 DRUM; SHIFT
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) 		8-97358-246-0 01 1 1002-1002 ● ● ●
204 05.555 DRUM; SHIFT
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(GY2) 		8-97358-246-0 01 1 1002-1002 ● ● ●
205 05.555 SHAFT; SHIFT DRUM 8-97231-855-0 01 1 0307- ● ● ●
206 05.555 ROLLER; GUIDE,SHIFT 8-97234-499-0 02 1 0307- ● ● ●
207 04.570 BUSH; CONTROL SHAFT 8-97239-687-0 01 1 0307-1001 ● ● ●
207 04.570 BUSH; CONTROL SHAFT 8-98158-124-0 01 1 1002- ● ● ●
208 04.525 RING; SNAP,SHIFT
04.307 ID=12 		8-94460-357-0 01 1 0307- ● ● ●
