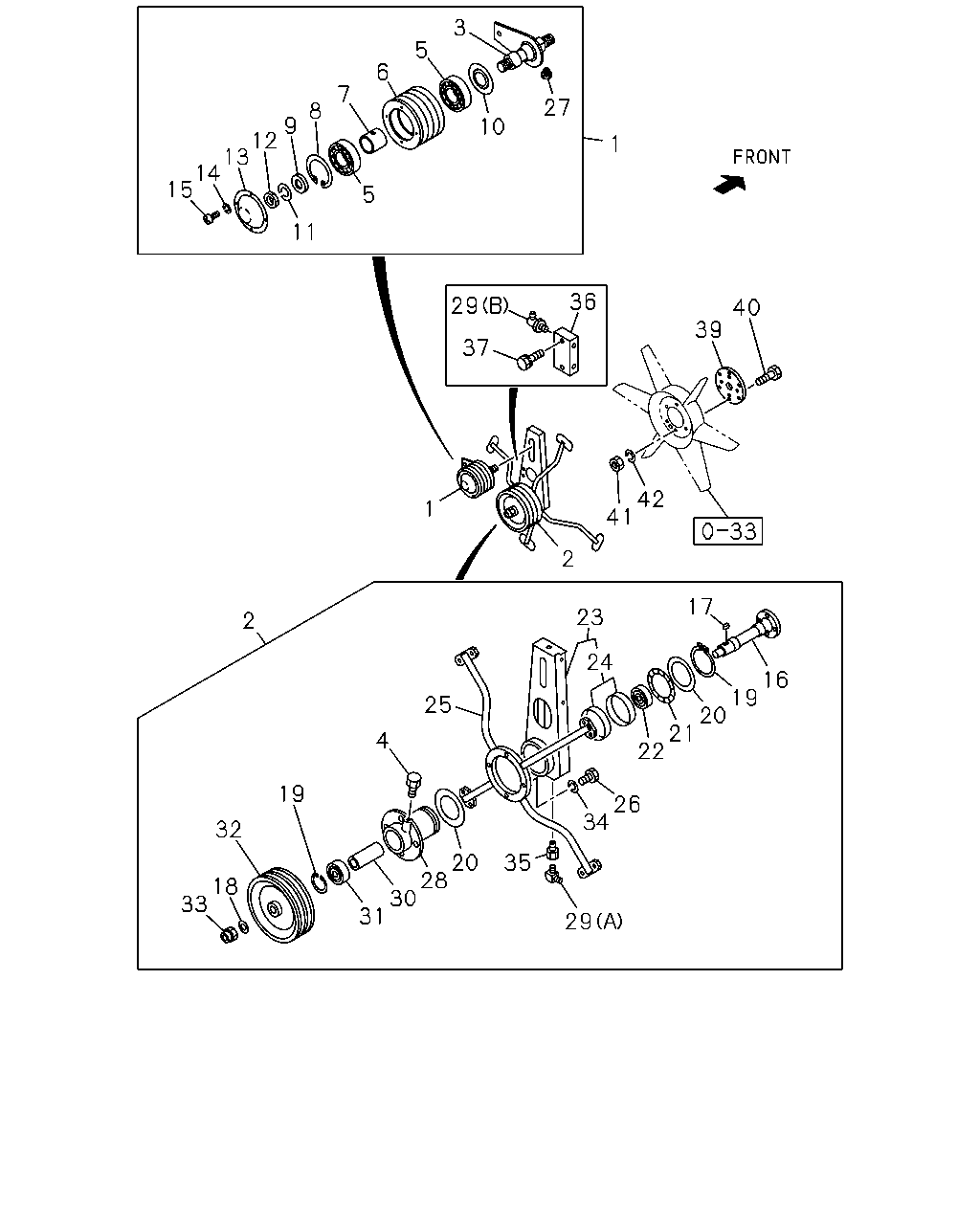

1-15 — SWING ARM AND IDLE PULLEY (#2043) — 125 parça
çizim 29061
3 5 6 7 27 8 9 12 13 14 15 10 1 5 11 36 29 40 39 37 42 41 1 2 17 23 2 24 16 19 20 21 22 25 4 19 26 34 32 20 28 30 31 35 18 33 29
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 PULLEY ASM; IDLE,COOLING FAN DRIVE
M/T<X9C> RADIATOR HEAVY DUTY(V05) 		1-21610-054-0 01 1 9001-9007 ● ●
1 PULLEY ASM; IDLE,COOLING FAN DRIVE
A/T<X9D> 		1-21610-054-0 01 1 9001-9007 ● ●
1 PULLEY ASM; IDLE,COOLING FAN DRIVE 1-21610-054-0 01 1 9001-9007 ●
1 PULLEY ASM; IDLE,COOLING FAN DRIVE 1-21610-054-1 01 1 9008-9604 ● ● ● ●
1 PULLEY ASM; IDLE,COOLING FAN DRIVE 1-21610-212-0 01 1 9605- ● ● ● ●
1 PULLEY ASM; IDLE,COOLING FAN DRIVE
M/T<X9C> EXC. RADIATOR HEAVY DUTY(V05) 		1-21610-041-0 01 1 9001-9007 ● ●
2 PULLEY ASM; FAN DRIVE,COOLING
M/T<X9C> RADIATOR HEAVY DUTY(V05) 		1-21610-161-1 01 1 9001-9604 ● ●
2 PULLEY ASM; FAN DRIVE,COOLING
A/T<X9D> 		1-21610-161-1 01 1 9001-9604 ● ●
2 PULLEY ASM; FAN DRIVE,COOLING 1-21610-161-1 01 1 9001-9604 ●
2 PULLEY ASM; FAN DRIVE,COOLING
M/T<X9C> RADIATOR HEAVY DUTY(V05) 		1-21610-209-0 01 1 9605- ● ●
2 PULLEY ASM; FAN DRIVE,COOLING
A/T<X9D> 		1-21610-209-0 01 1 9605- ● ●
2 PULLEY ASM; FAN DRIVE,COOLING 1-21610-209-0 01 1 9605- ●
2 PULLEY ASM; FAN DRIVE,COOLING
M/T<X9C> EXC. RADIATOR HEAVY DUTY(V05) 		1-21610-162-1 01 1 9001-9604 ● ●
2 PULLEY ASM; FAN DRIVE,COOLING 1-21610-162-1 01 1 9001-9604 ●
2 PULLEY ASM; FAN DRIVE,COOLING
M/T<X9C> EXC. RADIATOR HEAVY DUTY(V05) 		1-21610-210-0 01 1 9605- ● ●
2 PULLEY ASM; FAN DRIVE,COOLING 1-21610-210-0 01 1 9605- ●
3 SPINDLE ASM; IDLE PULLEY,COOLING FAN
M/T<X9C> RADIATOR HEAVY DUTY(V05) 		1-21611-017-0 01 1 9001-9007 ● ●
3 SPINDLE ASM; IDLE PULLEY,COOLING FAN
A/T<X9D> 		1-21611-017-0 01 1 9001-9007 ● ●
3 SPINDLE ASM; IDLE PULLEY,COOLING FAN 1-21611-017-0 01 1 9001-9007 ●
3 SPINDLE ASM; IDLE PULLEY,COOLING FAN 1-21611-041-0 01 1 9008- ● ● ● ●
3 SPINDLE ASM; IDLE PULLEY,COOLING FAN
M/T<X9C> EXC. RADIATOR HEAVY DUTY(V05) 		1-21611-012-0 01 1 9001-9007 ● ●
4 NIPPLE; GREASE,IDLE PULLEY
H=20.0 		9-83765-012-0 01 1 9001- ● ● ● ●
5 BEARING; IDLE PULLEY,COOLING FAN 1-09800-024-0 02 1 9001- ● ● ● ●
6 PULLEY; IDLE,COOLING FAN DRIVE 1-13663-010-1 01 1 9001-9604 ● ● ● ●
6 PULLEY; IDLE,COOLING FAN DRIVE 1-13663-093-0 01 1 9605- ● ● ● ●
7 SPACER; IDLE PULLEY BRG
M/T<X9C> RADIATOR HEAVY DUTY(V05) 		1-21616-004-0 01 1 9001- ● ●
7 SPACER; IDLE PULLEY BRG
A/T<X9D> 		1-21616-004-0 01 1 9001- ● ●
7 SPACER; IDLE PULLEY BRG 1-21616-004-0 01 1 9001- ●
7 SPACER; IDLE PULLEY BRG
M/T<X9C> EXC. RADIATOR HEAVY DUTY(V05) 		1-21616-002-0 01 1 9001- ● ●
7 SPACER; IDLE PULLEY BRG 1-21616-002-0 01 1 9001- ●
8 RING; SNAP,IDLE PULLEY BRG
OD=95.5 		9-09180-590-0 01 1 9001- ● ● ● ●
9 WASHER; IDLE PULLEY,COOLING FAN 1-21619-003-0 01 1 9001- ● ● ● ●
10 PLATE; SEAL,IDLE PULLEY
M/T<X9C> RADIATOR HEAVY DUTY(V05) 		1-21622-003-0 01 1 9001- ● ●
10 PLATE; SEAL,IDLE PULLEY
A/T<X9D> 		1-21622-003-0 01 1 9001- ● ●
10 PLATE; SEAL,IDLE PULLEY 1-21622-003-0 01 1 9001- ●
11 WASHER; LK,IDLE PULLEY
ID=24.5 		9-09150-524-0 01 1 9001- ● ● ● ●
12 NUT; IDLE PULLEY TO SPINDLE
M24 		9-09840-264-0 01 1 9001- ● ● ● ●
13 COVER; DUST,IDLE PULLEY,COOLING FAN
M/T<X9C> RADIATOR HEAVY DUTY(V05) 		1-21622-002-0 01 1 9001- ● ●
13 COVER; DUST,IDLE PULLEY,COOLING FAN
A/T<X9D> 		1-21622-002-0 01 1 9001- ● ●
13 COVER; DUST,IDLE PULLEY,COOLING FAN 1-21622-002-0 01 1 9001- ●
13 COVER; DUST,IDLE PULLEY,COOLING FAN
M/T<X9C> EXC. RADIATOR HEAVY DUTY(V05) 		1-21622-001-0 01 1 9001- ● ●
13 COVER; DUST,IDLE PULLEY,COOLING FAN 1-21622-001-0 01 1 9001- ●
14 WASHER; LK,DUST COVER,IDLE PULLEY
M/T<X9C> EXC. RADIATOR HEAVY DUTY(V05) ID=4.1 		9-09150-504-0 04 1 9001- ● ●
14 WASHER; LK,DUST COVER,IDLE PULLEY
ID=4.1 		9-09150-504-0 04 1 9001- ●
15 SCREW; DUST COVER,IDLE PULLEY
M4X8 W/LK WASHER 		9-03910-408-0 04 1 9001- ● ● ● ●
16 SHAFT; SWING ARM,COOLING FAN DRIVE 1-21611-004-0 01 1 9001-9007 ● ● ● ●
16 SHAFT; SWING ARM,COOLING FAN DRIVE 1-21611-024-0 01 1 9008- ● ● ● ●
17 KEY; FAN PULLEY 9-08000-720-0 01 1 9001- ● ● ● ●
18 WASHER; PL,FAN PULLEY
ID=21 		9-09164-520-0 01 1 9001- ● ● ● ●
19 RING; SNAP,FAN PULLEY BRG
ID=74.5 		9-09180-480-0 01 1 9001- ● ● ● ●
19 RING; SNAP,FAN PULLEY BRG
ID=57.9 		9-09180-562-0 01 1 9008- ● ● ● ●
20 WASHER; SWING ARM,COOLING FAN DRIVE 1-09503-041-0 02 1 9001- ● ● ● ●
21 WASHER; WAVE,SWING ARM,COOLING FAN DRI 1-09550-004-0 01 1 9001- ● ● ● ●
22 BEARING; FAN SIDE,COOLING FAN DRIVE 1-09800-039-0 01 1 9001- ● ● ● ●
23 ARM ASM; SWING,COOLING FAN DRIVE PULLE 1-21625-043-0 01 1 9001-9007 ● ● ● ●
23 ARM ASM; SWING,COOLING FAN DRIVE PULLE 1-21625-060-0 01 1 9008- ● ● ● ●
24 BUSHING; SWING ARM 1-09330-005-0 02 1 9001- ● ● ● ●
25 STAY; DRIVE SHAFT CASE,FAN PULLEY 1-21625-049-0 01 1 9001- ● ● ● ●
26 BOLT; STAY TO CASE,COOLING FAN DRIVE
M10X25 W/LK WASHER 		9-01931-025-0 04 1 9001-9002 ● ● ● ●
26 BOLT; STAY TO CASE,COOLING FAN DRIVE
M10X25 W/LK WASHER 		0-50051-025-0 04 1 9003- ● ● ● ●
27 NIPPLE; GREASE,SWING ARM,FAN DRIVE 9-09031-110-0 01 1 9001- ● ● ● ●
28 CASE; DRIVE SHAFT,COOLING FAN 1-21621-008-0 01 1 9001- ● ● ● ●
29 NIPPLE; GREASE,FAN PULLEY CAGE
(B) PT1/8 ELBOW 		9-09031-210-0 02 1 9001- ● ● ● ●
29 NIPPLE; GREASE,FAN PULLEY CAGE
(A) H=20.0 		9-83765-012-0 03 1 9001- ● ● ● ●
30 PIECE; DIST,COOLING FAN DRIVE 1-21616-001-0 01 1 9001-9007 ● ● ● ●
30 PIECE; DIST,COOLING FAN DRIVE 1-21616-008-0 01 1 9008- ● ● ● ●
31 BEARING; PULLEY SIDE,FAN DRIVE 1-09800-038-0 01 1 9001- ● ● ● ●
32 PULLEY; COOLING FAN DRIVE
M/T<X9C> RADIATOR HEAVY DUTY(V05) 		1-13663-011-0 01 1 9001-9604 ● ●
32 PULLEY; COOLING FAN DRIVE
A/T<X9D> 		1-13663-011-0 01 1 9001-9604 ● ●
32 PULLEY; COOLING FAN DRIVE 1-13663-011-0 01 1 9001-9604 ●
32 PULLEY; COOLING FAN DRIVE
M/T<X9C> RADIATOR HEAVY DUTY(V05) 		1-13663-094-0 01 1 9605- ● ●
32 PULLEY; COOLING FAN DRIVE
A/T<X9D> 		1-13663-094-0 01 1 9605- ● ●
32 PULLEY; COOLING FAN DRIVE 1-13663-094-0 01 1 9605- ●
32 PULLEY; COOLING FAN DRIVE
M/T<X9C> EXC. RADIATOR HEAVY DUTY(V05) 		1-13663-009-0 01 1 9001-9604 ● ●
32 PULLEY; COOLING FAN DRIVE 1-13663-009-0 01 1 9001-9604 ●
32 PULLEY; COOLING FAN DRIVE
M/T<X9C> EXC. RADIATOR HEAVY DUTY(V05) 		1-13663-095-0 01 1 9605- ● ●
32 PULLEY; COOLING FAN DRIVE 1-13663-095-0 01 1 9605- ●
33 NUT; LK,FAN PULLEY
M20 LOCK NUT 		9-09131-420-0 01 1 9001- ● ● ● ●
34 WASHER; LK,FAN DRIVE
ID=10.2 		9-09150-510-0 04 1 9001-9007 ●
35 ADAPTER; FAN DRIVE
PT1/8 STRAIGHT 		9-09902-238-0 01 1 9001- ● ● ● ●
36 HOLDER; GREASE NIPPLE 1-59469-003-0 01 1 9001- ● ● ● ●
37 BOLT; NIPPLE HOLDER
M6X25 		9-01910-625-0 02 1 9001-9005 ● ● ●
37 BOLT; NIPPLE HOLDER
M6X25 W/LK WASHER 		0-50040-625-0 02 1 9006- ● ● ● ●
39 FLANGE; FAN DRIVE
M/T<X9C> RADIATOR HEAVY DUTY(V05) 		1-21631-003-0 01 1 9001-9401 ● ●
39 FLANGE; FAN DRIVE
A/T<X9D> 		1-21631-003-0 01 1 9001-9401 ● ●
39 FLANGE; FAN DRIVE 1-21631-003-0 01 1 9001-9401 ●
39 FLANGE; FAN DRIVE
M/T<X9C> RADIATOR HEAVY DUTY(V05) 		1-21631-003-0 01 1 9402- ● ●
39 FLANGE; FAN DRIVE
A/T<X9D> 		1-21631-003-0 01 1 9402- ● ●
39 FLANGE; FAN DRIVE
EXC. FLUID DRIVE FAN<KA3> 		1-21631-003-0 01 1 9402- ●
39 FLANGE; FAN DRIVE 1-13669-111-0 01 1 9101-9408 ●
39 FLANGE; FAN DRIVE 1-21631-004-0 01 1 9409- ●
40 BOLT; FLANGE
M/T<X9C> RADIATOR HEAVY DUTY(V05) M8X20 W/LK WASHER 		9-01910-820-0 06 1 9001-9005 ● ●
40 BOLT; FLANGE
A/T<X9D> M8X20 W/LK WASHER 		9-01910-820-0 06 1 9001-9005 ● ●
40 BOLT; FLANGE
M8X20 W/LK WASHER 		9-01910-820-0 06 1 9001-9005 ●
40 BOLT; FLANGE
M/T<X9C> RADIATOR HEAVY DUTY(V05) M8X20 W/LK WASHER 		0-50040-820-0 06 1 9006-9401 ● ●
40 BOLT; FLANGE
A/T<X9D> M8X20 W/LK WASHER 		0-50040-820-0 06 1 9006-9401 ● ●
40 BOLT; FLANGE
M8X20 W/LK WASHER 		0-50040-820-0 06 1 9006-9401 ●
40 BOLT; FLANGE
M/T<X9C> RADIATOR HEAVY DUTY(V05) M8X20 W/LK WASHER 		0-50040-820-0 06 1 9402-9606 ● ●
40 BOLT; FLANGE
A/T<X9D> M8X20 W/LK WASHER 		0-50040-820-0 06 1 9402-9606 ● ●
40 BOLT; FLANGE
EXC. FLUID DRIVE FAN<KA3> M8X20 W/LK WASHER 		0-50040-820-0 06 1 9402-9606 ●
40 BOLT; FLANGE
M/T<X9C> RADIATOR HEAVY DUTY(V05) M8X20 FLANGE 		0-28680-820-0 06 1 9607- ● ●
40 BOLT; FLANGE
A/T<X9D> M8X20 FLANGE 		0-28680-820-0 06 1 9607- ● ●
40 BOLT; FLANGE
EXC. FLUID DRIVE FAN<KA3> M8X20 FLANGE 		0-28680-820-0 06 1 9607- ●
40 BOLT; FLANGE
M10X25 W/LK WASHER 		0-50041-025-0 06 1 9101-9408 ●
40 BOLT; FLANGE
M10X80 W/LK WASHER 		0-50041-080-0 04 1 9409-9606 ●
40 BOLT; FLANGE
M10X80 FLANGE 		0-28081-080-0 04 1 9607- ●
41 NUT; FLANGE
M14 		9-99110-414-0 02 1 9001- ● ● ● ●
41 NUT; FLANGE
M/T<X9C> RADIATOR HEAVY DUTY(V05) M8 		9-09110-408-0 06 1 9001-9401 ● ●
41 NUT; FLANGE
A/T<X9D> M8 		9-09110-408-0 06 1 9001-9401 ● ●
41 NUT; FLANGE
M8 		9-09110-408-0 06 1 9001-9401 ●
41 NUT; FLANGE
M/T<X9C> RADIATOR HEAVY DUTY(V05) M8 		9-09110-408-0 06 1 9402-9606 ● ●
41 NUT; FLANGE
A/T<X9D> M8 		9-09110-408-0 06 1 9402-9606 ● ●
41 NUT; FLANGE
EXC. FLUID DRIVE FAN<KA3> M8 		9-09110-408-0 06 1 9402-9606 ●
41 NUT; FLANGE
M/T<X9C> RADIATOR HEAVY DUTY(V05) M8 FLANGE 		0-91150-108-0 06 1 9607- ● ●
41 NUT; FLANGE
A/T<X9D> M8 FLANGE 		0-91150-108-0 06 1 9607- ● ●
41 NUT; FLANGE
EXC. FLUID DRIVE FAN<KA3> M8 FLANGE 		0-91150-108-0 06 1 9607- ●
41 NUT; FLANGE
FLUID DRIVE FAN<KA3> M10 		9-09110-510-0 04 1 9402-9408 ●
41 NUT; FLANGE
LEFT HAND DRIVE(LVR6FB) FLUID DRIVE FAN<KA3> M10 		9-09110-510-0 04 1 9409-9606 ● ●
41 NUT; FLANGE
FLUID DRIVE FAN<KA3> M10 		9-09110-510-0 04 1 9409-9606 ● ●
41 NUT; FLANGE
M10 		9-09110-510-0 04 1 9409-9606 ●
41 NUT; FLANGE
LEFT HAND DRIVE(LVR6FB) FLUID DRIVE FAN<KA3> M10 FLANGE 		0-91150-210-0 04 1 9607- ● ●
41 NUT; FLANGE
FLUID DRIVE FAN<KA3> M10 FLANGE 		0-91150-210-0 04 1 9607- ● ●
41 NUT; FLANGE
M10 FLANGE 		0-91150-210-0 04 1 9607- ●
41 NUT; FLANGE
M10 		9-09110-510-0 06 1 9308-9408 ●
42 WASHER; LK,FLANGE
ID=14.2 		9-09150-514-0 02 1 9001- ● ● ● ●
