◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50965 - TFR/TFS-RHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-53B - TRANSMISSION OIL COOLER SYSTEM ▶

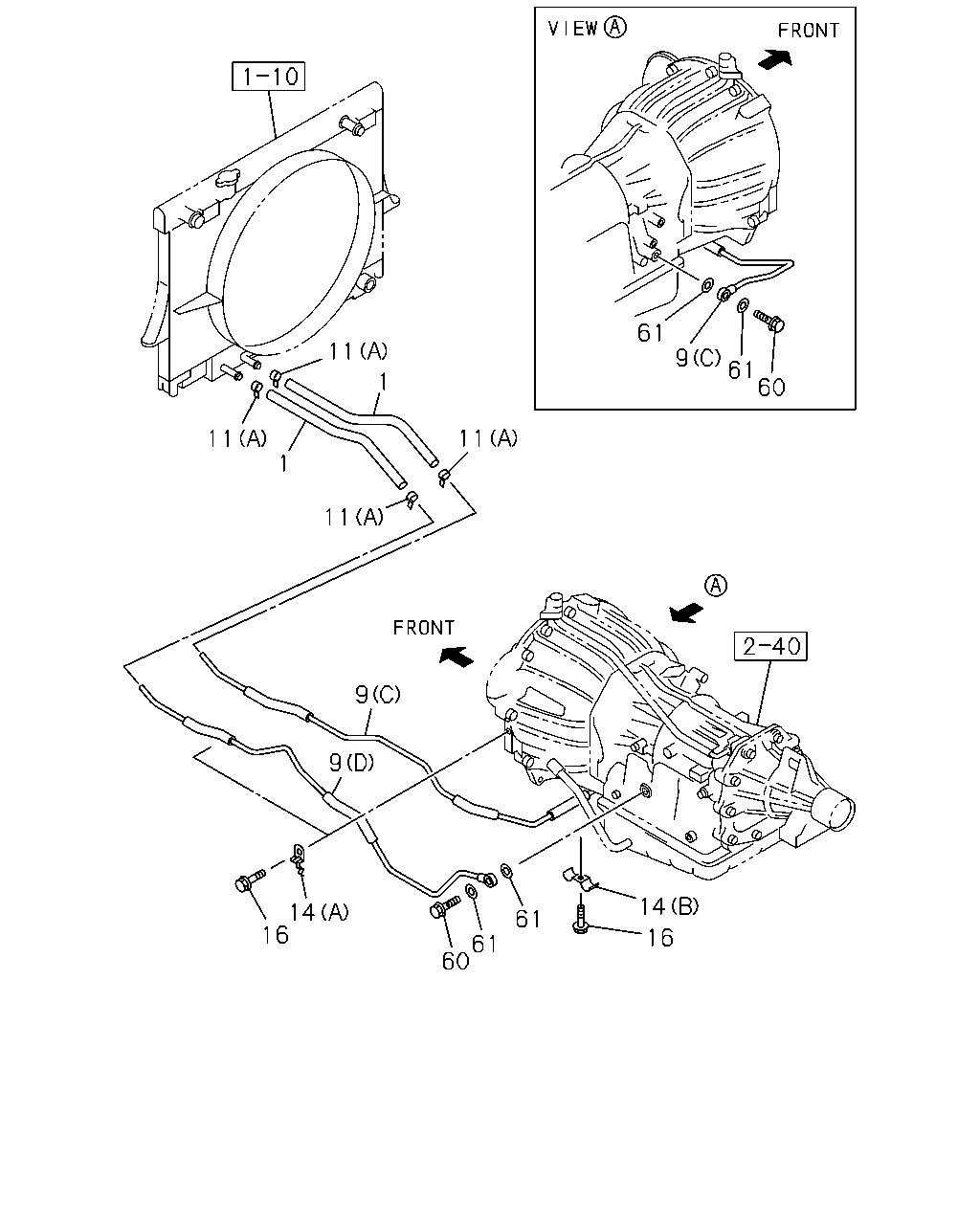

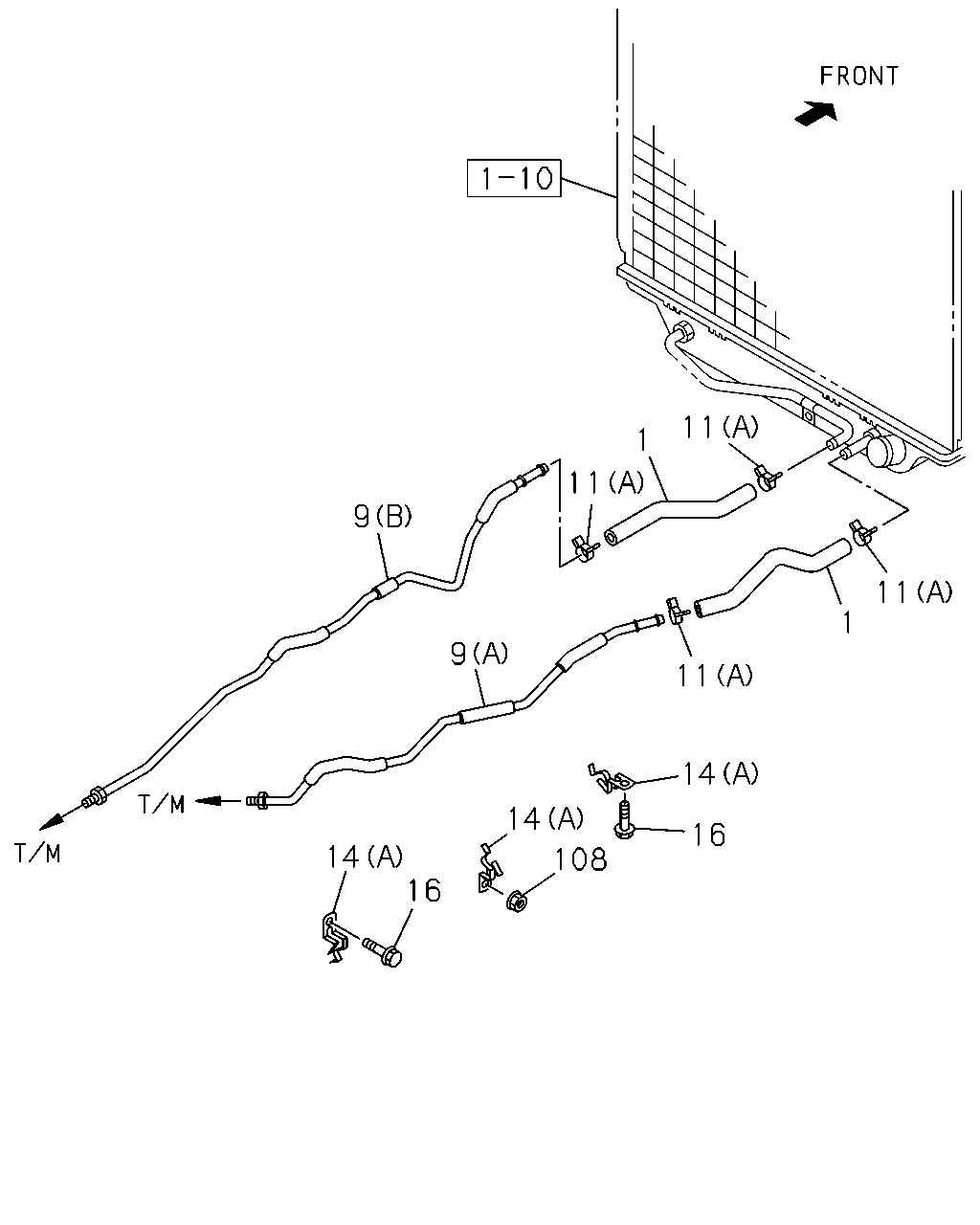

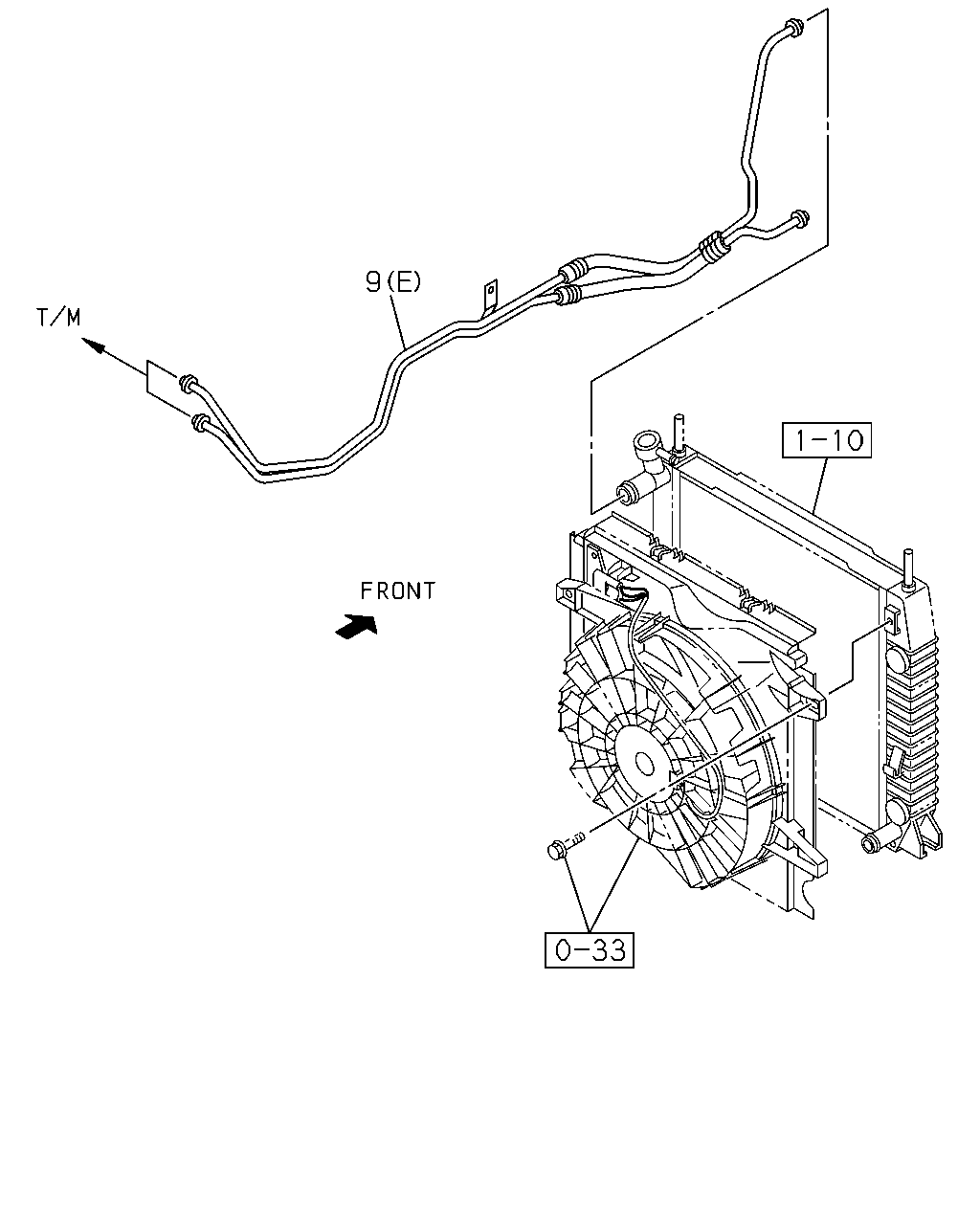

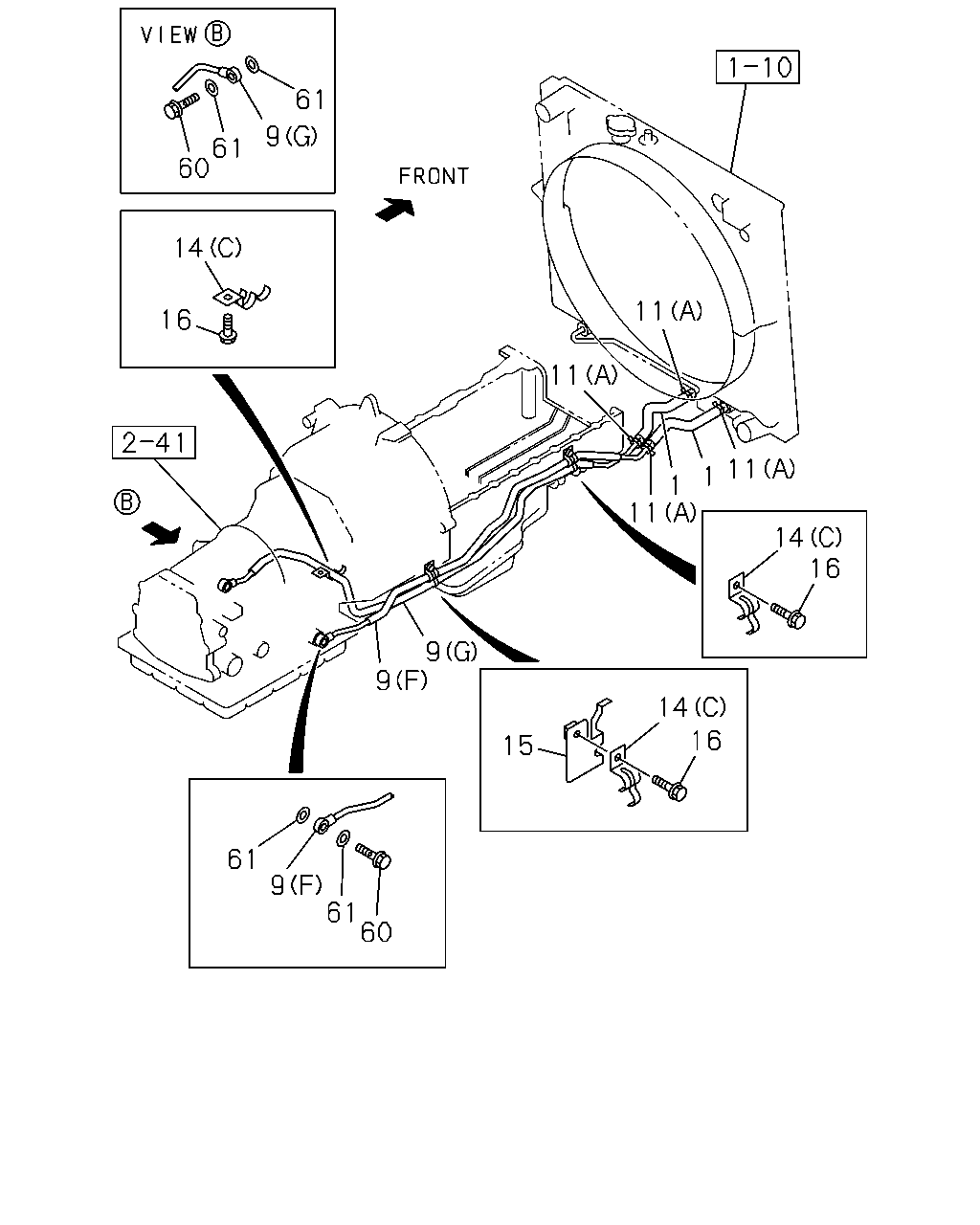

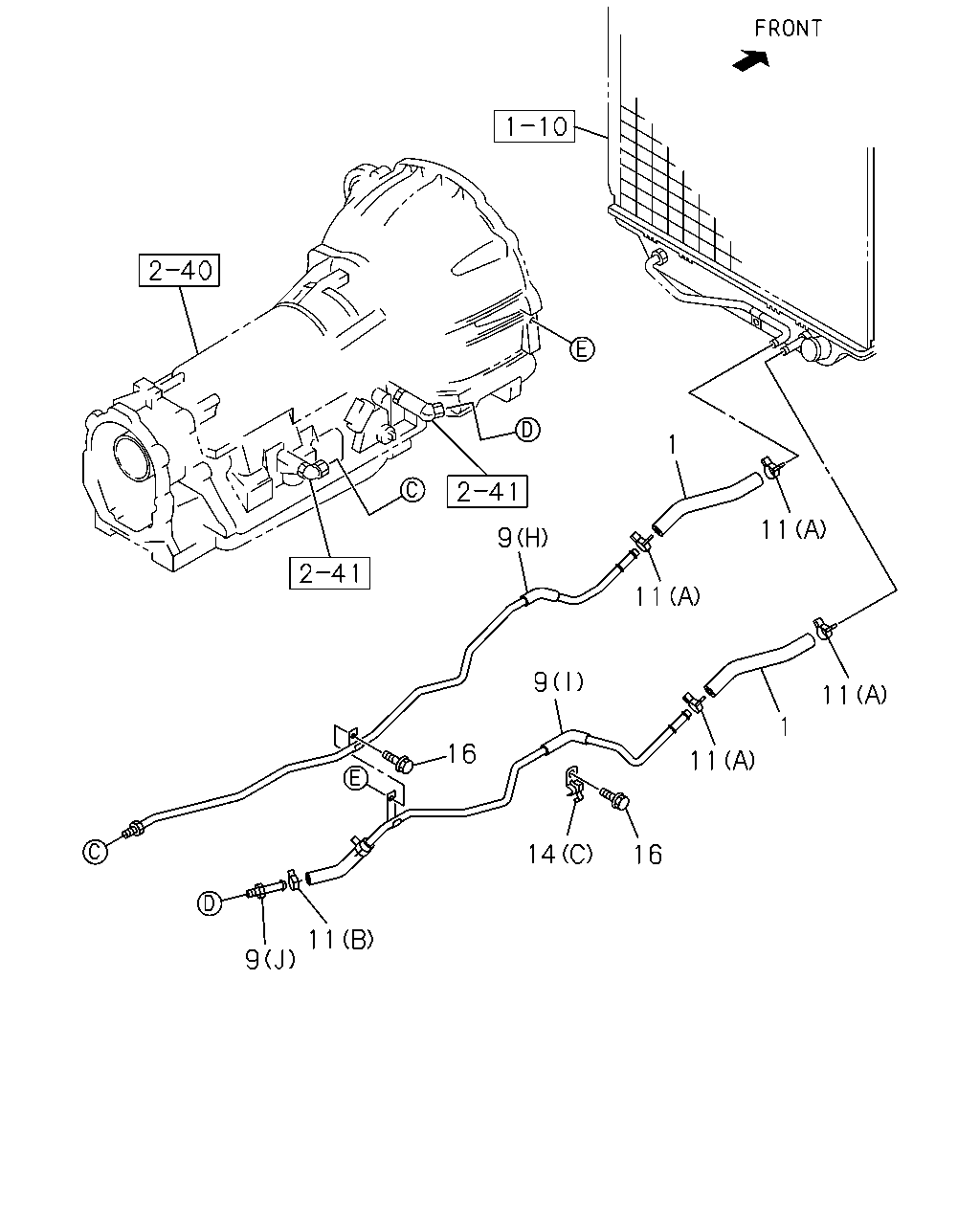

2-53B — TRANSMISSION OIL COOLER SYSTEM (#20429) — 119 parça

14 16 108 14 16 14 11 1 11 11 1 11 9 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.128 HOSE; ATF L=250 SERVICED BY L=3000	0-02259-300-0	02	1	0307-	●	●
9	04.128 PIPE; ATF,INL,A/T (A)	8-97941-535-2	01	1	0307-0609	●
9	04.128 PIPE; ATF,INL,A/T 4JJ1-TCX ENG(LS0) (H)	8-98048-111-0	01	1	0610-0707	●
9	04.128 PIPE; ATF,INL,A/T 4JJ1-TCX ENG(LS0) (H)	8-98085-689-0	01	1	0708-	●
9	04.128 PIPE; ATF,INL,A/T (B)	8-97941-536-2	01	1	0307-0609	●
9	04.128 PIPE; ATF,INL,A/T 4JJ1-TCX ENG(LS0) (J)	8-98036-273-0	01	1	0610-	●
9	04.128 PIPE; ATF,INL,A/T 4JJ1-TCX ENG(LS0) (I)	8-98061-107-0	01	1	0610-	●
9	04.128 PIPE; ATF,INL,A/T (C)	8-97368-297-0	01	1	0307-0609		●
9	04.128 PIPE; ATF,INL,A/T (G)	8-97363-584-1	01	1	0610-0712		●
9	04.128 PIPE; ATF,INL,A/T (G)	8-97946-403-0	01	1	0801-		●
9	04.128 PIPE; ATF,INL,A/T (D)	8-97368-298-0	01	1	0307-0609		●
9	04.128 PIPE; ATF,INL,A/T (F)	8-97363-585-2	01	1	0610-0712		●
9	04.128 PIPE; ATF,INL,A/T (F)	8-97946-404-0	01	1	0801-		●
9	04.128 PIPE; ATF,INL,A/T HF V6 ENG(LCA) (E)	8-92174-696-0	01	1	0509-			●	●
11	04.128 CLIP; PIPE 4JJ1-TCX ENG(LS0) 01.762 (B) ID=16	8-98030-682-0	01	1	0610-	●
11	04.128 CLIP; PIPE 00.034 (A) ID=13.5	8-97015-754-1	04	1	0307-0609	●	●
11	04.128 CLIP; PIPE (A)	8-98008-165-0	04	1	0610-	●	●
14	04.128 CLIP; PIPE TO ENG SIDE (A)	8-97062-040-0	03	1	0307-0609	●
14	04.128 CLIP; PIPE TO ENG SIDE 4JJ1-TCX ENG(LS0) (C)	8-98008-163-0	01	1	0610-	●
14	04.128 CLIP; PIPE TO ENG SIDE (B)	8-94334-345-1	01	1	0307-0609		●
14	04.128 CLIP; PIPE TO ENG SIDE (C)	8-98008-163-0	03	1	0610-		●
14	04.128 CLIP; PIPE TO ENG SIDE (A)	8-97062-040-0	02	1	0307-0609		●
16	04.128 BOLT; CLIP,ENG SIDE 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0307-0609	●
16	04.128 BOLT; CLIP,ENG SIDE 4JJ1-TCX ENG(LS0) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0610-	●
16	04.128 BOLT; CLIP,ENG SIDE 02.343 M8X16 FLANGE	0-28050-816-0	03	1	0307-		●
108	04.128 NUT; PIPE CLIP 01.062 M8 FLANGE	0-91180-108-0	01	1	0307-0609	●

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
9	04.128 PIPE; ATF,INL,A/T (A)	8-97941-535-2	01	1	0307-0609	●
9	04.128 PIPE; ATF,INL,A/T 4JJ1-TCX ENG(LS0) (H)	8-98048-111-0	01	1	0610-0707	●
9	04.128 PIPE; ATF,INL,A/T 4JJ1-TCX ENG(LS0) (H)	8-98085-689-0	01	1	0708-	●
9	04.128 PIPE; ATF,INL,A/T (B)	8-97941-536-2	01	1	0307-0609	●
9	04.128 PIPE; ATF,INL,A/T 4JJ1-TCX ENG(LS0) (J)	8-98036-273-0	01	1	0610-	●
9	04.128 PIPE; ATF,INL,A/T 4JJ1-TCX ENG(LS0) (I)	8-98061-107-0	01	1	0610-	●
9	04.128 PIPE; ATF,INL,A/T (C)	8-97368-297-0	01	1	0307-0609		●
9	04.128 PIPE; ATF,INL,A/T (G)	8-97363-584-1	01	1	0610-0712		●
9	04.128 PIPE; ATF,INL,A/T (G)	8-97946-403-0	01	1	0801-		●
9	04.128 PIPE; ATF,INL,A/T (D)	8-97368-298-0	01	1	0307-0609		●
9	04.128 PIPE; ATF,INL,A/T (F)	8-97363-585-2	01	1	0610-0712		●
9	04.128 PIPE; ATF,INL,A/T (F)	8-97946-404-0	01	1	0801-		●
9	04.128 PIPE; ATF,INL,A/T HF V6 ENG(LCA) (E)	8-92174-696-0	01	1	0509-			●	●

1 11 11 9 9 11 1 11 16 14 16 11 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.128 HOSE; ATF L=250 SERVICED BY L=3000	0-02259-300-0	02	1	0307-	●	●
9	04.128 PIPE; ATF,INL,A/T (A)	8-97941-535-2	01	1	0307-0609	●
9	04.128 PIPE; ATF,INL,A/T 4JJ1-TCX ENG(LS0) (H)	8-98048-111-0	01	1	0610-0707	●
9	04.128 PIPE; ATF,INL,A/T 4JJ1-TCX ENG(LS0) (H)	8-98085-689-0	01	1	0708-	●
9	04.128 PIPE; ATF,INL,A/T (B)	8-97941-536-2	01	1	0307-0609	●
9	04.128 PIPE; ATF,INL,A/T 4JJ1-TCX ENG(LS0) (J)	8-98036-273-0	01	1	0610-	●
9	04.128 PIPE; ATF,INL,A/T 4JJ1-TCX ENG(LS0) (I)	8-98061-107-0	01	1	0610-	●
9	04.128 PIPE; ATF,INL,A/T (C)	8-97368-297-0	01	1	0307-0609		●
9	04.128 PIPE; ATF,INL,A/T (G)	8-97363-584-1	01	1	0610-0712		●
9	04.128 PIPE; ATF,INL,A/T (G)	8-97946-403-0	01	1	0801-		●
9	04.128 PIPE; ATF,INL,A/T (D)	8-97368-298-0	01	1	0307-0609		●
9	04.128 PIPE; ATF,INL,A/T (F)	8-97363-585-2	01	1	0610-0712		●
9	04.128 PIPE; ATF,INL,A/T (F)	8-97946-404-0	01	1	0801-		●
9	04.128 PIPE; ATF,INL,A/T HF V6 ENG(LCA) (E)	8-92174-696-0	01	1	0509-			●	●
11	04.128 CLIP; PIPE 4JJ1-TCX ENG(LS0) 01.762 (B) ID=16	8-98030-682-0	01	1	0610-	●
11	04.128 CLIP; PIPE 00.034 (A) ID=13.5	8-97015-754-1	04	1	0307-0609	●	●
11	04.128 CLIP; PIPE (A)	8-98008-165-0	04	1	0610-	●	●
14	04.128 CLIP; PIPE TO ENG SIDE (A)	8-97062-040-0	03	1	0307-0609	●
14	04.128 CLIP; PIPE TO ENG SIDE 4JJ1-TCX ENG(LS0) (C)	8-98008-163-0	01	1	0610-	●
14	04.128 CLIP; PIPE TO ENG SIDE (B)	8-94334-345-1	01	1	0307-0609		●
14	04.128 CLIP; PIPE TO ENG SIDE (C)	8-98008-163-0	03	1	0610-		●
14	04.128 CLIP; PIPE TO ENG SIDE (A)	8-97062-040-0	02	1	0307-0609		●
16	04.128 BOLT; CLIP,ENG SIDE 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0307-0609	●
16	04.128 BOLT; CLIP,ENG SIDE 4JJ1-TCX ENG(LS0) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0610-	●
16	04.128 BOLT; CLIP,ENG SIDE 02.343 M8X16 FLANGE	0-28050-816-0	03	1	0307-		●

61 9 61 60 14 16 9 9 61 9 61 60 15 14 16 16 14 11 1 1 11 11 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.128 HOSE; ATF L=250 SERVICED BY L=3000	0-02259-300-0	02	1	0307-	●	●
9	04.128 PIPE; ATF,INL,A/T (A)	8-97941-535-2	01	1	0307-0609	●
9	04.128 PIPE; ATF,INL,A/T 4JJ1-TCX ENG(LS0) (H)	8-98048-111-0	01	1	0610-0707	●
9	04.128 PIPE; ATF,INL,A/T 4JJ1-TCX ENG(LS0) (H)	8-98085-689-0	01	1	0708-	●
9	04.128 PIPE; ATF,INL,A/T (B)	8-97941-536-2	01	1	0307-0609	●
9	04.128 PIPE; ATF,INL,A/T 4JJ1-TCX ENG(LS0) (J)	8-98036-273-0	01	1	0610-	●
9	04.128 PIPE; ATF,INL,A/T 4JJ1-TCX ENG(LS0) (I)	8-98061-107-0	01	1	0610-	●
9	04.128 PIPE; ATF,INL,A/T (C)	8-97368-297-0	01	1	0307-0609		●
9	04.128 PIPE; ATF,INL,A/T (G)	8-97363-584-1	01	1	0610-0712		●
9	04.128 PIPE; ATF,INL,A/T (G)	8-97946-403-0	01	1	0801-		●
9	04.128 PIPE; ATF,INL,A/T (D)	8-97368-298-0	01	1	0307-0609		●
9	04.128 PIPE; ATF,INL,A/T (F)	8-97363-585-2	01	1	0610-0712		●
9	04.128 PIPE; ATF,INL,A/T (F)	8-97946-404-0	01	1	0801-		●
9	04.128 PIPE; ATF,INL,A/T HF V6 ENG(LCA) (E)	8-92174-696-0	01	1	0509-			●	●
11	04.128 CLIP; PIPE 4JJ1-TCX ENG(LS0) 01.762 (B) ID=16	8-98030-682-0	01	1	0610-	●
11	04.128 CLIP; PIPE 00.034 (A) ID=13.5	8-97015-754-1	04	1	0307-0609	●	●
11	04.128 CLIP; PIPE (A)	8-98008-165-0	04	1	0610-	●	●
14	04.128 CLIP; PIPE TO ENG SIDE (A)	8-97062-040-0	03	1	0307-0609	●
14	04.128 CLIP; PIPE TO ENG SIDE 4JJ1-TCX ENG(LS0) (C)	8-98008-163-0	01	1	0610-	●
14	04.128 CLIP; PIPE TO ENG SIDE (B)	8-94334-345-1	01	1	0307-0609		●
14	04.128 CLIP; PIPE TO ENG SIDE (C)	8-98008-163-0	03	1	0610-		●
14	04.128 CLIP; PIPE TO ENG SIDE (A)	8-97062-040-0	02	1	0307-0609		●
15	04.128 BRACKET; ATF PIPE	8-98050-694-0	01	1	0610-		●
16	04.128 BOLT; CLIP,ENG SIDE 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0307-0609	●
16	04.128 BOLT; CLIP,ENG SIDE 4JJ1-TCX ENG(LS0) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0610-	●
16	04.128 BOLT; CLIP,ENG SIDE 02.343 M8X16 FLANGE	0-28050-816-0	03	1	0307-		●
60	04.128 BOLT; EYE,ATF PIPE	1-09675-033-0	02	1	0307-		●
61	04.128 GASKET; EYE BOLT,ATF PIPE 08.955 ID=14.2 OD=20.0	9-09571-414-0	04	1	0307-		●

61 9 61 60 14 16 61 61 60 16 14 9 9 11 1 11 11 1 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.128 HOSE; ATF L=250 SERVICED BY L=3000	0-02259-300-0	02	1	0307-	●	●
9	04.128 PIPE; ATF,INL,A/T (A)	8-97941-535-2	01	1	0307-0609	●
9	04.128 PIPE; ATF,INL,A/T 4JJ1-TCX ENG(LS0) (H)	8-98048-111-0	01	1	0610-0707	●
9	04.128 PIPE; ATF,INL,A/T 4JJ1-TCX ENG(LS0) (H)	8-98085-689-0	01	1	0708-	●
9	04.128 PIPE; ATF,INL,A/T (B)	8-97941-536-2	01	1	0307-0609	●
9	04.128 PIPE; ATF,INL,A/T 4JJ1-TCX ENG(LS0) (J)	8-98036-273-0	01	1	0610-	●
9	04.128 PIPE; ATF,INL,A/T 4JJ1-TCX ENG(LS0) (I)	8-98061-107-0	01	1	0610-	●
9	04.128 PIPE; ATF,INL,A/T (C)	8-97368-297-0	01	1	0307-0609		●
9	04.128 PIPE; ATF,INL,A/T (G)	8-97363-584-1	01	1	0610-0712		●
9	04.128 PIPE; ATF,INL,A/T (G)	8-97946-403-0	01	1	0801-		●
9	04.128 PIPE; ATF,INL,A/T (D)	8-97368-298-0	01	1	0307-0609		●
9	04.128 PIPE; ATF,INL,A/T (F)	8-97363-585-2	01	1	0610-0712		●
9	04.128 PIPE; ATF,INL,A/T (F)	8-97946-404-0	01	1	0801-		●
9	04.128 PIPE; ATF,INL,A/T HF V6 ENG(LCA) (E)	8-92174-696-0	01	1	0509-			●	●
11	04.128 CLIP; PIPE 4JJ1-TCX ENG(LS0) 01.762 (B) ID=16	8-98030-682-0	01	1	0610-	●
11	04.128 CLIP; PIPE 00.034 (A) ID=13.5	8-97015-754-1	04	1	0307-0609	●	●
11	04.128 CLIP; PIPE (A)	8-98008-165-0	04	1	0610-	●	●
14	04.128 CLIP; PIPE TO ENG SIDE (A)	8-97062-040-0	03	1	0307-0609	●
14	04.128 CLIP; PIPE TO ENG SIDE 4JJ1-TCX ENG(LS0) (C)	8-98008-163-0	01	1	0610-	●
14	04.128 CLIP; PIPE TO ENG SIDE (B)	8-94334-345-1	01	1	0307-0609		●
14	04.128 CLIP; PIPE TO ENG SIDE (C)	8-98008-163-0	03	1	0610-		●
14	04.128 CLIP; PIPE TO ENG SIDE (A)	8-97062-040-0	02	1	0307-0609		●
16	04.128 BOLT; CLIP,ENG SIDE 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0307-0609	●
16	04.128 BOLT; CLIP,ENG SIDE 4JJ1-TCX ENG(LS0) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0610-	●
16	04.128 BOLT; CLIP,ENG SIDE 02.343 M8X16 FLANGE	0-28050-816-0	03	1	0307-		●
60	04.128 BOLT; EYE,ATF PIPE	1-09675-033-0	02	1	0307-		●
61	04.128 GASKET; EYE BOLT,ATF PIPE 08.955 ID=14.2 OD=20.0	9-09571-414-0	04	1	0307-		●
