2-50B — AUTO TRANS BRAKE AND DISC CLUTCH (#20427) — 36 parça

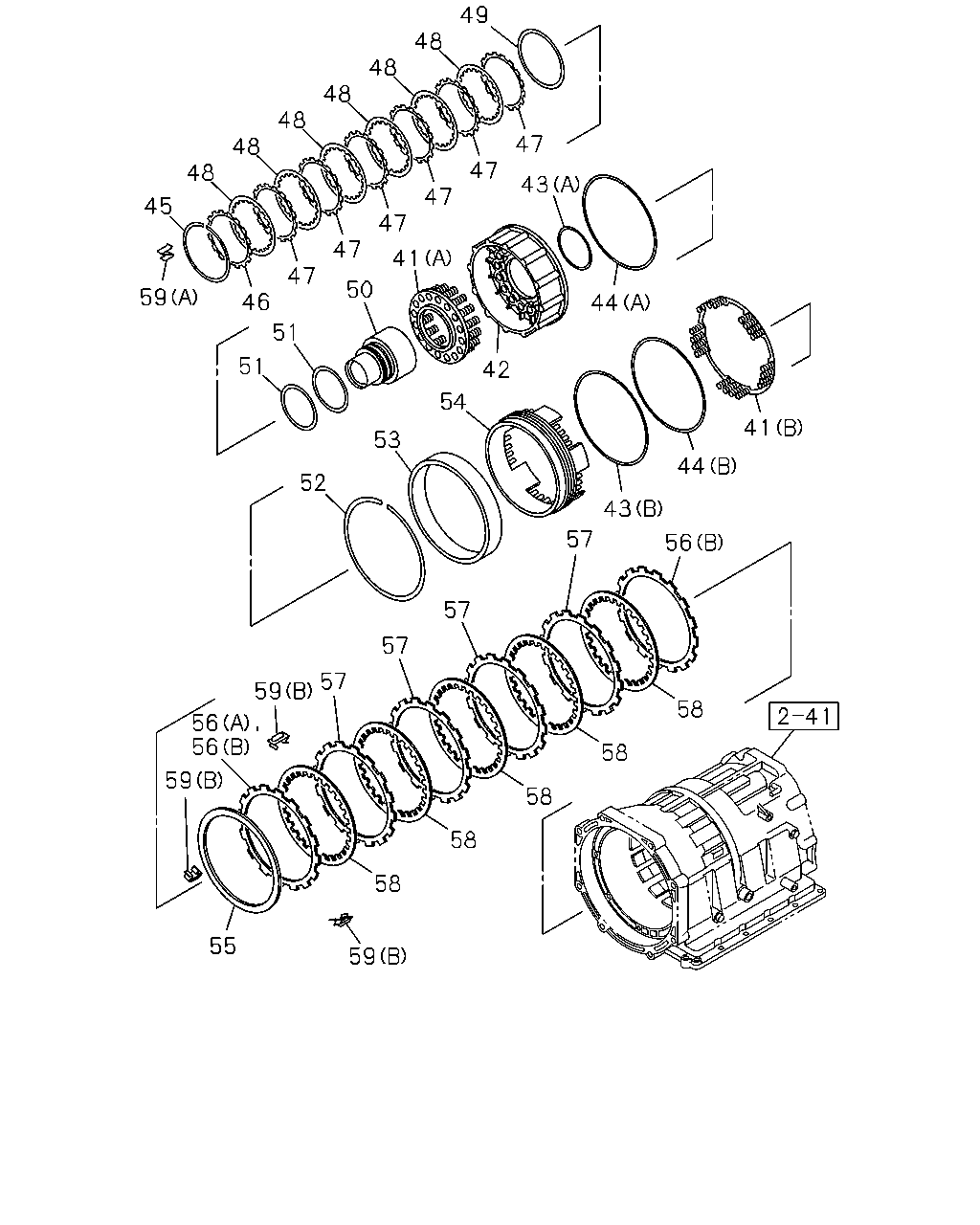

çizim 13054
58 58 58 58 58 59 55 41 44 43 56 57 57 57 57 59 56 56 59 52 53 54 42 44 43 47 47 47 47 47 47 46 41 50 51 51 59 45 48 48 48 48 48 48 49
BalonParca AdiParca NoAdetTipApplied Date
41 04.164 SPRING; RETURN,PISTON,BRAKE
(A) 		8-97331-047-0 01 1 0307-
41 04.164 SPRING; RETURN,PISTON,BRAKE
(B) 		8-97331-048-0 01 1 0307-
42 04.264 PISTON; LOW BRAKE 8-97331-046-0 01 1 0307-
43 04.212 SEAL; BRAKE PISTON,INNER
04.166 (A) 		8-94483-385-0 01 1 0307-
43 04.212 SEAL; BRAKE PISTON,INNER
(B) 		8-97330-992-0 01 1 0307-
44 04.212 SEAL; BRAKE PISTON,OUTER
04.166 (A) 		8-94483-382-0 01 1 0307-
44 04.212 SEAL; BRAKE PISTON,OUTER
(B) 		8-97330-993-0 01 1 0307-
45 04.166 RING; SNAP,LOW BRAKE PLATE 8-97330-964-0 01 1 0307-
46 04.265 PLATE; RET,LOW BRAKE
T=5.2 		8-97331-051-0 01 1 0307-
46 04.265 PLATE; RET,LOW BRAKE
T=5.4 		8-97331-052-0 01 1 0307-
46 04.265 PLATE; RET,LOW BRAKE
T=5.6 		8-97331-053-0 01 1 0307-
46 04.265 PLATE; RET,LOW BRAKE
T=5.8 		8-97331-054-0 01 1 0307-
46 04.265 PLATE; RET,LOW BRAKE
T=6.0 		8-97331-055-0 01 1 0307-
47 04.265 PLATE; DRIVEN,LOW BRAKE 8-97331-050-0 06 1 0307-
48 04.265 PLATE; DRIVE,LOW BRAKE 8-97330-996-0 06 1 0307-
49 04.265 PLATE; DISHED,LOW BRAKE 8-97331-001-0 01 1 0307-
50 04.265 SUPPORT; LOW BRAKE 8-97330-958-0 01 1 0307-
51 04.266 RING; SEAL,SUPPORT 8-97330-982-0 02 1 0307-
52 04.266 RING; SNAP,RET,2 & 4 BRAKE 8-97330-972-0 01 1 0307-
53 04.266 RETAINER; PISTON,2 & 4 BRAKE 8-97331-045-0 01 1 0307-
54 04.264 PISTON; 2 & 4 BRAKE 8-97331-042-0 01 1 0307-
55 04.265 PLATE; DISHED,2 & 4 BRAKE 8-97331-002-0 01 1 0307-
56 04.265 PLATE; RET,2 & 4 BRAKE
(A) T=5.6 		8-98126-858-0 01 1 0712-
56 04.265 PLATE; RET,2 & 4 BRAKE
(A) T=5.0 		8-97331-025-0 01 1 0307-
56 04.265 PLATE; RET,2 & 4 BRAKE
(A) T=5.2 		8-97331-026-0 01 1 0307-
56 04.265 PLATE; RET,2 & 4 BRAKE
(A) T=5.4 		8-97331-027-0 01 1 0307-
56 04.265 PLATE; RET,2 & 4 BRAKE
(B) T=5.6 		8-97331-028-0 02 1 0307-0711
56 04.265 PLATE; RET,2 & 4 BRAKE
(B) T=5.6 		8-97331-028-0 01 1 0712-
56 04.265 PLATE; RET,2 & 4 BRAKE
(A) T=5.8 		8-97331-029-0 01 1 0307-
56 04.265 PLATE; RET,2 & 4 BRAKE
(A) T=6.0 		8-97331-030-0 01 1 0307-
56 04.265 PLATE; RET,2 & 4 BRAKE
(A) T=6.2 		8-97331-031-0 01 1 0307-
56 04.265 PLATE; RET,2 & 4 BRAKE
(A) T=6.4 		8-97331-032-0 01 1 0307-
57 04.265 PLATE; DRIVEN,2 & 4 BRAKE 8-97331-009-0 04 1 0307-
58 04.265 PLATE; DRIVE,2 & 4 BRAKE 8-97330-999-0 05 1 0307-
59 04.164 SPRING; PLATE HOLD
(A) 		8-97331-043-0 01 1 0307-
59 04.164 SPRING; PLATE HOLD
(B) 		8-97331-044-0 03 1 0307-
