Sayfa 2-49B - Isuzu EPC

2-49B — AUTO TRANS INHIBITOR SWITCH (#20426) — 218 parça

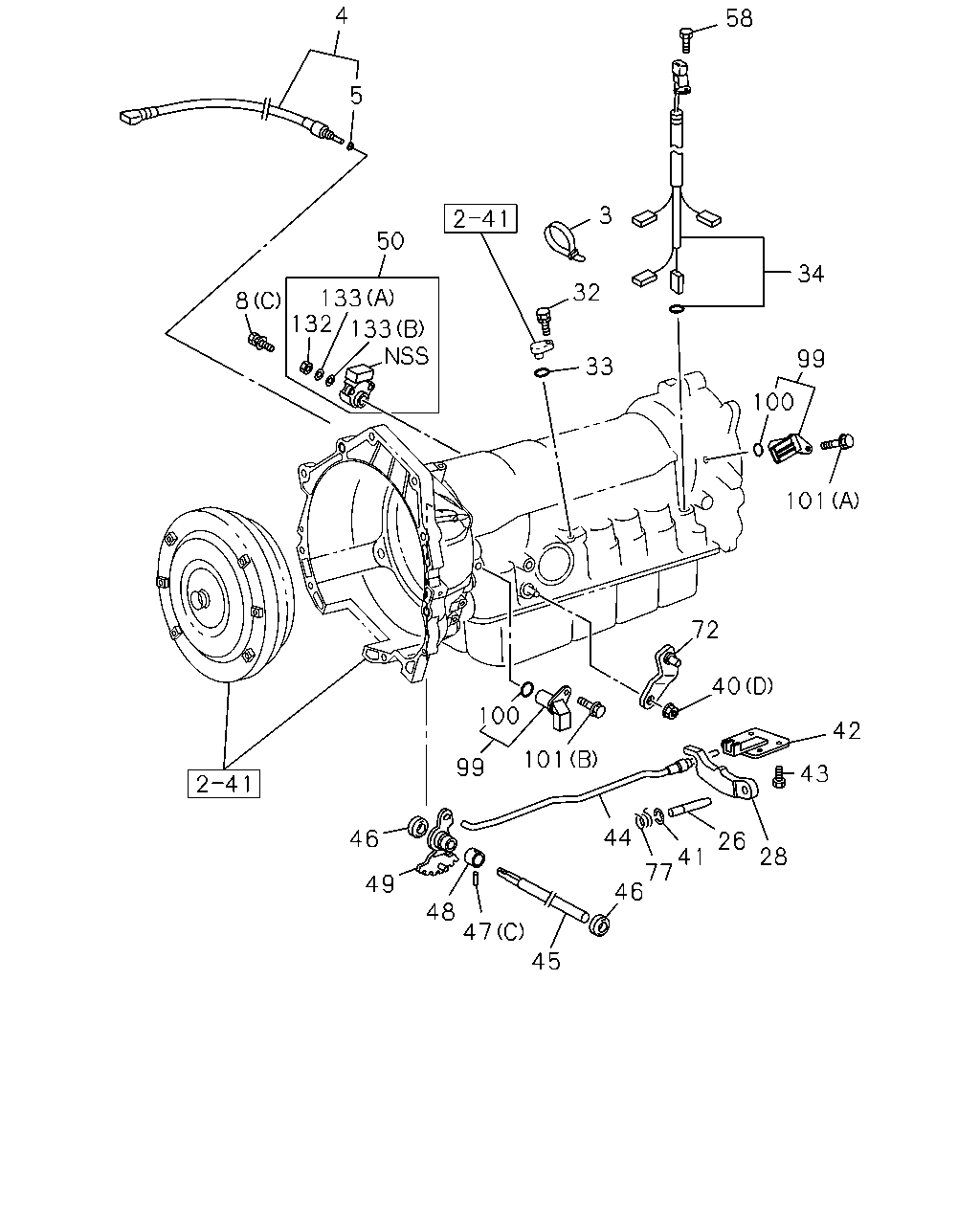

8 132 133 133 50 3 4 5 46 100 99 43 42 101 28 26 77 41 40 72 46 45 47 48 49 44 33 32 101 99 100 34 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
3	04.054 CLIP; INHIBITOR SW,A/T	8-94473-565-0	01	1	0307-	●
4	04.054 SENSOR; THERMO,A/T OIL 04.050	8-97331-531-0	01	1	0307-	●
5	04.054 GASKET; OIL THERMO SENSOR,A/T	8-94479-726-0	01	1	0307-	●
8	04.054 BOLT; NEUTRAL START SW,A/T (C) M8X30	8-97130-929-0	01	1	0307-	●
8	04.054 BOLT; NEUTRAL START SW,A/T HF V6 ENG(LCA) 00.685 (B)	8-92138-321-0	02	1	0509-		●	●
8	04.054 BOLT; NEUTRAL START SW,A/T HF V6 ENG(LCA) (A)	8-92138-813-0	02	1	0509-		●	●
26	04.294 SHAFT; PARKING PAWL,A/T	8-94479-975-0	01	1	0307-	●
26	04.294 SHAFT; PARKING PAWL,A/T	8-97331-117-0	01	1	0307-				●
28	04.294 PAWL; PARKING,A/T	8-97143-087-0	01	1	0307-	●
28	04.294 PAWL; PARKING,A/T	8-97331-119-0	01	1	0307-0711				●
28	04.294 PAWL; PARKING,A/T	8-98126-855-0	01	1	0712-				●
28	04.294 PAWL; PARKING,A/T HF V6 ENG(LCA) 04.290	8-08667-574-0	01	1	0509-		●	●
32	04.050 BOLT; THROTTLE CABLE M6X16	8-94479-712-0	01	1	0307-0609	●
32	04.050 BOLT; THROTTLE CABLE 4X2(TFB***) M6X16	8-94479-712-0	01	1	0610-	●
33	04.050 GASKET; THROTTLE CABLE	8-94364-922-0	01	1	0307-0609	●
33	04.050 GASKET; THROTTLE CABLE 4X2(TFB***)	8-94364-922-0	01	1	0610-	●
34	04.265 SOLENOID ASM; A/T	8-97232-108-0	01	1	0307-0609	●
34	04.265 SOLENOID ASM; A/T	8-98050-495-0	01	1	0610-	●
40	04.037 NUT; LEVER TO SHAFT 01.062 (D) M8 FLANGE	0-91180-108-0	01	1	0307-0609	●
40	04.037 NUT; LEVER TO SHAFT 4JJ1-TCX ENG(LS0) 01.062 (D) M8 FLANGE	0-91180-108-0	01	1	0610-	●
40	04.037 NUT; LEVER TO SHAFT 03.162 (E) M10 FLANGE	0-91180-110-0	01	1	0307-				●
40	04.037 NUT; LEVER TO SHAFT 01.062 (C) M6 FLANGE	0-91180-106-0	01	1	0509-		●	●
40	04.037 NUT; LEVER TO SHAFT HF V6 ENG(LCA) (A)	8-24222-403-0	01	1	0509-		●	●
40	04.037 NUT; LEVER TO SHAFT HF V6 ENG(LCA) 03.604 (B) M10	9-09120-510-0	01	1	0509-0601		●	●
40	04.037 NUT; LEVER TO SHAFT HF V6 ENG(LCA) (B) M10	0-91210-510-0	01	1	0602-		●	●
41	04.290 RETAINER; SPR,SHAFT	5-34488-002-0	01	1	0307-	●
42	04.290 BRACKET; PARKING LOCK	8-97126-815-0	01	1	0307-	●
42	04.290 BRACKET; PARKING LOCK HF V6 ENG(LCA)	8-08667-574-0	01	1	0509-		●	●
43	04.290 BOLT; BRKT M6X14	8-94479-978-0	03	1	0307-	●
43	04.290 BOLT; BRKT 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0509-0601		●	●
43	04.290 BOLT; BRKT 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0602-		●	●
44	04.290 ROD ASM; PARKING PAWL	8-97126-814-0	01	1	0307-0609	●
44	04.290 ROD ASM; PARKING PAWL	8-98050-534-0	01	1	0610-	●
45	04.275 SHAFT; VALVE LEVER	8-97025-848-0	01	1	0307-	●
46	04.282 SEAL; OIL 04.027 OD=22	8-94479-740-0	02	1	0307-	●
46	04.282 SEAL; OIL	8-97330-908-0	01	1	0307-				●
46	04.282 SEAL; OIL HF V6 ENG(LCA) 04.265	8-08657-163-0	01	1	0509-		●	●
47	04.275 PIN; ROLL SHAFT 04.052 (C) D=4	8-94257-081-0	01	1	0307-	●
47	04.275 PIN; ROLL SHAFT (A)	8-97331-125-0	01	1	0307-				●
47	04.275 PIN; ROLL SHAFT (B)	8-97331-126-0	01	1	0307-				●
48	04.008 COVER; SLEEVE	8-94479-761-0	01	1	0307-0609	●
48	04.008 COVER; SLEEVE	8-97362-483-0	01	1	0610-	●
49	04.279 LEVER ASM; CAM	8-97331-535-0	01	1	0307-	●
50	04.054 SWITCH; NEUTRAL,A/T	8-97207-138-0	01	1	0307-	●
58	04.260 BOLT; SOLENOID TO A/T 04.050 M6X16	8-94479-712-0	01	1	0307-	●
72	04.035 LEVER; SELECT CONT	8-97249-948-1	01	1	0307-0609	●
72	04.035 LEVER; SELECT CONT 4JJ1-TCX ENG(LS0)	8-98005-235-0	01	1	0610-	●
72	04.035 LEVER; SELECT CONT	8-97231-904-1	01	1	0307-				●
72	04.035 LEVER; SELECT CONT HF V6 ENG(LCA)	8-98000-999-0	01	1	0509-0702		●	●
72	04.035 LEVER; SELECT CONT HF V6 ENG(LCA)	8-98052-186-0	01	1	0703-		●	●
77	04.295 SPRING; TORSION,PARKING BRK LK,A	8-94479-976-0	01	1	0307-	●
99	04.329 SENSOR; SPD 4X2 LONG(TFB**F) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ)	8-97027-383-0	02	1	0610-0709	●
99	04.329 SENSOR; SPD 4X2 LONG(TFB**F) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) AUSTRALIA EQUIPMENT(B13)	8-97027-383-0	02	1	0610-0709	●
99	04.329 SENSOR; SPD 4X2 LONG(TFB**F) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) HIGH RIDE SUSPENSION(7YC)	8-97027-383-0	02	1	0710-	●
99	04.329 SENSOR; SPD 4X2 LONG(TFB**F) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) AUSTRALIA EQUIPMENT(B13) HIGH RIDE SUSPENSION(7YC)	8-97027-383-0	02	1	0710-	●
99	04.329 SENSOR; SPD	8-97027-383-0	02	1	0307-0609	●
99	04.329 SENSOR; SPD 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) EXC. AUSTRALIA EQUIPMENT(B13)	8-97027-383-0	01	1	0610-0709	●
99	04.329 SENSOR; SPD 4X4(TFS***) 4JJ1-TCX ENG(LS0)	8-97027-383-0	01	1	0610-0709	●
99	04.329 SENSOR; SPD 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) HIGH RIDE SUSPENSION(7YC) EXC. AUSTRALIA EQUIPMENT(B13)	8-97027-383-0	01	1	0710-	●
99	04.329 SENSOR; SPD 4X4(TFS***) 4JJ1-TCX ENG(LS0)	8-97027-383-0	01	1	0710-	●
100	04.239 GASKET; SPD SENSOR	8-97027-197-0	02	1	0307-	●
101	04.329 BOLT; SPD SENSOR 04.050 (A) M6X16	8-94479-712-0	01	1	0307-	●
101	04.329 BOLT; SPD SENSOR 04.290 (B) M6X14	8-94479-978-0	01	1	0307-	●
132	04.248 NUT; SWITCH M16	8-97354-883-0	01	1	0307-	●
133	04.248 WASHER; SWITCH (B)	8-97354-888-0	01	1	0307-	●
133	04.248 WASHER; SWITCH (A) ID=16	8-97354-889-0	01	1	0307-	●

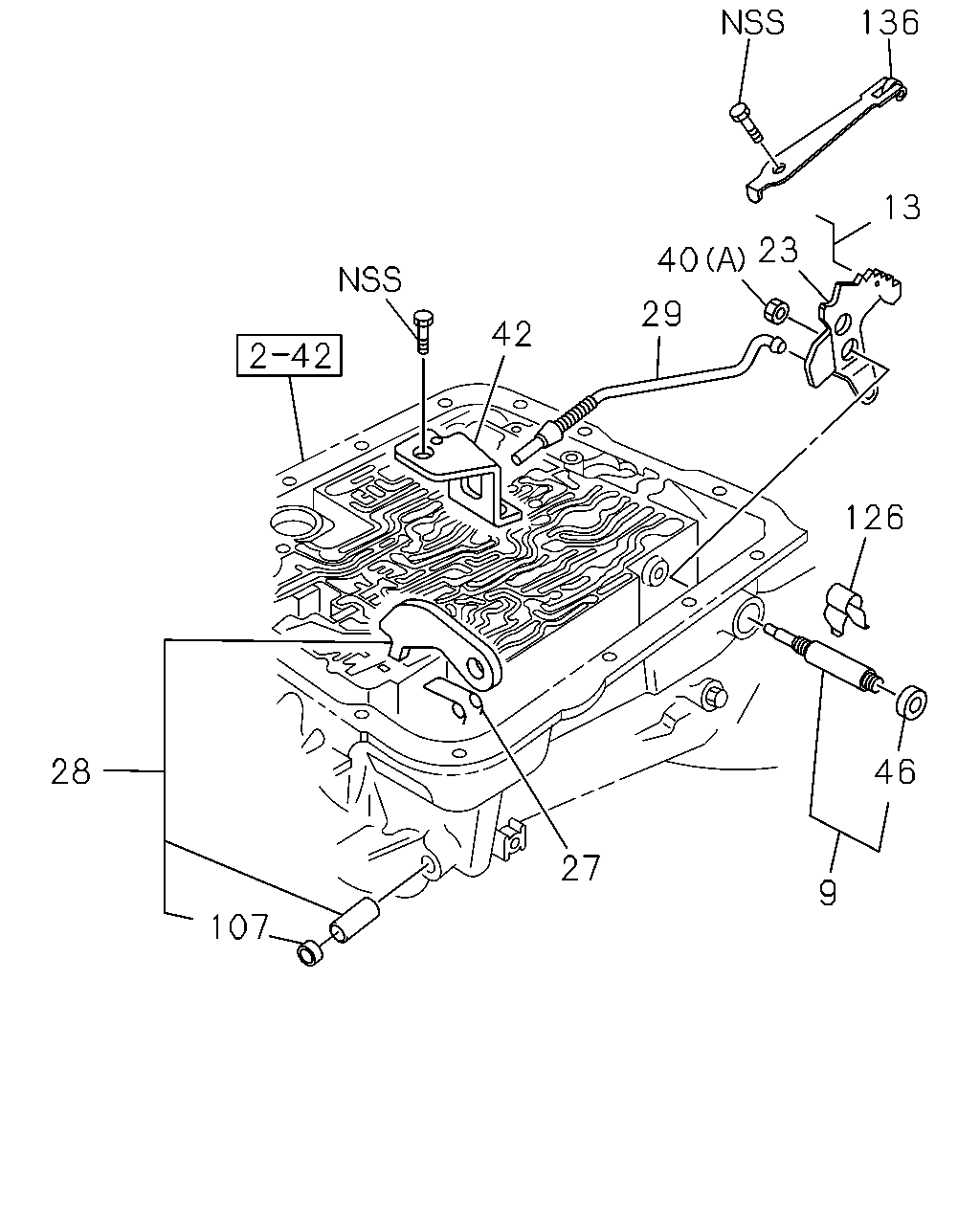

28 107 27 9 46 126 13 136 23 40 29 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
9	04.275 SHAFT; MANUAL,A/T	8-97331-106-0	01	1	0307-				●
9	04.275 SHAFT; MANUAL,A/T HF V6 ENG(LCA)	8-24210-711-0	01	1	0509-		●	●
13	04.294 LEVER; SELECT,MANUAL SHAFT,A/T HF V6 ENG(LCA)	8-08680-731-0	01	1	0509-		●	●
23	04.290 LEVER; PARKING ROD,A/T HF V6 ENG(LCA)	8-24222-404-0	01	1	0509-		●	●
27	04.295 SPRING; PAWL RETURN,A/T	8-97331-118-0	01	1	0307-				●
27	04.295 SPRING; PAWL RETURN,A/T HF V6 ENG(LCA)	8-08642-193-0	01	1	0509-		●	●
28	04.294 PAWL; PARKING,A/T	8-97143-087-0	01	1	0307-	●
28	04.294 PAWL; PARKING,A/T	8-97331-119-0	01	1	0307-0711				●
28	04.294 PAWL; PARKING,A/T	8-98126-855-0	01	1	0712-				●
28	04.294 PAWL; PARKING,A/T HF V6 ENG(LCA) 04.290	8-08667-574-0	01	1	0509-		●	●
29	04.290 ROD ASM; CONT,A/T HF V6 ENG(LCA)	8-24227-480-0	01	1	0509-		●	●
40	04.037 NUT; LEVER TO SHAFT 01.062 (D) M8 FLANGE	0-91180-108-0	01	1	0307-0609	●
40	04.037 NUT; LEVER TO SHAFT 4JJ1-TCX ENG(LS0) 01.062 (D) M8 FLANGE	0-91180-108-0	01	1	0610-	●
40	04.037 NUT; LEVER TO SHAFT 03.162 (E) M10 FLANGE	0-91180-110-0	01	1	0307-				●
40	04.037 NUT; LEVER TO SHAFT 01.062 (C) M6 FLANGE	0-91180-106-0	01	1	0509-		●	●
40	04.037 NUT; LEVER TO SHAFT HF V6 ENG(LCA) (A)	8-24222-403-0	01	1	0509-		●	●
40	04.037 NUT; LEVER TO SHAFT HF V6 ENG(LCA) 03.604 (B) M10	9-09120-510-0	01	1	0509-0601		●	●
40	04.037 NUT; LEVER TO SHAFT HF V6 ENG(LCA) (B) M10	0-91210-510-0	01	1	0602-		●	●
42	04.290 BRACKET; PARKING LOCK	8-97126-815-0	01	1	0307-	●
42	04.290 BRACKET; PARKING LOCK HF V6 ENG(LCA)	8-08667-574-0	01	1	0509-		●	●
46	04.282 SEAL; OIL 04.027 OD=22	8-94479-740-0	02	1	0307-	●
46	04.282 SEAL; OIL	8-97330-908-0	01	1	0307-				●
46	04.282 SEAL; OIL HF V6 ENG(LCA) 04.265	8-08657-163-0	01	1	0509-		●	●
107	04.294 PLUG; HOLE HF V6 ENG(LCA)	8-08620-318-0	01	1	0509-		●	●
126	04.172 RETAINER; SHIFT SHAFT HF V6 ENG(LCA)	8-08642-246-0	01	1	0509-		●	●
136	04.060 DETENT; MANUAL SHIFT HF V6 ENG(LCA)	8-08642-247-0	01	1	0509-		●	●

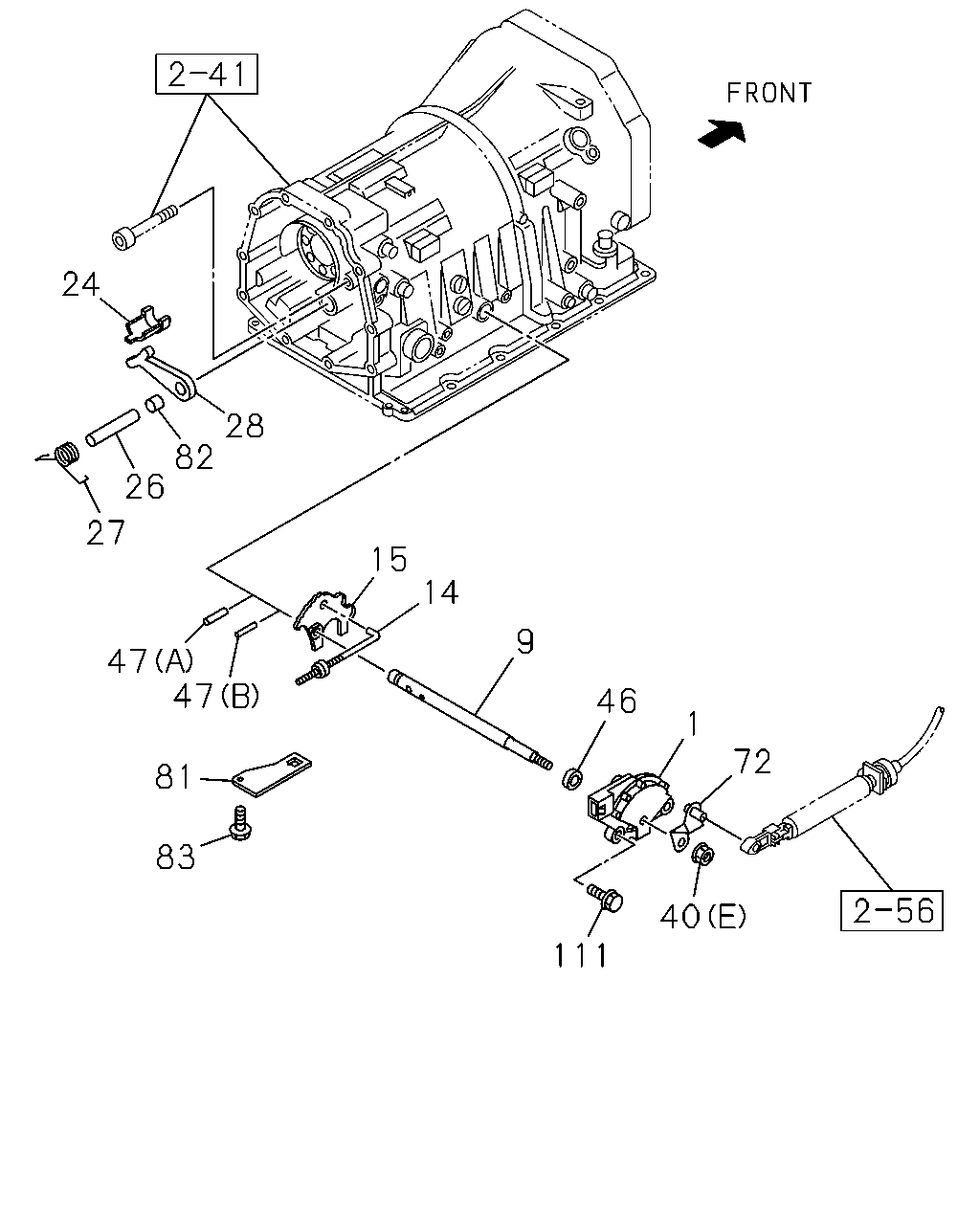

24 28 82 26 27 47 47 81 83 15 14 9 46 1 72 40 111

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.054 SWITCH; INHIBITOR,A/T	8-97331-105-0	01	1	0307-				●
9	04.275 SHAFT; MANUAL,A/T	8-97331-106-0	01	1	0307-				●
9	04.275 SHAFT; MANUAL,A/T HF V6 ENG(LCA)	8-24210-711-0	01	1	0509-		●	●
14	04.290 ROD ASM; PARKING,A/T	8-97331-114-0	01	1	0307-				●
15	04.275 PLATE; MANUAL SHAFT,A/T	8-97331-107-0	01	1	0307-				●
24	04.290 SUPPORT; ACTUATOR,A/T	8-97331-116-0	01	1	0307-0711				●
24	04.290 SUPPORT; ACTUATOR,A/T	8-98126-857-0	01	1	0712-				●
26	04.294 SHAFT; PARKING PAWL,A/T	8-94479-975-0	01	1	0307-	●
26	04.294 SHAFT; PARKING PAWL,A/T	8-97331-117-0	01	1	0307-				●
27	04.295 SPRING; PAWL RETURN,A/T	8-97331-118-0	01	1	0307-				●
27	04.295 SPRING; PAWL RETURN,A/T HF V6 ENG(LCA)	8-08642-193-0	01	1	0509-		●	●
28	04.294 PAWL; PARKING,A/T	8-97143-087-0	01	1	0307-	●
28	04.294 PAWL; PARKING,A/T	8-97331-119-0	01	1	0307-0711				●
28	04.294 PAWL; PARKING,A/T	8-98126-855-0	01	1	0712-				●
28	04.294 PAWL; PARKING,A/T HF V6 ENG(LCA) 04.290	8-08667-574-0	01	1	0509-		●	●
40	04.037 NUT; LEVER TO SHAFT 01.062 (D) M8 FLANGE	0-91180-108-0	01	1	0307-0609	●
40	04.037 NUT; LEVER TO SHAFT 4JJ1-TCX ENG(LS0) 01.062 (D) M8 FLANGE	0-91180-108-0	01	1	0610-	●
40	04.037 NUT; LEVER TO SHAFT 03.162 (E) M10 FLANGE	0-91180-110-0	01	1	0307-				●
40	04.037 NUT; LEVER TO SHAFT 01.062 (C) M6 FLANGE	0-91180-106-0	01	1	0509-		●	●
40	04.037 NUT; LEVER TO SHAFT HF V6 ENG(LCA) (A)	8-24222-403-0	01	1	0509-		●	●
40	04.037 NUT; LEVER TO SHAFT HF V6 ENG(LCA) 03.604 (B) M10	9-09120-510-0	01	1	0509-0601		●	●
40	04.037 NUT; LEVER TO SHAFT HF V6 ENG(LCA) (B) M10	0-91210-510-0	01	1	0602-		●	●
46	04.282 SEAL; OIL 04.027 OD=22	8-94479-740-0	02	1	0307-	●
46	04.282 SEAL; OIL	8-97330-908-0	01	1	0307-				●
46	04.282 SEAL; OIL HF V6 ENG(LCA) 04.265	8-08657-163-0	01	1	0509-		●	●
47	04.275 PIN; ROLL SHAFT 04.052 (C) D=4	8-94257-081-0	01	1	0307-	●
47	04.275 PIN; ROLL SHAFT (A)	8-97331-125-0	01	1	0307-				●
47	04.275 PIN; ROLL SHAFT (B)	8-97331-126-0	01	1	0307-				●
72	04.035 LEVER; SELECT CONT	8-97249-948-1	01	1	0307-0609	●
72	04.035 LEVER; SELECT CONT 4JJ1-TCX ENG(LS0)	8-98005-235-0	01	1	0610-	●
72	04.035 LEVER; SELECT CONT	8-97231-904-1	01	1	0307-				●
72	04.035 LEVER; SELECT CONT HF V6 ENG(LCA)	8-98000-999-0	01	1	0509-0702		●	●
72	04.035 LEVER; SELECT CONT HF V6 ENG(LCA)	8-98052-186-0	01	1	0703-		●	●
81	04.293 SPRING; DETENT,MANUAL CONT PLATE	8-97331-113-0	01	1	0307-				●
82	02.559 SPACER; DETENT SPRING	8-97330-950-0	01	1	0307-				●
83	04.169 SCREW; DETENT SPRING,MANUAL CONT	8-97331-124-0	01	1	0307-0711				●
111	02.559 BOLT; INHIBITOR SW	8-97331-127-0	02	1	0307-				●

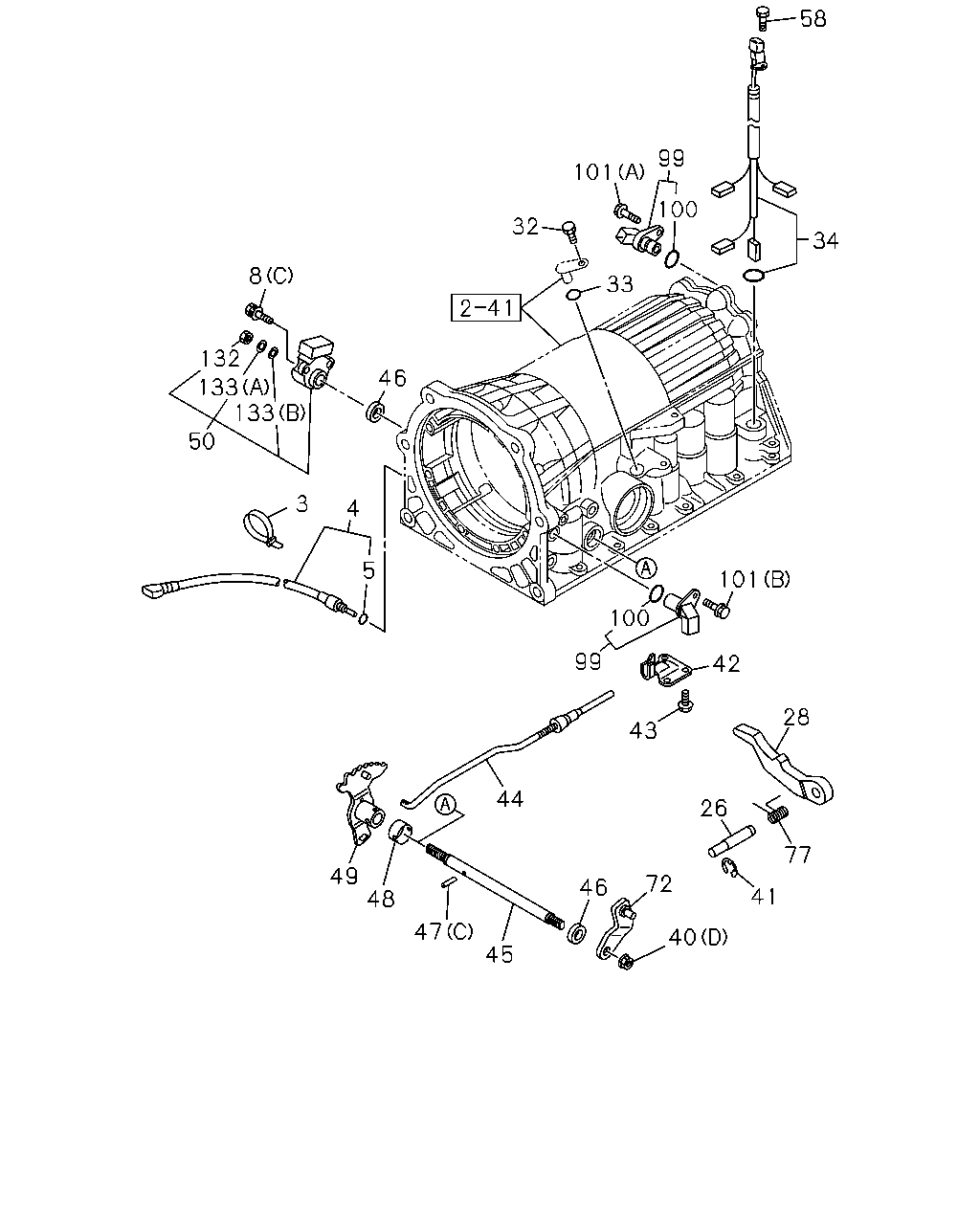

4 5 50 133 132 8 133 100 99 101 46 49 48 47 45 46 77 44 41 26 28 43 42 40 72 101 100 99 33 32 3 34 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
3	04.054 CLIP; INHIBITOR SW,A/T	8-94473-565-0	01	1	0307-	●
4	04.054 SENSOR; THERMO,A/T OIL 04.050	8-97331-531-0	01	1	0307-	●
5	04.054 GASKET; OIL THERMO SENSOR,A/T	8-94479-726-0	01	1	0307-	●
8	04.054 BOLT; NEUTRAL START SW,A/T (C) M8X30	8-97130-929-0	01	1	0307-	●
8	04.054 BOLT; NEUTRAL START SW,A/T HF V6 ENG(LCA) 00.685 (B)	8-92138-321-0	02	1	0509-		●	●
8	04.054 BOLT; NEUTRAL START SW,A/T HF V6 ENG(LCA) (A)	8-92138-813-0	02	1	0509-		●	●
26	04.294 SHAFT; PARKING PAWL,A/T	8-94479-975-0	01	1	0307-	●
26	04.294 SHAFT; PARKING PAWL,A/T	8-97331-117-0	01	1	0307-				●
28	04.294 PAWL; PARKING,A/T	8-97143-087-0	01	1	0307-	●
28	04.294 PAWL; PARKING,A/T	8-97331-119-0	01	1	0307-0711				●
28	04.294 PAWL; PARKING,A/T	8-98126-855-0	01	1	0712-				●
28	04.294 PAWL; PARKING,A/T HF V6 ENG(LCA) 04.290	8-08667-574-0	01	1	0509-		●	●
32	04.050 BOLT; THROTTLE CABLE M6X16	8-94479-712-0	01	1	0307-0609	●
32	04.050 BOLT; THROTTLE CABLE 4X2(TFB***) M6X16	8-94479-712-0	01	1	0610-	●
33	04.050 GASKET; THROTTLE CABLE	8-94364-922-0	01	1	0307-0609	●
33	04.050 GASKET; THROTTLE CABLE 4X2(TFB***)	8-94364-922-0	01	1	0610-	●
34	04.265 SOLENOID ASM; A/T	8-97232-108-0	01	1	0307-0609	●
34	04.265 SOLENOID ASM; A/T	8-98050-495-0	01	1	0610-	●
40	04.037 NUT; LEVER TO SHAFT 01.062 (D) M8 FLANGE	0-91180-108-0	01	1	0307-0609	●
40	04.037 NUT; LEVER TO SHAFT 4JJ1-TCX ENG(LS0) 01.062 (D) M8 FLANGE	0-91180-108-0	01	1	0610-	●
40	04.037 NUT; LEVER TO SHAFT 03.162 (E) M10 FLANGE	0-91180-110-0	01	1	0307-				●
40	04.037 NUT; LEVER TO SHAFT 01.062 (C) M6 FLANGE	0-91180-106-0	01	1	0509-		●	●
40	04.037 NUT; LEVER TO SHAFT HF V6 ENG(LCA) (A)	8-24222-403-0	01	1	0509-		●	●
40	04.037 NUT; LEVER TO SHAFT HF V6 ENG(LCA) 03.604 (B) M10	9-09120-510-0	01	1	0509-0601		●	●
40	04.037 NUT; LEVER TO SHAFT HF V6 ENG(LCA) (B) M10	0-91210-510-0	01	1	0602-		●	●
41	04.290 RETAINER; SPR,SHAFT	5-34488-002-0	01	1	0307-	●
42	04.290 BRACKET; PARKING LOCK	8-97126-815-0	01	1	0307-	●
42	04.290 BRACKET; PARKING LOCK HF V6 ENG(LCA)	8-08667-574-0	01	1	0509-		●	●
43	04.290 BOLT; BRKT M6X14	8-94479-978-0	03	1	0307-	●
43	04.290 BOLT; BRKT 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0509-0601		●	●
43	04.290 BOLT; BRKT 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0602-		●	●
44	04.290 ROD ASM; PARKING PAWL	8-97126-814-0	01	1	0307-0609	●
44	04.290 ROD ASM; PARKING PAWL	8-98050-534-0	01	1	0610-	●
45	04.275 SHAFT; VALVE LEVER	8-97025-848-0	01	1	0307-	●
46	04.282 SEAL; OIL 04.027 OD=22	8-94479-740-0	02	1	0307-	●
46	04.282 SEAL; OIL	8-97330-908-0	01	1	0307-				●
46	04.282 SEAL; OIL HF V6 ENG(LCA) 04.265	8-08657-163-0	01	1	0509-		●	●
47	04.275 PIN; ROLL SHAFT 04.052 (C) D=4	8-94257-081-0	01	1	0307-	●
47	04.275 PIN; ROLL SHAFT (A)	8-97331-125-0	01	1	0307-				●
47	04.275 PIN; ROLL SHAFT (B)	8-97331-126-0	01	1	0307-				●
48	04.008 COVER; SLEEVE	8-94479-761-0	01	1	0307-0609	●
48	04.008 COVER; SLEEVE	8-97362-483-0	01	1	0610-	●
49	04.279 LEVER ASM; CAM	8-97331-535-0	01	1	0307-	●
50	04.054 SWITCH; NEUTRAL,A/T	8-97207-138-0	01	1	0307-	●
58	04.260 BOLT; SOLENOID TO A/T 04.050 M6X16	8-94479-712-0	01	1	0307-	●
72	04.035 LEVER; SELECT CONT	8-97249-948-1	01	1	0307-0609	●
72	04.035 LEVER; SELECT CONT 4JJ1-TCX ENG(LS0)	8-98005-235-0	01	1	0610-	●
72	04.035 LEVER; SELECT CONT	8-97231-904-1	01	1	0307-				●
72	04.035 LEVER; SELECT CONT HF V6 ENG(LCA)	8-98000-999-0	01	1	0509-0702		●	●
72	04.035 LEVER; SELECT CONT HF V6 ENG(LCA)	8-98052-186-0	01	1	0703-		●	●
77	04.295 SPRING; TORSION,PARKING BRK LK,A	8-94479-976-0	01	1	0307-	●
99	04.329 SENSOR; SPD 4X2 LONG(TFB**F) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ)	8-97027-383-0	02	1	0610-0709	●
99	04.329 SENSOR; SPD 4X2 LONG(TFB**F) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) AUSTRALIA EQUIPMENT(B13)	8-97027-383-0	02	1	0610-0709	●
99	04.329 SENSOR; SPD 4X2 LONG(TFB**F) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) HIGH RIDE SUSPENSION(7YC)	8-97027-383-0	02	1	0710-	●
99	04.329 SENSOR; SPD 4X2 LONG(TFB**F) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) AUSTRALIA EQUIPMENT(B13) HIGH RIDE SUSPENSION(7YC)	8-97027-383-0	02	1	0710-	●
99	04.329 SENSOR; SPD	8-97027-383-0	02	1	0307-0609	●
99	04.329 SENSOR; SPD 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) EXC. AUSTRALIA EQUIPMENT(B13)	8-97027-383-0	01	1	0610-0709	●
99	04.329 SENSOR; SPD 4X4(TFS***) 4JJ1-TCX ENG(LS0)	8-97027-383-0	01	1	0610-0709	●
99	04.329 SENSOR; SPD 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) HIGH RIDE SUSPENSION(7YC) EXC. AUSTRALIA EQUIPMENT(B13)	8-97027-383-0	01	1	0710-	●
99	04.329 SENSOR; SPD 4X4(TFS***) 4JJ1-TCX ENG(LS0)	8-97027-383-0	01	1	0710-	●
100	04.239 GASKET; SPD SENSOR	8-97027-197-0	02	1	0307-	●
101	04.329 BOLT; SPD SENSOR 04.050 (A) M6X16	8-94479-712-0	01	1	0307-	●
101	04.329 BOLT; SPD SENSOR 04.290 (B) M6X14	8-94479-978-0	01	1	0307-	●
132	04.248 NUT; SWITCH M16	8-97354-883-0	01	1	0307-	●
133	04.248 WASHER; SWITCH (B)	8-97354-888-0	01	1	0307-	●
133	04.248 WASHER; SWITCH (A) ID=16	8-97354-889-0	01	1	0307-	●

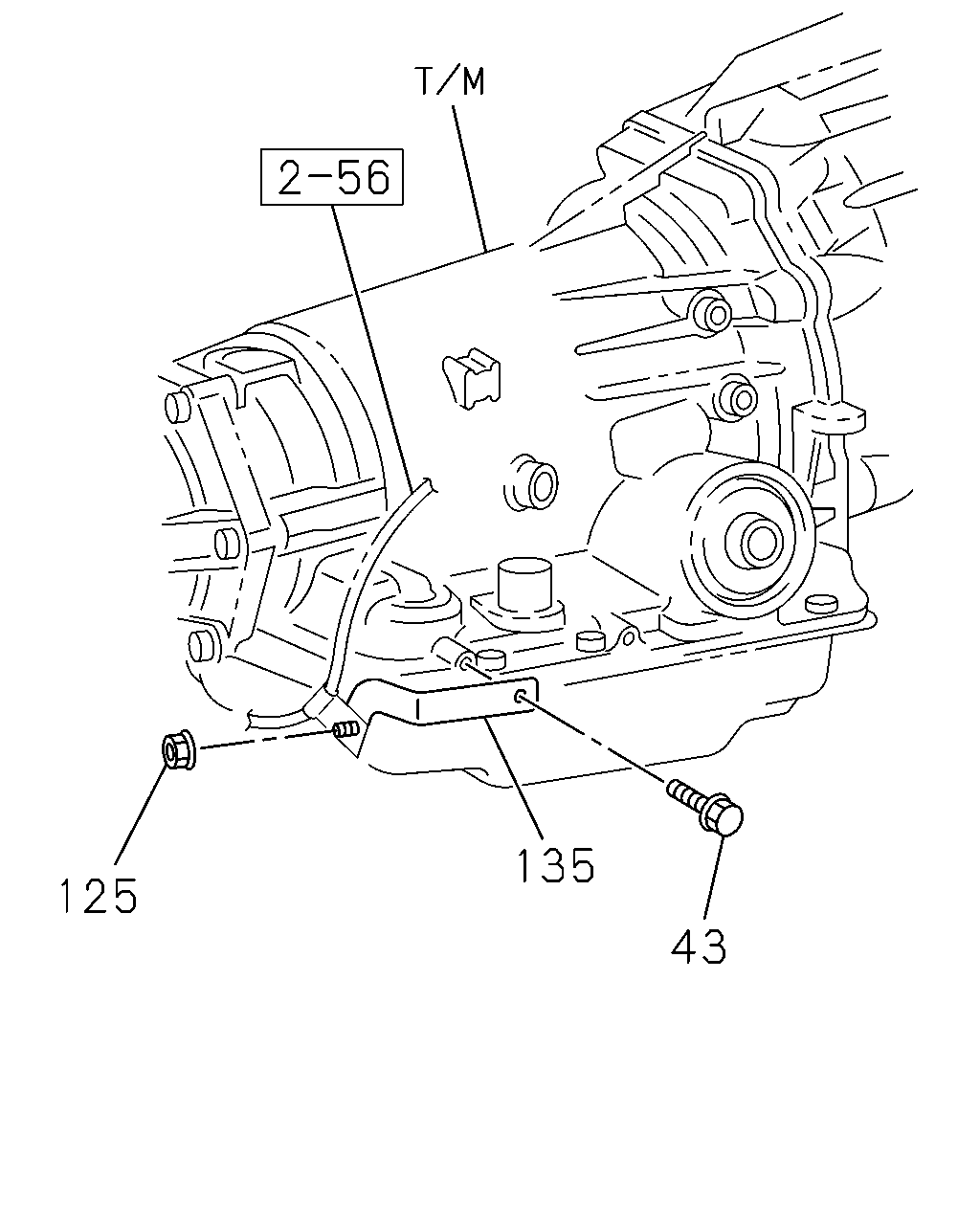

125 135 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
43	04.290 BOLT; BRKT M6X14	8-94479-978-0	03	1	0307-	●
43	04.290 BOLT; BRKT 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0509-0601		●	●
43	04.290 BOLT; BRKT 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0602-		●	●
125	04.057 NUT; BRKT 01.062 M6 FLANGE	0-91180-106-0	01	1	0509-		●	●
135	04.060 BRACKET; CABLE,TRANS	8-98012-035-0	01	1	0509-0609		●	●
135	04.060 BRACKET; CABLE,TRANS	8-98055-969-0	01	1	0610-		●	●

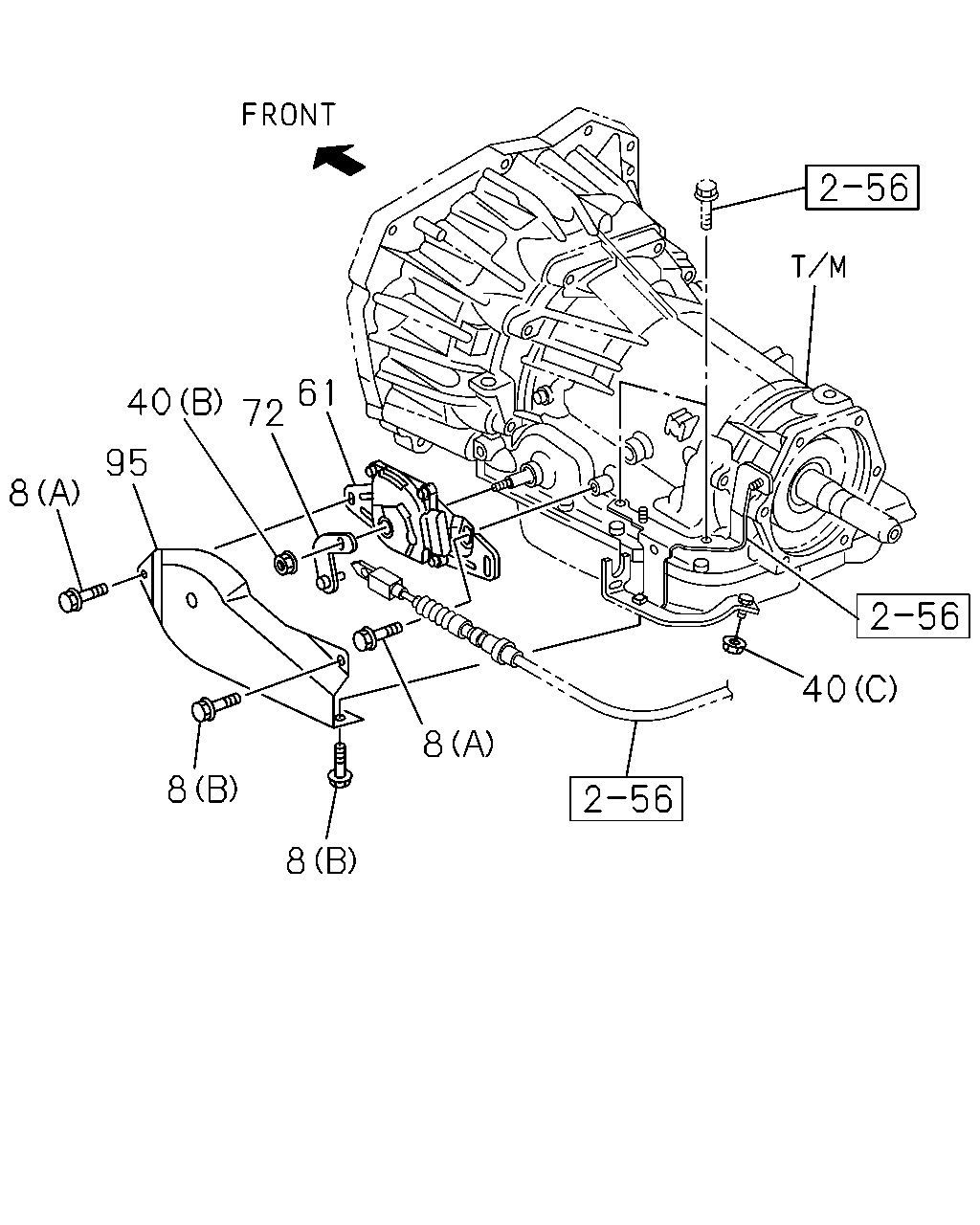

61 72 40 95 8 8 8 8 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
8	04.054 BOLT; NEUTRAL START SW,A/T (C) M8X30	8-97130-929-0	01	1	0307-	●
8	04.054 BOLT; NEUTRAL START SW,A/T HF V6 ENG(LCA) 00.685 (B)	8-92138-321-0	02	1	0509-		●	●
8	04.054 BOLT; NEUTRAL START SW,A/T HF V6 ENG(LCA) (A)	8-92138-813-0	02	1	0509-		●	●
40	04.037 NUT; LEVER TO SHAFT 01.062 (D) M8 FLANGE	0-91180-108-0	01	1	0307-0609	●
40	04.037 NUT; LEVER TO SHAFT 4JJ1-TCX ENG(LS0) 01.062 (D) M8 FLANGE	0-91180-108-0	01	1	0610-	●
40	04.037 NUT; LEVER TO SHAFT 03.162 (E) M10 FLANGE	0-91180-110-0	01	1	0307-				●
40	04.037 NUT; LEVER TO SHAFT 01.062 (C) M6 FLANGE	0-91180-106-0	01	1	0509-		●	●
40	04.037 NUT; LEVER TO SHAFT HF V6 ENG(LCA) (A)	8-24222-403-0	01	1	0509-		●	●
40	04.037 NUT; LEVER TO SHAFT HF V6 ENG(LCA) 03.604 (B) M10	9-09120-510-0	01	1	0509-0601		●	●
40	04.037 NUT; LEVER TO SHAFT HF V6 ENG(LCA) (B) M10	0-91210-510-0	01	1	0602-		●	●
61	04.265 SWITCH ASM; MODE HF V6 ENG(LCA)	8-24221-125-0	01	1	0509-		●	●
72	04.035 LEVER; SELECT CONT	8-97249-948-1	01	1	0307-0609	●
72	04.035 LEVER; SELECT CONT 4JJ1-TCX ENG(LS0)	8-98005-235-0	01	1	0610-	●
72	04.035 LEVER; SELECT CONT	8-97231-904-1	01	1	0307-				●
72	04.035 LEVER; SELECT CONT HF V6 ENG(LCA)	8-98000-999-0	01	1	0509-0702		●	●
72	04.035 LEVER; SELECT CONT HF V6 ENG(LCA)	8-98052-186-0	01	1	0703-		●	●
95	04.265 SHIELD; MODE SWITCH HF V6 ENG(LCA)	8-92067-937-0	01	1	0509-		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
