Sayfa 2-48B - Isuzu EPC

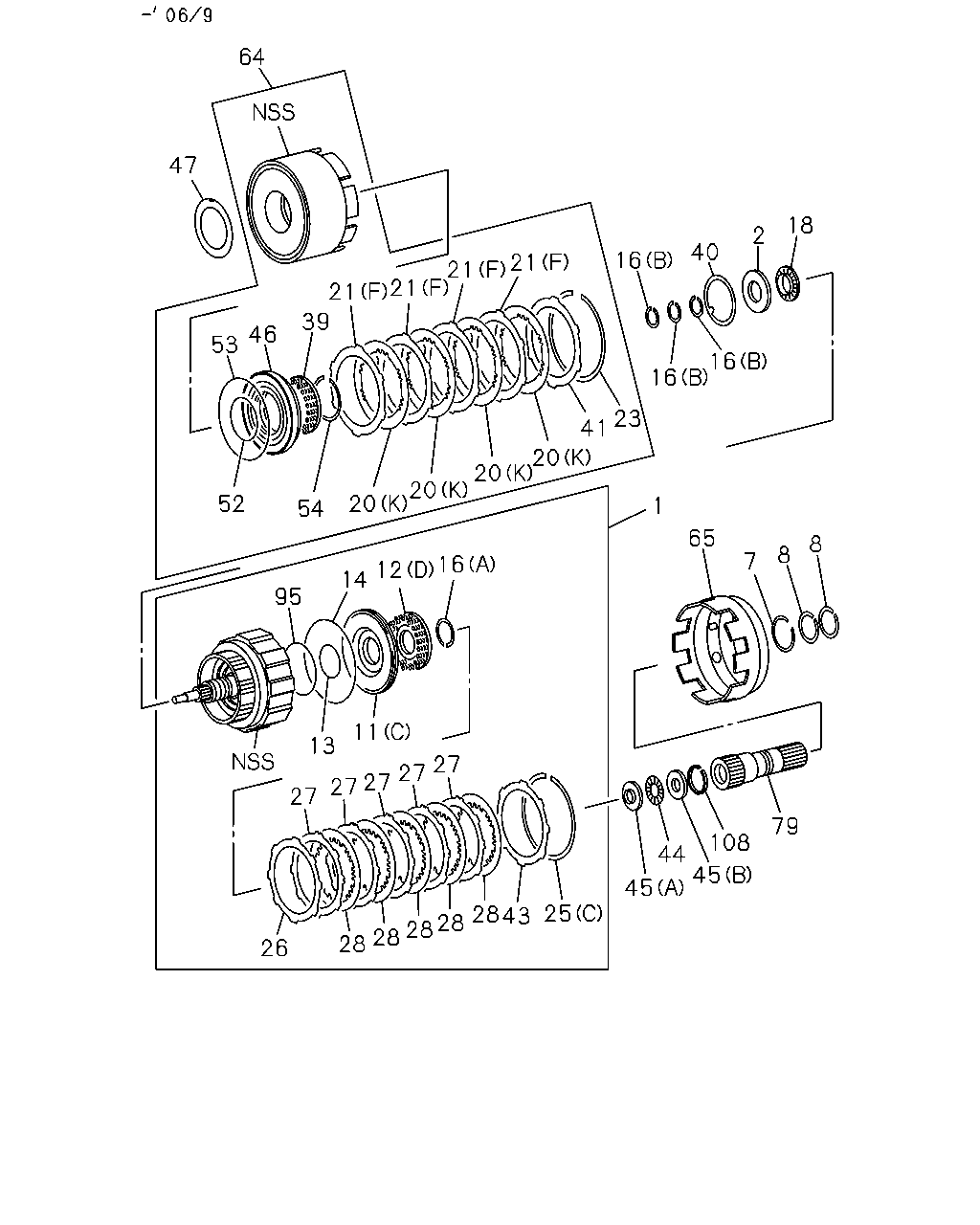

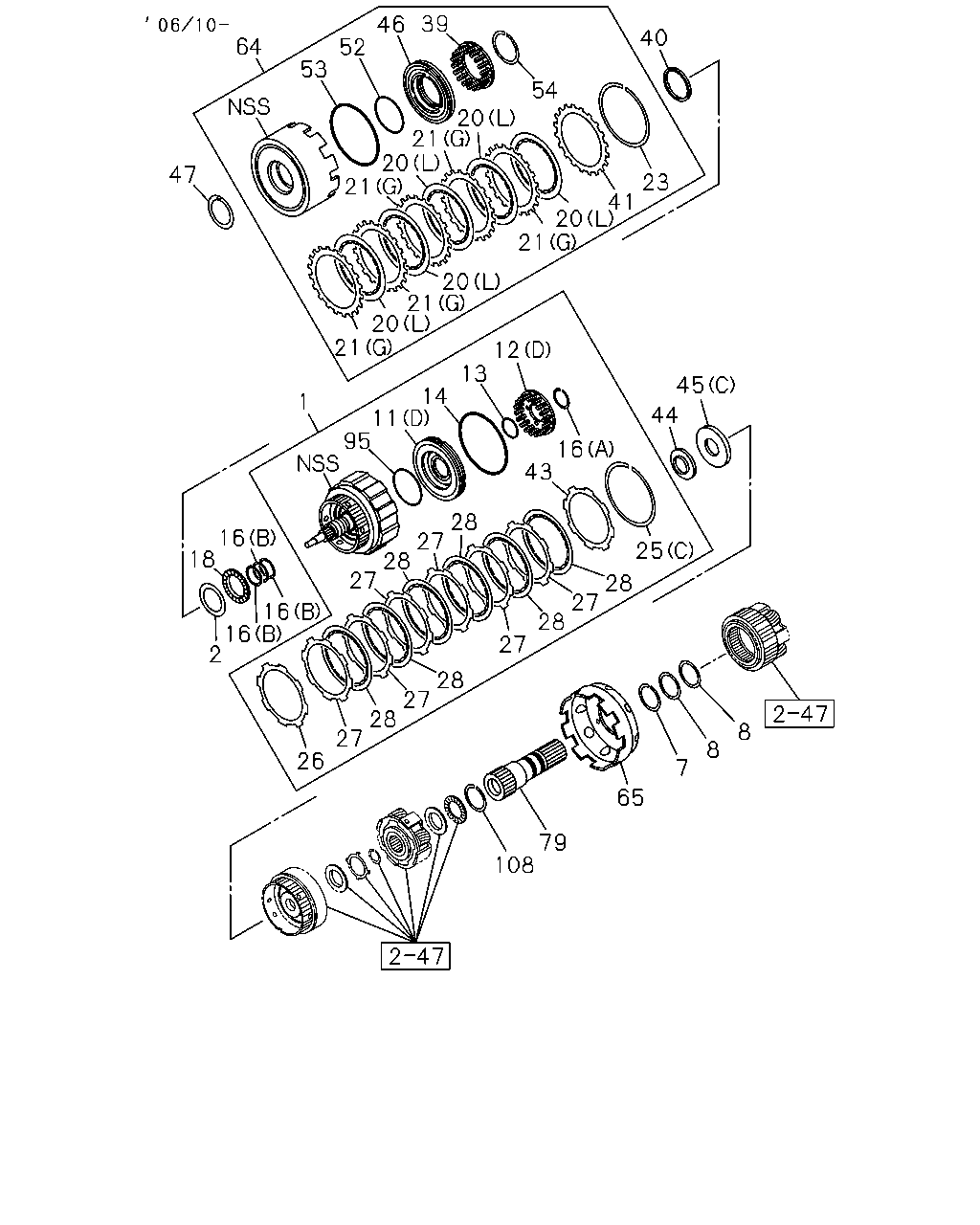

2-48B — AUTO TRANS MULTIPLE-DISC CLUTCH (#20425) — 415 parça

64 47 53 46 39 21 21 21 21 16 40 2 18 16 16 23 41 20 20 20 20 54 52 95 14 12 16 1 65 7 8 8 79 108 45 44 45 25 43 28 28 28 28 28 26 27 27 27 13 11 27 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	04.164 HUB ASM; CLU,INPUT SHAFT,A/T	8-97331-536-0	01	1	0307-0609	●
1	04.164 HUB ASM; CLU,INPUT SHAFT,A/T	8-97232-038-0	01	1	0610-0801	●
1	04.164 HUB ASM; CLU,INPUT SHAFT,A/T	8-98112-237-0	01	1	0802-	●
1	04.164 HUB ASM; CLU,INPUT SHAFT,A/T HF V6 ENG(LCA)	8-24235-420-0	01	1	0509-		●
1	04.164 HUB ASM; CLU,INPUT SHAFT,A/T HF V6 ENG(LCA)	8-24200-902-0	01	1	0509-			●
2	04.164 RACE; THRUST BRG,A/T 04.472	8-94479-763-0	01	1	0307-	●
2	04.164 RACE; THRUST BRG,A/T HF V6 ENG(LCA) T=1.92	8-08642-067-0	01	1	0509-		●	●
2	04.164 RACE; THRUST BRG,A/T HF V6 ENG(LCA) T=2.09	8-08642-068-0	01	1	0509-		●	●
2	04.164 RACE; THRUST BRG,A/T HF V6 ENG(LCA) T=2.26	8-08642-069-0	01	1	0509-		●	●
2	04.164 RACE; THRUST BRG,A/T HF V6 ENG(LCA) T=2.43	8-08642-070-0	01	1	0509-		●	●
2	04.164 RACE; THRUST BRG,A/T HF V6 ENG(LCA) T=2.60	8-08642-071-0	01	1	0509-		●	●
2	04.164 RACE; THRUST BRG,A/T HF V6 ENG(LCA) T=2.77	8-08642-072-0	01	1	0509-		●	●
2	04.164 RACE; THRUST BRG,A/T HF V6 ENG(LCA) T=2.94	8-08642-073-0	01	1	0509-		●	●
2	04.164 RACE; THRUST BRG,A/T HF V6 ENG(LCA) T=3.11	8-08642-074-0	01	1	0509-		●	●
7	04.159 RING; RET,PLANETARY GEAR,A/T	8-94479-844-0	01	1	0307-	●
8	04.169 RING; SEAL,PLANETARY GEAR,A/T	8-94166-003-0	02	1	0307-	●
11	04.166 PISTON ASM; CLU,A/T (C)	8-97025-836-0	01	1	0307-0609	●
11	04.166 PISTON ASM; CLU,A/T (D)	8-97232-055-0	01	1	0610-	●
11	04.166 PISTON ASM; CLU,A/T HF V6 ENG(LCA) (A)	8-24200-290-0	01	1	0509-		●	●
11	04.166 PISTON ASM; CLU,A/T HF V6 ENG(LCA) (B)	8-24209-542-0	01	1	0509-		●	●
12	04.164 SPRING; CLU RETURN,A/T (D)	8-94479-770-0	01	1	0307-	●
12	04.164 SPRING; CLU RETURN,A/T HF V6 ENG(LCA) (A)	8-08642-227-0	01	1	0509-		●	●
12	04.164 SPRING; CLU RETURN,A/T HF V6 ENG(LCA) (B)	8-08685-244-0	01	1	0509-		●	●
12	04.164 SPRING; CLU RETURN,A/T HF V6 ENG(LCA) (C)	8-24206-085-0	01	1	0509-		●	●
13	04.166 GASKET; INNER,CLU,A/T	8-94364-919-0	01	1	0307-	●
14	04.166 GASKET; OUTER,CLU,A/T	8-94364-920-0	01	1	0307-	●
16	04.166 RING; SNAP,CLU,A/T (A)	8-94479-769-0	01	1	0307-	●
16	04.166 RING; SNAP,CLU,A/T (B)	8-94479-775-0	03	1	0307-	●
18	04.164 BEARING; THRUST,CLU,A/T	8-94479-764-0	01	1	0307-	●
18	04.164 BEARING; THRUST,CLU,A/T HF V6 ENG(LCA)	8-08642-066-0	01	1	0509-		●	●
20	04.163 DISC; CLU,A/T (K)	8-97214-544-0	04	1	0307-0609	●
20	04.163 DISC; CLU,A/T (L)	8-98050-540-0	05	1	0610-	●
20	04.163 DISC; CLU,A/T HF V6 ENG(LCA) (A)	8-08647-058-0	01	1	0509-		●	●
20	04.163 DISC; CLU,A/T HF V6 ENG(LCA) (B)	8-08654-325-0	05	1	0509-		●	●
20	04.163 DISC; CLU,A/T HF V6 ENG(LCA) (C)	8-08663-074-0	01	1	0509-		●	●
20	04.163 DISC; CLU,A/T HF V6 ENG(LCA) (D)	8-08673-605-0	04	1	0509-		●	●
20	04.163 DISC; CLU,A/T HF V6 ENG(LCA) (E)	8-08685-044-0	01	1	0509-		●	●
20	04.163 DISC; CLU,A/T HF V6 ENG(LCA) (F)	8-24205-268-0	05	1	0509-		●	●
20	04.163 DISC; CLU,A/T HF V6 ENG(LCA) (G)	8-24210-766-0	02	1	0509-		●	●
20	04.163 DISC; CLU,A/T HF V6 ENG(LCA) (H) ID=3.90-4.10	8-24212-459-0	01	1	0509-		●	●
20	04.163 DISC; CLU,A/T HF V6 ENG(LCA) (H) ID=4.79-4.99	8-24212-460-0	01	1	0509-		●	●
20	04.163 DISC; CLU,A/T HF V6 ENG(LCA) (H) ID=5.68-5.88	8-24212-461-0	01	1	0509-		●	●
20	04.163 DISC; CLU,A/T HF V6 ENG(LCA) (I)	8-24212-462-0	01	1	0509-		●	●
20	04.163 DISC; CLU,A/T HF V6 ENG(LCA) (J) ID=4.56-4.71	8-24212-466-0	01	1	0509-		●	●
20	04.163 DISC; CLU,A/T HF V6 ENG(LCA) (J) ID=5.15-5.30	8-24212-467-0	01	1	0509-		●	●
20	04.163 DISC; CLU,A/T HF V6 ENG(LCA) (J) ID=5.74-5.89	8-24212-468-0	01	1	0509-		●	●
20	04.163 DISC; CLU,A/T HF V6 ENG(LCA) (J) ID=6.33-6.48	8-24212-469-0	01	1	0509-		●	●
20	04.163 DISC; CLU,A/T HF V6 ENG(LCA) (J) ID=6.92-7.07	8-24212-470-0	01	1	0509-		●	●
21	04.163 DISC ASM; CLU & FACING,A/T (F)	8-97214-543-0	04	1	0307-0609	●
21	04.163 DISC ASM; CLU & FACING,A/T (G)	8-97232-057-0	05	1	0610-	●
21	04.163 DISC ASM; CLU & FACING,A/T HF V6 ENG(LCA) (D)	8-24232-517-0	05	1	0509-		●
21	04.163 DISC ASM; CLU & FACING,A/T HF V6 ENG(LCA) (A)	8-08642-154-0	02	1	0509-		●	●
21	04.163 DISC ASM; CLU & FACING,A/T HF V6 ENG(LCA) (B)	8-24205-267-0	04	1	0509-		●	●
21	04.163 DISC ASM; CLU & FACING,A/T HF V6 ENG(LCA) (C)	8-24209-563-0	01	1	0509-		●	●
21	04.163 DISC ASM; CLU & FACING,A/T HF V6 ENG(LCA) (E)	8-24216-946-0	05	1	0509-		●	●
21	04.163 DISC ASM; CLU & FACING,A/T HF V6 ENG(LCA) (D)	8-24210-765-0	05	1	0509-			●
23	04.164 RING; RET,CLU,A/T	8-97214-553-0	01	1	0307-	●
23	04.164 RING; RET,CLU,A/T HF V6 ENG(LCA)	8-08667-022-0	01	1	0509-		●	●
25	04.164 RING; RET,BACKING PLATE,A/T (C)	8-94250-342-0	01	1	0307-	●
25	04.164 RING; RET,BACKING PLATE,A/T HF V6 ENG(LCA) (A)	8-08642-170-0	01	1	0509-		●	●
25	04.164 RING; RET,BACKING PLATE,A/T HF V6 ENG(LCA) (B)	8-08663-636-0	01	1	0509-		●	●
26	04.163 PLATE; CLU,BACKING,A/T	8-94479-772-0	01	1	0307-	●
27	04.163 DISC ASM; CLU & FACING,A/T STD	8-97025-838-0	05	1	0307-0609	●
27	04.163 DISC ASM; CLU & FACING,A/T	8-97232-058-0	06	1	0610-	●
27	04.163 DISC ASM; CLU & FACING,A/T OPT	8-97184-342-0	05	1	0307-0609	●
28	04.163 DISC; CLU,A/T	8-97143-083-0	05	1	0307-0609	●
28	04.163 DISC; CLU,A/T 04.164 T=3.6	8-97232-043-0	06	1	0610-	●
39	04.164 SPRING; DIRECT CLU RETURN	8-97019-543-0	01	1	0307-	●
39	04.164 SPRING; DIRECT CLU RETURN HF V6 ENG(LCA)	8-08647-284-0	01	1	0509-		●	●
40	04.164 WASHER; THRUST,CLU DRUM,INPUT SH	8-94479-796-0	01	1	0307-	●
41	04.164 FLANGE; DIRECT CLU T=3.9	8-97214-551-0	01	1	0307-0609	●
41	04.164 FLANGE; DIRECT CLU T=4.1	8-97288-906-0	01	1	0307-0609	●
41	04.164 FLANGE; DIRECT CLU T=3.3	8-97288-908-0	01	1	0307-	●
41	04.164 FLANGE; DIRECT CLU T=3.4	8-97288-909-0	01	1	0307-	●
41	04.164 FLANGE; DIRECT CLU T=3.5	8-97288-910-0	01	1	0307-	●
41	04.164 FLANGE; DIRECT CLU T=3.6	8-97288-911-0	01	1	0307-	●
41	04.164 FLANGE; DIRECT CLU T=3.7	8-97288-912-0	01	1	0307-	●
41	04.164 FLANGE; DIRECT CLU T=3.8	8-97288-913-0	01	1	0307-	●
41	04.164 FLANGE; DIRECT CLU T=4.0	8-97331-540-0	01	1	0307-	●
41	04.164 FLANGE; DIRECT CLU T=4.2	8-97331-541-0	01	1	0307-	●
41	04.164 FLANGE; DIRECT CLU HF V6 ENG(LCA) ID=5.747-5.947	8-24212-463-0	01	1	0509-		●	●
41	04.164 FLANGE; DIRECT CLU HF V6 ENG(LCA) ID=6.518-6.678	8-24212-464-0	01	1	0509-		●	●
41	04.164 FLANGE; DIRECT CLU HF V6 ENG(LCA) ID=7.249-7.409	8-24212-465-0	01	1	0509-		●	●
43	04.164 FLANGE; FWD CLU T=3.6	8-97232-043-0	01	1	0307-	●
43	04.164 FLANGE; FWD CLU T=3.8	8-97232-044-0	01	1	0307-	●
43	04.164 FLANGE; FWD CLU T=4.0	8-97232-045-0	01	1	0307-	●
43	04.164 FLANGE; FWD CLU T=3.2	8-97232-046-0	01	1	0307-	●
43	04.164 FLANGE; FWD CLU T=3.4	8-97232-047-0	01	1	0307-	●
43	04.164 FLANGE; FWD CLU T=3.0	8-97331-537-0	01	1	0307-	●
43	04.164 FLANGE; FWD CLU T=4.2	8-97331-538-0	01	1	0307-	●
43	04.164 FLANGE; FWD CLU T=4.4	8-97331-539-0	01	1	0307-	●
44	04.164 BEARING; THRUST,INPUT SHAFT RR	8-94479-778-0	01	1	0307-0609	●
44	04.164 BEARING; THRUST,INPUT SHAFT RR	8-98050-537-0	01	1	0610-	●
45	04.164 RACE; THRUST BRG,INPUT SHAFT (A)	8-94479-776-0	01	1	0307-0609	●
45	04.164 RACE; THRUST BRG,INPUT SHAFT (C)	8-98050-536-0	01	1	0610-	●
45	04.164 RACE; THRUST BRG,INPUT SHAFT 04.180 (B)	8-94479-777-0	01	1	0307-0609	●
46	04.166 PISTON; DIRECT CLU,A/T	8-94364-921-0	01	1	0307-	●
46	04.166 PISTON; DIRECT CLU,A/T HF V6 ENG(LCA)	8-08667-841-0	01	1	0509-		●	●
47	04.164 WASHER; THRUST,DIRECT CLU DRUM	8-94479-779-0	01	1	0307-	●
47	04.164 WASHER; THRUST,DIRECT CLU DRUM HF V6 ENG(LCA)	8-08642-041-0	01	1	0509-		●	●
52	04.167 GASKET; PISTON INNER,DIRECT CLU, 04.460	8-97184-321-0	01	1	0307-	●
53	04.167 GASKET; PISTON OUTER,DIRECT CLU, 04.166	8-94364-920-0	01	1	0307-	●
54	04.166 RING; SNAP,PISTON RETURN SPRING	8-94479-783-0	01	1	0307-	●
54	04.166 RING; SNAP,PISTON RETURN SPRING HF V6 ENG(LCA)	8-08628-059-0	01	1	0509-		●	●
64	04.169 DRUM ASM; DIRECT CLU,A/T	8-97288-905-0	01	1	0307-0609	●
64	04.169 DRUM ASM; DIRECT CLU,A/T	8-98050-538-0	01	1	0610-0801	●
64	04.169 DRUM ASM; DIRECT CLU,A/T	8-98112-190-0	01	1	0802-	●
64	04.169 DRUM ASM; DIRECT CLU,A/T HF V6 ENG(LCA)	8-08681-295-0	01	1	0509-		●	●
65	04.169 DRUM; SUN GEAR INPUT	8-97024-255-0	01	1	0307-	●
79	04.262 GEAR ASM; INPUT SUN 04.159	8-94479-846-0	01	1	0307-0609	●
79	04.262 GEAR ASM; INPUT SUN	8-98056-397-0	01	1	0610-0801	●
79	04.262 GEAR ASM; INPUT SUN	8-98112-182-0	01	1	0802-	●
79	04.262 GEAR ASM; INPUT SUN HF V6 ENG(LCA)	8-24226-180-0	01	1	0509-		●	●
95	04.166 GASKET; CLU HUB	8-97122-978-0	01	1	0307-	●
108	04.159 RING; SNAP,SUN GEAR	8-94479-845-0	01	1	0307-	●

20 20 20 20 20 20 25 21 25 20 3 104 20 20 12 20 11 21 21 21 21 21 20 20 102 98 12 82 143 74 21 21 74 96 102 1 144 106 103 141 2 18 23 41 20 20 20 20 106 11 102 142 99 132 21 21 21 21 20 54 39 46 140 64 47 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	04.164 HUB ASM; CLU,INPUT SHAFT,A/T	8-97331-536-0	01	1	0307-0609	●
1	04.164 HUB ASM; CLU,INPUT SHAFT,A/T	8-97232-038-0	01	1	0610-0801	●
1	04.164 HUB ASM; CLU,INPUT SHAFT,A/T	8-98112-237-0	01	1	0802-	●
1	04.164 HUB ASM; CLU,INPUT SHAFT,A/T HF V6 ENG(LCA)	8-24235-420-0	01	1	0509-		●
1	04.164 HUB ASM; CLU,INPUT SHAFT,A/T HF V6 ENG(LCA)	8-24200-902-0	01	1	0509-			●
2	04.164 RACE; THRUST BRG,A/T 04.472	8-94479-763-0	01	1	0307-	●
2	04.164 RACE; THRUST BRG,A/T HF V6 ENG(LCA) T=1.92	8-08642-067-0	01	1	0509-		●	●
2	04.164 RACE; THRUST BRG,A/T HF V6 ENG(LCA) T=2.09	8-08642-068-0	01	1	0509-		●	●
2	04.164 RACE; THRUST BRG,A/T HF V6 ENG(LCA) T=2.26	8-08642-069-0	01	1	0509-		●	●
2	04.164 RACE; THRUST BRG,A/T HF V6 ENG(LCA) T=2.43	8-08642-070-0	01	1	0509-		●	●
2	04.164 RACE; THRUST BRG,A/T HF V6 ENG(LCA) T=2.60	8-08642-071-0	01	1	0509-		●	●
2	04.164 RACE; THRUST BRG,A/T HF V6 ENG(LCA) T=2.77	8-08642-072-0	01	1	0509-		●	●
2	04.164 RACE; THRUST BRG,A/T HF V6 ENG(LCA) T=2.94	8-08642-073-0	01	1	0509-		●	●
2	04.164 RACE; THRUST BRG,A/T HF V6 ENG(LCA) T=3.11	8-08642-074-0	01	1	0509-		●	●
3	04.164 BEARING; THRUST,A/T HF V6 ENG(LCA) (A)	8-08642-162-0	01	1	0509-		●	●
3	04.164 BEARING; THRUST,A/T HF V6 ENG(LCA) (B)	8-24217-327-0	02	1	0509-		●	●
11	04.166 PISTON ASM; CLU,A/T (C)	8-97025-836-0	01	1	0307-0609	●
11	04.166 PISTON ASM; CLU,A/T (D)	8-97232-055-0	01	1	0610-	●
11	04.166 PISTON ASM; CLU,A/T HF V6 ENG(LCA) (A)	8-24200-290-0	01	1	0509-		●	●
11	04.166 PISTON ASM; CLU,A/T HF V6 ENG(LCA) (B)	8-24209-542-0	01	1	0509-		●	●
12	04.164 SPRING; CLU RETURN,A/T (D)	8-94479-770-0	01	1	0307-	●
12	04.164 SPRING; CLU RETURN,A/T HF V6 ENG(LCA) (A)	8-08642-227-0	01	1	0509-		●	●
12	04.164 SPRING; CLU RETURN,A/T HF V6 ENG(LCA) (B)	8-08685-244-0	01	1	0509-		●	●
12	04.164 SPRING; CLU RETURN,A/T HF V6 ENG(LCA) (C)	8-24206-085-0	01	1	0509-		●	●
18	04.164 BEARING; THRUST,CLU,A/T	8-94479-764-0	01	1	0307-	●
18	04.164 BEARING; THRUST,CLU,A/T HF V6 ENG(LCA)	8-08642-066-0	01	1	0509-		●	●
20	04.163 DISC; CLU,A/T (K)	8-97214-544-0	04	1	0307-0609	●
20	04.163 DISC; CLU,A/T (L)	8-98050-540-0	05	1	0610-	●
20	04.163 DISC; CLU,A/T HF V6 ENG(LCA) (A)	8-08647-058-0	01	1	0509-		●	●
20	04.163 DISC; CLU,A/T HF V6 ENG(LCA) (B)	8-08654-325-0	05	1	0509-		●	●
20	04.163 DISC; CLU,A/T HF V6 ENG(LCA) (C)	8-08663-074-0	01	1	0509-		●	●
20	04.163 DISC; CLU,A/T HF V6 ENG(LCA) (D)	8-08673-605-0	04	1	0509-		●	●
20	04.163 DISC; CLU,A/T HF V6 ENG(LCA) (E)	8-08685-044-0	01	1	0509-		●	●
20	04.163 DISC; CLU,A/T HF V6 ENG(LCA) (F)	8-24205-268-0	05	1	0509-		●	●
20	04.163 DISC; CLU,A/T HF V6 ENG(LCA) (G)	8-24210-766-0	02	1	0509-		●	●
20	04.163 DISC; CLU,A/T HF V6 ENG(LCA) (H) ID=3.90-4.10	8-24212-459-0	01	1	0509-		●	●
20	04.163 DISC; CLU,A/T HF V6 ENG(LCA) (H) ID=4.79-4.99	8-24212-460-0	01	1	0509-		●	●
20	04.163 DISC; CLU,A/T HF V6 ENG(LCA) (H) ID=5.68-5.88	8-24212-461-0	01	1	0509-		●	●
20	04.163 DISC; CLU,A/T HF V6 ENG(LCA) (I)	8-24212-462-0	01	1	0509-		●	●
20	04.163 DISC; CLU,A/T HF V6 ENG(LCA) (J) ID=4.56-4.71	8-24212-466-0	01	1	0509-		●	●
20	04.163 DISC; CLU,A/T HF V6 ENG(LCA) (J) ID=5.15-5.30	8-24212-467-0	01	1	0509-		●	●
20	04.163 DISC; CLU,A/T HF V6 ENG(LCA) (J) ID=5.74-5.89	8-24212-468-0	01	1	0509-		●	●
20	04.163 DISC; CLU,A/T HF V6 ENG(LCA) (J) ID=6.33-6.48	8-24212-469-0	01	1	0509-		●	●
20	04.163 DISC; CLU,A/T HF V6 ENG(LCA) (J) ID=6.92-7.07	8-24212-470-0	01	1	0509-		●	●
21	04.163 DISC ASM; CLU & FACING,A/T (F)	8-97214-543-0	04	1	0307-0609	●
21	04.163 DISC ASM; CLU & FACING,A/T (G)	8-97232-057-0	05	1	0610-	●
21	04.163 DISC ASM; CLU & FACING,A/T HF V6 ENG(LCA) (D)	8-24232-517-0	05	1	0509-		●
21	04.163 DISC ASM; CLU & FACING,A/T HF V6 ENG(LCA) (A)	8-08642-154-0	02	1	0509-		●	●
21	04.163 DISC ASM; CLU & FACING,A/T HF V6 ENG(LCA) (B)	8-24205-267-0	04	1	0509-		●	●
21	04.163 DISC ASM; CLU & FACING,A/T HF V6 ENG(LCA) (C)	8-24209-563-0	01	1	0509-		●	●
21	04.163 DISC ASM; CLU & FACING,A/T HF V6 ENG(LCA) (E)	8-24216-946-0	05	1	0509-		●	●
21	04.163 DISC ASM; CLU & FACING,A/T HF V6 ENG(LCA) (D)	8-24210-765-0	05	1	0509-			●
23	04.164 RING; RET,CLU,A/T	8-97214-553-0	01	1	0307-	●
23	04.164 RING; RET,CLU,A/T HF V6 ENG(LCA)	8-08667-022-0	01	1	0509-		●	●
25	04.164 RING; RET,BACKING PLATE,A/T (C)	8-94250-342-0	01	1	0307-	●
25	04.164 RING; RET,BACKING PLATE,A/T HF V6 ENG(LCA) (A)	8-08642-170-0	01	1	0509-		●	●
25	04.164 RING; RET,BACKING PLATE,A/T HF V6 ENG(LCA) (B)	8-08663-636-0	01	1	0509-		●	●
39	04.164 SPRING; DIRECT CLU RETURN	8-97019-543-0	01	1	0307-	●
39	04.164 SPRING; DIRECT CLU RETURN HF V6 ENG(LCA)	8-08647-284-0	01	1	0509-		●	●
41	04.164 FLANGE; DIRECT CLU T=3.9	8-97214-551-0	01	1	0307-0609	●
41	04.164 FLANGE; DIRECT CLU T=4.1	8-97288-906-0	01	1	0307-0609	●
41	04.164 FLANGE; DIRECT CLU T=3.3	8-97288-908-0	01	1	0307-	●
41	04.164 FLANGE; DIRECT CLU T=3.4	8-97288-909-0	01	1	0307-	●
41	04.164 FLANGE; DIRECT CLU T=3.5	8-97288-910-0	01	1	0307-	●
41	04.164 FLANGE; DIRECT CLU T=3.6	8-97288-911-0	01	1	0307-	●
41	04.164 FLANGE; DIRECT CLU T=3.7	8-97288-912-0	01	1	0307-	●
41	04.164 FLANGE; DIRECT CLU T=3.8	8-97288-913-0	01	1	0307-	●
41	04.164 FLANGE; DIRECT CLU T=4.0	8-97331-540-0	01	1	0307-	●
41	04.164 FLANGE; DIRECT CLU T=4.2	8-97331-541-0	01	1	0307-	●
41	04.164 FLANGE; DIRECT CLU HF V6 ENG(LCA) ID=5.747-5.947	8-24212-463-0	01	1	0509-		●	●
41	04.164 FLANGE; DIRECT CLU HF V6 ENG(LCA) ID=6.518-6.678	8-24212-464-0	01	1	0509-		●	●
41	04.164 FLANGE; DIRECT CLU HF V6 ENG(LCA) ID=7.249-7.409	8-24212-465-0	01	1	0509-		●	●
46	04.166 PISTON; DIRECT CLU,A/T	8-94364-921-0	01	1	0307-	●
46	04.166 PISTON; DIRECT CLU,A/T HF V6 ENG(LCA)	8-08667-841-0	01	1	0509-		●	●
47	04.164 WASHER; THRUST,DIRECT CLU DRUM	8-94479-779-0	01	1	0307-	●
47	04.164 WASHER; THRUST,DIRECT CLU DRUM HF V6 ENG(LCA)	8-08642-041-0	01	1	0509-		●	●
54	04.166 RING; SNAP,PISTON RETURN SPRING	8-94479-783-0	01	1	0307-	●
54	04.166 RING; SNAP,PISTON RETURN SPRING HF V6 ENG(LCA)	8-08628-059-0	01	1	0509-		●	●
64	04.169 DRUM ASM; DIRECT CLU,A/T	8-97288-905-0	01	1	0307-0609	●
64	04.169 DRUM ASM; DIRECT CLU,A/T	8-98050-538-0	01	1	0610-0801	●
64	04.169 DRUM ASM; DIRECT CLU,A/T	8-98112-190-0	01	1	0802-	●
64	04.169 DRUM ASM; DIRECT CLU,A/T HF V6 ENG(LCA)	8-08681-295-0	01	1	0509-		●	●
74	04.262 RING; RET HF V6 ENG(LCA) (A)	8-06261-051-0	02	1	0509-		●	●
74	04.262 RING; RET HF V6 ENG(LCA) (B)	8-08642-201-0	01	1	0509-		●	●
74	04.262 RING; RET HF V6 ENG(LCA) (C)	8-08647-083-0	01	1	0509-		●	●
74	04.262 RING; RET HF V6 ENG(LCA) (D)	8-08647-337-0	01	1	0509-		●	●
74	04.262 RING; RET HF V6 ENG(LCA) (E)	8-08654-141-0	01	1	0509-		●	●
74	04.262 RING; RET HF V6 ENG(LCA) (F)	8-08681-553-0	01	1	0509-		●	●
74	04.262 RING; RET HF V6 ENG(LCA) (G)	8-11500-692-0	01	1	0509-		●	●
74	04.262 RING; RET HF V6 ENG(LCA) (H)	8-24200-278-0	01	1	0509-		●	●
82	04.256 SPRAG KIT HF V6 ENG(LCA)	8-24218-235-0	02	1	0509-		●	●
88	04.256 BAND; BRAKE HF V6 ENG(LCA)	8-24232-236-0	01	1	0509-		●	●
96	04.189 BALL; PISTON,CLU HF V6 ENG(LCA)	8-08622-757-0	01	1	0509-		●	●
98	04.166 HOUSING; CLU HF V6 ENG(LCA)	8-24205-298-0	01	1	0509-		●	●
99	04.189 ORIFICE; CLUTCH HUB HF V6 ENG(LCA) 04.210	8-24203-787-0	01	1	0509-		●	●
102	04.189 SEAL; CLU HF V6 ENG(LCA) (A)	8-08642-919-0	01	1	0509-		●	●
102	04.189 SEAL; CLU HF V6 ENG(LCA) (B)	8-08648-987-0	01	1	0509-		●	●
103	04.183 SEAL; SHAFT,INPUT HF V6 ENG(LCA)	8-08667-035-0	04	1	0509-		●	●
104	04.176 SEAL; SHAFT,OUTPUT HF V6 ENG(LCA)	8-08677-268-0	01	1	0509-		●	●
106	04.189 VALVE; CLU HF V6 ENG(LCA) (A)	8-24205-181-0	01	1	0509-		●	●
106	04.189 VALVE; CLU HF V6 ENG(LCA) (B)	8-24208-262-0	01	1	0509-		●	●
132	04.176 GASKET; TURBINE SHAFT HF V6 ENG(LCA)	8-08662-686-0	01	1	0509-		●	●
140	04.166 GASKET; PISTON,DIRECT CLU,A/T HF V6 ENG(LCA)	8-08683-960-0	01	1	0509-		●	●
141	04.167 BALL; CHECK HF V6 ENG(LCA)	8-08685-839-0	01	1	0509-		●	●
142	04.167 SPRING; CLU HF V6 ENG(LCA)	8-08667-424-0	05	1	0509-		●	●
143	04.167 RING; CLU HF V6 ENG(LCA)	8-08685-043-0	01	1	0509-		●	●
144	04.161 PLUG; INPUT SHAFT HF V6 ENG(LCA) 04.265	8-00104-918-0	03	1	0509-		●	●

108 79 65 7 8 8 25 28 27 28 27 28 27 28 27 26 45 44 16 43 28 27 28 27 16 16 2 18 16 1 95 11 14 13 12 21 20 21 20 21 20 41 23 40 54 20 21 20 21 47 64 53 52 46 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	04.164 HUB ASM; CLU,INPUT SHAFT,A/T	8-97331-536-0	01	1	0307-0609	●
1	04.164 HUB ASM; CLU,INPUT SHAFT,A/T	8-97232-038-0	01	1	0610-0801	●
1	04.164 HUB ASM; CLU,INPUT SHAFT,A/T	8-98112-237-0	01	1	0802-	●
1	04.164 HUB ASM; CLU,INPUT SHAFT,A/T HF V6 ENG(LCA)	8-24235-420-0	01	1	0509-		●
1	04.164 HUB ASM; CLU,INPUT SHAFT,A/T HF V6 ENG(LCA)	8-24200-902-0	01	1	0509-			●
2	04.164 RACE; THRUST BRG,A/T 04.472	8-94479-763-0	01	1	0307-	●
2	04.164 RACE; THRUST BRG,A/T HF V6 ENG(LCA) T=1.92	8-08642-067-0	01	1	0509-		●	●
2	04.164 RACE; THRUST BRG,A/T HF V6 ENG(LCA) T=2.09	8-08642-068-0	01	1	0509-		●	●
2	04.164 RACE; THRUST BRG,A/T HF V6 ENG(LCA) T=2.26	8-08642-069-0	01	1	0509-		●	●
2	04.164 RACE; THRUST BRG,A/T HF V6 ENG(LCA) T=2.43	8-08642-070-0	01	1	0509-		●	●
2	04.164 RACE; THRUST BRG,A/T HF V6 ENG(LCA) T=2.60	8-08642-071-0	01	1	0509-		●	●
2	04.164 RACE; THRUST BRG,A/T HF V6 ENG(LCA) T=2.77	8-08642-072-0	01	1	0509-		●	●
2	04.164 RACE; THRUST BRG,A/T HF V6 ENG(LCA) T=2.94	8-08642-073-0	01	1	0509-		●	●
2	04.164 RACE; THRUST BRG,A/T HF V6 ENG(LCA) T=3.11	8-08642-074-0	01	1	0509-		●	●
7	04.159 RING; RET,PLANETARY GEAR,A/T	8-94479-844-0	01	1	0307-	●
8	04.169 RING; SEAL,PLANETARY GEAR,A/T	8-94166-003-0	02	1	0307-	●
11	04.166 PISTON ASM; CLU,A/T (C)	8-97025-836-0	01	1	0307-0609	●
11	04.166 PISTON ASM; CLU,A/T (D)	8-97232-055-0	01	1	0610-	●
11	04.166 PISTON ASM; CLU,A/T HF V6 ENG(LCA) (A)	8-24200-290-0	01	1	0509-		●	●
11	04.166 PISTON ASM; CLU,A/T HF V6 ENG(LCA) (B)	8-24209-542-0	01	1	0509-		●	●
12	04.164 SPRING; CLU RETURN,A/T (D)	8-94479-770-0	01	1	0307-	●
12	04.164 SPRING; CLU RETURN,A/T HF V6 ENG(LCA) (A)	8-08642-227-0	01	1	0509-		●	●
12	04.164 SPRING; CLU RETURN,A/T HF V6 ENG(LCA) (B)	8-08685-244-0	01	1	0509-		●	●
12	04.164 SPRING; CLU RETURN,A/T HF V6 ENG(LCA) (C)	8-24206-085-0	01	1	0509-		●	●
13	04.166 GASKET; INNER,CLU,A/T	8-94364-919-0	01	1	0307-	●
14	04.166 GASKET; OUTER,CLU,A/T	8-94364-920-0	01	1	0307-	●
16	04.166 RING; SNAP,CLU,A/T (A)	8-94479-769-0	01	1	0307-	●
16	04.166 RING; SNAP,CLU,A/T (B)	8-94479-775-0	03	1	0307-	●
18	04.164 BEARING; THRUST,CLU,A/T	8-94479-764-0	01	1	0307-	●
18	04.164 BEARING; THRUST,CLU,A/T HF V6 ENG(LCA)	8-08642-066-0	01	1	0509-		●	●
20	04.163 DISC; CLU,A/T (K)	8-97214-544-0	04	1	0307-0609	●
20	04.163 DISC; CLU,A/T (L)	8-98050-540-0	05	1	0610-	●
20	04.163 DISC; CLU,A/T HF V6 ENG(LCA) (A)	8-08647-058-0	01	1	0509-		●	●
20	04.163 DISC; CLU,A/T HF V6 ENG(LCA) (B)	8-08654-325-0	05	1	0509-		●	●
20	04.163 DISC; CLU,A/T HF V6 ENG(LCA) (C)	8-08663-074-0	01	1	0509-		●	●
20	04.163 DISC; CLU,A/T HF V6 ENG(LCA) (D)	8-08673-605-0	04	1	0509-		●	●
20	04.163 DISC; CLU,A/T HF V6 ENG(LCA) (E)	8-08685-044-0	01	1	0509-		●	●
20	04.163 DISC; CLU,A/T HF V6 ENG(LCA) (F)	8-24205-268-0	05	1	0509-		●	●
20	04.163 DISC; CLU,A/T HF V6 ENG(LCA) (G)	8-24210-766-0	02	1	0509-		●	●
20	04.163 DISC; CLU,A/T HF V6 ENG(LCA) (H) ID=3.90-4.10	8-24212-459-0	01	1	0509-		●	●
20	04.163 DISC; CLU,A/T HF V6 ENG(LCA) (H) ID=4.79-4.99	8-24212-460-0	01	1	0509-		●	●
20	04.163 DISC; CLU,A/T HF V6 ENG(LCA) (H) ID=5.68-5.88	8-24212-461-0	01	1	0509-		●	●
20	04.163 DISC; CLU,A/T HF V6 ENG(LCA) (I)	8-24212-462-0	01	1	0509-		●	●
20	04.163 DISC; CLU,A/T HF V6 ENG(LCA) (J) ID=4.56-4.71	8-24212-466-0	01	1	0509-		●	●
20	04.163 DISC; CLU,A/T HF V6 ENG(LCA) (J) ID=5.15-5.30	8-24212-467-0	01	1	0509-		●	●
20	04.163 DISC; CLU,A/T HF V6 ENG(LCA) (J) ID=5.74-5.89	8-24212-468-0	01	1	0509-		●	●
20	04.163 DISC; CLU,A/T HF V6 ENG(LCA) (J) ID=6.33-6.48	8-24212-469-0	01	1	0509-		●	●
20	04.163 DISC; CLU,A/T HF V6 ENG(LCA) (J) ID=6.92-7.07	8-24212-470-0	01	1	0509-		●	●
21	04.163 DISC ASM; CLU & FACING,A/T (F)	8-97214-543-0	04	1	0307-0609	●
21	04.163 DISC ASM; CLU & FACING,A/T (G)	8-97232-057-0	05	1	0610-	●
21	04.163 DISC ASM; CLU & FACING,A/T HF V6 ENG(LCA) (D)	8-24232-517-0	05	1	0509-		●
21	04.163 DISC ASM; CLU & FACING,A/T HF V6 ENG(LCA) (A)	8-08642-154-0	02	1	0509-		●	●
21	04.163 DISC ASM; CLU & FACING,A/T HF V6 ENG(LCA) (B)	8-24205-267-0	04	1	0509-		●	●
21	04.163 DISC ASM; CLU & FACING,A/T HF V6 ENG(LCA) (C)	8-24209-563-0	01	1	0509-		●	●
21	04.163 DISC ASM; CLU & FACING,A/T HF V6 ENG(LCA) (E)	8-24216-946-0	05	1	0509-		●	●
21	04.163 DISC ASM; CLU & FACING,A/T HF V6 ENG(LCA) (D)	8-24210-765-0	05	1	0509-			●
23	04.164 RING; RET,CLU,A/T	8-97214-553-0	01	1	0307-	●
23	04.164 RING; RET,CLU,A/T HF V6 ENG(LCA)	8-08667-022-0	01	1	0509-		●	●
25	04.164 RING; RET,BACKING PLATE,A/T (C)	8-94250-342-0	01	1	0307-	●
25	04.164 RING; RET,BACKING PLATE,A/T HF V6 ENG(LCA) (A)	8-08642-170-0	01	1	0509-		●	●
25	04.164 RING; RET,BACKING PLATE,A/T HF V6 ENG(LCA) (B)	8-08663-636-0	01	1	0509-		●	●
26	04.163 PLATE; CLU,BACKING,A/T	8-94479-772-0	01	1	0307-	●
27	04.163 DISC ASM; CLU & FACING,A/T STD	8-97025-838-0	05	1	0307-0609	●
27	04.163 DISC ASM; CLU & FACING,A/T	8-97232-058-0	06	1	0610-	●
27	04.163 DISC ASM; CLU & FACING,A/T OPT	8-97184-342-0	05	1	0307-0609	●
28	04.163 DISC; CLU,A/T	8-97143-083-0	05	1	0307-0609	●
28	04.163 DISC; CLU,A/T 04.164 T=3.6	8-97232-043-0	06	1	0610-	●
39	04.164 SPRING; DIRECT CLU RETURN	8-97019-543-0	01	1	0307-	●
39	04.164 SPRING; DIRECT CLU RETURN HF V6 ENG(LCA)	8-08647-284-0	01	1	0509-		●	●
40	04.164 WASHER; THRUST,CLU DRUM,INPUT SH	8-94479-796-0	01	1	0307-	●
41	04.164 FLANGE; DIRECT CLU T=3.9	8-97214-551-0	01	1	0307-0609	●
41	04.164 FLANGE; DIRECT CLU T=4.1	8-97288-906-0	01	1	0307-0609	●
41	04.164 FLANGE; DIRECT CLU T=3.3	8-97288-908-0	01	1	0307-	●
41	04.164 FLANGE; DIRECT CLU T=3.4	8-97288-909-0	01	1	0307-	●
41	04.164 FLANGE; DIRECT CLU T=3.5	8-97288-910-0	01	1	0307-	●
41	04.164 FLANGE; DIRECT CLU T=3.6	8-97288-911-0	01	1	0307-	●
41	04.164 FLANGE; DIRECT CLU T=3.7	8-97288-912-0	01	1	0307-	●
41	04.164 FLANGE; DIRECT CLU T=3.8	8-97288-913-0	01	1	0307-	●
41	04.164 FLANGE; DIRECT CLU T=4.0	8-97331-540-0	01	1	0307-	●
41	04.164 FLANGE; DIRECT CLU T=4.2	8-97331-541-0	01	1	0307-	●
41	04.164 FLANGE; DIRECT CLU HF V6 ENG(LCA) ID=5.747-5.947	8-24212-463-0	01	1	0509-		●	●
41	04.164 FLANGE; DIRECT CLU HF V6 ENG(LCA) ID=6.518-6.678	8-24212-464-0	01	1	0509-		●	●
41	04.164 FLANGE; DIRECT CLU HF V6 ENG(LCA) ID=7.249-7.409	8-24212-465-0	01	1	0509-		●	●
43	04.164 FLANGE; FWD CLU T=3.6	8-97232-043-0	01	1	0307-	●
43	04.164 FLANGE; FWD CLU T=3.8	8-97232-044-0	01	1	0307-	●
43	04.164 FLANGE; FWD CLU T=4.0	8-97232-045-0	01	1	0307-	●
43	04.164 FLANGE; FWD CLU T=3.2	8-97232-046-0	01	1	0307-	●
43	04.164 FLANGE; FWD CLU T=3.4	8-97232-047-0	01	1	0307-	●
43	04.164 FLANGE; FWD CLU T=3.0	8-97331-537-0	01	1	0307-	●
43	04.164 FLANGE; FWD CLU T=4.2	8-97331-538-0	01	1	0307-	●
43	04.164 FLANGE; FWD CLU T=4.4	8-97331-539-0	01	1	0307-	●
44	04.164 BEARING; THRUST,INPUT SHAFT RR	8-94479-778-0	01	1	0307-0609	●
44	04.164 BEARING; THRUST,INPUT SHAFT RR	8-98050-537-0	01	1	0610-	●
45	04.164 RACE; THRUST BRG,INPUT SHAFT (A)	8-94479-776-0	01	1	0307-0609	●
45	04.164 RACE; THRUST BRG,INPUT SHAFT (C)	8-98050-536-0	01	1	0610-	●
45	04.164 RACE; THRUST BRG,INPUT SHAFT 04.180 (B)	8-94479-777-0	01	1	0307-0609	●
46	04.166 PISTON; DIRECT CLU,A/T	8-94364-921-0	01	1	0307-	●
46	04.166 PISTON; DIRECT CLU,A/T HF V6 ENG(LCA)	8-08667-841-0	01	1	0509-		●	●
47	04.164 WASHER; THRUST,DIRECT CLU DRUM	8-94479-779-0	01	1	0307-	●
47	04.164 WASHER; THRUST,DIRECT CLU DRUM HF V6 ENG(LCA)	8-08642-041-0	01	1	0509-		●	●
52	04.167 GASKET; PISTON INNER,DIRECT CLU, 04.460	8-97184-321-0	01	1	0307-	●
53	04.167 GASKET; PISTON OUTER,DIRECT CLU, 04.166	8-94364-920-0	01	1	0307-	●
54	04.166 RING; SNAP,PISTON RETURN SPRING	8-94479-783-0	01	1	0307-	●
54	04.166 RING; SNAP,PISTON RETURN SPRING HF V6 ENG(LCA)	8-08628-059-0	01	1	0509-		●	●
64	04.169 DRUM ASM; DIRECT CLU,A/T	8-97288-905-0	01	1	0307-0609	●
64	04.169 DRUM ASM; DIRECT CLU,A/T	8-98050-538-0	01	1	0610-0801	●
64	04.169 DRUM ASM; DIRECT CLU,A/T	8-98112-190-0	01	1	0802-	●
64	04.169 DRUM ASM; DIRECT CLU,A/T HF V6 ENG(LCA)	8-08681-295-0	01	1	0509-		●	●
65	04.169 DRUM; SUN GEAR INPUT	8-97024-255-0	01	1	0307-	●
79	04.262 GEAR ASM; INPUT SUN 04.159	8-94479-846-0	01	1	0307-0609	●
79	04.262 GEAR ASM; INPUT SUN	8-98056-397-0	01	1	0610-0801	●
79	04.262 GEAR ASM; INPUT SUN	8-98112-182-0	01	1	0802-	●
79	04.262 GEAR ASM; INPUT SUN HF V6 ENG(LCA)	8-24226-180-0	01	1	0509-		●	●
95	04.166 GASKET; CLU HUB	8-97122-978-0	01	1	0307-	●
108	04.159 RING; SNAP,SUN GEAR	8-94479-845-0	01	1	0307-	●

102 12 3 74 153 91 21 21 21 21 21 20 20 20 20 20 20 74 146 147 149 74 150 148 74 74 86 138 87 146 74 74 3 138 145 86 84 79 138 138

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
3	04.164 BEARING; THRUST,A/T HF V6 ENG(LCA) (A)	8-08642-162-0	01	1	0509-		●	●
3	04.164 BEARING; THRUST,A/T HF V6 ENG(LCA) (B)	8-24217-327-0	02	1	0509-		●	●
12	04.164 SPRING; CLU RETURN,A/T (D)	8-94479-770-0	01	1	0307-	●
12	04.164 SPRING; CLU RETURN,A/T HF V6 ENG(LCA) (A)	8-08642-227-0	01	1	0509-		●	●
12	04.164 SPRING; CLU RETURN,A/T HF V6 ENG(LCA) (B)	8-08685-244-0	01	1	0509-		●	●
12	04.164 SPRING; CLU RETURN,A/T HF V6 ENG(LCA) (C)	8-24206-085-0	01	1	0509-		●	●
20	04.163 DISC; CLU,A/T (K)	8-97214-544-0	04	1	0307-0609	●
20	04.163 DISC; CLU,A/T (L)	8-98050-540-0	05	1	0610-	●
20	04.163 DISC; CLU,A/T HF V6 ENG(LCA) (A)	8-08647-058-0	01	1	0509-		●	●
20	04.163 DISC; CLU,A/T HF V6 ENG(LCA) (B)	8-08654-325-0	05	1	0509-		●	●
20	04.163 DISC; CLU,A/T HF V6 ENG(LCA) (C)	8-08663-074-0	01	1	0509-		●	●
20	04.163 DISC; CLU,A/T HF V6 ENG(LCA) (D)	8-08673-605-0	04	1	0509-		●	●
20	04.163 DISC; CLU,A/T HF V6 ENG(LCA) (E)	8-08685-044-0	01	1	0509-		●	●
20	04.163 DISC; CLU,A/T HF V6 ENG(LCA) (F)	8-24205-268-0	05	1	0509-		●	●
20	04.163 DISC; CLU,A/T HF V6 ENG(LCA) (G)	8-24210-766-0	02	1	0509-		●	●
20	04.163 DISC; CLU,A/T HF V6 ENG(LCA) (H) ID=3.90-4.10	8-24212-459-0	01	1	0509-		●	●
20	04.163 DISC; CLU,A/T HF V6 ENG(LCA) (H) ID=4.79-4.99	8-24212-460-0	01	1	0509-		●	●
20	04.163 DISC; CLU,A/T HF V6 ENG(LCA) (H) ID=5.68-5.88	8-24212-461-0	01	1	0509-		●	●
20	04.163 DISC; CLU,A/T HF V6 ENG(LCA) (I)	8-24212-462-0	01	1	0509-		●	●
20	04.163 DISC; CLU,A/T HF V6 ENG(LCA) (J) ID=4.56-4.71	8-24212-466-0	01	1	0509-		●	●
20	04.163 DISC; CLU,A/T HF V6 ENG(LCA) (J) ID=5.15-5.30	8-24212-467-0	01	1	0509-		●	●
20	04.163 DISC; CLU,A/T HF V6 ENG(LCA) (J) ID=5.74-5.89	8-24212-468-0	01	1	0509-		●	●
20	04.163 DISC; CLU,A/T HF V6 ENG(LCA) (J) ID=6.33-6.48	8-24212-469-0	01	1	0509-		●	●
20	04.163 DISC; CLU,A/T HF V6 ENG(LCA) (J) ID=6.92-7.07	8-24212-470-0	01	1	0509-		●	●
21	04.163 DISC ASM; CLU & FACING,A/T (F)	8-97214-543-0	04	1	0307-0609	●
21	04.163 DISC ASM; CLU & FACING,A/T (G)	8-97232-057-0	05	1	0610-	●
21	04.163 DISC ASM; CLU & FACING,A/T HF V6 ENG(LCA) (D)	8-24232-517-0	05	1	0509-		●
21	04.163 DISC ASM; CLU & FACING,A/T HF V6 ENG(LCA) (A)	8-08642-154-0	02	1	0509-		●	●
21	04.163 DISC ASM; CLU & FACING,A/T HF V6 ENG(LCA) (B)	8-24205-267-0	04	1	0509-		●	●
21	04.163 DISC ASM; CLU & FACING,A/T HF V6 ENG(LCA) (C)	8-24209-563-0	01	1	0509-		●	●
21	04.163 DISC ASM; CLU & FACING,A/T HF V6 ENG(LCA) (E)	8-24216-946-0	05	1	0509-		●	●
21	04.163 DISC ASM; CLU & FACING,A/T HF V6 ENG(LCA) (D)	8-24210-765-0	05	1	0509-			●
74	04.262 RING; RET HF V6 ENG(LCA) (A)	8-06261-051-0	02	1	0509-		●	●
74	04.262 RING; RET HF V6 ENG(LCA) (B)	8-08642-201-0	01	1	0509-		●	●
74	04.262 RING; RET HF V6 ENG(LCA) (C)	8-08647-083-0	01	1	0509-		●	●
74	04.262 RING; RET HF V6 ENG(LCA) (D)	8-08647-337-0	01	1	0509-		●	●
74	04.262 RING; RET HF V6 ENG(LCA) (E)	8-08654-141-0	01	1	0509-		●	●
74	04.262 RING; RET HF V6 ENG(LCA) (F)	8-08681-553-0	01	1	0509-		●	●
74	04.262 RING; RET HF V6 ENG(LCA) (G)	8-11500-692-0	01	1	0509-		●	●
74	04.262 RING; RET HF V6 ENG(LCA) (H)	8-24200-278-0	01	1	0509-		●	●
79	04.262 GEAR ASM; INPUT SUN 04.159	8-94479-846-0	01	1	0307-0609	●
79	04.262 GEAR ASM; INPUT SUN	8-98056-397-0	01	1	0610-0801	●
79	04.262 GEAR ASM; INPUT SUN	8-98112-182-0	01	1	0802-	●
79	04.262 GEAR ASM; INPUT SUN HF V6 ENG(LCA)	8-24226-180-0	01	1	0509-		●	●
84	04.256 CARRIER ASM; PLANETARY HF V6 ENG(LCA)	8-24226-173-0	01	1	0509-		●	●
86	04.256 GEAR; REACTION SUN HF V6 ENG(LCA) (A)	8-24219-410-0	01	1	0509-		●	●
86	04.256 GEAR; REACTION SUN HF V6 ENG(LCA) (B)	8-24226-165-0	01	1	0509-		●	●
87	04.256 DRUM; REACTION SUN HF V6 ENG(LCA)	8-24229-825-0	01	1	0509-		●	●
91	04.256 WHEEL; SPD HF V6 ENG(LCA)	8-24202-711-0	01	1	0509-		●	●
102	04.189 SEAL; CLU HF V6 ENG(LCA) (A)	8-08642-919-0	01	1	0509-		●	●
102	04.189 SEAL; CLU HF V6 ENG(LCA) (B)	8-08648-987-0	01	1	0509-		●	●
138	04.162 BUSHING; GEAR,SUN HF V6 ENG(LCA) (A)	8-08642-181-0	02	1	0509-		●	●
138	04.162 BUSHING; GEAR,SUN HF V6 ENG(LCA) (B)	8-08642-907-0	01	1	0509-		●	●
138	04.162 BUSHING; GEAR,SUN HF V6 ENG(LCA) (C)	8-08642-909-0	01	1	0509-		●	●
145	04.159 SHAFT ASM; CARRIER HF V6 ENG(LCA)	8-24222-756-0	01	1	0509-		●	●
146	04.161 WASHER; THRUST HF V6 ENG(LCA) (A)	8-08642-331-0	01	1	0509-		●	●
146	04.161 WASHER; THRUST HF V6 ENG(LCA) (B)	8-24217-328-0	01	1	0509-		●	●
147	04.166 RACE; CLU HF V6 ENG(LCA)	8-08673-300-0	01	1	0509-		●	●
148	04.166 SUPPORT ASM; CLU HF V6 ENG(LCA)	8-24217-232-0	01	1	0509-		●
148	04.166 SUPPORT ASM; CLU HF V6 ENG(LCA)	8-08681-727-0	01	1	0509-			●
149	04.166 SPRING; CLU HF V6 ENG(LCA)	8-08261-415-0	01	1	0509-		●	●
150	04.166 CARRIER ASM; REACTION HF V6 ENG(LCA)	8-24227-003-0	01	1	0509-		●	●
153	04.166 PISTON; CLU HF V6 ENG(LCA)	8-08685-549-0	01	1	0509-		●	●

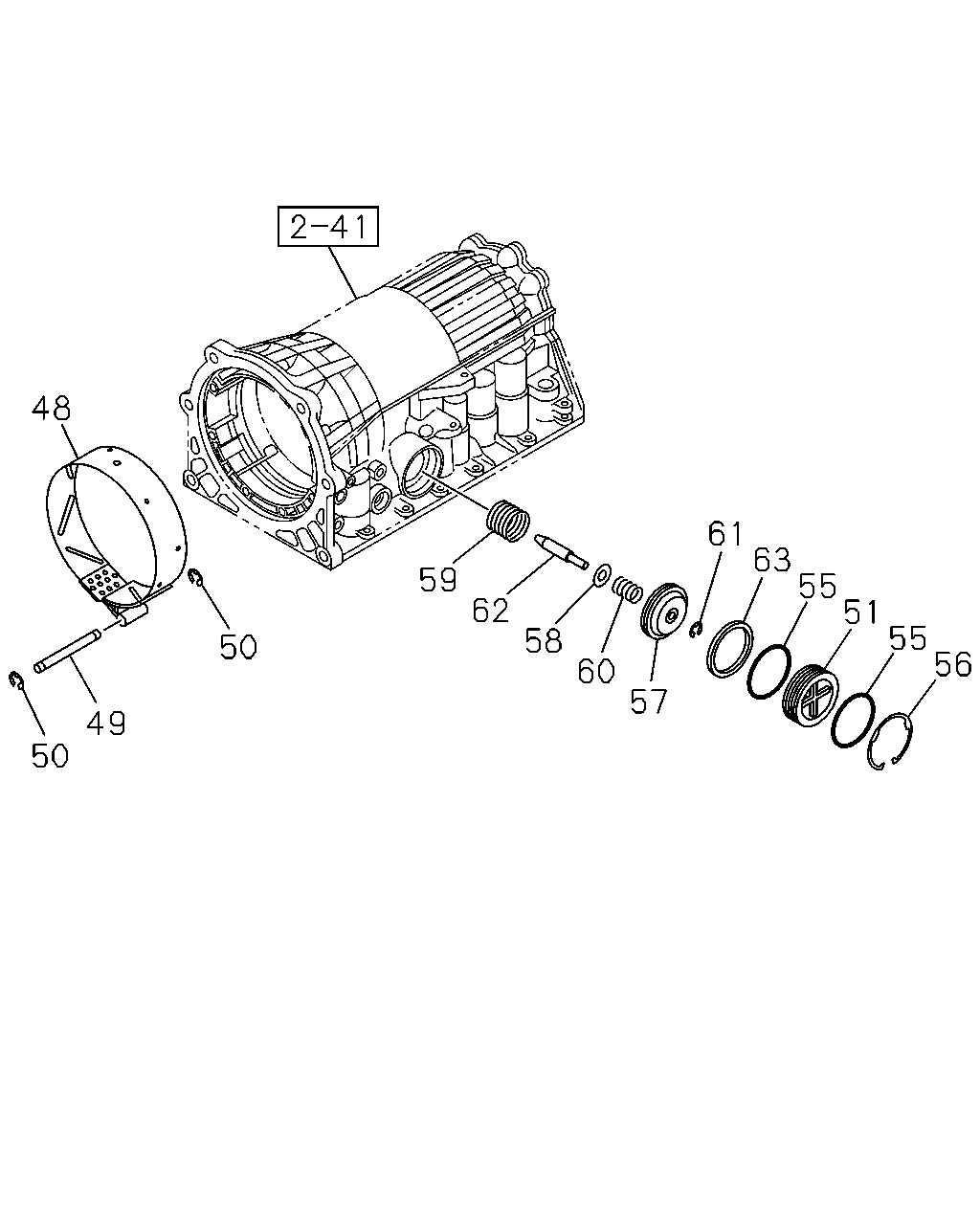

48 50 49 50 59 62 58 60 57 61 63 55 51 55 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
48	04.251 BAND; 2ND COAST BRK	8-97143-086-0	01	1	0307-	●
49	04.169 PIN; 2ND COAST BRK BAND	8-94479-825-0	01	1	0307-	●
50	04.169 RING; SNAP,2ND COAST BRK BAND,A/ 04.166	8-94479-818-0	02	1	0307-	●
51	04.166 COVER; 2ND COAST BRK,A/T	8-97331-546-0	01	1	0307-	●
55	04.167 GASKET; COVER,2ND COAST BRK,A/T	8-94479-824-0	02	1	0307-	●
56	04.166 RING; SNAP,2ND COAST BRK COVER,A	8-97069-458-0	01	1	0307-	●
57	04.166 PISTON; 2ND COAST BRK,A/T	8-97331-542-0	01	1	0307-	●
58	04.164 WASHER; 2ND COAST BRK PISTON,A/T	8-94479-817-0	01	1	0307-	●
59	04.164 SPRING; OUTER,2ND COAST BRK PIST	8-94479-812-0	01	1	0307-	●
60	04.164 SPRING; INNER,2ND COAST BRK PIST	8-97331-545-0	01	1	0307-	●
61	04.166 RING; SNAP,2ND COAST BRK	8-94479-818-0	01	1	0307-	●
62	04.164 ROD; 2ND COAST BRK PISTON L=78.4	8-97331-543-0	01	1	0307-	●
62	04.164 ROD; 2ND COAST BRK PISTON L=79.9	8-97331-544-0	01	1	0307-	●
63	04.164 RING; SEAL,2ND COAST BRK PISTON	8-94479-813-0	01	1	0307-	●

139

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
	139	04.164 RING; SNAP HF V6 ENG(LCA)	8-08642-910-0	01	1	0509-		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
