◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50965 - TFR/TFS-RHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-47B - AUTO TRANS PLANETARY GEAR AND GOVERNOR ▶
2-47B — AUTO TRANS PLANETARY GEAR AND GOVERNOR (#20424) — 185 parça

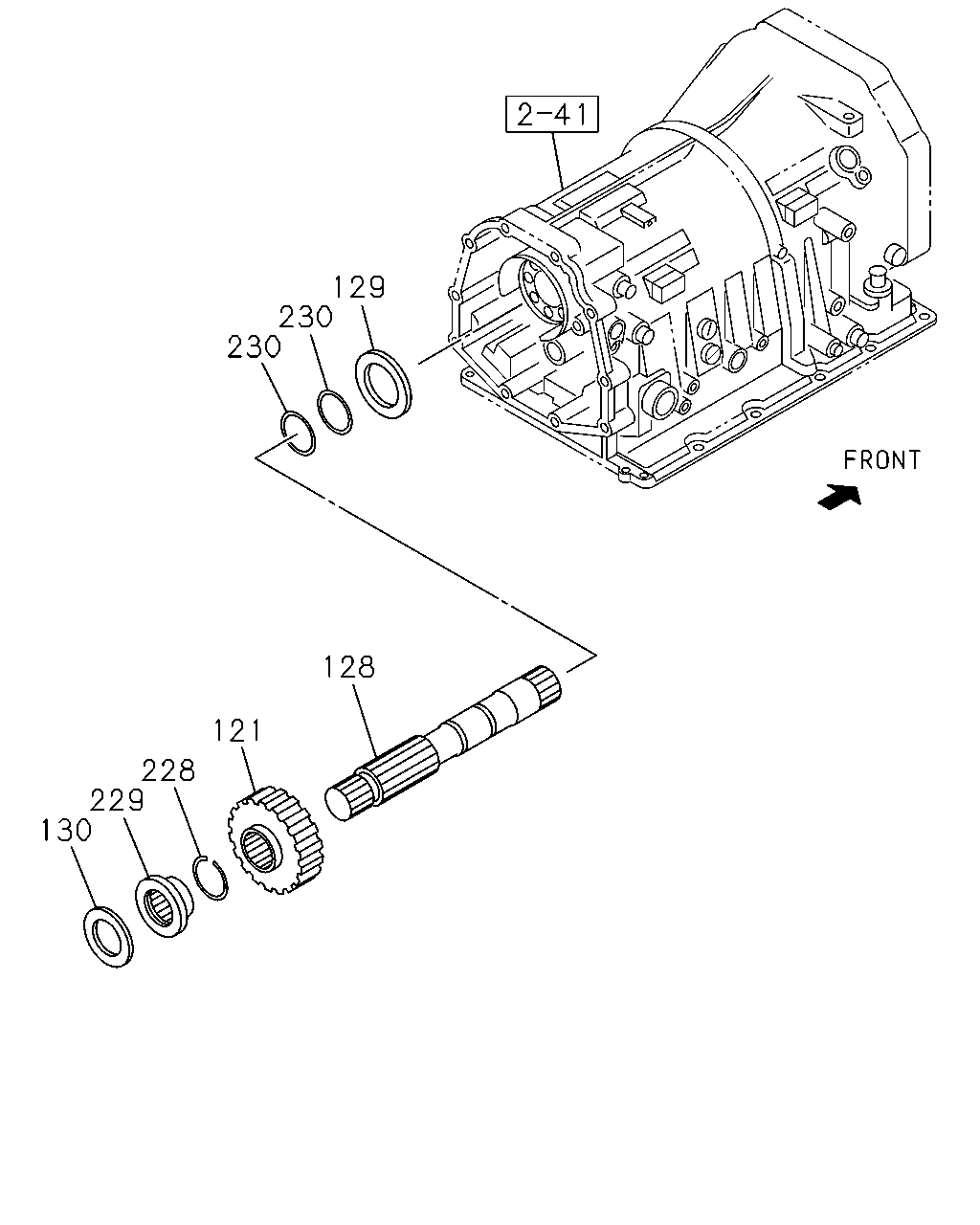

çizim 12789
130 229 228 121 128 230 230 129
BalonParca AdiParca NoAdetTipApplied Date A B C D
121 04.162 GEAR; PARKING LK,A/T 8-97330-962-0 01 1 0307- ●
128 04.175 SHAFT; OUTPUT,A/T
4X2(TFB***) 		8-97184-427-0 01 1 0307- ●
128 04.175 SHAFT; OUTPUT,A/T
4X4(TFS***) 		8-97069-456-0 01 1 0307-0508 ●
128 04.175 SHAFT; OUTPUT,A/T 8-97069-456-0 01 1 0509-0609 ●
128 04.175 SHAFT; OUTPUT,A/T
4X4(TFS***) 		8-98050-557-0 01 1 0610- ●
128 04.175 SHAFT; OUTPUT,A/T
4X2(TFB***) 		8-97330-960-0 01 1 0307- ●
128 04.175 SHAFT; OUTPUT,A/T
4X4(TFS***) 		8-97330-961-0 01 1 0307- ●
128 04.175 SHAFT; OUTPUT,A/T
HF V6 ENG(LCA) 		8-08683-818-0 01 1 0509- ●
128 04.175 SHAFT; OUTPUT,A/T
HF V6 ENG(LCA) 		8-08686-817-0 01 1 0509- ●
129 04.176 BEARING; OUTPUT SHAFT,FRT,A/T 8-97330-918-0 01 1 0307- ●
130 04.176 BEARING; OUTPUT SHAFT,RR,A/T 8-97330-918-0 01 1 0307- ●
228 04.166 RING; SNAP,OUTPUT SHAFT
4X2(TFB***) 		8-97330-963-0 02 1 0307- ●
228 04.166 RING; SNAP,OUTPUT SHAFT
4X4(TFS***) 		8-97330-963-0 01 1 0307- ●
229 04.176 SPACER; OUTPUT SHAFT 8-97330-951-0 01 1 0307- ●
230 04.166 RING; SEAL,OUTPUT SHAFT 8-97330-983-0 02 1 0307- ●

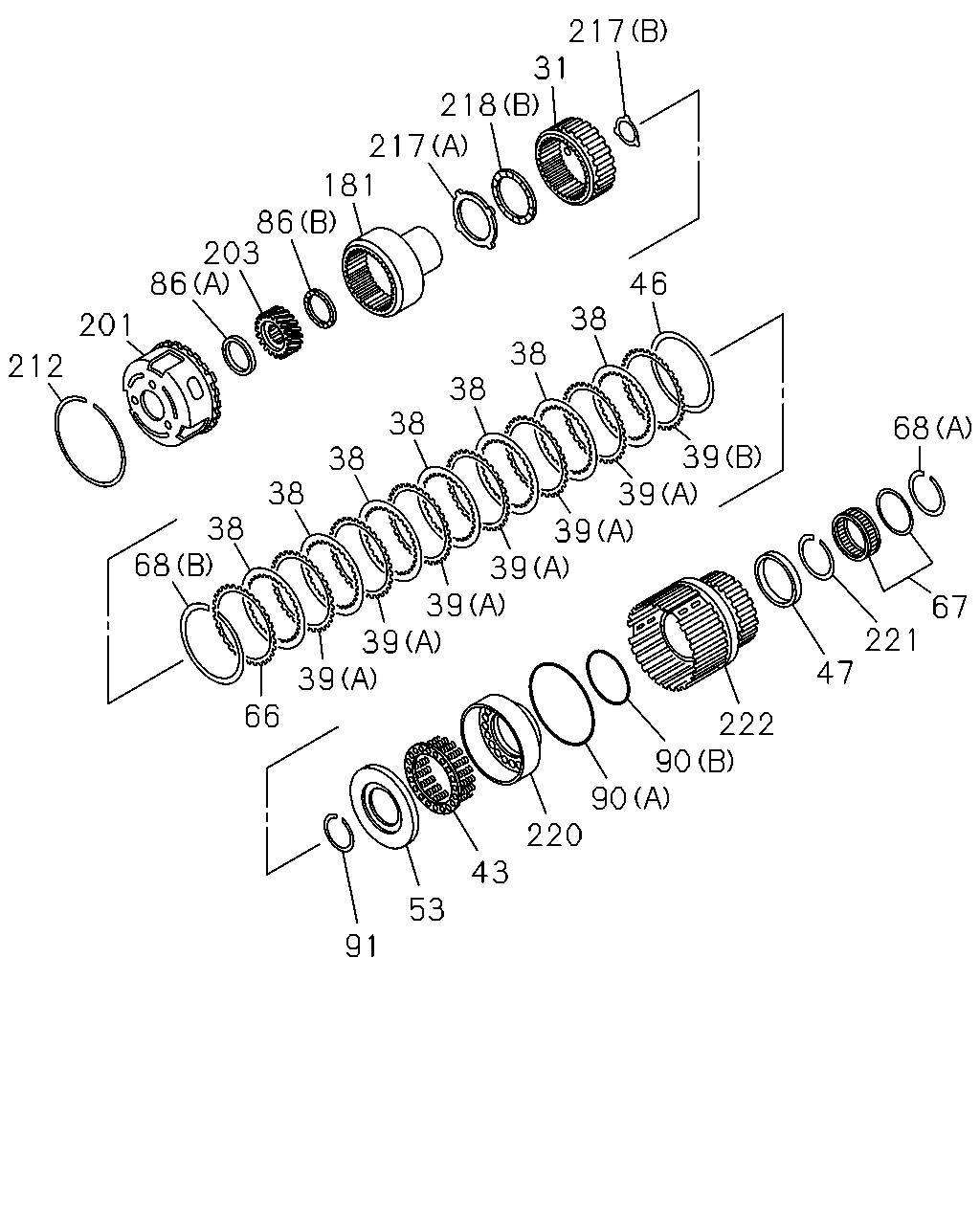

çizim 12982
68 67 221 47 222 90 90 220 43 53 91 39 39 39 39 39 39 39 66 46 38 38 38 38 38 38 38 68 217 31 218 217 181 86 203 86 201 212
BalonParca AdiParca NoAdetTipApplied Date A B C D
31 04.175 GEAR ASM; INTERNAL,PLANETARY,A/T 8-94479-854-0 01 1 0307- ●
31 04.175 GEAR ASM; INTERNAL,PLANETARY,A/T 8-97330-953-0 01 1 0307- ●
38 04.163 PLATE; DRIVE,LOW & REV,A/T 8-97330-998-0 07 1 0307-0711 ●
38 04.163 PLATE; DRIVE,LOW & REV,A/T 8-98126-848-0 07 1 0712- ●
39 04.163 PLATE; DRIVEN,LOW & REV,A/T
(A) 		8-97331-005-0 06 1 0307-0711 ●
39 04.163 PLATE; DRIVEN,LOW & REV,A/T
(A) 		8-97331-005-0 07 1 0712- ●
39 04.163 PLATE; DRIVEN,LOW & REV,A/T
(B) 		8-97331-008-0 01 1 0307-0711 ●
43 04.164 SPRING; PISTON RETURN,A/T 8-97330-981-0 01 1 0307- ●
46 04.164 PLATE; DISHED,LOW & REV,A/T 8-97331-004-0 01 1 0307- ●
47 04.176 BEARING; NEEDLE,LOW & REV 8-97330-954-0 01 1 0307- ●
53 04.180 RETAINER; LOW & REV,CLU SPR 8-97331-041-0 01 1 0307- ●
66 04.163 PLATE; RET,CLU,LOW & REV,A/T
T=3.8 		8-97331-010-0 01 1 0307- ●
66 04.163 PLATE; RET,CLU,LOW & REV,A/T
T=4.0 		8-97331-011-0 01 1 0307- ●
66 04.163 PLATE; RET,CLU,LOW & REV,A/T
T=4.2 		8-97331-012-0 01 1 0307- ●
66 04.163 PLATE; RET,CLU,LOW & REV,A/T
T=4.4 		8-97331-013-0 01 1 0307- ●
66 04.163 PLATE; RET,CLU,LOW & REV,A/T
T=4.6 		8-97331-014-0 01 1 0307- ●
66 04.163 PLATE; RET,CLU,LOW & REV,A/T
T=4.8 		8-97331-024-0 01 1 0307- ●
67 04.164 CLUTCH ASM; ONEWAY,LOW & REV,A/T 8-97330-959-0 01 1 0307- ●
68 04.164 RING; SNAP,CLU,LOW & REV,A/T
(A) 		8-97330-965-0 01 1 0307- ●
68 04.164 RING; SNAP,CLU,LOW & REV,A/T
(B) 		8-97330-966-0 01 1 0307- ●
86 04.166 BEARING; THRUST,SUN GEAR
(A) 		8-97330-919-0 01 1 0307- ●
86 04.166 BEARING; THRUST,SUN GEAR
(B) 		8-97330-920-0 01 1 0307- ●
86 04.166 BEARING; THRUST,SUN GEAR
(C) 		8-97330-926-0 01 1 0307-0711 ●
86 04.166 BEARING; THRUST,SUN GEAR
(C) 		8-97374-016-0 01 1 0712- ●
90 04.166 SEAL; PISTON,LOW & REV
(A) 		8-97330-990-0 01 1 0307- ●
90 04.166 SEAL; PISTON,LOW & REV
(B) 		8-97330-991-0 01 1 0307- ●
91 04.166 RING; SNAP,SPRING RET 8-97330-969-0 01 1 0307- ●
181 04.176 CARRIER ASM; RR PLANETARY,A/T 8-97330-952-0 01 1 0307- ●
201 04.176 CARRIER; PLANETARY 8-97357-797-0 01 1 0307- ●
203 04.166 GEAR; SUN 8-97330-956-0 01 1 0307- ●
212 04.166 RING; SNAP,PLANETARY CARRIER 8-97330-967-0 01 1 0307- ●
217 04.164 RACE; THRUST BRG,INTERNAL GEAR
(A) 		8-97330-939-0 01 1 0307- ●
217 04.164 RACE; THRUST BRG,INTERNAL GEAR
(B) 		8-97330-947-0 01 1 0307- ●
218 04.164 BEARING; THRUST,INTERNAL GEAR
(A) 		8-97330-928-0 01 1 0307- ●
218 04.164 BEARING; THRUST,INTERNAL GEAR
(B) 		8-97330-938-0 01 1 0307- ●
220 04.264 PISTON; LOW CLUTCH 8-97331-040-0 01 1 0307-0711 ●
220 04.264 PISTON; LOW CLUTCH 8-97374-932-0 01 1 0712- ●
221 04.166 RING; SNAP,BRG,LOW CLUTCH
04.180 		8-94483-379-0 01 1 0307- ●
222 04.164 DRUM; LOW CLUTCH 8-97331-039-0 01 1 0307- ●

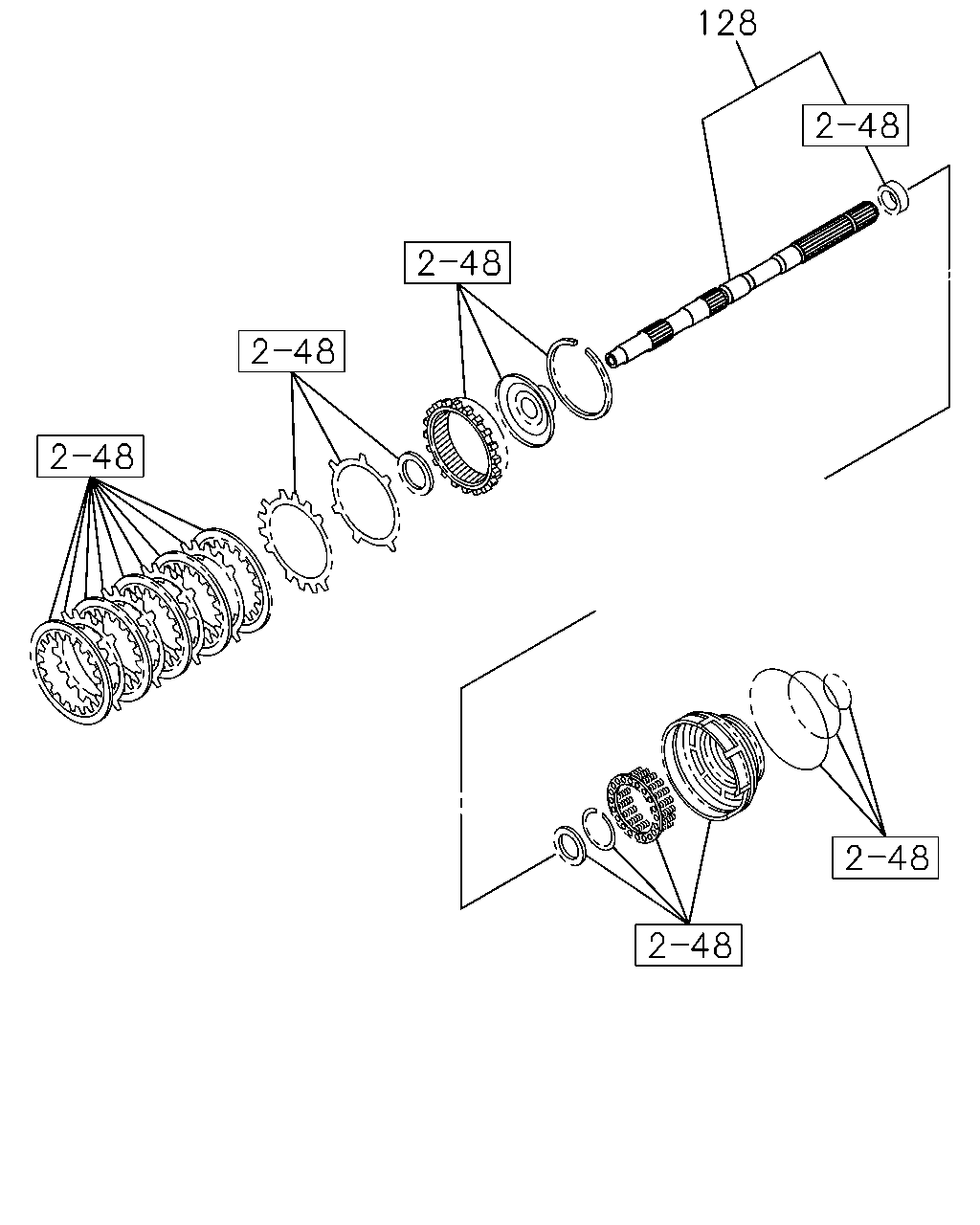

çizim 53784
128
BalonParca AdiParca NoAdetTipApplied Date A B C D
128 04.175 SHAFT; OUTPUT,A/T
4X2(TFB***) 		8-97184-427-0 01 1 0307- ●
128 04.175 SHAFT; OUTPUT,A/T
4X4(TFS***) 		8-97069-456-0 01 1 0307-0508 ●
128 04.175 SHAFT; OUTPUT,A/T 8-97069-456-0 01 1 0509-0609 ●
128 04.175 SHAFT; OUTPUT,A/T
4X4(TFS***) 		8-98050-557-0 01 1 0610- ●
128 04.175 SHAFT; OUTPUT,A/T
4X2(TFB***) 		8-97330-960-0 01 1 0307- ●
128 04.175 SHAFT; OUTPUT,A/T
4X4(TFS***) 		8-97330-961-0 01 1 0307- ●
128 04.175 SHAFT; OUTPUT,A/T
HF V6 ENG(LCA) 		8-08683-818-0 01 1 0509- ●
128 04.175 SHAFT; OUTPUT,A/T
HF V6 ENG(LCA) 		8-08686-817-0 01 1 0509- ●

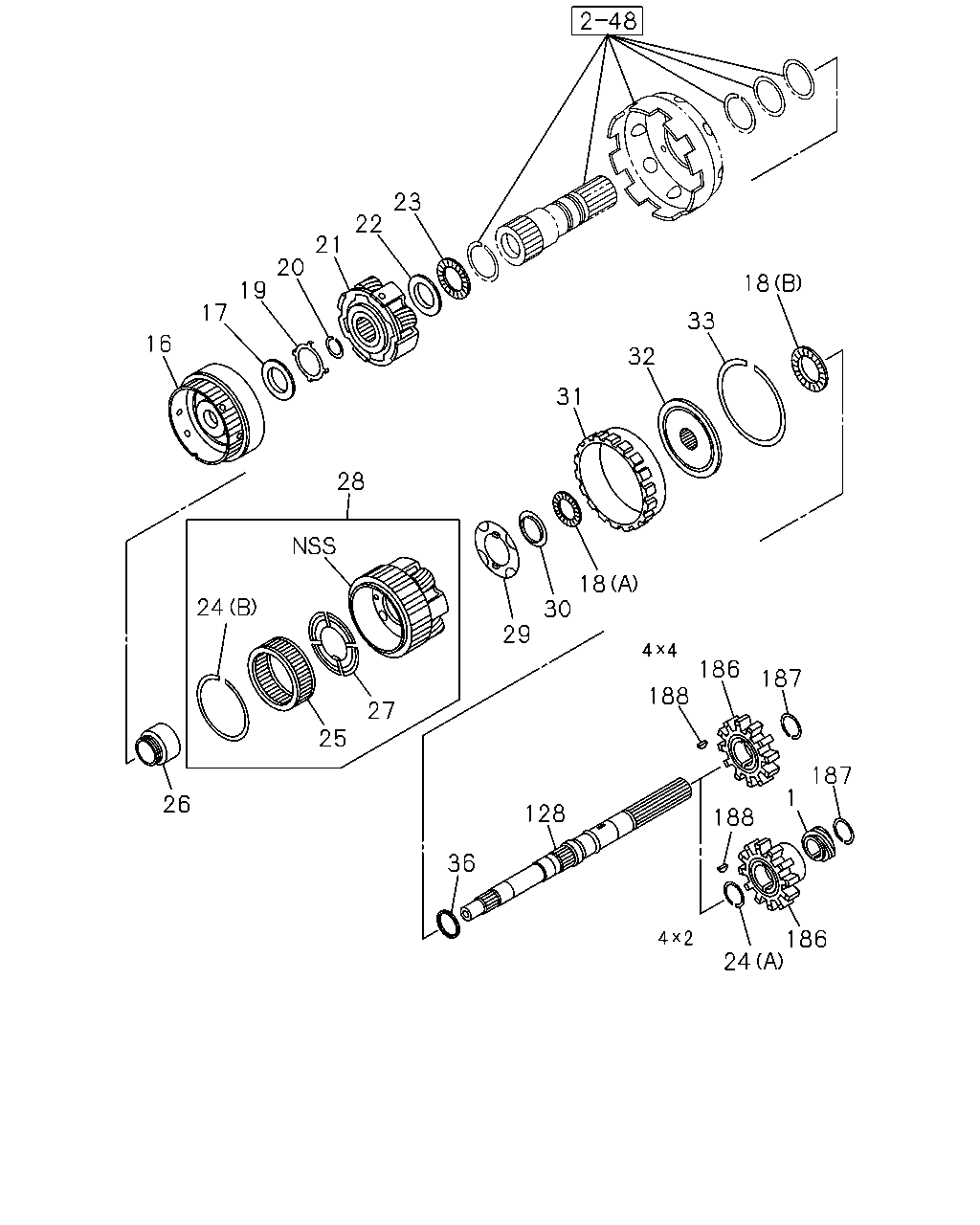

çizim 54219
23 22 21 20 19 17 16 28 24 26 25 27 36 128 24 186 188 188 1 187 187 186 29 30 18 31 32 33 18
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 04.337 GEAR; SPEEDOMETER DRIVE,A/T
4X2(TFB***) 		8-97181-547-0 01 1 0307-0609 ●
1 04.337 GEAR; SPEEDOMETER DRIVE,A/T
4X2(TFB***) 		8-98056-393-0 01 1 0610- ●
16 04.256 GEAR ASM; FRT PLANETARY,A/T 8-97143-082-0 01 1 0307-0609 ●
16 04.256 GEAR ASM; FRT PLANETARY,A/T 8-98050-544-0 01 1 0610-0801 ●
16 04.256 GEAR ASM; FRT PLANETARY,A/T 8-98112-185-0 01 1 0802- ●
17 04.167 RACE; THRUST BRG,PLANETARY SHAFT 8-94479-836-0 01 1 0307-0609 ●
17 04.167 RACE; THRUST BRG,PLANETARY SHAFT 8-98050-545-0 01 1 0610- ●
18 04.187 BEARING; THRUST,RR PLANETARY GEA
(B) 		8-97249-735-0 01 1 0307- ●
18 04.187 BEARING; THRUST,RR PLANETARY GEA
(A) 		8-97331-548-0 01 1 0307- ●
19 04.167 RACE; THRUST BRG,PLANETARY SHAFT 8-94479-837-0 01 1 0307-0609 ●
19 04.167 RACE; THRUST BRG,PLANETARY SHAFT 8-98050-546-0 01 1 0610- ●
20 04.164 RING; RET,PLANETARY GEAR,A/T 8-94479-842-0 01 1 0307- ●
21 04.158 GEAR; PLANETARY,INTERNAL FRT,A/T 8-94479-839-0 01 1 0307-0609 ●
21 04.158 GEAR; PLANETARY,INTERNAL FRT,A/T 8-98050-547-0 01 1 0610- ●
22 04.167 RACE; THRUST BRG,FRT PLANETARY S 8-94479-840-0 01 1 0307-0609 ●
22 04.167 RACE; THRUST BRG,FRT PLANETARY S 8-98050-548-0 01 1 0610- ●
23 04.164 BEARING; THRUST,PLANETARY SHAFT, 8-94479-841-0 01 1 0307-0609 ●
23 04.164 BEARING; THRUST,PLANETARY SHAFT, 8-98050-549-0 01 1 0610- ●
24 04.164 RING; RET,FRT PLANETARY,A/T
(B) 		8-97143-129-0 01 1 0307- ●
24 04.164 RING; RET,FRT PLANETARY,A/T
4X2(TFB***) 04.338 (A) 		8-97069-457-0 01 1 0307-0508 ●
24 04.164 RING; RET,FRT PLANETARY,A/T
4X2(TFB***) 04.338 (A) 		8-97069-457-0 01 1 0610- ●
25 04.164 CLUTCH ASM; ONEWAY,FRT PLANETARY 8-94364-924-0 01 1 0307- ●
26 04.168 RACE; ONEWAY CLU,A/T 8-97019-542-0 01 1 0307- ●
27 04.256 WASHER; THRUST,FRT PLANETARY,A/T 8-94313-577-0 01 1 0307-0609 ●
27 04.256 WASHER; THRUST,FRT PLANETARY,A/T 8-98050-550-0 01 1 0610- ●
28 04.187 GEAR ASM; RR PLANETARY,A/T 8-97232-050-0 01 1 0307- ●
29 04.158 WASHER; THRUST,FRT PLANETARY,A/T
04.164 		8-94479-851-0 01 1 0307-0609 ●
29 04.158 WASHER; THRUST,FRT PLANETARY,A/T 8-98050-551-0 01 1 0610- ●
30 04.180 RACE; THRUST BRG,RR PLANETARY FL 8-97331-549-0 01 1 0307- ●
31 04.175 GEAR ASM; INTERNAL,PLANETARY,A/T 8-94479-854-0 01 1 0307- ●
31 04.175 GEAR ASM; INTERNAL,PLANETARY,A/T 8-97330-953-0 01 1 0307- ●
32 04.164 FLANGE; RING GEAR,RR PLANETARY,A 8-94479-852-0 01 1 0307- ●
33 04.166 RING; RET,PLANETARY GEAR,A/T 8-94479-853-0 01 1 0307- ●
36 04.164 RING; SEALING,FRT PLANETARY SHAF 8-94479-902-0 01 1 0307- ●
128 04.175 SHAFT; OUTPUT,A/T
4X2(TFB***) 		8-97184-427-0 01 1 0307- ●
128 04.175 SHAFT; OUTPUT,A/T
4X4(TFS***) 		8-97069-456-0 01 1 0307-0508 ●
128 04.175 SHAFT; OUTPUT,A/T 8-97069-456-0 01 1 0509-0609 ●
128 04.175 SHAFT; OUTPUT,A/T
4X4(TFS***) 		8-98050-557-0 01 1 0610- ●
128 04.175 SHAFT; OUTPUT,A/T
4X2(TFB***) 		8-97330-960-0 01 1 0307- ●
128 04.175 SHAFT; OUTPUT,A/T
4X4(TFS***) 		8-97330-961-0 01 1 0307- ●
128 04.175 SHAFT; OUTPUT,A/T
HF V6 ENG(LCA) 		8-08683-818-0 01 1 0509- ●
128 04.175 SHAFT; OUTPUT,A/T
HF V6 ENG(LCA) 		8-08686-817-0 01 1 0509- ●
186 04.329 ROTOR; SPEED SENSOR
4X2(TFB***) 		8-97331-552-0 01 1 0307-0508 ●
186 04.329 ROTOR; SPEED SENSOR
4X2(TFB***) 		8-97331-552-0 01 1 0610- ●
186 04.329 ROTOR; SPEED SENSOR
4X4(TFS***) 		8-97331-553-0 01 1 0307-0508 ●
186 04.329 ROTOR; SPEED SENSOR 8-97331-553-0 01 1 0509-0609 ●
186 04.329 ROTOR; SPEED SENSOR
4X4(TFS***) 		8-97331-553-0 01 1 0610- ●
187 04.338 RING; SNAP,ROTOR,SPEED SENSOR
4X2(TFB***) 		8-97069-451-0 01 1 0307-0508 ●
187 04.338 RING; SNAP,ROTOR,SPEED SENSOR
4X2(TFB***) 		8-97069-451-0 01 1 0610- ●
187 04.338 RING; SNAP,ROTOR,SPEED SENSOR
4X4(TFS***) 04.337 		8-94479-905-0 01 1 0307-0508 ●
187 04.338 RING; SNAP,ROTOR,SPEED SENSOR
04.337 		8-94479-905-0 01 1 0509-0609 ●
187 04.338 RING; SNAP,ROTOR,SPEED SENSOR
4X4(TFS***) 04.337 		8-94479-905-0 01 1 0610- ●
188 04.330 KEY; SPEED SENSOR ROTOR
04.337 		8-94479-904-0 01 1 0307- ●

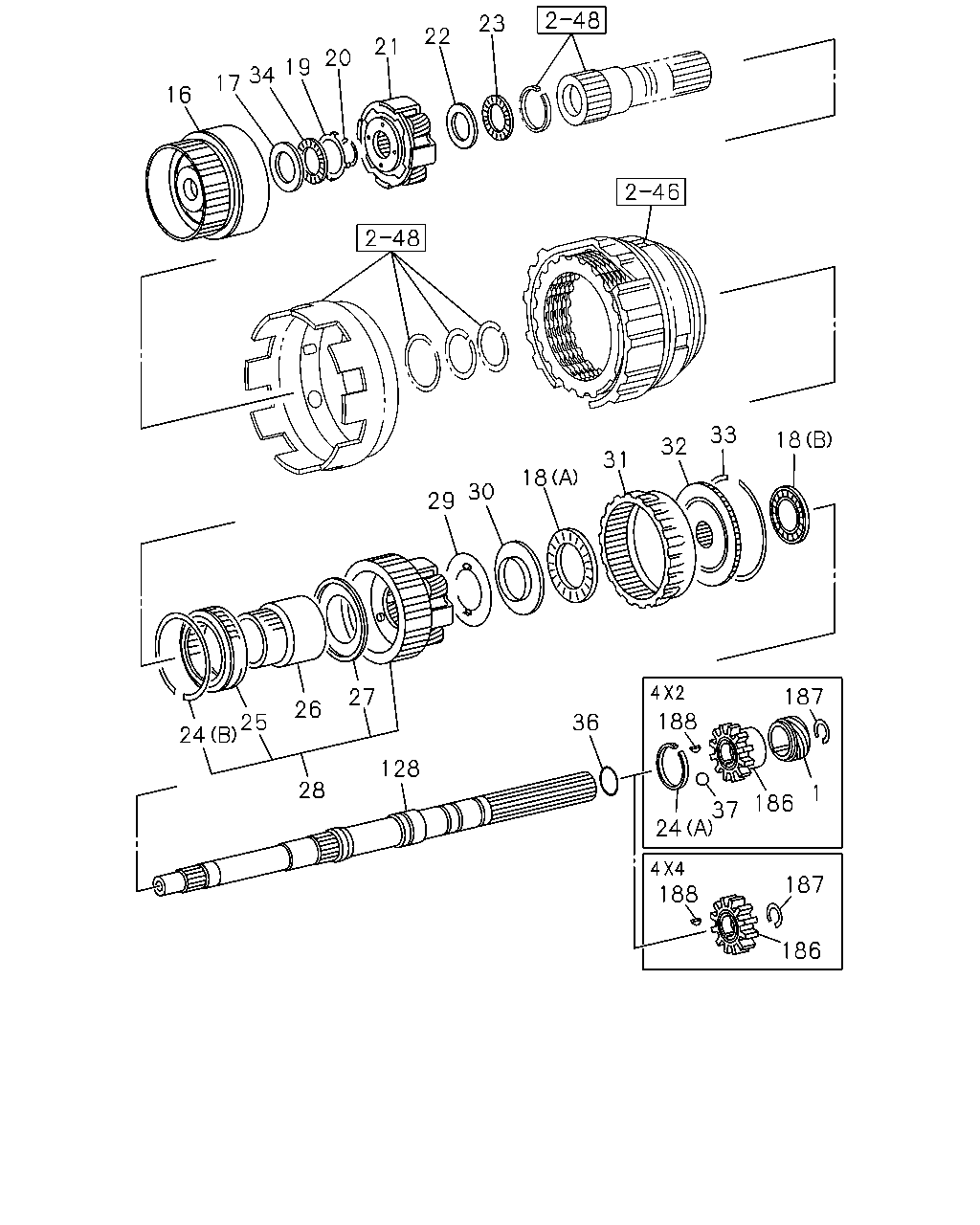

çizim 54713
24 25 26 27 28 128 36 24 188 186 187 37 186 1 187 188 29 30 18 31 32 33 18 16 17 34 19 20 21 22 23
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 04.337 GEAR; SPEEDOMETER DRIVE,A/T
4X2(TFB***) 		8-97181-547-0 01 1 0307-0609 ●
1 04.337 GEAR; SPEEDOMETER DRIVE,A/T
4X2(TFB***) 		8-98056-393-0 01 1 0610- ●
16 04.256 GEAR ASM; FRT PLANETARY,A/T 8-97143-082-0 01 1 0307-0609 ●
16 04.256 GEAR ASM; FRT PLANETARY,A/T 8-98050-544-0 01 1 0610-0801 ●
16 04.256 GEAR ASM; FRT PLANETARY,A/T 8-98112-185-0 01 1 0802- ●
17 04.167 RACE; THRUST BRG,PLANETARY SHAFT 8-94479-836-0 01 1 0307-0609 ●
17 04.167 RACE; THRUST BRG,PLANETARY SHAFT 8-98050-545-0 01 1 0610- ●
18 04.187 BEARING; THRUST,RR PLANETARY GEA
(B) 		8-97249-735-0 01 1 0307- ●
18 04.187 BEARING; THRUST,RR PLANETARY GEA
(A) 		8-97331-548-0 01 1 0307- ●
19 04.167 RACE; THRUST BRG,PLANETARY SHAFT 8-94479-837-0 01 1 0307-0609 ●
19 04.167 RACE; THRUST BRG,PLANETARY SHAFT 8-98050-546-0 01 1 0610- ●
20 04.164 RING; RET,PLANETARY GEAR,A/T 8-94479-842-0 01 1 0307- ●
21 04.158 GEAR; PLANETARY,INTERNAL FRT,A/T 8-94479-839-0 01 1 0307-0609 ●
21 04.158 GEAR; PLANETARY,INTERNAL FRT,A/T 8-98050-547-0 01 1 0610- ●
22 04.167 RACE; THRUST BRG,FRT PLANETARY S 8-94479-840-0 01 1 0307-0609 ●
22 04.167 RACE; THRUST BRG,FRT PLANETARY S 8-98050-548-0 01 1 0610- ●
23 04.164 BEARING; THRUST,PLANETARY SHAFT, 8-94479-841-0 01 1 0307-0609 ●
23 04.164 BEARING; THRUST,PLANETARY SHAFT, 8-98050-549-0 01 1 0610- ●
24 04.164 RING; RET,FRT PLANETARY,A/T
(B) 		8-97143-129-0 01 1 0307- ●
24 04.164 RING; RET,FRT PLANETARY,A/T
4X2(TFB***) 04.338 (A) 		8-97069-457-0 01 1 0307-0508 ●
24 04.164 RING; RET,FRT PLANETARY,A/T
4X2(TFB***) 04.338 (A) 		8-97069-457-0 01 1 0610- ●
25 04.164 CLUTCH ASM; ONEWAY,FRT PLANETARY 8-94364-924-0 01 1 0307- ●
26 04.168 RACE; ONEWAY CLU,A/T 8-97019-542-0 01 1 0307- ●
27 04.256 WASHER; THRUST,FRT PLANETARY,A/T 8-94313-577-0 01 1 0307-0609 ●
27 04.256 WASHER; THRUST,FRT PLANETARY,A/T 8-98050-550-0 01 1 0610- ●
28 04.187 GEAR ASM; RR PLANETARY,A/T 8-97232-050-0 01 1 0307- ●
29 04.158 WASHER; THRUST,FRT PLANETARY,A/T
04.164 		8-94479-851-0 01 1 0307-0609 ●
29 04.158 WASHER; THRUST,FRT PLANETARY,A/T 8-98050-551-0 01 1 0610- ●
30 04.180 RACE; THRUST BRG,RR PLANETARY FL 8-97331-549-0 01 1 0307- ●
31 04.175 GEAR ASM; INTERNAL,PLANETARY,A/T 8-94479-854-0 01 1 0307- ●
31 04.175 GEAR ASM; INTERNAL,PLANETARY,A/T 8-97330-953-0 01 1 0307- ●
32 04.164 FLANGE; RING GEAR,RR PLANETARY,A 8-94479-852-0 01 1 0307- ●
33 04.166 RING; RET,PLANETARY GEAR,A/T 8-94479-853-0 01 1 0307- ●
34 04.164 BEARING; THRUST,FRT PLANETARY SH
04.187 		8-94479-838-0 01 1 0307-0609 ●
36 04.164 RING; SEALING,FRT PLANETARY SHAF 8-94479-902-0 01 1 0307- ●
37 04.256 BALL; SPD DRIVE
4X2(TFB***) 		8-94167-674-0 01 1 0307-0508 ●
128 04.175 SHAFT; OUTPUT,A/T
4X2(TFB***) 		8-97184-427-0 01 1 0307- ●
128 04.175 SHAFT; OUTPUT,A/T
4X4(TFS***) 		8-97069-456-0 01 1 0307-0508 ●
128 04.175 SHAFT; OUTPUT,A/T 8-97069-456-0 01 1 0509-0609 ●
128 04.175 SHAFT; OUTPUT,A/T
4X4(TFS***) 		8-98050-557-0 01 1 0610- ●
128 04.175 SHAFT; OUTPUT,A/T
4X2(TFB***) 		8-97330-960-0 01 1 0307- ●
128 04.175 SHAFT; OUTPUT,A/T
4X4(TFS***) 		8-97330-961-0 01 1 0307- ●
128 04.175 SHAFT; OUTPUT,A/T
HF V6 ENG(LCA) 		8-08683-818-0 01 1 0509- ●
128 04.175 SHAFT; OUTPUT,A/T
HF V6 ENG(LCA) 		8-08686-817-0 01 1 0509- ●
186 04.329 ROTOR; SPEED SENSOR
4X2(TFB***) 		8-97331-552-0 01 1 0307-0508 ●
186 04.329 ROTOR; SPEED SENSOR
4X2(TFB***) 		8-97331-552-0 01 1 0610- ●
186 04.329 ROTOR; SPEED SENSOR
4X4(TFS***) 		8-97331-553-0 01 1 0307-0508 ●
186 04.329 ROTOR; SPEED SENSOR 8-97331-553-0 01 1 0509-0609 ●
186 04.329 ROTOR; SPEED SENSOR
4X4(TFS***) 		8-97331-553-0 01 1 0610- ●
187 04.338 RING; SNAP,ROTOR,SPEED SENSOR
4X2(TFB***) 		8-97069-451-0 01 1 0307-0508 ●
187 04.338 RING; SNAP,ROTOR,SPEED SENSOR
4X2(TFB***) 		8-97069-451-0 01 1 0610- ●
187 04.338 RING; SNAP,ROTOR,SPEED SENSOR
4X4(TFS***) 04.337 		8-94479-905-0 01 1 0307-0508 ●
187 04.338 RING; SNAP,ROTOR,SPEED SENSOR
04.337 		8-94479-905-0 01 1 0509-0609 ●
187 04.338 RING; SNAP,ROTOR,SPEED SENSOR
4X4(TFS***) 04.337 		8-94479-905-0 01 1 0610- ●
188 04.330 KEY; SPEED SENSOR ROTOR
04.337 		8-94479-904-0 01 1 0307- ●

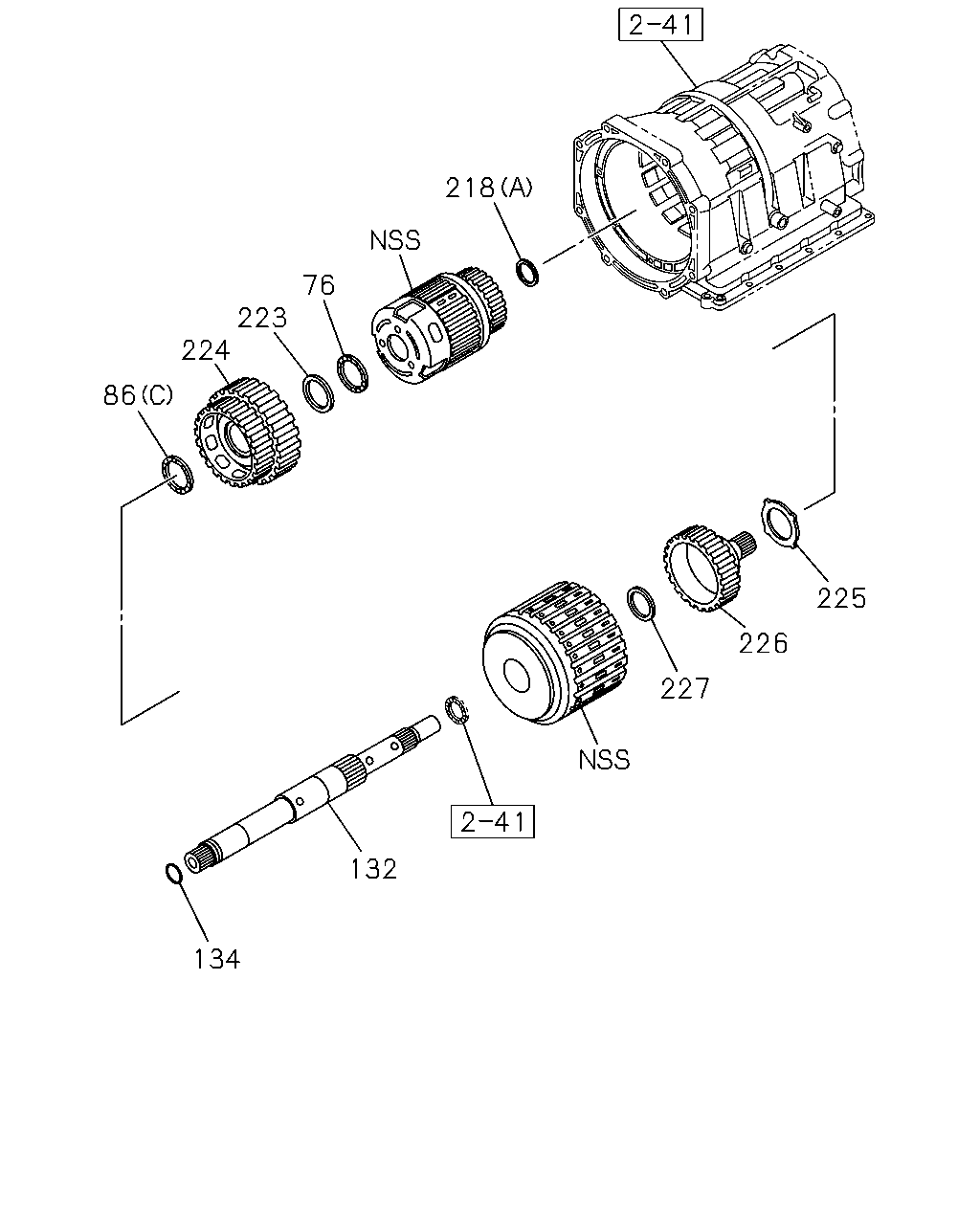

çizim 56633
218 76 223 224 86 134 132 227 226 225
BalonParca AdiParca NoAdetTipApplied Date A B C D
76 04.164 BEARING; THRUST,CARRIER 8-97330-927-0 01 1 0307- ●
86 04.166 BEARING; THRUST,SUN GEAR
(A) 		8-97330-919-0 01 1 0307- ●
86 04.166 BEARING; THRUST,SUN GEAR
(B) 		8-97330-920-0 01 1 0307- ●
86 04.166 BEARING; THRUST,SUN GEAR
(C) 		8-97330-926-0 01 1 0307-0711 ●
86 04.166 BEARING; THRUST,SUN GEAR
(C) 		8-97374-016-0 01 1 0712- ●
132 04.123 SHAFT; INPUT,A/T 8-97330-931-0 01 1 0307- ●
134 04.166 SEAL; INPUT SHAFT,FRT 8-97331-697-0 01 1 0307- ●
218 04.164 BEARING; THRUST,INTERNAL GEAR
(A) 		8-97330-928-0 01 1 0307- ●
218 04.164 BEARING; THRUST,INTERNAL GEAR
(B) 		8-97330-938-0 01 1 0307- ●
223 04.164 RACE; BRG,CARRIER 8-97330-946-0 01 1 0307- ●
224 04.164 GEAR ASM; SUN,FRT 8-97357-796-0 01 1 0307-0711 ●
224 04.164 GEAR ASM; SUN,FRT 8-97374-015-0 01 1 0712- ●
225 04.164 RACE; BRG,SUN GEAR 8-97330-949-0 01 1 0307- ●
226 04.164 HUB; HIGH CLUTCH 8-97331-038-0 01 1 0307- ●
227 04.164 BEARING; HUB,HIGH CLUTCH 8-97330-925-0 01 1 0307- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
