◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50965 - TFR/TFS-RHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-44B - AUTO TRANS CONTROL VALVE; LOWER BODY ▶
2-44B — AUTO TRANS CONTROL VALVE; LOWER BODY (#20421) — 234 parça

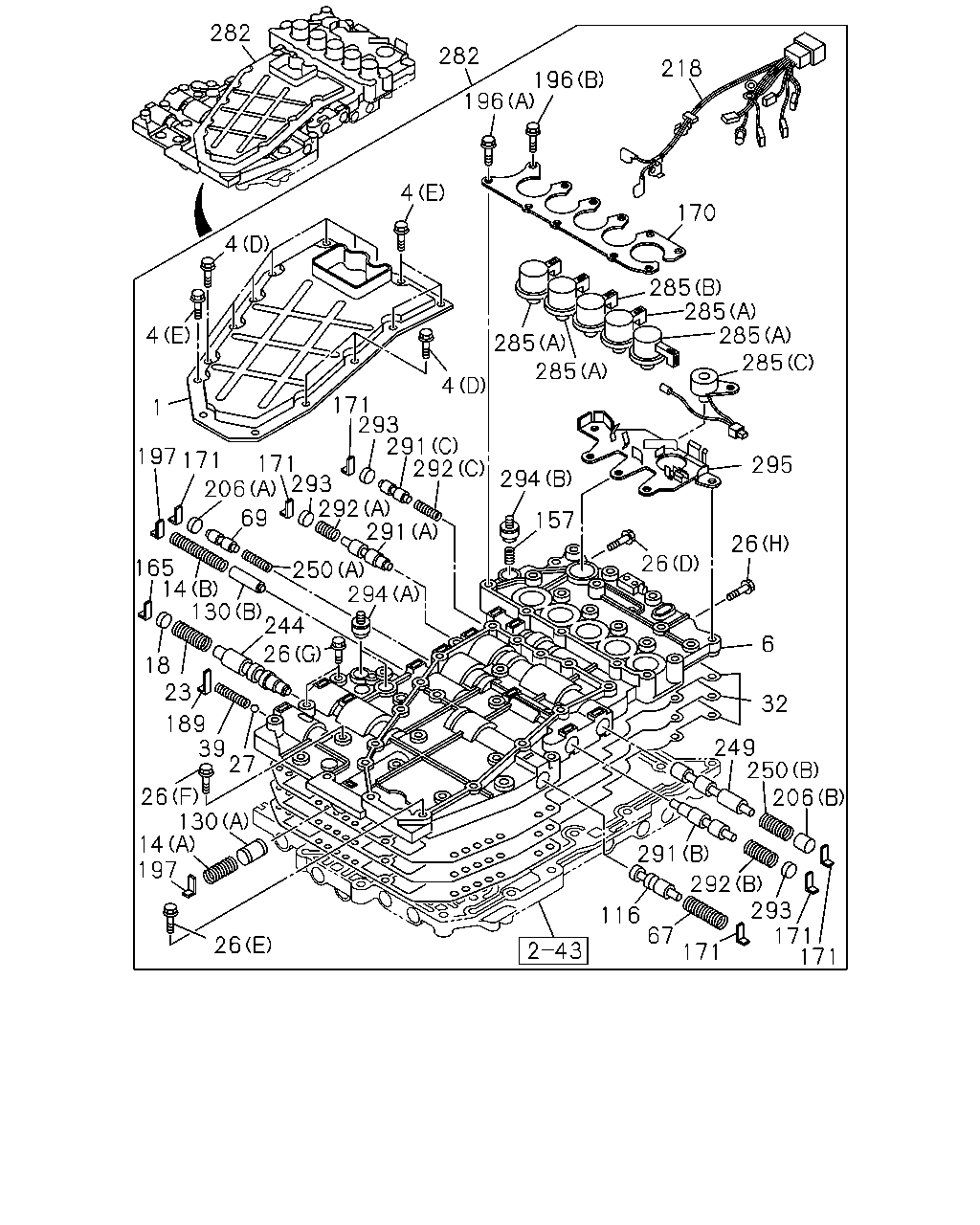

çizim 11671
282 282 196 196 218 170 285 285 285 285 295 26 26 6 32 249 250 206 171 171 293 292 291 116 67 171 26 197 14 130 26 27 39 189 23 18 26 244 130 14 165 294 250 69 206 171 197 1 4 171 293 171 292 291 293 291 292 294 4 157 285 285 4 4
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 04.197 STRAINER ASM; OIL,A/T 8-97207-143-0 01 1 0307- ●
1 04.197 STRAINER ASM; OIL,A/T 8-97331-063-0 01 1 0307- ●
4 04.197 BOLT; OIL STRAINER,A/T
04.265 (A) M6X20 		8-94479-922-0 01 1 0307- ●
4 04.197 BOLT; OIL STRAINER,A/T
04.265 (B) M6X23 		8-94479-925-0 01 1 0307- ●
4 04.197 BOLT; OIL STRAINER,A/T
(C) 		8-97207-142-0 02 1 0307- ●
4 04.197 BOLT; OIL STRAINER,A/T
(D) 		8-97331-102-0 09 1 0307- ●
4 04.197 BOLT; OIL STRAINER,A/T
(E) M6X45 FLANGE 		8-97331-104-0 04 1 0307- ●
6 04.265 BODY ASM; VLV LWR,A/T 8-97354-971-0 01 1 0307-0609 ●
6 04.265 BODY ASM; VLV LWR,A/T 8-98050-499-0 01 1 0610-0801 ●
6 04.265 BODY ASM; VLV LWR,A/T 8-98112-200-0 01 1 0802- ●
6 04.265 BODY ASM; VLV LWR,A/T 8-97331-059-0 01 1 0307- ●
6 04.265 BODY ASM; VLV LWR,A/T
HF V6 ENG(LCA) 		8-24225-003-0 01 1 0509- ● ●
14 04.246 SPRING; ACCUMLATOR CONT VALVE
(A) 		8-97092-821-0 01 1 0307- ●
14 04.246 SPRING; ACCUMLATOR CONT VALVE
(B) 		8-97331-078-0 01 1 0307- ●
18 04.265 PLUG; PRESSURE 8-97331-096-0 01 1 0307- ●
23 04.265 SPRING; REG VLV,VLV LWR,A/T 8-97331-075-0 01 1 0307- ●
26 04.265 BOLT; BODY FIX,VLV LWR,A/T
(A) M6X28 		8-94473-611-0 10 1 0307- ●
26 04.265 BOLT; BODY FIX,VLV LWR,A/T
(B) M6X36 		8-94473-630-0 06 1 0307- ●
26 04.265 BOLT; BODY FIX,VLV LWR,A/T
(C) M6X23 		8-94479-925-0 04 1 0307- ●
26 04.265 BOLT; BODY FIX,VLV LWR,A/T
(D) M6X40 		8-94385-941-0 10 1 0307-0711 ●
26 04.265 BOLT; BODY FIX,VLV LWR,A/T
(E) M6X50 FLANGE 		8-97331-101-0 02 1 0307- ●
26 04.265 BOLT; BODY FIX,VLV LWR,A/T
(F) M6X35 FLANGE 		8-97331-103-0 13 1 0307- ●
26 04.265 BOLT; BODY FIX,VLV LWR,A/T
04.197 (G) M6X45 FLANGE 		8-97331-104-0 02 1 0307- ●
26 04.265 BOLT; BODY FIX,VLV LWR,A/T
(H) M6X30 FLANGE 		8-97331-122-0 02 1 0307-0711 ●
26 04.265 BOLT; BODY FIX,VLV LWR,A/T
HF V6 ENG(LCA) (I) M6X54.4 		8-08680-741-0 03 1 0509- ● ●
26 04.265 BOLT; BODY FIX,VLV LWR,A/T
HF V6 ENG(LCA) (I) M6X47.4 		8-08680-742-0 09 1 0509- ● ●
26 04.265 BOLT; BODY FIX,VLV LWR,A/T
HF V6 ENG(LCA) (I) M6X35 		8-11505-032-0 02 1 0509- ● ●
26 04.265 BOLT; BODY FIX,VLV LWR,A/T
HF V6 ENG(LCA) (I) M6X65 		8-11506-078-0 03 1 0509- ● ●
27 04.265 BALL; STEEL,VLV,A/T 8-97330-895-0 01 1 0307- ●
27 04.265 BALL; STEEL,VLV,A/T
HF V6 ENG(LCA) 		8-00104-918-0 08 1 0509- ● ●
32 04.265 PLATE; SEPARATOR,VLV BODY,A/T 8-97331-060-0 01 1 0307- ●
39 04.265 SPRING; BALL VALVE 8-97331-071-0 01 1 0307- ●
67 04.265 SPRING; PRESSURE,RELIEF VLV,A/T 8-97331-072-0 01 1 0307- ●
69 04.265 VALVE; SHIFT,LOW COAST,VLV LWR,A 8-97331-082-0 01 1 0307- ●
116 04.265 VALVE; PRESSURE RELIEF 8-97331-091-0 01 1 0307- ●
130 04.241 PISTON; ACCUMLATOR CONT
(A) 		8-94342-922-0 01 1 0307- ●
130 04.241 PISTON; ACCUMLATOR CONT
(B) 		8-97331-057-0 01 1 0307- ●
157 04.265 FILTER; OIL,LWR VALVE BODY 8-97331-062-0 01 1 0307- ●
165 04.265 PLATE; PRESS REG VLV,A/T 8-94385-905-0 01 1 0307- ●
170 04.265 PLATE; VLV,A/T 8-97331-081-0 01 1 0307- ●
171 04.265 PLATE; SHIFT VLV,A/T 8-97331-080-0 06 1 0307- ●
189 04.246 RETAINER; SPR
04.265 		8-94385-905-0 01 1 0307- ●
196 04.265 BOLT; SOLENOID
04.197 (A) M6X45 FLANGE 		8-97331-104-0 07 1 0307- ●
196 04.265 BOLT; SOLENOID
(B) M6X16 		8-97331-121-0 05 1 0307- ●
197 04.241 PLATE; ACCUMLATOR CONT VLV
04.265 		8-97331-080-0 02 1 0307- ●
206 04.054 PLUG; SHIFT VALVE
04.265 (A) 		8-97331-099-0 01 1 0307- ●
206 04.054 PLUG; SHIFT VALVE
(B) 		8-97331-100-0 01 1 0307- ●
218 04.115 HARNESS; SOLENOID WIRE 8-97331-115-0 01 1 0307- ●
218 04.115 HARNESS; SOLENOID WIRE
HF V6 ENG(LCA) 		8-24229-669-0 01 1 0509- ● ●
244 04.265 VALVE; PRESSURE CONT 8-97331-064-0 01 1 0307- ●
249 04.265 VALVE; SHIFT 8-97331-083-0 01 1 0307- ●
250 04.265 SPRING; SHIFT VALVE
(A) 		8-97331-070-0 01 1 0307- ●
250 04.265 SPRING; SHIFT VALVE
(B) 		8-97331-076-0 01 1 0307- ●
282 04.265 BODY ASM; VLV,A/T 8-97333-561-0 01 1 0307- ●
285 04.265 SOLENOID; LWR VLV BODY
(A) 		8-97331-109-0 04 1 0307- ●
285 04.265 SOLENOID; LWR VLV BODY
(B) 		8-97331-110-0 01 1 0307- ●
285 04.265 SOLENOID; LWR VLV BODY
(C) 		8-97331-111-0 01 1 0307- ●
285 04.265 SOLENOID; LWR VLV BODY
HF V6 ENG(LCA) (D) 		8-24212-327-0 01 1 0509- ● ●
285 04.265 SOLENOID; LWR VLV BODY
HF V6 ENG(LCA) (E) 		8-24227-792-0 01 1 0509- ● ●
285 04.265 SOLENOID; LWR VLV BODY
HF V6 ENG(LCA) (F) 		8-24230-298-0 02 1 0509- ● ●
291 04.265 VALVE; SPOOL,LWR VLV
(A) 		8-97331-086-0 01 1 0307- ●
291 04.265 VALVE; SPOOL,LWR VLV
(B) 		8-97331-087-0 01 1 0307- ●
291 04.265 VALVE; SPOOL,LWR VLV
(C) 		8-97331-089-0 01 1 0307- ●
292 04.265 SPRING; SPOOL VALVE
(A) 		8-97331-068-0 01 1 0307- ●
292 04.265 SPRING; SPOOL VALVE
(B) 		8-97331-069-0 01 1 0307- ●
292 04.265 SPRING; SPOOL VALVE
(C) 		8-97331-073-0 01 1 0307- ●
293 04.265 PLUG; SPOOL VALVE 8-97331-098-0 03 1 0307- ●
294 04.265 SWITCH; OIL PRESSURE
(A) 		8-97330-896-0 02 1 0307- ●
294 04.265 SWITCH; OIL PRESSURE
(B) 		8-97330-897-0 01 1 0307- ●
294 04.265 SWITCH; OIL PRESSURE
HF V6 ENG(LCA) (C) 		8-24219-581-0 01 1 0509- ● ●
295 04.265 BRACKET; HARNESS,LWR VLV BODY 8-97331-061-0 01 1 0307- ●

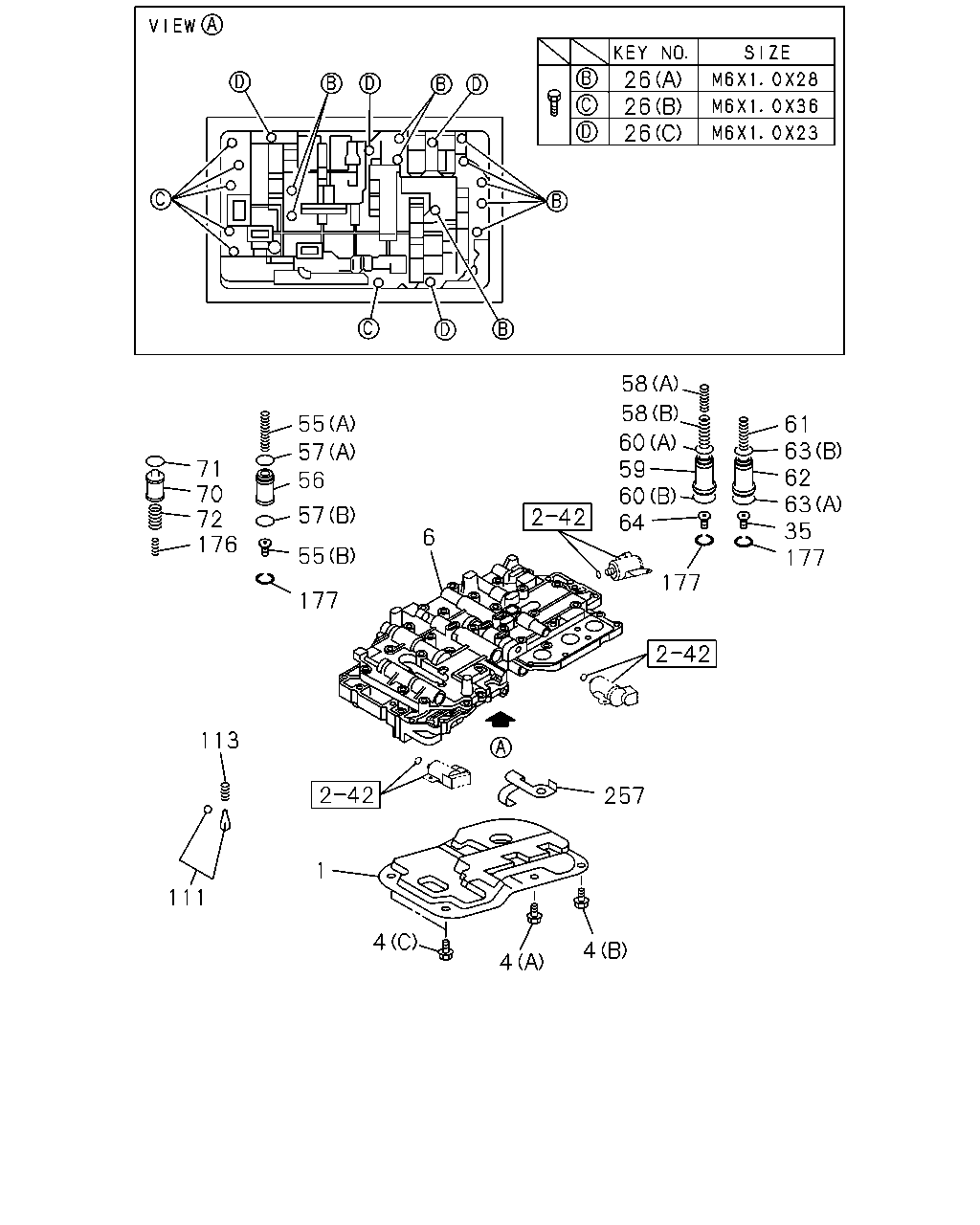

çizim 12880
26 26 26 64 60 59 60 58 58 61 63 62 63 35 177 177 257 4 4 4 1 111 113 177 6 55 57 56 57 55 71 70 72 176
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 04.197 STRAINER ASM; OIL,A/T 8-97207-143-0 01 1 0307- ●
1 04.197 STRAINER ASM; OIL,A/T 8-97331-063-0 01 1 0307- ●
4 04.197 BOLT; OIL STRAINER,A/T
04.265 (A) M6X20 		8-94479-922-0 01 1 0307- ●
4 04.197 BOLT; OIL STRAINER,A/T
04.265 (B) M6X23 		8-94479-925-0 01 1 0307- ●
4 04.197 BOLT; OIL STRAINER,A/T
(C) 		8-97207-142-0 02 1 0307- ●
4 04.197 BOLT; OIL STRAINER,A/T
(D) 		8-97331-102-0 09 1 0307- ●
4 04.197 BOLT; OIL STRAINER,A/T
(E) M6X45 FLANGE 		8-97331-104-0 04 1 0307- ●
6 04.265 BODY ASM; VLV LWR,A/T 8-97354-971-0 01 1 0307-0609 ●
6 04.265 BODY ASM; VLV LWR,A/T 8-98050-499-0 01 1 0610-0801 ●
6 04.265 BODY ASM; VLV LWR,A/T 8-98112-200-0 01 1 0802- ●
6 04.265 BODY ASM; VLV LWR,A/T 8-97331-059-0 01 1 0307- ●
6 04.265 BODY ASM; VLV LWR,A/T
HF V6 ENG(LCA) 		8-24225-003-0 01 1 0509- ● ●
26 04.265 BOLT; BODY FIX,VLV LWR,A/T
(A) M6X28 		8-94473-611-0 10 1 0307- ●
26 04.265 BOLT; BODY FIX,VLV LWR,A/T
(B) M6X36 		8-94473-630-0 06 1 0307- ●
26 04.265 BOLT; BODY FIX,VLV LWR,A/T
(C) M6X23 		8-94479-925-0 04 1 0307- ●
26 04.265 BOLT; BODY FIX,VLV LWR,A/T
(D) M6X40 		8-94385-941-0 10 1 0307-0711 ●
26 04.265 BOLT; BODY FIX,VLV LWR,A/T
(E) M6X50 FLANGE 		8-97331-101-0 02 1 0307- ●
26 04.265 BOLT; BODY FIX,VLV LWR,A/T
(F) M6X35 FLANGE 		8-97331-103-0 13 1 0307- ●
26 04.265 BOLT; BODY FIX,VLV LWR,A/T
04.197 (G) M6X45 FLANGE 		8-97331-104-0 02 1 0307- ●
26 04.265 BOLT; BODY FIX,VLV LWR,A/T
(H) M6X30 FLANGE 		8-97331-122-0 02 1 0307-0711 ●
26 04.265 BOLT; BODY FIX,VLV LWR,A/T
HF V6 ENG(LCA) (I) M6X54.4 		8-08680-741-0 03 1 0509- ● ●
26 04.265 BOLT; BODY FIX,VLV LWR,A/T
HF V6 ENG(LCA) (I) M6X47.4 		8-08680-742-0 09 1 0509- ● ●
26 04.265 BOLT; BODY FIX,VLV LWR,A/T
HF V6 ENG(LCA) (I) M6X35 		8-11505-032-0 02 1 0509- ● ●
26 04.265 BOLT; BODY FIX,VLV LWR,A/T
HF V6 ENG(LCA) (I) M6X65 		8-11506-078-0 03 1 0509- ● ●
35 04.265 SPRING; LWR VLV BODY 8-97025-856-0 01 1 0307- ●
55 04.246 SPRING; ACCUMLATOR PISTON
04.164 (B) 		8-97027-209-0 01 1 0307- ●
55 04.246 SPRING; ACCUMLATOR PISTON
(A) 		8-97232-087-0 01 1 0307-0609 ●
55 04.246 SPRING; ACCUMLATOR PISTON
(A) 		8-97027-208-0 01 1 0610- ●
55 04.246 SPRING; ACCUMLATOR PISTON
HF V6 ENG(LCA) (F) 		8-24219-942-0 01 1 0509- ●
55 04.246 SPRING; ACCUMLATOR PISTON
HF V6 ENG(LCA) (E) 		8-24220-145-0 01 1 0509- ●
55 04.246 SPRING; ACCUMLATOR PISTON
HF V6 ENG(LCA) (C) 		8-08639-074-0 01 1 0509- ● ●
55 04.246 SPRING; ACCUMLATOR PISTON
HF V6 ENG(LCA) (D) 		8-24208-990-0 01 1 0509- ● ●
55 04.246 SPRING; ACCUMLATOR PISTON
HF V6 ENG(LCA) (E) 		8-24220-146-0 01 1 0509- ●
55 04.246 SPRING; ACCUMLATOR PISTON
HF V6 ENG(LCA) (F) 		8-24220-148-0 01 1 0509- ●
56 04.241 PISTON; ACCUMLATOR 8-97027-207-0 01 1 0307- ●
56 04.241 PISTON; ACCUMLATOR
HF V6 ENG(LCA) 		8-24200-126-0 01 1 0509- ● ●
57 04.241 GASKET; 2ND SPD PISTON,A/T
(A) ID=20 		8-97184-885-0 01 1 0307- ●
57 04.241 GASKET; 2ND SPD PISTON,A/T
(B) ID=27 		8-97184-886-0 01 1 0307- ●
58 04.164 SPRING; DIRECT CLU (C-2 ACCUM),A
(B) 		8-97025-822-0 01 1 0307-0609 ●
58 04.164 SPRING; DIRECT CLU (C-2 ACCUM),A
(B) 		8-98050-497-0 01 1 0610- ●
58 04.164 SPRING; DIRECT CLU (C-2 ACCUM),A
(A) 		8-97027-204-0 01 1 0307- ●
59 04.166 PISTON; DIRECT CLU,A/T 8-97025-819-0 01 1 0307- ●
60 04.169 GASKET; DIRECT CLU PISTON,A/T
(A) 		8-97184-887-0 01 1 0307- ●
60 04.169 GASKET; DIRECT CLU PISTON,A/T
04.167 (B) 		8-97184-888-0 01 1 0307- ●
61 04.164 SPRING; FWD CLU,(C-1 ACUUM),A/T 8-97331-532-0 01 1 0307-0609 ●
61 04.164 SPRING; FWD CLU,(C-1 ACUUM),A/T 8-97232-088-0 01 1 0610- ●
62 04.166 PISTON; FWD CLU,A/T 8-97025-817-0 01 1 0307- ●
63 04.167 GASKET; FWD CLU,A/T
(A) 		8-97184-888-0 01 1 0307- ●
63 04.167 GASKET; FWD CLU,A/T
(B) ID=24 		8-97184-889-0 01 1 0307- ●
64 04.164 SPRING; DIRECT CLU 8-97184-335-0 01 1 0307-0609 ●
64 04.164 SPRING; DIRECT CLU 8-97025-820-0 01 1 0610-0709 ●
64 04.164 SPRING; DIRECT CLU 8-97025-820-0 01 1 0710- ●
70 04.241 PISTON; ACCUMLATOR 8-97027-205-0 01 1 0307- ●
71 04.241 GASKET; ACCUMLATOR PISTON 8-97184-884-0 01 1 0307- ●
71 04.241 GASKET; ACCUMLATOR PISTON
HF V6 ENG(LCA) 		8-24206-509-0 02 1 0509- ● ●
72 04.233 SPRING; ACCUMLATOR PISTON 8-97027-206-0 01 1 0307- ●
111 04.169 BODY; CHECK BALL 8-94479-931-0 01 1 0307- ●
113 04.164 SPRING; CHECK BALL 8-94479-930-0 01 1 0307- ●
176 04.265 SPRING; ACCUM INNER 8-97025-825-0 01 1 0307- ●
177 04.265 RING; SNAP
ID=19 		8-97025-821-0 03 1 0307-0609 ●
177 04.265 RING; SNAP
4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) EXC. AUSTRALIA EQUIPMENT(B13) ID=19 		8-97025-821-0 03 1 0610-0709 ●
177 04.265 RING; SNAP
4X4(TFS***) 4JJ1-TCX ENG(LS0) ID=19 		8-97025-821-0 03 1 0610-0709 ●
177 04.265 RING; SNAP
4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) HIGH RIDE SUSPENSION(7YC) EXC. AUSTRALIA EQUIPMENT(B13) ID=19 		8-97025-821-0 03 1 0710- ●
177 04.265 RING; SNAP
4X4(TFS***) 4JJ1-TCX ENG(LS0) ID=19 		8-97025-821-0 03 1 0710- ●
177 04.265 RING; SNAP
4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) HIGH RIDE SUSPENSION(7YC) ID=19 		8-97025-821-0 01 1 0710- ●
177 04.265 RING; SNAP
4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) AUSTRALIA EQUIPMENT(B13) HIGH RIDE SUSPENSION(7YC) ID=19 		8-97025-821-0 01 1 0710- ●
257 04.265 CLAMP; HARNESS 8-97232-037-0 01 1 0307- ●

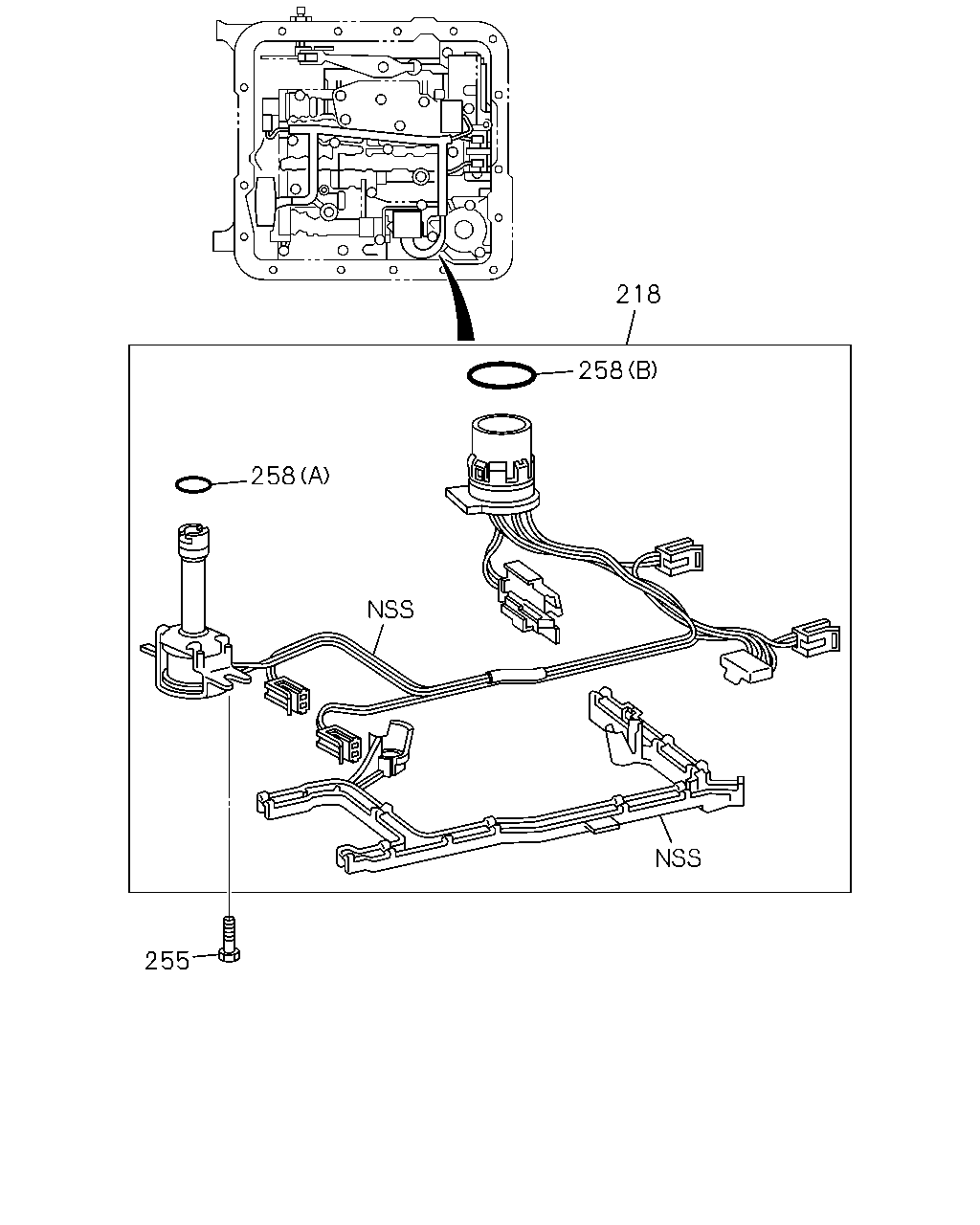

çizim 13086
218 258 258 255
BalonParca AdiParca NoAdetTipApplied Date A B C D
218 04.115 HARNESS; SOLENOID WIRE 8-97331-115-0 01 1 0307- ●
218 04.115 HARNESS; SOLENOID WIRE
HF V6 ENG(LCA) 		8-24229-669-0 01 1 0509- ● ●
255 04.265 BOLT; SOCKET,HARNESS
HF V6 ENG(LCA) 		8-11504-800-0 02 1 0509- ● ●
258 04.265 GASKET; SCOKET,HARNESS
HF V6 ENG(LCA) (A) 		8-08634-188-0 01 1 0509- ● ●
258 04.265 GASKET; SCOKET,HARNESS
HF V6 ENG(LCA) (B) 		8-24213-704-0 01 1 0509- ● ●

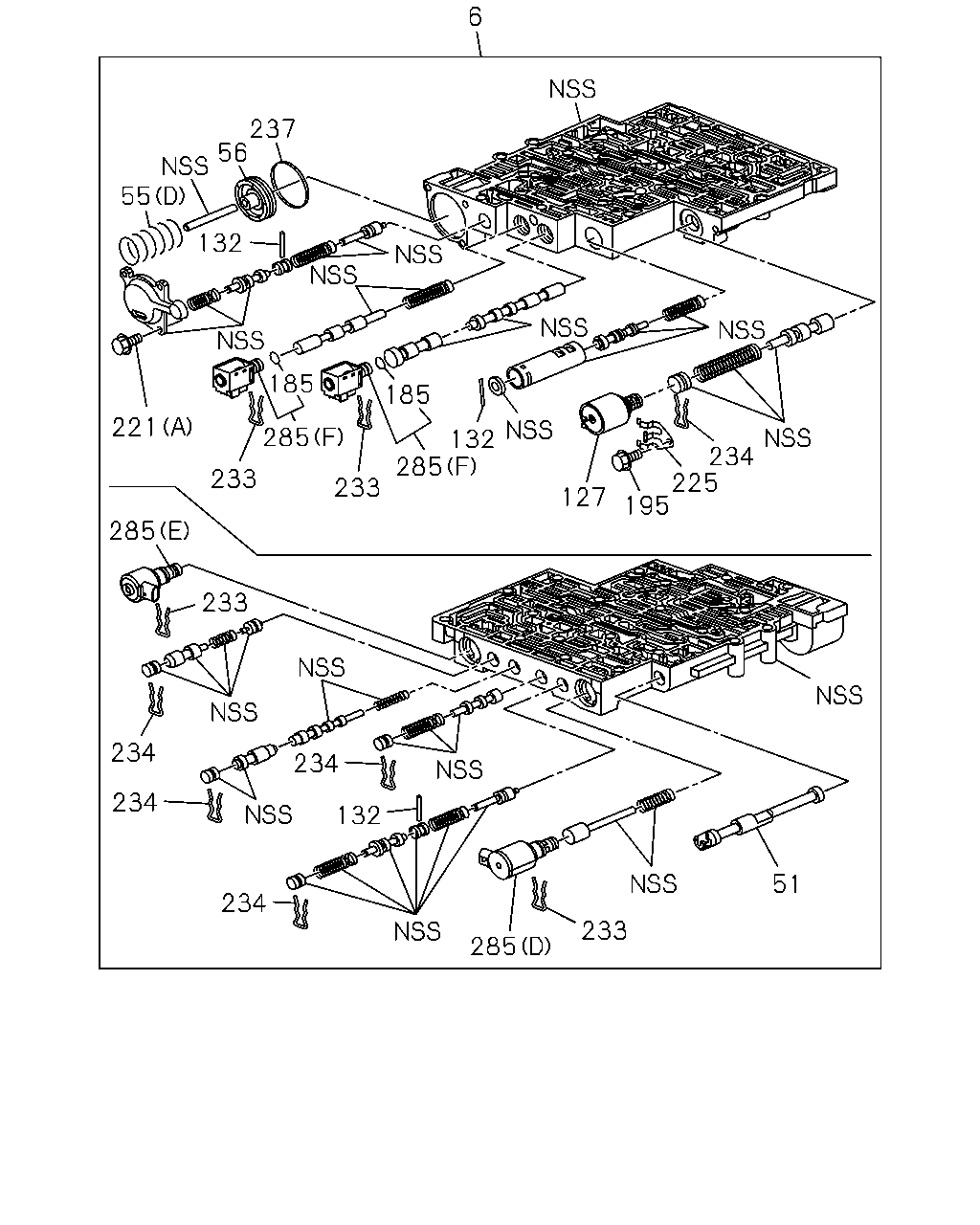

çizim 54608
6 237 56 55 132 221 233 285 185 185 285 233 132 127 195 225 234 51 233 285 234 132 234 234 234 233 285
BalonParca AdiParca NoAdetTipApplied Date A B C D
6 04.265 BODY ASM; VLV LWR,A/T 8-97354-971-0 01 1 0307-0609 ●
6 04.265 BODY ASM; VLV LWR,A/T 8-98050-499-0 01 1 0610-0801 ●
6 04.265 BODY ASM; VLV LWR,A/T 8-98112-200-0 01 1 0802- ●
6 04.265 BODY ASM; VLV LWR,A/T 8-97331-059-0 01 1 0307- ●
6 04.265 BODY ASM; VLV LWR,A/T
HF V6 ENG(LCA) 		8-24225-003-0 01 1 0509- ● ●
51 04.265 VALVE; MANUAL,A/T
HF V6 ENG(LCA) 		8-24203-484-0 01 1 0509- ● ●
55 04.246 SPRING; ACCUMLATOR PISTON
04.164 (B) 		8-97027-209-0 01 1 0307- ●
55 04.246 SPRING; ACCUMLATOR PISTON
(A) 		8-97232-087-0 01 1 0307-0609 ●
55 04.246 SPRING; ACCUMLATOR PISTON
(A) 		8-97027-208-0 01 1 0610- ●
55 04.246 SPRING; ACCUMLATOR PISTON
HF V6 ENG(LCA) (F) 		8-24219-942-0 01 1 0509- ●
55 04.246 SPRING; ACCUMLATOR PISTON
HF V6 ENG(LCA) (E) 		8-24220-145-0 01 1 0509- ●
55 04.246 SPRING; ACCUMLATOR PISTON
HF V6 ENG(LCA) (C) 		8-08639-074-0 01 1 0509- ● ●
55 04.246 SPRING; ACCUMLATOR PISTON
HF V6 ENG(LCA) (D) 		8-24208-990-0 01 1 0509- ● ●
55 04.246 SPRING; ACCUMLATOR PISTON
HF V6 ENG(LCA) (E) 		8-24220-146-0 01 1 0509- ●
55 04.246 SPRING; ACCUMLATOR PISTON
HF V6 ENG(LCA) (F) 		8-24220-148-0 01 1 0509- ●
56 04.241 PISTON; ACCUMLATOR 8-97027-207-0 01 1 0307- ●
56 04.241 PISTON; ACCUMLATOR
HF V6 ENG(LCA) 		8-24200-126-0 01 1 0509- ● ●
127 04.197 VALVE; RELEASE CONT
HF V6 ENG(LCA) 		8-24230-632-0 01 1 0509- ● ●
132 04.216 PIN; PLUG,ACCUMLATOR CONT VALVE
HF V6 ENG(LCA) 		8-08680-765-0 03 1 0509- ● ●
185 04.265 O-RING; SOLENOID,A/T
HF V6 ENG(LCA) 		8-10471-813-0 02 1 0509- ● ●
195 04.265 BOLT; CLAMP
HF V6 ENG(LCA) 		8-08680-764-0 01 1 0509- ● ●
221 04.265 BOLT; COVER,ACCUM PISTON
HF V6 ENG(LCA) (B) 		8-24213-775-0 02 1 0509- ●
221 04.265 BOLT; COVER,ACCUM PISTON
HF V6 ENG(LCA) (A) 		8-08680-764-0 03 1 0509- ● ●
221 04.265 BOLT; COVER,ACCUM PISTON
HF V6 ENG(LCA) (C) M6X65 		8-11506-078-0 01 1 0509- ● ●
221 04.265 BOLT; COVER,ACCUM PISTON
HF V6 ENG(LCA) (B) M6X35 		8-11505-032-0 02 1 0509-0609 ●
221 04.265 BOLT; COVER,ACCUM PISTON
HF V6 ENG(LCA) (B) M6X35 		8-11505-032-0 02 1 0610- ●
225 04.265 CLAMP; SOLENOID VALVE
HF V6 ENG(LCA) 		8-08682-007-0 01 1 0509- ● ●
233 04.265 RETAINER; VALVE,SOLENOID
HF V6 ENG(LCA) 		8-08680-781-0 04 1 0509- ● ●
234 04.265 RETAINER; CONT VLV PLUG
HF V6 ENG(LCA) 		8-08680-781-0 05 1 0509- ● ●
237 04.265 RING; SEAL,ACUUMLATOR PISTON
HF V6 ENG(LCA) 		8-24206-508-0 01 1 0509- ● ●
285 04.265 SOLENOID; LWR VLV BODY
(A) 		8-97331-109-0 04 1 0307- ●
285 04.265 SOLENOID; LWR VLV BODY
(B) 		8-97331-110-0 01 1 0307- ●
285 04.265 SOLENOID; LWR VLV BODY
(C) 		8-97331-111-0 01 1 0307- ●
285 04.265 SOLENOID; LWR VLV BODY
HF V6 ENG(LCA) (D) 		8-24212-327-0 01 1 0509- ● ●
285 04.265 SOLENOID; LWR VLV BODY
HF V6 ENG(LCA) (E) 		8-24227-792-0 01 1 0509- ● ●
285 04.265 SOLENOID; LWR VLV BODY
HF V6 ENG(LCA) (F) 		8-24230-298-0 02 1 0509- ● ●

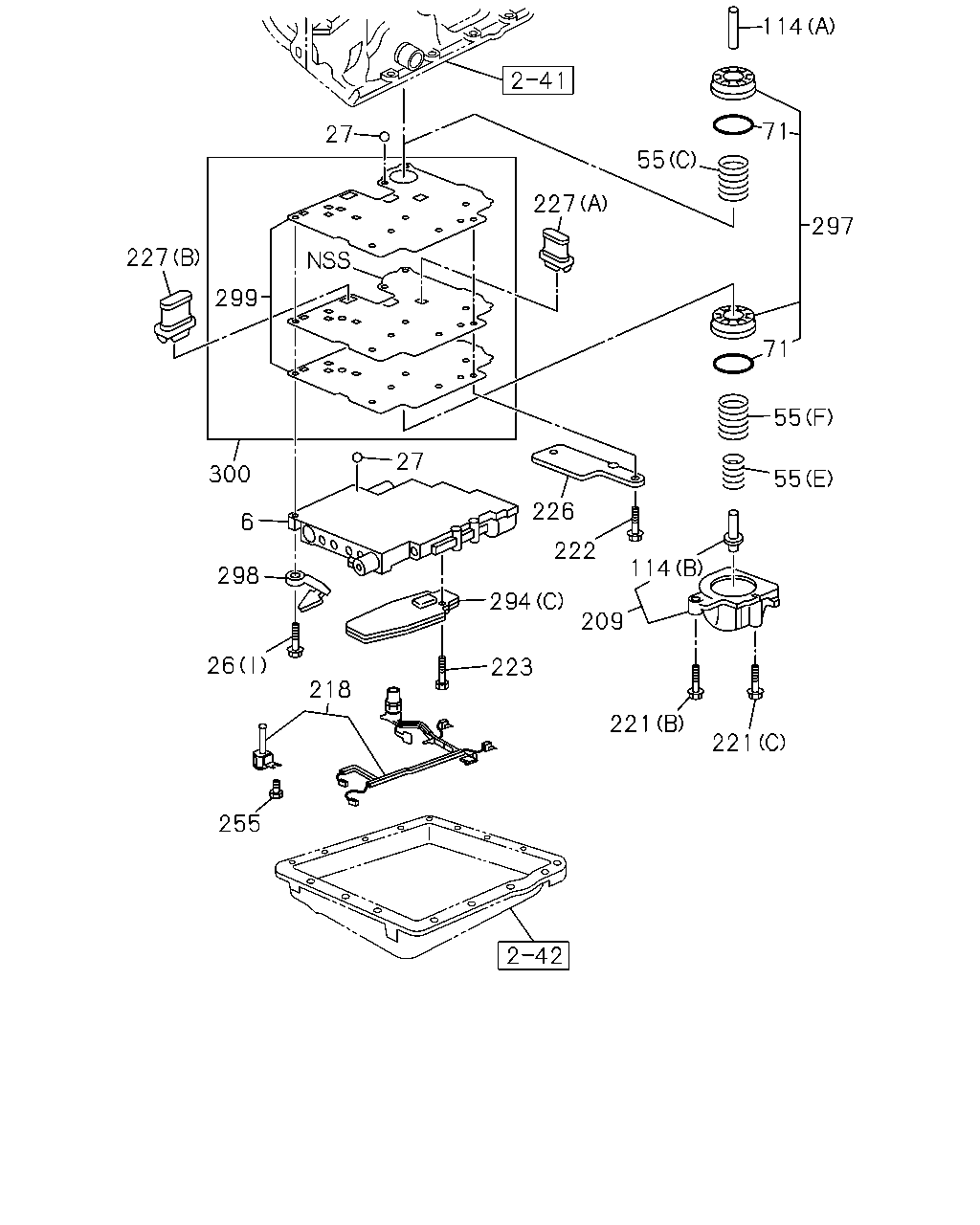

çizim 55999
27 299 227 300 6 298 26 255 218 223 294 27 226 222 114 209 221 221 55 55 71 297 71 55 227 114
BalonParca AdiParca NoAdetTipApplied Date A B C D
6 04.265 BODY ASM; VLV LWR,A/T 8-97354-971-0 01 1 0307-0609 ●
6 04.265 BODY ASM; VLV LWR,A/T 8-98050-499-0 01 1 0610-0801 ●
6 04.265 BODY ASM; VLV LWR,A/T 8-98112-200-0 01 1 0802- ●
6 04.265 BODY ASM; VLV LWR,A/T 8-97331-059-0 01 1 0307- ●
6 04.265 BODY ASM; VLV LWR,A/T
HF V6 ENG(LCA) 		8-24225-003-0 01 1 0509- ● ●
26 04.265 BOLT; BODY FIX,VLV LWR,A/T
(A) M6X28 		8-94473-611-0 10 1 0307- ●
26 04.265 BOLT; BODY FIX,VLV LWR,A/T
(B) M6X36 		8-94473-630-0 06 1 0307- ●
26 04.265 BOLT; BODY FIX,VLV LWR,A/T
(C) M6X23 		8-94479-925-0 04 1 0307- ●
26 04.265 BOLT; BODY FIX,VLV LWR,A/T
(D) M6X40 		8-94385-941-0 10 1 0307-0711 ●
26 04.265 BOLT; BODY FIX,VLV LWR,A/T
(E) M6X50 FLANGE 		8-97331-101-0 02 1 0307- ●
26 04.265 BOLT; BODY FIX,VLV LWR,A/T
(F) M6X35 FLANGE 		8-97331-103-0 13 1 0307- ●
26 04.265 BOLT; BODY FIX,VLV LWR,A/T
04.197 (G) M6X45 FLANGE 		8-97331-104-0 02 1 0307- ●
26 04.265 BOLT; BODY FIX,VLV LWR,A/T
(H) M6X30 FLANGE 		8-97331-122-0 02 1 0307-0711 ●
26 04.265 BOLT; BODY FIX,VLV LWR,A/T
HF V6 ENG(LCA) (I) M6X54.4 		8-08680-741-0 03 1 0509- ● ●
26 04.265 BOLT; BODY FIX,VLV LWR,A/T
HF V6 ENG(LCA) (I) M6X47.4 		8-08680-742-0 09 1 0509- ● ●
26 04.265 BOLT; BODY FIX,VLV LWR,A/T
HF V6 ENG(LCA) (I) M6X35 		8-11505-032-0 02 1 0509- ● ●
26 04.265 BOLT; BODY FIX,VLV LWR,A/T
HF V6 ENG(LCA) (I) M6X65 		8-11506-078-0 03 1 0509- ● ●
27 04.265 BALL; STEEL,VLV,A/T 8-97330-895-0 01 1 0307- ●
27 04.265 BALL; STEEL,VLV,A/T
HF V6 ENG(LCA) 		8-00104-918-0 08 1 0509- ● ●
55 04.246 SPRING; ACCUMLATOR PISTON
04.164 (B) 		8-97027-209-0 01 1 0307- ●
55 04.246 SPRING; ACCUMLATOR PISTON
(A) 		8-97232-087-0 01 1 0307-0609 ●
55 04.246 SPRING; ACCUMLATOR PISTON
(A) 		8-97027-208-0 01 1 0610- ●
55 04.246 SPRING; ACCUMLATOR PISTON
HF V6 ENG(LCA) (F) 		8-24219-942-0 01 1 0509- ●
55 04.246 SPRING; ACCUMLATOR PISTON
HF V6 ENG(LCA) (E) 		8-24220-145-0 01 1 0509- ●
55 04.246 SPRING; ACCUMLATOR PISTON
HF V6 ENG(LCA) (C) 		8-08639-074-0 01 1 0509- ● ●
55 04.246 SPRING; ACCUMLATOR PISTON
HF V6 ENG(LCA) (D) 		8-24208-990-0 01 1 0509- ● ●
55 04.246 SPRING; ACCUMLATOR PISTON
HF V6 ENG(LCA) (E) 		8-24220-146-0 01 1 0509- ●
55 04.246 SPRING; ACCUMLATOR PISTON
HF V6 ENG(LCA) (F) 		8-24220-148-0 01 1 0509- ●
71 04.241 GASKET; ACCUMLATOR PISTON 8-97184-884-0 01 1 0307- ●
71 04.241 GASKET; ACCUMLATOR PISTON
HF V6 ENG(LCA) 		8-24206-509-0 02 1 0509- ● ●
114 04.164 PIN; ACCUMLATOR PISTON (B-2)
HF V6 ENG(LCA) (A) 		8-08628-273-0 01 1 0509- ● ●
114 04.164 PIN; ACCUMLATOR PISTON (B-2)
HF V6 ENG(LCA) (B) 		8-08684-426-0 01 1 0509- ● ●
209 04.105 COVER; ACCUMURATOR
HF V6 ENG(LCA) 		8-24214-039-0 01 1 0509- ●
209 04.105 COVER; ACCUMURATOR
HF V6 ENG(LCA) 		8-24219-935-0 01 1 0509- ●
218 04.115 HARNESS; SOLENOID WIRE 8-97331-115-0 01 1 0307- ●
218 04.115 HARNESS; SOLENOID WIRE
HF V6 ENG(LCA) 		8-24229-669-0 01 1 0509- ● ●
221 04.265 BOLT; COVER,ACCUM PISTON
HF V6 ENG(LCA) (B) 		8-24213-775-0 02 1 0509- ●
221 04.265 BOLT; COVER,ACCUM PISTON
HF V6 ENG(LCA) (A) 		8-08680-764-0 03 1 0509- ● ●
221 04.265 BOLT; COVER,ACCUM PISTON
HF V6 ENG(LCA) (C) M6X65 		8-11506-078-0 01 1 0509- ● ●
221 04.265 BOLT; COVER,ACCUM PISTON
HF V6 ENG(LCA) (B) M6X35 		8-11505-032-0 02 1 0509-0609 ●
221 04.265 BOLT; COVER,ACCUM PISTON
HF V6 ENG(LCA) (B) M6X35 		8-11505-032-0 02 1 0610- ●
222 04.265 BOLT; COVER,OIL PASSENGER
HF V6 ENG(LCA) 		8-08680-764-0 03 1 0509- ● ●
223 04.265 BOLT; POSITION SWITCH
HF V6 ENG(LCA) 		8-08680-764-0 02 1 0509- ● ●
226 04.248 COVER; OIL PASSENGERE
HF V6 ENG(LCA) 		8-24211-508-0 01 1 0509- ●
226 04.248 COVER; OIL PASSENGERE
HF V6 ENG(LCA) 		8-08682-792-0 01 1 0509- ●
227 04.198 FILTER; SOLENOID VALVE
HF V6 ENG(LCA) (A) 		8-24209-144-0 01 1 0509- ● ●
227 04.198 FILTER; SOLENOID VALVE
HF V6 ENG(LCA) (B) 		8-24209-145-0 01 1 0509- ● ●
255 04.265 BOLT; SOCKET,HARNESS
HF V6 ENG(LCA) 		8-11504-800-0 02 1 0509- ● ●
294 04.265 SWITCH; OIL PRESSURE
(A) 		8-97330-896-0 02 1 0307- ●
294 04.265 SWITCH; OIL PRESSURE
(B) 		8-97330-897-0 01 1 0307- ●
294 04.265 SWITCH; OIL PRESSURE
HF V6 ENG(LCA) (C) 		8-24219-581-0 01 1 0509- ● ●
297 04.241 PISTON & SEAL KIT; ACCUMULATOR
HF V6 ENG(LCA) 		8-24221-919-0 01 1 0509- ● ●
298 04.167 STOP; INDICATOR
HF V6 ENG(LCA) 		8-24209-927-0 01 1 0509- ● ●
299 04.265 GASKET KIT; VLV BODY
HF V6 ENG(LCA) 		8-24221-350-0 01 1 0509- ● ●
300 04.265 PLATE & GASKET KIT; VLV BODY
HF V6 ENG(LCA) 		8-24221-137-0 01 1 0509- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
