◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50965 - TFR/TFS-RHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-43B - AUTO TRANS CONTROL VALVE; UPPER BODY ▶
2-43B — AUTO TRANS CONTROL VALVE; UPPER BODY (#20420) — 34 parça

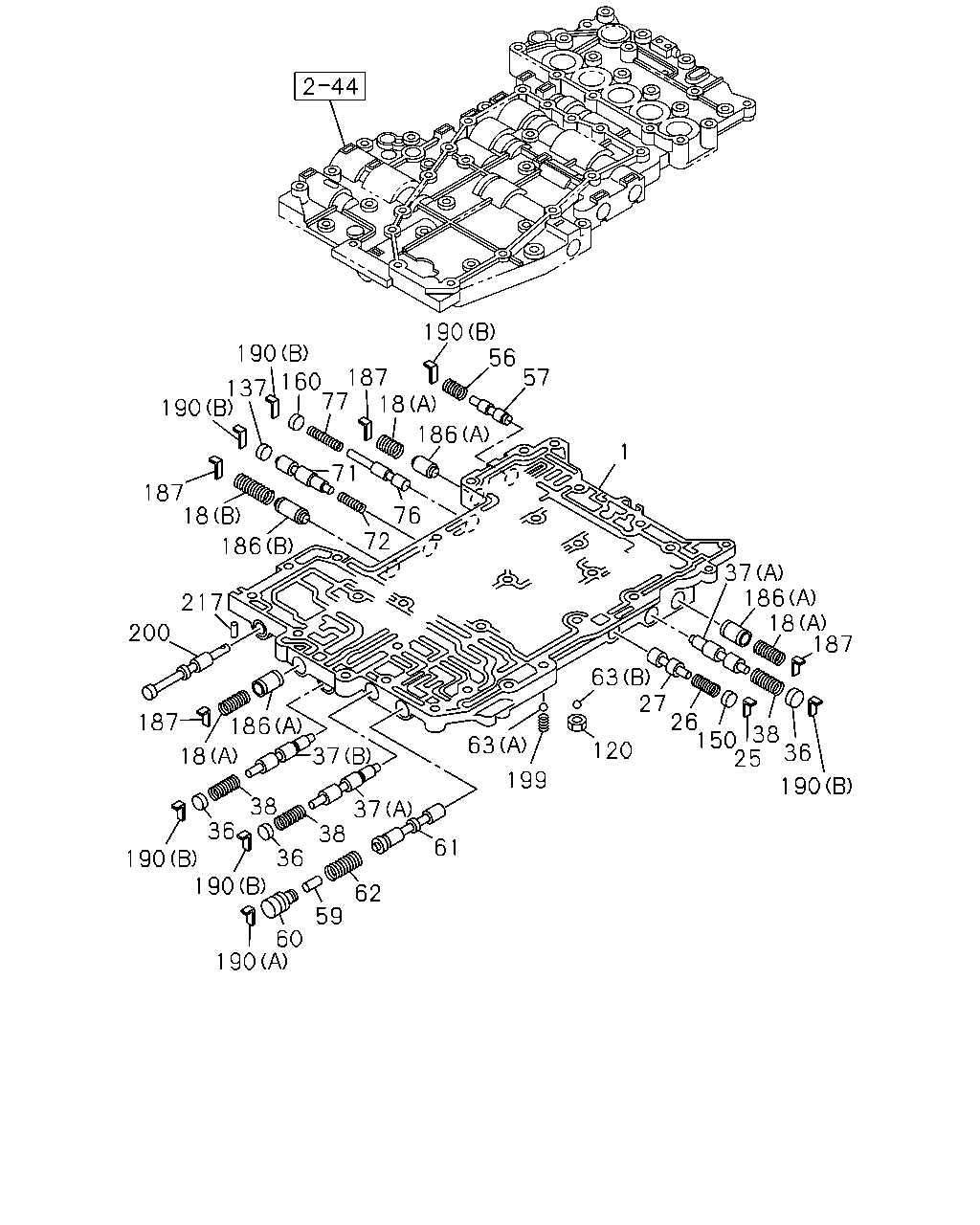

çizim 12881
190 137 190 187 18 186 217 200 187 18 186 37 37 38 38 36 36 190 190 190 60 59 62 61 199 63 120 63 27 26 150 25 38 36 190 187 18 186 37 1 57 56 190 186 18 187 77 160 71 76 72
BalonParca AdiParca NoAdetTipApplied Date
1 04.265 BODY ASM; UPR,VALVE,A/T 8-97331-058-0 01 1 0307-
18 04.265 SPRING; ACCUMLATOR CONT VLV
04.246 (A) 		8-97092-821-0 03 1 0307-
18 04.265 SPRING; ACCUMLATOR CONT VLV
(B) 		8-97331-077-0 01 1 0307-
25 04.265 PLATE; RET,SHIFT CONT VLV 8-97331-080-0 01 1 0307-
26 04.265 SPRING; SHIFT CONT VLV 8-97331-076-0 01 1 0307-
27 04.265 VALVE; SHIFT CONT,UPR BODY 8-97331-084-0 01 1 0307-
36 04.265 PLUG; SPOOL CONT VLV,UPR BODY 8-97331-098-0 03 1 0307-
37 04.265 VALVE; SPOOL CONT,UPR BODY
(A) 		8-97331-086-0 02 1 0307-
37 04.265 VALVE; SPOOL CONT,UPR BODY
(B) 		8-97331-090-0 01 1 0307-
38 04.265 SPRING; SPOOL CONT VLV 8-97331-068-0 03 1 0307-
56 04.265 SPRING; PILOT VALVE,SPOOL CONT 8-97331-066-0 01 1 0307-
57 04.265 VALVE; PILOT,SPOOL CONT 8-97331-088-0 01 1 0307-
59 04.265 SLEEVE; LOCKUP CONT VALVE 8-97331-095-0 01 1 0307-
60 04.265 PLUG; LOCKUP CONT VALVE 8-97331-094-0 01 1 0307-
61 04.265 VALVE; LOCKUP CONT,UPR BODY 8-97331-093-0 01 1 0307-
62 04.265 SPRING; LOCKUP CONT VALVE 8-97331-067-0 01 1 0307-
63 04.265 BALL; STEEL,VLV UPR,A/T
(A) 		8-97135-609-0 10 1 0307-
63 04.265 BALL; STEEL,VLV UPR,A/T
(B) 		8-97331-092-0 01 1 0307-
71 04.265 VALVE; LOW,VLV UPR RR,A/T 8-97331-082-0 01 1 0307-
72 04.265 SPRING; VLV LOW,VLV UPR RR,A/T 8-97331-070-0 01 1 0307-
76 04.265 VALVE; REV CLU,A/T 8-97331-085-0 01 1 0307-
77 04.265 SPRING; VLV,REV,A/T 8-97331-074-0 01 1 0307-
120 04.265 NUT; UPR BODY,VLV,A/T 8-97112-969-0 02 1 0307-
137 04.265 PLUG; LOW MODULATOR VALVE 8-97331-099-0 01 1 0307-
150 04.265 PLUG; SHIFT VLV 8-97331-099-0 01 1 0307-
160 04.265 PLUG; VLV BODY 8-97331-097-0 01 1 0307-
186 04.241 PISTON; ACCUMLATOR VLV,A/T
(A) 		8-94342-922-0 03 1 0307-
186 04.241 PISTON; ACCUMLATOR VLV,A/T
(B) 		8-97331-056-0 01 1 0307-
187 04.265 PLATE; ACCUM CONT VLV,A/T 8-94385-905-0 04 1 0307-
190 04.265 PLATE; VLV RET,A/T
(A) 		8-94385-905-0 01 1 0307-
190 04.265 PLATE; VLV RET,A/T
(B) 		8-97331-080-0 06 1 0307-
199 04.265 SPRING; VALVE,A/T 8-97331-079-0 01 1 0307-
200 04.265 VALVE; MANUAL,UPR BODY 8-97331-065-0 01 1 0307-
217 04.105 PIN; DOWEL 8-97331-120-0 01 1 0307-
