Isuzu WW
▶
TRUCKS
▶
CHR
▶
10648 - CHR/CJR/CQR
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-11 - RADIATOR HOSE AND SUB TANK
▶

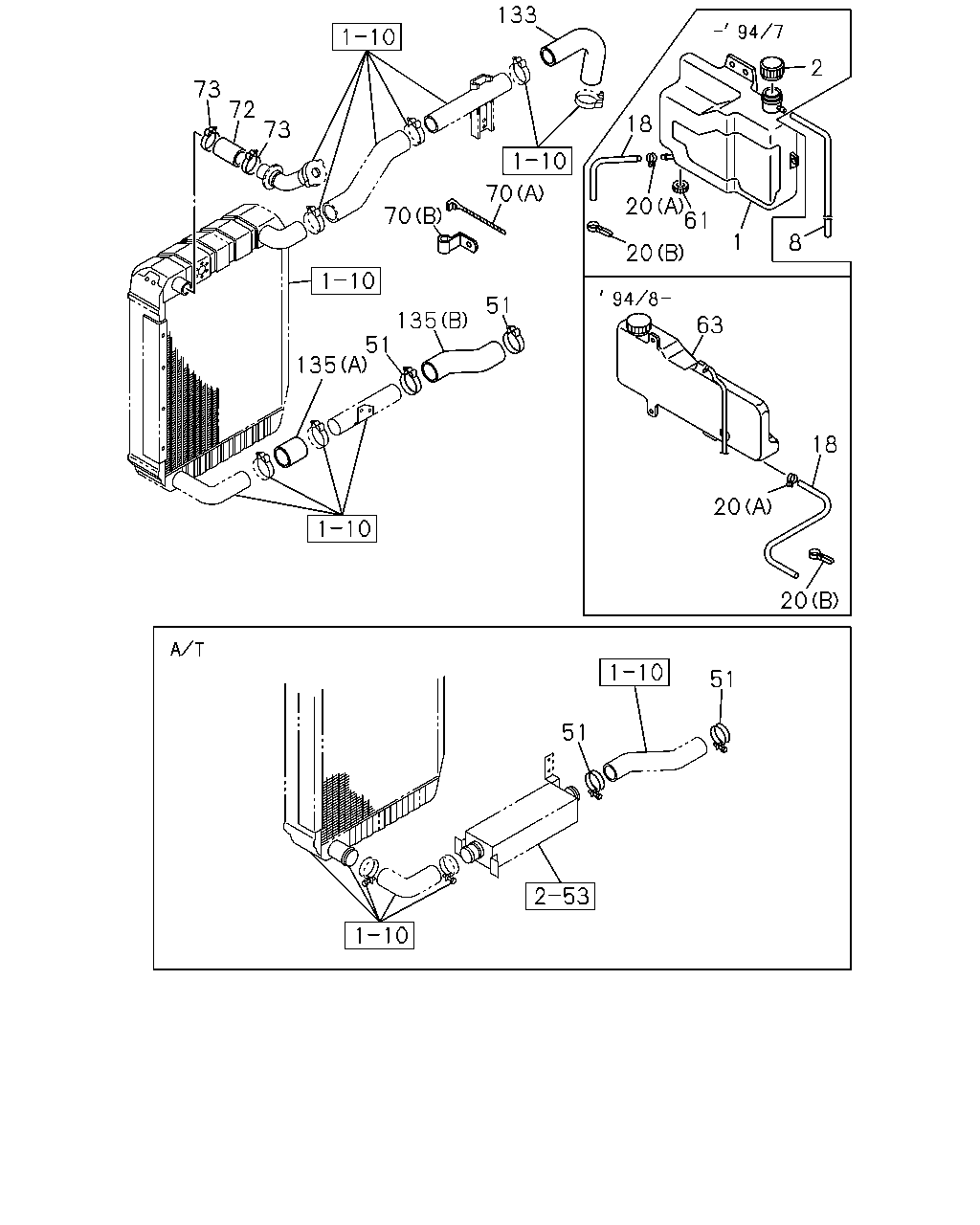

1-11 — RADIATOR HOSE AND SUB TANK
(#2042) — 21 parça
Tümü
A - 6RB1 STD ENG
B - 6RA1 STD ENG
C - 6QA1 STD ENG
D - 6RA1 TC ENG
133
2
73
72
73
18
61
70
20
70
1
8
20
51
135
63
51
135
18
20
20
51
51
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
1
TANK; SURGE,RAD
SURGE TANK<V11>
1-21481-019-0
01
1
9001-9012
●
●
●
1
TANK; SURGE,RAD
1-21481-019-0
01
1
9101-9407
●
●
●
●
2
CAP; SURGE TANK
SURGE TANK<V11> OD=55 NO-HOLE
1-22440-013-0
01
1
9001-9012
●
●
●
2
CAP; SURGE TANK
OD=55 NO-HOLE
1-22440-013-0
01
1
9101-9407
●
●
●
●
8
HOSE; VINYL
SURGE TANK<V11> L=450 SERVICED BY L=10000
9-09914-909-0
01
1
9001-9407
●
●
●
●
8
HOSE; VINYL
EXC. SURGE TANK<V11> L=2850
1-09366-061-0
01
1
9001-
●
●
●
●
18
HOSE; RAD TO SURGE TANK
SURGE TANK<V11>
1-09360-408-1
01
1
9001-
●
●
●
●
20
CLIP; HOSE,RAD
SURGE TANK<V11> (A) ID=17
9-09915-266-1
02
1
9001-
●
●
●
●
20
CLIP; HOSE,RAD
SURGE TANK<V11> (B) ID=16 L=46
9-09917-428-0
01
1
9001-
●
●
●
●
51
CLIP; WATER HOSE,RAD
ID=72
1-09704-068-0
02
1
9001-
●
●
●
●
61
CAP; DRAIN
SURGE TANK<V11> OD=32 W/GASKET
1-22440-014-0
01
1
9001-9012
●
●
●
61
CAP; DRAIN
OD=32 W/GASKET
1-22440-014-0
01
1
9101-9407
●
●
●
●
63
TANK ASM; SUB
1-21480-078-1
01
1
9408-
●
●
●
●
70
CLIP; PIPE,OVERFLOW
SURGE TANK<V11> (B) ID=11 L=41
1-09700-403-0
01
1
9001-9407
●
●
●
●
70
CLIP; PIPE,OVERFLOW
EXC. SURGE TANK<V11> (A) L=250
5-09707-030-1
01
1
9001-
●
●
●
●
72
HOSE; RUBBER FILLER TO TANK
ID=44 L=110
1-09360-465-0
01
1
9001-
●
●
●
●
73
CLIP; RUBBER HOSE
ID=57
1-09704-066-0
02
1
9001-
●
●
●
●
133
HOSE; WATER,RAD,PIPE TO ENG
1-09360-552-0
01
1
9001-
●
133
HOSE; WATER,RAD,PIPE TO ENG
1-09360-547-0
01
1
9001-
●
●
●
135
HOSE; WATER,ENG TO CONN
M/T<X9C> (A) ID=60 L=100
1-09360-464-0
01
1
9001-
●
●
●
●
135
HOSE; WATER,ENG TO CONN
M/T<X9C> (B)
1-21437-089-0
01
1
9001-
●
●
●
●
