2-42B — AUTO TRANS OIL PAN AND OIL CONTROL (#20419) — 167 parça

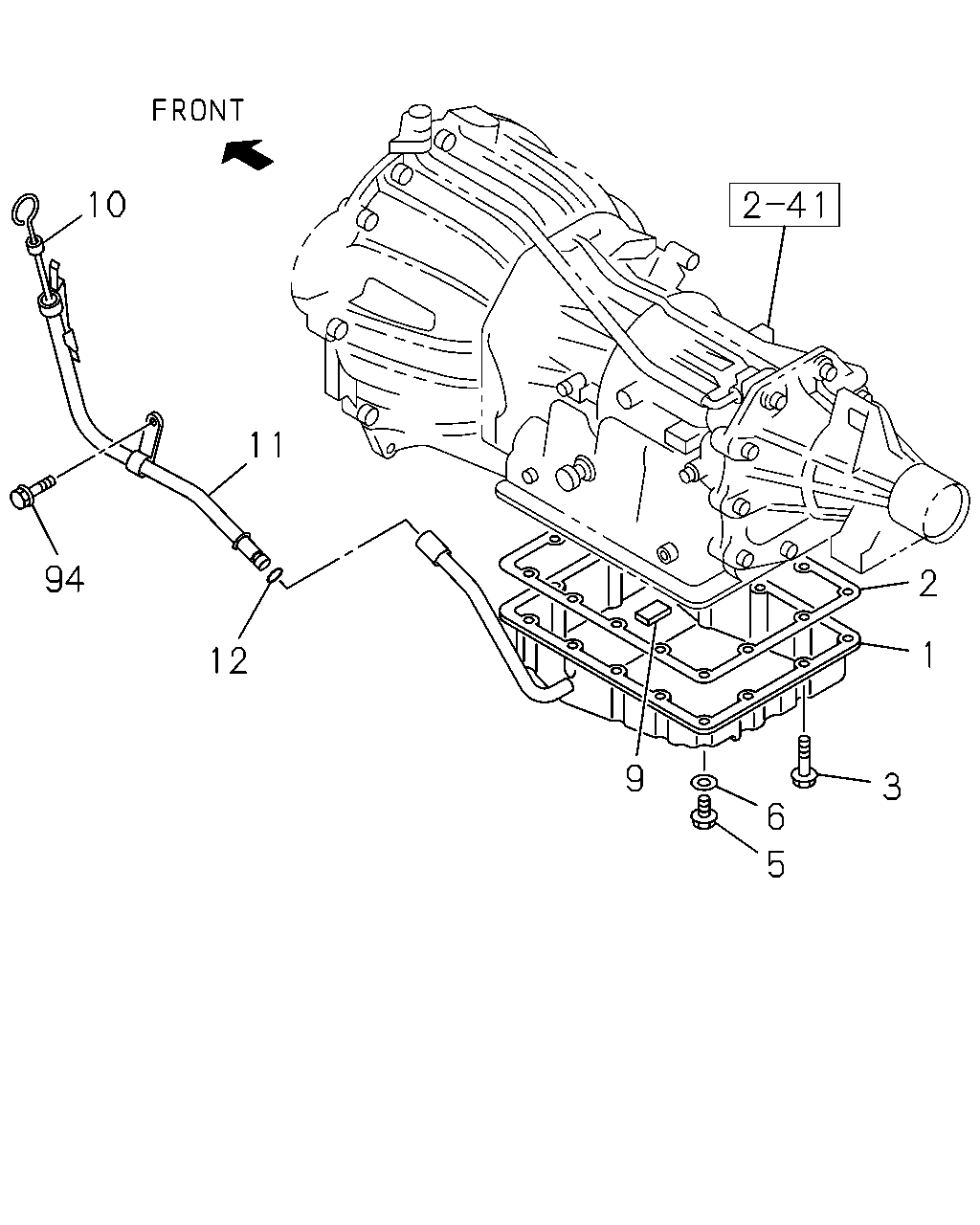

çizim 54758
10 94 11 12 9 6 5 3 1 2
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 04.195 PAN ASM; OIL,A/T 8-97331-554-0 01 1 0307-0609 ●
1 04.195 PAN ASM; OIL,A/T 8-98050-558-0 01 1 0610- ●
1 04.195 PAN ASM; OIL,A/T 8-97330-915-0 01 1 0307- ●
1 04.195 PAN ASM; OIL,A/T
HF V6 ENG(LCA) 		8-24211-638-0 01 1 0509- ●
1 04.195 PAN ASM; OIL,A/T
HF V6 ENG(LCA) 		8-24210-915-0 01 1 0509- ●
2 04.196 GASKET; OIL PAN,A/T 8-97330-916-0 01 1 0307- ●
2 04.196 GASKET; OIL PAN,A/T
HF V6 ENG(LCA) 		8-08654-799-0 01 1 0509- ● ●
3 04.196 BOLT; OIL PAN TO CASE 8-97130-928-0 19 1 0307- ●
3 04.196 BOLT; OIL PAN TO CASE 8-97330-911-0 19 1 0307- ●
3 04.196 BOLT; OIL PAN TO CASE
HF V6 ENG(LCA) 		8-24231-519-0 16 1 0509- ●
3 04.196 BOLT; OIL PAN TO CASE
HF V6 ENG(LCA) 		8-24226-008-0 16 1 0509- ●
5 04.195 PLUG; OIL PAN 8-97355-016-0 01 1 0307-0609 ●
5 04.195 PLUG; OIL PAN
M10X9 		8-97367-573-0 01 1 0610- ●
5 04.195 PLUG; OIL PAN 8-97131-023-0 01 1 0307- ●
6 04.195 GASKET; OIL PAN TO PLUG 8-97355-015-0 01 1 0307-0609 ●
6 04.195 GASKET; OIL PAN TO PLUG
ID=12 		5-34132-002-0 01 1 0610- ●
6 04.195 GASKET; OIL PAN TO PLUG 8-97044-671-0 01 1 0307- ●
9 04.195 MAGNET; OIL PAN 5-34138-004-0 04 1 0307- ●
9 04.195 MAGNET; OIL PAN 8-94140-738-0 01 1 0307- ●
9 04.195 MAGNET; OIL PAN
HF V6 ENG(LCA) 		8-29535-617-0 01 1 0509- ● ●
10 04.197 GAUGE; OIL LEVEL 8-97194-827-2 01 1 0307-0609 ●
10 04.197 GAUGE; OIL LEVEL
4JJ1-TCX ENG(LS0) 		8-98043-896-0 01 1 0610- ●
10 04.197 GAUGE; OIL LEVEL 8-97261-073-2 01 1 0307-0609 ●
10 04.197 GAUGE; OIL LEVEL 8-97371-037-0 01 1 0610- ●
10 04.197 GAUGE; OIL LEVEL
HF V6 ENG(LCA) 		8-92174-692-0 01 1 0509- ● ●
11 04.197 TUBE; OIL FILLER 8-97326-283-4 01 1 0307-0609 ●
11 04.197 TUBE; OIL FILLER
4JJ1-TCX ENG(LS0) 		8-98005-234-2 01 1 0610- ●
11 04.197 TUBE; OIL FILLER 8-97231-903-1 01 1 0307-0609 ●
11 04.197 TUBE; OIL FILLER 8-97380-513-0 01 1 0610- ●
11 04.197 TUBE; OIL FILLER
HF V6 ENG(LCA) 		8-92174-691-0 01 1 0509- ● ●
12 04.197 GASKET; OIL FILLER TUBE TO A/T
04.133 ID=9.8 		9-09561-110-0 01 1 0307- ● ●
12 04.197 GASKET; OIL FILLER TUBE TO A/T
HF V6 ENG(LCA) 		8-01259-475-0 01 1 0509- ● ●
94 04.197 BOLT; OIL FILLER TUBE
02.343 M8X16 FLANGE 		0-28050-816-0 01 1 0307-0609 ●
94 04.197 BOLT; OIL FILLER TUBE
02.343 M8X16 FLANGE 		0-28050-816-0 01 1 0610- ● ●
94 04.197 BOLT; OIL FILLER TUBE
HF V6 ENG(LCA) M6X20 FLANGE 		8-11588-712-0 01 1 0509- ● ●

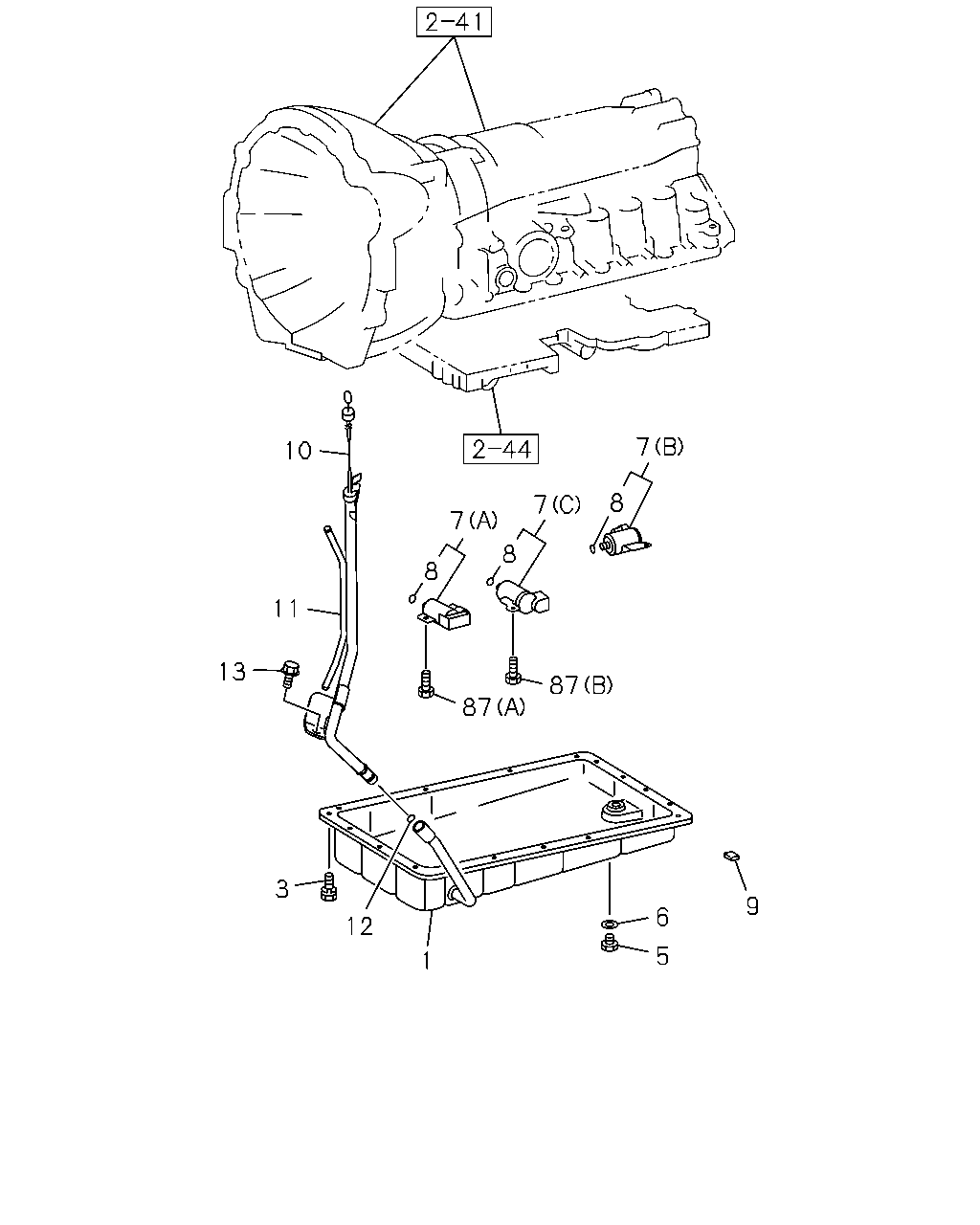

çizim 55123
10 11 13 3 12 1 5 6 9 87 87 8 7 8 7 8 7
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 04.195 PAN ASM; OIL,A/T 8-97331-554-0 01 1 0307-0609 ●
1 04.195 PAN ASM; OIL,A/T 8-98050-558-0 01 1 0610- ●
1 04.195 PAN ASM; OIL,A/T 8-97330-915-0 01 1 0307- ●
1 04.195 PAN ASM; OIL,A/T
HF V6 ENG(LCA) 		8-24211-638-0 01 1 0509- ●
1 04.195 PAN ASM; OIL,A/T
HF V6 ENG(LCA) 		8-24210-915-0 01 1 0509- ●
3 04.196 BOLT; OIL PAN TO CASE 8-97130-928-0 19 1 0307- ●
3 04.196 BOLT; OIL PAN TO CASE 8-97330-911-0 19 1 0307- ●
3 04.196 BOLT; OIL PAN TO CASE
HF V6 ENG(LCA) 		8-24231-519-0 16 1 0509- ●
3 04.196 BOLT; OIL PAN TO CASE
HF V6 ENG(LCA) 		8-24226-008-0 16 1 0509- ●
5 04.195 PLUG; OIL PAN 8-97355-016-0 01 1 0307-0609 ●
5 04.195 PLUG; OIL PAN
M10X9 		8-97367-573-0 01 1 0610- ●
5 04.195 PLUG; OIL PAN 8-97131-023-0 01 1 0307- ●
6 04.195 GASKET; OIL PAN TO PLUG 8-97355-015-0 01 1 0307-0609 ●
6 04.195 GASKET; OIL PAN TO PLUG
ID=12 		5-34132-002-0 01 1 0610- ●
6 04.195 GASKET; OIL PAN TO PLUG 8-97044-671-0 01 1 0307- ●
7 04.265 SOLENOID; DOWN SHIFT,A/T
(A) 		8-97214-539-0 01 1 0307- ●
7 04.265 SOLENOID; DOWN SHIFT,A/T
(B) 		8-97218-986-0 01 1 0307- ●
7 04.265 SOLENOID; DOWN SHIFT,A/T
(C) 		8-97218-987-0 01 1 0307- ●
8 04.265 GASKET; DOWN SHIFT SOLENOID,A/T
ID=6.1 		8-94480-101-0 03 1 0307- ●
9 04.195 MAGNET; OIL PAN 5-34138-004-0 04 1 0307- ●
9 04.195 MAGNET; OIL PAN 8-94140-738-0 01 1 0307- ●
9 04.195 MAGNET; OIL PAN
HF V6 ENG(LCA) 		8-29535-617-0 01 1 0509- ● ●
10 04.197 GAUGE; OIL LEVEL 8-97194-827-2 01 1 0307-0609 ●
10 04.197 GAUGE; OIL LEVEL
4JJ1-TCX ENG(LS0) 		8-98043-896-0 01 1 0610- ●
10 04.197 GAUGE; OIL LEVEL 8-97261-073-2 01 1 0307-0609 ●
10 04.197 GAUGE; OIL LEVEL 8-97371-037-0 01 1 0610- ●
10 04.197 GAUGE; OIL LEVEL
HF V6 ENG(LCA) 		8-92174-692-0 01 1 0509- ● ●
11 04.197 TUBE; OIL FILLER 8-97326-283-4 01 1 0307-0609 ●
11 04.197 TUBE; OIL FILLER
4JJ1-TCX ENG(LS0) 		8-98005-234-2 01 1 0610- ●
11 04.197 TUBE; OIL FILLER 8-97231-903-1 01 1 0307-0609 ●
11 04.197 TUBE; OIL FILLER 8-97380-513-0 01 1 0610- ●
11 04.197 TUBE; OIL FILLER
HF V6 ENG(LCA) 		8-92174-691-0 01 1 0509- ● ●
12 04.197 GASKET; OIL FILLER TUBE TO A/T
04.133 ID=9.8 		9-09561-110-0 01 1 0307- ● ●
12 04.197 GASKET; OIL FILLER TUBE TO A/T
HF V6 ENG(LCA) 		8-01259-475-0 01 1 0509- ● ●
13 04.197 BOLT; OIL FILLER
01.531 M8X20 FLANGE 		0-28650-820-0 01 1 0307-0609 ●
87 04.265 BOLT; SOLENOID
04.197 (B) M5X12 		8-94405-335-0 01 1 0307- ●
87 04.265 BOLT; SOLENOID
(A) M6X12 		8-94479-927-0 01 1 0307- ●

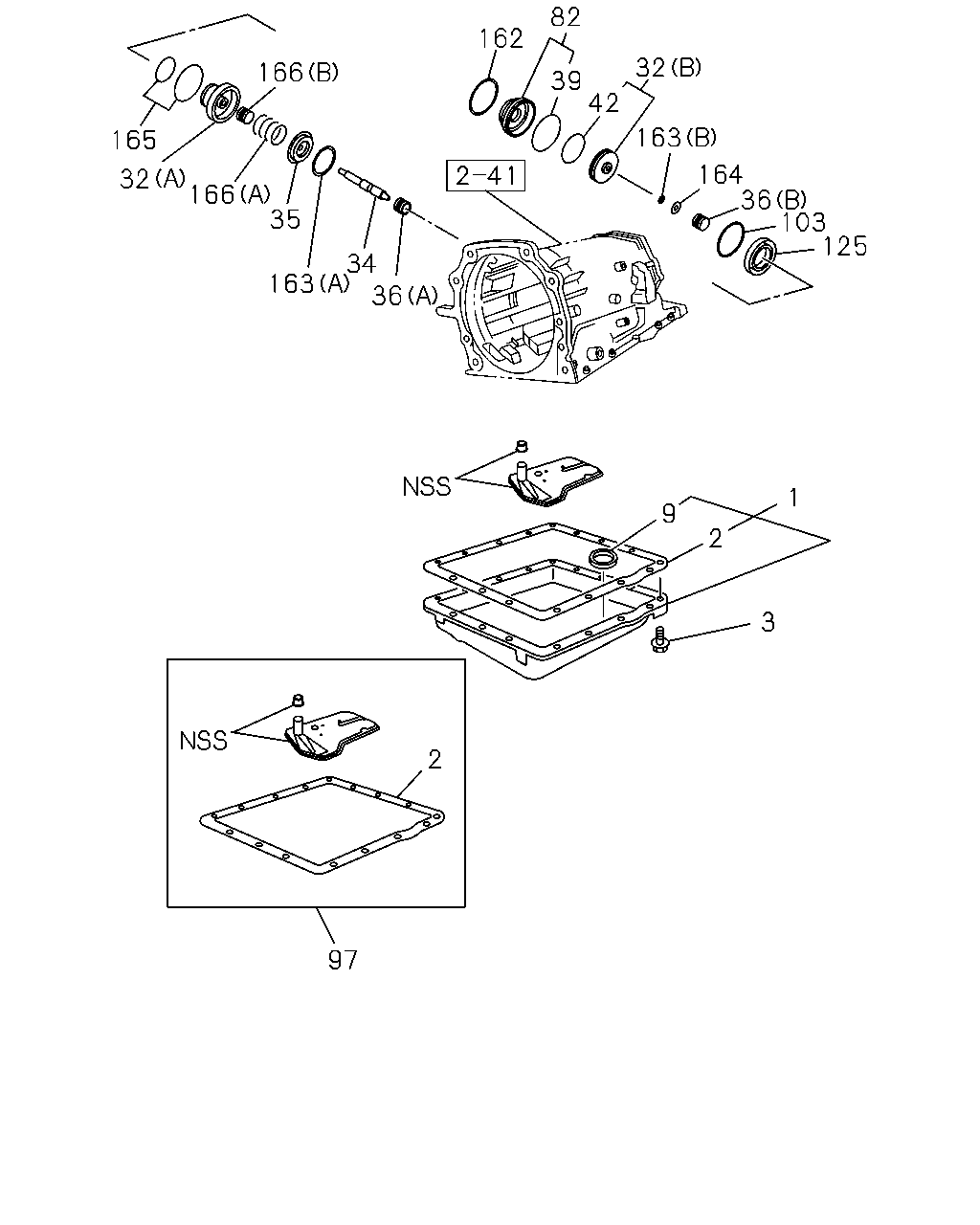

çizim 55897
165 32 166 35 163 34 166 36 2 97 3 2 9 1 125 103 36 164 163 42 32 39 82 162
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 04.195 PAN ASM; OIL,A/T 8-97331-554-0 01 1 0307-0609 ●
1 04.195 PAN ASM; OIL,A/T 8-98050-558-0 01 1 0610- ●
1 04.195 PAN ASM; OIL,A/T 8-97330-915-0 01 1 0307- ●
1 04.195 PAN ASM; OIL,A/T
HF V6 ENG(LCA) 		8-24211-638-0 01 1 0509- ●
1 04.195 PAN ASM; OIL,A/T
HF V6 ENG(LCA) 		8-24210-915-0 01 1 0509- ●
2 04.196 GASKET; OIL PAN,A/T 8-97330-916-0 01 1 0307- ●
2 04.196 GASKET; OIL PAN,A/T
HF V6 ENG(LCA) 		8-08654-799-0 01 1 0509- ● ●
3 04.196 BOLT; OIL PAN TO CASE 8-97130-928-0 19 1 0307- ●
3 04.196 BOLT; OIL PAN TO CASE 8-97330-911-0 19 1 0307- ●
3 04.196 BOLT; OIL PAN TO CASE
HF V6 ENG(LCA) 		8-24231-519-0 16 1 0509- ●
3 04.196 BOLT; OIL PAN TO CASE
HF V6 ENG(LCA) 		8-24226-008-0 16 1 0509- ●
9 04.195 MAGNET; OIL PAN 5-34138-004-0 04 1 0307- ●
9 04.195 MAGNET; OIL PAN 8-94140-738-0 01 1 0307- ●
9 04.195 MAGNET; OIL PAN
HF V6 ENG(LCA) 		8-29535-617-0 01 1 0509- ● ●
32 04.228 PISTON ASM; SERVO,A/T
HF V6 ENG(LCA) (A) 		8-08642-079-0 01 1 0509- ● ●
32 04.228 PISTON ASM; SERVO,A/T
HF V6 ENG(LCA) (B) 		8-08642-478-0 01 1 0509- ● ●
34 04.241 PIN; BAND
HF V6 ENG(LCA) L=65.82-66.12 1-GROOVE 		8-08680-499-0 01 1 0509- ● ●
34 04.241 PIN; BAND
HF V6 ENG(LCA) L=67.23-67.53 2-GROOVE 		8-08680-500-0 01 1 0509- ● ●
34 04.241 PIN; BAND
HF V6 ENG(LCA) L=68.64-68.94 NON-GROOVE 		8-08680-501-0 01 1 0509- ● ●
35 04.212 RETAINER; SERVO SPR
HF V6 ENG(LCA) 		8-08642-416-0 01 1 0509- ● ●
36 04.233 SPRING; RETURN,SERVO PISTON,A/T
HF V6 ENG(LCA) (A) 		8-08642-273-0 01 1 0509- ● ●
36 04.233 SPRING; RETURN,SERVO PISTON,A/T
HF V6 ENG(LCA) (B) 		8-24207-758-0 01 1 0509- ● ●
39 04.212 GASKET; SERVO COVER
HF V6 ENG(LCA) 		8-08647-351-0 01 1 0509- ●
39 04.212 GASKET; SERVO COVER
HF V6 ENG(LCA) 		8-24208-662-0 01 1 0509- ●
42 04.229 GASKET; RET,SERVO PISTON,A/T
HF V6 ENG(LCA) 		8-08642-480-0 01 1 0509- ● ●
82 04.233 COVER; SERVO PISTON
HF V6 ENG(LCA) 		8-08642-979-0 01 1 0509- ● ●
97 04.197 FILTER; OIL
HF V6 ENG(LCA) 		8-24225-323-0 01 1 0509- ●
97 04.197 FILTER; OIL
HF V6 ENG(LCA) 		8-24208-576-0 01 1 0509- ●
103 04.195 GASKET; COVER
HF V6 ENG(LCA) 		8-24208-661-0 01 1 0509- ●
103 04.195 GASKET; COVER
HF V6 ENG(LCA) 		8-08642-112-0 01 1 0509- ●
125 04.109 COVER; VALVE HOSING
HF V6 ENG(LCA) 		8-08673-041-0 01 1 0509- ● ●
162 04.212 RING; SERVO COVER
HF V6 ENG(LCA) 		8-24232-065-0 01 1 0509- ● ●
163 04.212 RING; RETAINER
HF V6 ENG(LCA) (A) 		8-08642-105-0 01 1 0509- ● ●
163 04.212 RING; RETAINER
HF V6 ENG(LCA) (B) 		8-09415-640-0 01 1 0509- ● ●
164 04.212 WASHER; SERVO PISTON
HF V6 ENG(LCA) 		8-08642-107-0 01 1 0509- ● ●
165 04.212 SEAL KIT; SERVO PISTON
HF V6 ENG(LCA) 		8-08642-925-0 01 1 0509- ● ●
166 04.212 SPRING; SERVO PISTON
HF V6 ENG(LCA) (A) 		8-08642-539-0 01 1 0509- ● ●
166 04.212 SPRING; SERVO PISTON
HF V6 ENG(LCA) (B) 		8-08681-195-0 01 1 0509- ● ●

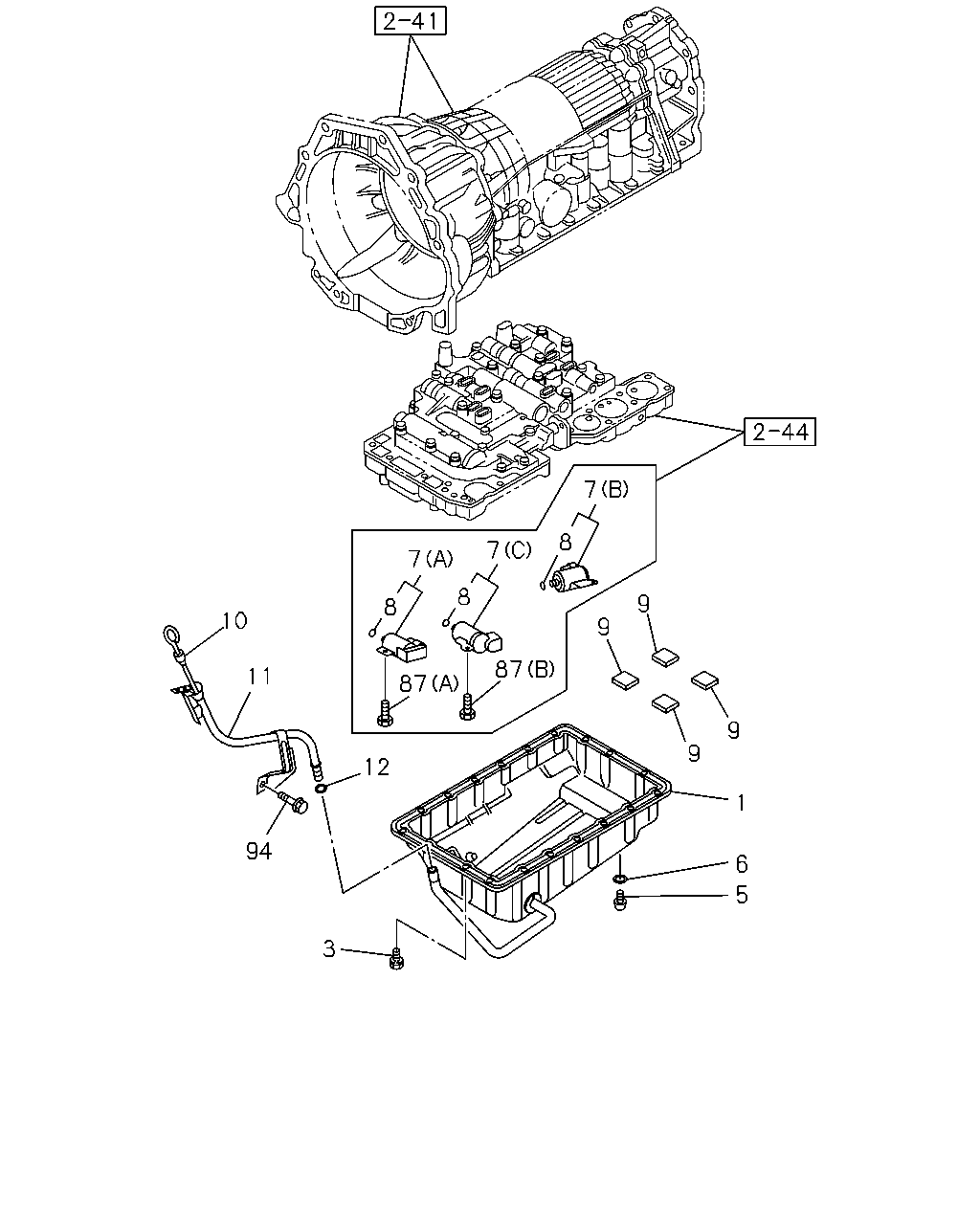

çizim 56174
7 7 8 7 8 8 87 87 9 9 9 9 1 6 5 3 12 94 11 10
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 04.195 PAN ASM; OIL,A/T 8-97331-554-0 01 1 0307-0609 ●
1 04.195 PAN ASM; OIL,A/T 8-98050-558-0 01 1 0610- ●
1 04.195 PAN ASM; OIL,A/T 8-97330-915-0 01 1 0307- ●
1 04.195 PAN ASM; OIL,A/T
HF V6 ENG(LCA) 		8-24211-638-0 01 1 0509- ●
1 04.195 PAN ASM; OIL,A/T
HF V6 ENG(LCA) 		8-24210-915-0 01 1 0509- ●
3 04.196 BOLT; OIL PAN TO CASE 8-97130-928-0 19 1 0307- ●
3 04.196 BOLT; OIL PAN TO CASE 8-97330-911-0 19 1 0307- ●
3 04.196 BOLT; OIL PAN TO CASE
HF V6 ENG(LCA) 		8-24231-519-0 16 1 0509- ●
3 04.196 BOLT; OIL PAN TO CASE
HF V6 ENG(LCA) 		8-24226-008-0 16 1 0509- ●
5 04.195 PLUG; OIL PAN 8-97355-016-0 01 1 0307-0609 ●
5 04.195 PLUG; OIL PAN
M10X9 		8-97367-573-0 01 1 0610- ●
5 04.195 PLUG; OIL PAN 8-97131-023-0 01 1 0307- ●
6 04.195 GASKET; OIL PAN TO PLUG 8-97355-015-0 01 1 0307-0609 ●
6 04.195 GASKET; OIL PAN TO PLUG
ID=12 		5-34132-002-0 01 1 0610- ●
6 04.195 GASKET; OIL PAN TO PLUG 8-97044-671-0 01 1 0307- ●
7 04.265 SOLENOID; DOWN SHIFT,A/T
(A) 		8-97214-539-0 01 1 0307- ●
7 04.265 SOLENOID; DOWN SHIFT,A/T
(B) 		8-97218-986-0 01 1 0307- ●
7 04.265 SOLENOID; DOWN SHIFT,A/T
(C) 		8-97218-987-0 01 1 0307- ●
8 04.265 GASKET; DOWN SHIFT SOLENOID,A/T
ID=6.1 		8-94480-101-0 03 1 0307- ●
9 04.195 MAGNET; OIL PAN 5-34138-004-0 04 1 0307- ●
9 04.195 MAGNET; OIL PAN 8-94140-738-0 01 1 0307- ●
9 04.195 MAGNET; OIL PAN
HF V6 ENG(LCA) 		8-29535-617-0 01 1 0509- ● ●
10 04.197 GAUGE; OIL LEVEL 8-97194-827-2 01 1 0307-0609 ●
10 04.197 GAUGE; OIL LEVEL
4JJ1-TCX ENG(LS0) 		8-98043-896-0 01 1 0610- ●
10 04.197 GAUGE; OIL LEVEL 8-97261-073-2 01 1 0307-0609 ●
10 04.197 GAUGE; OIL LEVEL 8-97371-037-0 01 1 0610- ●
10 04.197 GAUGE; OIL LEVEL
HF V6 ENG(LCA) 		8-92174-692-0 01 1 0509- ● ●
11 04.197 TUBE; OIL FILLER 8-97326-283-4 01 1 0307-0609 ●
11 04.197 TUBE; OIL FILLER
4JJ1-TCX ENG(LS0) 		8-98005-234-2 01 1 0610- ●
11 04.197 TUBE; OIL FILLER 8-97231-903-1 01 1 0307-0609 ●
11 04.197 TUBE; OIL FILLER 8-97380-513-0 01 1 0610- ●
11 04.197 TUBE; OIL FILLER
HF V6 ENG(LCA) 		8-92174-691-0 01 1 0509- ● ●
12 04.197 GASKET; OIL FILLER TUBE TO A/T
04.133 ID=9.8 		9-09561-110-0 01 1 0307- ● ●
12 04.197 GASKET; OIL FILLER TUBE TO A/T
HF V6 ENG(LCA) 		8-01259-475-0 01 1 0509- ● ●
87 04.265 BOLT; SOLENOID
04.197 (B) M5X12 		8-94405-335-0 01 1 0307- ●
87 04.265 BOLT; SOLENOID
(A) M6X12 		8-94479-927-0 01 1 0307- ●
94 04.197 BOLT; OIL FILLER TUBE
02.343 M8X16 FLANGE 		0-28050-816-0 01 1 0307-0609 ●
94 04.197 BOLT; OIL FILLER TUBE
02.343 M8X16 FLANGE 		0-28050-816-0 01 1 0610- ● ●
94 04.197 BOLT; OIL FILLER TUBE
HF V6 ENG(LCA) M6X20 FLANGE 		8-11588-712-0 01 1 0509- ● ●

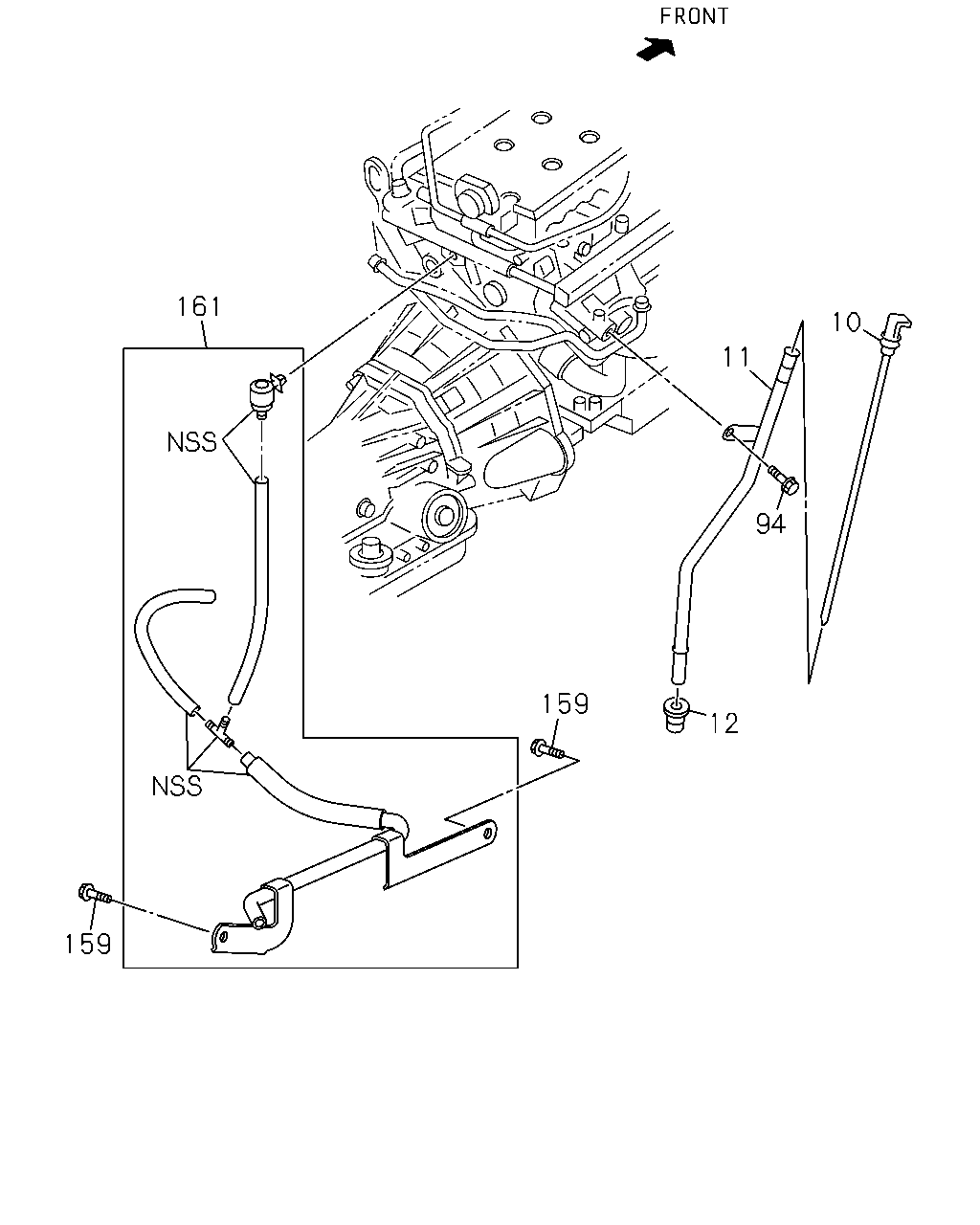

çizim 56175
161 159 159 12 94 11 10
BalonParca AdiParca NoAdetTipApplied Date A B C D
10 04.197 GAUGE; OIL LEVEL 8-97194-827-2 01 1 0307-0609 ●
10 04.197 GAUGE; OIL LEVEL
4JJ1-TCX ENG(LS0) 		8-98043-896-0 01 1 0610- ●
10 04.197 GAUGE; OIL LEVEL 8-97261-073-2 01 1 0307-0609 ●
10 04.197 GAUGE; OIL LEVEL 8-97371-037-0 01 1 0610- ●
10 04.197 GAUGE; OIL LEVEL
HF V6 ENG(LCA) 		8-92174-692-0 01 1 0509- ● ●
11 04.197 TUBE; OIL FILLER 8-97326-283-4 01 1 0307-0609 ●
11 04.197 TUBE; OIL FILLER
4JJ1-TCX ENG(LS0) 		8-98005-234-2 01 1 0610- ●
11 04.197 TUBE; OIL FILLER 8-97231-903-1 01 1 0307-0609 ●
11 04.197 TUBE; OIL FILLER 8-97380-513-0 01 1 0610- ●
11 04.197 TUBE; OIL FILLER
HF V6 ENG(LCA) 		8-92174-691-0 01 1 0509- ● ●
12 04.197 GASKET; OIL FILLER TUBE TO A/T
04.133 ID=9.8 		9-09561-110-0 01 1 0307- ● ●
12 04.197 GASKET; OIL FILLER TUBE TO A/T
HF V6 ENG(LCA) 		8-01259-475-0 01 1 0509- ● ●
94 04.197 BOLT; OIL FILLER TUBE
02.343 M8X16 FLANGE 		0-28050-816-0 01 1 0307-0609 ●
94 04.197 BOLT; OIL FILLER TUBE
02.343 M8X16 FLANGE 		0-28050-816-0 01 1 0610- ● ●
94 04.197 BOLT; OIL FILLER TUBE
HF V6 ENG(LCA) M6X20 FLANGE 		8-11588-712-0 01 1 0509- ● ●
159 04.197 BOLT
HF V6 ENG(LCA) 14.550 M6X25 W/PL WASHER 		9-03900-625-0 02 1 0509-0605 ● ●
159 04.197 BOLT
HF V6 ENG(LCA) M6X25 W/PL WASHER 		0-36210-625-0 02 1 0606- ● ●
161 04.128 HOSE
HF V6 ENG(LCA) 		8-92174-695-0 01 1 0509- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
