Sayfa 2-41B - Isuzu EPC

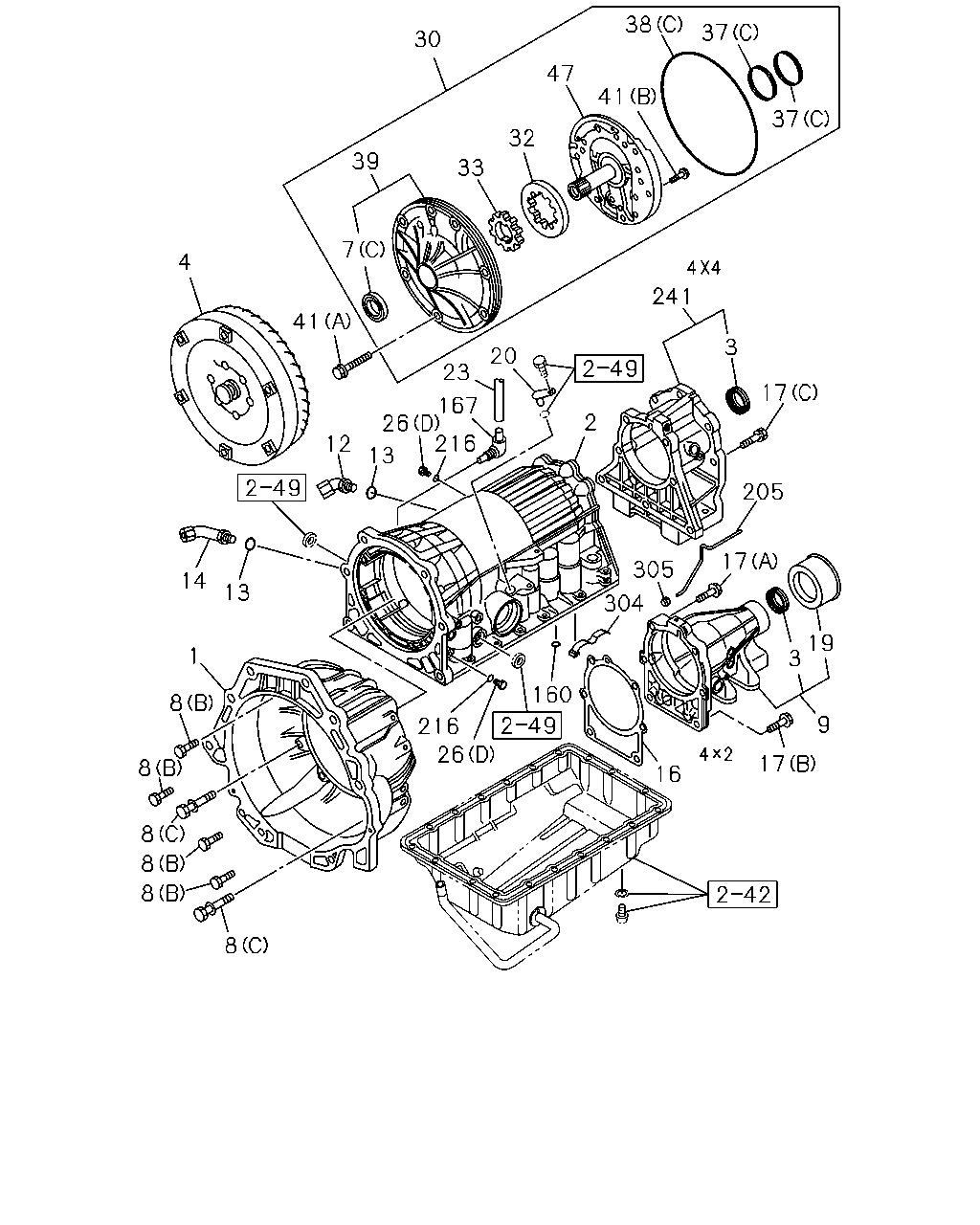

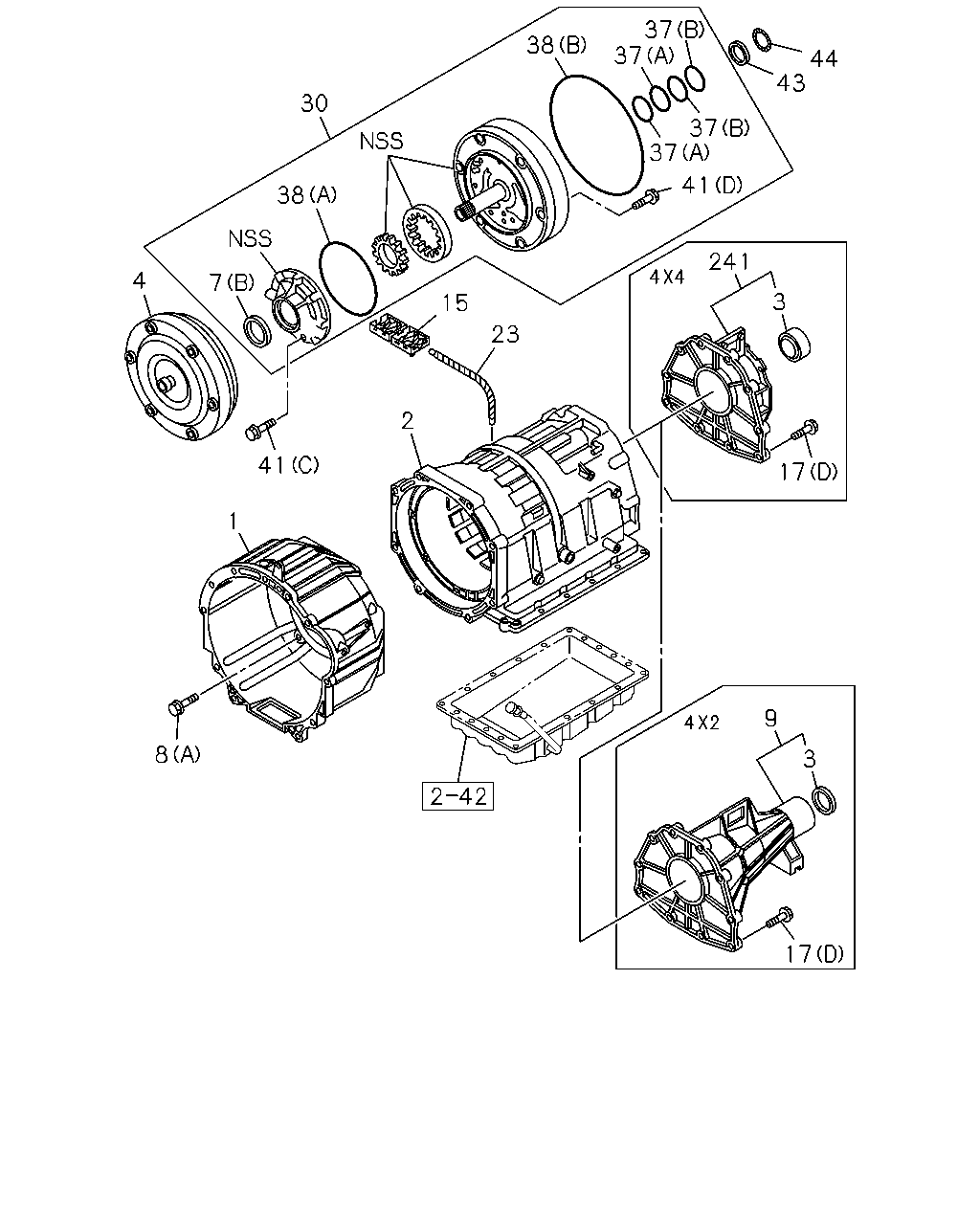

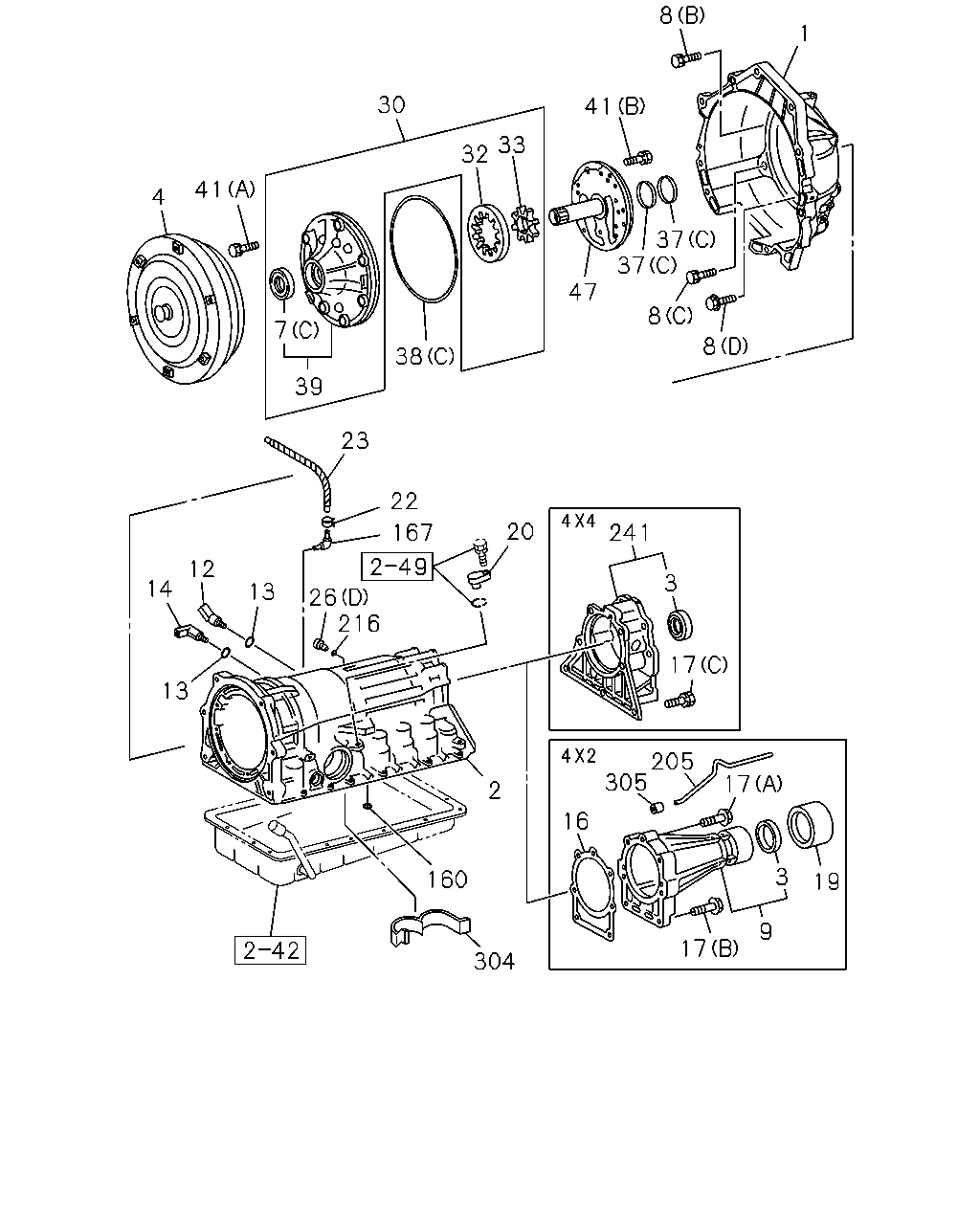

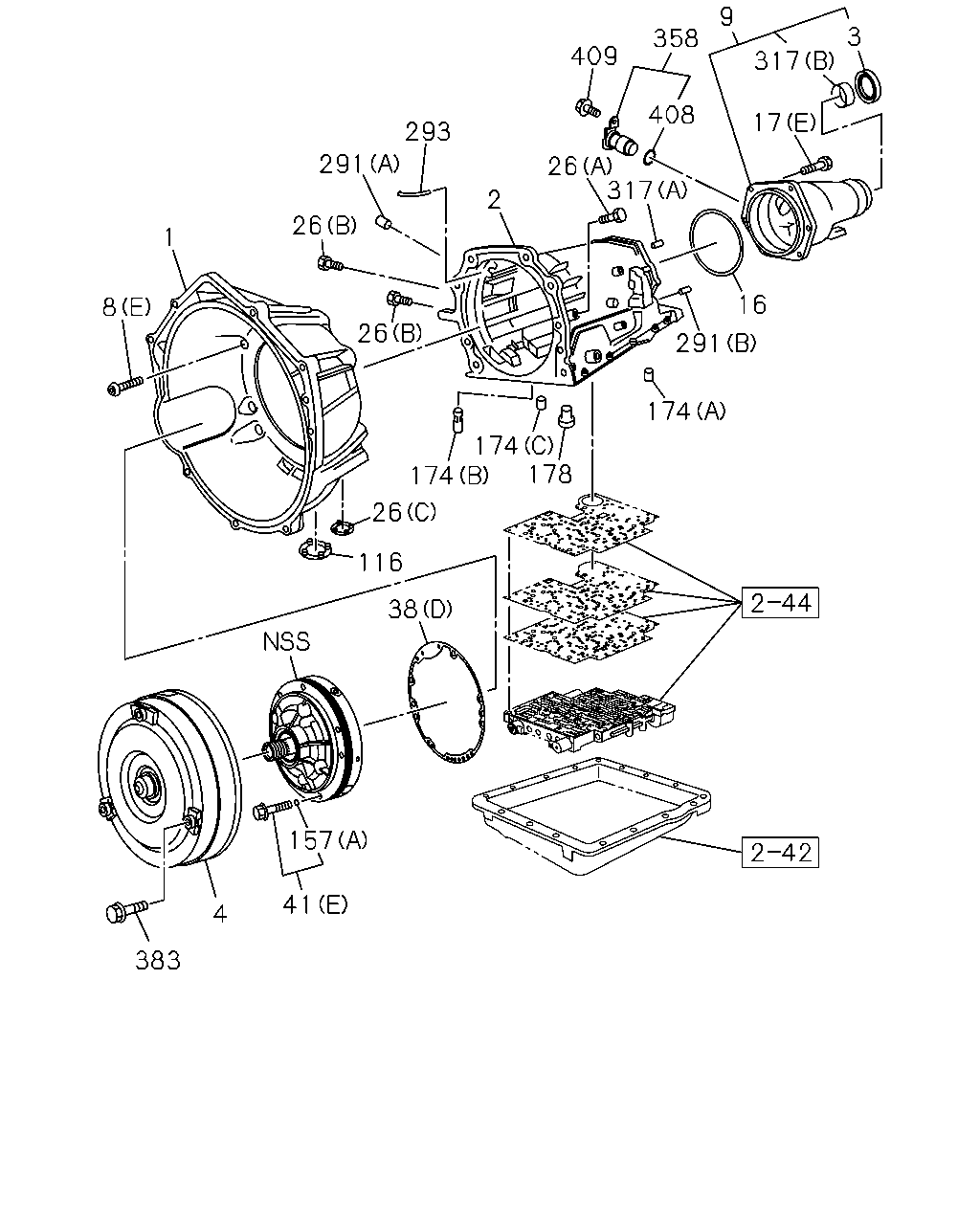

2-41B — AUTO TRANS CASE,CONVERTER AND OIL PUMP (#20418) — 482 parça

4 41 20 23 167 216 26 13 12 13 14 1 8 8 8 8 8 8 26 216 160 16 17 9 3 19 17 305 304 205 17 3 241 2 7 39 30 33 32 47 41 38 37 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.103 HOUSING; CONV,A/T	8-97331-569-0	01	1	0307-0609	●
1	04.103 HOUSING; CONV,A/T	8-98056-390-0	01	1	0610-	●
1	04.103 HOUSING; CONV,A/T	8-97330-899-0	01	1	0307-		●
1	04.103 HOUSING; CONV,A/T HF V6 ENG(LCA)	8-21220-406-0	01	1	0509-			●	●
2	04.103 CASE ASM; A/T 4X2(TFB***)	8-97288-902-0	01	1	0307-0508	●
2	04.103 CASE ASM; A/T 4X2(TFB***)	8-97288-902-0	01	1	0610-0801	●
2	04.103 CASE ASM; A/T 4X2(TFB***)	8-98112-177-0	01	1	0802-	●
2	04.103 CASE ASM; A/T 4X4(TFS***)	8-97232-111-0	01	1	0307-0508	●
2	04.103 CASE ASM; A/T	8-97232-111-0	01	1	0509-0609	●
2	04.103 CASE ASM; A/T 4X4(TFS***)	8-98029-249-0	01	1	0610-0801	●
2	04.103 CASE ASM; A/T 4X4(TFS***)	8-98112-176-0	01	1	0802-	●
2	04.103 CASE ASM; A/T	8-97330-900-0	01	1	0307-0711		●
2	04.103 CASE ASM; A/T	8-97383-551-0	01	1	0712-		●
2	04.103 CASE ASM; A/T HF V6 ENG(LCA)	8-24231-452-0	01	1	0509-				●
2	04.103 CASE ASM; A/T HF V6 ENG(LCA)	8-24206-953-0	01	1	0509-			●
3	04.241 SEAL; OIL,RR COVER,A/T HF V6 ENG(LCA)	8-24204-540-0	01	1	0509-			●	●
3	04.241 SEAL; OIL,RR COVER,A/T 4X2(TFB***)	8-97184-430-0	01	1	0307-	●
3	04.241 SEAL; OIL,RR COVER,A/T 4X4(TFS***)	8-97069-465-0	01	1	0307-0508	●
3	04.241 SEAL; OIL,RR COVER,A/T	8-97069-465-0	01	1	0509-0609	●
3	04.241 SEAL; OIL,RR COVER,A/T 4X4(TFS***)	8-97069-465-0	01	1	0610-	●
3	04.241 SEAL; OIL,RR COVER,A/T 4X2(TFB***)	8-97330-910-0	01	1	0307-		●
3	04.241 SEAL; OIL,RR COVER,A/T 4X4(TFS***)	8-97330-909-0	01	1	0307-		●
4	04.115 CONVERTER ASM; TORQUE,A/T	8-97354-872-0	01	1	0307-0609	●
4	04.115 CONVERTER ASM; TORQUE,A/T AUSTRALIA EQUIPMENT(B13)	8-97330-898-0	01	1	0307-0609		●
4	04.115 CONVERTER ASM; TORQUE,A/T	8-98056-389-0	01	1	0610-	●
4	04.115 CONVERTER ASM; TORQUE,A/T EXC. AUSTRALIA EQUIPMENT(B13)	8-97368-547-0	01	1	0307-0609		●
4	04.115 CONVERTER ASM; TORQUE,A/T	8-97368-547-0	01	1	0610-		●
4	04.115 CONVERTER ASM; TORQUE,A/T HF V6 ENG(LCA)	8-24230-960-0	01	1	0509-			●	●
7	04.226 SEAL; OIL,LIP,A/T (C)	8-94479-742-1	01	1	0307-	●
7	04.226 SEAL; OIL,LIP,A/T 02.559 (A)	8-94385-664-0	01	1	0307-		●
7	04.226 SEAL; OIL,LIP,A/T (B)	8-97330-904-0	01	1	0307-0711		●
7	04.226 SEAL; OIL,LIP,A/T (B)	8-98126-853-0	01	1	0712-		●
8	04.217 BOLT; HSG TO CASE (B) M10X35	8-90257-082-0	04	1	0307-	●
8	04.217 BOLT; HSG TO CASE (C) M12X45	8-94257-083-0	01	1	0307-0609	●
8	04.217 BOLT; HSG TO CASE (C) M12X68	8-97025-830-0	02	1	0610-	●
8	04.217 BOLT; HSG TO CASE (D) M12X45	8-97331-533-0	01	1	0307-0609	●
8	04.217 BOLT; HSG TO CASE (A) M8X35	8-97330-912-0	08	1	0307-		●
8	04.217 BOLT; HSG TO CASE HF V6 ENG(LCA) (E)	8-24203-265-0	08	1	0509-			●	●
9	04.317 COVER ASM; RR,A/T 4X2(TFB***) 04.217	8-97331-555-0	01	1	0307-0609	●
9	04.317 COVER ASM; RR,A/T 4X2(TFB***)	8-98056-398-0	01	1	0610-	●
9	04.317 COVER ASM; RR,A/T HF V6 ENG(LCA)	8-24229-218-0	01	1	0509-			●	●
9	04.317 COVER ASM; RR,A/T 4X2(TFB***) 04.217	8-97330-901-0	01	1	0307-		●
12	04.205 CONNECTOR; OIL COOLER OUTLET PIP 04.265	8-94450-761-0	01	1	0307-	●
13	04.205 GASKET; OIL COOLER PIPE 04.265 ID=11.7	8-94479-724-0	02	1	0307-	●
14	04.205 UNION; OIL COOLER RETURN PIPE 04.265	8-94450-762-0	01	1	0307-	●
16	04.318 GASKET; EXT HSG 4X2(TFB***)	8-97032-928-0	01	1	0307-	●
16	04.318 GASKET; EXT HSG HF V6 ENG(LCA)	8-24208-660-0	01	1	0509-			●	●
17	04.319 BOLT; REAR COVER TO CASE 4X2(TFB***) (A) M10X45	8-94473-632-0	04	1	0307-0508	●
17	04.319 BOLT; REAR COVER TO CASE HF V6 ENG(LCA) (E)	8-08680-874-0	06	1	0509-			●	●
17	04.319 BOLT; REAR COVER TO CASE 4X2(TFB***) (B) M10X35	8-94479-951-0	02	1	0307-0508	●
17	04.319 BOLT; REAR COVER TO CASE 4X2(TFB***) (A) M10X45	8-94473-632-0	04	1	0610-	●
17	04.319 BOLT; REAR COVER TO CASE 4X2(TFB***) (B) M10X35	8-94479-951-0	02	1	0610-	●
17	04.319 BOLT; REAR COVER TO CASE 4X4(TFS***) (C)	8-94479-936-0	07	1	0307-0508	●
17	04.319 BOLT; REAR COVER TO CASE (C)	8-94479-936-0	07	1	0509-0609	●
17	04.319 BOLT; REAR COVER TO CASE 4X4(TFS***) (C)	8-94479-936-0	07	1	0610-	●
17	04.319 BOLT; REAR COVER TO CASE 04.217 (D) M8X35	8-97330-912-0	10	1	0307-		●
19	04.241 COVER; DUST,REAR COVER 4X2(TFB***)	8-97184-432-0	01	1	0307-	●
20	04.105 PLUG; TAPER,A/T CASE	8-97232-067-0	01	1	0307-0609	●
20	04.105 PLUG; TAPER,A/T CASE 4X2(TFB***)	8-97232-067-0	01	1	0610-	●
23	04.101 HOSE; BREATHER,A/T	8-97331-530-0	01	1	0307-0609	●
23	04.101 HOSE; BREATHER,A/T 04.104 L=240 SERVICED BY L=3000	0-02857-300-0	02	1	0610-	●
23	04.101 HOSE; BREATHER,A/T 08.962 L=580 SERVICED BY L=3000	0-04750-300-0	01	1	0307-		●
26	04.195 PLUG; TRANS CASE 04.103 (D)	5-34119-002-0	02	1	0307-	●
26	04.195 PLUG; TRANS CASE HF V6 ENG(LCA) 01.837 (A) PT1/8-27	8-00444-613-0	01	1	0509-			●	●
26	04.195 PLUG; TRANS CASE HF V6 ENG(LCA) 04.052 (B)	8-24205-102-0	02	1	0509-			●	●
26	04.195 PLUG; TRANS CASE HF V6 ENG(LCA) 04.105 (C)	8-24205-899-0	01	1	0509-			●	●
30	04.224 PUMP ASM; OIL,A/T	8-97143-135-0	01	1	0307-0609	●
30	04.224 PUMP ASM; OIL,A/T	8-97370-809-0	01	1	0610-	●
30	04.224 PUMP ASM; OIL,A/T	8-97357-220-0	01	1	0307-		●
32	04.210 GEAR; OUTER,OIL PUMP,A/T W=10.715 H MARK	8-97184-337-0	01	1	0307-0609	●
32	04.210 GEAR; OUTER,OIL PUMP,A/T T=11.715 -0.016/-0.025 MARK M	8-97370-816-0	01	1	0610-	●
32	04.210 GEAR; OUTER,OIL PUMP,A/T W=10.695 F MARK	8-97213-029-0	01	1	0307-0609	●
32	04.210 GEAR; OUTER,OIL PUMP,A/T T=11.715 -0.006/-0.015 MARK N	8-97370-817-0	01	1	0610-	●
32	04.210 GEAR; OUTER,OIL PUMP,A/T W=10.705 G MARK	8-97213-030-0	01	1	0307-0609	●
32	04.210 GEAR; OUTER,OIL PUMP,A/T T=11.715 +0.005/-0.005 MARK P	8-97370-818-0	01	1	0610-	●
32	04.210 GEAR; OUTER,OIL PUMP,A/T W=10.725 J MARK	8-97213-031-0	01	1	0307-0609	●
32	04.210 GEAR; OUTER,OIL PUMP,A/T T=11.715 +0.015/+0.006 MARK R	8-97370-819-0	01	1	0610-	●
32	04.210 GEAR; OUTER,OIL PUMP,A/T W=10.735 K MARK	8-97213-032-0	01	1	0307-0609	●
32	04.210 GEAR; OUTER,OIL PUMP,A/T T=11.715 +0.025/+0.016 MARK S	8-97370-820-0	01	1	0610-	●
33	04.224 GEAR; INNER,OIL PUMP,A/T W=10.715 H MARK	8-97147-426-0	01	1	0307-0609	●
33	04.224 GEAR; INNER,OIL PUMP,A/T T=11.715 -0.016/-0.025 MARK M	8-97370-811-0	01	1	0610-	●
33	04.224 GEAR; INNER,OIL PUMP,A/T W=10.695 F MARK	8-97213-025-0	01	1	0307-0609	●
33	04.224 GEAR; INNER,OIL PUMP,A/T T=11.715 -0.006/-0.015 MARK N	8-97370-812-0	01	1	0610-	●
33	04.224 GEAR; INNER,OIL PUMP,A/T W=10.705 G MARK	8-97213-026-0	01	1	0307-0609	●
33	04.224 GEAR; INNER,OIL PUMP,A/T T=11.715 +0.005/-0.005 MARK P	8-97370-813-0	01	1	0610-	●
33	04.224 GEAR; INNER,OIL PUMP,A/T W=10.725 J MARK	8-97213-027-0	01	1	0307-0609	●
33	04.224 GEAR; INNER,OIL PUMP,A/T T=11.715 +0.015/+0.006 MARK R	8-97370-814-0	01	1	0610-	●
33	04.224 GEAR; INNER,OIL PUMP,A/T W=10.735 K MARK	8-97213-028-0	01	1	0307-0609	●
33	04.224 GEAR; INNER,OIL PUMP,A/T T=11.715 +0.025/+0.016 MARK S	8-97370-815-0	01	1	0610-	●
37	04.226 RING; SEAL,OIL PUMP,A/T (C)	8-94479-747-0	02	1	0307-	●
37	04.226 RING; SEAL,OIL PUMP,A/T 04.166 (A)	8-94483-322-0	02	1	0307-		●
37	04.226 RING; SEAL,OIL PUMP,A/T (B)	8-97330-984-0	02	1	0307-		●
37	04.226 RING; SEAL,OIL PUMP,A/T HF V6 ENG(LCA) (D)	8-08681-292-0	02	1	0509-			●	●
37	04.226 RING; SEAL,OIL PUMP,A/T HF V6 ENG(LCA) (E)	8-24201-144-0	02	1	0509-			●	●
38	04.226 GASKET; OIL PUMP,A/T (C)	8-94479-748-0	01	1	0307-	●
38	04.226 GASKET; OIL PUMP,A/T (A)	8-97330-985-0	01	1	0307-		●
38	04.226 GASKET; OIL PUMP,A/T (B)	8-97330-986-0	01	1	0307-		●
38	04.226 GASKET; OIL PUMP,A/T HF V6 ENG(LCA) (D)	8-12337-931-0	01	1	0509-			●	●
39	04.224 BODY SUB ASM; FRT,OIL PUMP,A/T	8-94479-741-0	01	1	0307-0609	●
39	04.224 BODY SUB ASM; FRT,OIL PUMP,A/T	8-98050-498-0	01	1	0610-0801	●
39	04.224 BODY SUB ASM; FRT,OIL PUMP,A/T	8-98112-183-0	01	1	0802-	●
41	04.226 BOLT; OIL PUMP HSG,A/T (A) M8X35	8-94479-749-0	07	1	0307-	●
41	04.226 BOLT; OIL PUMP HSG,A/T (B) M6X15.5	8-97019-532-0	13	1	0307-	●
41	04.226 BOLT; OIL PUMP HSG,A/T (C) M8X45 FLANGE	8-97330-913-0	08	1	0307-		●
41	04.226 BOLT; OIL PUMP HSG,A/T (D) M6X25 FLANGE	8-97331-123-0	08	1	0307-		●
41	04.226 BOLT; OIL PUMP HSG,A/T HF V6 ENG(LCA) (E)	8-24233-361-0	07	1	0509-			●	●
47	04.226 SHAFT; OIL PUMP,A/T	8-97019-531-0	01	1	0307-0609	●
47	04.226 SHAFT; OIL PUMP,A/T	8-97370-821-0	01	1	0610-0801	●
47	04.226 SHAFT; OIL PUMP,A/T	8-98112-188-0	01	1	0802-	●
160	04.265 GASKET; BRK DRUM,A/T	8-94313-576-0	01	1	0307-	●
167	04.052 CONNECTOR; CASE,A/T 04.104	8-97126-812-0	01	1	0307-	●
205	04.103 TUBE; EXT HSG 4X2(TFB***)	8-97027-228-0	01	1	0307-0609	●
205	04.103 TUBE; EXT HSG 4X2(TFB***)	8-97331-557-0	01	1	0610-	●
216	04.265 GASKET; SOLENOID OUTER 04.103 ID=6	5-34119-001-0	02	1	0307-	●
241	04.317 ADAPTER; A/T 4X4(TFS***)	8-97331-556-0	01	1	0307-0508	●
241	04.317 ADAPTER; A/T	8-97331-556-0	01	1	0509-0609	●
241	04.317 ADAPTER; A/T 4X4(TFS***)	8-98050-559-0	01	1	0610-	●
241	04.317 ADAPTER; A/T 4X4(TFS***)	8-97330-902-0	01	1	0307-		●
304	04.205 SPRING; LEAF,A/T	8-97184-331-0	01	1	0307-	●
305	04.103 GASKET; TUBE,EXT HSG 4X2(TFB***)	8-97331-557-0	01	1	0307-0609	●
305	04.103 GASKET; TUBE,EXT HSG 4X2(TFB***)	8-97027-228-0	01	1	0610-	●

37 37 36 36 237 237 237 237 292 174 189 412 189 288 37 223 223 223 223 414 413 223 290 37 222 223 223 223 223 223 223 223 223 223 223 286 245 415 157 410 372 372 369 411 223 223 413 184 223 223 223 237 237 174 187 186 186 237 292 292 298 299 288 373 302 297

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D

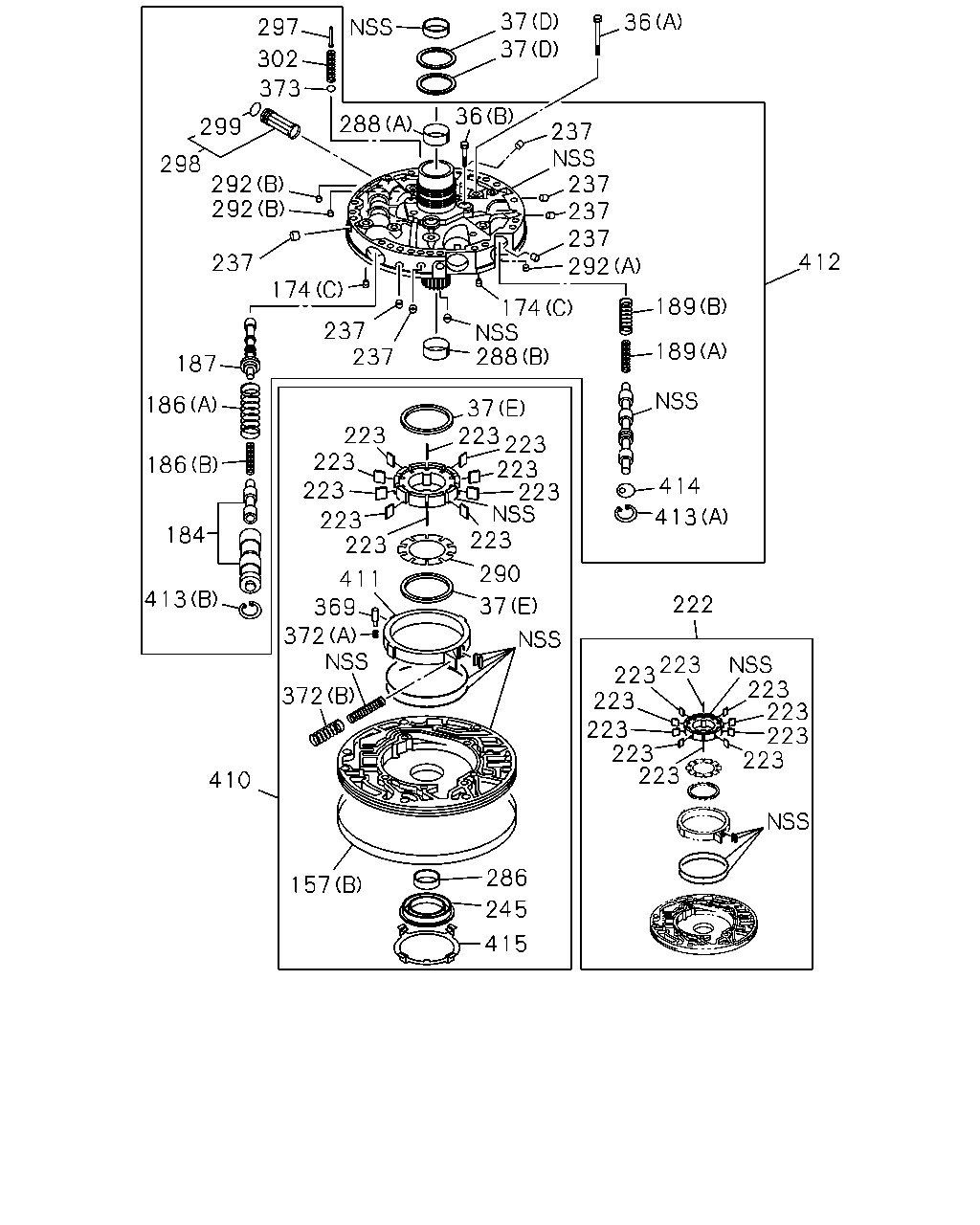

36	04.226 BOLT; OIL PUMP COVER,A/T HF V6 ENG(LCA) 04.128 (A)	8-11500-921-0	05	1	0509-				●
36	04.226 BOLT; OIL PUMP COVER,A/T HF V6 ENG(LCA) (B)	8-20616-587-0	03	1	0509-			●	●
36	04.226 BOLT; OIL PUMP COVER,A/T HF V6 ENG(LCA) (A) M8X40	8-11500-718-0	05	1	0509-			●
37	04.226 RING; SEAL,OIL PUMP,A/T (C)	8-94479-747-0	02	1	0307-	●
37	04.226 RING; SEAL,OIL PUMP,A/T 04.166 (A)	8-94483-322-0	02	1	0307-		●
37	04.226 RING; SEAL,OIL PUMP,A/T (B)	8-97330-984-0	02	1	0307-		●
37	04.226 RING; SEAL,OIL PUMP,A/T HF V6 ENG(LCA) (D)	8-08681-292-0	02	1	0509-			●	●
37	04.226 RING; SEAL,OIL PUMP,A/T HF V6 ENG(LCA) (E)	8-24201-144-0	02	1	0509-			●	●
157	04.166 SEAL; GASKET,OIL PUMP,A/T HF V6 ENG(LCA) (A)	8-24208-664-0	07	1	0509-			●	●
157	04.166 SEAL; GASKET,OIL PUMP,A/T HF V6 ENG(LCA) (B)	8-24226-315-0	01	1	0509-			●	●
174	04.205 VALVE; CHECK HF V6 ENG(LCA) 04.105 (A)	8-08628-864-0	01	1	0509-			●	●
174	04.205 VALVE; CHECK HF V6 ENG(LCA) (B)	8-08634-400-0	01	1	0509-			●	●
174	04.205 VALVE; CHECK HF V6 ENG(LCA) (C)	8-08663-890-0	03	1	0509-			●	●
184	04.205 VALVE; BOOST HF V6 ENG(LCA)	8-24224-510-0	01	1	0509-			●	●
186	04.205 SPRING; REG VALVE HF V6 ENG(LCA) (A)	8-08680-682-0	01	1	0509-			●	●
186	04.205 SPRING; REG VALVE HF V6 ENG(LCA) (B)	8-08680-684-0	01	1	0509-			●	●
187	04.205 VALVE; PRESSURE REG HF V6 ENG(LCA)	8-08684-049-0	01	1	0509-			●	●
189	04.205 SPRING; CONV CLU CONT VALVE HF V6 ENG(LCA) (A)	8-24201-610-0	01	1	0509-			●	●
189	04.205 SPRING; CONV CLU CONT VALVE HF V6 ENG(LCA) (B)	8-24201-611-0	01	1	0509-			●	●
222	04.224 ROTOR; OIL PUMP HF V6 ENG(LCA) T=17.948	8-24219-538-0	01	1	0509-			●	●
222	04.224 ROTOR; OIL PUMP HF V6 ENG(LCA) T=17.961	8-24219-539-0	01	1	0509-			●	●
222	04.224 ROTOR; OIL PUMP HF V6 ENG(LCA) T=17.974	8-24219-540-0	01	1	0509-			●	●
222	04.224 ROTOR; OIL PUMP HF V6 ENG(LCA) T=17.987	8-24219-541-0	01	1	0509-			●	●
222	04.224 ROTOR; OIL PUMP HF V6 ENG(LCA) T=18.000	8-24219-542-0	01	1	0509-			●	●
223	04.224 VANE; OIL PUMP HF V6 ENG(LCA)	8-08631-280-0	13	1	0509-			●	●
237	04.216 PLUG; COVER HF V6 ENG(LCA)	8-08623-886-0	07	1	0509-			●	●
245	04.103 SEAL; OIL HF V6 ENG(LCA)	8-24202-535-0	01	1	0509-			●	●
286	04.104 BUSHING; CONVERTER HF V6 ENG(LCA)	8-24206-030-0	01	1	0509-			●	●
288	04.104 BUSHING; REAR COVER HF V6 ENG(LCA) (A)	8-08642-904-0	01	1	0509-			●	●
288	04.104 BUSHING; REAR COVER HF V6 ENG(LCA) (B)	8-08647-954-0	01	1	0509-			●	●
290	04.210 GUIDE; OIL PUMP HF V6 ENG(LCA)	8-24205-410-0	01	1	0509-			●	●
292	04.210 ORIFICE; HOUSING,OIL PUMP HF V6 ENG(LCA) (A)	8-08634-284-0	01	1	0509-			●	●
292	04.210 ORIFICE; HOUSING,OIL PUMP HF V6 ENG(LCA) (B)	8-24203-787-0	02	1	0509-			●	●
297	04.205 RIVET; VALVE HF V6 ENG(LCA)	8-08642-619-0	01	1	0509-			●	●
298	04.210 SCREEN; OIL PUMP COVER HF V6 ENG(LCA)	8-08642-912-0	01	1	0509-			●	●
299	04.210 SEAL; SCREEN HF V6 ENG(LCA)	8-08642-581-0	01	1	0509-			●	●
302	04.205 SPRING; VALVE,PRESSURE RELIEF HF V6 ENG(LCA)	8-08634-106-0	01	1	0509-			●	●
369	04.210 PIN; OIL PUMP,A/T HF V6 ENG(LCA)	8-08634-097-0	01	1	0509-			●	●
372	04.205 SPRING; OIL PUMP,A/T HF V6 ENG(LCA) (A)	8-08634-098-0	01	1	0509-			●	●
372	04.205 SPRING; OIL PUMP,A/T HF V6 ENG(LCA) (B)	8-24231-039-0	01	1	0509-			●	●
373	04.103 BALL; OIL PUMP,A/T HF V6 ENG(LCA) 04.265	8-00147-500-0	01	1	0509-			●	●
410	04.210 BODY ASM; OIL PUMP HF V6 ENG(LCA)	8-24230-111-0	01	1	0509-				●
410	04.210 BODY ASM; OIL PUMP HF V6 ENG(LCA)	8-24226-644-0	01	1	0509-			●
411	04.210 SLIDE; OIL PUMP HF V6 ENG(LCA) T=17.948	8-24212-478-0	01	1	0509-			●	●
411	04.210 SLIDE; OIL PUMP HF V6 ENG(LCA) T=17.961	8-24212-479-0	01	1	0509-			●	●
411	04.210 SLIDE; OIL PUMP HF V6 ENG(LCA) T=17.974	8-24212-480-0	01	1	0509-			●	●
411	04.210 SLIDE; OIL PUMP HF V6 ENG(LCA) T=17.987	8-24212-481-0	01	1	0509-			●	●
411	04.210 SLIDE; OIL PUMP HF V6 ENG(LCA) T=18.000	8-24212-482-0	01	1	0509-			●	●
412	04.210 COVER ASM; OIL PUMP HF V6 ENG(LCA)	8-24235-910-0	01	1	0509-				●
412	04.210 COVER ASM; OIL PUMP HF V6 ENG(LCA)	8-24224-505-0	01	1	0509-			●
413	04.224 RING; RETAINER HF V6 ENG(LCA) 04.205 (A)	8-00274-267-0	01	1	0509-			●	●
413	04.224 RING; RETAINER HF V6 ENG(LCA) (B)	8-11503-348-0	01	1	0509-			●	●
414	04.135 STOP; CONV CLU VLVE HF V6 ENG(LCA)	8-08634-705-0	01	1	0509-			●	●
415	04.210 RETAINER; OIL PUMP HF V6 ENG(LCA)	8-08654-491-0	01	1	0509-			●	●

4 41 7 39 38 23 22 167 216 26 13 12 14 13 304 160 2 16 305 205 17 9 3 19 17 17 3 241 20 8 8 47 37 37 41 8 1 33 32 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.103 HOUSING; CONV,A/T	8-97331-569-0	01	1	0307-0609	●
1	04.103 HOUSING; CONV,A/T	8-98056-390-0	01	1	0610-	●
1	04.103 HOUSING; CONV,A/T	8-97330-899-0	01	1	0307-		●
1	04.103 HOUSING; CONV,A/T HF V6 ENG(LCA)	8-21220-406-0	01	1	0509-			●	●
2	04.103 CASE ASM; A/T 4X2(TFB***)	8-97288-902-0	01	1	0307-0508	●
2	04.103 CASE ASM; A/T 4X2(TFB***)	8-97288-902-0	01	1	0610-0801	●
2	04.103 CASE ASM; A/T 4X2(TFB***)	8-98112-177-0	01	1	0802-	●
2	04.103 CASE ASM; A/T 4X4(TFS***)	8-97232-111-0	01	1	0307-0508	●
2	04.103 CASE ASM; A/T	8-97232-111-0	01	1	0509-0609	●
2	04.103 CASE ASM; A/T 4X4(TFS***)	8-98029-249-0	01	1	0610-0801	●
2	04.103 CASE ASM; A/T 4X4(TFS***)	8-98112-176-0	01	1	0802-	●
2	04.103 CASE ASM; A/T	8-97330-900-0	01	1	0307-0711		●
2	04.103 CASE ASM; A/T	8-97383-551-0	01	1	0712-		●
2	04.103 CASE ASM; A/T HF V6 ENG(LCA)	8-24231-452-0	01	1	0509-				●
2	04.103 CASE ASM; A/T HF V6 ENG(LCA)	8-24206-953-0	01	1	0509-			●
3	04.241 SEAL; OIL,RR COVER,A/T HF V6 ENG(LCA)	8-24204-540-0	01	1	0509-			●	●
3	04.241 SEAL; OIL,RR COVER,A/T 4X2(TFB***)	8-97184-430-0	01	1	0307-	●
3	04.241 SEAL; OIL,RR COVER,A/T 4X4(TFS***)	8-97069-465-0	01	1	0307-0508	●
3	04.241 SEAL; OIL,RR COVER,A/T	8-97069-465-0	01	1	0509-0609	●
3	04.241 SEAL; OIL,RR COVER,A/T 4X4(TFS***)	8-97069-465-0	01	1	0610-	●
3	04.241 SEAL; OIL,RR COVER,A/T 4X2(TFB***)	8-97330-910-0	01	1	0307-		●
3	04.241 SEAL; OIL,RR COVER,A/T 4X4(TFS***)	8-97330-909-0	01	1	0307-		●
4	04.115 CONVERTER ASM; TORQUE,A/T	8-97354-872-0	01	1	0307-0609	●
4	04.115 CONVERTER ASM; TORQUE,A/T AUSTRALIA EQUIPMENT(B13)	8-97330-898-0	01	1	0307-0609		●
4	04.115 CONVERTER ASM; TORQUE,A/T	8-98056-389-0	01	1	0610-	●
4	04.115 CONVERTER ASM; TORQUE,A/T EXC. AUSTRALIA EQUIPMENT(B13)	8-97368-547-0	01	1	0307-0609		●
4	04.115 CONVERTER ASM; TORQUE,A/T	8-97368-547-0	01	1	0610-		●
4	04.115 CONVERTER ASM; TORQUE,A/T HF V6 ENG(LCA)	8-24230-960-0	01	1	0509-			●	●
7	04.226 SEAL; OIL,LIP,A/T (C)	8-94479-742-1	01	1	0307-	●
7	04.226 SEAL; OIL,LIP,A/T 02.559 (A)	8-94385-664-0	01	1	0307-		●
7	04.226 SEAL; OIL,LIP,A/T (B)	8-97330-904-0	01	1	0307-0711		●
7	04.226 SEAL; OIL,LIP,A/T (B)	8-98126-853-0	01	1	0712-		●
8	04.217 BOLT; HSG TO CASE (B) M10X35	8-90257-082-0	04	1	0307-	●
8	04.217 BOLT; HSG TO CASE (C) M12X45	8-94257-083-0	01	1	0307-0609	●
8	04.217 BOLT; HSG TO CASE (C) M12X68	8-97025-830-0	02	1	0610-	●
8	04.217 BOLT; HSG TO CASE (D) M12X45	8-97331-533-0	01	1	0307-0609	●
8	04.217 BOLT; HSG TO CASE (A) M8X35	8-97330-912-0	08	1	0307-		●
8	04.217 BOLT; HSG TO CASE HF V6 ENG(LCA) (E)	8-24203-265-0	08	1	0509-			●	●
9	04.317 COVER ASM; RR,A/T 4X2(TFB***) 04.217	8-97331-555-0	01	1	0307-0609	●
9	04.317 COVER ASM; RR,A/T 4X2(TFB***)	8-98056-398-0	01	1	0610-	●
9	04.317 COVER ASM; RR,A/T HF V6 ENG(LCA)	8-24229-218-0	01	1	0509-			●	●
9	04.317 COVER ASM; RR,A/T 4X2(TFB***) 04.217	8-97330-901-0	01	1	0307-		●
12	04.205 CONNECTOR; OIL COOLER OUTLET PIP 04.265	8-94450-761-0	01	1	0307-	●
13	04.205 GASKET; OIL COOLER PIPE 04.265 ID=11.7	8-94479-724-0	02	1	0307-	●
14	04.205 UNION; OIL COOLER RETURN PIPE 04.265	8-94450-762-0	01	1	0307-	●
16	04.318 GASKET; EXT HSG 4X2(TFB***)	8-97032-928-0	01	1	0307-	●
16	04.318 GASKET; EXT HSG HF V6 ENG(LCA)	8-24208-660-0	01	1	0509-			●	●
17	04.319 BOLT; REAR COVER TO CASE 4X2(TFB***) (A) M10X45	8-94473-632-0	04	1	0307-0508	●
17	04.319 BOLT; REAR COVER TO CASE HF V6 ENG(LCA) (E)	8-08680-874-0	06	1	0509-			●	●
17	04.319 BOLT; REAR COVER TO CASE 4X2(TFB***) (B) M10X35	8-94479-951-0	02	1	0307-0508	●
17	04.319 BOLT; REAR COVER TO CASE 4X2(TFB***) (A) M10X45	8-94473-632-0	04	1	0610-	●
17	04.319 BOLT; REAR COVER TO CASE 4X2(TFB***) (B) M10X35	8-94479-951-0	02	1	0610-	●
17	04.319 BOLT; REAR COVER TO CASE 4X4(TFS***) (C)	8-94479-936-0	07	1	0307-0508	●
17	04.319 BOLT; REAR COVER TO CASE (C)	8-94479-936-0	07	1	0509-0609	●
17	04.319 BOLT; REAR COVER TO CASE 4X4(TFS***) (C)	8-94479-936-0	07	1	0610-	●
17	04.319 BOLT; REAR COVER TO CASE 04.217 (D) M8X35	8-97330-912-0	10	1	0307-		●
19	04.241 COVER; DUST,REAR COVER 4X2(TFB***)	8-97184-432-0	01	1	0307-	●
20	04.105 PLUG; TAPER,A/T CASE	8-97232-067-0	01	1	0307-0609	●
20	04.105 PLUG; TAPER,A/T CASE 4X2(TFB***)	8-97232-067-0	01	1	0610-	●
22	04.101 CLIP; BREATHER HOSE,A/T	8-94479-730-0	01	1	0307-0609	●
23	04.101 HOSE; BREATHER,A/T	8-97331-530-0	01	1	0307-0609	●
23	04.101 HOSE; BREATHER,A/T 04.104 L=240 SERVICED BY L=3000	0-02857-300-0	02	1	0610-	●
23	04.101 HOSE; BREATHER,A/T 08.962 L=580 SERVICED BY L=3000	0-04750-300-0	01	1	0307-		●
26	04.195 PLUG; TRANS CASE 04.103 (D)	5-34119-002-0	02	1	0307-	●
26	04.195 PLUG; TRANS CASE HF V6 ENG(LCA) 01.837 (A) PT1/8-27	8-00444-613-0	01	1	0509-			●	●
26	04.195 PLUG; TRANS CASE HF V6 ENG(LCA) 04.052 (B)	8-24205-102-0	02	1	0509-			●	●
26	04.195 PLUG; TRANS CASE HF V6 ENG(LCA) 04.105 (C)	8-24205-899-0	01	1	0509-			●	●
30	04.224 PUMP ASM; OIL,A/T	8-97143-135-0	01	1	0307-0609	●
30	04.224 PUMP ASM; OIL,A/T	8-97370-809-0	01	1	0610-	●
30	04.224 PUMP ASM; OIL,A/T	8-97357-220-0	01	1	0307-		●
32	04.210 GEAR; OUTER,OIL PUMP,A/T W=10.715 H MARK	8-97184-337-0	01	1	0307-0609	●
32	04.210 GEAR; OUTER,OIL PUMP,A/T T=11.715 -0.016/-0.025 MARK M	8-97370-816-0	01	1	0610-	●
32	04.210 GEAR; OUTER,OIL PUMP,A/T W=10.695 F MARK	8-97213-029-0	01	1	0307-0609	●
32	04.210 GEAR; OUTER,OIL PUMP,A/T T=11.715 -0.006/-0.015 MARK N	8-97370-817-0	01	1	0610-	●
32	04.210 GEAR; OUTER,OIL PUMP,A/T W=10.705 G MARK	8-97213-030-0	01	1	0307-0609	●
32	04.210 GEAR; OUTER,OIL PUMP,A/T T=11.715 +0.005/-0.005 MARK P	8-97370-818-0	01	1	0610-	●
32	04.210 GEAR; OUTER,OIL PUMP,A/T W=10.725 J MARK	8-97213-031-0	01	1	0307-0609	●
32	04.210 GEAR; OUTER,OIL PUMP,A/T T=11.715 +0.015/+0.006 MARK R	8-97370-819-0	01	1	0610-	●
32	04.210 GEAR; OUTER,OIL PUMP,A/T W=10.735 K MARK	8-97213-032-0	01	1	0307-0609	●
32	04.210 GEAR; OUTER,OIL PUMP,A/T T=11.715 +0.025/+0.016 MARK S	8-97370-820-0	01	1	0610-	●
33	04.224 GEAR; INNER,OIL PUMP,A/T W=10.715 H MARK	8-97147-426-0	01	1	0307-0609	●
33	04.224 GEAR; INNER,OIL PUMP,A/T T=11.715 -0.016/-0.025 MARK M	8-97370-811-0	01	1	0610-	●
33	04.224 GEAR; INNER,OIL PUMP,A/T W=10.695 F MARK	8-97213-025-0	01	1	0307-0609	●
33	04.224 GEAR; INNER,OIL PUMP,A/T T=11.715 -0.006/-0.015 MARK N	8-97370-812-0	01	1	0610-	●
33	04.224 GEAR; INNER,OIL PUMP,A/T W=10.705 G MARK	8-97213-026-0	01	1	0307-0609	●
33	04.224 GEAR; INNER,OIL PUMP,A/T T=11.715 +0.005/-0.005 MARK P	8-97370-813-0	01	1	0610-	●
33	04.224 GEAR; INNER,OIL PUMP,A/T W=10.725 J MARK	8-97213-027-0	01	1	0307-0609	●
33	04.224 GEAR; INNER,OIL PUMP,A/T T=11.715 +0.015/+0.006 MARK R	8-97370-814-0	01	1	0610-	●
33	04.224 GEAR; INNER,OIL PUMP,A/T W=10.735 K MARK	8-97213-028-0	01	1	0307-0609	●
33	04.224 GEAR; INNER,OIL PUMP,A/T T=11.715 +0.025/+0.016 MARK S	8-97370-815-0	01	1	0610-	●
37	04.226 RING; SEAL,OIL PUMP,A/T (C)	8-94479-747-0	02	1	0307-	●
37	04.226 RING; SEAL,OIL PUMP,A/T 04.166 (A)	8-94483-322-0	02	1	0307-		●
37	04.226 RING; SEAL,OIL PUMP,A/T (B)	8-97330-984-0	02	1	0307-		●
37	04.226 RING; SEAL,OIL PUMP,A/T HF V6 ENG(LCA) (D)	8-08681-292-0	02	1	0509-			●	●
37	04.226 RING; SEAL,OIL PUMP,A/T HF V6 ENG(LCA) (E)	8-24201-144-0	02	1	0509-			●	●
38	04.226 GASKET; OIL PUMP,A/T (C)	8-94479-748-0	01	1	0307-	●
38	04.226 GASKET; OIL PUMP,A/T (A)	8-97330-985-0	01	1	0307-		●
38	04.226 GASKET; OIL PUMP,A/T (B)	8-97330-986-0	01	1	0307-		●
38	04.226 GASKET; OIL PUMP,A/T HF V6 ENG(LCA) (D)	8-12337-931-0	01	1	0509-			●	●
39	04.224 BODY SUB ASM; FRT,OIL PUMP,A/T	8-94479-741-0	01	1	0307-0609	●
39	04.224 BODY SUB ASM; FRT,OIL PUMP,A/T	8-98050-498-0	01	1	0610-0801	●
39	04.224 BODY SUB ASM; FRT,OIL PUMP,A/T	8-98112-183-0	01	1	0802-	●
41	04.226 BOLT; OIL PUMP HSG,A/T (A) M8X35	8-94479-749-0	07	1	0307-	●
41	04.226 BOLT; OIL PUMP HSG,A/T (B) M6X15.5	8-97019-532-0	13	1	0307-	●
41	04.226 BOLT; OIL PUMP HSG,A/T (C) M8X45 FLANGE	8-97330-913-0	08	1	0307-		●
41	04.226 BOLT; OIL PUMP HSG,A/T (D) M6X25 FLANGE	8-97331-123-0	08	1	0307-		●
41	04.226 BOLT; OIL PUMP HSG,A/T HF V6 ENG(LCA) (E)	8-24233-361-0	07	1	0509-			●	●
47	04.226 SHAFT; OIL PUMP,A/T	8-97019-531-0	01	1	0307-0609	●
47	04.226 SHAFT; OIL PUMP,A/T	8-97370-821-0	01	1	0610-0801	●
47	04.226 SHAFT; OIL PUMP,A/T	8-98112-188-0	01	1	0802-	●
160	04.265 GASKET; BRK DRUM,A/T	8-94313-576-0	01	1	0307-	●
167	04.052 CONNECTOR; CASE,A/T 04.104	8-97126-812-0	01	1	0307-	●
205	04.103 TUBE; EXT HSG 4X2(TFB***)	8-97027-228-0	01	1	0307-0609	●
205	04.103 TUBE; EXT HSG 4X2(TFB***)	8-97331-557-0	01	1	0610-	●
216	04.265 GASKET; SOLENOID OUTER 04.103 ID=6	5-34119-001-0	02	1	0307-	●
241	04.317 ADAPTER; A/T 4X4(TFS***)	8-97331-556-0	01	1	0307-0508	●
241	04.317 ADAPTER; A/T	8-97331-556-0	01	1	0509-0609	●
241	04.317 ADAPTER; A/T 4X4(TFS***)	8-98050-559-0	01	1	0610-	●
241	04.317 ADAPTER; A/T 4X4(TFS***)	8-97330-902-0	01	1	0307-		●
304	04.205 SPRING; LEAF,A/T	8-97184-331-0	01	1	0307-	●
305	04.103 GASKET; TUBE,EXT HSG 4X2(TFB***)	8-97331-557-0	01	1	0307-0609	●
305	04.103 GASKET; TUBE,EXT HSG 4X2(TFB***)	8-97027-228-0	01	1	0610-	●

8 17 3 9 17 3 241 23 15 2 41 1 4 7 38 30 38 41 37 37 43 44 37 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.103 HOUSING; CONV,A/T	8-97331-569-0	01	1	0307-0609	●
1	04.103 HOUSING; CONV,A/T	8-98056-390-0	01	1	0610-	●
1	04.103 HOUSING; CONV,A/T	8-97330-899-0	01	1	0307-		●
1	04.103 HOUSING; CONV,A/T HF V6 ENG(LCA)	8-21220-406-0	01	1	0509-			●	●
2	04.103 CASE ASM; A/T 4X2(TFB***)	8-97288-902-0	01	1	0307-0508	●
2	04.103 CASE ASM; A/T 4X2(TFB***)	8-97288-902-0	01	1	0610-0801	●
2	04.103 CASE ASM; A/T 4X2(TFB***)	8-98112-177-0	01	1	0802-	●
2	04.103 CASE ASM; A/T 4X4(TFS***)	8-97232-111-0	01	1	0307-0508	●
2	04.103 CASE ASM; A/T	8-97232-111-0	01	1	0509-0609	●
2	04.103 CASE ASM; A/T 4X4(TFS***)	8-98029-249-0	01	1	0610-0801	●
2	04.103 CASE ASM; A/T 4X4(TFS***)	8-98112-176-0	01	1	0802-	●
2	04.103 CASE ASM; A/T	8-97330-900-0	01	1	0307-0711		●
2	04.103 CASE ASM; A/T	8-97383-551-0	01	1	0712-		●
2	04.103 CASE ASM; A/T HF V6 ENG(LCA)	8-24231-452-0	01	1	0509-				●
2	04.103 CASE ASM; A/T HF V6 ENG(LCA)	8-24206-953-0	01	1	0509-			●
3	04.241 SEAL; OIL,RR COVER,A/T HF V6 ENG(LCA)	8-24204-540-0	01	1	0509-			●	●
3	04.241 SEAL; OIL,RR COVER,A/T 4X2(TFB***)	8-97184-430-0	01	1	0307-	●
3	04.241 SEAL; OIL,RR COVER,A/T 4X4(TFS***)	8-97069-465-0	01	1	0307-0508	●
3	04.241 SEAL; OIL,RR COVER,A/T	8-97069-465-0	01	1	0509-0609	●
3	04.241 SEAL; OIL,RR COVER,A/T 4X4(TFS***)	8-97069-465-0	01	1	0610-	●
3	04.241 SEAL; OIL,RR COVER,A/T 4X2(TFB***)	8-97330-910-0	01	1	0307-		●
3	04.241 SEAL; OIL,RR COVER,A/T 4X4(TFS***)	8-97330-909-0	01	1	0307-		●
4	04.115 CONVERTER ASM; TORQUE,A/T	8-97354-872-0	01	1	0307-0609	●
4	04.115 CONVERTER ASM; TORQUE,A/T AUSTRALIA EQUIPMENT(B13)	8-97330-898-0	01	1	0307-0609		●
4	04.115 CONVERTER ASM; TORQUE,A/T	8-98056-389-0	01	1	0610-	●
4	04.115 CONVERTER ASM; TORQUE,A/T EXC. AUSTRALIA EQUIPMENT(B13)	8-97368-547-0	01	1	0307-0609		●
4	04.115 CONVERTER ASM; TORQUE,A/T	8-97368-547-0	01	1	0610-		●
4	04.115 CONVERTER ASM; TORQUE,A/T HF V6 ENG(LCA)	8-24230-960-0	01	1	0509-			●	●
7	04.226 SEAL; OIL,LIP,A/T (C)	8-94479-742-1	01	1	0307-	●
7	04.226 SEAL; OIL,LIP,A/T 02.559 (A)	8-94385-664-0	01	1	0307-		●
7	04.226 SEAL; OIL,LIP,A/T (B)	8-97330-904-0	01	1	0307-0711		●
7	04.226 SEAL; OIL,LIP,A/T (B)	8-98126-853-0	01	1	0712-		●
8	04.217 BOLT; HSG TO CASE (B) M10X35	8-90257-082-0	04	1	0307-	●
8	04.217 BOLT; HSG TO CASE (C) M12X45	8-94257-083-0	01	1	0307-0609	●
8	04.217 BOLT; HSG TO CASE (C) M12X68	8-97025-830-0	02	1	0610-	●
8	04.217 BOLT; HSG TO CASE (D) M12X45	8-97331-533-0	01	1	0307-0609	●
8	04.217 BOLT; HSG TO CASE (A) M8X35	8-97330-912-0	08	1	0307-		●
8	04.217 BOLT; HSG TO CASE HF V6 ENG(LCA) (E)	8-24203-265-0	08	1	0509-			●	●
9	04.317 COVER ASM; RR,A/T 4X2(TFB***) 04.217	8-97331-555-0	01	1	0307-0609	●
9	04.317 COVER ASM; RR,A/T 4X2(TFB***)	8-98056-398-0	01	1	0610-	●
9	04.317 COVER ASM; RR,A/T HF V6 ENG(LCA)	8-24229-218-0	01	1	0509-			●	●
9	04.317 COVER ASM; RR,A/T 4X2(TFB***) 04.217	8-97330-901-0	01	1	0307-		●
15	04.104 BREATHER; A/T CASE	8-97301-433-1	01	1	0307-		●
17	04.319 BOLT; REAR COVER TO CASE 4X2(TFB***) (A) M10X45	8-94473-632-0	04	1	0307-0508	●
17	04.319 BOLT; REAR COVER TO CASE HF V6 ENG(LCA) (E)	8-08680-874-0	06	1	0509-			●	●
17	04.319 BOLT; REAR COVER TO CASE 4X2(TFB***) (B) M10X35	8-94479-951-0	02	1	0307-0508	●
17	04.319 BOLT; REAR COVER TO CASE 4X2(TFB***) (A) M10X45	8-94473-632-0	04	1	0610-	●
17	04.319 BOLT; REAR COVER TO CASE 4X2(TFB***) (B) M10X35	8-94479-951-0	02	1	0610-	●
17	04.319 BOLT; REAR COVER TO CASE 4X4(TFS***) (C)	8-94479-936-0	07	1	0307-0508	●
17	04.319 BOLT; REAR COVER TO CASE (C)	8-94479-936-0	07	1	0509-0609	●
17	04.319 BOLT; REAR COVER TO CASE 4X4(TFS***) (C)	8-94479-936-0	07	1	0610-	●
17	04.319 BOLT; REAR COVER TO CASE 04.217 (D) M8X35	8-97330-912-0	10	1	0307-		●
23	04.101 HOSE; BREATHER,A/T	8-97331-530-0	01	1	0307-0609	●
23	04.101 HOSE; BREATHER,A/T 04.104 L=240 SERVICED BY L=3000	0-02857-300-0	02	1	0610-	●
23	04.101 HOSE; BREATHER,A/T 08.962 L=580 SERVICED BY L=3000	0-04750-300-0	01	1	0307-		●
30	04.224 PUMP ASM; OIL,A/T	8-97143-135-0	01	1	0307-0609	●
30	04.224 PUMP ASM; OIL,A/T	8-97370-809-0	01	1	0610-	●
30	04.224 PUMP ASM; OIL,A/T	8-97357-220-0	01	1	0307-		●
37	04.226 RING; SEAL,OIL PUMP,A/T (C)	8-94479-747-0	02	1	0307-	●
37	04.226 RING; SEAL,OIL PUMP,A/T 04.166 (A)	8-94483-322-0	02	1	0307-		●
37	04.226 RING; SEAL,OIL PUMP,A/T (B)	8-97330-984-0	02	1	0307-		●
37	04.226 RING; SEAL,OIL PUMP,A/T HF V6 ENG(LCA) (D)	8-08681-292-0	02	1	0509-			●	●
37	04.226 RING; SEAL,OIL PUMP,A/T HF V6 ENG(LCA) (E)	8-24201-144-0	02	1	0509-			●	●
38	04.226 GASKET; OIL PUMP,A/T (C)	8-94479-748-0	01	1	0307-	●
38	04.226 GASKET; OIL PUMP,A/T (A)	8-97330-985-0	01	1	0307-		●
38	04.226 GASKET; OIL PUMP,A/T (B)	8-97330-986-0	01	1	0307-		●
38	04.226 GASKET; OIL PUMP,A/T HF V6 ENG(LCA) (D)	8-12337-931-0	01	1	0509-			●	●
41	04.226 BOLT; OIL PUMP HSG,A/T (A) M8X35	8-94479-749-0	07	1	0307-	●
41	04.226 BOLT; OIL PUMP HSG,A/T (B) M6X15.5	8-97019-532-0	13	1	0307-	●
41	04.226 BOLT; OIL PUMP HSG,A/T (C) M8X45 FLANGE	8-97330-913-0	08	1	0307-		●
41	04.226 BOLT; OIL PUMP HSG,A/T (D) M6X25 FLANGE	8-97331-123-0	08	1	0307-		●
41	04.226 BOLT; OIL PUMP HSG,A/T HF V6 ENG(LCA) (E)	8-24233-361-0	07	1	0509-			●	●
43	04.226 RACE; THRUST BRG,OIL PUMP,A/T T=1.4	8-97330-940-0	01	1	0307-		●
43	04.226 RACE; THRUST BRG,OIL PUMP,A/T T=1.6	8-97330-941-0	01	1	0307-		●
43	04.226 RACE; THRUST BRG,OIL PUMP,A/T T=1.8	8-97330-942-0	01	1	0307-		●
43	04.226 RACE; THRUST BRG,OIL PUMP,A/T T=2.0	8-97330-943-0	01	1	0307-		●
43	04.226 RACE; THRUST BRG,OIL PUMP,A/T T=2.2	8-97330-944-0	01	1	0307-		●
43	04.226 RACE; THRUST BRG,OIL PUMP,A/T T=2.4	8-97330-945-0	01	1	0307-		●
44	04.226 BEARING; THRUST,OIL PUMP,A/T	8-97330-924-0	01	1	0307-		●
241	04.317 ADAPTER; A/T 4X4(TFS***)	8-97331-556-0	01	1	0307-0508	●
241	04.317 ADAPTER; A/T	8-97331-556-0	01	1	0509-0609	●
241	04.317 ADAPTER; A/T 4X4(TFS***)	8-98050-559-0	01	1	0610-	●
241	04.317 ADAPTER; A/T 4X4(TFS***)	8-97330-902-0	01	1	0307-		●

2 164 163 162 25 7 108 163 162 120 164 121 407

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	04.103 CASE ASM; A/T 4X2(TFB***)	8-97288-902-0	01	1	0307-0508	●
2	04.103 CASE ASM; A/T 4X2(TFB***)	8-97288-902-0	01	1	0610-0801	●
2	04.103 CASE ASM; A/T 4X2(TFB***)	8-98112-177-0	01	1	0802-	●
2	04.103 CASE ASM; A/T 4X4(TFS***)	8-97232-111-0	01	1	0307-0508	●
2	04.103 CASE ASM; A/T	8-97232-111-0	01	1	0509-0609	●
2	04.103 CASE ASM; A/T 4X4(TFS***)	8-98029-249-0	01	1	0610-0801	●
2	04.103 CASE ASM; A/T 4X4(TFS***)	8-98112-176-0	01	1	0802-	●
2	04.103 CASE ASM; A/T	8-97330-900-0	01	1	0307-0711		●
2	04.103 CASE ASM; A/T	8-97383-551-0	01	1	0712-		●
2	04.103 CASE ASM; A/T HF V6 ENG(LCA)	8-24231-452-0	01	1	0509-				●
2	04.103 CASE ASM; A/T HF V6 ENG(LCA)	8-24206-953-0	01	1	0509-			●
7	04.226 SEAL; OIL,LIP,A/T (C)	8-94479-742-1	01	1	0307-	●
7	04.226 SEAL; OIL,LIP,A/T 02.559 (A)	8-94385-664-0	01	1	0307-		●
7	04.226 SEAL; OIL,LIP,A/T (B)	8-97330-904-0	01	1	0307-0711		●
7	04.226 SEAL; OIL,LIP,A/T (B)	8-98126-853-0	01	1	0712-		●
25	04.105 PIN; SPR,BRG HSG,A/T	8-97330-914-0	07	1	0307-		●
108	04.180 SLEEVE; LOW & REV BRAKE,A/T	8-94385-683-0	01	1	0307-		●
120	04.180 SEAL; TRANS,ELEC CONN	8-97330-987-0	01	1	0307-		●
121	04.226 CONNECTOR; ELEC	8-97331-112-0	01	1	0307-		●
162	04.054 SENSOR; REVOLUTION,A/T CONT	8-97331-108-0	02	1	0307-		●
163	04.054 GASKET; REV SENSOR,A/T	8-97330-988-0	02	1	0307-0711		●
163	04.054 GASKET; REV SENSOR,A/T	8-98126-854-0	02	1	0712-		●
164	04.054 BOLT; REV SENSOR,A/T 04.205	8-94483-616-0	02	1	0307-		●
407	04.226 BOLT; ELEC CONNECTOR 04.205	8-94483-616-0	01	1	0307-		●

41 4 383 157 38 116 26 174 174 178 174 291 16 17 317 3 9 358 409 408 317 26 2 293 291 26 26 8 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.103 HOUSING; CONV,A/T	8-97331-569-0	01	1	0307-0609	●
1	04.103 HOUSING; CONV,A/T	8-98056-390-0	01	1	0610-	●
1	04.103 HOUSING; CONV,A/T	8-97330-899-0	01	1	0307-		●
1	04.103 HOUSING; CONV,A/T HF V6 ENG(LCA)	8-21220-406-0	01	1	0509-			●	●
2	04.103 CASE ASM; A/T 4X2(TFB***)	8-97288-902-0	01	1	0307-0508	●
2	04.103 CASE ASM; A/T 4X2(TFB***)	8-97288-902-0	01	1	0610-0801	●
2	04.103 CASE ASM; A/T 4X2(TFB***)	8-98112-177-0	01	1	0802-	●
2	04.103 CASE ASM; A/T 4X4(TFS***)	8-97232-111-0	01	1	0307-0508	●
2	04.103 CASE ASM; A/T	8-97232-111-0	01	1	0509-0609	●
2	04.103 CASE ASM; A/T 4X4(TFS***)	8-98029-249-0	01	1	0610-0801	●
2	04.103 CASE ASM; A/T 4X4(TFS***)	8-98112-176-0	01	1	0802-	●
2	04.103 CASE ASM; A/T	8-97330-900-0	01	1	0307-0711		●
2	04.103 CASE ASM; A/T	8-97383-551-0	01	1	0712-		●
2	04.103 CASE ASM; A/T HF V6 ENG(LCA)	8-24231-452-0	01	1	0509-				●
2	04.103 CASE ASM; A/T HF V6 ENG(LCA)	8-24206-953-0	01	1	0509-			●
3	04.241 SEAL; OIL,RR COVER,A/T HF V6 ENG(LCA)	8-24204-540-0	01	1	0509-			●	●
3	04.241 SEAL; OIL,RR COVER,A/T 4X2(TFB***)	8-97184-430-0	01	1	0307-	●
3	04.241 SEAL; OIL,RR COVER,A/T 4X4(TFS***)	8-97069-465-0	01	1	0307-0508	●
3	04.241 SEAL; OIL,RR COVER,A/T	8-97069-465-0	01	1	0509-0609	●
3	04.241 SEAL; OIL,RR COVER,A/T 4X4(TFS***)	8-97069-465-0	01	1	0610-	●
3	04.241 SEAL; OIL,RR COVER,A/T 4X2(TFB***)	8-97330-910-0	01	1	0307-		●
3	04.241 SEAL; OIL,RR COVER,A/T 4X4(TFS***)	8-97330-909-0	01	1	0307-		●
4	04.115 CONVERTER ASM; TORQUE,A/T	8-97354-872-0	01	1	0307-0609	●
4	04.115 CONVERTER ASM; TORQUE,A/T AUSTRALIA EQUIPMENT(B13)	8-97330-898-0	01	1	0307-0609		●
4	04.115 CONVERTER ASM; TORQUE,A/T	8-98056-389-0	01	1	0610-	●
4	04.115 CONVERTER ASM; TORQUE,A/T EXC. AUSTRALIA EQUIPMENT(B13)	8-97368-547-0	01	1	0307-0609		●
4	04.115 CONVERTER ASM; TORQUE,A/T	8-97368-547-0	01	1	0610-		●
4	04.115 CONVERTER ASM; TORQUE,A/T HF V6 ENG(LCA)	8-24230-960-0	01	1	0509-			●	●
8	04.217 BOLT; HSG TO CASE (B) M10X35	8-90257-082-0	04	1	0307-	●
8	04.217 BOLT; HSG TO CASE (C) M12X45	8-94257-083-0	01	1	0307-0609	●
8	04.217 BOLT; HSG TO CASE (C) M12X68	8-97025-830-0	02	1	0610-	●
8	04.217 BOLT; HSG TO CASE (D) M12X45	8-97331-533-0	01	1	0307-0609	●
8	04.217 BOLT; HSG TO CASE (A) M8X35	8-97330-912-0	08	1	0307-		●
8	04.217 BOLT; HSG TO CASE HF V6 ENG(LCA) (E)	8-24203-265-0	08	1	0509-			●	●
9	04.317 COVER ASM; RR,A/T 4X2(TFB***) 04.217	8-97331-555-0	01	1	0307-0609	●
9	04.317 COVER ASM; RR,A/T 4X2(TFB***)	8-98056-398-0	01	1	0610-	●
9	04.317 COVER ASM; RR,A/T HF V6 ENG(LCA)	8-24229-218-0	01	1	0509-			●	●
9	04.317 COVER ASM; RR,A/T 4X2(TFB***) 04.217	8-97330-901-0	01	1	0307-		●
16	04.318 GASKET; EXT HSG 4X2(TFB***)	8-97032-928-0	01	1	0307-	●
16	04.318 GASKET; EXT HSG HF V6 ENG(LCA)	8-24208-660-0	01	1	0509-			●	●
17	04.319 BOLT; REAR COVER TO CASE 4X2(TFB***) (A) M10X45	8-94473-632-0	04	1	0307-0508	●
17	04.319 BOLT; REAR COVER TO CASE HF V6 ENG(LCA) (E)	8-08680-874-0	06	1	0509-			●	●
17	04.319 BOLT; REAR COVER TO CASE 4X2(TFB***) (B) M10X35	8-94479-951-0	02	1	0307-0508	●
17	04.319 BOLT; REAR COVER TO CASE 4X2(TFB***) (A) M10X45	8-94473-632-0	04	1	0610-	●
17	04.319 BOLT; REAR COVER TO CASE 4X2(TFB***) (B) M10X35	8-94479-951-0	02	1	0610-	●
17	04.319 BOLT; REAR COVER TO CASE 4X4(TFS***) (C)	8-94479-936-0	07	1	0307-0508	●
17	04.319 BOLT; REAR COVER TO CASE (C)	8-94479-936-0	07	1	0509-0609	●
17	04.319 BOLT; REAR COVER TO CASE 4X4(TFS***) (C)	8-94479-936-0	07	1	0610-	●
17	04.319 BOLT; REAR COVER TO CASE 04.217 (D) M8X35	8-97330-912-0	10	1	0307-		●
26	04.195 PLUG; TRANS CASE 04.103 (D)	5-34119-002-0	02	1	0307-	●
26	04.195 PLUG; TRANS CASE HF V6 ENG(LCA) 01.837 (A) PT1/8-27	8-00444-613-0	01	1	0509-			●	●
26	04.195 PLUG; TRANS CASE HF V6 ENG(LCA) 04.052 (B)	8-24205-102-0	02	1	0509-			●	●
26	04.195 PLUG; TRANS CASE HF V6 ENG(LCA) 04.105 (C)	8-24205-899-0	01	1	0509-			●	●
38	04.226 GASKET; OIL PUMP,A/T (C)	8-94479-748-0	01	1	0307-	●
38	04.226 GASKET; OIL PUMP,A/T (A)	8-97330-985-0	01	1	0307-		●
38	04.226 GASKET; OIL PUMP,A/T (B)	8-97330-986-0	01	1	0307-		●
38	04.226 GASKET; OIL PUMP,A/T HF V6 ENG(LCA) (D)	8-12337-931-0	01	1	0509-			●	●
41	04.226 BOLT; OIL PUMP HSG,A/T (A) M8X35	8-94479-749-0	07	1	0307-	●
41	04.226 BOLT; OIL PUMP HSG,A/T (B) M6X15.5	8-97019-532-0	13	1	0307-	●
41	04.226 BOLT; OIL PUMP HSG,A/T (C) M8X45 FLANGE	8-97330-913-0	08	1	0307-		●
41	04.226 BOLT; OIL PUMP HSG,A/T (D) M6X25 FLANGE	8-97331-123-0	08	1	0307-		●
41	04.226 BOLT; OIL PUMP HSG,A/T HF V6 ENG(LCA) (E)	8-24233-361-0	07	1	0509-			●	●
116	04.105 COVER; TRANS CASE HF V6 ENG(LCA)	8-24205-900-0	01	1	0509-			●	●
157	04.166 SEAL; GASKET,OIL PUMP,A/T HF V6 ENG(LCA) (A)	8-24208-664-0	07	1	0509-			●	●
157	04.166 SEAL; GASKET,OIL PUMP,A/T HF V6 ENG(LCA) (B)	8-24226-315-0	01	1	0509-			●	●
174	04.205 VALVE; CHECK HF V6 ENG(LCA) 04.105 (A)	8-08628-864-0	01	1	0509-			●	●
174	04.205 VALVE; CHECK HF V6 ENG(LCA) (B)	8-08634-400-0	01	1	0509-			●	●
174	04.205 VALVE; CHECK HF V6 ENG(LCA) (C)	8-08663-890-0	03	1	0509-			●	●
178	04.052 PIN; LOCKOUT HF V6 ENG(LCA)	8-08654-581-0	01	1	0509-			●	●
291	04.109 ORIFICE; CASE,A/T HF V6 ENG(LCA) 04.105 (A)	8-08628-864-0	01	1	0509-			●	●
291	04.109 ORIFICE; CASE,A/T HF V6 ENG(LCA) (B)	8-08663-707-0	01	1	0509-			●	●
293	04.205 PIPE; VENT HF V6 ENG(LCA)	8-24202-440-0	01	1	0509-			●	●
317	04.104 BUSHING; OUTPUT SHAFT HF V6 ENG(LCA) (A)	8-08680-027-0	01	1	0509-			●	●
317	04.104 BUSHING; OUTPUT SHAFT HF V6 ENG(LCA) (B)	8-24229-217-0	01	1	0509-			●	●
358	04.343 SENSOR; SPEEDO HF V6 ENG(LCA)	8-24225-896-0	01	1	0509-			●	●
383	04.302 BOLT; TORQUE CONVERTER HF V6 ENG(LCA) 04.008	8-11588-468-0	03	1	0509-			●	●
408	04.329 GASKET; SPEED SENSOR HF V6 ENG(LCA)	8-10475-299-0	01	1	0509-			●	●
409	04.329 BOLT; SPEED SENSOR HF V6 ENG(LCA)	8-24200-093-0	01	1	0509-			●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
