2-40B — AUTO TRANS ASM AND REPAIR KIT (#20417) — 121 parça

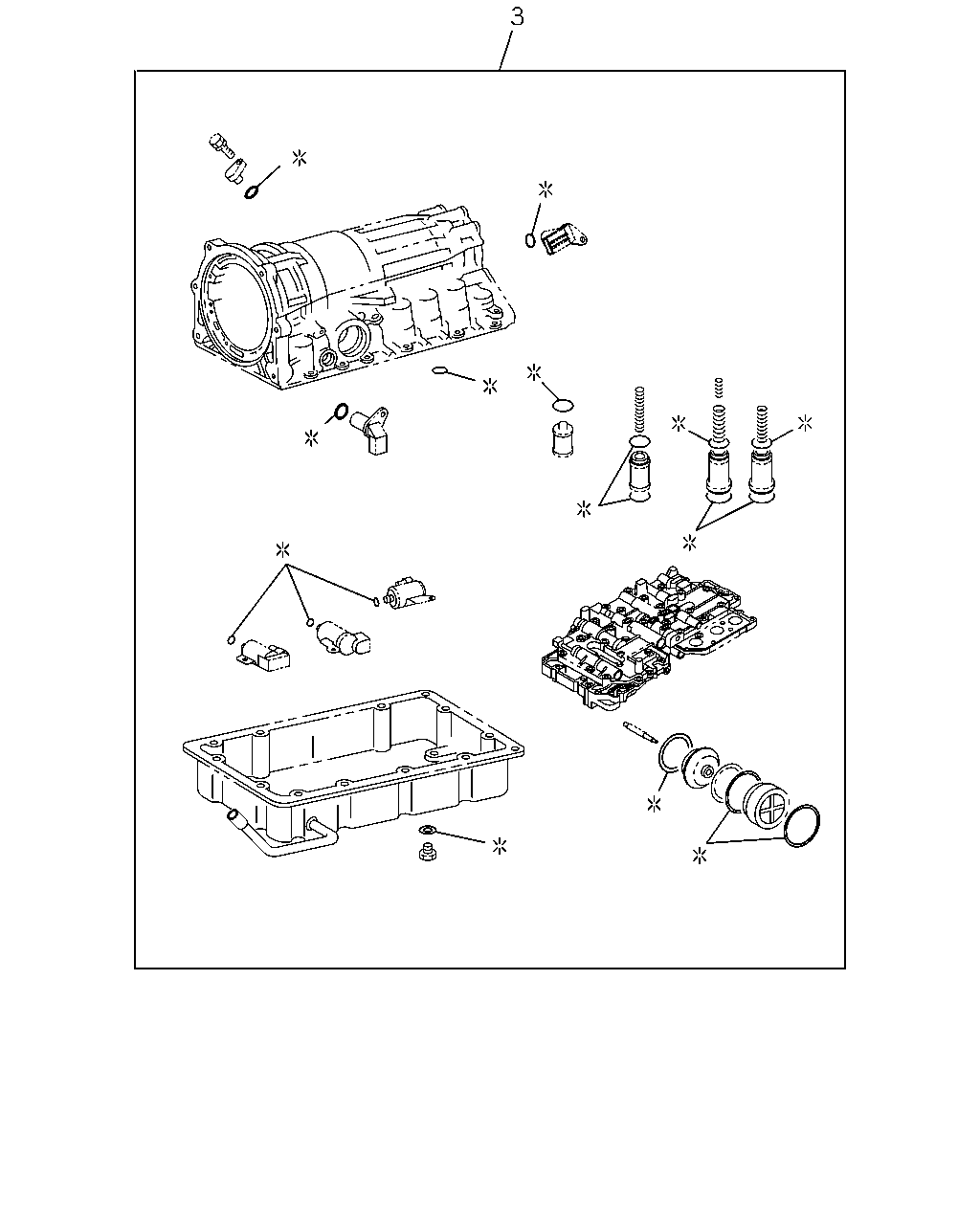

çizim 11912
3
BalonParca AdiParca NoAdetTipApplied Date A B C D
3 04.005 REPAIR KIT; SEAL & GASKET,A/T
4X2(TFB***) 		8-97357-970-0 01 1 0307-0508 ●
3 04.005 REPAIR KIT; SEAL & GASKET,A/T
4X2(TFB***) 		8-98056-510-0 01 1 0610- ●
3 04.005 REPAIR KIT; SEAL & GASKET,A/T
4X4(TFS***) 		8-97357-971-0 01 1 0307-0508 ●
3 04.005 REPAIR KIT; SEAL & GASKET,A/T 8-97357-971-0 01 1 0509-0609 ●
3 04.005 REPAIR KIT; SEAL & GASKET,A/T
4X4(TFS***) 		8-98056-511-0 01 1 0610- ●
3 04.005 REPAIR KIT; SEAL & GASKET,A/T
4X2(TFB***) 		8-97330-894-0 01 1 0307- ●
3 04.005 REPAIR KIT; SEAL & GASKET,A/T
4X4(TFS***) 		8-97358-240-0 01 1 0307- ●

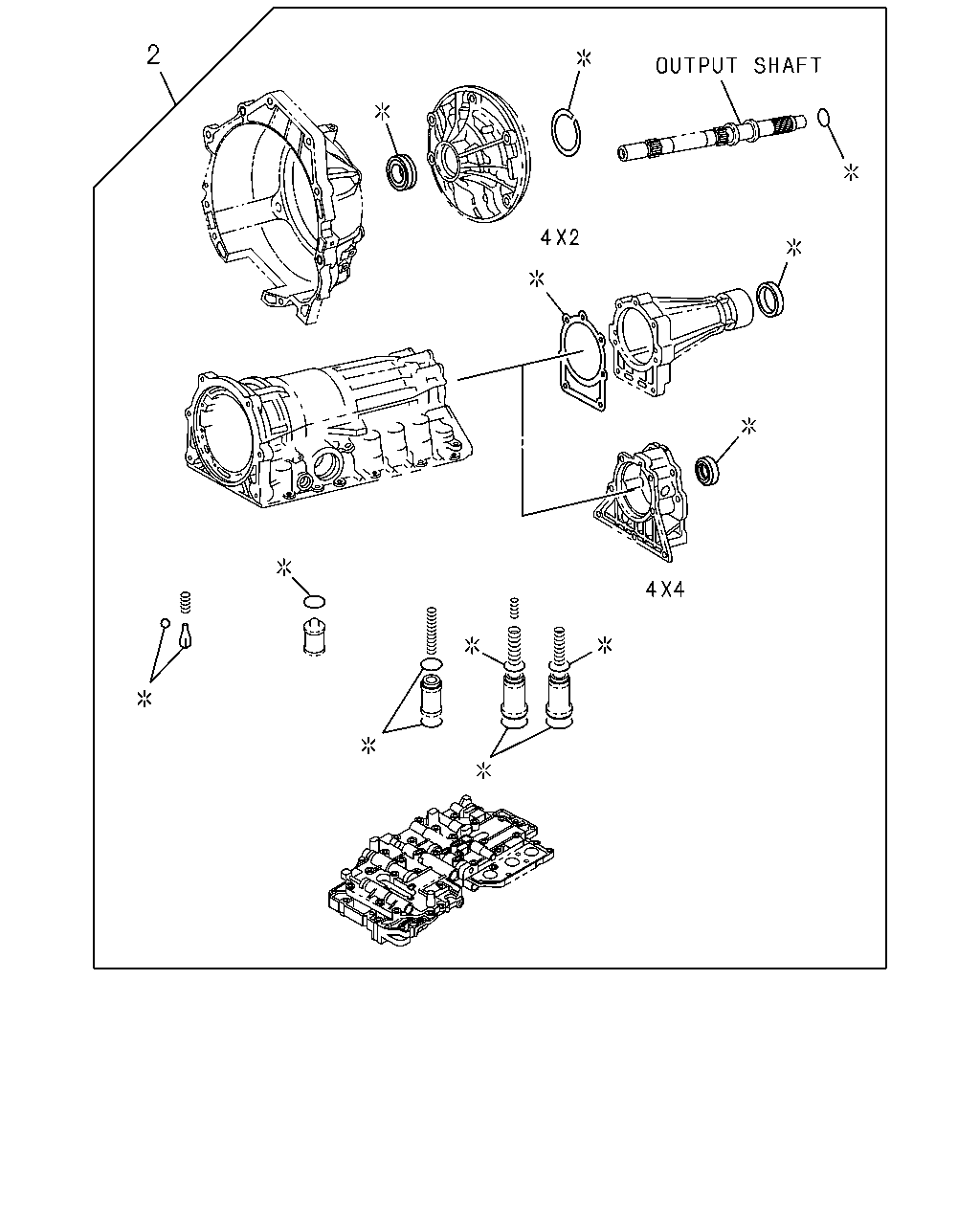

çizim 12598
2
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 04.005 REPAIR KIT; A/T
4X2(TFB***) 		8-97357-968-0 01 1 0307-0508 ●
2 04.005 REPAIR KIT; A/T
HF V6 ENG(LCA) 		8-24221-347-0 01 1 0509- ● ●
2 04.005 REPAIR KIT; A/T
4X2(TFB***) 		8-98056-508-0 01 1 0610- ●
2 04.005 REPAIR KIT; A/T
4X4(TFS***) 		8-97357-969-0 01 1 0307-0508 ●
2 04.005 REPAIR KIT; A/T 8-97357-969-0 01 1 0509-0609 ●
2 04.005 REPAIR KIT; A/T
4X4(TFS***) 		8-98056-509-0 01 1 0610- ●
çizim 12692
3
BalonParca AdiParca NoAdetTipApplied Date A B C D
3 04.005 REPAIR KIT; SEAL & GASKET,A/T
4X2(TFB***) 		8-97357-970-0 01 1 0307-0508 ●
3 04.005 REPAIR KIT; SEAL & GASKET,A/T
4X2(TFB***) 		8-98056-510-0 01 1 0610- ●
3 04.005 REPAIR KIT; SEAL & GASKET,A/T
4X4(TFS***) 		8-97357-971-0 01 1 0307-0508 ●
3 04.005 REPAIR KIT; SEAL & GASKET,A/T 8-97357-971-0 01 1 0509-0609 ●
3 04.005 REPAIR KIT; SEAL & GASKET,A/T
4X4(TFS***) 		8-98056-511-0 01 1 0610- ●
3 04.005 REPAIR KIT; SEAL & GASKET,A/T
4X2(TFB***) 		8-97330-894-0 01 1 0307- ●
3 04.005 REPAIR KIT; SEAL & GASKET,A/T
4X4(TFS***) 		8-97358-240-0 01 1 0307- ●

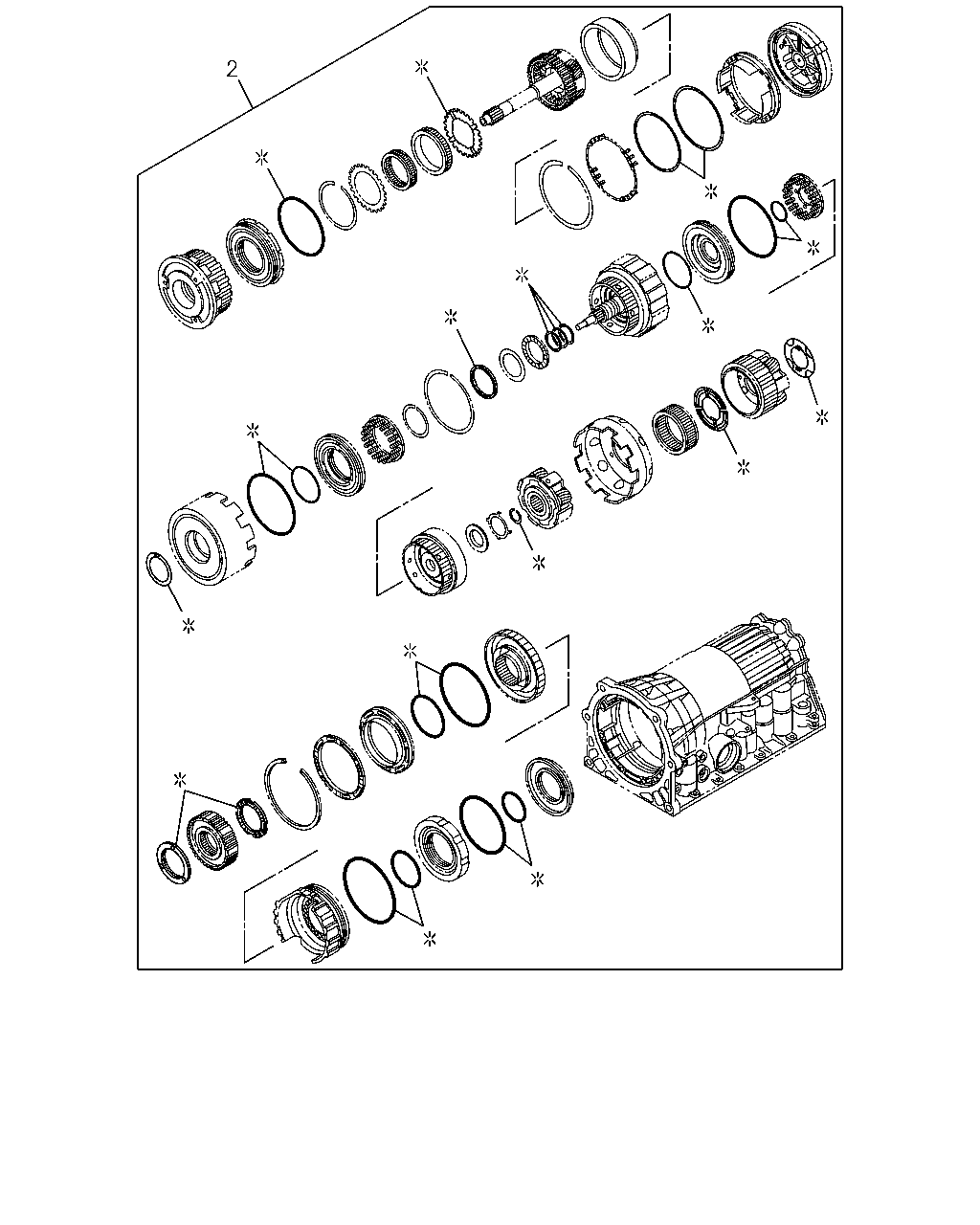

çizim 12693
2
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 04.005 REPAIR KIT; A/T
4X2(TFB***) 		8-97357-968-0 01 1 0307-0508 ●
2 04.005 REPAIR KIT; A/T
HF V6 ENG(LCA) 		8-24221-347-0 01 1 0509- ● ●
2 04.005 REPAIR KIT; A/T
4X2(TFB***) 		8-98056-508-0 01 1 0610- ●
2 04.005 REPAIR KIT; A/T
4X4(TFS***) 		8-97357-969-0 01 1 0307-0508 ●
2 04.005 REPAIR KIT; A/T 8-97357-969-0 01 1 0509-0609 ●
2 04.005 REPAIR KIT; A/T
4X4(TFS***) 		8-98056-509-0 01 1 0610- ●

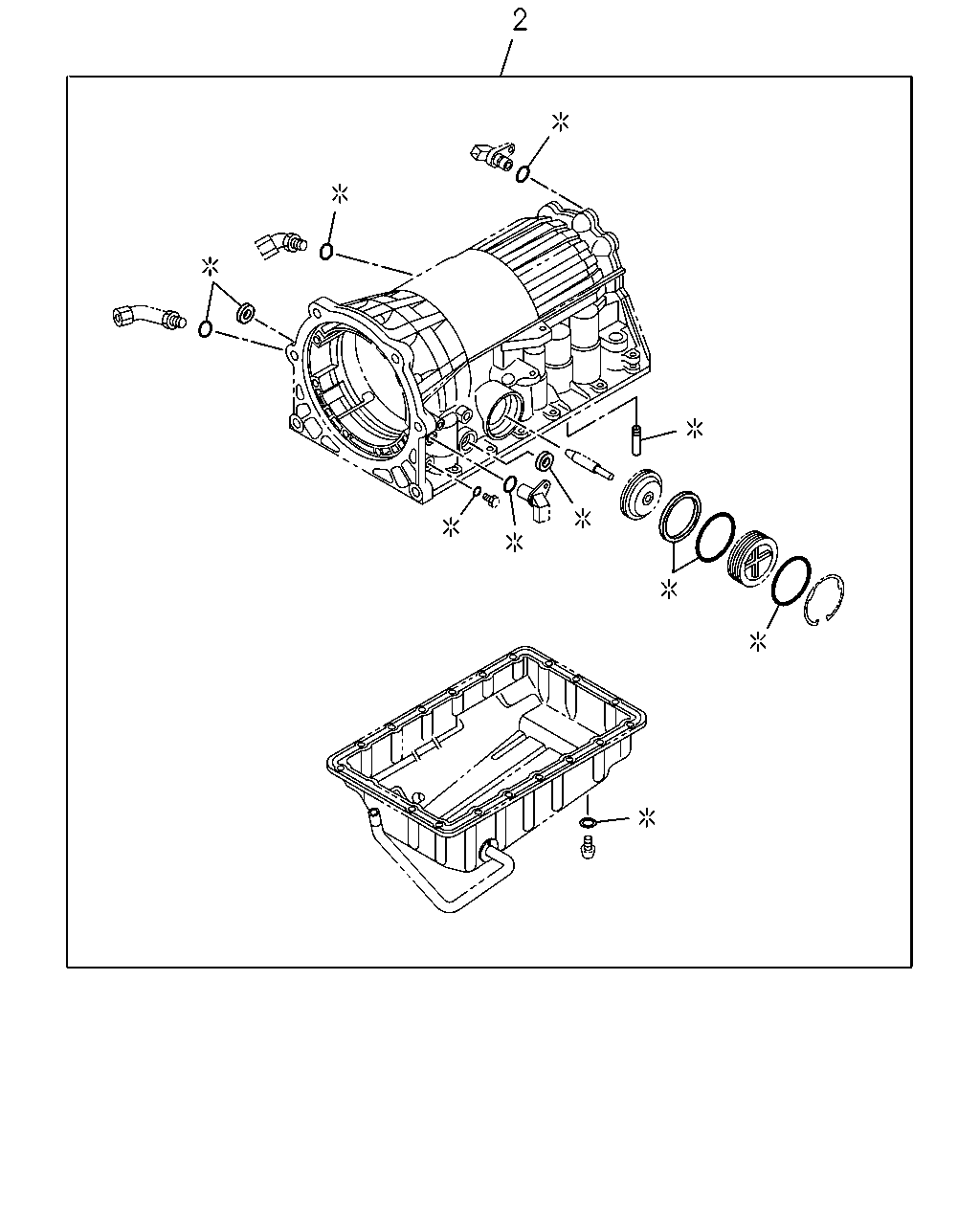

çizim 12694
2
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 04.005 REPAIR KIT; A/T
4X2(TFB***) 		8-97357-968-0 01 1 0307-0508 ●
2 04.005 REPAIR KIT; A/T
HF V6 ENG(LCA) 		8-24221-347-0 01 1 0509- ● ●
2 04.005 REPAIR KIT; A/T
4X2(TFB***) 		8-98056-508-0 01 1 0610- ●
2 04.005 REPAIR KIT; A/T
4X4(TFS***) 		8-97357-969-0 01 1 0307-0508 ●
2 04.005 REPAIR KIT; A/T 8-97357-969-0 01 1 0509-0609 ●
2 04.005 REPAIR KIT; A/T
4X4(TFS***) 		8-98056-509-0 01 1 0610- ●

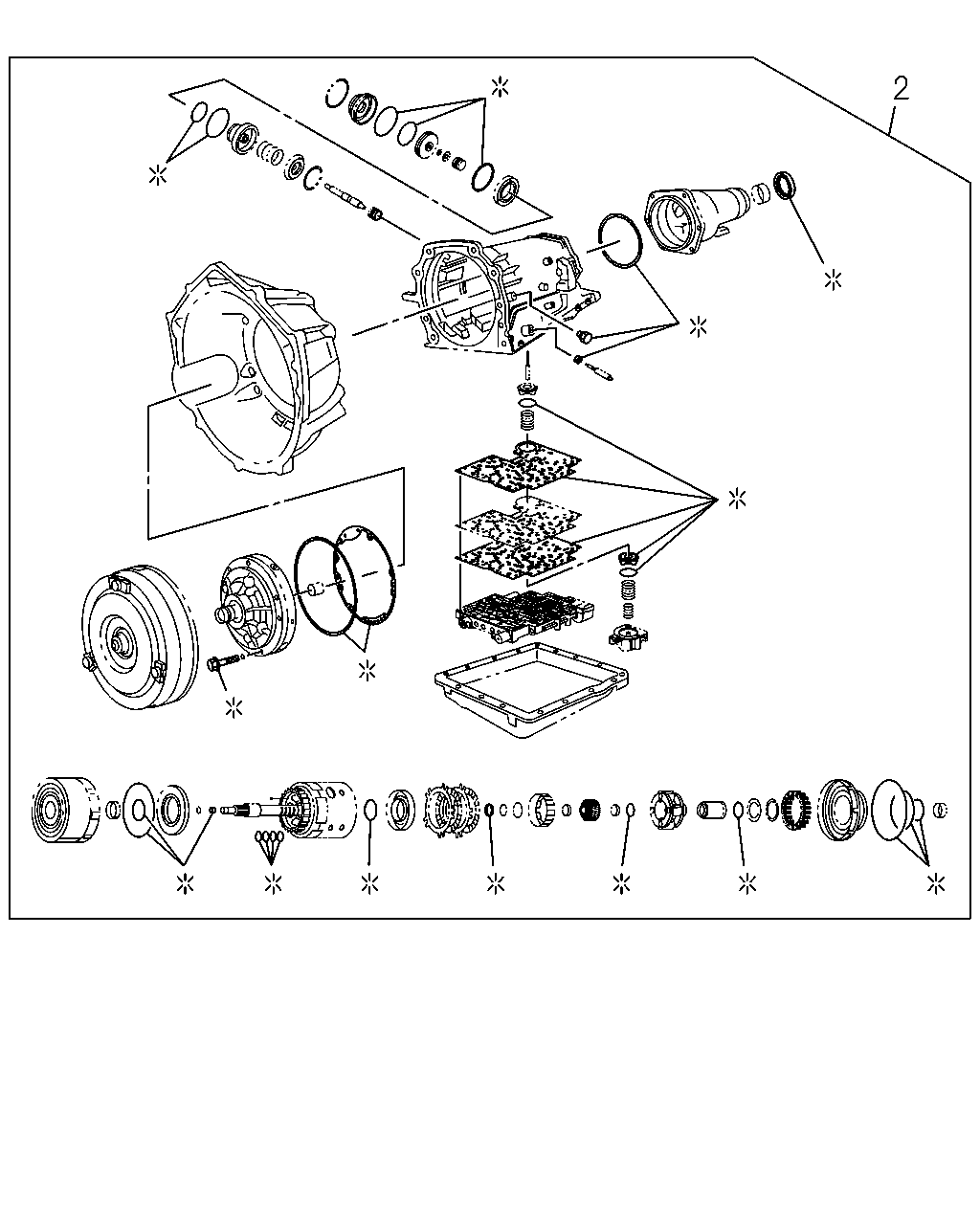

çizim 12897
2
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 04.005 REPAIR KIT; A/T
4X2(TFB***) 		8-97357-968-0 01 1 0307-0508 ●
2 04.005 REPAIR KIT; A/T
HF V6 ENG(LCA) 		8-24221-347-0 01 1 0509- ● ●
2 04.005 REPAIR KIT; A/T
4X2(TFB***) 		8-98056-508-0 01 1 0610- ●
2 04.005 REPAIR KIT; A/T
4X4(TFS***) 		8-97357-969-0 01 1 0307-0508 ●
2 04.005 REPAIR KIT; A/T 8-97357-969-0 01 1 0509-0609 ●
2 04.005 REPAIR KIT; A/T
4X4(TFS***) 		8-98056-509-0 01 1 0610- ●

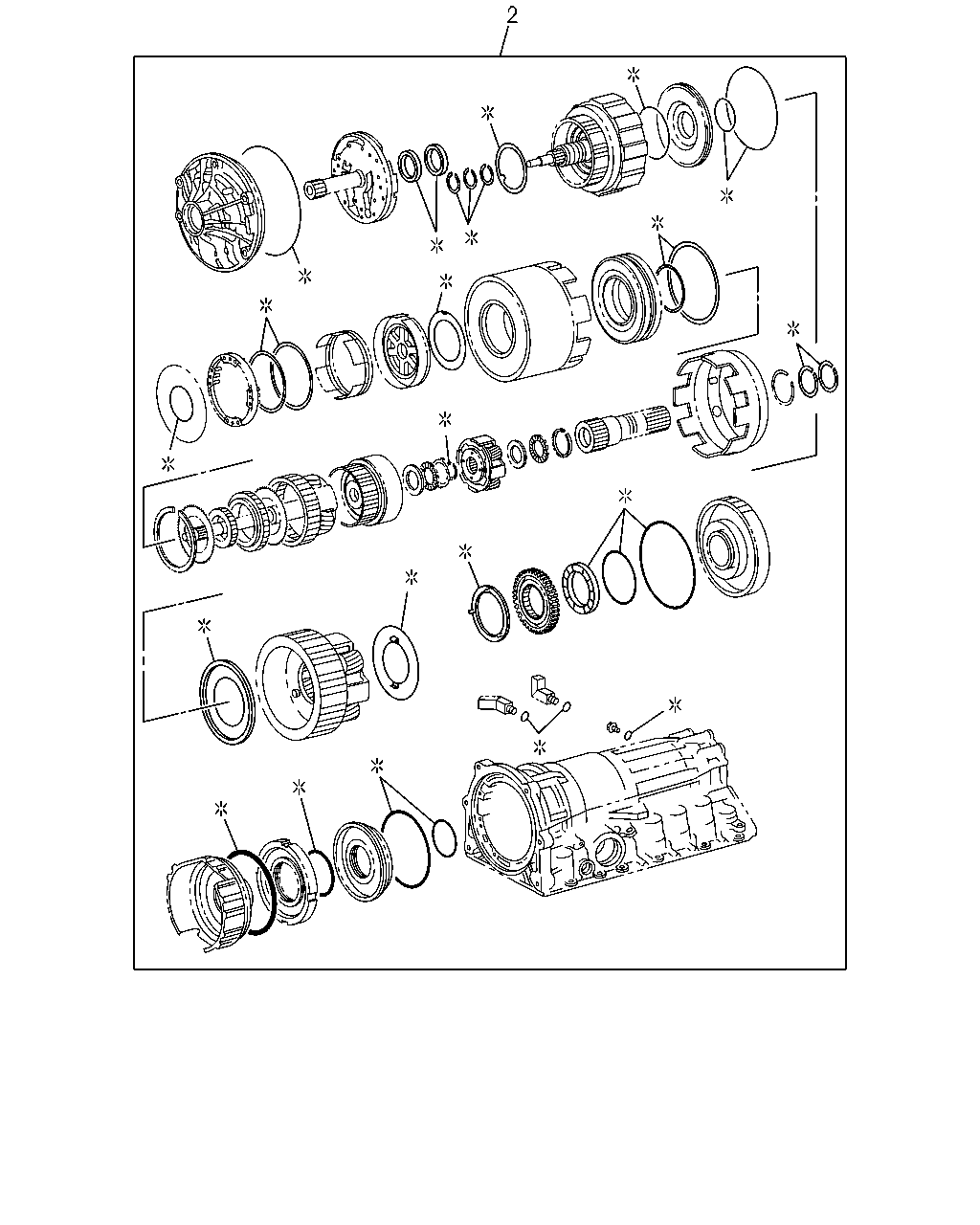

çizim 13033
2
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 04.005 REPAIR KIT; A/T
4X2(TFB***) 		8-97357-968-0 01 1 0307-0508 ●
2 04.005 REPAIR KIT; A/T
HF V6 ENG(LCA) 		8-24221-347-0 01 1 0509- ● ●
2 04.005 REPAIR KIT; A/T
4X2(TFB***) 		8-98056-508-0 01 1 0610- ●
2 04.005 REPAIR KIT; A/T
4X4(TFS***) 		8-97357-969-0 01 1 0307-0508 ●
2 04.005 REPAIR KIT; A/T 8-97357-969-0 01 1 0509-0609 ●
2 04.005 REPAIR KIT; A/T
4X4(TFS***) 		8-98056-509-0 01 1 0610- ●
çizim 13055
2
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 04.005 REPAIR KIT; A/T
4X2(TFB***) 		8-97357-968-0 01 1 0307-0508 ●
2 04.005 REPAIR KIT; A/T
HF V6 ENG(LCA) 		8-24221-347-0 01 1 0509- ● ●
2 04.005 REPAIR KIT; A/T
4X2(TFB***) 		8-98056-508-0 01 1 0610- ●
2 04.005 REPAIR KIT; A/T
4X4(TFS***) 		8-97357-969-0 01 1 0307-0508 ●
2 04.005 REPAIR KIT; A/T 8-97357-969-0 01 1 0509-0609 ●
2 04.005 REPAIR KIT; A/T
4X4(TFS***) 		8-98056-509-0 01 1 0610- ●

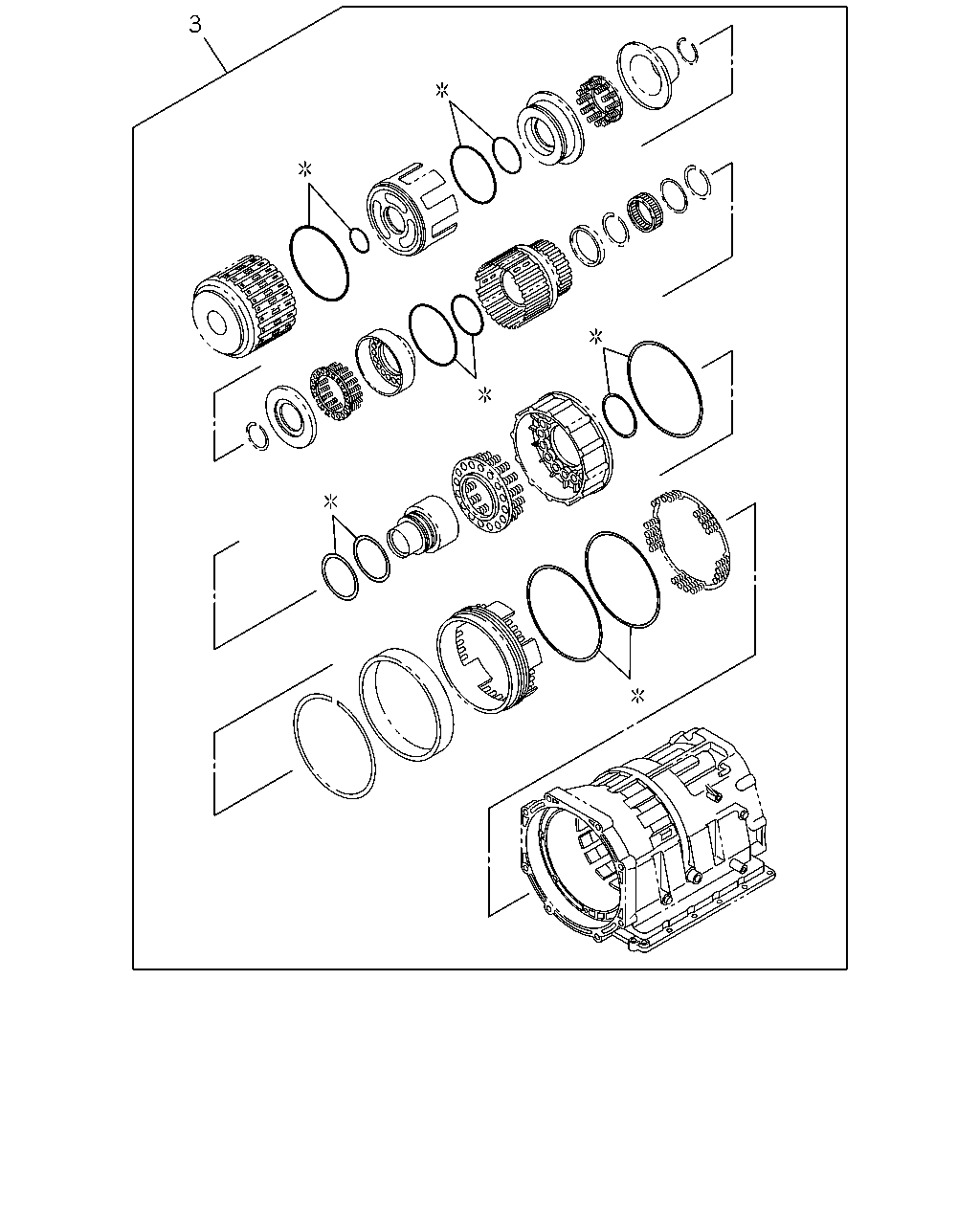

çizim 13089
3
BalonParca AdiParca NoAdetTipApplied Date A B C D
3 04.005 REPAIR KIT; SEAL & GASKET,A/T
4X2(TFB***) 		8-97357-970-0 01 1 0307-0508 ●
3 04.005 REPAIR KIT; SEAL & GASKET,A/T
4X2(TFB***) 		8-98056-510-0 01 1 0610- ●
3 04.005 REPAIR KIT; SEAL & GASKET,A/T
4X4(TFS***) 		8-97357-971-0 01 1 0307-0508 ●
3 04.005 REPAIR KIT; SEAL & GASKET,A/T 8-97357-971-0 01 1 0509-0609 ●
3 04.005 REPAIR KIT; SEAL & GASKET,A/T
4X4(TFS***) 		8-98056-511-0 01 1 0610- ●
3 04.005 REPAIR KIT; SEAL & GASKET,A/T
4X2(TFB***) 		8-97330-894-0 01 1 0307- ●
3 04.005 REPAIR KIT; SEAL & GASKET,A/T
4X4(TFS***) 		8-97358-240-0 01 1 0307- ●

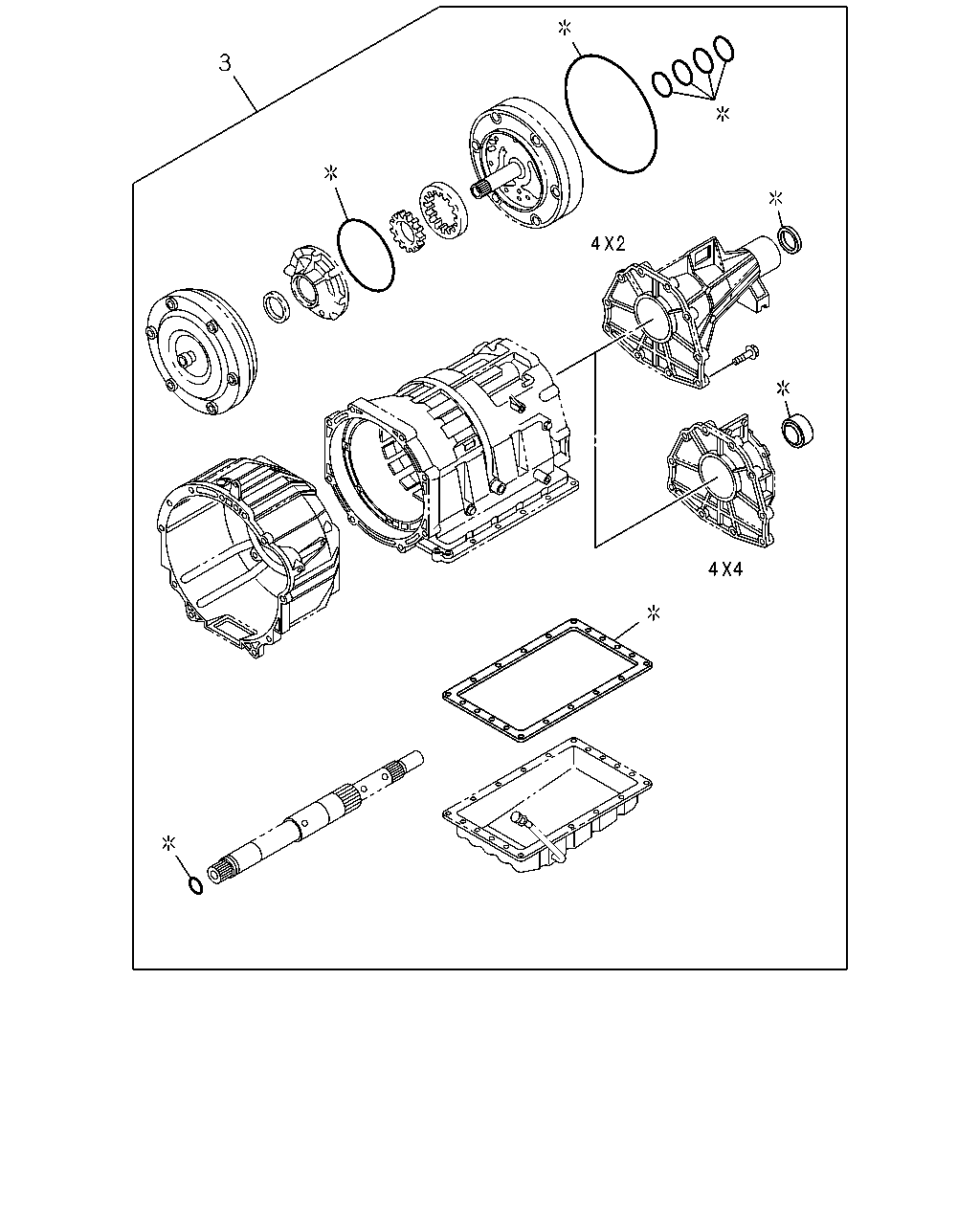

çizim 13319
3
BalonParca AdiParca NoAdetTipApplied Date A B C D
3 04.005 REPAIR KIT; SEAL & GASKET,A/T
4X2(TFB***) 		8-97357-970-0 01 1 0307-0508 ●
3 04.005 REPAIR KIT; SEAL & GASKET,A/T
4X2(TFB***) 		8-98056-510-0 01 1 0610- ●
3 04.005 REPAIR KIT; SEAL & GASKET,A/T
4X4(TFS***) 		8-97357-971-0 01 1 0307-0508 ●
3 04.005 REPAIR KIT; SEAL & GASKET,A/T 8-97357-971-0 01 1 0509-0609 ●
3 04.005 REPAIR KIT; SEAL & GASKET,A/T
4X4(TFS***) 		8-98056-511-0 01 1 0610- ●
3 04.005 REPAIR KIT; SEAL & GASKET,A/T
4X2(TFB***) 		8-97330-894-0 01 1 0307- ●
3 04.005 REPAIR KIT; SEAL & GASKET,A/T
4X4(TFS***) 		8-97358-240-0 01 1 0307- ●

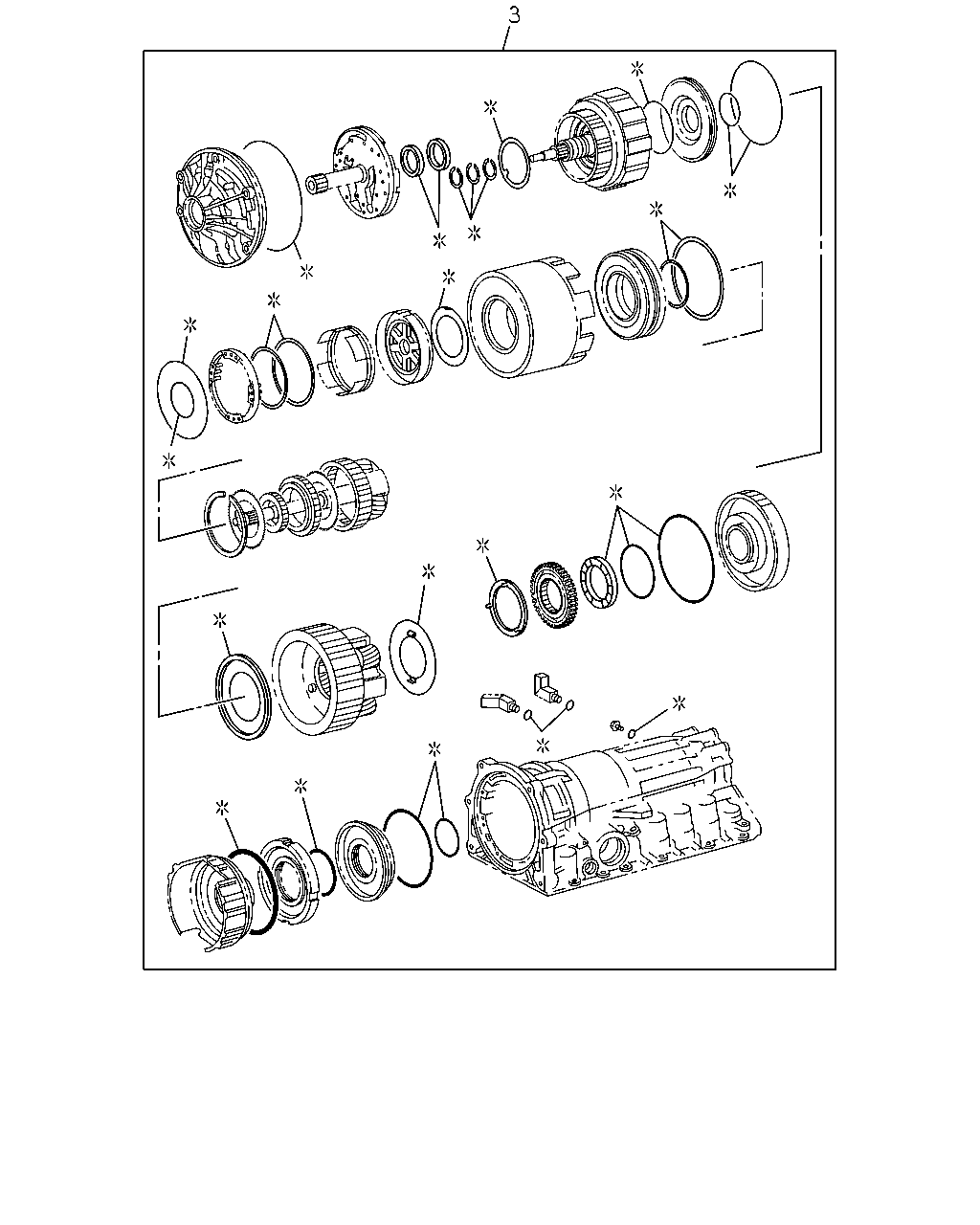

çizim 13899
3
BalonParca AdiParca NoAdetTipApplied Date A B C D
3 04.005 REPAIR KIT; SEAL & GASKET,A/T
4X2(TFB***) 		8-97357-970-0 01 1 0307-0508 ●
3 04.005 REPAIR KIT; SEAL & GASKET,A/T
4X2(TFB***) 		8-98056-510-0 01 1 0610- ●
3 04.005 REPAIR KIT; SEAL & GASKET,A/T
4X4(TFS***) 		8-97357-971-0 01 1 0307-0508 ●
3 04.005 REPAIR KIT; SEAL & GASKET,A/T 8-97357-971-0 01 1 0509-0609 ●
3 04.005 REPAIR KIT; SEAL & GASKET,A/T
4X4(TFS***) 		8-98056-511-0 01 1 0610- ●
3 04.005 REPAIR KIT; SEAL & GASKET,A/T
4X2(TFB***) 		8-97330-894-0 01 1 0307- ●
3 04.005 REPAIR KIT; SEAL & GASKET,A/T
4X4(TFS***) 		8-97358-240-0 01 1 0307- ●

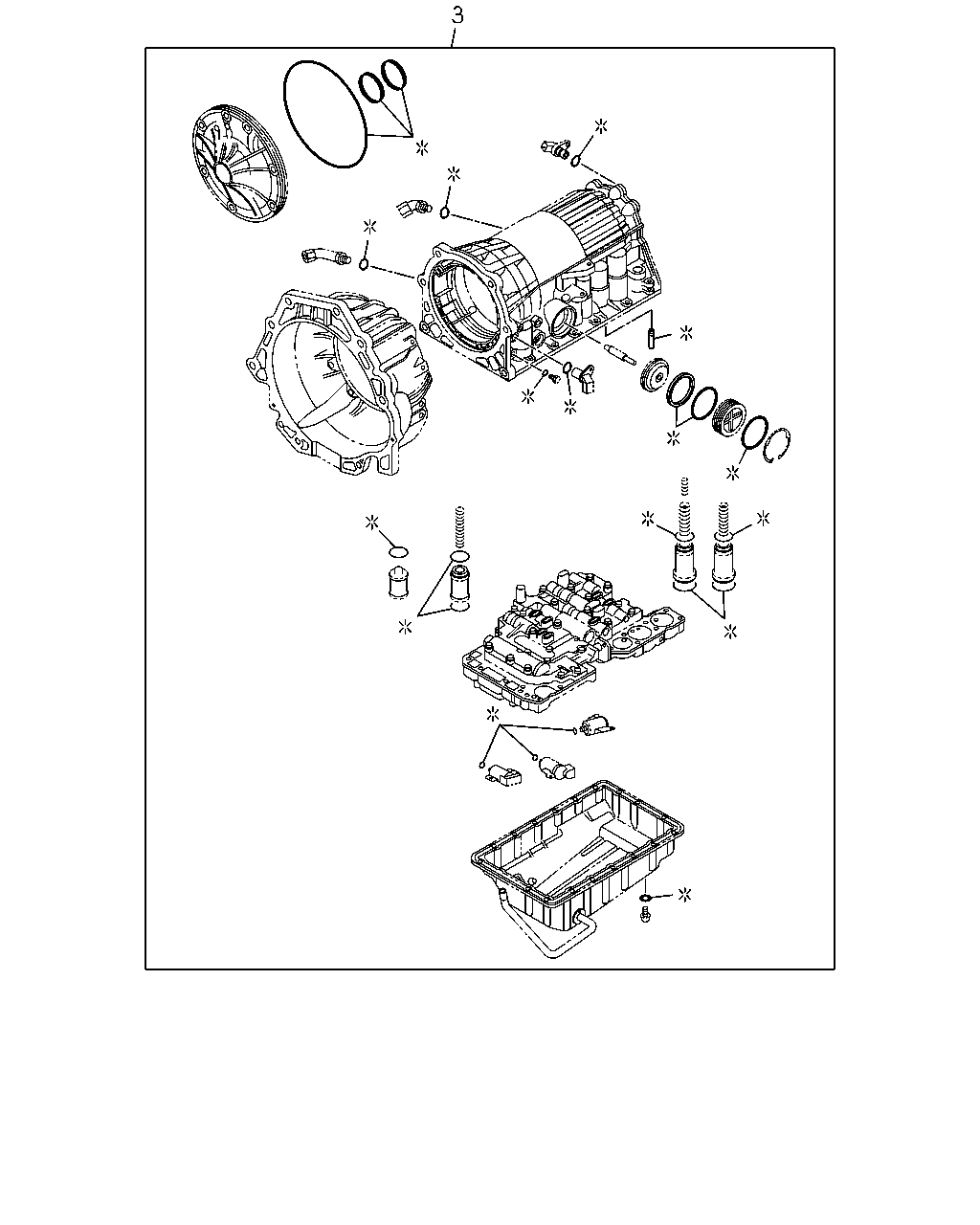

çizim 14079
3
BalonParca AdiParca NoAdetTipApplied Date A B C D
3 04.005 REPAIR KIT; SEAL & GASKET,A/T
4X2(TFB***) 		8-97357-970-0 01 1 0307-0508 ●
3 04.005 REPAIR KIT; SEAL & GASKET,A/T
4X2(TFB***) 		8-98056-510-0 01 1 0610- ●
3 04.005 REPAIR KIT; SEAL & GASKET,A/T
4X4(TFS***) 		8-97357-971-0 01 1 0307-0508 ●
3 04.005 REPAIR KIT; SEAL & GASKET,A/T 8-97357-971-0 01 1 0509-0609 ●
3 04.005 REPAIR KIT; SEAL & GASKET,A/T
4X4(TFS***) 		8-98056-511-0 01 1 0610- ●
3 04.005 REPAIR KIT; SEAL & GASKET,A/T
4X2(TFB***) 		8-97330-894-0 01 1 0307- ●
3 04.005 REPAIR KIT; SEAL & GASKET,A/T
4X4(TFS***) 		8-97358-240-0 01 1 0307- ●

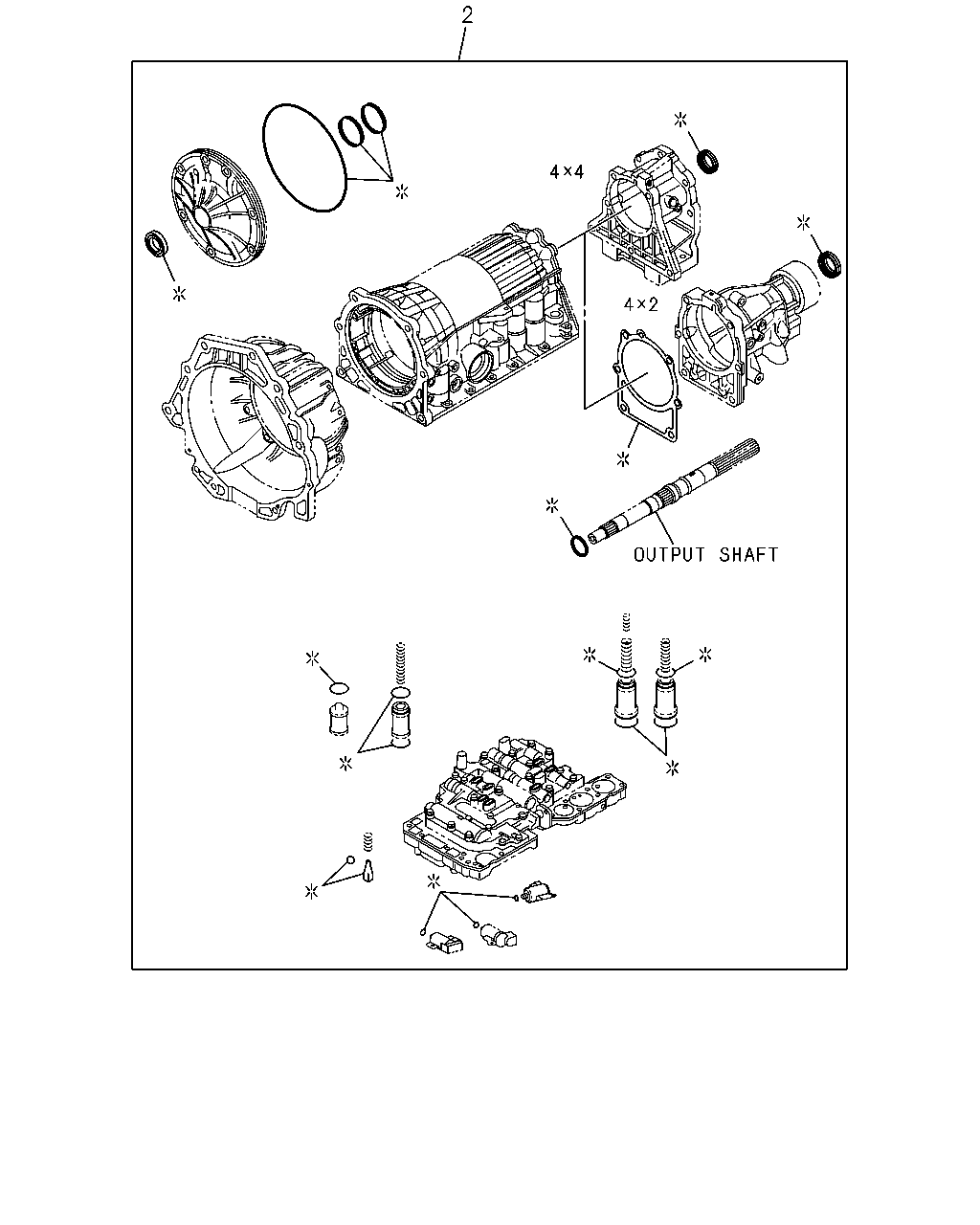

çizim 53854
2
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 04.005 REPAIR KIT; A/T
4X2(TFB***) 		8-97357-968-0 01 1 0307-0508 ●
2 04.005 REPAIR KIT; A/T
HF V6 ENG(LCA) 		8-24221-347-0 01 1 0509- ● ●
2 04.005 REPAIR KIT; A/T
4X2(TFB***) 		8-98056-508-0 01 1 0610- ●
2 04.005 REPAIR KIT; A/T
4X4(TFS***) 		8-97357-969-0 01 1 0307-0508 ●
2 04.005 REPAIR KIT; A/T 8-97357-969-0 01 1 0509-0609 ●
2 04.005 REPAIR KIT; A/T
4X4(TFS***) 		8-98056-509-0 01 1 0610- ●

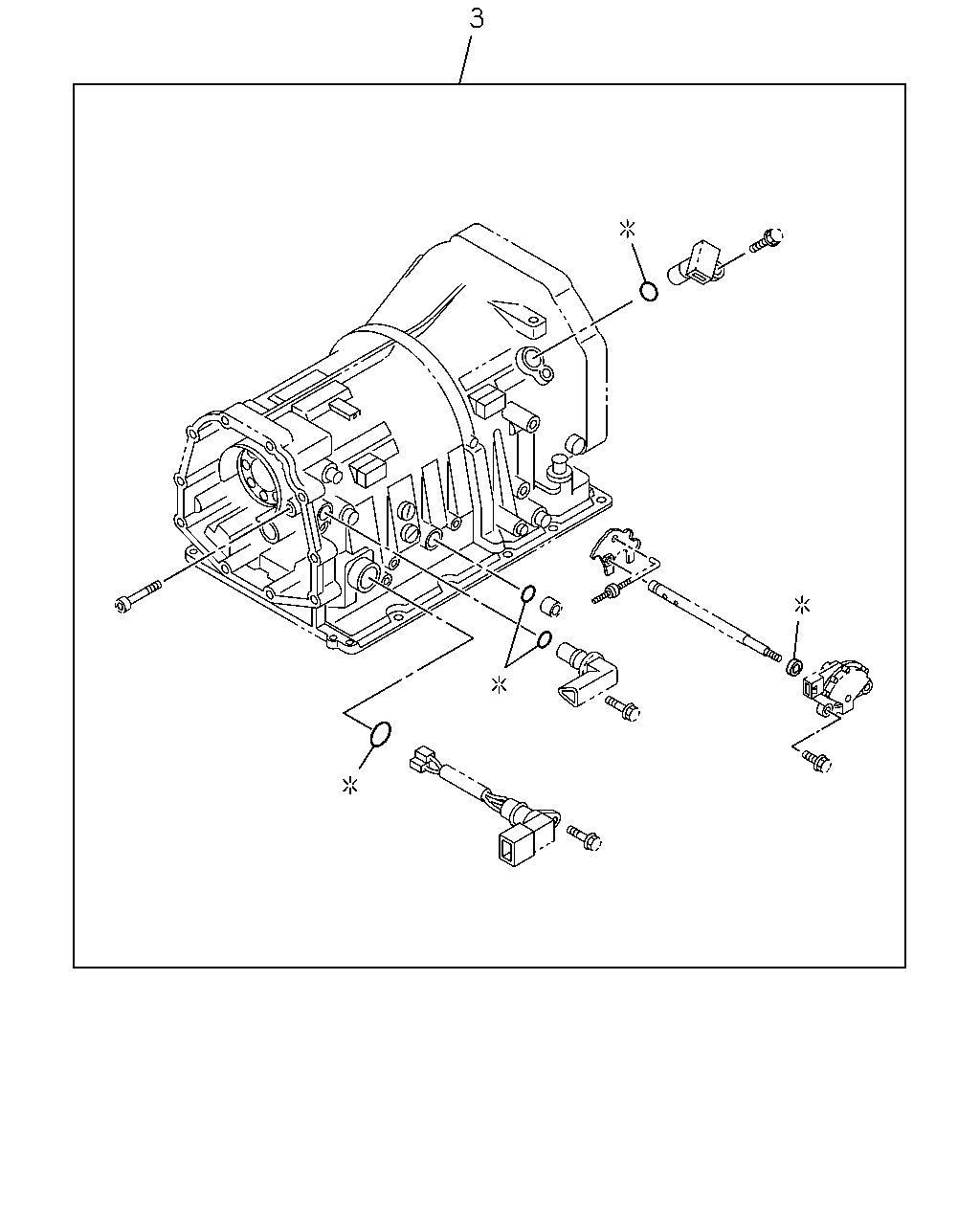

çizim 55093
3
BalonParca AdiParca NoAdetTipApplied Date A B C D
3 04.005 REPAIR KIT; SEAL & GASKET,A/T
4X2(TFB***) 		8-97357-970-0 01 1 0307-0508 ●
3 04.005 REPAIR KIT; SEAL & GASKET,A/T
4X2(TFB***) 		8-98056-510-0 01 1 0610- ●
3 04.005 REPAIR KIT; SEAL & GASKET,A/T
4X4(TFS***) 		8-97357-971-0 01 1 0307-0508 ●
3 04.005 REPAIR KIT; SEAL & GASKET,A/T 8-97357-971-0 01 1 0509-0609 ●
3 04.005 REPAIR KIT; SEAL & GASKET,A/T
4X4(TFS***) 		8-98056-511-0 01 1 0610- ●
3 04.005 REPAIR KIT; SEAL & GASKET,A/T
4X2(TFB***) 		8-97330-894-0 01 1 0307- ●
3 04.005 REPAIR KIT; SEAL & GASKET,A/T
4X4(TFS***) 		8-97358-240-0 01 1 0307- ●

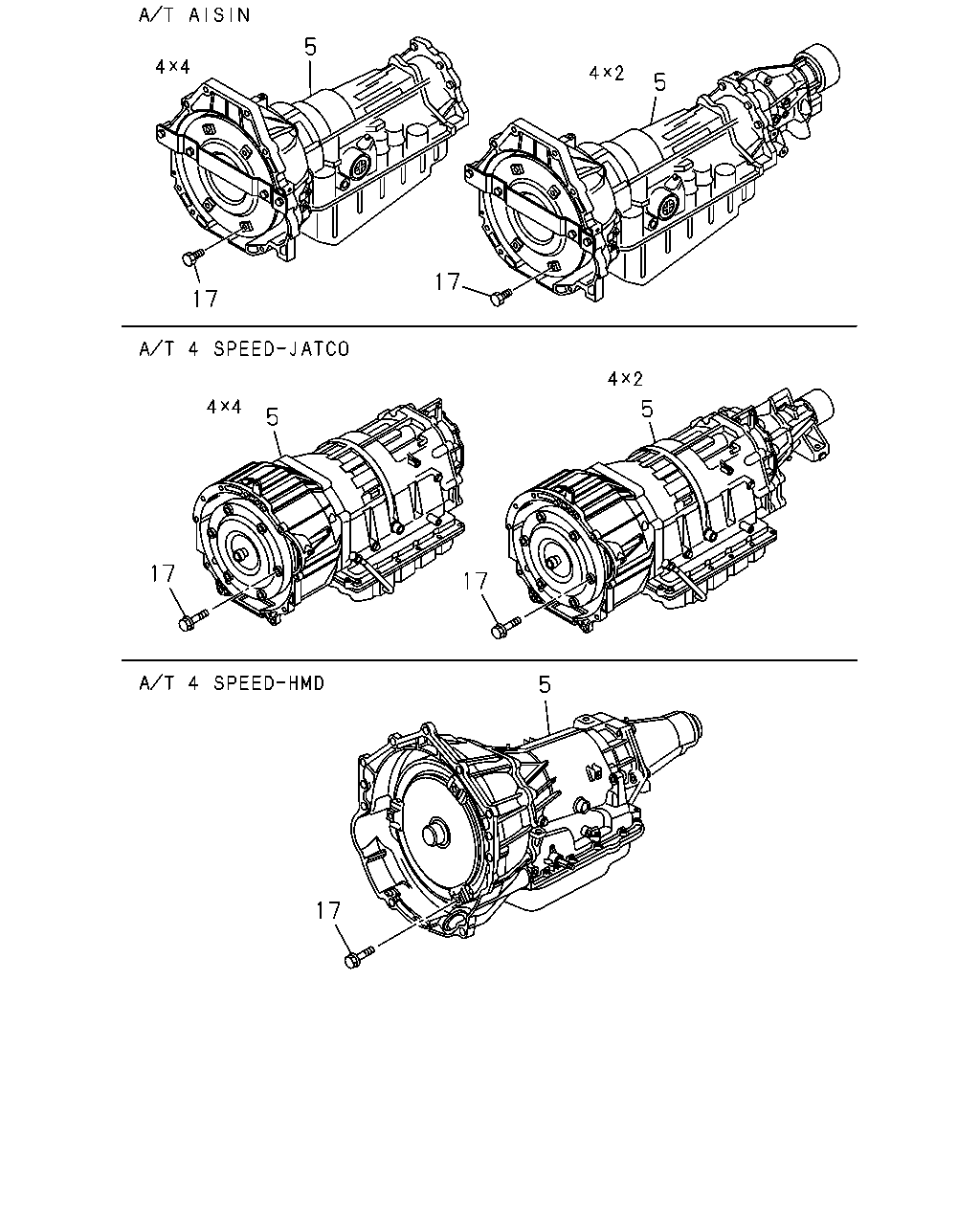

çizim 55929
5 17 5 17 17 5 17 5 17 5
BalonParca AdiParca NoAdetTipApplied Date A B C D
5 04.003 TRANSMISSION ASM; AUTO
4X2(TFB***) 		8-97215-824-1 01 1 0307-0508 ●
5 04.003 TRANSMISSION ASM; AUTO
HF V6 ENG(LCA) 		8-24225-031-0 01 1 0509-0702 ●
5 04.003 TRANSMISSION ASM; AUTO
HF V6 ENG(LCA) 		8-24237-246-0 01 1 0703- ●
5 04.003 TRANSMISSION ASM; AUTO
4X4(TFS***) 		8-97236-623-1 01 1 0307-0508 ●
5 04.003 TRANSMISSION ASM; AUTO 8-97236-623-1 01 1 0509-0609 ●
5 04.003 TRANSMISSION ASM; AUTO
4X4(TFS***) 		8-98004-910-0 01 1 0610-0801 ●
5 04.003 TRANSMISSION ASM; AUTO
4X4(TFS***) 		8-98054-818-0 01 1 0802- ●
5 04.003 TRANSMISSION ASM; AUTO
4X2(TFB***) AUSTRALIA EQUIPMENT(B13) 		8-97306-924-0 01 1 0307-0609 ●
5 04.003 TRANSMISSION ASM; AUTO
4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) 		8-98032-671-0 01 1 0610-0709 ●
5 04.003 TRANSMISSION ASM; AUTO
4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) AUSTRALIA EQUIPMENT(B13) 		8-98032-671-0 01 1 0610-0709 ●
5 04.003 TRANSMISSION ASM; AUTO
4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) HIGH RIDE SUSPENSION(7YC) 		8-98032-671-0 01 1 0710-0801 ●
5 04.003 TRANSMISSION ASM; AUTO
4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) AUSTRALIA EQUIPMENT(B13) HIGH RIDE SUSPENSION(7YC) 		8-98032-671-0 01 1 0710-0801 ●
5 04.003 TRANSMISSION ASM; AUTO
4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) HIGH RIDE SUSPENSION(7YC) 		8-98054-817-0 01 1 0802- ●
5 04.003 TRANSMISSION ASM; AUTO
4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) AUSTRALIA EQUIPMENT(B13) HIGH RIDE SUSPENSION(7YC) 		8-98054-817-0 01 1 0802- ●
5 04.003 TRANSMISSION ASM; AUTO
4X2(TFB***) EXC. AUSTRALIA EQUIPMENT(B13) 		8-97355-190-0 01 1 0307-0609 ●
5 04.003 TRANSMISSION ASM; AUTO
4X2(TFB***) 		8-97355-190-0 01 1 0610-0711 ●
5 04.003 TRANSMISSION ASM; AUTO
4X2(TFB***) 		8-98098-610-0 01 1 0712- ●
5 04.003 TRANSMISSION ASM; AUTO
4X4(TFS***) AUSTRALIA EQUIPMENT(B13) 		8-97306-925-0 01 1 0307-0609 ●
5 04.003 TRANSMISSION ASM; AUTO
4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) EXC. AUSTRALIA EQUIPMENT(B13) 		8-98004-909-1 01 1 0610-0709 ●
5 04.003 TRANSMISSION ASM; AUTO
4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) HIGH RIDE SUSPENSION(7YC) EXC. AUSTRALIA EQUIPMENT(B13) 		8-98004-909-1 01 1 0710-0801 ●
5 04.003 TRANSMISSION ASM; AUTO
4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) HIGH RIDE SUSPENSION(7YC) EXC. AUSTRALIA EQUIPMENT(B13) 		8-98054-816-0 01 1 0802- ●
5 04.003 TRANSMISSION ASM; AUTO
4X4(TFS***) EXC. AUSTRALIA EQUIPMENT(B13) 		8-97355-191-0 01 1 0307-0609 ●
5 04.003 TRANSMISSION ASM; AUTO
4X4(TFS***) 		8-97355-191-0 01 1 0610-0711 ●
5 04.003 TRANSMISSION ASM; AUTO
4X4(TFS***) 		8-98098-611-0 01 1 0712- ●
5 04.003 TRANSMISSION ASM; AUTO
HF V6 ENG(LCA) 		8-24232-323-0 01 1 0509-0708 ●
5 04.003 TRANSMISSION ASM; AUTO
HF V6 ENG(LCA) 		8-24232-888-0 01 1 0709- ●
17 04.008 BOLT; PLATE TO CONV
M10X14.7 		8-94157-666-2 06 1 0307-0609 ●
17 04.008 BOLT; PLATE TO CONV
M8X10 		8-94460-742-0 06 1 0307-0609 ●
17 04.008 BOLT; PLATE TO CONV
M8X10 		8-94460-742-0 06 1 0610- ● ●
17 04.008 BOLT; PLATE TO CONV
HF V6 ENG(LCA) 		8-11588-468-0 03 1 0509- ● ●
