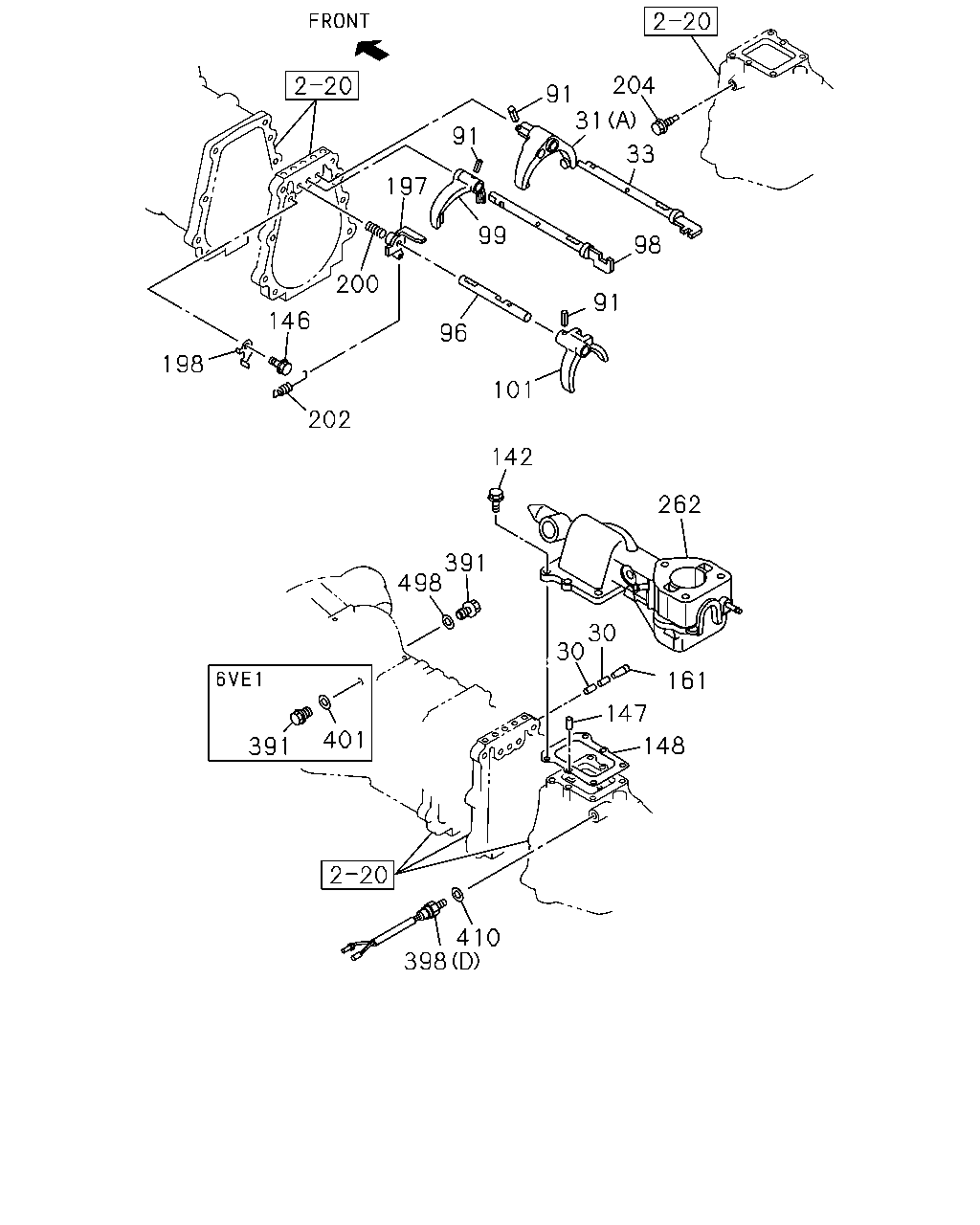

2-30A — GEAR SHIFTER AND QUADRANT BOX (#20415) — 594 parça

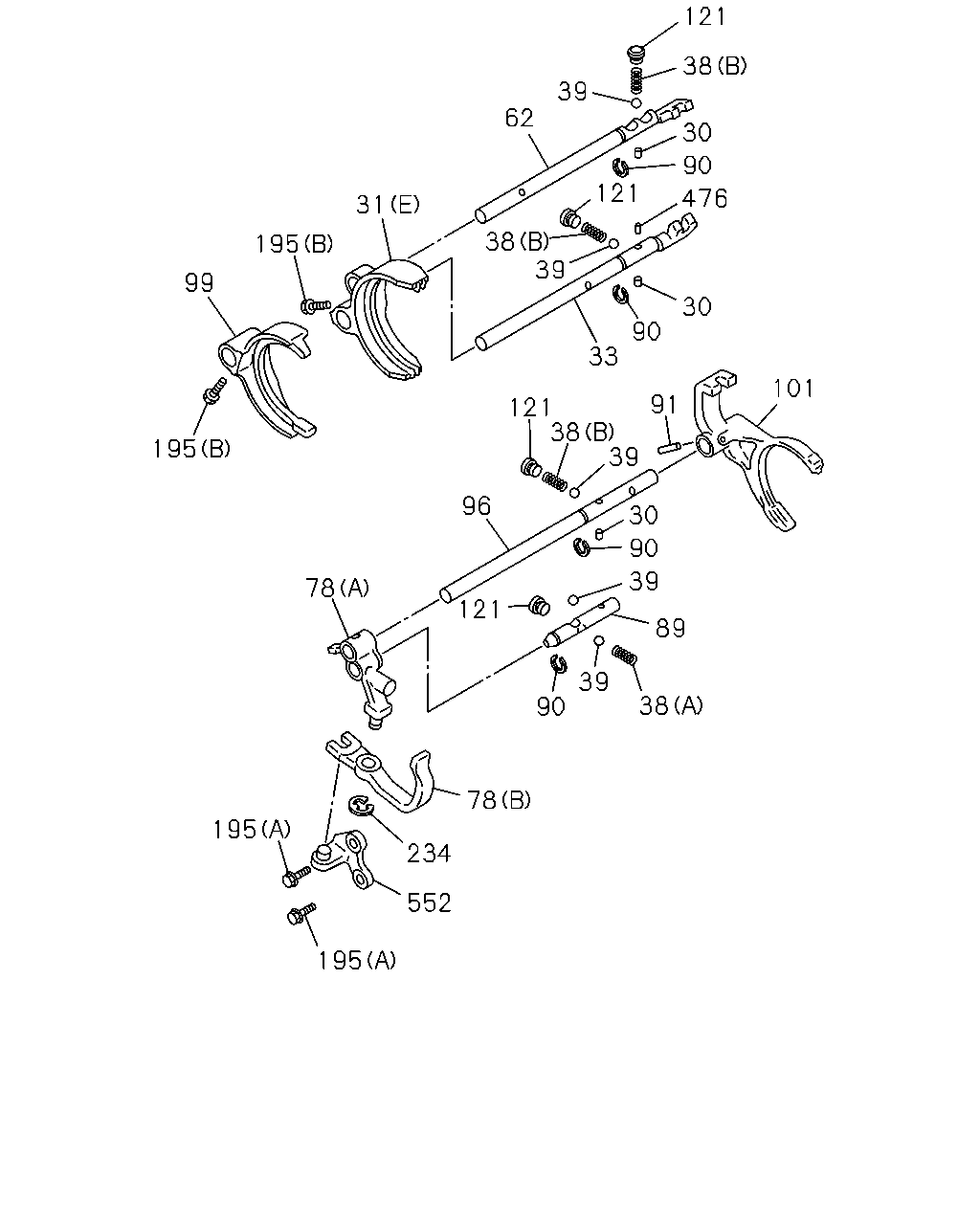

121 38 39 62 31 195 99 195 78 195 195 552 234 78 90 39 38 89 39 90 30 121 96 121 38 39 91 101 33 90 30 39 38 121 476 90 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
30	04.307 PIN; INTER LK OD=5.5 L=10	5-33534-002-1	02	1	0307-0609	●	●	●
30	04.307 PIN; INTER LK OD=5.5 L=10	5-33534-002-1	02	1	0610-	●	●	●	●
30	04.307 PIN; INTER LK HF V6 ENG(LCA)	8-97165-086-0	03	1	0509-					●
31	04.302 ARM; SHIFT,LOW & 2ND (D)	8-97024-503-1	01	1	0307-0901	●
31	04.302 ARM; SHIFT,LOW & 2ND (D)	8-97024-503-1	01	1	0902-	●
31	04.302 ARM; SHIFT,LOW & 2ND (A)	8-94421-912-2	01	1	0307-0609		●	●
31	04.302 ARM; SHIFT,LOW & 2ND (A)	8-94421-912-2	01	1	0610-		●	●	●
31	04.302 ARM; SHIFT,LOW & 2ND HF V6 ENG(LCA) (E)	8-89048-278-0	01	1	0509-					●
31	04.302 ARM; SHIFT,LOW & 2ND 4JJ1-TCX ENG(LS0) (B)	8-97362-435-0	01	1	0610-						●
31	04.302 ARM; SHIFT,LOW & 2ND 4JJ1-TCX ENG(LS0) (C)	8-97362-445-2	01	1	0610-1102						●
31	04.302 ARM; SHIFT,LOW & 2ND 4JJ1-TCX ENG(LS0) (C)	8-98186-703-0	01	1	1103-						●
33	04.309 ROD; SHIFT,LOW & 2ND	8-97213-047-0	01	1	0307-	●
33	04.309 ROD; SHIFT,LOW & 2ND	8-97019-061-2	01	1	0307-0609		●	●
33	04.309 ROD; SHIFT,LOW & 2ND	8-97019-061-2	01	1	0610-		●	●	●
33	04.309 ROD; SHIFT,LOW & 2ND HF V6 ENG(LCA)	8-89048-283-0	01	1	0509-					●
33	04.309 ROD; SHIFT,LOW & 2ND 4JJ1-TCX ENG(LS0)	8-97362-441-0	01	1	0610-						●
38	04.311 SPRING; DETENT HF V6 ENG(LCA) (B)	8-89048-295-0	03	1	0509-					●
38	04.311 SPRING; DETENT HF V6 ENG(LCA) (A)	8-97165-087-0	01	1	0509-					●
39	04.307 BALL; DETENT HF V6 ENG(LCA)	8-97165-089-0	05	1	0509-					●
62	04.309 ROD; SHIFT,3RD & 4TH HF V6 ENG(LCA)	8-89048-284-0	01	1	0509-					●
78	04.302 ARM; SHIFT,REV HF V6 ENG(LCA) (A)	8-97164-956-0	01	1	0509-					●
78	04.302 ARM; SHIFT,REV HF V6 ENG(LCA) (B)	8-97164-991-0	01	1	0509-					●
78	04.302 ARM; SHIFT,REV 4JJ1-TCX ENG(LS0) (C)	8-97362-434-1	01	1	0610-						●
89	04.309 ROD; SHIFT,REV HF V6 ENG(LCA)	8-89048-286-0	01	1	0509-					●
89	04.309 ROD; SHIFT,REV 4JJ1-TCX ENG(LS0)	8-97362-440-1	01	1	0610-						●
90	04.307 RING; SNAP,SHIFT ROD HF V6 ENG(LCA)	8-97165-074-0	04	1	0509-					●
90	04.307 RING; SNAP,SHIFT ROD 4JJ1-TCX ENG(LS0) ID=12	8-94460-357-0	03	1	0610-						●
91	04.302 PIN; SPR,SHIFT ARM 04.303 D=4.2 L=25	8-94171-541-0	03	1	0307-0609	●	●	●
91	04.302 PIN; SPR,SHIFT ARM 04.303 D=4.2 L=25	8-94171-541-0	03	1	0610-	●	●	●	●
91	04.302 PIN; SPR,SHIFT ARM HF V6 ENG(LCA)	8-97164-994-0	01	1	0509-					●
96	04.309 ROD; SHIFT,5TH	8-94440-079-1	01	1	0307-0609		●	●
96	04.309 ROD; SHIFT,5TH	8-94440-079-1	01	1	0610-		●	●	●
96	04.309 ROD; SHIFT,5TH HF V6 ENG(LCA)	8-97164-960-0	01	1	0509-					●
99	04.302 ARM; SHIFT,4TH & 3RD	8-94435-153-1	01	1	0307-	●
99	04.302 ARM; SHIFT,4TH & 3RD	8-94421-911-2	01	1	0307-0609		●	●
99	04.302 ARM; SHIFT,4TH & 3RD	8-94421-911-2	01	1	0610-		●	●	●
99	04.302 ARM; SHIFT,4TH & 3RD HF V6 ENG(LCA)	8-89048-279-0	01	1	0509-					●
101	04.302 ARM; SHIFT,REV & 5TH	8-94455-851-3	01	1	0307-	●
101	04.302 ARM; SHIFT,REV & 5TH	8-94448-755-2	01	1	0307-0609		●	●
101	04.302 ARM; SHIFT,REV & 5TH	8-94448-755-2	01	1	0610-		●	●	●
101	04.302 ARM; SHIFT,REV & 5TH HF V6 ENG(LCA)	8-97164-993-0	01	1	0509-					●
101	04.302 ARM; SHIFT,REV & 5TH 4JJ1-TCX ENG(LS0)	8-98004-541-1	01	1	0610-						●
121	04.307 PLUG; DETENT SPR HF V6 ENG(LCA) 04.105	8-97164-954-0	04	1	0509-					●
195	04.105 BOLT HF V6 ENG(LCA) (A)	8-97164-897-0	02	1	0509-					●
195	04.105 BOLT HF V6 ENG(LCA) (B)	8-97164-962-0	02	1	0509-					●
195	04.105 BOLT 4X2(TFB***) HF V6 ENG(LCA) (C)	8-89048-313-0	01	1	0509-					●
195	04.105 BOLT 4JJ1-TCX ENG(LS0) (D) M8X8.5 TAPER	8-97250-975-0	01	1	0610-						●
195	04.105 BOLT 4JJ1-TCX ENG(LS0) (E) M8X30 FLANGE	8-98034-764-0	04	1	0610-						●
234	04.311 RING; SNAP HF V6 ENG(LCA)	8-97165-075-0	01	1	0509-					●
234	04.311 RING; SNAP 4JJ1-TCX ENG(LS0) 04.307 ID=12	8-94460-357-0	04	1	0610-						●
476	04.311 PIN; SHIFT ROD HF V6 ENG(LCA)	8-97164-966-0	01	1	0509-					●
476	04.311 PIN; SHIFT ROD 4JJ1-TCX ENG(LS0) 04.303 D=4.2 L=25	8-94171-541-0	04	1	0610-						●
552	04.105 BRACKET HF V6 ENG(LCA)	8-97164-992-0	01	1	0509-					●
552	04.105 BRACKET 4JJ1-TCX ENG(LS0)	8-97362-465-1	01	1	0610-						●

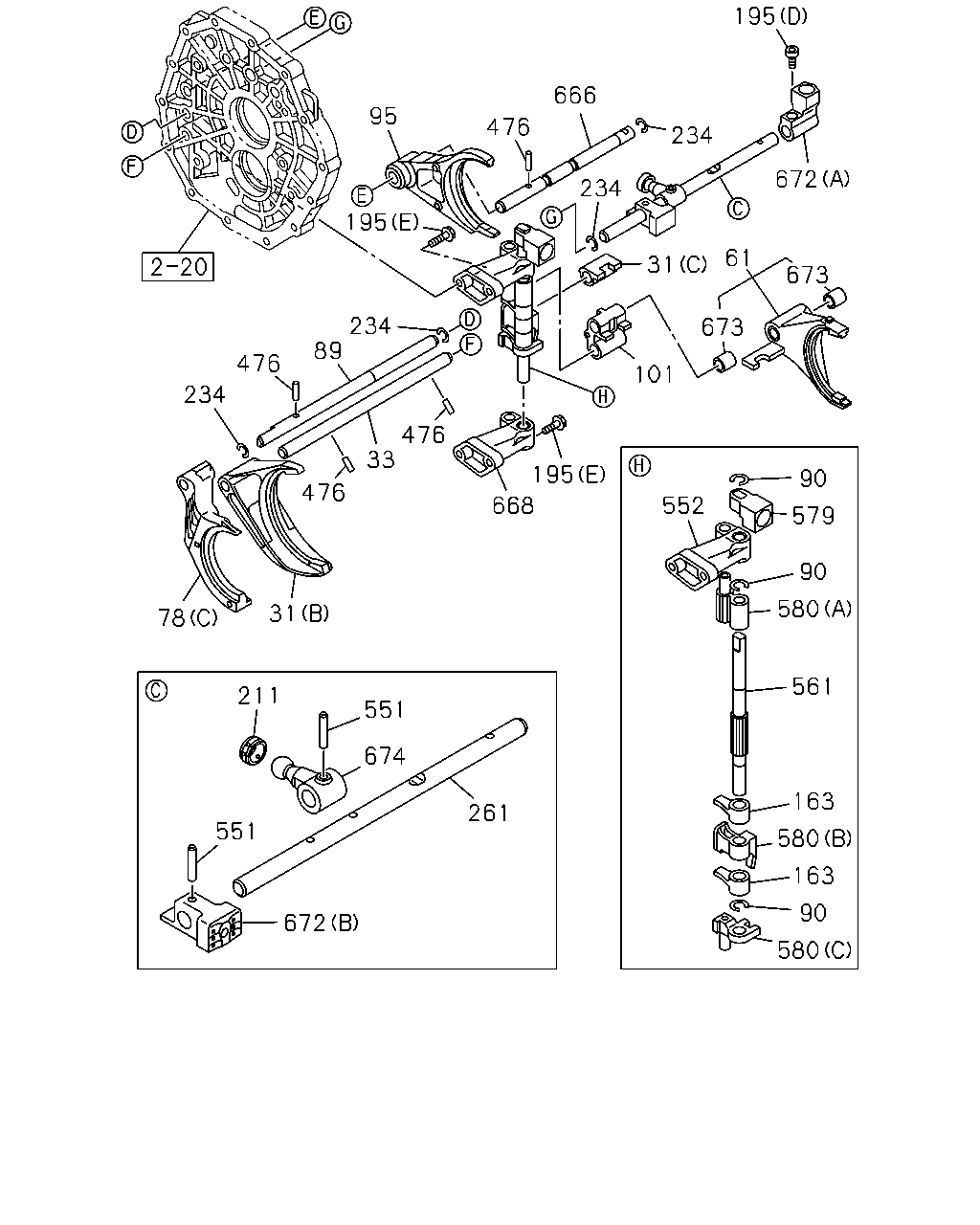

234 89 476 234 78 31 476 33 476 668 195 211 551 674 261 551 672 580 90 163 580 163 561 580 90 579 90 552 101 673 673 61 31 234 234 672 195 666 476 195 95

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
31	04.302 ARM; SHIFT,LOW & 2ND (D)	8-97024-503-1	01	1	0307-0901	●
31	04.302 ARM; SHIFT,LOW & 2ND (D)	8-97024-503-1	01	1	0902-	●
31	04.302 ARM; SHIFT,LOW & 2ND (A)	8-94421-912-2	01	1	0307-0609		●	●
31	04.302 ARM; SHIFT,LOW & 2ND (A)	8-94421-912-2	01	1	0610-		●	●	●
31	04.302 ARM; SHIFT,LOW & 2ND HF V6 ENG(LCA) (E)	8-89048-278-0	01	1	0509-					●
31	04.302 ARM; SHIFT,LOW & 2ND 4JJ1-TCX ENG(LS0) (B)	8-97362-435-0	01	1	0610-						●
31	04.302 ARM; SHIFT,LOW & 2ND 4JJ1-TCX ENG(LS0) (C)	8-97362-445-2	01	1	0610-1102						●
31	04.302 ARM; SHIFT,LOW & 2ND 4JJ1-TCX ENG(LS0) (C)	8-98186-703-0	01	1	1103-						●
33	04.309 ROD; SHIFT,LOW & 2ND	8-97213-047-0	01	1	0307-	●
33	04.309 ROD; SHIFT,LOW & 2ND	8-97019-061-2	01	1	0307-0609		●	●
33	04.309 ROD; SHIFT,LOW & 2ND	8-97019-061-2	01	1	0610-		●	●	●
33	04.309 ROD; SHIFT,LOW & 2ND HF V6 ENG(LCA)	8-89048-283-0	01	1	0509-					●
33	04.309 ROD; SHIFT,LOW & 2ND 4JJ1-TCX ENG(LS0)	8-97362-441-0	01	1	0610-						●
61	04.303 ARM; SHIFT,3RD & 4TH 4JJ1-TCX ENG(LS0)	8-97362-439-2	01	1	0610-						●
78	04.302 ARM; SHIFT,REV HF V6 ENG(LCA) (A)	8-97164-956-0	01	1	0509-					●
78	04.302 ARM; SHIFT,REV HF V6 ENG(LCA) (B)	8-97164-991-0	01	1	0509-					●
78	04.302 ARM; SHIFT,REV 4JJ1-TCX ENG(LS0) (C)	8-97362-434-1	01	1	0610-						●
89	04.309 ROD; SHIFT,REV HF V6 ENG(LCA)	8-89048-286-0	01	1	0509-					●
89	04.309 ROD; SHIFT,REV 4JJ1-TCX ENG(LS0)	8-97362-440-1	01	1	0610-						●
90	04.307 RING; SNAP,SHIFT ROD HF V6 ENG(LCA)	8-97165-074-0	04	1	0509-					●
90	04.307 RING; SNAP,SHIFT ROD 4JJ1-TCX ENG(LS0) ID=12	8-94460-357-0	03	1	0610-						●
95	04.302 ARM; SHIFT,5TH 4JJ1-TCX ENG(LS0)	8-97362-436-1	01	1	0610-						●
101	04.302 ARM; SHIFT,REV & 5TH	8-94455-851-3	01	1	0307-	●
101	04.302 ARM; SHIFT,REV & 5TH	8-94448-755-2	01	1	0307-0609		●	●
101	04.302 ARM; SHIFT,REV & 5TH	8-94448-755-2	01	1	0610-		●	●	●
101	04.302 ARM; SHIFT,REV & 5TH HF V6 ENG(LCA)	8-97164-993-0	01	1	0509-					●
101	04.302 ARM; SHIFT,REV & 5TH 4JJ1-TCX ENG(LS0)	8-98004-541-1	01	1	0610-						●
163	04.302 LEVER; SELECT,INTERNAL 4JJ1-TCX ENG(LS0)	8-98052-461-0	02	1	0610-						●
195	04.105 BOLT HF V6 ENG(LCA) (A)	8-97164-897-0	02	1	0509-					●
195	04.105 BOLT HF V6 ENG(LCA) (B)	8-97164-962-0	02	1	0509-					●
195	04.105 BOLT 4X2(TFB***) HF V6 ENG(LCA) (C)	8-89048-313-0	01	1	0509-					●
195	04.105 BOLT 4JJ1-TCX ENG(LS0) (D) M8X8.5 TAPER	8-97250-975-0	01	1	0610-						●
195	04.105 BOLT 4JJ1-TCX ENG(LS0) (E) M8X30 FLANGE	8-98034-764-0	04	1	0610-						●
211	04.307 SEAT; BALL 4JJ1-TCX ENG(LS0)	8-98042-833-1	01	1	0610-0612						●
211	04.307 SEAT; BALL 4JJ1-TCX ENG(LS0)	8-98073-812-0	01	1	0701-						●
234	04.311 RING; SNAP HF V6 ENG(LCA)	8-97165-075-0	01	1	0509-					●
234	04.311 RING; SNAP 4JJ1-TCX ENG(LS0) 04.307 ID=12	8-94460-357-0	04	1	0610-						●
261	04.309 ROD; GEAR CONT	8-97257-825-0	01	1	0307-	●
261	04.309 ROD; GEAR CONT C24SE ENG(LG1),6VE1 ENG(LX5)	8-97257-909-0	01	1	0307-0609		●
261	04.309 ROD; GEAR CONT	8-97257-909-0	01	1	0307-0609			●
261	04.309 ROD; GEAR CONT C24SE ENG(LG1)	8-97257-909-0	01	1	0610-		●
261	04.309 ROD; GEAR CONT	8-97257-909-0	01	1	0610-			●
261	04.309 ROD; GEAR CONT 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM)	8-97257-911-0	01	1	0307-0609		●
261	04.309 ROD; GEAR CONT 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0)	8-97257-911-0	01	1	0610-0612		●		●
261	04.309 ROD; GEAR CONT 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0)	8-97257-911-0	01	1	0701-0709		●		●
261	04.309 ROD; GEAR CONT 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0)	8-97257-911-0	01	1	0710-0912		●		●
261	04.309 ROD; GEAR CONT 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-97257-911-0	01	1	1001-		●		●
261	04.309 ROD; GEAR CONT HF V6 ENG(LCA)	8-89048-251-0	01	1	0509-					●
261	04.309 ROD; GEAR CONT 4JJ1-TCX ENG(LS0)	8-97362-444-0	01	1	0610-						●
476	04.311 PIN; SHIFT ROD HF V6 ENG(LCA)	8-97164-966-0	01	1	0509-					●
476	04.311 PIN; SHIFT ROD 4JJ1-TCX ENG(LS0) 04.303 D=4.2 L=25	8-94171-541-0	04	1	0610-						●
551	04.303 PIN; SPRING HF V6 ENG(LCA)	8-97164-925-0	01	1	0509-					●
551	04.303 PIN; SPRING 4JJ1-TCX ENG(LS0) D=4.2 L=25	8-94171-541-0	02	1	0610-						●
552	04.105 BRACKET HF V6 ENG(LCA)	8-97164-992-0	01	1	0509-					●
552	04.105 BRACKET 4JJ1-TCX ENG(LS0)	8-97362-465-1	01	1	0610-						●
561	04.309 ROD; SHIFT 4JJ1-TCX ENG(LS0)	8-98052-463-0	01	1	0610-						●
579	04.303 BLOCK; SHIFT,ROD GUIDE 4JJ1-TCX ENG(LS0)	8-97362-447-2	01	1	0610-						●
580	04.303 BLOCK; INTERLOCK 4JJ1-TCX ENG(LS0) (A)	8-97362-461-1	01	1	0610-						●
580	04.303 BLOCK; INTERLOCK 4JJ1-TCX ENG(LS0) (C)	8-97362-463-1	01	1	0610-1102						●
580	04.303 BLOCK; INTERLOCK 4JJ1-TCX ENG(LS0) (C)	8-98186-700-0	01	1	1103-						●
580	04.303 BLOCK; INTERLOCK 4JJ1-TCX ENG(LS0) (B)	8-98052-462-0	01	1	0610-						●
666	04.309 ROD; GEAR SHIFT,3RD,4TH & 4TH 4JJ1-TCX ENG(LS0)	8-97362-442-2	01	1	0610-						●
668	04.309 BRACKET; SHIFT ROD 4JJ1-TCX ENG(LS0) 04.105	8-97362-465-1	01	1	0610-						●
672	04.303 BLOCK; SHIFT,T/M CONTROL 4JJ1-TCX ENG(LS0) (A)	8-97362-467-0	01	1	0610-						●
672	04.303 BLOCK; SHIFT,T/M CONTROL 4JJ1-TCX ENG(LS0) (B)	8-97362-470-1	01	1	0610-0707						●
672	04.303 BLOCK; SHIFT,T/M CONTROL 4JJ1-TCX ENG(LS0) (B)	8-98083-873-0	01	1	0708-						●
673	04.309 BEARING; SHIFT ARM 4JJ1-TCX ENG(LS0) 00.683	8-97362-853-0	02	1	0610-						●
674	04.302 LEVER; CONT 4JJ1-TCX ENG(LS0)	8-97362-466-0	01	1	0610-						●

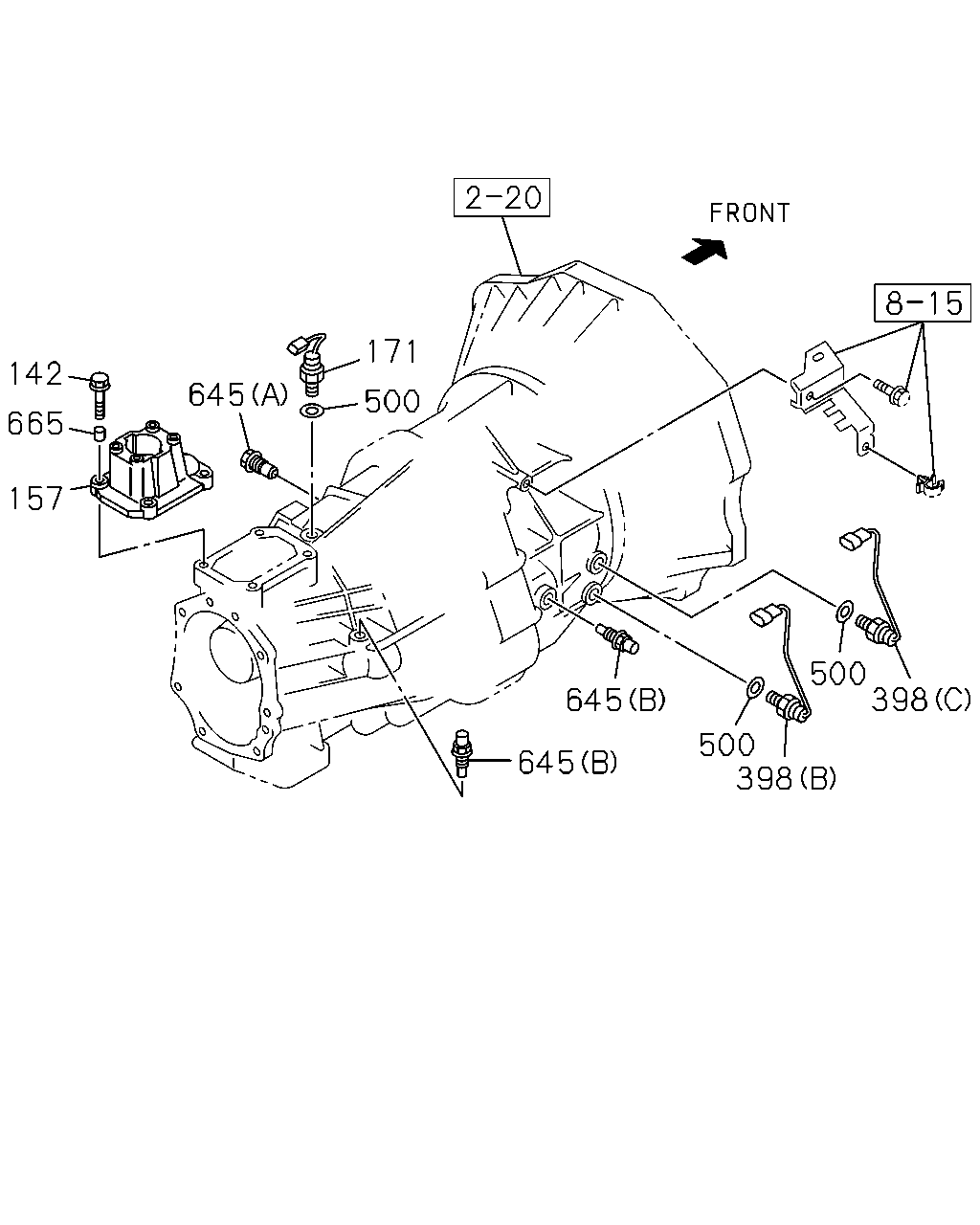

142 665 157 645 171 500 645 645 500 398 398 500

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
142	04.012 BOLT; QUAD BOX 04.356 M8X22 FLANGE	8-94448-815-3	04	1	0307-0604	●	●	●
142	04.012 BOLT; QUAD BOX 04.356 M8X22 FLANGE	8-97365-376-0	04	1	0605-0609	●	●	●
142	04.012 BOLT; QUAD BOX 04.356 M8X22 FLANGE	8-97365-376-0	04	1	0610-	●	●	●	●
142	04.012 BOLT; QUAD BOX 4JJ1-TCX ENG(LS0) 01.060 M8X35 FLANGE	0-28650-835-0	04	1	0610-						●
157	04.105 BOX; QUAD,TRANS 4JJ1-TCX ENG(LS0)	8-97362-383-0	01	1	0610-						●
171	04.054 SWITCH; NEUTRAL 4X4(TFS***)	8-97138-631-0	01	1	0307-0609		●	●
171	04.054 SWITCH; NEUTRAL 4X2(TFB***) 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM)	8-97138-631-0	01	1	0307-0609		●
171	04.054 SWITCH; NEUTRAL 4X2(TFB***) 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JH1-TC ENG(RDM)	8-97138-631-0	01	1	0610-0612		●	●	●
171	04.054 SWITCH; NEUTRAL 4X4(TFS***)	8-97138-631-0	01	1	0610-0612		●	●	●
171	04.054 SWITCH; NEUTRAL 4X2(TFB***) 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JH1-TC ENG(RDM)	8-98035-680-0	01	1	0701-0701		●	●	●
171	04.054 SWITCH; NEUTRAL 4X4(TFS***)	8-98035-680-0	01	1	0701-0701		●	●	●
171	04.054 SWITCH; NEUTRAL 4X2(TFB***) 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0)	8-98035-680-0	01	1	0701-0912		●	●	●
171	04.054 SWITCH; NEUTRAL 4X4(TFS***)	8-98035-680-0	01	1	0701-0912		●	●	●
171	04.054 SWITCH; NEUTRAL 4X2(TFB***) 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0)	8-98035-680-0	01	1	1001-		●	●	●
171	04.054 SWITCH; NEUTRAL 4X4(TFS***)	8-98035-680-0	01	1	1001-		●	●	●
171	04.054 SWITCH; NEUTRAL 4X4(TFS***) HF V6 ENG(LCA)	8-97165-083-0	01	1	0509-					●
171	04.054 SWITCH; NEUTRAL 4JJ1-TCX ENG(LS0) 04.075	8-97358-606-0	01	1	0610-						●
398	02.698 SWITCH; REV LAMP 04.439 (A)	8-94411-366-1	01	1	0307-0602	●
398	02.698 SWITCH; REV LAMP (A)	8-98042-851-0	01	1	0603-0609	●
398	02.698 SWITCH; REV LAMP (A)	8-98035-679-0	01	1	0610-0709	●
398	02.698 SWITCH; REV LAMP (A)	8-98042-851-0	01	1	0710-	●
398	02.698 SWITCH; REV LAMP (D)	8-97138-635-0	01	1	0307-0604		●	●
398	02.698 SWITCH; REV LAMP (D)	8-98035-681-0	01	1	0605-0609		●	●
398	02.698 SWITCH; REV LAMP (D)	8-98035-681-0	01	1	0610-		●	●	●
398	02.698 SWITCH; REV LAMP 4JJ1-TCX ENG(LS0) (B)	8-98037-159-0	01	1	0610-						●
398	02.698 SWITCH; REV LAMP 4JJ1-TCX ENG(LS0) (C)	8-98037-160-0	01	1	0610-						●
500	04.075 GASKET; SW ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCX ENG(LS0) 08.955 ID=14.2 OD=20.0	9-09571-414-0	03	1	0610-						●
645	04.311 DETENT ASM 4JJ1-TCX ENG(LS0) (A)	8-97362-469-2	01	1	0610-						●
645	04.311 DETENT ASM 4JJ1-TCX ENG(LS0) 04.307 (B)	8-98019-536-0	02	1	0610-						●
665	00.206 DOWEL 4JJ1-TCX ENG(LS0) OD=11 L=8	9-11229-058-1	02	1	0610-						●

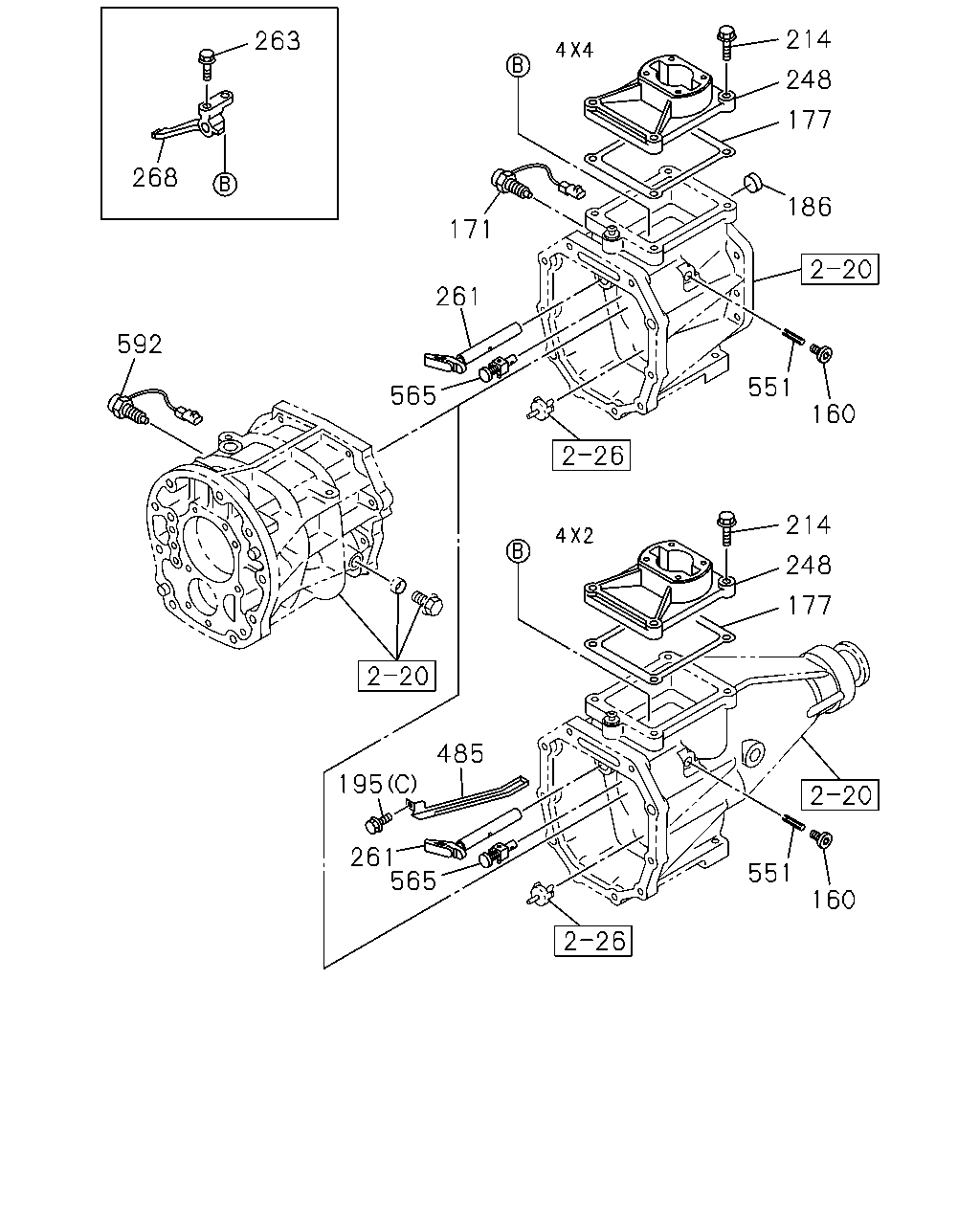

263 268 592 195 485 261 565 551 160 177 248 214 551 160 186 565 261 171 177 248 214

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
160	04.105 PLUG; BLIND HF V6 ENG(LCA)	8-97164-954-0	01	1	0509-					●
171	04.054 SWITCH; NEUTRAL 4X4(TFS***)	8-97138-631-0	01	1	0307-0609		●	●
171	04.054 SWITCH; NEUTRAL 4X2(TFB***) 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM)	8-97138-631-0	01	1	0307-0609		●
171	04.054 SWITCH; NEUTRAL 4X2(TFB***) 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JH1-TC ENG(RDM)	8-97138-631-0	01	1	0610-0612		●	●	●
171	04.054 SWITCH; NEUTRAL 4X4(TFS***)	8-97138-631-0	01	1	0610-0612		●	●	●
171	04.054 SWITCH; NEUTRAL 4X2(TFB***) 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JH1-TC ENG(RDM)	8-98035-680-0	01	1	0701-0701		●	●	●
171	04.054 SWITCH; NEUTRAL 4X4(TFS***)	8-98035-680-0	01	1	0701-0701		●	●	●
171	04.054 SWITCH; NEUTRAL 4X2(TFB***) 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0)	8-98035-680-0	01	1	0701-0912		●	●	●
171	04.054 SWITCH; NEUTRAL 4X4(TFS***)	8-98035-680-0	01	1	0701-0912		●	●	●
171	04.054 SWITCH; NEUTRAL 4X2(TFB***) 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0)	8-98035-680-0	01	1	1001-		●	●	●
171	04.054 SWITCH; NEUTRAL 4X4(TFS***)	8-98035-680-0	01	1	1001-		●	●	●
171	04.054 SWITCH; NEUTRAL 4X4(TFS***) HF V6 ENG(LCA)	8-97165-083-0	01	1	0509-					●
171	04.054 SWITCH; NEUTRAL 4JJ1-TCX ENG(LS0) 04.075	8-97358-606-0	01	1	0610-						●
177	04.105 GASKET; CONT BOX HF V6 ENG(LCA)	8-89048-270-0	01	1	0509-					●
186	04.105 PLUG; SHIFTER ROD 4X4(TFS***) HF V6 ENG(LCA)	8-89048-308-0	01	1	0509-					●
195	04.105 BOLT HF V6 ENG(LCA) (A)	8-97164-897-0	02	1	0509-					●
195	04.105 BOLT HF V6 ENG(LCA) (B)	8-97164-962-0	02	1	0509-					●
195	04.105 BOLT 4X2(TFB***) HF V6 ENG(LCA) (C)	8-89048-313-0	01	1	0509-					●
195	04.105 BOLT 4JJ1-TCX ENG(LS0) (D) M8X8.5 TAPER	8-97250-975-0	01	1	0610-						●
195	04.105 BOLT 4JJ1-TCX ENG(LS0) (E) M8X30 FLANGE	8-98034-764-0	04	1	0610-						●
214	04.510 BOLT; CONT BOX,SUB TRANS HF V6 ENG(LCA)	8-97164-927-0	04	1	0509-					●
248	04.105 RETAINER; CONT BOX 04.307	8-97181-325-0	02	1	0307-0609	●	●	●
248	04.105 RETAINER; CONT BOX 04.307	8-97181-325-0	02	1	0610-	●	●	●	●
248	04.105 RETAINER; CONT BOX HF V6 ENG(LCA)	8-98025-328-0	01	1	0509-					●
261	04.309 ROD; GEAR CONT	8-97257-825-0	01	1	0307-	●
261	04.309 ROD; GEAR CONT C24SE ENG(LG1),6VE1 ENG(LX5)	8-97257-909-0	01	1	0307-0609		●
261	04.309 ROD; GEAR CONT	8-97257-909-0	01	1	0307-0609			●
261	04.309 ROD; GEAR CONT C24SE ENG(LG1)	8-97257-909-0	01	1	0610-		●
261	04.309 ROD; GEAR CONT	8-97257-909-0	01	1	0610-			●
261	04.309 ROD; GEAR CONT 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM)	8-97257-911-0	01	1	0307-0609		●
261	04.309 ROD; GEAR CONT 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0)	8-97257-911-0	01	1	0610-0612		●		●
261	04.309 ROD; GEAR CONT 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0)	8-97257-911-0	01	1	0701-0709		●		●
261	04.309 ROD; GEAR CONT 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0)	8-97257-911-0	01	1	0710-0912		●		●
261	04.309 ROD; GEAR CONT 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-97257-911-0	01	1	1001-		●		●
261	04.309 ROD; GEAR CONT HF V6 ENG(LCA)	8-89048-251-0	01	1	0509-					●
261	04.309 ROD; GEAR CONT 4JJ1-TCX ENG(LS0)	8-97362-444-0	01	1	0610-						●
263	02.559 BOLT; LEVER HF V6 ENG(LCA)	8-89048-271-0	01	1	0509-					●
268	04.302 LEVER; CONT,INTERNAL	8-97184-894-0	01	1	0307-	●
268	04.302 LEVER; CONT,INTERNAL	8-97184-895-0	01	1	0307-0609		●	●
268	04.302 LEVER; CONT,INTERNAL	8-97184-895-0	01	1	0610-		●	●	●
268	04.302 LEVER; CONT,INTERNAL HF V6 ENG(LCA)	8-98025-391-0	01	1	0509-					●
485	04.105 TROUGH; OIL 4X2(TFB***) HF V6 ENG(LCA)	8-89048-309-0	01	1	0509-					●
551	04.303 PIN; SPRING HF V6 ENG(LCA)	8-97164-925-0	01	1	0509-					●
551	04.303 PIN; SPRING 4JJ1-TCX ENG(LS0) D=4.2 L=25	8-94171-541-0	02	1	0610-						●
565	04.302 PIN ASM; REVERSE RESTRICT HF V6 ENG(LCA)	8-97164-905-0	01	1	0509-					●
592	02.698 SWITCH; POSITION HF V6 ENG(LCA)	8-89048-415-0	01	1	0509-					●

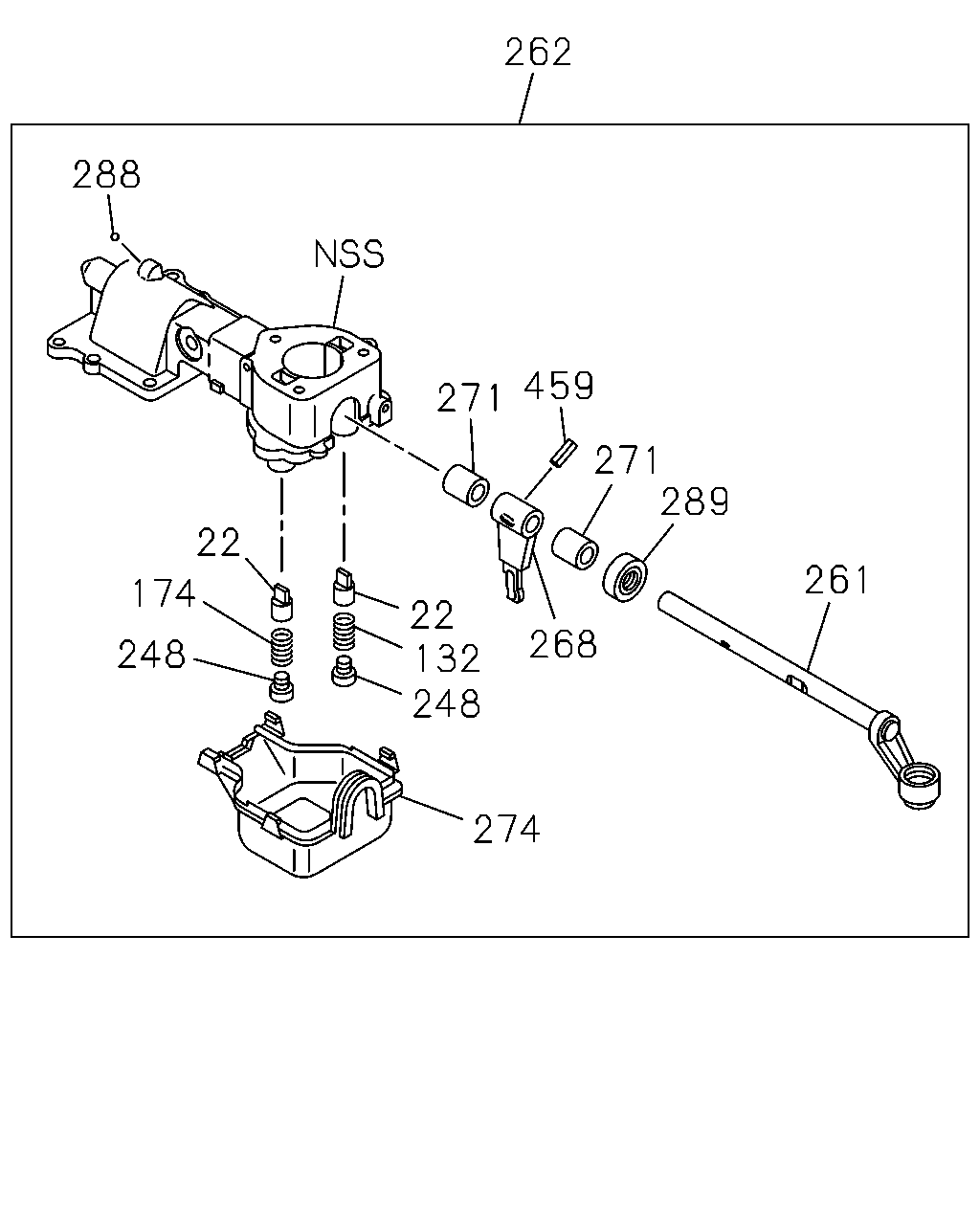

262 288 271 459 271 289 261 268 22 132 248 274 248 174 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
22	04.307 CAP; RETURN SPR,SHIFT BLOCK	8-97181-326-0	02	1	0307-0609	●	●	●
22	04.307 CAP; RETURN SPR,SHIFT BLOCK	8-97181-326-0	02	1	0610-	●	●	●	●
132	04.027 SPRING; SELECT STOP	8-97181-395-0	01	1	0307-0609	●	●	●
132	04.027 SPRING; SELECT STOP	8-97181-395-0	01	1	0610-	●	●	●	●
174	04.307 SPRING; REV	8-97181-394-0	01	1	0307-0609	●	●	●
174	04.307 SPRING; REV	8-97181-394-0	01	1	0610-	●	●	●	●
248	04.105 RETAINER; CONT BOX 04.307	8-97181-325-0	02	1	0307-0609	●	●	●
248	04.105 RETAINER; CONT BOX 04.307	8-97181-325-0	02	1	0610-	●	●	●	●
248	04.105 RETAINER; CONT BOX HF V6 ENG(LCA)	8-98025-328-0	01	1	0509-					●
261	04.309 ROD; GEAR CONT	8-97257-825-0	01	1	0307-	●
261	04.309 ROD; GEAR CONT C24SE ENG(LG1),6VE1 ENG(LX5)	8-97257-909-0	01	1	0307-0609		●
261	04.309 ROD; GEAR CONT	8-97257-909-0	01	1	0307-0609			●
261	04.309 ROD; GEAR CONT C24SE ENG(LG1)	8-97257-909-0	01	1	0610-		●
261	04.309 ROD; GEAR CONT	8-97257-909-0	01	1	0610-			●
261	04.309 ROD; GEAR CONT 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM)	8-97257-911-0	01	1	0307-0609		●
261	04.309 ROD; GEAR CONT 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0)	8-97257-911-0	01	1	0610-0612		●		●
261	04.309 ROD; GEAR CONT 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0)	8-97257-911-0	01	1	0701-0709		●		●
261	04.309 ROD; GEAR CONT 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0)	8-97257-911-0	01	1	0710-0912		●		●
261	04.309 ROD; GEAR CONT 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-97257-911-0	01	1	1001-		●		●
261	04.309 ROD; GEAR CONT HF V6 ENG(LCA)	8-89048-251-0	01	1	0509-					●
261	04.309 ROD; GEAR CONT 4JJ1-TCX ENG(LS0)	8-97362-444-0	01	1	0610-						●
262	04.105 BOX ASM; SHIFT CONT	8-97201-493-1	01	1	0307-0603	●
262	04.105 BOX ASM; SHIFT CONT	8-98017-735-0	01	1	0604-	●
262	04.105 BOX ASM; SHIFT CONT C24SE ENG(LG1),6VE1 ENG(LX5)	8-97257-824-0	01	1	0307-0603		●
262	04.105 BOX ASM; SHIFT CONT	8-97257-824-0	01	1	0307-0603			●
262	04.105 BOX ASM; SHIFT CONT C24SE ENG(LG1),6VE1 ENG(LX5)	8-98017-739-0	01	1	0604-0609		●
262	04.105 BOX ASM; SHIFT CONT	8-98017-739-0	01	1	0604-0609			●
262	04.105 BOX ASM; SHIFT CONT C24SE ENG(LG1)	8-98017-739-0	01	1	0610-		●
262	04.105 BOX ASM; SHIFT CONT	8-98017-739-0	01	1	0610-			●
262	04.105 BOX ASM; SHIFT CONT 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM)	8-97357-040-0	01	1	0307-0603		●
262	04.105 BOX ASM; SHIFT CONT 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM)	8-98017-729-0	01	1	0604-0609		●
262	04.105 BOX ASM; SHIFT CONT 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0)	8-98017-729-0	01	1	0610-0612		●		●
262	04.105 BOX ASM; SHIFT CONT 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0)	8-98017-729-0	01	1	0701-0709		●		●
262	04.105 BOX ASM; SHIFT CONT 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0)	8-98017-729-0	01	1	0710-0912		●		●
262	04.105 BOX ASM; SHIFT CONT 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-98017-729-0	01	1	1001-		●		●
268	04.302 LEVER; CONT,INTERNAL	8-97184-894-0	01	1	0307-	●
268	04.302 LEVER; CONT,INTERNAL	8-97184-895-0	01	1	0307-0609		●	●
268	04.302 LEVER; CONT,INTERNAL	8-97184-895-0	01	1	0610-		●	●	●
268	04.302 LEVER; CONT,INTERNAL HF V6 ENG(LCA)	8-98025-391-0	01	1	0509-					●
271	04.105 BUSHING; QUAD BOX ID=14 L=12	8-97203-909-0	02	1	0307-0603	●	●	●
271	04.105 BUSHING; QUAD BOX ID=14 L=12	8-98017-908-0	02	1	0604-0609	●	●	●
271	04.105 BUSHING; QUAD BOX ID=14 L=12	8-98017-908-0	02	1	0610-	●	●	●	●
274	04.105 COVER; SHAFT,QUAD BOX	8-97181-324-1	01	1	0307-0609	●	●	●
274	04.105 COVER; SHAFT,QUAD BOX	8-97181-324-1	01	1	0610-	●	●	●	●
288	04.307 PLUG; AIR BREATHER	9-00097-517-0	01	1	0307-0609	●
288	04.307 PLUG; AIR BREATHER C24SE ENG(LG1),6VE1 ENG(LX5)	9-00097-517-0	01	1	0307-0609		●	●
288	04.307 PLUG; AIR BREATHER	9-00097-517-0	01	1	0610-	●
288	04.307 PLUG; AIR BREATHER C24SE ENG(LG1)	9-00097-517-0	01	1	0610-		●	●
289	04.107 SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	8-97181-327-0	01	1	0307-0603	●	●	●
289	04.107 SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	8-98017-744-0	01	1	0604-0609	●	●	●
289	04.107 SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	8-98017-744-0	01	1	0610-	●	●	●	●
459	04.302 PIN; SPR,ROD TO ARM OD=5	8-97184-905-0	01	1	0307-0609	●	●	●
459	04.302 PIN; SPR,ROD TO ARM OD=5	8-97184-905-0	01	1	0610-	●	●	●	●

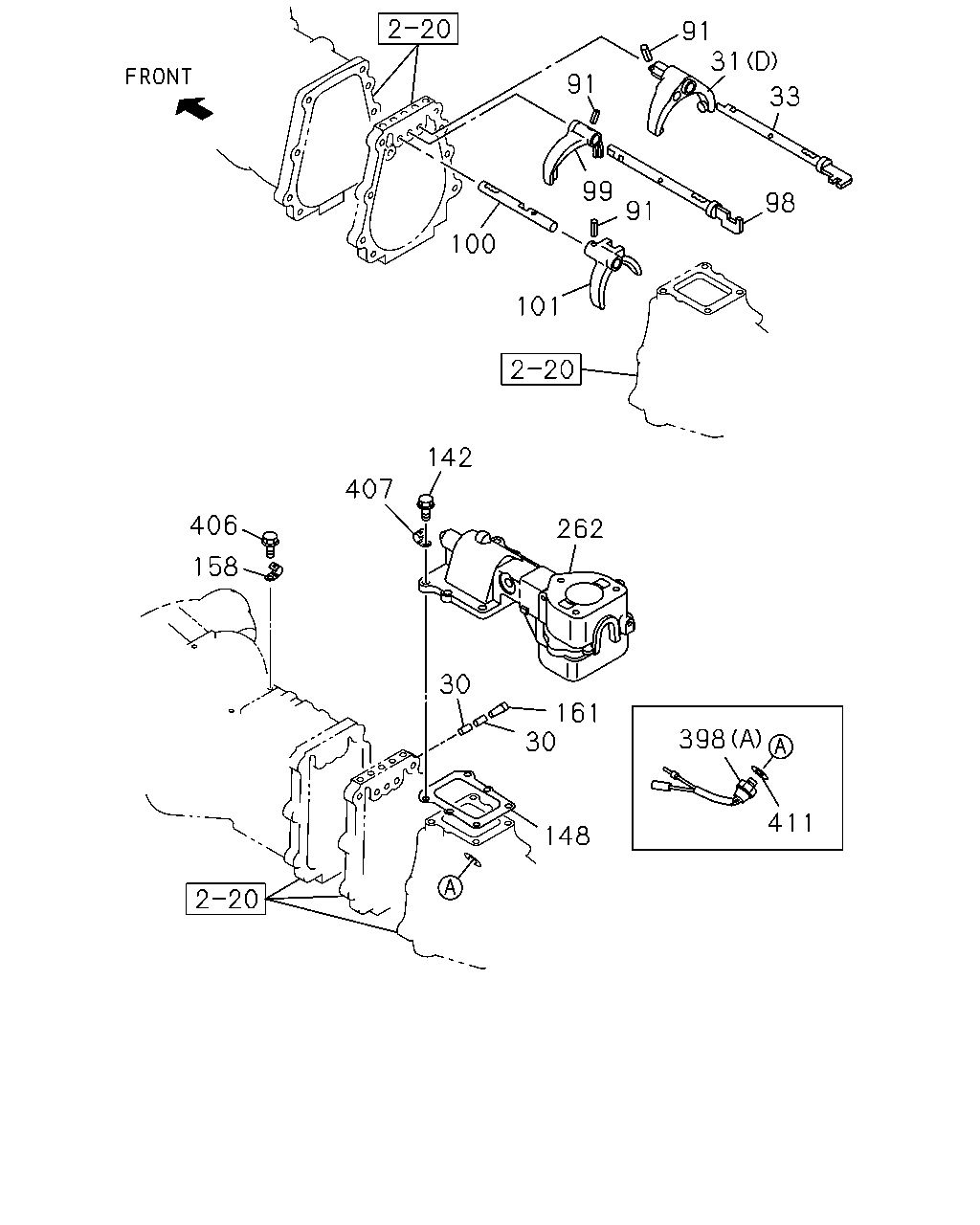

91 91 31 33 98 91 99 100 101 262 142 407 406 158 30 161 30 148 411 398

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
30	04.307 PIN; INTER LK OD=5.5 L=10	5-33534-002-1	02	1	0307-0609	●	●	●
30	04.307 PIN; INTER LK OD=5.5 L=10	5-33534-002-1	02	1	0610-	●	●	●	●
30	04.307 PIN; INTER LK HF V6 ENG(LCA)	8-97165-086-0	03	1	0509-					●
31	04.302 ARM; SHIFT,LOW & 2ND (D)	8-97024-503-1	01	1	0307-0901	●
31	04.302 ARM; SHIFT,LOW & 2ND (D)	8-97024-503-1	01	1	0902-	●
31	04.302 ARM; SHIFT,LOW & 2ND (A)	8-94421-912-2	01	1	0307-0609		●	●
31	04.302 ARM; SHIFT,LOW & 2ND (A)	8-94421-912-2	01	1	0610-		●	●	●
31	04.302 ARM; SHIFT,LOW & 2ND HF V6 ENG(LCA) (E)	8-89048-278-0	01	1	0509-					●
31	04.302 ARM; SHIFT,LOW & 2ND 4JJ1-TCX ENG(LS0) (B)	8-97362-435-0	01	1	0610-						●
31	04.302 ARM; SHIFT,LOW & 2ND 4JJ1-TCX ENG(LS0) (C)	8-97362-445-2	01	1	0610-1102						●
31	04.302 ARM; SHIFT,LOW & 2ND 4JJ1-TCX ENG(LS0) (C)	8-98186-703-0	01	1	1103-						●
33	04.309 ROD; SHIFT,LOW & 2ND	8-97213-047-0	01	1	0307-	●
33	04.309 ROD; SHIFT,LOW & 2ND	8-97019-061-2	01	1	0307-0609		●	●
33	04.309 ROD; SHIFT,LOW & 2ND	8-97019-061-2	01	1	0610-		●	●	●
33	04.309 ROD; SHIFT,LOW & 2ND HF V6 ENG(LCA)	8-89048-283-0	01	1	0509-					●
33	04.309 ROD; SHIFT,LOW & 2ND 4JJ1-TCX ENG(LS0)	8-97362-441-0	01	1	0610-						●
91	04.302 PIN; SPR,SHIFT ARM 04.303 D=4.2 L=25	8-94171-541-0	03	1	0307-0609	●	●	●
91	04.302 PIN; SPR,SHIFT ARM 04.303 D=4.2 L=25	8-94171-541-0	03	1	0610-	●	●	●	●
91	04.302 PIN; SPR,SHIFT ARM HF V6 ENG(LCA)	8-97164-994-0	01	1	0509-					●
98	04.309 ROD; SHIFT,TOP & 3RD	8-97213-045-0	01	1	0307-	●
98	04.309 ROD; SHIFT,TOP & 3RD	8-97019-060-3	01	1	0307-0609		●	●
98	04.309 ROD; SHIFT,TOP & 3RD	8-97019-060-3	01	1	0610-		●	●	●
99	04.302 ARM; SHIFT,4TH & 3RD	8-94435-153-1	01	1	0307-	●
99	04.302 ARM; SHIFT,4TH & 3RD	8-94421-911-2	01	1	0307-0609		●	●
99	04.302 ARM; SHIFT,4TH & 3RD	8-94421-911-2	01	1	0610-		●	●	●
99	04.302 ARM; SHIFT,4TH & 3RD HF V6 ENG(LCA)	8-89048-279-0	01	1	0509-					●
100	04.309 ROD; SHIFT,REV & 5TH	8-97115-185-0	01	1	0307-0901	●
100	04.309 ROD; SHIFT,REV & 5TH	8-97232-885-0	01	1	0902-	●
101	04.302 ARM; SHIFT,REV & 5TH	8-94455-851-3	01	1	0307-	●
101	04.302 ARM; SHIFT,REV & 5TH	8-94448-755-2	01	1	0307-0609		●	●
101	04.302 ARM; SHIFT,REV & 5TH	8-94448-755-2	01	1	0610-		●	●	●
101	04.302 ARM; SHIFT,REV & 5TH HF V6 ENG(LCA)	8-97164-993-0	01	1	0509-					●
101	04.302 ARM; SHIFT,REV & 5TH 4JJ1-TCX ENG(LS0)	8-98004-541-1	01	1	0610-						●
142	04.012 BOLT; QUAD BOX 04.356 M8X22 FLANGE	8-94448-815-3	04	1	0307-0604	●	●	●
142	04.012 BOLT; QUAD BOX 04.356 M8X22 FLANGE	8-97365-376-0	04	1	0605-0609	●	●	●
142	04.012 BOLT; QUAD BOX 04.356 M8X22 FLANGE	8-97365-376-0	04	1	0610-	●	●	●	●
142	04.012 BOLT; QUAD BOX 4JJ1-TCX ENG(LS0) 01.060 M8X35 FLANGE	0-28650-835-0	04	1	0610-						●
148	04.015 GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	8-97184-922-0	01	1	0307-	●
148	04.015 GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	8-97083-599-0	01	1	0307-0609		●	●
148	04.015 GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	8-97083-599-0	01	1	0610-		●	●	●
158	04.105 CLIP; HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	02	1	0307-0604	●
158	04.105 CLIP; HARNESS 03.671 ID=12 VINYL CHLORIDE	8-97367-984-1	02	1	0605-	●
161	04.307 PLUG; INTER LK HOLE	8-94239-543-1	01	1	0307-0609	●	●	●
161	04.307 PLUG; INTER LK HOLE	8-94239-543-1	01	1	0610-	●	●	●	●
262	04.105 BOX ASM; SHIFT CONT	8-97201-493-1	01	1	0307-0603	●
262	04.105 BOX ASM; SHIFT CONT	8-98017-735-0	01	1	0604-	●
262	04.105 BOX ASM; SHIFT CONT C24SE ENG(LG1),6VE1 ENG(LX5)	8-97257-824-0	01	1	0307-0603		●
262	04.105 BOX ASM; SHIFT CONT	8-97257-824-0	01	1	0307-0603			●
262	04.105 BOX ASM; SHIFT CONT C24SE ENG(LG1),6VE1 ENG(LX5)	8-98017-739-0	01	1	0604-0609		●
262	04.105 BOX ASM; SHIFT CONT	8-98017-739-0	01	1	0604-0609			●
262	04.105 BOX ASM; SHIFT CONT C24SE ENG(LG1)	8-98017-739-0	01	1	0610-		●
262	04.105 BOX ASM; SHIFT CONT	8-98017-739-0	01	1	0610-			●
262	04.105 BOX ASM; SHIFT CONT 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM)	8-97357-040-0	01	1	0307-0603		●
262	04.105 BOX ASM; SHIFT CONT 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM)	8-98017-729-0	01	1	0604-0609		●
262	04.105 BOX ASM; SHIFT CONT 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0)	8-98017-729-0	01	1	0610-0612		●		●
262	04.105 BOX ASM; SHIFT CONT 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0)	8-98017-729-0	01	1	0701-0709		●		●
262	04.105 BOX ASM; SHIFT CONT 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0)	8-98017-729-0	01	1	0710-0912		●		●
262	04.105 BOX ASM; SHIFT CONT 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-98017-729-0	01	1	1001-		●		●
398	02.698 SWITCH; REV LAMP 04.439 (A)	8-94411-366-1	01	1	0307-0602	●
398	02.698 SWITCH; REV LAMP (A)	8-98042-851-0	01	1	0603-0609	●
398	02.698 SWITCH; REV LAMP (A)	8-98035-679-0	01	1	0610-0709	●
398	02.698 SWITCH; REV LAMP (A)	8-98042-851-0	01	1	0710-	●
398	02.698 SWITCH; REV LAMP (D)	8-97138-635-0	01	1	0307-0604		●	●
398	02.698 SWITCH; REV LAMP (D)	8-98035-681-0	01	1	0605-0609		●	●
398	02.698 SWITCH; REV LAMP (D)	8-98035-681-0	01	1	0610-		●	●	●
398	02.698 SWITCH; REV LAMP 4JJ1-TCX ENG(LS0) (B)	8-98037-159-0	01	1	0610-						●
398	02.698 SWITCH; REV LAMP 4JJ1-TCX ENG(LS0) (C)	8-98037-160-0	01	1	0610-						●
406	02.559 BOLT; HARNESS CLIP 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0307-0512	●
406	02.559 BOLT; HARNESS CLIP 02.343 M8X16 FLANGE	0-28050-816-0	01	1	0601-	●
407	02.698 CLIP; SWITCH HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	01	1	0307-0609	●
407	02.698 CLIP; SWITCH HARNESS 03.671 ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0610-	●
411	02.698 GASKET; REV LAMP SW ALSO INCLUDED IN GASKET SET(M/T). 04.075 ID=14.2	8-94462-114-0	01	1	0307-	●

198 146 202 200 197 96 142 391 498 401 391 398 410 148 147 30 30 161 262 101 91 98 99 91 91 31 33 204

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
30	04.307 PIN; INTER LK OD=5.5 L=10	5-33534-002-1	02	1	0307-0609	●	●	●
30	04.307 PIN; INTER LK OD=5.5 L=10	5-33534-002-1	02	1	0610-	●	●	●	●
30	04.307 PIN; INTER LK HF V6 ENG(LCA)	8-97165-086-0	03	1	0509-					●
31	04.302 ARM; SHIFT,LOW & 2ND (D)	8-97024-503-1	01	1	0307-0901	●
31	04.302 ARM; SHIFT,LOW & 2ND (D)	8-97024-503-1	01	1	0902-	●
31	04.302 ARM; SHIFT,LOW & 2ND (A)	8-94421-912-2	01	1	0307-0609		●	●
31	04.302 ARM; SHIFT,LOW & 2ND (A)	8-94421-912-2	01	1	0610-		●	●	●
31	04.302 ARM; SHIFT,LOW & 2ND HF V6 ENG(LCA) (E)	8-89048-278-0	01	1	0509-					●
31	04.302 ARM; SHIFT,LOW & 2ND 4JJ1-TCX ENG(LS0) (B)	8-97362-435-0	01	1	0610-						●
31	04.302 ARM; SHIFT,LOW & 2ND 4JJ1-TCX ENG(LS0) (C)	8-97362-445-2	01	1	0610-1102						●
31	04.302 ARM; SHIFT,LOW & 2ND 4JJ1-TCX ENG(LS0) (C)	8-98186-703-0	01	1	1103-						●
33	04.309 ROD; SHIFT,LOW & 2ND	8-97213-047-0	01	1	0307-	●
33	04.309 ROD; SHIFT,LOW & 2ND	8-97019-061-2	01	1	0307-0609		●	●
33	04.309 ROD; SHIFT,LOW & 2ND	8-97019-061-2	01	1	0610-		●	●	●
33	04.309 ROD; SHIFT,LOW & 2ND HF V6 ENG(LCA)	8-89048-283-0	01	1	0509-					●
33	04.309 ROD; SHIFT,LOW & 2ND 4JJ1-TCX ENG(LS0)	8-97362-441-0	01	1	0610-						●
91	04.302 PIN; SPR,SHIFT ARM 04.303 D=4.2 L=25	8-94171-541-0	03	1	0307-0609	●	●	●
91	04.302 PIN; SPR,SHIFT ARM 04.303 D=4.2 L=25	8-94171-541-0	03	1	0610-	●	●	●	●
91	04.302 PIN; SPR,SHIFT ARM HF V6 ENG(LCA)	8-97164-994-0	01	1	0509-					●
96	04.309 ROD; SHIFT,5TH	8-94440-079-1	01	1	0307-0609		●	●
96	04.309 ROD; SHIFT,5TH	8-94440-079-1	01	1	0610-		●	●	●
96	04.309 ROD; SHIFT,5TH HF V6 ENG(LCA)	8-97164-960-0	01	1	0509-					●
98	04.309 ROD; SHIFT,TOP & 3RD	8-97213-045-0	01	1	0307-	●
98	04.309 ROD; SHIFT,TOP & 3RD	8-97019-060-3	01	1	0307-0609		●	●
98	04.309 ROD; SHIFT,TOP & 3RD	8-97019-060-3	01	1	0610-		●	●	●
99	04.302 ARM; SHIFT,4TH & 3RD	8-94435-153-1	01	1	0307-	●
99	04.302 ARM; SHIFT,4TH & 3RD	8-94421-911-2	01	1	0307-0609		●	●
99	04.302 ARM; SHIFT,4TH & 3RD	8-94421-911-2	01	1	0610-		●	●	●
99	04.302 ARM; SHIFT,4TH & 3RD HF V6 ENG(LCA)	8-89048-279-0	01	1	0509-					●
101	04.302 ARM; SHIFT,REV & 5TH	8-94455-851-3	01	1	0307-	●
101	04.302 ARM; SHIFT,REV & 5TH	8-94448-755-2	01	1	0307-0609		●	●
101	04.302 ARM; SHIFT,REV & 5TH	8-94448-755-2	01	1	0610-		●	●	●
101	04.302 ARM; SHIFT,REV & 5TH HF V6 ENG(LCA)	8-97164-993-0	01	1	0509-					●
101	04.302 ARM; SHIFT,REV & 5TH 4JJ1-TCX ENG(LS0)	8-98004-541-1	01	1	0610-						●
142	04.012 BOLT; QUAD BOX 04.356 M8X22 FLANGE	8-94448-815-3	04	1	0307-0604	●	●	●
142	04.012 BOLT; QUAD BOX 04.356 M8X22 FLANGE	8-97365-376-0	04	1	0605-0609	●	●	●
142	04.012 BOLT; QUAD BOX 04.356 M8X22 FLANGE	8-97365-376-0	04	1	0610-	●	●	●	●
142	04.012 BOLT; QUAD BOX 4JJ1-TCX ENG(LS0) 01.060 M8X35 FLANGE	0-28650-835-0	04	1	0610-						●
146	04.032 BOLT; REV INHIBITOR 07.010 M8X20 FLANGE	0-28080-820-0	01	1	0307-0512		●	●
146	04.032 BOLT; REV INHIBITOR 04.338 M8X20 FLANGE	0-28050-820-0	01	1	0601-0609		●	●
146	04.032 BOLT; REV INHIBITOR 04.338 M8X20 FLANGE	0-28050-820-0	01	1	0610-		●	●	●
147	04.020 PIN; KNOCK 04.510 OD=6 L=12	9-08150-612-0	02	1	0307-0609		●	●
147	04.020 PIN; KNOCK 04.510 OD=6 L=12	9-08150-612-0	02	1	0610-		●	●	●
148	04.015 GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	8-97184-922-0	01	1	0307-	●
148	04.015 GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	8-97083-599-0	01	1	0307-0609		●	●
148	04.015 GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	8-97083-599-0	01	1	0610-		●	●	●
161	04.307 PLUG; INTER LK HOLE	8-94239-543-1	01	1	0307-0609	●	●	●
161	04.307 PLUG; INTER LK HOLE	8-94239-543-1	01	1	0610-	●	●	●	●
197	04.309 INHIBITOR; REV SHIFT	8-94448-753-0	01	1	0307-0609		●	●
197	04.309 INHIBITOR; REV SHIFT	8-94448-753-0	01	1	0610-		●	●	●
198	04.309 BRACKET; REV INHIBITOR	8-94448-199-0	01	1	0307-0609		●	●
198	04.309 BRACKET; REV INHIBITOR	8-94448-199-0	01	1	0610-		●	●	●
200	04.309 SPRING; REV INHIBITOR,COMP	8-94448-807-0	01	1	0307-0609		●	●
200	04.309 SPRING; REV INHIBITOR,COMP	8-94448-807-0	01	1	0610-		●	●	●
202	04.309 SPRING; REV INHIBITOR,EXT	8-97017-500-0	01	1	0307-0609		●	●
202	04.309 SPRING; REV INHIBITOR,EXT	8-97017-500-0	01	1	0610-		●	●	●
204	04.309 STOPPER; REV INHIBITOR	8-94479-434-2	01	1	0307-0604		●	●
204	04.309 STOPPER; REV INHIBITOR	8-98035-673-0	01	1	0605-0609		●	●
204	04.309 STOPPER; REV INHIBITOR	8-98035-673-0	01	1	0610-		●	●	●
262	04.105 BOX ASM; SHIFT CONT	8-97201-493-1	01	1	0307-0603	●
262	04.105 BOX ASM; SHIFT CONT	8-98017-735-0	01	1	0604-	●
262	04.105 BOX ASM; SHIFT CONT C24SE ENG(LG1),6VE1 ENG(LX5)	8-97257-824-0	01	1	0307-0603		●
262	04.105 BOX ASM; SHIFT CONT	8-97257-824-0	01	1	0307-0603			●
262	04.105 BOX ASM; SHIFT CONT C24SE ENG(LG1),6VE1 ENG(LX5)	8-98017-739-0	01	1	0604-0609		●
262	04.105 BOX ASM; SHIFT CONT	8-98017-739-0	01	1	0604-0609			●
262	04.105 BOX ASM; SHIFT CONT C24SE ENG(LG1)	8-98017-739-0	01	1	0610-		●
262	04.105 BOX ASM; SHIFT CONT	8-98017-739-0	01	1	0610-			●
262	04.105 BOX ASM; SHIFT CONT 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM)	8-97357-040-0	01	1	0307-0603		●
262	04.105 BOX ASM; SHIFT CONT 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM)	8-98017-729-0	01	1	0604-0609		●
262	04.105 BOX ASM; SHIFT CONT 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0)	8-98017-729-0	01	1	0610-0612		●		●
262	04.105 BOX ASM; SHIFT CONT 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0)	8-98017-729-0	01	1	0701-0709		●		●
262	04.105 BOX ASM; SHIFT CONT 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0)	8-98017-729-0	01	1	0710-0912		●		●
262	04.105 BOX ASM; SHIFT CONT 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-98017-729-0	01	1	1001-		●		●
391	04.104 PLUG; SW HOLE 4X2(TFB***) 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) M14X11	8-98035-674-0	01	1	0605-0609		●
391	04.104 PLUG; SW HOLE 4X4(TFS***) 4JA1-T ENG(LP0),6VE1 ENG(LX5), 4JA1-TCENG(L4Z),4JH1-TC ENG(RDM) M14X11	8-98035-674-0	01	1	0605-0609		●
391	04.104 PLUG; SW HOLE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) M14X11	8-98035-674-0	01	1	0610-0612		●		●
391	04.104 PLUG; SW HOLE 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) M14X11	8-98035-674-0	01	1	0701-0709		●		●
391	04.104 PLUG; SW HOLE 4X2(TFB***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) M14X11	8-98035-674-0	01	1	0710-0710		●		●
391	04.104 PLUG; SW HOLE 4X4(TFS***) 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) M14X11	8-98035-674-0	01	1	0710-0710		●		●
391	04.104 PLUG; SW HOLE 4X2(TFB***) C24SE ENG(LG1),4JA1-T ENG(LP0) M14X11	8-98035-674-0	01	1	0710-0710			●
391	04.104 PLUG; SW HOLE 4X2(TFB***) C24SE ENG(LG1),4JA1-T ENG(LP0) M14X11	8-98035-674-0	01	1	0710-0912		●	●	●
391	04.104 PLUG; SW HOLE 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0) M14X11	8-98035-674-0	01	1	0710-0912		●		●
391	04.104 PLUG; SW HOLE 4X2(TFB***) C24SE ENG(LG1),4JA1-T ENG(LP0) M14X11	8-98035-674-0	01	1	1001-1008		●	●	●
391	04.104 PLUG; SW HOLE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) M14X11	8-98035-674-0	01	1	1001-1008		●		●
391	04.104 PLUG; SW HOLE 4X2(TFB***) C24SE ENG(LG1),4JA1-T ENG(LP0) M14X11	8-98035-674-0	01	1	1009-		●	●	●
391	04.104 PLUG; SW HOLE 4X2(TFB***) C24SE ENG(LG1),4JA1-T ENG(LP0),6VE1 ENG(LX5) M14X11	8-94252-142-0	01	1	0307-0604		●	●
391	04.104 PLUG; SW HOLE 4JA1-T ENG(LP0),6VE1 ENG(LX5), 4JA1-TCENG(L4Z),4JH1-TC ENG(RDM) M14X11	8-94252-142-0	01	1	0307-0604		●
391	04.104 PLUG; SW HOLE 6VE1 ENG(LX5) M14X11	8-94252-142-0	01	1	0307-0604		●
391	04.104 PLUG; SW HOLE 4X2(TFB***) C24SE ENG(LG1),4JA1-T ENG(LP0),6VE1 ENG(LX5) M14X11	8-94252-142-0	01	1	0605-0609		●	●
391	04.104 PLUG; SW HOLE 4X2(TFB***) C24SE ENG(LG1),4JA1-T ENG(LP0) M14X11	8-94252-142-0	01	1	0610-0709		●	●	●
398	02.698 SWITCH; REV LAMP 04.439 (A)	8-94411-366-1	01	1	0307-0602	●
398	02.698 SWITCH; REV LAMP (A)	8-98042-851-0	01	1	0603-0609	●
398	02.698 SWITCH; REV LAMP (A)	8-98035-679-0	01	1	0610-0709	●
398	02.698 SWITCH; REV LAMP (A)	8-98042-851-0	01	1	0710-	●
398	02.698 SWITCH; REV LAMP (D)	8-97138-635-0	01	1	0307-0604		●	●
398	02.698 SWITCH; REV LAMP (D)	8-98035-681-0	01	1	0605-0609		●	●
398	02.698 SWITCH; REV LAMP (D)	8-98035-681-0	01	1	0610-		●	●	●
398	02.698 SWITCH; REV LAMP 4JJ1-TCX ENG(LS0) (B)	8-98037-159-0	01	1	0610-						●
398	02.698 SWITCH; REV LAMP 4JJ1-TCX ENG(LS0) (C)	8-98037-160-0	01	1	0610-						●
401	04.075 GASKET; SWITCH,TOP & 3RD 6VE1 ENG(LX5) 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	0307-0609		●
410	04.054 GASKET; REV SW ALSO INCLUDED IN GASKET SET(M/T). 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	0307-0609		●	●
410	04.054 GASKET; REV SW ALSO INCLUDED IN GASKET SET(M/T). 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	0610-		●	●	●
498	04.075 GASKET; SWITCH,1ST & 2ND 4JA1-T ENG(LP0),6VE1 ENG(LX5), 4JA1-TCENG(L4Z),4JH1-TC ENG(RDM) 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	0307-0609		●
498	04.075 GASKET; SWITCH,1ST & 2ND 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	0610-0612		●		●
498	04.075 GASKET; SWITCH,1ST & 2ND 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	0701-0709		●		●
498	04.075 GASKET; SWITCH,1ST & 2ND 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0) 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	0710-0912		●		●
498	04.075 GASKET; SWITCH,1ST & 2ND 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	1001-1008		●		●

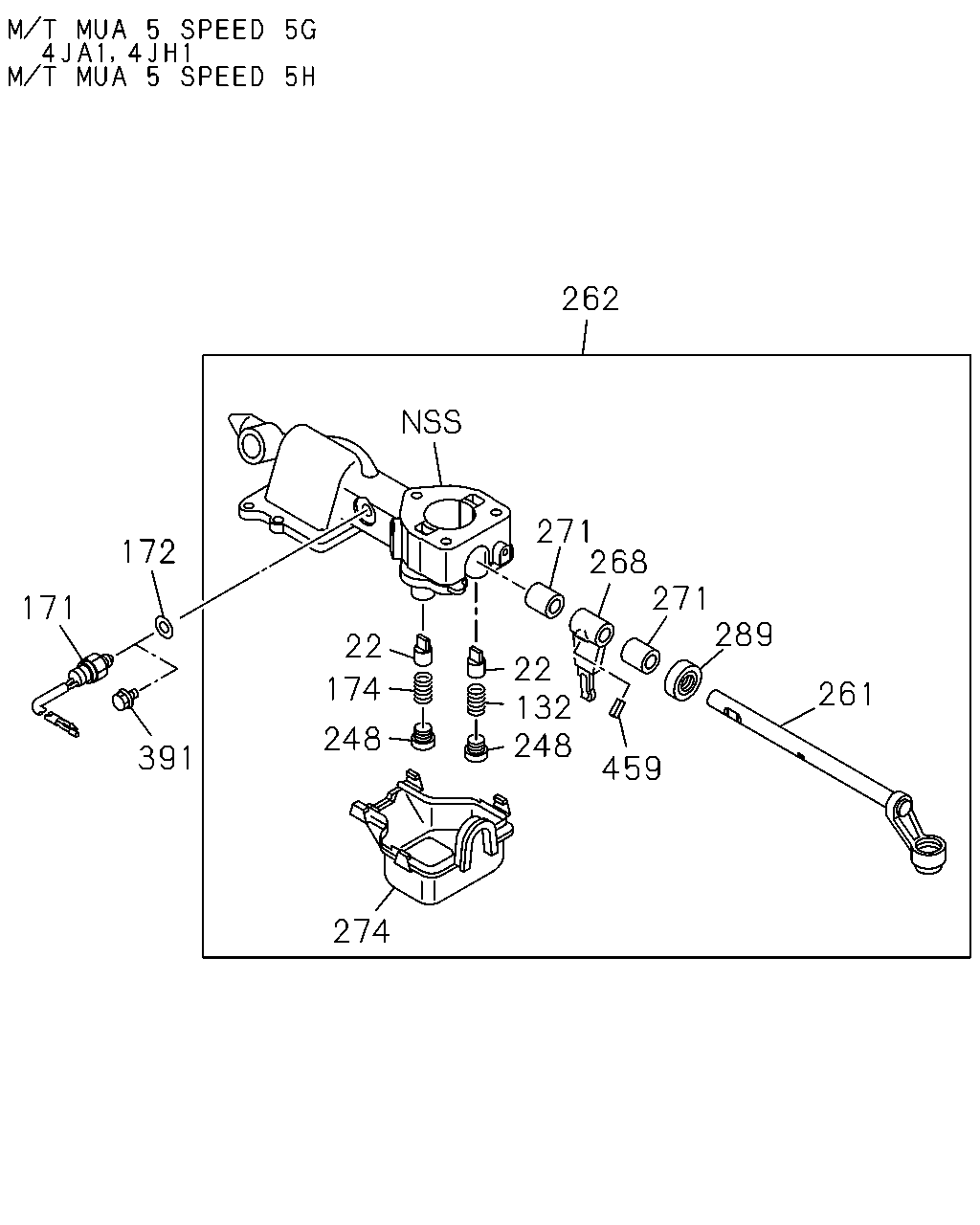

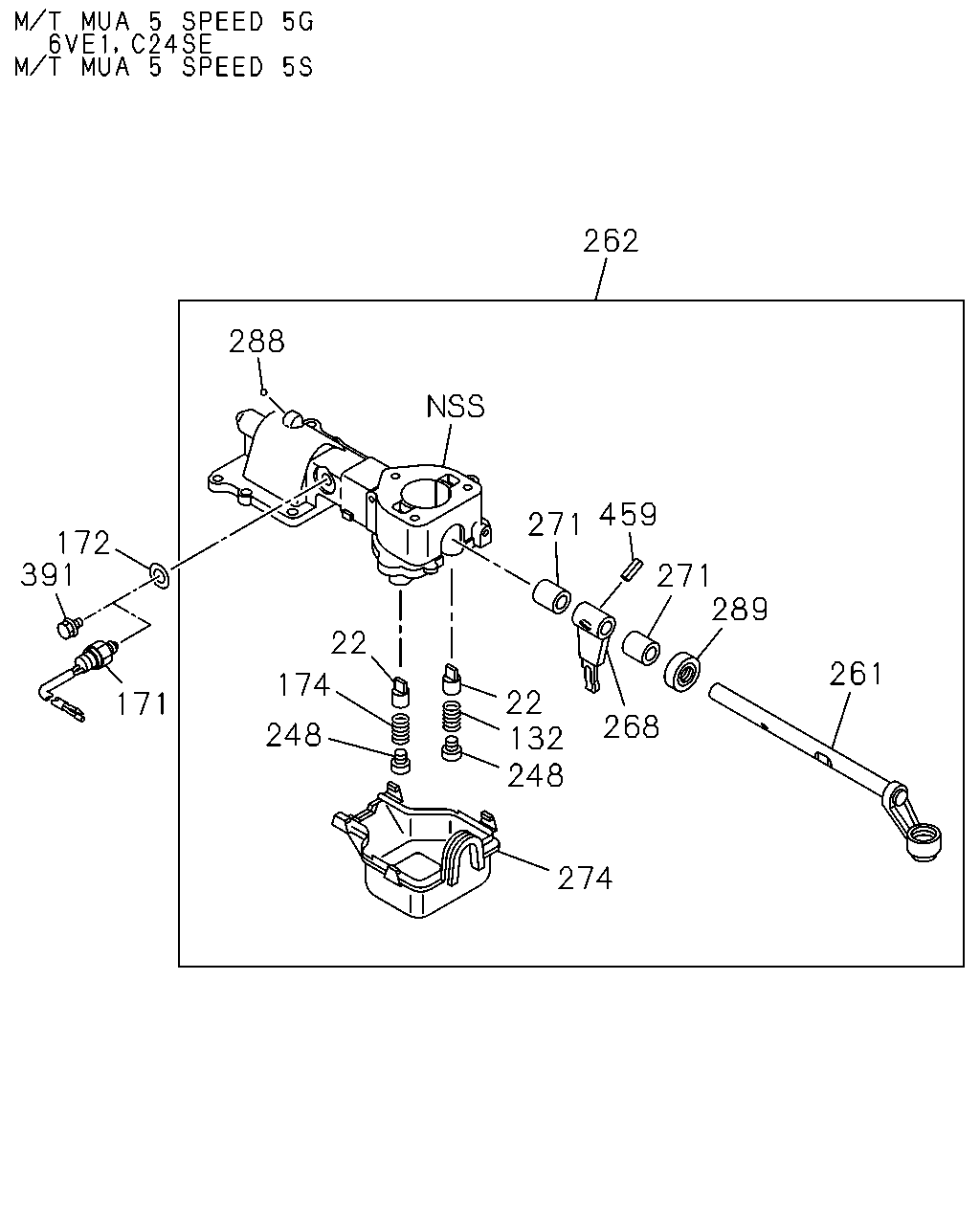

262 271 268 271 289 261 459 248 132 22 274 248 174 22 391 171 172

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
22	04.307 CAP; RETURN SPR,SHIFT BLOCK	8-97181-326-0	02	1	0307-0609	●	●	●
22	04.307 CAP; RETURN SPR,SHIFT BLOCK	8-97181-326-0	02	1	0610-	●	●	●	●
132	04.027 SPRING; SELECT STOP	8-97181-395-0	01	1	0307-0609	●	●	●
132	04.027 SPRING; SELECT STOP	8-97181-395-0	01	1	0610-	●	●	●	●
171	04.054 SWITCH; NEUTRAL 4X4(TFS***)	8-97138-631-0	01	1	0307-0609		●	●
171	04.054 SWITCH; NEUTRAL 4X2(TFB***) 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM)	8-97138-631-0	01	1	0307-0609		●
171	04.054 SWITCH; NEUTRAL 4X2(TFB***) 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JH1-TC ENG(RDM)	8-97138-631-0	01	1	0610-0612		●	●	●
171	04.054 SWITCH; NEUTRAL 4X4(TFS***)	8-97138-631-0	01	1	0610-0612		●	●	●
171	04.054 SWITCH; NEUTRAL 4X2(TFB***) 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JH1-TC ENG(RDM)	8-98035-680-0	01	1	0701-0701		●	●	●
171	04.054 SWITCH; NEUTRAL 4X4(TFS***)	8-98035-680-0	01	1	0701-0701		●	●	●
171	04.054 SWITCH; NEUTRAL 4X2(TFB***) 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0)	8-98035-680-0	01	1	0701-0912		●	●	●
171	04.054 SWITCH; NEUTRAL 4X4(TFS***)	8-98035-680-0	01	1	0701-0912		●	●	●
171	04.054 SWITCH; NEUTRAL 4X2(TFB***) 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0)	8-98035-680-0	01	1	1001-		●	●	●
171	04.054 SWITCH; NEUTRAL 4X4(TFS***)	8-98035-680-0	01	1	1001-		●	●	●
171	04.054 SWITCH; NEUTRAL 4X4(TFS***) HF V6 ENG(LCA)	8-97165-083-0	01	1	0509-					●
171	04.054 SWITCH; NEUTRAL 4JJ1-TCX ENG(LS0) 04.075	8-97358-606-0	01	1	0610-						●
172	04.054 GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T). 04.075 ID=14.2	8-94462-114-0	01	1	0307-0609		●	●
172	04.054 GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T). 04.075 ID=14.2	8-94462-114-0	01	1	0610-		●	●	●
174	04.307 SPRING; REV	8-97181-394-0	01	1	0307-0609	●	●	●
174	04.307 SPRING; REV	8-97181-394-0	01	1	0610-	●	●	●	●
248	04.105 RETAINER; CONT BOX 04.307	8-97181-325-0	02	1	0307-0609	●	●	●
248	04.105 RETAINER; CONT BOX 04.307	8-97181-325-0	02	1	0610-	●	●	●	●
248	04.105 RETAINER; CONT BOX HF V6 ENG(LCA)	8-98025-328-0	01	1	0509-					●
261	04.309 ROD; GEAR CONT	8-97257-825-0	01	1	0307-	●
261	04.309 ROD; GEAR CONT C24SE ENG(LG1),6VE1 ENG(LX5)	8-97257-909-0	01	1	0307-0609		●
261	04.309 ROD; GEAR CONT	8-97257-909-0	01	1	0307-0609			●
261	04.309 ROD; GEAR CONT C24SE ENG(LG1)	8-97257-909-0	01	1	0610-		●
261	04.309 ROD; GEAR CONT	8-97257-909-0	01	1	0610-			●
261	04.309 ROD; GEAR CONT 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM)	8-97257-911-0	01	1	0307-0609		●
261	04.309 ROD; GEAR CONT 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0)	8-97257-911-0	01	1	0610-0612		●		●
261	04.309 ROD; GEAR CONT 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0)	8-97257-911-0	01	1	0701-0709		●		●
261	04.309 ROD; GEAR CONT 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0)	8-97257-911-0	01	1	0710-0912		●		●
261	04.309 ROD; GEAR CONT 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-97257-911-0	01	1	1001-		●		●
261	04.309 ROD; GEAR CONT HF V6 ENG(LCA)	8-89048-251-0	01	1	0509-					●
261	04.309 ROD; GEAR CONT 4JJ1-TCX ENG(LS0)	8-97362-444-0	01	1	0610-						●
262	04.105 BOX ASM; SHIFT CONT	8-97201-493-1	01	1	0307-0603	●
262	04.105 BOX ASM; SHIFT CONT	8-98017-735-0	01	1	0604-	●
262	04.105 BOX ASM; SHIFT CONT C24SE ENG(LG1),6VE1 ENG(LX5)	8-97257-824-0	01	1	0307-0603		●
262	04.105 BOX ASM; SHIFT CONT	8-97257-824-0	01	1	0307-0603			●
262	04.105 BOX ASM; SHIFT CONT C24SE ENG(LG1),6VE1 ENG(LX5)	8-98017-739-0	01	1	0604-0609		●
262	04.105 BOX ASM; SHIFT CONT	8-98017-739-0	01	1	0604-0609			●
262	04.105 BOX ASM; SHIFT CONT C24SE ENG(LG1)	8-98017-739-0	01	1	0610-		●
262	04.105 BOX ASM; SHIFT CONT	8-98017-739-0	01	1	0610-			●
262	04.105 BOX ASM; SHIFT CONT 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM)	8-97357-040-0	01	1	0307-0603		●
262	04.105 BOX ASM; SHIFT CONT 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM)	8-98017-729-0	01	1	0604-0609		●
262	04.105 BOX ASM; SHIFT CONT 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0)	8-98017-729-0	01	1	0610-0612		●		●
262	04.105 BOX ASM; SHIFT CONT 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0)	8-98017-729-0	01	1	0701-0709		●		●
262	04.105 BOX ASM; SHIFT CONT 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0)	8-98017-729-0	01	1	0710-0912		●		●
262	04.105 BOX ASM; SHIFT CONT 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-98017-729-0	01	1	1001-		●		●
268	04.302 LEVER; CONT,INTERNAL	8-97184-894-0	01	1	0307-	●
268	04.302 LEVER; CONT,INTERNAL	8-97184-895-0	01	1	0307-0609		●	●
268	04.302 LEVER; CONT,INTERNAL	8-97184-895-0	01	1	0610-		●	●	●
268	04.302 LEVER; CONT,INTERNAL HF V6 ENG(LCA)	8-98025-391-0	01	1	0509-					●
271	04.105 BUSHING; QUAD BOX ID=14 L=12	8-97203-909-0	02	1	0307-0603	●	●	●
271	04.105 BUSHING; QUAD BOX ID=14 L=12	8-98017-908-0	02	1	0604-0609	●	●	●
271	04.105 BUSHING; QUAD BOX ID=14 L=12	8-98017-908-0	02	1	0610-	●	●	●	●
274	04.105 COVER; SHAFT,QUAD BOX	8-97181-324-1	01	1	0307-0609	●	●	●
274	04.105 COVER; SHAFT,QUAD BOX	8-97181-324-1	01	1	0610-	●	●	●	●
289	04.107 SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	8-97181-327-0	01	1	0307-0603	●	●	●
289	04.107 SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	8-98017-744-0	01	1	0604-0609	●	●	●
289	04.107 SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	8-98017-744-0	01	1	0610-	●	●	●	●
391	04.104 PLUG; SW HOLE 4X2(TFB***) 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) M14X11	8-98035-674-0	01	1	0605-0609		●
391	04.104 PLUG; SW HOLE 4X4(TFS***) 4JA1-T ENG(LP0),6VE1 ENG(LX5), 4JA1-TCENG(L4Z),4JH1-TC ENG(RDM) M14X11	8-98035-674-0	01	1	0605-0609		●
391	04.104 PLUG; SW HOLE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) M14X11	8-98035-674-0	01	1	0610-0612		●		●
391	04.104 PLUG; SW HOLE 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) M14X11	8-98035-674-0	01	1	0701-0709		●		●
391	04.104 PLUG; SW HOLE 4X2(TFB***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) M14X11	8-98035-674-0	01	1	0710-0710		●		●
391	04.104 PLUG; SW HOLE 4X4(TFS***) 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) M14X11	8-98035-674-0	01	1	0710-0710		●		●
391	04.104 PLUG; SW HOLE 4X2(TFB***) C24SE ENG(LG1),4JA1-T ENG(LP0) M14X11	8-98035-674-0	01	1	0710-0710			●
391	04.104 PLUG; SW HOLE 4X2(TFB***) C24SE ENG(LG1),4JA1-T ENG(LP0) M14X11	8-98035-674-0	01	1	0710-0912		●	●	●
391	04.104 PLUG; SW HOLE 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0) M14X11	8-98035-674-0	01	1	0710-0912		●		●
391	04.104 PLUG; SW HOLE 4X2(TFB***) C24SE ENG(LG1),4JA1-T ENG(LP0) M14X11	8-98035-674-0	01	1	1001-1008		●	●	●
391	04.104 PLUG; SW HOLE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) M14X11	8-98035-674-0	01	1	1001-1008		●		●
391	04.104 PLUG; SW HOLE 4X2(TFB***) C24SE ENG(LG1),4JA1-T ENG(LP0) M14X11	8-98035-674-0	01	1	1009-		●	●	●
391	04.104 PLUG; SW HOLE 4X2(TFB***) C24SE ENG(LG1),4JA1-T ENG(LP0),6VE1 ENG(LX5) M14X11	8-94252-142-0	01	1	0307-0604		●	●
391	04.104 PLUG; SW HOLE 4JA1-T ENG(LP0),6VE1 ENG(LX5), 4JA1-TCENG(L4Z),4JH1-TC ENG(RDM) M14X11	8-94252-142-0	01	1	0307-0604		●
391	04.104 PLUG; SW HOLE 6VE1 ENG(LX5) M14X11	8-94252-142-0	01	1	0307-0604		●
391	04.104 PLUG; SW HOLE 4X2(TFB***) C24SE ENG(LG1),4JA1-T ENG(LP0),6VE1 ENG(LX5) M14X11	8-94252-142-0	01	1	0605-0609		●	●
391	04.104 PLUG; SW HOLE 4X2(TFB***) C24SE ENG(LG1),4JA1-T ENG(LP0) M14X11	8-94252-142-0	01	1	0610-0709		●	●	●
459	04.302 PIN; SPR,ROD TO ARM OD=5	8-97184-905-0	01	1	0307-0609	●	●	●
459	04.302 PIN; SPR,ROD TO ARM OD=5	8-97184-905-0	01	1	0610-	●	●	●	●

262 271 459 271 289 261 268 274 248 132 22 248 174 22 171 391 172 288

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
22	04.307 CAP; RETURN SPR,SHIFT BLOCK	8-97181-326-0	02	1	0307-0609	●	●	●
22	04.307 CAP; RETURN SPR,SHIFT BLOCK	8-97181-326-0	02	1	0610-	●	●	●	●
132	04.027 SPRING; SELECT STOP	8-97181-395-0	01	1	0307-0609	●	●	●
132	04.027 SPRING; SELECT STOP	8-97181-395-0	01	1	0610-	●	●	●	●
171	04.054 SWITCH; NEUTRAL 4X4(TFS***)	8-97138-631-0	01	1	0307-0609		●	●
171	04.054 SWITCH; NEUTRAL 4X2(TFB***) 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM)	8-97138-631-0	01	1	0307-0609		●
171	04.054 SWITCH; NEUTRAL 4X2(TFB***) 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JH1-TC ENG(RDM)	8-97138-631-0	01	1	0610-0612		●	●	●
171	04.054 SWITCH; NEUTRAL 4X4(TFS***)	8-97138-631-0	01	1	0610-0612		●	●	●
171	04.054 SWITCH; NEUTRAL 4X2(TFB***) 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JH1-TC ENG(RDM)	8-98035-680-0	01	1	0701-0701		●	●	●
171	04.054 SWITCH; NEUTRAL 4X4(TFS***)	8-98035-680-0	01	1	0701-0701		●	●	●
171	04.054 SWITCH; NEUTRAL 4X2(TFB***) 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0)	8-98035-680-0	01	1	0701-0912		●	●	●
171	04.054 SWITCH; NEUTRAL 4X4(TFS***)	8-98035-680-0	01	1	0701-0912		●	●	●
171	04.054 SWITCH; NEUTRAL 4X2(TFB***) 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0)	8-98035-680-0	01	1	1001-		●	●	●
171	04.054 SWITCH; NEUTRAL 4X4(TFS***)	8-98035-680-0	01	1	1001-		●	●	●
171	04.054 SWITCH; NEUTRAL 4X4(TFS***) HF V6 ENG(LCA)	8-97165-083-0	01	1	0509-					●
171	04.054 SWITCH; NEUTRAL 4JJ1-TCX ENG(LS0) 04.075	8-97358-606-0	01	1	0610-						●
172	04.054 GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T). 04.075 ID=14.2	8-94462-114-0	01	1	0307-0609		●	●
172	04.054 GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T). 04.075 ID=14.2	8-94462-114-0	01	1	0610-		●	●	●
174	04.307 SPRING; REV	8-97181-394-0	01	1	0307-0609	●	●	●
174	04.307 SPRING; REV	8-97181-394-0	01	1	0610-	●	●	●	●
248	04.105 RETAINER; CONT BOX 04.307	8-97181-325-0	02	1	0307-0609	●	●	●
248	04.105 RETAINER; CONT BOX 04.307	8-97181-325-0	02	1	0610-	●	●	●	●
248	04.105 RETAINER; CONT BOX HF V6 ENG(LCA)	8-98025-328-0	01	1	0509-					●
261	04.309 ROD; GEAR CONT	8-97257-825-0	01	1	0307-	●
261	04.309 ROD; GEAR CONT C24SE ENG(LG1),6VE1 ENG(LX5)	8-97257-909-0	01	1	0307-0609		●
261	04.309 ROD; GEAR CONT	8-97257-909-0	01	1	0307-0609			●
261	04.309 ROD; GEAR CONT C24SE ENG(LG1)	8-97257-909-0	01	1	0610-		●
261	04.309 ROD; GEAR CONT	8-97257-909-0	01	1	0610-			●
261	04.309 ROD; GEAR CONT 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM)	8-97257-911-0	01	1	0307-0609		●
261	04.309 ROD; GEAR CONT 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0)	8-97257-911-0	01	1	0610-0612		●		●
261	04.309 ROD; GEAR CONT 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0)	8-97257-911-0	01	1	0701-0709		●		●
261	04.309 ROD; GEAR CONT 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0)	8-97257-911-0	01	1	0710-0912		●		●
261	04.309 ROD; GEAR CONT 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-97257-911-0	01	1	1001-		●		●
261	04.309 ROD; GEAR CONT HF V6 ENG(LCA)	8-89048-251-0	01	1	0509-					●
261	04.309 ROD; GEAR CONT 4JJ1-TCX ENG(LS0)	8-97362-444-0	01	1	0610-						●
262	04.105 BOX ASM; SHIFT CONT	8-97201-493-1	01	1	0307-0603	●
262	04.105 BOX ASM; SHIFT CONT	8-98017-735-0	01	1	0604-	●
262	04.105 BOX ASM; SHIFT CONT C24SE ENG(LG1),6VE1 ENG(LX5)	8-97257-824-0	01	1	0307-0603		●
262	04.105 BOX ASM; SHIFT CONT	8-97257-824-0	01	1	0307-0603			●
262	04.105 BOX ASM; SHIFT CONT C24SE ENG(LG1),6VE1 ENG(LX5)	8-98017-739-0	01	1	0604-0609		●
262	04.105 BOX ASM; SHIFT CONT	8-98017-739-0	01	1	0604-0609			●
262	04.105 BOX ASM; SHIFT CONT C24SE ENG(LG1)	8-98017-739-0	01	1	0610-		●
262	04.105 BOX ASM; SHIFT CONT	8-98017-739-0	01	1	0610-			●
262	04.105 BOX ASM; SHIFT CONT 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM)	8-97357-040-0	01	1	0307-0603		●
262	04.105 BOX ASM; SHIFT CONT 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM)	8-98017-729-0	01	1	0604-0609		●
262	04.105 BOX ASM; SHIFT CONT 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0)	8-98017-729-0	01	1	0610-0612		●		●
262	04.105 BOX ASM; SHIFT CONT 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0)	8-98017-729-0	01	1	0701-0709		●		●
262	04.105 BOX ASM; SHIFT CONT 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0)	8-98017-729-0	01	1	0710-0912		●		●
262	04.105 BOX ASM; SHIFT CONT 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-98017-729-0	01	1	1001-		●		●
268	04.302 LEVER; CONT,INTERNAL	8-97184-894-0	01	1	0307-	●
268	04.302 LEVER; CONT,INTERNAL	8-97184-895-0	01	1	0307-0609		●	●
268	04.302 LEVER; CONT,INTERNAL	8-97184-895-0	01	1	0610-		●	●	●
268	04.302 LEVER; CONT,INTERNAL HF V6 ENG(LCA)	8-98025-391-0	01	1	0509-					●
271	04.105 BUSHING; QUAD BOX ID=14 L=12	8-97203-909-0	02	1	0307-0603	●	●	●
271	04.105 BUSHING; QUAD BOX ID=14 L=12	8-98017-908-0	02	1	0604-0609	●	●	●
271	04.105 BUSHING; QUAD BOX ID=14 L=12	8-98017-908-0	02	1	0610-	●	●	●	●
274	04.105 COVER; SHAFT,QUAD BOX	8-97181-324-1	01	1	0307-0609	●	●	●
274	04.105 COVER; SHAFT,QUAD BOX	8-97181-324-1	01	1	0610-	●	●	●	●
288	04.307 PLUG; AIR BREATHER	9-00097-517-0	01	1	0307-0609	●
288	04.307 PLUG; AIR BREATHER C24SE ENG(LG1),6VE1 ENG(LX5)	9-00097-517-0	01	1	0307-0609		●	●
288	04.307 PLUG; AIR BREATHER	9-00097-517-0	01	1	0610-	●
288	04.307 PLUG; AIR BREATHER C24SE ENG(LG1)	9-00097-517-0	01	1	0610-		●	●
289	04.107 SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	8-97181-327-0	01	1	0307-0603	●	●	●
289	04.107 SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	8-98017-744-0	01	1	0604-0609	●	●	●
289	04.107 SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	8-98017-744-0	01	1	0610-	●	●	●	●
391	04.104 PLUG; SW HOLE 4X2(TFB***) 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) M14X11	8-98035-674-0	01	1	0605-0609		●
391	04.104 PLUG; SW HOLE 4X4(TFS***) 4JA1-T ENG(LP0),6VE1 ENG(LX5), 4JA1-TCENG(L4Z),4JH1-TC ENG(RDM) M14X11	8-98035-674-0	01	1	0605-0609		●
391	04.104 PLUG; SW HOLE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) M14X11	8-98035-674-0	01	1	0610-0612		●		●
391	04.104 PLUG; SW HOLE 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) M14X11	8-98035-674-0	01	1	0701-0709		●		●
391	04.104 PLUG; SW HOLE 4X2(TFB***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) M14X11	8-98035-674-0	01	1	0710-0710		●		●
391	04.104 PLUG; SW HOLE 4X4(TFS***) 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) M14X11	8-98035-674-0	01	1	0710-0710		●		●
391	04.104 PLUG; SW HOLE 4X2(TFB***) C24SE ENG(LG1),4JA1-T ENG(LP0) M14X11	8-98035-674-0	01	1	0710-0710			●
391	04.104 PLUG; SW HOLE 4X2(TFB***) C24SE ENG(LG1),4JA1-T ENG(LP0) M14X11	8-98035-674-0	01	1	0710-0912		●	●	●
391	04.104 PLUG; SW HOLE 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0) M14X11	8-98035-674-0	01	1	0710-0912		●		●
391	04.104 PLUG; SW HOLE 4X2(TFB***) C24SE ENG(LG1),4JA1-T ENG(LP0) M14X11	8-98035-674-0	01	1	1001-1008		●	●	●
391	04.104 PLUG; SW HOLE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) M14X11	8-98035-674-0	01	1	1001-1008		●		●
391	04.104 PLUG; SW HOLE 4X2(TFB***) C24SE ENG(LG1),4JA1-T ENG(LP0) M14X11	8-98035-674-0	01	1	1009-		●	●	●
391	04.104 PLUG; SW HOLE 4X2(TFB***) C24SE ENG(LG1),4JA1-T ENG(LP0),6VE1 ENG(LX5) M14X11	8-94252-142-0	01	1	0307-0604		●	●
391	04.104 PLUG; SW HOLE 4JA1-T ENG(LP0),6VE1 ENG(LX5), 4JA1-TCENG(L4Z),4JH1-TC ENG(RDM) M14X11	8-94252-142-0	01	1	0307-0604		●
391	04.104 PLUG; SW HOLE 6VE1 ENG(LX5) M14X11	8-94252-142-0	01	1	0307-0604		●
391	04.104 PLUG; SW HOLE 4X2(TFB***) C24SE ENG(LG1),4JA1-T ENG(LP0),6VE1 ENG(LX5) M14X11	8-94252-142-0	01	1	0605-0609		●	●
391	04.104 PLUG; SW HOLE 4X2(TFB***) C24SE ENG(LG1),4JA1-T ENG(LP0) M14X11	8-94252-142-0	01	1	0610-0709		●	●	●
459	04.302 PIN; SPR,ROD TO ARM OD=5	8-97184-905-0	01	1	0307-0609	●	●	●
459	04.302 PIN; SPR,ROD TO ARM OD=5	8-97184-905-0	01	1	0610-	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
