Isuzu WW
▶
PICKUP
▶
TFR
▶
50965 - TFR/TFS-RHD
▶
2 - Clutch, Transmission, Trans Axle
▶

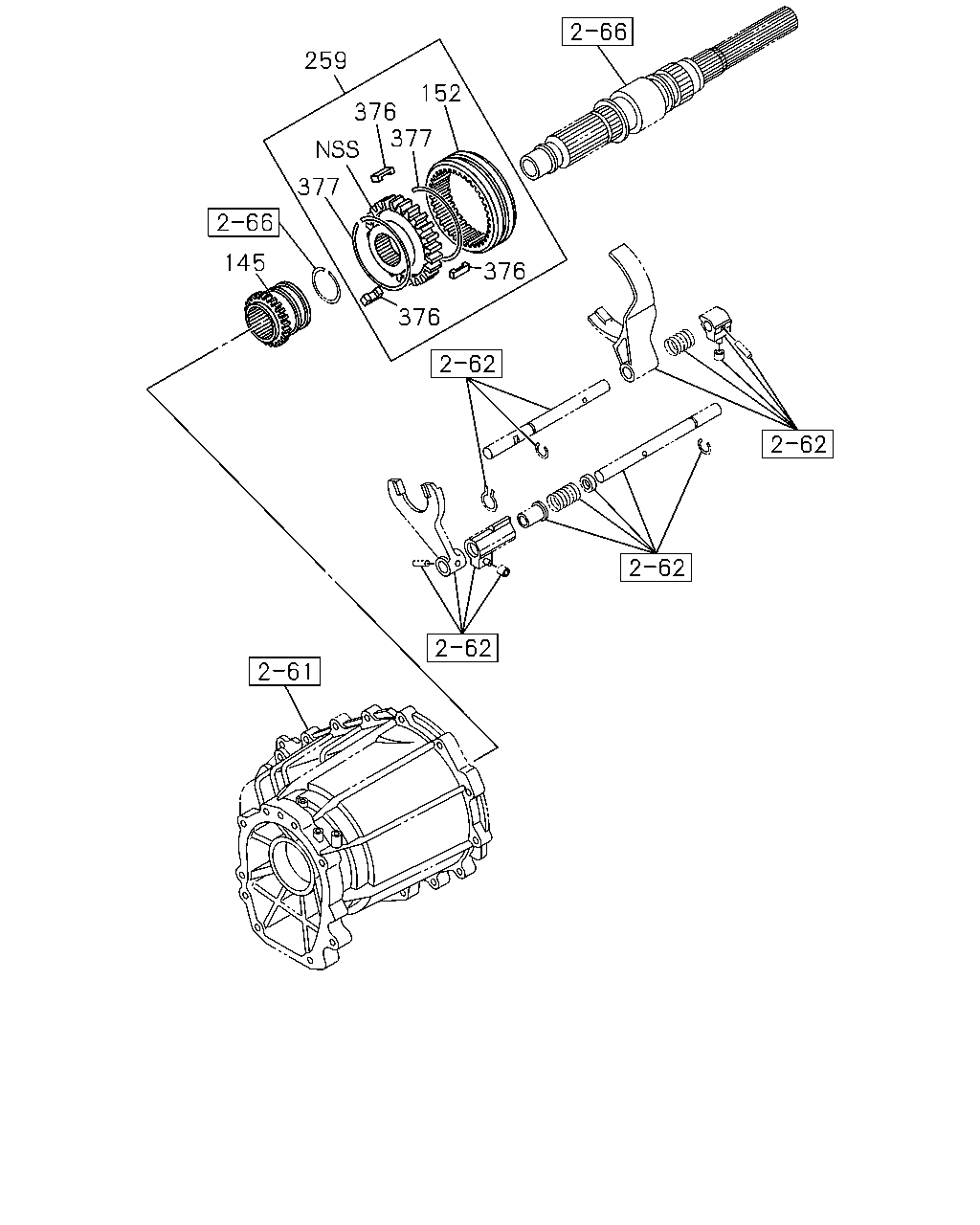

2-26B - MANUAL TRANSMISSION GEAR
▶
2-26B — MANUAL TRANSMISSION GEAR
(#20414) — 15 parça
Tümü
A - A/T AISIN
B - A/T 4 SPEED-JATCO
C - A/T 4 SPEED-HMD,ELEC,PTU
259
152
377
376
377
145
376
376
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
145
04.530 SLEEVE; HIGH-LOW SHIFT,TRANSFER
4X4(TFS***)
8-97358-245-0
01
1
0307-0508
●
●
145
04.530 SLEEVE; HIGH-LOW SHIFT,TRANSFER
4X4(TFS***)
8-97358-245-0
01
1
0509-0609
●
●
●
145
04.530 SLEEVE; HIGH-LOW SHIFT,TRANSFER
4X4(TFS***)
8-97358-245-0
01
1
0610-
●
●
●
152
04.535 SLEEVE; 4X2-4X4 SHIFT,TRANSFER
4X4(TFS***)
8-94363-060-0
01
1
0307-0508
●
●
152
04.535 SLEEVE; 4X2-4X4 SHIFT,TRANSFER
4X4(TFS***)
8-94363-060-0
01
1
0509-0609
●
●
●
152
04.535 SLEEVE; 4X2-4X4 SHIFT,TRANSFER
4X4(TFS***)
8-94363-060-0
01
1
0610-
●
●
●
259
04.538 SYNCHRONIZER; 4X2-4X4,TRANSFER
4X4(TFS***)
8-97234-225-0
01
1
0307-0508
●
●
259
04.538 SYNCHRONIZER; 4X2-4X4,TRANSFER
4X4(TFS***)
8-97234-225-0
01
1
0509-0609
●
●
●
259
04.538 SYNCHRONIZER; 4X2-4X4,TRANSFER
4X4(TFS***)
8-97234-225-0
01
1
0610-
●
●
●
376
04.384 INSERT; 4X2-4X4 SYN,TRANSFER
4X4(TFS***)
8-97238-590-0
03
1
0307-0508
●
●
376
04.384 INSERT; 4X2-4X4 SYN,TRANSFER
4X4(TFS***)
8-97238-590-0
03
1
0509-0609
●
●
●
376
04.384 INSERT; 4X2-4X4 SYN,TRANSFER
4X4(TFS***)
8-97238-590-0
03
1
0610-
●
●
●
377
04.384 SPRING; INSERT,4X2-4X4 SYN,TRANS
4X4(TFS***)
8-94448-045-0
02
1
0307-0508
●
●
377
04.384 SPRING; INSERT,4X2-4X4 SYN,TRANS
4X4(TFS***)
8-94448-045-0
02
1
0509-0609
●
●
●
377
04.384 SPRING; INSERT,4X2-4X4 SYN,TRANS
4X4(TFS***)
8-94448-045-0
02
1
0610-
●
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
