Sayfa 2-26A - Isuzu EPC

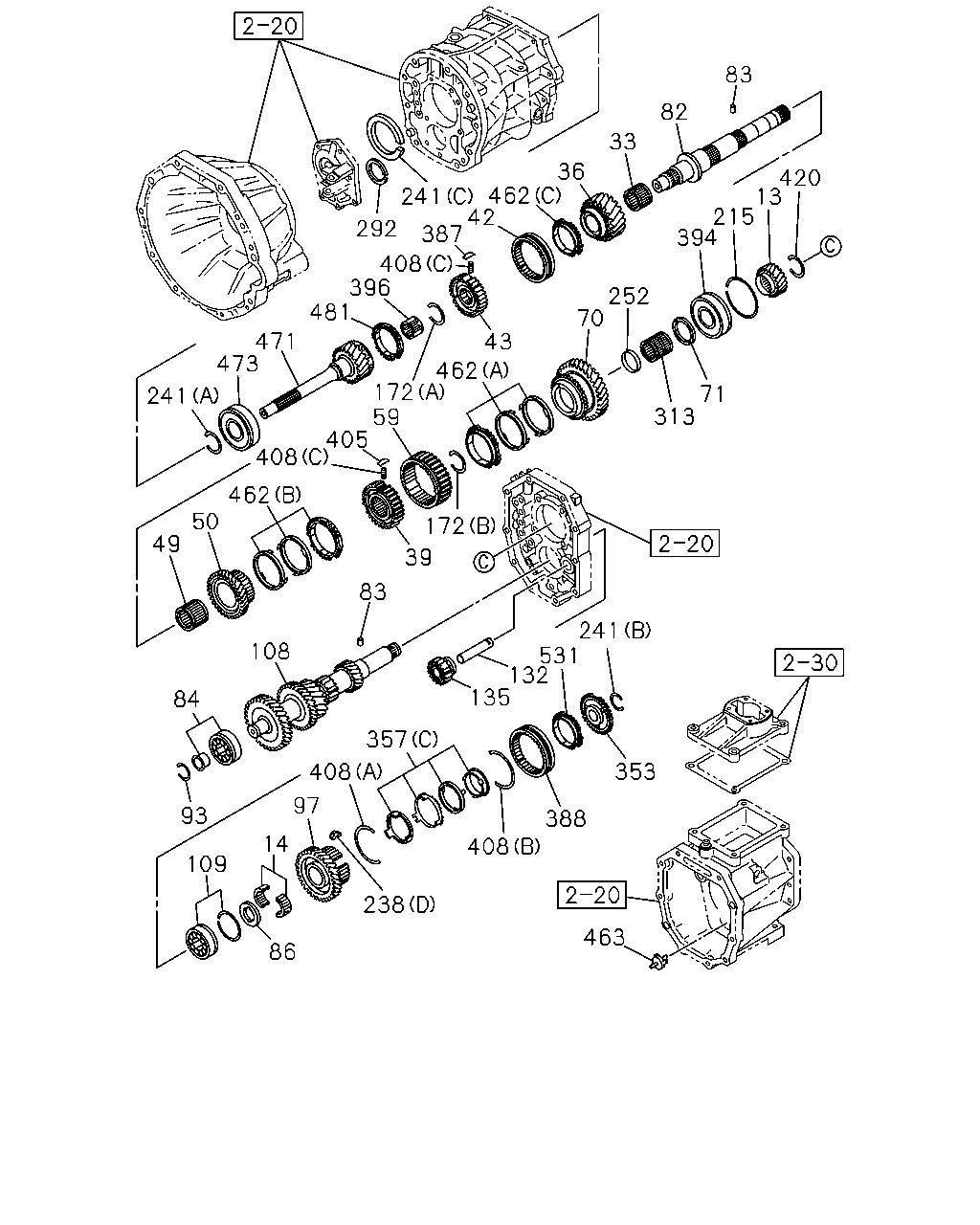

2-26A — MANUAL TRANSMISSION GEAR (#20413) — 1303 parça

83 82 33 36 462 241 292 387 408 396 481 471 473 241 420 13 215 394 252 70 42 43 462 172 59 405 408 462 50 49 84 93 109 14 86 238 97 108 408 357 83 135 408 463 388 353 132 531 241 39 172 401 80 401 277 313 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
13	04.415 GEAR; 5TH,MAINSHAFT Z=25	8-94161-912-3	01	1	0307-0901	●
13	04.415 GEAR; 5TH,MAINSHAFT Z=25 Z=25 Z=25	8-94161-912-3	01	1	0902-	●
13	04.415 GEAR; 5TH,MAINSHAFT Z=24	8-97216-153-0	01	1	0307-		●
13	04.415 GEAR; 5TH,MAINSHAFT Z=22	8-97104-023-2	01	1	0307-0609			●
13	04.415 GEAR; 5TH,MAINSHAFT Z=22	8-97104-023-2	01	1	0610-			●	●
13	04.415 GEAR; 5TH,MAINSHAFT HF V6 ENG(LCA)	8-89048-410-0	01	1	0509-					●
14	04.419 BEARING; NEEDLE,5TH NSK	8-94161-994-0	01	1	0307-	●
14	04.419 BEARING; NEEDLE,5TH NSK	8-97029-341-0	01	1	0307-0609		●	●
14	04.419 BEARING; NEEDLE,5TH NSK	8-97029-341-0	01	1	0610-1102		●	●	●
14	04.419 BEARING; NEEDLE,5TH NTN	8-98172-356-0	01	1	1103-		●	●	●
14	04.419 BEARING; NEEDLE,5TH HF V6 ENG(LCA)	8-97165-013-0	01	1	0509-					●
14	04.419 BEARING; NEEDLE,5TH 4JJ1-TCX ENG(LS0) NSK	8-97362-728-0	01	1	0610-						●
33	04.352 BEARING; NEEDLE,3RD GEAR 04.419 NSK	1-09811-028-1	01	1	0307-0609		●	●
33	04.352 BEARING; NEEDLE,3RD GEAR 04.419 NSK	1-09811-028-1	01	1	0610-		●	●	●		●
33	04.352 BEARING; NEEDLE,3RD GEAR HF V6 ENG(LCA)	8-97165-014-0	01	1	0509-					●
36	04.415 GEAR; 3RD,MAINSHAFT Z=29	8-94161-137-1	01	1	0307-0901	●
36	04.415 GEAR; 3RD,MAINSHAFT Z=29 Z=29	8-94161-137-1	01	1	0902-	●
36	04.415 GEAR; 3RD,MAINSHAFT Z=27	8-97216-150-1	01	1	0307-0609		●
36	04.415 GEAR; 3RD,MAINSHAFT Z=27	8-97216-150-1	01	1	0610-		●		●
36	04.415 GEAR; 3RD,MAINSHAFT Z=31	8-97104-021-2	01	1	0307-			●
36	04.415 GEAR; 3RD,MAINSHAFT HF V6 ENG(LCA)	8-98025-405-0	01	1	0509-					●
39	04.384 HUB; CLU,LOW & 2ND HF V6 ENG(LCA)	8-97164-971-0	01	1	0509-					●
42	04.383 SLEEVE HF V6 ENG(LCA)	8-89048-337-0	01	1	0509-					●
43	04.384 HUB; CLU,3RD & 4TH,MAIN HF V6 ENG(LCA)	8-89048-336-0	01	1	0509-					●
49	04.352 BEARING; NEEDLE,2ND GEAR JTEKT	9-00096-625-0	01	1	0307-0609		●	●
49	04.352 BEARING; NEEDLE,2ND GEAR JTEKT	9-00096-625-0	01	1	0610-		●	●	●
49	04.352 BEARING; NEEDLE,2ND GEAR HF V6 ENG(LCA)	8-97165-016-0	01	1	0509-					●
50	04.395 GEAR; 2ND,MAINSHAFT Z=31	8-94311-564-1	01	1	0307-0901	●
50	04.395 GEAR; 2ND,MAINSHAFT Z=31 Z=31	8-94311-564-1	01	1	0902-	●
50	04.395 GEAR; 2ND,MAINSHAFT Z=34	8-97300-953-1	01	1	0307-0609		●	●
50	04.395 GEAR; 2ND,MAINSHAFT Z=34	8-97300-953-1	01	1	0610-		●	●	●
50	04.395 GEAR; 2ND,MAINSHAFT HF V6 ENG(LCA)	8-89048-406-0	01	1	0509-					●
59	04.417 GEAR; REV MAINSHAFT Z=37	8-94310-158-1	01	1	0307-0901	●
59	04.417 GEAR; REV MAINSHAFT Z=37	8-94310-158-1	01	1	0902-	●
59	04.417 GEAR; REV MAINSHAFT Z=41	8-97104-025-2	01	1	0307-0609		●	●
59	04.417 GEAR; REV MAINSHAFT Z=41	8-97104-025-2	01	1	0610-		●	●	●
59	04.417 GEAR; REV MAINSHAFT HF V6 ENG(LCA)	8-89048-409-0	01	1	0509-					●
70	04.417 GEAR; 1ST,MAINSHAFT Z=41	8-94310-154-1	01	1	0307-0901	●
70	04.417 GEAR; 1ST,MAINSHAFT Z=41 Z=41	8-94310-154-1	01	1	0902-	●
70	04.417 GEAR; 1ST,MAINSHAFT Z=45	8-97300-952-1	01	1	0307-0609		●	●
70	04.417 GEAR; 1ST,MAINSHAFT Z=45	8-97300-952-1	01	1	0610-		●	●	●
70	04.417 GEAR; 1ST,MAINSHAFT HF V6 ENG(LCA)	8-89048-405-0	01	1	0509-					●
71	04.406 WASHER; THRUST,LOW ID=32.0	5-33239-043-3	02	1	0307-	●
71	04.406 WASHER; THRUST,LOW HF V6 ENG(LCA)	8-97164-997-0	01	1	0509-					●
80	04.343 GEAR; SPD DRIVE Z=6	8-94161-085-1	01	1	0307-	●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) C24SE ENG(LG1) Z=5	8-94472-606-1	01	1	0307-		●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) Z=5	8-94472-606-1	01	1	0307-			●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) 6VE1 ENG(LX5),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) Z=6	8-94472-608-1	01	1	0307-0508		●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) Z=6	8-94472-608-1	01	1	0509-0609		●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/11(GT4) FRT&RR 195R14C(CNU) Z=6	8-94472-608-1	01	1	0610-0912				●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(GY2) Z=6	8-94472-608-1	01	1	0610-0912				●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) 4JA1-T ENG(LP0) FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(GY2) Z=6	8-94472-608-1	01	1	1001-		●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/11(GT4) FRT&RR 195R14C(CNU) Z=6	8-94472-608-1	01	1	1001-				●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(GY2) Z=6	8-94472-608-1	01	1	1001-				●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) HF V6 ENG(LCA)	8-89048-422-0	01	1	0509-					●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/11(GT4) FRT&RR 215/70R15C GOODYEAR TIRE(QFT) Z=6	8-97227-220-0	01	1	0610-0612				●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) 4JK1-TCS ENG(LKZ) Z=6	8-97227-220-0	01	1	0610-0612				●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 41/11(GT4),FINAL GEAR RATIO 43/11(GW1) Z=6	8-97227-220-0	01	1	0610-0612				●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/11(GT4) FRT&RR 215/70R15C GOODYEAR TIRE(QFT) Z=6	8-97227-220-0	01	1	0701-				●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 41/11(GT4),FINAL GEAR RATIO 43/11(GW1) Z=6	8-97227-220-0	01	1	0701-				●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) 4JJ1-TCX ENG(LS0) Z=7	8-98004-532-0	01	1	0610-						●
82	04.403 SHAFT; MAIN,TRANS Z=26-24-27	8-94435-162-3	01	1	0307-	●
82	04.403 SHAFT; MAIN,TRANS 4X2(TFB***) Z=28-34-26-27	8-97300-981-0	01	1	0307-0609		●	●
82	04.403 SHAFT; MAIN,TRANS 4X2(TFB***) Z=28-34-26-27	8-97300-981-0	01	1	0610-		●	●	●
82	04.403 SHAFT; MAIN,TRANS 4X4(TFS***) Z=28-34-26-27	8-97300-980-0	01	1	0307-0609		●	●
82	04.403 SHAFT; MAIN,TRANS 4X4(TFS***) Z=28-34-26-27	8-97300-980-0	01	1	0610-		●	●	●
82	04.403 SHAFT; MAIN,TRANS 4X2(TFB***) HF V6 ENG(LCA)	8-89048-331-0	01	1	0509-					●
82	04.403 SHAFT; MAIN,TRANS 4X4(TFS***) HF V6 ENG(LCA)	8-89048-332-0	01	1	0509-					●
83	04.399 PIN; THRUST WASHER HF V6 ENG(LCA)	8-97164-974-0	02	1	0509-					●
84	04.422 BEARING; COUNTER SHAFT,FRT NSK ID=20 OD=47	8-97063-365-0	01	1	0307-0901	●
84	04.422 BEARING; COUNTER SHAFT,FRT NSK ID=20 OD=47 NSK ID=20 OD=47	8-97063-365-0	01	1	0902-	●
84	04.422 BEARING; COUNTER SHAFT,FRT HF V6 ENG(LCA)	8-97165-017-0	01	1	0509-					●
84	04.422 BEARING; COUNTER SHAFT,FRT 4JJ1-TCX ENG(LS0)	8-97362-724-0	01	1	0610-						●
86	04.416 WASHER; THRUST,5TH T=7.80	8-94238-099-4	01	1	0307-	●
86	04.416 WASHER; THRUST,5TH T=7.90	8-94238-100-4	01	1	0307-	●
86	04.416 WASHER; THRUST,5TH T=8.00	8-94238-101-4	01	1	0307-	●
86	04.416 WASHER; THRUST,5TH T=8.10	8-94238-102-4	01	1	0307-	●
86	04.416 WASHER; THRUST,5TH T=8.20	8-94238-103-4	01	1	0307-	●
86	04.416 WASHER; THRUST,5TH T=8.30	8-94238-104-4	01	1	0307-	●
86	04.416 WASHER; THRUST,5TH T=7.90 WHITE	8-94422-110-2	01	1	0307-0609		●	●
86	04.416 WASHER; THRUST,5TH T=7.90 WHITE	8-94422-110-2	01	1	0610-		●	●	●
86	04.416 WASHER; THRUST,5TH T=8.00 YELLOW	8-94422-111-2	01	1	0307-0609		●	●
86	04.416 WASHER; THRUST,5TH T=8.00 YELLOW	8-94422-111-2	01	1	0610-		●	●	●
86	04.416 WASHER; THRUST,5TH T=8.10 GREEN	8-94422-112-2	01	1	0307-0609		●	●
86	04.416 WASHER; THRUST,5TH T=8.10 GREEN	8-94422-112-2	01	1	0610-		●	●	●
86	04.416 WASHER; THRUST,5TH T=8.20 BLUE	8-94422-113-2	01	1	0307-0609		●	●
86	04.416 WASHER; THRUST,5TH T=8.20 BLUE	8-94422-113-2	01	1	0610-		●	●	●
86	04.416 WASHER; THRUST,5TH HF V6 ENG(LCA)	8-89048-333-0	01	1	0509-					●
93	04.422 RING; SNAP,COUNTER FRT BRG 08.934 ID=23.2	9-09180-025-0	01	1	0307-0609		●	●
93	04.422 RING; SNAP,COUNTER FRT BRG 08.934 ID=23.2	9-09180-025-0	01	1	0610-		●	●	●
93	04.422 RING; SNAP,COUNTER FRT BRG HF V6 ENG(LCA)	8-89048-575-0	01	1	0509-					●
97	04.415 GEAR; 5TH,COUNTER Z=47	8-94161-098-2	01	1	0307-0901	●
97	04.415 GEAR; 5TH,COUNTER Z=47 Z=47	8-94161-098-2	01	1	0902-	●
97	04.415 GEAR; 5TH,COUNTER Z=49	8-97216-154-0	01	1	0307-		●
97	04.415 GEAR; 5TH,COUNTER Z=50	8-94377-434-0	01	1	0307-0609			●
97	04.415 GEAR; 5TH,COUNTER Z=50	8-94377-434-0	01	1	0610-			●	●
97	04.415 GEAR; 5TH,COUNTER HF V6 ENG(LCA)	8-89059-406-0	01	1	0509-					●
97	04.415 GEAR; 5TH,COUNTER 4JJ1-TCX ENG(LS0) Z=27	8-98040-114-0	01	1	0610-						●
108	04.428 SHAFT; COUNTER HF V6 ENG(LCA)	8-98025-407-0	01	1	0509-					●
108	04.428 SHAFT; COUNTER 4JJ1-TCX ENG(LS0) Z=26-34-26-26	8-98023-108-1	01	1	0610-						●
109	04.422 BEARING; COUNTER SHAFT,RR HF V6 ENG(LCA)	8-97165-018-0	01	1	0509-					●
132	04.433 SHAFT; REV	8-94435-146-0	01	1	0307-	●
132	04.433 SHAFT; REV	8-97019-155-1	01	1	0307-0609		●	●
132	04.433 SHAFT; REV	8-97019-155-1	01	1	0610-		●	●	●
132	04.433 SHAFT; REV HF V6 ENG(LCA)	8-97165-006-0	01	1	0509-					●
132	04.433 SHAFT; REV 4JJ1-TCX ENG(LS0)	8-98023-113-0	01	1	0610-						●
135	04.430 GEAR; REV IDLER Z=23	8-94161-118-1	01	1	0307-0705	●
135	04.430 GEAR; REV IDLER Z=23	8-98080-126-0	01	1	0706-0708	●
135	04.430 GEAR; REV IDLER Z=23	8-98082-807-0	01	1	0709-0809	●
135	04.430 GEAR; REV IDLER Z=23	8-98080-126-0	01	1	0810-0901	●
135	04.430 GEAR; REV IDLER Z=33 Z=23 Z=23	8-98080-126-0	01	1	0902-1003	●
135	04.430 GEAR; REV IDLER Z=33 Z=33	8-98146-724-0	01	1	1004-	●
135	04.430 GEAR; REV IDLER Z=33	8-94377-435-1	01	1	0307-0609		●	●
135	04.430 GEAR; REV IDLER Z=33	8-94377-435-1	01	1	0610-0705		●	●	●
135	04.430 GEAR; REV IDLER Z=33	8-98080-125-0	01	1	0706-0708		●	●	●
135	04.430 GEAR; REV IDLER Z=33	8-98082-803-0	01	1	0709-0809		●	●	●
135	04.430 GEAR; REV IDLER Z=33	8-98080-125-0	01	1	0810-1003		●	●	●
135	04.430 GEAR; REV IDLER Z=33	8-98146-726-0	01	1	1004-		●	●	●
135	04.430 GEAR; REV IDLER HF V6 ENG(LCA)	8-89048-411-0	01	1	0509-					●
135	04.430 GEAR; REV IDLER 4JJ1-TCX ENG(LS0) Z=32	8-97362-513-0	01	1	0610-						●
172	04.412 RING; SNAP,CLU HUB HF V6 ENG(LCA) (A)	8-89048-118-0	01	1	0509-					●
172	04.412 RING; SNAP,CLU HUB HF V6 ENG(LCA) (B)	8-89048-119-0	01	1	0509-					●
215	04.416 RING; SNAP,BALL BRG ID=27.9	9-09180-030-0	01	1	0307-	●
215	04.416 RING; SNAP,BALL BRG HF V6 ENG(LCA)	8-97165-072-0	01	1	0509-					●
238	04.384 INSERT (A)	8-94448-202-2	03	1	0307-0609		●	●
238	04.384 INSERT (A)	8-94448-202-2	03	1	0610-		●	●	●
238	04.384 INSERT HF V6 ENG(LCA) (D)	8-89059-399-0	02	1	0509-					●
238	04.384 INSERT 4JJ1-TCX ENG(LS0) (B)	8-94249-576-2	03	1	0610-						●
238	04.384 INSERT 4JJ1-TCX ENG(LS0) (C)	8-98004-522-0	06	1	0610-						●
241	04.416 RING; SNAP HF V6 ENG(LCA) (A)	8-89048-120-0	01	1	0509-					●
241	04.416 RING; SNAP HF V6 ENG(LCA) (B)	8-89048-574-0	01	1	0509-					●
241	04.416 RING; SNAP HF V6 ENG(LCA) (C)	8-97165-073-0	01	1	0509-					●
241	04.416 RING; SNAP 4JJ1-TCX ENG(LS0) 04.422 (D) ID=34.4 T=1.9	8-97254-735-0	01	1	0610-						●
241	04.416 RING; SNAP 4JJ1-TCX ENG(LS0) (E) ID=27.1 T=1.9	8-97362-871-0	01	1	0610-						●
241	04.416 RING; SNAP 4JJ1-TCX ENG(LS0) (E) ID=27.1 T=2.1	8-97362-872-0	01	1	0610-						●
241	04.416 RING; SNAP 4JJ1-TCX ENG(LS0) (E) ID=27.1 T=2.3	8-97362-873-0	01	1	0610-						●
241	04.416 RING; SNAP 4JJ1-TCX ENG(LS0) (F) ID=37 T=1.95	8-98004-523-1	01	1	0610-						●
241	04.416 RING; SNAP 4JJ1-TCX ENG(LS0) (F) ID=37 T=2.1	8-98004-524-1	01	1	0610-						●
241	04.416 RING; SNAP 4JJ1-TCX ENG(LS0) (G) ID=27.9	9-09180-030-0	01	1	0610-						●
252	04.412 SPACER HF V6 ENG(LCA)	8-97164-973-0	01	1	0509-					●
252	04.412 SPACER 4JJ1-TCX ENG(LS0)	8-98024-456-0	01	1	0610-						●
277	04.345 BALL; SPD DRIVE GEAR 4X2(TFB***) HF V6 ENG(LCA)	8-89048-423-0	01	1	0509-					●
292	04.422 RING; SNAP,BRG OUTER NSK	8-94422-081-0	01	1	0307-0609		●	●
292	04.422 RING; SNAP,BRG OUTER NSK	8-94422-081-0	01	1	0610-		●	●	●
292	04.422 RING; SNAP,BRG OUTER HF V6 ENG(LCA)	8-97165-071-0	01	1	0509-					●
313	04.419 BEARING; NEEDLE,LOW GEAR NSK	1-09811-028-1	01	1	0307-0609		●	●
313	04.419 BEARING; NEEDLE,LOW GEAR NSK	1-09811-028-1	01	1	0610-		●	●	●
313	04.419 BEARING; NEEDLE,LOW GEAR HF V6 ENG(LCA)	8-97165-015-0	01	1	0509-					●
353	04.380 SYNCHRONIZER; 5TH HF V6 ENG(LCA)	8-89059-403-0	01	1	0509-					●
353	04.380 SYNCHRONIZER; 5TH 4JJ1-TCX ENG(LS0)	8-98004-511-1	01	1	0610-						●
357	04.383 RING HF V6 ENG(LCA) (C)	8-89059-402-0	01	1	0509-					●
357	04.383 RING 4JJ1-TCX ENG(LS0) (A) OD=90.0	8-94363-055-1	02	1	0610-						●
357	04.383 RING 4JJ1-TCX ENG(LS0) (B) OD=95.8	8-94363-056-0	02	1	0610-						●
387	04.384 INSERT; SYN,4TH & 3RD	9-33263-048-2	03	1	0307-	●
387	04.384 INSERT; SYN,4TH & 3RD HF V6 ENG(LCA)	8-89048-338-0	03	1	0509-					●
388	04.419 SLEEVE; SYN,REV & 5TH HF V6 ENG(LCA)	8-89059-404-0	01	1	0509-					●
394	04.419 BEARING; BALL,MAINSHAFT RR 4X4(TFS***) 04.352 NSK	8-97018-921-1	01	1	0307-0609		●	●
394	04.419 BEARING; BALL,MAINSHAFT RR 4X4(TFS***) 04.352 NSK	8-97018-921-1	01	1	0610-		●	●	●
394	04.419 BEARING; BALL,MAINSHAFT RR HF V6 ENG(LCA)	8-97164-975-0	01	1	0509-					●
396	04.352 BEARING; NEEDLE,MAINSHAFT JTEKT	9-00096-100-1	01	1	0307-	●
396	04.352 BEARING; NEEDLE,MAINSHAFT NSK	8-94422-068-1	01	1	0307-0609		●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT NSK	8-94422-068-1	01	1	0610-1102		●	●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT NSK	8-98172-355-0	01	1	1103-		●	●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT HF V6 ENG(LCA)	8-97165-012-0	01	1	0509-					●
401	04.345 RING; SNAP,SPD DRIVE GEAR 04.416 ID=27.9	9-09180-030-0	01	1	0307-	●
401	04.345 RING; SNAP,SPD DRIVE GEAR 4X2(TFB***) HF V6 ENG(LCA)	8-89048-424-0	02	1	0509-					●
405	04.384 INSERT; SYN,LOW & 2ND	8-94152-557-1	03	1	0307-	●
405	04.384 INSERT; SYN,LOW & 2ND	8-94363-062-1	03	1	0307-0609		●	●
405	04.384 INSERT; SYN,LOW & 2ND	8-94363-062-1	03	1	0610-		●	●	●		●
405	04.384 INSERT; SYN,LOW & 2ND HF V6 ENG(LCA)	8-97165-000-0	03	1	0509-					●
408	04.384 SPRING HF V6 ENG(LCA) (A)	8-89059-400-0	01	1	0509-					●
408	04.384 SPRING HF V6 ENG(LCA) (B)	8-89059-401-0	01	1	0509-					●
408	04.384 SPRING HF V6 ENG(LCA) (C)	8-97165-019-0	06	1	0509-					●
420	04.416 RING; SNAP,OUTPUT SHAFT HF V6 ENG(LCA)	8-89048-117-0	01	1	0509-					●
462	04.383 RING ASM; BLOCK,SYNCHRONIZER HF V6 ENG(LCA) (B)	8-89048-315-0	01	1	0509-					●
462	04.383 RING ASM; BLOCK,SYNCHRONIZER HF V6 ENG(LCA) (C)	8-89059-573-0	01	1	0509-					●
462	04.383 RING ASM; BLOCK,SYNCHRONIZER HF V6 ENG(LCA) 04.380 (A)	8-97164-968-0	01	1	0509-					●
463	04.422 PIPE; COUNTER SHAFT HF V6 ENG(LCA)	8-97164-985-0	01	1	0509-					●
471	04.530 SHAFT; INPUT HF V6 ENG(LCA)	8-98025-406-0	01	1	0509-					●
471	04.530 SHAFT; INPUT 4JJ1-TCX ENG(LS0)	8-98049-345-1	01	1	0610-						●
473	04.352 BEARING; INPUT SHAFT HF V6 ENG(LCA) 04.403	8-97164-976-0	01	1	0509-					●
473	04.352 BEARING; INPUT SHAFT 4JJ1-TCX ENG(LS0)	8-97362-721-1	01	1	0610-						●
481	04.383 RING; BLOCK HF V6 ENG(LCA)	8-89048-340-0	01	1	0509-					●
481	04.383 RING; BLOCK 4JJ1-TCX ENG(LS0) Z=36	8-98052-559-0	03	1	0610-						●
531	04.383 RING; BLOCK,REV HF V6 ENG(LCA)	8-89059-398-0	01	1	0509-					●
531	04.383 RING; BLOCK,REV 4JJ1-TCX ENG(LS0) OD=74	8-98037-846-0	01	1	0610-						●

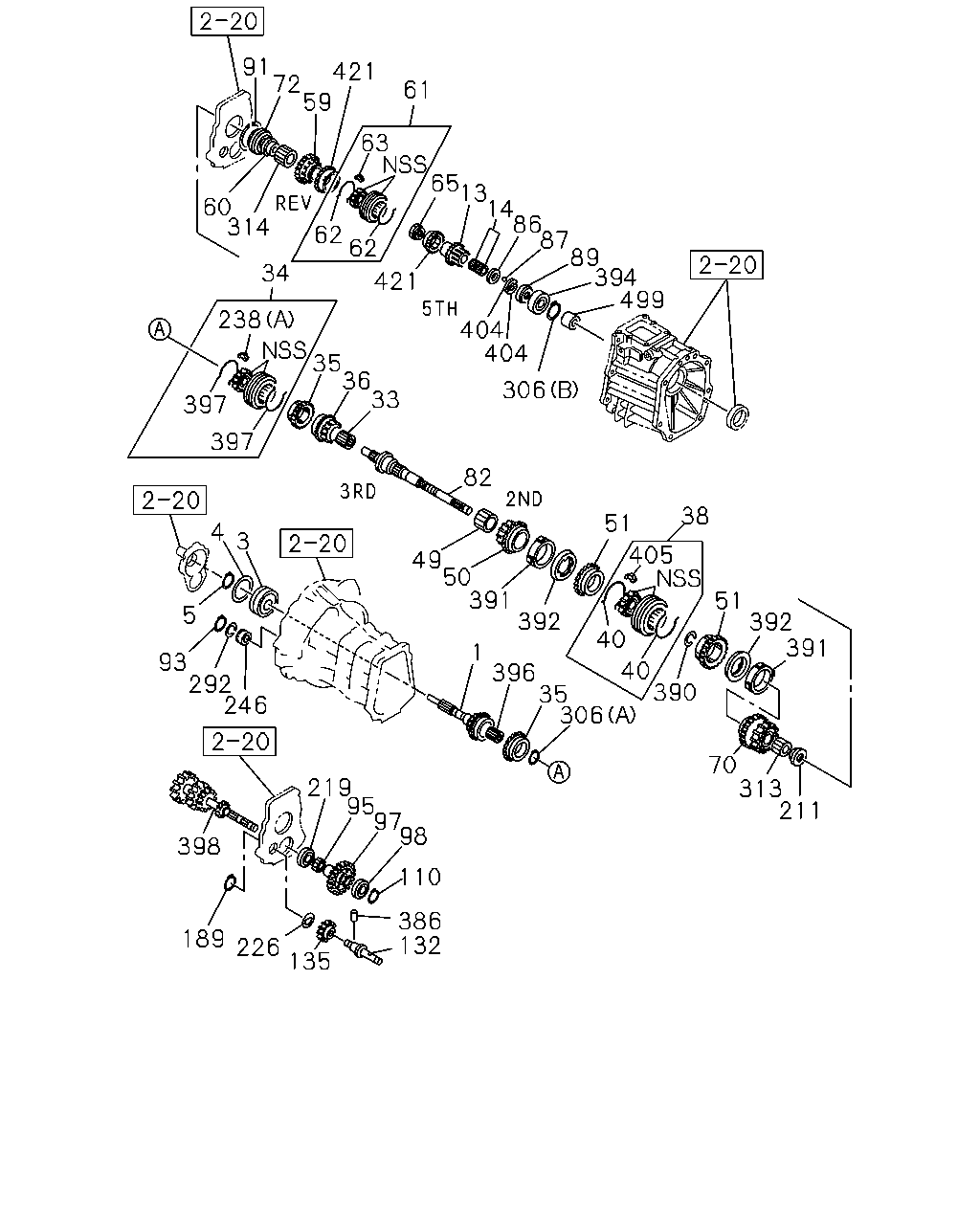

72 60 91 314 59 421 62 62 63 61 421 13 65 86 404 87 89 90 399 306 149 14 404 38 80 306 211 313 70 391 51 390 405 51 49 50 391 392 40 40 392 34 5 4 3 1 396 246 292 93 398 189 226 135 95 132 386 110 98 97 219 82 33 36 35 238 95 397 397 306

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	04.351 SHAFT; TOP GEAR,TRANS Z=23	8-94435-160-2	01	1	0307-0901	●
1	04.351 SHAFT; TOP GEAR,TRANS Z=23 Z=23	8-94435-160-2	01	1	0902-	●
1	04.351 SHAFT; TOP GEAR,TRANS C24SE ENG(LG1) Z=26	8-97300-950-1	01	1	0307-		●
1	04.351 SHAFT; TOP GEAR,TRANS 4JA1-T ENG(LP0),6VE1 ENG(LX5), 4JA1-TCENG(L4Z),4JH1-TC ENG(RDM) Z=26	8-97300-948-1	01	1	0307-0609		●
1	04.351 SHAFT; TOP GEAR,TRANS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) Z=26	8-97300-948-1	01	1	0610-0612		●		●
1	04.351 SHAFT; TOP GEAR,TRANS 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) Z=26	8-97300-948-1	01	1	0701-0709		●		●
1	04.351 SHAFT; TOP GEAR,TRANS 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0) Z=26	8-97300-948-1	01	1	0710-0912		●		●
1	04.351 SHAFT; TOP GEAR,TRANS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) Z=26	8-97300-948-1	01	1	1001-		●		●
1	04.351 SHAFT; TOP GEAR,TRANS Z=25	8-97182-214-1	01	1	0307-			●
3	04.403 BEARING; TOP GEAR SHAFT 04.355 NSK	8-94167-637-0	01	1	0307-0901	●
3	04.403 BEARING; TOP GEAR SHAFT NSK	8-97943-882-0	01	1	0902-	●
3	04.403 BEARING; TOP GEAR SHAFT NSK	8-94380-015-1	01	1	0307-0609		●	●
3	04.403 BEARING; TOP GEAR SHAFT NSK	8-94380-015-1	01	1	0610-		●	●	●
4	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT 04.376 NSK	8-94206-485-0	01	1	0307-	●
4	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT NSK	8-94422-083-0	01	1	0307-0609		●	●
4	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT NSK	8-94422-083-0	01	1	0610-		●	●	●
5	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT 08.934 ID=37.0	9-09180-040-0	01	1	0307-	●
5	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT 04.525 ID=37.4	8-97254-316-0	01	1	0307-0609		●	●
5	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT 04.525 ID=37.4	8-97254-316-0	01	1	0610-		●	●	●
13	04.415 GEAR; 5TH,MAINSHAFT Z=25	8-94161-912-3	01	1	0307-0901	●
13	04.415 GEAR; 5TH,MAINSHAFT Z=25 Z=25 Z=25	8-94161-912-3	01	1	0902-	●
13	04.415 GEAR; 5TH,MAINSHAFT Z=24	8-97216-153-0	01	1	0307-		●
13	04.415 GEAR; 5TH,MAINSHAFT Z=22	8-97104-023-2	01	1	0307-0609			●
13	04.415 GEAR; 5TH,MAINSHAFT Z=22	8-97104-023-2	01	1	0610-			●	●
13	04.415 GEAR; 5TH,MAINSHAFT HF V6 ENG(LCA)	8-89048-410-0	01	1	0509-					●
14	04.419 BEARING; NEEDLE,5TH NSK	8-94161-994-0	01	1	0307-	●
14	04.419 BEARING; NEEDLE,5TH NSK	8-97029-341-0	01	1	0307-0609		●	●
14	04.419 BEARING; NEEDLE,5TH NSK	8-97029-341-0	01	1	0610-1102		●	●	●
14	04.419 BEARING; NEEDLE,5TH NTN	8-98172-356-0	01	1	1103-		●	●	●
14	04.419 BEARING; NEEDLE,5TH HF V6 ENG(LCA)	8-97165-013-0	01	1	0509-					●
14	04.419 BEARING; NEEDLE,5TH 4JJ1-TCX ENG(LS0) NSK	8-97362-728-0	01	1	0610-						●
33	04.352 BEARING; NEEDLE,3RD GEAR 04.419 NSK	1-09811-028-1	01	1	0307-0609		●	●
33	04.352 BEARING; NEEDLE,3RD GEAR 04.419 NSK	1-09811-028-1	01	1	0610-		●	●	●		●
33	04.352 BEARING; NEEDLE,3RD GEAR HF V6 ENG(LCA)	8-97165-014-0	01	1	0509-					●
34	04.380 SYNCHRONIZER; 4TH & 3RD	8-94161-860-0	01	1	0307-0901	●
34	04.380 SYNCHRONIZER; 4TH & 3RD	8-94161-860-0	01	1	0902-	●
34	04.380 SYNCHRONIZER; 4TH & 3RD	8-97188-798-0	01	1	0307-0609		●	●
34	04.380 SYNCHRONIZER; 4TH & 3RD	8-97104-027-0	01	1	0610-		●	●	●
34	04.380 SYNCHRONIZER; 4TH & 3RD 4JJ1-TCX ENG(LS0)	8-97362-474-3	01	1	0610-						●
35	04.383 RING; BLOCK,4TH & 3RD Z=30	8-94463-830-1	02	1	0307-	●
35	04.383 RING; BLOCK,4TH & 3RD Z=45	8-94151-510-3	02	1	0307-0609		●	●
35	04.383 RING; BLOCK,4TH & 3RD Z=45	8-94151-510-3	02	1	0610-		●	●	●
36	04.415 GEAR; 3RD,MAINSHAFT Z=29	8-94161-137-1	01	1	0307-0901	●
36	04.415 GEAR; 3RD,MAINSHAFT Z=29 Z=29	8-94161-137-1	01	1	0902-	●
36	04.415 GEAR; 3RD,MAINSHAFT Z=27	8-97216-150-1	01	1	0307-0609		●
36	04.415 GEAR; 3RD,MAINSHAFT Z=27	8-97216-150-1	01	1	0610-		●		●
36	04.415 GEAR; 3RD,MAINSHAFT Z=31	8-97104-021-2	01	1	0307-			●
36	04.415 GEAR; 3RD,MAINSHAFT HF V6 ENG(LCA)	8-98025-405-0	01	1	0509-					●
38	04.384 SYNCHRONIZER; LOW & 2ND	8-94435-140-0	01	1	0307-0901	●
38	04.384 SYNCHRONIZER; LOW & 2ND	8-94435-140-0	01	1	0902-	●
38	04.384 SYNCHRONIZER; LOW & 2ND	8-97188-799-0	01	1	0307-0609		●	●
38	04.384 SYNCHRONIZER; LOW & 2ND	8-94363-059-1	01	1	0610-		●	●	●
38	04.384 SYNCHRONIZER; LOW & 2ND 4JJ1-TCX ENG(LS0)	8-97362-503-1	01	1	0610-						●
40	04.384 SPRING; INSERT,LOW & 2ND	8-94152-558-1	02	1	0307-	●
40	04.384 SPRING; INSERT,LOW & 2ND	8-94448-045-0	02	1	0307-0609		●	●
40	04.384 SPRING; INSERT,LOW & 2ND	8-94448-045-0	02	1	0610-		●	●	●		●
49	04.352 BEARING; NEEDLE,2ND GEAR JTEKT	9-00096-625-0	01	1	0307-0609		●	●
49	04.352 BEARING; NEEDLE,2ND GEAR JTEKT	9-00096-625-0	01	1	0610-		●	●	●
49	04.352 BEARING; NEEDLE,2ND GEAR HF V6 ENG(LCA)	8-97165-016-0	01	1	0509-					●
50	04.395 GEAR; 2ND,MAINSHAFT Z=31	8-94311-564-1	01	1	0307-0901	●
50	04.395 GEAR; 2ND,MAINSHAFT Z=31 Z=31	8-94311-564-1	01	1	0902-	●
50	04.395 GEAR; 2ND,MAINSHAFT Z=34	8-97300-953-1	01	1	0307-0609		●	●
50	04.395 GEAR; 2ND,MAINSHAFT Z=34	8-97300-953-1	01	1	0610-		●	●	●
50	04.395 GEAR; 2ND,MAINSHAFT HF V6 ENG(LCA)	8-89048-406-0	01	1	0509-					●
51	04.383 RING; BLOCK,LOW & 2ND Z=45	8-94151-510-3	02	1	0307-	●
51	04.383 RING; BLOCK,LOW & 2ND Z=48	8-94363-054-1	02	1	0307-0609		●	●
51	04.383 RING; BLOCK,LOW & 2ND Z=48	8-94363-054-1	02	1	0610-		●	●	●		●
59	04.417 GEAR; REV MAINSHAFT Z=37	8-94310-158-1	01	1	0307-0901	●
59	04.417 GEAR; REV MAINSHAFT Z=37	8-94310-158-1	01	1	0902-	●
59	04.417 GEAR; REV MAINSHAFT Z=41	8-97104-025-2	01	1	0307-0609		●	●
59	04.417 GEAR; REV MAINSHAFT Z=41	8-97104-025-2	01	1	0610-		●	●	●
59	04.417 GEAR; REV MAINSHAFT HF V6 ENG(LCA)	8-89048-409-0	01	1	0509-					●
60	04.419 COLLAR; REV MAIN	8-97031-079-0	01	1	0307-0609		●	●
60	04.419 COLLAR; REV MAIN	8-97031-079-0	01	1	0610-		●	●	●
61	04.380 SYNCHRONIZER; REV & 5TH	5-33260-010-0	01	1	0307-0901	●
61	04.380 SYNCHRONIZER; REV & 5TH	5-33260-010-0	01	1	0902-	●
61	04.380 SYNCHRONIZER; REV & 5TH	8-97188-800-0	01	1	0307-0609		●	●
61	04.380 SYNCHRONIZER; REV & 5TH	8-97030-106-1	01	1	0610-		●	●	●
62	04.384 SPRING; INSERT,REV & 5TH	5-33264-010-0	02	1	0307-	●
62	04.384 SPRING; INSERT,REV & 5TH	5-33264-012-0	02	1	0307-0609		●	●
62	04.384 SPRING; INSERT,REV & 5TH	5-33264-012-0	02	1	0610-		●	●	●
63	04.384 INSERT; SYN,REV & 5TH	5-33263-002-3	03	1	0307-	●
63	04.384 INSERT; SYN,REV & 5TH	5-33263-001-0	03	1	0307-0609		●	●
63	04.384 INSERT; SYN,REV & 5TH	5-33263-001-0	03	1	0610-		●	●	●
65	04.356 NUT; MAINSHAFT M32	8-94238-094-1	01	1	0307-	●
65	04.356 NUT; MAINSHAFT M34	8-94422-071-1	01	1	0307-0609		●	●
65	04.356 NUT; MAINSHAFT M34	8-94422-071-1	01	1	0610-		●	●	●
70	04.417 GEAR; 1ST,MAINSHAFT Z=41	8-94310-154-1	01	1	0307-0901	●
70	04.417 GEAR; 1ST,MAINSHAFT Z=41 Z=41	8-94310-154-1	01	1	0902-	●
70	04.417 GEAR; 1ST,MAINSHAFT Z=45	8-97300-952-1	01	1	0307-0609		●	●
70	04.417 GEAR; 1ST,MAINSHAFT Z=45	8-97300-952-1	01	1	0610-		●	●	●
70	04.417 GEAR; 1ST,MAINSHAFT HF V6 ENG(LCA)	8-89048-405-0	01	1	0509-					●
72	04.352 BEARING; BALL,MAINSHAFT NSK	8-94380-017-1	01	1	0307-0609		●	●
72	04.352 BEARING; BALL,MAINSHAFT NSK	8-94380-017-1	01	1	0610-		●	●	●
80	04.343 GEAR; SPD DRIVE Z=6	8-94161-085-1	01	1	0307-	●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) C24SE ENG(LG1) Z=5	8-94472-606-1	01	1	0307-		●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) Z=5	8-94472-606-1	01	1	0307-			●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) 6VE1 ENG(LX5),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) Z=6	8-94472-608-1	01	1	0307-0508		●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) Z=6	8-94472-608-1	01	1	0509-0609		●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/11(GT4) FRT&RR 195R14C(CNU) Z=6	8-94472-608-1	01	1	0610-0912				●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(GY2) Z=6	8-94472-608-1	01	1	0610-0912				●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) 4JA1-T ENG(LP0) FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(GY2) Z=6	8-94472-608-1	01	1	1001-		●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/11(GT4) FRT&RR 195R14C(CNU) Z=6	8-94472-608-1	01	1	1001-				●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(GY2) Z=6	8-94472-608-1	01	1	1001-				●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) HF V6 ENG(LCA)	8-89048-422-0	01	1	0509-					●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/11(GT4) FRT&RR 215/70R15C GOODYEAR TIRE(QFT) Z=6	8-97227-220-0	01	1	0610-0612				●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) 4JK1-TCS ENG(LKZ) Z=6	8-97227-220-0	01	1	0610-0612				●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 41/11(GT4),FINAL GEAR RATIO 43/11(GW1) Z=6	8-97227-220-0	01	1	0610-0612				●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/11(GT4) FRT&RR 215/70R15C GOODYEAR TIRE(QFT) Z=6	8-97227-220-0	01	1	0701-				●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 41/11(GT4),FINAL GEAR RATIO 43/11(GW1) Z=6	8-97227-220-0	01	1	0701-				●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) 4JJ1-TCX ENG(LS0) Z=7	8-98004-532-0	01	1	0610-						●
82	04.403 SHAFT; MAIN,TRANS Z=26-24-27	8-94435-162-3	01	1	0307-	●
82	04.403 SHAFT; MAIN,TRANS 4X2(TFB***) Z=28-34-26-27	8-97300-981-0	01	1	0307-0609		●	●
82	04.403 SHAFT; MAIN,TRANS 4X2(TFB***) Z=28-34-26-27	8-97300-981-0	01	1	0610-		●	●	●
82	04.403 SHAFT; MAIN,TRANS 4X4(TFS***) Z=28-34-26-27	8-97300-980-0	01	1	0307-0609		●	●
82	04.403 SHAFT; MAIN,TRANS 4X4(TFS***) Z=28-34-26-27	8-97300-980-0	01	1	0610-		●	●	●
82	04.403 SHAFT; MAIN,TRANS 4X2(TFB***) HF V6 ENG(LCA)	8-89048-331-0	01	1	0509-					●
82	04.403 SHAFT; MAIN,TRANS 4X4(TFS***) HF V6 ENG(LCA)	8-89048-332-0	01	1	0509-					●
86	04.416 WASHER; THRUST,5TH T=7.80	8-94238-099-4	01	1	0307-	●
86	04.416 WASHER; THRUST,5TH T=7.90	8-94238-100-4	01	1	0307-	●
86	04.416 WASHER; THRUST,5TH T=8.00	8-94238-101-4	01	1	0307-	●
86	04.416 WASHER; THRUST,5TH T=8.10	8-94238-102-4	01	1	0307-	●
86	04.416 WASHER; THRUST,5TH T=8.20	8-94238-103-4	01	1	0307-	●
86	04.416 WASHER; THRUST,5TH T=8.30	8-94238-104-4	01	1	0307-	●
86	04.416 WASHER; THRUST,5TH T=7.90 WHITE	8-94422-110-2	01	1	0307-0609		●	●
86	04.416 WASHER; THRUST,5TH T=7.90 WHITE	8-94422-110-2	01	1	0610-		●	●	●
86	04.416 WASHER; THRUST,5TH T=8.00 YELLOW	8-94422-111-2	01	1	0307-0609		●	●
86	04.416 WASHER; THRUST,5TH T=8.00 YELLOW	8-94422-111-2	01	1	0610-		●	●	●
86	04.416 WASHER; THRUST,5TH T=8.10 GREEN	8-94422-112-2	01	1	0307-0609		●	●
86	04.416 WASHER; THRUST,5TH T=8.10 GREEN	8-94422-112-2	01	1	0610-		●	●	●
86	04.416 WASHER; THRUST,5TH T=8.20 BLUE	8-94422-113-2	01	1	0307-0609		●	●
86	04.416 WASHER; THRUST,5TH T=8.20 BLUE	8-94422-113-2	01	1	0610-		●	●	●
86	04.416 WASHER; THRUST,5TH HF V6 ENG(LCA)	8-89048-333-0	01	1	0509-					●
87	04.416 BALL; THRUST WASHER	8-94201-356-0	01	1	0307-0609	●	●	●
87	04.416 BALL; THRUST WASHER	8-94201-356-0	01	1	0610-	●	●	●	●
89	04.416 RING; RET,THRUST RING ID=31.8	8-94422-395-0	01	1	0307-0609		●	●
89	04.416 RING; RET,THRUST RING ID=31.8	8-94422-395-0	01	1	0610-		●	●	●
90	04.416 RING; SNAP,THRUST RING 08.934 ID=37.0	9-09180-040-0	01	1	0307-	●
90	04.416 RING; SNAP,THRUST RING 4X2(TFB***) 04.422 ID=29.6	9-09180-032-0	01	1	0307-0609		●	●
90	04.416 RING; SNAP,THRUST RING 4X2(TFB***) 04.422 ID=29.6	9-09180-032-0	01	1	0610-		●	●	●
91	04.416 RING; SNAP,CENTER BRG,MAINSHAFT ID=76.2	8-94322-411-0	01	1	0307-0609		●	●
91	04.416 RING; SNAP,CENTER BRG,MAINSHAFT ID=76.2	8-94322-411-0	01	1	0610-		●	●	●
93	04.422 RING; SNAP,COUNTER FRT BRG 08.934 ID=23.2	9-09180-025-0	01	1	0307-0609		●	●
93	04.422 RING; SNAP,COUNTER FRT BRG 08.934 ID=23.2	9-09180-025-0	01	1	0610-		●	●	●
93	04.422 RING; SNAP,COUNTER FRT BRG HF V6 ENG(LCA)	8-89048-575-0	01	1	0509-					●
95	04.417 GEAR; REV,COUNTER Z=16	8-94161-120-1	01	1	0307-0901	●
95	04.417 GEAR; REV,COUNTER Z=16 Z=16	8-94161-120-1	01	1	0902-	●
95	04.417 GEAR; REV,COUNTER Z=19	8-94377-433-0	01	1	0307-0609		●	●
95	04.417 GEAR; REV,COUNTER Z=19	8-94377-433-0	01	1	0610-		●	●	●
95	04.417 GEAR; REV,COUNTER 4JJ1-TCX ENG(LS0) Z=41	8-97362-499-0	01	1	0610-						●
97	04.415 GEAR; 5TH,COUNTER Z=47	8-94161-098-2	01	1	0307-0901	●
97	04.415 GEAR; 5TH,COUNTER Z=47 Z=47	8-94161-098-2	01	1	0902-	●
97	04.415 GEAR; 5TH,COUNTER Z=49	8-97216-154-0	01	1	0307-		●
97	04.415 GEAR; 5TH,COUNTER Z=50	8-94377-434-0	01	1	0307-0609			●
97	04.415 GEAR; 5TH,COUNTER Z=50	8-94377-434-0	01	1	0610-			●	●
97	04.415 GEAR; 5TH,COUNTER HF V6 ENG(LCA)	8-89059-406-0	01	1	0509-					●
97	04.415 GEAR; 5TH,COUNTER 4JJ1-TCX ENG(LS0) Z=27	8-98040-114-0	01	1	0610-						●
98	04.422 BEARING; BALL,COUNTER END NSK	8-97359-571-0	01	1	0307-0601	●
98	04.422 BEARING; BALL,COUNTER END NSK	8-98019-664-0	01	1	0602-	●
98	04.422 BEARING; BALL,COUNTER END NSK	8-97018-535-1	01	1	0307-0609		●	●
98	04.422 BEARING; BALL,COUNTER END NSK	8-97018-535-1	01	1	0610-		●	●	●
110	04.422 RING; SNAP,COUNTER BRG T=1.10 WHITE	8-94422-103-0	01	1	0307-0609		●	●
110	04.422 RING; SNAP,COUNTER BRG T=1.10 WHITE	8-94422-103-0	01	1	0610-		●	●	●
110	04.422 RING; SNAP,COUNTER BRG T=1.20 YELLOW	8-94422-104-0	01	1	0307-0609		●	●
110	04.422 RING; SNAP,COUNTER BRG T=1.20 YELLOW	8-94422-104-0	01	1	0610-		●	●	●
110	04.422 RING; SNAP,COUNTER BRG T=1.30 BLUE	8-94422-105-0	01	1	0307-0609		●	●
110	04.422 RING; SNAP,COUNTER BRG T=1.30 BLUE	8-94422-105-0	01	1	0610-		●	●	●
110	04.422 RING; SNAP,COUNTER BRG T=1.40 PINK	8-94422-106-0	01	1	0307-0609		●	●
110	04.422 RING; SNAP,COUNTER BRG T=1.40 PINK	8-94422-106-0	01	1	0610-		●	●	●
110	04.422 RING; SNAP,COUNTER BRG T=1.50 GREEN	8-94422-107-0	01	1	0307-0609		●	●
110	04.422 RING; SNAP,COUNTER BRG T=1.50 GREEN	8-94422-107-0	01	1	0610-		●	●	●
110	04.422 RING; SNAP,COUNTER BRG T=1.60 BROWN	8-94422-108-0	01	1	0307-0609		●	●
110	04.422 RING; SNAP,COUNTER BRG T=1.60 BROWN	8-94422-108-0	01	1	0610-		●	●	●
132	04.433 SHAFT; REV	8-94435-146-0	01	1	0307-	●
132	04.433 SHAFT; REV	8-97019-155-1	01	1	0307-0609		●	●
132	04.433 SHAFT; REV	8-97019-155-1	01	1	0610-		●	●	●
132	04.433 SHAFT; REV HF V6 ENG(LCA)	8-97165-006-0	01	1	0509-					●
132	04.433 SHAFT; REV 4JJ1-TCX ENG(LS0)	8-98023-113-0	01	1	0610-						●
135	04.430 GEAR; REV IDLER Z=23	8-94161-118-1	01	1	0307-0705	●
135	04.430 GEAR; REV IDLER Z=23	8-98080-126-0	01	1	0706-0708	●
135	04.430 GEAR; REV IDLER Z=23	8-98082-807-0	01	1	0709-0809	●
135	04.430 GEAR; REV IDLER Z=23	8-98080-126-0	01	1	0810-0901	●
135	04.430 GEAR; REV IDLER Z=33 Z=23 Z=23	8-98080-126-0	01	1	0902-1003	●
135	04.430 GEAR; REV IDLER Z=33 Z=33	8-98146-724-0	01	1	1004-	●
135	04.430 GEAR; REV IDLER Z=33	8-94377-435-1	01	1	0307-0609		●	●
135	04.430 GEAR; REV IDLER Z=33	8-94377-435-1	01	1	0610-0705		●	●	●
135	04.430 GEAR; REV IDLER Z=33	8-98080-125-0	01	1	0706-0708		●	●	●
135	04.430 GEAR; REV IDLER Z=33	8-98082-803-0	01	1	0709-0809		●	●	●
135	04.430 GEAR; REV IDLER Z=33	8-98080-125-0	01	1	0810-1003		●	●	●
135	04.430 GEAR; REV IDLER Z=33	8-98146-726-0	01	1	1004-		●	●	●
135	04.430 GEAR; REV IDLER HF V6 ENG(LCA)	8-89048-411-0	01	1	0509-					●
135	04.430 GEAR; REV IDLER 4JJ1-TCX ENG(LS0) Z=32	8-97362-513-0	01	1	0610-						●
149	04.352 BEARING; NEEDLE,MAINSHAFT,RR 4X2(TFB***) 04.422 NSK	8-94173-863-0	01	1	0307-0609		●	●
149	04.352 BEARING; NEEDLE,MAINSHAFT,RR 4X2(TFB***) 04.422 NSK	8-94173-863-0	01	1	0610-		●	●	●
189	04.435 RING; SNAP,REV,GEAR T=1.20 WHITE	8-94422-100-0	01	1	0307-0609		●	●
189	04.435 RING; SNAP,REV,GEAR T=1.20 WHITE	8-94422-100-0	01	1	0610-		●	●	●
189	04.435 RING; SNAP,REV,GEAR T=1.30 YELLOW	8-94422-101-0	01	1	0307-0609		●	●
189	04.435 RING; SNAP,REV,GEAR T=1.30 YELLOW	8-94422-101-0	01	1	0610-		●	●	●
189	04.435 RING; SNAP,REV,GEAR T=1.40 BLUE	8-94422-102-0	01	1	0307-0609		●	●
189	04.435 RING; SNAP,REV,GEAR T=1.40 BLUE	8-94422-102-0	01	1	0610-		●	●	●
211	04.419 BEARING; THRUST NEEDLE,1ST GEAR NSK	8-94148-935-0	01	1	0307-0609		●	●
211	04.419 BEARING; THRUST NEEDLE,1ST GEAR NSK	8-94148-935-0	01	1	0610-		●	●	●
219	04.422 BEARING; BALL,CLUSTER,RR NSK	8-94436-929-0	01	1	0307-0609		●	●
219	04.422 BEARING; BALL,CLUSTER,RR NSK	8-94436-929-0	01	1	0610-		●	●	●
226	04.437 WASHER; THRUST,REV GEAR,COUNTER ID=30.0	8-94223-069-1	01	1	0307-0609		●	●
226	04.437 WASHER; THRUST,REV GEAR,COUNTER ID=30.0	8-94223-069-1	01	1	0610-		●	●	●
238	04.384 INSERT (A)	8-94448-202-2	03	1	0307-0609		●	●
238	04.384 INSERT (A)	8-94448-202-2	03	1	0610-		●	●	●
238	04.384 INSERT HF V6 ENG(LCA) (D)	8-89059-399-0	02	1	0509-					●
238	04.384 INSERT 4JJ1-TCX ENG(LS0) (B)	8-94249-576-2	03	1	0610-						●
238	04.384 INSERT 4JJ1-TCX ENG(LS0) (C)	8-98004-522-0	06	1	0610-						●
246	04.422 BEARING; ROLLER,COUNTER SHAFT FR NSK	8-97029-600-4	01	1	0307-0609		●	●
246	04.422 BEARING; ROLLER,COUNTER SHAFT FR NSK	8-97029-600-4	01	1	0610-		●	●	●
292	04.422 RING; SNAP,BRG OUTER NSK	8-94422-081-0	01	1	0307-0609		●	●
292	04.422 RING; SNAP,BRG OUTER NSK	8-94422-081-0	01	1	0610-		●	●	●
292	04.422 RING; SNAP,BRG OUTER HF V6 ENG(LCA)	8-97165-071-0	01	1	0509-					●
306	04.416 RING; SNAP,MAINSHAFT 04.399 (A) T=1.50	5-09588-020-1	01	1	0307-	●
306	04.416 RING; SNAP,MAINSHAFT 04.399 (A) T=1.55	5-09588-021-1	01	1	0307-	●
306	04.416 RING; SNAP,MAINSHAFT 04.399 (A) T=1.60	5-09588-022-1	01	1	0307-	●
306	04.416 RING; SNAP,MAINSHAFT 04.399 (A) T=1.65	5-09588-023-1	01	1	0307-	●
306	04.416 RING; SNAP,MAINSHAFT (A) T=1.90 BLUE	8-97129-615-0	01	1	0307-0609		●	●
306	04.416 RING; SNAP,MAINSHAFT (A) T=1.90 BLUE	8-97129-615-0	01	1	0610-		●	●	●
306	04.416 RING; SNAP,MAINSHAFT (A) T=1.85 YELLOW	8-97129-616-0	01	1	0307-0609		●	●
306	04.416 RING; SNAP,MAINSHAFT (A) T=1.85 YELLOW	8-97129-616-0	01	1	0610-		●	●	●
306	04.416 RING; SNAP,MAINSHAFT (A) T=1.80 WHITE	8-97129-617-0	01	1	0307-0609		●	●
306	04.416 RING; SNAP,MAINSHAFT (A) T=1.80 WHITE	8-97129-617-0	01	1	0610-		●	●	●
306	04.416 RING; SNAP,MAINSHAFT 4X2(TFB***) (B) ID=27.9	9-09180-030-0	02	1	0307-0609		●	●
306	04.416 RING; SNAP,MAINSHAFT 4X4(TFS***) (B) ID=27.9	9-09180-030-0	01	1	0610-		●	●	●
306	04.416 RING; SNAP,MAINSHAFT 4X4(TFS***) (B) ID=27.9	9-09180-030-0	01	1	0307-0609		●	●
306	04.416 RING; SNAP,MAINSHAFT 4X2(TFB***) (B) ID=27.9	9-09180-030-0	02	1	0610-		●	●	●
313	04.419 BEARING; NEEDLE,LOW GEAR NSK	1-09811-028-1	01	1	0307-0609		●	●
313	04.419 BEARING; NEEDLE,LOW GEAR NSK	1-09811-028-1	01	1	0610-		●	●	●
313	04.419 BEARING; NEEDLE,LOW GEAR HF V6 ENG(LCA)	8-97165-015-0	01	1	0509-					●
314	04.419 BEARING; NEEDLE,REV GEAR NSK	8-94422-064-0	01	1	0307-0609		●	●
314	04.419 BEARING; NEEDLE,REV GEAR NSK	8-94422-064-0	01	1	0610-		●	●	●
314	04.419 BEARING; NEEDLE,REV GEAR JTEKT	8-94422-065-1	01	1	0307-0609		●	●
314	04.419 BEARING; NEEDLE,REV GEAR JTEKT	8-94422-065-1	01	1	0610-		●	●	●
314	04.419 BEARING; NEEDLE,REV GEAR 4JJ1-TCX ENG(LS0) NSK	8-97362-719-0	01	1	0610-						●
386	04.435 PIN; REV SHAFT OD=6 L=40	9-08150-640-0	01	1	0307-0609		●	●
386	04.435 PIN; REV SHAFT OD=6 L=40	9-08150-640-0	01	1	0610-		●	●	●
386	04.435 PIN; REV SHAFT 4JJ1-TCX ENG(LS0) 00.662 OD=4 L=8	9-08160-408-0	01	1	0610-						●
390	04.383 RING; SNAP,CLU HUB T=1.80 WHITE	8-94422-088-2	01	1	0307-0609		●	●
390	04.383 RING; SNAP,CLU HUB T=1.80 WHITE	8-94422-088-2	01	1	0610-		●	●	●
390	04.383 RING; SNAP,CLU HUB T=1.85 YELLOW	8-94422-089-1	01	1	0307-0609		●	●
390	04.383 RING; SNAP,CLU HUB T=1.85 YELLOW	8-94422-089-1	01	1	0610-		●	●	●
390	04.383 RING; SNAP,CLU HUB T=1.90 BLUE	8-94422-090-2	01	1	0307-0609		●	●
390	04.383 RING; SNAP,CLU HUB T=1.90 BLUE	8-94422-090-2	01	1	0610-		●	●	●
391	04.383 RING; INSIDE,SYN OD=95.8	8-94363-056-0	02	1	0307-0609		●	●
391	04.383 RING; INSIDE,SYN OD=95.8	8-94363-056-0	02	1	0610-		●	●	●
392	04.383 RING; OUTSIDE,SYN OD=90.0	8-94363-055-1	02	1	0307-0609		●	●
392	04.383 RING; OUTSIDE,SYN OD=90.0	8-94363-055-1	02	1	0610-		●	●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT JTEKT	9-00096-100-1	01	1	0307-	●
396	04.352 BEARING; NEEDLE,MAINSHAFT NSK	8-94422-068-1	01	1	0307-0609		●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT NSK	8-94422-068-1	01	1	0610-1102		●	●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT NSK	8-98172-355-0	01	1	1103-		●	●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT HF V6 ENG(LCA)	8-97165-012-0	01	1	0509-					●
397	04.384 SPRING; INSERT,4TH & 3RD	5-33264-010-0	02	1	0307-	●
397	04.384 SPRING; INSERT,4TH & 3RD	8-94422-075-0	02	1	0307-0609		●	●
397	04.384 SPRING; INSERT,4TH & 3RD	8-94422-075-0	02	1	0610-		●	●	●
398	04.421 GEAR; COUNTER Z=37-31-20-16	8-94469-524-1	01	1	0307-0901	●
398	04.421 GEAR; COUNTER Z=37-31-20-16 Z=37-31-20-16	8-94469-524-1	01	1	0902-	●
398	04.421 GEAR; COUNTER Z=44-32-25-19	8-97216-164-1	01	1	0307-0609		●
398	04.421 GEAR; COUNTER Z=44-32-25-19	8-97216-164-1	01	1	0610-		●		●
398	04.421 GEAR; COUNTER Z=46-38-25-19	8-97104-161-1	01	1	0307-			●
398	04.421 GEAR; COUNTER 4JJ1-TCX ENG(LS0) Z=26	8-98023-110-1	01	1	0610-0703						●
398	04.421 GEAR; COUNTER 4JJ1-TCX ENG(LS0) Z=26	8-98079-114-0	01	1	0704-						●
399	04.345 CLIP; SPEEDOMETER DRIVE GEAR 4X2(TFB***)	8-94310-229-0	01	1	0307-0609		●	●
399	04.345 CLIP; SPEEDOMETER DRIVE GEAR 4X2(TFB***)	8-94310-229-0	01	1	0610-		●	●	●		●
404	04.307 PLATE; THRUST	8-94421-892-0	02	1	0307-0609		●	●
404	04.307 PLATE; THRUST	8-94421-892-0	02	1	0610-		●	●	●
405	04.384 INSERT; SYN,LOW & 2ND	8-94152-557-1	03	1	0307-	●
405	04.384 INSERT; SYN,LOW & 2ND	8-94363-062-1	03	1	0307-0609		●	●
405	04.384 INSERT; SYN,LOW & 2ND	8-94363-062-1	03	1	0610-		●	●	●		●
405	04.384 INSERT; SYN,LOW & 2ND HF V6 ENG(LCA)	8-97165-000-0	03	1	0509-					●
421	04.383 RING; BLOCK,REV & 5TH Z=36	8-97071-688-0	02	1	0307-0609		●	●
421	04.383 RING; BLOCK,REV & 5TH Z=36	8-97071-688-0	02	1	0610-		●	●	●

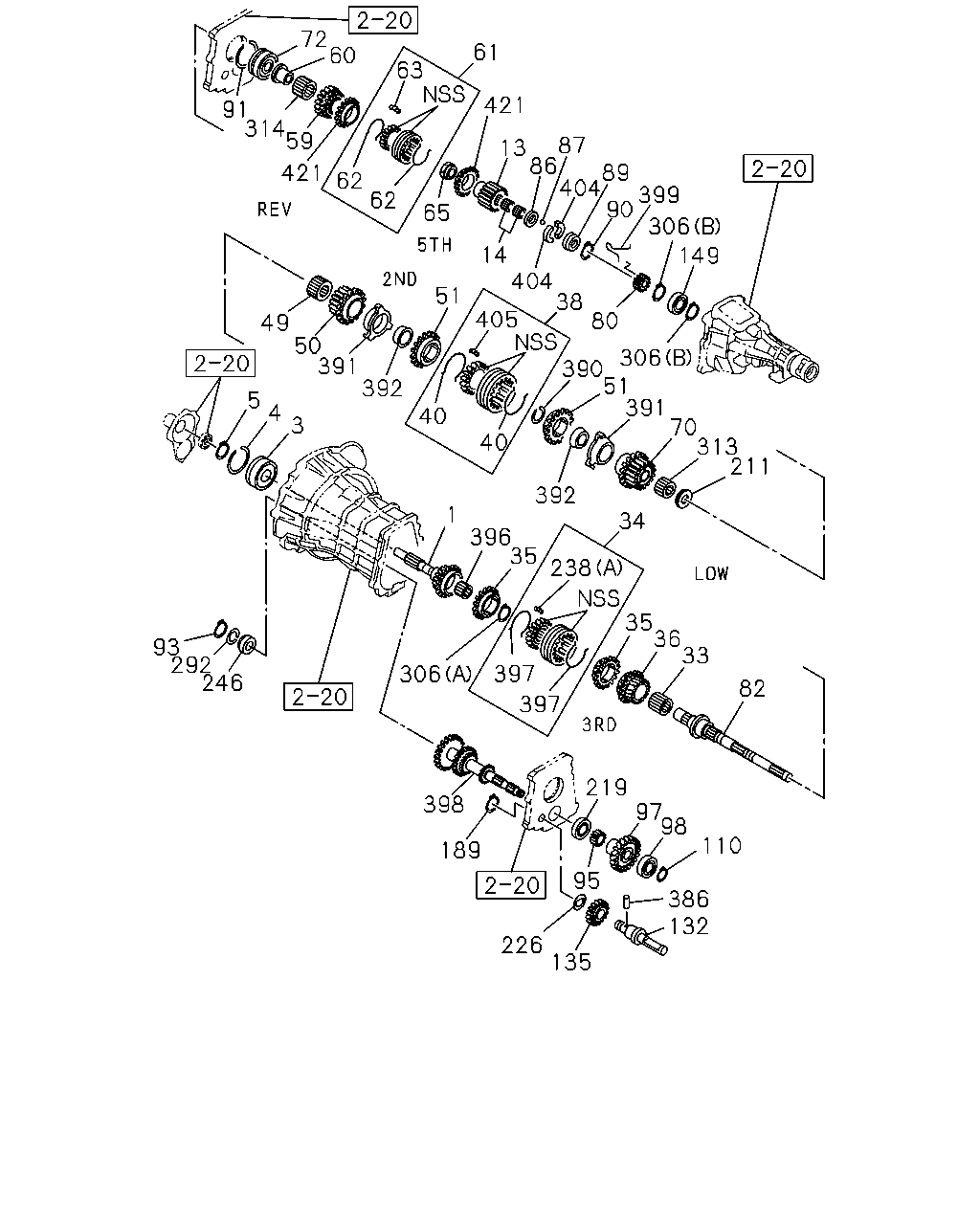

132 386 110 98 97 95 219 135 226 189 398 246 292 93 5 4 3 211 313 70 390 40 40 306 35 396 1 392 391 50 49 391 392 51 405 38 51 82 33 36 35 397 397 238 34 314 60 62 62 421 404 404 306 499 394 89 87 86 14 13 65 63 61 421 59 72 91

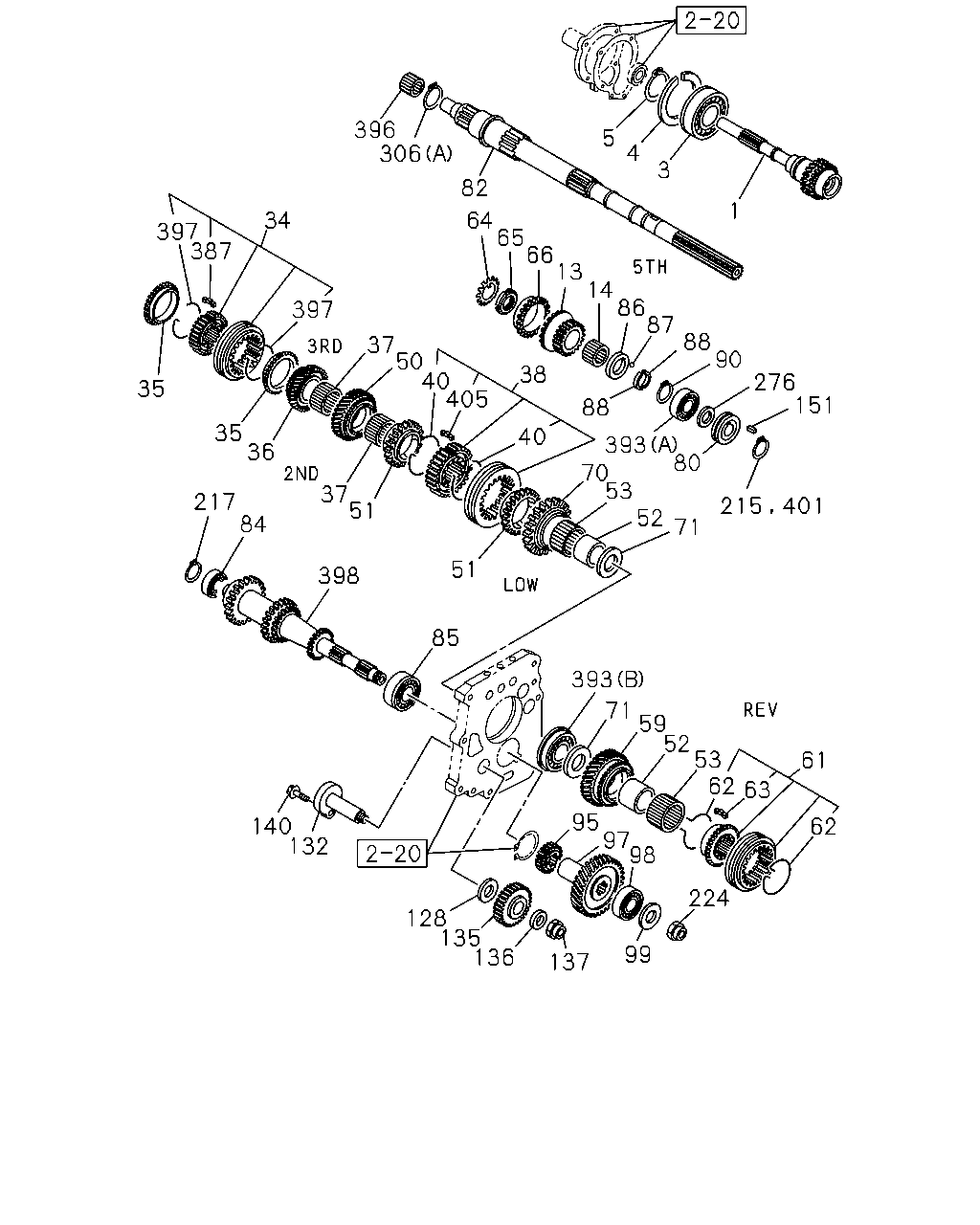

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	04.351 SHAFT; TOP GEAR,TRANS Z=23	8-94435-160-2	01	1	0307-0901	●
1	04.351 SHAFT; TOP GEAR,TRANS Z=23 Z=23	8-94435-160-2	01	1	0902-	●
1	04.351 SHAFT; TOP GEAR,TRANS C24SE ENG(LG1) Z=26	8-97300-950-1	01	1	0307-		●
1	04.351 SHAFT; TOP GEAR,TRANS 4JA1-T ENG(LP0),6VE1 ENG(LX5), 4JA1-TCENG(L4Z),4JH1-TC ENG(RDM) Z=26	8-97300-948-1	01	1	0307-0609		●
1	04.351 SHAFT; TOP GEAR,TRANS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) Z=26	8-97300-948-1	01	1	0610-0612		●		●
1	04.351 SHAFT; TOP GEAR,TRANS 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) Z=26	8-97300-948-1	01	1	0701-0709		●		●
1	04.351 SHAFT; TOP GEAR,TRANS 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0) Z=26	8-97300-948-1	01	1	0710-0912		●		●
1	04.351 SHAFT; TOP GEAR,TRANS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) Z=26	8-97300-948-1	01	1	1001-		●		●
1	04.351 SHAFT; TOP GEAR,TRANS Z=25	8-97182-214-1	01	1	0307-			●
3	04.403 BEARING; TOP GEAR SHAFT 04.355 NSK	8-94167-637-0	01	1	0307-0901	●
3	04.403 BEARING; TOP GEAR SHAFT NSK	8-97943-882-0	01	1	0902-	●
3	04.403 BEARING; TOP GEAR SHAFT NSK	8-94380-015-1	01	1	0307-0609		●	●
3	04.403 BEARING; TOP GEAR SHAFT NSK	8-94380-015-1	01	1	0610-		●	●	●
4	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT 04.376 NSK	8-94206-485-0	01	1	0307-	●
4	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT NSK	8-94422-083-0	01	1	0307-0609		●	●
4	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT NSK	8-94422-083-0	01	1	0610-		●	●	●
5	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT 08.934 ID=37.0	9-09180-040-0	01	1	0307-	●
5	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT 04.525 ID=37.4	8-97254-316-0	01	1	0307-0609		●	●
5	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT 04.525 ID=37.4	8-97254-316-0	01	1	0610-		●	●	●
13	04.415 GEAR; 5TH,MAINSHAFT Z=25	8-94161-912-3	01	1	0307-0901	●
13	04.415 GEAR; 5TH,MAINSHAFT Z=25 Z=25 Z=25	8-94161-912-3	01	1	0902-	●
13	04.415 GEAR; 5TH,MAINSHAFT Z=24	8-97216-153-0	01	1	0307-		●
13	04.415 GEAR; 5TH,MAINSHAFT Z=22	8-97104-023-2	01	1	0307-0609			●
13	04.415 GEAR; 5TH,MAINSHAFT Z=22	8-97104-023-2	01	1	0610-			●	●
13	04.415 GEAR; 5TH,MAINSHAFT HF V6 ENG(LCA)	8-89048-410-0	01	1	0509-					●
14	04.419 BEARING; NEEDLE,5TH NSK	8-94161-994-0	01	1	0307-	●
14	04.419 BEARING; NEEDLE,5TH NSK	8-97029-341-0	01	1	0307-0609		●	●
14	04.419 BEARING; NEEDLE,5TH NSK	8-97029-341-0	01	1	0610-1102		●	●	●
14	04.419 BEARING; NEEDLE,5TH NTN	8-98172-356-0	01	1	1103-		●	●	●
14	04.419 BEARING; NEEDLE,5TH HF V6 ENG(LCA)	8-97165-013-0	01	1	0509-					●
14	04.419 BEARING; NEEDLE,5TH 4JJ1-TCX ENG(LS0) NSK	8-97362-728-0	01	1	0610-						●

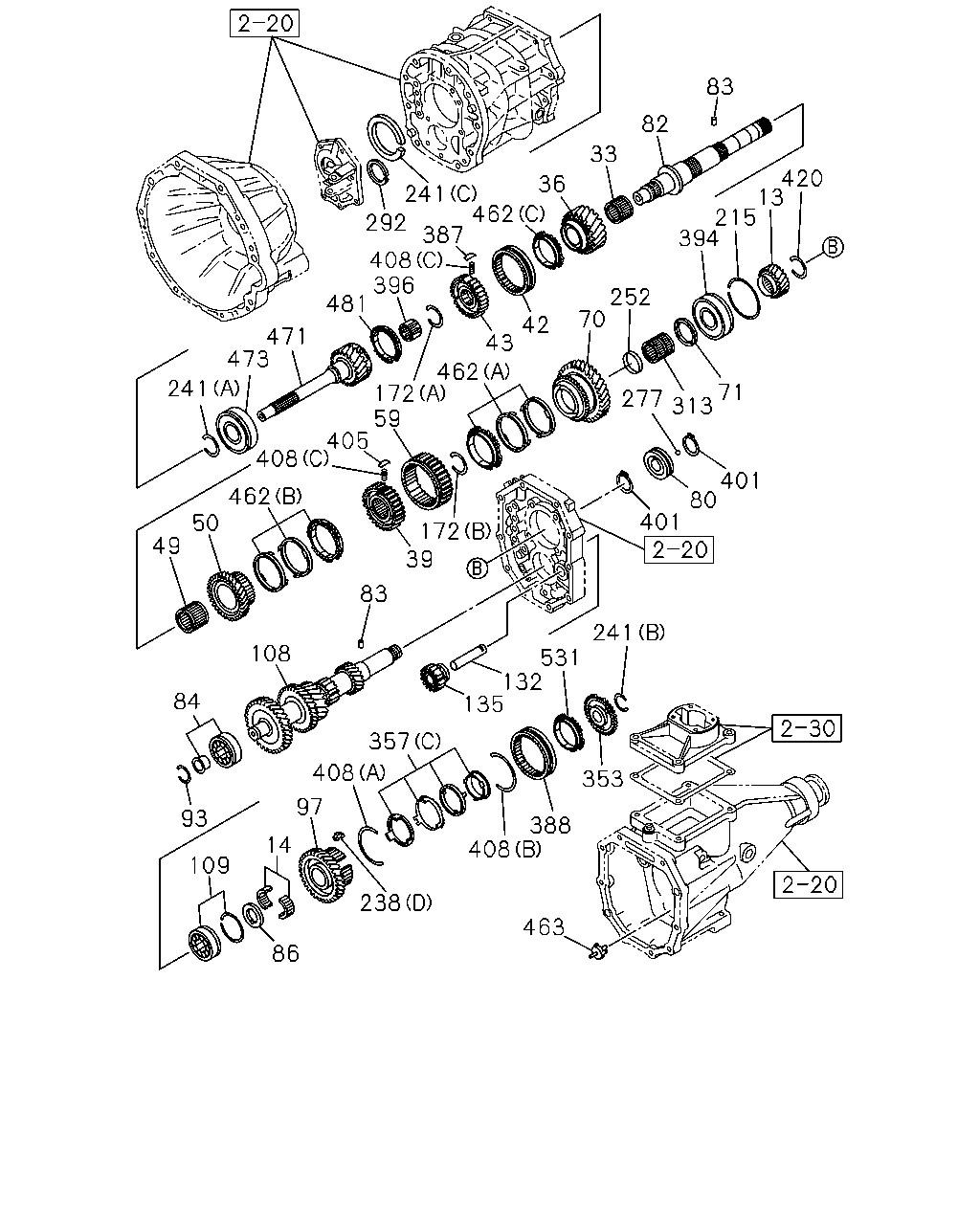

33	04.352 BEARING; NEEDLE,3RD GEAR 04.419 NSK	1-09811-028-1	01	1	0307-0609		●	●
33	04.352 BEARING; NEEDLE,3RD GEAR 04.419 NSK	1-09811-028-1	01	1	0610-		●	●	●		●
33	04.352 BEARING; NEEDLE,3RD GEAR HF V6 ENG(LCA)	8-97165-014-0	01	1	0509-					●
34	04.380 SYNCHRONIZER; 4TH & 3RD	8-94161-860-0	01	1	0307-0901	●
34	04.380 SYNCHRONIZER; 4TH & 3RD	8-94161-860-0	01	1	0902-	●
34	04.380 SYNCHRONIZER; 4TH & 3RD	8-97188-798-0	01	1	0307-0609		●	●
34	04.380 SYNCHRONIZER; 4TH & 3RD	8-97104-027-0	01	1	0610-		●	●	●
34	04.380 SYNCHRONIZER; 4TH & 3RD 4JJ1-TCX ENG(LS0)	8-97362-474-3	01	1	0610-						●
35	04.383 RING; BLOCK,4TH & 3RD Z=30	8-94463-830-1	02	1	0307-	●
35	04.383 RING; BLOCK,4TH & 3RD Z=45	8-94151-510-3	02	1	0307-0609		●	●
35	04.383 RING; BLOCK,4TH & 3RD Z=45	8-94151-510-3	02	1	0610-		●	●	●
36	04.415 GEAR; 3RD,MAINSHAFT Z=29	8-94161-137-1	01	1	0307-0901	●
36	04.415 GEAR; 3RD,MAINSHAFT Z=29 Z=29	8-94161-137-1	01	1	0902-	●
36	04.415 GEAR; 3RD,MAINSHAFT Z=27	8-97216-150-1	01	1	0307-0609		●
36	04.415 GEAR; 3RD,MAINSHAFT Z=27	8-97216-150-1	01	1	0610-		●		●
36	04.415 GEAR; 3RD,MAINSHAFT Z=31	8-97104-021-2	01	1	0307-			●
36	04.415 GEAR; 3RD,MAINSHAFT HF V6 ENG(LCA)	8-98025-405-0	01	1	0509-					●
38	04.384 SYNCHRONIZER; LOW & 2ND	8-94435-140-0	01	1	0307-0901	●
38	04.384 SYNCHRONIZER; LOW & 2ND	8-94435-140-0	01	1	0902-	●
38	04.384 SYNCHRONIZER; LOW & 2ND	8-97188-799-0	01	1	0307-0609		●	●
38	04.384 SYNCHRONIZER; LOW & 2ND	8-94363-059-1	01	1	0610-		●	●	●
38	04.384 SYNCHRONIZER; LOW & 2ND 4JJ1-TCX ENG(LS0)	8-97362-503-1	01	1	0610-						●
40	04.384 SPRING; INSERT,LOW & 2ND	8-94152-558-1	02	1	0307-	●
40	04.384 SPRING; INSERT,LOW & 2ND	8-94448-045-0	02	1	0307-0609		●	●
40	04.384 SPRING; INSERT,LOW & 2ND	8-94448-045-0	02	1	0610-		●	●	●		●
49	04.352 BEARING; NEEDLE,2ND GEAR JTEKT	9-00096-625-0	01	1	0307-0609		●	●
49	04.352 BEARING; NEEDLE,2ND GEAR JTEKT	9-00096-625-0	01	1	0610-		●	●	●
49	04.352 BEARING; NEEDLE,2ND GEAR HF V6 ENG(LCA)	8-97165-016-0	01	1	0509-					●
50	04.395 GEAR; 2ND,MAINSHAFT Z=31	8-94311-564-1	01	1	0307-0901	●
50	04.395 GEAR; 2ND,MAINSHAFT Z=31 Z=31	8-94311-564-1	01	1	0902-	●
50	04.395 GEAR; 2ND,MAINSHAFT Z=34	8-97300-953-1	01	1	0307-0609		●	●
50	04.395 GEAR; 2ND,MAINSHAFT Z=34	8-97300-953-1	01	1	0610-		●	●	●
50	04.395 GEAR; 2ND,MAINSHAFT HF V6 ENG(LCA)	8-89048-406-0	01	1	0509-					●
51	04.383 RING; BLOCK,LOW & 2ND Z=45	8-94151-510-3	02	1	0307-	●
51	04.383 RING; BLOCK,LOW & 2ND Z=48	8-94363-054-1	02	1	0307-0609		●	●
51	04.383 RING; BLOCK,LOW & 2ND Z=48	8-94363-054-1	02	1	0610-		●	●	●		●
59	04.417 GEAR; REV MAINSHAFT Z=37	8-94310-158-1	01	1	0307-0901	●
59	04.417 GEAR; REV MAINSHAFT Z=37	8-94310-158-1	01	1	0902-	●
59	04.417 GEAR; REV MAINSHAFT Z=41	8-97104-025-2	01	1	0307-0609		●	●
59	04.417 GEAR; REV MAINSHAFT Z=41	8-97104-025-2	01	1	0610-		●	●	●
59	04.417 GEAR; REV MAINSHAFT HF V6 ENG(LCA)	8-89048-409-0	01	1	0509-					●
60	04.419 COLLAR; REV MAIN	8-97031-079-0	01	1	0307-0609		●	●
60	04.419 COLLAR; REV MAIN	8-97031-079-0	01	1	0610-		●	●	●
61	04.380 SYNCHRONIZER; REV & 5TH	5-33260-010-0	01	1	0307-0901	●
61	04.380 SYNCHRONIZER; REV & 5TH	5-33260-010-0	01	1	0902-	●
61	04.380 SYNCHRONIZER; REV & 5TH	8-97188-800-0	01	1	0307-0609		●	●
61	04.380 SYNCHRONIZER; REV & 5TH	8-97030-106-1	01	1	0610-		●	●	●
62	04.384 SPRING; INSERT,REV & 5TH	5-33264-010-0	02	1	0307-	●
62	04.384 SPRING; INSERT,REV & 5TH	5-33264-012-0	02	1	0307-0609		●	●
62	04.384 SPRING; INSERT,REV & 5TH	5-33264-012-0	02	1	0610-		●	●	●
63	04.384 INSERT; SYN,REV & 5TH	5-33263-002-3	03	1	0307-	●
63	04.384 INSERT; SYN,REV & 5TH	5-33263-001-0	03	1	0307-0609		●	●
63	04.384 INSERT; SYN,REV & 5TH	5-33263-001-0	03	1	0610-		●	●	●
65	04.356 NUT; MAINSHAFT M32	8-94238-094-1	01	1	0307-	●
65	04.356 NUT; MAINSHAFT M34	8-94422-071-1	01	1	0307-0609		●	●
65	04.356 NUT; MAINSHAFT M34	8-94422-071-1	01	1	0610-		●	●	●
70	04.417 GEAR; 1ST,MAINSHAFT Z=41	8-94310-154-1	01	1	0307-0901	●
70	04.417 GEAR; 1ST,MAINSHAFT Z=41 Z=41	8-94310-154-1	01	1	0902-	●
70	04.417 GEAR; 1ST,MAINSHAFT Z=45	8-97300-952-1	01	1	0307-0609		●	●
70	04.417 GEAR; 1ST,MAINSHAFT Z=45	8-97300-952-1	01	1	0610-		●	●	●
70	04.417 GEAR; 1ST,MAINSHAFT HF V6 ENG(LCA)	8-89048-405-0	01	1	0509-					●
72	04.352 BEARING; BALL,MAINSHAFT NSK	8-94380-017-1	01	1	0307-0609		●	●
72	04.352 BEARING; BALL,MAINSHAFT NSK	8-94380-017-1	01	1	0610-		●	●	●
82	04.403 SHAFT; MAIN,TRANS Z=26-24-27	8-94435-162-3	01	1	0307-	●
82	04.403 SHAFT; MAIN,TRANS 4X2(TFB***) Z=28-34-26-27	8-97300-981-0	01	1	0307-0609		●	●
82	04.403 SHAFT; MAIN,TRANS 4X2(TFB***) Z=28-34-26-27	8-97300-981-0	01	1	0610-		●	●	●
82	04.403 SHAFT; MAIN,TRANS 4X4(TFS***) Z=28-34-26-27	8-97300-980-0	01	1	0307-0609		●	●
82	04.403 SHAFT; MAIN,TRANS 4X4(TFS***) Z=28-34-26-27	8-97300-980-0	01	1	0610-		●	●	●
82	04.403 SHAFT; MAIN,TRANS 4X2(TFB***) HF V6 ENG(LCA)	8-89048-331-0	01	1	0509-					●
82	04.403 SHAFT; MAIN,TRANS 4X4(TFS***) HF V6 ENG(LCA)	8-89048-332-0	01	1	0509-					●
86	04.416 WASHER; THRUST,5TH T=7.80	8-94238-099-4	01	1	0307-	●
86	04.416 WASHER; THRUST,5TH T=7.90	8-94238-100-4	01	1	0307-	●
86	04.416 WASHER; THRUST,5TH T=8.00	8-94238-101-4	01	1	0307-	●
86	04.416 WASHER; THRUST,5TH T=8.10	8-94238-102-4	01	1	0307-	●
86	04.416 WASHER; THRUST,5TH T=8.20	8-94238-103-4	01	1	0307-	●
86	04.416 WASHER; THRUST,5TH T=8.30	8-94238-104-4	01	1	0307-	●
86	04.416 WASHER; THRUST,5TH T=7.90 WHITE	8-94422-110-2	01	1	0307-0609		●	●
86	04.416 WASHER; THRUST,5TH T=7.90 WHITE	8-94422-110-2	01	1	0610-		●	●	●
86	04.416 WASHER; THRUST,5TH T=8.00 YELLOW	8-94422-111-2	01	1	0307-0609		●	●
86	04.416 WASHER; THRUST,5TH T=8.00 YELLOW	8-94422-111-2	01	1	0610-		●	●	●
86	04.416 WASHER; THRUST,5TH T=8.10 GREEN	8-94422-112-2	01	1	0307-0609		●	●
86	04.416 WASHER; THRUST,5TH T=8.10 GREEN	8-94422-112-2	01	1	0610-		●	●	●
86	04.416 WASHER; THRUST,5TH T=8.20 BLUE	8-94422-113-2	01	1	0307-0609		●	●
86	04.416 WASHER; THRUST,5TH T=8.20 BLUE	8-94422-113-2	01	1	0610-		●	●	●
86	04.416 WASHER; THRUST,5TH HF V6 ENG(LCA)	8-89048-333-0	01	1	0509-					●
87	04.416 BALL; THRUST WASHER	8-94201-356-0	01	1	0307-0609	●	●	●
87	04.416 BALL; THRUST WASHER	8-94201-356-0	01	1	0610-	●	●	●	●
89	04.416 RING; RET,THRUST RING ID=31.8	8-94422-395-0	01	1	0307-0609		●	●
89	04.416 RING; RET,THRUST RING ID=31.8	8-94422-395-0	01	1	0610-		●	●	●
91	04.416 RING; SNAP,CENTER BRG,MAINSHAFT ID=76.2	8-94322-411-0	01	1	0307-0609		●	●
91	04.416 RING; SNAP,CENTER BRG,MAINSHAFT ID=76.2	8-94322-411-0	01	1	0610-		●	●	●
93	04.422 RING; SNAP,COUNTER FRT BRG 08.934 ID=23.2	9-09180-025-0	01	1	0307-0609		●	●
93	04.422 RING; SNAP,COUNTER FRT BRG 08.934 ID=23.2	9-09180-025-0	01	1	0610-		●	●	●
93	04.422 RING; SNAP,COUNTER FRT BRG HF V6 ENG(LCA)	8-89048-575-0	01	1	0509-					●
95	04.417 GEAR; REV,COUNTER Z=16	8-94161-120-1	01	1	0307-0901	●
95	04.417 GEAR; REV,COUNTER Z=16 Z=16	8-94161-120-1	01	1	0902-	●
95	04.417 GEAR; REV,COUNTER Z=19	8-94377-433-0	01	1	0307-0609		●	●
95	04.417 GEAR; REV,COUNTER Z=19	8-94377-433-0	01	1	0610-		●	●	●
95	04.417 GEAR; REV,COUNTER 4JJ1-TCX ENG(LS0) Z=41	8-97362-499-0	01	1	0610-						●
97	04.415 GEAR; 5TH,COUNTER Z=47	8-94161-098-2	01	1	0307-0901	●
97	04.415 GEAR; 5TH,COUNTER Z=47 Z=47	8-94161-098-2	01	1	0902-	●
97	04.415 GEAR; 5TH,COUNTER Z=49	8-97216-154-0	01	1	0307-		●
97	04.415 GEAR; 5TH,COUNTER Z=50	8-94377-434-0	01	1	0307-0609			●
97	04.415 GEAR; 5TH,COUNTER Z=50	8-94377-434-0	01	1	0610-			●	●
97	04.415 GEAR; 5TH,COUNTER HF V6 ENG(LCA)	8-89059-406-0	01	1	0509-					●
97	04.415 GEAR; 5TH,COUNTER 4JJ1-TCX ENG(LS0) Z=27	8-98040-114-0	01	1	0610-						●
98	04.422 BEARING; BALL,COUNTER END NSK	8-97359-571-0	01	1	0307-0601	●
98	04.422 BEARING; BALL,COUNTER END NSK	8-98019-664-0	01	1	0602-	●
98	04.422 BEARING; BALL,COUNTER END NSK	8-97018-535-1	01	1	0307-0609		●	●
98	04.422 BEARING; BALL,COUNTER END NSK	8-97018-535-1	01	1	0610-		●	●	●
110	04.422 RING; SNAP,COUNTER BRG T=1.10 WHITE	8-94422-103-0	01	1	0307-0609		●	●
110	04.422 RING; SNAP,COUNTER BRG T=1.10 WHITE	8-94422-103-0	01	1	0610-		●	●	●
110	04.422 RING; SNAP,COUNTER BRG T=1.20 YELLOW	8-94422-104-0	01	1	0307-0609		●	●
110	04.422 RING; SNAP,COUNTER BRG T=1.20 YELLOW	8-94422-104-0	01	1	0610-		●	●	●
110	04.422 RING; SNAP,COUNTER BRG T=1.30 BLUE	8-94422-105-0	01	1	0307-0609		●	●
110	04.422 RING; SNAP,COUNTER BRG T=1.30 BLUE	8-94422-105-0	01	1	0610-		●	●	●
110	04.422 RING; SNAP,COUNTER BRG T=1.40 PINK	8-94422-106-0	01	1	0307-0609		●	●
110	04.422 RING; SNAP,COUNTER BRG T=1.40 PINK	8-94422-106-0	01	1	0610-		●	●	●
110	04.422 RING; SNAP,COUNTER BRG T=1.50 GREEN	8-94422-107-0	01	1	0307-0609		●	●
110	04.422 RING; SNAP,COUNTER BRG T=1.50 GREEN	8-94422-107-0	01	1	0610-		●	●	●
110	04.422 RING; SNAP,COUNTER BRG T=1.60 BROWN	8-94422-108-0	01	1	0307-0609		●	●
110	04.422 RING; SNAP,COUNTER BRG T=1.60 BROWN	8-94422-108-0	01	1	0610-		●	●	●
132	04.433 SHAFT; REV	8-94435-146-0	01	1	0307-	●
132	04.433 SHAFT; REV	8-97019-155-1	01	1	0307-0609		●	●
132	04.433 SHAFT; REV	8-97019-155-1	01	1	0610-		●	●	●
132	04.433 SHAFT; REV HF V6 ENG(LCA)	8-97165-006-0	01	1	0509-					●
132	04.433 SHAFT; REV 4JJ1-TCX ENG(LS0)	8-98023-113-0	01	1	0610-						●
135	04.430 GEAR; REV IDLER Z=23	8-94161-118-1	01	1	0307-0705	●
135	04.430 GEAR; REV IDLER Z=23	8-98080-126-0	01	1	0706-0708	●
135	04.430 GEAR; REV IDLER Z=23	8-98082-807-0	01	1	0709-0809	●
135	04.430 GEAR; REV IDLER Z=23	8-98080-126-0	01	1	0810-0901	●
135	04.430 GEAR; REV IDLER Z=33 Z=23 Z=23	8-98080-126-0	01	1	0902-1003	●
135	04.430 GEAR; REV IDLER Z=33 Z=33	8-98146-724-0	01	1	1004-	●
135	04.430 GEAR; REV IDLER Z=33	8-94377-435-1	01	1	0307-0609		●	●
135	04.430 GEAR; REV IDLER Z=33	8-94377-435-1	01	1	0610-0705		●	●	●
135	04.430 GEAR; REV IDLER Z=33	8-98080-125-0	01	1	0706-0708		●	●	●
135	04.430 GEAR; REV IDLER Z=33	8-98082-803-0	01	1	0709-0809		●	●	●
135	04.430 GEAR; REV IDLER Z=33	8-98080-125-0	01	1	0810-1003		●	●	●
135	04.430 GEAR; REV IDLER Z=33	8-98146-726-0	01	1	1004-		●	●	●
135	04.430 GEAR; REV IDLER HF V6 ENG(LCA)	8-89048-411-0	01	1	0509-					●
135	04.430 GEAR; REV IDLER 4JJ1-TCX ENG(LS0) Z=32	8-97362-513-0	01	1	0610-						●
189	04.435 RING; SNAP,REV,GEAR T=1.20 WHITE	8-94422-100-0	01	1	0307-0609		●	●
189	04.435 RING; SNAP,REV,GEAR T=1.20 WHITE	8-94422-100-0	01	1	0610-		●	●	●
189	04.435 RING; SNAP,REV,GEAR T=1.30 YELLOW	8-94422-101-0	01	1	0307-0609		●	●
189	04.435 RING; SNAP,REV,GEAR T=1.30 YELLOW	8-94422-101-0	01	1	0610-		●	●	●
189	04.435 RING; SNAP,REV,GEAR T=1.40 BLUE	8-94422-102-0	01	1	0307-0609		●	●
189	04.435 RING; SNAP,REV,GEAR T=1.40 BLUE	8-94422-102-0	01	1	0610-		●	●	●
211	04.419 BEARING; THRUST NEEDLE,1ST GEAR NSK	8-94148-935-0	01	1	0307-0609		●	●
211	04.419 BEARING; THRUST NEEDLE,1ST GEAR NSK	8-94148-935-0	01	1	0610-		●	●	●
219	04.422 BEARING; BALL,CLUSTER,RR NSK	8-94436-929-0	01	1	0307-0609		●	●
219	04.422 BEARING; BALL,CLUSTER,RR NSK	8-94436-929-0	01	1	0610-		●	●	●
226	04.437 WASHER; THRUST,REV GEAR,COUNTER ID=30.0	8-94223-069-1	01	1	0307-0609		●	●
226	04.437 WASHER; THRUST,REV GEAR,COUNTER ID=30.0	8-94223-069-1	01	1	0610-		●	●	●
238	04.384 INSERT (A)	8-94448-202-2	03	1	0307-0609		●	●
238	04.384 INSERT (A)	8-94448-202-2	03	1	0610-		●	●	●
238	04.384 INSERT HF V6 ENG(LCA) (D)	8-89059-399-0	02	1	0509-					●
238	04.384 INSERT 4JJ1-TCX ENG(LS0) (B)	8-94249-576-2	03	1	0610-						●
238	04.384 INSERT 4JJ1-TCX ENG(LS0) (C)	8-98004-522-0	06	1	0610-						●
246	04.422 BEARING; ROLLER,COUNTER SHAFT FR NSK	8-97029-600-4	01	1	0307-0609		●	●
246	04.422 BEARING; ROLLER,COUNTER SHAFT FR NSK	8-97029-600-4	01	1	0610-		●	●	●
292	04.422 RING; SNAP,BRG OUTER NSK	8-94422-081-0	01	1	0307-0609		●	●
292	04.422 RING; SNAP,BRG OUTER NSK	8-94422-081-0	01	1	0610-		●	●	●
292	04.422 RING; SNAP,BRG OUTER HF V6 ENG(LCA)	8-97165-071-0	01	1	0509-					●
306	04.416 RING; SNAP,MAINSHAFT 04.399 (A) T=1.50	5-09588-020-1	01	1	0307-	●
306	04.416 RING; SNAP,MAINSHAFT 04.399 (A) T=1.55	5-09588-021-1	01	1	0307-	●
306	04.416 RING; SNAP,MAINSHAFT 04.399 (A) T=1.60	5-09588-022-1	01	1	0307-	●
306	04.416 RING; SNAP,MAINSHAFT 04.399 (A) T=1.65	5-09588-023-1	01	1	0307-	●
306	04.416 RING; SNAP,MAINSHAFT (A) T=1.90 BLUE	8-97129-615-0	01	1	0307-0609		●	●
306	04.416 RING; SNAP,MAINSHAFT (A) T=1.90 BLUE	8-97129-615-0	01	1	0610-		●	●	●
306	04.416 RING; SNAP,MAINSHAFT (A) T=1.85 YELLOW	8-97129-616-0	01	1	0307-0609		●	●
306	04.416 RING; SNAP,MAINSHAFT (A) T=1.85 YELLOW	8-97129-616-0	01	1	0610-		●	●	●
306	04.416 RING; SNAP,MAINSHAFT (A) T=1.80 WHITE	8-97129-617-0	01	1	0307-0609		●	●
306	04.416 RING; SNAP,MAINSHAFT (A) T=1.80 WHITE	8-97129-617-0	01	1	0610-		●	●	●
306	04.416 RING; SNAP,MAINSHAFT 4X2(TFB***) (B) ID=27.9	9-09180-030-0	02	1	0307-0609		●	●
306	04.416 RING; SNAP,MAINSHAFT 4X4(TFS***) (B) ID=27.9	9-09180-030-0	01	1	0610-		●	●	●
306	04.416 RING; SNAP,MAINSHAFT 4X4(TFS***) (B) ID=27.9	9-09180-030-0	01	1	0307-0609		●	●
306	04.416 RING; SNAP,MAINSHAFT 4X2(TFB***) (B) ID=27.9	9-09180-030-0	02	1	0610-		●	●	●
313	04.419 BEARING; NEEDLE,LOW GEAR NSK	1-09811-028-1	01	1	0307-0609		●	●
313	04.419 BEARING; NEEDLE,LOW GEAR NSK	1-09811-028-1	01	1	0610-		●	●	●
313	04.419 BEARING; NEEDLE,LOW GEAR HF V6 ENG(LCA)	8-97165-015-0	01	1	0509-					●
314	04.419 BEARING; NEEDLE,REV GEAR NSK	8-94422-064-0	01	1	0307-0609		●	●
314	04.419 BEARING; NEEDLE,REV GEAR NSK	8-94422-064-0	01	1	0610-		●	●	●
314	04.419 BEARING; NEEDLE,REV GEAR JTEKT	8-94422-065-1	01	1	0307-0609		●	●
314	04.419 BEARING; NEEDLE,REV GEAR JTEKT	8-94422-065-1	01	1	0610-		●	●	●
314	04.419 BEARING; NEEDLE,REV GEAR 4JJ1-TCX ENG(LS0) NSK	8-97362-719-0	01	1	0610-						●
386	04.435 PIN; REV SHAFT OD=6 L=40	9-08150-640-0	01	1	0307-0609		●	●
386	04.435 PIN; REV SHAFT OD=6 L=40	9-08150-640-0	01	1	0610-		●	●	●
386	04.435 PIN; REV SHAFT 4JJ1-TCX ENG(LS0) 00.662 OD=4 L=8	9-08160-408-0	01	1	0610-						●
390	04.383 RING; SNAP,CLU HUB T=1.80 WHITE	8-94422-088-2	01	1	0307-0609		●	●
390	04.383 RING; SNAP,CLU HUB T=1.80 WHITE	8-94422-088-2	01	1	0610-		●	●	●
390	04.383 RING; SNAP,CLU HUB T=1.85 YELLOW	8-94422-089-1	01	1	0307-0609		●	●
390	04.383 RING; SNAP,CLU HUB T=1.85 YELLOW	8-94422-089-1	01	1	0610-		●	●	●
390	04.383 RING; SNAP,CLU HUB T=1.90 BLUE	8-94422-090-2	01	1	0307-0609		●	●
390	04.383 RING; SNAP,CLU HUB T=1.90 BLUE	8-94422-090-2	01	1	0610-		●	●	●
391	04.383 RING; INSIDE,SYN OD=95.8	8-94363-056-0	02	1	0307-0609		●	●
391	04.383 RING; INSIDE,SYN OD=95.8	8-94363-056-0	02	1	0610-		●	●	●
392	04.383 RING; OUTSIDE,SYN OD=90.0	8-94363-055-1	02	1	0307-0609		●	●
392	04.383 RING; OUTSIDE,SYN OD=90.0	8-94363-055-1	02	1	0610-		●	●	●
394	04.419 BEARING; BALL,MAINSHAFT RR 4X4(TFS***) 04.352 NSK	8-97018-921-1	01	1	0307-0609		●	●
394	04.419 BEARING; BALL,MAINSHAFT RR 4X4(TFS***) 04.352 NSK	8-97018-921-1	01	1	0610-		●	●	●
394	04.419 BEARING; BALL,MAINSHAFT RR HF V6 ENG(LCA)	8-97164-975-0	01	1	0509-					●
396	04.352 BEARING; NEEDLE,MAINSHAFT JTEKT	9-00096-100-1	01	1	0307-	●
396	04.352 BEARING; NEEDLE,MAINSHAFT NSK	8-94422-068-1	01	1	0307-0609		●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT NSK	8-94422-068-1	01	1	0610-1102		●	●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT NSK	8-98172-355-0	01	1	1103-		●	●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT HF V6 ENG(LCA)	8-97165-012-0	01	1	0509-					●
397	04.384 SPRING; INSERT,4TH & 3RD	5-33264-010-0	02	1	0307-	●
397	04.384 SPRING; INSERT,4TH & 3RD	8-94422-075-0	02	1	0307-0609		●	●
397	04.384 SPRING; INSERT,4TH & 3RD	8-94422-075-0	02	1	0610-		●	●	●
398	04.421 GEAR; COUNTER Z=37-31-20-16	8-94469-524-1	01	1	0307-0901	●
398	04.421 GEAR; COUNTER Z=37-31-20-16 Z=37-31-20-16	8-94469-524-1	01	1	0902-	●
398	04.421 GEAR; COUNTER Z=44-32-25-19	8-97216-164-1	01	1	0307-0609		●
398	04.421 GEAR; COUNTER Z=44-32-25-19	8-97216-164-1	01	1	0610-		●		●
398	04.421 GEAR; COUNTER Z=46-38-25-19	8-97104-161-1	01	1	0307-			●
398	04.421 GEAR; COUNTER 4JJ1-TCX ENG(LS0) Z=26	8-98023-110-1	01	1	0610-0703						●
398	04.421 GEAR; COUNTER 4JJ1-TCX ENG(LS0) Z=26	8-98079-114-0	01	1	0704-						●
404	04.307 PLATE; THRUST	8-94421-892-0	02	1	0307-0609		●	●
404	04.307 PLATE; THRUST	8-94421-892-0	02	1	0610-		●	●	●
405	04.384 INSERT; SYN,LOW & 2ND	8-94152-557-1	03	1	0307-	●
405	04.384 INSERT; SYN,LOW & 2ND	8-94363-062-1	03	1	0307-0609		●	●
405	04.384 INSERT; SYN,LOW & 2ND	8-94363-062-1	03	1	0610-		●	●	●		●
405	04.384 INSERT; SYN,LOW & 2ND HF V6 ENG(LCA)	8-97165-000-0	03	1	0509-					●
421	04.383 RING; BLOCK,REV & 5TH Z=36	8-97071-688-0	02	1	0307-0609		●	●
421	04.383 RING; BLOCK,REV & 5TH Z=36	8-97071-688-0	02	1	0610-		●	●	●
499	04.419 COLLAR; OIL SEAL 4X4(TFS***)	8-97300-954-0	01	1	0307-0609		●	●
499	04.419 COLLAR; OIL SEAL 4X4(TFS***)	8-97300-954-0	01	1	0610-		●	●	●

396 306 82 5 4 3 1 64 65 66 13 14 86 87 88 90 276 151 401 215 80 393 88 38 71 52 53 70 40 405 40 50 37 397 34 387 397 35 35 36 37 51 217 84 398 51 85 140 132 128 135 136 137 99 224 98 97 95 62 61 63 62 53 52 59 71 393

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	04.351 SHAFT; TOP GEAR,TRANS Z=23	8-94435-160-2	01	1	0307-0901	●
1	04.351 SHAFT; TOP GEAR,TRANS Z=23 Z=23	8-94435-160-2	01	1	0902-	●
1	04.351 SHAFT; TOP GEAR,TRANS C24SE ENG(LG1) Z=26	8-97300-950-1	01	1	0307-		●
1	04.351 SHAFT; TOP GEAR,TRANS 4JA1-T ENG(LP0),6VE1 ENG(LX5), 4JA1-TCENG(L4Z),4JH1-TC ENG(RDM) Z=26	8-97300-948-1	01	1	0307-0609		●
1	04.351 SHAFT; TOP GEAR,TRANS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) Z=26	8-97300-948-1	01	1	0610-0612		●		●
1	04.351 SHAFT; TOP GEAR,TRANS 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) Z=26	8-97300-948-1	01	1	0701-0709		●		●
1	04.351 SHAFT; TOP GEAR,TRANS 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0) Z=26	8-97300-948-1	01	1	0710-0912		●		●
1	04.351 SHAFT; TOP GEAR,TRANS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) Z=26	8-97300-948-1	01	1	1001-		●		●
1	04.351 SHAFT; TOP GEAR,TRANS Z=25	8-97182-214-1	01	1	0307-			●
3	04.403 BEARING; TOP GEAR SHAFT 04.355 NSK	8-94167-637-0	01	1	0307-0901	●
3	04.403 BEARING; TOP GEAR SHAFT NSK	8-97943-882-0	01	1	0902-	●
3	04.403 BEARING; TOP GEAR SHAFT NSK	8-94380-015-1	01	1	0307-0609		●	●
3	04.403 BEARING; TOP GEAR SHAFT NSK	8-94380-015-1	01	1	0610-		●	●	●
4	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT 04.376 NSK	8-94206-485-0	01	1	0307-	●
4	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT NSK	8-94422-083-0	01	1	0307-0609		●	●
4	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT NSK	8-94422-083-0	01	1	0610-		●	●	●
5	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT 08.934 ID=37.0	9-09180-040-0	01	1	0307-	●
5	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT 04.525 ID=37.4	8-97254-316-0	01	1	0307-0609		●	●
5	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT 04.525 ID=37.4	8-97254-316-0	01	1	0610-		●	●	●
13	04.415 GEAR; 5TH,MAINSHAFT Z=25	8-94161-912-3	01	1	0307-0901	●
13	04.415 GEAR; 5TH,MAINSHAFT Z=25 Z=25 Z=25	8-94161-912-3	01	1	0902-	●
13	04.415 GEAR; 5TH,MAINSHAFT Z=24	8-97216-153-0	01	1	0307-		●
13	04.415 GEAR; 5TH,MAINSHAFT Z=22	8-97104-023-2	01	1	0307-0609			●
13	04.415 GEAR; 5TH,MAINSHAFT Z=22	8-97104-023-2	01	1	0610-			●	●
13	04.415 GEAR; 5TH,MAINSHAFT HF V6 ENG(LCA)	8-89048-410-0	01	1	0509-					●
14	04.419 BEARING; NEEDLE,5TH NSK	8-94161-994-0	01	1	0307-	●
14	04.419 BEARING; NEEDLE,5TH NSK	8-97029-341-0	01	1	0307-0609		●	●
14	04.419 BEARING; NEEDLE,5TH NSK	8-97029-341-0	01	1	0610-1102		●	●	●
14	04.419 BEARING; NEEDLE,5TH NTN	8-98172-356-0	01	1	1103-		●	●	●
14	04.419 BEARING; NEEDLE,5TH HF V6 ENG(LCA)	8-97165-013-0	01	1	0509-					●
14	04.419 BEARING; NEEDLE,5TH 4JJ1-TCX ENG(LS0) NSK	8-97362-728-0	01	1	0610-						●
34	04.380 SYNCHRONIZER; 4TH & 3RD	8-94161-860-0	01	1	0307-0901	●
34	04.380 SYNCHRONIZER; 4TH & 3RD	8-94161-860-0	01	1	0902-	●
34	04.380 SYNCHRONIZER; 4TH & 3RD	8-97188-798-0	01	1	0307-0609		●	●
34	04.380 SYNCHRONIZER; 4TH & 3RD	8-97104-027-0	01	1	0610-		●	●	●
34	04.380 SYNCHRONIZER; 4TH & 3RD 4JJ1-TCX ENG(LS0)	8-97362-474-3	01	1	0610-						●
35	04.383 RING; BLOCK,4TH & 3RD Z=30	8-94463-830-1	02	1	0307-	●
35	04.383 RING; BLOCK,4TH & 3RD Z=45	8-94151-510-3	02	1	0307-0609		●	●
35	04.383 RING; BLOCK,4TH & 3RD Z=45	8-94151-510-3	02	1	0610-		●	●	●
36	04.415 GEAR; 3RD,MAINSHAFT Z=29	8-94161-137-1	01	1	0307-0901	●
36	04.415 GEAR; 3RD,MAINSHAFT Z=29 Z=29	8-94161-137-1	01	1	0902-	●
36	04.415 GEAR; 3RD,MAINSHAFT Z=27	8-97216-150-1	01	1	0307-0609		●
36	04.415 GEAR; 3RD,MAINSHAFT Z=27	8-97216-150-1	01	1	0610-		●		●
36	04.415 GEAR; 3RD,MAINSHAFT Z=31	8-97104-021-2	01	1	0307-			●
36	04.415 GEAR; 3RD,MAINSHAFT HF V6 ENG(LCA)	8-98025-405-0	01	1	0509-					●
37	04.352 BEARING; NEEDLE,2ND & 3RD NSK	8-94161-989-0	02	1	0307-	●
38	04.384 SYNCHRONIZER; LOW & 2ND	8-94435-140-0	01	1	0307-0901	●
38	04.384 SYNCHRONIZER; LOW & 2ND	8-94435-140-0	01	1	0902-	●
38	04.384 SYNCHRONIZER; LOW & 2ND	8-97188-799-0	01	1	0307-0609		●	●
38	04.384 SYNCHRONIZER; LOW & 2ND	8-94363-059-1	01	1	0610-		●	●	●
38	04.384 SYNCHRONIZER; LOW & 2ND 4JJ1-TCX ENG(LS0)	8-97362-503-1	01	1	0610-						●
40	04.384 SPRING; INSERT,LOW & 2ND	8-94152-558-1	02	1	0307-	●
40	04.384 SPRING; INSERT,LOW & 2ND	8-94448-045-0	02	1	0307-0609		●	●
40	04.384 SPRING; INSERT,LOW & 2ND	8-94448-045-0	02	1	0610-		●	●	●		●
50	04.395 GEAR; 2ND,MAINSHAFT Z=31	8-94311-564-1	01	1	0307-0901	●
50	04.395 GEAR; 2ND,MAINSHAFT Z=31 Z=31	8-94311-564-1	01	1	0902-	●
50	04.395 GEAR; 2ND,MAINSHAFT Z=34	8-97300-953-1	01	1	0307-0609		●	●
50	04.395 GEAR; 2ND,MAINSHAFT Z=34	8-97300-953-1	01	1	0610-		●	●	●
50	04.395 GEAR; 2ND,MAINSHAFT HF V6 ENG(LCA)	8-89048-406-0	01	1	0509-					●
51	04.383 RING; BLOCK,LOW & 2ND Z=45	8-94151-510-3	02	1	0307-	●
51	04.383 RING; BLOCK,LOW & 2ND Z=48	8-94363-054-1	02	1	0307-0609		●	●
51	04.383 RING; BLOCK,LOW & 2ND Z=48	8-94363-054-1	02	1	0610-		●	●	●		●
52	04.419 COLLAR; NEEDLE BRG,LOW	8-94248-620-1	02	1	0307-0901	●
52	04.419 COLLAR; NEEDLE BRG,LOW	8-97238-834-0	02	1	0902-	●
53	04.419 BEARING; NEEDLE,LOW & REV NSK	8-94161-991-0	02	1	0307-	●
59	04.417 GEAR; REV MAINSHAFT Z=37	8-94310-158-1	01	1	0307-0901	●
59	04.417 GEAR; REV MAINSHAFT Z=37	8-94310-158-1	01	1	0902-	●
59	04.417 GEAR; REV MAINSHAFT Z=41	8-97104-025-2	01	1	0307-0609		●	●
59	04.417 GEAR; REV MAINSHAFT Z=41	8-97104-025-2	01	1	0610-		●	●	●
59	04.417 GEAR; REV MAINSHAFT HF V6 ENG(LCA)	8-89048-409-0	01	1	0509-					●
61	04.380 SYNCHRONIZER; REV & 5TH	5-33260-010-0	01	1	0307-0901	●
61	04.380 SYNCHRONIZER; REV & 5TH	5-33260-010-0	01	1	0902-	●
61	04.380 SYNCHRONIZER; REV & 5TH	8-97188-800-0	01	1	0307-0609		●	●
61	04.380 SYNCHRONIZER; REV & 5TH	8-97030-106-1	01	1	0610-		●	●	●
62	04.384 SPRING; INSERT,REV & 5TH	5-33264-010-0	02	1	0307-	●
62	04.384 SPRING; INSERT,REV & 5TH	5-33264-012-0	02	1	0307-0609		●	●
62	04.384 SPRING; INSERT,REV & 5TH	5-33264-012-0	02	1	0610-		●	●	●
63	04.384 INSERT; SYN,REV & 5TH	5-33263-002-3	03	1	0307-	●
63	04.384 INSERT; SYN,REV & 5TH	5-33263-001-0	03	1	0307-0609		●	●
63	04.384 INSERT; SYN,REV & 5TH	5-33263-001-0	03	1	0610-		●	●	●
64	04.419 WASHER; LK,LOW 04.412	8-94238-095-0	01	1	0307-	●
65	04.356 NUT; MAINSHAFT M32	8-94238-094-1	01	1	0307-	●
65	04.356 NUT; MAINSHAFT M34	8-94422-071-1	01	1	0307-0609		●	●
65	04.356 NUT; MAINSHAFT M34	8-94422-071-1	01	1	0610-		●	●	●
66	04.383 RING; BLOCK,SYN Z=30	8-94463-830-1	01	1	0307-	●
70	04.417 GEAR; 1ST,MAINSHAFT Z=41	8-94310-154-1	01	1	0307-0901	●
70	04.417 GEAR; 1ST,MAINSHAFT Z=41 Z=41	8-94310-154-1	01	1	0902-	●
70	04.417 GEAR; 1ST,MAINSHAFT Z=45	8-97300-952-1	01	1	0307-0609		●	●
70	04.417 GEAR; 1ST,MAINSHAFT Z=45	8-97300-952-1	01	1	0610-		●	●	●
70	04.417 GEAR; 1ST,MAINSHAFT HF V6 ENG(LCA)	8-89048-405-0	01	1	0509-					●
71	04.406 WASHER; THRUST,LOW ID=32.0	5-33239-043-3	02	1	0307-	●
71	04.406 WASHER; THRUST,LOW HF V6 ENG(LCA)	8-97164-997-0	01	1	0509-					●
80	04.343 GEAR; SPD DRIVE Z=6	8-94161-085-1	01	1	0307-	●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) C24SE ENG(LG1) Z=5	8-94472-606-1	01	1	0307-		●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) Z=5	8-94472-606-1	01	1	0307-			●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) 6VE1 ENG(LX5),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) Z=6	8-94472-608-1	01	1	0307-0508		●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) Z=6	8-94472-608-1	01	1	0509-0609		●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/11(GT4) FRT&RR 195R14C(CNU) Z=6	8-94472-608-1	01	1	0610-0912				●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(GY2) Z=6	8-94472-608-1	01	1	0610-0912				●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) 4JA1-T ENG(LP0) FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(GY2) Z=6	8-94472-608-1	01	1	1001-		●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/11(GT4) FRT&RR 195R14C(CNU) Z=6	8-94472-608-1	01	1	1001-				●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(GY2) Z=6	8-94472-608-1	01	1	1001-				●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) HF V6 ENG(LCA)	8-89048-422-0	01	1	0509-					●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/11(GT4) FRT&RR 215/70R15C GOODYEAR TIRE(QFT) Z=6	8-97227-220-0	01	1	0610-0612				●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) 4JK1-TCS ENG(LKZ) Z=6	8-97227-220-0	01	1	0610-0612				●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 41/11(GT4),FINAL GEAR RATIO 43/11(GW1) Z=6	8-97227-220-0	01	1	0610-0612				●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/11(GT4) FRT&RR 215/70R15C GOODYEAR TIRE(QFT) Z=6	8-97227-220-0	01	1	0701-				●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 41/11(GT4),FINAL GEAR RATIO 43/11(GW1) Z=6	8-97227-220-0	01	1	0701-				●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) 4JJ1-TCX ENG(LS0) Z=7	8-98004-532-0	01	1	0610-						●
82	04.403 SHAFT; MAIN,TRANS Z=26-24-27	8-94435-162-3	01	1	0307-	●
82	04.403 SHAFT; MAIN,TRANS 4X2(TFB***) Z=28-34-26-27	8-97300-981-0	01	1	0307-0609		●	●
82	04.403 SHAFT; MAIN,TRANS 4X2(TFB***) Z=28-34-26-27	8-97300-981-0	01	1	0610-		●	●	●
82	04.403 SHAFT; MAIN,TRANS 4X4(TFS***) Z=28-34-26-27	8-97300-980-0	01	1	0307-0609		●	●
82	04.403 SHAFT; MAIN,TRANS 4X4(TFS***) Z=28-34-26-27	8-97300-980-0	01	1	0610-		●	●	●
82	04.403 SHAFT; MAIN,TRANS 4X2(TFB***) HF V6 ENG(LCA)	8-89048-331-0	01	1	0509-					●
82	04.403 SHAFT; MAIN,TRANS 4X4(TFS***) HF V6 ENG(LCA)	8-89048-332-0	01	1	0509-					●
84	04.422 BEARING; COUNTER SHAFT,FRT NSK ID=20 OD=47	8-97063-365-0	01	1	0307-0901	●
84	04.422 BEARING; COUNTER SHAFT,FRT NSK ID=20 OD=47 NSK ID=20 OD=47	8-97063-365-0	01	1	0902-	●
84	04.422 BEARING; COUNTER SHAFT,FRT HF V6 ENG(LCA)	8-97165-017-0	01	1	0509-					●
84	04.422 BEARING; COUNTER SHAFT,FRT 4JJ1-TCX ENG(LS0)	8-97362-724-0	01	1	0610-						●
85	04.422 BEARING; ANGULAR BALL,CLUSTER NSK ID=25 OD=52	8-97365-931-0	01	1	0307-0901	●
85	04.422 BEARING; ANGULAR BALL,CLUSTER NSK ID=25 OD=52 NSK ID=25 OD=52	8-97365-931-0	01	1	0902-	●
86	04.416 WASHER; THRUST,5TH T=7.80	8-94238-099-4	01	1	0307-	●
86	04.416 WASHER; THRUST,5TH T=7.90	8-94238-100-4	01	1	0307-	●
86	04.416 WASHER; THRUST,5TH T=8.00	8-94238-101-4	01	1	0307-	●
86	04.416 WASHER; THRUST,5TH T=8.10	8-94238-102-4	01	1	0307-	●
86	04.416 WASHER; THRUST,5TH T=8.20	8-94238-103-4	01	1	0307-	●
86	04.416 WASHER; THRUST,5TH T=8.30	8-94238-104-4	01	1	0307-	●
86	04.416 WASHER; THRUST,5TH T=7.90 WHITE	8-94422-110-2	01	1	0307-0609		●	●
86	04.416 WASHER; THRUST,5TH T=7.90 WHITE	8-94422-110-2	01	1	0610-		●	●	●
86	04.416 WASHER; THRUST,5TH T=8.00 YELLOW	8-94422-111-2	01	1	0307-0609		●	●
86	04.416 WASHER; THRUST,5TH T=8.00 YELLOW	8-94422-111-2	01	1	0610-		●	●	●
86	04.416 WASHER; THRUST,5TH T=8.10 GREEN	8-94422-112-2	01	1	0307-0609		●	●
86	04.416 WASHER; THRUST,5TH T=8.10 GREEN	8-94422-112-2	01	1	0610-		●	●	●
86	04.416 WASHER; THRUST,5TH T=8.20 BLUE	8-94422-113-2	01	1	0307-0609		●	●
86	04.416 WASHER; THRUST,5TH T=8.20 BLUE	8-94422-113-2	01	1	0610-		●	●	●
86	04.416 WASHER; THRUST,5TH HF V6 ENG(LCA)	8-89048-333-0	01	1	0509-					●
87	04.416 BALL; THRUST WASHER	8-94201-356-0	01	1	0307-0609	●	●	●
87	04.416 BALL; THRUST WASHER	8-94201-356-0	01	1	0610-	●	●	●	●
88	04.416 RING; THRUST,THRUST WASHER	8-94473-936-2	02	1	0307-	●
90	04.416 RING; SNAP,THRUST RING 08.934 ID=37.0	9-09180-040-0	01	1	0307-	●
90	04.416 RING; SNAP,THRUST RING 4X2(TFB***) 04.422 ID=29.6	9-09180-032-0	01	1	0307-0609		●	●
90	04.416 RING; SNAP,THRUST RING 4X2(TFB***) 04.422 ID=29.6	9-09180-032-0	01	1	0610-		●	●	●
95	04.417 GEAR; REV,COUNTER Z=16	8-94161-120-1	01	1	0307-0901	●
95	04.417 GEAR; REV,COUNTER Z=16 Z=16	8-94161-120-1	01	1	0902-	●
95	04.417 GEAR; REV,COUNTER Z=19	8-94377-433-0	01	1	0307-0609		●	●
95	04.417 GEAR; REV,COUNTER Z=19	8-94377-433-0	01	1	0610-		●	●	●
95	04.417 GEAR; REV,COUNTER 4JJ1-TCX ENG(LS0) Z=41	8-97362-499-0	01	1	0610-						●
97	04.415 GEAR; 5TH,COUNTER Z=47	8-94161-098-2	01	1	0307-0901	●
97	04.415 GEAR; 5TH,COUNTER Z=47 Z=47	8-94161-098-2	01	1	0902-	●
97	04.415 GEAR; 5TH,COUNTER Z=49	8-97216-154-0	01	1	0307-		●
97	04.415 GEAR; 5TH,COUNTER Z=50	8-94377-434-0	01	1	0307-0609			●
97	04.415 GEAR; 5TH,COUNTER Z=50	8-94377-434-0	01	1	0610-			●	●
97	04.415 GEAR; 5TH,COUNTER HF V6 ENG(LCA)	8-89059-406-0	01	1	0509-					●
97	04.415 GEAR; 5TH,COUNTER 4JJ1-TCX ENG(LS0) Z=27	8-98040-114-0	01	1	0610-						●
98	04.422 BEARING; BALL,COUNTER END NSK	8-97359-571-0	01	1	0307-0601	●
98	04.422 BEARING; BALL,COUNTER END NSK	8-98019-664-0	01	1	0602-	●
98	04.422 BEARING; BALL,COUNTER END NSK	8-97018-535-1	01	1	0307-0609		●	●
98	04.422 BEARING; BALL,COUNTER END NSK	8-97018-535-1	01	1	0610-		●	●	●
99	04.429 WASHER; PL,COUNTER 5TH GEAR 04.027 ID=17	9-09160-516-0	01	1	0307-0605	●
99	04.429 WASHER; PL,COUNTER 5TH GEAR ID=17 OD=30	0-91610-516-0	01	1	0606-	●
128	04.437 WASHER; THRUST,REV SHAFT ID=22.0	5-33363-004-0	01	1	0307-	●
132	04.433 SHAFT; REV	8-94435-146-0	01	1	0307-	●
132	04.433 SHAFT; REV	8-97019-155-1	01	1	0307-0609		●	●
132	04.433 SHAFT; REV	8-97019-155-1	01	1	0610-		●	●	●
132	04.433 SHAFT; REV HF V6 ENG(LCA)	8-97165-006-0	01	1	0509-					●
132	04.433 SHAFT; REV 4JJ1-TCX ENG(LS0)	8-98023-113-0	01	1	0610-						●
135	04.430 GEAR; REV IDLER Z=23	8-94161-118-1	01	1	0307-0705	●
135	04.430 GEAR; REV IDLER Z=23	8-98080-126-0	01	1	0706-0708	●
135	04.430 GEAR; REV IDLER Z=23	8-98082-807-0	01	1	0709-0809	●
135	04.430 GEAR; REV IDLER Z=23	8-98080-126-0	01	1	0810-0901	●
135	04.430 GEAR; REV IDLER Z=33 Z=23 Z=23	8-98080-126-0	01	1	0902-1003	●
135	04.430 GEAR; REV IDLER Z=33 Z=33	8-98146-724-0	01	1	1004-	●
135	04.430 GEAR; REV IDLER Z=33	8-94377-435-1	01	1	0307-0609		●	●
135	04.430 GEAR; REV IDLER Z=33	8-94377-435-1	01	1	0610-0705		●	●	●
135	04.430 GEAR; REV IDLER Z=33	8-98080-125-0	01	1	0706-0708		●	●	●
135	04.430 GEAR; REV IDLER Z=33	8-98082-803-0	01	1	0709-0809		●	●	●
135	04.430 GEAR; REV IDLER Z=33	8-98080-125-0	01	1	0810-1003		●	●	●
135	04.430 GEAR; REV IDLER Z=33	8-98146-726-0	01	1	1004-		●	●	●
135	04.430 GEAR; REV IDLER HF V6 ENG(LCA)	8-89048-411-0	01	1	0509-					●
135	04.430 GEAR; REV IDLER 4JJ1-TCX ENG(LS0) Z=32	8-97362-513-0	01	1	0610-						●
136	04.437 WASHER; THRUST,REV IDLE,RR ID=16.2	5-33363-003-3	01	1	0307-	●
137	04.429 NUT; REV GEAR M16	9-09844-195-0	01	1	0307-0604	●
137	04.429 NUT; REV GEAR M16	8-98035-678-0	01	1	0605-	●
140	04.435 BOLT; LK PIECE 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0307-0512	●
140	04.435 BOLT; LK PIECE 02.343 M8X16 FLANGE	0-28050-816-0	01	1	0601-	●
151	04.345 KEY; FEATHER,SPD DRIVE GEAR 08.960	9-08020-510-0	01	1	0307-	●
215	04.416 RING; SNAP,BALL BRG ID=27.9	9-09180-030-0	01	1	0307-	●
215	04.416 RING; SNAP,BALL BRG HF V6 ENG(LCA)	8-97165-072-0	01	1	0509-					●
217	04.376 RING; SNAP,COUNTER FRT BRG 04.422 ID=18.5	9-09180-020-0	01	1	0307-	●
224	04.429 NUT; SELF LK,COUNTER M16	9-09844-195-0	01	1	0307-0604	●
224	04.429 NUT; SELF LK,COUNTER M16	8-98035-678-0	01	1	0605-	●
276	04.419 SPACER; BRG TO DRIVE GEAR 04.423	8-94161-087-0	01	1	0307-	●
306	04.416 RING; SNAP,MAINSHAFT 04.399 (A) T=1.50	5-09588-020-1	01	1	0307-	●
306	04.416 RING; SNAP,MAINSHAFT 04.399 (A) T=1.55	5-09588-021-1	01	1	0307-	●
306	04.416 RING; SNAP,MAINSHAFT 04.399 (A) T=1.60	5-09588-022-1	01	1	0307-	●
306	04.416 RING; SNAP,MAINSHAFT 04.399 (A) T=1.65	5-09588-023-1	01	1	0307-	●
306	04.416 RING; SNAP,MAINSHAFT (A) T=1.90 BLUE	8-97129-615-0	01	1	0307-0609		●	●
306	04.416 RING; SNAP,MAINSHAFT (A) T=1.90 BLUE	8-97129-615-0	01	1	0610-		●	●	●
306	04.416 RING; SNAP,MAINSHAFT (A) T=1.85 YELLOW	8-97129-616-0	01	1	0307-0609		●	●
306	04.416 RING; SNAP,MAINSHAFT (A) T=1.85 YELLOW	8-97129-616-0	01	1	0610-		●	●	●
306	04.416 RING; SNAP,MAINSHAFT (A) T=1.80 WHITE	8-97129-617-0	01	1	0307-0609		●	●
306	04.416 RING; SNAP,MAINSHAFT (A) T=1.80 WHITE	8-97129-617-0	01	1	0610-		●	●	●
306	04.416 RING; SNAP,MAINSHAFT 4X2(TFB***) (B) ID=27.9	9-09180-030-0	02	1	0307-0609		●	●
306	04.416 RING; SNAP,MAINSHAFT 4X4(TFS***) (B) ID=27.9	9-09180-030-0	01	1	0610-		●	●	●
306	04.416 RING; SNAP,MAINSHAFT 4X4(TFS***) (B) ID=27.9	9-09180-030-0	01	1	0307-0609		●	●
306	04.416 RING; SNAP,MAINSHAFT 4X2(TFB***) (B) ID=27.9	9-09180-030-0	02	1	0610-		●	●	●
387	04.384 INSERT; SYN,4TH & 3RD	9-33263-048-2	03	1	0307-	●
387	04.384 INSERT; SYN,4TH & 3RD HF V6 ENG(LCA)	8-89048-338-0	03	1	0509-					●
393	04.352 BEARING; MAINSHAFT END 04.422 (A) NSK	8-94173-863-0	01	1	0307-0901	●
393	04.352 BEARING; MAINSHAFT END 04.422 (A) NSK NSK	8-94173-863-0	01	1	0902-	●
393	04.352 BEARING; MAINSHAFT END 04.408 (B) NSK	8-94173-866-0	01	1	0307-0901	●
393	04.352 BEARING; MAINSHAFT END 04.408 (B) NSK NSK	8-94173-866-0	01	1	0902-	●
396	04.352 BEARING; NEEDLE,MAINSHAFT JTEKT	9-00096-100-1	01	1	0307-	●
396	04.352 BEARING; NEEDLE,MAINSHAFT NSK	8-94422-068-1	01	1	0307-0609		●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT NSK	8-94422-068-1	01	1	0610-1102		●	●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT NSK	8-98172-355-0	01	1	1103-		●	●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT HF V6 ENG(LCA)	8-97165-012-0	01	1	0509-					●
397	04.384 SPRING; INSERT,4TH & 3RD	5-33264-010-0	02	1	0307-	●
397	04.384 SPRING; INSERT,4TH & 3RD	8-94422-075-0	02	1	0307-0609		●	●
397	04.384 SPRING; INSERT,4TH & 3RD	8-94422-075-0	02	1	0610-		●	●	●
398	04.421 GEAR; COUNTER Z=37-31-20-16	8-94469-524-1	01	1	0307-0901	●
398	04.421 GEAR; COUNTER Z=37-31-20-16 Z=37-31-20-16	8-94469-524-1	01	1	0902-	●
398	04.421 GEAR; COUNTER Z=44-32-25-19	8-97216-164-1	01	1	0307-0609		●
398	04.421 GEAR; COUNTER Z=44-32-25-19	8-97216-164-1	01	1	0610-		●		●
398	04.421 GEAR; COUNTER Z=46-38-25-19	8-97104-161-1	01	1	0307-			●
398	04.421 GEAR; COUNTER 4JJ1-TCX ENG(LS0) Z=26	8-98023-110-1	01	1	0610-0703						●
398	04.421 GEAR; COUNTER 4JJ1-TCX ENG(LS0) Z=26	8-98079-114-0	01	1	0704-						●
401	04.345 RING; SNAP,SPD DRIVE GEAR 04.416 ID=27.9	9-09180-030-0	01	1	0307-	●
401	04.345 RING; SNAP,SPD DRIVE GEAR 4X2(TFB***) HF V6 ENG(LCA)	8-89048-424-0	02	1	0509-					●
405	04.384 INSERT; SYN,LOW & 2ND	8-94152-557-1	03	1	0307-	●
405	04.384 INSERT; SYN,LOW & 2ND	8-94363-062-1	03	1	0307-0609		●	●
405	04.384 INSERT; SYN,LOW & 2ND	8-94363-062-1	03	1	0610-		●	●	●		●
405	04.384 INSERT; SYN,LOW & 2ND HF V6 ENG(LCA)	8-97165-000-0	03	1	0509-					●

14 176 473 554 399 80 263 299 471 34 555 400 238 557 555 178 33 568 481 570 202 559 357 51 40 353 38 481 252 567 238 106 105 405 241 241 29 357 567 40 357 357 481 558 565 398 300 97 561 95 314 531 108 51 562 563 241 135 132 84 555 566 238 386 555 564 131 241 326 560

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
14	04.419 BEARING; NEEDLE,5TH NSK	8-94161-994-0	01	1	0307-	●
14	04.419 BEARING; NEEDLE,5TH NSK	8-97029-341-0	01	1	0307-0609		●	●
14	04.419 BEARING; NEEDLE,5TH NSK	8-97029-341-0	01	1	0610-1102		●	●	●
14	04.419 BEARING; NEEDLE,5TH NTN	8-98172-356-0	01	1	1103-		●	●	●
14	04.419 BEARING; NEEDLE,5TH HF V6 ENG(LCA)	8-97165-013-0	01	1	0509-					●
14	04.419 BEARING; NEEDLE,5TH 4JJ1-TCX ENG(LS0) NSK	8-97362-728-0	01	1	0610-						●
29	04.416 COLLAR; 3RD GEAR 4JJ1-TCX ENG(LS0)	8-97362-568-1	01	1	0610-						●
33	04.352 BEARING; NEEDLE,3RD GEAR 04.419 NSK	1-09811-028-1	01	1	0307-0609		●	●
33	04.352 BEARING; NEEDLE,3RD GEAR 04.419 NSK	1-09811-028-1	01	1	0610-		●	●	●		●
33	04.352 BEARING; NEEDLE,3RD GEAR HF V6 ENG(LCA)	8-97165-014-0	01	1	0509-					●
34	04.380 SYNCHRONIZER; 4TH & 3RD	8-94161-860-0	01	1	0307-0901	●
34	04.380 SYNCHRONIZER; 4TH & 3RD	8-94161-860-0	01	1	0902-	●
34	04.380 SYNCHRONIZER; 4TH & 3RD	8-97188-798-0	01	1	0307-0609		●	●
34	04.380 SYNCHRONIZER; 4TH & 3RD	8-97104-027-0	01	1	0610-		●	●	●
34	04.380 SYNCHRONIZER; 4TH & 3RD 4JJ1-TCX ENG(LS0)	8-97362-474-3	01	1	0610-						●
38	04.384 SYNCHRONIZER; LOW & 2ND	8-94435-140-0	01	1	0307-0901	●
38	04.384 SYNCHRONIZER; LOW & 2ND	8-94435-140-0	01	1	0902-	●
38	04.384 SYNCHRONIZER; LOW & 2ND	8-97188-799-0	01	1	0307-0609		●	●
38	04.384 SYNCHRONIZER; LOW & 2ND	8-94363-059-1	01	1	0610-		●	●	●
38	04.384 SYNCHRONIZER; LOW & 2ND 4JJ1-TCX ENG(LS0)	8-97362-503-1	01	1	0610-						●
40	04.384 SPRING; INSERT,LOW & 2ND	8-94152-558-1	02	1	0307-	●
40	04.384 SPRING; INSERT,LOW & 2ND	8-94448-045-0	02	1	0307-0609		●	●
40	04.384 SPRING; INSERT,LOW & 2ND	8-94448-045-0	02	1	0610-		●	●	●		●
51	04.383 RING; BLOCK,LOW & 2ND Z=45	8-94151-510-3	02	1	0307-	●
51	04.383 RING; BLOCK,LOW & 2ND Z=48	8-94363-054-1	02	1	0307-0609		●	●
51	04.383 RING; BLOCK,LOW & 2ND Z=48	8-94363-054-1	02	1	0610-		●	●	●		●
80	04.343 GEAR; SPD DRIVE Z=6	8-94161-085-1	01	1	0307-	●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) C24SE ENG(LG1) Z=5	8-94472-606-1	01	1	0307-		●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) Z=5	8-94472-606-1	01	1	0307-			●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) 6VE1 ENG(LX5),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) Z=6	8-94472-608-1	01	1	0307-0508		●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) Z=6	8-94472-608-1	01	1	0509-0609		●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/11(GT4) FRT&RR 195R14C(CNU) Z=6	8-94472-608-1	01	1	0610-0912				●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(GY2) Z=6	8-94472-608-1	01	1	0610-0912				●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) 4JA1-T ENG(LP0) FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(GY2) Z=6	8-94472-608-1	01	1	1001-		●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/11(GT4) FRT&RR 195R14C(CNU) Z=6	8-94472-608-1	01	1	1001-				●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(GY2) Z=6	8-94472-608-1	01	1	1001-				●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) HF V6 ENG(LCA)	8-89048-422-0	01	1	0509-					●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/11(GT4) FRT&RR 215/70R15C GOODYEAR TIRE(QFT) Z=6	8-97227-220-0	01	1	0610-0612				●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) 4JK1-TCS ENG(LKZ) Z=6	8-97227-220-0	01	1	0610-0612				●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 41/11(GT4),FINAL GEAR RATIO 43/11(GW1) Z=6	8-97227-220-0	01	1	0610-0612				●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/11(GT4) FRT&RR 215/70R15C GOODYEAR TIRE(QFT) Z=6	8-97227-220-0	01	1	0701-				●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 41/11(GT4),FINAL GEAR RATIO 43/11(GW1) Z=6	8-97227-220-0	01	1	0701-				●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) 4JJ1-TCX ENG(LS0) Z=7	8-98004-532-0	01	1	0610-						●
84	04.422 BEARING; COUNTER SHAFT,FRT NSK ID=20 OD=47	8-97063-365-0	01	1	0307-0901	●
84	04.422 BEARING; COUNTER SHAFT,FRT NSK ID=20 OD=47 NSK ID=20 OD=47	8-97063-365-0	01	1	0902-	●
84	04.422 BEARING; COUNTER SHAFT,FRT HF V6 ENG(LCA)	8-97165-017-0	01	1	0509-					●
84	04.422 BEARING; COUNTER SHAFT,FRT 4JJ1-TCX ENG(LS0)	8-97362-724-0	01	1	0610-						●
95	04.417 GEAR; REV,COUNTER Z=16	8-94161-120-1	01	1	0307-0901	●
95	04.417 GEAR; REV,COUNTER Z=16 Z=16	8-94161-120-1	01	1	0902-	●
95	04.417 GEAR; REV,COUNTER Z=19	8-94377-433-0	01	1	0307-0609		●	●
95	04.417 GEAR; REV,COUNTER Z=19	8-94377-433-0	01	1	0610-		●	●	●
95	04.417 GEAR; REV,COUNTER 4JJ1-TCX ENG(LS0) Z=41	8-97362-499-0	01	1	0610-						●
97	04.415 GEAR; 5TH,COUNTER Z=47	8-94161-098-2	01	1	0307-0901	●
97	04.415 GEAR; 5TH,COUNTER Z=47 Z=47	8-94161-098-2	01	1	0902-	●
97	04.415 GEAR; 5TH,COUNTER Z=49	8-97216-154-0	01	1	0307-		●
97	04.415 GEAR; 5TH,COUNTER Z=50	8-94377-434-0	01	1	0307-0609			●
97	04.415 GEAR; 5TH,COUNTER Z=50	8-94377-434-0	01	1	0610-			●	●
97	04.415 GEAR; 5TH,COUNTER HF V6 ENG(LCA)	8-89059-406-0	01	1	0509-					●
97	04.415 GEAR; 5TH,COUNTER 4JJ1-TCX ENG(LS0) Z=27	8-98040-114-0	01	1	0610-						●
105	04.415 GEAR; 3RD,COUNTER 4JJ1-TCX ENG(LS0) Z=31	8-98023-109-0	01	1	0610-						●
106	04.395 GEAR; 2ND,COUNTER 4JJ1-TCX ENG(LS0) Z=38	8-97362-505-0	01	1	0610-						●
108	04.428 SHAFT; COUNTER HF V6 ENG(LCA)	8-98025-407-0	01	1	0509-					●
108	04.428 SHAFT; COUNTER 4JJ1-TCX ENG(LS0) Z=26-34-26-26	8-98023-108-1	01	1	0610-						●
131	04.435 GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCX ENG(LS0) 08.955 ID=12.2	9-09571-412-0	01	1	0610-						●
132	04.433 SHAFT; REV	8-94435-146-0	01	1	0307-	●
132	04.433 SHAFT; REV	8-97019-155-1	01	1	0307-0609		●	●
132	04.433 SHAFT; REV	8-97019-155-1	01	1	0610-		●	●	●
132	04.433 SHAFT; REV HF V6 ENG(LCA)	8-97165-006-0	01	1	0509-					●
132	04.433 SHAFT; REV 4JJ1-TCX ENG(LS0)	8-98023-113-0	01	1	0610-						●
135	04.430 GEAR; REV IDLER Z=23	8-94161-118-1	01	1	0307-0705	●
135	04.430 GEAR; REV IDLER Z=23	8-98080-126-0	01	1	0706-0708	●
135	04.430 GEAR; REV IDLER Z=23	8-98082-807-0	01	1	0709-0809	●
135	04.430 GEAR; REV IDLER Z=23	8-98080-126-0	01	1	0810-0901	●
135	04.430 GEAR; REV IDLER Z=33 Z=23 Z=23	8-98080-126-0	01	1	0902-1003	●
135	04.430 GEAR; REV IDLER Z=33 Z=33	8-98146-724-0	01	1	1004-	●
135	04.430 GEAR; REV IDLER Z=33	8-94377-435-1	01	1	0307-0609		●	●
135	04.430 GEAR; REV IDLER Z=33	8-94377-435-1	01	1	0610-0705		●	●	●
135	04.430 GEAR; REV IDLER Z=33	8-98080-125-0	01	1	0706-0708		●	●	●
135	04.430 GEAR; REV IDLER Z=33	8-98082-803-0	01	1	0709-0809		●	●	●
135	04.430 GEAR; REV IDLER Z=33	8-98080-125-0	01	1	0810-1003		●	●	●
135	04.430 GEAR; REV IDLER Z=33	8-98146-726-0	01	1	1004-		●	●	●
135	04.430 GEAR; REV IDLER HF V6 ENG(LCA)	8-89048-411-0	01	1	0509-					●
135	04.430 GEAR; REV IDLER 4JJ1-TCX ENG(LS0) Z=32	8-97362-513-0	01	1	0610-						●
176	04.415 COLLAR; 5TH GEAR 4JJ1-TCX ENG(LS0)	8-97362-567-0	01	1	0610-						●
178	04.352 BEARING; NEEDLE,MAINSHAFT 4JJ1-TCX ENG(LS0)	8-97362-869-0	01	1	0610-						●
202	04.422 BEARING; COUNTER GEAR 4JJ1-TCX ENG(LS0)	8-97362-725-0	01	1	0610-						●
238	04.384 INSERT (A)	8-94448-202-2	03	1	0307-0609		●	●
238	04.384 INSERT (A)	8-94448-202-2	03	1	0610-		●	●	●
238	04.384 INSERT HF V6 ENG(LCA) (D)	8-89059-399-0	02	1	0509-					●
238	04.384 INSERT 4JJ1-TCX ENG(LS0) (B)	8-94249-576-2	03	1	0610-						●
238	04.384 INSERT 4JJ1-TCX ENG(LS0) (C)	8-98004-522-0	06	1	0610-						●
241	04.416 RING; SNAP HF V6 ENG(LCA) (A)	8-89048-120-0	01	1	0509-					●
241	04.416 RING; SNAP HF V6 ENG(LCA) (B)	8-89048-574-0	01	1	0509-					●
241	04.416 RING; SNAP HF V6 ENG(LCA) (C)	8-97165-073-0	01	1	0509-					●
241	04.416 RING; SNAP 4JJ1-TCX ENG(LS0) 04.422 (D) ID=34.4 T=1.9	8-97254-735-0	01	1	0610-						●
241	04.416 RING; SNAP 4JJ1-TCX ENG(LS0) (E) ID=27.1 T=1.9	8-97362-871-0	01	1	0610-						●
241	04.416 RING; SNAP 4JJ1-TCX ENG(LS0) (E) ID=27.1 T=2.1	8-97362-872-0	01	1	0610-						●
241	04.416 RING; SNAP 4JJ1-TCX ENG(LS0) (E) ID=27.1 T=2.3	8-97362-873-0	01	1	0610-						●
241	04.416 RING; SNAP 4JJ1-TCX ENG(LS0) (F) ID=37 T=1.95	8-98004-523-1	01	1	0610-						●
241	04.416 RING; SNAP 4JJ1-TCX ENG(LS0) (F) ID=37 T=2.1	8-98004-524-1	01	1	0610-						●
241	04.416 RING; SNAP 4JJ1-TCX ENG(LS0) (G) ID=27.9	9-09180-030-0	01	1	0610-						●
252	04.412 SPACER HF V6 ENG(LCA)	8-97164-973-0	01	1	0509-					●
252	04.412 SPACER 4JJ1-TCX ENG(LS0)	8-98024-456-0	01	1	0610-						●
263	04.525 RING; SNAP,OUTPUT SHAFT BRG 4JJ1-TCX ENG(LS0) ID=30.7 T=2.1	8-98004-525-0	01	1	0610-						●
263	04.525 RING; SNAP,OUTPUT SHAFT BRG 4JJ1-TCX ENG(LS0) ID=30.7 T=2.2	8-98004-526-0	01	1	0610-						●
263	04.525 RING; SNAP,OUTPUT SHAFT BRG 4JJ1-TCX ENG(LS0) ID=30.7 T=2.3	8-98004-527-0	01	1	0610-						●
263	04.525 RING; SNAP,OUTPUT SHAFT BRG 4JJ1-TCX ENG(LS0) ID=30.7 T=2.4	8-98004-528-0	01	1	0610-						●
263	04.525 RING; SNAP,OUTPUT SHAFT BRG 4JJ1-TCX ENG(LS0) ID=30.7 T=2.5	8-98004-529-0	01	1	0610-						●
263	04.525 RING; SNAP,OUTPUT SHAFT BRG 4JJ1-TCX ENG(LS0) ID=30.7 T=2.6	8-98004-530-0	01	1	0610-						●
299	04.422 BEARING; OUTPUT SHAFT FRT 4JJ1-TCX ENG(LS0)	8-97362-722-0	01	1	0610-						●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END 4JJ1-TCX ENG(LS0) ID=29 T=2.3	8-98024-222-1	01	1	0610-						●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END 4JJ1-TCX ENG(LS0) ID=29 T=2.5	8-98024-223-1	01	1	0610-						●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END 4JJ1-TCX ENG(LS0) ID=29 T=2.7	8-98024-224-1	01	1	0610-						●
314	04.419 BEARING; NEEDLE,REV GEAR NSK	8-94422-064-0	01	1	0307-0609		●	●
314	04.419 BEARING; NEEDLE,REV GEAR NSK	8-94422-064-0	01	1	0610-		●	●	●
314	04.419 BEARING; NEEDLE,REV GEAR JTEKT	8-94422-065-1	01	1	0307-0609		●	●
314	04.419 BEARING; NEEDLE,REV GEAR JTEKT	8-94422-065-1	01	1	0610-		●	●	●
314	04.419 BEARING; NEEDLE,REV GEAR 4JJ1-TCX ENG(LS0) NSK	8-97362-719-0	01	1	0610-						●
326	04.412 BOLT; REV SHAFT 4JJ1-TCX ENG(LS0) 04.439 M12X70	9-92621-270-0	01	1	0610-						●
353	04.380 SYNCHRONIZER; 5TH HF V6 ENG(LCA)	8-89059-403-0	01	1	0509-					●
353	04.380 SYNCHRONIZER; 5TH 4JJ1-TCX ENG(LS0)	8-98004-511-1	01	1	0610-						●
357	04.383 RING HF V6 ENG(LCA) (C)	8-89059-402-0	01	1	0509-					●
357	04.383 RING 4JJ1-TCX ENG(LS0) (A) OD=90.0	8-94363-055-1	02	1	0610-						●
357	04.383 RING 4JJ1-TCX ENG(LS0) (B) OD=95.8	8-94363-056-0	02	1	0610-						●
386	04.435 PIN; REV SHAFT OD=6 L=40	9-08150-640-0	01	1	0307-0609		●	●
386	04.435 PIN; REV SHAFT OD=6 L=40	9-08150-640-0	01	1	0610-		●	●	●
386	04.435 PIN; REV SHAFT 4JJ1-TCX ENG(LS0) 00.662 OD=4 L=8	9-08160-408-0	01	1	0610-						●
398	04.421 GEAR; COUNTER Z=37-31-20-16	8-94469-524-1	01	1	0307-0901	●
398	04.421 GEAR; COUNTER Z=37-31-20-16 Z=37-31-20-16	8-94469-524-1	01	1	0902-	●
398	04.421 GEAR; COUNTER Z=44-32-25-19	8-97216-164-1	01	1	0307-0609		●
398	04.421 GEAR; COUNTER Z=44-32-25-19	8-97216-164-1	01	1	0610-		●		●
398	04.421 GEAR; COUNTER Z=46-38-25-19	8-97104-161-1	01	1	0307-			●
398	04.421 GEAR; COUNTER 4JJ1-TCX ENG(LS0) Z=26	8-98023-110-1	01	1	0610-0703						●
398	04.421 GEAR; COUNTER 4JJ1-TCX ENG(LS0) Z=26	8-98079-114-0	01	1	0704-						●
399	04.345 CLIP; SPEEDOMETER DRIVE GEAR 4X2(TFB***)	8-94310-229-0	01	1	0307-0609		●	●
399	04.345 CLIP; SPEEDOMETER DRIVE GEAR 4X2(TFB***)	8-94310-229-0	01	1	0610-		●	●	●		●
400	04.408 BEARING; OUTPUT SHAFT RR 4JJ1-TCX ENG(LS0)	8-97362-723-0	01	1	0610-						●
405	04.384 INSERT; SYN,LOW & 2ND	8-94152-557-1	03	1	0307-	●
405	04.384 INSERT; SYN,LOW & 2ND	8-94363-062-1	03	1	0307-0609		●	●
405	04.384 INSERT; SYN,LOW & 2ND	8-94363-062-1	03	1	0610-		●	●	●		●
405	04.384 INSERT; SYN,LOW & 2ND HF V6 ENG(LCA)	8-97165-000-0	03	1	0509-					●
471	04.530 SHAFT; INPUT HF V6 ENG(LCA)	8-98025-406-0	01	1	0509-					●
471	04.530 SHAFT; INPUT 4JJ1-TCX ENG(LS0)	8-98049-345-1	01	1	0610-						●
473	04.352 BEARING; INPUT SHAFT HF V6 ENG(LCA) 04.403	8-97164-976-0	01	1	0509-					●
473	04.352 BEARING; INPUT SHAFT 4JJ1-TCX ENG(LS0)	8-97362-721-1	01	1	0610-						●
481	04.383 RING; BLOCK HF V6 ENG(LCA)	8-89048-340-0	01	1	0509-					●
481	04.383 RING; BLOCK 4JJ1-TCX ENG(LS0) Z=36	8-98052-559-0	03	1	0610-						●
531	04.383 RING; BLOCK,REV HF V6 ENG(LCA)	8-89059-398-0	01	1	0509-					●
531	04.383 RING; BLOCK,REV 4JJ1-TCX ENG(LS0) OD=74	8-98037-846-0	01	1	0610-						●
554	04.422 IMPELLER; OIL 4JJ1-TCX ENG(LS0)	8-97362-730-0	01	1	0610-						●
555	04.384 SPRING; INSERT 4JJ1-TCX ENG(LS0) (A)	5-33264-012-0	02	1	0610-						●
555	04.384 SPRING; INSERT 4JJ1-TCX ENG(LS0) (B)	8-97109-690-0	02	1	0610-						●
557	04.535 GEAR; OUTPUT 4X2(TFB***) 4JJ1-TCX ENG(LS0) Z=35-27	8-97362-492-2	01	1	0610-0703						●
557	04.535 GEAR; OUTPUT 4X2(TFB***) 4JJ1-TCX ENG(LS0) Z=35-27	8-98079-113-0	01	1	0704-						●
557	04.535 GEAR; OUTPUT 4X4(TFS***) 4JJ1-TCX ENG(LS0) Z=35-27	8-97362-488-2	01	1	0610-0703						●
557	04.535 GEAR; OUTPUT 4X4(TFS***) 4JJ1-TCX ENG(LS0) Z=35-27	8-98079-111-0	01	1	0704-						●
558	04.415 GEAR; 5TH,INPUT SHAFT 4JJ1-TCX ENG(LS0) Z=46	8-98040-112-0	01	1	0610-						●
559	04.352 BEARING; NEEDLE,LOW & 2ND 4JJ1-TCX ENG(LS0)	8-97362-727-0	01	1	0610-						●
560	04.416 RING; DUM 4JJ1-TCX ENG(LS0)	8-97078-729-1	01	1	0610-						●
561	04.395 GEAR; LOW,COUNTER 4JJ1-TCX ENG(LS0) Z=45	8-97362-501-0	01	1	0610-						●
562	04.422 BEARING; NEEDLE,LOW & 2ND 4JJ1-TCX ENG(LS0) 04.352	8-97362-727-0	01	1	0610-						●
563	04.419 COLLAR; 1ST GEAR 4JJ1-TCX ENG(LS0)	8-97362-569-1	01	1	0610-						●
564	04.380 SYNCHRONIZER; REV 4JJ1-TCX ENG(LS0)	8-97362-496-1	01	1	0610-						●
565	04.338 SEAL; RUBBER 4JJ1-TCX ENG(LS0)	8-98024-457-0	01	1	0610-0910						●
566	04.342 BRACKET; REV IDLER 4JJ1-TCX ENG(LS0)	8-97362-516-0	01	1	0610-						●
567	04.384 SPRING; INSERT,5TH 4JJ1-TCX ENG(LS0)	5-33264-012-0	02	1	0610-						●
568	04.415 GEAR; 3RD,INPUT SHAFT 4JJ1-TCX ENG(LS0) Z=28	8-97362-480-0	01	1	0610-						●
570	04.422 SPRING; PLATE 4JJ1-TCX ENG(LS0)	8-98057-960-0	01	1	0610-0611						●
570	04.422 SPRING; PLATE 4JJ1-TCX ENG(LS0)	8-98072-467-1	01	1	0612-						●

86 238 408 388 463 353 109 93 14 97 408 357 135 132 531 241 84 108 83 39 172 313 71 49 50 462 408 405 59 172 462 43 70 252 394 215 13 420 241 473 471 481 396 408 292 387 241 42 462 36 33 82 83

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
13	04.415 GEAR; 5TH,MAINSHAFT Z=25	8-94161-912-3	01	1	0307-0901	●
13	04.415 GEAR; 5TH,MAINSHAFT Z=25 Z=25 Z=25	8-94161-912-3	01	1	0902-	●
13	04.415 GEAR; 5TH,MAINSHAFT Z=24	8-97216-153-0	01	1	0307-		●
13	04.415 GEAR; 5TH,MAINSHAFT Z=22	8-97104-023-2	01	1	0307-0609			●
13	04.415 GEAR; 5TH,MAINSHAFT Z=22	8-97104-023-2	01	1	0610-			●	●
13	04.415 GEAR; 5TH,MAINSHAFT HF V6 ENG(LCA)	8-89048-410-0	01	1	0509-					●
14	04.419 BEARING; NEEDLE,5TH NSK	8-94161-994-0	01	1	0307-	●
14	04.419 BEARING; NEEDLE,5TH NSK	8-97029-341-0	01	1	0307-0609		●	●
14	04.419 BEARING; NEEDLE,5TH NSK	8-97029-341-0	01	1	0610-1102		●	●	●
14	04.419 BEARING; NEEDLE,5TH NTN	8-98172-356-0	01	1	1103-		●	●	●
14	04.419 BEARING; NEEDLE,5TH HF V6 ENG(LCA)	8-97165-013-0	01	1	0509-					●
14	04.419 BEARING; NEEDLE,5TH 4JJ1-TCX ENG(LS0) NSK	8-97362-728-0	01	1	0610-						●
33	04.352 BEARING; NEEDLE,3RD GEAR 04.419 NSK	1-09811-028-1	01	1	0307-0609		●	●
33	04.352 BEARING; NEEDLE,3RD GEAR 04.419 NSK	1-09811-028-1	01	1	0610-		●	●	●		●
33	04.352 BEARING; NEEDLE,3RD GEAR HF V6 ENG(LCA)	8-97165-014-0	01	1	0509-					●
36	04.415 GEAR; 3RD,MAINSHAFT Z=29	8-94161-137-1	01	1	0307-0901	●
36	04.415 GEAR; 3RD,MAINSHAFT Z=29 Z=29	8-94161-137-1	01	1	0902-	●
36	04.415 GEAR; 3RD,MAINSHAFT Z=27	8-97216-150-1	01	1	0307-0609		●
36	04.415 GEAR; 3RD,MAINSHAFT Z=27	8-97216-150-1	01	1	0610-		●		●
36	04.415 GEAR; 3RD,MAINSHAFT Z=31	8-97104-021-2	01	1	0307-			●
36	04.415 GEAR; 3RD,MAINSHAFT HF V6 ENG(LCA)	8-98025-405-0	01	1	0509-					●
39	04.384 HUB; CLU,LOW & 2ND HF V6 ENG(LCA)	8-97164-971-0	01	1	0509-					●
42	04.383 SLEEVE HF V6 ENG(LCA)	8-89048-337-0	01	1	0509-					●
43	04.384 HUB; CLU,3RD & 4TH,MAIN HF V6 ENG(LCA)	8-89048-336-0	01	1	0509-					●
49	04.352 BEARING; NEEDLE,2ND GEAR JTEKT	9-00096-625-0	01	1	0307-0609		●	●
49	04.352 BEARING; NEEDLE,2ND GEAR JTEKT	9-00096-625-0	01	1	0610-		●	●	●
49	04.352 BEARING; NEEDLE,2ND GEAR HF V6 ENG(LCA)	8-97165-016-0	01	1	0509-					●
50	04.395 GEAR; 2ND,MAINSHAFT Z=31	8-94311-564-1	01	1	0307-0901	●
50	04.395 GEAR; 2ND,MAINSHAFT Z=31 Z=31	8-94311-564-1	01	1	0902-	●
50	04.395 GEAR; 2ND,MAINSHAFT Z=34	8-97300-953-1	01	1	0307-0609		●	●
50	04.395 GEAR; 2ND,MAINSHAFT Z=34	8-97300-953-1	01	1	0610-		●	●	●
50	04.395 GEAR; 2ND,MAINSHAFT HF V6 ENG(LCA)	8-89048-406-0	01	1	0509-					●
59	04.417 GEAR; REV MAINSHAFT Z=37	8-94310-158-1	01	1	0307-0901	●
59	04.417 GEAR; REV MAINSHAFT Z=37	8-94310-158-1	01	1	0902-	●
59	04.417 GEAR; REV MAINSHAFT Z=41	8-97104-025-2	01	1	0307-0609		●	●
59	04.417 GEAR; REV MAINSHAFT Z=41	8-97104-025-2	01	1	0610-		●	●	●
59	04.417 GEAR; REV MAINSHAFT HF V6 ENG(LCA)	8-89048-409-0	01	1	0509-					●
70	04.417 GEAR; 1ST,MAINSHAFT Z=41	8-94310-154-1	01	1	0307-0901	●
70	04.417 GEAR; 1ST,MAINSHAFT Z=41 Z=41	8-94310-154-1	01	1	0902-	●
70	04.417 GEAR; 1ST,MAINSHAFT Z=45	8-97300-952-1	01	1	0307-0609		●	●
70	04.417 GEAR; 1ST,MAINSHAFT Z=45	8-97300-952-1	01	1	0610-		●	●	●
70	04.417 GEAR; 1ST,MAINSHAFT HF V6 ENG(LCA)	8-89048-405-0	01	1	0509-					●
71	04.406 WASHER; THRUST,LOW ID=32.0	5-33239-043-3	02	1	0307-	●
71	04.406 WASHER; THRUST,LOW HF V6 ENG(LCA)	8-97164-997-0	01	1	0509-					●
82	04.403 SHAFT; MAIN,TRANS Z=26-24-27	8-94435-162-3	01	1	0307-	●
82	04.403 SHAFT; MAIN,TRANS 4X2(TFB***) Z=28-34-26-27	8-97300-981-0	01	1	0307-0609		●	●
82	04.403 SHAFT; MAIN,TRANS 4X2(TFB***) Z=28-34-26-27	8-97300-981-0	01	1	0610-		●	●	●
82	04.403 SHAFT; MAIN,TRANS 4X4(TFS***) Z=28-34-26-27	8-97300-980-0	01	1	0307-0609		●	●
82	04.403 SHAFT; MAIN,TRANS 4X4(TFS***) Z=28-34-26-27	8-97300-980-0	01	1	0610-		●	●	●
82	04.403 SHAFT; MAIN,TRANS 4X2(TFB***) HF V6 ENG(LCA)	8-89048-331-0	01	1	0509-					●
82	04.403 SHAFT; MAIN,TRANS 4X4(TFS***) HF V6 ENG(LCA)	8-89048-332-0	01	1	0509-					●
83	04.399 PIN; THRUST WASHER HF V6 ENG(LCA)	8-97164-974-0	02	1	0509-					●
84	04.422 BEARING; COUNTER SHAFT,FRT NSK ID=20 OD=47	8-97063-365-0	01	1	0307-0901	●
84	04.422 BEARING; COUNTER SHAFT,FRT NSK ID=20 OD=47 NSK ID=20 OD=47	8-97063-365-0	01	1	0902-	●
84	04.422 BEARING; COUNTER SHAFT,FRT HF V6 ENG(LCA)	8-97165-017-0	01	1	0509-					●
84	04.422 BEARING; COUNTER SHAFT,FRT 4JJ1-TCX ENG(LS0)	8-97362-724-0	01	1	0610-						●
86	04.416 WASHER; THRUST,5TH T=7.80	8-94238-099-4	01	1	0307-	●
86	04.416 WASHER; THRUST,5TH T=7.90	8-94238-100-4	01	1	0307-	●
86	04.416 WASHER; THRUST,5TH T=8.00	8-94238-101-4	01	1	0307-	●
86	04.416 WASHER; THRUST,5TH T=8.10	8-94238-102-4	01	1	0307-	●
86	04.416 WASHER; THRUST,5TH T=8.20	8-94238-103-4	01	1	0307-	●
86	04.416 WASHER; THRUST,5TH T=8.30	8-94238-104-4	01	1	0307-	●
86	04.416 WASHER; THRUST,5TH T=7.90 WHITE	8-94422-110-2	01	1	0307-0609		●	●
86	04.416 WASHER; THRUST,5TH T=7.90 WHITE	8-94422-110-2	01	1	0610-		●	●	●
86	04.416 WASHER; THRUST,5TH T=8.00 YELLOW	8-94422-111-2	01	1	0307-0609		●	●
86	04.416 WASHER; THRUST,5TH T=8.00 YELLOW	8-94422-111-2	01	1	0610-		●	●	●
86	04.416 WASHER; THRUST,5TH T=8.10 GREEN	8-94422-112-2	01	1	0307-0609		●	●
86	04.416 WASHER; THRUST,5TH T=8.10 GREEN	8-94422-112-2	01	1	0610-		●	●	●
86	04.416 WASHER; THRUST,5TH T=8.20 BLUE	8-94422-113-2	01	1	0307-0609		●	●
86	04.416 WASHER; THRUST,5TH T=8.20 BLUE	8-94422-113-2	01	1	0610-		●	●	●
86	04.416 WASHER; THRUST,5TH HF V6 ENG(LCA)	8-89048-333-0	01	1	0509-					●
93	04.422 RING; SNAP,COUNTER FRT BRG 08.934 ID=23.2	9-09180-025-0	01	1	0307-0609		●	●
93	04.422 RING; SNAP,COUNTER FRT BRG 08.934 ID=23.2	9-09180-025-0	01	1	0610-		●	●	●
93	04.422 RING; SNAP,COUNTER FRT BRG HF V6 ENG(LCA)	8-89048-575-0	01	1	0509-					●
97	04.415 GEAR; 5TH,COUNTER Z=47	8-94161-098-2	01	1	0307-0901	●
97	04.415 GEAR; 5TH,COUNTER Z=47 Z=47	8-94161-098-2	01	1	0902-	●
97	04.415 GEAR; 5TH,COUNTER Z=49	8-97216-154-0	01	1	0307-		●
97	04.415 GEAR; 5TH,COUNTER Z=50	8-94377-434-0	01	1	0307-0609			●
97	04.415 GEAR; 5TH,COUNTER Z=50	8-94377-434-0	01	1	0610-			●	●
97	04.415 GEAR; 5TH,COUNTER HF V6 ENG(LCA)	8-89059-406-0	01	1	0509-					●
97	04.415 GEAR; 5TH,COUNTER 4JJ1-TCX ENG(LS0) Z=27	8-98040-114-0	01	1	0610-						●
108	04.428 SHAFT; COUNTER HF V6 ENG(LCA)	8-98025-407-0	01	1	0509-					●
108	04.428 SHAFT; COUNTER 4JJ1-TCX ENG(LS0) Z=26-34-26-26	8-98023-108-1	01	1	0610-						●
109	04.422 BEARING; COUNTER SHAFT,RR HF V6 ENG(LCA)	8-97165-018-0	01	1	0509-					●
132	04.433 SHAFT; REV	8-94435-146-0	01	1	0307-	●
132	04.433 SHAFT; REV	8-97019-155-1	01	1	0307-0609		●	●
132	04.433 SHAFT; REV	8-97019-155-1	01	1	0610-		●	●	●
132	04.433 SHAFT; REV HF V6 ENG(LCA)	8-97165-006-0	01	1	0509-					●
132	04.433 SHAFT; REV 4JJ1-TCX ENG(LS0)	8-98023-113-0	01	1	0610-						●
135	04.430 GEAR; REV IDLER Z=23	8-94161-118-1	01	1	0307-0705	●
135	04.430 GEAR; REV IDLER Z=23	8-98080-126-0	01	1	0706-0708	●
135	04.430 GEAR; REV IDLER Z=23	8-98082-807-0	01	1	0709-0809	●
135	04.430 GEAR; REV IDLER Z=23	8-98080-126-0	01	1	0810-0901	●
135	04.430 GEAR; REV IDLER Z=33 Z=23 Z=23	8-98080-126-0	01	1	0902-1003	●
135	04.430 GEAR; REV IDLER Z=33 Z=33	8-98146-724-0	01	1	1004-	●
135	04.430 GEAR; REV IDLER Z=33	8-94377-435-1	01	1	0307-0609		●	●
135	04.430 GEAR; REV IDLER Z=33	8-94377-435-1	01	1	0610-0705		●	●	●
135	04.430 GEAR; REV IDLER Z=33	8-98080-125-0	01	1	0706-0708		●	●	●
135	04.430 GEAR; REV IDLER Z=33	8-98082-803-0	01	1	0709-0809		●	●	●
135	04.430 GEAR; REV IDLER Z=33	8-98080-125-0	01	1	0810-1003		●	●	●
135	04.430 GEAR; REV IDLER Z=33	8-98146-726-0	01	1	1004-		●	●	●
135	04.430 GEAR; REV IDLER HF V6 ENG(LCA)	8-89048-411-0	01	1	0509-					●
135	04.430 GEAR; REV IDLER 4JJ1-TCX ENG(LS0) Z=32	8-97362-513-0	01	1	0610-						●
172	04.412 RING; SNAP,CLU HUB HF V6 ENG(LCA) (A)	8-89048-118-0	01	1	0509-					●
172	04.412 RING; SNAP,CLU HUB HF V6 ENG(LCA) (B)	8-89048-119-0	01	1	0509-					●
215	04.416 RING; SNAP,BALL BRG ID=27.9	9-09180-030-0	01	1	0307-	●
215	04.416 RING; SNAP,BALL BRG HF V6 ENG(LCA)	8-97165-072-0	01	1	0509-					●
238	04.384 INSERT (A)	8-94448-202-2	03	1	0307-0609		●	●
238	04.384 INSERT (A)	8-94448-202-2	03	1	0610-		●	●	●
238	04.384 INSERT HF V6 ENG(LCA) (D)	8-89059-399-0	02	1	0509-					●
238	04.384 INSERT 4JJ1-TCX ENG(LS0) (B)	8-94249-576-2	03	1	0610-						●
238	04.384 INSERT 4JJ1-TCX ENG(LS0) (C)	8-98004-522-0	06	1	0610-						●
241	04.416 RING; SNAP HF V6 ENG(LCA) (A)	8-89048-120-0	01	1	0509-					●
241	04.416 RING; SNAP HF V6 ENG(LCA) (B)	8-89048-574-0	01	1	0509-					●
241	04.416 RING; SNAP HF V6 ENG(LCA) (C)	8-97165-073-0	01	1	0509-					●
241	04.416 RING; SNAP 4JJ1-TCX ENG(LS0) 04.422 (D) ID=34.4 T=1.9	8-97254-735-0	01	1	0610-						●
241	04.416 RING; SNAP 4JJ1-TCX ENG(LS0) (E) ID=27.1 T=1.9	8-97362-871-0	01	1	0610-						●
241	04.416 RING; SNAP 4JJ1-TCX ENG(LS0) (E) ID=27.1 T=2.1	8-97362-872-0	01	1	0610-						●
241	04.416 RING; SNAP 4JJ1-TCX ENG(LS0) (E) ID=27.1 T=2.3	8-97362-873-0	01	1	0610-						●
241	04.416 RING; SNAP 4JJ1-TCX ENG(LS0) (F) ID=37 T=1.95	8-98004-523-1	01	1	0610-						●
241	04.416 RING; SNAP 4JJ1-TCX ENG(LS0) (F) ID=37 T=2.1	8-98004-524-1	01	1	0610-						●
241	04.416 RING; SNAP 4JJ1-TCX ENG(LS0) (G) ID=27.9	9-09180-030-0	01	1	0610-						●
252	04.412 SPACER HF V6 ENG(LCA)	8-97164-973-0	01	1	0509-					●
252	04.412 SPACER 4JJ1-TCX ENG(LS0)	8-98024-456-0	01	1	0610-						●
292	04.422 RING; SNAP,BRG OUTER NSK	8-94422-081-0	01	1	0307-0609		●	●
292	04.422 RING; SNAP,BRG OUTER NSK	8-94422-081-0	01	1	0610-		●	●	●
292	04.422 RING; SNAP,BRG OUTER HF V6 ENG(LCA)	8-97165-071-0	01	1	0509-					●
313	04.419 BEARING; NEEDLE,LOW GEAR NSK	1-09811-028-1	01	1	0307-0609		●	●
313	04.419 BEARING; NEEDLE,LOW GEAR NSK	1-09811-028-1	01	1	0610-		●	●	●
313	04.419 BEARING; NEEDLE,LOW GEAR HF V6 ENG(LCA)	8-97165-015-0	01	1	0509-					●
353	04.380 SYNCHRONIZER; 5TH HF V6 ENG(LCA)	8-89059-403-0	01	1	0509-					●
353	04.380 SYNCHRONIZER; 5TH 4JJ1-TCX ENG(LS0)	8-98004-511-1	01	1	0610-						●
357	04.383 RING HF V6 ENG(LCA) (C)	8-89059-402-0	01	1	0509-					●
357	04.383 RING 4JJ1-TCX ENG(LS0) (A) OD=90.0	8-94363-055-1	02	1	0610-						●
357	04.383 RING 4JJ1-TCX ENG(LS0) (B) OD=95.8	8-94363-056-0	02	1	0610-						●
387	04.384 INSERT; SYN,4TH & 3RD	9-33263-048-2	03	1	0307-	●
387	04.384 INSERT; SYN,4TH & 3RD HF V6 ENG(LCA)	8-89048-338-0	03	1	0509-					●
388	04.419 SLEEVE; SYN,REV & 5TH HF V6 ENG(LCA)	8-89059-404-0	01	1	0509-					●
394	04.419 BEARING; BALL,MAINSHAFT RR 4X4(TFS***) 04.352 NSK	8-97018-921-1	01	1	0307-0609		●	●
394	04.419 BEARING; BALL,MAINSHAFT RR 4X4(TFS***) 04.352 NSK	8-97018-921-1	01	1	0610-		●	●	●
394	04.419 BEARING; BALL,MAINSHAFT RR HF V6 ENG(LCA)	8-97164-975-0	01	1	0509-					●
396	04.352 BEARING; NEEDLE,MAINSHAFT JTEKT	9-00096-100-1	01	1	0307-	●
396	04.352 BEARING; NEEDLE,MAINSHAFT NSK	8-94422-068-1	01	1	0307-0609		●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT NSK	8-94422-068-1	01	1	0610-1102		●	●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT NSK	8-98172-355-0	01	1	1103-		●	●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT HF V6 ENG(LCA)	8-97165-012-0	01	1	0509-					●
405	04.384 INSERT; SYN,LOW & 2ND	8-94152-557-1	03	1	0307-	●
405	04.384 INSERT; SYN,LOW & 2ND	8-94363-062-1	03	1	0307-0609		●	●
405	04.384 INSERT; SYN,LOW & 2ND	8-94363-062-1	03	1	0610-		●	●	●		●
405	04.384 INSERT; SYN,LOW & 2ND HF V6 ENG(LCA)	8-97165-000-0	03	1	0509-					●
408	04.384 SPRING HF V6 ENG(LCA) (A)	8-89059-400-0	01	1	0509-					●
408	04.384 SPRING HF V6 ENG(LCA) (B)	8-89059-401-0	01	1	0509-					●
408	04.384 SPRING HF V6 ENG(LCA) (C)	8-97165-019-0	06	1	0509-					●
420	04.416 RING; SNAP,OUTPUT SHAFT HF V6 ENG(LCA)	8-89048-117-0	01	1	0509-					●
462	04.383 RING ASM; BLOCK,SYNCHRONIZER HF V6 ENG(LCA) (B)	8-89048-315-0	01	1	0509-					●
462	04.383 RING ASM; BLOCK,SYNCHRONIZER HF V6 ENG(LCA) (C)	8-89059-573-0	01	1	0509-					●
462	04.383 RING ASM; BLOCK,SYNCHRONIZER HF V6 ENG(LCA) 04.380 (A)	8-97164-968-0	01	1	0509-					●
463	04.422 PIPE; COUNTER SHAFT HF V6 ENG(LCA)	8-97164-985-0	01	1	0509-					●
471	04.530 SHAFT; INPUT HF V6 ENG(LCA)	8-98025-406-0	01	1	0509-					●
471	04.530 SHAFT; INPUT 4JJ1-TCX ENG(LS0)	8-98049-345-1	01	1	0610-						●
473	04.352 BEARING; INPUT SHAFT HF V6 ENG(LCA) 04.403	8-97164-976-0	01	1	0509-					●
473	04.352 BEARING; INPUT SHAFT 4JJ1-TCX ENG(LS0)	8-97362-721-1	01	1	0610-						●
481	04.383 RING; BLOCK HF V6 ENG(LCA)	8-89048-340-0	01	1	0509-					●
481	04.383 RING; BLOCK 4JJ1-TCX ENG(LS0) Z=36	8-98052-559-0	03	1	0610-						●
531	04.383 RING; BLOCK,REV HF V6 ENG(LCA)	8-89059-398-0	01	1	0509-					●
531	04.383 RING; BLOCK,REV 4JJ1-TCX ENG(LS0) OD=74	8-98037-846-0	01	1	0610-						●

259 152 376 377 377 145 376 376

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	C	D	E	F
145	04.530 SLEEVE; HIGH-LOW SHIFT,TRANSFER 4X4(TFS***)	8-97358-245-0	01	1	0307-0508	●	●
145	04.530 SLEEVE; HIGH-LOW SHIFT,TRANSFER 4X4(TFS***)	8-97358-245-0	01	1	0509-0609	●	●		●
145	04.530 SLEEVE; HIGH-LOW SHIFT,TRANSFER 4X4(TFS***)	8-97358-245-0	01	1	0610-	●	●	●	●	●
152	04.535 SLEEVE; 4X2-4X4 SHIFT,TRANSFER 4X4(TFS***)	8-94363-060-0	01	1	0307-0508	●	●
152	04.535 SLEEVE; 4X2-4X4 SHIFT,TRANSFER 4X4(TFS***)	8-94363-060-0	01	1	0509-0609	●	●		●
152	04.535 SLEEVE; 4X2-4X4 SHIFT,TRANSFER 4X4(TFS***)	8-94363-060-0	01	1	0610-	●	●	●	●	●
259	04.538 SYNCHRONIZER; 4X2-4X4,TRANSFER 4X4(TFS***)	8-97234-225-0	01	1	0307-0508	●	●
259	04.538 SYNCHRONIZER; 4X2-4X4,TRANSFER 4X4(TFS***)	8-97234-225-0	01	1	0509-0609	●	●		●
259	04.538 SYNCHRONIZER; 4X2-4X4,TRANSFER 4X4(TFS***)	8-97234-225-0	01	1	0610-	●	●	●	●	●
376	04.384 INSERT; 4X2-4X4 SYN,TRANSFER 4X4(TFS***)	8-97238-590-0	03	1	0307-0508	●	●
376	04.384 INSERT; 4X2-4X4 SYN,TRANSFER 4X4(TFS***)	8-97238-590-0	03	1	0509-0609	●	●		●
376	04.384 INSERT; 4X2-4X4 SYN,TRANSFER 4X4(TFS***)	8-97238-590-0	03	1	0610-	●	●	●	●	●
377	04.384 SPRING; INSERT,4X2-4X4 SYN,TRANS 4X4(TFS***)	8-94448-045-0	02	1	0307-0508	●	●
377	04.384 SPRING; INSERT,4X2-4X4 SYN,TRANS 4X4(TFS***)	8-94448-045-0	02	1	0509-0609	●	●		●
377	04.384 SPRING; INSERT,4X2-4X4 SYN,TRANS 4X4(TFS***)	8-94448-045-0	02	1	0610-	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
