Sayfa 2-25B - Isuzu EPC

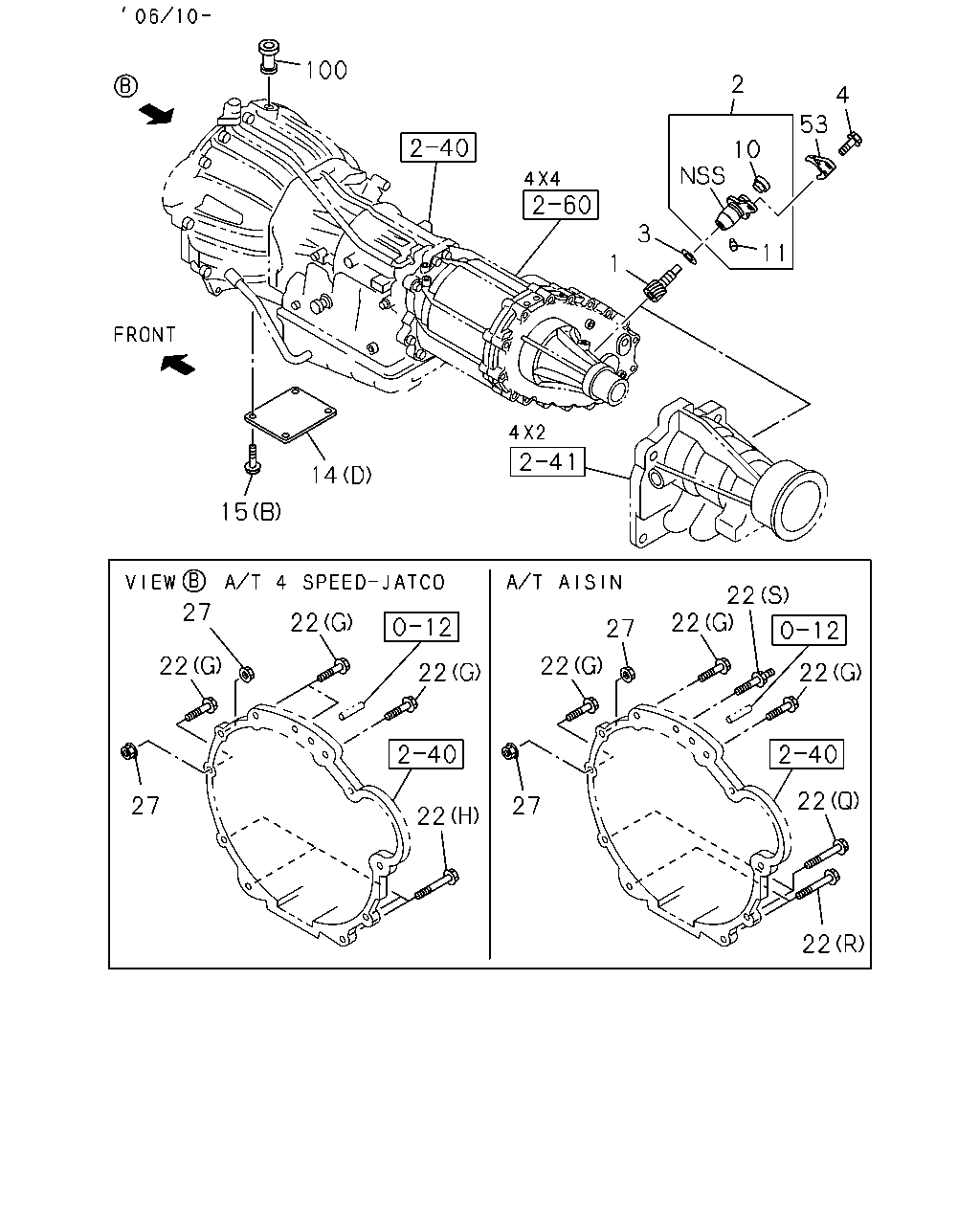

2-25B — SPEEDOMETER DRIVEN GEAR (#20412) — 326 parça

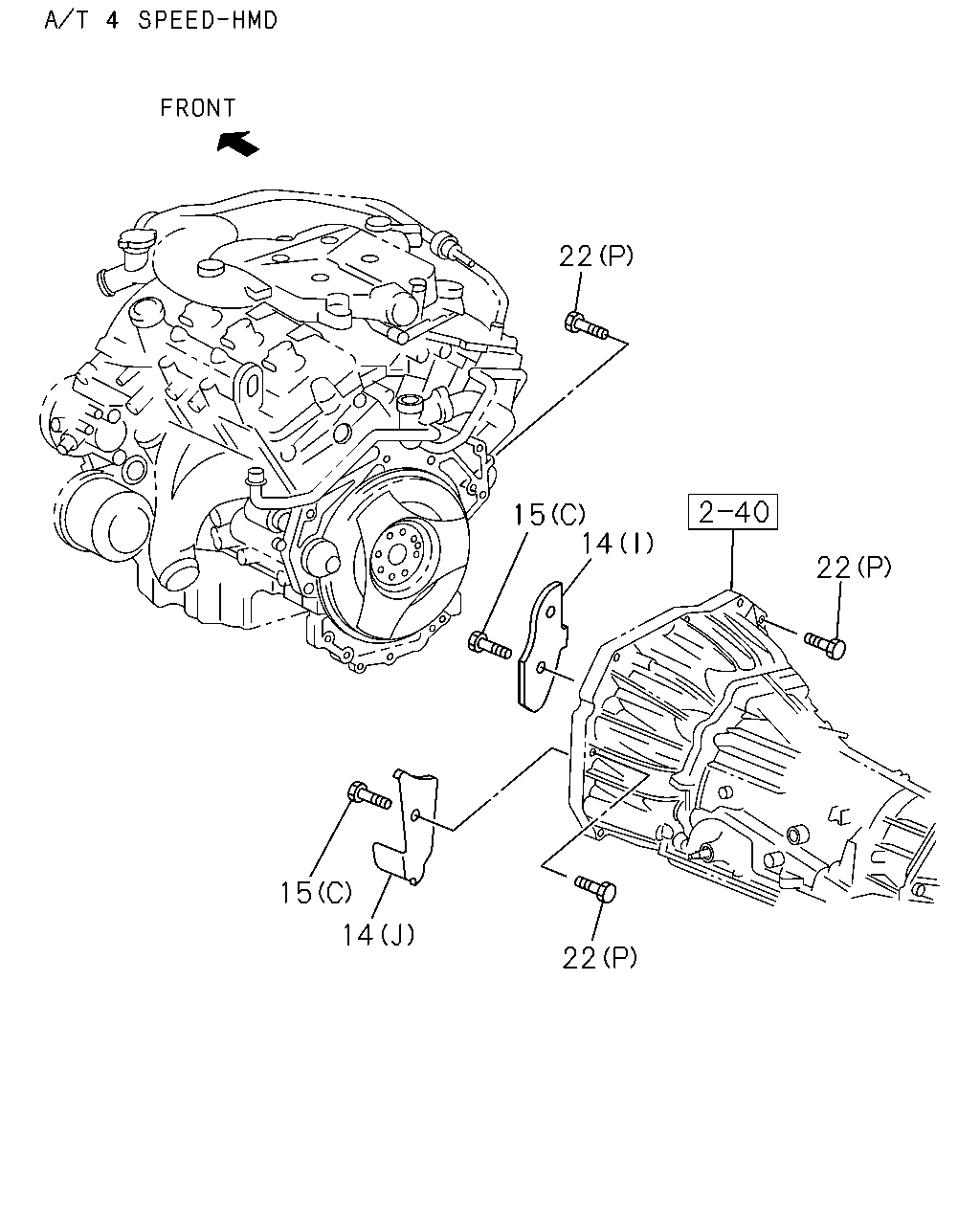

22 15 14 22 22 14 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
14	00.679 COVER; UNDER,TRANS HF V6 ENG(LCA) (I)	8-98001-230-0	01	1	0509-	●	●
14	00.679 COVER; UNDER,TRANS HF V6 ENG(LCA) (J)	8-98001-231-0	01	1	0509-0509	●	●
14	00.679 COVER; UNDER,TRANS HF V6 ENG(LCA) (J)	8-98001-231-0	01	1	0509-	●	●
14	00.679 COVER; UNDER,TRANS (C)	8-97164-521-1	01	1	0307-0609			●
14	00.679 COVER; UNDER,TRANS (B)	8-97164-547-3	01	1	0307-0609			●
14	00.679 COVER; UNDER,TRANS (A)	8-97194-751-0	01	1	0307-0609			●
14	00.679 COVER; UNDER,TRANS (D)	8-94375-252-0	01	1	0307-0609				●
14	00.679 COVER; UNDER,TRANS (D)	8-98049-857-0	01	1	0610-			●	●
15	00.685 BOLT; UNDER COVER TO TRANS 03.671 (A) M6X10 FLANGE	0-28050-610-0	08	1	0307-0609			●
15	00.685 BOLT; UNDER COVER TO TRANS 02.343 (B) M6X16 FLANGE	0-28650-616-0	04	1	0307-0609				●
15	00.685 BOLT; UNDER COVER TO TRANS 02.343 (B) M6X16 FLANGE	0-28650-616-0	04	1	0610-			●	●
15	00.685 BOLT; UNDER COVER TO TRANS HF V6 ENG(LCA) (C)	8-92138-321-0	03	1	0509-	●	●
22	00.685 BOLT; TRANS CASE TO ENG (G) M10X40 FLANGE	0-28051-040-0	04	1	0307-0412				●
22	00.685 BOLT; TRANS CASE TO ENG (G) M10X40 FLANGE	0-28051-040-0	03	1	0610-			●
22	00.685 BOLT; TRANS CASE TO ENG (E) M12X20,M12X45 L=76	8-97328-823-0	01	1	0307-0609			●
22	00.685 BOLT; TRANS CASE TO ENG (G) M10X40 FLANGE	0-28051-040-0	04	1	0501-0609				●
22	00.685 BOLT; TRANS CASE TO ENG (G) M10X40 FLANGE	0-28051-040-0	04	1	0610-0612				●
22	00.685 BOLT; TRANS CASE TO ENG (G) M10X40 FLANGE	0-28051-040-0	04	1	0701-0912				●
22	00.685 BOLT; TRANS CASE TO ENG (G) M10X40 FLANGE	0-28051-040-0	04	1	1001-				●
22	00.685 BOLT; TRANS CASE TO ENG (A) M12X70 FLANGE	0-28051-270-0	01	1	0307-0609			●
22	00.685 BOLT; TRANS CASE TO ENG 4JJ1-TCX ENG(LS0) (R) M12X45 FLANGE	0-28051-245-0	02	1	0610-			●
22	00.685 BOLT; TRANS CASE TO ENG (B) M12X40 FLANGE	0-28151-240-0	01	1	0307-0609			●
22	00.685 BOLT; TRANS CASE TO ENG 4JJ1-TCX ENG(LS0) (S) M10X20,M10X40 L=70	8-98005-380-0	01	1	0610-			●
22	00.685 BOLT; TRANS CASE TO ENG (F) M12X45 FLANGE	0-28151-245-0	02	1	0307-0609			●
22	00.685 BOLT; TRANS CASE TO ENG 4JJ1-TCX ENG(LS0) (Q) M12X176 FLANGE	8-98005-381-0	02	1	0610-			●
22	00.685 BOLT; TRANS CASE TO ENG (C) M12X50 FLANGE	0-28151-250-0	01	1	0307-0609			●
22	00.685 BOLT; TRANS CASE TO ENG 00.029 (D) M10X40 FLANGE	0-28751-040-0	02	1	0307-0609			●
22	00.685 BOLT; TRANS CASE TO ENG (H) M12X45 FLANGE	0-28051-245-0	04	1	0307-				●
22	00.685 BOLT; TRANS CASE TO ENG HF V6 ENG(LCA) (P)	8-92138-719-0	09	1	0509-	●	●

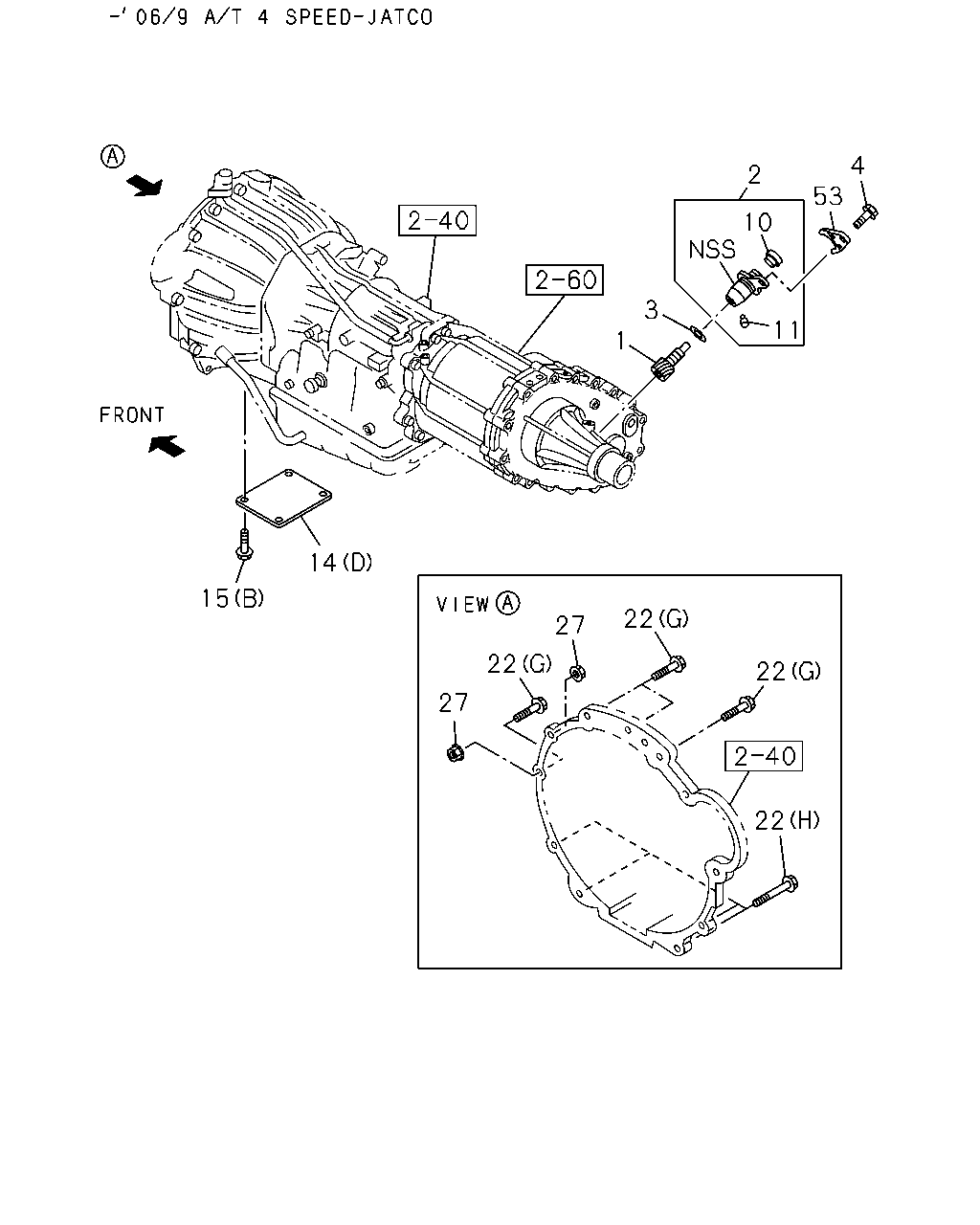

2 10 11 53 4 3 1 22 22 22 22 22 14 15 15 15 15 15 15 14 15 15 14 27 22 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16(BSW),FRT&RR 245/70R16(BZD) Z=17	8-97238-583-0	01	1	0307-0508				●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) EXC. AUSTRALIA EQUIPMENT(B13) Z=17	8-97238-583-0	01	1	0509-0609				●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) Z=17	8-97238-583-0	01	1	0610-0709			●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) AUSTRALIA EQUIPMENT(B13) Z=17	8-97238-583-0	01	1	0610-0709			●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 225/75R15C(BZC) EXC. AUSTRALIA EQUIPMENT(B13) Z=17	8-97238-583-0	01	1	0610-0709				●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) EXC. AUSTRALIA EQUIPMENT(B13) Z=17	8-97238-583-0	01	1	0610-0709				●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) EXC. AUSTRALIA EQUIPMENT(B13) Z=17	8-97238-583-0	01	1	0710-			●	●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) Z=17	8-97238-583-0	01	1	0710-			●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) AUSTRALIA EQUIPMENT(B13) Z=17	8-97238-583-0	01	1	0710-			●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 225/75R15C(BZC) EXC. AUSTRALIA EQUIPMENT(B13) Z=17	8-97238-583-0	01	1	0710-				●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 43/9(GT2) Z=16	8-97238-588-0	01	1	0307-0508			●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 43/9(GT2) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) EXC. AUSTRALIA EQUIPMENT(B13) Z=16	8-97238-588-0	01	1	0509-0609		●	●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 41/9(GT3) FRT&RR 225/75R15C(BZC) EXC. AUSTRALIA EQUIPMENT(B13) Z=16	8-97238-588-0	01	1	0509-0609			●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 43/9(GT2) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) EXC. AUSTRALIA EQUIPMENT(B13) Z=16	8-97238-588-0	01	1	0610-0707				●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 41/9(GT3) FRT&RR 225/75R15C(BZC) EXC. AUSTRALIA EQUIPMENT(B13) Z=16	8-97238-588-0	01	1	0610-0707				●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 43/9(GT2) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) EXC. AUSTRALIA EQUIPMENT(B13) Z=16	8-97238-588-0	01	1	0708-			●	●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 41/9(GT3) FRT&RR 225/75R15C(BZC) EXC. AUSTRALIA EQUIPMENT(B13) Z=16	8-97238-588-0	01	1	0708-			●	●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 43/10(GY2) FRT&RR 225/75R15C(BZC) Z=18	8-97238-584-2	01	1	0307-0402				●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 43/10(GY2) FRT&RR 225/75R15C(BZC) Z=18	8-97238-584-2	01	1	0403-0508				●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) AUSTRALIA EQUIPMENT(B13) Z=18	8-97238-584-2	01	1	0509-0509				●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 43/10(GY2) FRT&RR 225/75R15C(BZC) Z=18	8-97238-584-2	01	1	0509-0509				●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) AUSTRALIA EQUIPMENT(B13) Z=18	8-97238-584-2	01	1	0509-0609				●
1	04.337 GEAR; DRIVEN,SPD 4X4 CREW CAB LONG(TFS*WF) FINAL GEAR RATIO 43/10(GY2) FRT&RR 225/75R15C(BZC) Z=18	8-97238-584-2	01	1	0610-				●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 43/9(GT2) FRT&RR 225/75R15C(BZC) Z=17	8-97238-587-2	01	1	0509-0609			●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 43/9(GT2) FRT&RR 225/75R15C(BZC) Z=17	8-97238-587-2	01	1	0610-				●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 41/8(HC3) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) Z=17	8-97238-587-2	01	1	0610-				●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) EXC. AUSTRALIA EQUIPMENT(B13) Z=16	8-97238-582-0	01	1	0610-0612			●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) EXC. AUSTRALIA EQUIPMENT(B13) Z=16	8-97238-582-0	01	1	0701-0912			●
1	04.337 GEAR; DRIVEN,SPD 4X4 REGULAR CAB LONG(TFS5SF) 4X4 CREW CAB LONG(TFS5WF) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) Z=16	8-97238-582-0	01	1	1001-	●	●	●	●
1	04.337 GEAR; DRIVEN,SPD 4X4 CREW CAB LONG(TFS*WF) 4JK1-TCS ENG(LKZ) FINAL GEAR RATIO 41/11(GT4) FRT&RR 225/75R15C(BZC) Z=16	8-97238-582-0	01	1	1001-	●	●	●	●
1	04.337 GEAR; DRIVEN,SPD 4X4 CREW CAB LONG(TFS*WF) 4JK1-TCS ENG(LKZ) FINAL GEAR RATIO 43/11(GW1) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) Z=16	8-97238-582-0	01	1	1001-	●	●	●	●
1	04.337 GEAR; DRIVEN,SPD 4X4 EXTEND CAB LONG(TFS5CF) 4X4 CREW CAB LONG(TFS5WF) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) EXC. AUSTRALIA EQUIPMENT(B13) Z=16	8-97238-582-0	01	1	1001-			●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) Z=20	8-97181-542-0	01	1	0307-0508			●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) Z=17	8-98056-402-0	01	1	0610-0709			●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) AUSTRALIA EQUIPMENT(B13) Z=17	8-98056-402-0	01	1	0610-0709			●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) HIGH RIDE SUSPENSION(7YC) Z=17	8-98056-402-0	01	1	0710-			●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) AUSTRALIA EQUIPMENT(B13) HIGH RIDE SUSPENSION(7YC) Z=17	8-98056-402-0	01	1	0710-			●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) EXC. AUSTRALIA EQUIPMENT(B13) Z=16	8-98056-392-0	01	1	0610-0709			●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) HIGH RIDE SUSPENSION(7YC) EXC. AUSTRALIA EQUIPMENT(B13) Z=16	8-98056-392-0	01	1	0710-			●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER 4X4(TFS***)	8-97305-454-1	01	1	0307-0609			●	●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER 4X4(TFS***)	8-97305-454-1	01	1	0610-			●	●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER 4X2(TFB***)	8-97181-543-0	01	1	0307-0508			●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER 4X2(TFB***)	8-97181-543-0	01	1	0610-			●
3	04.338 GASKET; BUSHING 4X4(TFS***) ID=21.7 OD=28.7	9-09921-100-0	01	1	0307-0609			●	●
3	04.338 GASKET; BUSHING 4X4(TFS***) ID=21.7 OD=28.7	9-09921-100-0	01	1	0610-			●	●
3	04.338 GASKET; BUSHING 4X2(TFB***) ID=19	8-97181-545-0	01	1	0307-0508			●
3	04.338 GASKET; BUSHING 4X2(TFB***) ID=19	8-97181-545-0	01	1	0610-			●
4	04.338 BOLT; RET,DRIVEN GEAR 4X4(TFS***) M8X20 FLANGE	0-28050-820-0	01	1	0307-0609			●	●
4	04.338 BOLT; RET,DRIVEN GEAR 4X4(TFS***) M8X20 FLANGE	0-28050-820-0	01	1	0610-			●	●
4	04.338 BOLT; RET,DRIVEN GEAR 4X2(TFB***) M8X14 W/WASHER	8-94480-043-0	01	1	0307-0508			●
4	04.338 BOLT; RET,DRIVEN GEAR 4X2(TFB***) M8X14 W/WASHER	8-94480-043-0	01	1	0610-			●
10	04.338 SEAL; OIL,DRIVE GEAR 4X4(TFS***) NOK	8-97131-328-1	01	1	0307-0609			●	●
10	04.338 SEAL; OIL,DRIVE GEAR 4X4(TFS***) NOK	8-97131-328-1	01	1	0610-			●	●
10	04.338 SEAL; OIL,DRIVE GEAR 4X2(TFB***) NOK	8-94480-040-0	01	1	0307-0508			●
10	04.338 SEAL; OIL,DRIVE GEAR 4X2(TFB***) JTEKT	8-97181-544-0	01	1	0307-0508			●
10	04.338 SEAL; OIL,DRIVE GEAR 4X2(TFB***) NOK	8-94480-040-0	01	1	0610-			●
10	04.338 SEAL; OIL,DRIVE GEAR 4X2(TFB***) JTEKT	8-97181-544-0	01	1	0610-			●
11	04.338 FILTER; BUSHING,SPEEDOMETER DRIV 4X4(TFS***)	8-94446-571-1	01	1	0307-0609			●	●
11	04.338 FILTER; BUSHING,SPEEDOMETER DRIV 4X4(TFS***)	8-94446-571-1	01	1	0610-			●	●
14	00.679 COVER; UNDER,TRANS HF V6 ENG(LCA) (I)	8-98001-230-0	01	1	0509-	●	●
14	00.679 COVER; UNDER,TRANS HF V6 ENG(LCA) (J)	8-98001-231-0	01	1	0509-0509	●	●
14	00.679 COVER; UNDER,TRANS HF V6 ENG(LCA) (J)	8-98001-231-0	01	1	0509-	●	●
14	00.679 COVER; UNDER,TRANS (C)	8-97164-521-1	01	1	0307-0609			●
14	00.679 COVER; UNDER,TRANS (B)	8-97164-547-3	01	1	0307-0609			●
14	00.679 COVER; UNDER,TRANS (A)	8-97194-751-0	01	1	0307-0609			●
14	00.679 COVER; UNDER,TRANS (D)	8-94375-252-0	01	1	0307-0609				●
14	00.679 COVER; UNDER,TRANS (D)	8-98049-857-0	01	1	0610-			●	●
15	00.685 BOLT; UNDER COVER TO TRANS 03.671 (A) M6X10 FLANGE	0-28050-610-0	08	1	0307-0609			●
15	00.685 BOLT; UNDER COVER TO TRANS 02.343 (B) M6X16 FLANGE	0-28650-616-0	04	1	0307-0609				●
15	00.685 BOLT; UNDER COVER TO TRANS 02.343 (B) M6X16 FLANGE	0-28650-616-0	04	1	0610-			●	●
15	00.685 BOLT; UNDER COVER TO TRANS HF V6 ENG(LCA) (C)	8-92138-321-0	03	1	0509-	●	●
22	00.685 BOLT; TRANS CASE TO ENG (G) M10X40 FLANGE	0-28051-040-0	04	1	0307-0412				●
22	00.685 BOLT; TRANS CASE TO ENG (G) M10X40 FLANGE	0-28051-040-0	03	1	0610-			●
22	00.685 BOLT; TRANS CASE TO ENG (E) M12X20,M12X45 L=76	8-97328-823-0	01	1	0307-0609			●
22	00.685 BOLT; TRANS CASE TO ENG (G) M10X40 FLANGE	0-28051-040-0	04	1	0501-0609				●
22	00.685 BOLT; TRANS CASE TO ENG (G) M10X40 FLANGE	0-28051-040-0	04	1	0610-0612				●
22	00.685 BOLT; TRANS CASE TO ENG (G) M10X40 FLANGE	0-28051-040-0	04	1	0701-0912				●
22	00.685 BOLT; TRANS CASE TO ENG (G) M10X40 FLANGE	0-28051-040-0	04	1	1001-				●
22	00.685 BOLT; TRANS CASE TO ENG (A) M12X70 FLANGE	0-28051-270-0	01	1	0307-0609			●
22	00.685 BOLT; TRANS CASE TO ENG 4JJ1-TCX ENG(LS0) (R) M12X45 FLANGE	0-28051-245-0	02	1	0610-			●
22	00.685 BOLT; TRANS CASE TO ENG (B) M12X40 FLANGE	0-28151-240-0	01	1	0307-0609			●
22	00.685 BOLT; TRANS CASE TO ENG 4JJ1-TCX ENG(LS0) (S) M10X20,M10X40 L=70	8-98005-380-0	01	1	0610-			●
22	00.685 BOLT; TRANS CASE TO ENG (F) M12X45 FLANGE	0-28151-245-0	02	1	0307-0609			●
22	00.685 BOLT; TRANS CASE TO ENG 4JJ1-TCX ENG(LS0) (Q) M12X176 FLANGE	8-98005-381-0	02	1	0610-			●
22	00.685 BOLT; TRANS CASE TO ENG (C) M12X50 FLANGE	0-28151-250-0	01	1	0307-0609			●
22	00.685 BOLT; TRANS CASE TO ENG 00.029 (D) M10X40 FLANGE	0-28751-040-0	02	1	0307-0609			●
22	00.685 BOLT; TRANS CASE TO ENG (H) M12X45 FLANGE	0-28051-245-0	04	1	0307-				●
22	00.685 BOLT; TRANS CASE TO ENG HF V6 ENG(LCA) (P)	8-92138-719-0	09	1	0509-	●	●
27	00.685 NUT; CLU HSG TO TRANS 03.162 M10 FLANGE	0-91180-110-0	02	1	0307-0609				●
27	00.685 NUT; CLU HSG TO TRANS 03.162 M10 FLANGE	0-91180-110-0	02	1	0610-0612			●	●
27	00.685 NUT; CLU HSG TO TRANS 03.162 M10 FLANGE	0-91180-110-0	02	1	0701-0912			●	●
27	00.685 NUT; CLU HSG TO TRANS 03.162 M10 FLANGE	0-91180-110-0	02	1	1001-			●	●
27	00.685 NUT; CLU HSG TO TRANS 02.042 M12 FLANGE	0-91180-112-0	01	1	0307-0609			●
53	04.338 PLATE; LOCK,DRIVEN GEAR 4X4(TFS***)	8-97021-019-0	01	1	0307-0609			●	●
53	04.338 PLATE; LOCK,DRIVEN GEAR 4X4(TFS***)	8-97021-019-0	01	1	0610-0703			●	●
53	04.338 PLATE; LOCK,DRIVEN GEAR 4X4(TFS***)	8-98035-572-0	01	1	0704-			●	●
53	04.338 PLATE; LOCK,DRIVEN GEAR 4X2(TFB***) 04.265	8-94479-720-0	01	1	0307-0508			●
53	04.338 PLATE; LOCK,DRIVEN GEAR 4X2(TFB***) 04.265	8-94479-720-0	01	1	0610-			●

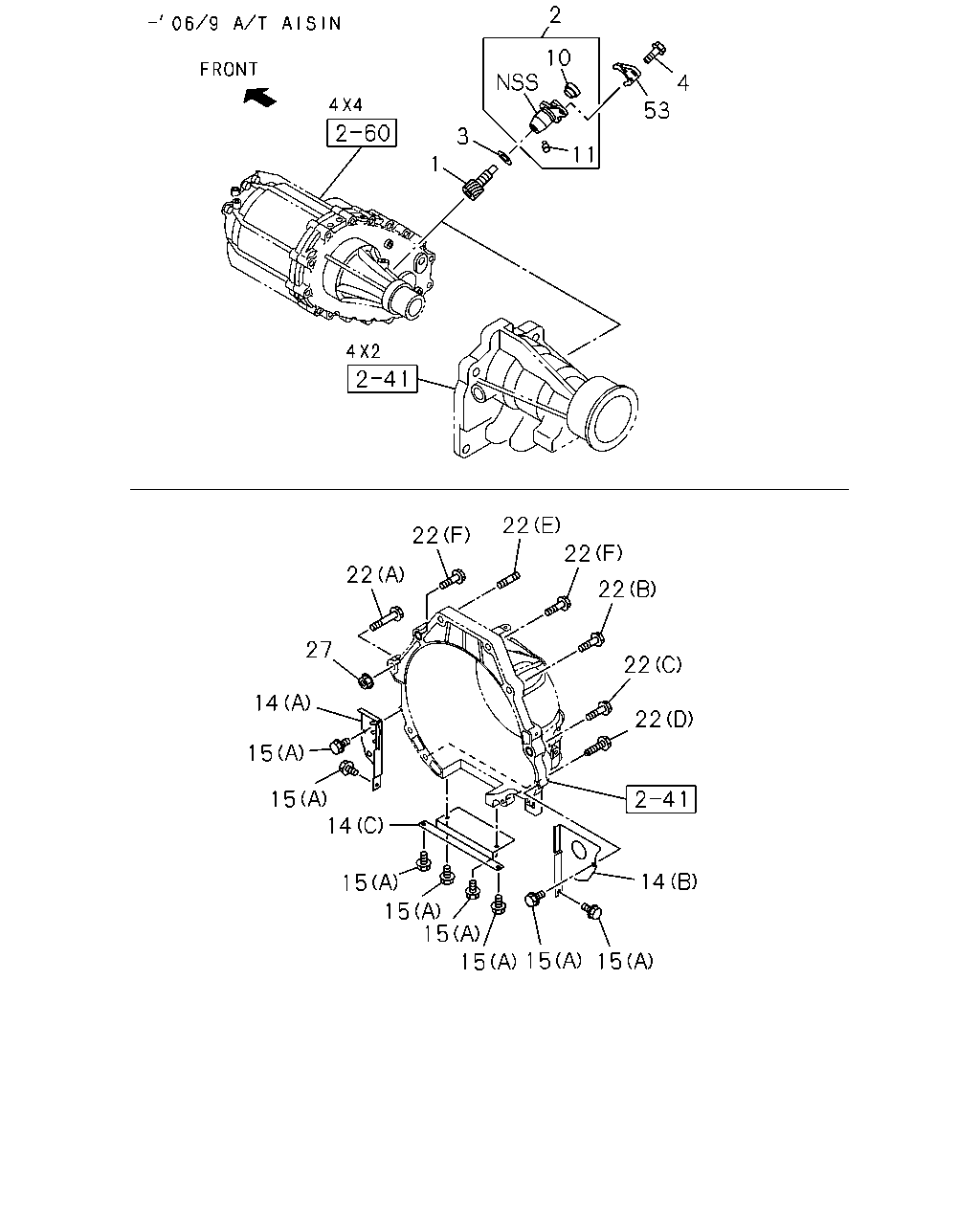

1 3 2 10 53 4 11 15 14 27 22 27 22 22 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16(BSW),FRT&RR 245/70R16(BZD) Z=17	8-97238-583-0	01	1	0307-0508				●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) EXC. AUSTRALIA EQUIPMENT(B13) Z=17	8-97238-583-0	01	1	0509-0609				●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) Z=17	8-97238-583-0	01	1	0610-0709			●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) AUSTRALIA EQUIPMENT(B13) Z=17	8-97238-583-0	01	1	0610-0709			●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 225/75R15C(BZC) EXC. AUSTRALIA EQUIPMENT(B13) Z=17	8-97238-583-0	01	1	0610-0709				●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) EXC. AUSTRALIA EQUIPMENT(B13) Z=17	8-97238-583-0	01	1	0610-0709				●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) EXC. AUSTRALIA EQUIPMENT(B13) Z=17	8-97238-583-0	01	1	0710-			●	●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) Z=17	8-97238-583-0	01	1	0710-			●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) AUSTRALIA EQUIPMENT(B13) Z=17	8-97238-583-0	01	1	0710-			●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 225/75R15C(BZC) EXC. AUSTRALIA EQUIPMENT(B13) Z=17	8-97238-583-0	01	1	0710-				●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 43/9(GT2) Z=16	8-97238-588-0	01	1	0307-0508			●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 43/9(GT2) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) EXC. AUSTRALIA EQUIPMENT(B13) Z=16	8-97238-588-0	01	1	0509-0609		●	●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 41/9(GT3) FRT&RR 225/75R15C(BZC) EXC. AUSTRALIA EQUIPMENT(B13) Z=16	8-97238-588-0	01	1	0509-0609			●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 43/9(GT2) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) EXC. AUSTRALIA EQUIPMENT(B13) Z=16	8-97238-588-0	01	1	0610-0707				●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 41/9(GT3) FRT&RR 225/75R15C(BZC) EXC. AUSTRALIA EQUIPMENT(B13) Z=16	8-97238-588-0	01	1	0610-0707				●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 43/9(GT2) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) EXC. AUSTRALIA EQUIPMENT(B13) Z=16	8-97238-588-0	01	1	0708-			●	●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 41/9(GT3) FRT&RR 225/75R15C(BZC) EXC. AUSTRALIA EQUIPMENT(B13) Z=16	8-97238-588-0	01	1	0708-			●	●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 43/10(GY2) FRT&RR 225/75R15C(BZC) Z=18	8-97238-584-2	01	1	0307-0402				●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 43/10(GY2) FRT&RR 225/75R15C(BZC) Z=18	8-97238-584-2	01	1	0403-0508				●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) AUSTRALIA EQUIPMENT(B13) Z=18	8-97238-584-2	01	1	0509-0509				●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 43/10(GY2) FRT&RR 225/75R15C(BZC) Z=18	8-97238-584-2	01	1	0509-0509				●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) AUSTRALIA EQUIPMENT(B13) Z=18	8-97238-584-2	01	1	0509-0609				●
1	04.337 GEAR; DRIVEN,SPD 4X4 CREW CAB LONG(TFS*WF) FINAL GEAR RATIO 43/10(GY2) FRT&RR 225/75R15C(BZC) Z=18	8-97238-584-2	01	1	0610-				●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 43/9(GT2) FRT&RR 225/75R15C(BZC) Z=17	8-97238-587-2	01	1	0509-0609			●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 43/9(GT2) FRT&RR 225/75R15C(BZC) Z=17	8-97238-587-2	01	1	0610-				●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 41/8(HC3) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) Z=17	8-97238-587-2	01	1	0610-				●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) EXC. AUSTRALIA EQUIPMENT(B13) Z=16	8-97238-582-0	01	1	0610-0612			●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) EXC. AUSTRALIA EQUIPMENT(B13) Z=16	8-97238-582-0	01	1	0701-0912			●
1	04.337 GEAR; DRIVEN,SPD 4X4 REGULAR CAB LONG(TFS5SF) 4X4 CREW CAB LONG(TFS5WF) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) Z=16	8-97238-582-0	01	1	1001-	●	●	●	●
1	04.337 GEAR; DRIVEN,SPD 4X4 CREW CAB LONG(TFS*WF) 4JK1-TCS ENG(LKZ) FINAL GEAR RATIO 41/11(GT4) FRT&RR 225/75R15C(BZC) Z=16	8-97238-582-0	01	1	1001-	●	●	●	●
1	04.337 GEAR; DRIVEN,SPD 4X4 CREW CAB LONG(TFS*WF) 4JK1-TCS ENG(LKZ) FINAL GEAR RATIO 43/11(GW1) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) Z=16	8-97238-582-0	01	1	1001-	●	●	●	●
1	04.337 GEAR; DRIVEN,SPD 4X4 EXTEND CAB LONG(TFS5CF) 4X4 CREW CAB LONG(TFS5WF) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) EXC. AUSTRALIA EQUIPMENT(B13) Z=16	8-97238-582-0	01	1	1001-			●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) Z=20	8-97181-542-0	01	1	0307-0508			●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) Z=17	8-98056-402-0	01	1	0610-0709			●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) AUSTRALIA EQUIPMENT(B13) Z=17	8-98056-402-0	01	1	0610-0709			●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) HIGH RIDE SUSPENSION(7YC) Z=17	8-98056-402-0	01	1	0710-			●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) AUSTRALIA EQUIPMENT(B13) HIGH RIDE SUSPENSION(7YC) Z=17	8-98056-402-0	01	1	0710-			●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) EXC. AUSTRALIA EQUIPMENT(B13) Z=16	8-98056-392-0	01	1	0610-0709			●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) HIGH RIDE SUSPENSION(7YC) EXC. AUSTRALIA EQUIPMENT(B13) Z=16	8-98056-392-0	01	1	0710-			●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER 4X4(TFS***)	8-97305-454-1	01	1	0307-0609			●	●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER 4X4(TFS***)	8-97305-454-1	01	1	0610-			●	●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER 4X2(TFB***)	8-97181-543-0	01	1	0307-0508			●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER 4X2(TFB***)	8-97181-543-0	01	1	0610-			●
3	04.338 GASKET; BUSHING 4X4(TFS***) ID=21.7 OD=28.7	9-09921-100-0	01	1	0307-0609			●	●
3	04.338 GASKET; BUSHING 4X4(TFS***) ID=21.7 OD=28.7	9-09921-100-0	01	1	0610-			●	●
3	04.338 GASKET; BUSHING 4X2(TFB***) ID=19	8-97181-545-0	01	1	0307-0508			●
3	04.338 GASKET; BUSHING 4X2(TFB***) ID=19	8-97181-545-0	01	1	0610-			●
4	04.338 BOLT; RET,DRIVEN GEAR 4X4(TFS***) M8X20 FLANGE	0-28050-820-0	01	1	0307-0609			●	●
4	04.338 BOLT; RET,DRIVEN GEAR 4X4(TFS***) M8X20 FLANGE	0-28050-820-0	01	1	0610-			●	●
4	04.338 BOLT; RET,DRIVEN GEAR 4X2(TFB***) M8X14 W/WASHER	8-94480-043-0	01	1	0307-0508			●
4	04.338 BOLT; RET,DRIVEN GEAR 4X2(TFB***) M8X14 W/WASHER	8-94480-043-0	01	1	0610-			●
10	04.338 SEAL; OIL,DRIVE GEAR 4X4(TFS***) NOK	8-97131-328-1	01	1	0307-0609			●	●
10	04.338 SEAL; OIL,DRIVE GEAR 4X4(TFS***) NOK	8-97131-328-1	01	1	0610-			●	●
10	04.338 SEAL; OIL,DRIVE GEAR 4X2(TFB***) NOK	8-94480-040-0	01	1	0307-0508			●
10	04.338 SEAL; OIL,DRIVE GEAR 4X2(TFB***) JTEKT	8-97181-544-0	01	1	0307-0508			●
10	04.338 SEAL; OIL,DRIVE GEAR 4X2(TFB***) NOK	8-94480-040-0	01	1	0610-			●
10	04.338 SEAL; OIL,DRIVE GEAR 4X2(TFB***) JTEKT	8-97181-544-0	01	1	0610-			●
11	04.338 FILTER; BUSHING,SPEEDOMETER DRIV 4X4(TFS***)	8-94446-571-1	01	1	0307-0609			●	●
11	04.338 FILTER; BUSHING,SPEEDOMETER DRIV 4X4(TFS***)	8-94446-571-1	01	1	0610-			●	●
14	00.679 COVER; UNDER,TRANS HF V6 ENG(LCA) (I)	8-98001-230-0	01	1	0509-	●	●
14	00.679 COVER; UNDER,TRANS HF V6 ENG(LCA) (J)	8-98001-231-0	01	1	0509-0509	●	●
14	00.679 COVER; UNDER,TRANS HF V6 ENG(LCA) (J)	8-98001-231-0	01	1	0509-	●	●
14	00.679 COVER; UNDER,TRANS (C)	8-97164-521-1	01	1	0307-0609			●
14	00.679 COVER; UNDER,TRANS (B)	8-97164-547-3	01	1	0307-0609			●
14	00.679 COVER; UNDER,TRANS (A)	8-97194-751-0	01	1	0307-0609			●
14	00.679 COVER; UNDER,TRANS (D)	8-94375-252-0	01	1	0307-0609				●
14	00.679 COVER; UNDER,TRANS (D)	8-98049-857-0	01	1	0610-			●	●
15	00.685 BOLT; UNDER COVER TO TRANS 03.671 (A) M6X10 FLANGE	0-28050-610-0	08	1	0307-0609			●
15	00.685 BOLT; UNDER COVER TO TRANS 02.343 (B) M6X16 FLANGE	0-28650-616-0	04	1	0307-0609				●
15	00.685 BOLT; UNDER COVER TO TRANS 02.343 (B) M6X16 FLANGE	0-28650-616-0	04	1	0610-			●	●
15	00.685 BOLT; UNDER COVER TO TRANS HF V6 ENG(LCA) (C)	8-92138-321-0	03	1	0509-	●	●
22	00.685 BOLT; TRANS CASE TO ENG (G) M10X40 FLANGE	0-28051-040-0	04	1	0307-0412				●
22	00.685 BOLT; TRANS CASE TO ENG (G) M10X40 FLANGE	0-28051-040-0	03	1	0610-			●
22	00.685 BOLT; TRANS CASE TO ENG (E) M12X20,M12X45 L=76	8-97328-823-0	01	1	0307-0609			●
22	00.685 BOLT; TRANS CASE TO ENG (G) M10X40 FLANGE	0-28051-040-0	04	1	0501-0609				●
22	00.685 BOLT; TRANS CASE TO ENG (G) M10X40 FLANGE	0-28051-040-0	04	1	0610-0612				●
22	00.685 BOLT; TRANS CASE TO ENG (G) M10X40 FLANGE	0-28051-040-0	04	1	0701-0912				●
22	00.685 BOLT; TRANS CASE TO ENG (G) M10X40 FLANGE	0-28051-040-0	04	1	1001-				●
22	00.685 BOLT; TRANS CASE TO ENG (A) M12X70 FLANGE	0-28051-270-0	01	1	0307-0609			●
22	00.685 BOLT; TRANS CASE TO ENG 4JJ1-TCX ENG(LS0) (R) M12X45 FLANGE	0-28051-245-0	02	1	0610-			●
22	00.685 BOLT; TRANS CASE TO ENG (B) M12X40 FLANGE	0-28151-240-0	01	1	0307-0609			●
22	00.685 BOLT; TRANS CASE TO ENG 4JJ1-TCX ENG(LS0) (S) M10X20,M10X40 L=70	8-98005-380-0	01	1	0610-			●
22	00.685 BOLT; TRANS CASE TO ENG (F) M12X45 FLANGE	0-28151-245-0	02	1	0307-0609			●
22	00.685 BOLT; TRANS CASE TO ENG 4JJ1-TCX ENG(LS0) (Q) M12X176 FLANGE	8-98005-381-0	02	1	0610-			●
22	00.685 BOLT; TRANS CASE TO ENG (C) M12X50 FLANGE	0-28151-250-0	01	1	0307-0609			●
22	00.685 BOLT; TRANS CASE TO ENG 00.029 (D) M10X40 FLANGE	0-28751-040-0	02	1	0307-0609			●
22	00.685 BOLT; TRANS CASE TO ENG (H) M12X45 FLANGE	0-28051-245-0	04	1	0307-				●
22	00.685 BOLT; TRANS CASE TO ENG HF V6 ENG(LCA) (P)	8-92138-719-0	09	1	0509-	●	●
27	00.685 NUT; CLU HSG TO TRANS 03.162 M10 FLANGE	0-91180-110-0	02	1	0307-0609				●
27	00.685 NUT; CLU HSG TO TRANS 03.162 M10 FLANGE	0-91180-110-0	02	1	0610-0612			●	●
27	00.685 NUT; CLU HSG TO TRANS 03.162 M10 FLANGE	0-91180-110-0	02	1	0701-0912			●	●
27	00.685 NUT; CLU HSG TO TRANS 03.162 M10 FLANGE	0-91180-110-0	02	1	1001-			●	●
27	00.685 NUT; CLU HSG TO TRANS 02.042 M12 FLANGE	0-91180-112-0	01	1	0307-0609			●
53	04.338 PLATE; LOCK,DRIVEN GEAR 4X4(TFS***)	8-97021-019-0	01	1	0307-0609			●	●
53	04.338 PLATE; LOCK,DRIVEN GEAR 4X4(TFS***)	8-97021-019-0	01	1	0610-0703			●	●
53	04.338 PLATE; LOCK,DRIVEN GEAR 4X4(TFS***)	8-98035-572-0	01	1	0704-			●	●
53	04.338 PLATE; LOCK,DRIVEN GEAR 4X2(TFB***) 04.265	8-94479-720-0	01	1	0307-0508			●
53	04.338 PLATE; LOCK,DRIVEN GEAR 4X2(TFB***) 04.265	8-94479-720-0	01	1	0610-			●

100 1 3 11 10 2 53 4 14 15 27 22 27 22 22 22 27 22 27 22 22 22 22 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16(BSW),FRT&RR 245/70R16(BZD) Z=17	8-97238-583-0	01	1	0307-0508				●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) EXC. AUSTRALIA EQUIPMENT(B13) Z=17	8-97238-583-0	01	1	0509-0609				●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) Z=17	8-97238-583-0	01	1	0610-0709			●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) AUSTRALIA EQUIPMENT(B13) Z=17	8-97238-583-0	01	1	0610-0709			●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 225/75R15C(BZC) EXC. AUSTRALIA EQUIPMENT(B13) Z=17	8-97238-583-0	01	1	0610-0709				●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) EXC. AUSTRALIA EQUIPMENT(B13) Z=17	8-97238-583-0	01	1	0610-0709				●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) EXC. AUSTRALIA EQUIPMENT(B13) Z=17	8-97238-583-0	01	1	0710-			●	●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) Z=17	8-97238-583-0	01	1	0710-			●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) AUSTRALIA EQUIPMENT(B13) Z=17	8-97238-583-0	01	1	0710-			●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 225/75R15C(BZC) EXC. AUSTRALIA EQUIPMENT(B13) Z=17	8-97238-583-0	01	1	0710-				●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 43/9(GT2) Z=16	8-97238-588-0	01	1	0307-0508			●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 43/9(GT2) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) EXC. AUSTRALIA EQUIPMENT(B13) Z=16	8-97238-588-0	01	1	0509-0609		●	●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 41/9(GT3) FRT&RR 225/75R15C(BZC) EXC. AUSTRALIA EQUIPMENT(B13) Z=16	8-97238-588-0	01	1	0509-0609			●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 43/9(GT2) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) EXC. AUSTRALIA EQUIPMENT(B13) Z=16	8-97238-588-0	01	1	0610-0707				●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 41/9(GT3) FRT&RR 225/75R15C(BZC) EXC. AUSTRALIA EQUIPMENT(B13) Z=16	8-97238-588-0	01	1	0610-0707				●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 43/9(GT2) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) EXC. AUSTRALIA EQUIPMENT(B13) Z=16	8-97238-588-0	01	1	0708-			●	●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 41/9(GT3) FRT&RR 225/75R15C(BZC) EXC. AUSTRALIA EQUIPMENT(B13) Z=16	8-97238-588-0	01	1	0708-			●	●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 43/10(GY2) FRT&RR 225/75R15C(BZC) Z=18	8-97238-584-2	01	1	0307-0402				●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 43/10(GY2) FRT&RR 225/75R15C(BZC) Z=18	8-97238-584-2	01	1	0403-0508				●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) AUSTRALIA EQUIPMENT(B13) Z=18	8-97238-584-2	01	1	0509-0509				●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 43/10(GY2) FRT&RR 225/75R15C(BZC) Z=18	8-97238-584-2	01	1	0509-0509				●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) AUSTRALIA EQUIPMENT(B13) Z=18	8-97238-584-2	01	1	0509-0609				●
1	04.337 GEAR; DRIVEN,SPD 4X4 CREW CAB LONG(TFS*WF) FINAL GEAR RATIO 43/10(GY2) FRT&RR 225/75R15C(BZC) Z=18	8-97238-584-2	01	1	0610-				●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 43/9(GT2) FRT&RR 225/75R15C(BZC) Z=17	8-97238-587-2	01	1	0509-0609			●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 43/9(GT2) FRT&RR 225/75R15C(BZC) Z=17	8-97238-587-2	01	1	0610-				●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 41/8(HC3) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) Z=17	8-97238-587-2	01	1	0610-				●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) EXC. AUSTRALIA EQUIPMENT(B13) Z=16	8-97238-582-0	01	1	0610-0612			●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) EXC. AUSTRALIA EQUIPMENT(B13) Z=16	8-97238-582-0	01	1	0701-0912			●
1	04.337 GEAR; DRIVEN,SPD 4X4 REGULAR CAB LONG(TFS5SF) 4X4 CREW CAB LONG(TFS5WF) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) Z=16	8-97238-582-0	01	1	1001-	●	●	●	●
1	04.337 GEAR; DRIVEN,SPD 4X4 CREW CAB LONG(TFS*WF) 4JK1-TCS ENG(LKZ) FINAL GEAR RATIO 41/11(GT4) FRT&RR 225/75R15C(BZC) Z=16	8-97238-582-0	01	1	1001-	●	●	●	●
1	04.337 GEAR; DRIVEN,SPD 4X4 CREW CAB LONG(TFS*WF) 4JK1-TCS ENG(LKZ) FINAL GEAR RATIO 43/11(GW1) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) Z=16	8-97238-582-0	01	1	1001-	●	●	●	●
1	04.337 GEAR; DRIVEN,SPD 4X4 EXTEND CAB LONG(TFS5CF) 4X4 CREW CAB LONG(TFS5WF) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) EXC. AUSTRALIA EQUIPMENT(B13) Z=16	8-97238-582-0	01	1	1001-			●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) Z=20	8-97181-542-0	01	1	0307-0508			●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) Z=17	8-98056-402-0	01	1	0610-0709			●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) AUSTRALIA EQUIPMENT(B13) Z=17	8-98056-402-0	01	1	0610-0709			●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) HIGH RIDE SUSPENSION(7YC) Z=17	8-98056-402-0	01	1	0710-			●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) AUSTRALIA EQUIPMENT(B13) HIGH RIDE SUSPENSION(7YC) Z=17	8-98056-402-0	01	1	0710-			●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) EXC. AUSTRALIA EQUIPMENT(B13) Z=16	8-98056-392-0	01	1	0610-0709			●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) HIGH RIDE SUSPENSION(7YC) EXC. AUSTRALIA EQUIPMENT(B13) Z=16	8-98056-392-0	01	1	0710-			●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER 4X4(TFS***)	8-97305-454-1	01	1	0307-0609			●	●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER 4X4(TFS***)	8-97305-454-1	01	1	0610-			●	●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER 4X2(TFB***)	8-97181-543-0	01	1	0307-0508			●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER 4X2(TFB***)	8-97181-543-0	01	1	0610-			●
3	04.338 GASKET; BUSHING 4X4(TFS***) ID=21.7 OD=28.7	9-09921-100-0	01	1	0307-0609			●	●
3	04.338 GASKET; BUSHING 4X4(TFS***) ID=21.7 OD=28.7	9-09921-100-0	01	1	0610-			●	●
3	04.338 GASKET; BUSHING 4X2(TFB***) ID=19	8-97181-545-0	01	1	0307-0508			●
3	04.338 GASKET; BUSHING 4X2(TFB***) ID=19	8-97181-545-0	01	1	0610-			●
4	04.338 BOLT; RET,DRIVEN GEAR 4X4(TFS***) M8X20 FLANGE	0-28050-820-0	01	1	0307-0609			●	●
4	04.338 BOLT; RET,DRIVEN GEAR 4X4(TFS***) M8X20 FLANGE	0-28050-820-0	01	1	0610-			●	●
4	04.338 BOLT; RET,DRIVEN GEAR 4X2(TFB***) M8X14 W/WASHER	8-94480-043-0	01	1	0307-0508			●
4	04.338 BOLT; RET,DRIVEN GEAR 4X2(TFB***) M8X14 W/WASHER	8-94480-043-0	01	1	0610-			●
10	04.338 SEAL; OIL,DRIVE GEAR 4X4(TFS***) NOK	8-97131-328-1	01	1	0307-0609			●	●
10	04.338 SEAL; OIL,DRIVE GEAR 4X4(TFS***) NOK	8-97131-328-1	01	1	0610-			●	●
10	04.338 SEAL; OIL,DRIVE GEAR 4X2(TFB***) NOK	8-94480-040-0	01	1	0307-0508			●
10	04.338 SEAL; OIL,DRIVE GEAR 4X2(TFB***) JTEKT	8-97181-544-0	01	1	0307-0508			●
10	04.338 SEAL; OIL,DRIVE GEAR 4X2(TFB***) NOK	8-94480-040-0	01	1	0610-			●
10	04.338 SEAL; OIL,DRIVE GEAR 4X2(TFB***) JTEKT	8-97181-544-0	01	1	0610-			●
11	04.338 FILTER; BUSHING,SPEEDOMETER DRIV 4X4(TFS***)	8-94446-571-1	01	1	0307-0609			●	●
11	04.338 FILTER; BUSHING,SPEEDOMETER DRIV 4X4(TFS***)	8-94446-571-1	01	1	0610-			●	●
14	00.679 COVER; UNDER,TRANS HF V6 ENG(LCA) (I)	8-98001-230-0	01	1	0509-	●	●
14	00.679 COVER; UNDER,TRANS HF V6 ENG(LCA) (J)	8-98001-231-0	01	1	0509-0509	●	●
14	00.679 COVER; UNDER,TRANS HF V6 ENG(LCA) (J)	8-98001-231-0	01	1	0509-	●	●
14	00.679 COVER; UNDER,TRANS (C)	8-97164-521-1	01	1	0307-0609			●
14	00.679 COVER; UNDER,TRANS (B)	8-97164-547-3	01	1	0307-0609			●
14	00.679 COVER; UNDER,TRANS (A)	8-97194-751-0	01	1	0307-0609			●
14	00.679 COVER; UNDER,TRANS (D)	8-94375-252-0	01	1	0307-0609				●
14	00.679 COVER; UNDER,TRANS (D)	8-98049-857-0	01	1	0610-			●	●
15	00.685 BOLT; UNDER COVER TO TRANS 03.671 (A) M6X10 FLANGE	0-28050-610-0	08	1	0307-0609			●
15	00.685 BOLT; UNDER COVER TO TRANS 02.343 (B) M6X16 FLANGE	0-28650-616-0	04	1	0307-0609				●
15	00.685 BOLT; UNDER COVER TO TRANS 02.343 (B) M6X16 FLANGE	0-28650-616-0	04	1	0610-			●	●
15	00.685 BOLT; UNDER COVER TO TRANS HF V6 ENG(LCA) (C)	8-92138-321-0	03	1	0509-	●	●
22	00.685 BOLT; TRANS CASE TO ENG (G) M10X40 FLANGE	0-28051-040-0	04	1	0307-0412				●
22	00.685 BOLT; TRANS CASE TO ENG (G) M10X40 FLANGE	0-28051-040-0	03	1	0610-			●
22	00.685 BOLT; TRANS CASE TO ENG (E) M12X20,M12X45 L=76	8-97328-823-0	01	1	0307-0609			●
22	00.685 BOLT; TRANS CASE TO ENG (G) M10X40 FLANGE	0-28051-040-0	04	1	0501-0609				●
22	00.685 BOLT; TRANS CASE TO ENG (G) M10X40 FLANGE	0-28051-040-0	04	1	0610-0612				●
22	00.685 BOLT; TRANS CASE TO ENG (G) M10X40 FLANGE	0-28051-040-0	04	1	0701-0912				●
22	00.685 BOLT; TRANS CASE TO ENG (G) M10X40 FLANGE	0-28051-040-0	04	1	1001-				●
22	00.685 BOLT; TRANS CASE TO ENG (A) M12X70 FLANGE	0-28051-270-0	01	1	0307-0609			●
22	00.685 BOLT; TRANS CASE TO ENG 4JJ1-TCX ENG(LS0) (R) M12X45 FLANGE	0-28051-245-0	02	1	0610-			●
22	00.685 BOLT; TRANS CASE TO ENG (B) M12X40 FLANGE	0-28151-240-0	01	1	0307-0609			●
22	00.685 BOLT; TRANS CASE TO ENG 4JJ1-TCX ENG(LS0) (S) M10X20,M10X40 L=70	8-98005-380-0	01	1	0610-			●
22	00.685 BOLT; TRANS CASE TO ENG (F) M12X45 FLANGE	0-28151-245-0	02	1	0307-0609			●
22	00.685 BOLT; TRANS CASE TO ENG 4JJ1-TCX ENG(LS0) (Q) M12X176 FLANGE	8-98005-381-0	02	1	0610-			●
22	00.685 BOLT; TRANS CASE TO ENG (C) M12X50 FLANGE	0-28151-250-0	01	1	0307-0609			●
22	00.685 BOLT; TRANS CASE TO ENG 00.029 (D) M10X40 FLANGE	0-28751-040-0	02	1	0307-0609			●
22	00.685 BOLT; TRANS CASE TO ENG (H) M12X45 FLANGE	0-28051-245-0	04	1	0307-				●
22	00.685 BOLT; TRANS CASE TO ENG HF V6 ENG(LCA) (P)	8-92138-719-0	09	1	0509-	●	●
27	00.685 NUT; CLU HSG TO TRANS 03.162 M10 FLANGE	0-91180-110-0	02	1	0307-0609				●
27	00.685 NUT; CLU HSG TO TRANS 03.162 M10 FLANGE	0-91180-110-0	02	1	0610-0612			●	●
27	00.685 NUT; CLU HSG TO TRANS 03.162 M10 FLANGE	0-91180-110-0	02	1	0701-0912			●	●
27	00.685 NUT; CLU HSG TO TRANS 03.162 M10 FLANGE	0-91180-110-0	02	1	1001-			●	●
27	00.685 NUT; CLU HSG TO TRANS 02.042 M12 FLANGE	0-91180-112-0	01	1	0307-0609			●
53	04.338 PLATE; LOCK,DRIVEN GEAR 4X4(TFS***)	8-97021-019-0	01	1	0307-0609			●	●
53	04.338 PLATE; LOCK,DRIVEN GEAR 4X4(TFS***)	8-97021-019-0	01	1	0610-0703			●	●
53	04.338 PLATE; LOCK,DRIVEN GEAR 4X4(TFS***)	8-98035-572-0	01	1	0704-			●	●
53	04.338 PLATE; LOCK,DRIVEN GEAR 4X2(TFB***) 04.265	8-94479-720-0	01	1	0307-0508			●
53	04.338 PLATE; LOCK,DRIVEN GEAR 4X2(TFB***) 04.265	8-94479-720-0	01	1	0610-			●
100	02.510 PLUG; HOLE	8-97318-961-0	01	1	0610-0612				●
100	02.510 PLUG; HOLE	8-97318-961-0	01	1	0701-0912			●	●
100	02.510 PLUG; HOLE	8-97318-961-0	01	1	1001-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
