Sayfa 2-25A - Isuzu EPC

2-25A — SPEEDOMETER DRIVEN GEAR (#20411) — 621 parça

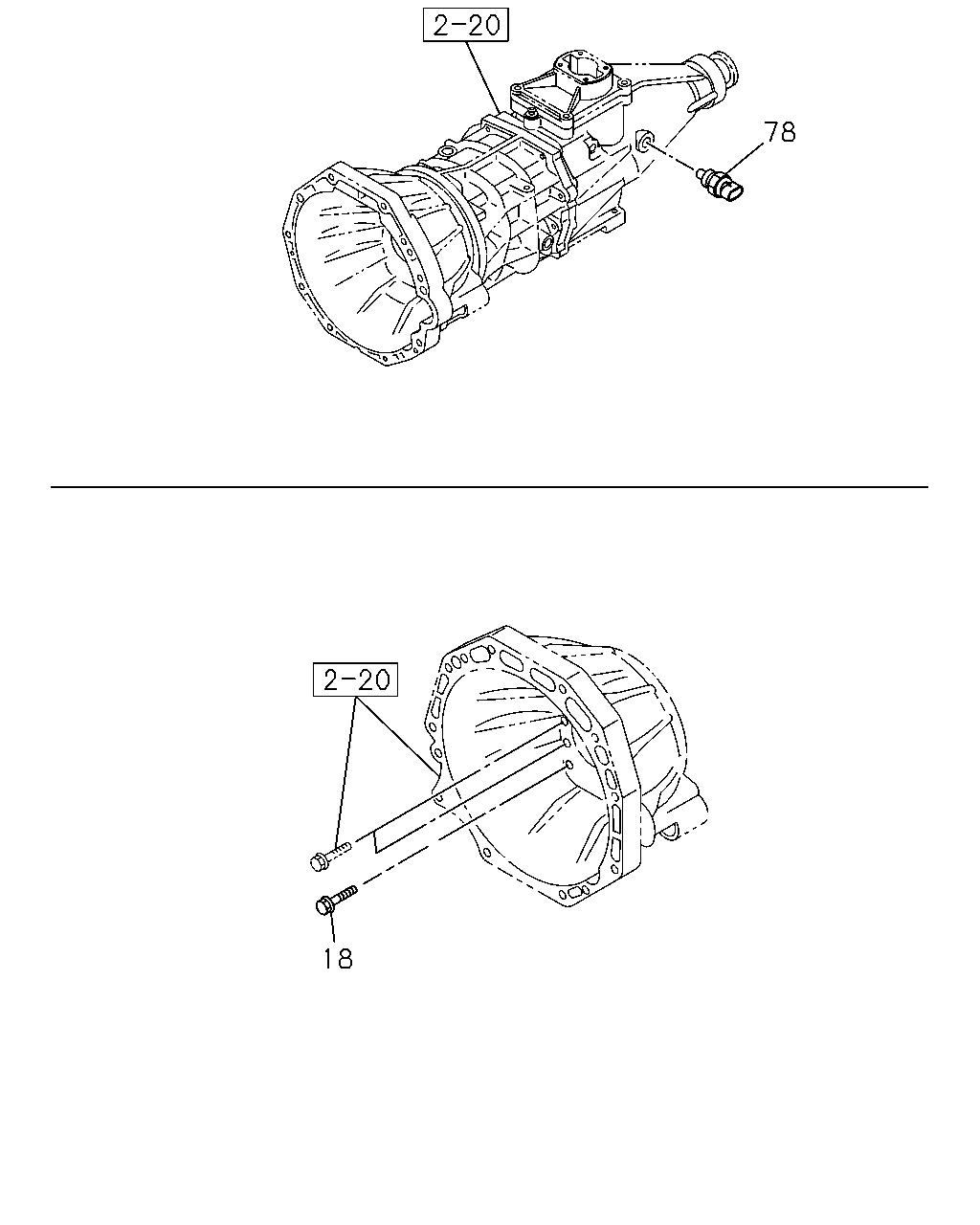

78 18

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
	18	00.685 BOLT; CLU HSG TO TRANS HF V6 ENG(LCA)	8-97164-902-0	07	1	0509-	●
	78	04.329 SENSOR; SPD 4X2(TFB***) HF V6 ENG(LCA)	8-89048-421-0	01	1	0509-	●

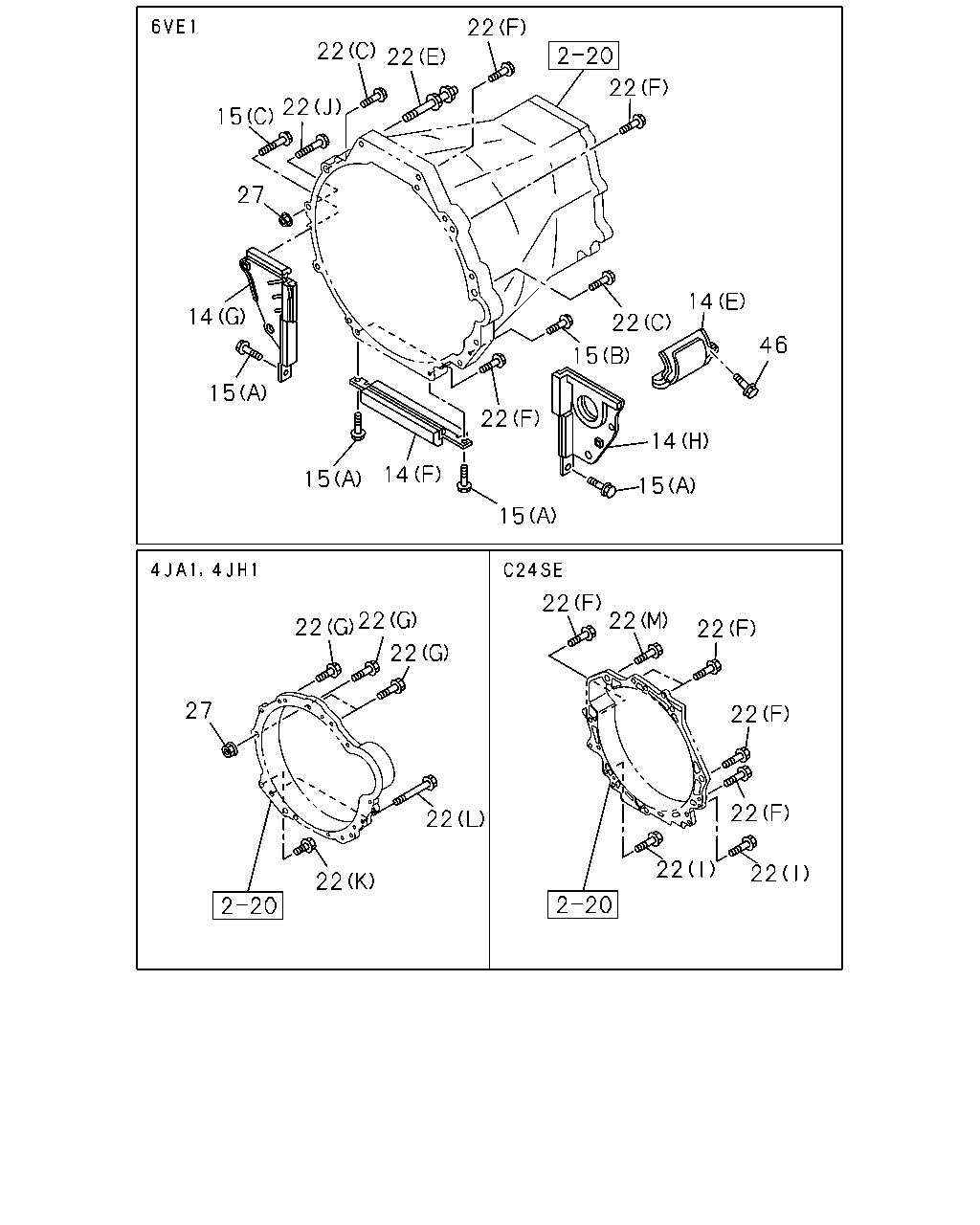

22 15 22 14 46 14 15 15 22 22 22 22 22 22 22 22 22 22 22 22 27 14 15 15 14 27 15 22 22 22 22 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
14	00.679 COVER; UNDER,TRANS 6VE1 ENG(LX5) 00.797 (E)	8-94380-259-1	01	1	0307-0309		●
14	00.679 COVER; UNDER,TRANS 6VE1 ENG(LX5) (E)	8-97943-936-0	01	1	0310-0609		●
14	00.679 COVER; UNDER,TRANS 6VE1 ENG(LX5) (F)	8-97164-174-1	01	1	0307-0609		●
14	00.679 COVER; UNDER,TRANS 6VE1 ENG(LX5) (G)	8-97164-175-1	01	1	0307-0609		●
14	00.679 COVER; UNDER,TRANS 6VE1 ENG(LX5) (H)	8-97164-176-3	01	1	0307-0609		●

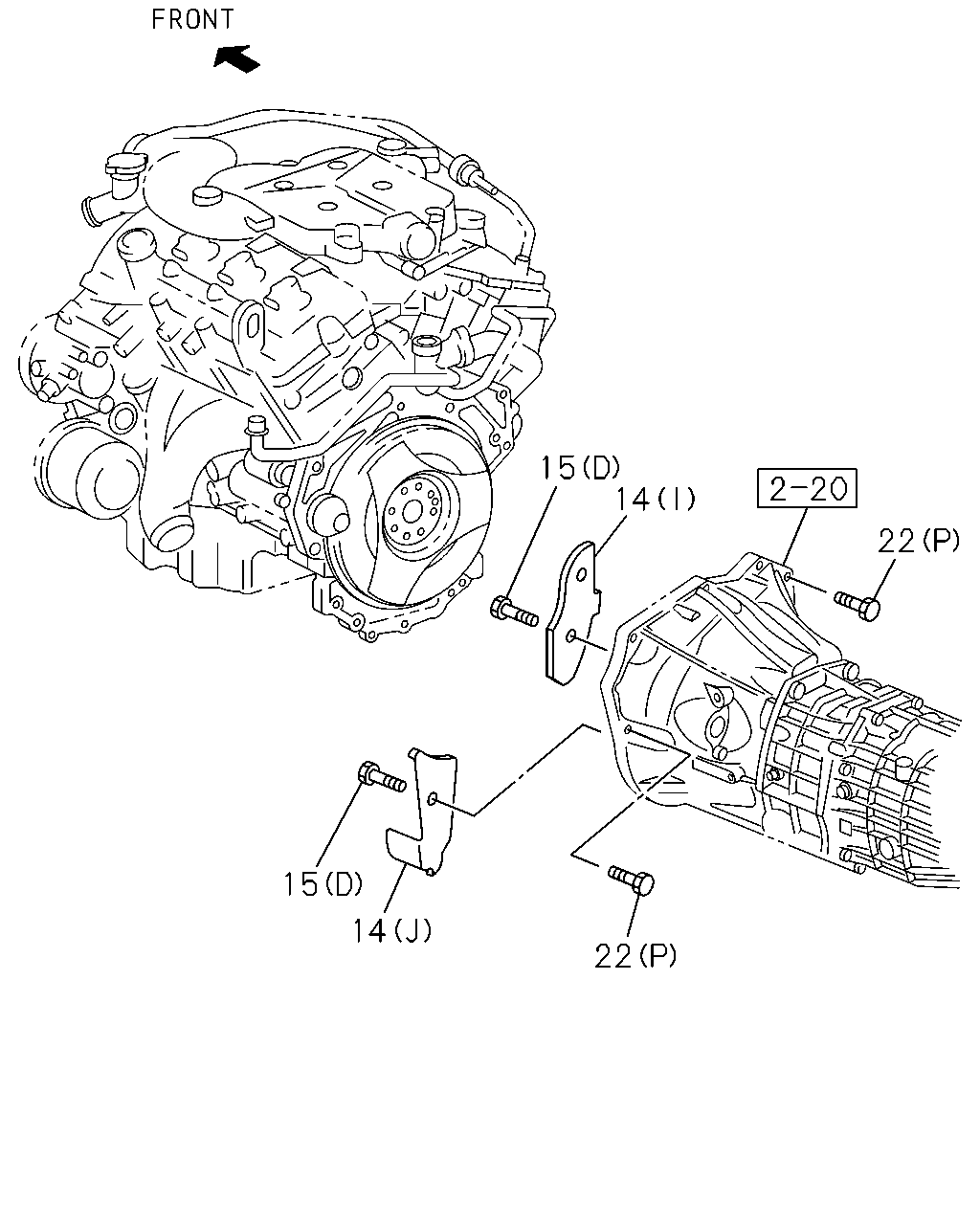

14	00.679 COVER; UNDER,TRANS HF V6 ENG(LCA) (I)	8-98001-230-0	01	1	0509-	●
14	00.679 COVER; UNDER,TRANS HF V6 ENG(LCA) (J)	8-98001-231-0	01	1	0509-0509	●
15	00.685 BOLT; UNDER COVER TO TRANS 6VE1 ENG(LX5) 03.671 (A) M6X10 FLANGE	0-28050-610-0	04	1	0307-0609		●
15	00.685 BOLT; UNDER COVER TO TRANS 6VE1 ENG(LX5) (B) M6X25 FLANGE	0-28650-625-0	01	1	0307-0609		●
15	00.685 BOLT; UNDER COVER TO TRANS 6VE1 ENG(LX5) (C) M6X40 FLANGE	0-28650-640-0	01	1	0307-0609		●
15	00.685 BOLT; UNDER COVER TO TRANS HF V6 ENG(LCA) (D)	8-92138-321-0	02	1	0509-	●
15	00.685 BOLT; UNDER COVER TO TRANS 4JJ1-TCX ENG(LS0) 03.162 (E) M6X12 FLANGE	0-28050-612-0	02	1	0610-			●
22	00.685 BOLT; TRANS CASE TO ENG 04.510 (N) M10X35 FLANGE	0-28051-035-0	01	1	0307-0412				●
22	00.685 BOLT; TRANS CASE TO ENG 04.510 (N) M10X35 FLANGE	0-28051-035-0	02	1	0501-				●
22	00.685 BOLT; TRANS CASE TO ENG (G) M10X40 FLANGE	0-28051-040-0	04	1	0307-0412				●
22	00.685 BOLT; TRANS CASE TO ENG 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) (G) M10X40 FLANGE	0-28051-040-0	04	1	0307-0412		●
22	00.685 BOLT; TRANS CASE TO ENG (G) M10X40 FLANGE	0-28051-040-0	03	1	0501-0609				●
22	00.685 BOLT; TRANS CASE TO ENG (G) M10X40 FLANGE	0-28051-040-0	03	1	0610-				●
22	00.685 BOLT; TRANS CASE TO ENG (O) M10X45 FLANGE	0-28051-045-0	01	1	0307-				●
22	00.685 BOLT; TRANS CASE TO ENG (K) M12X40 FLANGE	0-28051-240-0	01	1	0307-0412				●
22	00.685 BOLT; TRANS CASE TO ENG 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) (K) M12X40 FLANGE	0-28051-240-0	01	1	0307-0412		●
22	00.685 BOLT; TRANS CASE TO ENG 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) (K) M12X40 FLANGE	0-28051-240-0	01	1	0501-0609		●
22	00.685 BOLT; TRANS CASE TO ENG 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) (K) M12X40 FLANGE	0-28051-240-0	01	1	0610-0612		●			●
22	00.685 BOLT; TRANS CASE TO ENG (K) M12X40 FLANGE	0-28051-240-0	01	1	0701-		●			●	●
22	00.685 BOLT; TRANS CASE TO ENG (K) M12X35 FLANGE	0-28051-235-0	01	1	0501-				●
22	00.685 BOLT; TRANS CASE TO ENG C24SE ENG(LG1) (F) M12X45 FLANGE	0-28151-245-0	05	1	0307-0609		●
22	00.685 BOLT; TRANS CASE TO ENG (F) M12X45 FLANGE	0-28151-245-0	05	1	0307-0609						●
22	00.685 BOLT; TRANS CASE TO ENG C24SE ENG(LG1) (F) M12X45 FLANGE	0-28151-245-0	05	1	0610-		●			●	●
22	00.685 BOLT; TRANS CASE TO ENG C24SE ENG(LG1) (M) M12X60 FLANGE	0-28151-260-0	01	1	0307-0609		●
22	00.685 BOLT; TRANS CASE TO ENG (M) M12X60 FLANGE	0-28151-260-0	01	1	0307-0609						●
22	00.685 BOLT; TRANS CASE TO ENG C24SE ENG(LG1) (M) M12X60 FLANGE	0-28151-260-0	01	1	0610-		●			●	●
22	00.685 BOLT; TRANS CASE TO ENG C24SE ENG(LG1) (I) M8X40 FLANGE	0-28650-840-0	02	1	0307-0609		●
22	00.685 BOLT; TRANS CASE TO ENG (I) M8X40 FLANGE	0-28650-840-0	02	1	0307-0609						●
22	00.685 BOLT; TRANS CASE TO ENG C24SE ENG(LG1) (I) M8X40 FLANGE	0-28650-840-0	02	1	0610-		●			●	●
22	00.685 BOLT; TRANS CASE TO ENG 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) (L) M10X60 FLANGE	0-28051-060-0	02	1	0307-0609		●
22	00.685 BOLT; TRANS CASE TO ENG 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) (L) M10X60 FLANGE	0-28051-060-0	02	1	0610-0612		●			●
22	00.685 BOLT; TRANS CASE TO ENG (L) M10X60 FLANGE	0-28051-060-0	02	1	0701-		●			●	●
22	00.685 BOLT; TRANS CASE TO ENG 6VE1 ENG(LX5) (J) M12X80 FLANGE	0-28051-280-0	01	1	0307-0609		●
22	00.685 BOLT; TRANS CASE TO ENG 6VE1 ENG(LX5) (F) M12X45 FLANGE	0-28151-245-0	04	1	0307-0609		●
22	00.685 BOLT; TRANS CASE TO ENG 6VE1 ENG(LX5) (C) M12X50 FLANGE	0-28151-250-0	02	1	0307-0609		●
22	00.685 BOLT; TRANS CASE TO ENG 6VE1 ENG(LX5) (E) M12X20,M12X45 L=76	8-97328-823-0	01	1	0307-0609		●
22	00.685 BOLT; TRANS CASE TO ENG (G) M10X40 FLANGE	0-28051-040-0	04	1	0501-0609		●				●
22	00.685 BOLT; TRANS CASE TO ENG 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JH1-TC ENG(RDM) (G) M10X40 FLANGE	0-28051-040-0	04	1	0610-0612		●			●	●
22	00.685 BOLT; TRANS CASE TO ENG 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0) (G) M10X40 FLANGE	0-28051-040-0	04	1	0701-0912		●			●	●
22	00.685 BOLT; TRANS CASE TO ENG 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JH1-TC ENG(RDM) (G) M10X40 FLANGE	0-28051-040-0	04	1	1001-		●			●	●
22	00.685 BOLT; TRANS CASE TO ENG HF V6 ENG(LCA) (P)	8-92138-719-0	11	1	0509-	●
22	00.685 BOLT; TRANS CASE TO ENG 4JJ1-TCX ENG(LS0) 00.724 (N) M12X50 FLANGE	0-28051-250-0	08	1	0610-			●
27	00.685 NUT; CLU HSG TO TRANS 03.162 M10 FLANGE	0-91180-110-0	02	1	0307-0609				●
27	00.685 NUT; CLU HSG TO TRANS 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) 03.162 M10 FLANGE	0-91180-110-0	02	1	0307-0609		●
27	00.685 NUT; CLU HSG TO TRANS 03.162 M10 FLANGE	0-91180-110-0	02	1	0610-0612				●
27	00.685 NUT; CLU HSG TO TRANS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JH1-TC ENG(RDM) 03.162 M10 FLANGE	0-91180-110-0	02	1	0610-0612		●			●	●
27	00.685 NUT; CLU HSG TO TRANS 03.162 M10 FLANGE	0-91180-110-0	02	1	0701-0912				●
27	00.685 NUT; CLU HSG TO TRANS 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0) 03.162 M10 FLANGE	0-91180-110-0	02	1	0701-0912		●			●	●
27	00.685 NUT; CLU HSG TO TRANS 03.162 M10 FLANGE	0-91180-110-0	02	1	1001-				●
27	00.685 NUT; CLU HSG TO TRANS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) 03.162 M10 FLANGE	0-91180-110-0	02	1	1001-		●			●	●
27	00.685 NUT; CLU HSG TO TRANS 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) 02.042 M12 FLANGE	0-91180-112-0	02	1	0307-0404		●
27	00.685 NUT; CLU HSG TO TRANS 6VE1 ENG(LX5) 02.042 M12 FLANGE	0-91180-112-0	01	1	0307-0609		●
27	00.685 NUT; CLU HSG TO TRANS 4JJ1-TCX ENG(LS0) 02.042 M12 FLANGE	0-91180-112-0	02	1	0610-			●
46	00.685 BOLT; TRANS CASE 6VE1 ENG(LX5) 03.162 M6X12 FLANGE	0-28050-612-0	02	1	0307-0609		●

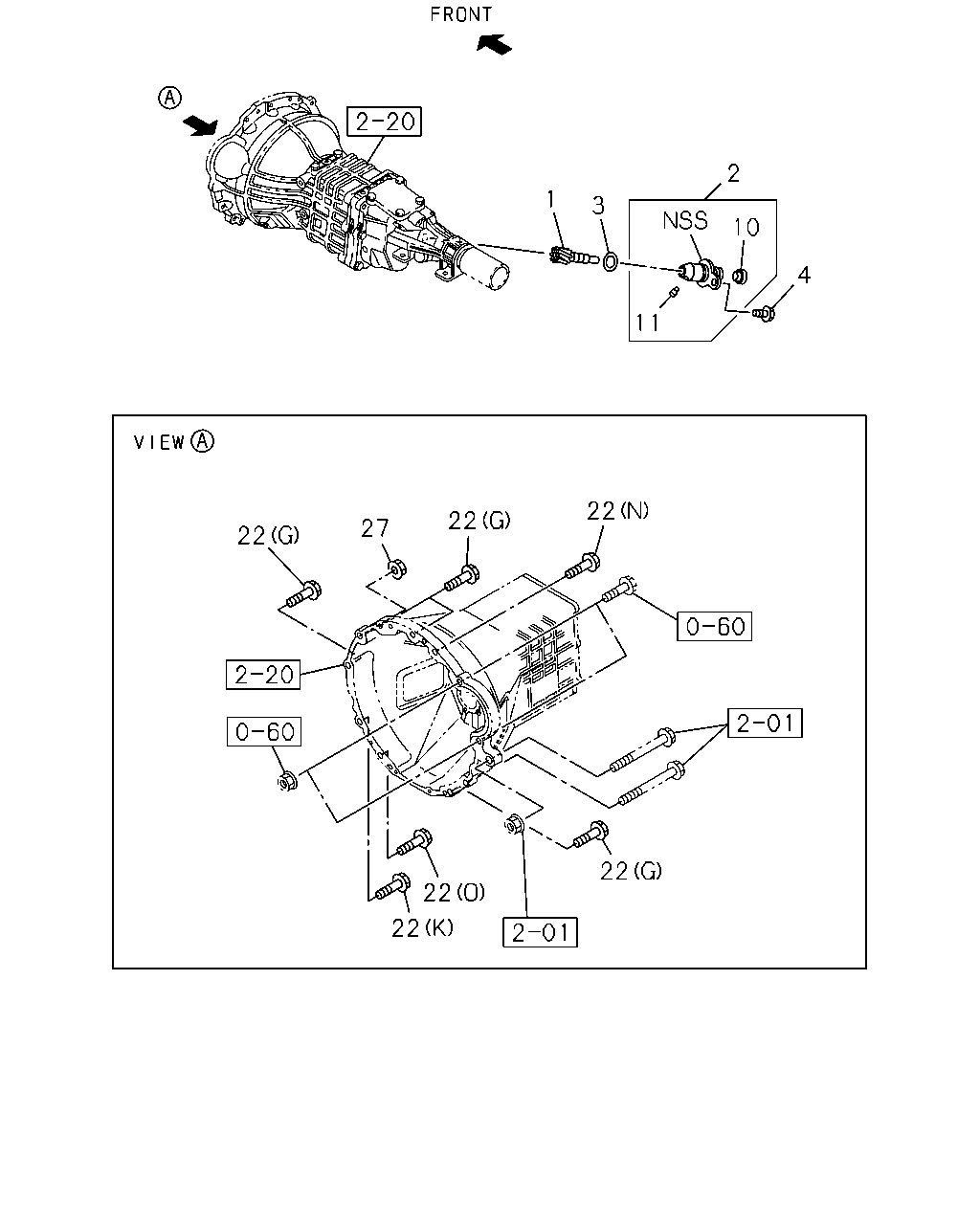

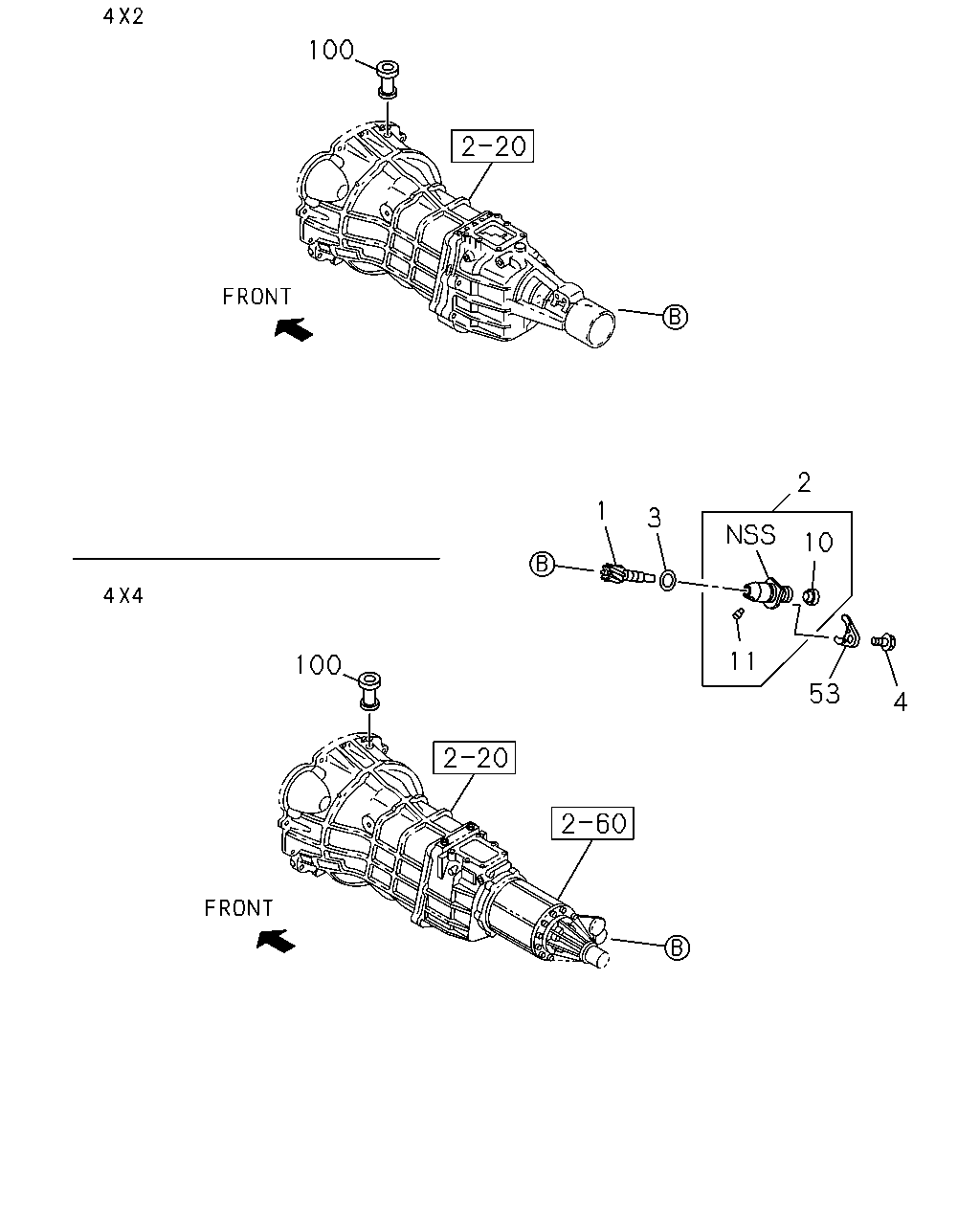

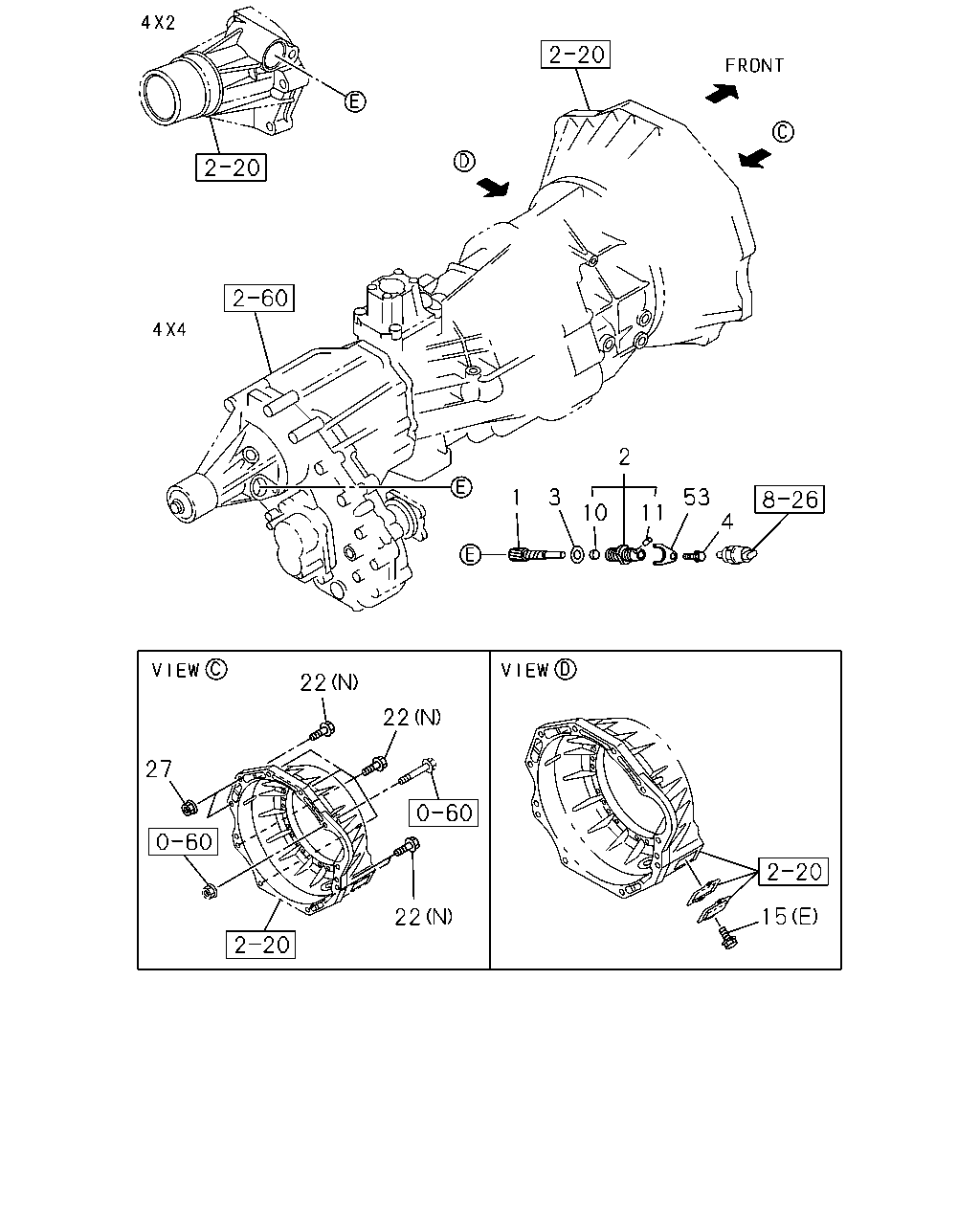

1 3 2 10 4 11 22 22 22 22 22 27 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	04.337 GEAR; DRIVEN,SPD 4X2 REGULAR CAB LONG(TFB*SF) 4JA1-T ENG(LP0) FINAL GEAR RATIO 43/10(GY2) FRT&RR 215/70R15C GOODYEAR TIRE(QFT) KENYA EQUIPMENT(CL1) Z=19	8-94473-303-2	01	1	1001-		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/10(GT5) Z=18	8-94473-304-2	01	1	0307-0506				●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/9(GT3),FINAL GEARRATIO 43/10(GY2) FRT&RR 245/70R16(BSW),FRT&RR 225/75R15C(BZC),FRT&RR 245/70R16(BZD) Z=18	8-94473-304-2	01	1	0507-0508				●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 195R14C(CNU) Z=18	8-94473-304-2	01	1	0507-0508				●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 215/70R15C(BSU) EXC. AUSTRALIA EQUIPMENT(B13) Z=18	8-94473-304-2	01	1	0507-0508				●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/9(GT3),FINAL GEARRATIO 43/10(GY2) FRT&RR 225/75R15C(BZC),FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) Z=18	8-94473-304-2	01	1	0509-0609				●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 195R14C(CNU),FRT&RR 215/70R15C(QBQ) Z=18	8-94473-304-2	01	1	0509-0609				●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 215/70R15C(QBQ) EXC. AUSTRALIA EQUIPMENT(B13) Z=18	8-94473-304-2	01	1	0509-0609				●
1	04.337 GEAR; DRIVEN,SPD 4X2 LONG(TFB**F) FINAL GEAR RATIO 41/9(GT3),FINAL GEARRATIO 43/10(GY2) FRT&RR 225/75R15C(BZC),FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) Z=18	8-94473-304-2	01	1	0610-				●
1	04.337 GEAR; DRIVEN,SPD 4X2 LONG(TFB**F) FINAL GEAR RATIO 41/10(GT5) FRT&RR 215/70R15C GOODYEAR TIRE(QFT) EXC. AUSTRALIA EQUIPMENT(B13) Z=18	8-94473-304-2	01	1	0610-				●
1	04.337 GEAR; DRIVEN,SPD 4X2 LONG(TFB**F) FINAL GEAR RATIO 41/10(GT5) FRT&RR 195R14C(CNU),FRT&RR 215/70R15CGOODYEAR TIRE(QFT) Z=18	8-94473-304-2	01	1	0610-				●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 215/70R15C(BSU) AUSTRALIA EQUIPMENT(B13) Z=19	8-94473-303-2	01	1	0307-0609		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 43/12(GM0) FRT&RR 225/75R15C(BZC) Z=18	8-98004-535-0	01	1	0610-			●
1	04.337 GEAR; DRIVEN,SPD 4X2 LONG(TFB**F) FINAL GEAR RATIO 41/11(GT4) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) Z=18	8-98004-535-0	01	1	0610-			●
1	04.337 GEAR; DRIVEN,SPD 4X2 EXTRA LONG(TFB**K) FINAL GEAR RATIO 41/11(GT4) FRT&RR 245/70R16(BZD) Z=18	8-98004-535-0	01	1	0610-			●
1	04.337 GEAR; DRIVEN,SPD 4X2 LONG(TFB**F) FINAL GEAR RATIO 41/12(GU6) FRT&RR 215/70R15C GOODYEAR TIRE(QFT) AUSTRALIA EQUIPMENT(B13) Z=18	8-98004-535-0	01	1	0610-			●
1	04.337 GEAR; DRIVEN,SPD 4X2 EXTRA LONG(TFB**K) FINAL GEAR RATIO 41/12(GU6) FRT&RR 215/70R15C GOODYEAR TIRE(QFT) Z=18	8-98004-535-0	01	1	0610-			●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/9(GT3) FRT&RR 215/70R15C(BSU) Z=17	8-94473-307-2	01	1	0307-0609		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/9(GT3) EXC. AUSTRALIA EQUIPMENT(B13) Z=17	8-94473-307-2	01	1	0307-0609						●
1	04.337 GEAR; DRIVEN,SPD 4X2 LONG(TFB**F) FINAL GEAR RATIO 41/9(GT3) FRT&RR 195R14C(CNU) EXC. AUSTRALIA EQUIPMENT(B13) Z=17	8-94473-307-2	01	1	0610-		●		●	●
1	04.337 GEAR; DRIVEN,SPD 4X2 LONG(TFB**F) FINAL GEAR RATIO 41/9(GT3) FRT&RR 215/70R15C GOODYEAR TIRE(QFT) Z=17	8-94473-307-2	01	1	0610-		●		●	●
1	04.337 GEAR; DRIVEN,SPD 4X2 REGULAR CAB LONG(TFB5SF) 4X2 CREW CAB LONG(TFB5WF) FINAL GEAR RATIO 41/9(GT3) FRT&RR 195R14C(CNU) EXC. AUSTRALIA EQUIPMENT(B13) Z=17	8-94473-307-2	01	1	0610-						●
1	04.337 GEAR; DRIVEN,SPD 4X2 REGULAR CAB LONG(TFB5SF) 4X2 REGULAR CAB EXTRA LONG(TFB5SK) 4X2 CREW CAB LONG(TFB5WF) FINAL GEAR RATIO 41/9(GT3) FRT&RR 215/70R15C GOODYEAR TIRE(QFT) Z=17	8-94473-307-2	01	1	0610-						●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 43/10(GY2) FRT&RR 195R14C(CNU) Z=16	8-94473-308-2	01	1	0307-0609		●
1	04.337 GEAR; DRIVEN,SPD 4X2 LONG(TFB**F) FINAL GEAR RATIO 43/10(GY2) FRT&RR 195R14C(CNU) Z=16	8-94473-308-2	01	1	0610-		●		●	●
1	04.337 GEAR; DRIVEN,SPD 4X2 REGULAR CAB LONG(TFB5SF) 4X2 REGULAR CAB EXTRA LONG(TFB5SK) 4X2 CREW CAB LONG(TFB5WF) FINAL GEAR RATIO 43/10(GY2) FRT&RR 195R14C(CNU) Z=16	8-94473-308-2	01	1	0610-						●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 43/11(GW1) FRT&RR 195R14C(CNU) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) Z=17	8-97012-085-2	01	1	0307-0508		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 225/75R15C(BZC) EXC. AUSTRALIA EQUIPMENT(B13) Z=17	8-97012-085-2	01	1	0307-0508		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16(BSW),FRT&RR 245/70R16(BZD) EXC. AUSTRALIA EQUIPMENT(B13) Z=17	8-97012-085-2	01	1	0307-0508		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 43/11(GW1) FRT&RR 215/70R15C(BSU) Z=17	8-97012-085-2	01	1	0307-0508		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 225/75R15C(BZC) EXC. AUSTRALIA EQUIPMENT(B13) Z=17	8-97012-085-2	01	1	0509-0609		●				●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) EXC. AUSTRALIA EQUIPMENT(B13) Z=17	8-97012-085-2	01	1	0509-0609		●				●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 43/11(GW1) HONG KONG EQUIPMENT(B14),FRT&RR 195R14C(CNU),SINGAPORE EQUIPMENT(2G0) Z=17	8-97012-085-2	01	1	0509-0609		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 43/11(GW1) FRT&RR 215/70R15C(QBQ) Z=17	8-97012-085-2	01	1	0509-0609		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/11(GT4) FRT&RR 195R14C(CNU) Z=17	8-97012-085-2	01	1	0610-		●			●	●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 225/75R15C(BZC) EXC. AUSTRALIA EQUIPMENT(B13) Z=17	8-97012-085-2	01	1	0610-		●			●	●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) Z=17	8-97012-085-2	01	1	0610-		●			●	●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) EXC. AUSTRALIA EQUIPMENT(B13) Z=17	8-97012-085-2	01	1	0610-		●			●	●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 43/11(GW1) FRT&RR 195R14C(CNU) EXC. HONG KONG EQUIPMENT(B14), SINGAPORE EQUIPMENT(2G0) Z=18	8-97012-086-2	01	1	0307-0402		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 215/70R15C(BSU) EXC. AUSTRALIA EQUIPMENT(B13) Z=18	8-97012-086-2	01	1	0307-0402		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 225/75R15C(BZC) AUSTRALIA EQUIPMENT(B13) Z=18	8-97012-086-2	01	1	0307-0402		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16(BSW),FRT&RR 245/70R16(BZD) AUSTRALIA EQUIPMENT(B13) Z=18	8-97012-086-2	01	1	0307-0402		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 43/11(GW1) FRT&RR 195R14C(CNU) EXC. HONG KONG EQUIPMENT(B14), SINGAPORE EQUIPMENT(2G0) Z=18	8-97012-086-2	01	1	0403-0508		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 215/70R15C(BSU) EXC. AUSTRALIA EQUIPMENT(B13) Z=18	8-97012-086-2	01	1	0403-0508		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 225/75R15C(BZC) AUSTRALIA EQUIPMENT(B13) Z=18	8-97012-086-2	01	1	0403-0508		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16(BSW),FRT&RR 245/70R16(BZD) AUSTRALIA EQUIPMENT(B13) Z=18	8-97012-086-2	01	1	0403-0508		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/9(GT3) FRT&RR 245/70R16(BSW) Z=18	8-97012-086-2	01	1	0403-0508		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 225/75R15C(BZC) AUSTRALIA EQUIPMENT(B13) Z=18	8-97012-086-2	01	1	0509-0609		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 215/70R15C(QBQ) EXC. AUSTRALIA EQUIPMENT(B13) Z=18	8-97012-086-2	01	1	0509-0609		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 43/11(GW1) FRT&RR 195R14C(CNU) EXC. HONG KONG EQUIPMENT(B14), SINGAPORE EQUIPMENT(2G0) Z=18	8-97012-086-2	01	1	0509-0609		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) AUSTRALIA EQUIPMENT(B13) Z=18	8-97012-086-2	01	1	0509-0609		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 225/75R15C(BZC) AUSTRALIA EQUIPMENT(B13) Z=18	8-97012-086-2	01	1	0610-0709		●			●	●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 215/70R15C(QBQ),FRT&RR 215/70R15C GOODYEAR TIRE(QFT) EXC. AUSTRALIA EQUIPMENT(B13) Z=18	8-97012-086-2	01	1	0610-0709		●			●	●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 43/11(GW1) FRT&RR 195R14C(CNU) EXC. HONG KONG EQUIPMENT(B14), SINGAPORE EQUIPMENT(2G0) Z=18	8-97012-086-2	01	1	0610-0709		●			●	●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) AUSTRALIA EQUIPMENT(B13) Z=18	8-97012-086-2	01	1	0610-0709		●			●	●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 215/70R15C GOODYEAR TIRE(QFT) EXC. AUSTRALIA EQUIPMENT(B13) Z=18	8-97012-086-2	01	1	0710-0912		●			●	●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 43/11(GW1) FRT&RR 195R14C(CNU) EXC. HONG KONG EQUIPMENT(B14), SINGAPORE EQUIPMENT(2G0) Z=18	8-97012-086-2	01	1	0710-0912		●			●	●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) AUSTRALIA EQUIPMENT(B13) Z=18	8-97012-086-2	01	1	0710-0912		●			●	●
1	04.337 GEAR; DRIVEN,SPD 4X2 REGULAR CAB LONG(TFB5SF) 4X2 CREW CAB LONG(TFB5WF) FINAL GEAR RATIO 43/11(GW1) FRT&RR 195R14C(CNU) EXC. HONG KONG EQUIPMENT(B14), SINGAPORE EQUIPMENT(2G0) Z=18	8-97012-086-2	01	1	1001-		●			●	●
1	04.337 GEAR; DRIVEN,SPD 4X2 LONG(TFB**F) FINAL GEAR RATIO 41/10(GT5) FRT&RR 215/70R15C GOODYEAR TIRE(QFT) EXC. AUSTRALIA EQUIPMENT(B13) Z=18	8-97012-086-2	01	1	1001-		●			●
1	04.337 GEAR; DRIVEN,SPD 4X2 EXTEND CAB LONG(TFB*CF) FINAL GEAR RATIO 43/11(GW1) FRT&RR 195R14C(CNU) Z=18	8-97012-086-2	01	1	1001-		●			●
1	04.337 GEAR; DRIVEN,SPD 4X2 LONG(TFB**F) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) AUSTRALIA EQUIPMENT(B13) Z=18	8-97012-086-2	01	1	1001-		●			●
1	04.337 GEAR; DRIVEN,SPD 4X2 REGULAR CAB LONG(TFB*SF) 4JA1-T ENG(LP0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 195R14C(CNU) KENYA EQUIPMENT(CL1) Z=18	8-97012-086-2	01	1	1001-		●
1	04.337 GEAR; DRIVEN,SPD 4X2 REGULAR CAB LONG(TFB5SF) 4X2 CREW CAB LONG(TFB5WF) FINAL GEAR RATIO 41/10(GT5) FRT&RR 215/70R15C GOODYEAR TIRE(QFT) EXC. AUSTRALIA EQUIPMENT(B13) Z=18	8-97012-086-2	01	1	1001-						●
1	04.337 GEAR; DRIVEN,SPD 4X2 REGULAR CAB EXTRA LONG(TFB*SK) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16(BZD) Z=18	8-97012-086-2	01	1	1001-						●
1	04.337 GEAR; DRIVEN,SPD 4X2 REGULAR CAB LONG(TFB5SF) 4X2 CREW CAB LONG(TFB5WF) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) AUSTRALIA EQUIPMENT(B13) Z=18	8-97012-086-2	01	1	1001-						●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 41/10(GT5) Z=17	8-97238-583-0	01	1	0307-0508		●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16(BSW),FRT&RR 245/70R16(BZD) EXC. AUSTRALIA EQUIPMENT(B13) Z=17	8-97238-583-0	01	1	0307-0508		●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 225/75R15C(BZC) EXC. AUSTRALIA EQUIPMENT(B13) Z=17	8-97238-583-0	01	1	0509-0609		●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) EXC. AUSTRALIA EQUIPMENT(B13) Z=17	8-97238-583-0	01	1	0509-0609		●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) EXC. AUSTRALIA EQUIPMENT(B13) Z=17	8-97238-583-0	01	1	0610-0709	●	●			●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) Z=17	8-97238-583-0	01	1	0610-0709					●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 225/75R15C(BZC) EXC. AUSTRALIA EQUIPMENT(B13) Z=17	8-97238-583-0	01	1	0610-0709					●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) EXC. AUSTRALIA EQUIPMENT(B13) Z=17	8-97238-583-0	01	1	0710-		●	●		●	●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) Z=17	8-97238-583-0	01	1	0710-					●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 225/75R15C(BZC) EXC. AUSTRALIA EQUIPMENT(B13) Z=17	8-97238-583-0	01	1	0710-					●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 41/9(GT3) Z=16	8-97238-588-0	01	1	0307-0508		●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 41/9(GT3) FRT&RR 225/75R15C(BZC) EXC. AUSTRALIA EQUIPMENT(B13) Z=16	8-97238-588-0	01	1	0509-0609		●				●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 43/9(GT2) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) EXC. AUSTRALIA EQUIPMENT(B13) Z=16	8-97238-588-0	01	1	0509-0609						●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 43/9(GT2) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) EXC. AUSTRALIA EQUIPMENT(B13) Z=16	8-97238-588-0	01	1	0610-0707		●			●	●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 41/9(GT3) FRT&RR 225/75R15C(BZC) EXC. AUSTRALIA EQUIPMENT(B13) Z=16	8-97238-588-0	01	1	0610-0707		●			●	●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 43/9(GT2) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) EXC. AUSTRALIA EQUIPMENT(B13) Z=16	8-97238-588-0	01	1	0708-		●			●	●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 41/9(GT3) FRT&RR 225/75R15C(BZC) EXC. AUSTRALIA EQUIPMENT(B13) Z=16	8-97238-588-0	01	1	0708-		●			●	●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16(BSW),FRT&RR 245/70R16(BZD) AUSTRALIA EQUIPMENT(B13) Z=18	8-97238-584-2	01	1	0307-0402		●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16(BSW),FRT&RR 245/70R16(BZD) AUSTRALIA EQUIPMENT(B13) Z=18	8-97238-584-2	01	1	0403-0508		●
1	04.337 GEAR; DRIVEN,SPD 4X4 LONG(TFS**F) FINAL GEAR RATIO 41/9(GT3) FRT&RR 245/70R16(BSW) Z=18	8-97238-584-2	01	1	0403-0508		●
1	04.337 GEAR; DRIVEN,SPD 4X4 EXTRA LONG(TFS**K) Z=18	8-97238-584-2	01	1	0403-0508		●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) AUSTRALIA EQUIPMENT(B13) Z=18	8-97238-584-2	01	1	0509-0509		●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 43/10(GY2) FRT&RR 225/75R15C(BZC) Z=18	8-97238-584-2	01	1	0509-0509		●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) AUSTRALIA EQUIPMENT(B13) Z=18	8-97238-584-2	01	1	0509-0609		●				●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 43/10(GY2) FRT&RR 225/75R15C(BZC) Z=18	8-97238-584-2	01	1	0509-0609		●
1	04.337 GEAR; DRIVEN,SPD 4X4 LONG(TFS**F) FINAL GEAR RATIO 43/10(GY2) FRT&RR 225/75R15C(BZC) Z=18	8-97238-584-2	01	1	0610-		●			●
1	04.337 GEAR; DRIVEN,SPD 4X4 REGULAR CAB LONG(TFS5SF) 4X4 CREW CAB LONG(TFS5WF) FINAL GEAR RATIO 43/10(GY2) FRT&RR 225/75R15C(BZC) Z=18	8-97238-584-2	01	1	0610-						●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 43/11(GW1) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) Z=16	8-97169-434-1	01	1	0610-		●			●	●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/11(GT4),FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) Z=16	8-97169-434-1	01	1	0610-		●			●	●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 41/11(GT4) FRT&RR 215/70R15C GOODYEAR TIRE(QFT) Z=16	8-97169-434-1	01	1	0610-		●				●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 43/12(GM0) FRT&RR 195R14C(CNU),FRT&RR 215/70R15C(QBQ),FRT&RR 215/70R15C GOODYEAR TIRE(QFT) Z=16	8-97169-434-1	01	1	0610-		●			●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) FINAL GEAR RATIO 41/11(GT4) FRT&RR 215/70R15C GOODYEAR TIRE(QFT) Z=16	8-97169-434-1	01	1	0610-					●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/9(GT3) FRT&RR 195R14C(CNU) Z=18	8-94473-306-2	01	1	0307-0508						●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 43/9(GT2) FRT&RR 215/70R15C(BSU) Z=18	8-94473-306-2	01	1	0307-0508						●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/9(GT3) AUSTRALIA EQUIPMENT(B13) Z=18	8-94473-306-2	01	1	0307-0508						●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/9(GT3) FRT&RR 195R14C(CNU) AUSTRALIA EQUIPMENT(B13) Z=18	8-94473-306-2	01	1	0509-0609		●		●		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 43/9(GT2) FRT&RR 215/70R15C(QBQ) Z=18	8-94473-306-2	01	1	0509-0609						●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 43/9(GT2) FRT&RR 215/70R15C(QBQ),FRT&RR 215/70R15C GOODYEAR TIRE(QFT) Z=18	8-94473-306-2	01	1	0610-		●		●	●	●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/9(GT3) FRT&RR 195R14C(CNU) AUSTRALIA EQUIPMENT(B13) Z=18	8-94473-306-2	01	1	0610-		●		●	●	●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 43/9(GT2),FINAL GEARRATIO 41/8(HC3) Z=17	8-97238-587-2	01	1	0307-0508						●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 43/9(GT2) FRT&RR 225/75R15C(BZC) Z=17	8-97238-587-2	01	1	0509-0609						●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 41/8(HC3) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) Z=17	8-97238-587-2	01	1	0509-0609						●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 43/9(GT2) FRT&RR 225/75R15C(BZC) Z=17	8-97238-587-2	01	1	0610-		●			●	●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 41/8(HC3) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) Z=17	8-97238-587-2	01	1	0610-		●			●	●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) 4JK1-TCS ENG(LKZ) FINAL GEAR RATIO 41/11(GT4) FRT&RR 225/75R15C(BZC) Z=16	8-97238-582-0	01	1	0610-0612					●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) 4JK1-TCS ENG(LKZ) FINAL GEAR RATIO 43/11(GW1) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) Z=16	8-97238-582-0	01	1	0610-0612					●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) Z=16	8-97238-582-0	01	1	0610-0612					●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) Z=16	8-97238-582-0	01	1	0701-0912					●
1	04.337 GEAR; DRIVEN,SPD 4X4 REGULAR CAB LONG(TFS5SF) 4X4 CREW CAB LONG(TFS5WF) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) Z=16	8-97238-582-0	01	1	1001-	●	●	●	●	●	●
1	04.337 GEAR; DRIVEN,SPD 4X4 CREW CAB LONG(TFS*WF) 4JK1-TCS ENG(LKZ) FINAL GEAR RATIO 41/11(GT4) FRT&RR 225/75R15C(BZC) Z=16	8-97238-582-0	01	1	1001-	●	●	●	●	●	●
1	04.337 GEAR; DRIVEN,SPD 4X4 CREW CAB LONG(TFS*WF) 4JK1-TCS ENG(LKZ) FINAL GEAR RATIO 43/11(GW1) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) Z=16	8-97238-582-0	01	1	1001-	●	●	●	●	●	●
1	04.337 GEAR; DRIVEN,SPD 4X2 LONG(TFB**F) FINAL GEAR RATIO 41/12(GU6) FRT&RR 215/70R15C GOODYEAR TIRE(QFT) EXC. AUSTRALIA EQUIPMENT(B13) Z=17	8-98004-534-0	01	1	0610-			●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/12(GM0) FRT&RR 225/75R15C(BZC) Z=18	8-98008-940-0	01	1	0610-			●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 41/11(GT4) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) Z=18	8-98008-940-0	01	1	0610-			●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER	8-94463-608-4	01	1	0307-				●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER 4X2(TFB***)	8-97021-133-4	01	1	0307-0609		●				●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER 4X2(TFB***)	8-97021-133-4	01	1	0610-		●	●		●	●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER 4X4(TFS***)	8-97305-454-1	01	1	0307-0609		●				●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER 4X4(TFS***)	8-97305-454-1	01	1	0610-		●	●		●	●
3	04.338 GASKET; BUSHING 4X2(TFB***) ID=21.7 OD=28.7	9-09921-100-0	01	1	0307-0609				●
3	04.338 GASKET; BUSHING ID=21.7 OD=28.7	9-09921-100-0	01	1	0307-0609		●				●
3	04.338 GASKET; BUSHING ID=21.7 OD=28.7	9-09921-100-0	01	1	0610-		●	●	●	●	●
4	04.338 BOLT; RET,DRIVEN GEAR 02.343 M8X16 FLANGE	0-28050-816-0	01	1	0307-				●
4	04.338 BOLT; RET,DRIVEN GEAR M8X20 FLANGE	0-28050-820-0	01	1	0307-0609		●				●
4	04.338 BOLT; RET,DRIVEN GEAR M8X20 FLANGE	0-28050-820-0	01	1	0610-		●	●		●	●
10	04.338 SEAL; OIL,DRIVE GEAR NOK	8-97131-328-1	01	1	0307-0609		●		●		●
10	04.338 SEAL; OIL,DRIVE GEAR NOK	8-97131-328-1	01	1	0610-		●	●	●	●	●
11	04.338 FILTER; BUSHING,SPEEDOMETER DRIV	8-94446-571-1	01	1	0307-0609		●		●		●
11	04.338 FILTER; BUSHING,SPEEDOMETER DRIV	8-94446-571-1	01	1	0610-		●	●	●	●	●
22	00.685 BOLT; TRANS CASE TO ENG 04.510 (N) M10X35 FLANGE	0-28051-035-0	01	1	0307-0412				●
22	00.685 BOLT; TRANS CASE TO ENG 04.510 (N) M10X35 FLANGE	0-28051-035-0	02	1	0501-				●
22	00.685 BOLT; TRANS CASE TO ENG (G) M10X40 FLANGE	0-28051-040-0	04	1	0307-0412				●
22	00.685 BOLT; TRANS CASE TO ENG 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) (G) M10X40 FLANGE	0-28051-040-0	04	1	0307-0412		●
22	00.685 BOLT; TRANS CASE TO ENG (G) M10X40 FLANGE	0-28051-040-0	03	1	0501-0609				●
22	00.685 BOLT; TRANS CASE TO ENG (G) M10X40 FLANGE	0-28051-040-0	03	1	0610-				●
22	00.685 BOLT; TRANS CASE TO ENG (O) M10X45 FLANGE	0-28051-045-0	01	1	0307-				●
22	00.685 BOLT; TRANS CASE TO ENG (K) M12X40 FLANGE	0-28051-240-0	01	1	0307-0412				●
22	00.685 BOLT; TRANS CASE TO ENG 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) (K) M12X40 FLANGE	0-28051-240-0	01	1	0307-0412		●
22	00.685 BOLT; TRANS CASE TO ENG 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) (K) M12X40 FLANGE	0-28051-240-0	01	1	0501-0609		●
22	00.685 BOLT; TRANS CASE TO ENG 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) (K) M12X40 FLANGE	0-28051-240-0	01	1	0610-0612		●			●
22	00.685 BOLT; TRANS CASE TO ENG (K) M12X40 FLANGE	0-28051-240-0	01	1	0701-		●			●	●
22	00.685 BOLT; TRANS CASE TO ENG (K) M12X35 FLANGE	0-28051-235-0	01	1	0501-				●
22	00.685 BOLT; TRANS CASE TO ENG C24SE ENG(LG1) (F) M12X45 FLANGE	0-28151-245-0	05	1	0307-0609		●
22	00.685 BOLT; TRANS CASE TO ENG (F) M12X45 FLANGE	0-28151-245-0	05	1	0307-0609						●
22	00.685 BOLT; TRANS CASE TO ENG C24SE ENG(LG1) (F) M12X45 FLANGE	0-28151-245-0	05	1	0610-		●			●	●
22	00.685 BOLT; TRANS CASE TO ENG C24SE ENG(LG1) (M) M12X60 FLANGE	0-28151-260-0	01	1	0307-0609		●
22	00.685 BOLT; TRANS CASE TO ENG (M) M12X60 FLANGE	0-28151-260-0	01	1	0307-0609						●
22	00.685 BOLT; TRANS CASE TO ENG C24SE ENG(LG1) (M) M12X60 FLANGE	0-28151-260-0	01	1	0610-		●			●	●
22	00.685 BOLT; TRANS CASE TO ENG C24SE ENG(LG1) (I) M8X40 FLANGE	0-28650-840-0	02	1	0307-0609		●
22	00.685 BOLT; TRANS CASE TO ENG (I) M8X40 FLANGE	0-28650-840-0	02	1	0307-0609						●
22	00.685 BOLT; TRANS CASE TO ENG C24SE ENG(LG1) (I) M8X40 FLANGE	0-28650-840-0	02	1	0610-		●			●	●
22	00.685 BOLT; TRANS CASE TO ENG 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) (L) M10X60 FLANGE	0-28051-060-0	02	1	0307-0609		●
22	00.685 BOLT; TRANS CASE TO ENG 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) (L) M10X60 FLANGE	0-28051-060-0	02	1	0610-0612		●			●
22	00.685 BOLT; TRANS CASE TO ENG (L) M10X60 FLANGE	0-28051-060-0	02	1	0701-		●			●	●
22	00.685 BOLT; TRANS CASE TO ENG 6VE1 ENG(LX5) (J) M12X80 FLANGE	0-28051-280-0	01	1	0307-0609		●
22	00.685 BOLT; TRANS CASE TO ENG 6VE1 ENG(LX5) (F) M12X45 FLANGE	0-28151-245-0	04	1	0307-0609		●
22	00.685 BOLT; TRANS CASE TO ENG 6VE1 ENG(LX5) (C) M12X50 FLANGE	0-28151-250-0	02	1	0307-0609		●
22	00.685 BOLT; TRANS CASE TO ENG 6VE1 ENG(LX5) (E) M12X20,M12X45 L=76	8-97328-823-0	01	1	0307-0609		●
22	00.685 BOLT; TRANS CASE TO ENG (G) M10X40 FLANGE	0-28051-040-0	04	1	0501-0609		●				●
22	00.685 BOLT; TRANS CASE TO ENG 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JH1-TC ENG(RDM) (G) M10X40 FLANGE	0-28051-040-0	04	1	0610-0612		●			●	●
22	00.685 BOLT; TRANS CASE TO ENG 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0) (G) M10X40 FLANGE	0-28051-040-0	04	1	0701-0912		●			●	●
22	00.685 BOLT; TRANS CASE TO ENG 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JH1-TC ENG(RDM) (G) M10X40 FLANGE	0-28051-040-0	04	1	1001-		●			●	●
22	00.685 BOLT; TRANS CASE TO ENG HF V6 ENG(LCA) (P)	8-92138-719-0	11	1	0509-	●
22	00.685 BOLT; TRANS CASE TO ENG 4JJ1-TCX ENG(LS0) 00.724 (N) M12X50 FLANGE	0-28051-250-0	08	1	0610-			●
27	00.685 NUT; CLU HSG TO TRANS 03.162 M10 FLANGE	0-91180-110-0	02	1	0307-0609				●
27	00.685 NUT; CLU HSG TO TRANS 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) 03.162 M10 FLANGE	0-91180-110-0	02	1	0307-0609		●
27	00.685 NUT; CLU HSG TO TRANS 03.162 M10 FLANGE	0-91180-110-0	02	1	0610-0612				●
27	00.685 NUT; CLU HSG TO TRANS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JH1-TC ENG(RDM) 03.162 M10 FLANGE	0-91180-110-0	02	1	0610-0612		●			●	●
27	00.685 NUT; CLU HSG TO TRANS 03.162 M10 FLANGE	0-91180-110-0	02	1	0701-0912				●
27	00.685 NUT; CLU HSG TO TRANS 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0) 03.162 M10 FLANGE	0-91180-110-0	02	1	0701-0912		●			●	●
27	00.685 NUT; CLU HSG TO TRANS 03.162 M10 FLANGE	0-91180-110-0	02	1	1001-				●
27	00.685 NUT; CLU HSG TO TRANS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) 03.162 M10 FLANGE	0-91180-110-0	02	1	1001-		●			●	●
27	00.685 NUT; CLU HSG TO TRANS 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) 02.042 M12 FLANGE	0-91180-112-0	02	1	0307-0404		●
27	00.685 NUT; CLU HSG TO TRANS 6VE1 ENG(LX5) 02.042 M12 FLANGE	0-91180-112-0	01	1	0307-0609		●
27	00.685 NUT; CLU HSG TO TRANS 4JJ1-TCX ENG(LS0) 02.042 M12 FLANGE	0-91180-112-0	02	1	0610-			●

1 3 2 10 11 53 4 15 22 22 22 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	04.337 GEAR; DRIVEN,SPD 4X2 REGULAR CAB LONG(TFB*SF) 4JA1-T ENG(LP0) FINAL GEAR RATIO 43/10(GY2) FRT&RR 215/70R15C GOODYEAR TIRE(QFT) KENYA EQUIPMENT(CL1) Z=19	8-94473-303-2	01	1	1001-		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/10(GT5) Z=18	8-94473-304-2	01	1	0307-0506				●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/9(GT3),FINAL GEARRATIO 43/10(GY2) FRT&RR 245/70R16(BSW),FRT&RR 225/75R15C(BZC),FRT&RR 245/70R16(BZD) Z=18	8-94473-304-2	01	1	0507-0508				●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 195R14C(CNU) Z=18	8-94473-304-2	01	1	0507-0508				●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 215/70R15C(BSU) EXC. AUSTRALIA EQUIPMENT(B13) Z=18	8-94473-304-2	01	1	0507-0508				●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/9(GT3),FINAL GEARRATIO 43/10(GY2) FRT&RR 225/75R15C(BZC),FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) Z=18	8-94473-304-2	01	1	0509-0609				●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 195R14C(CNU),FRT&RR 215/70R15C(QBQ) Z=18	8-94473-304-2	01	1	0509-0609				●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 215/70R15C(QBQ) EXC. AUSTRALIA EQUIPMENT(B13) Z=18	8-94473-304-2	01	1	0509-0609				●
1	04.337 GEAR; DRIVEN,SPD 4X2 LONG(TFB**F) FINAL GEAR RATIO 41/9(GT3),FINAL GEARRATIO 43/10(GY2) FRT&RR 225/75R15C(BZC),FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) Z=18	8-94473-304-2	01	1	0610-				●
1	04.337 GEAR; DRIVEN,SPD 4X2 LONG(TFB**F) FINAL GEAR RATIO 41/10(GT5) FRT&RR 215/70R15C GOODYEAR TIRE(QFT) EXC. AUSTRALIA EQUIPMENT(B13) Z=18	8-94473-304-2	01	1	0610-				●
1	04.337 GEAR; DRIVEN,SPD 4X2 LONG(TFB**F) FINAL GEAR RATIO 41/10(GT5) FRT&RR 195R14C(CNU),FRT&RR 215/70R15CGOODYEAR TIRE(QFT) Z=18	8-94473-304-2	01	1	0610-				●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 215/70R15C(BSU) AUSTRALIA EQUIPMENT(B13) Z=19	8-94473-303-2	01	1	0307-0609		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 43/12(GM0) FRT&RR 225/75R15C(BZC) Z=18	8-98004-535-0	01	1	0610-			●
1	04.337 GEAR; DRIVEN,SPD 4X2 LONG(TFB**F) FINAL GEAR RATIO 41/11(GT4) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) Z=18	8-98004-535-0	01	1	0610-			●
1	04.337 GEAR; DRIVEN,SPD 4X2 EXTRA LONG(TFB**K) FINAL GEAR RATIO 41/11(GT4) FRT&RR 245/70R16(BZD) Z=18	8-98004-535-0	01	1	0610-			●
1	04.337 GEAR; DRIVEN,SPD 4X2 LONG(TFB**F) FINAL GEAR RATIO 41/12(GU6) FRT&RR 215/70R15C GOODYEAR TIRE(QFT) AUSTRALIA EQUIPMENT(B13) Z=18	8-98004-535-0	01	1	0610-			●
1	04.337 GEAR; DRIVEN,SPD 4X2 EXTRA LONG(TFB**K) FINAL GEAR RATIO 41/12(GU6) FRT&RR 215/70R15C GOODYEAR TIRE(QFT) Z=18	8-98004-535-0	01	1	0610-			●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/9(GT3) FRT&RR 215/70R15C(BSU) Z=17	8-94473-307-2	01	1	0307-0609		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/9(GT3) EXC. AUSTRALIA EQUIPMENT(B13) Z=17	8-94473-307-2	01	1	0307-0609						●
1	04.337 GEAR; DRIVEN,SPD 4X2 LONG(TFB**F) FINAL GEAR RATIO 41/9(GT3) FRT&RR 195R14C(CNU) EXC. AUSTRALIA EQUIPMENT(B13) Z=17	8-94473-307-2	01	1	0610-		●		●	●
1	04.337 GEAR; DRIVEN,SPD 4X2 LONG(TFB**F) FINAL GEAR RATIO 41/9(GT3) FRT&RR 215/70R15C GOODYEAR TIRE(QFT) Z=17	8-94473-307-2	01	1	0610-		●		●	●
1	04.337 GEAR; DRIVEN,SPD 4X2 REGULAR CAB LONG(TFB5SF) 4X2 CREW CAB LONG(TFB5WF) FINAL GEAR RATIO 41/9(GT3) FRT&RR 195R14C(CNU) EXC. AUSTRALIA EQUIPMENT(B13) Z=17	8-94473-307-2	01	1	0610-						●
1	04.337 GEAR; DRIVEN,SPD 4X2 REGULAR CAB LONG(TFB5SF) 4X2 REGULAR CAB EXTRA LONG(TFB5SK) 4X2 CREW CAB LONG(TFB5WF) FINAL GEAR RATIO 41/9(GT3) FRT&RR 215/70R15C GOODYEAR TIRE(QFT) Z=17	8-94473-307-2	01	1	0610-						●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 43/10(GY2) FRT&RR 195R14C(CNU) Z=16	8-94473-308-2	01	1	0307-0609		●
1	04.337 GEAR; DRIVEN,SPD 4X2 LONG(TFB**F) FINAL GEAR RATIO 43/10(GY2) FRT&RR 195R14C(CNU) Z=16	8-94473-308-2	01	1	0610-		●		●	●
1	04.337 GEAR; DRIVEN,SPD 4X2 REGULAR CAB LONG(TFB5SF) 4X2 REGULAR CAB EXTRA LONG(TFB5SK) 4X2 CREW CAB LONG(TFB5WF) FINAL GEAR RATIO 43/10(GY2) FRT&RR 195R14C(CNU) Z=16	8-94473-308-2	01	1	0610-						●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 43/11(GW1) FRT&RR 195R14C(CNU) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) Z=17	8-97012-085-2	01	1	0307-0508		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 225/75R15C(BZC) EXC. AUSTRALIA EQUIPMENT(B13) Z=17	8-97012-085-2	01	1	0307-0508		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16(BSW),FRT&RR 245/70R16(BZD) EXC. AUSTRALIA EQUIPMENT(B13) Z=17	8-97012-085-2	01	1	0307-0508		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 43/11(GW1) FRT&RR 215/70R15C(BSU) Z=17	8-97012-085-2	01	1	0307-0508		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 225/75R15C(BZC) EXC. AUSTRALIA EQUIPMENT(B13) Z=17	8-97012-085-2	01	1	0509-0609		●				●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) EXC. AUSTRALIA EQUIPMENT(B13) Z=17	8-97012-085-2	01	1	0509-0609		●				●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 43/11(GW1) HONG KONG EQUIPMENT(B14),FRT&RR 195R14C(CNU),SINGAPORE EQUIPMENT(2G0) Z=17	8-97012-085-2	01	1	0509-0609		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 43/11(GW1) FRT&RR 215/70R15C(QBQ) Z=17	8-97012-085-2	01	1	0509-0609		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/11(GT4) FRT&RR 195R14C(CNU) Z=17	8-97012-085-2	01	1	0610-		●			●	●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 225/75R15C(BZC) EXC. AUSTRALIA EQUIPMENT(B13) Z=17	8-97012-085-2	01	1	0610-		●			●	●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) Z=17	8-97012-085-2	01	1	0610-		●			●	●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) EXC. AUSTRALIA EQUIPMENT(B13) Z=17	8-97012-085-2	01	1	0610-		●			●	●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 43/11(GW1) FRT&RR 195R14C(CNU) EXC. HONG KONG EQUIPMENT(B14), SINGAPORE EQUIPMENT(2G0) Z=18	8-97012-086-2	01	1	0307-0402		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 215/70R15C(BSU) EXC. AUSTRALIA EQUIPMENT(B13) Z=18	8-97012-086-2	01	1	0307-0402		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 225/75R15C(BZC) AUSTRALIA EQUIPMENT(B13) Z=18	8-97012-086-2	01	1	0307-0402		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16(BSW),FRT&RR 245/70R16(BZD) AUSTRALIA EQUIPMENT(B13) Z=18	8-97012-086-2	01	1	0307-0402		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 43/11(GW1) FRT&RR 195R14C(CNU) EXC. HONG KONG EQUIPMENT(B14), SINGAPORE EQUIPMENT(2G0) Z=18	8-97012-086-2	01	1	0403-0508		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 215/70R15C(BSU) EXC. AUSTRALIA EQUIPMENT(B13) Z=18	8-97012-086-2	01	1	0403-0508		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 225/75R15C(BZC) AUSTRALIA EQUIPMENT(B13) Z=18	8-97012-086-2	01	1	0403-0508		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16(BSW),FRT&RR 245/70R16(BZD) AUSTRALIA EQUIPMENT(B13) Z=18	8-97012-086-2	01	1	0403-0508		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/9(GT3) FRT&RR 245/70R16(BSW) Z=18	8-97012-086-2	01	1	0403-0508		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 225/75R15C(BZC) AUSTRALIA EQUIPMENT(B13) Z=18	8-97012-086-2	01	1	0509-0609		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 215/70R15C(QBQ) EXC. AUSTRALIA EQUIPMENT(B13) Z=18	8-97012-086-2	01	1	0509-0609		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 43/11(GW1) FRT&RR 195R14C(CNU) EXC. HONG KONG EQUIPMENT(B14), SINGAPORE EQUIPMENT(2G0) Z=18	8-97012-086-2	01	1	0509-0609		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) AUSTRALIA EQUIPMENT(B13) Z=18	8-97012-086-2	01	1	0509-0609		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 225/75R15C(BZC) AUSTRALIA EQUIPMENT(B13) Z=18	8-97012-086-2	01	1	0610-0709		●			●	●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 215/70R15C(QBQ),FRT&RR 215/70R15C GOODYEAR TIRE(QFT) EXC. AUSTRALIA EQUIPMENT(B13) Z=18	8-97012-086-2	01	1	0610-0709		●			●	●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 43/11(GW1) FRT&RR 195R14C(CNU) EXC. HONG KONG EQUIPMENT(B14), SINGAPORE EQUIPMENT(2G0) Z=18	8-97012-086-2	01	1	0610-0709		●			●	●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) AUSTRALIA EQUIPMENT(B13) Z=18	8-97012-086-2	01	1	0610-0709		●			●	●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 215/70R15C GOODYEAR TIRE(QFT) EXC. AUSTRALIA EQUIPMENT(B13) Z=18	8-97012-086-2	01	1	0710-0912		●			●	●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 43/11(GW1) FRT&RR 195R14C(CNU) EXC. HONG KONG EQUIPMENT(B14), SINGAPORE EQUIPMENT(2G0) Z=18	8-97012-086-2	01	1	0710-0912		●			●	●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) AUSTRALIA EQUIPMENT(B13) Z=18	8-97012-086-2	01	1	0710-0912		●			●	●
1	04.337 GEAR; DRIVEN,SPD 4X2 REGULAR CAB LONG(TFB5SF) 4X2 CREW CAB LONG(TFB5WF) FINAL GEAR RATIO 43/11(GW1) FRT&RR 195R14C(CNU) EXC. HONG KONG EQUIPMENT(B14), SINGAPORE EQUIPMENT(2G0) Z=18	8-97012-086-2	01	1	1001-		●			●	●
1	04.337 GEAR; DRIVEN,SPD 4X2 LONG(TFB**F) FINAL GEAR RATIO 41/10(GT5) FRT&RR 215/70R15C GOODYEAR TIRE(QFT) EXC. AUSTRALIA EQUIPMENT(B13) Z=18	8-97012-086-2	01	1	1001-		●			●
1	04.337 GEAR; DRIVEN,SPD 4X2 EXTEND CAB LONG(TFB*CF) FINAL GEAR RATIO 43/11(GW1) FRT&RR 195R14C(CNU) Z=18	8-97012-086-2	01	1	1001-		●			●
1	04.337 GEAR; DRIVEN,SPD 4X2 LONG(TFB**F) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) AUSTRALIA EQUIPMENT(B13) Z=18	8-97012-086-2	01	1	1001-		●			●
1	04.337 GEAR; DRIVEN,SPD 4X2 REGULAR CAB LONG(TFB*SF) 4JA1-T ENG(LP0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 195R14C(CNU) KENYA EQUIPMENT(CL1) Z=18	8-97012-086-2	01	1	1001-		●
1	04.337 GEAR; DRIVEN,SPD 4X2 REGULAR CAB LONG(TFB5SF) 4X2 CREW CAB LONG(TFB5WF) FINAL GEAR RATIO 41/10(GT5) FRT&RR 215/70R15C GOODYEAR TIRE(QFT) EXC. AUSTRALIA EQUIPMENT(B13) Z=18	8-97012-086-2	01	1	1001-						●
1	04.337 GEAR; DRIVEN,SPD 4X2 REGULAR CAB EXTRA LONG(TFB*SK) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16(BZD) Z=18	8-97012-086-2	01	1	1001-						●
1	04.337 GEAR; DRIVEN,SPD 4X2 REGULAR CAB LONG(TFB5SF) 4X2 CREW CAB LONG(TFB5WF) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) AUSTRALIA EQUIPMENT(B13) Z=18	8-97012-086-2	01	1	1001-						●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 41/10(GT5) Z=17	8-97238-583-0	01	1	0307-0508		●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16(BSW),FRT&RR 245/70R16(BZD) EXC. AUSTRALIA EQUIPMENT(B13) Z=17	8-97238-583-0	01	1	0307-0508		●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 225/75R15C(BZC) EXC. AUSTRALIA EQUIPMENT(B13) Z=17	8-97238-583-0	01	1	0509-0609		●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) EXC. AUSTRALIA EQUIPMENT(B13) Z=17	8-97238-583-0	01	1	0509-0609		●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) EXC. AUSTRALIA EQUIPMENT(B13) Z=17	8-97238-583-0	01	1	0610-0709	●	●			●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) Z=17	8-97238-583-0	01	1	0610-0709					●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 225/75R15C(BZC) EXC. AUSTRALIA EQUIPMENT(B13) Z=17	8-97238-583-0	01	1	0610-0709					●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) EXC. AUSTRALIA EQUIPMENT(B13) Z=17	8-97238-583-0	01	1	0710-		●	●		●	●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) Z=17	8-97238-583-0	01	1	0710-					●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 225/75R15C(BZC) EXC. AUSTRALIA EQUIPMENT(B13) Z=17	8-97238-583-0	01	1	0710-					●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 41/9(GT3) Z=16	8-97238-588-0	01	1	0307-0508		●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 41/9(GT3) FRT&RR 225/75R15C(BZC) EXC. AUSTRALIA EQUIPMENT(B13) Z=16	8-97238-588-0	01	1	0509-0609		●				●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 43/9(GT2) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) EXC. AUSTRALIA EQUIPMENT(B13) Z=16	8-97238-588-0	01	1	0509-0609						●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 43/9(GT2) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) EXC. AUSTRALIA EQUIPMENT(B13) Z=16	8-97238-588-0	01	1	0610-0707		●			●	●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 41/9(GT3) FRT&RR 225/75R15C(BZC) EXC. AUSTRALIA EQUIPMENT(B13) Z=16	8-97238-588-0	01	1	0610-0707		●			●	●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 43/9(GT2) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) EXC. AUSTRALIA EQUIPMENT(B13) Z=16	8-97238-588-0	01	1	0708-		●			●	●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 41/9(GT3) FRT&RR 225/75R15C(BZC) EXC. AUSTRALIA EQUIPMENT(B13) Z=16	8-97238-588-0	01	1	0708-		●			●	●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16(BSW),FRT&RR 245/70R16(BZD) AUSTRALIA EQUIPMENT(B13) Z=18	8-97238-584-2	01	1	0307-0402		●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16(BSW),FRT&RR 245/70R16(BZD) AUSTRALIA EQUIPMENT(B13) Z=18	8-97238-584-2	01	1	0403-0508		●
1	04.337 GEAR; DRIVEN,SPD 4X4 LONG(TFS**F) FINAL GEAR RATIO 41/9(GT3) FRT&RR 245/70R16(BSW) Z=18	8-97238-584-2	01	1	0403-0508		●
1	04.337 GEAR; DRIVEN,SPD 4X4 EXTRA LONG(TFS**K) Z=18	8-97238-584-2	01	1	0403-0508		●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) AUSTRALIA EQUIPMENT(B13) Z=18	8-97238-584-2	01	1	0509-0509		●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 43/10(GY2) FRT&RR 225/75R15C(BZC) Z=18	8-97238-584-2	01	1	0509-0509		●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) AUSTRALIA EQUIPMENT(B13) Z=18	8-97238-584-2	01	1	0509-0609		●				●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 43/10(GY2) FRT&RR 225/75R15C(BZC) Z=18	8-97238-584-2	01	1	0509-0609		●
1	04.337 GEAR; DRIVEN,SPD 4X4 LONG(TFS**F) FINAL GEAR RATIO 43/10(GY2) FRT&RR 225/75R15C(BZC) Z=18	8-97238-584-2	01	1	0610-		●			●
1	04.337 GEAR; DRIVEN,SPD 4X4 REGULAR CAB LONG(TFS5SF) 4X4 CREW CAB LONG(TFS5WF) FINAL GEAR RATIO 43/10(GY2) FRT&RR 225/75R15C(BZC) Z=18	8-97238-584-2	01	1	0610-						●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 43/11(GW1) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) Z=16	8-97169-434-1	01	1	0610-		●			●	●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/11(GT4),FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) Z=16	8-97169-434-1	01	1	0610-		●			●	●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 41/11(GT4) FRT&RR 215/70R15C GOODYEAR TIRE(QFT) Z=16	8-97169-434-1	01	1	0610-		●				●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 43/12(GM0) FRT&RR 195R14C(CNU),FRT&RR 215/70R15C(QBQ),FRT&RR 215/70R15C GOODYEAR TIRE(QFT) Z=16	8-97169-434-1	01	1	0610-		●			●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) FINAL GEAR RATIO 41/11(GT4) FRT&RR 215/70R15C GOODYEAR TIRE(QFT) Z=16	8-97169-434-1	01	1	0610-					●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/9(GT3) FRT&RR 195R14C(CNU) Z=18	8-94473-306-2	01	1	0307-0508						●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 43/9(GT2) FRT&RR 215/70R15C(BSU) Z=18	8-94473-306-2	01	1	0307-0508						●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/9(GT3) AUSTRALIA EQUIPMENT(B13) Z=18	8-94473-306-2	01	1	0307-0508						●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/9(GT3) FRT&RR 195R14C(CNU) AUSTRALIA EQUIPMENT(B13) Z=18	8-94473-306-2	01	1	0509-0609		●		●		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 43/9(GT2) FRT&RR 215/70R15C(QBQ) Z=18	8-94473-306-2	01	1	0509-0609						●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 43/9(GT2) FRT&RR 215/70R15C(QBQ),FRT&RR 215/70R15C GOODYEAR TIRE(QFT) Z=18	8-94473-306-2	01	1	0610-		●		●	●	●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/9(GT3) FRT&RR 195R14C(CNU) AUSTRALIA EQUIPMENT(B13) Z=18	8-94473-306-2	01	1	0610-		●		●	●	●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 43/9(GT2),FINAL GEARRATIO 41/8(HC3) Z=17	8-97238-587-2	01	1	0307-0508						●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 43/9(GT2) FRT&RR 225/75R15C(BZC) Z=17	8-97238-587-2	01	1	0509-0609						●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 41/8(HC3) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) Z=17	8-97238-587-2	01	1	0509-0609						●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 43/9(GT2) FRT&RR 225/75R15C(BZC) Z=17	8-97238-587-2	01	1	0610-		●			●	●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 41/8(HC3) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) Z=17	8-97238-587-2	01	1	0610-		●			●	●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) 4JK1-TCS ENG(LKZ) FINAL GEAR RATIO 41/11(GT4) FRT&RR 225/75R15C(BZC) Z=16	8-97238-582-0	01	1	0610-0612					●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) 4JK1-TCS ENG(LKZ) FINAL GEAR RATIO 43/11(GW1) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) Z=16	8-97238-582-0	01	1	0610-0612					●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) Z=16	8-97238-582-0	01	1	0610-0612					●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) Z=16	8-97238-582-0	01	1	0701-0912					●
1	04.337 GEAR; DRIVEN,SPD 4X4 REGULAR CAB LONG(TFS5SF) 4X4 CREW CAB LONG(TFS5WF) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) Z=16	8-97238-582-0	01	1	1001-	●	●	●	●	●	●
1	04.337 GEAR; DRIVEN,SPD 4X4 CREW CAB LONG(TFS*WF) 4JK1-TCS ENG(LKZ) FINAL GEAR RATIO 41/11(GT4) FRT&RR 225/75R15C(BZC) Z=16	8-97238-582-0	01	1	1001-	●	●	●	●	●	●
1	04.337 GEAR; DRIVEN,SPD 4X4 CREW CAB LONG(TFS*WF) 4JK1-TCS ENG(LKZ) FINAL GEAR RATIO 43/11(GW1) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) Z=16	8-97238-582-0	01	1	1001-	●	●	●	●	●	●
1	04.337 GEAR; DRIVEN,SPD 4X2 LONG(TFB**F) FINAL GEAR RATIO 41/12(GU6) FRT&RR 215/70R15C GOODYEAR TIRE(QFT) EXC. AUSTRALIA EQUIPMENT(B13) Z=17	8-98004-534-0	01	1	0610-			●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/12(GM0) FRT&RR 225/75R15C(BZC) Z=18	8-98008-940-0	01	1	0610-			●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 41/11(GT4) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) Z=18	8-98008-940-0	01	1	0610-			●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER	8-94463-608-4	01	1	0307-				●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER 4X2(TFB***)	8-97021-133-4	01	1	0307-0609		●				●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER 4X2(TFB***)	8-97021-133-4	01	1	0610-		●	●		●	●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER 4X4(TFS***)	8-97305-454-1	01	1	0307-0609		●				●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER 4X4(TFS***)	8-97305-454-1	01	1	0610-		●	●		●	●
3	04.338 GASKET; BUSHING 4X2(TFB***) ID=21.7 OD=28.7	9-09921-100-0	01	1	0307-0609				●
3	04.338 GASKET; BUSHING ID=21.7 OD=28.7	9-09921-100-0	01	1	0307-0609		●				●
3	04.338 GASKET; BUSHING ID=21.7 OD=28.7	9-09921-100-0	01	1	0610-		●	●	●	●	●
4	04.338 BOLT; RET,DRIVEN GEAR 02.343 M8X16 FLANGE	0-28050-816-0	01	1	0307-				●
4	04.338 BOLT; RET,DRIVEN GEAR M8X20 FLANGE	0-28050-820-0	01	1	0307-0609		●				●
4	04.338 BOLT; RET,DRIVEN GEAR M8X20 FLANGE	0-28050-820-0	01	1	0610-		●	●		●	●
10	04.338 SEAL; OIL,DRIVE GEAR NOK	8-97131-328-1	01	1	0307-0609		●		●		●
10	04.338 SEAL; OIL,DRIVE GEAR NOK	8-97131-328-1	01	1	0610-		●	●	●	●	●
11	04.338 FILTER; BUSHING,SPEEDOMETER DRIV	8-94446-571-1	01	1	0307-0609		●		●		●
11	04.338 FILTER; BUSHING,SPEEDOMETER DRIV	8-94446-571-1	01	1	0610-		●	●	●	●	●
15	00.685 BOLT; UNDER COVER TO TRANS 6VE1 ENG(LX5) 03.671 (A) M6X10 FLANGE	0-28050-610-0	04	1	0307-0609		●
15	00.685 BOLT; UNDER COVER TO TRANS 6VE1 ENG(LX5) (B) M6X25 FLANGE	0-28650-625-0	01	1	0307-0609		●
15	00.685 BOLT; UNDER COVER TO TRANS 6VE1 ENG(LX5) (C) M6X40 FLANGE	0-28650-640-0	01	1	0307-0609		●
15	00.685 BOLT; UNDER COVER TO TRANS HF V6 ENG(LCA) (D)	8-92138-321-0	02	1	0509-	●
15	00.685 BOLT; UNDER COVER TO TRANS 4JJ1-TCX ENG(LS0) 03.162 (E) M6X12 FLANGE	0-28050-612-0	02	1	0610-			●
22	00.685 BOLT; TRANS CASE TO ENG 04.510 (N) M10X35 FLANGE	0-28051-035-0	01	1	0307-0412				●
22	00.685 BOLT; TRANS CASE TO ENG 04.510 (N) M10X35 FLANGE	0-28051-035-0	02	1	0501-				●
22	00.685 BOLT; TRANS CASE TO ENG (G) M10X40 FLANGE	0-28051-040-0	04	1	0307-0412				●
22	00.685 BOLT; TRANS CASE TO ENG 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) (G) M10X40 FLANGE	0-28051-040-0	04	1	0307-0412		●
22	00.685 BOLT; TRANS CASE TO ENG (G) M10X40 FLANGE	0-28051-040-0	03	1	0501-0609				●
22	00.685 BOLT; TRANS CASE TO ENG (G) M10X40 FLANGE	0-28051-040-0	03	1	0610-				●
22	00.685 BOLT; TRANS CASE TO ENG (O) M10X45 FLANGE	0-28051-045-0	01	1	0307-				●
22	00.685 BOLT; TRANS CASE TO ENG (K) M12X40 FLANGE	0-28051-240-0	01	1	0307-0412				●
22	00.685 BOLT; TRANS CASE TO ENG 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) (K) M12X40 FLANGE	0-28051-240-0	01	1	0307-0412		●
22	00.685 BOLT; TRANS CASE TO ENG 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) (K) M12X40 FLANGE	0-28051-240-0	01	1	0501-0609		●
22	00.685 BOLT; TRANS CASE TO ENG 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) (K) M12X40 FLANGE	0-28051-240-0	01	1	0610-0612		●			●
22	00.685 BOLT; TRANS CASE TO ENG (K) M12X40 FLANGE	0-28051-240-0	01	1	0701-		●			●	●
22	00.685 BOLT; TRANS CASE TO ENG (K) M12X35 FLANGE	0-28051-235-0	01	1	0501-				●
22	00.685 BOLT; TRANS CASE TO ENG C24SE ENG(LG1) (F) M12X45 FLANGE	0-28151-245-0	05	1	0307-0609		●
22	00.685 BOLT; TRANS CASE TO ENG (F) M12X45 FLANGE	0-28151-245-0	05	1	0307-0609						●
22	00.685 BOLT; TRANS CASE TO ENG C24SE ENG(LG1) (F) M12X45 FLANGE	0-28151-245-0	05	1	0610-		●			●	●
22	00.685 BOLT; TRANS CASE TO ENG C24SE ENG(LG1) (M) M12X60 FLANGE	0-28151-260-0	01	1	0307-0609		●
22	00.685 BOLT; TRANS CASE TO ENG (M) M12X60 FLANGE	0-28151-260-0	01	1	0307-0609						●
22	00.685 BOLT; TRANS CASE TO ENG C24SE ENG(LG1) (M) M12X60 FLANGE	0-28151-260-0	01	1	0610-		●			●	●
22	00.685 BOLT; TRANS CASE TO ENG C24SE ENG(LG1) (I) M8X40 FLANGE	0-28650-840-0	02	1	0307-0609		●
22	00.685 BOLT; TRANS CASE TO ENG (I) M8X40 FLANGE	0-28650-840-0	02	1	0307-0609						●
22	00.685 BOLT; TRANS CASE TO ENG C24SE ENG(LG1) (I) M8X40 FLANGE	0-28650-840-0	02	1	0610-		●			●	●
22	00.685 BOLT; TRANS CASE TO ENG 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) (L) M10X60 FLANGE	0-28051-060-0	02	1	0307-0609		●
22	00.685 BOLT; TRANS CASE TO ENG 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) (L) M10X60 FLANGE	0-28051-060-0	02	1	0610-0612		●			●
22	00.685 BOLT; TRANS CASE TO ENG (L) M10X60 FLANGE	0-28051-060-0	02	1	0701-		●			●	●
22	00.685 BOLT; TRANS CASE TO ENG 6VE1 ENG(LX5) (J) M12X80 FLANGE	0-28051-280-0	01	1	0307-0609		●
22	00.685 BOLT; TRANS CASE TO ENG 6VE1 ENG(LX5) (F) M12X45 FLANGE	0-28151-245-0	04	1	0307-0609		●
22	00.685 BOLT; TRANS CASE TO ENG 6VE1 ENG(LX5) (C) M12X50 FLANGE	0-28151-250-0	02	1	0307-0609		●
22	00.685 BOLT; TRANS CASE TO ENG 6VE1 ENG(LX5) (E) M12X20,M12X45 L=76	8-97328-823-0	01	1	0307-0609		●
22	00.685 BOLT; TRANS CASE TO ENG (G) M10X40 FLANGE	0-28051-040-0	04	1	0501-0609		●				●
22	00.685 BOLT; TRANS CASE TO ENG 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JH1-TC ENG(RDM) (G) M10X40 FLANGE	0-28051-040-0	04	1	0610-0612		●			●	●
22	00.685 BOLT; TRANS CASE TO ENG 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0) (G) M10X40 FLANGE	0-28051-040-0	04	1	0701-0912		●			●	●
22	00.685 BOLT; TRANS CASE TO ENG 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JH1-TC ENG(RDM) (G) M10X40 FLANGE	0-28051-040-0	04	1	1001-		●			●	●
22	00.685 BOLT; TRANS CASE TO ENG HF V6 ENG(LCA) (P)	8-92138-719-0	11	1	0509-	●
22	00.685 BOLT; TRANS CASE TO ENG 4JJ1-TCX ENG(LS0) 00.724 (N) M12X50 FLANGE	0-28051-250-0	08	1	0610-			●
27	00.685 NUT; CLU HSG TO TRANS 03.162 M10 FLANGE	0-91180-110-0	02	1	0307-0609				●
27	00.685 NUT; CLU HSG TO TRANS 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) 03.162 M10 FLANGE	0-91180-110-0	02	1	0307-0609		●
27	00.685 NUT; CLU HSG TO TRANS 03.162 M10 FLANGE	0-91180-110-0	02	1	0610-0612				●
27	00.685 NUT; CLU HSG TO TRANS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JH1-TC ENG(RDM) 03.162 M10 FLANGE	0-91180-110-0	02	1	0610-0612		●			●	●
27	00.685 NUT; CLU HSG TO TRANS 03.162 M10 FLANGE	0-91180-110-0	02	1	0701-0912				●
27	00.685 NUT; CLU HSG TO TRANS 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0) 03.162 M10 FLANGE	0-91180-110-0	02	1	0701-0912		●			●	●
27	00.685 NUT; CLU HSG TO TRANS 03.162 M10 FLANGE	0-91180-110-0	02	1	1001-				●
27	00.685 NUT; CLU HSG TO TRANS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) 03.162 M10 FLANGE	0-91180-110-0	02	1	1001-		●			●	●
27	00.685 NUT; CLU HSG TO TRANS 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) 02.042 M12 FLANGE	0-91180-112-0	02	1	0307-0404		●
27	00.685 NUT; CLU HSG TO TRANS 6VE1 ENG(LX5) 02.042 M12 FLANGE	0-91180-112-0	01	1	0307-0609		●
27	00.685 NUT; CLU HSG TO TRANS 4JJ1-TCX ENG(LS0) 02.042 M12 FLANGE	0-91180-112-0	02	1	0610-			●
53	04.338 PLATE; LOCK,DRIVEN GEAR	8-97021-019-0	01	1	0307-0609		●				●
53	04.338 PLATE; LOCK,DRIVEN GEAR	8-97021-019-0	01	1	0610-0703		●	●		●	●
53	04.338 PLATE; LOCK,DRIVEN GEAR	8-98035-572-0	01	1	0704-		●	●		●	●

15 14 22 22 14 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
14	00.679 COVER; UNDER,TRANS 6VE1 ENG(LX5) 00.797 (E)	8-94380-259-1	01	1	0307-0309		●
14	00.679 COVER; UNDER,TRANS 6VE1 ENG(LX5) (E)	8-97943-936-0	01	1	0310-0609		●
14	00.679 COVER; UNDER,TRANS 6VE1 ENG(LX5) (F)	8-97164-174-1	01	1	0307-0609		●
14	00.679 COVER; UNDER,TRANS 6VE1 ENG(LX5) (G)	8-97164-175-1	01	1	0307-0609		●
14	00.679 COVER; UNDER,TRANS 6VE1 ENG(LX5) (H)	8-97164-176-3	01	1	0307-0609		●
14	00.679 COVER; UNDER,TRANS HF V6 ENG(LCA) (I)	8-98001-230-0	01	1	0509-	●
14	00.679 COVER; UNDER,TRANS HF V6 ENG(LCA) (J)	8-98001-231-0	01	1	0509-0509	●
15	00.685 BOLT; UNDER COVER TO TRANS 6VE1 ENG(LX5) 03.671 (A) M6X10 FLANGE	0-28050-610-0	04	1	0307-0609		●
15	00.685 BOLT; UNDER COVER TO TRANS 6VE1 ENG(LX5) (B) M6X25 FLANGE	0-28650-625-0	01	1	0307-0609		●
15	00.685 BOLT; UNDER COVER TO TRANS 6VE1 ENG(LX5) (C) M6X40 FLANGE	0-28650-640-0	01	1	0307-0609		●
15	00.685 BOLT; UNDER COVER TO TRANS HF V6 ENG(LCA) (D)	8-92138-321-0	02	1	0509-	●
15	00.685 BOLT; UNDER COVER TO TRANS 4JJ1-TCX ENG(LS0) 03.162 (E) M6X12 FLANGE	0-28050-612-0	02	1	0610-			●
22	00.685 BOLT; TRANS CASE TO ENG 04.510 (N) M10X35 FLANGE	0-28051-035-0	01	1	0307-0412				●
22	00.685 BOLT; TRANS CASE TO ENG 04.510 (N) M10X35 FLANGE	0-28051-035-0	02	1	0501-				●
22	00.685 BOLT; TRANS CASE TO ENG (G) M10X40 FLANGE	0-28051-040-0	04	1	0307-0412				●
22	00.685 BOLT; TRANS CASE TO ENG 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) (G) M10X40 FLANGE	0-28051-040-0	04	1	0307-0412		●
22	00.685 BOLT; TRANS CASE TO ENG (G) M10X40 FLANGE	0-28051-040-0	03	1	0501-0609				●
22	00.685 BOLT; TRANS CASE TO ENG (G) M10X40 FLANGE	0-28051-040-0	03	1	0610-				●
22	00.685 BOLT; TRANS CASE TO ENG (O) M10X45 FLANGE	0-28051-045-0	01	1	0307-				●
22	00.685 BOLT; TRANS CASE TO ENG (K) M12X40 FLANGE	0-28051-240-0	01	1	0307-0412				●
22	00.685 BOLT; TRANS CASE TO ENG 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) (K) M12X40 FLANGE	0-28051-240-0	01	1	0307-0412		●
22	00.685 BOLT; TRANS CASE TO ENG 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) (K) M12X40 FLANGE	0-28051-240-0	01	1	0501-0609		●
22	00.685 BOLT; TRANS CASE TO ENG 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) (K) M12X40 FLANGE	0-28051-240-0	01	1	0610-0612		●			●
22	00.685 BOLT; TRANS CASE TO ENG (K) M12X40 FLANGE	0-28051-240-0	01	1	0701-		●			●	●
22	00.685 BOLT; TRANS CASE TO ENG (K) M12X35 FLANGE	0-28051-235-0	01	1	0501-				●
22	00.685 BOLT; TRANS CASE TO ENG C24SE ENG(LG1) (F) M12X45 FLANGE	0-28151-245-0	05	1	0307-0609		●
22	00.685 BOLT; TRANS CASE TO ENG (F) M12X45 FLANGE	0-28151-245-0	05	1	0307-0609						●
22	00.685 BOLT; TRANS CASE TO ENG C24SE ENG(LG1) (F) M12X45 FLANGE	0-28151-245-0	05	1	0610-		●			●	●
22	00.685 BOLT; TRANS CASE TO ENG C24SE ENG(LG1) (M) M12X60 FLANGE	0-28151-260-0	01	1	0307-0609		●
22	00.685 BOLT; TRANS CASE TO ENG (M) M12X60 FLANGE	0-28151-260-0	01	1	0307-0609						●
22	00.685 BOLT; TRANS CASE TO ENG C24SE ENG(LG1) (M) M12X60 FLANGE	0-28151-260-0	01	1	0610-		●			●	●
22	00.685 BOLT; TRANS CASE TO ENG C24SE ENG(LG1) (I) M8X40 FLANGE	0-28650-840-0	02	1	0307-0609		●
22	00.685 BOLT; TRANS CASE TO ENG (I) M8X40 FLANGE	0-28650-840-0	02	1	0307-0609						●
22	00.685 BOLT; TRANS CASE TO ENG C24SE ENG(LG1) (I) M8X40 FLANGE	0-28650-840-0	02	1	0610-		●			●	●
22	00.685 BOLT; TRANS CASE TO ENG 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) (L) M10X60 FLANGE	0-28051-060-0	02	1	0307-0609		●
22	00.685 BOLT; TRANS CASE TO ENG 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) (L) M10X60 FLANGE	0-28051-060-0	02	1	0610-0612		●			●
22	00.685 BOLT; TRANS CASE TO ENG (L) M10X60 FLANGE	0-28051-060-0	02	1	0701-		●			●	●
22	00.685 BOLT; TRANS CASE TO ENG 6VE1 ENG(LX5) (J) M12X80 FLANGE	0-28051-280-0	01	1	0307-0609		●
22	00.685 BOLT; TRANS CASE TO ENG 6VE1 ENG(LX5) (F) M12X45 FLANGE	0-28151-245-0	04	1	0307-0609		●
22	00.685 BOLT; TRANS CASE TO ENG 6VE1 ENG(LX5) (C) M12X50 FLANGE	0-28151-250-0	02	1	0307-0609		●
22	00.685 BOLT; TRANS CASE TO ENG 6VE1 ENG(LX5) (E) M12X20,M12X45 L=76	8-97328-823-0	01	1	0307-0609		●
22	00.685 BOLT; TRANS CASE TO ENG (G) M10X40 FLANGE	0-28051-040-0	04	1	0501-0609		●				●
22	00.685 BOLT; TRANS CASE TO ENG 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JH1-TC ENG(RDM) (G) M10X40 FLANGE	0-28051-040-0	04	1	0610-0612		●			●	●
22	00.685 BOLT; TRANS CASE TO ENG 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0) (G) M10X40 FLANGE	0-28051-040-0	04	1	0701-0912		●			●	●
22	00.685 BOLT; TRANS CASE TO ENG 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JH1-TC ENG(RDM) (G) M10X40 FLANGE	0-28051-040-0	04	1	1001-		●			●	●
22	00.685 BOLT; TRANS CASE TO ENG HF V6 ENG(LCA) (P)	8-92138-719-0	11	1	0509-	●
22	00.685 BOLT; TRANS CASE TO ENG 4JJ1-TCX ENG(LS0) 00.724 (N) M12X50 FLANGE	0-28051-250-0	08	1	0610-			●

100 1 3 2 10 11 53 4 100

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	04.337 GEAR; DRIVEN,SPD 4X2 REGULAR CAB LONG(TFB*SF) 4JA1-T ENG(LP0) FINAL GEAR RATIO 43/10(GY2) FRT&RR 215/70R15C GOODYEAR TIRE(QFT) KENYA EQUIPMENT(CL1) Z=19	8-94473-303-2	01	1	1001-		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/10(GT5) Z=18	8-94473-304-2	01	1	0307-0506				●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/9(GT3),FINAL GEARRATIO 43/10(GY2) FRT&RR 245/70R16(BSW),FRT&RR 225/75R15C(BZC),FRT&RR 245/70R16(BZD) Z=18	8-94473-304-2	01	1	0507-0508				●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 195R14C(CNU) Z=18	8-94473-304-2	01	1	0507-0508				●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 215/70R15C(BSU) EXC. AUSTRALIA EQUIPMENT(B13) Z=18	8-94473-304-2	01	1	0507-0508				●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/9(GT3),FINAL GEARRATIO 43/10(GY2) FRT&RR 225/75R15C(BZC),FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) Z=18	8-94473-304-2	01	1	0509-0609				●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 195R14C(CNU),FRT&RR 215/70R15C(QBQ) Z=18	8-94473-304-2	01	1	0509-0609				●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 215/70R15C(QBQ) EXC. AUSTRALIA EQUIPMENT(B13) Z=18	8-94473-304-2	01	1	0509-0609				●
1	04.337 GEAR; DRIVEN,SPD 4X2 LONG(TFB**F) FINAL GEAR RATIO 41/9(GT3),FINAL GEARRATIO 43/10(GY2) FRT&RR 225/75R15C(BZC),FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) Z=18	8-94473-304-2	01	1	0610-				●
1	04.337 GEAR; DRIVEN,SPD 4X2 LONG(TFB**F) FINAL GEAR RATIO 41/10(GT5) FRT&RR 215/70R15C GOODYEAR TIRE(QFT) EXC. AUSTRALIA EQUIPMENT(B13) Z=18	8-94473-304-2	01	1	0610-				●
1	04.337 GEAR; DRIVEN,SPD 4X2 LONG(TFB**F) FINAL GEAR RATIO 41/10(GT5) FRT&RR 195R14C(CNU),FRT&RR 215/70R15CGOODYEAR TIRE(QFT) Z=18	8-94473-304-2	01	1	0610-				●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 215/70R15C(BSU) AUSTRALIA EQUIPMENT(B13) Z=19	8-94473-303-2	01	1	0307-0609		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 43/12(GM0) FRT&RR 225/75R15C(BZC) Z=18	8-98004-535-0	01	1	0610-			●
1	04.337 GEAR; DRIVEN,SPD 4X2 LONG(TFB**F) FINAL GEAR RATIO 41/11(GT4) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) Z=18	8-98004-535-0	01	1	0610-			●
1	04.337 GEAR; DRIVEN,SPD 4X2 EXTRA LONG(TFB**K) FINAL GEAR RATIO 41/11(GT4) FRT&RR 245/70R16(BZD) Z=18	8-98004-535-0	01	1	0610-			●
1	04.337 GEAR; DRIVEN,SPD 4X2 LONG(TFB**F) FINAL GEAR RATIO 41/12(GU6) FRT&RR 215/70R15C GOODYEAR TIRE(QFT) AUSTRALIA EQUIPMENT(B13) Z=18	8-98004-535-0	01	1	0610-			●
1	04.337 GEAR; DRIVEN,SPD 4X2 EXTRA LONG(TFB**K) FINAL GEAR RATIO 41/12(GU6) FRT&RR 215/70R15C GOODYEAR TIRE(QFT) Z=18	8-98004-535-0	01	1	0610-			●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/9(GT3) FRT&RR 215/70R15C(BSU) Z=17	8-94473-307-2	01	1	0307-0609		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/9(GT3) EXC. AUSTRALIA EQUIPMENT(B13) Z=17	8-94473-307-2	01	1	0307-0609						●
1	04.337 GEAR; DRIVEN,SPD 4X2 LONG(TFB**F) FINAL GEAR RATIO 41/9(GT3) FRT&RR 195R14C(CNU) EXC. AUSTRALIA EQUIPMENT(B13) Z=17	8-94473-307-2	01	1	0610-		●		●	●
1	04.337 GEAR; DRIVEN,SPD 4X2 LONG(TFB**F) FINAL GEAR RATIO 41/9(GT3) FRT&RR 215/70R15C GOODYEAR TIRE(QFT) Z=17	8-94473-307-2	01	1	0610-		●		●	●
1	04.337 GEAR; DRIVEN,SPD 4X2 REGULAR CAB LONG(TFB5SF) 4X2 CREW CAB LONG(TFB5WF) FINAL GEAR RATIO 41/9(GT3) FRT&RR 195R14C(CNU) EXC. AUSTRALIA EQUIPMENT(B13) Z=17	8-94473-307-2	01	1	0610-						●
1	04.337 GEAR; DRIVEN,SPD 4X2 REGULAR CAB LONG(TFB5SF) 4X2 REGULAR CAB EXTRA LONG(TFB5SK) 4X2 CREW CAB LONG(TFB5WF) FINAL GEAR RATIO 41/9(GT3) FRT&RR 215/70R15C GOODYEAR TIRE(QFT) Z=17	8-94473-307-2	01	1	0610-						●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 43/10(GY2) FRT&RR 195R14C(CNU) Z=16	8-94473-308-2	01	1	0307-0609		●
1	04.337 GEAR; DRIVEN,SPD 4X2 LONG(TFB**F) FINAL GEAR RATIO 43/10(GY2) FRT&RR 195R14C(CNU) Z=16	8-94473-308-2	01	1	0610-		●		●	●
1	04.337 GEAR; DRIVEN,SPD 4X2 REGULAR CAB LONG(TFB5SF) 4X2 REGULAR CAB EXTRA LONG(TFB5SK) 4X2 CREW CAB LONG(TFB5WF) FINAL GEAR RATIO 43/10(GY2) FRT&RR 195R14C(CNU) Z=16	8-94473-308-2	01	1	0610-						●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 43/11(GW1) FRT&RR 195R14C(CNU) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) Z=17	8-97012-085-2	01	1	0307-0508		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 225/75R15C(BZC) EXC. AUSTRALIA EQUIPMENT(B13) Z=17	8-97012-085-2	01	1	0307-0508		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16(BSW),FRT&RR 245/70R16(BZD) EXC. AUSTRALIA EQUIPMENT(B13) Z=17	8-97012-085-2	01	1	0307-0508		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 43/11(GW1) FRT&RR 215/70R15C(BSU) Z=17	8-97012-085-2	01	1	0307-0508		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 225/75R15C(BZC) EXC. AUSTRALIA EQUIPMENT(B13) Z=17	8-97012-085-2	01	1	0509-0609		●				●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) EXC. AUSTRALIA EQUIPMENT(B13) Z=17	8-97012-085-2	01	1	0509-0609		●				●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 43/11(GW1) HONG KONG EQUIPMENT(B14),FRT&RR 195R14C(CNU),SINGAPORE EQUIPMENT(2G0) Z=17	8-97012-085-2	01	1	0509-0609		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 43/11(GW1) FRT&RR 215/70R15C(QBQ) Z=17	8-97012-085-2	01	1	0509-0609		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/11(GT4) FRT&RR 195R14C(CNU) Z=17	8-97012-085-2	01	1	0610-		●			●	●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 225/75R15C(BZC) EXC. AUSTRALIA EQUIPMENT(B13) Z=17	8-97012-085-2	01	1	0610-		●			●	●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) Z=17	8-97012-085-2	01	1	0610-		●			●	●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) EXC. AUSTRALIA EQUIPMENT(B13) Z=17	8-97012-085-2	01	1	0610-		●			●	●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 43/11(GW1) FRT&RR 195R14C(CNU) EXC. HONG KONG EQUIPMENT(B14), SINGAPORE EQUIPMENT(2G0) Z=18	8-97012-086-2	01	1	0307-0402		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 215/70R15C(BSU) EXC. AUSTRALIA EQUIPMENT(B13) Z=18	8-97012-086-2	01	1	0307-0402		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 225/75R15C(BZC) AUSTRALIA EQUIPMENT(B13) Z=18	8-97012-086-2	01	1	0307-0402		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16(BSW),FRT&RR 245/70R16(BZD) AUSTRALIA EQUIPMENT(B13) Z=18	8-97012-086-2	01	1	0307-0402		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 43/11(GW1) FRT&RR 195R14C(CNU) EXC. HONG KONG EQUIPMENT(B14), SINGAPORE EQUIPMENT(2G0) Z=18	8-97012-086-2	01	1	0403-0508		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 215/70R15C(BSU) EXC. AUSTRALIA EQUIPMENT(B13) Z=18	8-97012-086-2	01	1	0403-0508		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 225/75R15C(BZC) AUSTRALIA EQUIPMENT(B13) Z=18	8-97012-086-2	01	1	0403-0508		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16(BSW),FRT&RR 245/70R16(BZD) AUSTRALIA EQUIPMENT(B13) Z=18	8-97012-086-2	01	1	0403-0508		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/9(GT3) FRT&RR 245/70R16(BSW) Z=18	8-97012-086-2	01	1	0403-0508		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 225/75R15C(BZC) AUSTRALIA EQUIPMENT(B13) Z=18	8-97012-086-2	01	1	0509-0609		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 215/70R15C(QBQ) EXC. AUSTRALIA EQUIPMENT(B13) Z=18	8-97012-086-2	01	1	0509-0609		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 43/11(GW1) FRT&RR 195R14C(CNU) EXC. HONG KONG EQUIPMENT(B14), SINGAPORE EQUIPMENT(2G0) Z=18	8-97012-086-2	01	1	0509-0609		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) AUSTRALIA EQUIPMENT(B13) Z=18	8-97012-086-2	01	1	0509-0609		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 225/75R15C(BZC) AUSTRALIA EQUIPMENT(B13) Z=18	8-97012-086-2	01	1	0610-0709		●			●	●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 215/70R15C(QBQ),FRT&RR 215/70R15C GOODYEAR TIRE(QFT) EXC. AUSTRALIA EQUIPMENT(B13) Z=18	8-97012-086-2	01	1	0610-0709		●			●	●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 43/11(GW1) FRT&RR 195R14C(CNU) EXC. HONG KONG EQUIPMENT(B14), SINGAPORE EQUIPMENT(2G0) Z=18	8-97012-086-2	01	1	0610-0709		●			●	●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) AUSTRALIA EQUIPMENT(B13) Z=18	8-97012-086-2	01	1	0610-0709		●			●	●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 215/70R15C GOODYEAR TIRE(QFT) EXC. AUSTRALIA EQUIPMENT(B13) Z=18	8-97012-086-2	01	1	0710-0912		●			●	●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 43/11(GW1) FRT&RR 195R14C(CNU) EXC. HONG KONG EQUIPMENT(B14), SINGAPORE EQUIPMENT(2G0) Z=18	8-97012-086-2	01	1	0710-0912		●			●	●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) AUSTRALIA EQUIPMENT(B13) Z=18	8-97012-086-2	01	1	0710-0912		●			●	●
1	04.337 GEAR; DRIVEN,SPD 4X2 REGULAR CAB LONG(TFB5SF) 4X2 CREW CAB LONG(TFB5WF) FINAL GEAR RATIO 43/11(GW1) FRT&RR 195R14C(CNU) EXC. HONG KONG EQUIPMENT(B14), SINGAPORE EQUIPMENT(2G0) Z=18	8-97012-086-2	01	1	1001-		●			●	●
1	04.337 GEAR; DRIVEN,SPD 4X2 LONG(TFB**F) FINAL GEAR RATIO 41/10(GT5) FRT&RR 215/70R15C GOODYEAR TIRE(QFT) EXC. AUSTRALIA EQUIPMENT(B13) Z=18	8-97012-086-2	01	1	1001-		●			●
1	04.337 GEAR; DRIVEN,SPD 4X2 EXTEND CAB LONG(TFB*CF) FINAL GEAR RATIO 43/11(GW1) FRT&RR 195R14C(CNU) Z=18	8-97012-086-2	01	1	1001-		●			●
1	04.337 GEAR; DRIVEN,SPD 4X2 LONG(TFB**F) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) AUSTRALIA EQUIPMENT(B13) Z=18	8-97012-086-2	01	1	1001-		●			●
1	04.337 GEAR; DRIVEN,SPD 4X2 REGULAR CAB LONG(TFB*SF) 4JA1-T ENG(LP0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 195R14C(CNU) KENYA EQUIPMENT(CL1) Z=18	8-97012-086-2	01	1	1001-		●
1	04.337 GEAR; DRIVEN,SPD 4X2 REGULAR CAB LONG(TFB5SF) 4X2 CREW CAB LONG(TFB5WF) FINAL GEAR RATIO 41/10(GT5) FRT&RR 215/70R15C GOODYEAR TIRE(QFT) EXC. AUSTRALIA EQUIPMENT(B13) Z=18	8-97012-086-2	01	1	1001-						●
1	04.337 GEAR; DRIVEN,SPD 4X2 REGULAR CAB EXTRA LONG(TFB*SK) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16(BZD) Z=18	8-97012-086-2	01	1	1001-						●
1	04.337 GEAR; DRIVEN,SPD 4X2 REGULAR CAB LONG(TFB5SF) 4X2 CREW CAB LONG(TFB5WF) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) AUSTRALIA EQUIPMENT(B13) Z=18	8-97012-086-2	01	1	1001-						●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 41/10(GT5) Z=17	8-97238-583-0	01	1	0307-0508		●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16(BSW),FRT&RR 245/70R16(BZD) EXC. AUSTRALIA EQUIPMENT(B13) Z=17	8-97238-583-0	01	1	0307-0508		●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 225/75R15C(BZC) EXC. AUSTRALIA EQUIPMENT(B13) Z=17	8-97238-583-0	01	1	0509-0609		●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) EXC. AUSTRALIA EQUIPMENT(B13) Z=17	8-97238-583-0	01	1	0509-0609		●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) EXC. AUSTRALIA EQUIPMENT(B13) Z=17	8-97238-583-0	01	1	0610-0709	●	●			●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) Z=17	8-97238-583-0	01	1	0610-0709					●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 225/75R15C(BZC) EXC. AUSTRALIA EQUIPMENT(B13) Z=17	8-97238-583-0	01	1	0610-0709					●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) EXC. AUSTRALIA EQUIPMENT(B13) Z=17	8-97238-583-0	01	1	0710-		●	●		●	●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) Z=17	8-97238-583-0	01	1	0710-					●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 225/75R15C(BZC) EXC. AUSTRALIA EQUIPMENT(B13) Z=17	8-97238-583-0	01	1	0710-					●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 41/9(GT3) Z=16	8-97238-588-0	01	1	0307-0508		●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 41/9(GT3) FRT&RR 225/75R15C(BZC) EXC. AUSTRALIA EQUIPMENT(B13) Z=16	8-97238-588-0	01	1	0509-0609		●				●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 43/9(GT2) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) EXC. AUSTRALIA EQUIPMENT(B13) Z=16	8-97238-588-0	01	1	0509-0609						●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 43/9(GT2) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) EXC. AUSTRALIA EQUIPMENT(B13) Z=16	8-97238-588-0	01	1	0610-0707		●			●	●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 41/9(GT3) FRT&RR 225/75R15C(BZC) EXC. AUSTRALIA EQUIPMENT(B13) Z=16	8-97238-588-0	01	1	0610-0707		●			●	●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 43/9(GT2) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) EXC. AUSTRALIA EQUIPMENT(B13) Z=16	8-97238-588-0	01	1	0708-		●			●	●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 41/9(GT3) FRT&RR 225/75R15C(BZC) EXC. AUSTRALIA EQUIPMENT(B13) Z=16	8-97238-588-0	01	1	0708-		●			●	●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16(BSW),FRT&RR 245/70R16(BZD) AUSTRALIA EQUIPMENT(B13) Z=18	8-97238-584-2	01	1	0307-0402		●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16(BSW),FRT&RR 245/70R16(BZD) AUSTRALIA EQUIPMENT(B13) Z=18	8-97238-584-2	01	1	0403-0508		●
1	04.337 GEAR; DRIVEN,SPD 4X4 LONG(TFS**F) FINAL GEAR RATIO 41/9(GT3) FRT&RR 245/70R16(BSW) Z=18	8-97238-584-2	01	1	0403-0508		●
1	04.337 GEAR; DRIVEN,SPD 4X4 EXTRA LONG(TFS**K) Z=18	8-97238-584-2	01	1	0403-0508		●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) AUSTRALIA EQUIPMENT(B13) Z=18	8-97238-584-2	01	1	0509-0509		●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 43/10(GY2) FRT&RR 225/75R15C(BZC) Z=18	8-97238-584-2	01	1	0509-0509		●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) AUSTRALIA EQUIPMENT(B13) Z=18	8-97238-584-2	01	1	0509-0609		●				●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 43/10(GY2) FRT&RR 225/75R15C(BZC) Z=18	8-97238-584-2	01	1	0509-0609		●
1	04.337 GEAR; DRIVEN,SPD 4X4 LONG(TFS**F) FINAL GEAR RATIO 43/10(GY2) FRT&RR 225/75R15C(BZC) Z=18	8-97238-584-2	01	1	0610-		●			●
1	04.337 GEAR; DRIVEN,SPD 4X4 REGULAR CAB LONG(TFS5SF) 4X4 CREW CAB LONG(TFS5WF) FINAL GEAR RATIO 43/10(GY2) FRT&RR 225/75R15C(BZC) Z=18	8-97238-584-2	01	1	0610-						●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 43/11(GW1) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) Z=16	8-97169-434-1	01	1	0610-		●			●	●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/11(GT4),FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) Z=16	8-97169-434-1	01	1	0610-		●			●	●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 41/11(GT4) FRT&RR 215/70R15C GOODYEAR TIRE(QFT) Z=16	8-97169-434-1	01	1	0610-		●				●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 43/12(GM0) FRT&RR 195R14C(CNU),FRT&RR 215/70R15C(QBQ),FRT&RR 215/70R15C GOODYEAR TIRE(QFT) Z=16	8-97169-434-1	01	1	0610-		●			●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) FINAL GEAR RATIO 41/11(GT4) FRT&RR 215/70R15C GOODYEAR TIRE(QFT) Z=16	8-97169-434-1	01	1	0610-					●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/9(GT3) FRT&RR 195R14C(CNU) Z=18	8-94473-306-2	01	1	0307-0508						●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 43/9(GT2) FRT&RR 215/70R15C(BSU) Z=18	8-94473-306-2	01	1	0307-0508						●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/9(GT3) AUSTRALIA EQUIPMENT(B13) Z=18	8-94473-306-2	01	1	0307-0508						●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/9(GT3) FRT&RR 195R14C(CNU) AUSTRALIA EQUIPMENT(B13) Z=18	8-94473-306-2	01	1	0509-0609		●		●		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 43/9(GT2) FRT&RR 215/70R15C(QBQ) Z=18	8-94473-306-2	01	1	0509-0609						●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 43/9(GT2) FRT&RR 215/70R15C(QBQ),FRT&RR 215/70R15C GOODYEAR TIRE(QFT) Z=18	8-94473-306-2	01	1	0610-		●		●	●	●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/9(GT3) FRT&RR 195R14C(CNU) AUSTRALIA EQUIPMENT(B13) Z=18	8-94473-306-2	01	1	0610-		●		●	●	●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 43/9(GT2),FINAL GEARRATIO 41/8(HC3) Z=17	8-97238-587-2	01	1	0307-0508						●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 43/9(GT2) FRT&RR 225/75R15C(BZC) Z=17	8-97238-587-2	01	1	0509-0609						●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 41/8(HC3) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) Z=17	8-97238-587-2	01	1	0509-0609						●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 43/9(GT2) FRT&RR 225/75R15C(BZC) Z=17	8-97238-587-2	01	1	0610-		●			●	●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 41/8(HC3) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) Z=17	8-97238-587-2	01	1	0610-		●			●	●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) 4JK1-TCS ENG(LKZ) FINAL GEAR RATIO 41/11(GT4) FRT&RR 225/75R15C(BZC) Z=16	8-97238-582-0	01	1	0610-0612					●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) 4JK1-TCS ENG(LKZ) FINAL GEAR RATIO 43/11(GW1) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) Z=16	8-97238-582-0	01	1	0610-0612					●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) Z=16	8-97238-582-0	01	1	0610-0612					●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) Z=16	8-97238-582-0	01	1	0701-0912					●
1	04.337 GEAR; DRIVEN,SPD 4X4 REGULAR CAB LONG(TFS5SF) 4X4 CREW CAB LONG(TFS5WF) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) Z=16	8-97238-582-0	01	1	1001-	●	●	●	●	●	●
1	04.337 GEAR; DRIVEN,SPD 4X4 CREW CAB LONG(TFS*WF) 4JK1-TCS ENG(LKZ) FINAL GEAR RATIO 41/11(GT4) FRT&RR 225/75R15C(BZC) Z=16	8-97238-582-0	01	1	1001-	●	●	●	●	●	●
1	04.337 GEAR; DRIVEN,SPD 4X4 CREW CAB LONG(TFS*WF) 4JK1-TCS ENG(LKZ) FINAL GEAR RATIO 43/11(GW1) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) Z=16	8-97238-582-0	01	1	1001-	●	●	●	●	●	●
1	04.337 GEAR; DRIVEN,SPD 4X2 LONG(TFB**F) FINAL GEAR RATIO 41/12(GU6) FRT&RR 215/70R15C GOODYEAR TIRE(QFT) EXC. AUSTRALIA EQUIPMENT(B13) Z=17	8-98004-534-0	01	1	0610-			●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/12(GM0) FRT&RR 225/75R15C(BZC) Z=18	8-98008-940-0	01	1	0610-			●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 41/11(GT4) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) Z=18	8-98008-940-0	01	1	0610-			●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER	8-94463-608-4	01	1	0307-				●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER 4X2(TFB***)	8-97021-133-4	01	1	0307-0609		●				●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER 4X2(TFB***)	8-97021-133-4	01	1	0610-		●	●		●	●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER 4X4(TFS***)	8-97305-454-1	01	1	0307-0609		●				●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER 4X4(TFS***)	8-97305-454-1	01	1	0610-		●	●		●	●
3	04.338 GASKET; BUSHING 4X2(TFB***) ID=21.7 OD=28.7	9-09921-100-0	01	1	0307-0609				●
3	04.338 GASKET; BUSHING ID=21.7 OD=28.7	9-09921-100-0	01	1	0307-0609		●				●
3	04.338 GASKET; BUSHING ID=21.7 OD=28.7	9-09921-100-0	01	1	0610-		●	●	●	●	●
4	04.338 BOLT; RET,DRIVEN GEAR 02.343 M8X16 FLANGE	0-28050-816-0	01	1	0307-				●
4	04.338 BOLT; RET,DRIVEN GEAR M8X20 FLANGE	0-28050-820-0	01	1	0307-0609		●				●
4	04.338 BOLT; RET,DRIVEN GEAR M8X20 FLANGE	0-28050-820-0	01	1	0610-		●	●		●	●
10	04.338 SEAL; OIL,DRIVE GEAR NOK	8-97131-328-1	01	1	0307-0609		●		●		●
10	04.338 SEAL; OIL,DRIVE GEAR NOK	8-97131-328-1	01	1	0610-		●	●	●	●	●
11	04.338 FILTER; BUSHING,SPEEDOMETER DRIV	8-94446-571-1	01	1	0307-0609		●		●		●
11	04.338 FILTER; BUSHING,SPEEDOMETER DRIV	8-94446-571-1	01	1	0610-		●	●	●	●	●
53	04.338 PLATE; LOCK,DRIVEN GEAR	8-97021-019-0	01	1	0307-0609		●				●
53	04.338 PLATE; LOCK,DRIVEN GEAR	8-97021-019-0	01	1	0610-0703		●	●		●	●
53	04.338 PLATE; LOCK,DRIVEN GEAR	8-98035-572-0	01	1	0704-		●	●		●	●
100	02.510 PLUG; HOLE 4JA1-T ENG(LP0)	8-97318-961-0	01	1	0307-0609		●
100	02.510 PLUG; HOLE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0)	8-97318-961-0	01	1	0610-0612					●
100	02.510 PLUG; HOLE	8-97318-961-0	01	1	0701-0912				●
100	02.510 PLUG; HOLE 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0)	8-97318-961-0	01	1	0701-0912		●			●	●
100	02.510 PLUG; HOLE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-97318-961-0	01	1	1001-		●			●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
