◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50965 - TFR/TFS-RHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-20B - MANUAL TRANSMISSION ASM AND CASE ▶
2-20B — MANUAL TRANSMISSION ASM AND CASE (#20410) — 43 parça
çizim 12767
123 123
BalonParca AdiParca NoAdetTipApplied Date A B C D
123 00.206 DOWEL; TRANS CASE
6VE1 ENG(LX5) 		8-94325-506-1 02 1 0307-0609 ●

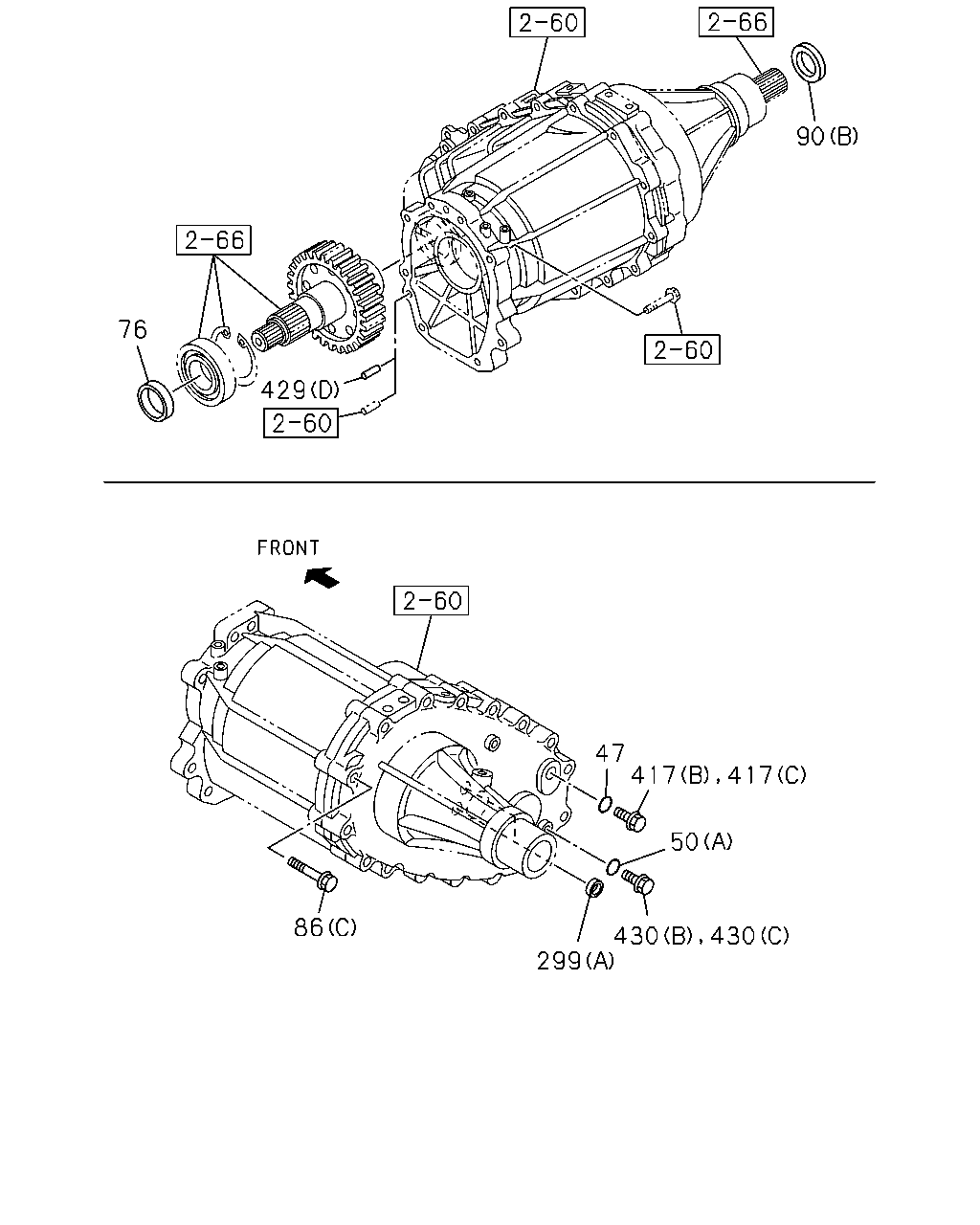

çizim 56001
76 429 86 299 430 430 50 417 417 47 90
BalonParca AdiParca NoAdetTipApplied Date A B C D
47 04.510 GASKET; FILLER PLUG,TRANSFER CAS
ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 04.105 ID=17 		8-97115-712-0 01 1 0307-0508 ● ●
47 04.510 GASKET; FILLER PLUG,TRANSFER CAS
ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 04.105 ID=17 		8-97115-712-0 01 1 0509-0609 ● ● ●
47 04.510 GASKET; FILLER PLUG,TRANSFER CAS
ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 04.105 ID=17 		8-97115-712-0 01 1 0610- ● ● ●
50 04.105 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (A) ID=17 		8-97115-712-0 01 1 0307-0508 ● ●
50 04.105 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***). (A) ID=17 		8-97115-712-0 01 1 0509-0609 ● ●
50 04.105 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T). (A) ID=17 		8-97115-712-0 01 1 0509-0609 ● ●
50 04.105 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***). (A) ID=17 		8-97115-712-0 01 1 0610- ● ●
50 04.105 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T). (A) ID=17 		8-97115-712-0 01 1 0610- ● ●
76 04.510 SEAL; OIL,TRANSFER CASE
ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) NOK 		8-97238-999-0 01 1 0307-0508 ● ●
76 04.510 SEAL; OIL,TRANSFER CASE
ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) NOK 		8-97238-999-0 01 1 0509-0609 ● ● ●
76 04.510 SEAL; OIL,TRANSFER CASE
ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) NOK 		8-97238-999-0 01 1 0610- ● ● ●
86 04.317 BOLT; RR COVER
4X4(TFS***) 01.540 (C) M8X45 FLANGE 		0-28080-845-0 16 1 0307-0508 ● ●
86 04.317 BOLT; RR COVER
4X4(TFS***) 01.540 (C) M8X45 FLANGE 		0-28080-845-0 16 1 0509-0601 ● ● ●
86 04.317 BOLT; RR COVER
4X4(TFS***) 09.173 (C) M8X45 FLANGE 		0-28050-845-0 16 1 0602-0609 ● ● ●
86 04.317 BOLT; RR COVER
4X4(TFS***) 09.173 (C) M8X45 FLANGE 		0-28050-845-0 16 1 0610- ● ● ●
90 04.318 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T). (B) NOK 		8-97046-705-2 01 1 0307-0402 ● ●
90 04.318 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T). (B) NOK 		8-97046-705-3 01 1 0403-0508 ● ●
90 04.318 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T). (B) NOK 		8-97046-705-3 01 1 0509-0609 ● ● ● ●
90 04.318 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T). (B) NOK 		8-97046-705-3 01 1 0610- ● ● ● ●
299 04.317 PLUG; SHIFTER ROD
4X4(TFS***) 04.309 (A) OD=14 		5-09609-004-0 02 1 0307-0508 ● ●
299 04.317 PLUG; SHIFTER ROD
4X4(TFS***) 04.309 (A) OD=14 		5-09609-004-0 02 1 0509-0603 ● ● ●
299 04.317 PLUG; SHIFTER ROD
4X4(TFS***) 04.105 (A) OD=14 		8-97358-601-0 02 1 0604-0609 ● ● ●
299 04.317 PLUG; SHIFTER ROD
4X4(TFS***) 04.105 (A) OD=14 		8-97358-601-0 02 1 0610- ● ● ●
417 04.105 PLUG; OIL FILLER,TRANS
4X4(TFS***) 08.971 (C) 		8-94310-917-0 01 1 0307-0508 ● ●
417 04.105 PLUG; OIL FILLER,TRANS
4X4(TFS***) 08.971 (C) 		8-94310-917-0 01 1 0509-0603 ● ●
417 04.105 PLUG; OIL FILLER,TRANS
08.971 (C) 		8-94310-917-0 01 1 0509-0603 ● ●
417 04.105 PLUG; OIL FILLER,TRANS
4X4(TFS***) (B) 		8-97365-373-0 01 1 0604-0604 ● ● ●
417 04.105 PLUG; OIL FILLER,TRANS
4X4(TFS***) (C) 		8-97365-373-0 01 1 0605-0609 ● ●
417 04.105 PLUG; OIL FILLER,TRANS
(C) 		8-97365-373-0 01 1 0605-0609 ● ●
417 04.105 PLUG; OIL FILLER,TRANS
4X4(TFS***) (C) 		8-97365-373-0 01 1 0610-0704 ● ●
417 04.105 PLUG; OIL FILLER,TRANS
(C) 		8-97365-373-0 01 1 0610-0704 ● ●
417 04.105 PLUG; OIL FILLER,TRANS
4X4(TFS***) (C) 		8-97365-373-0 01 1 0705- ● ●
417 04.105 PLUG; OIL FILLER,TRANS
(C) 		8-97365-373-0 01 1 0705- ● ●
429 04.105 PIN; STRAIGHT
4X4(TFS***) 04.510 (D) OD=10 L=20 		8-97135-423-0 02 1 0610- ● ●
430 04.105 PLUG; OIL DRAIN
4X4(TFS***) (C) 		9-09662-004-0 01 1 0307-0508 ● ●
430 04.105 PLUG; OIL DRAIN
4X4(TFS***) (C) 		9-09662-004-0 01 1 0509-0603 ● ●
430 04.105 PLUG; OIL DRAIN
(C) 		9-09662-004-0 01 1 0509-0603 ● ●
430 04.105 PLUG; OIL DRAIN
4X4(TFS***) (B) 		8-97365-374-0 01 1 0604-0604 ● ● ●
430 04.105 PLUG; OIL DRAIN
4X4(TFS***) (B) 		8-97365-374-0 01 1 0605-0609 ● ●
430 04.105 PLUG; OIL DRAIN
(B) 		8-97365-374-0 01 1 0605-0609 ● ●
430 04.105 PLUG; OIL DRAIN
4X4(TFS***) (B) 		8-97365-374-0 01 1 0610- ● ●
430 04.105 PLUG; OIL DRAIN
(B) 		8-97365-374-0 01 1 0610- ● ●
