1-10 — RADIATOR (#2041) — 154 parça

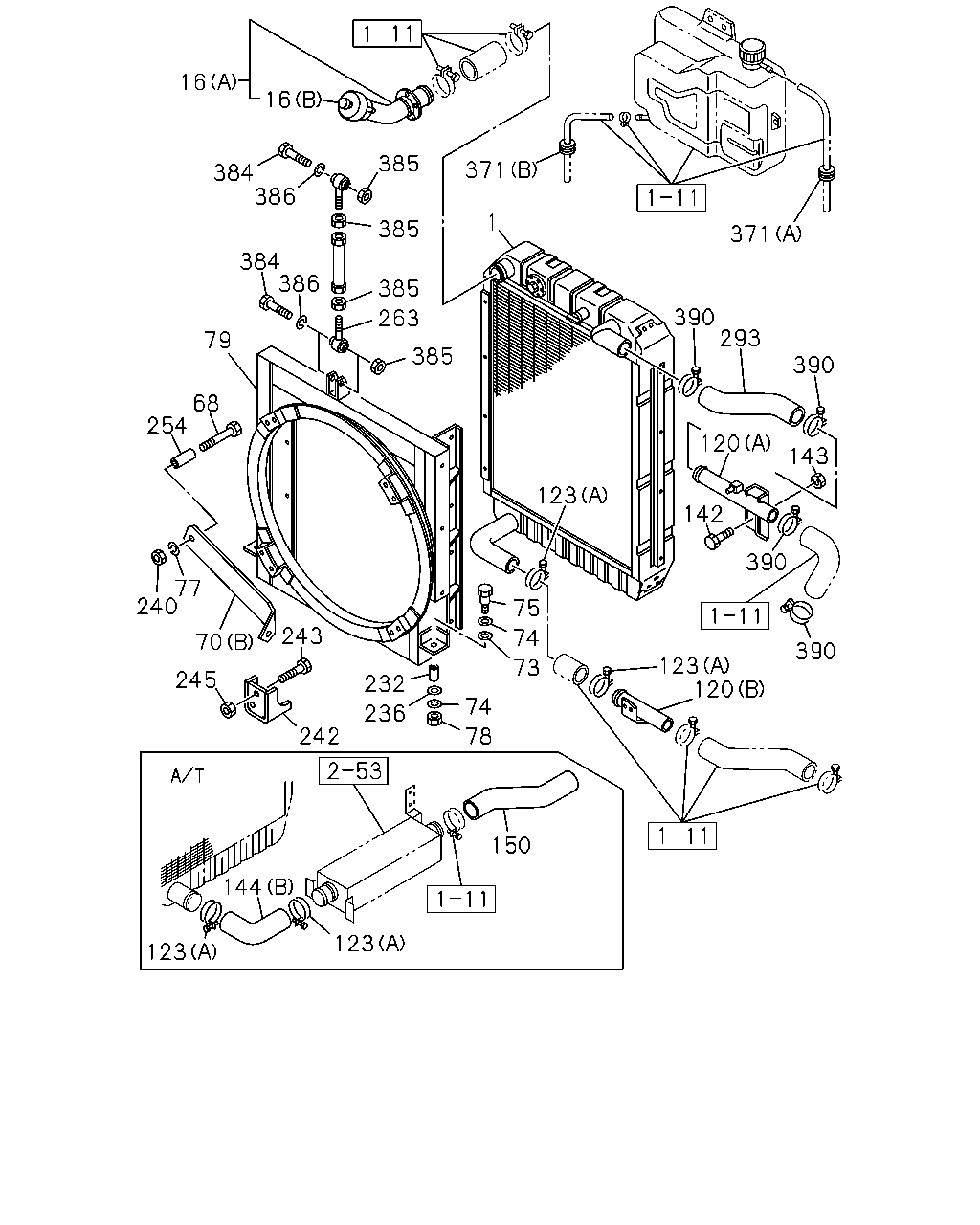

16 16 385 371 384 386 1 385 371 384 386 385 390 293 263 79 385 390 68 254 120 143 123 142 390 77 240 75 243 74 70 390 123 120 73 245 232 74 236 242 78 150 144 123 123

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	RADIATOR ASM M/T<X9C> RADIATOR HEAVY DUTY(V05)	1-21410-306-3	01	1	9001-	●	●
1	RADIATOR ASM A/T<X9D>	1-21410-306-3	01	1	9001-	●	●
1	RADIATOR ASM	1-21410-306-3	01	1	9001-			●
1	RADIATOR ASM M/T<X9C> EXC. RADIATOR HEAVY DUTY(V05)	1-21410-307-3	01	1	9001-	●	●
1	RADIATOR ASM	1-21410-673-3	01	1	9101-				●
16	CAP; RAD (B)	1-21450-044-2	01	1	9001-	●	●	●	●
16	CAP; RAD (A) W/CAP	1-21450-090-0	01	1	9001-	●	●	●	●
68	BOLT; STAY TO BRKT M10X70	9-01056-070-0	01	1	9001-9004	●	●	●
68	BOLT; STAY TO BRKT M10X70	0-10806-070-0	01	1	9005-9606	●	●	●	●
68	BOLT; STAY TO BRKT M10X70 FLANGE	0-28081-070-0	01	1	9607-	●	●	●	●
68	BOLT; STAY TO BRKT M10X25	9-01911-025-0	03	1	9001-9002	●	●	●
68	BOLT; STAY TO BRKT M10X25 W/LK WASHER	0-50041-025-0	03	1	9003-9606	●	●	●	●
68	BOLT; STAY TO BRKT M10X25 FLANGE	0-28681-025-0	03	1	9607-	●	●	●	●
70	STAY; RAD (B)	1-21469-045-0	02	1	9001-9012	●	●	●
70	STAY; RAD (B)	1-21469-096-1	02	1	9101-	●	●	●	●
70	STAY; RAD (A)	1-21419-007-0	01	1	9001-	●	●	●	●
73	RUBBER; CUSHION,RAD MTG T=10	1-21467-001-1	04	1	9001-	●	●	●	●
74	WASHER; PL,CUSHION RUBBER ID=10.5 OD=44	1-09503-042-0	02	1	9001-	●	●	●	●
74	WASHER; PL,CUSHION RUBBER ID=10.5 OD=26	9-09160-710-0	01	1	9001-	●	●	●	●
75	BOLT; CUSHION RUBBER,RAD MTG M10X50	9-01056-050-0	02	1	9001-9004	●	●	●
75	BOLT; CUSHION RUBBER,RAD MTG M10X50	0-10806-050-0	02	1	9005-9606	●	●	●	●
75	BOLT; CUSHION RUBBER,RAD MTG M10X50 FLANGE	0-28081-050-0	02	1	9607-	●	●	●	●
77	WASHER; LK,CUSHION RUBBER ID=10.2	9-09150-510-0	02	1	9001-	●	●	●	●
78	NUT; CUSHION RUBBER M10	9-09110-510-0	02	1	9308-9606	●	●	●	●
78	NUT; CUSHION RUBBER M10 FLANGE	0-91150-210-0	02	1	9607-	●	●	●	●
79	GUIDE; FAN,RAD	1-21570-070-0	01	1	9101-				●
79	GUIDE; FAN,RAD	1-21570-049-2	01	1	9001-	●	●	●
120	PIPE; HOSE TO HOSE,RAD OUTLET (A)	1-21431-233-2	01	1	9001-	●	●	●
120	PIPE; HOSE TO HOSE,RAD OUTLET WHEEL BASE 5800MM(58W),WHEEL BASE 6800MM(68W) (B)	1-21431-177-0	01	1	9001-9012	●	●	●
120	PIPE; HOSE TO HOSE,RAD OUTLET M/T<X9C> EXC. BUS BODY REAR OVERHANG<YK4> (B)	1-21431-177-1	01	1	9101-	●	●	●
120	PIPE; HOSE TO HOSE,RAD OUTLET WHEEL BASE 6600MM(66W) (B)	1-21431-391-0	01	1	9001-9012	●	●	●
120	PIPE; HOSE TO HOSE,RAD OUTLET (A)	1-21431-459-1	01	1	9101-				●
120	PIPE; HOSE TO HOSE,RAD OUTLET (B)	1-21431-458-1	01	1	9101-				●
123	CLIP; PIPE (A) ID=72	1-09704-068-0	02	1	9001-	●	●	●	●
123	CLIP; PIPE (B) ID=12	9-09915-695-1	01	1	9001-	●	●	●	●
142	BOLT; PIPE M8X20 W/LK WASHER	9-01910-820-0	04	1	9001-9005	●	●	●
142	BOLT; PIPE M8X20 W/LK WASHER	0-50040-820-0	04	1	9006-9606	●	●	●
142	BOLT; PIPE M8X20 FLANGE	0-28680-820-0	04	1	9607-	●	●	●
142	BOLT; PIPE M8X25 W/LK WASHER	0-50040-825-0	03	1	9101-9606				●
142	BOLT; PIPE M8X25 FLANGE	0-28680-825-0	03	1	9607-				●
143	NUT; PIPE M8	9-09110-408-0	03	1	9101-9606				●
143	NUT; PIPE M8 FLANGE	0-91150-108-0	03	1	9607-				●
144	HOSE; RUBBER,PIPE (A) L=250 SERVICED BY L=10000	9-09914-911-0	01	1	9001-	●	●	●
144	HOSE; RUBBER,PIPE A/T<X9D> (B) L=95	1-09360-549-0	01	1	9001-	●	●	●
150	HOSE; OIL COOLER A/T<X9D>	1-21437-092-0	01	1	9001-	●	●	●
232	COLLAR; DIST,CUSHION RUBBER L=28	1-21469-011-0	01	1	9001-	●	●	●	●
232	COLLAR; DIST,CUSHION RUBBER L=23.2	9-22159-009-1	01	1	9001-9109	●	●	●	●
232	COLLAR; DIST,CUSHION RUBBER L=22	9-22159-024-0	01	1	9110-	●	●	●	●
236	COLLAR; CUSHION RUBBER	1-21467-002-0	01	1	9001-	●	●	●	●
240	NUT; STAY M10	9-09110-510-0	02	1	9308-9606	●	●	●	●
240	NUT; STAY M10 FLANGE	0-91150-210-0	02	1	9607-	●	●	●	●
242	BRACKET; RAD	1-21419-018-1	02	1	9001-	●	●	●	●
243	BOLT; BRKT M10X25	9-01911-025-0	04	1	9001-9002	●	●	●
243	BOLT; BRKT M10X25 W/LK WASHER	0-50041-025-0	04	1	9003-9606	●	●	●	●
243	BOLT; BRKT M10X25 FLANGE	0-28681-025-0	04	1	9607-	●	●	●	●
245	NUT; BRKT M10	9-09110-510-0	02	1	9308-9606	●	●	●	●
245	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	9607-	●	●	●	●
254	COLLAR; DIST,STAY,RAD	5-14149-015-1	01	1	9001-	●	●	●	●
263	END ASM; RAD TIE ROD RH THREAD	9-21460-134-1	01	1	9001-	●	●	●
263	END ASM; RAD TIE ROD LH THREAD	9-21460-135-1	01	1	9001-	●	●	●
263	END ASM; RAD TIE ROD RH THREAD	9-21460-134-1	03	1	9101-				●
263	END ASM; RAD TIE ROD LH THREAD	9-21460-135-1	03	1	9101-				●
293	HOSE; RUBBER ENG TO RAD	1-21437-089-0	01	1	9001-	●	●	●
293	HOSE; RUBBER ENG TO RAD	1-21437-461-1	01	1	9101-				●
371	GROMMET SURGE TANK<V11> (A) ID=16	9-09575-116-0	01	1	9001-	●	●	●	●
371	GROMMET SURGE TANK<V11> (B) ID=20	9-09575-520-0	02	1	9001-	●	●	●	●
384	BOLT; ROD M12X50	9-91051-250-0	02	1	9001-9005	●	●	●
384	BOLT; ROD M12X50	0-10811-250-0	02	1	9006-	●	●	●
384	BOLT; ROD M12X50	0-10811-250-0	06	1	9101-				●
385	NUT; ROD M10 LH THREAD	1-09400-025-0	02	1	9001-	●	●	●
385	NUT; ROD M12	9-99110-412-0	02	1	9001-9307	●	●	●
385	NUT; ROD M12	9-99110-512-0	02	1	9308-9606	●	●	●
385	NUT; ROD M12 FLANGE	0-91150-212-0	02	1	9607-	●	●	●
385	NUT; ROD M10	9-09110-510-0	02	1	9308-9606	●	●	●
385	NUT; ROD M10 FLANGE	0-91150-210-0	02	1	9607-	●	●	●
385	NUT; ROD M10 LH THREAD	1-09400-025-0	06	1	9101-				●
385	NUT; ROD M12	9-99110-412-0	06	1	9101-9307				●
385	NUT; ROD M12	9-99110-512-0	06	1	9308-9606				●
385	NUT; ROD M12 FLANGE	0-91150-212-0	06	1	9607-				●
385	NUT; ROD M10	9-09110-510-0	06	1	9308-9606				●
385	NUT; ROD M10 FLANGE	0-91150-210-0	06	1	9607-				●
386	WASHER; LK,ROD ID=12.2	9-09150-512-0	02	1	9001-9606	●	●	●
386	WASHER; LK,ROD ID=12.2	9-09150-512-0	06	1	9101-9606				●
390	CLIP; RUBBER HOSE ID=72	1-09704-068-0	04	1	9001-	●	●	●	●

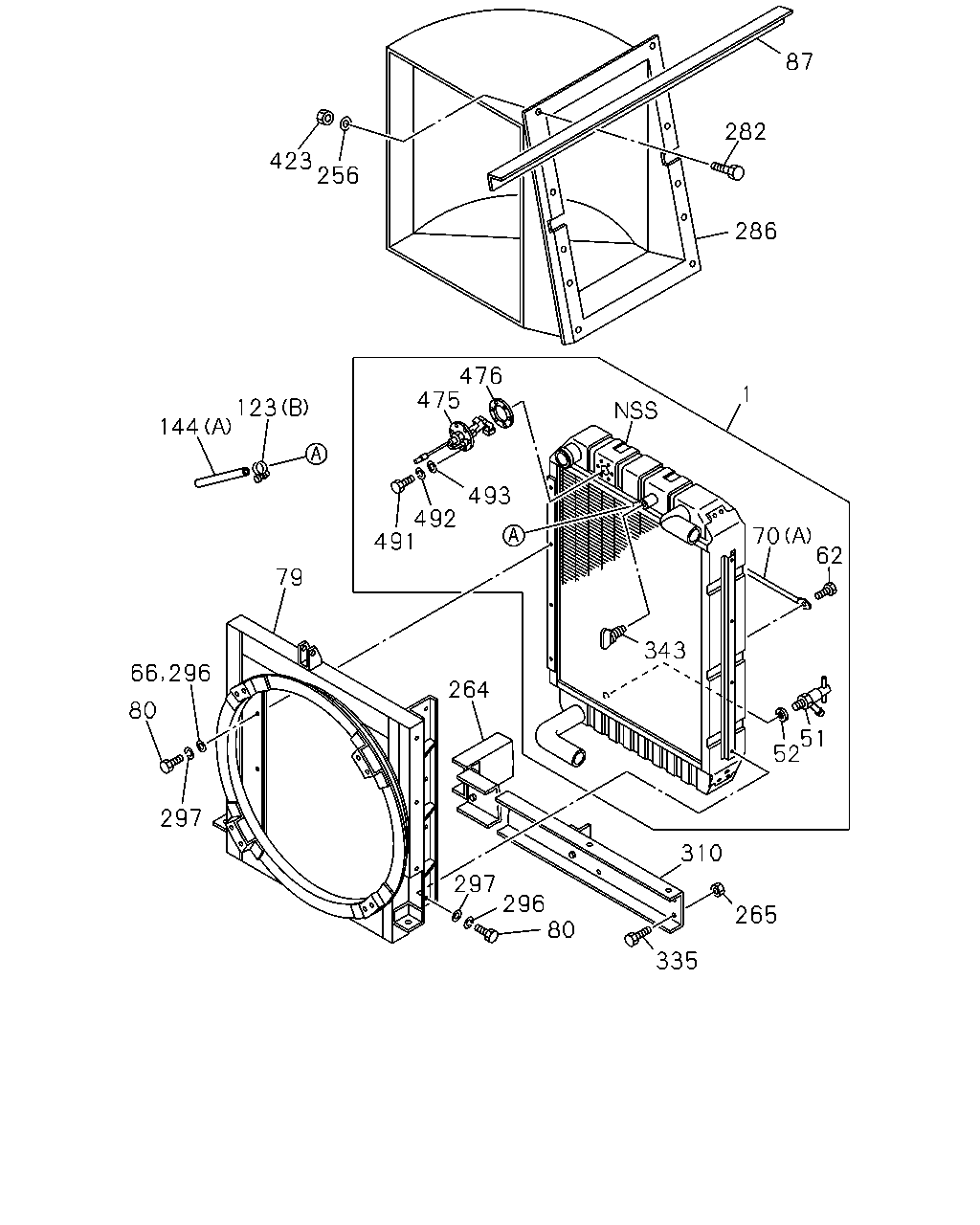

87 282 423 256 286 476 475 1 123 144 493 492 491 70 62 79 343 296 264 80 51 52 297 310 297 296 80 265 335 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	RADIATOR ASM M/T<X9C> RADIATOR HEAVY DUTY(V05)	1-21410-306-3	01	1	9001-	●	●
1	RADIATOR ASM A/T<X9D>	1-21410-306-3	01	1	9001-	●	●
1	RADIATOR ASM	1-21410-306-3	01	1	9001-			●
1	RADIATOR ASM M/T<X9C> EXC. RADIATOR HEAVY DUTY(V05)	1-21410-307-3	01	1	9001-	●	●
1	RADIATOR ASM	1-21410-673-3	01	1	9101-				●
51	PLUG; DRAIN	9-09904-153-0	01	1	9001-	●	●	●	●
52	GASKET; DRAIN PLUG T=1.5	9-09571-118-0	01	1	9001-	●	●	●	●
52	GASKET; DRAIN PLUG T=0.7	9-09921-044-0	01	1	9001-	●	●	●	●
62	BOLT; STAY M8X20 W/LK&PL WASHER	9-01960-820-0	02	1	9001-9210	●	●	●	●
62	BOLT; STAY M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	9211-	●	●	●	●
66	WASHER; LK,STAY RADIATOR HEAVY DUTY(V05) ID=10.2	9-09150-510-0	08	1	9001-9210	●	●
70	STAY; RAD (B)	1-21469-045-0	02	1	9001-9012	●	●	●
70	STAY; RAD (B)	1-21469-096-1	02	1	9101-	●	●	●	●
70	STAY; RAD (A)	1-21419-007-0	01	1	9001-	●	●	●	●
79	GUIDE; FAN,RAD	1-21570-070-0	01	1	9101-				●
79	GUIDE; FAN,RAD	1-21570-049-2	01	1	9001-	●	●	●
80	BOLT; FAN GUIDE M10X20	9-02041-020-0	08	1	9211-9211	●	●	●
80	BOLT; FAN GUIDE M10X20	0-20801-020-0	08	1	9211-				●
80	BOLT; FAN GUIDE M10X20	9-02041-020-0	08	1	9001-9210	●	●	●	●
80	BOLT; FAN GUIDE RADIATOR HEAVY DUTY(V05) M10X20	9-02041-020-0	06	1	9211-9211	●	●
80	BOLT; FAN GUIDE M10X20	0-20801-020-0	06	1	9212-	●	●	●
80	BOLT; FAN GUIDE RADIATOR HEAVY DUTY(V05) M10X90	9-02041-090-0	02	1	9211-9211	●	●
80	BOLT; FAN GUIDE M10X90	0-10806-090-0	02	1	9212-	●	●	●
87	STAY; FAN GUIDE RADIATOR FAN DUCT<WF8>	1-21559-041-0	01	1	9001-	●	●	●	●
123	CLIP; PIPE (A) ID=72	1-09704-068-0	02	1	9001-	●	●	●	●
123	CLIP; PIPE (B) ID=12	9-09915-695-1	01	1	9001-	●	●	●	●
144	HOSE; RUBBER,PIPE (A) L=250 SERVICED BY L=10000	9-09914-911-0	01	1	9001-	●	●	●
144	HOSE; RUBBER,PIPE A/T<X9D> (B) L=95	1-09360-549-0	01	1	9001-	●	●	●
256	WASHER; LK,STAY ID=10.2	9-09150-510-0	01	1	9001-9606	●	●	●	●
264	MEMBER; RAD MTG,FRT AIR DRYER<PS7>	1-21469-099-0	01	1	9203-9211	●	●	●	●
264	MEMBER; RAD MTG,FRT	1-21469-099-0	01	1	9212-	●	●	●	●
264	MEMBER; RAD MTG,FRT	1-21469-056-3	01	1	9001-9202	●	●	●	●
264	MEMBER; RAD MTG,FRT EXC. AIR DRYER<PS7>	1-21469-056-3	01	1	9203-9211	●	●	●	●
265	NUT; MEMBER M10	9-09110-510-0	12	1	9308-9606	●	●	●	●
265	NUT; MEMBER M10 FLANGE	0-91150-210-0	12	1	9607-	●	●	●	●
282	BOLT; BRKT,DUCT RADIATOR FAN DUCT<WF8> M8X20 W/LK WASHER	9-01910-820-0	06	1	9001-9005	●	●	●
282	BOLT; BRKT,DUCT RADIATOR FAN DUCT<WF8> M8X20 W/LK WASHER	0-50040-820-0	06	1	9006-9606	●	●	●
282	BOLT; BRKT,DUCT RADIATOR FAN DUCT<WF8> M8X20 FLANGE	0-28680-820-0	06	1	9607-	●	●	●
282	BOLT; BRKT,DUCT RADIATOR FAN DUCT<WF8> M8X20 W/LK WASHER	0-50040-820-0	08	1	9101-9606				●
282	BOLT; BRKT,DUCT RADIATOR FAN DUCT<WF8> M8X20 FLANGE	0-28680-820-0	08	1	9607-				●
286	DUCT ASM; AIR INL,RAD RADIATOR FAN DUCT<WF8>	1-21555-001-2	01	1	9001-	●	●	●
286	DUCT ASM; AIR INL,RAD RADIATOR FAN DUCT<WF8>	1-21555-006-1	01	1	9001-				●
296	WASHER; LK,FAN GUIDE ID=10.2	9-09150-510-0	08	1	9001-	●	●	●	●
297	WASHER; PL,FAN GUIDE ID=10.5 OD=18	9-09160-510-0	08	1	9001-9210	●	●	●	●
297	WASHER; PL,FAN GUIDE A/T<X9D> ID=10.5 OD=18	9-09160-510-0	08	1	9211-9211	●	●	●
297	WASHER; PL,FAN GUIDE M/T<X9C> EXC. RADIATOR HEAVY DUTY(V05) ID=10.5 OD=18	9-09160-510-0	08	1	9211-9211	●	●
297	WASHER; PL,FAN GUIDE M/T<X9C> RADIATOR HEAVY DUTY(V05) ID=10.5 OD=22	9-09160-610-0	08	1	9211-9211	●	●
297	WASHER; PL,FAN GUIDE ID=10.5 OD=22	9-09160-610-0	08	1	9211-9211			●	●
297	WASHER; PL,FAN GUIDE ID=10.5 OD=22	9-09160-610-0	08	1	9211-	●	●	●	●
310	MEMBER; RAD MTG	1-21469-078-0	01	1	9001-9012				●
310	MEMBER; RAD MTG	1-21469-065-1	01	1	9001-9012	●	●	●
310	MEMBER; RAD MTG	1-21469-065-1	01	1	9101-9202	●	●	●	●
310	MEMBER; RAD MTG EXC. AIR DRYER<PS7>	1-21469-065-1	01	1	9203-9211	●	●	●	●
310	MEMBER; RAD MTG AIR DRYER<PS7>	1-21469-098-0	01	1	9203-9211	●	●	●	●
310	MEMBER; RAD MTG	1-21469-098-0	01	1	9212-	●	●	●	●
335	BOLT; MEMBER M10X25	9-01911-025-0	12	1	9001-9002	●	●	●
335	BOLT; MEMBER M10X25 W/LK WASHER	0-50041-025-0	12	1	9003-9606	●	●	●	●
335	BOLT; MEMBER M10X25 FLANGE	0-28681-025-0	12	1	9607-	●	●	●	●
343	PLUG; WATER LEVEL W/GASKET	1-09609-009-0	01	1	9001-	●	●	●	●
423	NUT; BRKT,DUCT RADIATOR FAN DUCT<WF8> M8	9-09110-408-0	06	1	9001-9606	●	●	●
423	NUT; BRKT,DUCT RADIATOR FAN DUCT<WF8> M8 FLANGE	0-91150-108-0	06	1	9607-	●	●	●
423	NUT; BRKT,DUCT RADIATOR FAN DUCT<WF8> M8	9-09110-408-0	08	1	9101-9606				●
423	NUT; BRKT,DUCT RADIATOR FAN DUCT<WF8> M8 FLANGE	0-91150-108-0	08	1	9607-				●
475	SWITCH; WATER LEVEL A/T<X9D>	1-82460-008-0	01	1	9001-9210	●	●	●
475	SWITCH; WATER LEVEL M/T<X9C>	1-82460-011-0	01	1	9001-9210	●	●	●
475	SWITCH; WATER LEVEL	1-82460-011-0	01	1	9211-	●	●	●	●
476	GASKET; SWITCH,WATER LEVEL	1-09639-022-0	01	1	9001-	●	●	●	●
491	BOLT; WATER LEVEL SW	1-09000-156-0	06	1	9001-	●	●	●	●
492	WASHER; LK,WATER LEVEL SW ID=5.1	9-09150-505-0	06	1	9001-	●	●	●	●
493	WASHER; PL,WATER LEVEL SW ID=5.3	9-09160-505-0	01	1	9001-	●	●	●	●
