Sayfa 2-08A - Isuzu EPC

2-08A — CLUTCH MASTER CYLINDER (#20407) — 201 parça

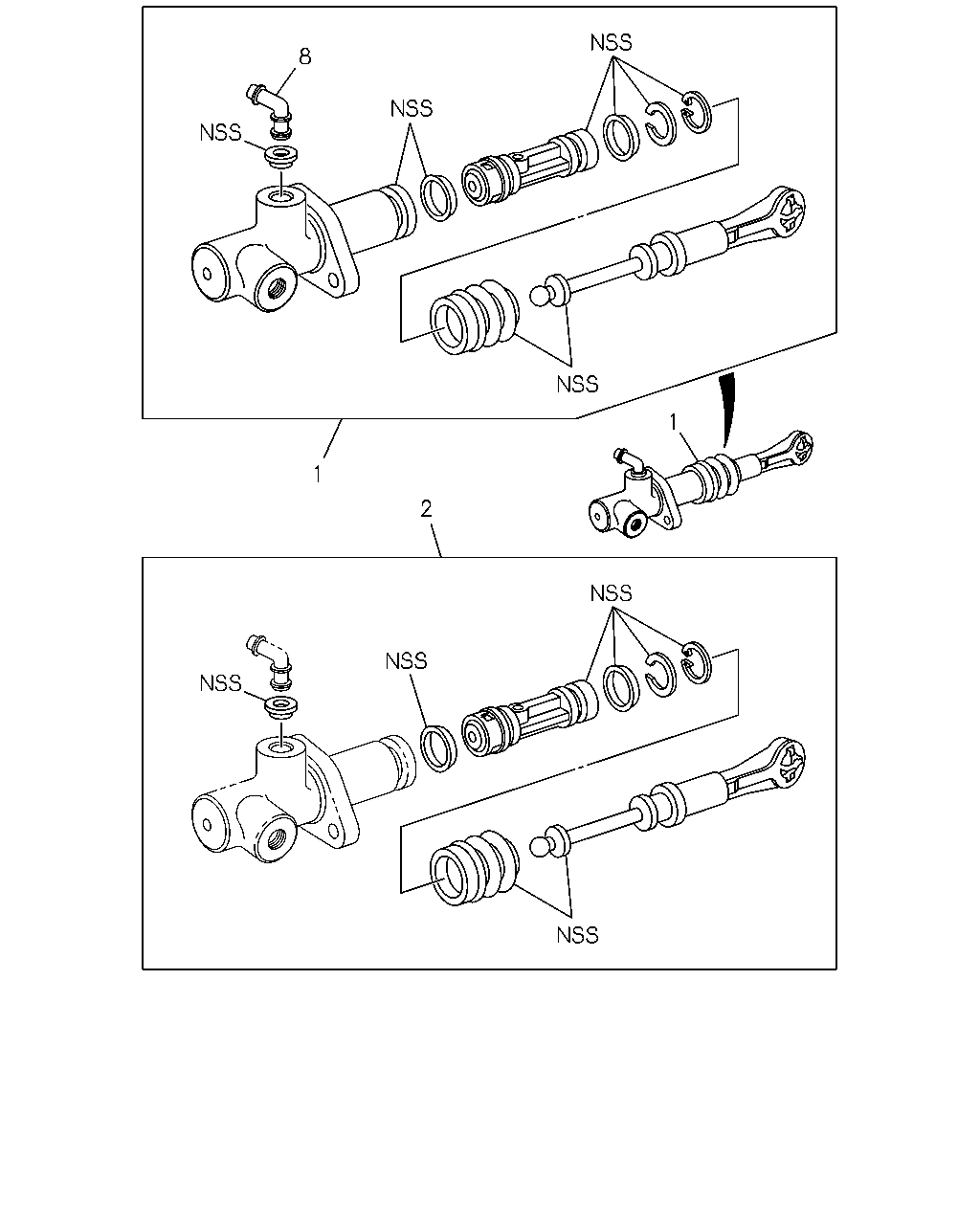

8 1 2 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	00.775 CYLINDER ASM; CLUTCH MASTER	8-97943-432-0	01	1	0307-0609	●
1	00.775 CYLINDER ASM; CLUTCH MASTER 4JA1-T ENG(LP0),6VE1 ENG(LX5), 4JA1-TCENG(L4Z),4JH1-TC ENG(RDM)	8-97943-432-0	01	1	0307-0609		●
1	00.775 CYLINDER ASM; CLUTCH MASTER 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0)	8-97945-438-0	01	1	0610-0612	●	●	●	●
1	00.775 CYLINDER ASM; CLUTCH MASTER 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0)	8-97945-438-0	01	1	0701-0912	●	●	●	●
1	00.775 CYLINDER ASM; CLUTCH MASTER 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0)	8-97945-438-0	01	1	1001-	●	●	●	●
1	00.775 CYLINDER ASM; CLUTCH MASTER C24SE ENG(LG1)	8-97943-406-0	01	1	0307-0609		●
1	00.775 CYLINDER ASM; CLUTCH MASTER	8-97943-406-0	01	1	0307-0609				●
1	00.775 CYLINDER ASM; CLUTCH MASTER C24SE ENG(LG1)	8-97945-437-0	01	1	0610-		●		●
1	00.775 CYLINDER ASM; CLUTCH MASTER	8-92158-009-0	01	1	0509-					●
1	00.775 CYLINDER ASM; CLUTCH MASTER 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)	8-97944-509-1	01	1	0610-			●			●
2	00.775 REPAIR KIT; CLU M/CYL	8-92147-903-0	01	1	0509-					●
8	00.777 CONNECTOR; PIPE,CLU M/CYL	8-92140-383-0	01	1	0509-					●

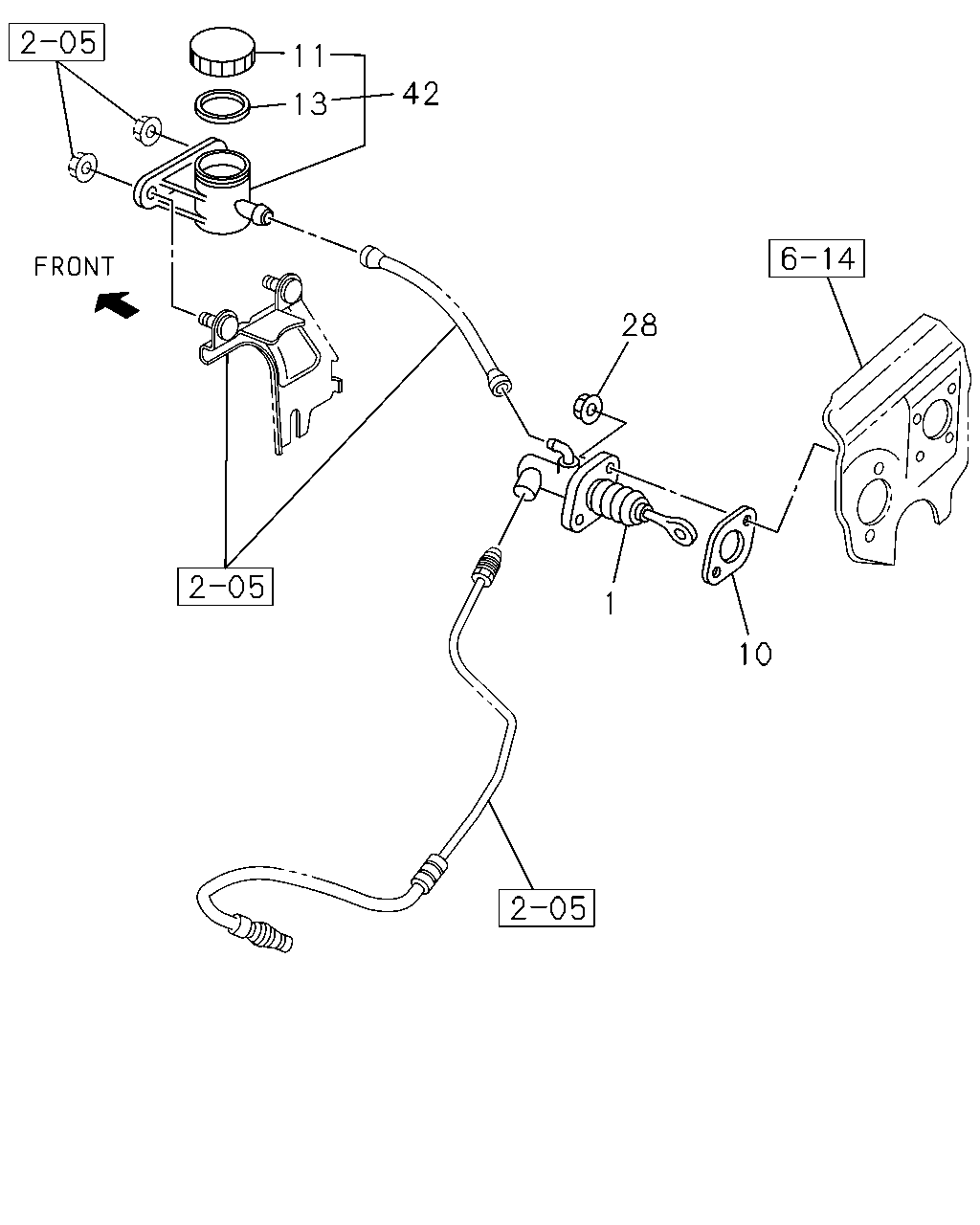

11 13 42 28 1 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	00.775 CYLINDER ASM; CLUTCH MASTER	8-97943-432-0	01	1	0307-0609	●
1	00.775 CYLINDER ASM; CLUTCH MASTER 4JA1-T ENG(LP0),6VE1 ENG(LX5), 4JA1-TCENG(L4Z),4JH1-TC ENG(RDM)	8-97943-432-0	01	1	0307-0609		●
1	00.775 CYLINDER ASM; CLUTCH MASTER 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0)	8-97945-438-0	01	1	0610-0612	●	●	●	●
1	00.775 CYLINDER ASM; CLUTCH MASTER 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0)	8-97945-438-0	01	1	0701-0912	●	●	●	●
1	00.775 CYLINDER ASM; CLUTCH MASTER 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0)	8-97945-438-0	01	1	1001-	●	●	●	●
1	00.775 CYLINDER ASM; CLUTCH MASTER C24SE ENG(LG1)	8-97943-406-0	01	1	0307-0609		●
1	00.775 CYLINDER ASM; CLUTCH MASTER	8-97943-406-0	01	1	0307-0609				●
1	00.775 CYLINDER ASM; CLUTCH MASTER C24SE ENG(LG1)	8-97945-437-0	01	1	0610-		●		●
1	00.775 CYLINDER ASM; CLUTCH MASTER	8-92158-009-0	01	1	0509-					●
1	00.775 CYLINDER ASM; CLUTCH MASTER 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)	8-97944-509-1	01	1	0610-			●			●
10	00.777 GASKET; CLU M/CYL	8-97184-654-0	01	1	0307-0609	●	●		●
10	00.777 GASKET; CLU M/CYL	8-97184-654-0	01	1	0610-	●	●	●	●		●
10	00.777 GASKET; CLU M/CYL	8-92052-628-0	01	1	0509-					●
11	00.777 CAP; OUTER,CLU M/CYL	8-97942-836-0	01	1	0307-0609	●	●		●
11	00.777 CAP; OUTER,CLU M/CYL	8-97942-836-0	01	1	0610-	●	●	●	●		●
11	00.777 CAP; OUTER,CLU M/CYL	8-92144-027-0	01	1	0509-					●
13	00.777 GASKET; OIL TANK	8-94412-205-0	01	1	0307-0609	●	●		●
13	00.777 GASKET; OIL TANK	8-94412-205-0	01	1	0610-	●	●	●	●		●
13	00.777 GASKET; OIL TANK	8-92140-382-0	01	1	0509-					●
28	00.777 NUT; LK,CLU M/CYL 03.604	8-11082-413-0	02	1	0509-					●
42	00.777 TANK; OIL,CLU	8-97942-835-0	01	1	0307-0609	●
42	00.777 TANK; OIL,CLU 4JA1-T ENG(LP0),6VE1 ENG(LX5), 4JA1-TCENG(L4Z),4JH1-TC ENG(RDM)	8-97942-835-0	01	1	0307-0609		●
42	00.777 TANK; OIL,CLU 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0)	8-97942-835-0	01	1	0610-0612	●	●	●	●
42	00.777 TANK; OIL,CLU 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0)	8-97942-835-0	01	1	0701-0912	●	●	●	●
42	00.777 TANK; OIL,CLU 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0)	8-97942-835-0	01	1	1001-	●	●	●	●
42	00.777 TANK; OIL,CLU C24SE ENG(LG1)	8-97943-409-0	01	1	0307-0609		●
42	00.777 TANK; OIL,CLU	8-97943-409-0	01	1	0307-0609				●
42	00.777 TANK; OIL,CLU C24SE ENG(LG1)	8-97943-409-0	01	1	0610-		●		●
42	00.777 TANK; OIL,CLU	8-92065-790-0	01	1	0509-					●
42	00.777 TANK; OIL,CLU 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)	8-97945-451-0	01	1	0610-			●			●

1 1 12 12 13 42 87 31 10 4 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	00.775 CYLINDER ASM; CLUTCH MASTER	8-97943-432-0	01	1	0307-0609	●
1	00.775 CYLINDER ASM; CLUTCH MASTER 4JA1-T ENG(LP0),6VE1 ENG(LX5), 4JA1-TCENG(L4Z),4JH1-TC ENG(RDM)	8-97943-432-0	01	1	0307-0609		●
1	00.775 CYLINDER ASM; CLUTCH MASTER 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0)	8-97945-438-0	01	1	0610-0612	●	●	●	●
1	00.775 CYLINDER ASM; CLUTCH MASTER 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0)	8-97945-438-0	01	1	0701-0912	●	●	●	●
1	00.775 CYLINDER ASM; CLUTCH MASTER 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0)	8-97945-438-0	01	1	1001-	●	●	●	●
1	00.775 CYLINDER ASM; CLUTCH MASTER C24SE ENG(LG1)	8-97943-406-0	01	1	0307-0609		●
1	00.775 CYLINDER ASM; CLUTCH MASTER	8-97943-406-0	01	1	0307-0609				●
1	00.775 CYLINDER ASM; CLUTCH MASTER C24SE ENG(LG1)	8-97945-437-0	01	1	0610-		●		●
1	00.775 CYLINDER ASM; CLUTCH MASTER	8-92158-009-0	01	1	0509-					●
1	00.775 CYLINDER ASM; CLUTCH MASTER 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)	8-97944-509-1	01	1	0610-			●			●
3	00.777 JOINT; JAW,CLU M/CYL	8-94412-201-0	01	1	0307-0609	●	●		●
3	00.777 JOINT; JAW,CLU M/CYL	8-97945-449-0	01	1	0610-	●	●	●	●		●
4	00.777 NUT; JAW JOINT 00.787 M8	9-09111-408-0	01	1	0307-0512	●	●		●
4	00.777 NUT; JAW JOINT M8	0-91111-508-0	01	1	0601-0609	●	●		●
4	00.777 NUT; JAW JOINT M8	0-91111-508-0	01	1	0610-	●	●	●	●		●
10	00.777 GASKET; CLU M/CYL	8-97184-654-0	01	1	0307-0609	●	●		●
10	00.777 GASKET; CLU M/CYL	8-97184-654-0	01	1	0610-	●	●	●	●		●
10	00.777 GASKET; CLU M/CYL	8-92052-628-0	01	1	0509-					●
12	00.775 CAP; INNER,OIL TANK,CLU M/CYL	8-94412-206-0	01	1	0307-0609	●	●		●
12	00.775 CAP; INNER,OIL TANK,CLU M/CYL	8-94412-206-0	01	1	0610-	●	●	●	●		●
13	00.777 GASKET; OIL TANK	8-94412-205-0	01	1	0307-0609	●	●		●
13	00.777 GASKET; OIL TANK	8-94412-205-0	01	1	0610-	●	●	●	●		●
13	00.777 GASKET; OIL TANK	8-92140-382-0	01	1	0509-					●
31	00.777 BOLT; JOINT,CLU M/CYL	8-97942-992-0	01	1	0307-0609	●	●		●
31	00.777 BOLT; JOINT,CLU M/CYL	8-97945-452-0	01	1	0610-	●	●	●	●		●
42	00.777 TANK; OIL,CLU	8-97942-835-0	01	1	0307-0609	●
42	00.777 TANK; OIL,CLU 4JA1-T ENG(LP0),6VE1 ENG(LX5), 4JA1-TCENG(L4Z),4JH1-TC ENG(RDM)	8-97942-835-0	01	1	0307-0609		●
42	00.777 TANK; OIL,CLU 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0)	8-97942-835-0	01	1	0610-0612	●	●	●	●
42	00.777 TANK; OIL,CLU 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0)	8-97942-835-0	01	1	0701-0912	●	●	●	●
42	00.777 TANK; OIL,CLU 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0)	8-97942-835-0	01	1	1001-	●	●	●	●
42	00.777 TANK; OIL,CLU C24SE ENG(LG1)	8-97943-409-0	01	1	0307-0609		●
42	00.777 TANK; OIL,CLU	8-97943-409-0	01	1	0307-0609				●
42	00.777 TANK; OIL,CLU C24SE ENG(LG1)	8-97943-409-0	01	1	0610-		●		●
42	00.777 TANK; OIL,CLU	8-92065-790-0	01	1	0509-					●
42	00.777 TANK; OIL,CLU 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)	8-97945-451-0	01	1	0610-			●			●
87	00.777 GROMMET; CLU M/CYL	8-97942-834-0	01	1	0307-0609	●	●		●
87	00.777 GROMMET; CLU M/CYL	8-97942-834-0	01	1	0610-	●	●	●	●		●

1 1 11 12 13 42 10 3 87 4 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	00.775 CYLINDER ASM; CLUTCH MASTER	8-97943-432-0	01	1	0307-0609	●
1	00.775 CYLINDER ASM; CLUTCH MASTER 4JA1-T ENG(LP0),6VE1 ENG(LX5), 4JA1-TCENG(L4Z),4JH1-TC ENG(RDM)	8-97943-432-0	01	1	0307-0609		●
1	00.775 CYLINDER ASM; CLUTCH MASTER 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0)	8-97945-438-0	01	1	0610-0612	●	●	●	●
1	00.775 CYLINDER ASM; CLUTCH MASTER 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0)	8-97945-438-0	01	1	0701-0912	●	●	●	●
1	00.775 CYLINDER ASM; CLUTCH MASTER 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0)	8-97945-438-0	01	1	1001-	●	●	●	●
1	00.775 CYLINDER ASM; CLUTCH MASTER C24SE ENG(LG1)	8-97943-406-0	01	1	0307-0609		●
1	00.775 CYLINDER ASM; CLUTCH MASTER	8-97943-406-0	01	1	0307-0609				●
1	00.775 CYLINDER ASM; CLUTCH MASTER C24SE ENG(LG1)	8-97945-437-0	01	1	0610-		●		●
1	00.775 CYLINDER ASM; CLUTCH MASTER	8-92158-009-0	01	1	0509-					●
1	00.775 CYLINDER ASM; CLUTCH MASTER 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)	8-97944-509-1	01	1	0610-			●			●
3	00.777 JOINT; JAW,CLU M/CYL	8-94412-201-0	01	1	0307-0609	●	●		●
3	00.777 JOINT; JAW,CLU M/CYL	8-97945-449-0	01	1	0610-	●	●	●	●		●
4	00.777 NUT; JAW JOINT 00.787 M8	9-09111-408-0	01	1	0307-0512	●	●		●
4	00.777 NUT; JAW JOINT M8	0-91111-508-0	01	1	0601-0609	●	●		●
4	00.777 NUT; JAW JOINT M8	0-91111-508-0	01	1	0610-	●	●	●	●		●
10	00.777 GASKET; CLU M/CYL	8-97184-654-0	01	1	0307-0609	●	●		●
10	00.777 GASKET; CLU M/CYL	8-97184-654-0	01	1	0610-	●	●	●	●		●
10	00.777 GASKET; CLU M/CYL	8-92052-628-0	01	1	0509-					●
11	00.777 CAP; OUTER,CLU M/CYL	8-97942-836-0	01	1	0307-0609	●	●		●
11	00.777 CAP; OUTER,CLU M/CYL	8-97942-836-0	01	1	0610-	●	●	●	●		●
11	00.777 CAP; OUTER,CLU M/CYL	8-92144-027-0	01	1	0509-					●
12	00.775 CAP; INNER,OIL TANK,CLU M/CYL	8-94412-206-0	01	1	0307-0609	●	●		●
12	00.775 CAP; INNER,OIL TANK,CLU M/CYL	8-94412-206-0	01	1	0610-	●	●	●	●		●
13	00.777 GASKET; OIL TANK	8-94412-205-0	01	1	0307-0609	●	●		●
13	00.777 GASKET; OIL TANK	8-94412-205-0	01	1	0610-	●	●	●	●		●
13	00.777 GASKET; OIL TANK	8-92140-382-0	01	1	0509-					●
31	00.777 BOLT; JOINT,CLU M/CYL	8-97942-992-0	01	1	0307-0609	●	●		●
31	00.777 BOLT; JOINT,CLU M/CYL	8-97945-452-0	01	1	0610-	●	●	●	●		●
42	00.777 TANK; OIL,CLU	8-97942-835-0	01	1	0307-0609	●
42	00.777 TANK; OIL,CLU 4JA1-T ENG(LP0),6VE1 ENG(LX5), 4JA1-TCENG(L4Z),4JH1-TC ENG(RDM)	8-97942-835-0	01	1	0307-0609		●
42	00.777 TANK; OIL,CLU 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0)	8-97942-835-0	01	1	0610-0612	●	●	●	●
42	00.777 TANK; OIL,CLU 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0)	8-97942-835-0	01	1	0701-0912	●	●	●	●
42	00.777 TANK; OIL,CLU 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0)	8-97942-835-0	01	1	1001-	●	●	●	●
42	00.777 TANK; OIL,CLU C24SE ENG(LG1)	8-97943-409-0	01	1	0307-0609		●
42	00.777 TANK; OIL,CLU	8-97943-409-0	01	1	0307-0609				●
42	00.777 TANK; OIL,CLU C24SE ENG(LG1)	8-97943-409-0	01	1	0610-		●		●
42	00.777 TANK; OIL,CLU	8-92065-790-0	01	1	0509-					●
42	00.777 TANK; OIL,CLU 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)	8-97945-451-0	01	1	0610-			●			●
87	00.777 GROMMET; CLU M/CYL	8-97942-834-0	01	1	0307-0609	●	●		●
87	00.777 GROMMET; CLU M/CYL	8-97942-834-0	01	1	0610-	●	●	●	●		●

1 1 11 12 13 42 3 10 4 61 87 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	00.775 CYLINDER ASM; CLUTCH MASTER	8-97943-432-0	01	1	0307-0609	●
1	00.775 CYLINDER ASM; CLUTCH MASTER 4JA1-T ENG(LP0),6VE1 ENG(LX5), 4JA1-TCENG(L4Z),4JH1-TC ENG(RDM)	8-97943-432-0	01	1	0307-0609		●
1	00.775 CYLINDER ASM; CLUTCH MASTER 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0)	8-97945-438-0	01	1	0610-0612	●	●	●	●
1	00.775 CYLINDER ASM; CLUTCH MASTER 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0)	8-97945-438-0	01	1	0701-0912	●	●	●	●
1	00.775 CYLINDER ASM; CLUTCH MASTER 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0)	8-97945-438-0	01	1	1001-	●	●	●	●
1	00.775 CYLINDER ASM; CLUTCH MASTER C24SE ENG(LG1)	8-97943-406-0	01	1	0307-0609		●
1	00.775 CYLINDER ASM; CLUTCH MASTER	8-97943-406-0	01	1	0307-0609				●
1	00.775 CYLINDER ASM; CLUTCH MASTER C24SE ENG(LG1)	8-97945-437-0	01	1	0610-		●		●
1	00.775 CYLINDER ASM; CLUTCH MASTER	8-92158-009-0	01	1	0509-					●
1	00.775 CYLINDER ASM; CLUTCH MASTER 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)	8-97944-509-1	01	1	0610-			●			●
3	00.777 JOINT; JAW,CLU M/CYL	8-94412-201-0	01	1	0307-0609	●	●		●
3	00.777 JOINT; JAW,CLU M/CYL	8-97945-449-0	01	1	0610-	●	●	●	●		●
4	00.777 NUT; JAW JOINT 00.787 M8	9-09111-408-0	01	1	0307-0512	●	●		●
4	00.777 NUT; JAW JOINT M8	0-91111-508-0	01	1	0601-0609	●	●		●
4	00.777 NUT; JAW JOINT M8	0-91111-508-0	01	1	0610-	●	●	●	●		●
10	00.777 GASKET; CLU M/CYL	8-97184-654-0	01	1	0307-0609	●	●		●
10	00.777 GASKET; CLU M/CYL	8-97184-654-0	01	1	0610-	●	●	●	●		●
10	00.777 GASKET; CLU M/CYL	8-92052-628-0	01	1	0509-					●
11	00.777 CAP; OUTER,CLU M/CYL	8-97942-836-0	01	1	0307-0609	●	●		●
11	00.777 CAP; OUTER,CLU M/CYL	8-97942-836-0	01	1	0610-	●	●	●	●		●
11	00.777 CAP; OUTER,CLU M/CYL	8-92144-027-0	01	1	0509-					●
12	00.775 CAP; INNER,OIL TANK,CLU M/CYL	8-94412-206-0	01	1	0307-0609	●	●		●
12	00.775 CAP; INNER,OIL TANK,CLU M/CYL	8-94412-206-0	01	1	0610-	●	●	●	●		●
13	00.777 GASKET; OIL TANK	8-94412-205-0	01	1	0307-0609	●	●		●
13	00.777 GASKET; OIL TANK	8-94412-205-0	01	1	0610-	●	●	●	●		●
13	00.777 GASKET; OIL TANK	8-92140-382-0	01	1	0509-					●
31	00.777 BOLT; JOINT,CLU M/CYL	8-97942-992-0	01	1	0307-0609	●	●		●
31	00.777 BOLT; JOINT,CLU M/CYL	8-97945-452-0	01	1	0610-	●	●	●	●		●
42	00.777 TANK; OIL,CLU	8-97942-835-0	01	1	0307-0609	●
42	00.777 TANK; OIL,CLU 4JA1-T ENG(LP0),6VE1 ENG(LX5), 4JA1-TCENG(L4Z),4JH1-TC ENG(RDM)	8-97942-835-0	01	1	0307-0609		●
42	00.777 TANK; OIL,CLU 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0)	8-97942-835-0	01	1	0610-0612	●	●	●	●
42	00.777 TANK; OIL,CLU 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0)	8-97942-835-0	01	1	0701-0912	●	●	●	●
42	00.777 TANK; OIL,CLU 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0)	8-97942-835-0	01	1	1001-	●	●	●	●
42	00.777 TANK; OIL,CLU C24SE ENG(LG1)	8-97943-409-0	01	1	0307-0609		●
42	00.777 TANK; OIL,CLU	8-97943-409-0	01	1	0307-0609				●
42	00.777 TANK; OIL,CLU C24SE ENG(LG1)	8-97943-409-0	01	1	0610-		●		●
42	00.777 TANK; OIL,CLU	8-92065-790-0	01	1	0509-					●
42	00.777 TANK; OIL,CLU 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)	8-97945-451-0	01	1	0610-			●			●
61	00.777 BOLT; STUD	8-97945-450-0	02	1	0610-	●	●	●	●		●
87	00.777 GROMMET; CLU M/CYL	8-97942-834-0	01	1	0307-0609	●	●		●
87	00.777 GROMMET; CLU M/CYL	8-97942-834-0	01	1	0610-	●	●	●	●		●

1 1 11 12 13 42 10 3 4 61 87 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	00.775 CYLINDER ASM; CLUTCH MASTER	8-97943-432-0	01	1	0307-0609	●
1	00.775 CYLINDER ASM; CLUTCH MASTER 4JA1-T ENG(LP0),6VE1 ENG(LX5), 4JA1-TCENG(L4Z),4JH1-TC ENG(RDM)	8-97943-432-0	01	1	0307-0609		●
1	00.775 CYLINDER ASM; CLUTCH MASTER 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0)	8-97945-438-0	01	1	0610-0612	●	●	●	●
1	00.775 CYLINDER ASM; CLUTCH MASTER 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0)	8-97945-438-0	01	1	0701-0912	●	●	●	●
1	00.775 CYLINDER ASM; CLUTCH MASTER 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0)	8-97945-438-0	01	1	1001-	●	●	●	●
1	00.775 CYLINDER ASM; CLUTCH MASTER C24SE ENG(LG1)	8-97943-406-0	01	1	0307-0609		●
1	00.775 CYLINDER ASM; CLUTCH MASTER	8-97943-406-0	01	1	0307-0609				●
1	00.775 CYLINDER ASM; CLUTCH MASTER C24SE ENG(LG1)	8-97945-437-0	01	1	0610-		●		●
1	00.775 CYLINDER ASM; CLUTCH MASTER	8-92158-009-0	01	1	0509-					●
1	00.775 CYLINDER ASM; CLUTCH MASTER 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)	8-97944-509-1	01	1	0610-			●			●
3	00.777 JOINT; JAW,CLU M/CYL	8-94412-201-0	01	1	0307-0609	●	●		●
3	00.777 JOINT; JAW,CLU M/CYL	8-97945-449-0	01	1	0610-	●	●	●	●		●
4	00.777 NUT; JAW JOINT 00.787 M8	9-09111-408-0	01	1	0307-0512	●	●		●
4	00.777 NUT; JAW JOINT M8	0-91111-508-0	01	1	0601-0609	●	●		●
4	00.777 NUT; JAW JOINT M8	0-91111-508-0	01	1	0610-	●	●	●	●		●
10	00.777 GASKET; CLU M/CYL	8-97184-654-0	01	1	0307-0609	●	●		●
10	00.777 GASKET; CLU M/CYL	8-97184-654-0	01	1	0610-	●	●	●	●		●
10	00.777 GASKET; CLU M/CYL	8-92052-628-0	01	1	0509-					●
11	00.777 CAP; OUTER,CLU M/CYL	8-97942-836-0	01	1	0307-0609	●	●		●
11	00.777 CAP; OUTER,CLU M/CYL	8-97942-836-0	01	1	0610-	●	●	●	●		●
11	00.777 CAP; OUTER,CLU M/CYL	8-92144-027-0	01	1	0509-					●
12	00.775 CAP; INNER,OIL TANK,CLU M/CYL	8-94412-206-0	01	1	0307-0609	●	●		●
12	00.775 CAP; INNER,OIL TANK,CLU M/CYL	8-94412-206-0	01	1	0610-	●	●	●	●		●
13	00.777 GASKET; OIL TANK	8-94412-205-0	01	1	0307-0609	●	●		●
13	00.777 GASKET; OIL TANK	8-94412-205-0	01	1	0610-	●	●	●	●		●
13	00.777 GASKET; OIL TANK	8-92140-382-0	01	1	0509-					●
31	00.777 BOLT; JOINT,CLU M/CYL	8-97942-992-0	01	1	0307-0609	●	●		●
31	00.777 BOLT; JOINT,CLU M/CYL	8-97945-452-0	01	1	0610-	●	●	●	●		●
42	00.777 TANK; OIL,CLU	8-97942-835-0	01	1	0307-0609	●
42	00.777 TANK; OIL,CLU 4JA1-T ENG(LP0),6VE1 ENG(LX5), 4JA1-TCENG(L4Z),4JH1-TC ENG(RDM)	8-97942-835-0	01	1	0307-0609		●
42	00.777 TANK; OIL,CLU 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0)	8-97942-835-0	01	1	0610-0612	●	●	●	●
42	00.777 TANK; OIL,CLU 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0)	8-97942-835-0	01	1	0701-0912	●	●	●	●
42	00.777 TANK; OIL,CLU 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0)	8-97942-835-0	01	1	1001-	●	●	●	●
42	00.777 TANK; OIL,CLU C24SE ENG(LG1)	8-97943-409-0	01	1	0307-0609		●
42	00.777 TANK; OIL,CLU	8-97943-409-0	01	1	0307-0609				●
42	00.777 TANK; OIL,CLU C24SE ENG(LG1)	8-97943-409-0	01	1	0610-		●		●
42	00.777 TANK; OIL,CLU	8-92065-790-0	01	1	0509-					●
42	00.777 TANK; OIL,CLU 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)	8-97945-451-0	01	1	0610-			●			●
61	00.777 BOLT; STUD	8-97945-450-0	02	1	0610-	●	●	●	●		●
87	00.777 GROMMET; CLU M/CYL	8-97942-834-0	01	1	0307-0609	●	●		●
87	00.777 GROMMET; CLU M/CYL	8-97942-834-0	01	1	0610-	●	●	●	●		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
