2-06A — CLUTCH SLAVE CYLINDER (#20406) — 208 parça

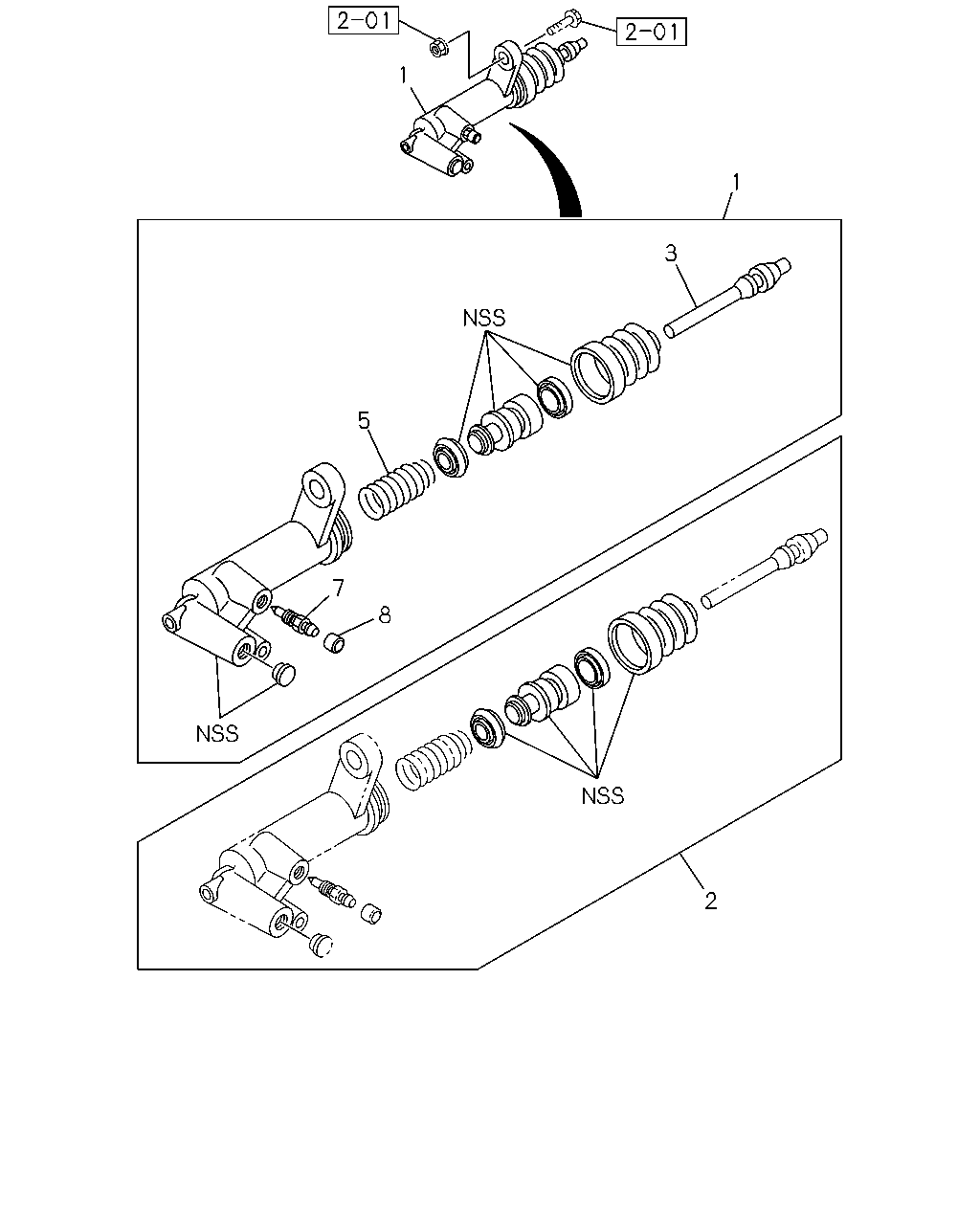

çizim 12324
1 3 5 7 8 2 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 00.780 CYLINDER; SLAVE,CLU 8-97942-296-0 01 1 0307- ●
1 00.780 CYLINDER; SLAVE,CLU
4JA1-T ENG(LP0) 		8-97942-296-0 01 1 0307- ●
1 00.780 CYLINDER; SLAVE,CLU
C24SE ENG(LG1) 		8-97942-322-0 01 1 0307-0609 ●
1 00.780 CYLINDER; SLAVE,CLU 8-97942-322-0 01 1 0307-0609 ●
1 00.780 CYLINDER; SLAVE,CLU
C24SE ENG(LG1) 		8-97942-322-0 01 1 0610- ● ● ●
1 00.780 CYLINDER; SLAVE,CLU
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 		8-97941-515-0 01 1 0307-0609 ●
1 00.780 CYLINDER; SLAVE,CLU
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JH1-TC ENG(RDM) 		8-97945-177-0 01 1 0610-0612 ● ● ●
1 00.780 CYLINDER; SLAVE,CLU
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JH1-TC ENG(RDM) 		8-97945-177-0 01 1 0701-0912 ● ● ●
1 00.780 CYLINDER; SLAVE,CLU
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) 		8-97945-177-0 01 1 1001- ● ● ●
1 00.780 CYLINDER; SLAVE,CLU
6VE1 ENG(LX5) 		8-97941-519-0 01 1 0307-0609 ●
1 00.780 CYLINDER; SLAVE,CLU 8-97944-513-3 01 1 0610- ●
1 00.780 CYLINDER; SLAVE,CLU 8-92159-965-0 01 1 0509- ●
2 00.780 REPAIR KIT; CLU SLAVE CYL 5-87832-049-0 01 1 0307-0609 ● ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
C24SE ENG(LG1),4JA1-T ENG(LP0) 		5-87832-049-0 01 1 0307-0609 ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
C24SE ENG(LG1),4JA1-T ENG(LP0) 		5-87832-049-0 01 1 0610- ● ● ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 		5-87832-048-0 01 1 0307-0609 ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JH1-TC ENG(RDM) 		5-87832-048-0 01 1 0610-0612 ● ● ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JH1-TC ENG(RDM) 		5-87832-048-0 01 1 0701-0912 ● ● ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) 		5-87832-048-0 01 1 1001- ● ● ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
6VE1 ENG(LX5) 		5-87832-067-0 01 1 0307-0609 ●
2 00.780 REPAIR KIT; CLU SLAVE CYL 5-87832-067-0 01 1 0610-1102 ●
2 00.780 REPAIR KIT; CLU SLAVE CYL 5-87832-264-0 01 1 1103- ●
3 00.780 ROD; PUSH,SLAVE CYL 8-97942-803-0 01 1 0307-0609 ● ●
3 00.780 ROD; PUSH,SLAVE CYL
C24SE ENG(LG1),4JA1-T ENG(LP0), 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 		8-97942-803-0 01 1 0307-0609 ●
3 00.780 ROD; PUSH,SLAVE CYL
C24SE ENG(LG1),4JA1-T ENG(LP0) 		8-97942-803-0 01 1 0610- ● ● ●
3 00.780 ROD; PUSH,SLAVE CYL
6VE1 ENG(LX5) 		8-97062-923-0 01 1 0307-0609 ●
3 00.780 ROD; PUSH,SLAVE CYL
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JH1-TC ENG(RDM) 		8-97945-722-0 01 1 0610-0612 ● ● ●
3 00.780 ROD; PUSH,SLAVE CYL
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JH1-TC ENG(RDM) 		8-97945-722-0 01 1 0701-0912 ● ● ●
3 00.780 ROD; PUSH,SLAVE CYL
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) 		8-97945-722-0 01 1 1001- ● ● ●
3 00.780 ROD; PUSH,SLAVE CYL 8-97945-721-0 01 1 0610- ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL 8-97942-802-0 01 1 0307-0609 ● ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL
C24SE ENG(LG1),4JA1-T ENG(LP0) 		8-97942-802-0 01 1 0307-0609 ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL
C24SE ENG(LG1),4JA1-T ENG(LP0) 		8-97942-802-0 01 1 0610- ● ● ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 		8-97942-801-0 01 1 0307-0609 ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JH1-TC ENG(RDM) 		8-97942-801-0 01 1 0610-0612 ● ● ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JH1-TC ENG(RDM) 		8-97942-801-0 01 1 0701-0912 ● ● ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) 		8-97942-801-0 01 1 1001- ● ● ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL
6VE1 ENG(LX5) 		8-97028-736-0 01 1 0307-0609 ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL 8-97028-736-0 01 1 0610- ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
M8X16.5 		8-94115-113-0 01 1 0307-0609 ● ● ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
C24SE ENG(LG1),4JA1-T ENG(LP0) M8X16.5 		8-94115-113-0 01 1 0610- ● ● ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JH1-TC ENG(RDM) M8X10 		8-98020-477-0 01 1 0610-0612 ● ● ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
M8X10 		8-98020-477-0 01 1 0610-0612 ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) M8X10 		8-98020-477-0 01 1 0701-0912 ● ● ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
M8X10 		8-98020-477-0 01 1 0701-0912 ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) M8X10 		8-98020-477-0 01 1 1001- ● ● ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
M8X10 		8-98020-477-0 01 1 1001- ●
8 00.780 CAP; BLEEDER,SLAVE CYL
OD=10 		8-97940-638-0 01 1 0307-0609 ● ● ●
8 00.780 CAP; BLEEDER,SLAVE CYL
OD=10 		8-97940-638-0 01 1 0610- ● ● ● ● ●

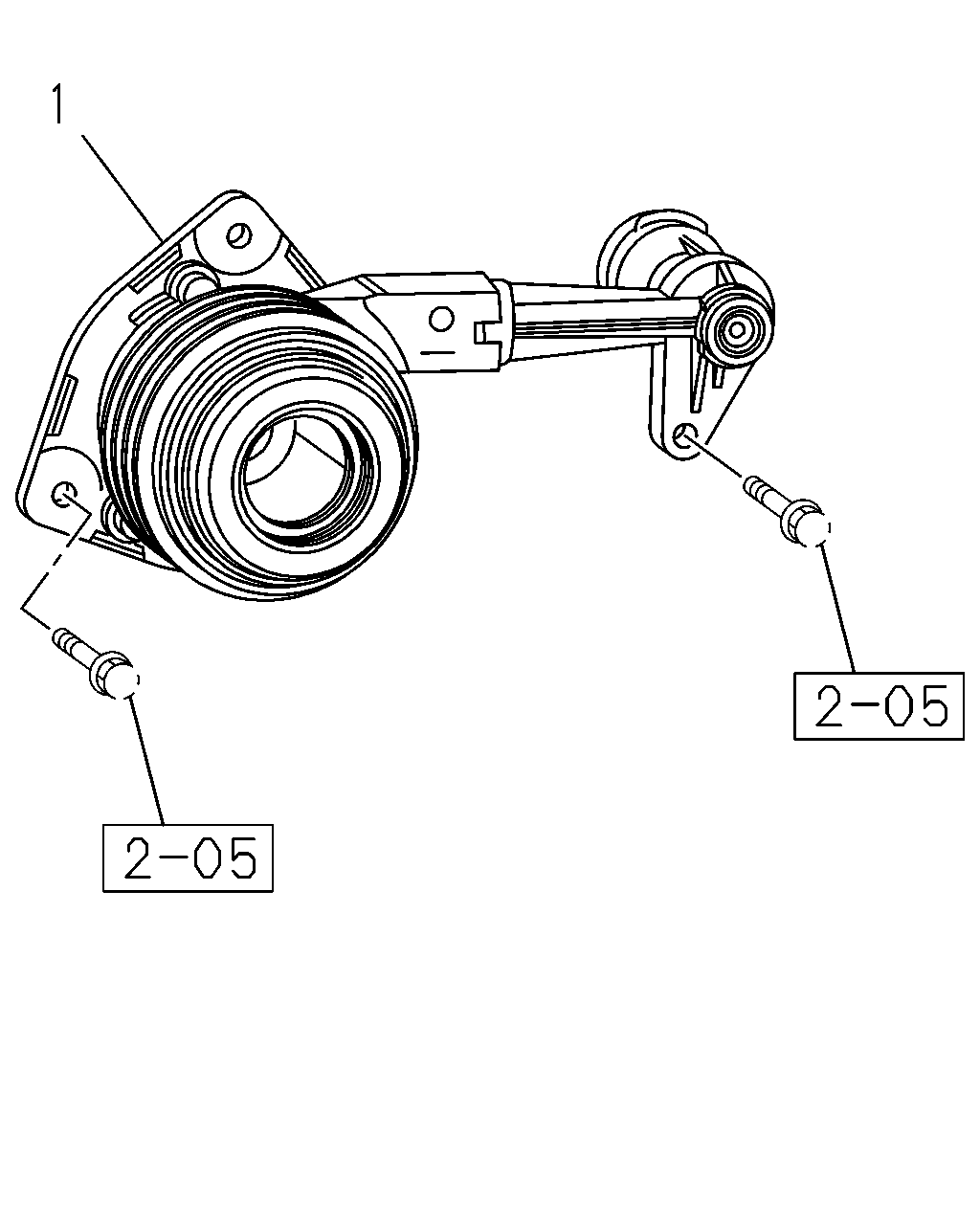

çizim 13305
1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 00.780 CYLINDER; SLAVE,CLU 8-97942-296-0 01 1 0307- ●
1 00.780 CYLINDER; SLAVE,CLU
4JA1-T ENG(LP0) 		8-97942-296-0 01 1 0307- ●
1 00.780 CYLINDER; SLAVE,CLU
C24SE ENG(LG1) 		8-97942-322-0 01 1 0307-0609 ●
1 00.780 CYLINDER; SLAVE,CLU 8-97942-322-0 01 1 0307-0609 ●
1 00.780 CYLINDER; SLAVE,CLU
C24SE ENG(LG1) 		8-97942-322-0 01 1 0610- ● ● ●
1 00.780 CYLINDER; SLAVE,CLU
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 		8-97941-515-0 01 1 0307-0609 ●
1 00.780 CYLINDER; SLAVE,CLU
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JH1-TC ENG(RDM) 		8-97945-177-0 01 1 0610-0612 ● ● ●
1 00.780 CYLINDER; SLAVE,CLU
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JH1-TC ENG(RDM) 		8-97945-177-0 01 1 0701-0912 ● ● ●
1 00.780 CYLINDER; SLAVE,CLU
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) 		8-97945-177-0 01 1 1001- ● ● ●
1 00.780 CYLINDER; SLAVE,CLU
6VE1 ENG(LX5) 		8-97941-519-0 01 1 0307-0609 ●
1 00.780 CYLINDER; SLAVE,CLU 8-97944-513-3 01 1 0610- ●
1 00.780 CYLINDER; SLAVE,CLU 8-92159-965-0 01 1 0509- ●

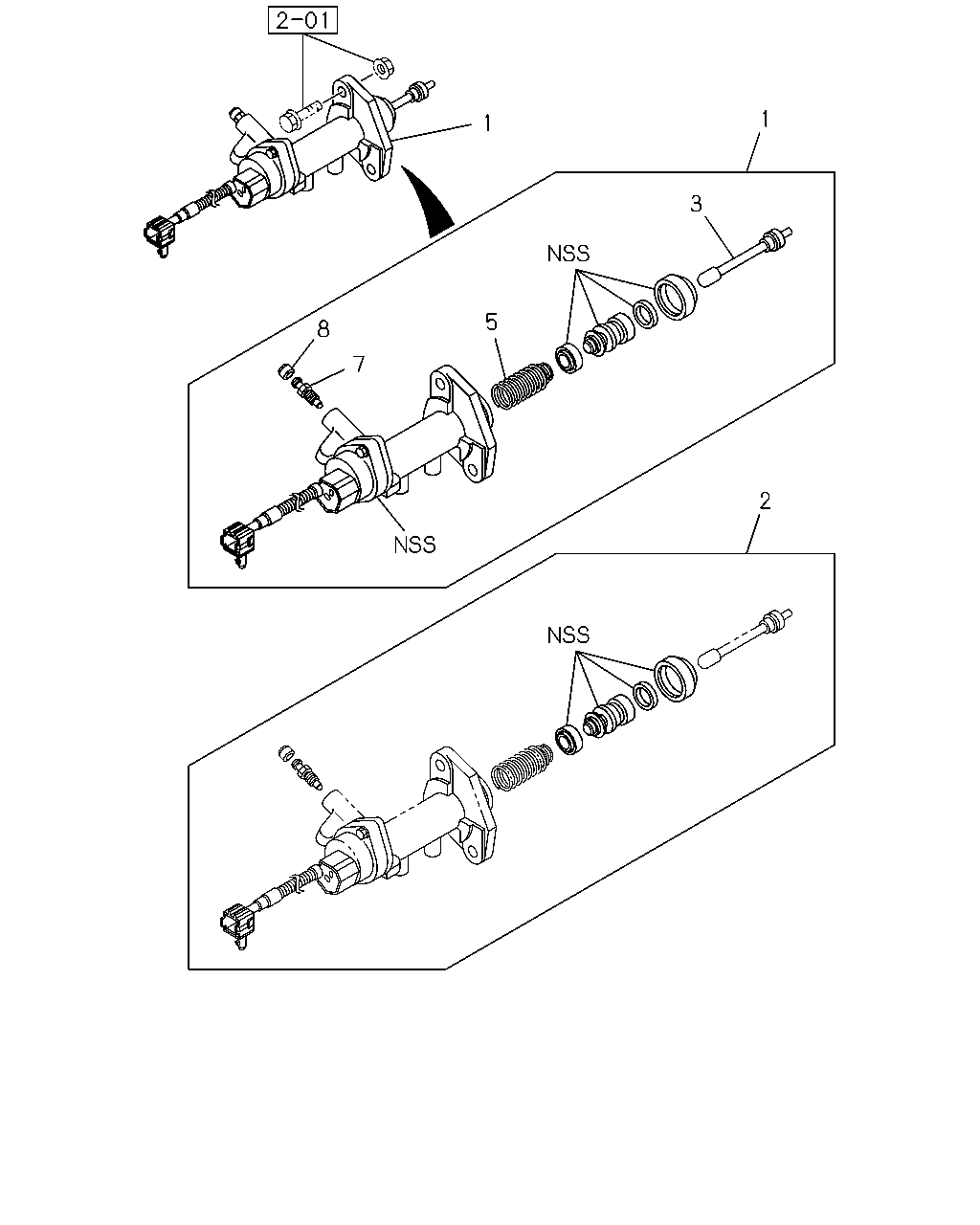

çizim 53833
1 1 3 5 7 8 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 00.780 CYLINDER; SLAVE,CLU 8-97942-296-0 01 1 0307- ●
1 00.780 CYLINDER; SLAVE,CLU
4JA1-T ENG(LP0) 		8-97942-296-0 01 1 0307- ●
1 00.780 CYLINDER; SLAVE,CLU
C24SE ENG(LG1) 		8-97942-322-0 01 1 0307-0609 ●
1 00.780 CYLINDER; SLAVE,CLU 8-97942-322-0 01 1 0307-0609 ●
1 00.780 CYLINDER; SLAVE,CLU
C24SE ENG(LG1) 		8-97942-322-0 01 1 0610- ● ● ●
1 00.780 CYLINDER; SLAVE,CLU
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 		8-97941-515-0 01 1 0307-0609 ●
1 00.780 CYLINDER; SLAVE,CLU
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JH1-TC ENG(RDM) 		8-97945-177-0 01 1 0610-0612 ● ● ●
1 00.780 CYLINDER; SLAVE,CLU
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JH1-TC ENG(RDM) 		8-97945-177-0 01 1 0701-0912 ● ● ●
1 00.780 CYLINDER; SLAVE,CLU
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) 		8-97945-177-0 01 1 1001- ● ● ●
1 00.780 CYLINDER; SLAVE,CLU
6VE1 ENG(LX5) 		8-97941-519-0 01 1 0307-0609 ●
1 00.780 CYLINDER; SLAVE,CLU 8-97944-513-3 01 1 0610- ●
1 00.780 CYLINDER; SLAVE,CLU 8-92159-965-0 01 1 0509- ●
2 00.780 REPAIR KIT; CLU SLAVE CYL 5-87832-049-0 01 1 0307-0609 ● ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
C24SE ENG(LG1),4JA1-T ENG(LP0) 		5-87832-049-0 01 1 0307-0609 ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
C24SE ENG(LG1),4JA1-T ENG(LP0) 		5-87832-049-0 01 1 0610- ● ● ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 		5-87832-048-0 01 1 0307-0609 ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JH1-TC ENG(RDM) 		5-87832-048-0 01 1 0610-0612 ● ● ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JH1-TC ENG(RDM) 		5-87832-048-0 01 1 0701-0912 ● ● ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) 		5-87832-048-0 01 1 1001- ● ● ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
6VE1 ENG(LX5) 		5-87832-067-0 01 1 0307-0609 ●
2 00.780 REPAIR KIT; CLU SLAVE CYL 5-87832-067-0 01 1 0610-1102 ●
2 00.780 REPAIR KIT; CLU SLAVE CYL 5-87832-264-0 01 1 1103- ●
3 00.780 ROD; PUSH,SLAVE CYL 8-97942-803-0 01 1 0307-0609 ● ●
3 00.780 ROD; PUSH,SLAVE CYL
C24SE ENG(LG1),4JA1-T ENG(LP0), 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 		8-97942-803-0 01 1 0307-0609 ●
3 00.780 ROD; PUSH,SLAVE CYL
C24SE ENG(LG1),4JA1-T ENG(LP0) 		8-97942-803-0 01 1 0610- ● ● ●
3 00.780 ROD; PUSH,SLAVE CYL
6VE1 ENG(LX5) 		8-97062-923-0 01 1 0307-0609 ●
3 00.780 ROD; PUSH,SLAVE CYL
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JH1-TC ENG(RDM) 		8-97945-722-0 01 1 0610-0612 ● ● ●
3 00.780 ROD; PUSH,SLAVE CYL
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JH1-TC ENG(RDM) 		8-97945-722-0 01 1 0701-0912 ● ● ●
3 00.780 ROD; PUSH,SLAVE CYL
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) 		8-97945-722-0 01 1 1001- ● ● ●
3 00.780 ROD; PUSH,SLAVE CYL 8-97945-721-0 01 1 0610- ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL 8-97942-802-0 01 1 0307-0609 ● ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL
C24SE ENG(LG1),4JA1-T ENG(LP0) 		8-97942-802-0 01 1 0307-0609 ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL
C24SE ENG(LG1),4JA1-T ENG(LP0) 		8-97942-802-0 01 1 0610- ● ● ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 		8-97942-801-0 01 1 0307-0609 ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JH1-TC ENG(RDM) 		8-97942-801-0 01 1 0610-0612 ● ● ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JH1-TC ENG(RDM) 		8-97942-801-0 01 1 0701-0912 ● ● ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) 		8-97942-801-0 01 1 1001- ● ● ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL
6VE1 ENG(LX5) 		8-97028-736-0 01 1 0307-0609 ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL 8-97028-736-0 01 1 0610- ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
M8X16.5 		8-94115-113-0 01 1 0307-0609 ● ● ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
C24SE ENG(LG1),4JA1-T ENG(LP0) M8X16.5 		8-94115-113-0 01 1 0610- ● ● ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JH1-TC ENG(RDM) M8X10 		8-98020-477-0 01 1 0610-0612 ● ● ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
M8X10 		8-98020-477-0 01 1 0610-0612 ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) M8X10 		8-98020-477-0 01 1 0701-0912 ● ● ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
M8X10 		8-98020-477-0 01 1 0701-0912 ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) M8X10 		8-98020-477-0 01 1 1001- ● ● ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
M8X10 		8-98020-477-0 01 1 1001- ●
8 00.780 CAP; BLEEDER,SLAVE CYL
OD=10 		8-97940-638-0 01 1 0307-0609 ● ● ●
8 00.780 CAP; BLEEDER,SLAVE CYL
OD=10 		8-97940-638-0 01 1 0610- ● ● ● ● ●

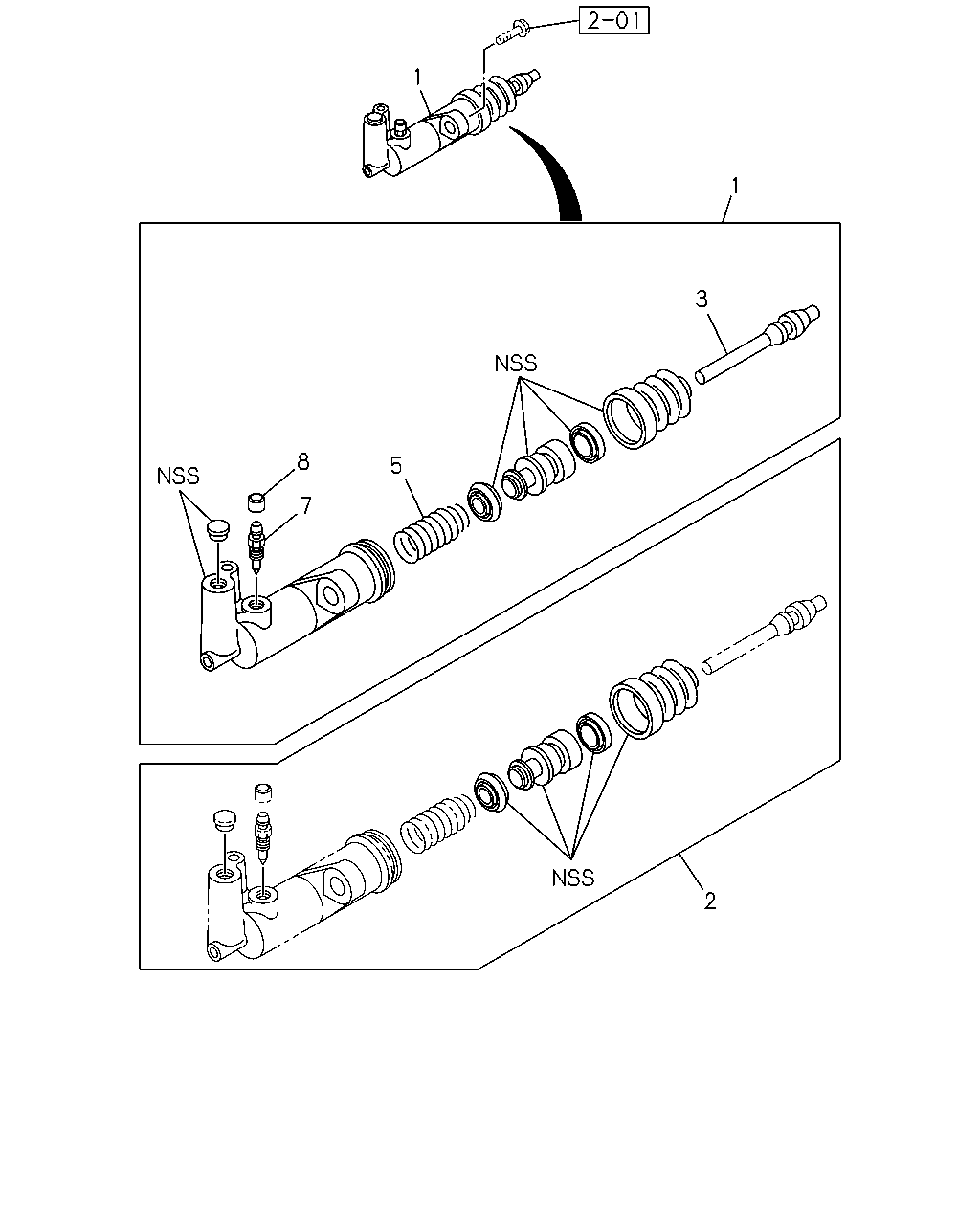

çizim 54779
1 1 3 5 8 7 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 00.780 CYLINDER; SLAVE,CLU 8-97942-296-0 01 1 0307- ●
1 00.780 CYLINDER; SLAVE,CLU
4JA1-T ENG(LP0) 		8-97942-296-0 01 1 0307- ●
1 00.780 CYLINDER; SLAVE,CLU
C24SE ENG(LG1) 		8-97942-322-0 01 1 0307-0609 ●
1 00.780 CYLINDER; SLAVE,CLU 8-97942-322-0 01 1 0307-0609 ●
1 00.780 CYLINDER; SLAVE,CLU
C24SE ENG(LG1) 		8-97942-322-0 01 1 0610- ● ● ●
1 00.780 CYLINDER; SLAVE,CLU
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 		8-97941-515-0 01 1 0307-0609 ●
1 00.780 CYLINDER; SLAVE,CLU
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JH1-TC ENG(RDM) 		8-97945-177-0 01 1 0610-0612 ● ● ●
1 00.780 CYLINDER; SLAVE,CLU
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JH1-TC ENG(RDM) 		8-97945-177-0 01 1 0701-0912 ● ● ●
1 00.780 CYLINDER; SLAVE,CLU
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) 		8-97945-177-0 01 1 1001- ● ● ●
1 00.780 CYLINDER; SLAVE,CLU
6VE1 ENG(LX5) 		8-97941-519-0 01 1 0307-0609 ●
1 00.780 CYLINDER; SLAVE,CLU 8-97944-513-3 01 1 0610- ●
1 00.780 CYLINDER; SLAVE,CLU 8-92159-965-0 01 1 0509- ●
2 00.780 REPAIR KIT; CLU SLAVE CYL 5-87832-049-0 01 1 0307-0609 ● ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
C24SE ENG(LG1),4JA1-T ENG(LP0) 		5-87832-049-0 01 1 0307-0609 ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
C24SE ENG(LG1),4JA1-T ENG(LP0) 		5-87832-049-0 01 1 0610- ● ● ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 		5-87832-048-0 01 1 0307-0609 ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JH1-TC ENG(RDM) 		5-87832-048-0 01 1 0610-0612 ● ● ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JH1-TC ENG(RDM) 		5-87832-048-0 01 1 0701-0912 ● ● ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) 		5-87832-048-0 01 1 1001- ● ● ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
6VE1 ENG(LX5) 		5-87832-067-0 01 1 0307-0609 ●
2 00.780 REPAIR KIT; CLU SLAVE CYL 5-87832-067-0 01 1 0610-1102 ●
2 00.780 REPAIR KIT; CLU SLAVE CYL 5-87832-264-0 01 1 1103- ●
3 00.780 ROD; PUSH,SLAVE CYL 8-97942-803-0 01 1 0307-0609 ● ●
3 00.780 ROD; PUSH,SLAVE CYL
C24SE ENG(LG1),4JA1-T ENG(LP0), 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 		8-97942-803-0 01 1 0307-0609 ●
3 00.780 ROD; PUSH,SLAVE CYL
C24SE ENG(LG1),4JA1-T ENG(LP0) 		8-97942-803-0 01 1 0610- ● ● ●
3 00.780 ROD; PUSH,SLAVE CYL
6VE1 ENG(LX5) 		8-97062-923-0 01 1 0307-0609 ●
3 00.780 ROD; PUSH,SLAVE CYL
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JH1-TC ENG(RDM) 		8-97945-722-0 01 1 0610-0612 ● ● ●
3 00.780 ROD; PUSH,SLAVE CYL
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JH1-TC ENG(RDM) 		8-97945-722-0 01 1 0701-0912 ● ● ●
3 00.780 ROD; PUSH,SLAVE CYL
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) 		8-97945-722-0 01 1 1001- ● ● ●
3 00.780 ROD; PUSH,SLAVE CYL 8-97945-721-0 01 1 0610- ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL 8-97942-802-0 01 1 0307-0609 ● ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL
C24SE ENG(LG1),4JA1-T ENG(LP0) 		8-97942-802-0 01 1 0307-0609 ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL
C24SE ENG(LG1),4JA1-T ENG(LP0) 		8-97942-802-0 01 1 0610- ● ● ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 		8-97942-801-0 01 1 0307-0609 ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JH1-TC ENG(RDM) 		8-97942-801-0 01 1 0610-0612 ● ● ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JH1-TC ENG(RDM) 		8-97942-801-0 01 1 0701-0912 ● ● ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) 		8-97942-801-0 01 1 1001- ● ● ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL
6VE1 ENG(LX5) 		8-97028-736-0 01 1 0307-0609 ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL 8-97028-736-0 01 1 0610- ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
M8X16.5 		8-94115-113-0 01 1 0307-0609 ● ● ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
C24SE ENG(LG1),4JA1-T ENG(LP0) M8X16.5 		8-94115-113-0 01 1 0610- ● ● ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JH1-TC ENG(RDM) M8X10 		8-98020-477-0 01 1 0610-0612 ● ● ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
M8X10 		8-98020-477-0 01 1 0610-0612 ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) M8X10 		8-98020-477-0 01 1 0701-0912 ● ● ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
M8X10 		8-98020-477-0 01 1 0701-0912 ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) M8X10 		8-98020-477-0 01 1 1001- ● ● ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
M8X10 		8-98020-477-0 01 1 1001- ●
8 00.780 CAP; BLEEDER,SLAVE CYL
OD=10 		8-97940-638-0 01 1 0307-0609 ● ● ●
8 00.780 CAP; BLEEDER,SLAVE CYL
OD=10 		8-97940-638-0 01 1 0610- ● ● ● ● ●

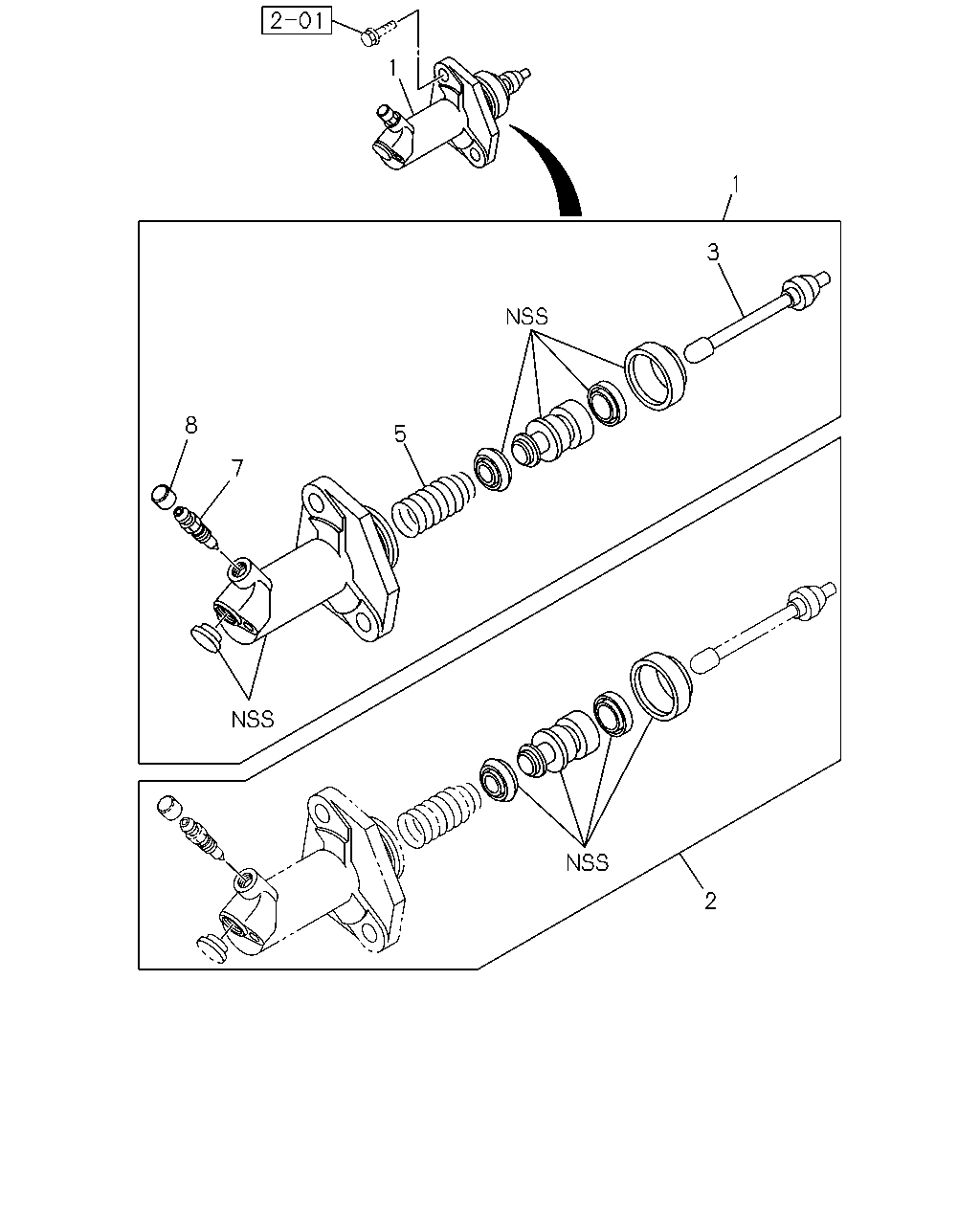

çizim 56768
1 1 3 5 8 7 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 00.780 CYLINDER; SLAVE,CLU 8-97942-296-0 01 1 0307- ●
1 00.780 CYLINDER; SLAVE,CLU
4JA1-T ENG(LP0) 		8-97942-296-0 01 1 0307- ●
1 00.780 CYLINDER; SLAVE,CLU
C24SE ENG(LG1) 		8-97942-322-0 01 1 0307-0609 ●
1 00.780 CYLINDER; SLAVE,CLU 8-97942-322-0 01 1 0307-0609 ●
1 00.780 CYLINDER; SLAVE,CLU
C24SE ENG(LG1) 		8-97942-322-0 01 1 0610- ● ● ●
1 00.780 CYLINDER; SLAVE,CLU
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 		8-97941-515-0 01 1 0307-0609 ●
1 00.780 CYLINDER; SLAVE,CLU
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JH1-TC ENG(RDM) 		8-97945-177-0 01 1 0610-0612 ● ● ●
1 00.780 CYLINDER; SLAVE,CLU
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JH1-TC ENG(RDM) 		8-97945-177-0 01 1 0701-0912 ● ● ●
1 00.780 CYLINDER; SLAVE,CLU
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) 		8-97945-177-0 01 1 1001- ● ● ●
1 00.780 CYLINDER; SLAVE,CLU
6VE1 ENG(LX5) 		8-97941-519-0 01 1 0307-0609 ●
1 00.780 CYLINDER; SLAVE,CLU 8-97944-513-3 01 1 0610- ●
1 00.780 CYLINDER; SLAVE,CLU 8-92159-965-0 01 1 0509- ●
2 00.780 REPAIR KIT; CLU SLAVE CYL 5-87832-049-0 01 1 0307-0609 ● ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
C24SE ENG(LG1),4JA1-T ENG(LP0) 		5-87832-049-0 01 1 0307-0609 ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
C24SE ENG(LG1),4JA1-T ENG(LP0) 		5-87832-049-0 01 1 0610- ● ● ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 		5-87832-048-0 01 1 0307-0609 ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JH1-TC ENG(RDM) 		5-87832-048-0 01 1 0610-0612 ● ● ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JH1-TC ENG(RDM) 		5-87832-048-0 01 1 0701-0912 ● ● ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) 		5-87832-048-0 01 1 1001- ● ● ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
6VE1 ENG(LX5) 		5-87832-067-0 01 1 0307-0609 ●
2 00.780 REPAIR KIT; CLU SLAVE CYL 5-87832-067-0 01 1 0610-1102 ●
2 00.780 REPAIR KIT; CLU SLAVE CYL 5-87832-264-0 01 1 1103- ●
3 00.780 ROD; PUSH,SLAVE CYL 8-97942-803-0 01 1 0307-0609 ● ●
3 00.780 ROD; PUSH,SLAVE CYL
C24SE ENG(LG1),4JA1-T ENG(LP0), 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 		8-97942-803-0 01 1 0307-0609 ●
3 00.780 ROD; PUSH,SLAVE CYL
C24SE ENG(LG1),4JA1-T ENG(LP0) 		8-97942-803-0 01 1 0610- ● ● ●
3 00.780 ROD; PUSH,SLAVE CYL
6VE1 ENG(LX5) 		8-97062-923-0 01 1 0307-0609 ●
3 00.780 ROD; PUSH,SLAVE CYL
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JH1-TC ENG(RDM) 		8-97945-722-0 01 1 0610-0612 ● ● ●
3 00.780 ROD; PUSH,SLAVE CYL
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JH1-TC ENG(RDM) 		8-97945-722-0 01 1 0701-0912 ● ● ●
3 00.780 ROD; PUSH,SLAVE CYL
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) 		8-97945-722-0 01 1 1001- ● ● ●
3 00.780 ROD; PUSH,SLAVE CYL 8-97945-721-0 01 1 0610- ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL 8-97942-802-0 01 1 0307-0609 ● ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL
C24SE ENG(LG1),4JA1-T ENG(LP0) 		8-97942-802-0 01 1 0307-0609 ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL
C24SE ENG(LG1),4JA1-T ENG(LP0) 		8-97942-802-0 01 1 0610- ● ● ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 		8-97942-801-0 01 1 0307-0609 ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JH1-TC ENG(RDM) 		8-97942-801-0 01 1 0610-0612 ● ● ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JH1-TC ENG(RDM) 		8-97942-801-0 01 1 0701-0912 ● ● ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) 		8-97942-801-0 01 1 1001- ● ● ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL
6VE1 ENG(LX5) 		8-97028-736-0 01 1 0307-0609 ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL 8-97028-736-0 01 1 0610- ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
M8X16.5 		8-94115-113-0 01 1 0307-0609 ● ● ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
C24SE ENG(LG1),4JA1-T ENG(LP0) M8X16.5 		8-94115-113-0 01 1 0610- ● ● ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JH1-TC ENG(RDM) M8X10 		8-98020-477-0 01 1 0610-0612 ● ● ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
M8X10 		8-98020-477-0 01 1 0610-0612 ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) M8X10 		8-98020-477-0 01 1 0701-0912 ● ● ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
M8X10 		8-98020-477-0 01 1 0701-0912 ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) M8X10 		8-98020-477-0 01 1 1001- ● ● ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
M8X10 		8-98020-477-0 01 1 1001- ●
8 00.780 CAP; BLEEDER,SLAVE CYL
OD=10 		8-97940-638-0 01 1 0307-0609 ● ● ●
8 00.780 CAP; BLEEDER,SLAVE CYL
OD=10 		8-97940-638-0 01 1 0610- ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
