2-05A — CLUTCH PIPING (#20405) — 230 parça

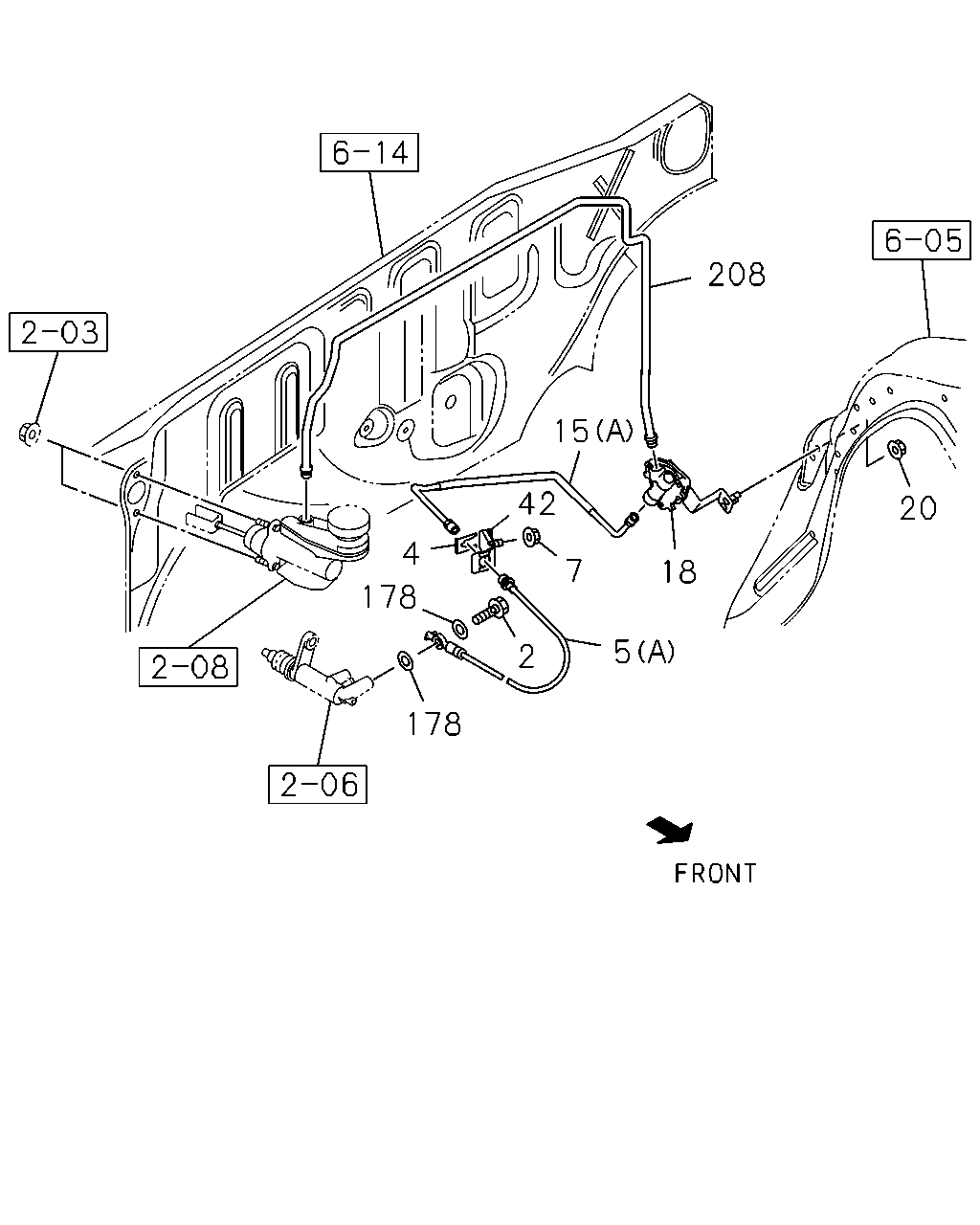

çizim 53876
4 178 178 5 2 7 42 15 18 20 208
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 00.782 BOLT; EYE,SLAVE CYL
04.665 M10X22 		5-09675-017-0 01 1 0307-0508 ● ● ●
2 00.782 BOLT; EYE,SLAVE CYL
04.665 M10X22 		5-09675-017-0 01 1 0509-0609 ● ● ● ●
2 00.782 BOLT; EYE,SLAVE CYL
04.665 M10X22 		5-09675-017-0 01 1 0610- ● ● ● ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
4JA1-T ENG(LP0),6VE1 ENG(LX5), 4JA1-TCENG(L4Z),4JH1-TC ENG(RDM) 		8-94436-216-0 01 1 0307-0609 ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JH1-TC ENG(RDM) 		8-94436-216-0 01 1 0610-0612 ● ● ● ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JH1-TC ENG(RDM) 		8-94436-216-0 01 1 0701-0703 ● ● ● ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JH1-TC ENG(RDM) 		8-97946-552-0 01 1 0704-0912 ● ● ● ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 		8-97946-552-0 01 1 1001- ● ● ● ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
C24SE ENG(LG1) 		8-97320-575-0 01 1 0307-0609 ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
C24SE ENG(LG1) 		8-97320-575-0 01 1 0610- ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
(A) 		8-97942-498-0 01 1 0307-0609 ●
5 00.785 HOSE; FLEX,CLU PIPE
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) (A) 		8-97942-498-0 01 1 0307-0609 ●
5 00.785 HOSE; FLEX,CLU PIPE
(A) 		8-97942-498-0 01 1 0610- ●
5 00.785 HOSE; FLEX,CLU PIPE
4JA1-T ENG(LP0) (A) 		8-97942-498-0 01 1 0610- ● ●
5 00.785 HOSE; FLEX,CLU PIPE
6VE1 ENG(LX5) (B) 		8-97942-500-0 01 1 0307-0609 ●
5 00.785 HOSE; FLEX,CLU PIPE
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) (A) 		8-97945-178-0 01 1 0610-0612 ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) (A) 		8-97945-178-0 01 1 0701-0912 ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) (A) 		8-97945-178-0 01 1 1001- ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
C24SE ENG(LG1) (C) 		8-97942-605-0 01 1 0307-0609 ● ●
5 00.785 HOSE; FLEX,CLU PIPE
C24SE ENG(LG1) (C) 		8-97942-605-0 01 1 0610- ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
(D) 		8-92067-105-0 01 1 0509- ●
5 00.785 HOSE; FLEX,CLU PIPE
(E) 		8-92145-810-0 01 1 0509- ●
5 00.785 HOSE; FLEX,CLU PIPE
(A) 		8-97944-870-0 01 1 0610- ●
7 00.785 NUT; FLEX HOSE,CLU CONT
4JA1-T ENG(LP0),6VE1 ENG(LX5), 4JA1-TCENG(L4Z),4JH1-TC ENG(RDM) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0307-0609 ● ●
7 00.785 NUT; FLEX HOSE,CLU CONT
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JH1-TC ENG(RDM) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0610-0612 ● ● ● ● ●
7 00.785 NUT; FLEX HOSE,CLU CONT
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JH1-TC ENG(RDM) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0701-0912 ● ● ● ● ●
7 00.785 NUT; FLEX HOSE,CLU CONT
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1001- ● ● ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
(A) 		8-97236-466-2 01 1 0307-0609 ●
15 00.785 PIPE; CLU,FLEX HOSE
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) (A) 		8-97236-466-2 01 1 0307-0609 ●
15 00.785 PIPE; CLU,FLEX HOSE
(A) 		8-97944-803-0 01 1 0610- ●
15 00.785 PIPE; CLU,FLEX HOSE
4JA1-T ENG(LP0) (A) 		8-97944-803-0 01 1 0610- ●
15 00.785 PIPE; CLU,FLEX HOSE
6VE1 ENG(LX5) (B) 		8-97236-464-0 01 1 0307-0609 ●
15 00.785 PIPE; CLU,FLEX HOSE
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) (A) 		8-97944-805-0 01 1 0610-0612 ●
15 00.785 PIPE; CLU,FLEX HOSE
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) (A) 		8-97944-805-0 01 1 0701-0912 ●
15 00.785 PIPE; CLU,FLEX HOSE
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) (A) 		8-97944-805-0 01 1 1001- ●
15 00.785 PIPE; CLU,FLEX HOSE
(D) 		8-92171-132-0 01 1 0509-0609 ●
15 00.785 PIPE; CLU,FLEX HOSE
(D) 		8-92197-784-0 01 1 0610- ●
15 00.785 PIPE; CLU,FLEX HOSE
HF V6 ENG(LCA) (C) 		8-92066-734-0 01 1 0509- ●
15 00.785 PIPE; CLU,FLEX HOSE
4JJ1-TCX ENG(LS0) (A) 		8-97944-806-0 01 1 0610- ●
18 00.830 DAMPER ASM; CLU OIL 8-97943-171-0 01 1 0307-0609 ●
18 00.830 DAMPER ASM; CLU OIL
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) 		8-97943-171-0 01 1 0307-0609 ●
18 00.830 DAMPER ASM; CLU OIL
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JH1-TC ENG(RDM) 		8-97945-174-0 01 1 0610-0612 ● ● ● ● ●
18 00.830 DAMPER ASM; CLU OIL
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JH1-TC ENG(RDM) 		8-97945-174-0 01 1 0701-0912 ● ● ● ● ●
18 00.830 DAMPER ASM; CLU OIL
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JH1-TC ENG(RDM) 		8-97945-174-0 01 1 1001- ● ● ● ● ●
18 00.830 DAMPER ASM; CLU OIL
6VE1 ENG(LX5) 		8-97943-170-0 01 1 0307-0609 ●
18 00.830 DAMPER ASM; CLU OIL
C24SE ENG(LG1) 		8-97353-667-0 01 1 0307-0609 ● ●
18 00.830 DAMPER ASM; CLU OIL
C24SE ENG(LG1) 		8-97945-453-0 01 1 0610- ● ● ●
20 00.837 NUT; CLU OIL DAMPER
01.062 M6 FLANGE 		0-91180-106-0 02 1 0307-0603 ● ● ●
20 00.837 NUT; CLU OIL DAMPER
01.062 M6 FLANGE 		0-91180-106-0 02 1 0604-0609 ● ● ● ●
20 00.837 NUT; CLU OIL DAMPER
01.062 M6 FLANGE 		0-91180-106-0 02 1 0610- ● ● ● ● ● ●
20 00.837 NUT; CLU OIL DAMPER
04.594 M6 FLANGE 		0-91150-106-0 02 1 0509-0603 ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT 8-97943-835-0 01 1 0307-0609 ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) 		8-97943-835-0 01 1 0307-0609 ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) 		8-97943-835-0 01 1 0610-0612 ● ● ● ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0) 		8-97943-835-0 01 1 0701-0912 ● ● ● ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) 		8-97943-835-0 01 1 1001- ● ● ● ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT
6VE1 ENG(LX5) 		8-97320-576-0 01 1 0307-0609 ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT 8-97944-508-0 01 1 0610- ●
178 00.777 GASKET; FLEX HOSE TO M/CYL
08.955 ID=10.2 OD=16.0 		9-09571-410-0 02 1 0307-0609 ● ● ●
178 00.777 GASKET; FLEX HOSE TO M/CYL
08.955 ID=10.2 OD=16.0 		9-09571-410-0 02 1 0610- ● ● ● ● ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL 8-97236-459-1 01 1 0307-0609 ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) 		8-97236-459-1 01 1 0307-0609 ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 		8-97944-795-0 01 1 0610-0612 ● ● ● ● ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JH1-TC ENG(RDM) 		8-97944-795-0 01 1 0701-0912 ● ● ● ● ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JH1-TC ENG(RDM) 		8-97944-795-0 01 1 1001- ● ● ● ● ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL
C24SE ENG(LG1) 		8-97236-457-0 01 1 0307-0508 ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL 8-97236-457-0 01 1 0307-0508 ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL
C24SE ENG(LG1) 		8-97236-457-0 01 1 0509-0609 ● ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL
C24SE ENG(LG1) 		8-97944-794-0 01 1 0610- ● ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL
6VE1 ENG(LX5) 		8-97307-537-0 01 1 0307-0609 ●

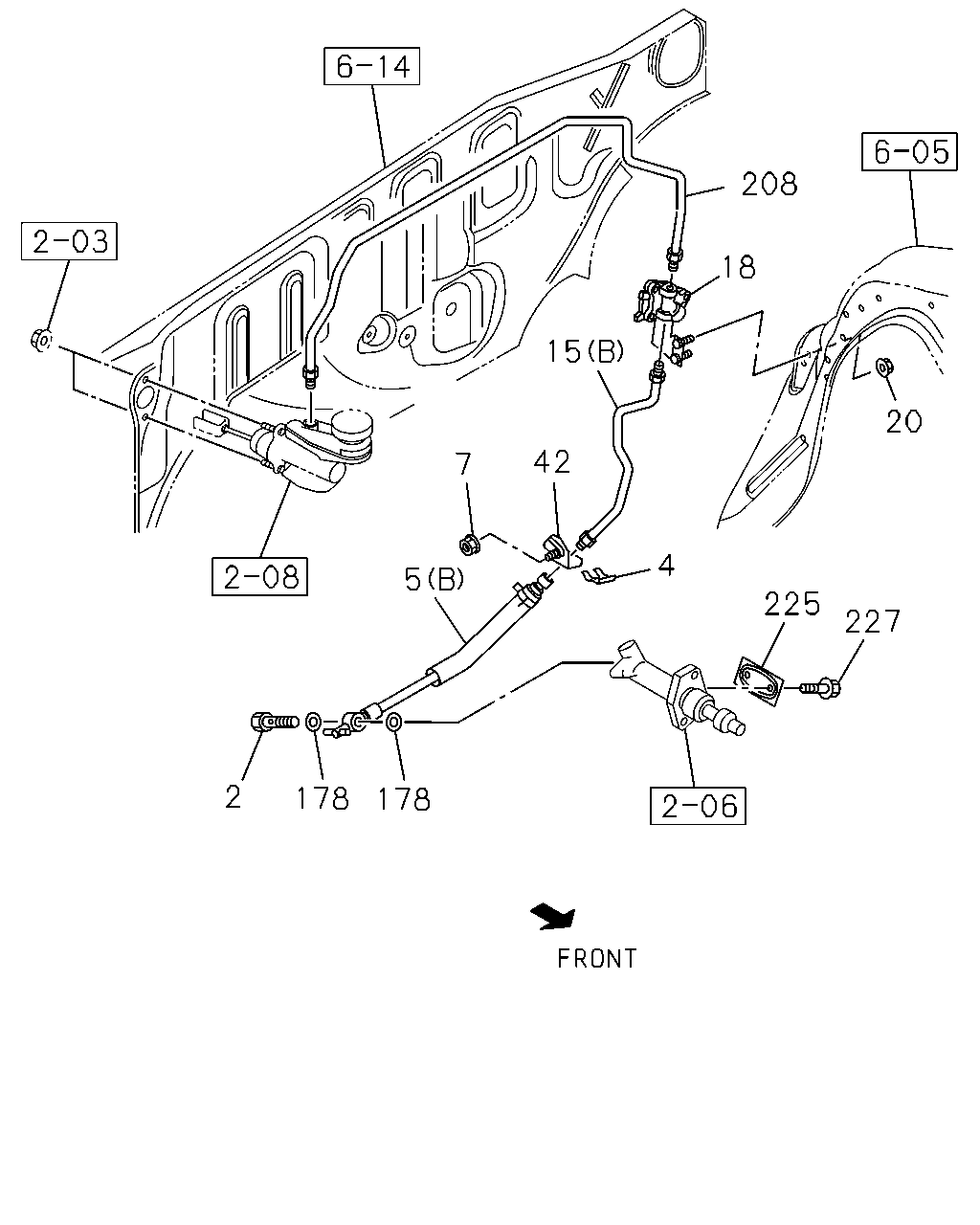

çizim 54497
208 18 15 20 227 225 4 42 7 5 178 178 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 00.782 BOLT; EYE,SLAVE CYL
04.665 M10X22 		5-09675-017-0 01 1 0307-0508 ● ● ●
2 00.782 BOLT; EYE,SLAVE CYL
04.665 M10X22 		5-09675-017-0 01 1 0509-0609 ● ● ● ●
2 00.782 BOLT; EYE,SLAVE CYL
04.665 M10X22 		5-09675-017-0 01 1 0610- ● ● ● ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
4JA1-T ENG(LP0),6VE1 ENG(LX5), 4JA1-TCENG(L4Z),4JH1-TC ENG(RDM) 		8-94436-216-0 01 1 0307-0609 ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JH1-TC ENG(RDM) 		8-94436-216-0 01 1 0610-0612 ● ● ● ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JH1-TC ENG(RDM) 		8-94436-216-0 01 1 0701-0703 ● ● ● ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JH1-TC ENG(RDM) 		8-97946-552-0 01 1 0704-0912 ● ● ● ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 		8-97946-552-0 01 1 1001- ● ● ● ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
C24SE ENG(LG1) 		8-97320-575-0 01 1 0307-0609 ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
C24SE ENG(LG1) 		8-97320-575-0 01 1 0610- ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
(A) 		8-97942-498-0 01 1 0307-0609 ●
5 00.785 HOSE; FLEX,CLU PIPE
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) (A) 		8-97942-498-0 01 1 0307-0609 ●
5 00.785 HOSE; FLEX,CLU PIPE
(A) 		8-97942-498-0 01 1 0610- ●
5 00.785 HOSE; FLEX,CLU PIPE
4JA1-T ENG(LP0) (A) 		8-97942-498-0 01 1 0610- ● ●
5 00.785 HOSE; FLEX,CLU PIPE
6VE1 ENG(LX5) (B) 		8-97942-500-0 01 1 0307-0609 ●
5 00.785 HOSE; FLEX,CLU PIPE
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) (A) 		8-97945-178-0 01 1 0610-0612 ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) (A) 		8-97945-178-0 01 1 0701-0912 ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) (A) 		8-97945-178-0 01 1 1001- ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
C24SE ENG(LG1) (C) 		8-97942-605-0 01 1 0307-0609 ● ●
5 00.785 HOSE; FLEX,CLU PIPE
C24SE ENG(LG1) (C) 		8-97942-605-0 01 1 0610- ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
(D) 		8-92067-105-0 01 1 0509- ●
5 00.785 HOSE; FLEX,CLU PIPE
(E) 		8-92145-810-0 01 1 0509- ●
5 00.785 HOSE; FLEX,CLU PIPE
(A) 		8-97944-870-0 01 1 0610- ●
7 00.785 NUT; FLEX HOSE,CLU CONT
4JA1-T ENG(LP0),6VE1 ENG(LX5), 4JA1-TCENG(L4Z),4JH1-TC ENG(RDM) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0307-0609 ● ●
7 00.785 NUT; FLEX HOSE,CLU CONT
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JH1-TC ENG(RDM) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0610-0612 ● ● ● ● ●
7 00.785 NUT; FLEX HOSE,CLU CONT
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JH1-TC ENG(RDM) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0701-0912 ● ● ● ● ●
7 00.785 NUT; FLEX HOSE,CLU CONT
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1001- ● ● ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
(A) 		8-97236-466-2 01 1 0307-0609 ●
15 00.785 PIPE; CLU,FLEX HOSE
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) (A) 		8-97236-466-2 01 1 0307-0609 ●
15 00.785 PIPE; CLU,FLEX HOSE
(A) 		8-97944-803-0 01 1 0610- ●
15 00.785 PIPE; CLU,FLEX HOSE
4JA1-T ENG(LP0) (A) 		8-97944-803-0 01 1 0610- ●
15 00.785 PIPE; CLU,FLEX HOSE
6VE1 ENG(LX5) (B) 		8-97236-464-0 01 1 0307-0609 ●
15 00.785 PIPE; CLU,FLEX HOSE
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) (A) 		8-97944-805-0 01 1 0610-0612 ●
15 00.785 PIPE; CLU,FLEX HOSE
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) (A) 		8-97944-805-0 01 1 0701-0912 ●
15 00.785 PIPE; CLU,FLEX HOSE
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) (A) 		8-97944-805-0 01 1 1001- ●
15 00.785 PIPE; CLU,FLEX HOSE
(D) 		8-92171-132-0 01 1 0509-0609 ●
15 00.785 PIPE; CLU,FLEX HOSE
(D) 		8-92197-784-0 01 1 0610- ●
15 00.785 PIPE; CLU,FLEX HOSE
HF V6 ENG(LCA) (C) 		8-92066-734-0 01 1 0509- ●
15 00.785 PIPE; CLU,FLEX HOSE
4JJ1-TCX ENG(LS0) (A) 		8-97944-806-0 01 1 0610- ●
18 00.830 DAMPER ASM; CLU OIL 8-97943-171-0 01 1 0307-0609 ●
18 00.830 DAMPER ASM; CLU OIL
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) 		8-97943-171-0 01 1 0307-0609 ●
18 00.830 DAMPER ASM; CLU OIL
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JH1-TC ENG(RDM) 		8-97945-174-0 01 1 0610-0612 ● ● ● ● ●
18 00.830 DAMPER ASM; CLU OIL
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JH1-TC ENG(RDM) 		8-97945-174-0 01 1 0701-0912 ● ● ● ● ●
18 00.830 DAMPER ASM; CLU OIL
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JH1-TC ENG(RDM) 		8-97945-174-0 01 1 1001- ● ● ● ● ●
18 00.830 DAMPER ASM; CLU OIL
6VE1 ENG(LX5) 		8-97943-170-0 01 1 0307-0609 ●
18 00.830 DAMPER ASM; CLU OIL
C24SE ENG(LG1) 		8-97353-667-0 01 1 0307-0609 ● ●
18 00.830 DAMPER ASM; CLU OIL
C24SE ENG(LG1) 		8-97945-453-0 01 1 0610- ● ● ●
20 00.837 NUT; CLU OIL DAMPER
01.062 M6 FLANGE 		0-91180-106-0 02 1 0307-0603 ● ● ●
20 00.837 NUT; CLU OIL DAMPER
01.062 M6 FLANGE 		0-91180-106-0 02 1 0604-0609 ● ● ● ●
20 00.837 NUT; CLU OIL DAMPER
01.062 M6 FLANGE 		0-91180-106-0 02 1 0610- ● ● ● ● ● ●
20 00.837 NUT; CLU OIL DAMPER
04.594 M6 FLANGE 		0-91150-106-0 02 1 0509-0603 ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT 8-97943-835-0 01 1 0307-0609 ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) 		8-97943-835-0 01 1 0307-0609 ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) 		8-97943-835-0 01 1 0610-0612 ● ● ● ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0) 		8-97943-835-0 01 1 0701-0912 ● ● ● ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) 		8-97943-835-0 01 1 1001- ● ● ● ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT
6VE1 ENG(LX5) 		8-97320-576-0 01 1 0307-0609 ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT 8-97944-508-0 01 1 0610- ●
178 00.777 GASKET; FLEX HOSE TO M/CYL
08.955 ID=10.2 OD=16.0 		9-09571-410-0 02 1 0307-0609 ● ● ●
178 00.777 GASKET; FLEX HOSE TO M/CYL
08.955 ID=10.2 OD=16.0 		9-09571-410-0 02 1 0610- ● ● ● ● ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL 8-97236-459-1 01 1 0307-0609 ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) 		8-97236-459-1 01 1 0307-0609 ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 		8-97944-795-0 01 1 0610-0612 ● ● ● ● ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JH1-TC ENG(RDM) 		8-97944-795-0 01 1 0701-0912 ● ● ● ● ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JH1-TC ENG(RDM) 		8-97944-795-0 01 1 1001- ● ● ● ● ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL
C24SE ENG(LG1) 		8-97236-457-0 01 1 0307-0508 ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL 8-97236-457-0 01 1 0307-0508 ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL
C24SE ENG(LG1) 		8-97236-457-0 01 1 0509-0609 ● ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL
C24SE ENG(LG1) 		8-97944-794-0 01 1 0610- ● ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL
6VE1 ENG(LX5) 		8-97307-537-0 01 1 0307-0609 ●
225 00.785 PROTECTOR; HEAT
6VE1 ENG(LX5) 		8-97331-184-0 01 1 0307-0609 ●
227 00.785 BOLT; HEAT PROTECTOR
6VE1 ENG(LX5) 03.162 M6X12 FLANGE 		0-28050-612-0 02 1 0307-0609 ●

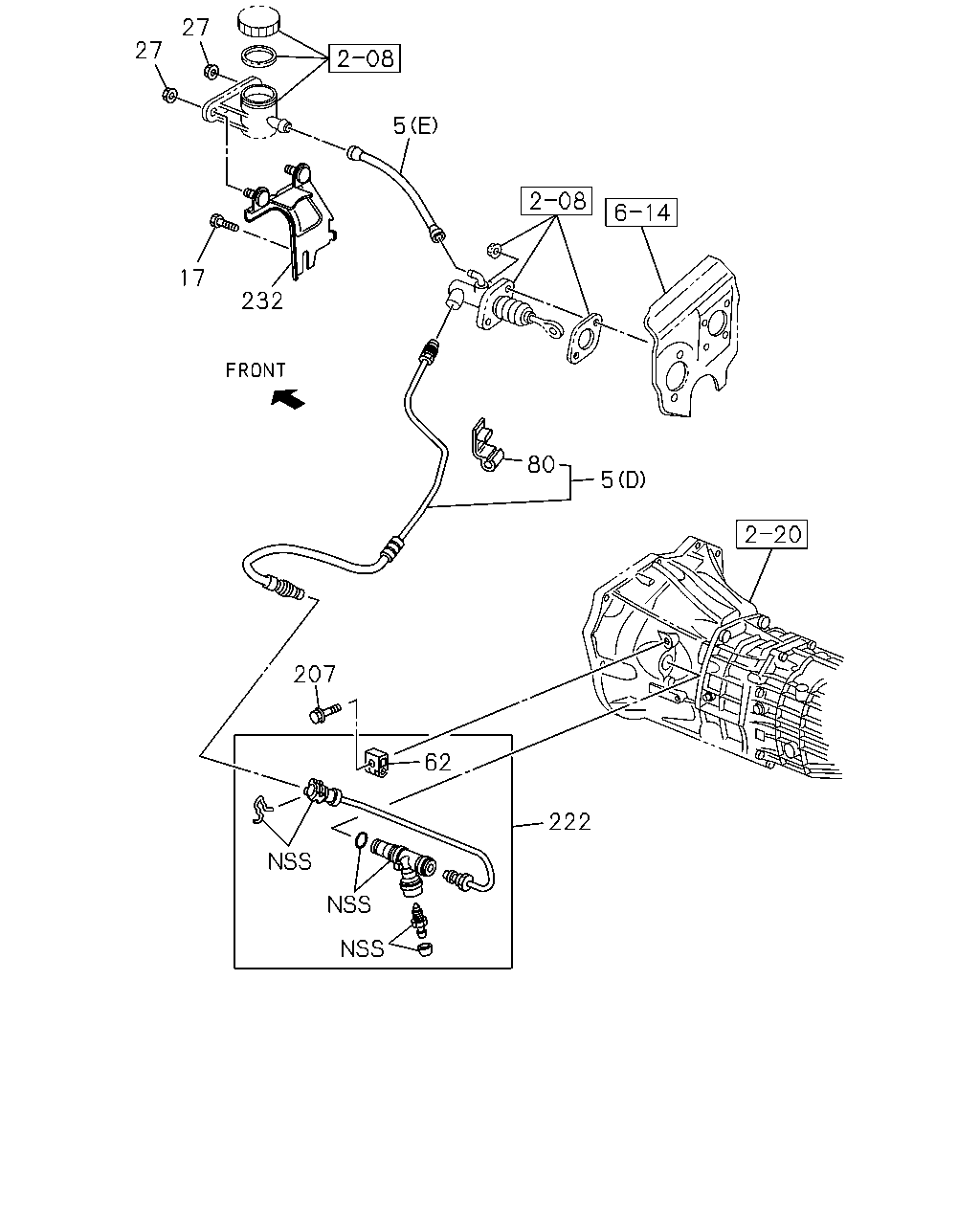

çizim 55061
27 27 5 17 232 80 5 222 62 207
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
5 00.785 HOSE; FLEX,CLU PIPE
(A) 		8-97942-498-0 01 1 0307-0609 ●
5 00.785 HOSE; FLEX,CLU PIPE
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) (A) 		8-97942-498-0 01 1 0307-0609 ●
5 00.785 HOSE; FLEX,CLU PIPE
(A) 		8-97942-498-0 01 1 0610- ●
5 00.785 HOSE; FLEX,CLU PIPE
4JA1-T ENG(LP0) (A) 		8-97942-498-0 01 1 0610- ● ●
5 00.785 HOSE; FLEX,CLU PIPE
6VE1 ENG(LX5) (B) 		8-97942-500-0 01 1 0307-0609 ●
5 00.785 HOSE; FLEX,CLU PIPE
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) (A) 		8-97945-178-0 01 1 0610-0612 ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) (A) 		8-97945-178-0 01 1 0701-0912 ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) (A) 		8-97945-178-0 01 1 1001- ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
C24SE ENG(LG1) (C) 		8-97942-605-0 01 1 0307-0609 ● ●
5 00.785 HOSE; FLEX,CLU PIPE
C24SE ENG(LG1) (C) 		8-97942-605-0 01 1 0610- ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
(D) 		8-92067-105-0 01 1 0509- ●
5 00.785 HOSE; FLEX,CLU PIPE
(E) 		8-92145-810-0 01 1 0509- ●
5 00.785 HOSE; FLEX,CLU PIPE
(A) 		8-97944-870-0 01 1 0610- ●
17 00.785 BOLT; BRKT
02.483 		8-11042-402-0 01 1 0509- ●
27 00.785 NUT; BRKT 8-11063-471-0 02 1 0509- ●
62 00.785 CLIP; CLU PIPE 8-92138-803-0 01 1 0509- ●
80 00.785 CLIP; HOSE 8-92067-116-0 01 1 0509- ●
207 00.785 BOLT; CLIP 8-92138-366-0 01 1 0509- ●
222 00.785 PIPE; CLUTCH 8-92066-734-0 01 1 0509- ●
232 00.785 BRACKET 8-92122-335-0 01 1 0509- ●

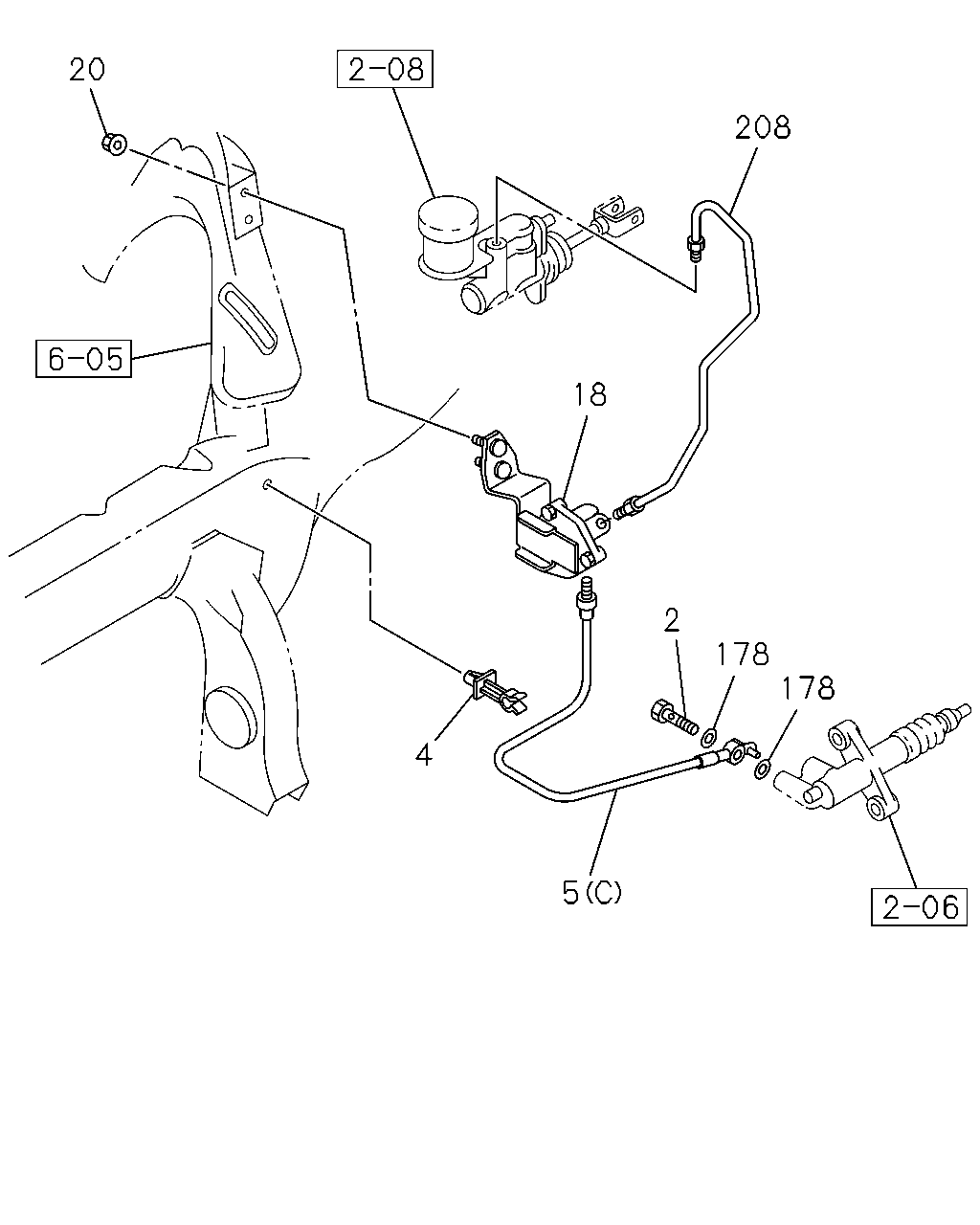

çizim 56010
20 208 18 2 178 178 5 4
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 00.782 BOLT; EYE,SLAVE CYL
04.665 M10X22 		5-09675-017-0 01 1 0307-0508 ● ● ●
2 00.782 BOLT; EYE,SLAVE CYL
04.665 M10X22 		5-09675-017-0 01 1 0509-0609 ● ● ● ●
2 00.782 BOLT; EYE,SLAVE CYL
04.665 M10X22 		5-09675-017-0 01 1 0610- ● ● ● ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
4JA1-T ENG(LP0),6VE1 ENG(LX5), 4JA1-TCENG(L4Z),4JH1-TC ENG(RDM) 		8-94436-216-0 01 1 0307-0609 ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JH1-TC ENG(RDM) 		8-94436-216-0 01 1 0610-0612 ● ● ● ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JH1-TC ENG(RDM) 		8-94436-216-0 01 1 0701-0703 ● ● ● ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JH1-TC ENG(RDM) 		8-97946-552-0 01 1 0704-0912 ● ● ● ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 		8-97946-552-0 01 1 1001- ● ● ● ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
C24SE ENG(LG1) 		8-97320-575-0 01 1 0307-0609 ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
C24SE ENG(LG1) 		8-97320-575-0 01 1 0610- ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
(A) 		8-97942-498-0 01 1 0307-0609 ●
5 00.785 HOSE; FLEX,CLU PIPE
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) (A) 		8-97942-498-0 01 1 0307-0609 ●
5 00.785 HOSE; FLEX,CLU PIPE
(A) 		8-97942-498-0 01 1 0610- ●
5 00.785 HOSE; FLEX,CLU PIPE
4JA1-T ENG(LP0) (A) 		8-97942-498-0 01 1 0610- ● ●
5 00.785 HOSE; FLEX,CLU PIPE
6VE1 ENG(LX5) (B) 		8-97942-500-0 01 1 0307-0609 ●
5 00.785 HOSE; FLEX,CLU PIPE
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) (A) 		8-97945-178-0 01 1 0610-0612 ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) (A) 		8-97945-178-0 01 1 0701-0912 ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) (A) 		8-97945-178-0 01 1 1001- ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
C24SE ENG(LG1) (C) 		8-97942-605-0 01 1 0307-0609 ● ●
5 00.785 HOSE; FLEX,CLU PIPE
C24SE ENG(LG1) (C) 		8-97942-605-0 01 1 0610- ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
(D) 		8-92067-105-0 01 1 0509- ●
5 00.785 HOSE; FLEX,CLU PIPE
(E) 		8-92145-810-0 01 1 0509- ●
5 00.785 HOSE; FLEX,CLU PIPE
(A) 		8-97944-870-0 01 1 0610- ●
18 00.830 DAMPER ASM; CLU OIL 8-97943-171-0 01 1 0307-0609 ●
18 00.830 DAMPER ASM; CLU OIL
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) 		8-97943-171-0 01 1 0307-0609 ●
18 00.830 DAMPER ASM; CLU OIL
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JH1-TC ENG(RDM) 		8-97945-174-0 01 1 0610-0612 ● ● ● ● ●
18 00.830 DAMPER ASM; CLU OIL
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JH1-TC ENG(RDM) 		8-97945-174-0 01 1 0701-0912 ● ● ● ● ●
18 00.830 DAMPER ASM; CLU OIL
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JH1-TC ENG(RDM) 		8-97945-174-0 01 1 1001- ● ● ● ● ●
18 00.830 DAMPER ASM; CLU OIL
6VE1 ENG(LX5) 		8-97943-170-0 01 1 0307-0609 ●
18 00.830 DAMPER ASM; CLU OIL
C24SE ENG(LG1) 		8-97353-667-0 01 1 0307-0609 ● ●
18 00.830 DAMPER ASM; CLU OIL
C24SE ENG(LG1) 		8-97945-453-0 01 1 0610- ● ● ●
20 00.837 NUT; CLU OIL DAMPER
01.062 M6 FLANGE 		0-91180-106-0 02 1 0307-0603 ● ● ●
20 00.837 NUT; CLU OIL DAMPER
01.062 M6 FLANGE 		0-91180-106-0 02 1 0604-0609 ● ● ● ●
20 00.837 NUT; CLU OIL DAMPER
01.062 M6 FLANGE 		0-91180-106-0 02 1 0610- ● ● ● ● ● ●
20 00.837 NUT; CLU OIL DAMPER
04.594 M6 FLANGE 		0-91150-106-0 02 1 0509-0603 ●
178 00.777 GASKET; FLEX HOSE TO M/CYL
08.955 ID=10.2 OD=16.0 		9-09571-410-0 02 1 0307-0609 ● ● ●
178 00.777 GASKET; FLEX HOSE TO M/CYL
08.955 ID=10.2 OD=16.0 		9-09571-410-0 02 1 0610- ● ● ● ● ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL 8-97236-459-1 01 1 0307-0609 ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) 		8-97236-459-1 01 1 0307-0609 ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 		8-97944-795-0 01 1 0610-0612 ● ● ● ● ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JH1-TC ENG(RDM) 		8-97944-795-0 01 1 0701-0912 ● ● ● ● ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JH1-TC ENG(RDM) 		8-97944-795-0 01 1 1001- ● ● ● ● ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL
C24SE ENG(LG1) 		8-97236-457-0 01 1 0307-0508 ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL 8-97236-457-0 01 1 0307-0508 ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL
C24SE ENG(LG1) 		8-97236-457-0 01 1 0509-0609 ● ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL
C24SE ENG(LG1) 		8-97944-794-0 01 1 0610- ● ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL
6VE1 ENG(LX5) 		8-97307-537-0 01 1 0307-0609 ●

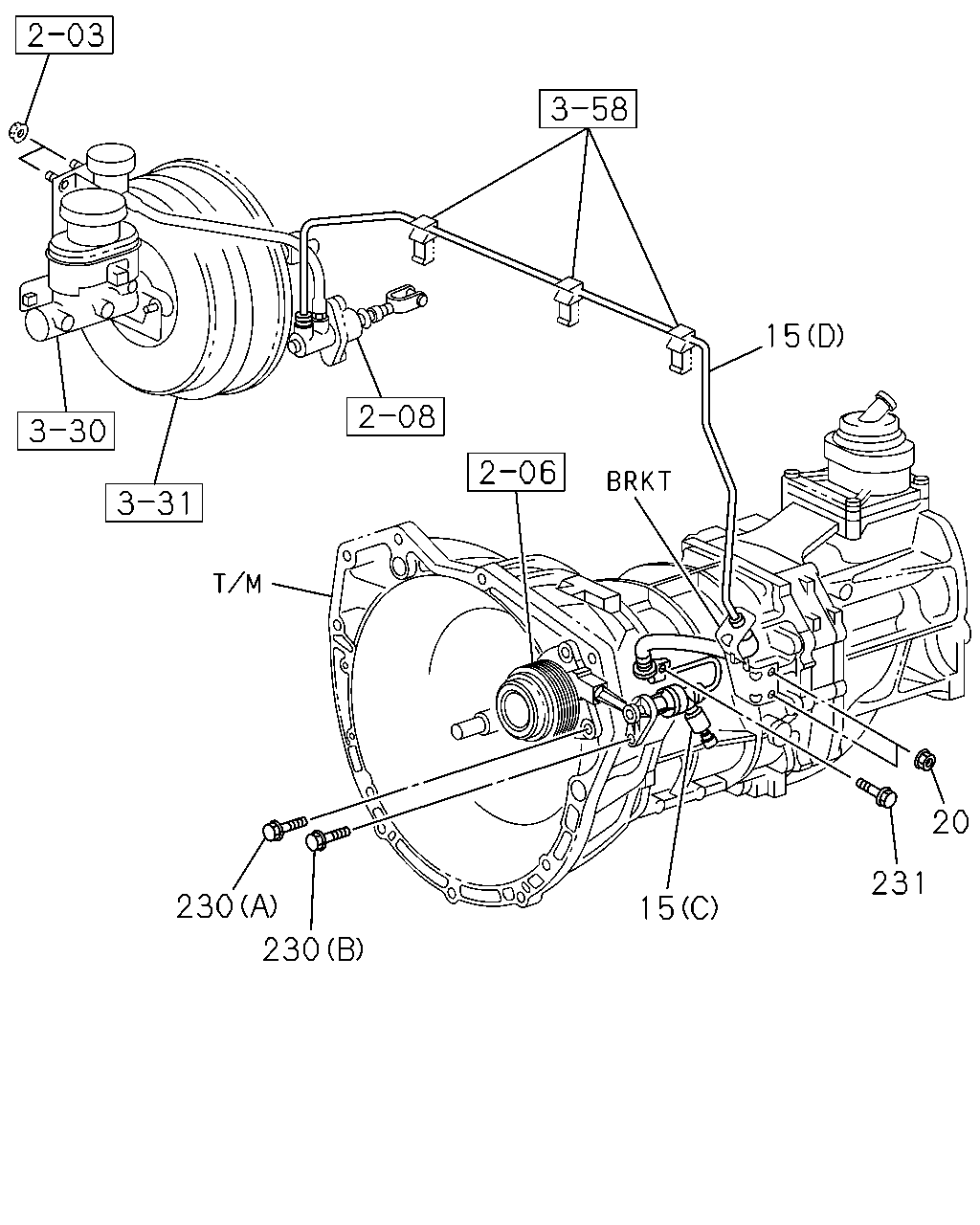

çizim 56179
15 20 231 15 230 230
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
15 00.785 PIPE; CLU,FLEX HOSE
(A) 		8-97236-466-2 01 1 0307-0609 ●
15 00.785 PIPE; CLU,FLEX HOSE
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) (A) 		8-97236-466-2 01 1 0307-0609 ●
15 00.785 PIPE; CLU,FLEX HOSE
(A) 		8-97944-803-0 01 1 0610- ●
15 00.785 PIPE; CLU,FLEX HOSE
4JA1-T ENG(LP0) (A) 		8-97944-803-0 01 1 0610- ●
15 00.785 PIPE; CLU,FLEX HOSE
6VE1 ENG(LX5) (B) 		8-97236-464-0 01 1 0307-0609 ●
15 00.785 PIPE; CLU,FLEX HOSE
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) (A) 		8-97944-805-0 01 1 0610-0612 ●
15 00.785 PIPE; CLU,FLEX HOSE
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) (A) 		8-97944-805-0 01 1 0701-0912 ●
15 00.785 PIPE; CLU,FLEX HOSE
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) (A) 		8-97944-805-0 01 1 1001- ●
15 00.785 PIPE; CLU,FLEX HOSE
(D) 		8-92171-132-0 01 1 0509-0609 ●
15 00.785 PIPE; CLU,FLEX HOSE
(D) 		8-92197-784-0 01 1 0610- ●
15 00.785 PIPE; CLU,FLEX HOSE
HF V6 ENG(LCA) (C) 		8-92066-734-0 01 1 0509- ●
15 00.785 PIPE; CLU,FLEX HOSE
4JJ1-TCX ENG(LS0) (A) 		8-97944-806-0 01 1 0610- ●
20 00.837 NUT; CLU OIL DAMPER
01.062 M6 FLANGE 		0-91180-106-0 02 1 0307-0603 ● ● ●
20 00.837 NUT; CLU OIL DAMPER
01.062 M6 FLANGE 		0-91180-106-0 02 1 0604-0609 ● ● ● ●
20 00.837 NUT; CLU OIL DAMPER
01.062 M6 FLANGE 		0-91180-106-0 02 1 0610- ● ● ● ● ● ●
20 00.837 NUT; CLU OIL DAMPER
04.594 M6 FLANGE 		0-91150-106-0 02 1 0509-0603 ●
230 00.785 BOLT; ACTUATOR
01.062 (A) M8X16 FLANGE 		0-28080-816-0 02 1 0509-0601 ●
230 00.785 BOLT; ACTUATOR
02.343 (A) M8X16 FLANGE 		0-28050-816-0 02 1 0602-0607 ●
230 00.785 BOLT; ACTUATOR
02.343 (A) M8X16 FLANGE 		0-28050-816-0 03 1 0608-0709 ●
230 00.785 BOLT; ACTUATOR
(B) 		8-92138-366-0 01 1 0509- ●
231 00.785 SCREW; ACTUATOR 8-92138-366-0 01 1 0509- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
