Sayfa 2-03 - Isuzu EPC

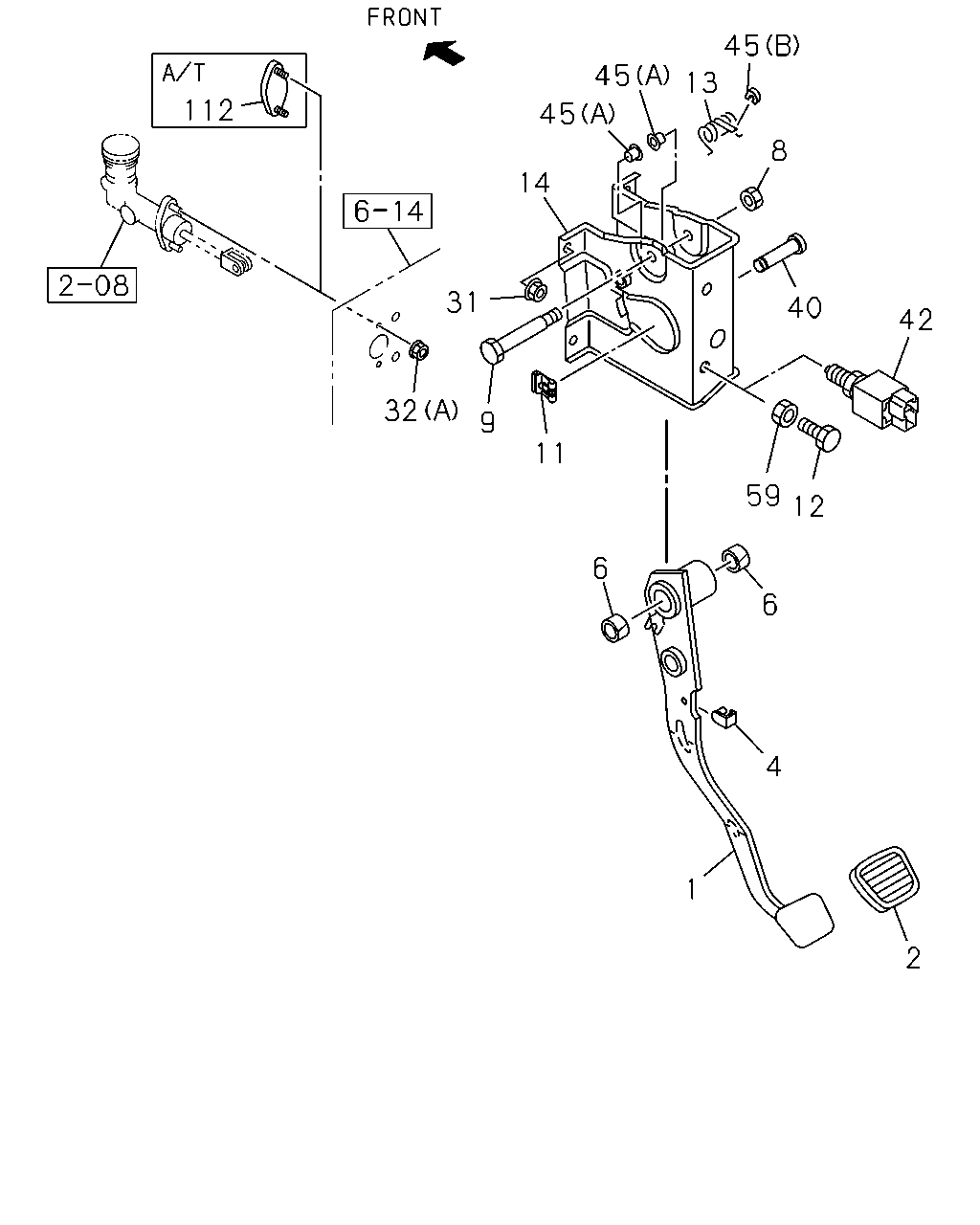

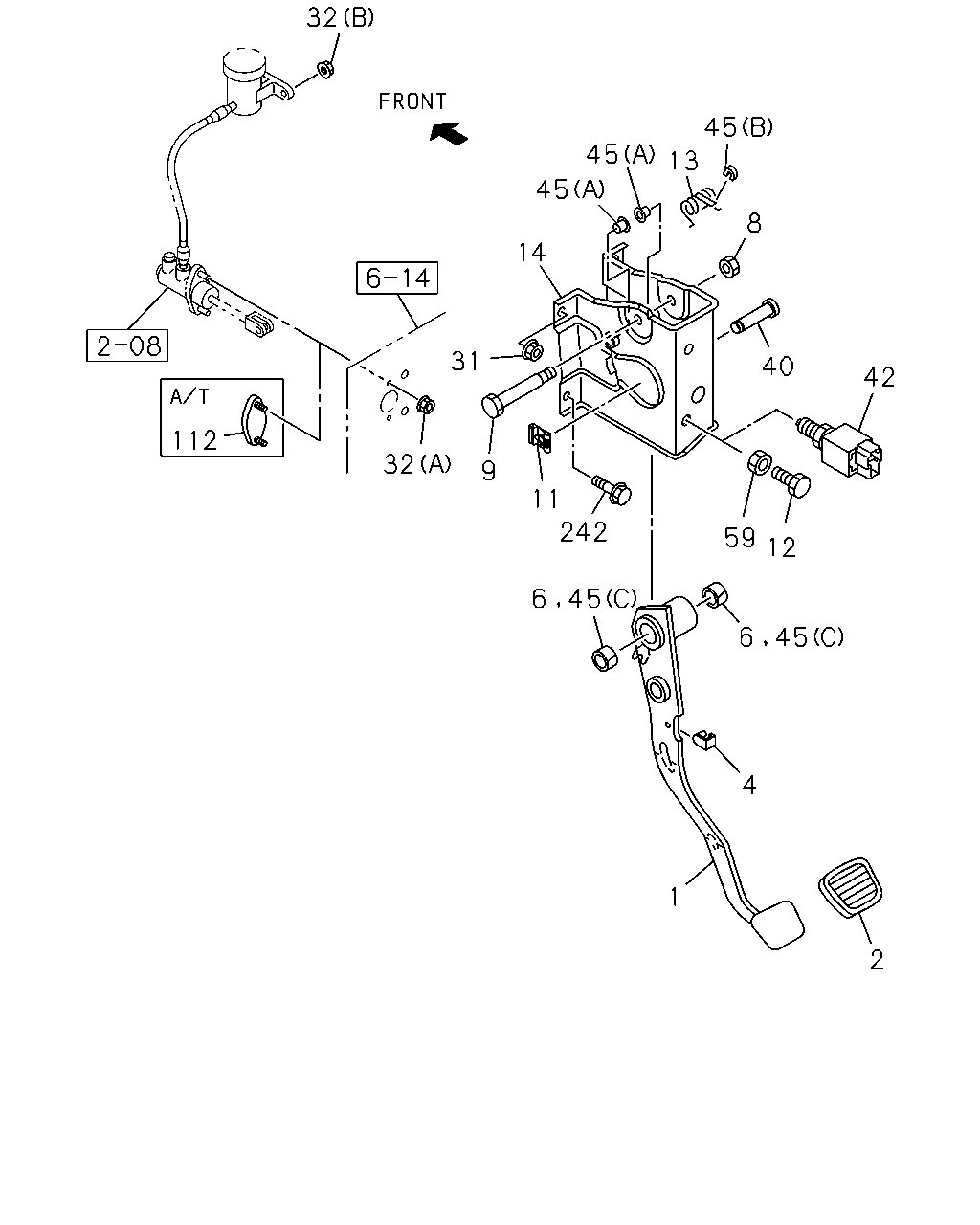

2-03 — CLUTCH PEDAL AND CONTROL (#20404) — 211 parça

112 32 9 11 242 6 45 4 1 2 6 45 12 59 42 40 8 45 13 45 45 14 31 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	00.830 PEDAL; CLU HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5)	8-92157-195-0	01	1	0509-0601	●	●	●	●	●	●	●	●
1	00.830 PEDAL; CLU HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5)	8-98054-957-0	01	1	0610-	●	●	●	●	●	●	●	●
1	00.830 PEDAL; CLU 4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP)	8-97942-311-0	01	1	0307-0609	●	●	●	●	●	●	●	●
1	00.830 PEDAL; CLU C24SE ENG(LG1),4JA1-T ENG(LP0), 4JA1-TC ENG(L4Z)	8-97942-311-0	01	1	0307-0609	●		●	●	●	●	●	●
1	00.830 PEDAL; CLU 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M /T MUA 5 SPEED 5S(RSQ)	8-97942-311-0	01	1	0610-	●		●	●	●	●	●	●
1	00.830 PEDAL; CLU 6VE1 ENG(LX5) M/T MUA 5 SPEED 5G(RSP)	8-97942-742-0	01	1	0307-0508	●	●	●	●	●	●	●	●
1	00.830 PEDAL; CLU 6VE1 ENG(LX5) M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ)	8-97942-742-0	01	1	0509-0601								●
1	00.830 PEDAL; CLU HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5)	8-97942-742-0	01	1	0602-0609	●	●	●	●	●	●	●	●
1	00.830 PEDAL; CLU 6VE1 ENG(LX5) M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ)	8-97942-742-0	01	1	0602-0609								●
1	00.830 PEDAL; CLU 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ)	8-97942-742-0	01	1	0610-	●	●	●	●	●	●	●	●
2	04.630 COVER; CLU PEDAL HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5)	8-92004-809-0	01	1	0509-0601	●	●	●	●	●	●	●	●
2	04.630 COVER; CLU PEDAL 6VE1 ENG(LX5),4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP)	8-97318-799-0	01	1	0307-0601	●	●	●	●	●	●	●	●
2	04.630 COVER; CLU PEDAL C24SE ENG(LG1),4JA1-T ENG(LP0), 4JA1-TC ENG(L4Z)	8-97318-799-0	01	1	0307-0601	●		●	●	●	●	●	●
2	04.630 COVER; CLU PEDAL C24SE ENG(LG1),4JA1-T ENG(LP0), 6VE1ENG(LX5),4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ)	8-97318-799-0	01	1	0602-0609	●	●	●	●	●	●	●	●
2	04.630 COVER; CLU PEDAL HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5)	8-97318-799-0	01	1	0602-0609	●	●	●	●	●	●	●	●
2	04.630 COVER; CLU PEDAL M/T AISIN 5 SPEED(MA5),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) ,M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ)	8-97318-799-0	01	1	0610-	●	●	●	●	●	●	●	●
4	00.829 STOPPER; CLU PEDAL 6VE1 ENG(LX5),4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) 00.785	8-94463-258-0	01	1	0307-0601	●	●	●	●	●	●	●	●
4	00.829 STOPPER; CLU PEDAL C24SE ENG(LG1),4JA1-T ENG(LP0), 4JA1-TC ENG(L4Z) 00.785	8-94463-258-0	01	1	0307-0601	●		●	●	●	●	●	●
4	00.829 STOPPER; CLU PEDAL C24SE ENG(LG1),4JA1-T ENG(LP0), 6VE1ENG(LX5),4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 00.785	8-94463-258-0	01	1	0602-0609	●	●	●	●	●	●	●	●
4	00.829 STOPPER; CLU PEDAL HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5) 00.785	8-94463-258-0	01	1	0602-0609	●	●	●	●	●	●	●	●
4	00.829 STOPPER; CLU PEDAL M/T AISIN 5 SPEED(MA5),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) ,M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 00.785	8-94463-258-0	01	1	0610-	●	●	●	●	●	●	●	●
6	00.831 BUSHING; CLU PEDAL 6VE1 ENG(LX5),4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) 04.634	8-97301-688-0	02	1	0307-0601	●	●	●	●	●	●	●	●
6	00.831 BUSHING; CLU PEDAL C24SE ENG(LG1),4JA1-T ENG(LP0), 4JA1-TC ENG(L4Z) 04.634	8-97301-688-0	02	1	0307-0601	●		●	●	●	●	●	●
6	00.831 BUSHING; CLU PEDAL C24SE ENG(LG1),4JA1-T ENG(LP0), 6VE1ENG(LX5),4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 04.634	8-97301-688-0	02	1	0602-0609	●	●	●	●	●	●	●	●
6	00.831 BUSHING; CLU PEDAL HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5) 04.634	8-97301-688-0	02	1	0602-0609	●	●	●	●	●	●	●	●
6	00.831 BUSHING; CLU PEDAL M/T AISIN 5 SPEED(MA5),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) ,M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 04.634	8-97301-688-0	02	1	0610-	●	●	●	●	●	●	●	●
8	00.833 NUT; PIN TO PEDAL HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5)	8-92138-133-0	01	1	0509-0601	●	●	●	●	●	●	●	●
8	00.833 NUT; PIN TO PEDAL 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T MSG 5 SPEED(M75),M /T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 04.634 M10 LOCK NUT FLANGE	0-91380-010-0	01	1	0610-	●	●	●	●	●	●	●	●
8	00.833 NUT; PIN TO PEDAL 6VE1 ENG(LX5),4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) M10 LOCK NUT FLANGE	0-91303-610-0	01	1	0307-0601	●	●	●	●	●	●	●	●
8	00.833 NUT; PIN TO PEDAL C24SE ENG(LG1),4JA1-T ENG(LP0), 4JA1-TC ENG(L4Z) M10 LOCK NUT FLANGE	0-91303-610-0	01	1	0307-0601	●		●	●	●	●	●	●
8	00.833 NUT; PIN TO PEDAL C24SE ENG(LG1),4JA1-T ENG(LP0), 6VE1ENG(LX5),4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) M10 LOCK NUT FLANGE	0-91303-610-0	01	1	0602-0609	●	●	●	●	●	●	●	●
8	00.833 NUT; PIN TO PEDAL HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5) M10 LOCK NUT FLANGE	0-91303-610-0	01	1	0602-0609	●	●	●	●	●	●	●	●
8	00.833 NUT; PIN TO PEDAL HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5) M10 LOCK NUT FLANGE	0-91303-610-0	01	1	0610-	●	●	●	●	●	●	●	●
9	00.833 PIN; CLU PEDAL HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5)	8-92054-634-0	01	1	0509-0601	●	●	●	●	●	●	●	●
9	00.833 PIN; CLU PEDAL 6VE1 ENG(LX5),4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP)	8-97942-315-0	01	1	0307-0601	●	●	●	●	●	●	●	●
9	00.833 PIN; CLU PEDAL C24SE ENG(LG1),4JA1-T ENG(LP0), 4JA1-TC ENG(L4Z)	8-97942-315-0	01	1	0307-0601	●		●	●	●	●	●	●
9	00.833 PIN; CLU PEDAL C24SE ENG(LG1),4JA1-T ENG(LP0), 6VE1ENG(LX5),4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ)	8-97942-315-0	01	1	0602-0609	●	●	●	●	●	●	●	●
9	00.833 PIN; CLU PEDAL HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5)	8-97942-315-0	01	1	0602-0609	●	●	●	●	●	●	●	●
9	00.833 PIN; CLU PEDAL M/T AISIN 5 SPEED(MA5),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) ,M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ)	8-97942-315-0	01	1	0610-	●	●	●	●	●	●	●	●
11	00.833 PIN; SNAP,PUSH ROD TO PEDAL M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 04.634	8-97311-594-0	01	1	0307-0508	●	●		●	●			●
11	00.833 PIN; SNAP,PUSH ROD TO PEDAL 04.634	8-97311-594-0	01	1	0307-0508			●			●	●
11	00.833 PIN; SNAP,PUSH ROD TO PEDAL M/T AISIN 5 SPEED(MA5),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP), M/T MUA 5 SPEED 5S(RSQ) 04.634	8-97311-594-0	01	1	0509-0609	●	●	●	●	●	●	●	●
11	00.833 PIN; SNAP,PUSH ROD TO PEDAL M/T AISIN 5 SPEED(MA5),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) ,M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ)	8-98007-161-0	01	1	0610-	●	●	●	●	●	●	●	●
12	00.841 BOLT; CLU PEDAL ADJ 6VE1 ENG(LX5) M/T MUA 5 SPEED 5G(RSP) EXC. AUTO CRUISE CONT<K30> M10X35	0-20851-035-0	01	1	0307-0508	●	●	●	●	●	●	●	●
12	00.841 BOLT; CLU PEDAL ADJ C24SE ENG(LG1),4JA1-T ENG(LP0) M10X35	0-20851-035-0	01	1	0307-0508	●		●	●	●	●	●	●
12	00.841 BOLT; CLU PEDAL ADJ 6VE1 ENG(LX5) M/T MUA 5 SPEED 5G(RSP) EXC. AUTO CRUISE CONT<K30> M10X35	0-20851-035-0	01	1	0509-0609	●	●	●	●	●	●	●	●
12	00.841 BOLT; CLU PEDAL ADJ M/T AISIN 5 SPEED(MA5) M10X35	0-20851-035-0	01	1	0509-0609	●	●	●	●	●	●	●	●
12	00.841 BOLT; CLU PEDAL ADJ C24SE ENG(LG1),4JA1-T ENG(LP0) M10X35	0-20851-035-0	01	1	0509-0609	●		●	●	●	●	●	●
12	00.841 BOLT; CLU PEDAL ADJ M/T AISIN 5 SPEED(MA5),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) ,M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) EXC. AUTO CRUISE CONT<K30> 02.277 M10X35 FLANGE	0-28651-035-0	01	1	0610-	●	●	●	●	●	●	●	●
13	00.844 SPRING; ASSIST,CLU PEDAL HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5)	8-92056-192-0	01	1	0509-0601	●	●	●	●	●	●	●	●
13	00.844 SPRING; ASSIST,CLU PEDAL HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5)	8-98054-943-0	01	1	0610-	●	●	●	●	●	●	●	●
13	00.844 SPRING; ASSIST,CLU PEDAL 6VE1 ENG(LX5),4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP)	8-97942-312-0	01	1	0307-0601	●	●	●	●	●	●	●	●
13	00.844 SPRING; ASSIST,CLU PEDAL C24SE ENG(LG1),4JA1-T ENG(LP0), 4JA1-TC ENG(L4Z)	8-97942-312-0	01	1	0307-0601	●		●	●	●	●	●	●
13	00.844 SPRING; ASSIST,CLU PEDAL C24SE ENG(LG1),4JA1-T ENG(LP0), 6VE1ENG(LX5),4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ)	8-97942-312-0	01	1	0602-0609	●	●	●	●	●	●	●	●
13	00.844 SPRING; ASSIST,CLU PEDAL HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5)	8-97942-312-0	01	1	0602-0609	●	●	●	●	●	●	●	●
13	00.844 SPRING; ASSIST,CLU PEDAL 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T MSG 5 SPEED(M75),M /T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ)	8-97942-312-0	01	1	0610-	●	●	●	●	●	●	●	●
14	00.829 BRACKET ASM; CLU PEDAL MTG HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5)	8-92067-059-0	01	1	0509-0601	●	●	●	●	●	●	●	●
14	00.829 BRACKET ASM; CLU PEDAL MTG 6VE1 ENG(LX5),4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP)	8-97942-310-0	01	1	0307-0601	●	●	●	●	●	●	●	●
14	00.829 BRACKET ASM; CLU PEDAL MTG C24SE ENG(LG1),4JA1-T ENG(LP0), 4JA1-TC ENG(L4Z)	8-97942-310-0	01	1	0307-0601	●		●	●	●	●	●	●
14	00.829 BRACKET ASM; CLU PEDAL MTG C24SE ENG(LG1),4JA1-T ENG(LP0), 6VE1ENG(LX5),4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ)	8-97942-310-0	01	1	0602-0609	●	●	●	●	●	●	●	●
14	00.829 BRACKET ASM; CLU PEDAL MTG HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5)	8-97942-310-0	01	1	0602-0609	●	●	●	●	●	●	●	●
14	00.829 BRACKET ASM; CLU PEDAL MTG M/T AISIN 5 SPEED(MA5),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) ,M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ)	8-97942-310-0	01	1	0610-	●	●	●	●	●	●	●	●
31	01.153 NUT; MTG BRKT TO BODY M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 01.062 M8 FLANGE	0-91180-108-0	04	1	0307-0508	●	●		●	●			●
31	01.153 NUT; MTG BRKT TO BODY 01.062 M8 FLANGE	0-91180-108-0	04	1	0307-0508			●			●	●
31	01.153 NUT; MTG BRKT TO BODY M/T AISIN 5 SPEED(MA5),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP), M/T MUA 5 SPEED 5S(RSQ) 01.062 M8 FLANGE	0-91180-108-0	04	1	0509-0609	●	●	●	●	●	●	●	●
31	01.153 NUT; MTG BRKT TO BODY M/T AISIN 5 SPEED(MA5),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) ,M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 01.062 M8 FLANGE	0-91180-108-0	04	1	0610-	●	●	●	●	●	●	●	●
32	00.777 NUT; BRKT TO CLU M/CYL 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	0307-	●	●	●	●	●	●	●	●
32	00.777 NUT; BRKT TO CLU M/CYL M/T AISIN 5 SPEED(MA5) 04.594 (B) M6 FLANGE	0-91150-106-0	02	1	0509-0603	●	●	●	●	●	●	●	●
32	00.777 NUT; BRKT TO CLU M/CYL M/T AISIN 5 SPEED(MA5) 01.062 (B) M6 FLANGE	0-91180-106-0	02	1	0604-	●	●	●	●	●	●	●	●
40	00.833 PIN; JOINT,CLU DAMPER M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) OD=7.9 L=27.5	8-97312-338-0	01	1	0307-0508	●	●		●	●			●
40	00.833 PIN; JOINT,CLU DAMPER OD=7.9 L=27.5	8-97312-338-0	01	1	0307-0508			●			●	●
40	00.833 PIN; JOINT,CLU DAMPER M/T AISIN 5 SPEED(MA5),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP), M/T MUA 5 SPEED 5S(RSQ) OD=7.9 L=27.5	8-97312-338-0	01	1	0509-0609	●	●	●	●	●	●	●	●
40	00.833 PIN; JOINT,CLU DAMPER M/T AISIN 5 SPEED(MA5),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) ,M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) OD=7.9 L=27.5	8-97312-338-0	01	1	0610-	●	●	●	●	●	●	●	●
42	04.054 SWITCH; CLU 4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) 03.636	8-97358-315-0	01	1	0307-0508	●	●	●	●	●	●	●	●
42	04.054 SWITCH; CLU 6VE1 ENG(LX5) M/T MUA 5 SPEED 5G(RSP) AUTO CRUISE CONT<K30> 03.636	8-97358-315-0	01	1	0307-0508	●		●		●	●		●
42	04.054 SWITCH; CLU 4JA1-TC ENG(L4Z) 03.636	8-97358-315-0	01	1	0307-0508			●		●		●	●
42	04.054 SWITCH; CLU 4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) 03.636	8-97358-315-0	01	1	0509-0609	●	●	●	●	●	●	●	●
42	04.054 SWITCH; CLU HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5) 03.636	8-97358-315-0	01	1	0509-0609	●	●	●	●	●			●
42	04.054 SWITCH; CLU 6VE1 ENG(LX5) M/T MUA 5 SPEED 5G(RSP) AUTO CRUISE CONT<K30> 03.636	8-97358-315-0	01	1	0509-0609	●		●		●	●		●
42	04.054 SWITCH; CLU 4JA1-TC ENG(L4Z) 03.636	8-97358-315-0	01	1	0509-0609			●		●		●	●
42	04.054 SWITCH; CLU M/T AISIN 5 SPEED(MA5),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) ,M/T MUA 5 SPEED 5G(RSP) AUTO CRUISE CONT<K30> 03.636	8-97358-315-0	01	1	0610-0709	●		●		●	●		●
42	04.054 SWITCH; CLU HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5) 03.636	8-97358-315-0	01	1	0710-	●	●	●	●	●	●	●	●
42	04.054 SWITCH; CLU M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T MUA 5 SPEED 5G(RSP) AUTO CRUISE CONT<K30> 03.636	8-97358-315-0	01	1	0710-	●		●		●	●		●
45	00.831 BUSHING; ASSIST SPRING,CLU PEDAL HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5) (C)	8-92054-635-0	02	1	0509-0601	●	●	●	●	●	●	●	●
45	00.831 BUSHING; ASSIST SPRING,CLU PEDAL 6VE1 ENG(LX5),4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) (A)	8-97942-313-0	02	1	0307-0601	●	●	●	●	●	●	●	●
45	00.831 BUSHING; ASSIST SPRING,CLU PEDAL C24SE ENG(LG1),4JA1-T ENG(LP0), 4JA1-TC ENG(L4Z) (A)	8-97942-313-0	02	1	0307-0601	●		●	●	●	●	●	●
45	00.831 BUSHING; ASSIST SPRING,CLU PEDAL C24SE ENG(LG1),4JA1-T ENG(LP0), 6VE1ENG(LX5),4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) (A)	8-97942-313-0	02	1	0602-0609	●	●	●	●	●	●	●	●
45	00.831 BUSHING; ASSIST SPRING,CLU PEDAL HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5) (A)	8-97942-313-0	02	1	0602-0609	●	●	●	●	●	●	●	●
45	00.831 BUSHING; ASSIST SPRING,CLU PEDAL 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T MSG 5 SPEED(M75),M /T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) (A)	8-97942-313-0	02	1	0610-	●	●	●	●	●	●	●	●
45	00.831 BUSHING; ASSIST SPRING,CLU PEDAL 6VE1 ENG(LX5),4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) (B)	8-97942-314-0	01	1	0307-0601	●	●	●	●	●	●	●	●
45	00.831 BUSHING; ASSIST SPRING,CLU PEDAL C24SE ENG(LG1),4JA1-T ENG(LP0), 4JA1-TC ENG(L4Z) (B)	8-97942-314-0	01	1	0307-0601	●		●	●	●	●	●	●
45	00.831 BUSHING; ASSIST SPRING,CLU PEDAL C24SE ENG(LG1),4JA1-T ENG(LP0), 6VE1ENG(LX5),4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) (B)	8-97942-314-0	01	1	0602-0609	●	●	●	●	●	●	●	●
45	00.831 BUSHING; ASSIST SPRING,CLU PEDAL HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5) (B)	8-97942-314-0	01	1	0602-0609	●	●	●	●	●	●	●	●
45	00.831 BUSHING; ASSIST SPRING,CLU PEDAL 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T MSG 5 SPEED(M75),M /T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) (B)	8-97942-314-0	01	1	0610-	●	●	●	●	●	●	●	●
59	00.833 NUT; CLU PEDAL ADJ 6VE1 ENG(LX5) M/T MUA 5 SPEED 5G(RSP) EXC. AUTO CRUISE CONT<K30> M10	0-91110-510-0	01	1	0307-0508	●	●	●	●	●	●	●	●
59	00.833 NUT; CLU PEDAL ADJ C24SE ENG(LG1),4JA1-T ENG(LP0) M10	0-91110-510-0	01	1	0307-0508	●		●	●	●	●	●	●
59	00.833 NUT; CLU PEDAL ADJ 6VE1 ENG(LX5) M/T MUA 5 SPEED 5G(RSP) EXC. AUTO CRUISE CONT<K30> M10	0-91110-510-0	01	1	0509-0609	●	●	●	●	●	●	●	●
59	00.833 NUT; CLU PEDAL ADJ M/T AISIN 5 SPEED(MA5) M10	0-91110-510-0	01	1	0509-0609	●	●	●	●	●	●	●	●
59	00.833 NUT; CLU PEDAL ADJ C24SE ENG(LG1),4JA1-T ENG(LP0) M10	0-91110-510-0	01	1	0509-0609	●		●	●	●	●	●	●
59	00.833 NUT; CLU PEDAL ADJ M/T AISIN 5 SPEED(MA5),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) ,M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) EXC. AUTO CRUISE CONT<K30> M10	0-91110-510-0	01	1	0610-	●	●	●	●	●	●	●	●
112	00.785 PLUG; METAL,M/CYL A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK)	8-97259-210-0	01	1	0307-0508	●	●		●	●			●
112	00.785 PLUG; METAL,M/CYL A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4SPEED-HMD,ELEC(M30),A/T AISIN(RMD) ,A/T 4 SPEED-JATCO(RMK)	8-97259-210-0	01	1	0509-0609	●			●	●			●
112	00.785 PLUG; METAL,M/CYL A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4SPEED-HMD,ELEC(M30),A/T AISIN(RMD) ,A/T 4 SPEED-JATCO(RMK)	8-97259-210-0	01	1	0610-	●	●	●	●	●
112	00.785 PLUG; METAL,M/CYL 4X4 EXTEND CAB LONG(TFS*CF) A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4SPEED-HMD,ELEC(M30),A/T AISIN(RMD) ,A/T 4 SPEED-JATCO(RMK)	8-97259-210-0	01	1	0610-						●
112	00.785 PLUG; METAL,M/CYL 4X4 CREW CAB LONG(TFS*WF) A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4SPEED-HMD,ELEC(M30),A/T AISIN(RMD) ,A/T 4 SPEED-JATCO(RMK)	8-97259-210-0	01	1	0610-								●
242	00.785 BOLT; BRKT,CLUTCH HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5)	8-92138-369-0	04	1	0509-0601	●	●	●	●	●	●	●	●

112 32 31 9 11 6 1 2 4 6 12 59 42 40 8 45 13 45 45 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	00.830 PEDAL; CLU HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5)	8-92157-195-0	01	1	0509-0601	●	●	●	●	●	●	●	●
1	00.830 PEDAL; CLU HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5)	8-98054-957-0	01	1	0610-	●	●	●	●	●	●	●	●
1	00.830 PEDAL; CLU 4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP)	8-97942-311-0	01	1	0307-0609	●	●	●	●	●	●	●	●
1	00.830 PEDAL; CLU C24SE ENG(LG1),4JA1-T ENG(LP0), 4JA1-TC ENG(L4Z)	8-97942-311-0	01	1	0307-0609	●		●	●	●	●	●	●
1	00.830 PEDAL; CLU 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M /T MUA 5 SPEED 5S(RSQ)	8-97942-311-0	01	1	0610-	●		●	●	●	●	●	●
1	00.830 PEDAL; CLU 6VE1 ENG(LX5) M/T MUA 5 SPEED 5G(RSP)	8-97942-742-0	01	1	0307-0508	●	●	●	●	●	●	●	●
1	00.830 PEDAL; CLU 6VE1 ENG(LX5) M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ)	8-97942-742-0	01	1	0509-0601								●
1	00.830 PEDAL; CLU HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5)	8-97942-742-0	01	1	0602-0609	●	●	●	●	●	●	●	●
1	00.830 PEDAL; CLU 6VE1 ENG(LX5) M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ)	8-97942-742-0	01	1	0602-0609								●
1	00.830 PEDAL; CLU 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ)	8-97942-742-0	01	1	0610-	●	●	●	●	●	●	●	●
2	04.630 COVER; CLU PEDAL HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5)	8-92004-809-0	01	1	0509-0601	●	●	●	●	●	●	●	●
2	04.630 COVER; CLU PEDAL 6VE1 ENG(LX5),4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP)	8-97318-799-0	01	1	0307-0601	●	●	●	●	●	●	●	●
2	04.630 COVER; CLU PEDAL C24SE ENG(LG1),4JA1-T ENG(LP0), 4JA1-TC ENG(L4Z)	8-97318-799-0	01	1	0307-0601	●		●	●	●	●	●	●
2	04.630 COVER; CLU PEDAL C24SE ENG(LG1),4JA1-T ENG(LP0), 6VE1ENG(LX5),4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ)	8-97318-799-0	01	1	0602-0609	●	●	●	●	●	●	●	●
2	04.630 COVER; CLU PEDAL HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5)	8-97318-799-0	01	1	0602-0609	●	●	●	●	●	●	●	●
2	04.630 COVER; CLU PEDAL M/T AISIN 5 SPEED(MA5),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) ,M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ)	8-97318-799-0	01	1	0610-	●	●	●	●	●	●	●	●
4	00.829 STOPPER; CLU PEDAL 6VE1 ENG(LX5),4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) 00.785	8-94463-258-0	01	1	0307-0601	●	●	●	●	●	●	●	●
4	00.829 STOPPER; CLU PEDAL C24SE ENG(LG1),4JA1-T ENG(LP0), 4JA1-TC ENG(L4Z) 00.785	8-94463-258-0	01	1	0307-0601	●		●	●	●	●	●	●
4	00.829 STOPPER; CLU PEDAL C24SE ENG(LG1),4JA1-T ENG(LP0), 6VE1ENG(LX5),4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 00.785	8-94463-258-0	01	1	0602-0609	●	●	●	●	●	●	●	●
4	00.829 STOPPER; CLU PEDAL HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5) 00.785	8-94463-258-0	01	1	0602-0609	●	●	●	●	●	●	●	●
4	00.829 STOPPER; CLU PEDAL M/T AISIN 5 SPEED(MA5),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) ,M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 00.785	8-94463-258-0	01	1	0610-	●	●	●	●	●	●	●	●
6	00.831 BUSHING; CLU PEDAL 6VE1 ENG(LX5),4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) 04.634	8-97301-688-0	02	1	0307-0601	●	●	●	●	●	●	●	●
6	00.831 BUSHING; CLU PEDAL C24SE ENG(LG1),4JA1-T ENG(LP0), 4JA1-TC ENG(L4Z) 04.634	8-97301-688-0	02	1	0307-0601	●		●	●	●	●	●	●
6	00.831 BUSHING; CLU PEDAL C24SE ENG(LG1),4JA1-T ENG(LP0), 6VE1ENG(LX5),4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 04.634	8-97301-688-0	02	1	0602-0609	●	●	●	●	●	●	●	●
6	00.831 BUSHING; CLU PEDAL HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5) 04.634	8-97301-688-0	02	1	0602-0609	●	●	●	●	●	●	●	●
6	00.831 BUSHING; CLU PEDAL M/T AISIN 5 SPEED(MA5),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) ,M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 04.634	8-97301-688-0	02	1	0610-	●	●	●	●	●	●	●	●
8	00.833 NUT; PIN TO PEDAL HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5)	8-92138-133-0	01	1	0509-0601	●	●	●	●	●	●	●	●
8	00.833 NUT; PIN TO PEDAL 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T MSG 5 SPEED(M75),M /T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 04.634 M10 LOCK NUT FLANGE	0-91380-010-0	01	1	0610-	●	●	●	●	●	●	●	●
8	00.833 NUT; PIN TO PEDAL 6VE1 ENG(LX5),4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) M10 LOCK NUT FLANGE	0-91303-610-0	01	1	0307-0601	●	●	●	●	●	●	●	●
8	00.833 NUT; PIN TO PEDAL C24SE ENG(LG1),4JA1-T ENG(LP0), 4JA1-TC ENG(L4Z) M10 LOCK NUT FLANGE	0-91303-610-0	01	1	0307-0601	●		●	●	●	●	●	●
8	00.833 NUT; PIN TO PEDAL C24SE ENG(LG1),4JA1-T ENG(LP0), 6VE1ENG(LX5),4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) M10 LOCK NUT FLANGE	0-91303-610-0	01	1	0602-0609	●	●	●	●	●	●	●	●
8	00.833 NUT; PIN TO PEDAL HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5) M10 LOCK NUT FLANGE	0-91303-610-0	01	1	0602-0609	●	●	●	●	●	●	●	●
8	00.833 NUT; PIN TO PEDAL HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5) M10 LOCK NUT FLANGE	0-91303-610-0	01	1	0610-	●	●	●	●	●	●	●	●
9	00.833 PIN; CLU PEDAL HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5)	8-92054-634-0	01	1	0509-0601	●	●	●	●	●	●	●	●
9	00.833 PIN; CLU PEDAL 6VE1 ENG(LX5),4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP)	8-97942-315-0	01	1	0307-0601	●	●	●	●	●	●	●	●
9	00.833 PIN; CLU PEDAL C24SE ENG(LG1),4JA1-T ENG(LP0), 4JA1-TC ENG(L4Z)	8-97942-315-0	01	1	0307-0601	●		●	●	●	●	●	●
9	00.833 PIN; CLU PEDAL C24SE ENG(LG1),4JA1-T ENG(LP0), 6VE1ENG(LX5),4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ)	8-97942-315-0	01	1	0602-0609	●	●	●	●	●	●	●	●
9	00.833 PIN; CLU PEDAL HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5)	8-97942-315-0	01	1	0602-0609	●	●	●	●	●	●	●	●
9	00.833 PIN; CLU PEDAL M/T AISIN 5 SPEED(MA5),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) ,M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ)	8-97942-315-0	01	1	0610-	●	●	●	●	●	●	●	●
11	00.833 PIN; SNAP,PUSH ROD TO PEDAL M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 04.634	8-97311-594-0	01	1	0307-0508	●	●		●	●			●
11	00.833 PIN; SNAP,PUSH ROD TO PEDAL 04.634	8-97311-594-0	01	1	0307-0508			●			●	●
11	00.833 PIN; SNAP,PUSH ROD TO PEDAL M/T AISIN 5 SPEED(MA5),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP), M/T MUA 5 SPEED 5S(RSQ) 04.634	8-97311-594-0	01	1	0509-0609	●	●	●	●	●	●	●	●
11	00.833 PIN; SNAP,PUSH ROD TO PEDAL M/T AISIN 5 SPEED(MA5),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) ,M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ)	8-98007-161-0	01	1	0610-	●	●	●	●	●	●	●	●
12	00.841 BOLT; CLU PEDAL ADJ 6VE1 ENG(LX5) M/T MUA 5 SPEED 5G(RSP) EXC. AUTO CRUISE CONT<K30> M10X35	0-20851-035-0	01	1	0307-0508	●	●	●	●	●	●	●	●
12	00.841 BOLT; CLU PEDAL ADJ C24SE ENG(LG1),4JA1-T ENG(LP0) M10X35	0-20851-035-0	01	1	0307-0508	●		●	●	●	●	●	●
12	00.841 BOLT; CLU PEDAL ADJ 6VE1 ENG(LX5) M/T MUA 5 SPEED 5G(RSP) EXC. AUTO CRUISE CONT<K30> M10X35	0-20851-035-0	01	1	0509-0609	●	●	●	●	●	●	●	●
12	00.841 BOLT; CLU PEDAL ADJ M/T AISIN 5 SPEED(MA5) M10X35	0-20851-035-0	01	1	0509-0609	●	●	●	●	●	●	●	●
12	00.841 BOLT; CLU PEDAL ADJ C24SE ENG(LG1),4JA1-T ENG(LP0) M10X35	0-20851-035-0	01	1	0509-0609	●		●	●	●	●	●	●
12	00.841 BOLT; CLU PEDAL ADJ M/T AISIN 5 SPEED(MA5),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) ,M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) EXC. AUTO CRUISE CONT<K30> 02.277 M10X35 FLANGE	0-28651-035-0	01	1	0610-	●	●	●	●	●	●	●	●
13	00.844 SPRING; ASSIST,CLU PEDAL HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5)	8-92056-192-0	01	1	0509-0601	●	●	●	●	●	●	●	●
13	00.844 SPRING; ASSIST,CLU PEDAL HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5)	8-98054-943-0	01	1	0610-	●	●	●	●	●	●	●	●
13	00.844 SPRING; ASSIST,CLU PEDAL 6VE1 ENG(LX5),4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP)	8-97942-312-0	01	1	0307-0601	●	●	●	●	●	●	●	●
13	00.844 SPRING; ASSIST,CLU PEDAL C24SE ENG(LG1),4JA1-T ENG(LP0), 4JA1-TC ENG(L4Z)	8-97942-312-0	01	1	0307-0601	●		●	●	●	●	●	●
13	00.844 SPRING; ASSIST,CLU PEDAL C24SE ENG(LG1),4JA1-T ENG(LP0), 6VE1ENG(LX5),4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ)	8-97942-312-0	01	1	0602-0609	●	●	●	●	●	●	●	●
13	00.844 SPRING; ASSIST,CLU PEDAL HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5)	8-97942-312-0	01	1	0602-0609	●	●	●	●	●	●	●	●
13	00.844 SPRING; ASSIST,CLU PEDAL 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T MSG 5 SPEED(M75),M /T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ)	8-97942-312-0	01	1	0610-	●	●	●	●	●	●	●	●
14	00.829 BRACKET ASM; CLU PEDAL MTG HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5)	8-92067-059-0	01	1	0509-0601	●	●	●	●	●	●	●	●
14	00.829 BRACKET ASM; CLU PEDAL MTG 6VE1 ENG(LX5),4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP)	8-97942-310-0	01	1	0307-0601	●	●	●	●	●	●	●	●
14	00.829 BRACKET ASM; CLU PEDAL MTG C24SE ENG(LG1),4JA1-T ENG(LP0), 4JA1-TC ENG(L4Z)	8-97942-310-0	01	1	0307-0601	●		●	●	●	●	●	●
14	00.829 BRACKET ASM; CLU PEDAL MTG C24SE ENG(LG1),4JA1-T ENG(LP0), 6VE1ENG(LX5),4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ)	8-97942-310-0	01	1	0602-0609	●	●	●	●	●	●	●	●
14	00.829 BRACKET ASM; CLU PEDAL MTG HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5)	8-97942-310-0	01	1	0602-0609	●	●	●	●	●	●	●	●
14	00.829 BRACKET ASM; CLU PEDAL MTG M/T AISIN 5 SPEED(MA5),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) ,M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ)	8-97942-310-0	01	1	0610-	●	●	●	●	●	●	●	●
31	01.153 NUT; MTG BRKT TO BODY M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 01.062 M8 FLANGE	0-91180-108-0	04	1	0307-0508	●	●		●	●			●
31	01.153 NUT; MTG BRKT TO BODY 01.062 M8 FLANGE	0-91180-108-0	04	1	0307-0508			●			●	●
31	01.153 NUT; MTG BRKT TO BODY M/T AISIN 5 SPEED(MA5),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP), M/T MUA 5 SPEED 5S(RSQ) 01.062 M8 FLANGE	0-91180-108-0	04	1	0509-0609	●	●	●	●	●	●	●	●
31	01.153 NUT; MTG BRKT TO BODY M/T AISIN 5 SPEED(MA5),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) ,M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 01.062 M8 FLANGE	0-91180-108-0	04	1	0610-	●	●	●	●	●	●	●	●
32	00.777 NUT; BRKT TO CLU M/CYL 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	0307-	●	●	●	●	●	●	●	●
32	00.777 NUT; BRKT TO CLU M/CYL M/T AISIN 5 SPEED(MA5) 04.594 (B) M6 FLANGE	0-91150-106-0	02	1	0509-0603	●	●	●	●	●	●	●	●
32	00.777 NUT; BRKT TO CLU M/CYL M/T AISIN 5 SPEED(MA5) 01.062 (B) M6 FLANGE	0-91180-106-0	02	1	0604-	●	●	●	●	●	●	●	●
40	00.833 PIN; JOINT,CLU DAMPER M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) OD=7.9 L=27.5	8-97312-338-0	01	1	0307-0508	●	●		●	●			●
40	00.833 PIN; JOINT,CLU DAMPER OD=7.9 L=27.5	8-97312-338-0	01	1	0307-0508			●			●	●
40	00.833 PIN; JOINT,CLU DAMPER M/T AISIN 5 SPEED(MA5),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP), M/T MUA 5 SPEED 5S(RSQ) OD=7.9 L=27.5	8-97312-338-0	01	1	0509-0609	●	●	●	●	●	●	●	●
40	00.833 PIN; JOINT,CLU DAMPER M/T AISIN 5 SPEED(MA5),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) ,M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) OD=7.9 L=27.5	8-97312-338-0	01	1	0610-	●	●	●	●	●	●	●	●
42	04.054 SWITCH; CLU 4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) 03.636	8-97358-315-0	01	1	0307-0508	●	●	●	●	●	●	●	●
42	04.054 SWITCH; CLU 6VE1 ENG(LX5) M/T MUA 5 SPEED 5G(RSP) AUTO CRUISE CONT<K30> 03.636	8-97358-315-0	01	1	0307-0508	●		●		●	●		●
42	04.054 SWITCH; CLU 4JA1-TC ENG(L4Z) 03.636	8-97358-315-0	01	1	0307-0508			●		●		●	●
42	04.054 SWITCH; CLU 4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) 03.636	8-97358-315-0	01	1	0509-0609	●	●	●	●	●	●	●	●
42	04.054 SWITCH; CLU HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5) 03.636	8-97358-315-0	01	1	0509-0609	●	●	●	●	●			●
42	04.054 SWITCH; CLU 6VE1 ENG(LX5) M/T MUA 5 SPEED 5G(RSP) AUTO CRUISE CONT<K30> 03.636	8-97358-315-0	01	1	0509-0609	●		●		●	●		●
42	04.054 SWITCH; CLU 4JA1-TC ENG(L4Z) 03.636	8-97358-315-0	01	1	0509-0609			●		●		●	●
42	04.054 SWITCH; CLU M/T AISIN 5 SPEED(MA5),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) ,M/T MUA 5 SPEED 5G(RSP) AUTO CRUISE CONT<K30> 03.636	8-97358-315-0	01	1	0610-0709	●		●		●	●		●
42	04.054 SWITCH; CLU HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5) 03.636	8-97358-315-0	01	1	0710-	●	●	●	●	●	●	●	●
42	04.054 SWITCH; CLU M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T MUA 5 SPEED 5G(RSP) AUTO CRUISE CONT<K30> 03.636	8-97358-315-0	01	1	0710-	●		●		●	●		●
45	00.831 BUSHING; ASSIST SPRING,CLU PEDAL HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5) (C)	8-92054-635-0	02	1	0509-0601	●	●	●	●	●	●	●	●
45	00.831 BUSHING; ASSIST SPRING,CLU PEDAL 6VE1 ENG(LX5),4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) (A)	8-97942-313-0	02	1	0307-0601	●	●	●	●	●	●	●	●
45	00.831 BUSHING; ASSIST SPRING,CLU PEDAL C24SE ENG(LG1),4JA1-T ENG(LP0), 4JA1-TC ENG(L4Z) (A)	8-97942-313-0	02	1	0307-0601	●		●	●	●	●	●	●
45	00.831 BUSHING; ASSIST SPRING,CLU PEDAL C24SE ENG(LG1),4JA1-T ENG(LP0), 6VE1ENG(LX5),4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) (A)	8-97942-313-0	02	1	0602-0609	●	●	●	●	●	●	●	●
45	00.831 BUSHING; ASSIST SPRING,CLU PEDAL HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5) (A)	8-97942-313-0	02	1	0602-0609	●	●	●	●	●	●	●	●
45	00.831 BUSHING; ASSIST SPRING,CLU PEDAL 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T MSG 5 SPEED(M75),M /T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) (A)	8-97942-313-0	02	1	0610-	●	●	●	●	●	●	●	●
45	00.831 BUSHING; ASSIST SPRING,CLU PEDAL 6VE1 ENG(LX5),4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) (B)	8-97942-314-0	01	1	0307-0601	●	●	●	●	●	●	●	●
45	00.831 BUSHING; ASSIST SPRING,CLU PEDAL C24SE ENG(LG1),4JA1-T ENG(LP0), 4JA1-TC ENG(L4Z) (B)	8-97942-314-0	01	1	0307-0601	●		●	●	●	●	●	●
45	00.831 BUSHING; ASSIST SPRING,CLU PEDAL C24SE ENG(LG1),4JA1-T ENG(LP0), 6VE1ENG(LX5),4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) (B)	8-97942-314-0	01	1	0602-0609	●	●	●	●	●	●	●	●
45	00.831 BUSHING; ASSIST SPRING,CLU PEDAL HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5) (B)	8-97942-314-0	01	1	0602-0609	●	●	●	●	●	●	●	●
45	00.831 BUSHING; ASSIST SPRING,CLU PEDAL 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T MSG 5 SPEED(M75),M /T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) (B)	8-97942-314-0	01	1	0610-	●	●	●	●	●	●	●	●
59	00.833 NUT; CLU PEDAL ADJ 6VE1 ENG(LX5) M/T MUA 5 SPEED 5G(RSP) EXC. AUTO CRUISE CONT<K30> M10	0-91110-510-0	01	1	0307-0508	●	●	●	●	●	●	●	●
59	00.833 NUT; CLU PEDAL ADJ C24SE ENG(LG1),4JA1-T ENG(LP0) M10	0-91110-510-0	01	1	0307-0508	●		●	●	●	●	●	●
59	00.833 NUT; CLU PEDAL ADJ 6VE1 ENG(LX5) M/T MUA 5 SPEED 5G(RSP) EXC. AUTO CRUISE CONT<K30> M10	0-91110-510-0	01	1	0509-0609	●	●	●	●	●	●	●	●
59	00.833 NUT; CLU PEDAL ADJ M/T AISIN 5 SPEED(MA5) M10	0-91110-510-0	01	1	0509-0609	●	●	●	●	●	●	●	●
59	00.833 NUT; CLU PEDAL ADJ C24SE ENG(LG1),4JA1-T ENG(LP0) M10	0-91110-510-0	01	1	0509-0609	●		●	●	●	●	●	●
59	00.833 NUT; CLU PEDAL ADJ M/T AISIN 5 SPEED(MA5),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) ,M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) EXC. AUTO CRUISE CONT<K30> M10	0-91110-510-0	01	1	0610-	●	●	●	●	●	●	●	●
112	00.785 PLUG; METAL,M/CYL A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK)	8-97259-210-0	01	1	0307-0508	●	●		●	●			●
112	00.785 PLUG; METAL,M/CYL A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4SPEED-HMD,ELEC(M30),A/T AISIN(RMD) ,A/T 4 SPEED-JATCO(RMK)	8-97259-210-0	01	1	0509-0609	●			●	●			●
112	00.785 PLUG; METAL,M/CYL A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4SPEED-HMD,ELEC(M30),A/T AISIN(RMD) ,A/T 4 SPEED-JATCO(RMK)	8-97259-210-0	01	1	0610-	●	●	●	●	●
112	00.785 PLUG; METAL,M/CYL 4X4 EXTEND CAB LONG(TFS*CF) A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4SPEED-HMD,ELEC(M30),A/T AISIN(RMD) ,A/T 4 SPEED-JATCO(RMK)	8-97259-210-0	01	1	0610-						●
112	00.785 PLUG; METAL,M/CYL 4X4 CREW CAB LONG(TFS*WF) A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4SPEED-HMD,ELEC(M30),A/T AISIN(RMD) ,A/T 4 SPEED-JATCO(RMK)	8-97259-210-0	01	1	0610-								●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
