1-50B — EXHAUST PIPE AND SILENCER (#20402) — 79 parça

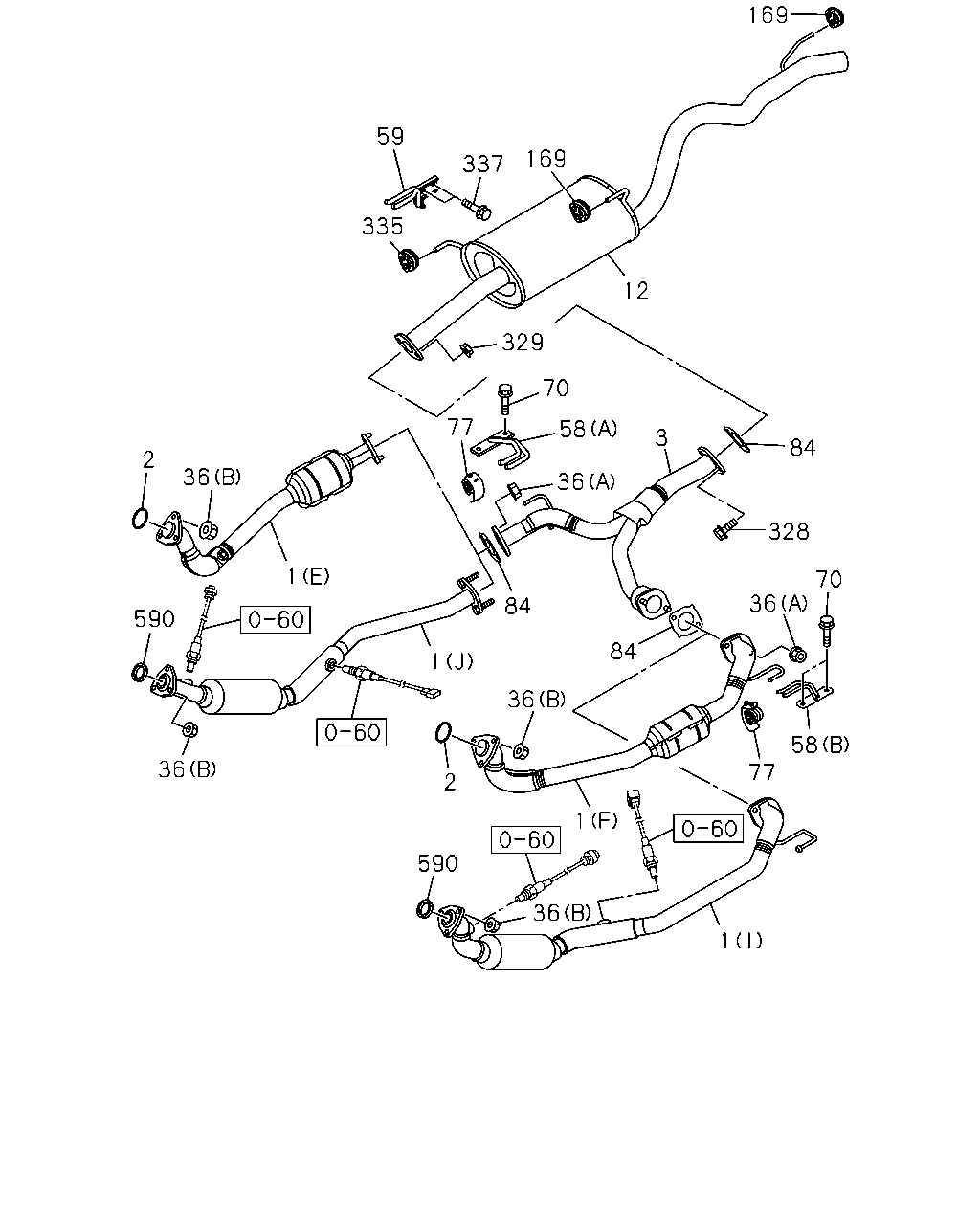

çizim 53853
59 335 337 169 12 329 70 77 58 36 3 84 328 70 36 58 77 84 84 1 36 2 1 1 36 590 36 590 36 2 1 169
BalonParca AdiParca NoAdetTipApplied Date A B
1 03.609 PIPE; EXH
4X2 CREW CAB(TFB*W*) MALAYSIA EQUIPMENT(B10) EURO2 SPECIFICATION<NT2> HIGH RIDE SUSPENSION(7YC) (J) 		8-98008-408-0 01 1 1006- ● ●
1 03.609 PIPE; EXH
4X4 CREW CAB(TFS*W*) AUSTRALIA EQUIPMENT(B13) EURO2 SPECIFICATION<NT2> (J) 		8-98008-408-0 01 1 1006- ● ●
1 03.609 PIPE; EXH
(F) 		8-97235-492-0 01 1 0307-0609 ●
1 03.609 PIPE; EXH
(E) 		8-97235-491-0 01 1 0307-0609 ●
1 03.609 PIPE; EXH
(I) 		8-98019-291-0 01 1 0509- ●
1 03.609 PIPE; EXH
(J) 		8-98019-292-0 01 1 0509- ●
2 03.611 GASKET; PIPE TO MANIF 8-97102-031-1 02 1 0307-0609 ●
3 03.609 PIPE; EXH,CENTER
LONG(TF***F) 		8-97352-922-0 01 1 0307-0508 ●
3 03.609 PIPE; EXH,CENTER
LONG(TF***F) 		8-97352-922-0 01 1 0509-0609 ● ●
3 03.609 PIPE; EXH,CENTER
LONG(TF***F) 		8-97352-922-0 01 1 0610- ●
3 03.609 PIPE; EXH,CENTER
EXTRA LONG(TF***K) 		8-97352-923-0 01 1 0307-0508 ●
3 03.609 PIPE; EXH,CENTER
EXTRA LONG(TF***K) 		8-97352-923-0 01 1 0509- ● ●
12 03.701 SILENCER ASM; EXH 8-97328-991-0 01 1 0307-0508 ●
12 03.701 SILENCER ASM; EXH 8-97328-991-0 01 1 0509-0609 ● ●
12 03.701 SILENCER ASM; EXH 8-97328-991-0 01 1 0610- ●
36 03.613 NUT; EXH PIPE
03.162 (A) M10 FLANGE 		0-91180-110-0 04 1 0307-0508 ●
36 03.613 NUT; EXH PIPE
03.162 (A) M10 FLANGE 		0-91180-110-0 04 1 0509-0609 ● ●
36 03.613 NUT; EXH PIPE
03.162 (A) M10 FLANGE 		0-91180-110-0 04 1 0610- ●
36 03.613 NUT; EXH PIPE
(B) M12 FLANGE 		8-97170-524-1 06 1 0307-0609 ●
36 03.613 NUT; EXH PIPE
(B) 		8-11094-432-0 06 1 0509- ●
58 03.613 BRACKET; EXH PIPE,RR
(A) 		8-97368-450-0 01 1 0307-0508 ●
58 03.613 BRACKET; EXH PIPE,RR
(A) 		8-97368-450-0 01 1 0509-0609 ● ●
58 03.613 BRACKET; EXH PIPE,RR
(A) 		8-97368-450-0 01 1 0610-0612 ●
58 03.613 BRACKET; EXH PIPE,RR
(A) 		8-97368-450-0 01 1 0701-0912 ●
58 03.613 BRACKET; EXH PIPE,RR
(A) 		8-97368-450-0 01 1 1001- ●
58 03.613 BRACKET; EXH PIPE,RR
(B) 		8-97368-508-0 01 1 0307-0508 ●
58 03.613 BRACKET; EXH PIPE,RR
(B) 		8-97368-508-0 01 1 0509-0609 ● ●
58 03.613 BRACKET; EXH PIPE,RR
(B) 		8-97368-508-0 01 1 0610- ●
59 03.704 BRACKET; EXH SILENCER,FRT 8-97365-312-0 01 1 0307-0508 ●
59 03.704 BRACKET; EXH SILENCER,FRT 8-97365-312-0 01 1 0509-0609 ● ●
59 03.704 BRACKET; EXH SILENCER,FRT 8-97365-312-0 01 1 0610- ●
70 03.706 BOLT; BRKT
03.690 M10X28 W/LK&PL WASHER 		8-97104-788-1 04 1 0307-0508 ●
70 03.706 BOLT; BRKT
03.690 M10X28 W/LK&PL WASHER 		8-97104-788-1 04 1 0509-0608 ● ●
70 03.706 BOLT; BRKT
M10X28 W/LK&PL WASHER 		8-98050-928-0 04 1 0609-0609 ● ●
70 03.706 BOLT; BRKT
M10X28 W/LK&PL WASHER 		8-98050-928-0 04 1 0610- ●
77 03.613 RUBBER; CUSHION,BRKT 8-97330-412-0 02 1 0307-0508 ●
77 03.613 RUBBER; CUSHION,BRKT 8-97330-412-0 02 1 0509-0609 ● ●
77 03.613 RUBBER; CUSHION,BRKT 8-97330-412-0 02 1 0610- ●
84 03.611 GASKET; EXH PIPE
ID=65 		8-97263-052-0 01 1 0307-0609 ●
84 03.611 GASKET; EXH PIPE
ID=65 		8-97263-052-0 01 1 0610-0612 ●
84 03.611 GASKET; EXH PIPE
4X4(TFS***) ID=65 		8-97263-052-0 01 1 0701-0912 ●
84 03.611 GASKET; EXH PIPE
ID=65 		8-97263-052-0 01 1 1001- ●
84 03.611 GASKET; EXH PIPE
ID=65 		8-97263-052-0 02 1 0307-0508 ●
84 03.611 GASKET; EXH PIPE
ID=65 		8-97263-052-0 02 1 0509-0609 ● ●
84 03.611 GASKET; EXH PIPE
ID=65 		8-97263-052-0 02 1 0610- ●
169 03.706 RING; DAMPER,EXH PIPE 8-97289-169-0 02 1 0307-0508 ●
169 03.706 RING; DAMPER,EXH PIPE 8-97289-169-0 02 1 0509-0609 ● ●
169 03.706 RING; DAMPER,EXH PIPE 8-97289-169-0 02 1 0610- ●
328 03.613 BOLT; EXH PIPE TO PIPE
M10X40 FLANGE 		0-28651-040-0 02 1 0307-0508 ●
328 03.613 BOLT; EXH PIPE TO PIPE
M10X40 FLANGE 		0-28651-040-0 02 1 0509-0609 ● ●
328 03.613 BOLT; EXH PIPE TO PIPE
M10X40 FLANGE 		0-28651-040-0 02 1 0610- ●
329 03.613 NUT; EXH PIPE TO PIPE
03.162 M10 FLANGE 		0-91180-110-0 02 1 0307-0508 ●
329 03.613 NUT; EXH PIPE TO PIPE
03.162 M10 FLANGE 		0-91180-110-0 02 1 0509-0609 ● ●
329 03.613 NUT; EXH PIPE TO PIPE
03.162 M10 FLANGE 		0-91180-110-0 02 1 0610- ●
335 03.706 RUBBER; SUPPORT,SILENCER 8-97289-169-0 01 1 0307-0508 ●
335 03.706 RUBBER; SUPPORT,SILENCER 8-97289-169-0 01 1 0509-0609 ● ●
335 03.706 RUBBER; SUPPORT,SILENCER 8-97289-169-0 01 1 0610- ●
337 03.706 BOLT; RUBBER,SUPPORT
03.690 M10X28 W/LK&PL WASHER 		8-97104-788-1 02 1 0307-0508 ●
337 03.706 BOLT; RUBBER,SUPPORT
03.690 M10X28 W/LK&PL WASHER 		8-97104-788-1 02 1 0509-0608 ● ●
337 03.706 BOLT; RUBBER,SUPPORT
M10X28 W/LK&PL WASHER 		8-98050-928-0 02 1 0609-0609 ● ●
337 03.706 BOLT; RUBBER,SUPPORT
M10X28 W/LK&PL WASHER 		8-98050-928-0 02 1 0610- ●
590 03.704 SEAL; EXH PIPE 8-98000-456-0 02 1 0509- ●

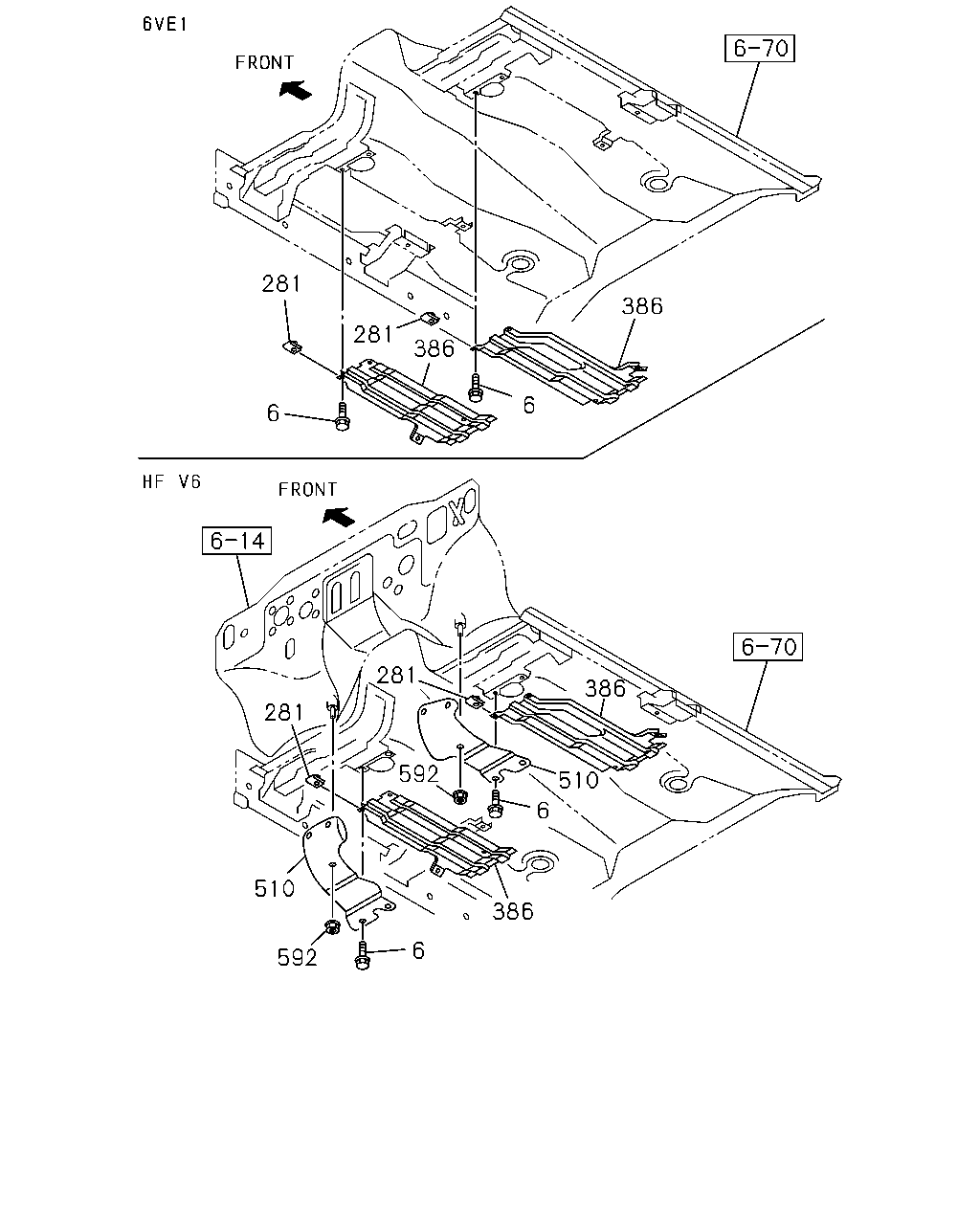

çizim 53936
386 510 6 386 6 592 510 592 281 281 6 386 386 281 6 281
BalonParca AdiParca NoAdetTipApplied Date A B
6 03.685 BOLT; HEAT PROTECTOR
04.439 M6X16 FLANGE 		0-28680-616-0 08 1 0307-0508 ●
6 03.685 BOLT; HEAT PROTECTOR
04.439 M6X16 FLANGE 		0-28680-616-0 08 1 0509-0601 ● ●
6 03.685 BOLT; HEAT PROTECTOR
02.343 M6X16 FLANGE 		0-28650-616-0 08 1 0602-0609 ● ●
6 03.685 BOLT; HEAT PROTECTOR
02.343 M6X16 FLANGE 		0-28650-616-0 08 1 0610- ●
281 03.685 NUT; HEAT PROTECTOR
08.143 		8-94334-769-0 04 1 0307-0508 ●
281 03.685 NUT; HEAT PROTECTOR
08.143 		8-94334-769-0 04 1 0509-0609 ● ●
281 03.685 NUT; HEAT PROTECTOR
08.143 		8-94334-769-0 04 1 0610-0612 ●
281 03.685 NUT; HEAT PROTECTOR 8-98056-302-0 04 1 0701- ●
386 03.602 PANEL; HEAT PROTECTOR 8-97333-705-1 01 1 0307-0508 ●
386 03.602 PANEL; HEAT PROTECTOR 8-97333-705-1 01 1 0509-0609 ● ●
386 03.602 PANEL; HEAT PROTECTOR 8-97333-705-1 01 1 0610- ●
386 03.602 PANEL; HEAT PROTECTOR 8-97333-704-1 01 1 0307-0508 ●
386 03.602 PANEL; HEAT PROTECTOR 8-97333-704-1 01 1 0509-0609 ● ●
386 03.602 PANEL; HEAT PROTECTOR 8-97333-704-1 01 1 0610- ●
510 03.616 SHIELD; HEAT 8-98012-210-0 01 1 0509- ●
510 03.616 SHIELD; HEAT 8-98012-209-0 01 1 0509- ●
592 03.613 NUT; HEAT SHIELD
03.609 M6 FLANGE 		8-11063-473-0 06 1 0509- ●
